The Mechanism of Oxide Growth on Pure Aluminum in Ultra-High-Temperature Steam
Abstract
:1. Introduction
2. Materials and Methods
2.1. Experimental Materials and Process
2.2. Analysis and Characterization
3. Results and Discussion
3.1. Effects of High-Temperature Water Vapor on the Aluminum Surface Chemical State
3.2. Effects of High Temperature Water Vapor on the Aluminum Surface Morphology
3.3. The Corrosive Layer Structure of an Aluminum Sheet Corroded by High Temperature Water Vapor
4. Conclusions

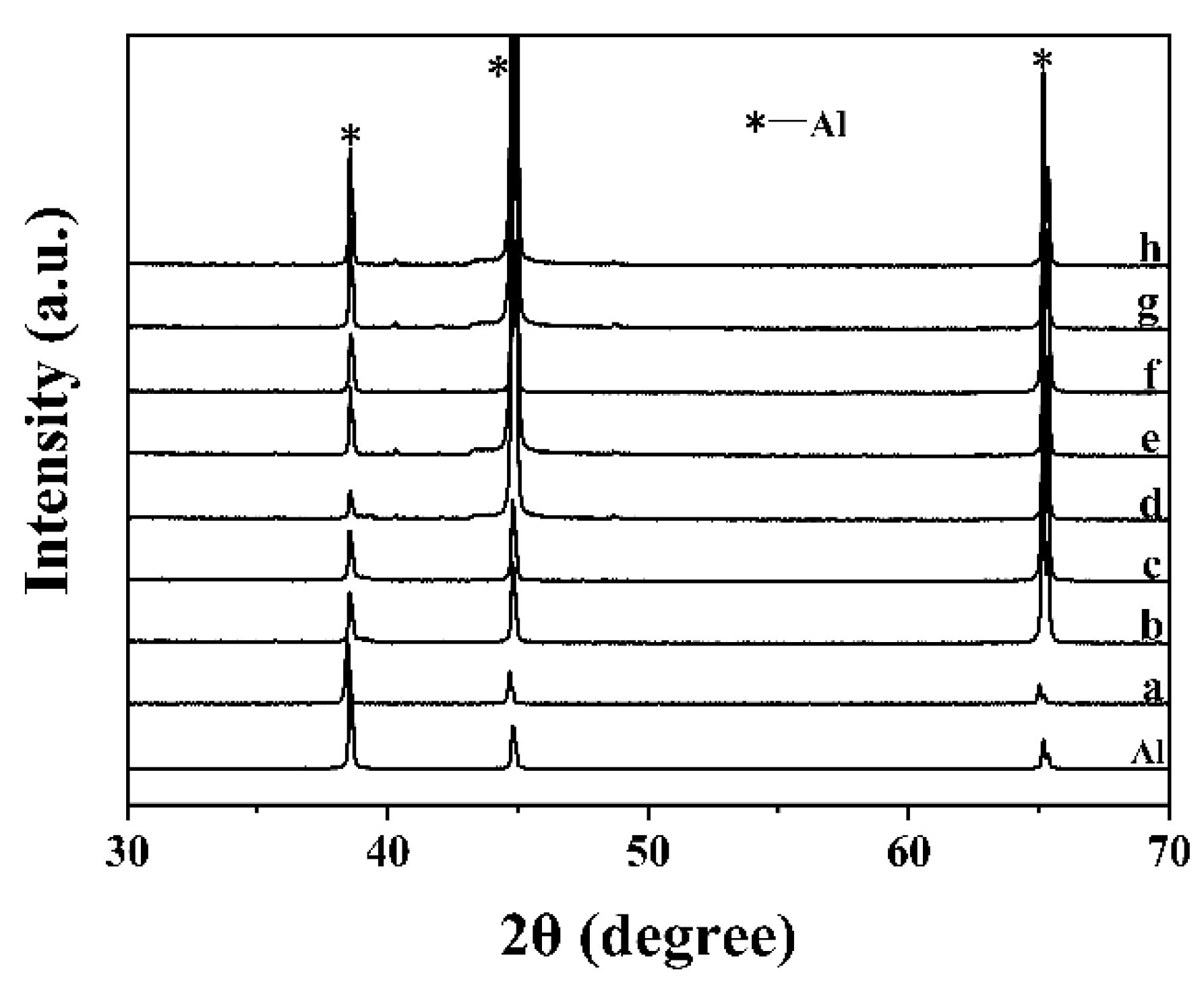

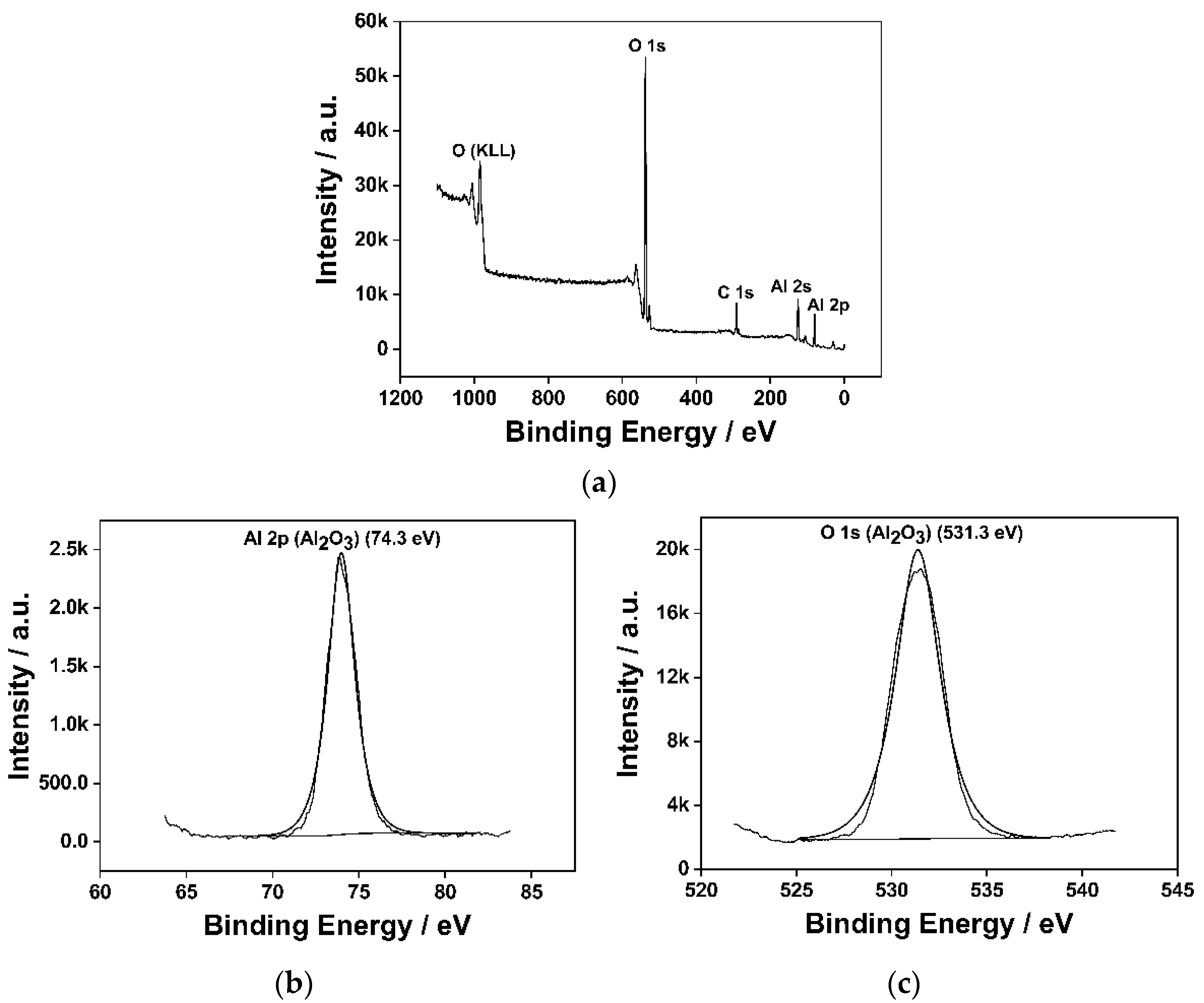

- The oxide phase cannot be detected by XRD for an aluminum sheet after 5 min of reaction with high temperature water vapor, indicating that the oxide crystals are nearly amorphous with too low crystallization, resulting in a too small peak strength. The chemical state of the oxide can be detected very well by XPS, and the oxidation product can be determined as Al2O3.
- The needle-like nano-oxidation product is produced at 300 °C on the Al sheet surface after the reaction of the aluminum sheet with high temperature water vapor. The needle-like nano-oxidation gradually is gradually thickened with the temperature rising. Combined with adjacent needle-like oxides after contact, it gradually forms flaky and granular oxide products, so that the aluminum surface presents a porous state as a whole.
- The section analysis reveals that no significant inward oxidizing corrosion layer occurs in the aluminum substrate below the needle-like oxide on the aluminum sheet surface, indicating that the compact oxide layer forms between the needle-like oxide and the aluminum sheet substrate, and it can effectively prevent the infiltration and corrosion of water molecules.
Author Contributions
Funding
Institutional Review Board Statement
Informed Consent Statement
Data Availability Statement
Conflicts of Interest
References
- Nalivaiko, A.Y.; Arnautov, A.N.; Zmanovsky, S.V.; Ozherelkov, D.Y.; Gromov, A.A. Al–Al2O3 powder composites obtained by hydrothermal oxidation method: Powders and sintered samples characterization. J. Alloys Compd. 2020, 825, 154024. [Google Scholar] [CrossRef]
- Liu, X.G.; Mao, Q.S.; Jiang, Y.; Li, Y.; Sun, J.L.; Huang, F.X. Preparation of Al2O3–SiO2 composite aerogels and their cu2+absorption properties. Int. J. Miner. Metall. Mater. 2021, 28, 317–324. [Google Scholar] [CrossRef]
- Tishkevich, D.I.; Vorobjova, A.I.; Trukhanov, A.V. Thermal stability of nano-crystalline nickel electrodeposited into porous alumina. Solid State Phenom. 2020, 299, 281–286. [Google Scholar] [CrossRef]
- Saa, B.; Iac, D.; Za, A.; Aj, E.; Mna, F.; As, A. Fabrication and corrosion inhibition behavior of hierarchical Al-Cr Co-doped magnesium ferrites nanomaterial for steel. Surf. Coat. Technol. 2021, 405, 126687. [Google Scholar]
- Yaokawa, J.; Oh-Ishi, K.; Dong, S. Estimation of dimensional change of Al–10Si–Mg alloy castings during heat treatment. Mater. Trans. 2021, 62, 1023–1029. [Google Scholar] [CrossRef]
- Sadatoshi; Koroyasu. Effects of reduced pressure, casting design and heat transfer resistance of liquid resin on mold filling in expendable pattern casting process of aluminum alloy. Mater. Trans. 2020, 61, 528–533. [Google Scholar] [CrossRef] [Green Version]
- Xing, L.; Zheng, Y.; Cui, L.; Sun, M.; Shao, M.; Lu, G. Formation of alumina layer on fe-cr-ni alloy by pack cementation and oxidation. High Temp. Mater. Processes 2011, 30, 99–103. [Google Scholar] [CrossRef]
- Muhammad, R.; Motohiro, Y.; Hiroyuki, M. Enhanced corrosion resistance of ultrafine-grained Fe-Cr alloys with subcritical cr contents for passivity. Metals 2018, 8, 149. [Google Scholar]
- Qiao, L.; Bao, A.; Wang, Y.; Liu, Y.; Zhu, J. Thermophysical properties and high temperature oxidation behavior of fecrnial 0.5 multi-component alloys. Intermetallics 2020, 126, 106899. [Google Scholar] [CrossRef]
- Stallybrass, C.; Schneider, A.; Sauthoff, G. The strengthening effect of (Ni,Fe)Al precipitates on the mechanical properties at high temperatures of ferritic Fe–Al–Ni–Cr alloys. Intermetallics 2005, 13, 1263–1268. [Google Scholar] [CrossRef]
- Pei-Qing, L.A.; Li, Z.; Liu, Z.Y.; Wang, W.G.; Yan, F.Y.; Yuan, H. Effect of aluminum on microstructure of hp40 alloy. J. Iron Steel Res. Int. 2008, 14, 373–377. [Google Scholar]
- Shao, L.; Shi, Y.; Huang, J.K.; Wu, S.J. Effect of joining parameters on microstructure of dissimilar metal joints between aluminum and galvanized steel. Mater. Des. 2015, 66, 453–458. [Google Scholar] [CrossRef]
- Peng, S.; Tian, D.; Miao, X.; Yang, X.; Deng, W. Designing robust alumina nanowires-on-nanopores structures: Superhydrophobic surfaces with slippery or sticky water adhesion. J. Colloid Interface Sci. 2013, 409, 18–24. [Google Scholar] [CrossRef] [PubMed]
- Lee, M.H.; Lim, N.; Ruebusch, D.J.; Jamshidi, A.; Kapadia, R.; Lee, R.; Seok, T.J.; Takei, K.; Cho, K.Y.; Fan, Z. Roll-to-roll anodization and etching of aluminum foils for high-throughput surface nanotexturing. Nano Lett. 2011, 11, 3425–3430. [Google Scholar] [CrossRef] [PubMed]
- Rambabu, G.; Naik, D.B.; Rao, C.; Rao, K.S.; Reddy, G.M. Optimization of friction stir welding parameters for improved corrosion resistance of aa2219 aluminum alloy joints. Def. Technol. 2015, 11, 330–337. [Google Scholar] [CrossRef] [Green Version]
- Xue, H.W.; Cheng, Y.L.; Chen, G.; He, L.; Cao, H. Preparation and thermal stability of porous alumina membranes with nano-pore arrays. Appl. Phys. A Mater. Sci. Processing 2010, 98, 745–749. [Google Scholar]
- Syed, R.; Sen, D.; Krishna, K.V.M.; Ghosh, S. Fabrication of highly ordered nanoporous alumina membranes: Probing microstructures by saxs, fesem and afm. Microporous Mesoporous Mater. 2018, 264, 13–21. [Google Scholar] [CrossRef]
- Yilbas, B.S.; Arif, A.F.M.; Karatas, C. Laser treatment of silicon at nitrogen ambient: Thermal stress analysis. Surf. Eng. 2011, 27, 436–444. [Google Scholar] [CrossRef]
- Guilemany, J.M.; Cinca, N.; Dosta, S.; Lima, C. High-temperature oxidation of fe40al coatings obtained by hvof thermal spray. Intermetallics 2007, 15, 1384–1394. [Google Scholar] [CrossRef]
- Feng, W.; Wang, Q.; Kong, Q.; Zhu, X.; Wu, J.; Sun, C. Influence of high-temperature water vapor on titanium film surface. Oxid. Met. 2016, 86, 179–192. [Google Scholar] [CrossRef]
- Leinen, D.; Lassaletta, G.; Fernandez, A.; Caballero, A.; Gonzalez-Elipe, A.R.; Martin, J.M.; Vacher, B. Ion beam induced chemical vapor deposition procedure for the preparation of oxide thin films. Ii. Preparation and characterization of alxtiyoz thin films. J. Vac. Sci. Technol. A Vac. Surf. Film. 1996, 14, 2842–2848. [Google Scholar] [CrossRef]
- Kathirvel, P.; Chandrasekaran, J.; Manoharan, D.; Kumar, S. Preparation and characterization of alpha alumina nanoparticles by in-flight oxidation of flame synthesis. J. Alloy. Compd. 2013, 590, 341–345. [Google Scholar] [CrossRef]
- Oja, M.; Feldbach, E.; Kirm, M. Relaxation of intrinsic and extrinsic electronic excitations in nano- and micro-size alumina. Opt. Mater. 2019, 91, 120–125. [Google Scholar] [CrossRef]
- Zhou, D.Q.; Zhao, W.X.; Mao, H.H.; Hu, Y.X.; Xu, X.Q.; Sun, X.Y.; Lu, Z.P. Precipitate characteristics and their effects on the high-temperature creep resistance of alumina-forming austenitic stainless steels. Mater. Sci. Eng. A. 2015, 622, 91–100. [Google Scholar] [CrossRef]
- Zheng, Q.; Wu, J.; Jiang, H.; Zhang, L.; Zhao, J.; He, J. Effect of micro-alloying element la on corrosion behavior of Al-Mg-Si alloys. Corros. Sci. 2021, 179, 109–113. [Google Scholar] [CrossRef]
- Wang, J.; Liu, S.; Bai, X.; Zhou, X.; Han, X. Oxidation behavior of fe-al-cr alloy at high temperature: Experiment and a first principle study. Vacuum 2019, 173, 109144. [Google Scholar] [CrossRef]
