Figure 1.

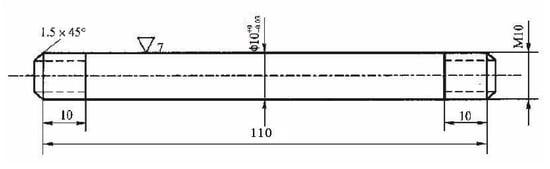

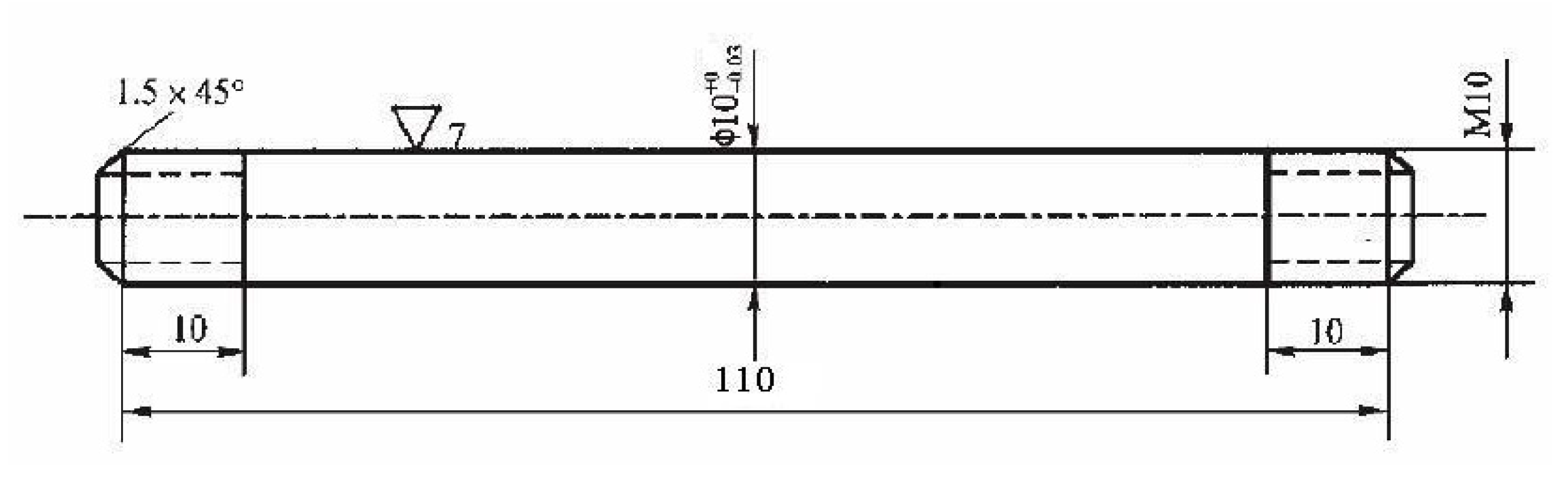

Dimensions (mm) of high-temperature tensile specimens.
Figure 2.

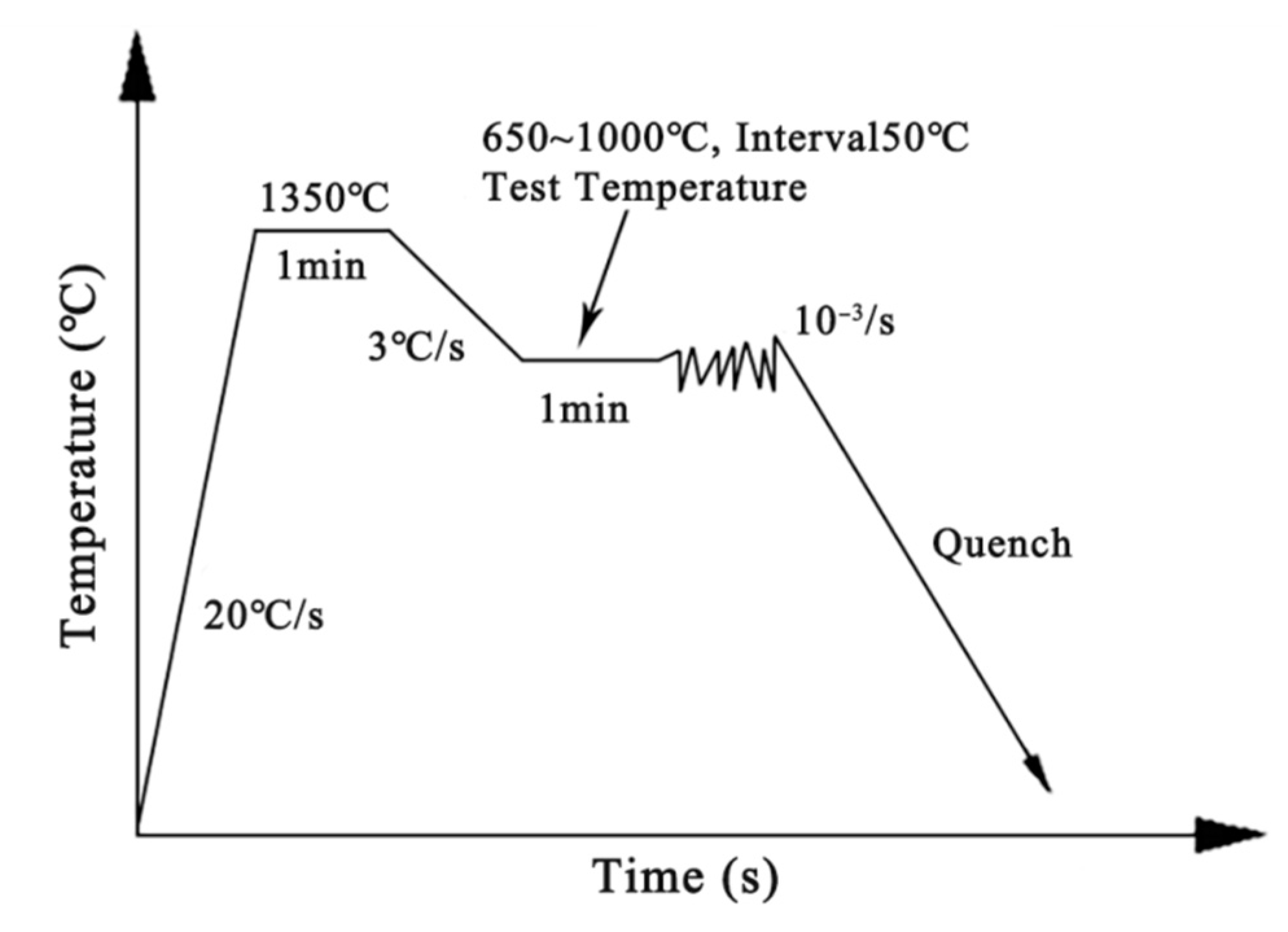

Schematic diagram of the tensile test process.
Figure 3.

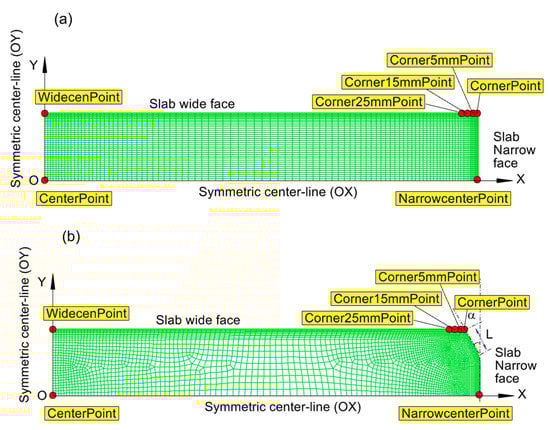

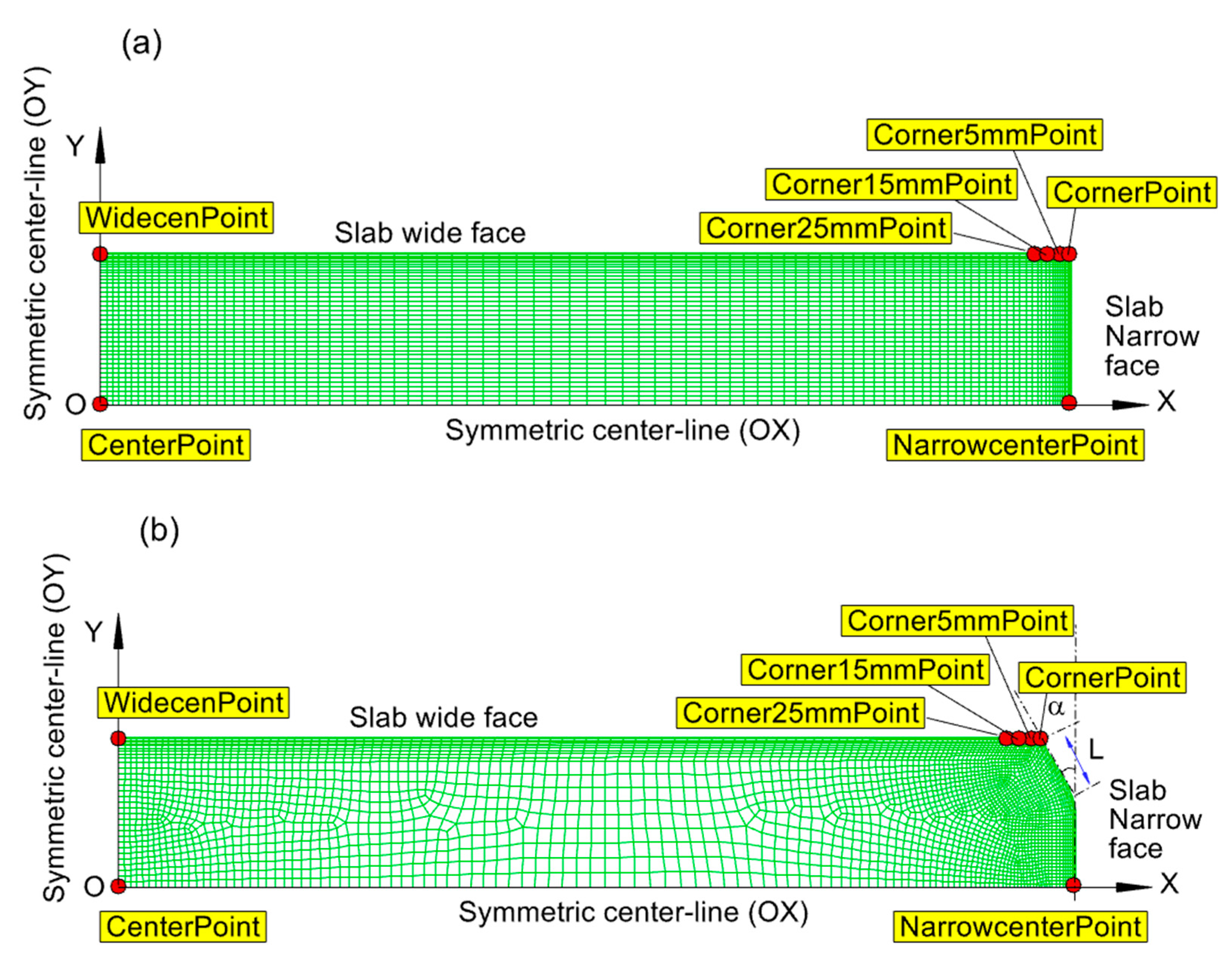

Geometry, mesh system and monitoring points for: (a) conventional slab ( 0°, ); (b) chamfered slab ( 30°, ).
Figure 4.

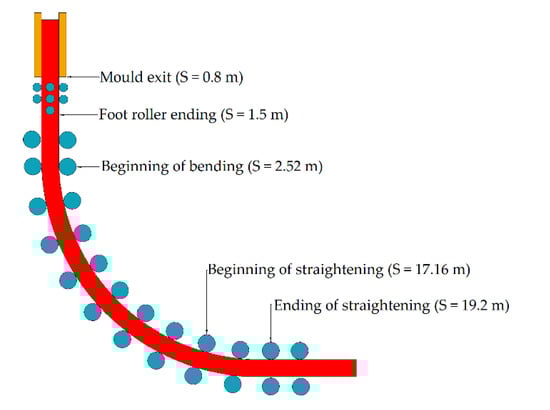

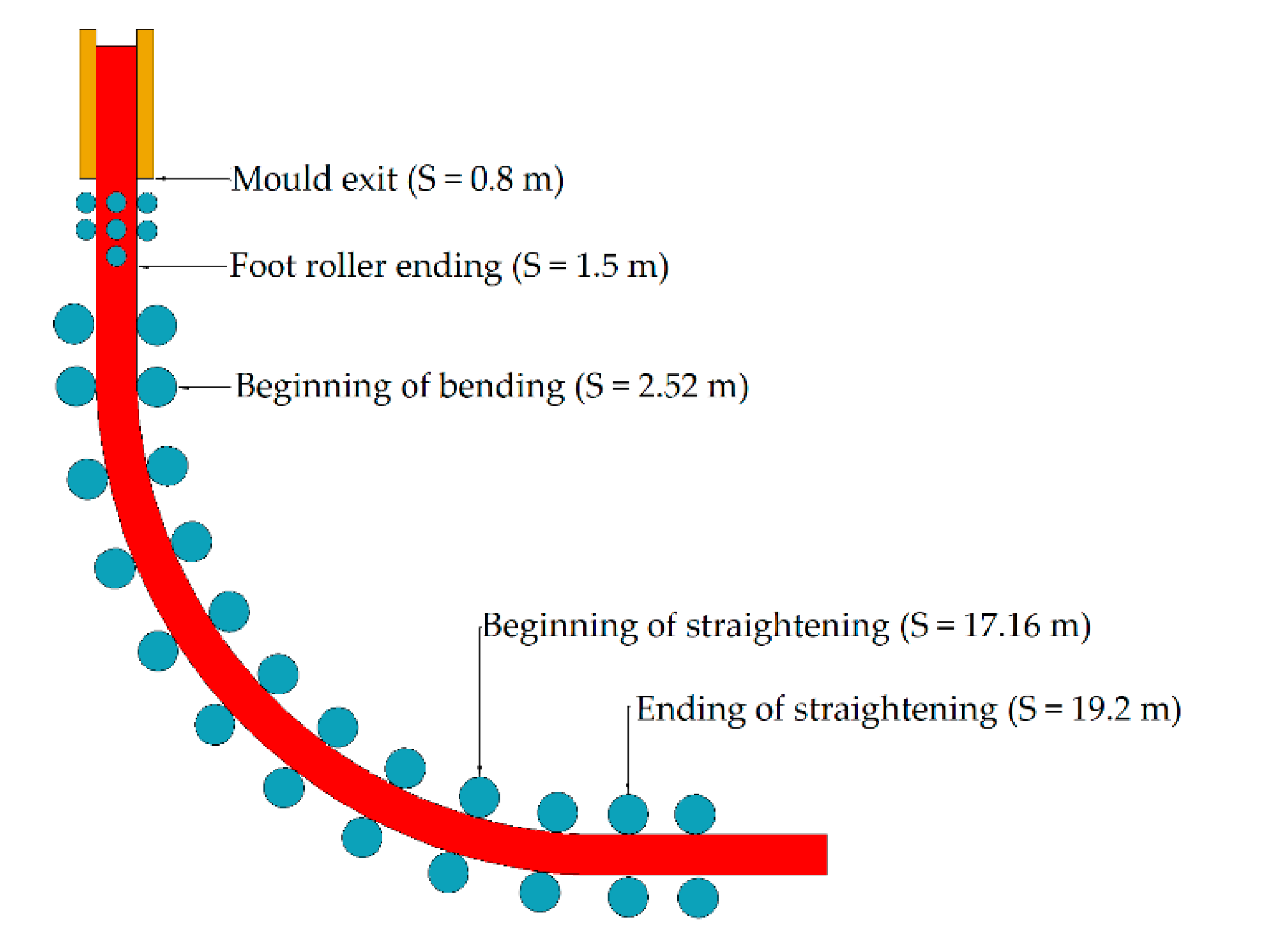

Schematic drawing of key characteristic positions.
Figure 5.

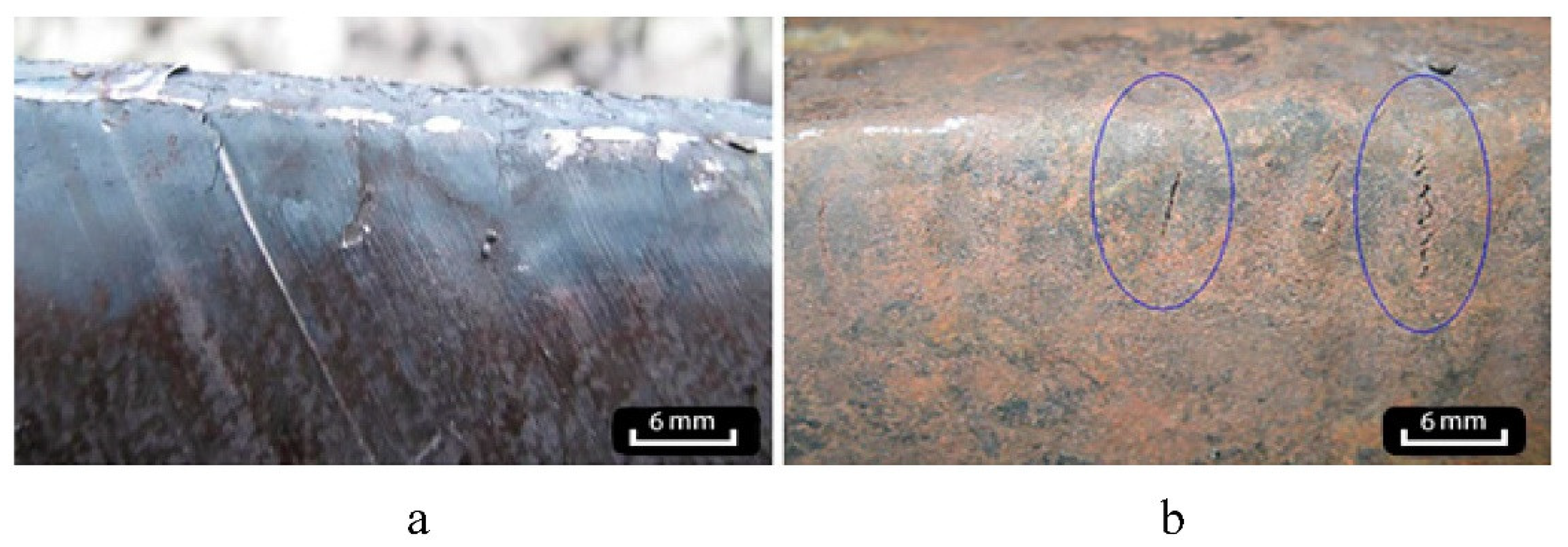

Transverse corner cracks in a typical micro-alloyed steel of a right-angle slab. (a) Transverse corner cracks; (b) cracks at a distance of 5–15 mm from the corners.
Figure 6.

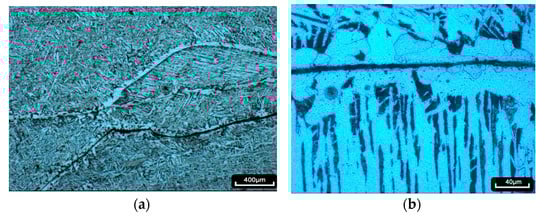

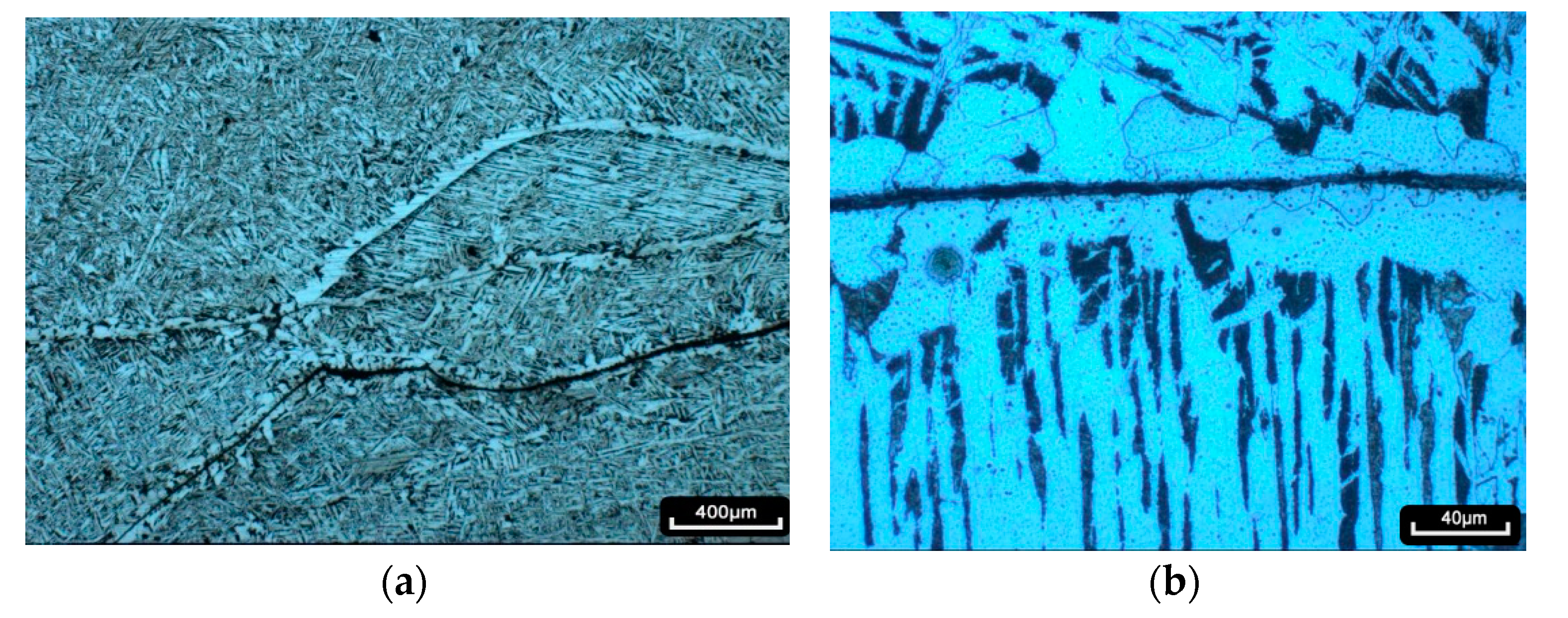

Microstructure of the crack. (a) Pro-eutectoid ferrite film generated along the grain boundary; (b) enlarged crack morphology.
Figure 7.

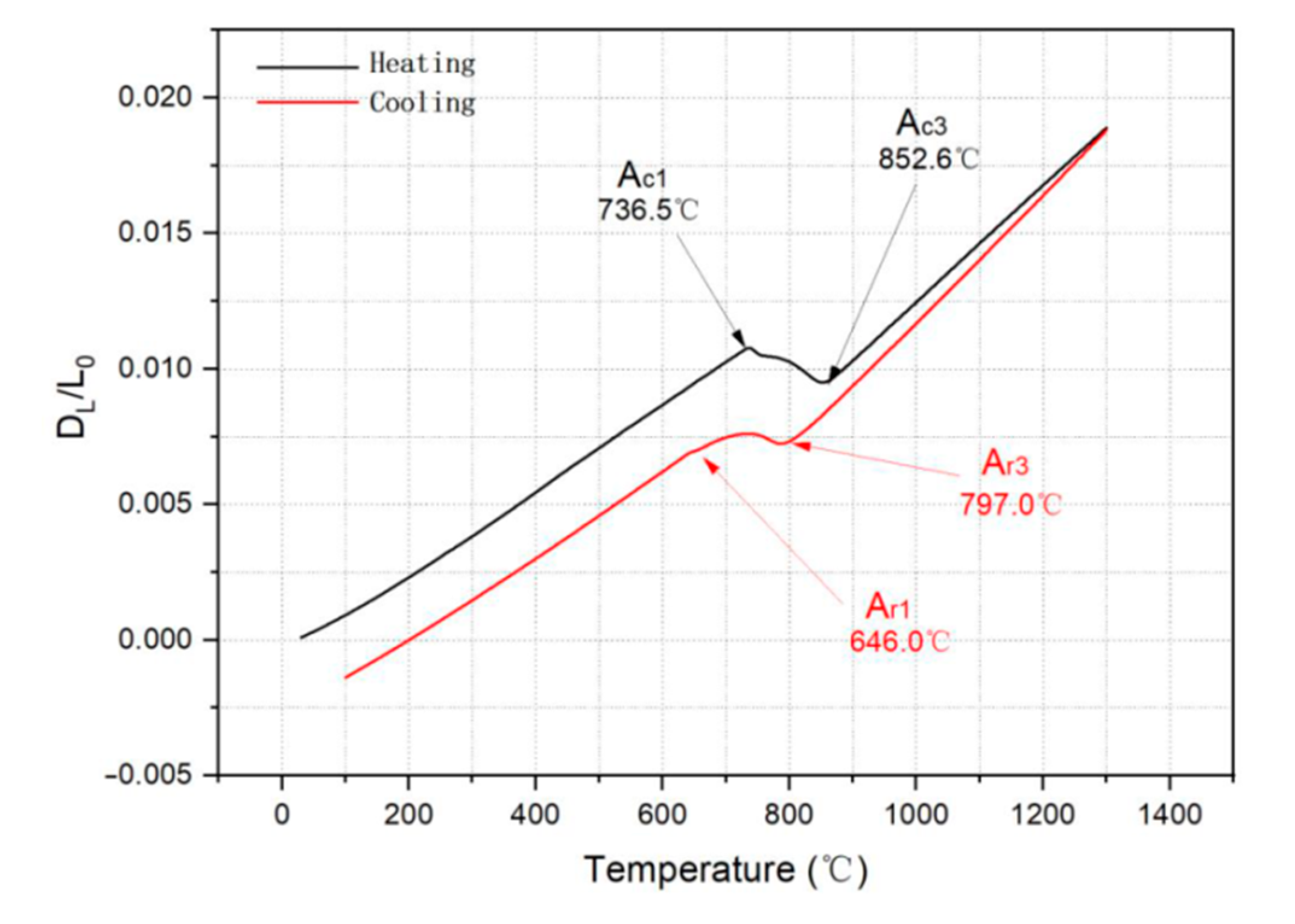

Measured phase transformation temperature of S355 steel.
Figure 8.

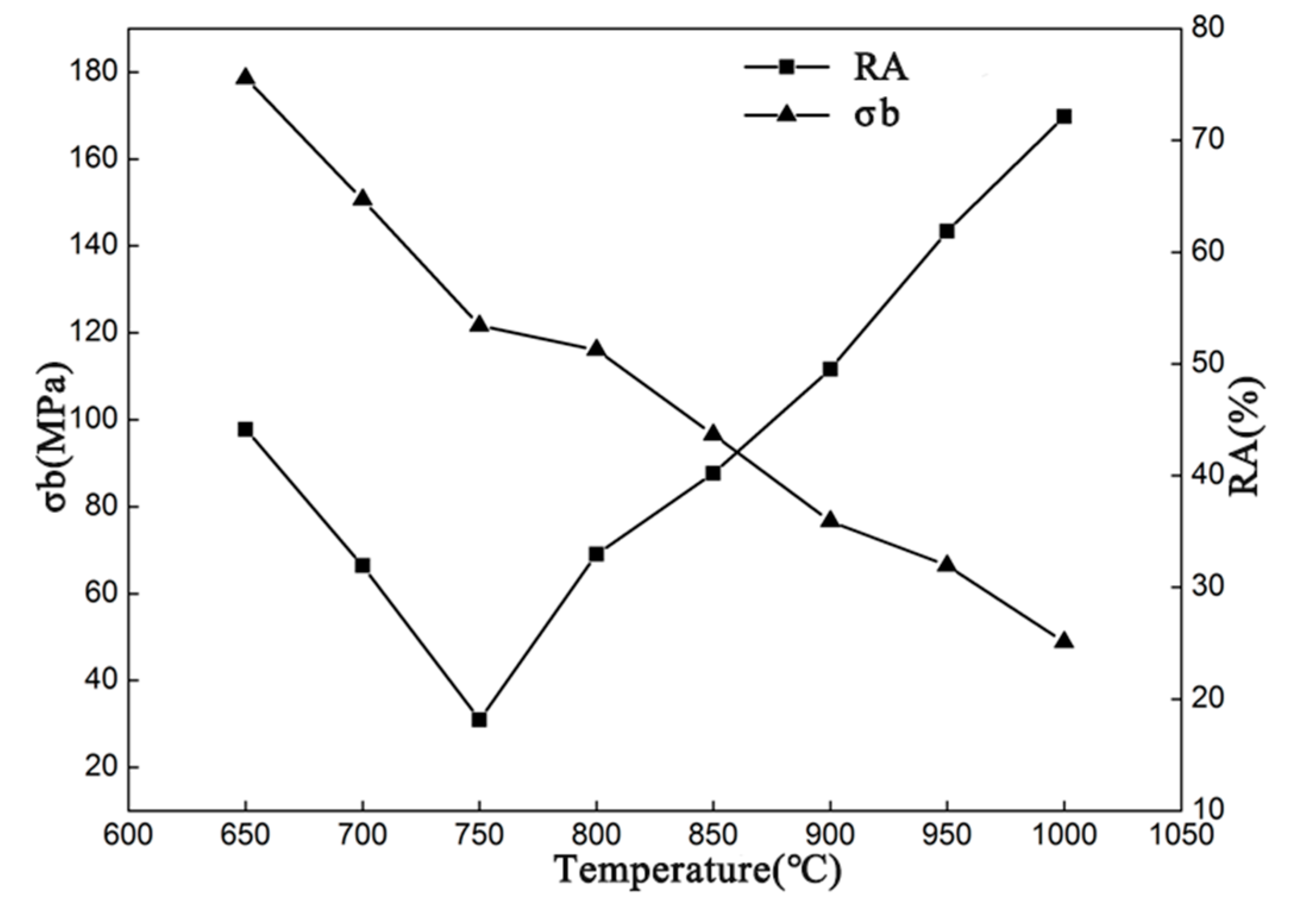

Measured hot ductility and tensile strength of S355 steel.
Figure 9.

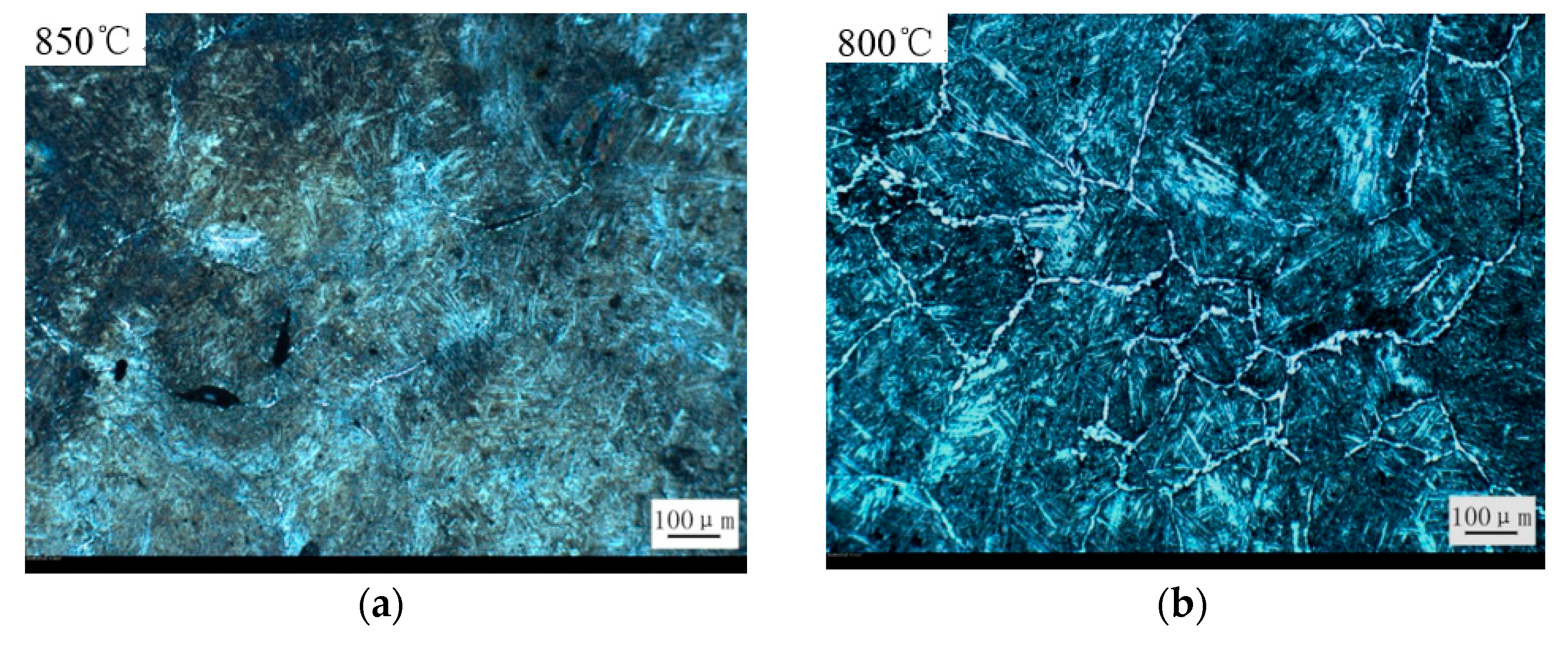

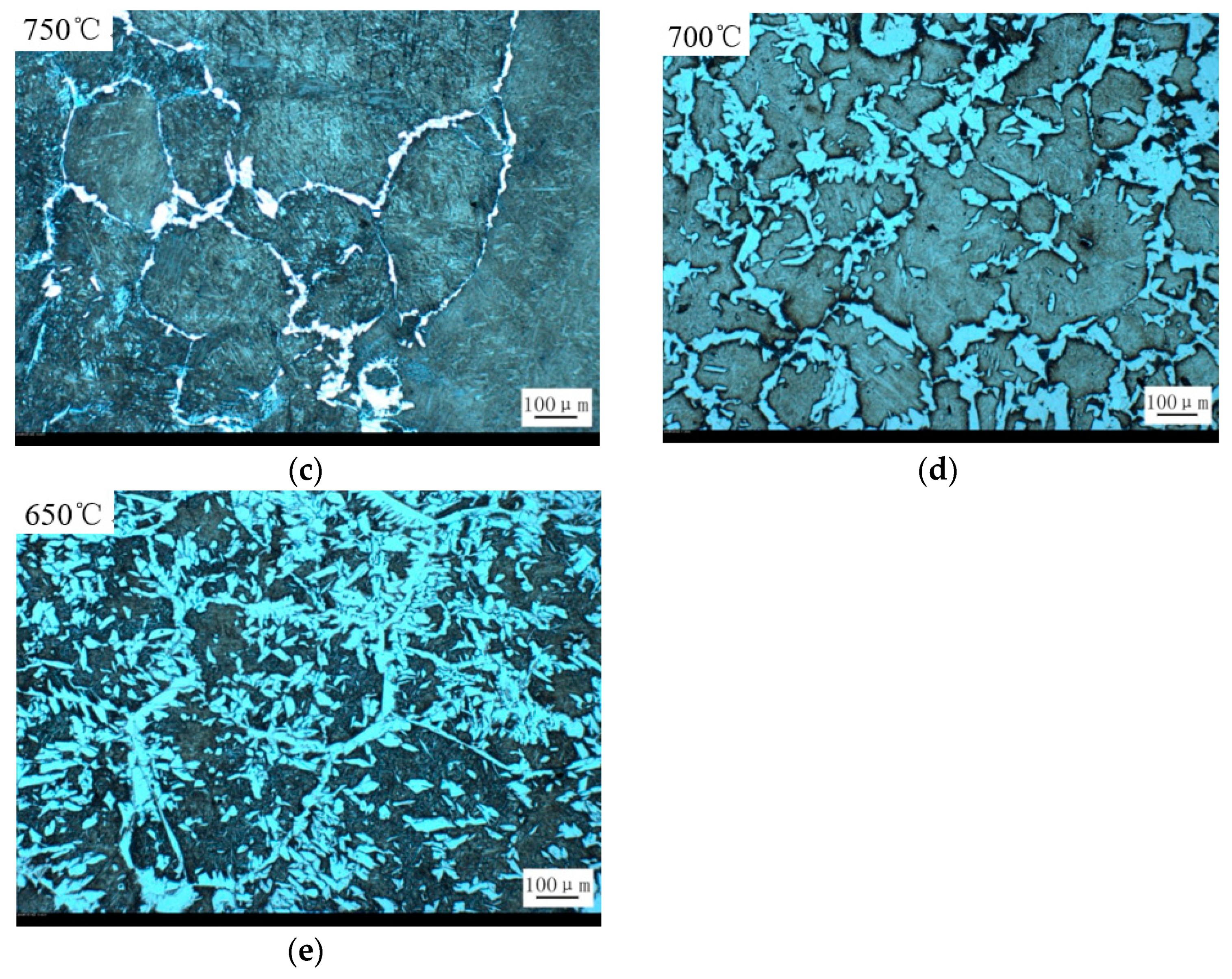

Fracture microstructures from the tensile test at different temperatures. (a) 850 °C, (b) 800 °C, (c) 750 °C, (d) 700 °C, (e) 650 °C.
Figure 10.

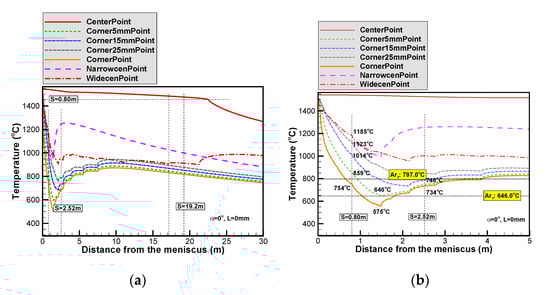

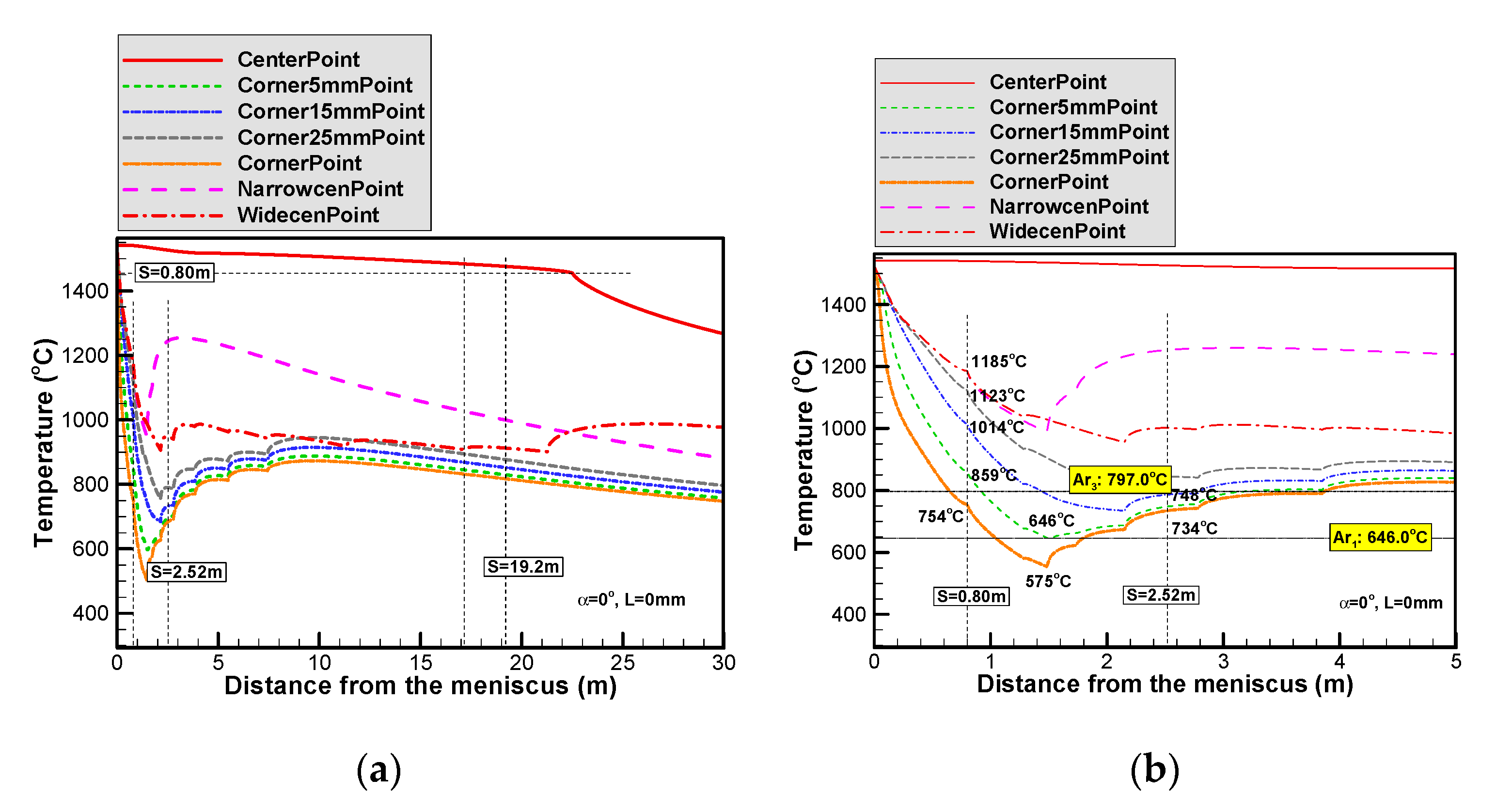

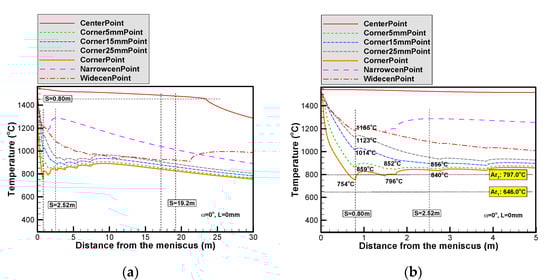

Temperature distribution under intensive cooling in foot roller zone of the right-angle slab. (a) The whole process of slab solidification, (b) enlarged view of mould and bending section.
Figure 11.

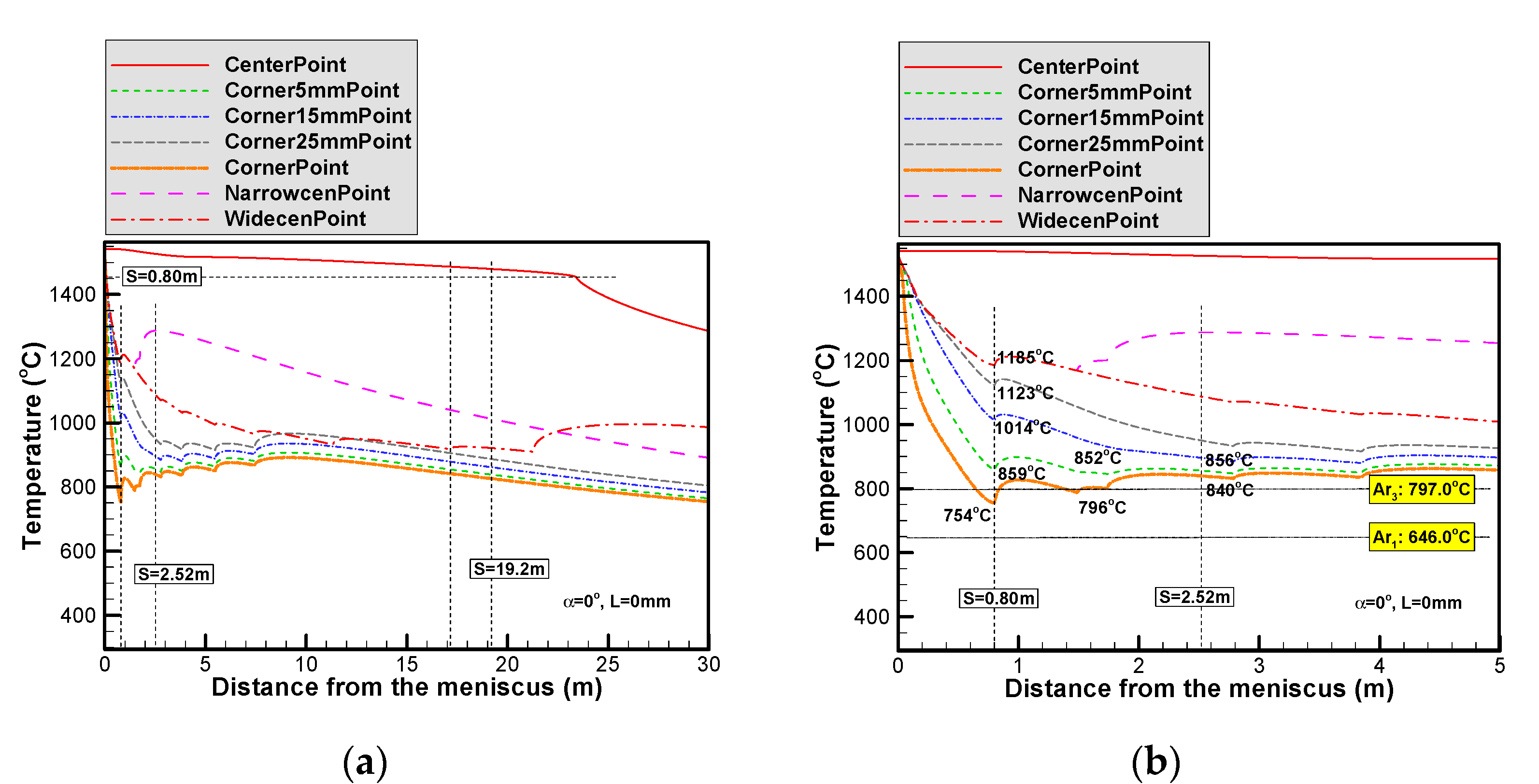

Temperature distribution under weak cooling in foot roller zone of the right-angle slab. (a) The whole process of slab solidification, (b) enlarged view of mould and bending section.
Figure 12.

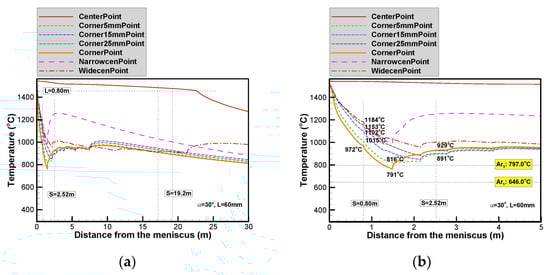

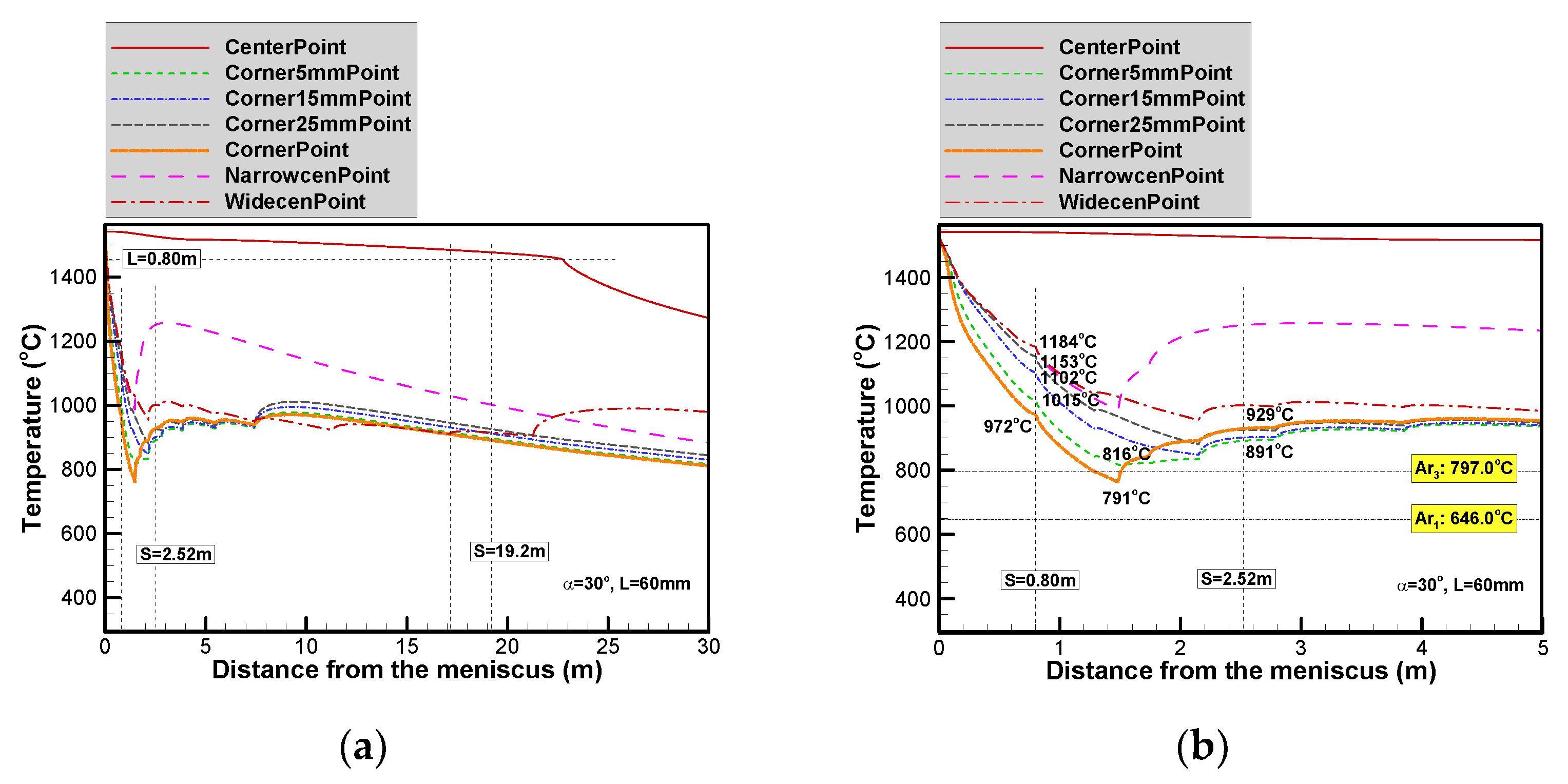

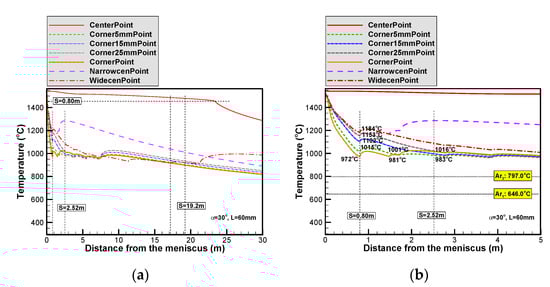

Temperature distribution under intensive cooling in foot roller zone of the chamfered slab. (a) The whole process of slab solidification, (b) enlarged view of mould and bending section.
Figure 13.

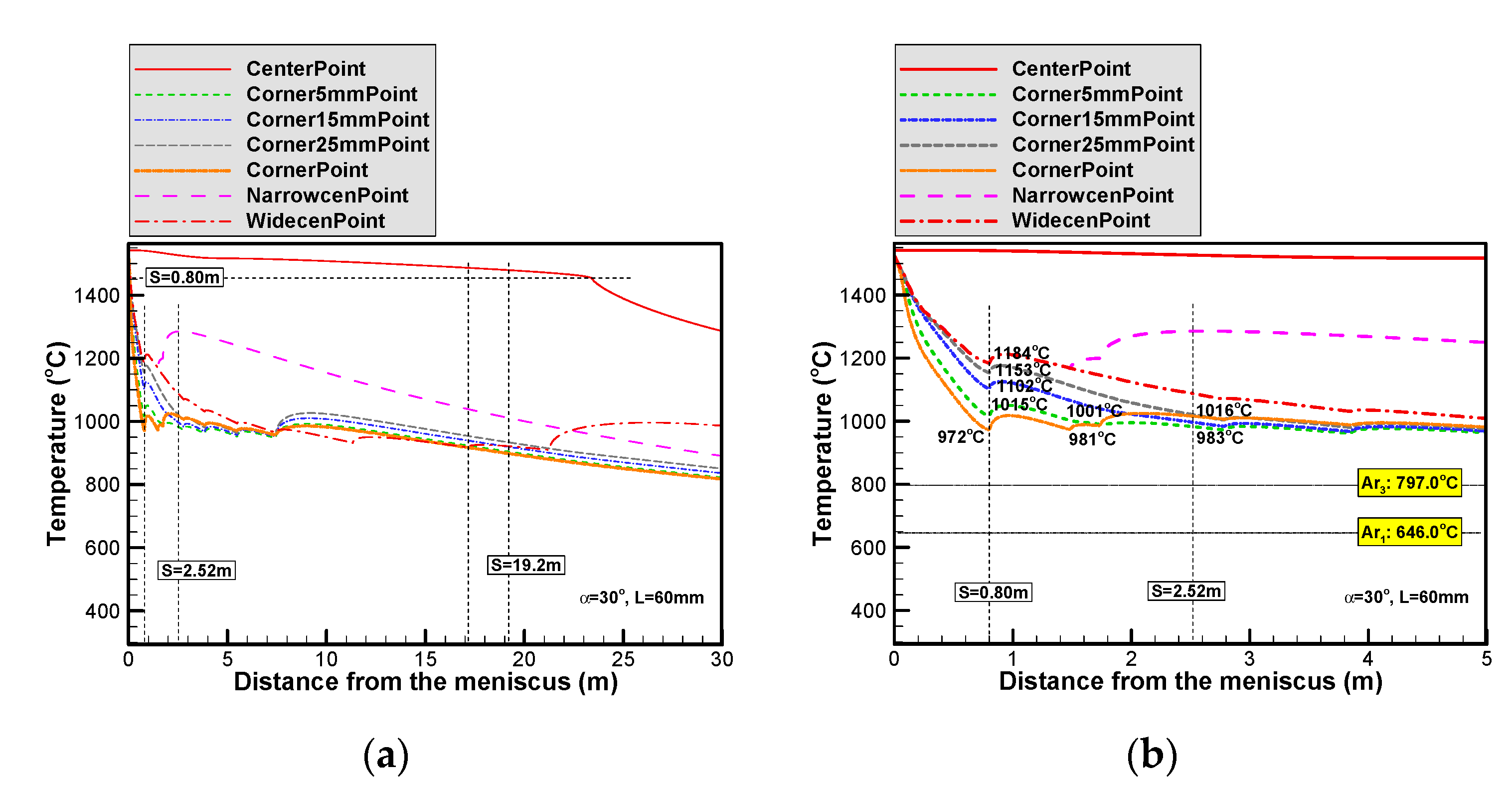

Temperature distribution under weak cooling in foot roller zone of the chamfered slab. (a) The whole process of slab solidification, (b) enlarged view of mould and bending section.
Table 1.
Chemical composition of typical steel (wt%).
Steel | C | Si | Mn | S | P | Als | N | Ti | Nb | V |
---|
S355 | 0.17 | 0.29 | 1.51 | 0.002 | 0.017 | 0.037 | 0.003 | 0.012 | 0.017 | 0.051 |
Table 2.
Thermophysical properties of S355 steel used in the study.
Parameter | Value |
---|
Density of steel(kg·m−3) | 7020 |
Latent heat of steel (J ·kg−1) | 2.72 × 105 |
Specific heat (J·kg−1·K−1) | 711 |
Thermal conductivity (W·m−1·K−1) | 12.5 + 0.01108 × T |
Liquidus temperature (K) | 1790 |
Solidus temperature (K) | 1728 |
Table 3.
Casting process parameters adopted in the simulation.
Parameter | Value |
---|
Slab transverse section size (mm × mm) | 1600 (Length) × 250 (Thickness) |
Effective mould length (m) | 0.80 |
Initial casting temperature (K) | 1815 |
Casting speed(m·min−1) | 1.0 |
Spraying cooling segment lengthof slab wide face (m) | 0.49, 0.87, 1.061, 1.64, 1.951, 3.906, 5.790 |
Spraying water flow rate of slab wide face (L·min−1) | 451, 610, 211, 254,2 38, 326, 255 |
Spraying cooling length in the foot roller zone (m) | 0.70 |
Spraying water flow rate for an intensive cooling in the foot roller zone (L·min−1) | 150 |
Spraying water flow rate for a weak cooling in the foot roller zone (L·min−1) | 72 |
Cooling water temperature (K) | 300 |
Cooling water flow rate in the mould (m3·h−1) | 420 |
Averaged water temperature rising in mould (°C) | 6.0 |
Table 4.
Temperature of right-angle slab under intensive cooling (°C).
Right-Angle Slab | CornerPoint | Corner5mmPoint | Corner15mmPoint | Corner25mmPoint |
---|
Mould exit (S = 0.8 m) | 754 | 859 | 1014 | 1123 |
Foot roller ending (S = 1.5 m) | 575 | 646 | 785 | 902 |
Beginning of bending (S = 2.52 m) | 734 | 748 | 787 | 844 |
Beginning of straightening (S = 17.16 m) | 834 | 847 | 871 | 897 |
Ending of straightening (S = 19.2 m) | 820 | 832 | 855 | 880 |
Table 5.
Temperature of right-angle slab under weak cooling (°C).
Right-Angle Slab | CornerPoint | Corner5mmPoint | Corner15mmPoint | Corner25mmPoint |
---|
Mould exit (S = 0.8 m) | 754 | 859 | 1014 | 1123 |
Foot roller ending (S = 1.5 m) | 796 | 852 | 957 | 1053 |
Beginning of bending (S = 2.52 m) | 840 | 856 | 896 | 950.1 |
Beginning of straightening (S = 17.16 m) | 842 | 855 | 879 | 906 |
Ending of straightening (S = 19.2 m) | 826 | 839 | 862 | 887 |
Table 6.
Comparation of temperature of chamfered slab under intensive and weak cooling (°C).
Chamfered slab | Intensive Cooling | Weak Cooling |
---|
CornerPoint | Corner5mmPoint | Corner15mmPoint | Corner25mmPoint | CornerPoint | Corner5mmPoint | Corner15mmPoint | Corner25mmPoint |
---|
Mould exit (S = 0.8 m) | 972 | 1015 | 1102 | 1153 | 972 | 1015 | 1102 | 1153 |
Foot roller ending (S = 1.5 m) | 791 | 816 | 904 | 964 | 981 | 1001 | 1064 | 1112 |
Beginning of bending (S = 2.52 m) | 929 | 891 | 901 | 926 | 1016 | 983 | 997 | 1021 |
Beginning of straightening (S = 17.16 m) | 910 | 916 | 931 | 946 | 917 | 924 | 939 | 954 |
Ending of straightening (S = 19.2 m) | 891 | 897 | 912 | 891 | 898 | 905 | 920 | 934 |
