Effects of B and Ce Grain Boundary Segregation on Precipitates in Super Austenitic Stainless Steel

Abstract

In order to reduce the segregation of Cr and Mo and inhibit the precipitates, we added a small amount of B and Ce to traditional S31254 steel. Using an air-cooling and low-temperature diffusion treatment, the purpose was to control B and Ce at the grain boundary. The heat-treatment process could prompt co-segregation of B, precipitate-forming elements, and Ce at the grain boundary at 950 °C. After aging at 950 °C for different amounts of time, the diffusion treatment had an obvious inhibitory effect on the precipitates that caused them to become discontinuous, fine, and serrated. The B-containing serrated precipitates were only rich in Mo, while Cr was homogeneously distributed in the probed volume. A uniform distribution of Cr reduced the Cr-depleted zone in the area adjacent to the phase interface. Ce was observed to be segregated at the grain boundary. This showed that Ce could inhibit the formation of precipitates at the grain boundary. The serrated precipitates had an obvious resistance to intergranular corrosion.

1. Introduction

Super austenitic stainless steel (SASS) is an important developmental direction of high-performance stainless steels. Since the beginning of the 20th century, a number of SASSs have been developed to satisfy the demands for high corrosion resistance and long-life materials [1,2,3]. These steels have excellent pitting corrosion resistance due to their high Cr, Mo, and N contents [4,5]. They can partly replace nickel-based alloys [6]. However, due to the addition of excessive amounts of Cr and Mo, S31254 SASSs are prone to Mo segregation during hot rolling, which forms σ, thereby introducing serious problems in hot rolling cracking and corrosion resistance [7,8,9]. Therefore, it is very necessary to explore methods to reduce Mo segregation and σ phase precipitation to solve the hot working and corrosion resistance problems of S31254.

Alloying is often used to improve the properties and microstructure of a material. For example, adding Ni, N, or Mn to austenitic stainless steel can play a positive role in stabilizing the austenite matrix and inhibit the precipitation of σ [1,10,11]. In recent years, many studies have been conducted on the inhibition of precipitates by using microalloying. It is known that the addition of a small amount of boron (B) to austenitic alloys significantly increases their hardenability in continuous cooling from austenite. It is mainly understood that the segregation of boron at the austenite grain boundary lowers the grain boundary energy, thereby resulting in the inhibition of ferrite and bainite transformation. The effect can be obtained using only a very small amount of boron (on the order of ppm) to provide significant impacts on the production of alloys. However, it is not easy to control the effect of B in an industrial production process because the state of the B atoms in the steel significantly influences the effect on hardenability [12,13]. At the same time, the addition of B can inhibit the formation of precipitates and improve the corrosion resistance [14,15]. Zhang Y. et al. improved the corrosion resistance of S31254 via B-induced nucleation of the Laves phase. The results showed that B alloying could significantly inhibit the σ phase formation and induce nucleation of the Laves phase. Furthermore, the Laves phase that contained B decreased the Cr-depleted zones near the grain boundaries and reduced the interface potential difference, which could enhance the intergranular corrosion resistance [16]. Yu et al. studied the effect of B on the thermal ductility of S32654. During thermal deformation, B could improve the hot ductility of S32654 and inhibit the σ phase nucleation. The segregation of B inhibited the segregation of Mo at the GB and enhanced the cohesion of the GB [17]. Previous studies showed that B was more inclined to exist at GBs and had the effect of inhibiting precipitation. These studies confirmed the assumption that the B atom is easy to segregate at the GB. At the same time, the addition of Ce to some types of steel can also inhibit precipitation. Wang et al. added Ce to duplex stainless steel, after which the stability of hot working was improved, the deformation resistance was decreased, the temperature range of hot working was widened, and the hot ductility was improved. Ce was segregated at the GB, and the inclusions were modified. By controlling the reasonable content of Ce in the steel, the molten steel could be purified [18]. At the same time, there are precedents for adding Ce to duplex stainless steel [19] and S32654 [20].

To clarify the state and distribution of B, the direct observation of B segregation at prior austenite grain boundaries was performed using the alpha-ray track etching method (ATE) and secondary ion mass spectroscopy (SIMS). These two analysis methods are very sensitive to B segregation; however, quantitative analysis of the amount was difficult. B segregation can be controlled either by equilibrium segregation (ES) or non-equilibrium segregation mechanisms (NES). On the one hand, the driving force for ES is a decrease in the system total energy caused by solute atom migration from the matrix to the structural defects. For the same solute concentration in a given solid solution, the ES magnitude decreases with an increasing temperature, which will be discussed later. On the other hand, NES results from the formation of solute–vacancy complexes within the matrix [21,22].

The effect of B on precipitates can be mainly determined by the non-equilibrium segregation of B to GBs during cooling after austenitization. Non-equilibrium grain boundary segregation of B during cooling from high temperatures results from diffusion of vacancy–boron complexes toward vacancy sinks and is very sensitive to the temperature difference. The boron concentration profile changes with the cooling rate from the solid solution temperature. The concentration of B at grain boundaries was maximized at an appropriate cooling rate in low-alloy steel [23]. At the same time, previous studies showed that adding a trace amount of Ce to S31254 could reduce the total amount of σ in S31254; in particular, the addition of Ce significantly inhibited σ formation, and slow cooling was conducive to the diffusion of Ce to the GB [24]. These phenomena were attributed by some authors to the non-equilibrium segregation of boron to austenite grain boundaries. It is widely accepted that B or Ce segregation at prior austenite grain boundaries during cooling is controlled by a non-equilibrium mechanism. Therefore, B and Ce can be better diffused to the grain boundary by changing the cooling method. Simultaneously, intragranular B is in a supersaturated state after dissolving, and B can be further aggregated at the grain boundary through a lower-temperature heat treatment.

In addition, the effects of the combined addition of B and Ce to S31254 have not been previously reported. To clarify the distribution of B and Ce, air cooling and low-temperature diffusion were used to further segregate B and Ce at the grain boundary, and the influence of B and Ce at the grain boundary on the precipitates during aging and the corresponding corrosion resistance were further studied.

2. Materials and Methods

2.1. Materials

The material used in this investigation was a new type of super austenitic stainless steel (S32654) manufactured by Northeastern University, Shenyang, China. The steel was smelted in a vacuum induction melting furnace followed by an electroslag remelting furnace to obtain lower sulfur and phosphorus contents and suppress segregation. The ingots were cast into 120 mm × 100 mm × 500 mm ingots and taken out of the mold after being air-cooled. The ingots were kept at 1200 °C for 10 h in a resistance heating furnace, cooled to room temperature by air, and then heated to 1250 °C and kept for 30 min in the furnace. Then, a steel plate with a thickness of 28 mm was rolled on the Φ550 mm hot rolling mill and hot forged and hot rolled between 1150 and 1200 °C. The main chemical components used are shown in

Table 1. Chemical composition of S31254 used in the experiment (wt %).

Sample	Fe	C	Si	Mn	P	S	Cr	Ni	Mo	Cu	N	B	Ce
S31254−BCe	Bal.	0.017	0.16	1.68	0.007	0.002	19.99	17.76	5.85	0.96	0.21	0.004	0.004

.The plate was cut into 15 mm × 15 mm × 2 mm sections using an electric-spark numerical-control wire-cutting machine.

2.2. Heat-Treatment Process

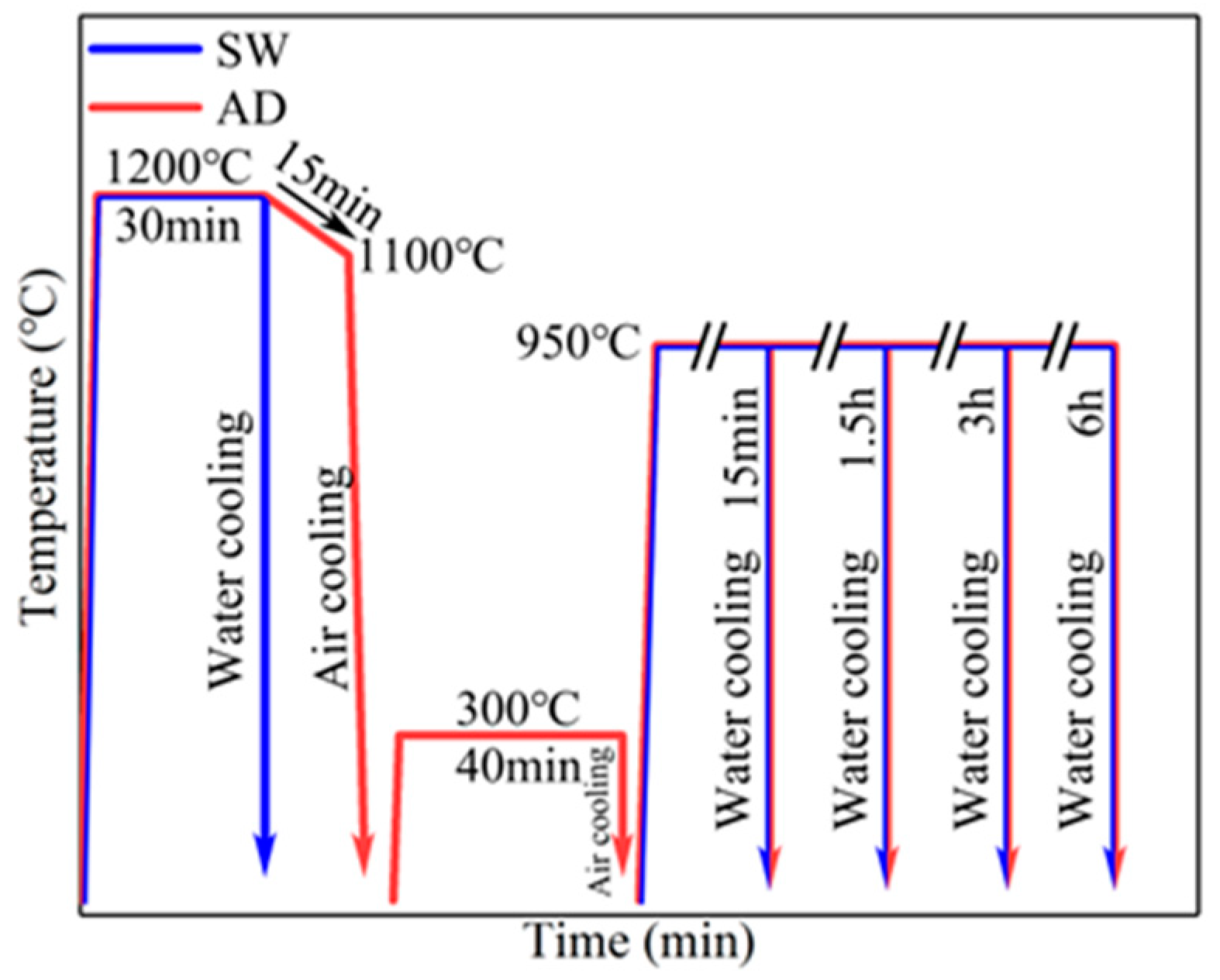

Figure 1 shows the curve of the heat-treatment process. First, in the conventional heat-treatment process (hereinafter referred to as SW), we kept the S31254−BCe at 1200 °C for 30 min and then quenched it in water. In the second heat-treatment process (hereinafter referred to as AD), we kept the S31254−BCe sample at 1200 °C for 30 min and then lowered the temperature to 1100 °C within 15 min in the furnace. The cooling method was air cooling, a diffusion treatment at 300 °C for 40 min, and then air cooling again. Then, in order to test the inhibition effect of the AD treatment on the precipitates, the samples of the SW and AD treatments were aged at a precipitation-sensitive temperature (950 °C) for 15 min, 1.5 h, 3 h, and 6 h respectively.

2.3. Microstructure Characterization

After heat treatment, the samples were inlaid with epoxy resin at room temperature; water polished with 120#, 400#, 1000#, and 3000# sandpaper; then polished with 1.5 μm diamond polishing paste until there were no scratches on the surface of the samples; then cleaned with ethanol and distilled water using an ultrasonic bath. After the surface of a sample was corroded with aqua regia, the microstructure of the sample was photographed using a JEOL SM-7900F thermal field emission scanning electron microscope (SEM), and then we analyzed the composition of the precipitates in local areas with an energy-dispersive spectrometer (EDS). We further analyzed the distribution of B, Ce, and the element content of the precipitates using a JEM-F200 scanning transmission electron microscopy (STEM).

2.4. Corrosion-Resistance Test

A CS310H electrochemical workstation was used for potentiodynamic polarization scanning and electrochemical impedance spectroscopy (EIS). The electrolyte was green-death solution (4 g CuCl₂, 4 g FeCl₃, 24.76 mL concentrated H₂SO₄, 4.072 mL HCl, and 341.6 mL water) [25]. Electrochemical tests were repeated to avoid errors. The electrolytic cell used in the experiment was a double-layer flat electrolytic cell, and the experiment was a three-electrode system. The working electrode (WE) was connected to the sample to be tested. A saturated calomel electrode (SCE) was selected as the reference electrode, and a platinum electrode (PE) was used as the auxiliary electrode. The contact area between a sample and the electrolyte was 10 cm × 10 cm. The processing and analysis of the test data was conducted using the electrochemical analysis software system Corrtest 5.0.

In order to further explore the corrosion resistance, S31254-BCe steel subjected to different heat-treatment processes was immersed in boiling H₂SO₄-Fe₂(SO4)₃ (Practice B of ASTM-A262) [26]. The specific method for this experiment was as follows: first, we added 200 mL of distilled water to a 500 mL round bottom flask and then slowly added 118.0 mL of analytical-grade concentrated H₂SO₄ (the concentration had to be between 95.0 and 98.0%) to avoid boiling due to overheating. Then, we weighed 12.5 g of iron sulfate (containing about 75% Fe₂(SO₄)₃) and added it to the above H₂SO₄ solution. We then connected the circulating condenser to the bottle mouth of the flask, lubricated the frosted glass joint with silicone grease, connected the circulating condenser to drain the water, and finally boiled the solution until all of the iron sulfate was dissolved. We then immersed the polished sample in a boiling H₂SO₄-Fe₂(SO₄)₃ solution for 24 h and then removed the sample for cleaning and drying.

3. Results

3.1. Precipitation Behavior

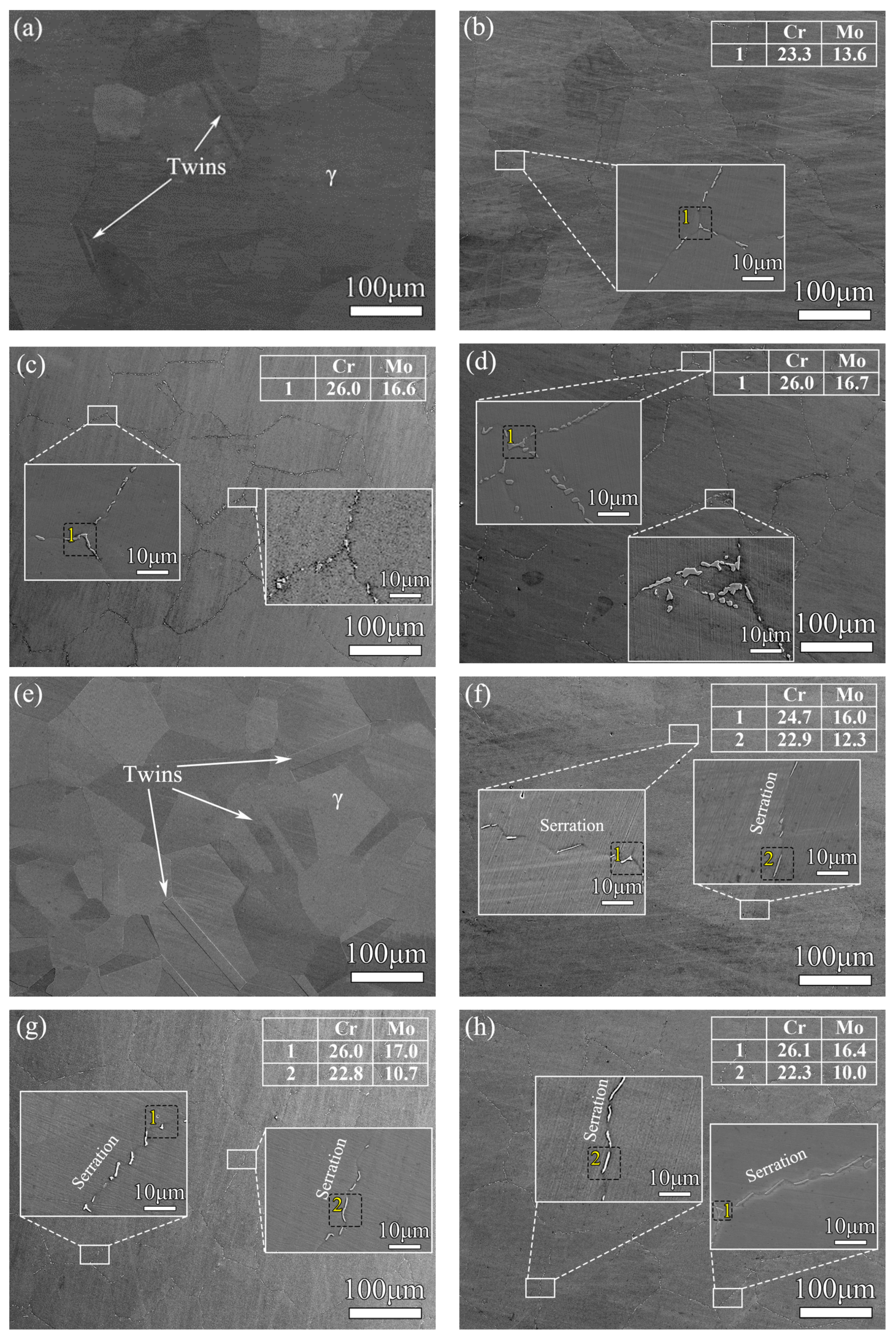

Figure 2a–h show the microstructures of samples treated using SW or AD. The samples were aged at 950 °C for 15 min, 1.5 h, 3 h, or 6 h. Figure 2a,e show the microscopic morphology of the samples aged at 950 °C for 15 min. It can be seen that there was no precipitation at the GB. Due to the addition of B and Ce, the precipitates were obviously inhibited. As the aging time was increased to 1.5 h (Figure 2b,f), the precipitates were intermittently distributed at the GB of the samples treated using SW. Previous research by our group showed that the precipitates appeared at the GB after 15 min of aging in S31254. The precipitates were connected in a network along the GB after 1.5 h of aging [27]. The addition of B and Ce initially inhibited the precipitates. After AD treatment, the number of precipitates decreased significantly and the size became smaller under the same aging time. After aging at 950 °C for 3 h, the precipitates of the SW-treated samples separated out along the GB and began to form a network. However, the precipitates of the samples treated using AD were significantly fewer and were generally serrated precipitates, and the distribution of the precipitates was more discontinuous. This proved that the AD treatment could still inhibit the precipitates when aged at 950 °C for 3 h. After aging for 6 h, the precipitates formed in the SW treatment connected into a network along the GB. The precipitates formed in the AD treatment were intermittently distributed at the GBs but also tended to form a network. It can be seen that the AD treatment further inhibited the precipitates on the basis of adding B and Ce.

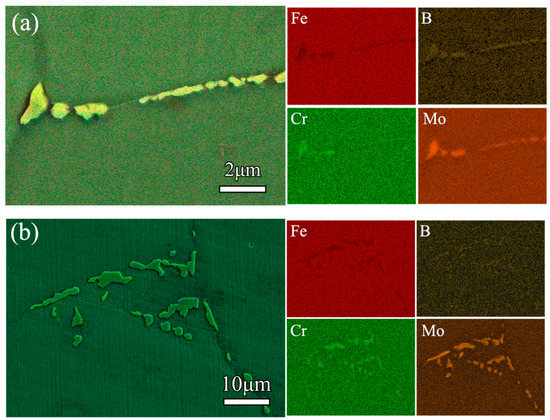

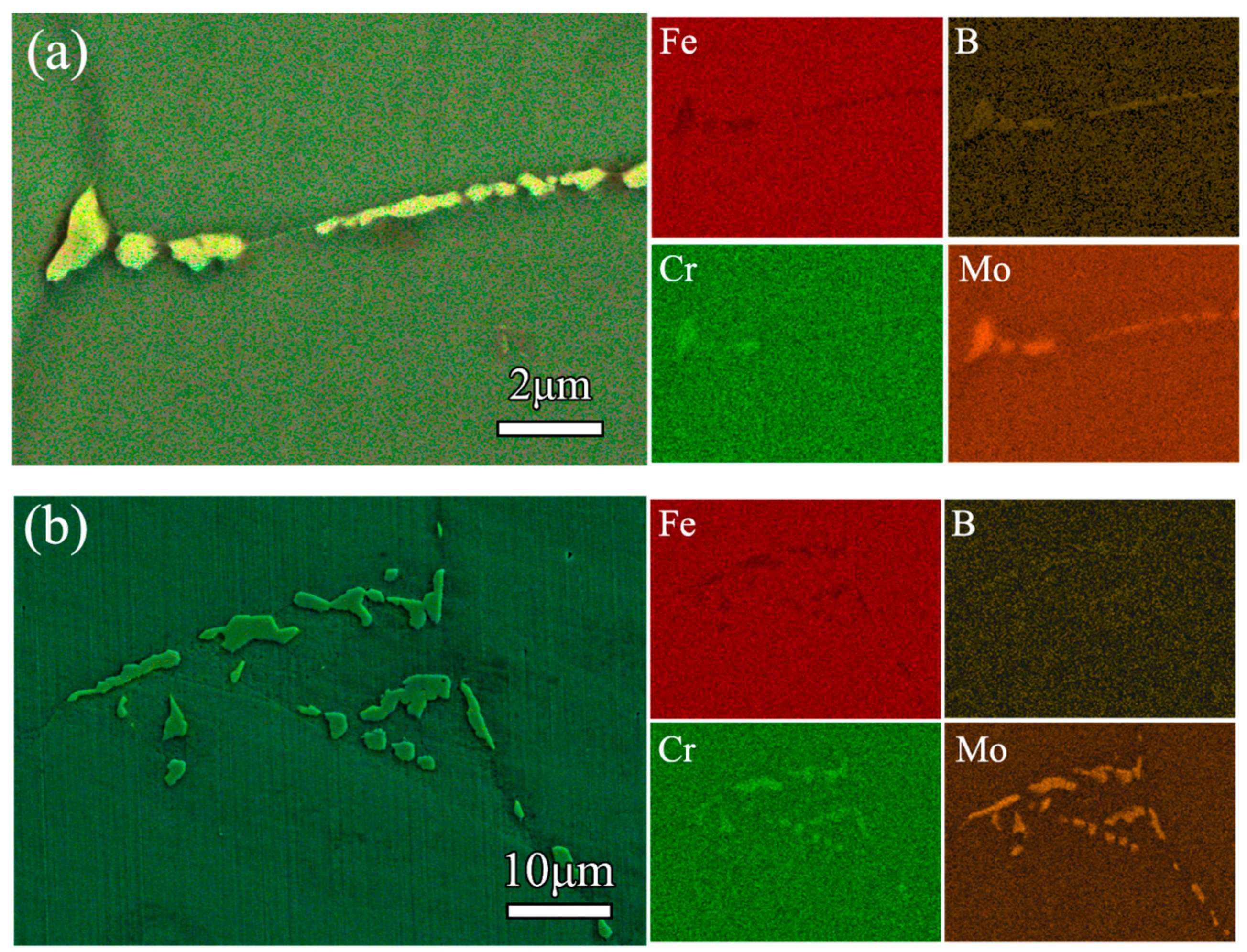

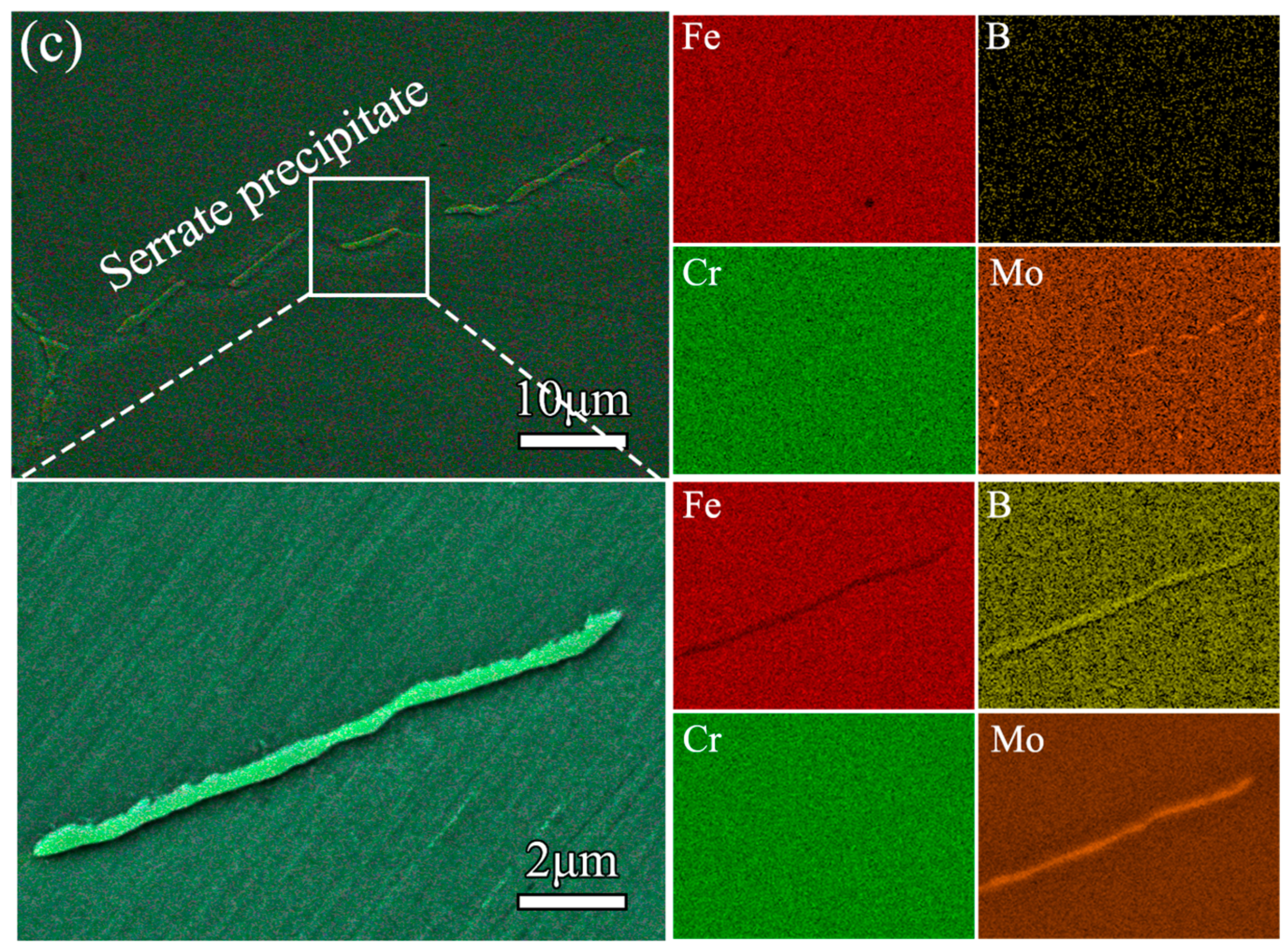

As shown in Figure 2, the precipitates were distributed at the straight GB at a greater proportion. Distinct from the SW treatment, serrated precipitates accounted for a greater proportion after AD treatment. In order to further analyze the changes in the elements in the precipitates, the SEM-EDS analysis method was used to measure the element distribution in the sample. EDS maps of the alloying elements (Fe, Cr, Mo, and B) were acquired to observe the elemental concentration of the precipitates. Figure 3a,b show the precipitates after SW treatment at an aging time of 1.5 h and 6 h, respectively. The precipitates were rich in both Cr and Mo. Based on the analysis of the EDS point scanning data in shown Figure 2, the precipitates distributed at the straight GB were consistent with σ in S31254 steel due to its high Cr and Mo content [27]. Figure 3c shows the precipitates after AD treatment; the serrated precipitates were only rich in Mo. At the same time, obvious enrichment of B could be observed during precipitation. This could prove that the serrated precipitates contained B and Mo simultaneously and that the formation of the serrated precipitate was related to the element B and would affect the distribution of Cr. The substitutional solute Cr was homogeneously distributed throughout the entire detected volume. This phenomenon indicated that the addition of B may have effectively reduced the aggregation of Cr in the precipitates, thus affecting the corrosion resistance of the material. Next, the corrosion resistance was further analyzed. Ordinary S31254 SASSs separated out a large number of precipitates after aging at 950 °C for 6 h, which formed a continuous network distribution along the GB [27]. The addition of B and Ce could effectively inhibit the precipitates. In particular, serrated precipitates that contained B can make the precipitates finer and fewer.

3.2. Corrosion Resistance

In order to explore the relationship between the precipitates and corrosion resistance, potentiodynamic polarization scanning and electrochemical impedance spectroscopy were carried out.

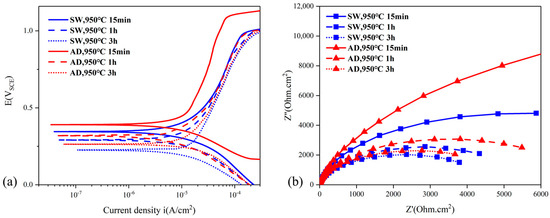

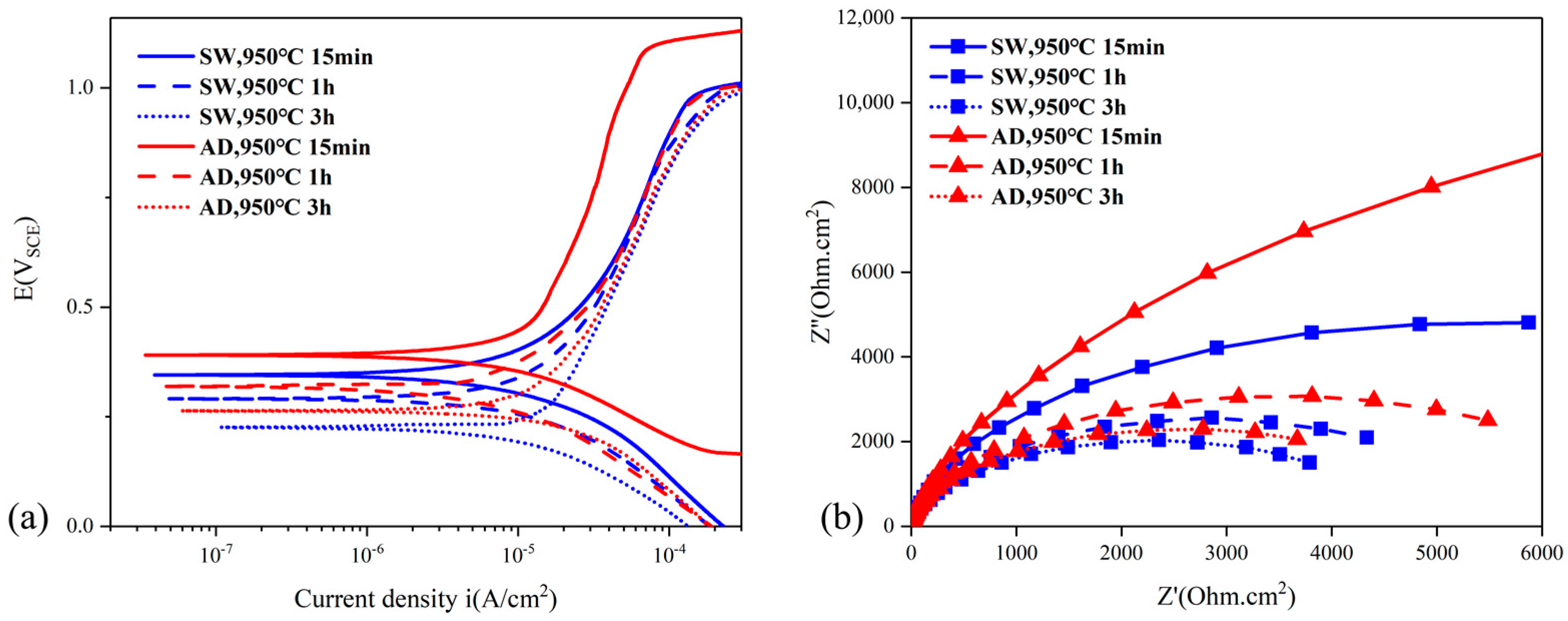

Figure 4 shows the potentiodynamic polarization curves of S31254−BCe samples aged for different amounts of time (15 min, 1 h, or 3 h) in green-death solution. The cathodic polarization curves showed similar trends; based on the polarization curves, the corrosion resistance of the sample aged for 15 min was the best. In particular, the corrosion resistance of AD samples was better than that of SW samples within 15 min aging. Their anode branches showed obvious self-passivation characteristics in the green-death solution environment. In order to describe the evolution of passivation performance in detail, the electrochemical parameters were calculated by fitting the polarization curve; the results are shown in

Table 2. Main parameters of potentiodynamic polarization curves of S31254−BCe aged at different times using different heat-treatment processes.

Sample	Aging Time	Ecorr (V)	Icorr (A cm−2)	Epit (V)	Ipit (A cm−2)
S31254−BCe (SW)	15 min	0.347	1.271 × 10−5	0.981	1.426 × 10−4
	1 h	0.293	1.725 × 10−5	0.972	1.828 × 10−4
	3 h	0.224	2.343 × 10−5	0.959	2.117 × 10−4
S31254−BCe (AD)	15 min	0.391	1.091 × 10−5	1.091	7.238 × 10−5
	1 h	0.32	1.482 × 10−5	0.976	1.504 × 10−4
	3 h	0.267	1.814 × 10−5	0.965	1.961 × 10−4
S31254 without BCe [28]	Solution	0.162	1.203 × 10−6	0.957	2.042 × 10−5

. There were differences in the self-corrosion current density (i_corr), self-corrosion potential (E_corr), pitting current density (i_pit), and pitting potential (E_pit) between the samples treated using SW or AD.

Compared with S31254 without B and Ce [28], the addition of B and Ce improved the corrosion resistance, which was further improved by the AD treatment. In addition, with the extension of the aging time, the self-corrosion current density (i_corr) of the samples gradually increased. The self-corrosion current density (i_corr) of the SW samples increased from 1.271 × 10⁻⁵ to 2.343 × 10⁻⁵ A cm⁻², while the self-corrosion current density (i_corr) of the AD samples increased from 1.091 × 10⁻⁵ to 1.814 × 10⁻⁵ A cm⁻², which showed that with the extension of the aging time, the precipitates at the GB gradually increased, which had an adverse impact on the corrosion resistance. Moreover, under the same aging time, the self-corrosion potential (E_corr) of the AD samples was higher than that of the SW samples, which indicated that the corrosion resistance of the material was significantly improved after the AD treatment. This phenomenon occurred because the number of precipitates at the GB decreased after the AD treatment. Then, in order to further analyze the characteristics of the passive film formed in the green-death solution, the samples were further tested using electrochemical impedance spectroscopy.

Figure 4b shows the EIS spectra of the samples. The Nyquist diagram (Figure 4b) showed similar data trends, which indicated that the electrode reaction mechanism was consistent and that there was a capacitance semicircle from the high-frequency region to the low-frequency region. The intermediate frequency phase angle was close to −90°, which indicated that a stable passive film was formed. Under the same aging time, the capacitance semicircle radius of the samples treated using AD was larger than that treated using SW.

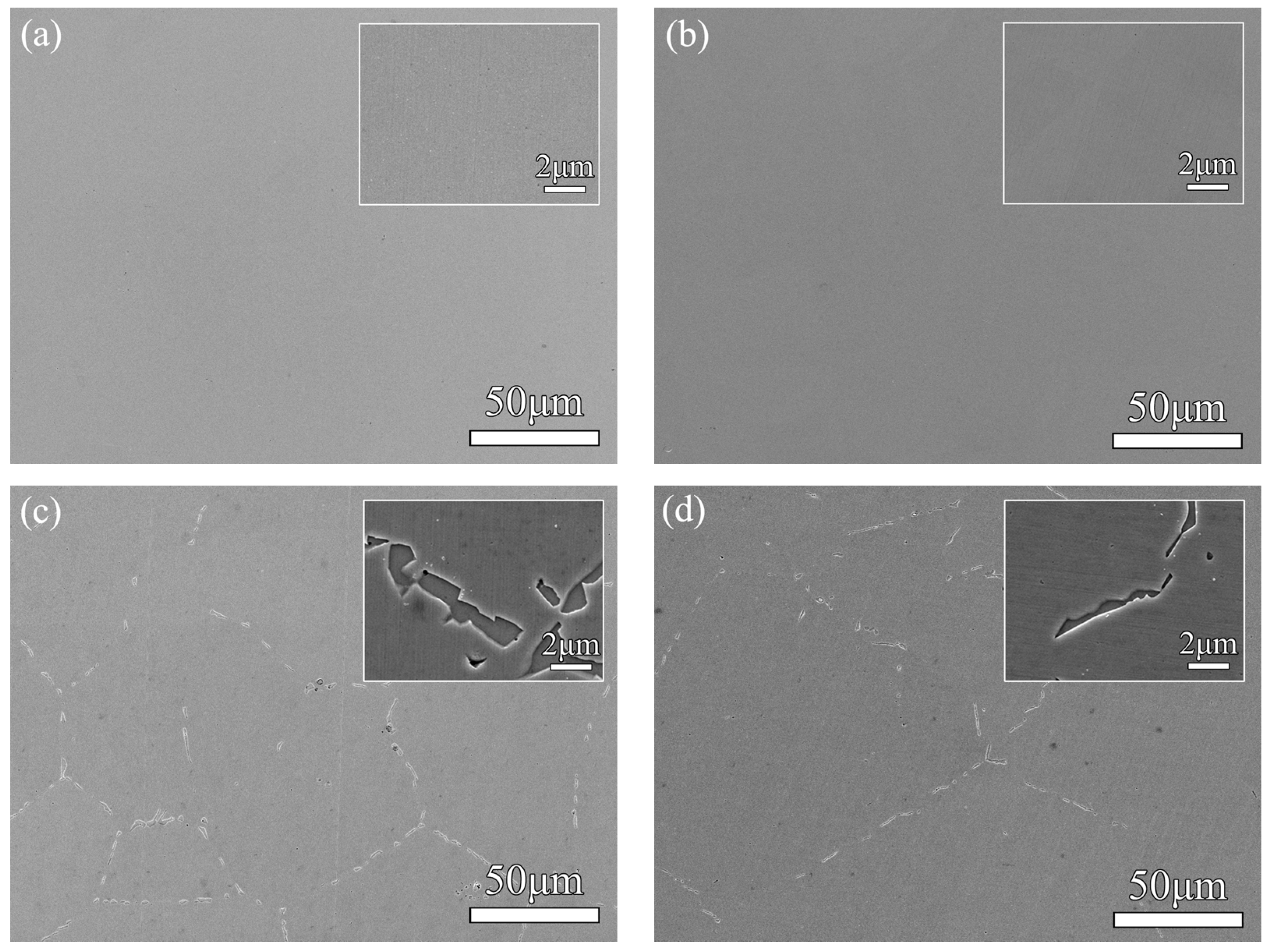

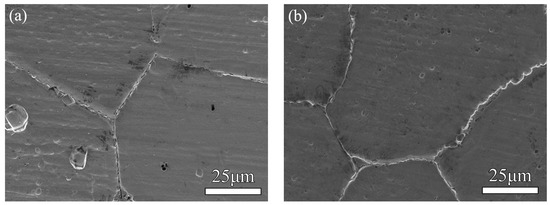

The surface morphologies of the S31254−BCe samples after electrochemical polarization were analyzed. Figure 5a,b show the samples aged at 950 °C for 15 min after SW or AD treatment, respectively. After polarization, the surfaces of the samples were smooth, and there was no corroded GB. According to the microstructures of the samples with 15 min of aging shown in Figure 2, there were no precipitates at the GB. With the aging time extended to 3 h, the precipitates treated using SW tended to form a network at the GB (Figure 2). After polarization, the corrosion pits left after the precipitation phase fell off were wide and continuous. However, after polarization of the AD-treated samples, the proportion of serrated precipitates increased obviously, and the corrosion pits left after the serrated precipitates fell off were narrow and intermittent. Combined with the results shown in Figure 2 and Figure 3, the precipitates treated using SW were rich in both Cr and Mo universally, and the precipitate interface was corroded after polarization, which indicated that there was a Cr-depleted zone around the precipitate interface and that the corrosion resistance would be affected adversely. The serrated precipitate was only rich in Mo, and Cr was homogeneously distributed in the probed volume. The phase interface was relatively complete after polarization, which indicated that there was no Cr-depleted zone around the phase interface. At the same time, the morphology results after polarization were consistent with the electrochemical curve results. The corrosion resistance of the serrated precipitates was better than that of the common precipitates at straight GBs.

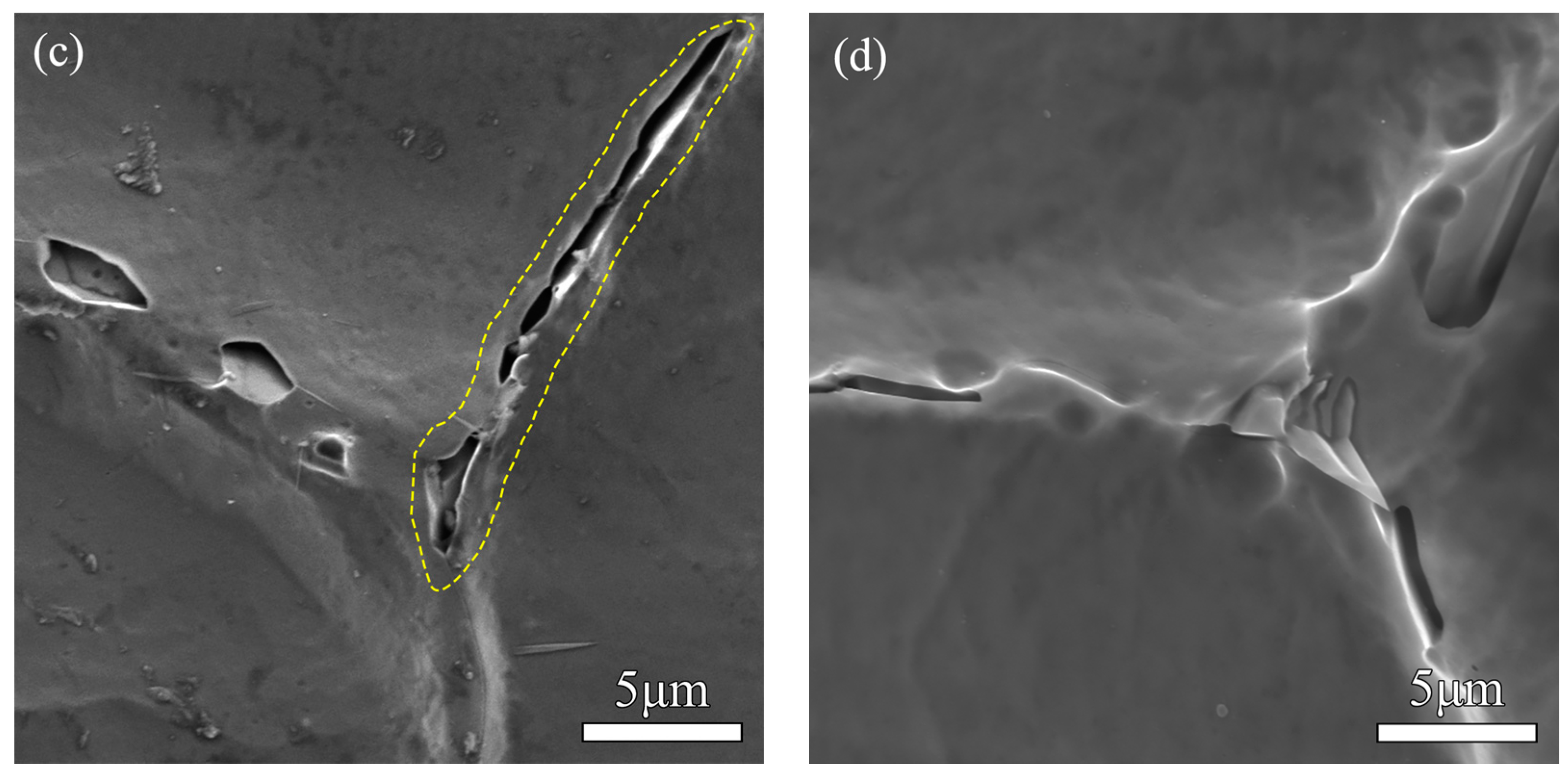

Figure 6 shows sample surfaces after immersion in boiling H₂SO₄-Fe₂(SO₄)₃ for 24 h. The corrosion morphology corresponding to this precipitate was the severely corroded periphery of the precipitate after SW treatment (Figure 6c). After AD treatment, the corrosion resistance at the phase interface was significantly improved, which indicated that the corrosion resistance of the serrated precipitates was obviously different from the precipitates at the straight GB. This meant that the precipitates at the straight GB were rich in both Cr and Mo, which led to a Cr-depleted zone around them. As shown in Figure 6a, a small number of intragranular corrosion pits also appeared after SW treatment, which should have been related to the intragranular precipitates. However, the number of intragranular corrosion pits was significantly reduced after the AD treatment, which indicated that the AD treatment also had a significant inhibitory effect on the intragranular precipitates.

4. Discussion

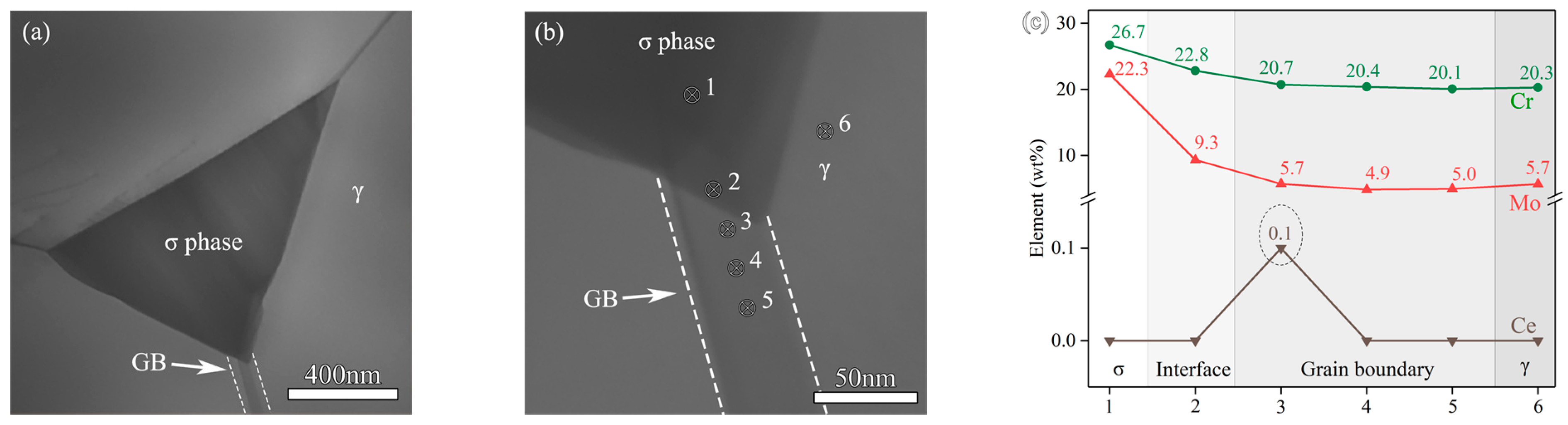

The solubility of B and Ce in γ is very limited. Depending on the thermal cycle (soaking temperature, cooling rate, and final cooling temperature), B and Ce segregation can be controlled either by equilibrium segregation or non-equilibrium segregation [21,22]. In order to distribute more B and Ce elements to the GBs, the cooling rate was changed. At the solid solution temperature, the supersaturated solid solution was often obtained due to the high cooling speed. Therefore, slow cooling was used to further distribute more B and Ce to GB. Slow cooling was conducive to the diffusion of Ce to GB, which was limited by the influence of precipitates at the range of precipitation-sensitive temperature, so the low-temperature diffusion at 300 °C was adopted. Through the heat treatment of slow cooling and low-temperature diffusion, B and Ce could be more diffused to the GB and play their roles in inhibiting precipitation [24]. According to the EDS of STEM, the enrichment of Ce at GB was observed in the sample after AD treatment. Although the addition of Ce was less, we determined that the content of Ce at the GB was higher than in the matrix. Position 3 contained Ce, and Ce mainly existed at the GBs. Cr and Mo at position 3, which was close to the matrix, were obviously diminished. This indicated that Ce at the GBs could inhibit the formation of precipitates and caused the precipitates to distribute intermittently. After the low-temperature diffusion at 300 °C, the GBs showed an obvious enrichment of B. This indicated that the low-temperature diffusion was conducive to the diffusion of B to the GBs. The proportion of serrated precipitates increased after the AD treatment, and the Mo-rich serrated precipitates contained B. Serrated precipitates have also occurred in austenitic stainless steels and nickel-based alloys [29,30,31]. In nickel-based alloys, the enrichment of B segregation was found at the serrated precipitates [32]. In Figure 3 and Figure 7, the distribution of B and Ce in GB showed that Ce was more conducive to the discontinuous distribution of the precipitates. B was more inclined to inhibit the precipitates and drove the precipitates to appear as serrations. According to the results shown in Figure 2 and Figure 3, the contents of Cr and Mo in the precipitates distributed at the straight GB were higher, while the content of Cr in the serrated precipitate was obviously lower than in the precipitates at straight GBs, and the content of Cr in the serrated precipitate was close to the matrix. In other words, there was no Cr-depleted zone at the interface of the serrated precipitate. The results shown in Figure 5 and Figure 6 jointly verified that the interface of the serrated precipitate had a superior resistance to intergranular corrosion.

Generally, due to the high Cr and Mo content of σ, it always led to a Cr-depleted zone near the precipitates and increased the intergranular corrosion of the S31254. There was no Cr-depleted zone at the interface of the Mo-rich serrated precipitate containing B [16,33,34].

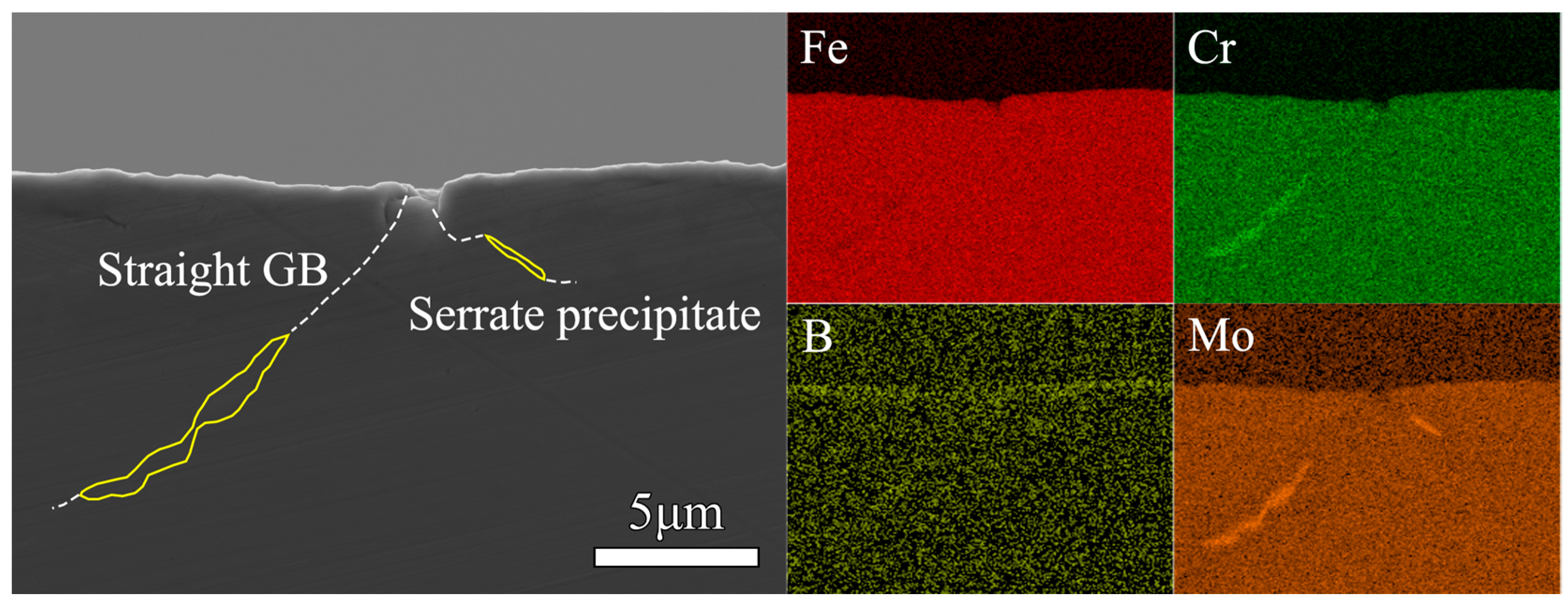

As shown in Figure 8, after aging at 950 °C for 3 h and soaking in boiling H₂SO₄-Fe₂(SO₄)₃, there was a micropit on the surface at the junction of two types of precipitates. The intergranular corrosion was slight. According to the elemental distribution of the cross section, the corrosion of S31254−BCe in boiling H₂SO₄-Fe₂(SO₄)₃ was mainly caused by the GB. However, the Mo-rich serrated precipitate was close to the surface due to the uniform content of Cr around the serrated precipitates, so the depth of the intergranular corrosion attack was only 0.5 μm. Another precipitate rich in both Cr and Mo was far from the surface. Therefore, there was no deep corrosion pit on the surface of section.

5. Conclusions

The precipitation of a Cr- and Mo-rich σ phase in SASSs seriously affects their thermoplasticity and corrosion resistance. In this study, B and Ce microalloying was used to reduce the segregation of Cr and Mo and inhibit the precipitates. A new air-cooling and low-temperature diffusion treatment method was adopted to further segregate more B and Ce elements at the GBs. Then, the samples were aged at 950 °C, and the influence of B and Ce on the precipitation behavior and corrosion resistance was studied. The main conclusions can be summarized as follows:

(1)

Air cooling and low-temperature diffusion prompted co-segregation of B, precipitate-forming elements, and Ce at the grain boundary (GB) at 950 °C. The heat-treatment process could inhibit the precipitation. Ce inhibited the nucleation of the precipitates. B induced the formation of Mo-rich precipitates, and the B-containing precipitates were serrated.

(2)

For aging at 950 °C within 3 h, the grain boundary segregation of B and Ce still had an obvious inhibitory effect on precipitates. The heat-treatment process could significantly suppress the segregation of Cr at the grain boundary and change the ratio of Mo and Cr elements in the precipitates. Compared with the traditional solution process, the number of precipitates was fewer and the distribution of precipitates was more intermittent.

(3)

The formation of B-containing serrated precipitates decreased the Cr-depleted zone near the grain boundary. This illustrated that the addition of B and Ce could lead to an extreme improvement in the corrosion resistance of S31254 SASSs.
