Terahertz Metamaterial Absorber Based on Ni–Mn–Sn Ferromagnetic Shape Memory Alloy Films

Abstract

Terahertz absorbers have been extensively investigated by researchers due to their applications in thermophotovoltaic energy conversion and sensors, but a key factor limiting their development is the lack of vital and versatile materials. Ferromagnetic shape memory alloys (FSMAs) offer a novel remedy for tunable metamaterials due to their brilliant recovery of deformation, remote control, and transient response. In this study, we propose a tunable absorber based on magnetic field tuning, consisting of Ni–Mn–Sn ferro-magnetic shape memory alloy films in fractal geometry and optically excited Si plates. Numerical analysis shows that the proposed absorber has an absorbance bandwidth of 1.129 THz above 90% between 1.950 THz and 3.079 THz. The absorber geometry can be regulated by an external magnetic field, allowing dynamic switching between broadband and narrowband absorption modes, the latter showing an ultra-narrow bandwidth and a high-quality factor Q of ~25.8. The proposed terahertz absorber has several advantages over current state-of-the-art bifunctional absorbers, including its ultra-thin structure of 10.39 μm and an additional switching function. The absorption can be continuously tuned from 90% to 5% when the light-excited silicon plate is transferred from the insulator state to the metal state. This study presents a promising alternative strategy for developing actively regulated and versatile terahertz-integrated devices.

1. Introduction

Based on the distinctive advantages of their photo energy and bandwidth, terahertz (THz) frequency waves have great potential for broad application in safety inspection, explosive detection, spectroscopy, medical imaging, wireless communications, etc. [1,2,3,4,5]. Tremendous research has been conducted in designing high-performance THz devices for the development of miniaturized components. Metamaterials (MMs) have recently emerged as perfect candidates for manipulating THz waves, attributable to their unique electromagnetic response mechanism [6,7,8]. Among them, THz metamaterial absorbers (TMMAs) are highly desired in a broad range of applications, including high-efficiency photodetectors, THz imaging, and stealth technology [9,10,11].

Research on TMMAs can be traced back to the concept of a perfect metamaterial absorber in the microwave range proposed by Landy et al. [12]. Since then, it has opened the door to developing TMMAs worldwide. Initially, conventional TMMAs consisted of a typical sandwich structure with a dielectric spacer, and these TMMAs showed narrowband absorption [13,14,15]. To enrich the functionalities, TMMAS with dual-, multi-, and broadband absorption have been proposed and investigated in recent years [16,17,18]. Achieving broadband absorption of terahertz waves is still a challenge compared to visible and infrared light. In order to achieve broadband absorption, researchers have made many attempts, such as increasing the number of multiple distinct circular metallic patches, composite multi-layer stacking (vertical arrangement), introducing lumped elements, and the metal-dielectric nanocomposite systems [19,20,21,22,23], but these methods, although capable of achieving broadband absorption properties, also lead to a high cost of the proposed absorber, complex fabrication process, large size, and other drawbacks, which limit their practical applications. The above problem can be solved by using a fractal structure, which is a self-similar repetitive geometric structure in a fixed arrangement with a self-similar pattern leading to multiple resonant coupling, thus achieving broadband absorption [24,25,26,27]. More recently, the Cayley tree fractal meta-resonator supercells were proposed by Qasim Mehmood et al. [28]. They integrated different Cayley tree fractal resonators into one supercell based on the frequency shifting and multi-resonance bands of different fractal orders, which realizes broadband, polarization-insensitive ultrathin monolayer terahertz metamaterial absorbers. While broadband absorbers are mostly used in thermo-photovoltaics, narrowband perfect absorbers can be used in sensing, absorption filtering, and thermal radiation tailoring [29,30,31,32]. Most of the designs in the literature serve as either broadband or narrowband absorbers, and only a few studies achieve double functionality [33,34,35,36,37,38,39,40,41]. Combining both functionalities in the same device remains a significant challenge. Moreover, in conventional TMMAs, the resonance performance is determined by the structure parameters and material properties. Once fabricated, the THz absorber has non-adjustable absorption performance limiting its application. Although there have been studies on tunable materials with improved performance of tunable broadband terahertz metamaterial absorbers, the dilemma of multifunctional performance versus the complex multilayer structure of tunable TMMAs remains a problem. Therefore, designing thin and simple THz absorbers with tunable absorption performance remains highly desirable.

Different from the traditional metallic arrays of TMMAs, shape memory alloys (SMAs) exhibit distinctive functional characteristics, including superelastic behavior, shape memory effect, and work output with a high power/weight ratio [42,43]. Designing artificial metamaterial composed of shape memory alloys provides an active modulation by utilizing recoverable deformation and phase transformation in the subwavelength structures. This active adjustment has a bigger regulation region and reduces the complexity of the structure. In our previous works, Ni–Ti SMAs were innovatively introduced into the development of THz metamaterial devices [44,45]. Nevertheless, the slow martensitic transition response of Ni–Ti SMA is due to temperature-driven, magnetic-field-induced SMAs, which have attracted extensive research as a magnetoactuator material [46,47,48]. The controlling mode by a magnetic field is more flexible and quicker. Based on the FSMAs, it can be expected to achieve the dynamic tunability of terahertz metamaterial absorbers, which show the advantages of fast response and non-contact control.

In this paper, we propose a multifunctional, ultrathin, and high-performance TMMA by combining the horizontally aligned Caley tree fractal meta-resonator supercells and the cross-shape resonator derived from Ni–Mn–Sn alloy films. The Caley tree fractal meta-resonator supercells’ host exhibits the desired broadband response, and the cross-shaped resonator exhibits the narrow-band response, while the aligned photoexcited Si layer modulates the resonance amplitude of the broadband absorber. Numerical results reveal that the absorption rate above 90% has a bandwidth of 1.129 THz from 1.950 THz to 3.079 THz. Notably, the function of broadband and narrowband absorption can be switched flexibly by applying a magnetic field. The narrowband mode shows an ultra-narrow bandwidth and a high-quality factor Q of ~25.8. The terahertz absorber proposed in this work has many advantages over the present advanced absorbers, including a thin 10.39-micron structure. Moreover, the absorption rate can be continuously tuned from 90% to 5% when the photoexcited Si transits from the insulator state to the metal state. In addition, the TMMA shows excellent performance in terms of polarization insensitivity and wide angle.

2. Structural Design and Method Simulation

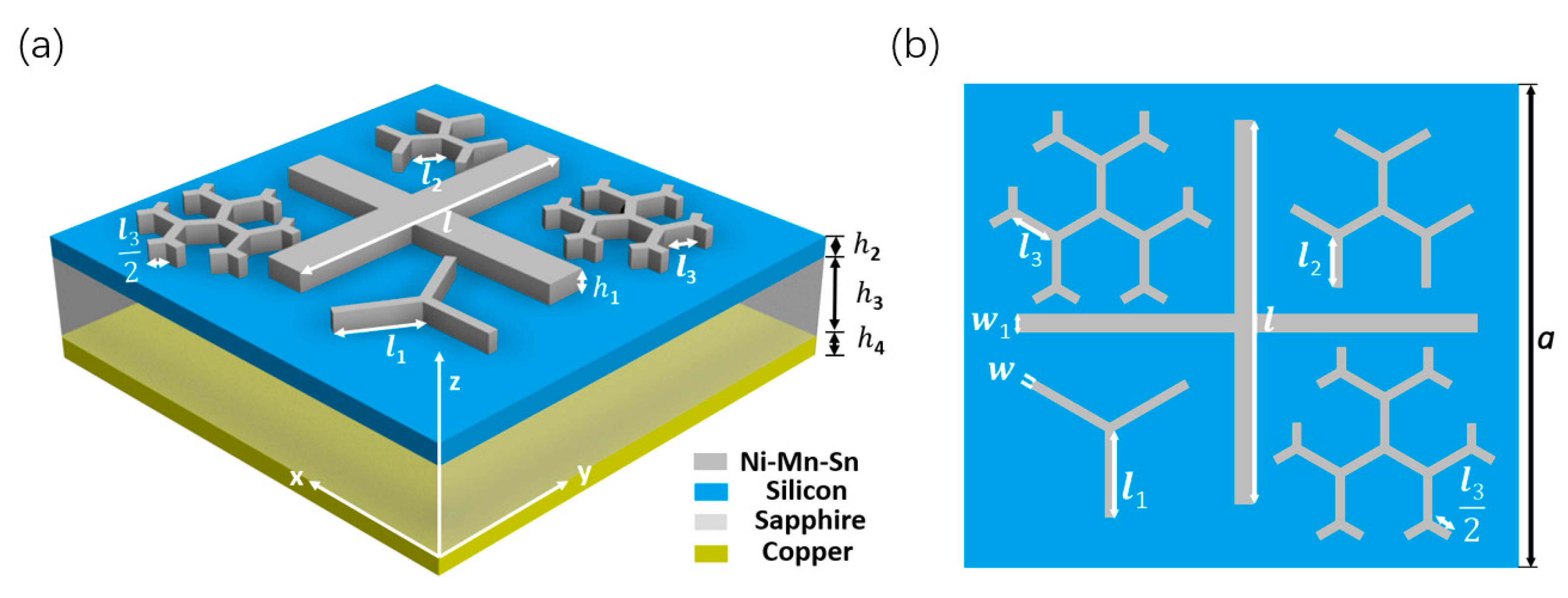

The unit cell of the tunable TMMA that we designed is illustrated in Figure 1. It consists of Cayley tree metal resonators, a cross-shaped resonator, a photoexcited Si layer, a dielectric film, and a ground metal from top to bottom. The top layer of the unit cell consists of one, two, and three orders of fractal branches. To ensure polarization insensitivity, each branch is spaced apart with a 120° rotation angle, and the threefold rotational symmetry remains. The proposed structure uses the Cayley tree metal resonators to broaden the bandwidth. Simultaneously, the cross-shape resonator is added to the design for a narrowband. The metal of the Cayley tree metal resonators is Ni–Mn–Sn shape memory alloy films whose branches can be curved by applying an additional magnetic field, resulting in a switchable terahertz absorber from broadband to narrowband absorption. Ni–Mn–Sn is modeled as the lossy metal with a conductivity of 3.3 × 10⁵ S/m [49]. The continuous silicon has simulated a dielectric with constant permittivity ε_Si = 11.9 [50] and pump-power-dependent conductivity σ_Si. The dielectric permittivity of sapphire is 9.4 without a loss for the dielectric film [51]. The ground metal is selected as copper with a conductivity of 5.96 × 10⁷ S/m [52].

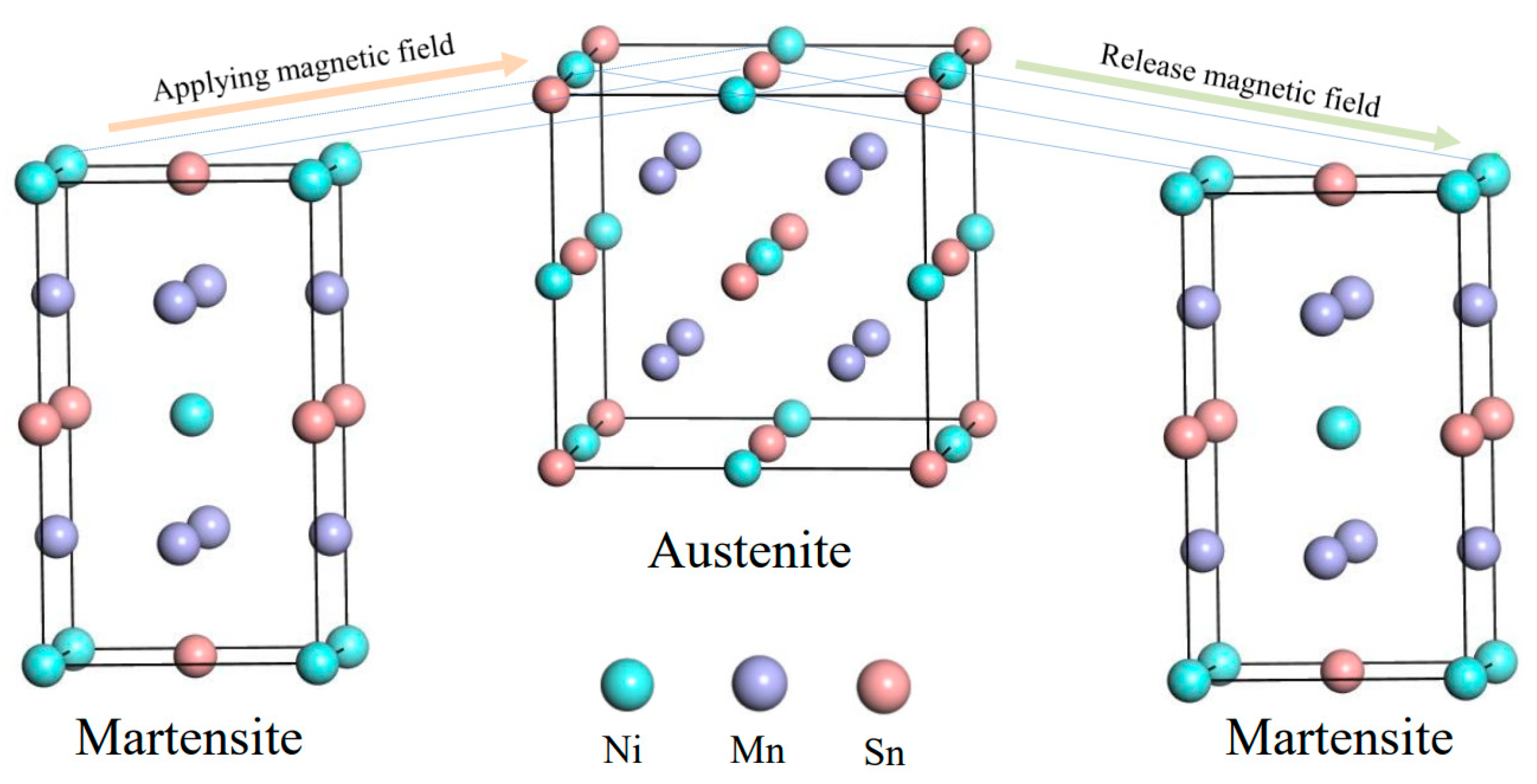

The principle of Ni–Mn–Sn resonant film deformation is shown in Figure 2. When an external magnetic field is applied, the magnetic Ni–Mn–Sn shape memory alloy undergoes an anti-martensitic phase transformation from antiferromagnetic martensite to ferromagnetic austenite, where the direction of the austenitic magnetic induction axis eventually coincides with the direction of the external magnetic field, resulting in a large magnetic strain. When the external magnetic field is released, the alloy undergoes a martensitic phase transformation and returns from austenite to martensite. This process provides cyclically reversible large-output strains.

The materials present in nature are composed of atoms, and the electromagnetic response is determined with the dielectric constant and the magnetic permeability. Its response frequency and dielectric constant follow the Drude–Lorentz relationship:

$${\epsilon }_{eff}\left(\omega \right)=1-\frac{{\omega }_p^2}{{\omega }^2-{\omega }_0^2-i\gamma \omega }$$

(1)

The plasma frequency is determined with the following equation:

$${\omega }_p=\frac{4\pi n{e}^2}{m^{*}}$$

(2)

where ω₀ is the resonant frequency, n is the carrier density, e is the charge of the electron, γ is the damping coefficient, and m^∗ is the carrier effective mass.

The absorber proposed in this paper is based on this principle, the designed subwavelength structure is atom-like, and the periodic macroscopic repetitive unit structure constitutes the whole metamaterial; therefore, its electromagnetic response is related to the subwavelength unit structure [49].

In this paper, Ni–Mn–Sn films are used as resonant structures because, in addition to their unique shape memory effect, they have a high virtual refractive index (R.I.) that can be sufficient to provide excellent absorption. The refractive index n, effective permittivity ε_eff, and magnetic permeability μ_eff of the metamaterial satisfy the following relationship:

$$n=\sqrt{{\epsilon }_{eff}{\mu }_{eff}}$$

(3)

The martensitic phase transformation of Ni–Mn–Sn SMAs is accompanied by a change in shape as well as a change in material properties, both of which are actively modulated, affecting the electromagnetic response in terms of terahertz wave transmission characteristics and reflection properties. Among them, the dielectric constant is the direct evidence to characterize the change in material properties. Therefore, the mechanism of dynamic modulation of the electromagnetic response of metamaterials by shape memory alloys can be fully explained by using the variation of the dielectric constant. According to the Drude model, the permittivity in the terahertz band can be characterized with the following equation:

$${\epsilon }_m\approx -{\sigma }_{dc}/\left({\epsilon }_0\Gamma \right)+i{\sigma }_{dc}/\left({\epsilon }_0\omega \right)$$

(4)

where σ_dc is the direct current conductivity, Γ is the damping rate, and ε₀ is the vacuum dielectric. The outcome of THz–TDS is excellent, consistent with the simplified Drude model. In summary, both the real and imaginary parts of the permittivity contain direct current conductivity, so that the change in permittivity can be described by the change in conductivity. Accordingly, it is possible to directly characterize the reform in material properties throughout the martensitic phase transformation of SMAs in terms of electrical conductivity. In this simulation, we chose the Ni–Mn–Sn SMAs’ conductivity before and after the phase change within the bounds of 3.3 × 10⁵ S/m to 7.6 × 10⁵ S/m.

Intending to analyze the performance of the designed absorber, simulations were performed using CST MICROWAVE STUDIO^® (CST Computer Simulation Technology GmbH, Darmstadt, Germany). The unit cell condition should be defined at the x direction and y direction for the boundary condition, and the open (add space) was defined at the z direction for the boundary condition [53]. We defined the transverse electric (TE) polarization mode as the electric field parallel along the y-axis and the magnetic field parallel along the x-axis when the THz wave is normal incidence to the introduced absorber. Transverse magnetic (TM) polarization mode is the opposite. The unit cell’s geometrical parameters of the absorber were optimized at h₁ = 0.1 um, h₂ = 0.1 um, h₃ = 10 um, h₄ = 0.1 um, l₁ = 8 um, l₂ = 4.4 um, l₃ = 5.8 um, w = 1 um, and w₁ = 2 um. However, in level 3 of the Caley tree fractal meta-resonator supercells, the outermost arm lengths were set to l₃/2 = 2.9 to prevent overlapping of neighboring structures. The metallic copper substrate leads to a transmittance of 0 (i.e., S₂₁ = 0). The absorbance was calculated as A(ω) = 1 − R(ω) − T(ω) = 1 − |S₁₁|² − |S₂₁|² = 1 − |S₁₁|².

In addition, the method of sample fabrication is important to the terahertz components. Recently, MEMS processing technology, such as the etching of silicon substrates, has made great progress [54] with thin-film deposition prior to gluing or by choosing a substrate with a thin film, such as silicon. Sapphire (epitaxial silicon on sapphire) and the desired structure are obtained by etching after hardening. During the etching process, the photoresist acts as protection, and the resulting structure has the same shape as the photoresist to ensure that the Caley tree structure in the proposed metamaterial is fixed to the silicon surface and remains stable without falling off. It is necessary to deposit a metal copper thin film on the Si layer with a method similar to the Refs. [55,56] thin-film structure, and then deposit the SMA layer on the copper thin film.

3. Results and Discussion

3.1. Broadband THz Absorber

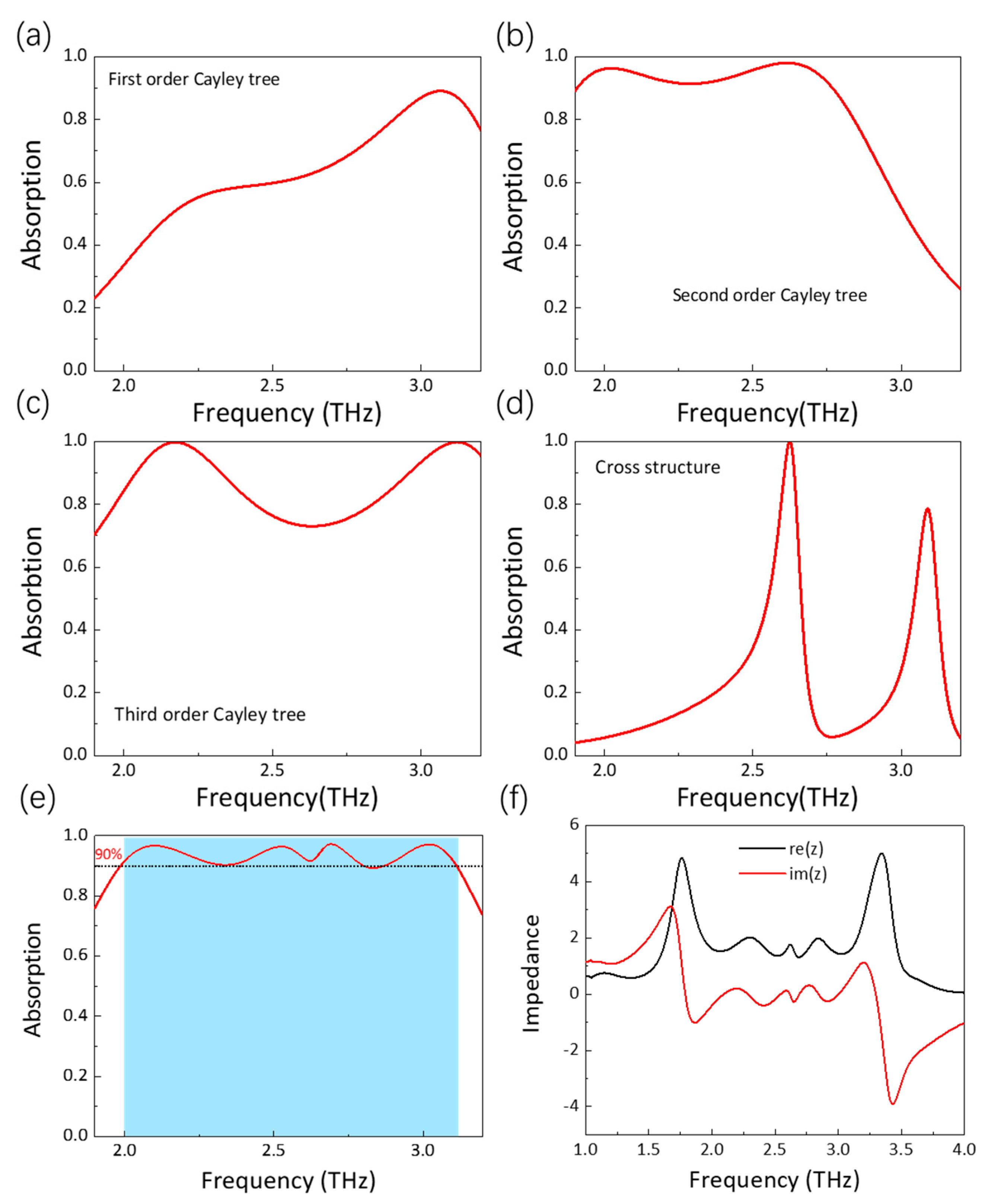

The simulated absorption spectra of the Ni–Mn–Sn-based absorber are shown in Figure 3. Figure 3a–d shows the simulated absorption spectra of the first, second, and third iteration of the proposed Cayley tree resonating structures and the cross structure. For each structure, they cannot achieve broadband absorption independently. However, broadband absorption can be achieved by combing these four structures into one supercell, as shown in Figure 3e. It is observed that the absorption magnitude of the introduced metamaterial is more than 90% in the frequency range from 1.950 THz to 3.079 THz, suggesting that the proposed absorber has an excellent absorption performance. It is worth mentioning that the peak absorption magnitude is observed at multiple frequencies, i.e., 2.101, 2.524, and 2.692 to 3.019 THz. The near-unity absorption broadband spectrum caused by the mechanism of multiple resonance peaks originates from the different orders of the Caley tree fractal resonators [27]. Therefore, self-similar fractals are proposed as an ideal candidate for ultra-broadband absorbing devices due to the multiscale geometric features involved, which provide a degree of freedom for varying the resonance frequency.

In addition, the relative bandwidth of the introduced absorber is also calculated through $f_c=2\left(f_H-f_L\right)/\left(f_H+f_L\right)$, where $f_H$ is the upper frequency, $f_L$ is the lower frequency, and the relative bandwidth $f_c$ is 45%. In order to reveal the working mechanism of the introduced single-layer Ni–Mn–Sn broadband absorber, we retrieved the corresponding effective impedance using the S-parameter extraction method [57,58]. The effective impedance can provide insight into understanding the optical response of the proposed metamaterial absorber. The relative impedance can be given by

$$Z_{eff}\left(\omega \right)=\pm \sqrt{\frac{{(1+S_{11})}^2-S_{21}^2}{{(1-S_{11})}^2-S_{21}^2}},$$

(5)

where S₁₁ and S₂₁ are the complex reflection and transmission coefficients, respectively. Figure 3f shows the real and imaginary sections of the effectual impedance for the introduced metamaterial broadband absorber. The most significant finding to emerge from the following graph is that the real section is a short distance from 1, and the imaginary section is in the neighborhood of 0 from 1.950 THz to 3.079 THz. This phenomenon is consistent with the effectual impedances of the introduced metamaterial absorber matching better to the impedance of the free space, resulting in high absorption intensity. The large bandwidths are thought to be owed to the coupling of the adjacent resonances. Gottheim et al. proposed a detailed qualitative analysis to describe the mode degeneracies and origin of distinct absorption peaks in Cayley tree fractal geometry metamaterials [27]. In conclusion, the strong resonance frequency is mainly due to the first, second, and third fractal orders or the interaction between two levels.

3.2. Switchability between Broadband and Narrowband Absorption under the Magnetic Field

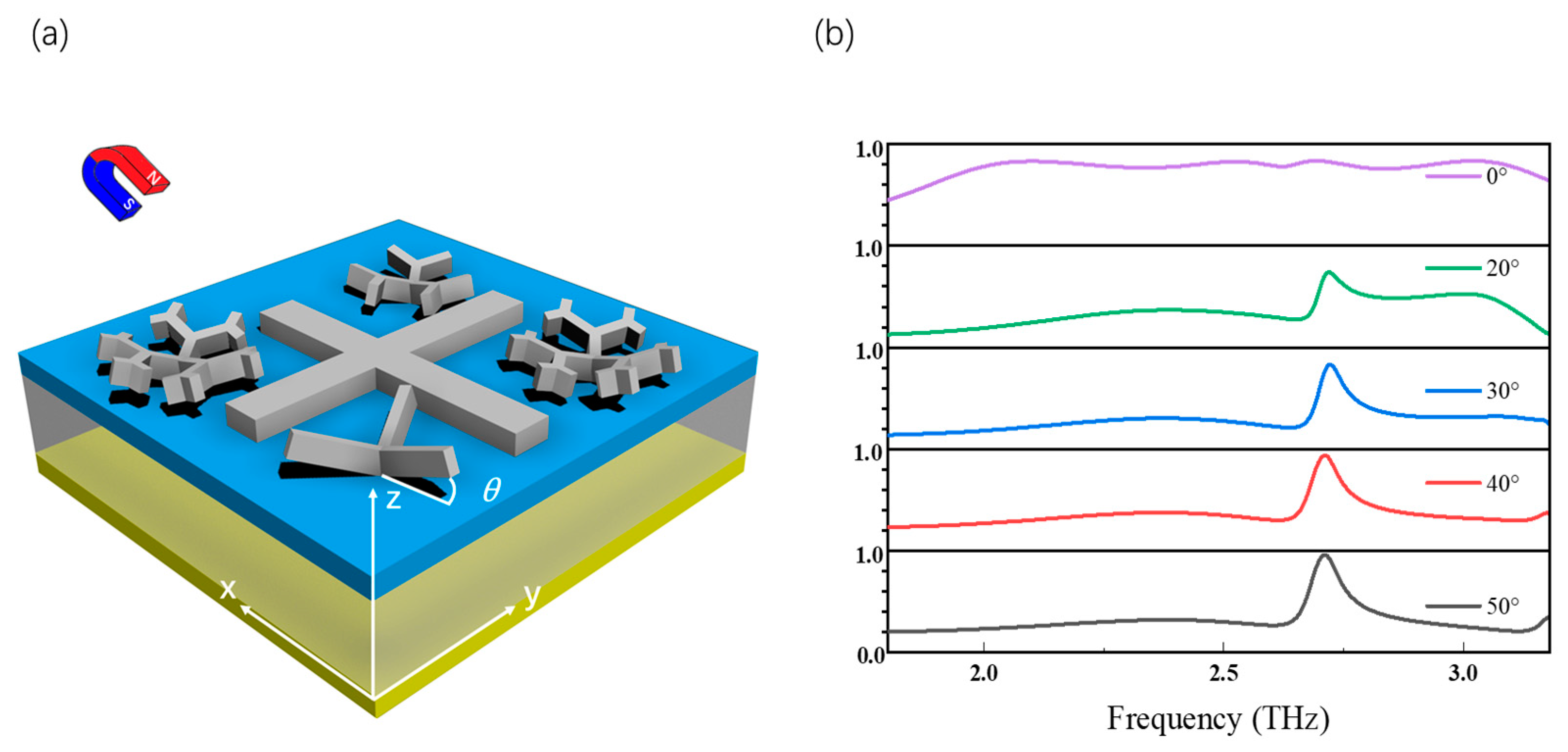

A significant bandwidth decline in the absorber can be driven by the structure change in the metamaterial Ni–Mn–Sn while applying an extraneous magnetic field. To understand the structural conversion of metamaterial in the shape of a Caley tree fractal based on Ni–Mn–Sn, we characterized the absorption at different curved angles ($\theta$) of the Caley tree fractal resonators as schematically shown in Figure 4a. The simulated absorption spectrum was taken for the initial pristine structure of the absorber introduced, and the bendable part of the Caley tree fractal resonators was curved to 20°, 30°, 40°, and 50° (Figure 4b). The absorption patterns of the introduced device showed absorption peaks associated with the Caley tree fractal resonators. The narrowband forms at the interface between the Ni–Mn–Sn in a cross shape and the copper ground plane during the Ni–Mn–Sn Caley tree fractal metamaterials’ deformation process. After the Ni–Mn–Sn Caley tree fractal metamaterials were curved to 50°, the broadband peaks disappeared. Only the narrow peak was still visible, and its absorption intensity was still maintained above 90%. This is consistent with the disappearance of the initial Ni–Mn–Sn Caley tree fractal metamaterial in a plane and the formation of Ni–Mn–Sn cross-shape metamaterial independent. It should be mentioned that, although the Caley tree part and the cross-shape part are both made of Ni–Mn–Sn FSMAs, their magnetic-induced martensitic transformation behavior can be controlled independently due to the slight difference in their alloy compositions and martensitic transformation temperatures [59,60]. When the Ni–Mn–Sn SMAS film in the proposed absorber is in the austenitic state, the absorber has the function of a broadband absorber, which is indispensable in thermophotovoltaic, photodetection, calorimetric, and mechanical resonance operations [25]. As the applied magnetic field increases, the martensitic phase transformation is gradually complete, and the Ni–Mn–Sn FSMAs undergo a shape change so that the absorber gradually changes from a broadband absorber to a narrowband absorber. Narrowband absorbers are widely used in food quality monitoring, disease diagnosis, biosensing, and other fields [40].

3.3. Multifunction under the Optical Pump

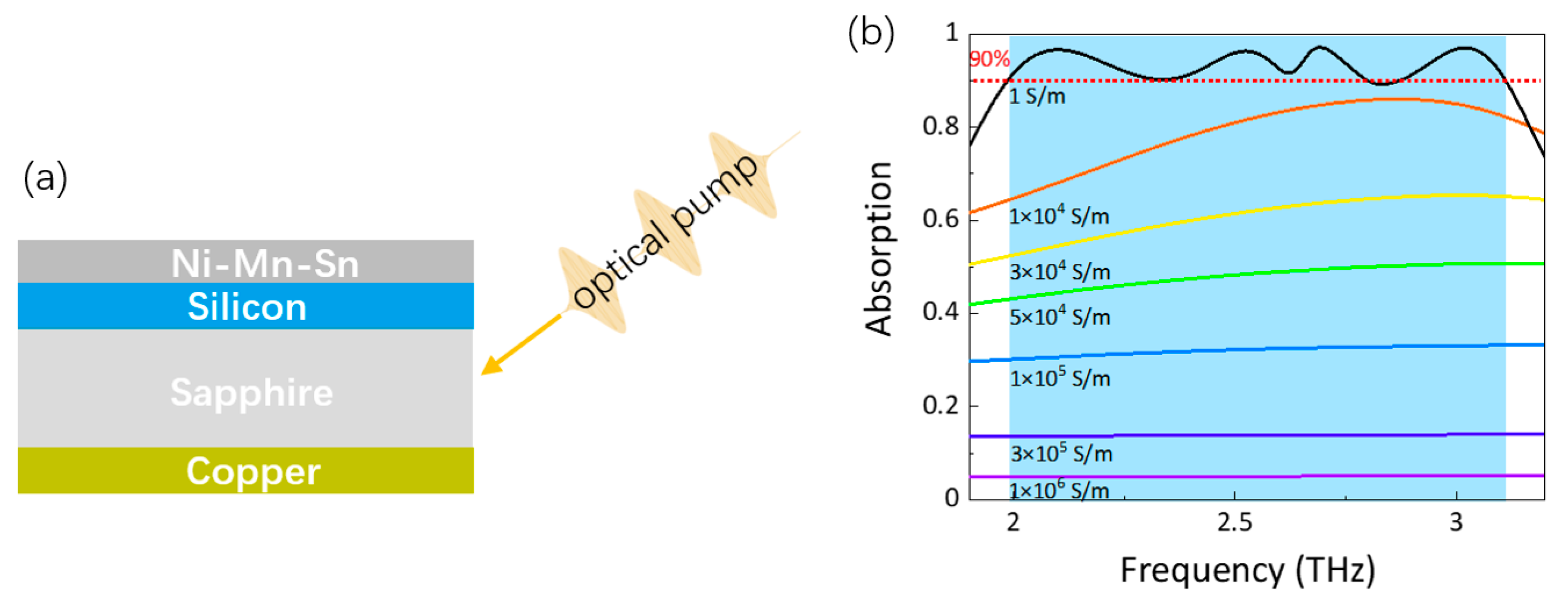

Further research will explore the influence of electromagnetic corresponding under the pump-power optical control on silicon film [61], as schematically shown in Figure 5a. When light shines on silicon, the light intensity increases, and the light carrier in extremely resistive silicon increases, leading to an increase in its electrical conductivity. A dynamic tunable intensity of absorption can be observed by changing the conductivity of photoexcited Si, as indicated in Figure 5b. The simulated absorption spectrum shows switching regimes from 1.950 THz to 3.079 THz frequencies with reasonably high contrast. From 1.950 THz to 3.079 THz, the metamaterial switches from a high-absorption state at small conductivity of Si to a low-absorption state at high conductivity of Si as the photoexcited Si changes its state from an insulating state to a metallic state. We observe that the absorption of the metamaterial structure decreases from 95% to 5% when the conductivity of Si increases from 1 S/m to 1 × 10⁶ S/m [62,63]. Based on the Drude model, the photoexcited carrier mass results in an increase in the imaginary section of the dielectric constant, which leads to a bigger decrease when terahertz waves after the silicon wafer [64]. This phenomenon can be attributed to photoexcited Si due to the generated free carriers screening the confined resonant fields, which cannot store electromagnetic energy in the introduced device [65].

As a result, the switching intensity of 90% is obtained in the switching range of 1.129 THz, and the corresponding switching contrast (SC), defined as SC = (Amax − Amin)/Amin, is calculated to be at least 1700% and can be improved by further increasing the conductivity of silicon, which is above six times higher than the previously reported results [66].

As the simulation results show, by using an applied magnetic field to drive the deformation of the shape memory alloy, we can achieve the conversion between wide/narrow absorbers and the function of absorber switching. In order to describe more clearly the advantages of this work, we compared it with some recently proposed tunable absorbers, as shown in

Table 1. Comparison of absorption performance between different absorbers.

References	Function	Working Bandwidth	Absorptance	Tunable Range	Material	Regulating Method
[30]	Switching	1.85–4.3 THz	>90%	4–100%	Vo2	Temperature
[31]	Switching	4.29–5.52 THz	>90%	4–100%	Vo2	Electric field
[32]	Switching	1–2.03 THz	>90%	0–99%	Graphene, Vo2	Temperature, Electric field
[34]	Wide-narrow	3.57–8.45 THz	>50%	—	Vo2	Temperature
[36]	Switching	1.2–2.67 THz	>90%	0–95%	MoS2	Temperature
[16]	Wide-band	500–3000 nm	>90%	—	—	—
[20]	Dual-band	200–1000 nm	>90%	—	Au/Cr/3 layers of grapheme/TMDs pair	—
This Work	Wide-narrow/Switching	1.950–3.08 THz	>90%	5–95%	Ni–Mn–Sn	Magnetic Fields

. In addition, switching the total quality factor Q of the narrow-band absorber function with a maximum value Q of approximately 25.8 has potential applications in the sensing field. It is worth mentioning that the deformation of Ni–Mn–Sn SMAs by magnetic field modulation greatly reduces the complexity of the terahertz metamaterial design and facilitates device integration.

3.4. Incident Angle Sensitivity Characteristics

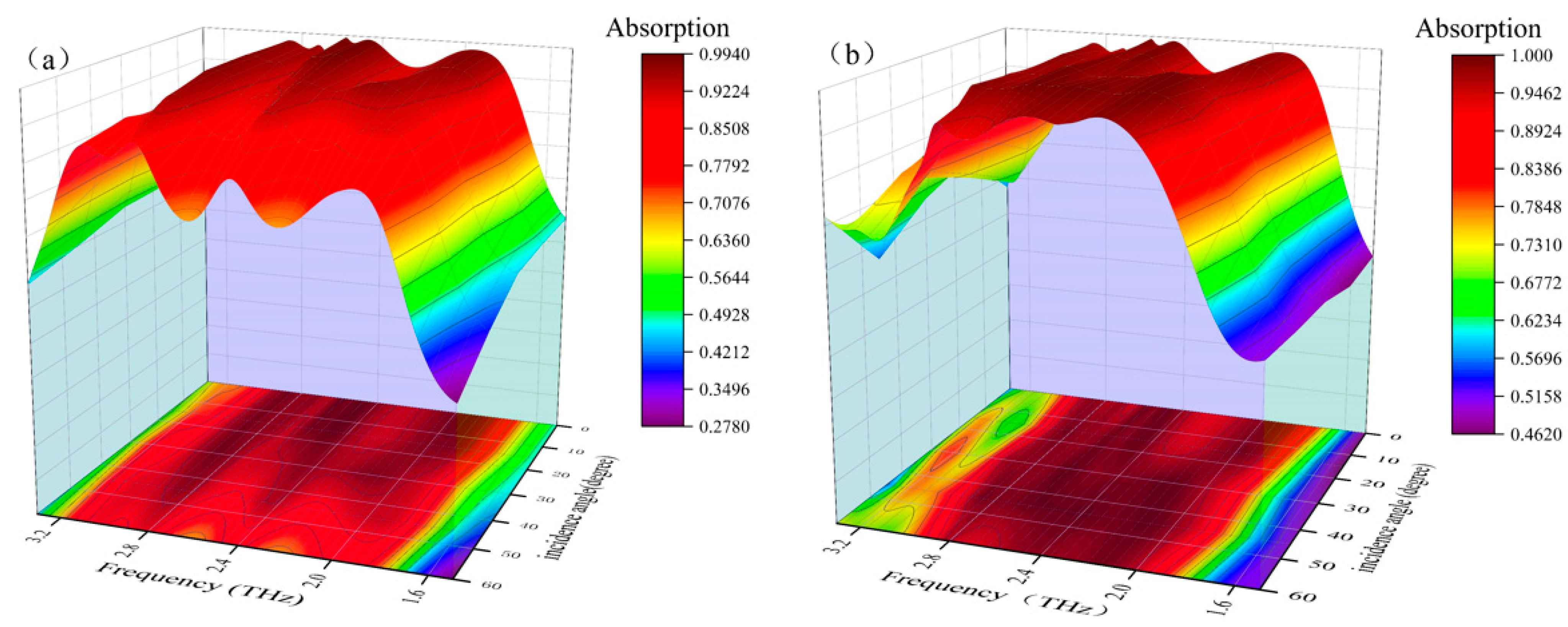

By rotating the direction incident to the terahertz wave placed in front of the terahertz metamaterial absorber, we further investigate and explore the incident angle sensitivity particularities of the broadband absorber. When the direction of the incident terahertz is perpendicular to the broadband absorber, the absorption intensities located at 1.950 THz to 3.079 THz are the maximum values, and the direction of the incident terahertz wave at this moment is set as the starting point (recorded as 0°). As shown in Figure 6a, when rotating the direction of the incident terahertz wave to 40°, the multi-resonance modes are both interaction modes, resulting in broadband and outstanding absorption. Analyzing the normalized curves of the absorption intensities of the TM mode shown in Figure 6b, the curves are approximately the same from 0° to 40°, which illustrates that the multi-resonance modes have the same interaction state. Therefore, it can be concluded that a stable broad-wavelength absorber can also be obtained even if the incident angle of the modes is 40°, which can be used to generate broadband absorption through the design introduced.

3.5. Mechanism of Wide/Narrow Band Absorption Conversion under Magnetic Field

To comprehend the mechanism of forming narrowband absorption, the distributions of surface current and electric field are simulated and analyzed at the specific resonance frequency, as shown in Figure 7. Color maps and arrows denote the strength of the field and current, respectively. The electric field accumulates mainly in both ends of the vertical branches of the Ni–Mn–Sn cross shape when the incident wave is applied as a TE-polarization wave; for TM-polarized waves, the electric field concentrates mainly around the edges of the horizontal branches. The electric field distributions demonstrate that the incident terahertz wave excites typical electrical dipole resonances at the topside surface of the Ni–Mn–Sn cross patch along the y and x directions, respectively, for different polarization terahertz wave incidents (see Figure 7a,d).

The contour map of the magnetic field distribution in the introduced absorber in the x-y plane is shown in Figure 7b,e. As revealed, the magnetic fields of the absorption band are all distributed over the cross shape of the narrowband superabsorber, which confirms the localized resonance characteristics of the absorption bands. However, the magnetic field distribution positions of the TE and TM polarizations are different. For TE-polarized waves, the magnetic field is mainly concentrated at the upright strip. Similar to the TM polarization wave, the magnetic field is mostly gathered at the horizontal strip. The arrows in Figure 7c,f represent the intensity and flowing directions of the surface current distributions on the top cross resonator and bottom ground plane. The surface current distribution of the TE polarization waves on the Ni–Mn–Sn SMA resonant films is principally around the x-axis direction, while the surface current on the metallic copper substrates is parallel to its inverse. Consequently, a magnetic polariton is considered [67], which can result in a large magnetic resonance and a deep, resonant dip in the reflection spectrum [68]. Meanwhile, for the TM-polarized waves, the anti-parallel surface currents give rise to the front resonator and back substrate along the horizontal direction, forming an equivalent current loop. The existence of excited electromagnetic resonance confines the incident terahertz waves in the absorber. It utilizes the ohmic loss in the metal, and the dielectric loss in the dielectric layer dissipates the incident terahertz waves in the absorber. Eventually, the perfect narrowband absorber was demonstrated with absorption, which is approximately 100%.

3.6. The Feasibility of Experimental Demonstration

Based on the simulation results above, we have systematically studied and demonstrated the possibility of our design. Here, the feasibility of the experimental demonstration is discussed and analyzed. Despite the fact that follow-up experiments are not executed in the existing research, a significant amount of associated works have proved that the fabrication of our proposed absorber can be realized with inexpensive cost and excellent precision. First, as an advanced actuator and sensor, shape memory alloys are used commercially in many fields, such as the magnetic actuators in automotive applications [69], the micro-actuators or artificial muscles in robotic applications [70], Boeing’s variable geometry chevron in aerospace application [71], and so on. Moreover, with the development of SMA nano/micro-scale properties [72], shape memory alloy films with ultra-small sizes have been fabricated and used in micro-electro-mechanical systems (MEMS) [73]. The application of magnetic field-driven SMAs in terahertz devices has been successfully demonstrated experimentally [74]. In our work, the design of a terahertz absorber dependent on Ni–Mn–Sn FSMA films is simply attributable to the distinctive functional behaviors, for instance superelasticity and shape memory effects, and the magnetic field is easy and fast to apply. It is reasonable to expect that our proposed terahertz absorber will be successful in practical applications. However, Ni–Mn–Sn suffers from weak deformation recovery and large losses. In addition, the applied magnetic field to drive the magnetic Ni–Mn–Sn phase transition is large. This limits their practical application. These problems can be solved by adjusting the composition of the shape memory alloy and improving the fabrication process in our subsequent work.

4. Conclusions

In summary, we present a versatile, ultrathin, superior performance terahertz absorber with Ni–Mn–Sn FSMAs. The absorber enables the interconversion of broadband absorption and narrowband absorption. Numerical results show that the absorption rate is maintained above 90% in the 1.129 THz bandwidth from 1.950 THz to 3.079 THz. The magnetic field can modulate the absorber to switch between broadband and narrowband absorbers with the narrowband mode exhibiting an ultra-narrow bandwidth and a high-quality factor Q of ~25.8. In addition, the device can dynamically adjust the absorption rate from 90% to 5%. Notably, the absorber is insensitive to incidence angle, which allows for a wider range of applications. The terahertz absorber proposed in this work has many advantages over the present advanced absorbers, including the advantages of ultra-wide operating frequency, excellent absorption efficiency, and transient response. This work supports new ideas for the development of dynamically adjusted multifunctional terahertz functional components, and the proposed devices have potential applications in fields such as thermophotovoltaic energy conversion and sensors. The weak recovery of Ni–Mn–Sn deformation and the large driving magnetic field limit the practical application of the proposed absorber. However, these problems can be solved by tuning the composition of shape memory alloys and improving the fabrication process in our subsequent work.
