Article

Analysis of Phase Transformations in Fe-Ni-Al Alloys Using Diffusion Couples of Fe/Fe-33at.%Ni-33at.%Al Alloy/Ni

by
Eduardo Perez-Badillo
,
Hector J. Dorantes-Rosales
,
Maribel L. Saucedo-Muñoz
and
Victor M. Lopez-Hirata
*
Department of Metallurgy and Materials, ESIQIE, Instituto Politécnico Nacional, Mexico City 07300, Mexico
*
Author to whom correspondence should be addressed.
Metals 2023, 13(7), 1221; https://doi.org/10.3390/met13071221
Submission received: 31 May 2023 / Revised: 28 June 2023 / Accepted: 29 June 2023 / Published: 1 July 2023
Browse Figures
Review Reports Versions Notes

Abstract

:
The present work focused on analyzing the phase transformation in Fe-Ni-Al alloys employing a diffusion couple of Ni/Fe-Ni-Al/Fe, and Calphad-based diffusion and thermodynamic software. Diffusion couples were prepared by annealing at 1100 °C for 200 h and then air-cooled. These couples were also aged at 750 °C for 100 and 275 h. Both numerical and experimental results indicated that the diffusion path between Ni or Fe pure metal and the Fe-33at.%Ni-33at.%Al alloy is not linear. The phases formed during the diffusion anneal at 1100 °C correspond to those shown in the Calphad-calculated Fe-Ni-Al equilibrium diagram. The aging treatment at 750 °C promoted the inverse precipitation β′ → β′ + α, which caused the softening of the alloy. Moreover, the normal precipitation reactions, α→α + β′ and γ → γ + γ′, were also observed to occur during the aging of diffusion couple at 750 °C, originating precipitation hardening.

1. Introduction

The mechanical strength at high temperatures for Ni-based superalloys depends strongly on the presence of fine coherent particles of γ′(Ni3Al) with an ordered crystalline structure L12. in the γ phase matrix. Nevertheless, prolonged service at high temperatures and the cyclic heating of turbines may promote the coarsening of γ′ precipitates, which originates the loss of its coherency between precipitates and matrix. These microstructure changes may affect the mechanical performance of components because of the deterioration of their mechanical strength [1,2,3,4,5,6]. Ferritic alloys strengthened with coherent precipitates show great potential for key applications in aerospace, power industries, shipbuilding, and automotive components due to their excellent mechanical properties and low cost [7,8]. In recent years, the development of new intermetallic compounds has become an essential point for application to the precipitation hardening of alloys at high temperatures [9]. For instance, the phase transformations of Fe-Ni-Al alloys are important for developing different industrial alloys, such as superalloys, stainless steels, ferritic steels, maraging steels, and light steels [9,10,11,12,13,14,15,16]. The precipitated phases, such as the β′ phase with a NiAl-type crystalline structure, are important for this purpose, and they may originate the precipitation hardening of the ferritic matrix [17,18,19,20,21,22,23,24]. This precipitation is expected to harden the Fe-Ni-Al alloys similarly to that of the γ′ precipitates since the interface between the precipitate and matrix is coherent, which may help to generate good coarsening resistance. The content of alloying element plays a crucial role in the precipitation reaction, growth kinetics, and mechanical properties of the alloys [25,26,27,28,29,30]. For example, Contreras-Piedras et al. [31] pointed out that the hardness of Fe-Ni-Al alloys increased with increasing the content of Al and Ni (>15 at.%) because of a higher volume fraction of β′ precipitates. However, the coarsening resistance of precipitates also decreased, which may cause a decrease in hardness. The effect of different alloying is a research topic of interest. For instance, Dong et al. [32] showed that the V addition strongly affected the formation of the γ phase during air-cooling in Fe-Mn-Al-Ni alloys. In the same way, Park et al. [33] observed that the mean radius of the NiAl precipitates gradually decreased with an increase in vanadium concentration. This produced an enhanced yield strength from 210 MPa to 401 MPa at 973 K in compressive tests in Fe-Cr-Ni-Al-V system. Furthermore, the coarsening growth kinetics of precipitates also relates to the alloying content. For example, Eris et al. [34] analyzed the Hf, Hf-Mo, and Hf-W additions to Ni-based superalloys. They also stated that the coarsening rate of γ′-Ni3Al-X precipitates decreases with the increase in addition of Hf-Mo and Hf-W. In contrast, the addition of only Hf originates a faster coarsening rate of γ′ precipitates, which may promote their dissolution at the early stages. This content may change the coherency between the matrix and the precipitate, the solubility in the matrix phase, and the atomic diffusivity. To exhibit high coarsening resistance in precipitates during the heating of alloys, a low interfacial free energy between the matrix and precipitate, low solubility, and a slow diffusion process are essential characteristics to keep the mechanical properties at high temperatures during the service operation of the industrial components [25,26,27,28,29]. Baik et al. [35] noted that the increase in Ti gradually increased their mechanical strength from 1237 to 1538 MPa for a content of 3.5 wt.% Ti. This behavior is due to the increase in the volume fraction of precipitates L21 formed inside the β′ phase. These precipitates improve the lattice misfit, increasing the coherency between the precipitate and matrix. However, the mechanical strength decreases to 1402 MPa for a content of 4 wt.% Ti because of the transformation of the β′ phase into the L21 phase.
The use of diffusion couples [36,37,38] has been a powerful traditional tool to determine binary- and ternary-phase diagrams. The diffusion couple method has also permitted following the growth kinetics of phases formed in the alloy system. Thus, this method is a good alternative to analyze the phase formation in different Fe-Ni-Al alloy compositions. This method permits obtaining the equilibrium phases for a phase diagram. Additionally, the aging of the diffusion couple enables us to analyze the precipitation process for different alloy compositions using the same specimen.
Nowadays, the application of Calphad-based software such as Thermo-Calc and Dictra (Thermo-Calc Software, Stockholm, Sweden) [39,40,41] enables to analyze the equilibrium phases either in a phase diagram or in a diffusion couple using numerical solutions of the diffusion equations for multicomponent alloys. The DICTRA software employs atomic mobility, which permits considering the thermodynamic interaction among alloying elements during atomic diffusion. This fact suggests that the annealing of a diffusion couple can be simulated even for ternary alloy systems. Additionally, the Thermo-Calc software also permits following the phase formation in equilibrium at different temperatures for these alloys. This software also permits studying the possible precipitation process after aging treatment, as well as the chemical and structural characteristics of the matrix and precipitate phases.
Therefore, this work aims to study the phase formation and precipitation process of Fe-Ni-Al alloys using diffusion couples and Calphad-based computer programs to understand their corresponding properties at high temperatures.

2. Materials and Methods

2.1. Numerical Method

The temporal evolution of concentration profiles for a diffusion couple can be expressed by Fick’s second law [40]:
∂ c k ∂ t = − ∇ ( j k )
where ck is the concentration of the k element, and the diffusion flux jk for a multicomponent system is given by the Onsager equation [40]:
j k = − ∑ j = 1 n D k j n   ∂ c j ∂ z .
where D k j n is the chemical diffusion coefficient for each of the n components, and they can be expressed as [40]:
D k j n = − ∑ j = 1 n L k j ’ ∂ μ i ∂ c j .
where μi is the chemical potential for the different elements, and L k j ´ is a proportionality factor, which depends on the element mobility, and it is given by:
L k j ´ = ( δ i k − c k V i ) · c i M i
where δ i k is the Kronecker delta, and V i and M i are the partial molar volume and mobility of component i, respectively. The mobility M i is defined as follows:
M i = M i o R T   exp ⁡ ( − Q i R T ) .
where M i o is a frequency factor and Q i is the activation energy, which depend on the chemical composition and the temperature.
The diffusion process of the diffusion couple was numerically simulated using Thermo-Calc DICTRA [42] and the TCFE11 and MOFE6 databases (Thermo-Calc Software, Stockholm, Sweden). The modeling of the diffusion couple was carried out in the fcc austenite phase using a planar morphology. Moreover, the ternary Fe-Ni-Al phase diagrams at different temperatures were calculated with Thermo-Calc (TC) [43]. It is important to mention that the diffusion coefficients D and mobilities M were taken from references [44,45,46,47].
Moreover, the precipitation process for Fe-Ni-Al alloys was carried out using the TC-Prisma software (Thermo-Calc Software, Stockholm, Sweden)and also using TCFE11 and MOFE6 databases (Thermo-Calc, Stockholm, Sweden). The thermodynamic and diffusion data were taken, for example, from references [48,49,50]. The precipitation simulation considered the bulk nucleation of either the α or β′ phases in the β′ and α matrix phase during the isothermal aging. The interfacial free energy between the precipitate and matrix was also calculated by TC-Prisma. The energy values correspond to a coherent interface, as expected for this type of precipitation [12,17,51]. TC-Prisma enables us to analyze the precipitation process in a concomitant way of the nucleation, growth, and coarsening of precipitates.

2.2. Experimental Method

An Fe-33at.%Ni-33at.%Al alloy was fabricated with high-purity pure Fe, Ni, and Al metals (>99.9%) using an Edmund Bühler Compact Arc Melter (Edmund Bühler GmbH, Schindäckerstraβe, Bodelshausen, Germany). A tungsten electrode and Ar gas atmosphere were used during the melting process. Alloy, pure Fe, and Ni plate specimens of 5 × 10 × 4 mm were obtained by machining. For the metallography preparation of the most prominent face, we used up to 2000 grit number emery paper, alumina of 0.5 μm, and silica colloidal of 0.02 μm. The diffusion couple of Fe/Fe-33at.%Ni-33at.%Al alloy/Ni was kept together using an austenitic stainless-steel specimen holder. This specimen holder was encapsulated in a quartz tube under an Ar gas atmosphere. The diffusion annealing was carried out at 1100 °C for 72 h using an electric furnace. The diffusion couple was sectioned into specimens of 3 mm length to conduct aging treatments using a Struers Minitom (Struers S.A.S, Champigny sur Marne, France) cutting apparatus. These specimens were quartz-encapsulated with Ar gas, and then solution-treated at 1100 °C for 1 h, air-cooled, and subsequently aged at 750 °C for 100 and 250 h using a Carbolite electric furnace (Carbolite Gero GmbH & Co. KG, Neuhausen, Germany). The aged specimens were metallographically prepared, as explained above, and then electrochemically etched with an electrolyte of 10 vol.% HCl in CH3-OH at 3 V dc for 3–4 s. All specimens were observed with an EDX-equipped scanning electron microscope, JEOL JSM-6701F SEM (JEOL USA Inc., Dearborn Road Peabody, MA, USA), at 20 kV using secondary electrons. The Vickers microhardness was pursued on the aged specimens with a load of 100 g and a dwell time of 12 s. Microhardness indentations were pursued for positions with an interval of about 100 microns on the same line, considering the Fe/Fe-NiAl alloy and Ni/Fe-Ni-Al alloy interfaces as the origin, and for four lines separated from each other by approximately 500 microns. An average hardness was determined for four values.

3. Results and Discussion

3.1. Phase Stability and TTT Diagram

Figure 1 shows the experimental and TC-calculated Fe, Ni, and Al concentration profiles corresponding to the diffusion couple sides Fe/Fe-Ni-Al alloy/Ni and Ni/Fe-Ni-Al alloy after diffusion annealing at 1100 °C for 72 h. The experimental values in the colored symbols show, in general, good agreement with the calculated colored lines. This result indicates that the diffusion of Fe into the Fe-Ni-Al alloy with an fcc structure is slower than that of Ni with an fcc structure. This fact is attributable to the fastest atomic interdiffusion of Ni-rich Ni-Fe alloys because of their lower activation energy Q, 312 kJ mol−1 compared to 318 kJ mol−1 for Fe-rich Fe-Ni alloys [52]. Likewise, Al from Fe-Ni-Al alloy diffused faster into the Ni side than into the Fe side, which is attributable to the lower activation energy Q, 272 kJ mol−1 compared to 339 kJ mol−1 for Fe-rich Al-Ni alloys [42].
The Thermo-Calc-calculated Fe-Ni-Al ternary-phase diagrams are shown in Figure 2a,b at 750 and 1100 °C, respectively. These figures also show the experimental values of chemical composition determined in the diffusion couples, as indicated by the red triangle marks. Figure 2b suggests that the diffusion path between the diffusion couples of Fe/FeNiAl alloy and Ni/FeNiAl alloy is not linear but sinusoidal, as expected for ternary alloy systems [52,53,54]. The following phase sequence presents the diffusion path for the Fe/FeNiAl alloy diffusion couple at 1100 °C:
Fe γ→α→α + β′ →β′
Fe γ is the fcc austenite, α the bcc ferrite phase, β′ the NiAl-type intermetallic compound, and γ the Ni-rich fcc phase. The β′ phase is responsible for increasing the mechanical strength during the precipitation hardening of Fe-based superalloys [10,12,14,17,31]. The β′ precipitate phase is coherent with the α ferrite phase. This fact causes a more effective increase in mechanical strength, as well as an increase in coarsening resistance, which permits keeping their mechanical strength at high temperatures.
On the other hand, the phase diffusion path of the Ni/FeNiAl alloy diffusion couple at 1100 °C is as follows:
Nι→γ + β′→β′
Table 1 presents the Thermo-Calc (TC)-calculated chemical compositions of the α, β′, γ, and γ′ phases at 1100 °C. These values are the most representative of several ones. The ferrite α and γ phases are Fe-rich and Ni-rich, respectively, as expected. Nevertheless, the β′ phase is supersaturated with Fe, and its composition is far from the chemical composition of the intermetallic NiAl [55]. In contrast, the γ′ phase has a chemical composition close to the intermetallic Ni3Al [56] with a small amount of Fe. Table 2 shows the crystal structure and space group of the present phases according to the literature [57,58,59,60,61,62,63,64].
The SEM micrographs of representative zones, as indicated by F3 in Figure 1, are shown in Figure 3a,b for the Fe/FeNiAl alloy diffusion couple side. Figure 3a shows the presence of an irregular shape of Fe γ dispersed in the β′ phase, while Figure 3b shows the spheroid β′ phase in the Fe α phase. These results are consistent with the ternary diagrams in Figure 2b. In contrast, the SEM micrographs for representative zones, as indicated by F4 in Figure 1, are shown in Figure 4a,b for the Ni/FeNiAl alloy diffusion couple side. Both micrographs present the irregular shape of the γ phase dispersed in the β’ phase, which also agrees with the ternary-phase diagram at 1100 °C in Figure 2b. The γ′ phase is an intermetallic compound with a Ni3Al crystalline structure. This phase commonly appears during the precipitation of Ni-based superalloy. The γ′ phase also provides the creep strength for operation at high temperatures [1,65,66]. The interface between the γ′ precipitate and the γ matrix phase is coherent, which is related to their excellent creep strength and coarsening resistance at high temperatures.

3.2. Microstructure Evolution of Aged Diffusion Couples

The microstructure evolution of the Ni/FeNiAl alloy diffusion couple after aging at 750 °C for 100 and 250 h is shown in Figure 5a–d. These figures correspond to a region, as indicated by F5 in Figure 1. These figures indicate an evident coarsening of the γ phase in the β′ phase. On the other hand, SEM micrographs of Figure 5a,b correspond to the Ni/Fe-Ni-Al alloy side aged at 750 °C for 100 and 250 h, respectively. Two precipitation reactions are present during aging at 750 °C. In the case of the γ phase, the aging treatment causes the following precipitation:
γ→γ + γ′
γ′ is the Ni3Al-type intermetallic compound. The morphology of the γ′ phase is like cuboids or plates having a preferential alignment in the γ matrix, as expected for this precipitation [26]. The γ + γ′ zone is also present in the Fe-Ni-al phase diagram at 750 °C in Figure 2a. The γ′ precipitates coarsen with time (Figure 5a,b).
In contrast, the precipitation reaction for β′ phase is as follows:
β′→β′ + α
That is, the soft α phase precipitates in the hard β′ phase, which is considered an inverse precipitation reaction. The precipitate shape of the ferrite phase is spheroids, as shown in Figure 5c,d. This inverse precipitation is favored by increasing Ni and Al contents in the Fe-Ni-Al alloys. These precipitates also coarsen with aging time and show a preferential alignment in the β′ matrix. It is important to mention that this inverse precipitation is not as common as the inverse precipitation γ′→γ′ + γ reported [65,66] in Ni-base superalloys. This precipitation is also promoted with higher contents of Ni and Al.
The normal precipitation reaction in Fe-Ni-Al alloys [20,21] is:
α→ α + β′
This fact means the hard β′ phase with a NiAl crystalline structure is formed in the bcc ferrite α phase matrix. Figure 6 illustrates the SEM micrograph of the precipitation process of the β′ precipitates in the ferritic α matrix phase for a zone, as indicated by F6 in Figure 1, for the Fe/FeNiAl alloy diffusion couple after aging at 750 °C for 50 h. The α + β′ region is also noted in Figure 2a.
Table 3 shows the TC-calculated chemical composition of the equilibrium α, β′, γ, and γ′ phases at 750 °C. These compositions are representative of the chosen values. The α and γ phases become richer in Fe and in Ni, respectively, compared to the contents at 1100 °C. The Ni and Al contents of the β′ phase increase, while those of the γ′ phase decrease concerning the contents at 1100 °C. This behavior suggests that the solute supersaturation of the α and γ phases decreases with temperature. These solutes enrich the γ′ and β′ phases; however, their compositions are farther than the Ni3Al and NiAl intermetallic compounds, respectively.

3.3. Effect of Microstructure on Hardness

The hardness profile of the diffusion couples is shown in Figure 7a–c for the diffusion-annealed and subsequently aged at 750 °C for 100 h and 250 h, respectively. The highest average value of about 430 VHN corresponds to the region of Fe-33at.%Ni-33at.%Al alloy with the presence of the β′ phase in Figure 7a. This value is attributable to the intermetallic NiAl. Nevertheless, the β′ phase corresponds to a (FeNi)Al intermetallic compound [20]. The increase in Ni or Fe in the Fe-33at.%Ni-33at.%Al alloy causes a decrease in hardness, according to Figure 7a. The slight reduction in hardness of the Fe-rich side for the Fe/FeNiAl alloy diffusion couple is attributable to the presence of fine precipitates of β′ in the α ferrite matrix, Figure 3b. This precipitation type could cause hardness values between 365 and 450 VHN [20,21]. In the case of the Ni-rich side of the Ni/FeNiAl alloy diffusion couple, a sudden drop in the hardness is present, which is related to the formation of a mixture of γ and β′phases (Figure 4a,b).
The reduction in hardness in the FeNiAl alloy, observed in Figure 7a,b after aging at 750 °C for 100 and 250 h, can be explained by the inverse precipitation of the α ferrite in the β′ phase matrix.

3.4. Normal Precipitation versus Inverse Precipitation

Figure 8a,b present the calculated plot of volume fraction against temperature for the Fe-10at.%Ni-15at.%Al and Fe-33at.%Ni-33at.%Al alloys, respectively. The precipitation reaction, α→α + β′, occurs at temperatures lower than 1050 °C in the former alloy. The precipitate amount increases with the reduction in temperature. In contrast, the inverse precipitation, β′ → β′ + α, is present for the Fe-33at.%Ni-33at.%Al alloy (Figure 8b). Moreover, the volume fraction of precipitates is higher than that of the former case. The inverse precipitation causes no precipitation hardening since the hardness of the β′ phase, the (Fe,Ni)Al intermetallic compound, is higher than that of the α ferrite phase. Moreover, the volume fraction of precipitates is higher for the inverse precipitation, as shown in Figure 8b. Table 4 illustrates, for instance, the chemical composition of the matrix and precipitate for the normal precipitation and inverse precipitation alloys. In both cases, the β′ phase has a chemical composition very close to that of NiAl intermetallic compounds. The chemical composition of the ferrite α phase is also very close for both alloys. This fact suggests that the difference in hardness between these alloys depends on the amount of them in the alloy. That is, the higher volume fraction of the β′ phase, the higher hardness. The TC-Prisma analysis for the precipitation in these two alloy compositions is shown in Figure 9a,b for a comparison with the plot of precipitate radius as a function of time during aging at 550 °C for times up to 1000 h. This temperature was selected to cause precipitation for both alloy compositions. In the case of temperatures higher than 550 °C, the activation energy for the inverse precipitation was too high in the Fe-33at.%Ni-33at.%Al alloy, and thus no simulation results were obtained. This is attributable to the low supersaturation of the Fe solute in the β′ phase [53,63]. Figure 9a corresponds to Fe-10at.%Ni-15at.%Al alloy and indicates a constant radius up to times of about 1 × 101 s. This stage is related to the nucleation process of the β′ phase. Then, there is a rapid increase in radius with time up to 3 × 102 s, associated with the growth process, and the time exponent is ½ for this case. In the coarsening process, there is an increase in radius with time. The growth kinetics for the coarsening stage follows the diffusion-controlled coarsening LSW theory [17,20,21,31,67] and, thus, the exponent times are ⅓, as expected. In contrast, in the growth kinetics behavior for the Fe-33at.%Ni-33at.%Al alloy (Figure 9b), the first two stages, nucleation and growth, are present; however, the coarsening stage is absent for the aging time of 1 × 104 s (1000 h). This difference suggests that the growth kinetics are faster for the former alloy than for the latter one. Moreover, the higher solute content also favors a slower diffusion process [52,53]. This behavior is attributable to the faster diffusion process in the α ferrite matrix for the former alloy than that of the intermetallic compound β′ matrix phase. The slower kinetics for the Fe-33at.%Ni-33at.%Al alloy permits expecting higher coarsening resistance during heating. The TC-Prisma-calculated interfacial free energy for the interface β′ precipitate and α matrix and the α precipitate and β′ matrix were 0.173 and 0.183 Jm−2, respectively. These energy values are very close, and they are lower than 0.2 Jm−2. This fact suggests a coherent interface between the precipitate and matrix, which improves their mechanical strength and coarsening resistance for both alloys.

4. Conclusions

The Calphad-based numerical and diffusion couple analyses permit us to conclude the following:
a. The Calphad-based diffusion paths for the Fe/Fe-Ni-Al alloy/Ni diffusion couples are in good agreement with the experimental ones for diffusion annealing at 1100 °C.
b. The equilibrium phases formed during the annealing at 1100 °C are consistent with the Calphad-calculated Fe-Ni-Al phase diagram at the same temperature.
c. The precipitation reactions of α→α + β′ and γ→γ + γ′ occurred during aging at 750 °C, promoting the precipitation hardening.
d. The presence of the inverse precipitation reaction, β′→β′ + α, caused a decrease in hardness because of the precipitation of the soft α ferrite phase. This fact indicates that inverse precipitation is also possible for Fe-based superalloys, as observed in Ni-based superalloys.
e. The coarsening process of α precipitates is slower than that of the β′ precipitates during the aging of the Fe-Ni-Al alloys, which suggests a better response of the latter precipitate to coarsening during service operation.

Author Contributions

Conceptualization, E.P.-B., H.J.D.-R. and V.M.L.-H.; methodology, E.P.-B. and M.L.S.-M.; software, E.P.-B. and V.M.L.-H.; validation, H.J.D.-R. and E.P.-B.; formal analysis, E.P.-B. and V.M.L.-H.; investigation, E.P.-B. and M.L.S.-M.; writing original draft preparation, E.P.-B., V.M.L.-H. and H.J.D.-R. All authors have read and agreed to the published version of the manuscript.

Funding

This research received no external funding.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

The data that support the findings of this study are available from the corresponding author upon request.

Acknowledgments

The authors acknowledge the financial support from CONACYT and SIP-BEIFI-IPN.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Chen, Y.; Prasath Babu, R.; Slater, T.J.; Bai, M.; Mitchell, R.; Ciuca, O.; Preuss, M.; Haigh, S.J. An investigation of diffusion-mediated cyclic coarsening and reversal coarsening in an advanced Ni-based superalloy. Acta Mater. 2016, 110, 295–305. [Google Scholar] [CrossRef]
  2. Liu, D.Y.; Zhao, M.J.; Tao, N.R. Precipitation and its hardening behavior in an austenitic steel with different strain-induced structures. Scr. Mater. 2023, 230, 115396. [Google Scholar] [CrossRef]
  3. Huang, Y.S.; Wang, X.G.; Cui, C.Y.; Li, J.G.; Ye, L.H.; Hou, G.C.; Yang, Y.H.; Liu, J.L.; Liu, J.G.; Zhou, Y.Z.; et al. The effect of coarsening of γ′ precipitate on creep properties of Ni-based single crystal superalloys during long-term aging. Mater. Sci. Eng. A 2020, 773, 138886. [Google Scholar] [CrossRef]
  4. Hardy, M.C.; Detrois, M.; McDevitt, E.T.; Argyrakis, C.; Saraf, V.; Jablonski, P.D.; Hawk, J.A.; Buckingham, R.C.; Kitaguchi, H.S.; Tin, S. Solving recent challenges for wrought Ni-based superalloys. Metall. Mater. Trans. A 2020, 51, 2626–2650. [Google Scholar] [CrossRef]
  5. Degeiter, M.; Le Bouar, Y.; Appolaire, B.; Perrut, M.; Finel, A. Instabilities in the periodic arrangement of elastically interacting precipitates in nickel-based superalloys. Acta Mater. 2020, 187, 41–50. [Google Scholar] [CrossRef]
  6. Zhang, R.Y.; Qin, H.L.; Bi, Z.N.; Li, J.; Paul, S.; Lee, T.L.; Zhang, S.Y.; Zhang, J.; Dong, H.B. Evolution of lattice spacing of gamma double prime precipitates during aging of polycrystalline Ni-based superalloys: An in situ investigation. Metall. Mater. Trans. A 2020, 51, 574–585. [Google Scholar] [CrossRef] [Green Version]
  7. Zhang, L.; Wen, Y.; Liu, Y.; Quan, F.; Han, J.; Yang, S.; Chen, X.; He, S.; Gorbatov, O.I.; Chen, X.; et al. Cr-promoted formation of B2+L21 composite nanoprecipitates and enhanced mechanical properties in ferritic alloy. Acta Mater. 2023, 243, 118506. [Google Scholar] [CrossRef]
  8. Sahoo, B.K.; Srivastava, V.C.; Chandan, K.A.; Chowdhury, S.G. Enhancing the properties of Al–Ni added medium Mn steel by tailoring B2–NiAl precipitates through aging treatment. Mater. Sci. Eng. A 2022, 837, 142757. [Google Scholar] [CrossRef]
  9. Muñoz-Morris, M.A.; Morris, D.G. Microstructure and mechanical behavior of a Fe-Ni-Al alloy. Mater. Sci. Eng. A 2007, 444, 236–241. [Google Scholar] [CrossRef]
  10. Stallybrass, C.; Schneide, A.; Sauthoff, G. The strengthening effect of (Ni,Fe)Al precipitates on the mechanical properties at high temperatures of ferritic Fe–Al–Ni–Cr alloys. Intermetallics 2005, 13, 1263–1268. [Google Scholar] [CrossRef]
  11. Stallybrass, C.; Sauthoff, G. Ferritic Fe–Al–Ni–Cr alloys with coherent precipitates for high-temperature applications. Mater. Sci. Eng. A 2004, 387, 985–990. [Google Scholar] [CrossRef]
  12. Vo, N.Q.; Liebscher, C.H.; Rawlings, M.J.S.; Asta, M.; Dunand, D.C. Creep properties and microstructure of a precipitation-strengthened ferritic Fe-Al-Ni-Cr alloy. Acta Mater. 2014, 71, 89–99. [Google Scholar] [CrossRef]
  13. Teng, Z.K.; Liu, C.T.; Ghosh, G.; Liaw, P.K.; Fine, M.E. Effects of Al on the microstructure and ductility of NiAl-strengthened ferritic steels at room temperature. Intermetallics 2010, 18, 1437–1443. [Google Scholar] [CrossRef]
  14. Sun, L.; Simm, T.H.; Martin, T.L.; McAdam, S.; Galvin, D.R.; Perkins, K.M.; Bagot, P.A.J.; Moody, M.P.; Ooi, S.W.; Hill, P.; et al. A novel ultra-high strength maraging steel with balanced ductility and creep resistance achieved by nanoscale β-NiAl and Laves phase precipitates. Acta Mater. 2018, 149, 285–301. [Google Scholar] [CrossRef] [Green Version]
  15. Yong, L.; Zou, Y.; Peng, H.; Chen, J.; Fan, Q.; Yang, Q.; Yan, J.; Huang, S.; Wen, Y. Precipitation behavior of coherent nano-ordered particles in Fe-Mn-Al-Ni shape memory alloys with different Ni contents. Mater. Charact. 2022, 188, 111912. [Google Scholar] [CrossRef]
  16. Ann, Y.F.; Chen, X.P.; Mei, L.; Ren, P.; Wei, D.; Cao, W.Q. Precipitation transformation pathway and mechanical behavior of nanoprecipitation strengthened Fe-Mn-Al-C-Ni austenitic low-density steel. J. Mater. Sci. 2023; in press. [Google Scholar]
  17. Baik, S.I.; Rawlings, M.J.S.; Dunand, D.C. Effect of aging on coarsening and creep resistance of a Ti-modified Fe-Ni-Al-Cr-Mo ferritic steel with L21/B2 composite precipitates. Mater. Sci. Eng. A 2020, 776, 138987. [Google Scholar] [CrossRef]
  18. Song, G.; Hong, S.J.; Song, S.H.; Hong, S.H.; Kim, K.B.; Liaw, P.K. Optimization of B2/L21 hierarchical precipitate structure to improve creep resistance of a ferritic Fe-Ni-Al-Cr-Ti superalloy via thermal treatments. Scr. Mater. 2019, 161, 18–22. [Google Scholar] [CrossRef]
  19. Basuki, E.A.; Nababan, D.C.; Muhammad, F.; Korda, A.A.; Prajitno, D.H. Isother mal Oxidation Behaviour of 69.5Fe-14Ni-9Al-7.5Cr Alloy at High Temperatures. Int. J. Corros. 2019, 2019, 8517648. [Google Scholar] [CrossRef]
  20. Rosales-Dorantes, H.J.; Cayetano-Castro, N.; Lopez-Hirata, V.M.; Saucedo-Muñoz, M.L.; Villegas-Cardenas, J.D.; Hernández-Santiago, F. Coarsening process of coherent β′ precipitates in Fe–10 wt-%Ni–15 wt-%Al and Fe–10 wt-%Ni–15 wt-%Al–1 wt-%Cu alloys. Mater. Sci. Technol. 2013, 29, 1492–1498. [Google Scholar] [CrossRef]
  21. Ferreira-Palma, C.; Contreras-Piedras, E.; Cayetano-Castro, N.; Saucedo-Muñoz, M.L.; Lopez-Hirata, V.M.; Gonzalez-Velazquez, J.L.; Dorantes-Rosales, H.J. Effect of temperature and composition on NiAl precipitation and morphology in Fe-Ni-Al alloys. Metall. Mater. Trans. A 2017, 48, 5285–5293. [Google Scholar] [CrossRef]
  22. Dorantes-Rosales, H.J.; Cayetano-Castro, N.; Cruz-Rivera, J.J.; López-Hirata, V.M.; González-Velázquez, J.L.; Moreno-Palmerín, J. Cinética de engrosamiento de precipitados coherentes en aleaciones base hierro. Rev. Latinoam. Metal. Mater. 2009, 2, 637–645. [Google Scholar]
  23. Zhou, X.; Dong, H.; Wang, Y.; Yuan, M. Microstructure characteristics and mechanical performance of Fe-Cr-Ni-Al-Ti superalloy fabricated by powder metallurgy. J. Alloys Compd. 2022, 918, 165612. [Google Scholar] [CrossRef]
  24. Xing, Z.; Pang, J.; Zhang, H.; Ji, Y.; Zhu, Z.; Wang, A.; Zhang, L.; Li, H.; Fu, H.; Zhang, H. Optimizing the microstructure and mechanical performance of Fe-Ni-Cr-Al high entropy alloys via Ti addition. J. Alloys Compd. 2020, 943, 169149. [Google Scholar] [CrossRef]
  25. Song, G.; Sun, Z.; Poplawsky, J.D.; Gao, Y.; Liaw, P.K. Microstructure evolution of single Ni2TiAl or hierarchical NiAl/Ni2TiAl precipitates in Fe-Ni-Al-Cr-Ti ferritic alloys during thermal treatment for elevated-temperature applications. Acta Mater. 2017, 127, 1–16. [Google Scholar] [CrossRef] [Green Version]
  26. Baldan, A. Progress in Ostwald ripening theories and their applications to nickel-base superalloys. J. Mater. Sci. 2002, 37, 2171–2202. [Google Scholar] [CrossRef]
  27. Shen, Q.; Xiong, X.; Li, T.; Cheng, Y.; Liu, W. Effect of co-addition of Ni and Al on precipitation evolution and mechanical properties of Fe-Cu alloy. Mater. Sci. Eng. A 2018, 723, 279–286. [Google Scholar] [CrossRef]
  28. Baik, S.I.; Rawlings, M.J.S.; Dunand, D.C. Effect of hafnium micro-addition on precipitate microstructure and creep properties of a Fe-Ni-Al-Cr-Ti ferritic superalloy. Acta Mater. 2018, 153, 126–135. [Google Scholar] [CrossRef]
  29. Rawlings, M.J.S.; Dunand, D.C. Dislocation dynamics modeling of precipitation strengthening in Fe-Ni-Al-Cr ferritic superalloys. J. Mater. Res. 2017, 32, 4241–4253. [Google Scholar] [CrossRef]
  30. Zeisl, S.; Landefeld, A.; Van Steenberge, N.; Chang, Y.; Schnitzer, R. The role of alloying elements in NiAl and Ni3Ti strengthened Co-free maraging steels. Mater. Sci. Eng. A 2022, 861, 144313. [Google Scholar] [CrossRef]
  31. Contreras-Piedras, E.; Dorantes-Rosales, H.J.; Lopez-Hirata, V.M.; Hernandez-Santiago, F.; Gonzalez-Velazquez, J.L.; Lopez-Monroy, F.I. Analysis of precipitation in Fe-rich Fe-Ni-Al alloys by diffusion couples. Mater. Sci. Eng. A 2012, 558, 366–370. [Google Scholar] [CrossRef]
  32. Dong, K.; Sun, L.; Zhang, Z.; Li, Z.; Li, J.; Liu, L.; Du, K.; Zhang, Y. Effects of V addition on microstructure and pseudoelastic response in Fe-Mn-Al-Ni alloys. Intermetallics 2023, 160, 107954. [Google Scholar] [CrossRef]
  33. Park, K.; Cho, B.; Hong, S.J.; Lim, K.R.; Lee, C.; Song, G. Outstanding high-temperature strength of novel Fe–Cr–Ni–Al–V ferritic alloys with hierarchical B2–NiAl precipitates. Mater. Sci. Eng. A 2022, 840, 142999. [Google Scholar] [CrossRef]
  34. Eris, R.; Akdeniz, M.V.; Mekhrabov, A.O. Unveiling the effect of Hf-(Mo,W) addition on the coarsening agglomeration, and dissolution behaviour of γ’-Ni3Al precipitates in model Ni-based superalloys. J. Alloys Compd. 2023, 936, 167869. [Google Scholar] [CrossRef]
  35. Baik, S.I.; Wang, S.Y.; Liaw, P.K.; Dunand, D.C. Increasing the creep resistance of Fe-Ni-Al-Cr superalloys via Ti additions by optimizing the B2/L21 ratio in composite nano-precipitates. Acta Mater. 2018, 157, 142–154. [Google Scholar] [CrossRef]
  36. Sohn, Y.H.; Puccio, A.; Dayananda, M.A. Interdiffusion structures and paths for multiphase Fe-Ni-Al diffusion couples at 1100 °C. Metall. Mater. Trans. A 2005, 36, 2361–2370. [Google Scholar] [CrossRef]
  37. Miyazaki, T.; Koyama, T.; Kobayashi, S. A new characterization method of the microstructure using microscopic gradients in alloys. Metall. Mater. Trans. A 1996, 27, 945–949. [Google Scholar] [CrossRef]
  38. Cao, S.; Zhao, J.-C. Application of dual-anneal diffusion multiples to the effective study of phase diagrams and phase transformations in the Fe–Cr–Ni system. Acta Mater. 2015, 88, 196–206. [Google Scholar] [CrossRef]
  39. Shi, P.; Engstrom, A.; Hoglund, L.; Sundman, B.; Agren, J. Thermo-calc and DICTRA enhance materials design and processing. Mater. Sci. For. 2005, 475–479, 3339–3346. [Google Scholar]
  40. Borgestam, A.; Hoglund, L.; Agren, J.; Engstrorn, A. DICTRA, a tool for simulation of diffusional transformations in alloys. J. Phase Equil. 2000, 21, 269–280. [Google Scholar] [CrossRef]
  41. Wu, Q.; Xu, G.; Chang, H.; Zhou, L.; Cui, Y. Assessment of diffusion mobility for bcc phase of Ti-Al-Ni ternary system. Calphad 2020, 71, 102203. [Google Scholar] [CrossRef]
  42. Dictra, Thermo-Calc Software Versión 2023a. Available online: https://thermocalc.com/products/add-on-modules/diffusion-module-dictra/ (accessed on 1 June 2023).
  43. Thermo-Calc, Thermo-Calc Software version 2023a, TCFE11 and MOBFE6 Steel/Fe Alloys Databases. Available online: https://thermocalc.com/products/databases/steel-and-fe-alloys/ (accessed on 1 June 2023).
  44. Sundman, B.; Ohnuma, I.; Dupin, N.; Kattner, U.R.; Fries, S.G. An assessment of the entire Al-Fe system including D03 ordering. Acta Mater. 2009, 57, 2896–2908. [Google Scholar] [CrossRef]
  45. Lindahl, B.B.; Burton, B.P.; Selleby, M. Ordering in ternary BCC alloys applied to the Al-Fe-Mn system. Calphad 2015, 51, 211–219. [Google Scholar] [CrossRef]
  46. Hu, X.X.; Lu, X.G.; He, Y.L. Assessments of impurity diffusion coefficients of selected pure metals in FCC Fe. Adv. Mater. Res. 2014, 936, 545–551. [Google Scholar] [CrossRef]
  47. Bokstein, B.S.; Bokstein, S.Z.; Spitsberg, I.T. Ni self-diffusion in alloyed Ni3Al. Intermetallics 1996, 4, 517–523. [Google Scholar] [CrossRef]
  48. Zhang, L.; Du, Y.; Steinbach, I.; Chen, Q.; Huang, B. Diffusivities of an Al-Fe-Ni melt and their effects on the microstructure during solidification. Acta Mater. 2010, 10, 3664–3675. [Google Scholar] [CrossRef]
  49. Engström, A.; Agren, J. Interdiffusion in multiphase, Fe-Cr-Ni diffusion couples. Scand. J. Metall. 1995, 24, 12–20. [Google Scholar]
  50. Hood, G.M. The diffusion of iron in aluminium. J. Theor. Appl. Phys. 1970, 21, 305–328. [Google Scholar] [CrossRef]
  51. Gao, X.; Wang, H.; Ma, C.; Lv, M.; Ren, H. Segregation of alloying elements at the bcc-Fe/B2-NiAl interface and the corresponding effects on the interfacial energy. Intermetallics 2021, 131, 107096. [Google Scholar] [CrossRef]
  52. Mehrer, H. Diffusion in Solid Metals and Alloys. In Landolt-Börnstein–Group III Condensed Matter; Springer: Berlin/Heidelberg, Germany, 1990; Volume 26, pp. 288–312. [Google Scholar]
  53. Porter, D.A.; Easterling, K.E.; Sherif, M.Y. Phase Transformations in Metals and Alloys, 4th ed.; CRC Press: Boca Raton, FL, USA, 2022; pp. 96–98. [Google Scholar]
  54. Kostorz, K. Phase Transformations in Materials, 2nd ed.; Wiley-VCH: Weinheim, Germany, 2001; pp. 309–407. [Google Scholar]
  55. Pavarova, K.B.; Filin, S.A.; Maslenkov, S.B. Phase equilibria in the Ni-Al-Me (Me = Co, Fe, Mn, Cu) system in vicinity of β-phase at 900 and 1100 °C. Russ. Metall. (Engl. Transl.) 1993, 1, 156–169. [Google Scholar]
  56. Bramfitt, B.L.; Michael, J.R. Microanalysis of phase equilibria in Ni3Al intermetallic alloys containing iron. MRS Online Proc. Libr. 1985, 62, 201–208. [Google Scholar] [CrossRef]
  57. Looijenga-Vos, A.; Buerger, M.J. International Tables of Crystallography Space-Group Symmetry, 5th ed.; Hahn, T., Ed.; Springer: Dordrecht, The Netherlands, 2005; Volume A, pp. 52–53. [Google Scholar]
  58. Dubrovinskaia, N.A.; Dubrovinsky, L.S.; Karlsson, A.; Saxena, S.K. Experimental study of thermal expansion and phase transformations in iron-rich Fe-Al alloys. Calphad 1999, 23, 69–84. [Google Scholar] [CrossRef]
  59. Bitterlich, H.; Löser, W.; Schultz, L. Reassessment of Ni-Al and Ni-Fe-Al solidus temperatures. J. Phase Equilibria Diffus. 2002, 23, 301–304. [Google Scholar] [CrossRef]
  60. Tan, Y.; Shinoda, T.; Mishima, Y.; Suzuki, T. Stoichiometry splitting of β phase in Ni-Al-Mn, Ni-Al-Co and Ni-Al-Fe ternary systems. Mater. Trans. 2001, 42, 464–470. [Google Scholar] [CrossRef] [Green Version]
  61. Budberg, P.; Prince, A.; Cacciamani, G.; Ferro, R.; Grushko, B.; Perrot, P.; Schmid-Fetzer, R. Al-Fe-Ni (Aluminium–Iron–Nickel) Light Metal Systems Part 2. In Landolt-Börnstein–Group IV Physical Chemistry; Springer: Berlin/Heidelberg, Germany, 2005; Volume 11A2, pp. 345–346. [Google Scholar]
  62. Belan, J. GCP and TCP phases presented in nickel-base superalloys. Mater. Today 2016, 3, 936–941. [Google Scholar] [CrossRef]
  63. Alabbad, B.; Li, L.; Tin, S. Controlling the grain boundary morphology and secondary γ’ precipitate size distribution in Ni-based superalloys. J. Alloys Compd. 2019, 775, 931–941. [Google Scholar] [CrossRef]
  64. Turichin, G.A.; Klimova-Korsmik, O.G.; Valdaytseva, E.A.; Alekseev, A.V.; Rashkovets, M.V. Comparative analysis of the gamma prime phase formation in nickel alloys in additive manufacturing. Procedia CIRP 2020, 94, 320–323. [Google Scholar] [CrossRef]
  65. Vogel, F.; Ngai, S.; Fricke, K.; McKechnie, M.; Wanderka, N.; Hentrich, T.; Banhart, J.; Thompson, G.B. Tracing the three-dimensional nanochemistry of phase separation in an inverse Ni-based superalloy. Acta Mater. 2018, 157, 326–338. [Google Scholar] [CrossRef]
  66. Vogel, F.; Wanderka, N.; Balogh, Z.; Ibrahim, M.; Stender, P.; Schmitz, G.; Fedorova, T.; Banhart, J. Evolution of nanoscale clusters in γ’ precipitates of a Ni-Al-Ti model alloy. Ultramicroscopy 2015, 159, 278–284. [Google Scholar] [CrossRef]
  67. Kumar, A.S.D.; Bhaskar, M.S.; Sarkar, S.; Abinandanan, T.A. Phase field modelling of precipitation coarsening in binary alloys with respect to atomic mobility of solute in the precipitate phase. Trans. Indian Inst. Met. 2020, 73, 1469–1474. [Google Scholar] [CrossRef]
Metals 13 01221 g001 550

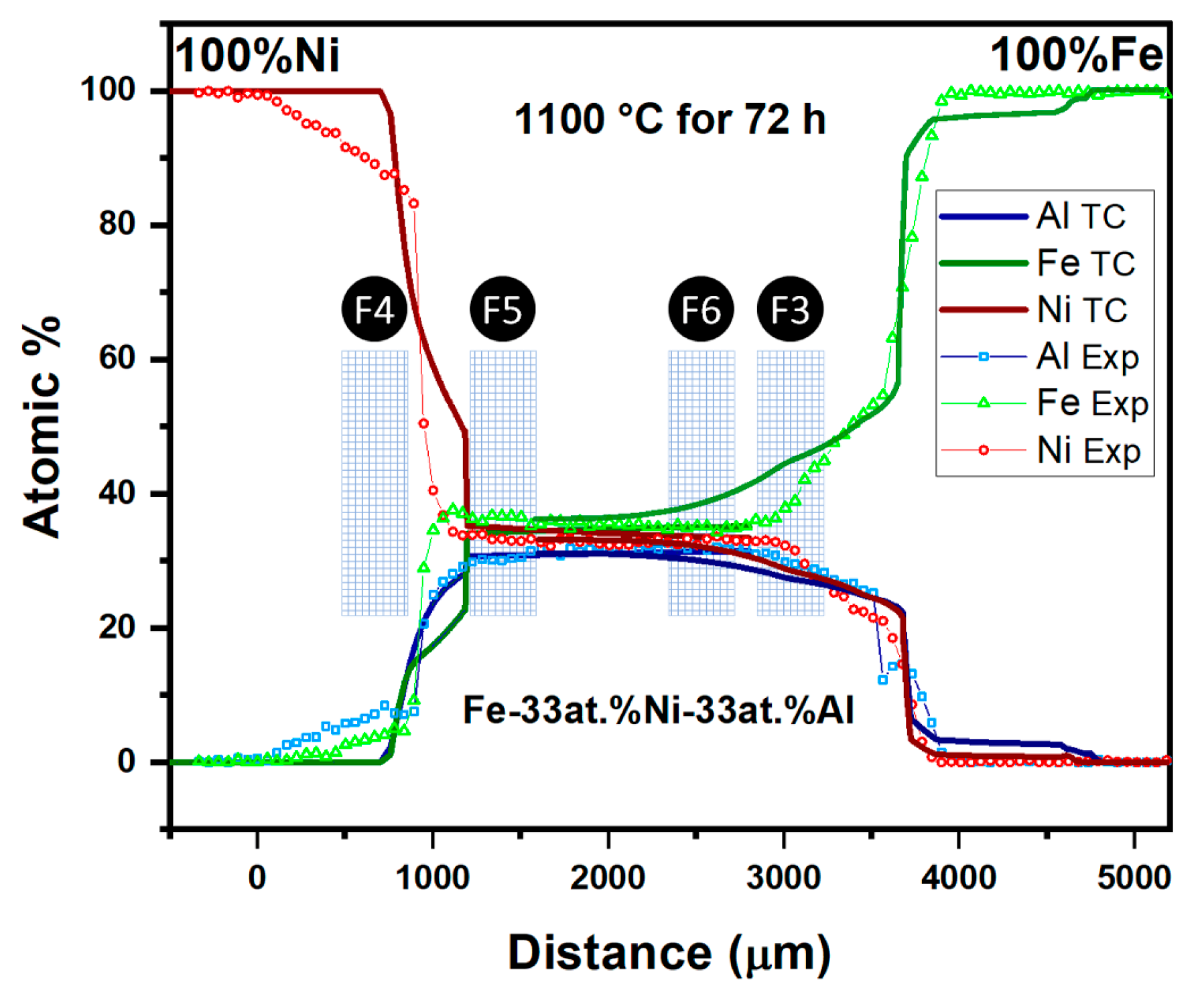

Figure 1. Experimental and TC-DICTRA-calculated concentration profiles of Fe, Ni, and Al for the Fe/Fe-Ni-Al/Ni diffusion couple after diffusion annealing.
Figure 1. Experimental and TC-DICTRA-calculated concentration profiles of Fe, Ni, and Al for the Fe/Fe-Ni-Al/Ni diffusion couple after diffusion annealing.
Metals 13 01221 g001
Metals 13 01221 g002 550

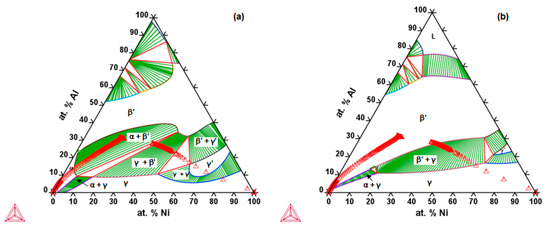

Figure 2. TC-calculated Fe-Ni-Al phase diagram at (a) 750 °C and (b) 1100 °C.
Figure 2. TC-calculated Fe-Ni-Al phase diagram at (a) 750 °C and (b) 1100 °C.
Metals 13 01221 g002
Metals 13 01221 g003 550

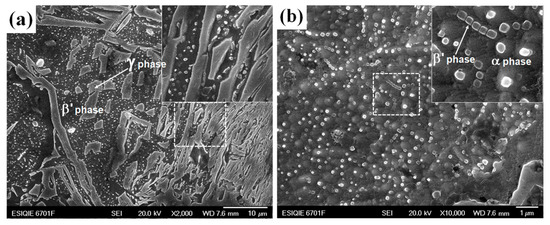

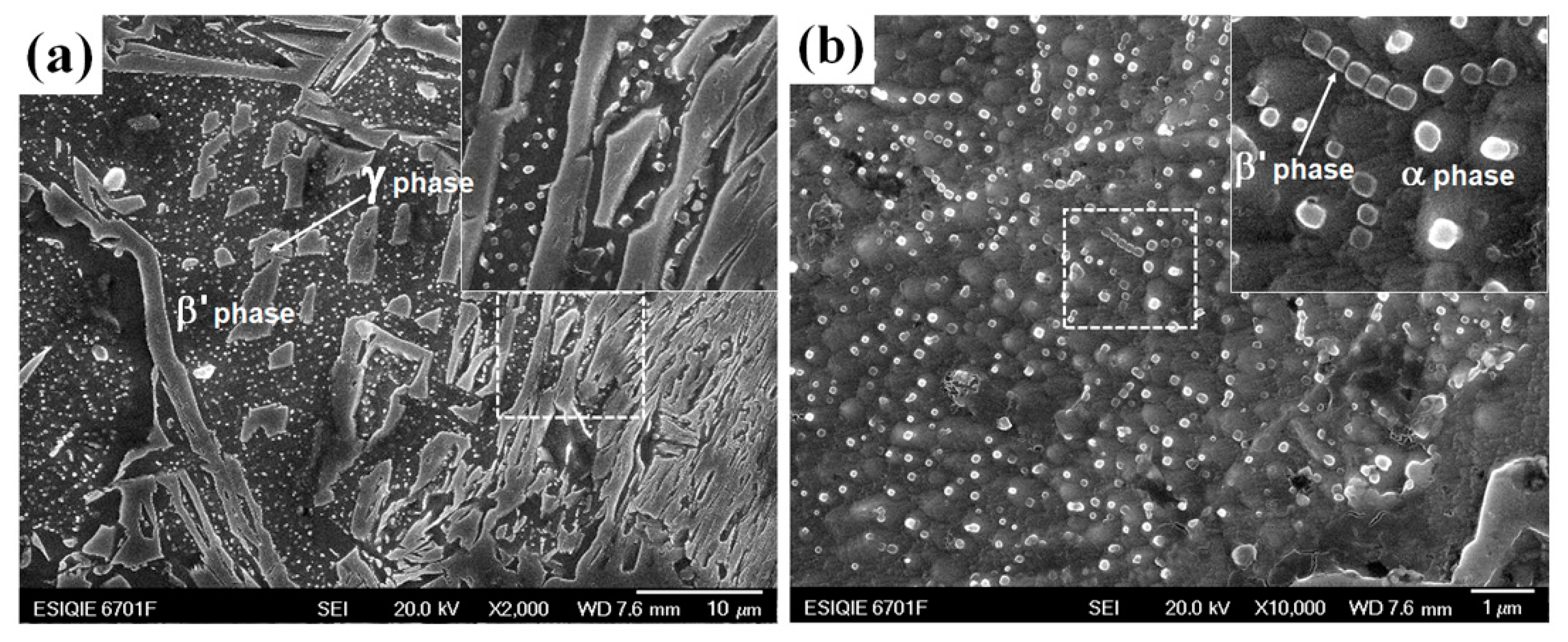

Figure 3. SEM micrographs of the Fe/Fe-Ni-Al alloy diffusion couple side, (a) irregular shapes of the γ phase dispersed in the β’ phase, and (b) spheroid β′ phase dispersed in the Fe α phase.
Figure 3. SEM micrographs of the Fe/Fe-Ni-Al alloy diffusion couple side, (a) irregular shapes of the γ phase dispersed in the β’ phase, and (b) spheroid β′ phase dispersed in the Fe α phase.
Metals 13 01221 g003
Metals 13 01221 g004 550

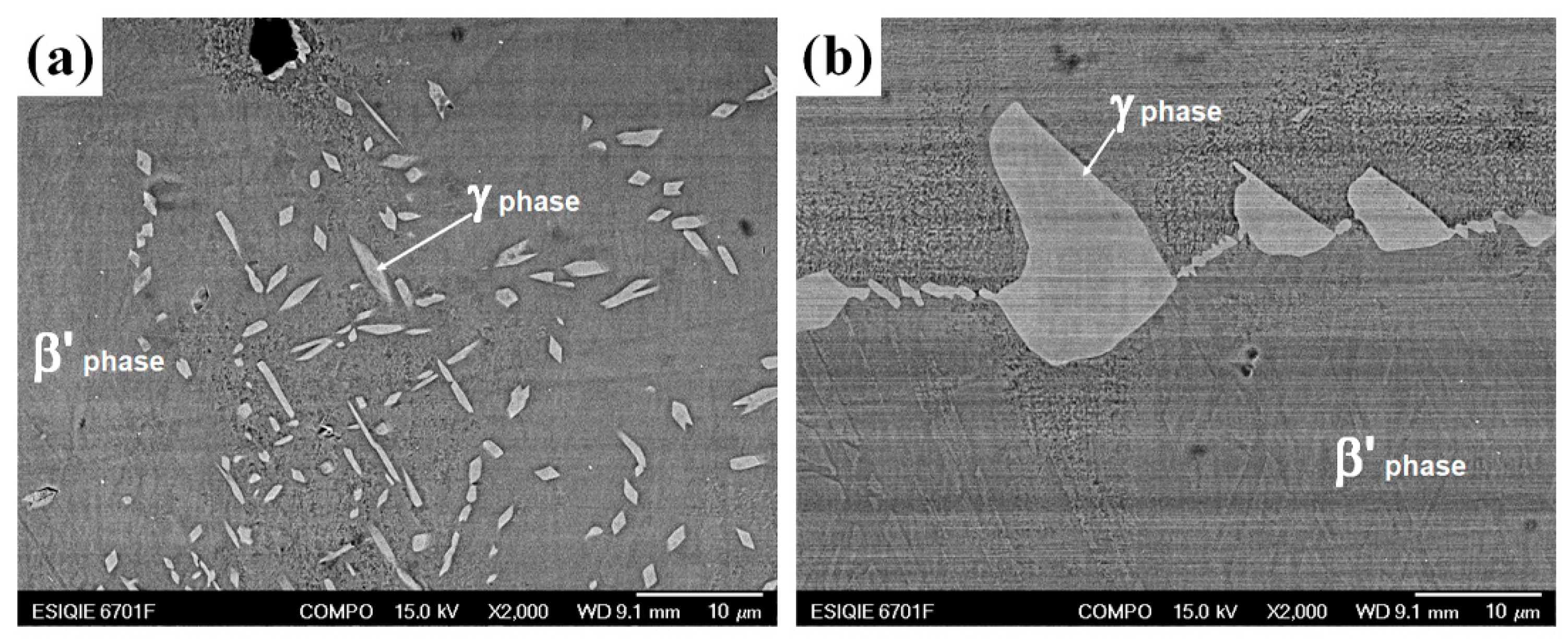

Figure 4. SEM micrographs of the Ni/Fe-Ni-Al alloy diffusion couple side, (a,b) irregular shapes of the γ phase dispersed in the β’ phase.
Figure 4. SEM micrographs of the Ni/Fe-Ni-Al alloy diffusion couple side, (a,b) irregular shapes of the γ phase dispersed in the β’ phase.
Metals 13 01221 g004
Metals 13 01221 g005 550

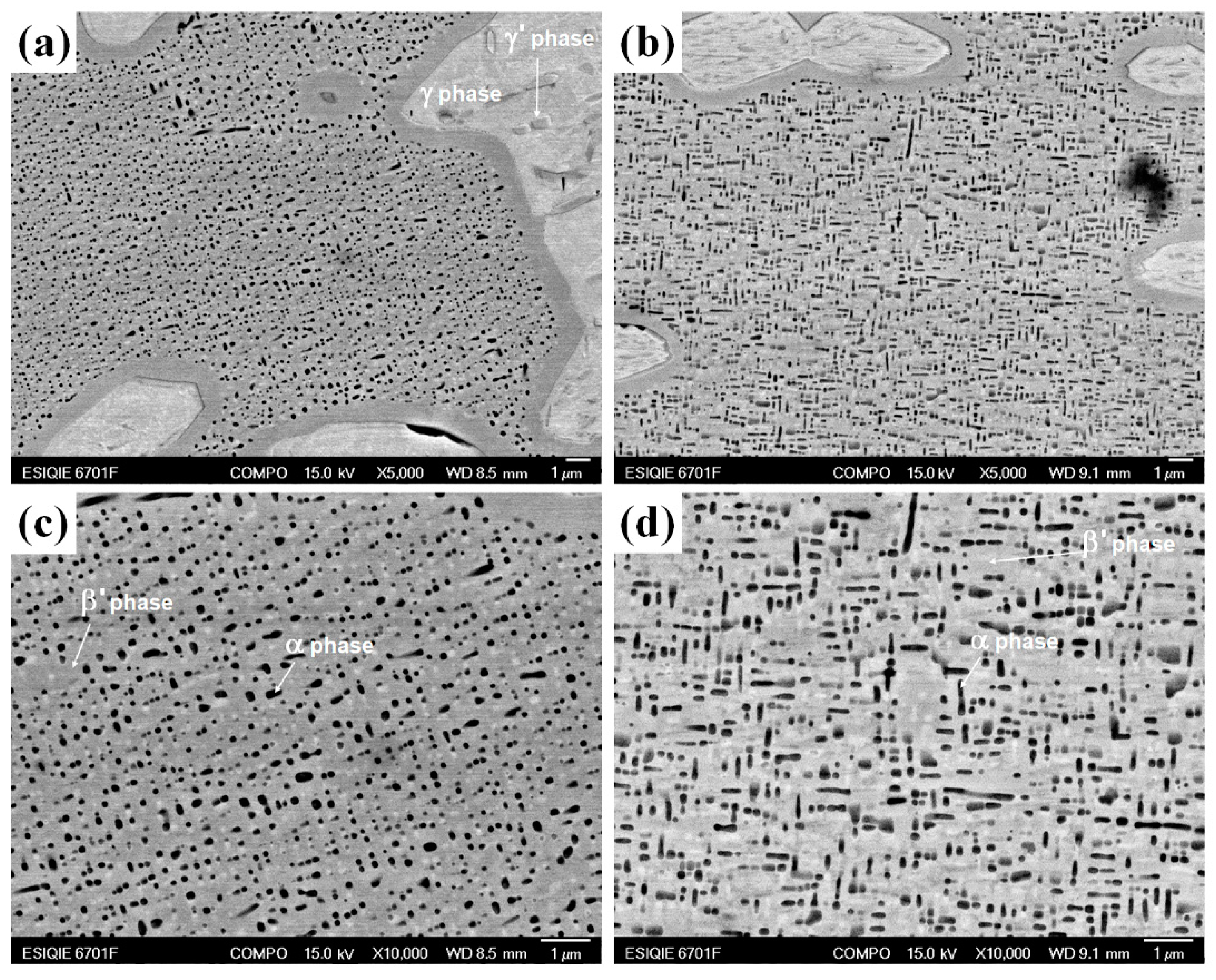

Figure 5. SEM micrographs of the Ni/Fe-Ni-Al alloy diffusion couple side after aging at 750 °C (a,c) for 100 h and (b,d) 250 h.
Figure 5. SEM micrographs of the Ni/Fe-Ni-Al alloy diffusion couple side after aging at 750 °C (a,c) for 100 h and (b,d) 250 h.
Metals 13 01221 g005
Metals 13 01221 g006 550

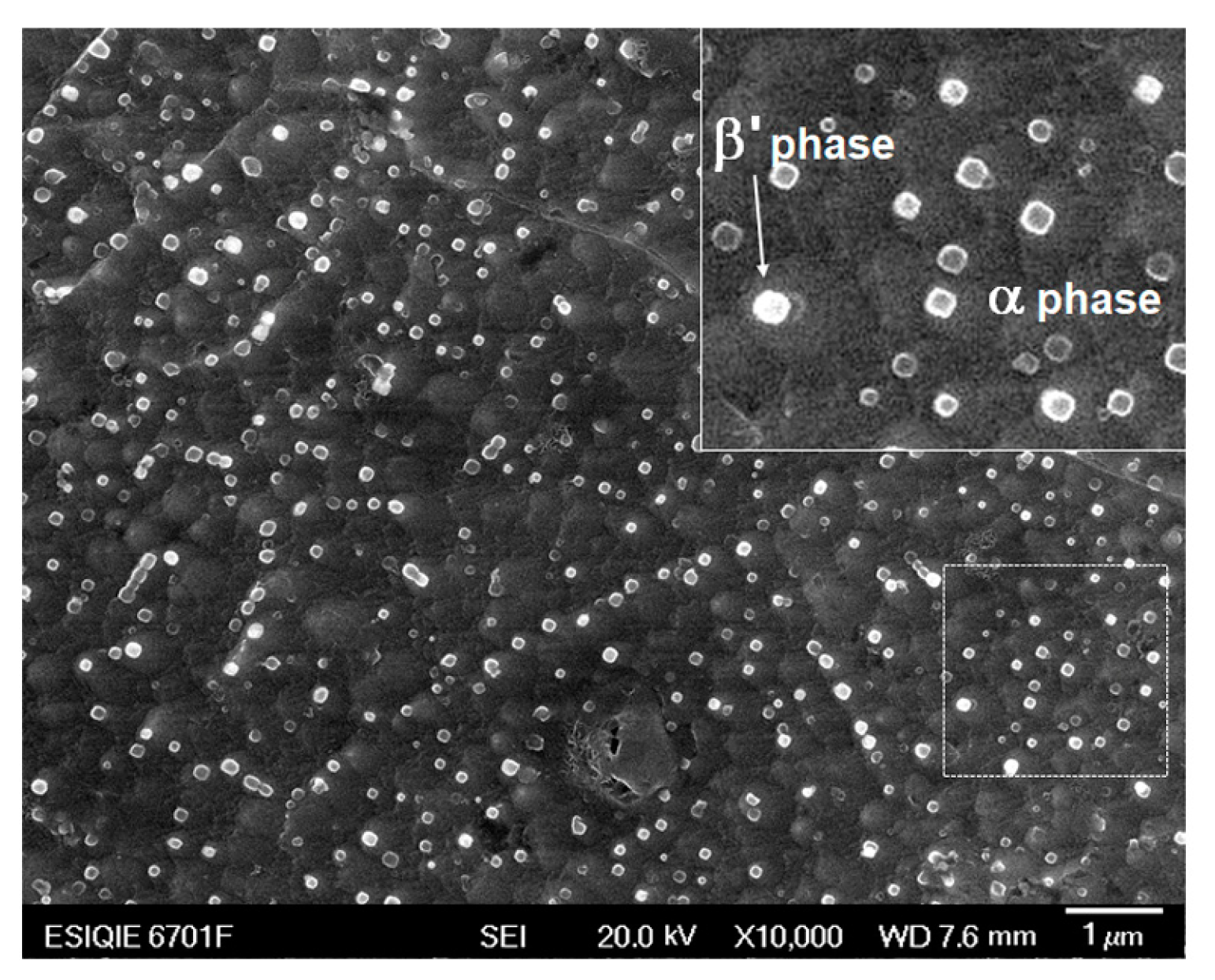

Figure 6. SEM micrographs of the Fe/Fe-Ni-Al alloy diffusion couple side after aging at 750 °C for 50 h.
Figure 6. SEM micrographs of the Fe/Fe-Ni-Al alloy diffusion couple side after aging at 750 °C for 50 h.
Metals 13 01221 g006
Metals 13 01221 g007 550

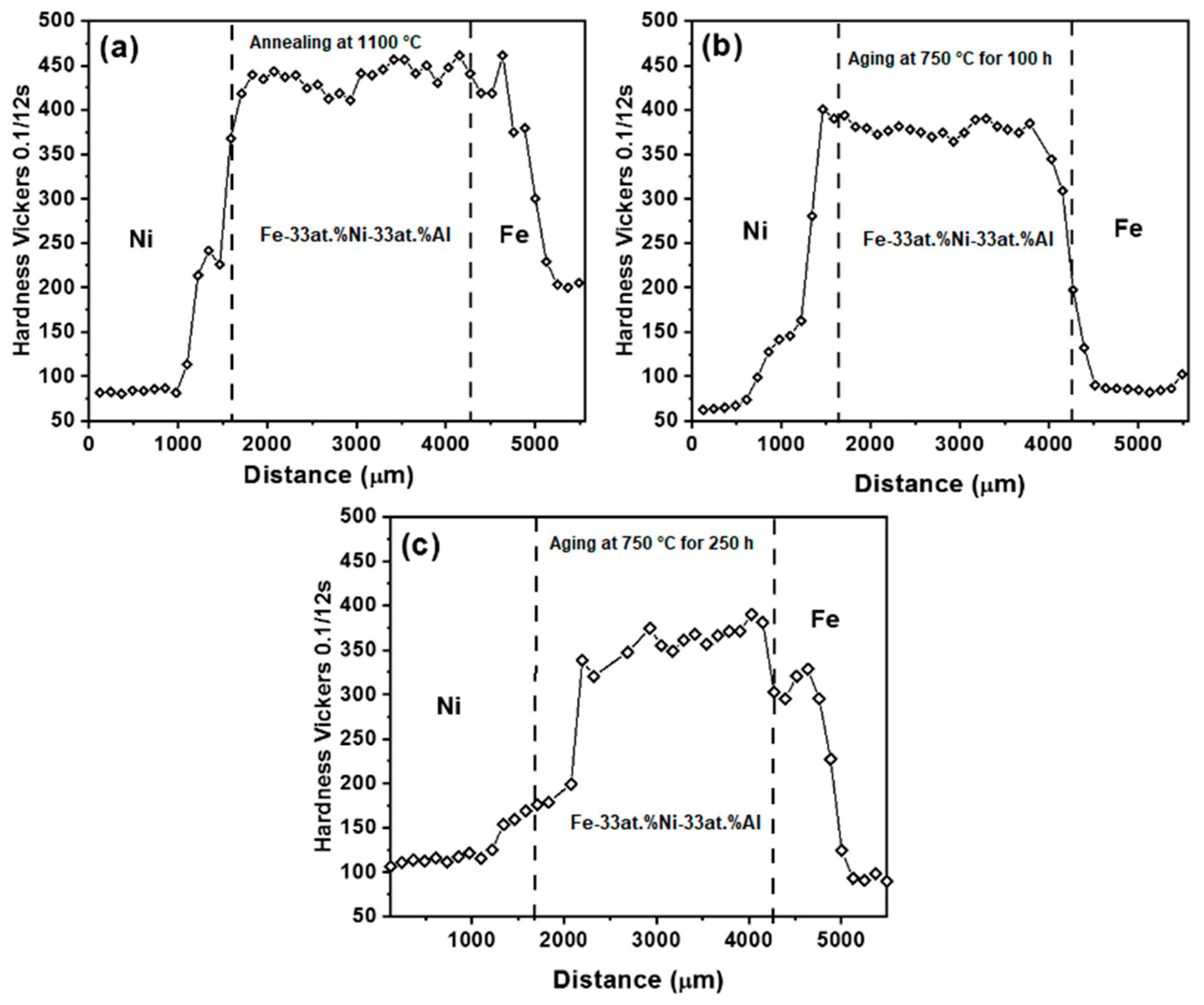

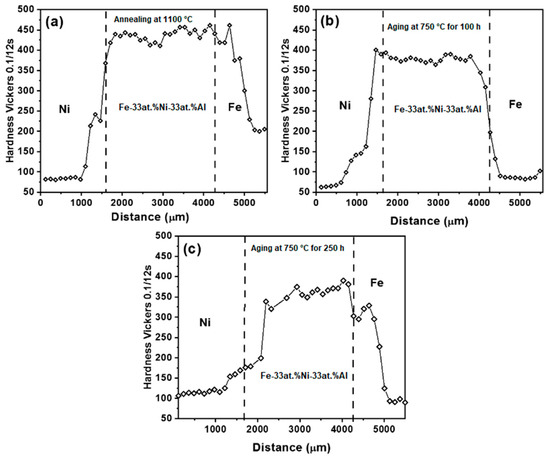

Figure 7. Vickers hardness profiles of the Fe/Fe-Ni-Al alloy/Ni diffusion couple after (a) diffusion annealing at 1100 °C, and subsequent aging at 750 °C for (b) 100 h and (c) 250 h.
Figure 7. Vickers hardness profiles of the Fe/Fe-Ni-Al alloy/Ni diffusion couple after (a) diffusion annealing at 1100 °C, and subsequent aging at 750 °C for (b) 100 h and (c) 250 h.
Metals 13 01221 g007
Metals 13 01221 g008 550

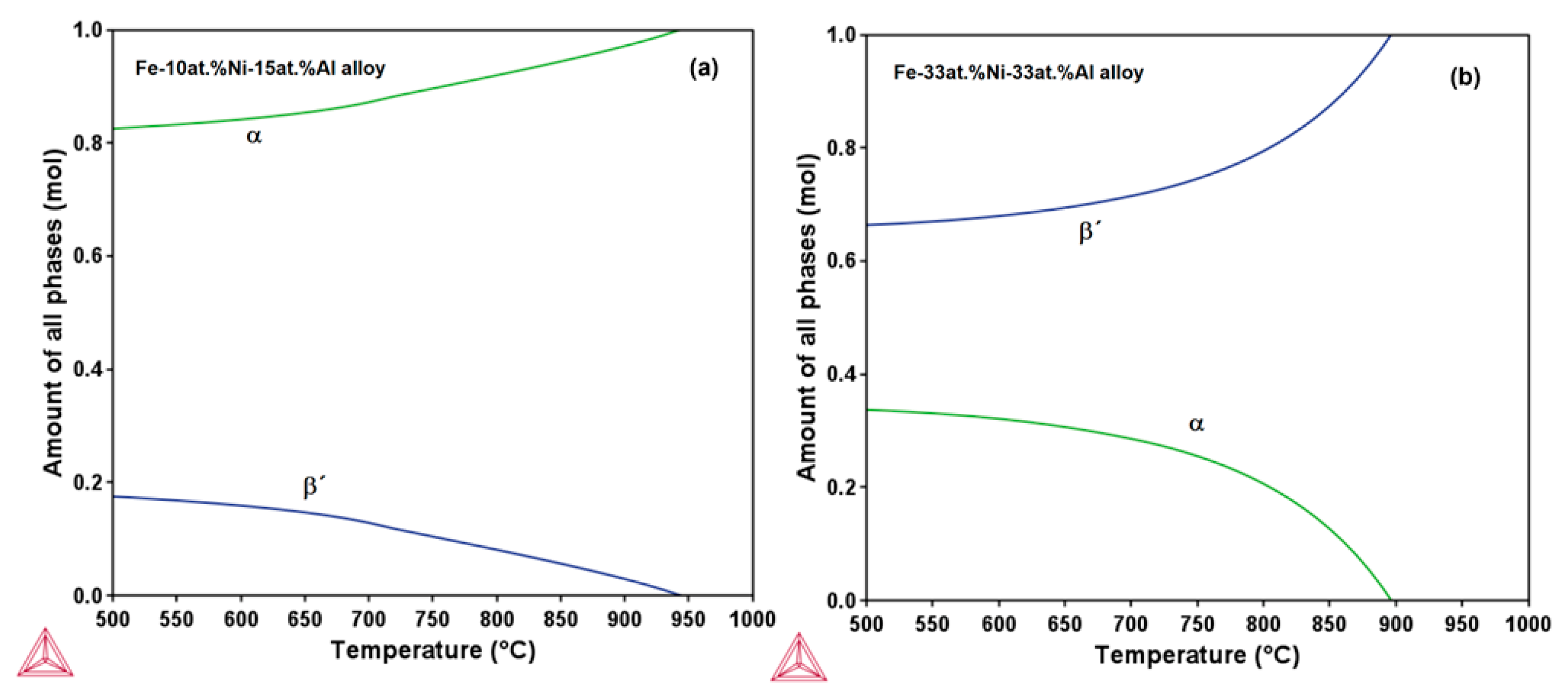

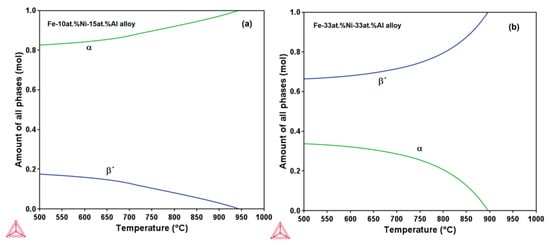

Figure 8. TC-calculated plot of amount of equilibrium phases versus temperature for the (a) Fe-10at.%Ni-15at.%Al and (b) Fe-33at.%Ni-33at.%Al alloys.
Figure 8. TC-calculated plot of amount of equilibrium phases versus temperature for the (a) Fe-10at.%Ni-15at.%Al and (b) Fe-33at.%Ni-33at.%Al alloys.
Metals 13 01221 g008
Metals 13 01221 g009 550

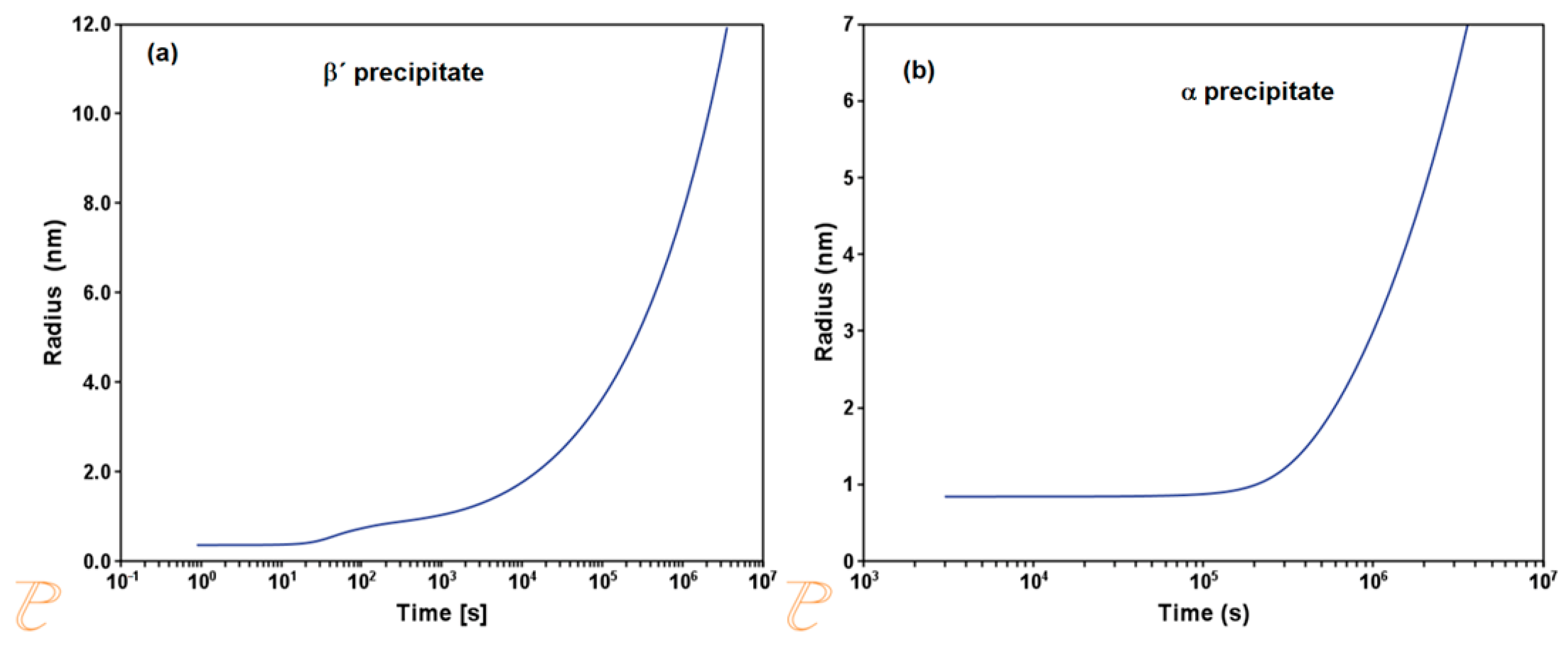

Figure 9. TC-Prisma precipitate radius versus time for the (a) Fe-10at.%Ni-15at.%Al and (b) Fe-33at.%Ni-33at.%Al alloys aged at 550 °C.
Figure 9. TC-Prisma precipitate radius versus time for the (a) Fe-10at.%Ni-15at.%Al and (b) Fe-33at.%Ni-33at.%Al alloys aged at 550 °C.
Metals 13 01221 g009
Table
Table 1. TC-calculated chemical composition of the equilibrium phases at 1100 °C.
Table 1. TC-calculated chemical composition of the equilibrium phases at 1100 °C.
Phaseat.% Feat.% Niat.% Al
α90.02.57.5
β′45.513.541.0
γ23.470.06.6
γ′4.072.024.0
Table
Table 2. Space group and crystal structure of involved phases “data from [57,58,59,60,61,62,63,64]”.
Table 2. Space group and crystal structure of involved phases “data from [57,58,59,60,61,62,63,64]”.
PhaseCrystal Structure (Space Group)Elements
αA2 (229) [57,58]Fe [61]
β′B2 (221) [57,59,60]NiAl [60,61]
γA1 (225) [57,61,62]Ni [62]
γ′L12 (221) [57,62,63,64]Ni3Al [62]
Table
Table 3. TC-calculated chemical composition of the equilibrium phases at 750 °C.
Table 3. TC-calculated chemical composition of the equilibrium phases at 750 °C.
Phaseat.% Feat.% Niat.% Al
α93.02.05.0
β′36.016.048.0
γ15.080.05.0
γ′19.066.015.0
Table
Table 4. TC-calculated chemical composition of the equilibrium α and β′ phases at 550 °C.
Table 4. TC-calculated chemical composition of the equilibrium α and β′ phases at 550 °C.
AlloyPhaseat.% Feat.% Niat.% Al
Fe-10at.%Ni-15at.%Alα89.51.59.0
β′9.548.542.0
Fe-33at.%Ni-33at.%Alα88.61.210.2
β′8.348.043.7
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Perez-Badillo, E.; Dorantes-Rosales, H.J.; Saucedo-Muñoz, M.L.; Lopez-Hirata, V.M. Analysis of Phase Transformations in Fe-Ni-Al Alloys Using Diffusion Couples of Fe/Fe-33at.%Ni-33at.%Al Alloy/Ni. Metals 2023, 13, 1221. https://doi.org/10.3390/met13071221

AMA Style

Perez-Badillo E, Dorantes-Rosales HJ, Saucedo-Muñoz ML, Lopez-Hirata VM. Analysis of Phase Transformations in Fe-Ni-Al Alloys Using Diffusion Couples of Fe/Fe-33at.%Ni-33at.%Al Alloy/Ni. Metals. 2023; 13(7):1221. https://doi.org/10.3390/met13071221

Chicago/Turabian Style

Perez-Badillo, Eduardo, Hector J. Dorantes-Rosales, Maribel L. Saucedo-Muñoz, and Victor M. Lopez-Hirata. 2023. "Analysis of Phase Transformations in Fe-Ni-Al Alloys Using Diffusion Couples of Fe/Fe-33at.%Ni-33at.%Al Alloy/Ni" Metals 13, no. 7: 1221. https://doi.org/10.3390/met13071221

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
