Effect of Tempering Time on Carbide Evolution and Mechanical Properties of a Nb-V-Ti Micro-Alloyed Steel

by
Qian Zhao
1,
Zhixia Qiao
1,* and
Ji Dong
2,*
1
School of Mechanical Engineering, Tianjin University of Commerce, Tianjin 300134, China
2
School of Mechanical Engineering, Tianjin Sino-German University of Applied Sciences, Tianjin 300350, China
*
Authors to whom correspondence should be addressed.
Metals 2023, 13(8), 1495; https://doi.org/10.3390/met13081495
Submission received: 6 July 2023 / Revised: 12 August 2023 / Accepted: 14 August 2023 / Published: 21 August 2023
(This article belongs to the Topic Microstructure and Properties in Metals and Alloys, 2nd Volume)
Browse Figures
Versions Notes

Abstract

:
The evolution of the microstructure, the precipitation behavior, and the mechanical performances of Nb-V-Ti micro-alloyed steel prepared under different tempering time were studied using transmission electron microscopy (TEM), X-ray diffraction (XRD), and mechanical tests. It was found that the width of the martensite laths increases with the increasing tempering time. Several kinds of carbides, including M3C, M2C, M23C6, M7C3, and MC particles, were identified after tempering. The MC carbides remain stable during tempering, but the transformation behavior of other carbides was identified. The transformation sequence can be summarized as: M3C → M2C → M7C3 → M23C6. The strength decreases and the Charpy impact toughness increases gradually with the increase in the tempering time. The ultimate strength (UTS) decreases from 1231 to 896 MPa, and the yield strength (YS) decreases from 1138 to 835 MPa. The −40 °C Charpy impact toughness increases from 20 to 61 J as the tempering time increases from 10 min to 100 h. The evolution of carbides plays an important role in their mechanical performances.

1. Introduction

With the rapid development of modern industry and technology, the exploitation and utilization of crude oil and natural gas have been gradually increasing [1,2,3]. In the past several decades, oil and gas exploration has been extended to abyssal regions [4]. To enhance the transportation efficiency, a larger diameter and a higher operation pressure have been adopted. This requires an excellent combination of a high strength and a good toughness for pipeline steels [5,6,7,8]. Therefore, micro-alloyed components are added to pipeline steels to improve their mechanical performance through grain refinement and precipitation strengthening [9,10,11,12]. Nowadays, micro-alloyed ultra-high-strength pipeline steel is indispensable to the development of offshore oil and gas exploitation.
The conventional heat treatment of micro-alloyed steels consists of quenching and tempering. Quenching and tempering at different temperatures for different times can provide a beneficial combination of a microstructure and precipitates [13,14]. Multi-phase microstructures and different types of carbides can further meet the requirements for excellent mechanical properties [15,16,17].
The precipitation of fine particles during tempering plays an important role in improving the strength and toughness of micro-alloyed ultra-high-strength steels. Much research on the evolution of carbide precipitates under different tempering times has been reported. Li et al. [1] investigated the evolution of precipitates in a G18CrMo2-6 steel during tempering at 680 °C for up to 100 h. It was found that M3C carbides were transformed from M-A particles first, and then MC carbides precipitated. M3C particles refined and spheroidized gradually, and M23C6 coarsened with increasing the tempering time. Moon et al. [18] clearly showed the transformation sequence of carbide precipitates in Cr-Mo API steels. They also found that the precipitation sequence of carbides during tempering at 650 °C was: MC + M3C → MC → MC + M7C3 + M23C6. Tao et al. [19] investigated the evolution of different carbides in X12CrMoWVNbN10-1-1 steel after tempering and found that M23C6 possesses a higher thermal stability than M7C3. The precipitation sequence of carbides can be summarized as: M3C → M7C3 → M23C6. On the contrary, Asadabad et al. [20] reported that part of M23C6 transformed into M7C3 in 4.5Cr-2W-0.25V-0.1C steel. Janovec [21] reported that the Cr content determines the transformation sequence of precipitates in Cr-alloyed steels. With the addition of 1wt.% Cr, the precipitation sequence of Cr-Mo-V steels was proven to be M23C6 → M7C3 [18]. In middle- or high-Cr steels, Jia et al. found that four kinds of precipitates, M2X, M3C, M23C6, and M7C3, existed in 9CrMoCoB (CB2) steel [22], and the thermal stability of M7C3 was lower than M23C6 [23,24,25]. However, the transformation sequence of the carbide precipitates of Nb-V-Ti micro-alloyed ultra-high-strength steel during high-temperature tempering is still not clear, and it should have more attention paid to it.
This paper focused on the carbide evolution of Nb-V-Ti micro-alloyed steel during different tempering times. The microstructure and precipitates under different tempering times were analyzed. Further, the mechanical properties of the explored steel under different tempering times were evaluated, and the correlation between the evolution of the microstructure, the precipitation behavior, and the mechanical performances was also discussed in detail.

2. Experimental

The chemical composition of the investigated steel was 0.25C-0.29Si-0.4Mn-0.97Cr-0.88Mo-0.015Nb-0.089V-0.026Ti (wt.%). In this study, the investigated steels were austenitized at 1000 °C for 30 min, quenched with water, and then tempered at 600 °C for 10 min, 30 min, 1 h, 2 h, 3 h, 5 h, 10 h, 25 h, 50 h, and 100 h, respectively. All the specimens were cooled in water to room temperature after tempering.
The thin-foil specimens were used for TEM characterization, and they were electropolished in a double-jet electropolishing device with a solution of 7% perchloric acid and 93% ethanol at −20 °C. The morphologies, sizes, distributions, and chemical compositions of the precipitates were identified using TEM (JEM-2100F, JEOL, Tokyo, Japan). The experimental steels were immersed in hydrochloric acid for 15 days, and then the precipitated particles were extracted by centrifuge. Hydrochloric acid was removed by continuously adding alcohol to the solution during extraction. The precipitated particles were then dried in a drying cabinet at 50 °C for more than 5 h. The phase composition and the various carbides formed during tempering were determined by XRD (D8 Advanced, Bruker, Karlsruhe, Germany).
Tensile tests were performed on the tempered specimens at room temperature. The gauge length of the specimens was 15 mm. An Instron 5565 (Instron, Boston, MA, USA) tensile machine was used for tensile test with a strain rate of 1.0 × 10−3 s−1. The standard CVN samples were machined to 10 mm × 10 mm × 55 mm with a notch depth of 2 mm. The tensile and the Charpy impact toughness experiments were repeated three times to ensure the accuracy of the results. The Charpy impact toughness tests were carried out at −40 °C using an Instron MPX (Instron, Boston, MA, USA) impact tester. The samples were cooled in a cold box with air as the cooling medium. Micro-hardness testing was conducted using a MH-6 type (Shanghai Everone Precision Instruments, Shanghai, China) Vickers hardness tester with a maximum load of 100 g for 5 s.

3. Results and Discussion

3.1. Microstructure Evolution under Different Tempering Times

Figure 1 shows the TEM images of samples tempered at 600 °C at different times. The martensite lath with dislocations indicated by arrows can be seen in the microstructure. With a prolonged tempering time, the width of martensite lath increased, and the mean widths of martensite lath were determined to be 149, 199, 247, 282, 305, and 388 nm for the tempering times of 10 min, 30 min, 5 h, 10 h, 50 h, and 100 h, respectively. The lath width of the martensite was obtained by measuring about 200 martensites. The density of the dislocation was reduced with the extension of the tempering time, which was due to the recovery of the martensite lath.
The microstructure of the retained austenite in the samples tempered at 600 °C is shown in Figure 2. The retained austenites are marked by white arrows. The retained austenite films were continuously distributed between the martensite lathes when the tempering time was 10 min (Figure 2a), and then the films became discontinuous with a prolonged tempering time (Figure 2b,c). After tempering for 100 h, few films could be seen between the martensite laths (Figure 2d). The mean thickness of the retained austenite film decreased with the increase in tempering time, and the average thickness of the retained austenite films tempered for 10 min, 30 min, and 5 h was about 57, 35, and 27 nm, respectively.

3.2. Precipitation Behavior of Carbide under Different Tempering Times

The TEM micrographs of samples under different tempering times were examined. After tempering for 10 min, needle-like particles could be observed in the interior of the martensite lath. As shown by the black oval in Figure 3a, the mean length of the needle-like precipitates was about 94.2 nm. The sizes of the carbides were obtained by measuring about 400 carbides. According to the corresponding electron diffraction pattern results shown in Figure 3b, the needle-like precipitates possessed an orthorhombic crystal structure. Based on the EDS results (Figure 3c), the carbides contained a high content of Fe and a small amount of Mn and Cr. Referring to the PDF No. 75-0910, the carbide was M3C with a = 4.518 nm, b = 5.069 nm, c = 6.736 nm, and α = β = γ = 90°.
Spherical nano-sized precipitates with a mean diameter of about 4.89 nm and square particles with a mean dimension of 42.45 mm were also observed, as shown in Figure 4a,d. The EDS analysis results combined with the SAD identifications are shown in Figure 4b–e. These two kinds of particles both had an f.c.c. structure. The nano-sized spherical particles contained Nb and a small amount of Ti and V, and the corresponding PDF card was 47-1418. The square precipitates contained Ti with a small amount of Nb and V, and the corresponding PDF retrieval number was 65-7931. The Fe, Mn, and Cr elements were derived from the matrix. Therefore, these two types of carbides were identified as Nb-rich MC (I) carbide and Ti-rich MC (II) carbide.
When the tempering time was prolonged to 30 min, the needle-like M3C carbides dissolved into the matrix during tempering and acted as nucleation sites for rod-like particles, as denoted by the arrow in Figure 5a. The EDS results (Figure 5d) indicated that the rod-like particles contained a high iron content and Mo with a tiny amount of Cr and Mn. The SAD pattern shown in Figure 5b matched well with the electron diffraction pattern of M2C, and the PDF retrieval number was 35-0787. The mean length of the rod-like M2C particles was about 59.04 nm. Irregular-shaped particles precipitated along the lath or grain boundaries, as marked by the white oval in Figure 5a. The EDS analysis results and the SAD identifications are shown in Figure 5c–e. These precipitates had a complex cubic structure and contained Fe and a certain amount of Cr and Mn. The corresponding PDF retrieval number was 78-1499, and this type of precipitate was recognized as M23C6. The mean size of M23C6 was around 46.77 nm.
The TEM images of the specimens after being tempered for 5 h are shown in Figure 6. It was obvious that more M2C particles precipitated, and the angle between the particles was about 60°. In addition, some of the M2C particles connected and formed long-line precipitates, as demonstrated by the white oval in Figure 6a and the black arrow in Figure 6b. The EDS analysis results and the diffraction pattern of these precipitates are indicated in Figure 6c,d. The needle-like precipitates had a hexagonal structure and mainly contained Fe and certain amounts of Cr and Mo. The corresponding PDF retrieval number was 05-0720; thus, the needle-like precipitates were identified to be M7C3 carbide.
The TEM images of the samples tempered at 600 °C for 100 h are demonstrated in Figure 7. After tempering for 100 h, the density of the carbides obviously increased, compared with the specimen tempered for 5 h. Most of the needle-like M7C3 particles disappeared, and some of the needle-like M7C3 particles transformed into rod-like carbides, as shown in Figure 7a. The corresponding electron diffraction pattern is shown in Figure 7b. This type of carbide had a complex cubic structure, which was consistent with the previously identified M23C6. This result showed that the M7C3-type precipitates transformed into M23C6 with a prolonged tempering time. Most of the coarse M23C6 carbides precipitated at the grain boundaries (Figure 7c) with an average size of 86.83 nm. Two kinds of MC carbide particles remained stable during the 100 h tempering, as shown in Figure 7c,d. The diameters of the MC particles presented almost no significant change when compared with the specimen tempered at 600 °C for 10 min. The average size of the MC(I) and MC(II) was about 5.02 and 54.34 nm after tempering for 100 h, respectively.
Meta-stable carbides precipitated during tempering can be gradually replaced by more stable precipitates. The precipitation sequence of different types of carbides relates to the chemical composition of steel, the relative diffusion coefficient of the different alloying atoms, and the nucleation sites of the matrix [19]. Therefore, it is essential to comprehend the transformation sequence of carbides. Several kinds of carbides after tempering at 600 °C for different times were identified above. The transformation sequence of the carbides at different stages is summarized as follows.
Stage 1 (tempered for 10 min): three kinds of carbides (M3C, MC(I), and MC(II)) were found after tempering at 600 °C for 10 min. The quick precipitation of the M3C particles could be due to a carbon-diffusion-controlled reaction [26]. Even the meta-stable M3C precipitated before the other carbides due to the relatively rapid diffusion of interstitial carbon, while the substitutionary atoms remained indiffusible [27]. Some researchers [28] have suggested that smaller spherical MC(I)-type carbide particles precipitate in the ferrite region following a K-S relationship with ferrite. MC(II)-type carbides precipitate in austenite regions, exhibiting a cube–cube K-S relationship with the matrix. MC-type second-phase particles result in the strengthening of steel by forming fine and densely distributed carbides [29].
Stage 2 (tempered for 30 min): the M3C carbides disappeared, and the M2C and M23C6 carbides precipitated. The formation of M2C and M23C6 was controlled by substitutionary diffusion, and they hardly precipitated during the early tempering process since the substitutionary alloying components could not sufficiently diffuse during the relatively short tempering process [22]. As the tempering time was prolonged, the substitutionary alloying components could diffuse, which caused the formation of M2C and M23C6 carbides. The precipitation temperature of the M2C particles was approximately between 500 and 600 °C, which was mainly determined by the diffusion of Mo [22]. The formation of the M2C carbides led to the dissolution of the M3C carbides, which resulted in a secondary hardening effect in the tempered martensitic steel [30]. Fine and dispersive M2C can improve the toughness of steel, since the precipitation of M2C results in the dissolution of brittle M3C carbides [21].
Stage 3 (tempered for 5 h): part of the M2C dissolved into the matrix and then transformed into M7C3 particles. The M2C in the experimental steel was a meta-stable transition phase. Previous studies have found that M7C3 nucleates on M2C and grows inward into the M2C through an in situ nucleation mechanism during tempering at 600 °C [31].
Stage 4 (tempered for 100 h): Hou et al. [32] found that the preferential nucleation of M7C3 occurred at dislocations and sub-grain boundaries, while M23C6 nucleated on grain and twin boundaries. As the tempering time was prolonged, the dislocation density decreased gradually. The recombination of the sub-grain boundaries caused a decrease in the sub-grain boundaries [33]. Thus, the number of M7C3 nuclei decreased and the M23C6 coarsened progressively with the elimination of the M7C3 particles. This indicates that the M7C3 carbides transformed into M23C6 with the increase in the tempering time [34,35]. The nucleation-free energy of M23C6 and M7C3 is −1.82 and −10.43 kJ/mol, respectively [36]. The higher the nucleation-free energy of precipitates, the more stable they are. The nucleation-free energy of M23C6 and M7C3 demonstrates that the M7C3 precipitated first and then transformed into M23C6. Two kinds of MC particles were also observed in the samples tempered for 100 h. This indicates that the MC(I) and MC(II) precipitates were stable when tempering at 600 °C for different times. During the prolonged tempering process, the precipitates in the specimen consisted of M3C, M2C, M23C6, M7C3, MC(I), and MC(II) precipitates. The transformation sequence of the other four types of carbides tempered at 600 °C for a long time can be summarized as follows: M3C → M2C → M7C3 → M23C6.
To further investigate the evolution of the different types of carbides, their extraction from hydrochloric acid was studied by XRD. The XRD patterns of the carbide particles of the specimens tempered at 600 °C under different times are illustrated in Figure 8. M3C and two types of MC were identified in the sample tempered for 10 min. With increasing the tempering time to 30 min, M2C, M23C6, and two types of MC were positively identified. After tempering for 100 h at 600 °C, M2C, M7C3, M23C6, and two types of MC carbide were identified. The XRD analysis showed that the peak intensity of the extracted particles was much greater than that of the specimens with shorter tempering times. This means that the number of precipitates obviously increased with increasing the tempering time, and the main carbide particles were M23C6.
The TEM images of the M2C carbides after tempering at 600 °C are shown in Figure 9. It was confirmed that fine M2C carbides were dispersedly distributed in the sample tempered for 30 min. The angle between the particles was about 60°, and the mean length of the M2C carbides was about 59.04 nm. With increasing the tempering time to 1 h, the M2C particles precipitated adequately, and the average length increased to 64.78 nm. The increase in the average length of the M2C carbides was attributed to the adequate diffusion of Mo atoms and their combination with carbon to form larger-scale M2C. As the tempering time was prolonged to 10 h, part of the M2C changed into M7C3, and the average length reached a peak value of around 102.48 nm. For the experimental steel tempered for a long time (100 h) at 600 °C, the mean length decreased to 88.32 nm.
The mean length of the M7C3 particles and the average diameter of the M23C6 particles were also measured statistically. The variation in the mean size of the precipitates with the tempering time is given in Figure 10. It can be seen that the mean diameter of the M23C6 particles increased gradually with the tempering time. The average length of the M2C and M7C3 particles first increased and then decreased. The variation in the size of carbides can be explained based on coarsening and evolution of the precipitates. The isothermal coarsening equation considering a constant volume fraction of carbides can be expressed as [37]:
d 3 − d 0 3 = k t
where d and d0 are the mean diameter of the carbides at different tempering times, k is a constant, and t is the tempering time. Thus, the size of the M23C6 carbides increased with the tempering time. In addition, the decreased length of the M2C and M7C3 particles at longer tempering times was correlated with the evolution of the carbide. Since relatively longer M2C and M7C3 particles are apt to transform into M7C3 and M23C6, the sizes of the untransformed M2C and M7C3 carbides were relatively small. With a prolonged tempering time, the amount of transformed carbides increased gradually. Therefore, the mean length of the M2C and M7C3 particles decreased when the tempering time was extended to 10 h and 50 h, respectively.

3.3. Mechanical Properties under Different Tempering Times

The stress–strain curve of the explored steel under different tempering times is demonstrated in Figure 11. The tensile property data can be seen in Table 1, including the YS, UTS, and total elongation (TE). With the increase in the tempering time, the YS and UTS decreased gradually. The UTS decreased from 1231 to 896 MPa, and the YS decreased from 1138 to 835 MPa.
Zhang et al. [38] showed that the minimum structural unit that could effectively control the strength of 25CrMo48V micro-alloyed steel was the width of the martensitic lath. The relationship between the width of the martensitic lath and the strength conforms to the Langford–Cohen formula:
σ y = σ 0 + k y d − 1
where ky is the structural constant and d is the average lath width. In the Langford–Cohen model, the strength of the material is directly proportional to the reciprocal of the lath width.
With the prolongation of the tempering time, the width of the martensite lath increased and the dislocation decreased gradually. The recovery phenomenon was obviously enhanced, which resulted in matrix softening. Matrix softening was the main reason for the strength reduction. It is generally accepted that σ0 is mainly composed of Peierls stress, precipitation strengthening, and solution strengthening [39,40]. That is to say, the strength of the sample was determined not only by the martensitic lath width and dislocation density but also by precipitation strengthening and solution strengthening. After tempering for 100 h, the tensile strength was about 900 MPa. The high strength was attributed to the precipitation strengthening from the nano-sized Nb-rich MC (I) particles. According to the Abshy–Oroman mechanism, nano-size precipitates with a size of less than 10 nm can provide about 200 MPa [41].
The −40 °C Charpy impact property of the specimens tempered under different times is shown in Figure 12. It was concluded that the Charpy impact toughness increased gradually with the increase in the tempering time. When the tempering time was extended from 10 min to 100 h, the Charpy impact toughness increased from 20 to 61 J.
This phenomenon mainly depended on the following factors. One was matrix softening. With the increase in the tempering time, the recovery of the matrix was considerable, and the dislocation density decreased gradually. Furthermore, the increase in the number of precipitates meant that the interstitial atoms dissolved in the matrix precipitated gradually, and the supersaturation decreased, resulting in the softening of the metal matrix [42]. The other was the fact that some small-angle lath boundaries evolved gradually into large-angle boundaries. Several studies have indicated [43] that when cleavage cracks attempt to propagate through a large-angle boundary, the crystal orientation and crack direction may change, and then the growth of cracks may eventually be stopped. Consequently, an increasing amount of large-angle boundaries would lead to a larger deflection of cleavage cracks, and a higher toughness could be obtained.
The correlation between the micro-hardness and tempering time is depicted in Figure 13. The Vickers hardness first increased rapidly to the peak value when the tempering time was 1 h, and it then reduced remarkably after tempering for 5 h. Finally, the hardness decreased monotonically with increasing the tempering time to 100 h. This trend was due to two competitive mechanisms that occurred during the tempering process. The strengthening was due to the precipitation of the carbides, and the softening was due to the recovery of the martensitic matrix. As described above, when the tempering time was between 10 min and 1 h, the hardness increased steadily due to the transformation from M3C to M2C. The precipitation of M2C had a strong secondary hardening effect on the matrix, which results in the increasing hardness during tempering for 1 h. Then, the hardness decreased significantly when the tempering time was 5 h, since most of the M2C transformed into long-line M7C3. The secondary hardening effect was weakened, and precipitate particles were gradually coarsened, which had a detrimental impact on the Vickers hardness. With the increase in the tempering time, the coarsening of the carbides resulted in a reduction in the dislocation pile-up effect [44]. Martinez-de-Guerenu et al. [45] concluded that the recovery percentage of steels during tempering could be estimated by the following equation:
1 − R y = b − a ln ⁡ t
where Ry is the recovery percentage, which is related to the dislocation density variation, t is the tempering time, and a and b are constants, which are related to the tempering temperature. During the continuous tempering, the recovery of dislocations in the matrix changed with the prolonging of the tempering time, which led to a gradual decrease in the Vickers hardness. It can be concluded that the variation in the Vickers hardness should be derived from the evolution and coarsening of the precipitate and the recovery of the lath martensite.

4. Conclusions

The evolution behaviors of the microstructure and precipitates and their effect on the mechanical properties of Nb-V-Ti micro-alloyed steel under different tempering times were explored, and the main conclusions obtained are shown as follows:
  • The width of martensite laths increased and the retained austenite and dislocation decreased gradually with the prolongation of the tempering time.
  • The evolution sequence of the carbides during tempering at 600 °C for the different times was identified as: M3C → M2C → M7C3 → M23C6. The other two kinds of MC carbides remained stable during the tempering process.
  • The strength decreased and the Charpy impact toughness increased gradually with the prolongation of the tempering time. The Vickers hardness increased remarkably as the tempering time was extended to 1 h and then decreased sharply with a further increase in the tempering time up to 5 h. When the tempering time was between 5 and 100 h, the Vickers hardness values decreased gradually.

Author Contributions

Q.Z. designed the research, performed the research, analyzed the data, and wrote the paper. Z.Q. conceived of the study and designed the study. J.D. developed the idea for the study and collected the data. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by National Natural Science Foundation of China grant number 52004181 and the Tianjin Jinnan District Science and Technology Plan Project grant number 20220110.

Data Availability Statement

Data presented in this article are available at request from the corresponding author.

Acknowledgments

The authors are grateful to the National Natural Science Foundation of China (grant nos. 52004181) and the Tianjin Jinnan District Science and Technology Plan Project (grant no. 20220110) for grant and financial support.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Li, Z.J.; Xiao, N.M.; Li, D.X.; Zhang, J.Y.; Luo, Y.J.; Zhang, R.X. Effect of microstructure evolution on strength and impact toughness of G18CrMo2-6 heat-resistant steel during tempering. Mater. Sci. Eng. A 2014, 604, 103–110. [Google Scholar] [CrossRef]
  2. Sun, J.; Lian, F.L.; Sun, Y.; Wang, Y.J.; Guo, S.W.; Liu, Y.N. The Fine Grain Effect on a New Carbide Fe4C3 Formed in Pipeline Steel X80. JOM 2023, 75, 417–427. [Google Scholar] [CrossRef]
  3. Li, X.; Shi, L.; Liu, Y.; Gan, K.; Liu, C. Achieving a desirable combination of mechanical properties in HSLA steel through step quenching. Mater. Sci. Eng. A 2020, 772, 138683. [Google Scholar] [CrossRef]
  4. Mandal, A.; Barik, R.K.; Bhattacharya, A.; Chakrabarti, D.; Davis, C. The Correlation Between Bending, Tensile and Charpy Impact Properties of Ultra-high-Strength Strip Steels. Metall. Mater. Trans. A 2023, 1–24. [Google Scholar] [CrossRef]
  5. Shao, Y.; Liu, C.; Yan, Z.; Li, H.; Liu, Y. Formation mechanism and control methods of acicular ferrite in HSLA steels: A review. J. Mater. Sci. Technol. 2018, 34, 737–744. [Google Scholar] [CrossRef]
  6. Kan, L.; Ye, Q.; Wang, Z.; Zhao, T. Improvement of strength and toughness of 1 GPa Cu-bearing HSLA steel by direct quenching. Mater. Sci. Eng. A 2022, 855, 143875. [Google Scholar] [CrossRef]
  7. Liu, G.; Li, Y.; Liao, T.; Wang, S.; Lv, B.; Guo, H.; Huang, Y.; Yong, Q.; Mao, X. Revealing the precipitation kinetics and strengthening mechanisms of a 450 MPa grade Nb-bearing HSLA steel. Mater. Sci. Eng. A 2023, 884, 145506. [Google Scholar] [CrossRef]
  8. Kar, S.; Srivastava, V.C.; Mandal, G.K. Low-density nano-precipitation hardened Ni-based medium entropy alloy with excellent strength-ductility synergy. J. Alloys Compd. 2023, 963, 171213. [Google Scholar] [CrossRef]
  9. Huang, W.; Lei, L.; Fang, G. Optimizing Heat Treatment to Improve the Microstructures and Mechanical Properties of 5CrNiMoV Steel. Metals 2023, 13, 1263. [Google Scholar] [CrossRef]
  10. Shi, L.; Yan, Z.; Liu, Y.; Zhang, C.; Qiao, Z.; Ning, B.; Li, H. Improved toughness and ductility in ferrite/acicular ferrite dual-phase steel through intercritical heat treatment. Mater. Sci. Eng. A 2014, 590, 7–15. [Google Scholar] [CrossRef]
  11. Dudko, V.; Belyakov, A.; Molodov, D.; Kaibyshev, R. Microstructure evolution and pinning of boundaries by precipitates in a 9 pct Cr heat resistant steel during creep. Metall. Mater. Trans. A 2013, 44, 162–172. [Google Scholar] [CrossRef]
  12. Chen, H.; Zhang, C.; Zhu, J.; Yang, Z.; Ding, R.; Zhang, C.; Yang, Z. Austenite/ferrite interface migration and alloying elements partitioning: An overview. Acta Metall. Sin. 2017, 54, 217–227. [Google Scholar]
  13. Dong, J.; Zhou, X.; Liu, Y.; Li, C.; Liu, C.; Li, H. Effects of quenching-partitioning-tempering treatment on microstructure and mechanical performance of Nb-V-Ti microalloyed ultra-high strength steel. Mater. Sci. Eng. A 2017, 690, 283–293. [Google Scholar] [CrossRef]
  14. Roy, S.; Romualdi, N.; Yamada, K.; Poole, W.; Militzer, M.; Collins, L. The Relationship Between Microstructure and Hardness in the Heat-Affected Zone of Line Pipe Steels. JOM 2022, 74, 2395–2401. [Google Scholar] [CrossRef]
  15. Wu, H.; Ju, B.; Tang, D.; Hu, R.; Guo, A.; Kang, Q.; Wang, D. Effect of Nb addition on the microstructure and mechanical properties of an 1800 MPa ultrahigh strength steel. Mater. Sci. Eng. A 2015, 622, 61–66. [Google Scholar] [CrossRef]
  16. Mandal, A.; Bandyopadhay, T.K. Effect of tempering on microstructure and tensile properties of niobium modified martensitic 9Cr heat resistant steel. Mater. Sci. Eng. A 2015, 620, 463–470. [Google Scholar] [CrossRef]
  17. Shen, Y.; Liu, H.; Shang, Z.; Xu, Z. Precipitate phases in normalized and tempered ferritic/martensitic steel P92. J. Nucl. Mater. 2015, 465, 373–382. [Google Scholar] [CrossRef]
  18. Moon, J.; Choi, J.; Han, S.K.; Huh, S.; Kim, S.J.; Lee, C.H.; Lee, T.H. Influence of precipitation behavior on mechanical properties and hydrogen induced cracking during tempering of hot-rolled API steel for tubing. Mater. Sci. Eng. A 2016, 652, 120–126. [Google Scholar] [CrossRef]
  19. Tao, X.G.; Han, L.Z.; Gu, J.F. Effect of tempering on microstructure evolution and mechanical properties of X12CrMoWVNbN10-1-1 steel. Mater. Sci. Eng. A 2014, 618, 189–204. [Google Scholar] [CrossRef]
  20. Stornelli, G.; Tselikova, A.; Mirabile Gattia, D.; Mortello, M.; Schmidt, R.; Sgambetterra, M.; Testani, C.; Zucca, G.; Di Schino, A. Influence of vanadium micro-alloying on the microstructure of structural high strength steels welded joints. Materials 2023, 16, 2897. [Google Scholar] [CrossRef]
  21. Janovec, J.; Svoboda, M.; Kroupa, A.; Výrostková, A. Thermal-induced evolution of secondary phases in Cr–Mo–V low alloy steels. J. Mater. Sci. 2006, 41, 3425–3433. [Google Scholar] [CrossRef]
  22. Janovec, J.; Svoboda, M.; Výrostková, A.; Kroupa, A. Time–temperature–precipitation diagrams of carbide evolution in low alloy steels. Mater. Sci. Eng. A 2005, 402, 288–293. [Google Scholar] [CrossRef]
  23. Jia, C.; Liu, Y.; Liu, C.; Li, C.; Li, H. Precipitates evolution during tempering of 9CrMoCoB (CB2) ferritic heat-resistant steel. Mater. Charact. 2019, 152, 12–20. [Google Scholar] [CrossRef]
  24. Janovec, J.; Vyrostkova, A.; Svoboda, M. Influence of tempering temperature on stability of carbide phases in 2.6 Cr–0.7 Mo–0.3 V steel with various carbon content. Metall. Mater. Trans. A 1994, 25, 267–275. [Google Scholar] [CrossRef]
  25. Li, C.; Duan, R.; Fu, W.; Gao, H.; Wang, D.; Di, X. Improvement of mechanical properties for low carbon ultra-high strength steel strengthened by Cu-rich multistructured precipitation via modification to bainite. Mater. Sci. Eng. A 2021, 817, 141337. [Google Scholar] [CrossRef]
  26. Thomson, R.C.; Bhadeshia, H.K.D.H. Atom probe and STEM studies of carbide precipitation in 2sol14Cr1Mo steel. Appl. Surf. 1993, 67, 334–341. [Google Scholar] [CrossRef]
  27. Jain, D.; Isheim, D.; Hunter, A.H.; Seidman, D.N. Multicomponent high-strength low-alloy steel precipitation-strengthened by sub-nanometric Cu precipitates and M2C carbides. Metall. Mater. Trans. A 2016, 47, 3860–3872. [Google Scholar] [CrossRef]
  28. Lee, W.B.; Hong, S.G.; Park, C.G.; Park, S.H. Carbide precipitation and high-temperature strength of hot-rolled high-strength, low-alloy steels containing Nb and Mo. Metall. Mater. Trans. A 2002, 33, 1689–1698. [Google Scholar] [CrossRef]
  29. Fedoseeva, A.; Dudova, N.; Glatzel, U.; Kaibyshev, R. Effect of W on tempering behaviour of a 3% Co modified P92 steel. J. Mater. Sci. 2016, 51, 9424–9439. [Google Scholar] [CrossRef]
  30. Chakraborty, G.; Das, C.R.; Albert, S.K.; Bhaduri, A.K.; Paul, V.T.; Panneerselvam, G.; Dasgupta, A. Study on tempering behaviour of AISI 410 stainless steel. Mater. Charact. 2015, 100, 81–87. [Google Scholar] [CrossRef]
  31. Dong, J.; Zhou, X.; Liu, Y.; Li, C.; Liu, C.; Guo, Q. Carbide precipitation in Nb-V-Ti microalloyed ultra-high strength steel during tempering. Mater. Sci. Eng. A 2017, 683, 215–226. [Google Scholar] [CrossRef]
  32. Hou, Z.; Hedström, P.; Chen, Q.; Xu, Y.; Wu, D.; Odqvist, J. Quantitative modeling and experimental verification of carbide precipitation in a martensitic Fe–0.16 wt% C–4.0 wt% Cr alloy. Calphad 2016, 53, 39–48. [Google Scholar] [CrossRef]
  33. Kasana, S.S.; Pandey, O.P. Effect of electroslag remelting and homogenization on hydrogen flaking in AMS-4340 ultra-high-strength steels. Int. J. Min. Met. Mater. 2019, 26, 611–621. [Google Scholar] [CrossRef]
  34. Li, J.; Zhang, C.; Liu, Y. Influence of carbides on the high-temperature tempered martensite embrittlement of martensitic heat-resistant steels. Mater. Sci. Eng. A 2016, 670, 256–263. [Google Scholar] [CrossRef]
  35. Kolluri, M.; Martin, O.; Naziris, F.; D’Agata, E.; Gillemot, F.; Brumovsky, M.; Ulbricht, A.; Autio, J.-M.; Shugailo, A.; Horvath, A. Structural MATerias research on parameters influencing the material properties of RPV steels for safe long-term operation of PWR NPPs. Nucl. Eng. Des. 2023, 406, 112236. [Google Scholar] [CrossRef]
  36. Tao, X.; Gu, J.; Han, L. Characterization of precipitates in X12CrMoWVNbN10-1-1 steel during heat treatment. J. Nucl. Mater. 2014, 452, 557–564. [Google Scholar] [CrossRef]
  37. Maddi, L.; Deshmukh, G.S.; Ballal, A.R.; Peshwe, D.R.; Paretkar, R.K.; Laha, K.; Mathew, M.D. Effect of Laves phase on the creep rupture properties of P92 steel. Mater. Sci. Eng. A 2016, 668, 215–223. [Google Scholar] [CrossRef]
  38. Zhang, C.; Wang, Q.; Ren, J.; Li, R.; Wang, M.; Zhang, F.; Yan, Z. Effect of microstructure on the strength of 25CrMo48V martensitic steel tempered at different temperature and time. Mater. Des. 2012, 36, 220–226. [Google Scholar] [CrossRef]
  39. Caballero, F.G.; Santofimia, M.J.; García-Mateo, C.; Chao, J.; De Andres, C.G. Theoretical design and advanced microstructure in super high strength steels. Mater. Des. 2009, 30, 2077–2083. [Google Scholar] [CrossRef]
  40. Dai, L.; Liu, Z.; Yu, L.; Liu, Y.; Shi, Z. Microstructural characterization of Mg–Al–O rich nanophase strengthened Fe–Cr alloys. Mater. Sci. Eng. A 2020, 771, 138664. [Google Scholar] [CrossRef]
  41. Kamikawa, N.; Sato, K.; Miyamoto, G.; Murayama, M.; Sekido, N.; Tsuzaki, K.; Furuhara, T. Stress–strain behavior of ferrite and bainite with nano-precipitation in low carbon steels. Acta Mater. 2015, 83, 383–396. [Google Scholar] [CrossRef]
  42. Yan, P.; Liu, Z.; Bao, H.; Weng, Y.; Liu, W. Effect of tempering temperature on the toughness of 9Cr–3W–3Co martensitic heat resistant steel. Mater. Des. 2014, 54, 874–879. [Google Scholar] [CrossRef]
  43. Li, X.; Cai, Z.; Hu, M.; Li, K.; Hou, M.; Pan, J. Effect of NbC precipitation on toughness of X12CrMoWNbVN10-1-1 martensitic heat resistant steel for steam turbine blade. J. Mater. Res. Technol. 2021, 11, 2092–2105. [Google Scholar] [CrossRef]
  44. Zhang, X.; Li, H.; Zhan, M.; Zheng, Z.; Gao, J.; Shao, G. Electron force-induced dislocations annihilation and regeneration of a superalloy through electrical in-situ transmission electron microscopy observations. J. Mater. Sci. Technol. 2020, 36, 79–83. [Google Scholar] [CrossRef]
  45. Martınez-de-Guerenu, A.; Arizti, F.; Gutiérrez, I. Recovery during annealing in a cold rolled low carbon steel. Part II: Modelling the kinetics. Acta Mater. 2004, 52, 3665–3670. [Google Scholar] [CrossRef]
Metals 13 01495 g001

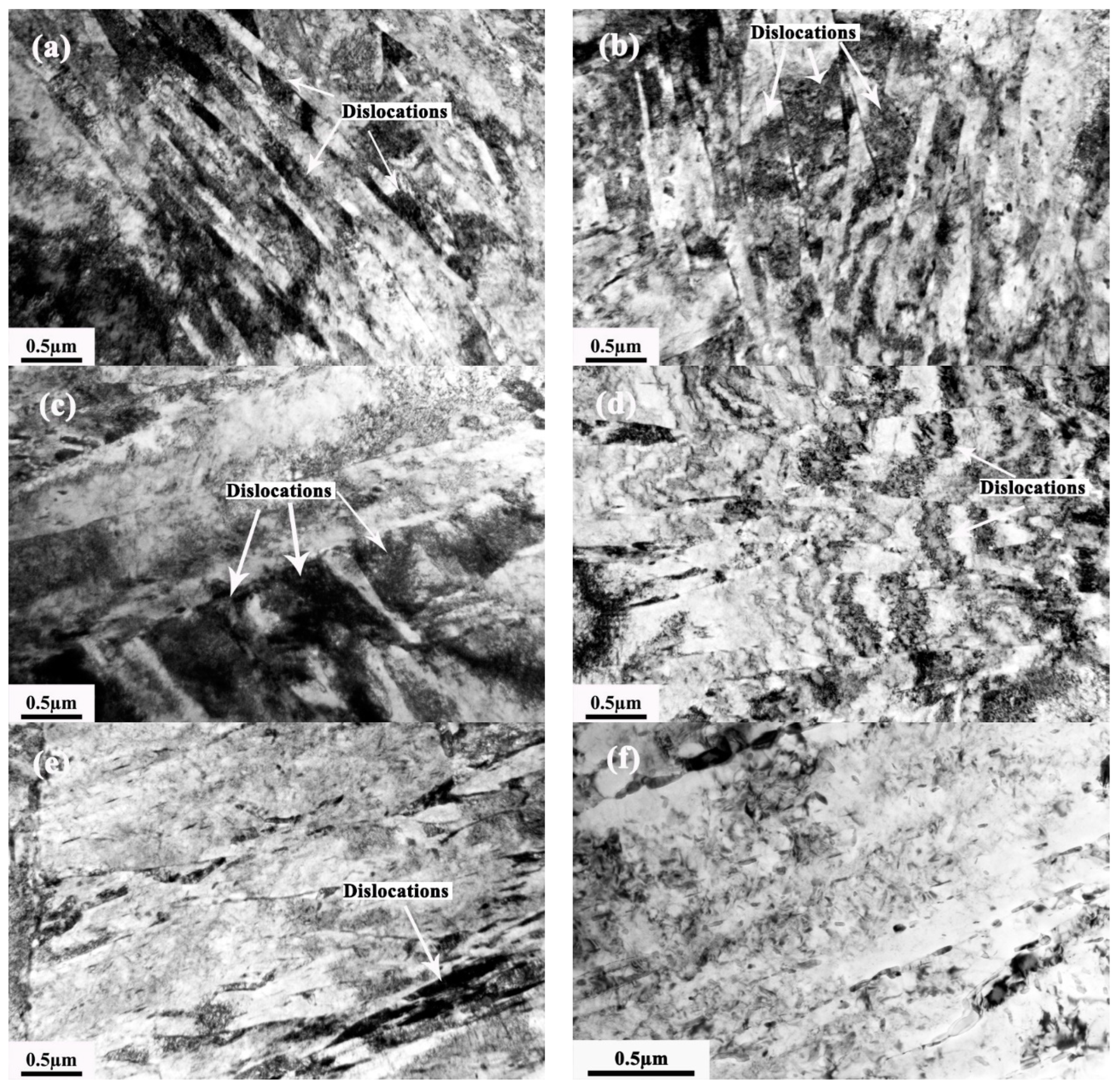

Figure 1. TEM micrographs of steel specimens after being tempered at 600 °C for different periods: (a) 10 min, (b) 30 min, (c) 5 h, (d) 10 h, (e) 50 h, and (f) 100 h.
Figure 1. TEM micrographs of steel specimens after being tempered at 600 °C for different periods: (a) 10 min, (b) 30 min, (c) 5 h, (d) 10 h, (e) 50 h, and (f) 100 h.
Metals 13 01495 g001
Metals 13 01495 g002

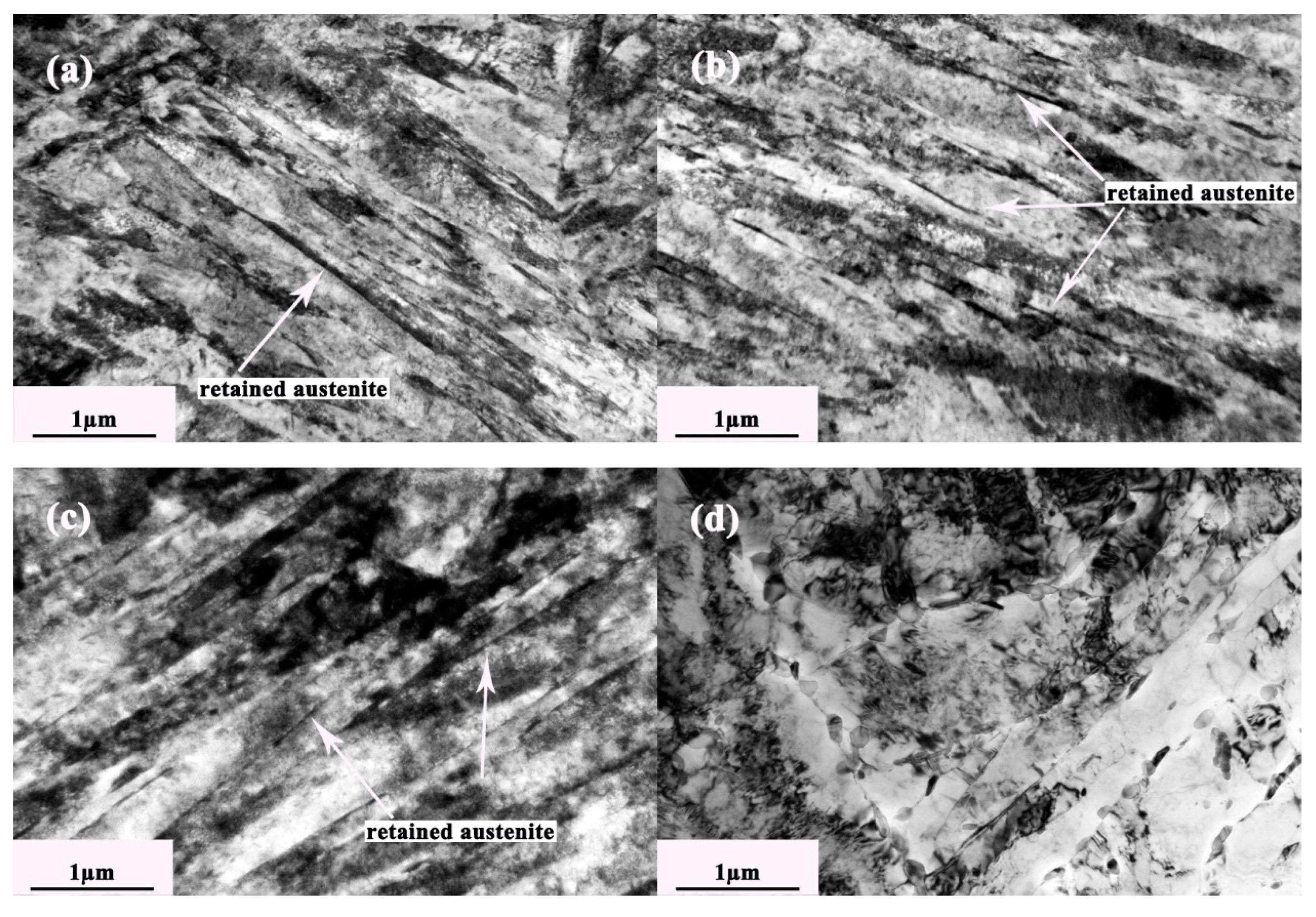

Figure 2. TEM micrographs of retained austenite in the steel specimens after tempering at 600 °C for different tempering periods: (a) 10 min, (b) 30 min, (c) 5 h, and (d) 100 h.
Figure 2. TEM micrographs of retained austenite in the steel specimens after tempering at 600 °C for different tempering periods: (a) 10 min, (b) 30 min, (c) 5 h, and (d) 100 h.
Metals 13 01495 g002
Metals 13 01495 g003

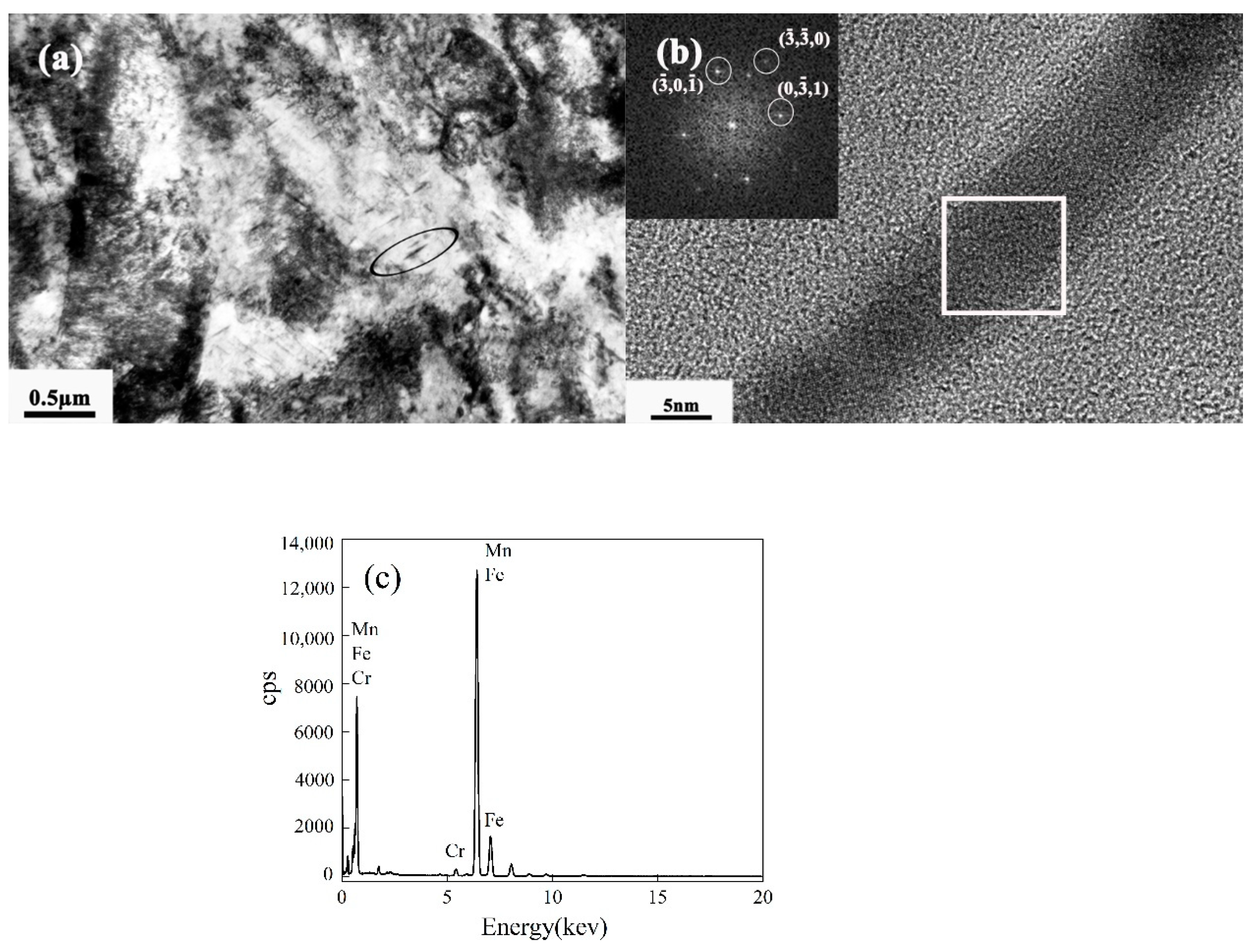

Figure 3. (a) TEM micrographs of M3C after tempering at 600 °C for 10 min; (b,c) corresponding SAD pattern and EDS analysis of M3C precipitates, respectively.
Figure 3. (a) TEM micrographs of M3C after tempering at 600 °C for 10 min; (b,c) corresponding SAD pattern and EDS analysis of M3C precipitates, respectively.
Metals 13 01495 g003
Metals 13 01495 g004

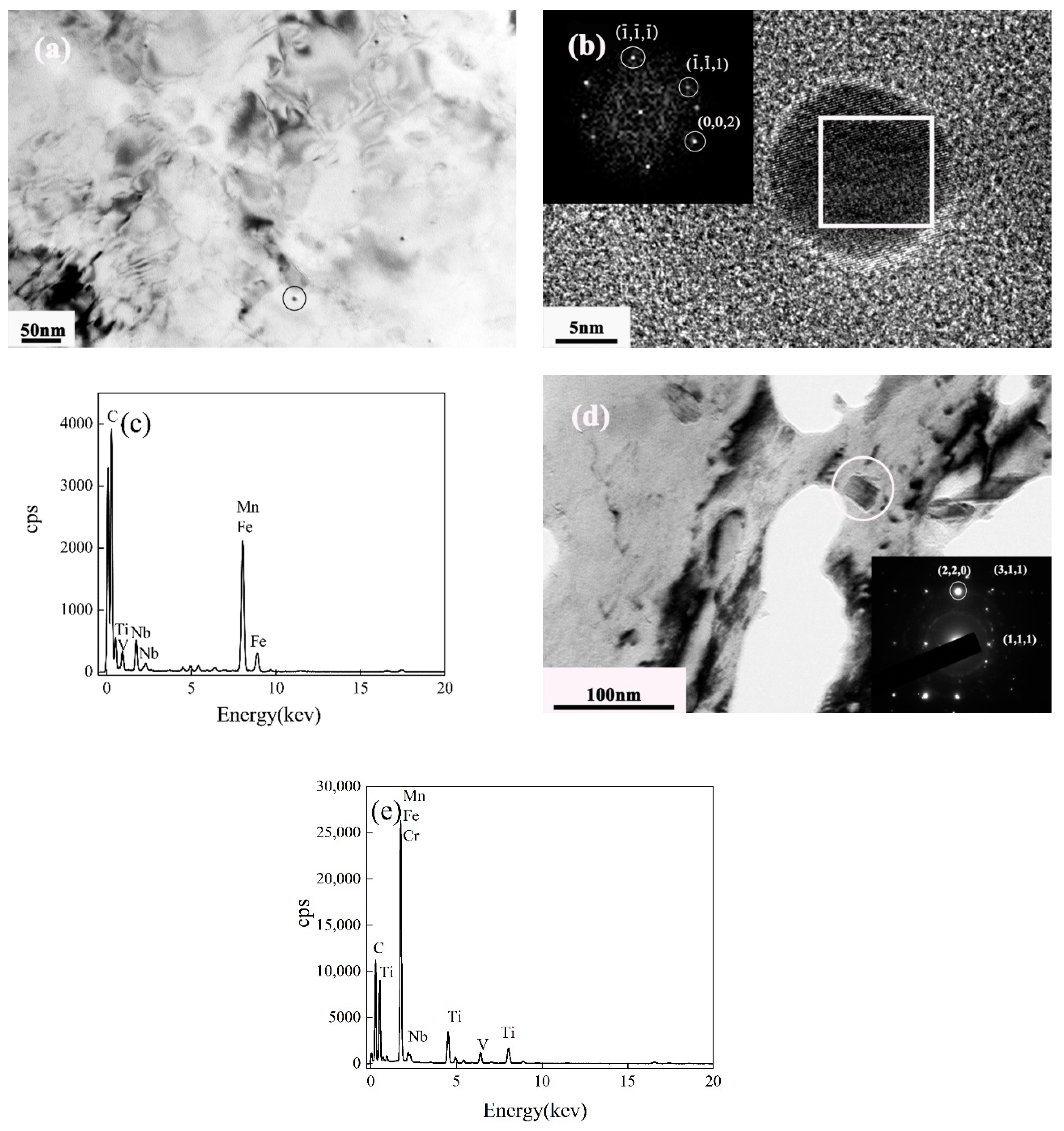

Figure 4. (a–c) TEM micrographs, corresponding SAD pattern, and EDS analysis of Nb-rich MC (I) carbide; (d,e) TEM micrographs, corresponding SAD pattern, and EDS analysis of Ti-rich MC (II) particles after tempering at 600 °C for 10 min.
Figure 4. (a–c) TEM micrographs, corresponding SAD pattern, and EDS analysis of Nb-rich MC (I) carbide; (d,e) TEM micrographs, corresponding SAD pattern, and EDS analysis of Ti-rich MC (II) particles after tempering at 600 °C for 10 min.
Metals 13 01495 g004
Metals 13 01495 g005

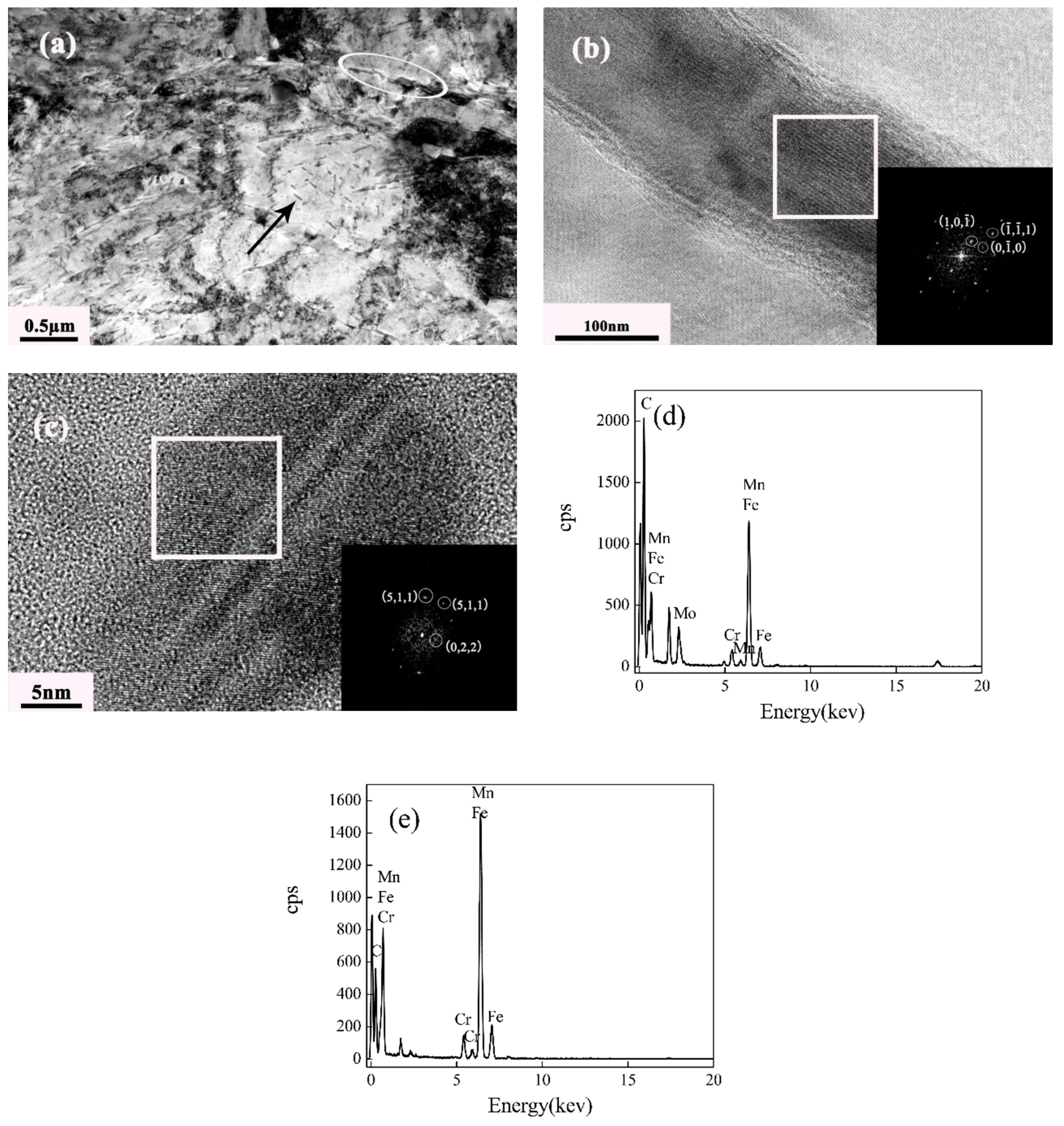

Figure 5. (a,b,d) TEM micrographs, corresponding SAD pattern, and EDS analysis of M2C particles; (c,e) TEM micrographs, corresponding SAD pattern, and EDS analysis of M23C6 precipitates after tempering at 600 °C for 30 min.
Figure 5. (a,b,d) TEM micrographs, corresponding SAD pattern, and EDS analysis of M2C particles; (c,e) TEM micrographs, corresponding SAD pattern, and EDS analysis of M23C6 precipitates after tempering at 600 °C for 30 min.
Metals 13 01495 g005
Metals 13 01495 g006

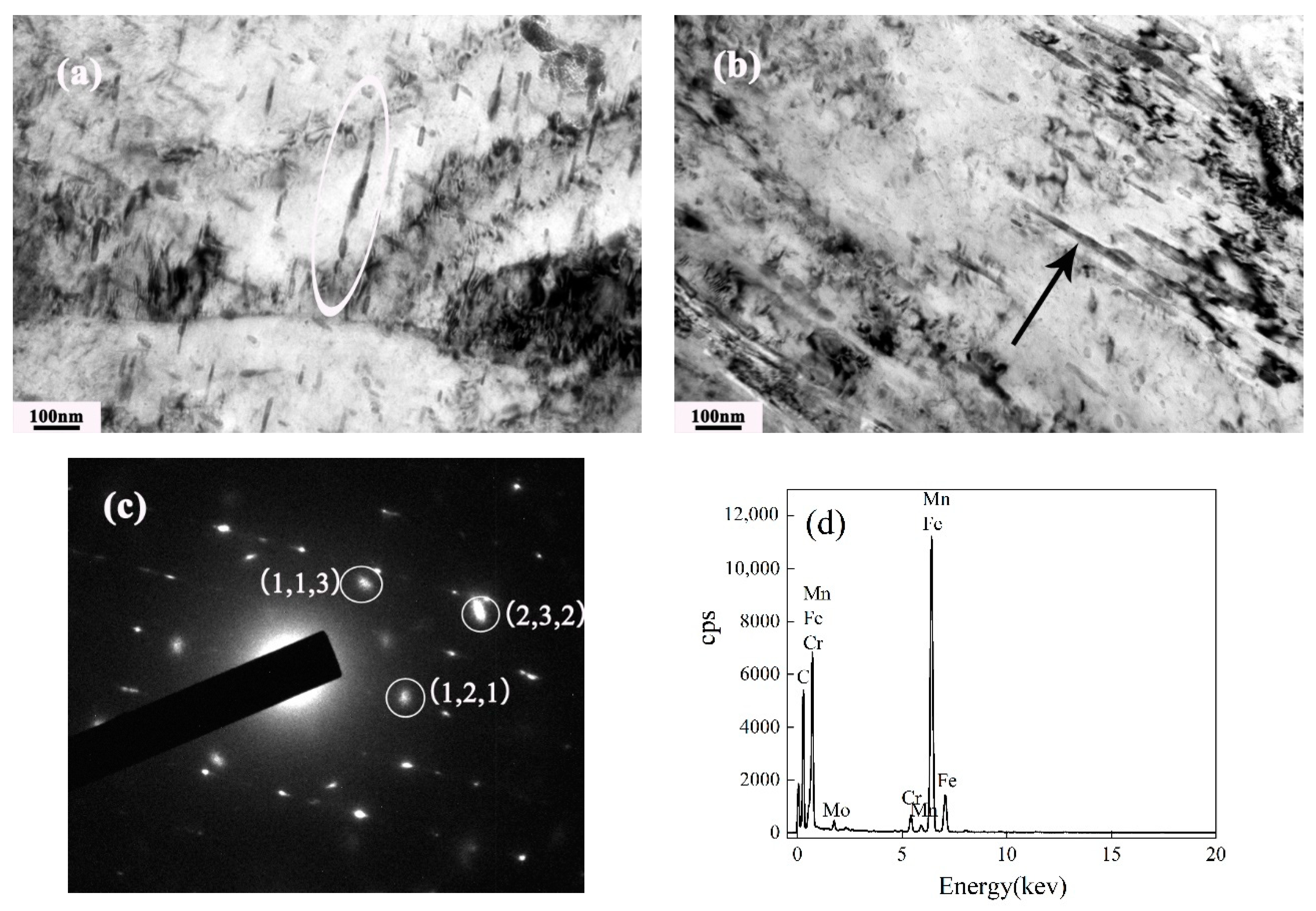

Figure 6. (a,b) TEM micrographs of steel specimen after tempering at 600 °C for 5 h; (c,d) corresponding SAD pattern and EDS analysis results of M7C3 particles.
Figure 6. (a,b) TEM micrographs of steel specimen after tempering at 600 °C for 5 h; (c,d) corresponding SAD pattern and EDS analysis results of M7C3 particles.
Metals 13 01495 g006
Metals 13 01495 g007

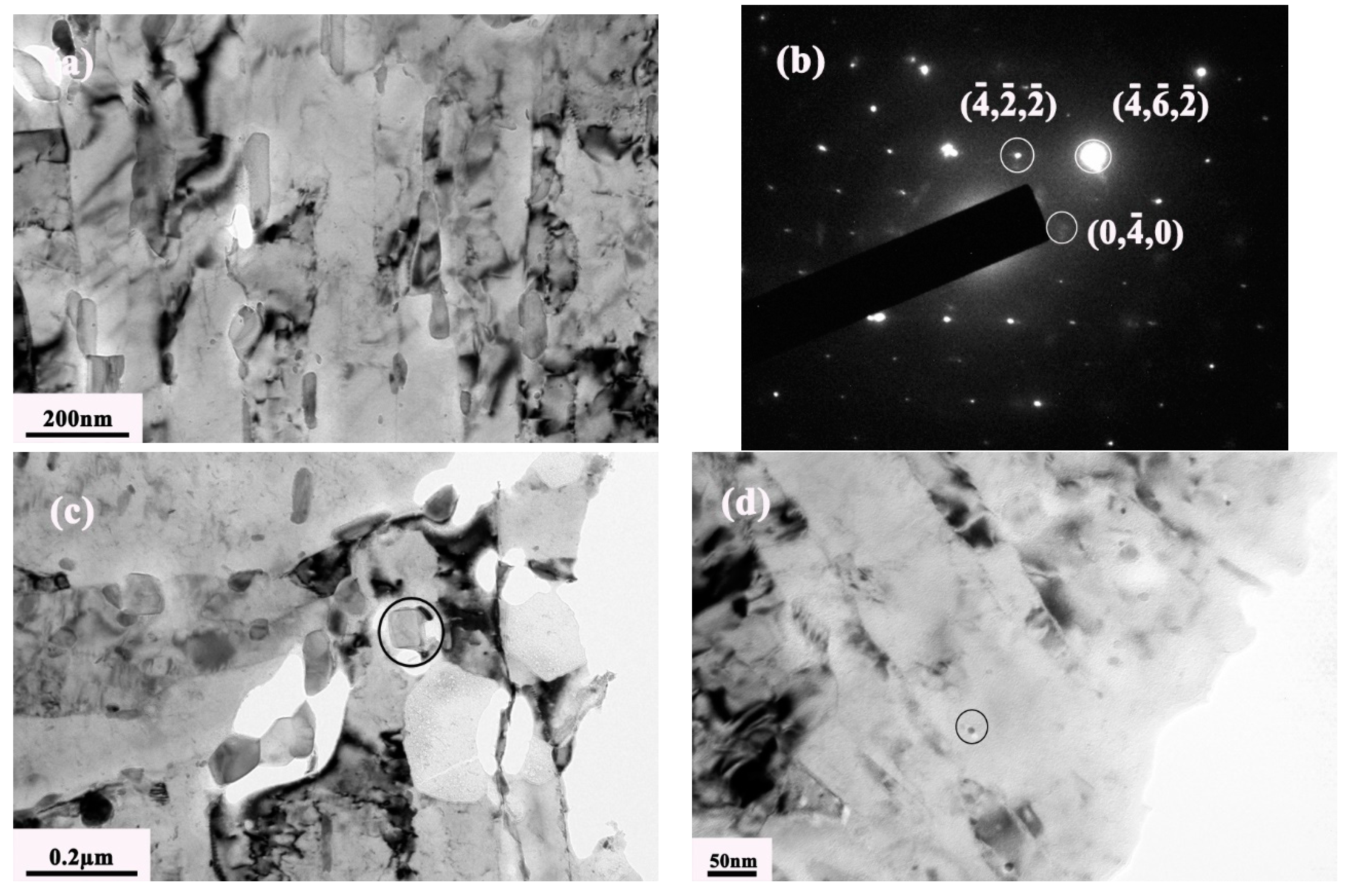

Figure 7. (a,c,d) TEM micrographs of the specimen after tempering at 600 °C for 100 h; (b) corresponding SAD pattern of M23C6 particles.
Figure 7. (a,c,d) TEM micrographs of the specimen after tempering at 600 °C for 100 h; (b) corresponding SAD pattern of M23C6 particles.
Metals 13 01495 g007
Metals 13 01495 g008

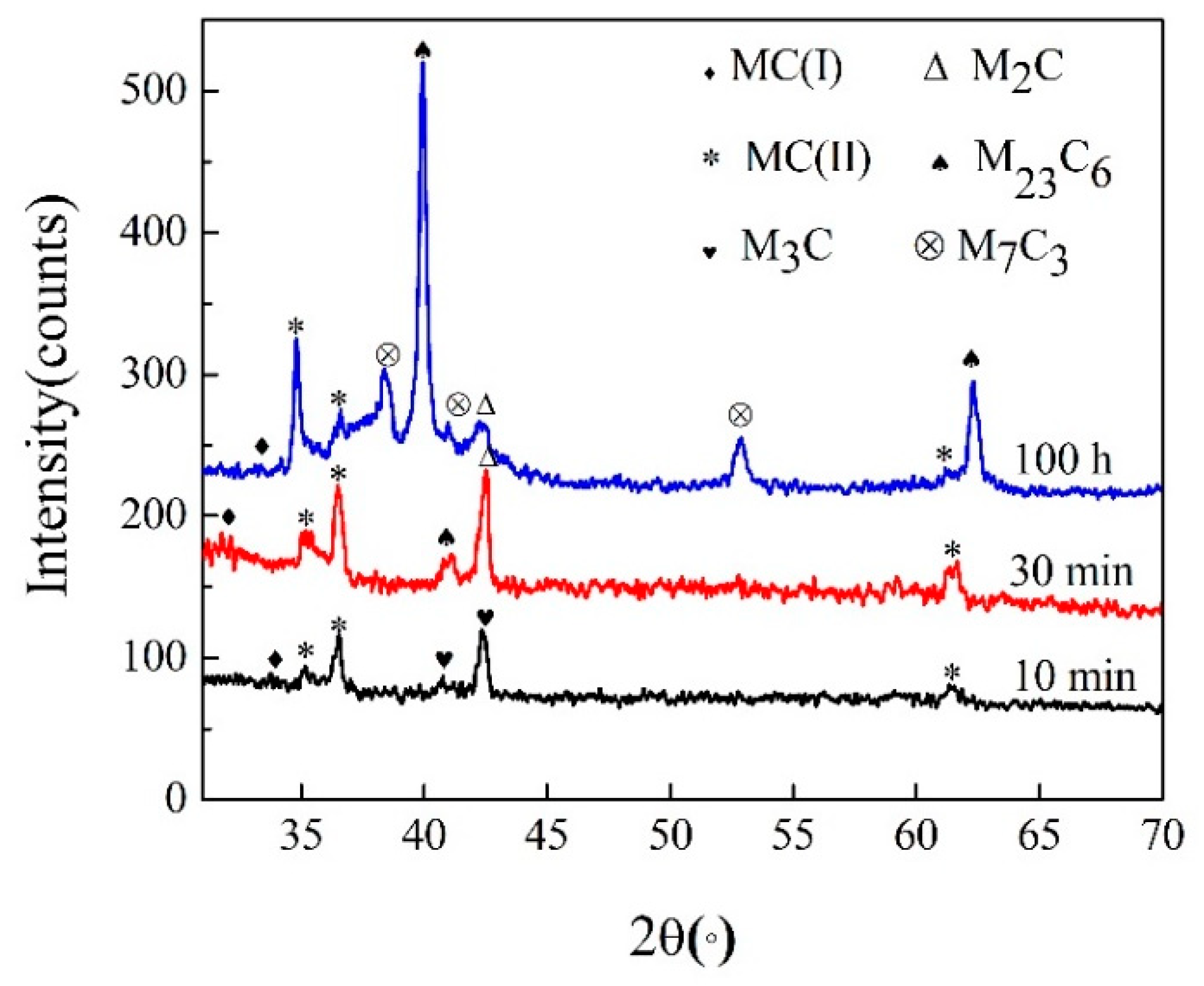

Figure 8. X-ray diffraction patterns of the carbides extracted from investigated steel after being tempered at 600 °C for different lengths of time.
Figure 8. X-ray diffraction patterns of the carbides extracted from investigated steel after being tempered at 600 °C for different lengths of time.
Metals 13 01495 g008
Metals 13 01495 g009

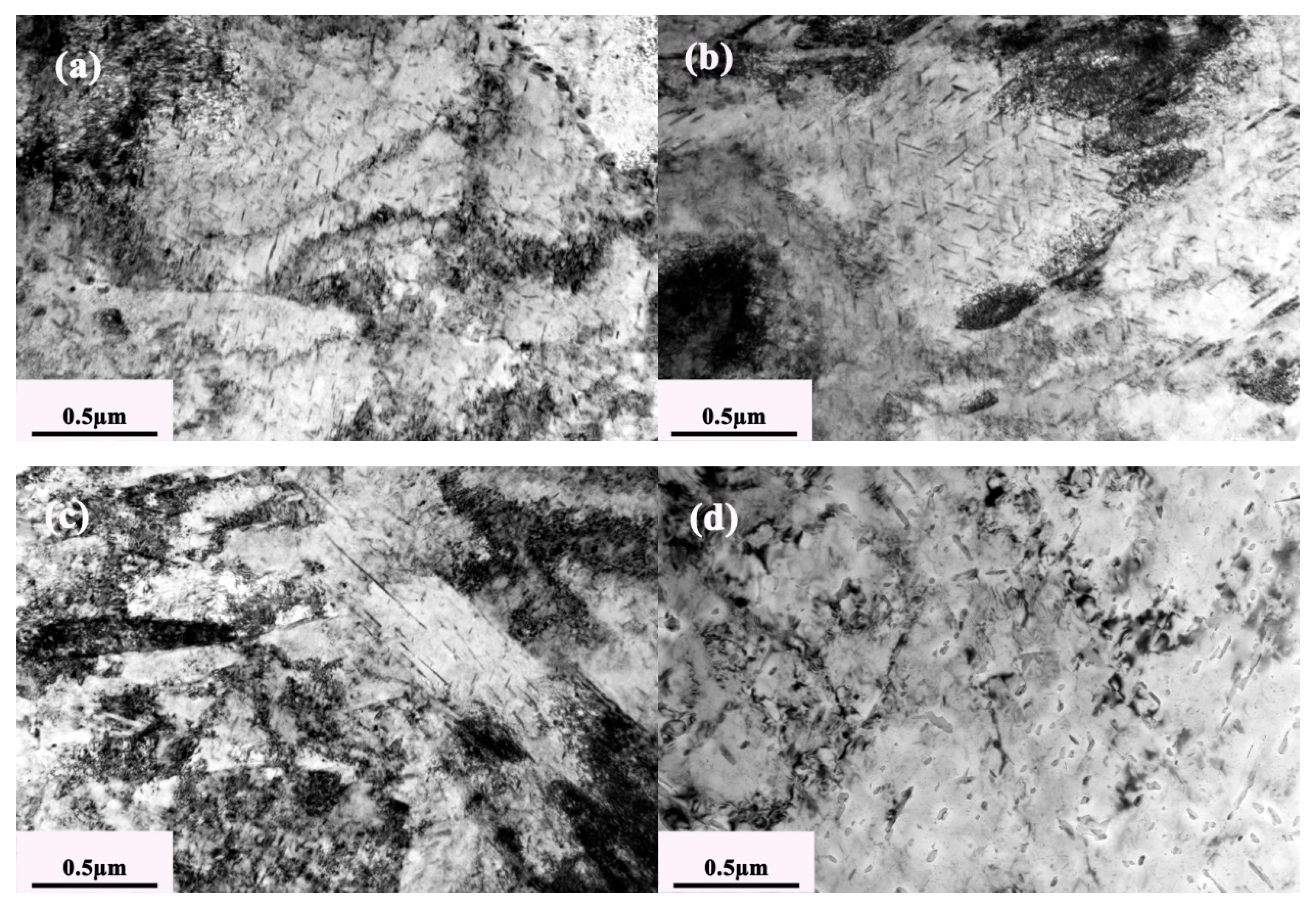

Figure 9. TEM micrographs of M2C precipitates after tempering at 600 °C for different lengths of time: (a) 30 min; (b) 1 h; (c) 10 h; and (d) 100 h.
Figure 9. TEM micrographs of M2C precipitates after tempering at 600 °C for different lengths of time: (a) 30 min; (b) 1 h; (c) 10 h; and (d) 100 h.
Metals 13 01495 g009
Metals 13 01495 g010

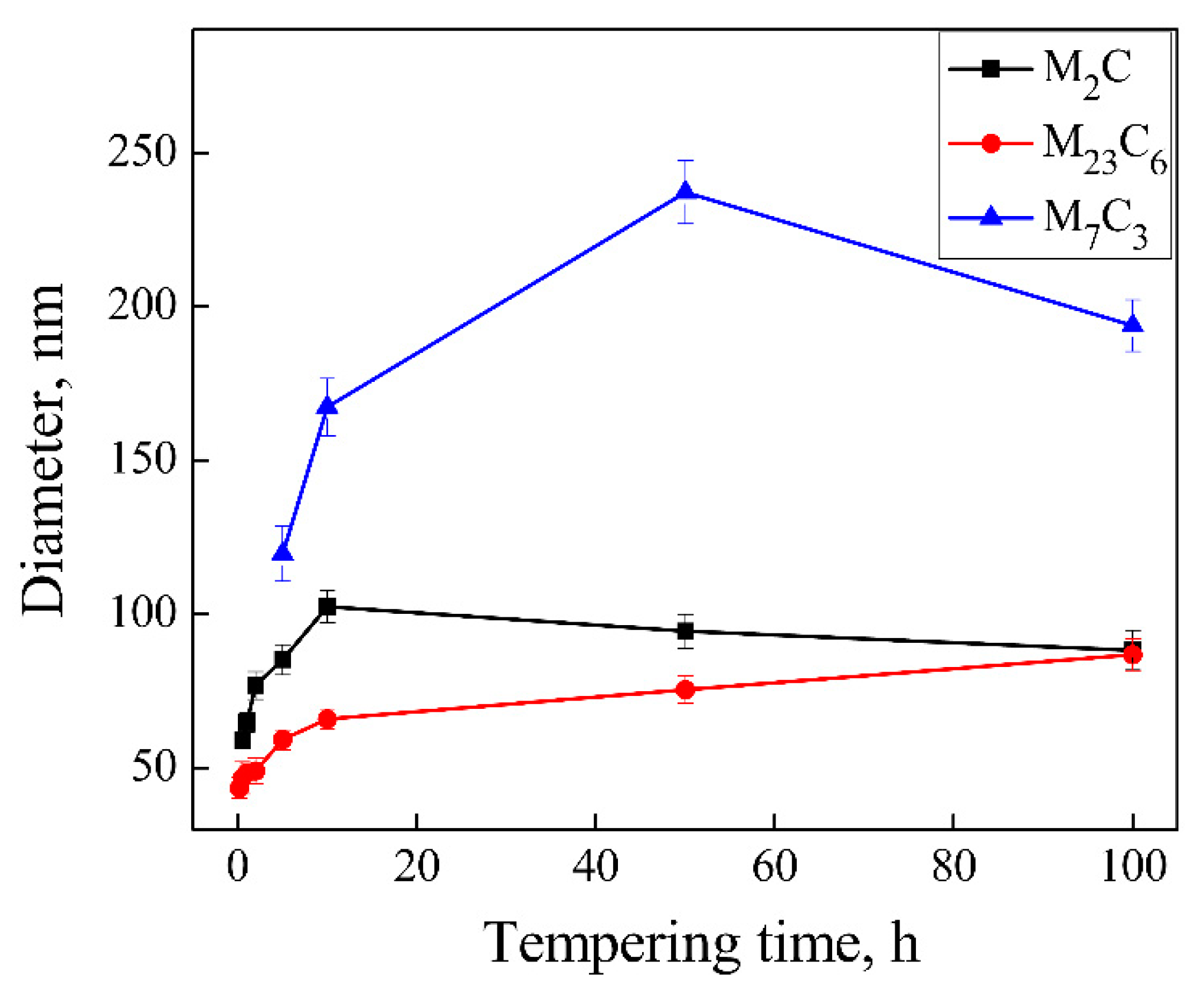

Figure 10. Mean size of precipitates as a function of time during tempering at 600 °C.
Figure 10. Mean size of precipitates as a function of time during tempering at 600 °C.
Metals 13 01495 g010
Metals 13 01495 g011

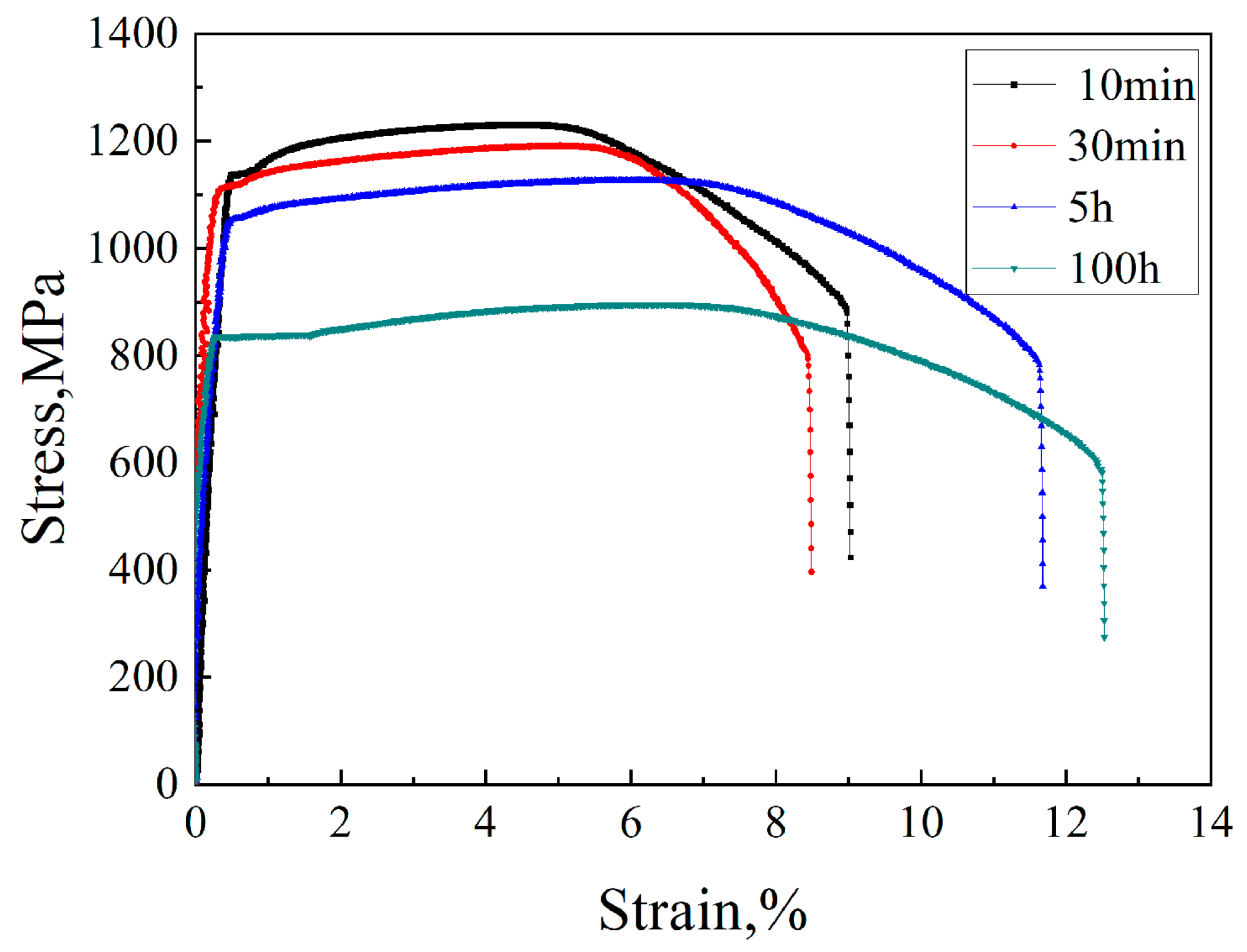

Figure 11. The stress–strain curves of the investigated steel during tempering at 600 °C.
Figure 11. The stress–strain curves of the investigated steel during tempering at 600 °C.
Metals 13 01495 g011
Metals 13 01495 g012

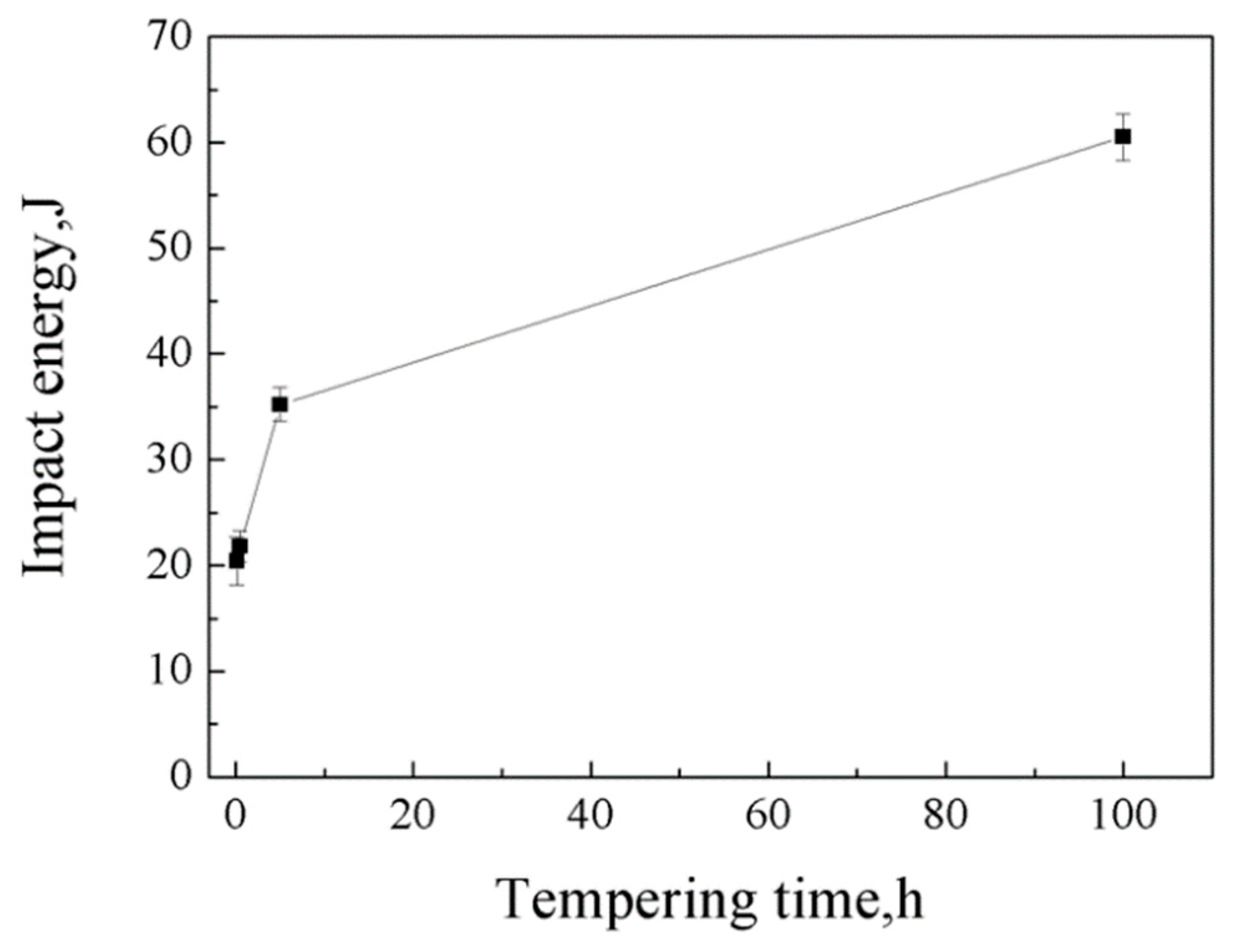

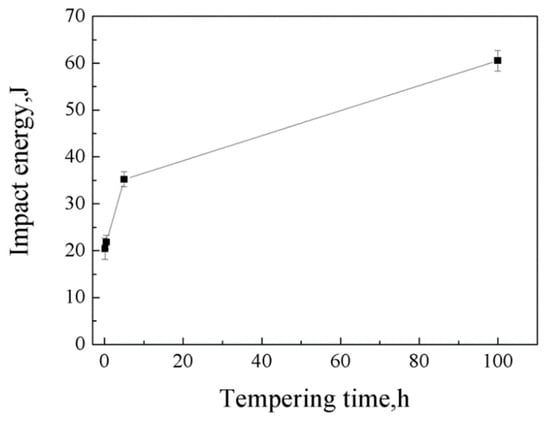

Figure 12. Change in the Charpy impact properties in investigated steel during tempering at 600 °C.
Figure 12. Change in the Charpy impact properties in investigated steel during tempering at 600 °C.
Metals 13 01495 g012
Metals 13 01495 g013

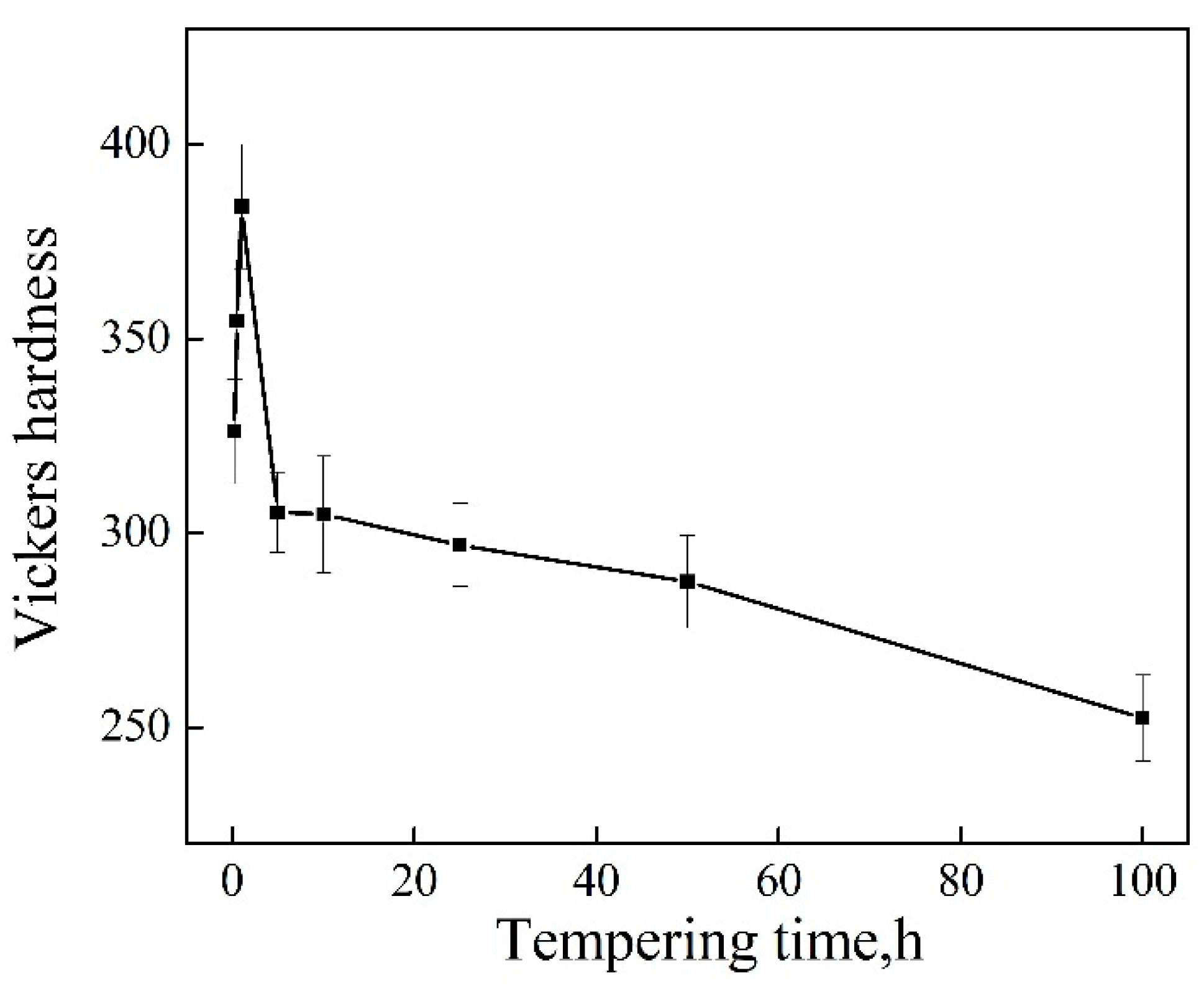

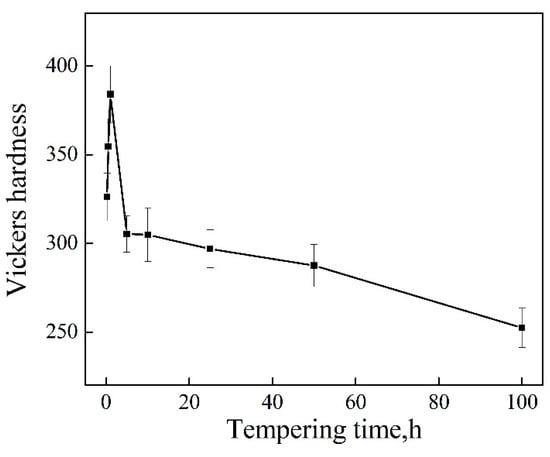

Figure 13. Changes in the Vickers hardness during tempering at 600 °C.
Figure 13. Changes in the Vickers hardness during tempering at 600 °C.
Metals 13 01495 g013
Table 1. Tensile properties of the investigated steel during tempering at 600 °C.
Table 1. Tensile properties of the investigated steel during tempering at 600 °C.
Tempering TimeYS, MPaUTS, MPaTE, %
10 min1138 ± 161231 ± 208.8 ± 0.3
30 min1112 ± 121193 ± 188.4 ± 0.2
5 h1055 ± 141132 ± 2111.5 ± 0.5
100 h835 ± 11896 ± 1512.3 ± 0.6
