Pollution Characteristics of Heavy Metals in Surface Sediments of the Shuimo River in Urumqi, China
Abstract
:1. Introduction

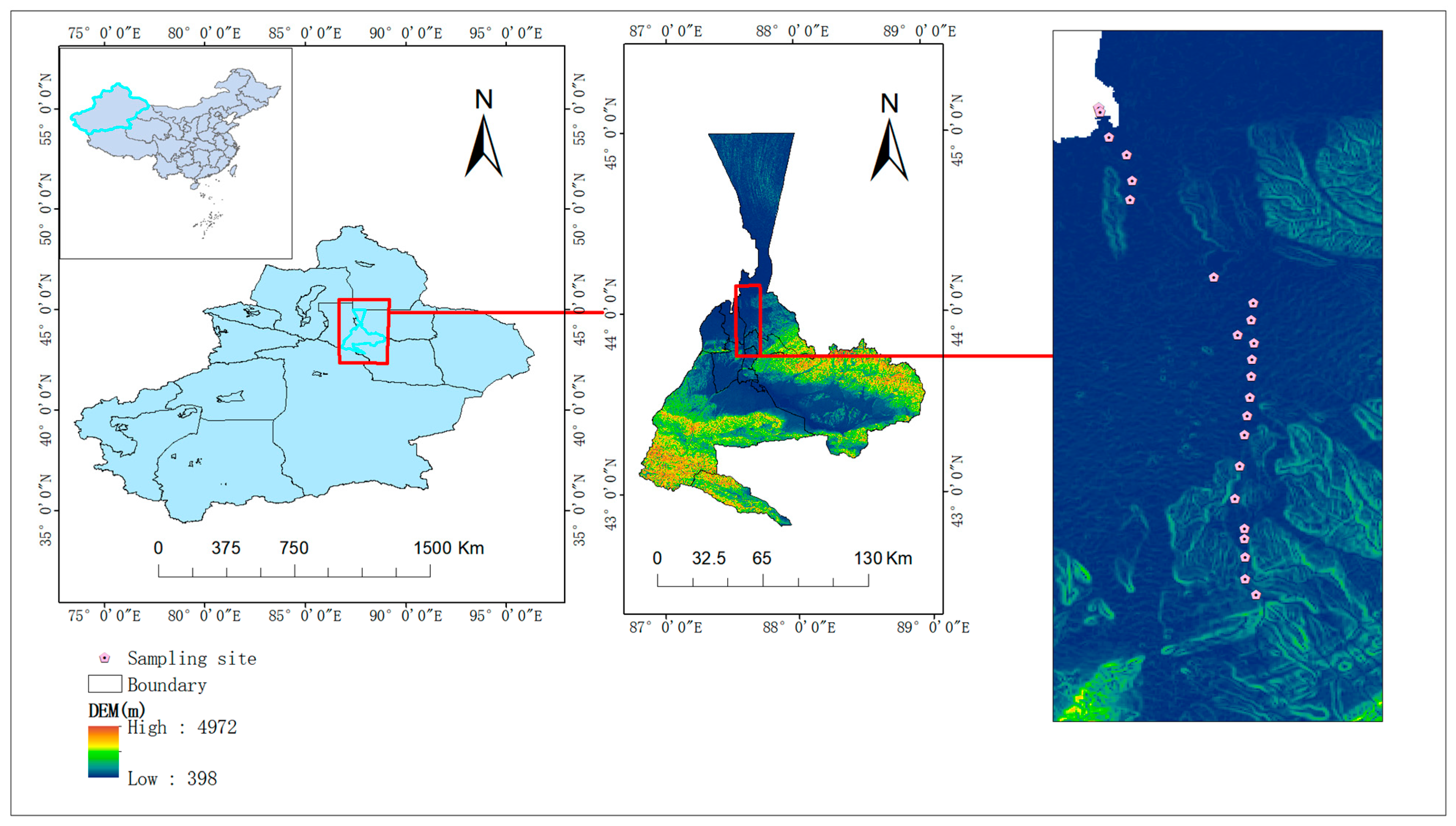

2. Overview of the Study Area
3. Materials and Methods
3.1. Sample Collection and Preservation
3.2. Analytical Methods
3.3. Data Processing
4. Results and Analysis
4.1. Surface Sediment pH Characteristics
4.2. Heavy Metal Content and Spatial Distribution of Surface Sediments
4.3. Major Heavy Metal Contaminants in Surface Sediments
4.3.1. Correlation of Major Heavy Metal Pollutants
4.3.2. Determination of Major Pollutants
4.4. Cluster Analysis of Total Surface Sediment Heavy Metals
5. Discussion
5.1. Analysis of the Pollution Status and Sources of Heavy Metals in Surface Sediments
5.2. Suggestions for the Control and Management of Heavy Metal Pollutants in Surface Sediments
6. Conclusions

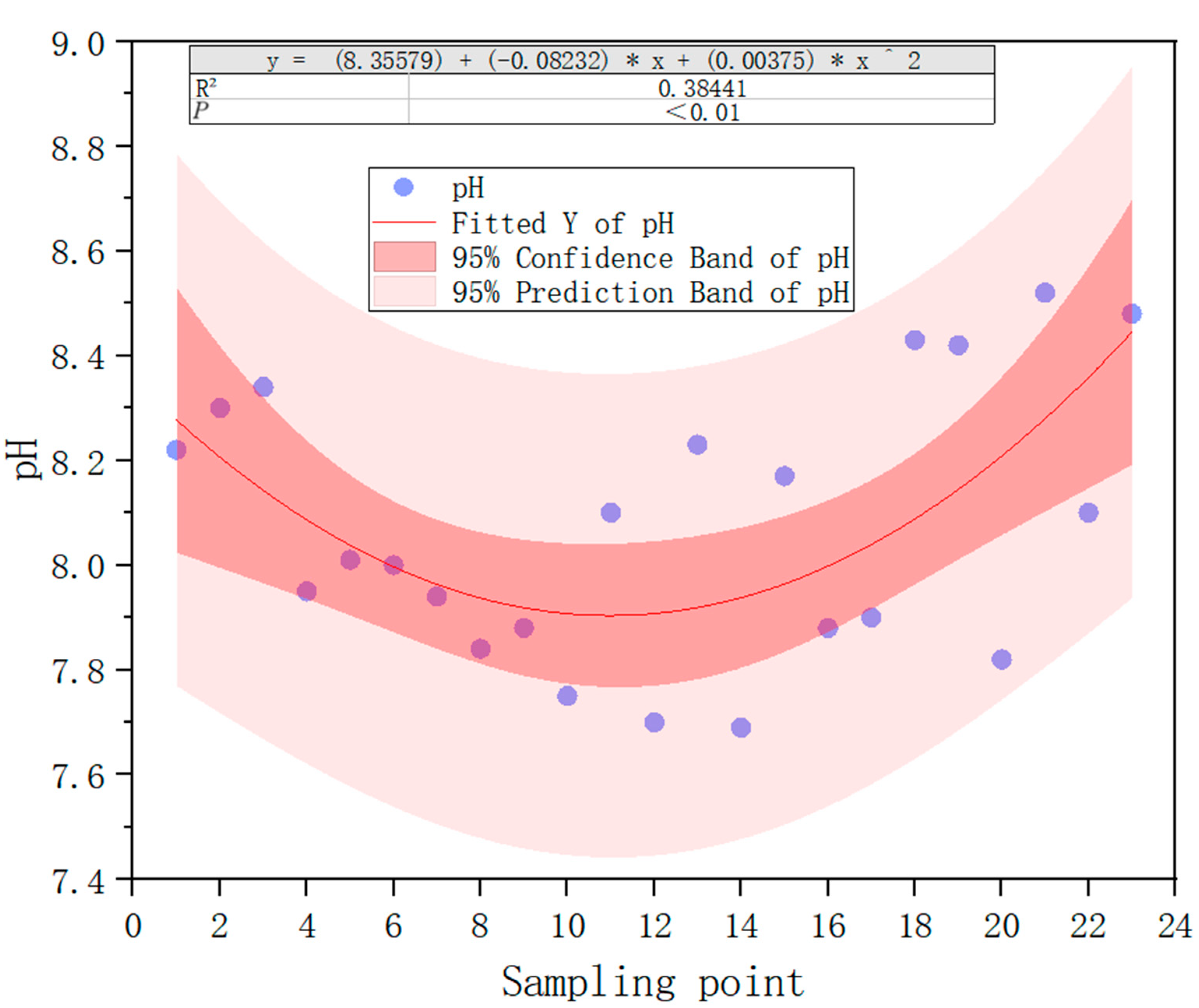

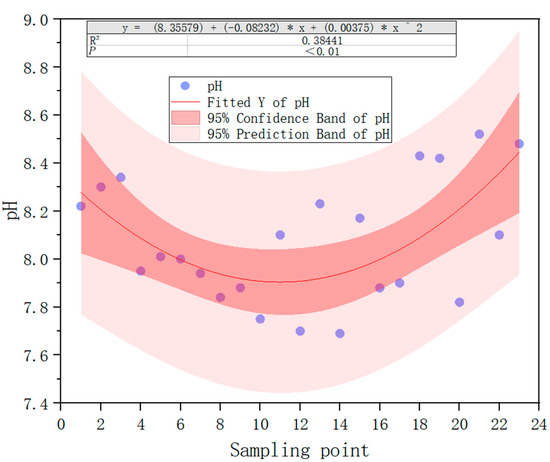

- The pH values of the surface sediments along the direction of the water flow showed a quadratic curve trend, first decreasing and then increasing;

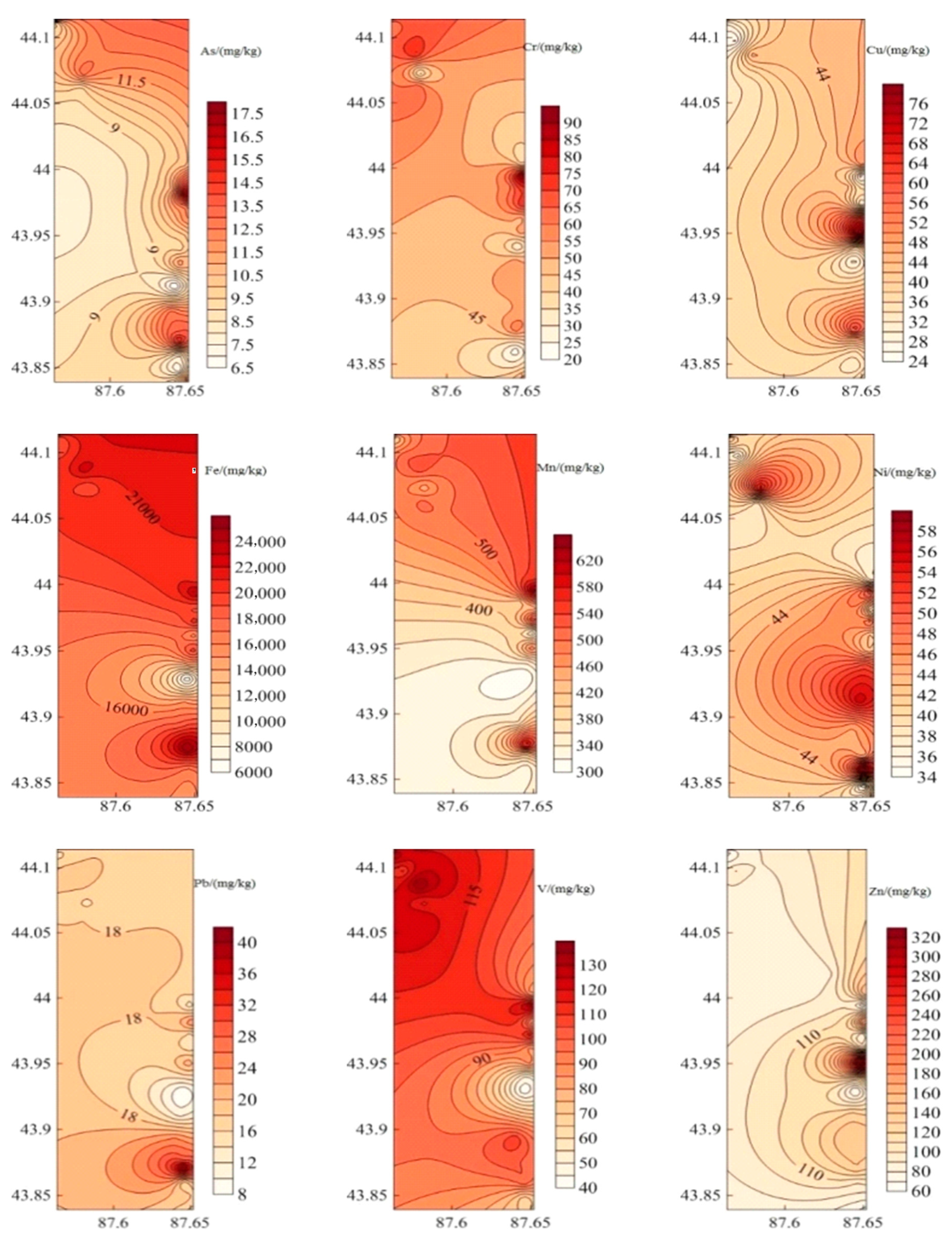

- The kriging results showed that the spatial distribution of all heavy metals, except Fe, was consistent with the peaks occurring from Qidaowan to Weihuliang;

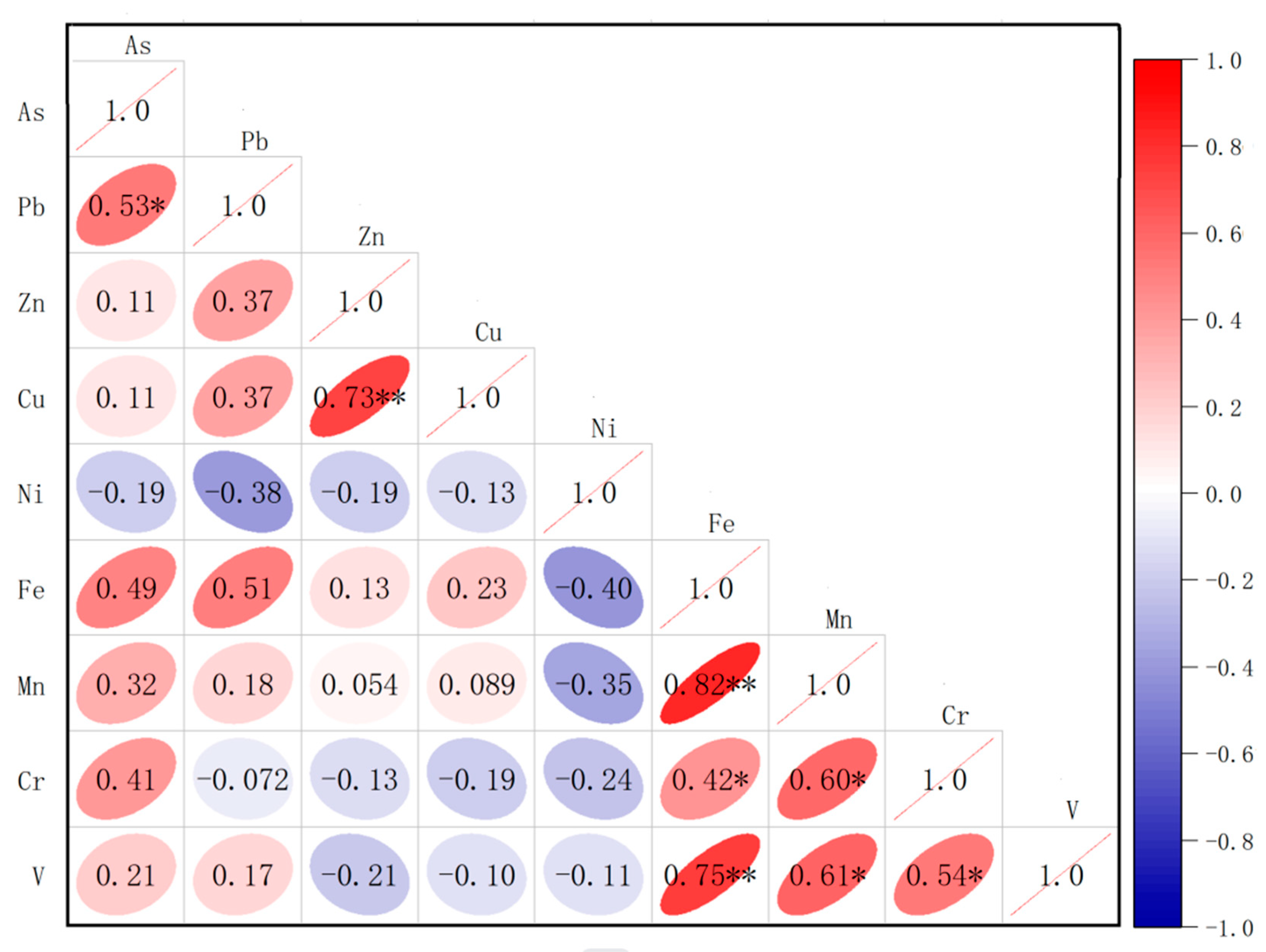

- The correlation analysis revealed significant positive correlations between Fe and Pb; Mn, Cr, and V; Cu and Zn; and Mn, Cr, and V (p < 0.05);

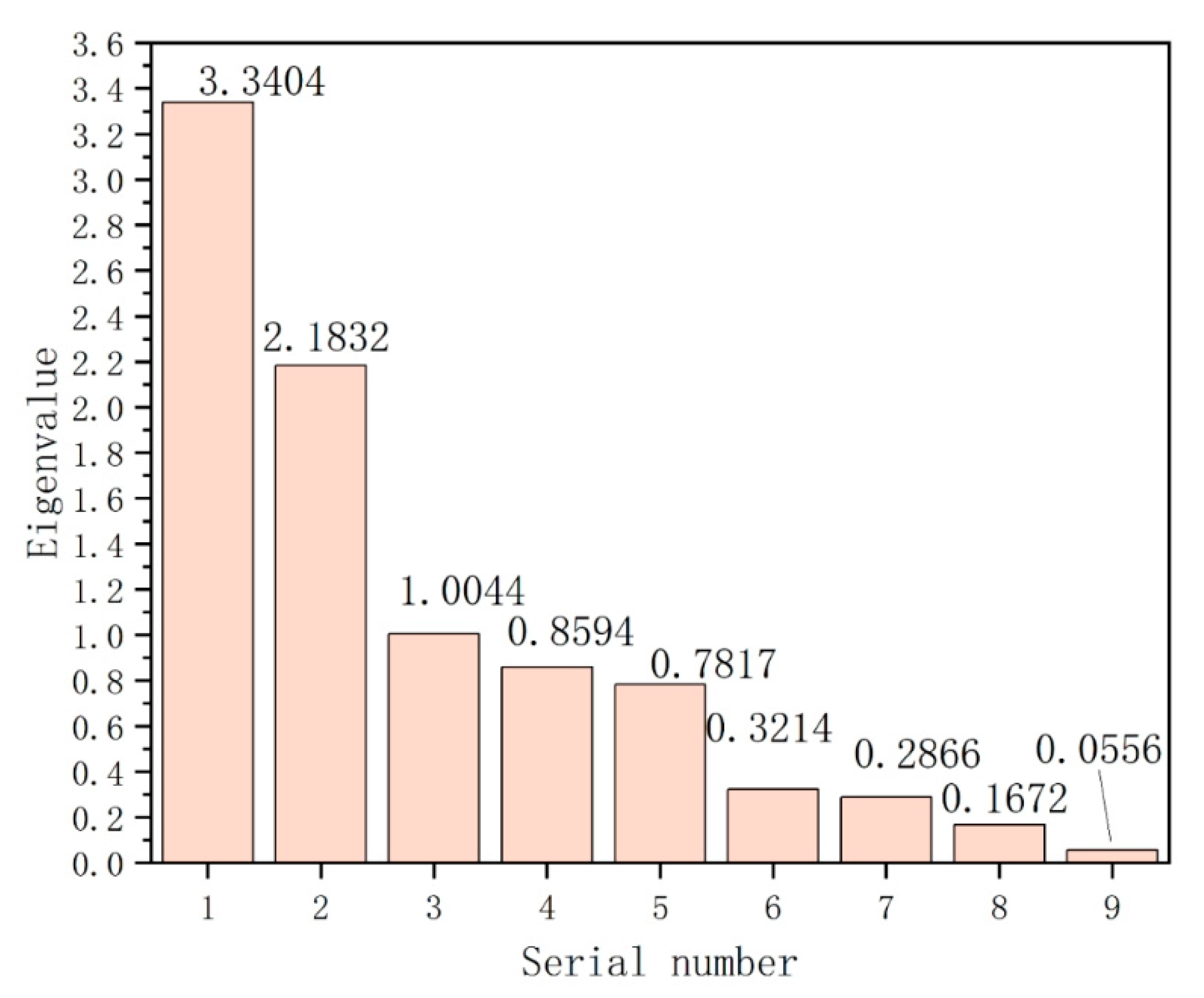

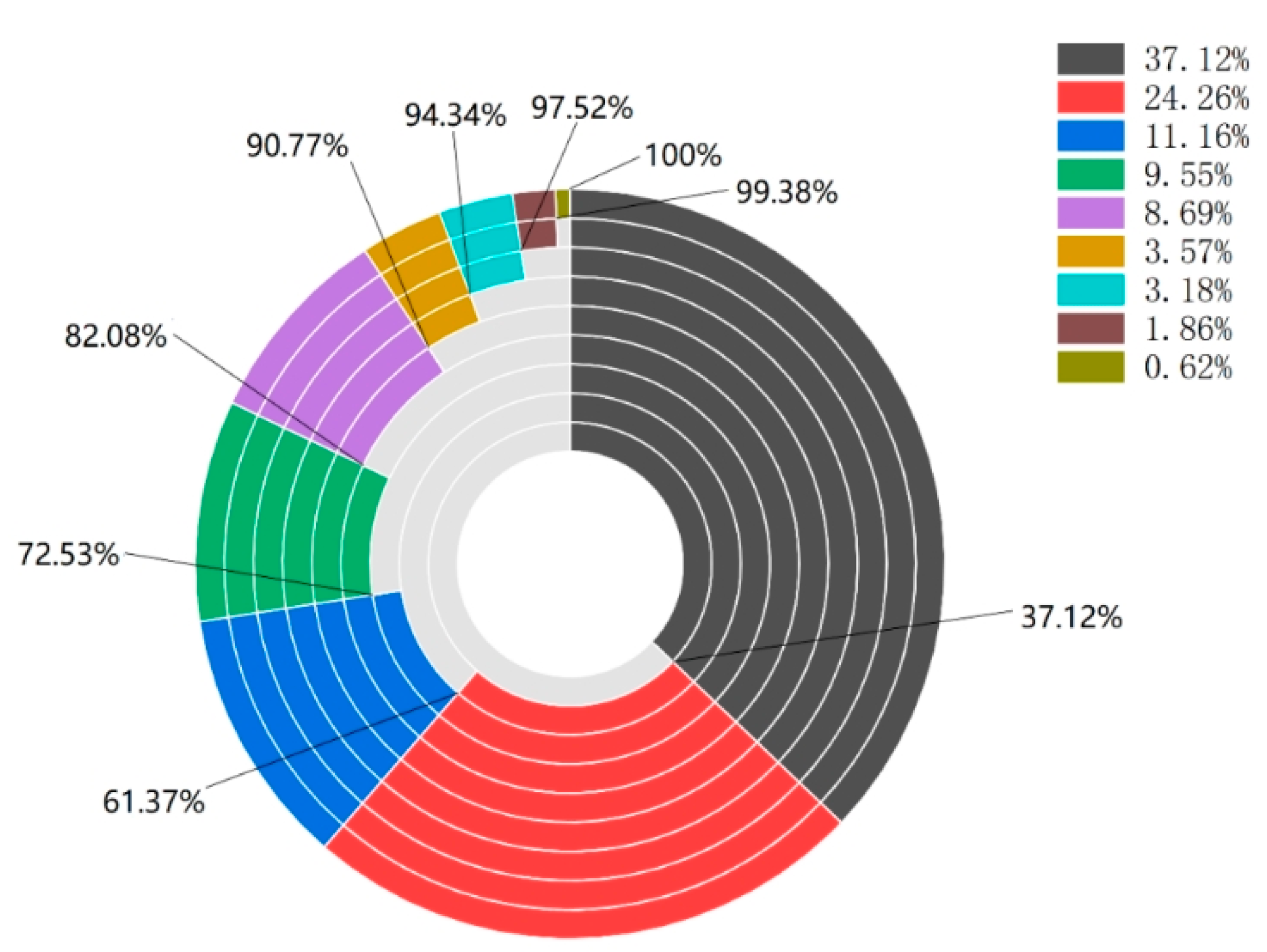

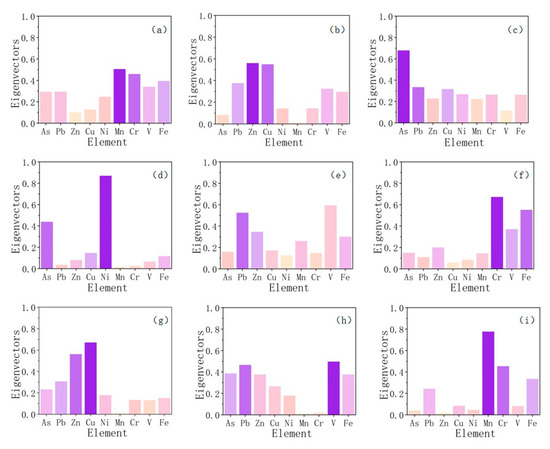

- The principal component analysis of nine heavy metal pollutants in 23 surface sediments showed that Fe, Zn, Cu, and As were the main heavy metal pollutants in the surface sediments of the Shuimo River. The ranking results of the total amount of each heavy metal were Fe > Mn > Zn > V > Cr > Ni > Cu > Pb > As;

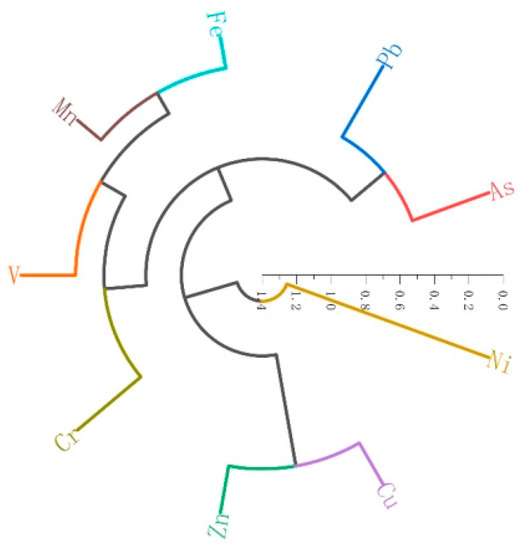

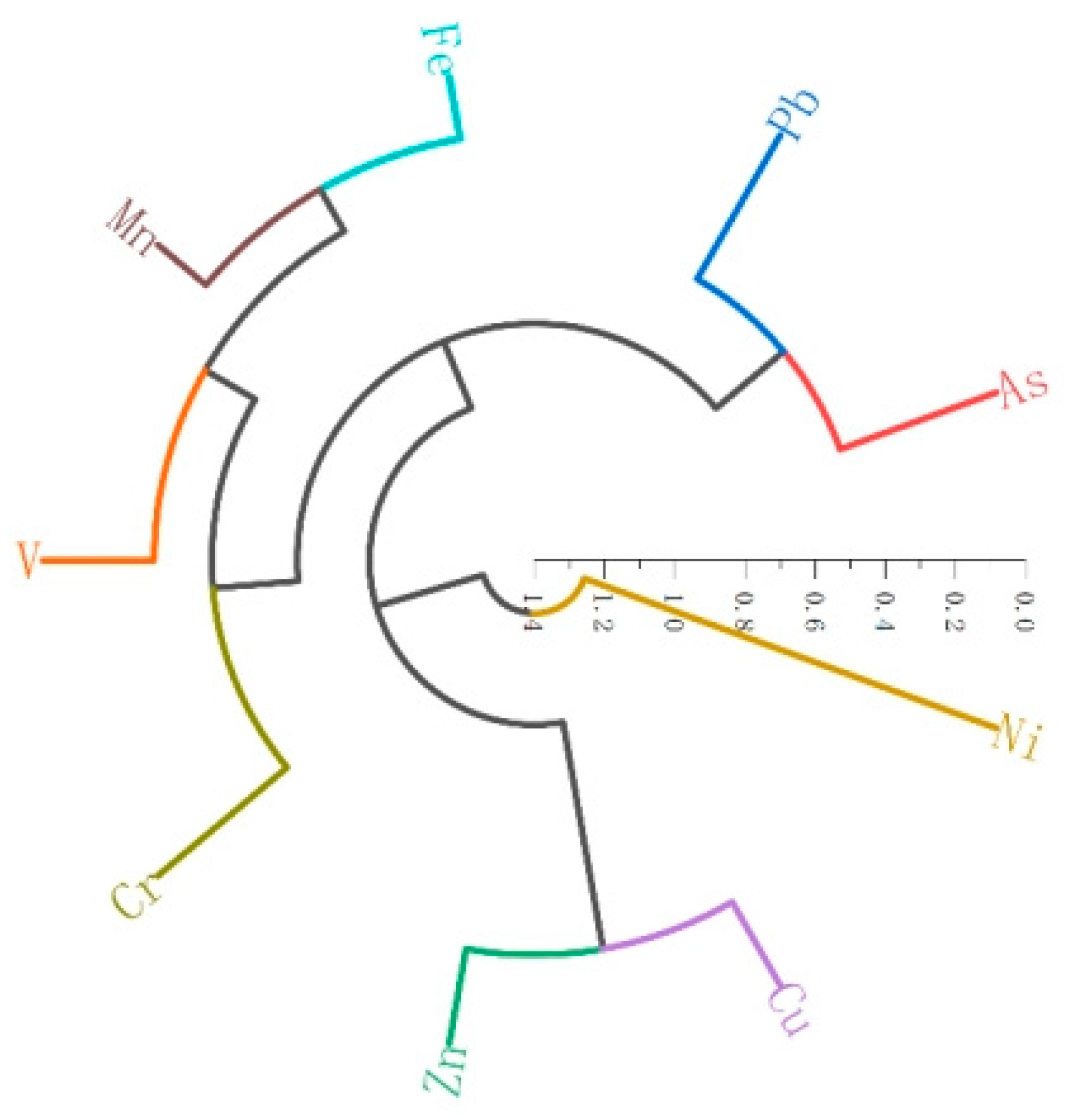

- The R-type clustering results showed that the nine heavy metal pollutants were classified into four categories: the first category was Zn and Cu, the second category was Ni, the third category was As and Pb, and the fourth category was V, Cr, Mn, and Fe. The two heavy elements of the first group may be the result of chemical reactions between domestic sewage and long-term biodegradable acid and alkaline salt pollutants in municipal waste, organic pollutants, carbonate soils, and sediments as environmental backgrounds. Ni and As have different chemical combinations with other metals, indicating that the river bottom sediments may be affected by human activities in addition to the natural materials of the river and contaminants.
Author Contributions
Funding
Data Availability Statement
Acknowledgments
Conflicts of Interest
References
- Wang, E.R.; Zhang, K.F.; Chang, S.; Zhang, M.L.; Fu, Q. Spatiotemporal Distribution and Pollution Risk Assessment of Heavy Metals inSediments of Main Water Supply Reservoirs in Central Zhuhai City. Environ. Sci. 2023, 44, 189–197. [Google Scholar]
- Zhu, C.; Ma, T.W.; Zhou, K.; Liu, J.; Peng, J.Y.; Ren, B. Pollution characteristics and potential ecotoxicity risk of heavy metals in surface river sediments of western Hunan. Acta Ecol. Sin. 2010, 30, 3982–3993. [Google Scholar]
- Zhang, K.; Han, Y.; Li, K.; Guo, Z.; Wang, Q.; Cui, X.; Yang, F.; Zhang, Z. Study on distribution characteristics and pollution evaluation of nutrient elements in surface sediments in the middle Chishui River, southwestern China. J. Earth Environ. 2021, 12, 214–223. [Google Scholar]
- Li, X.; Yan, H.; Fan, B.; Zhang, C.; Xing, W. Climatic Changes During the Last Two Millennia on the Southern Tibetan Plateau Based on Lake Sediment and Its Forcing Mechanisms. J. Xinyang Norm. Univ. (Nat. Sci. Ed.) 2021, 34, 584–588. [Google Scholar]
- Jolin, W.C.; Richard, A.; Vasudevan, D.; Gascon, J.A.; MacKay, A.A. Aluminosilicate Mineralogy and the Sorption of Organic Cations: Interplay between Electrostatic Barriers and Compound Structural Features. Environ. Sci. Technol. 2020, 54, 1623–1633. [Google Scholar] [CrossRef]
- Rodríguez-Albarracín, H.S.; Demattê, J.A.; Rosin, N.A.; Contreras, A.E.D.; Silvero, N.E.; Cerri, C.E.P.; de Sousa Mendes, W.; Tayebi, M. Potential of soil minerals to sequester soil organic carbon. Geoderma 2023, 436, 116549. [Google Scholar] [CrossRef]
- Sajidu, S.M.I.; Persson, I.; Masamba, W.R.L.; Henry, E.M.T. Mechanisms of heavy metal sorption on alkaline clays from Tundulu in Malawi as determined by EXAFS. J. Hazard. Mater. 2008, 158, 401–409. [Google Scholar] [CrossRef]
- Berns, E.C.; Sanford, R.A.; Valocchi, A.J.; Strathmann, T.J.; Schaefer, C.E.; Werth, C.J. Contributions of biotic and abiotic pathways to anaerobic trichloroethene transformation in low permeability source zones. J. Contam. Hydrol. 2019, 224, 103480. [Google Scholar] [CrossRef] [PubMed]
- Martinez, J.L.; Raiber, M.; Cendón, D.I. Using 3D geological modelling and geochemical mixing models to characterise alluvial aquifer recharge sources in the upper Condamine River catchment, Queensland, Australia. Sci. Total Environ. 2017, 574, 1–18. [Google Scholar] [CrossRef]
- Tarn, N.F.Y.; Wong, Y.S. Spatial Variation of heavy metals in surface sediments of Hong Kong mangrove swamps. Environ. Pollut. 2000, 110, 195–205. [Google Scholar]
- Wang, Y.D.; Ouyang, W.; Liu, L.; Lu, Z. Fraction Characteristic and Risk Assessment of Heavy Metals in Surface Sediments of the Yellow River Mainstream. Environ. Sci. 2023, 1–11. [Google Scholar] [CrossRef]
- Qin, Y.H.; Tao, Y.Q. Pollution status of heavy metals and metalloids in Chinese lakes: Distribution, bioaccumulation and risk assessment. Ecotoxicol. Environ. Saf. 2022, 248, 114293. [Google Scholar] [CrossRef] [PubMed]
- Yang, Z.; Li, C.; Chen, H.; Shan, X.; Chen, J.; Zhang, J.; Liu, S.; Liu, Q.; Wang, X. Source-oriented ecological and resistome risks associated with geochemical enrichment of heavy metals in river sediments. Chemosphere 2023, 336, 139119. [Google Scholar] [CrossRef]
- McCready, S.; Birch, G.F.; Long, E.R. Metallic and organic contaminants in sediments of Sydney harbor, Australia and vieinity: Achemical dataset for evalutationg sediment quality guidelines. Environ. Int. 2006, 32, 455–465. [Google Scholar] [CrossRef] [PubMed]
- Yang, H.J.; Jeong, H.J.; Bong, K.M.; Jin, D.R.; Kang, T.-W.; Ryu, H.-S.; Han, J.H.; Yang, W.J.; Jung, H.; Hwang, S.H.; et al. Organic matter and heavy metal in river sediments of southwestern coastal Korea: Spatial distributions, pollution, and ecological risk assessment. Mar. Pollut. Bull. 2020, 159, 111466. [Google Scholar] [CrossRef] [PubMed]
- Li, M. Study on Water Quality Changes Characteristics Shuimo River in Recent Decades. Arid. Environ. Monit. 2012, 26, 32–38. [Google Scholar]
- Zeng, B.Q. Problems and Countermeasures in water supply and consumption management in Shuimo River Basin. Xinjiang Water Resour. 2010, 3, 47–49. [Google Scholar]
- Wulamu, D. Water quality evaluation and management of Shuimo River in Urumqi. Shanxi Water Resour. 2021, 3, 89–90. [Google Scholar]
- Dan, H.B. Study on water quality evaluation and management of Shuimo River in Urumqi. Resour. Econ. Environ. Prot. 2018, 10, 28. [Google Scholar]
- Ma, H.; Yang, X.; Gong, X.; Chen, Y.; Lv, G. Status quo and evaluation of heavy metal pollution inthe riparian soils of the Shuimo River in Urumqi. J. Soil Water Conserv. 2016, 30, 300–307. [Google Scholar] [CrossRef]
- Zhang, J.G. Investigation and Study on comprehensive management of the Pollution in Shuimohe. Arid. Environ. Monit. 2007, 21, 142–145. [Google Scholar]
- Zang, H.G.; Zhang, Y.D.; Yao, J.Q.; Ma, H.Y. Source analysis of heavy metal pollution using UNMIX and PMF models in soils along the Shuimo River in Urumqi, China. Int. J. Environ. Res. Public Health 2022, 19, 14794. [Google Scholar] [CrossRef] [PubMed]
- GB/T 17138-1997; Soil Quality-Determination of Copper, Zinc-Flame Atomic Absorption Spectrophotometry. Ministry of Ecological and Environment of the People’ Republic of China: Beijing, China, 1997.
- GB/T 17141-1997; Soil Quality-Determination of Lead, Cadmium-Graphite Furnace Atomic Absorption Spectrophotometry. Ministry of Ecological and Environment of the People’ Republic of China: Beijing, China, 1997.
- Zhang, Y.; Wang, Y.; Zang, H.; Yao, J.; Ma, H. Analysis of Heavy Metal Pollution in Soil along the Shuimo River by the Grey Relational Method and Factor Analysis. Metals 2023, 13, 878. [Google Scholar] [CrossRef]
- Yu, T.; Jiang, T.; Liu, X.; Ma, X.; Yang, Z.; Hou, Q.; Xia, X.; Li, F. Research Progress in Current Status of Soil Heavy Metal Pollution and Analysis Technology. Geol. China 2021, 48, 460–476, (In Chinese with English Abstract). [Google Scholar]
- Yuan, J.F.; Li, J.; Liu, J.W. The Evaluation of the Current Situation of the Water Quality and the Analysis of the Reason for Pollution in Shuimoriver in Urumqi. Arid. Environ. Monit. 2010, 24, 72–75. [Google Scholar]
- Luo, X. Thallium Pollution and Source Tracing Analysis of Sediments in the Downstream of a Steel-making Industry Zone, Northern Guangdong Province. Ph.D. Thesis, Guangzhou University, Guangzhou, China, 2019. [Google Scholar]
- Xing, H.; He, Q.; Pu, Z.; Wang, G.; Jin, C. Analysis of precipitation characteristics during the vegetation growth season in the Urumqi River Basin in arid region of northwest China. J. Arid. Meteorol. 2023, 41, 34–42. [Google Scholar]
- Lin, C.; Hu, G.; Yu, R.; Yang, Q.; Yu, W. Pollution assessment and source analysis of heavy metals in offshore surface sediments from Jiulong River. China Environ. Sci. 2016, 36, 1218–1225. [Google Scholar]
Element | Mean Value (mg/kg) | Standard Deviation | Min. Value (mg/kg) | Maximum Value (mg/kg) | Coefficient of Variation (%) | Skewness | Kurtosis |
---|---|---|---|---|---|---|---|
As | 11.27 | 2.67 | 6.16 | 17.41 | 23.71 | 2.47 | 6.34 |
Pb | 18.60 | 7.04 | 7.89 | 43.01 | 37.87 | 2.08 | 4.61 |
Zn | 116.64 | 58.98 | 62.70 | 332.27 | 50.57 | 2.58 | 6.88 |
Cu | 41.53 | 12.90 | 25.44 | 80.57 | 31.06 | 2.47 | 6.41 |
Ni | 45.21 | 7.20 | 33.70 | 60.93 | 15.93 | 2.62 | 7.10 |
Fe | 18,760.97 | 4082.84 | 5670.47 | 25,729.74 | 21.76 | 2.70 | 7.43 |
Mn | 441.98 | 99.51 | 299.14 | 641.07 | 22.51 | 2.57 | 6.93 |
Cr | 54.03 | 17.22 | 21.15 | 91.72 | 31.88 | 2.58 | 6.88 |
V | 97.52 | 26.10 | 41.33 | 136.28 | 26.77 | 2.49 | 6.57 |
