Break-Arc Erosion and Material Transfer Behavior of Pt–Ir and Pt–Ir–Y Electrical Contact Materials under Different Currents
Abstract
:1. Introduction
2. Materials and Methods

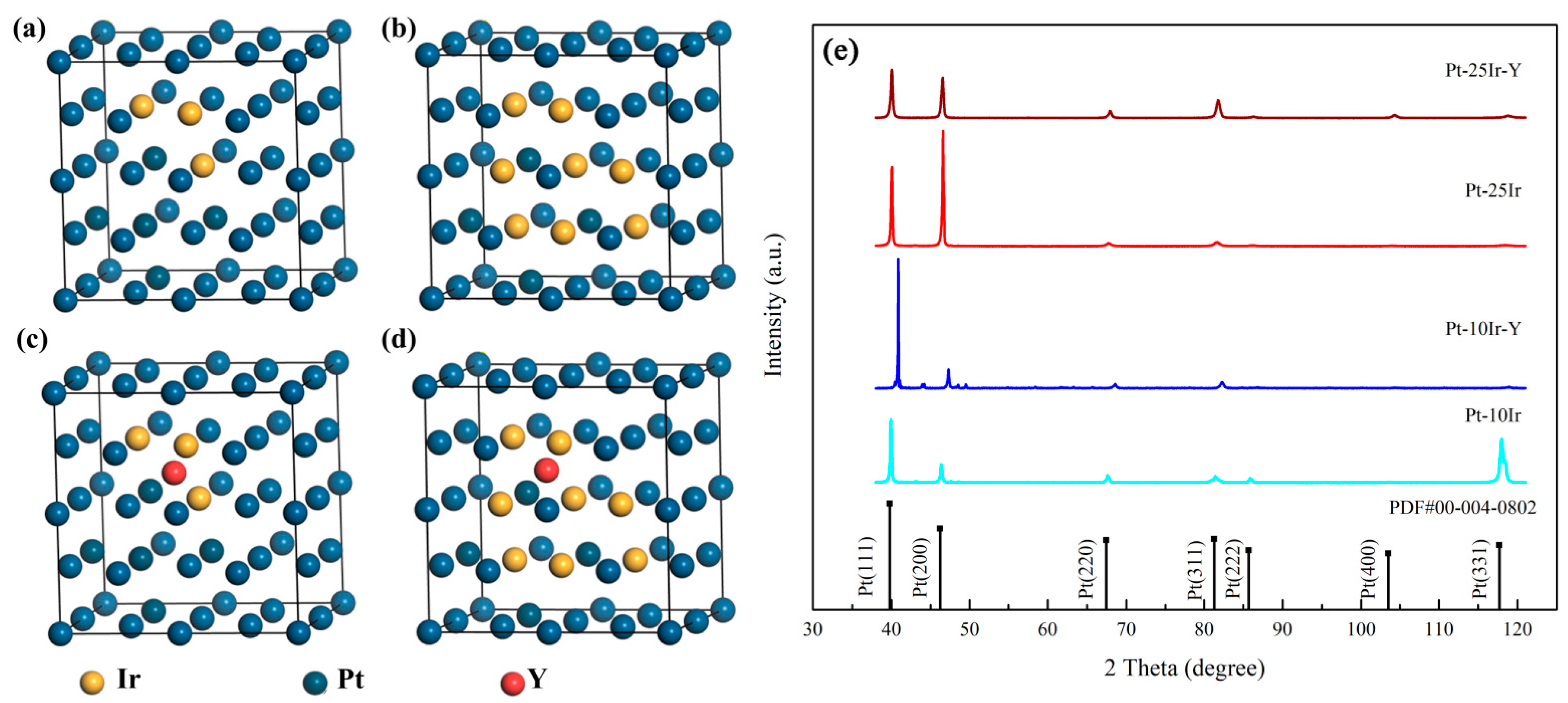

2.1. Material Preparation

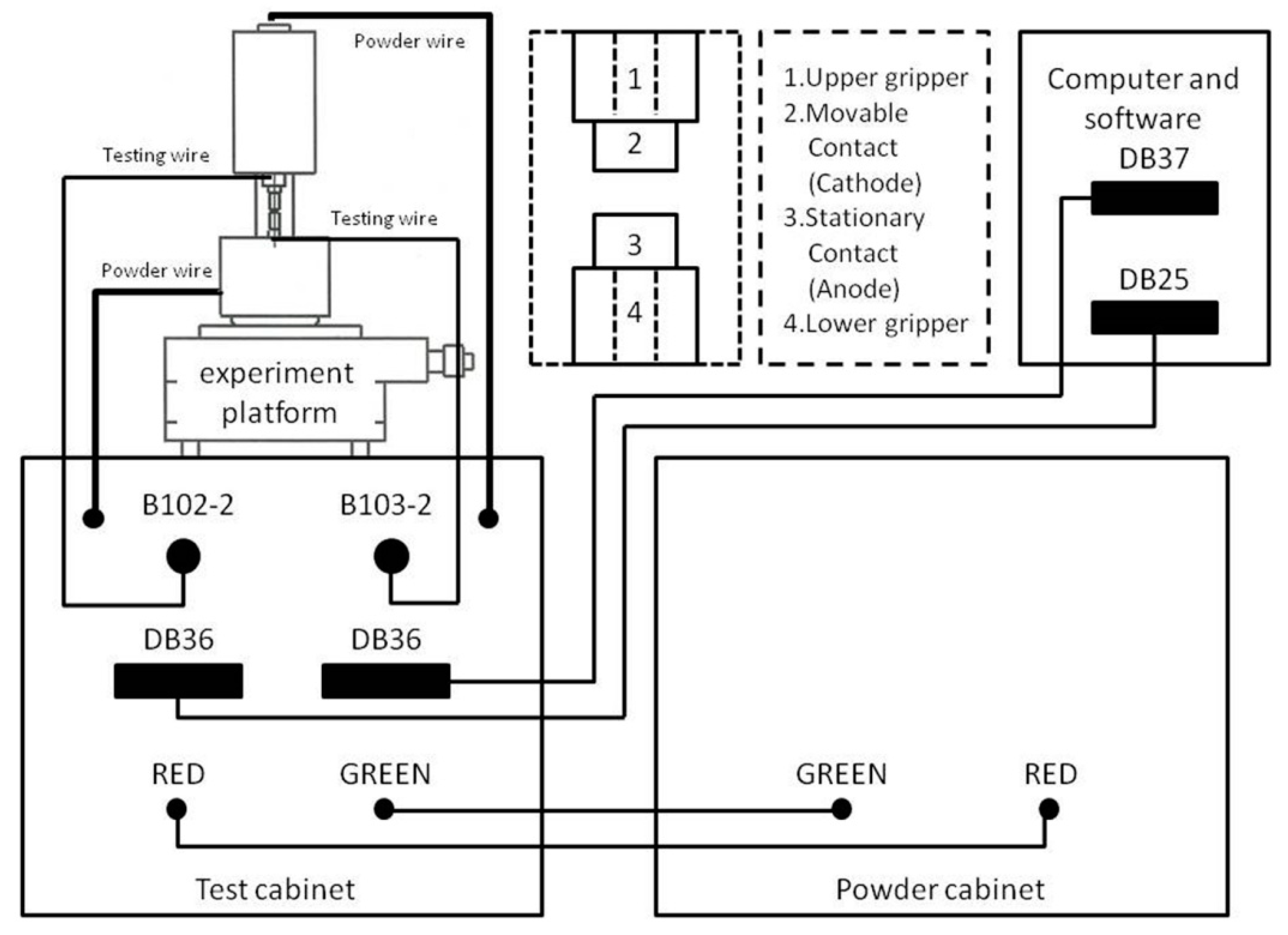

2.2. Electrical Contact Test
3. Results

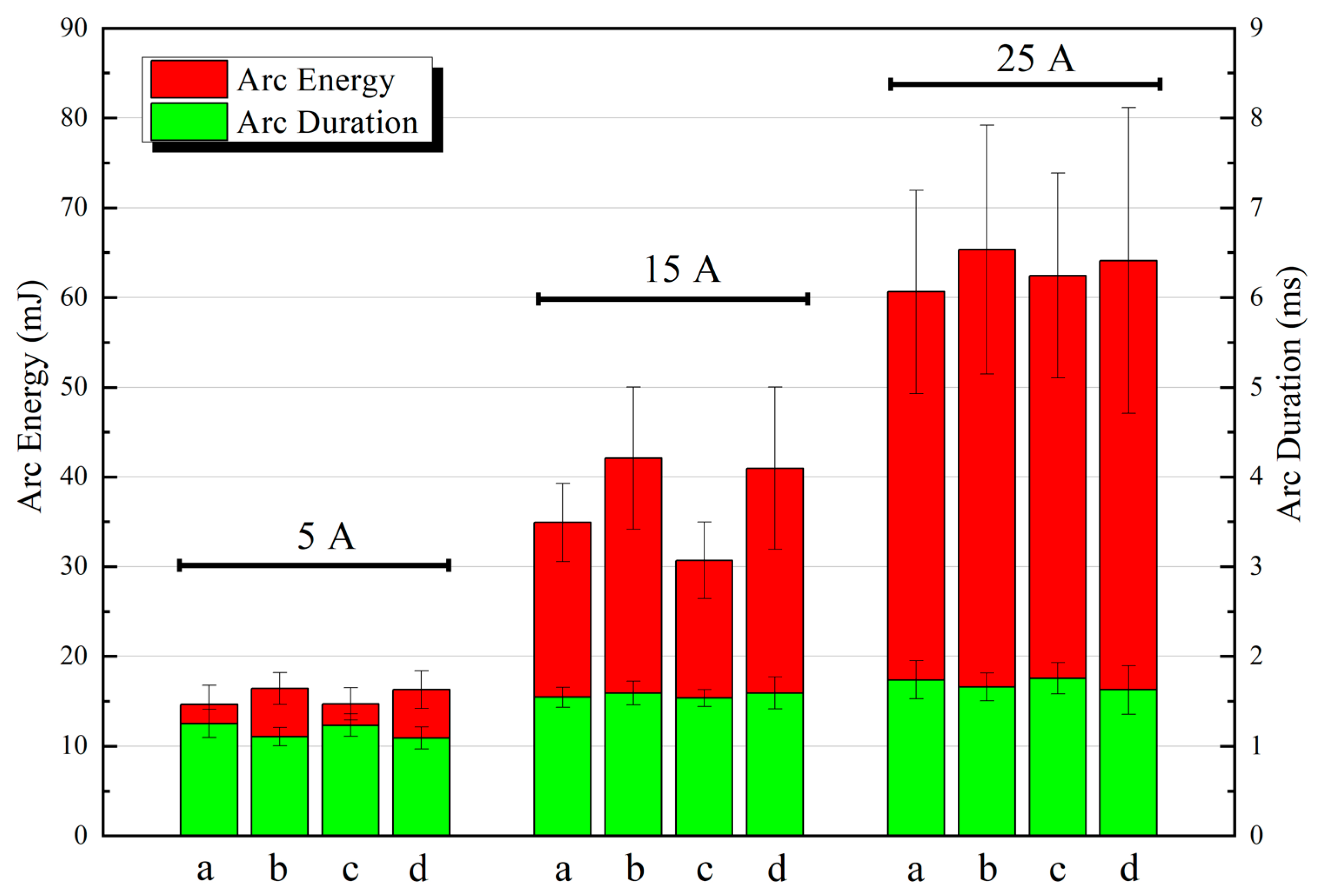

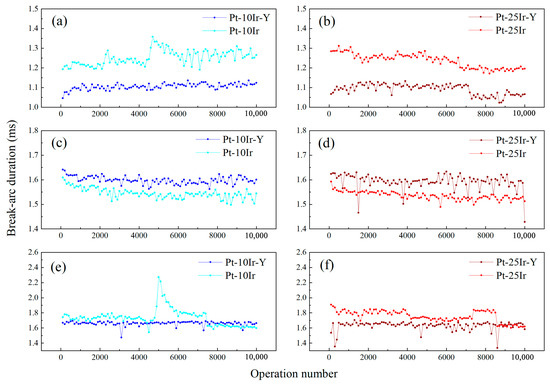

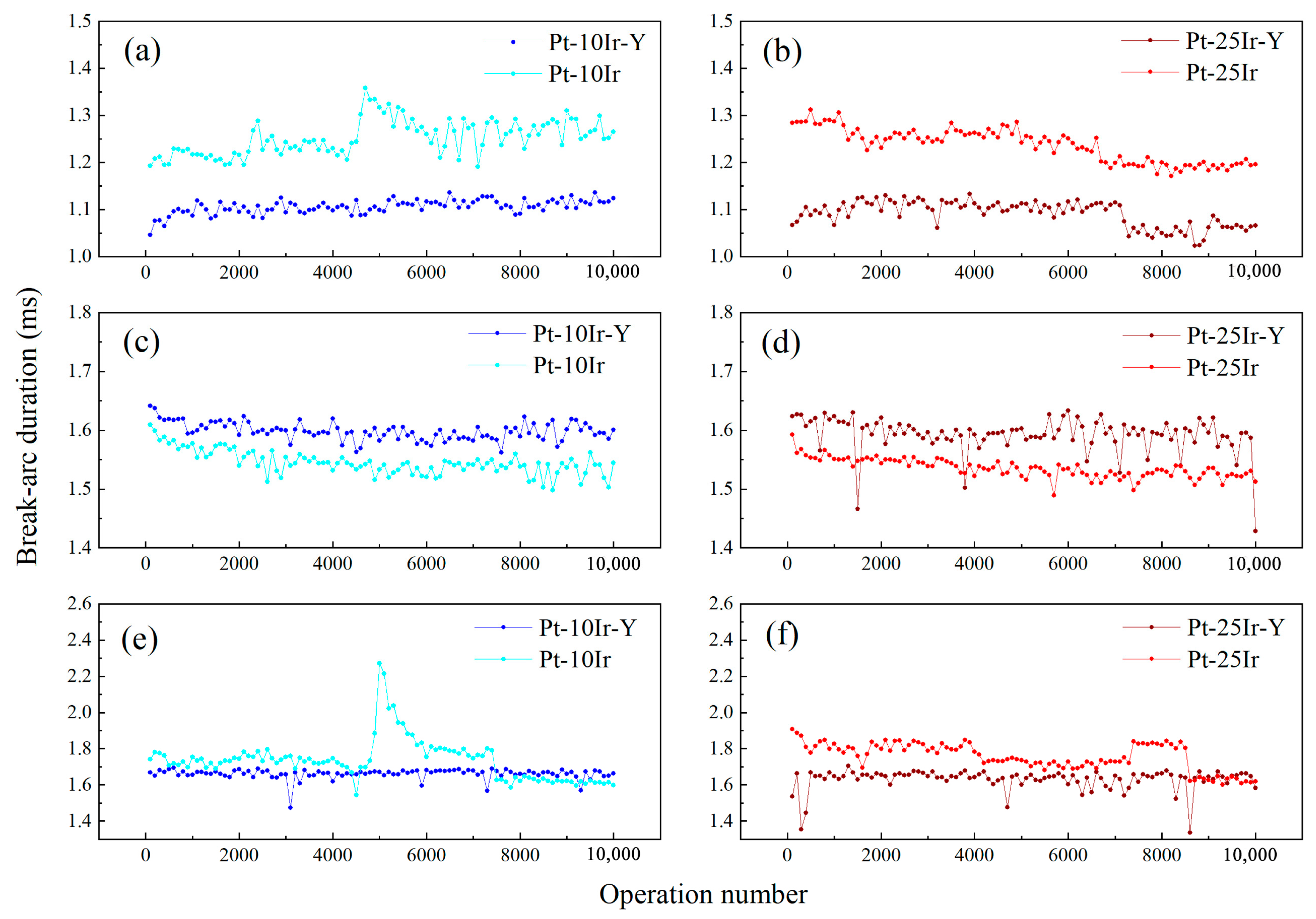

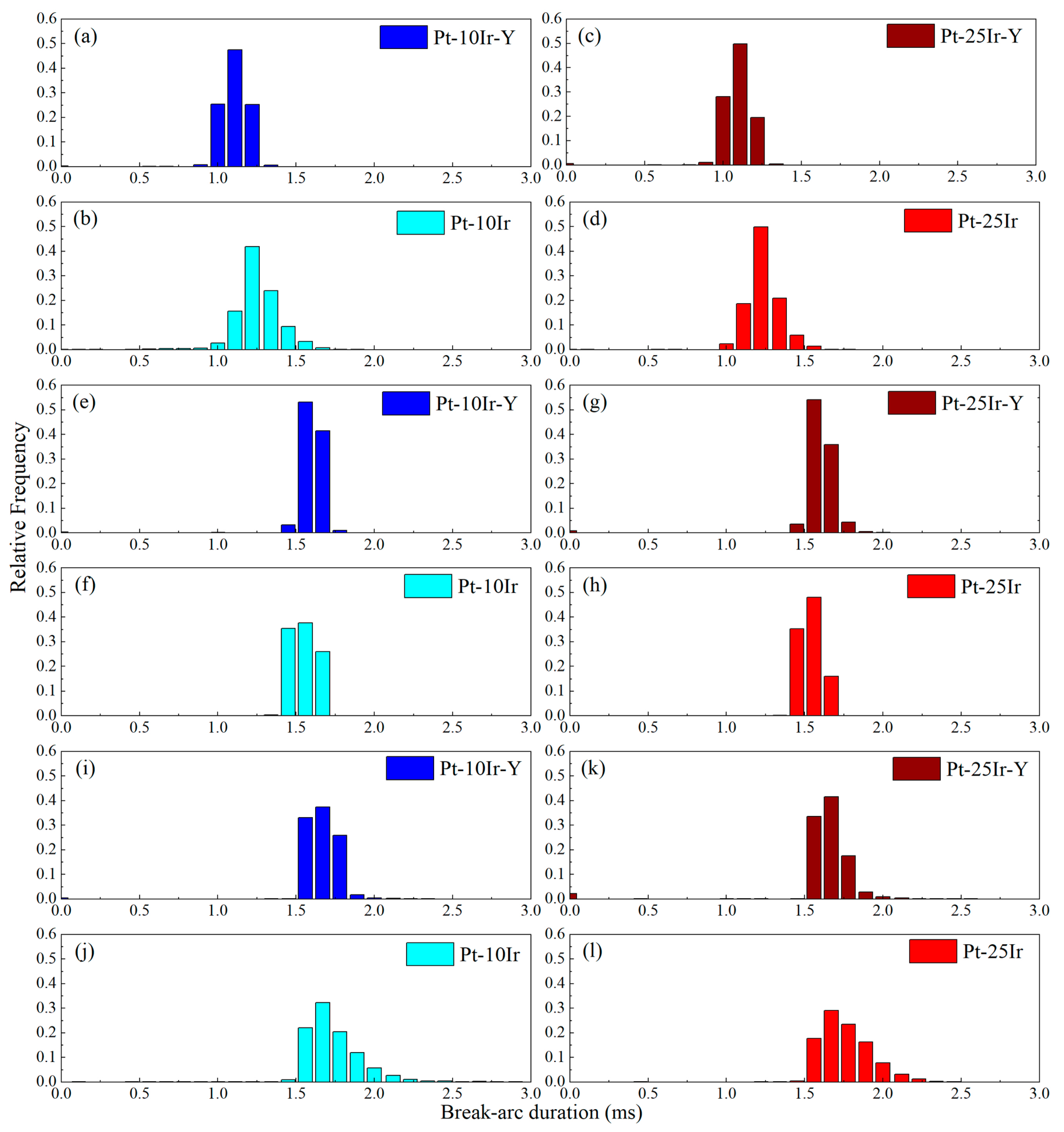

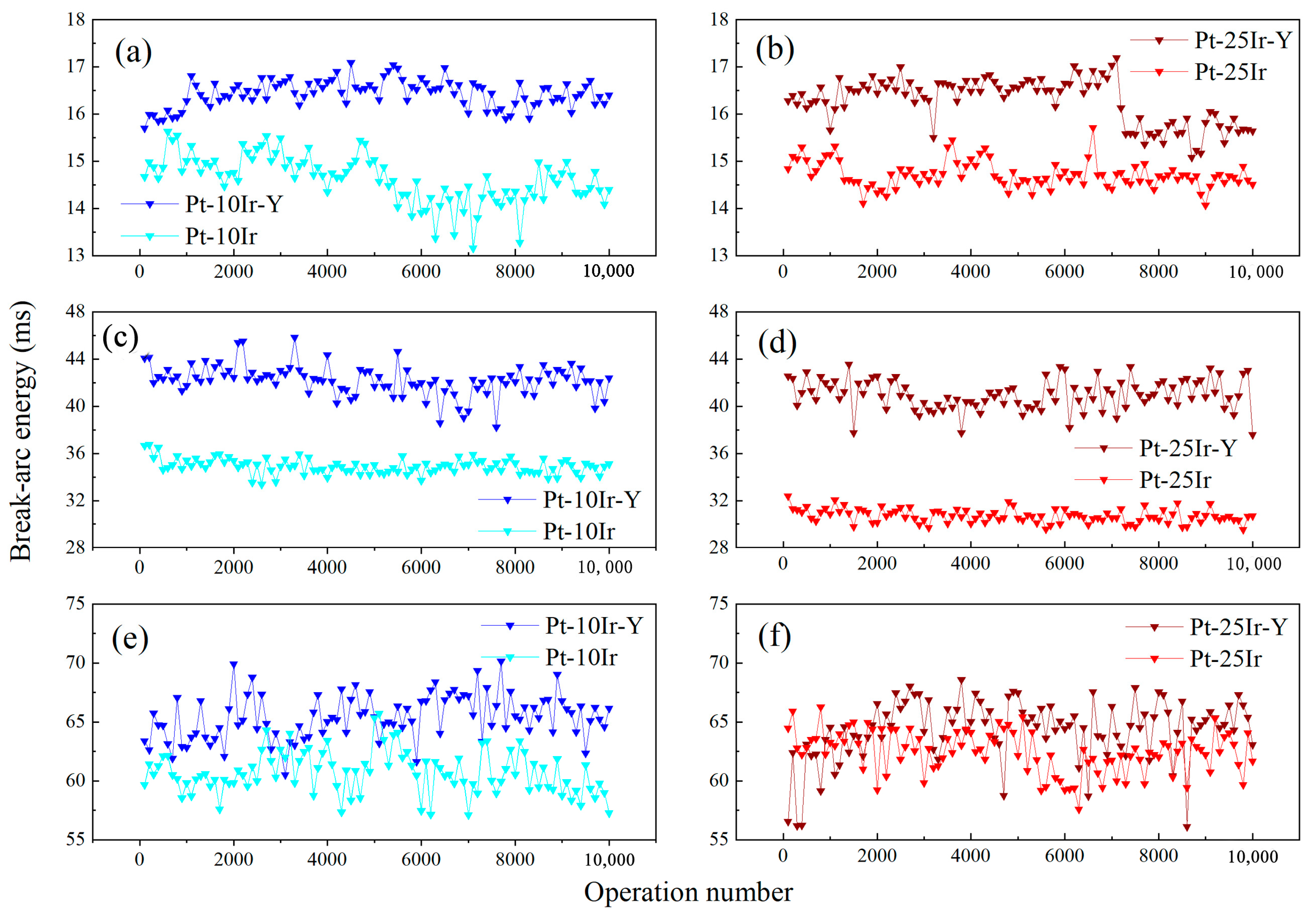

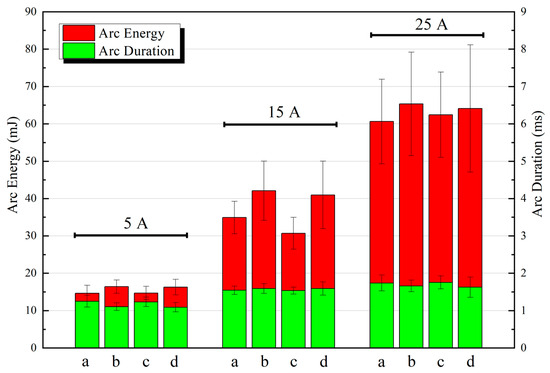

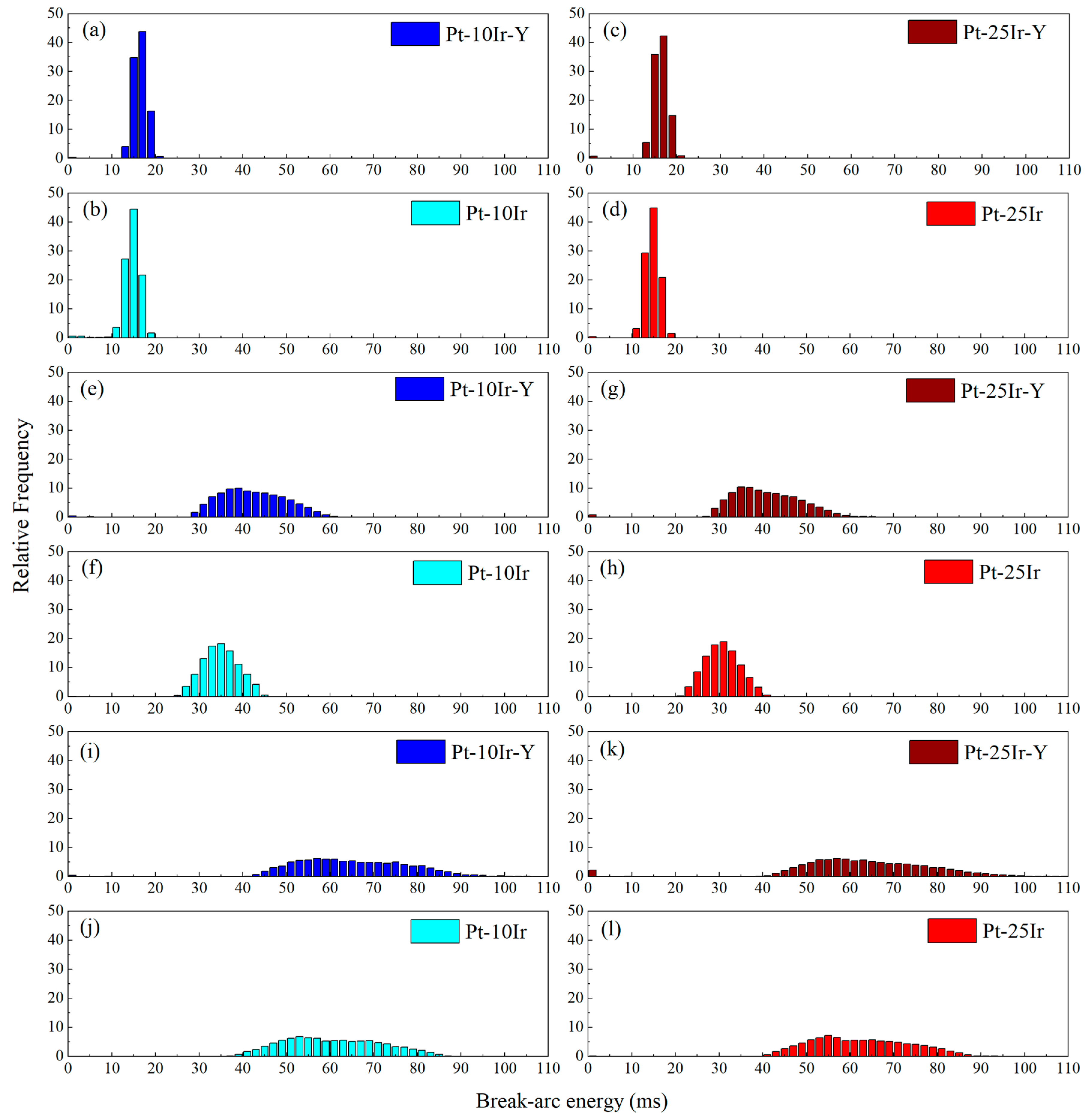

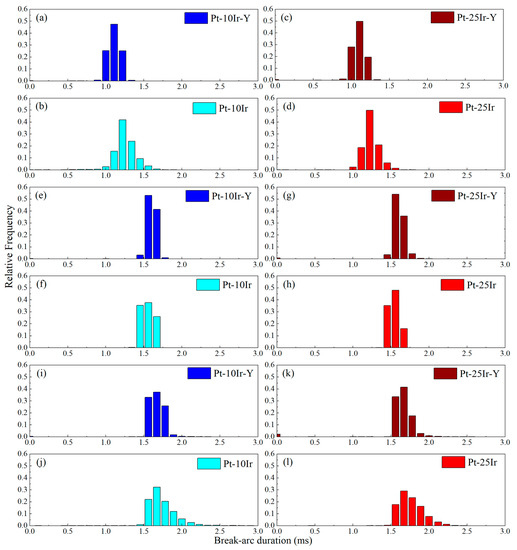

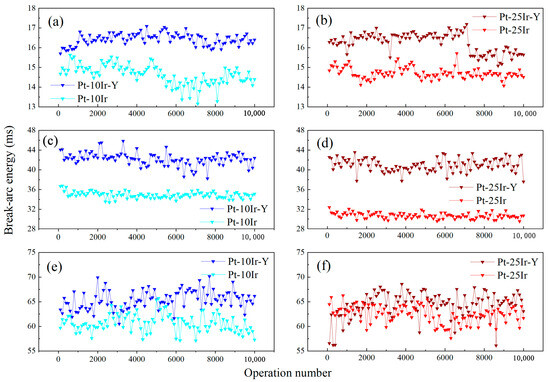

3.1. Characteristic Parameters of Break Arc of Pt–Ir and Pt–Ir–Y Contact Materials

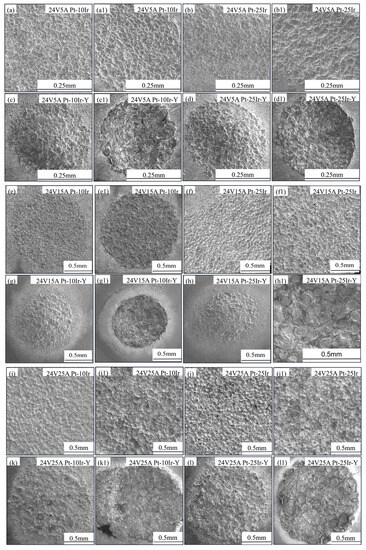

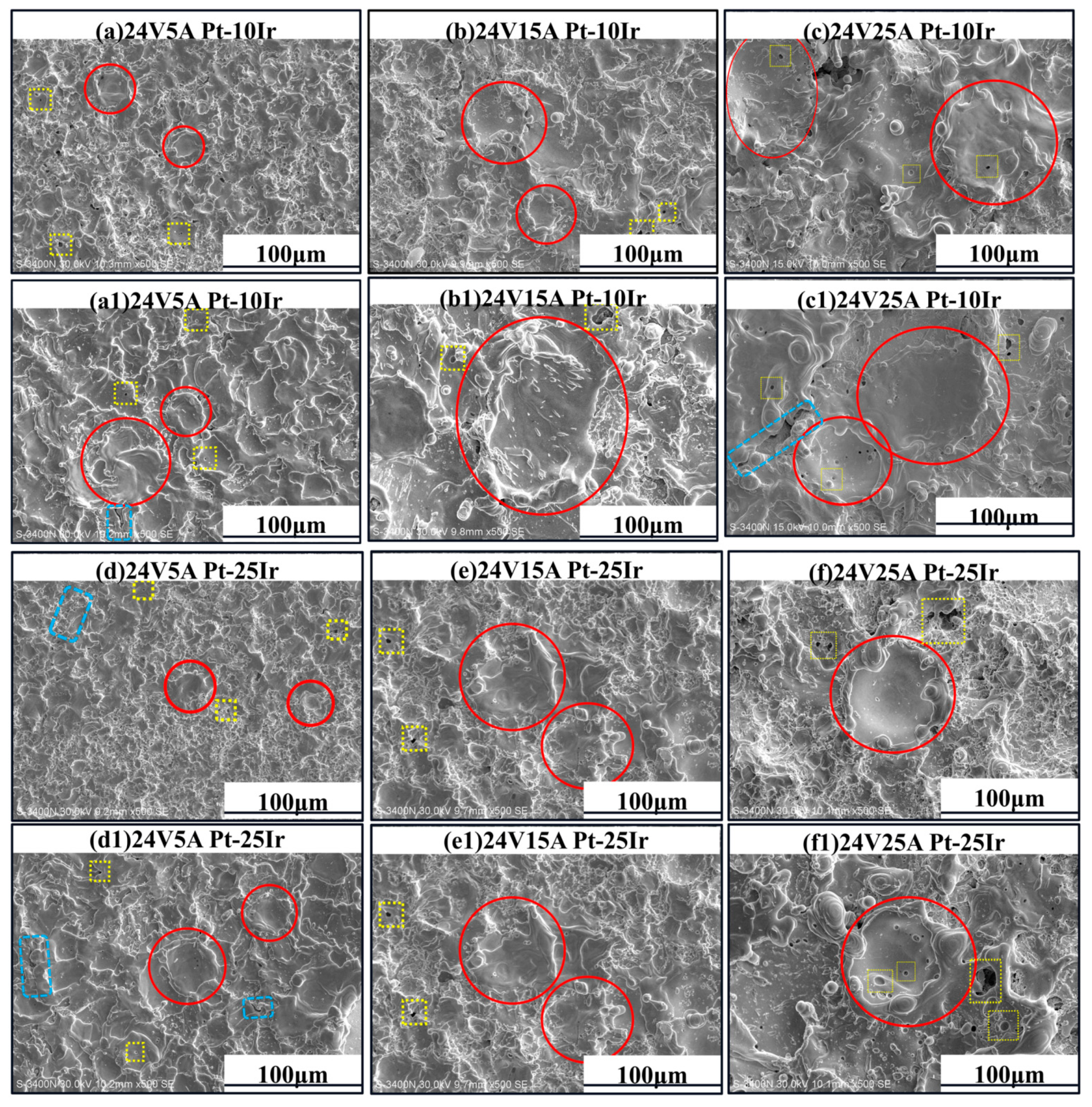

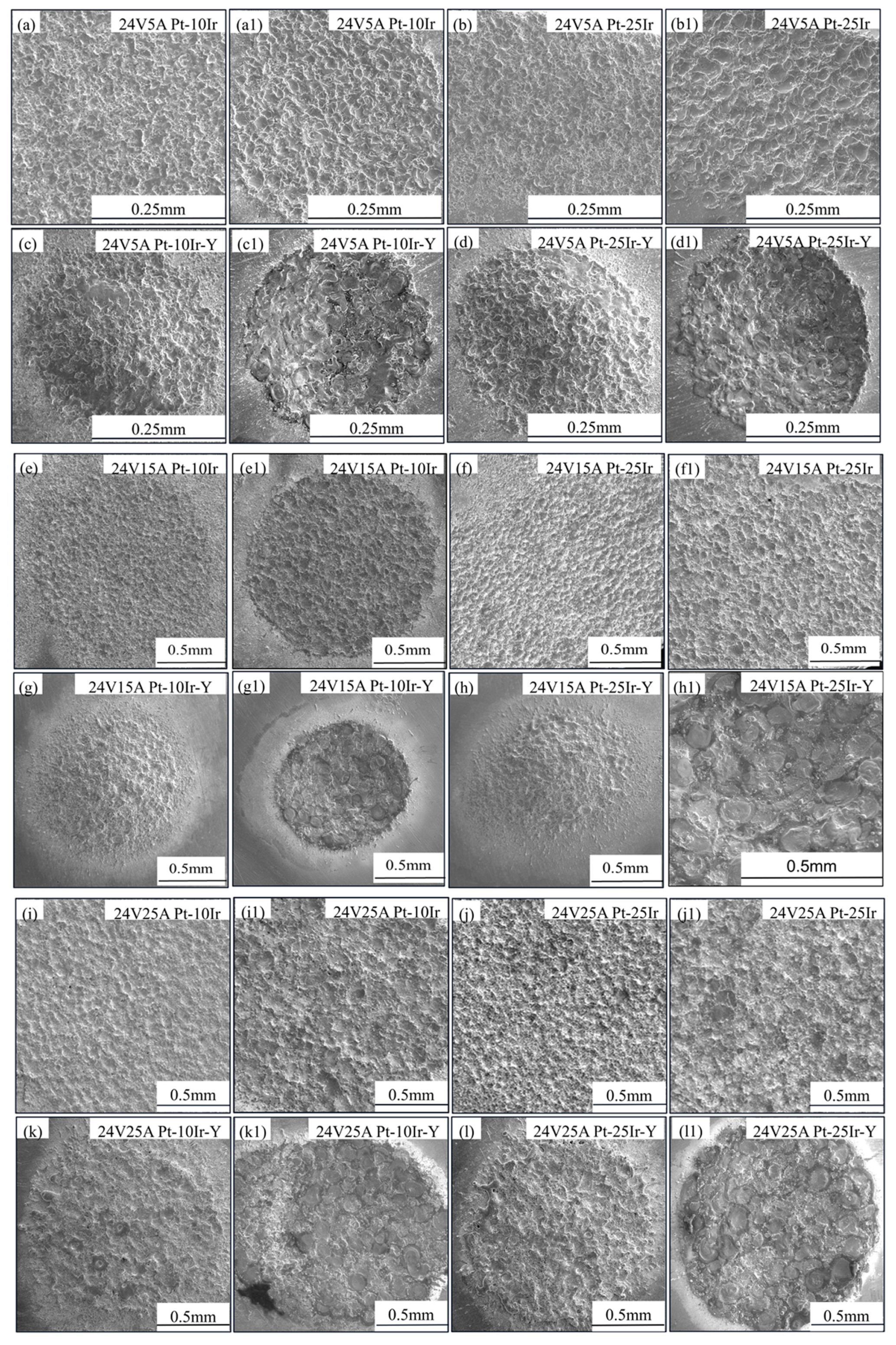

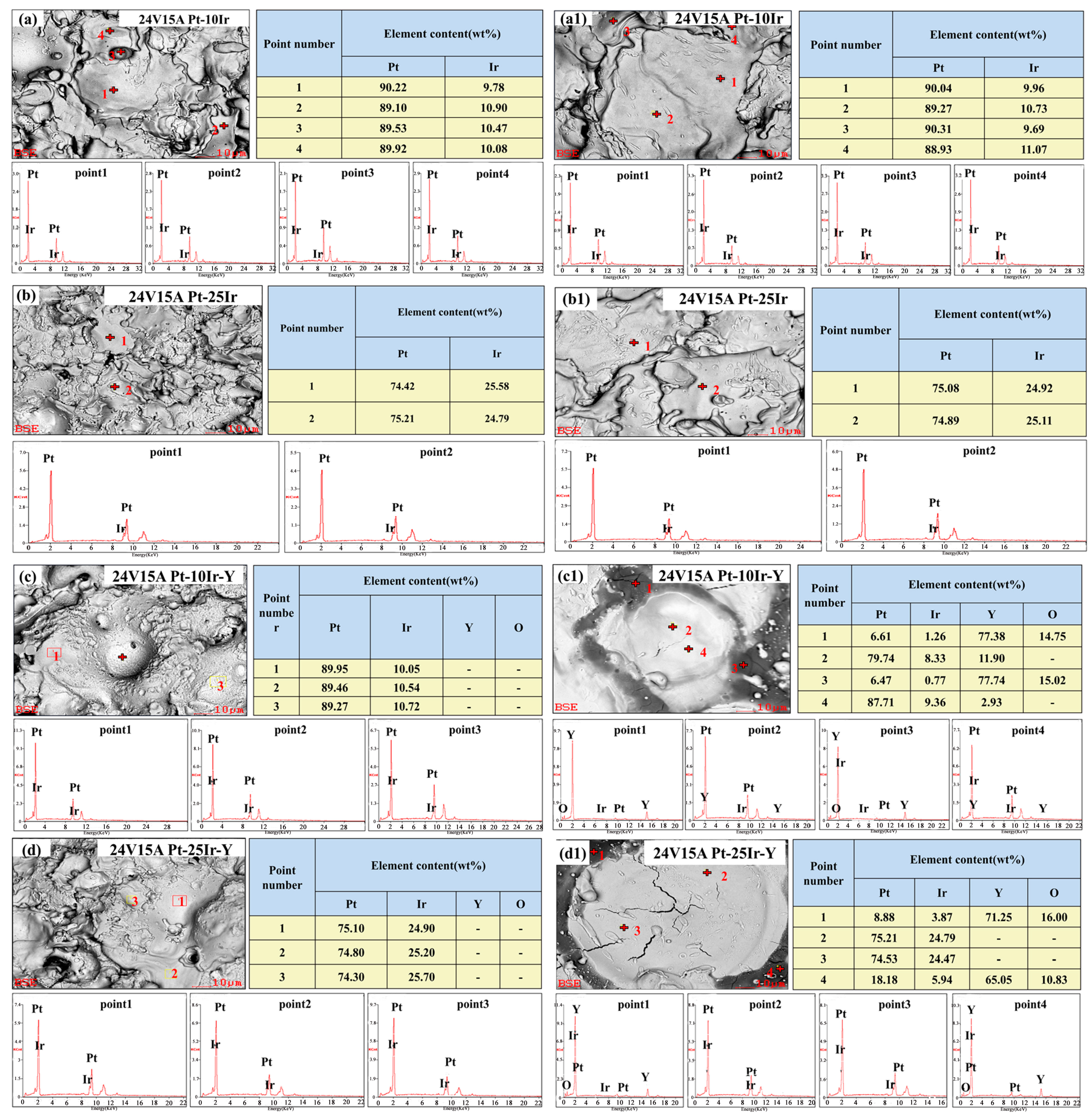

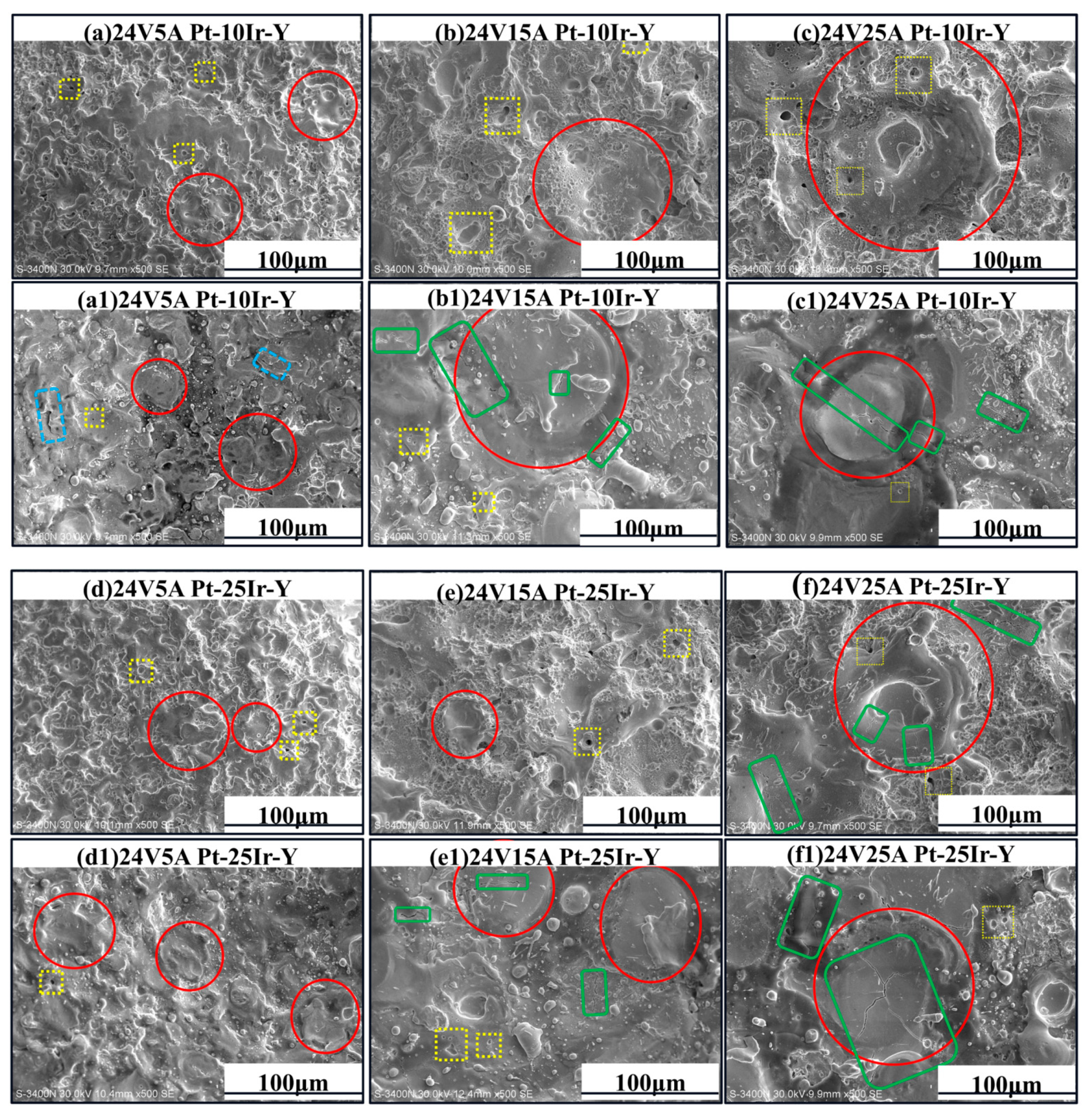

3.2. Erosion Morphologies of Pt–Ir and Pt–Ir–Y Contact Materials

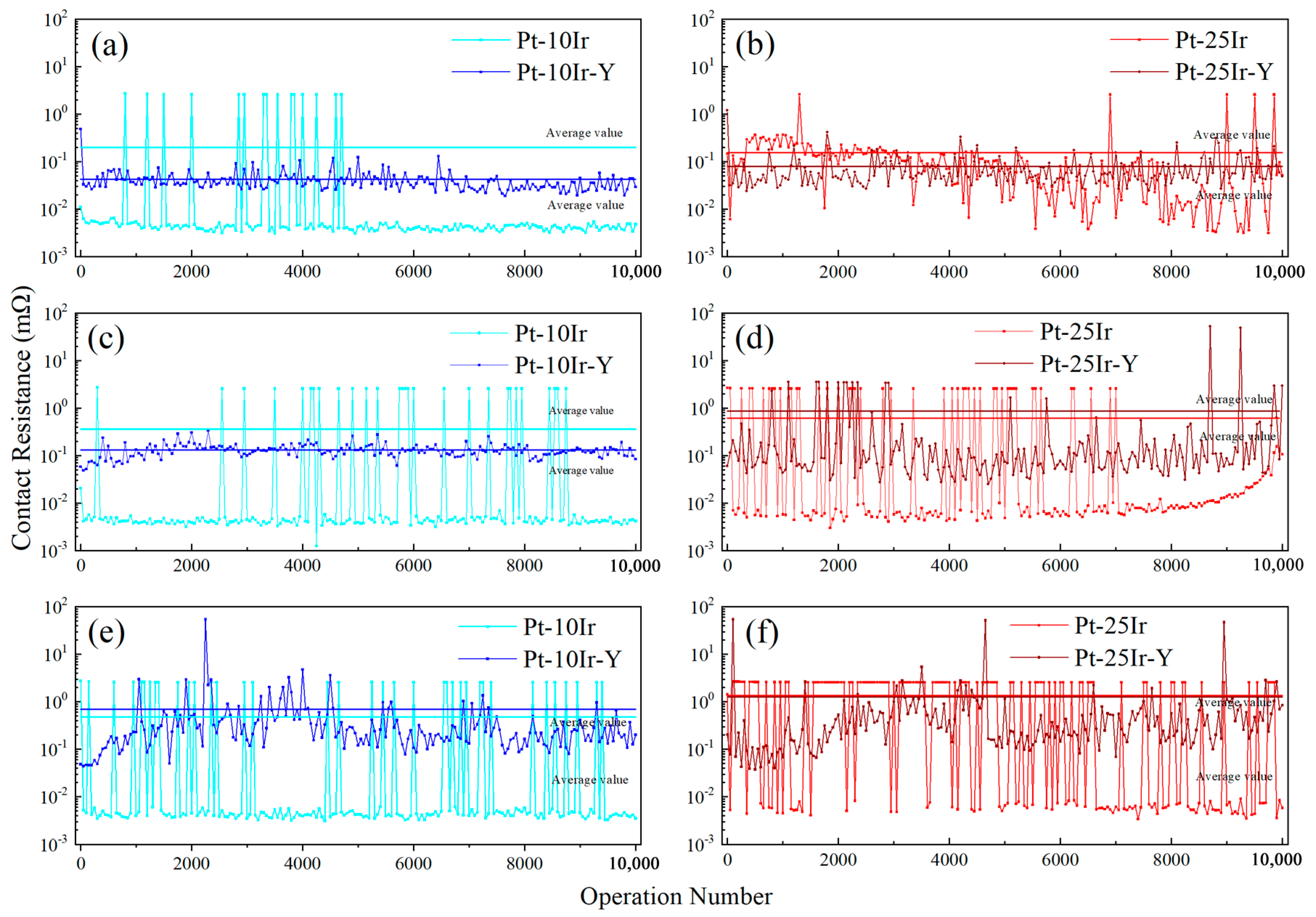

3.3. Contact Resistance after Break Arc Erosion of Pt–Ir and Pt–Ir–Y Contact Materials

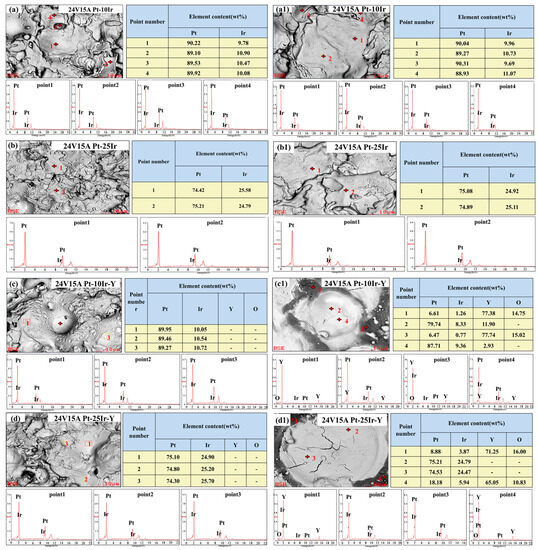

3.4. Material Transfer and Mass Change of Anode and Cathode for Pt–Ir and Pt–Ir–Y Contact Materials
4. Discussion
4.1. Effect of Y on Break Arc and Erosion Morphology of Pt–Ir Contact Materials
4.2. Effect of Y on Contact Resistance of Pt–Ir Contact Materials

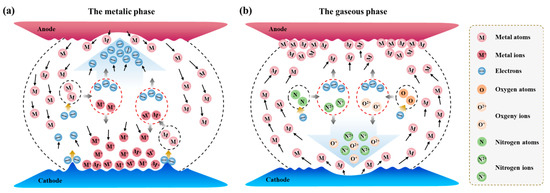

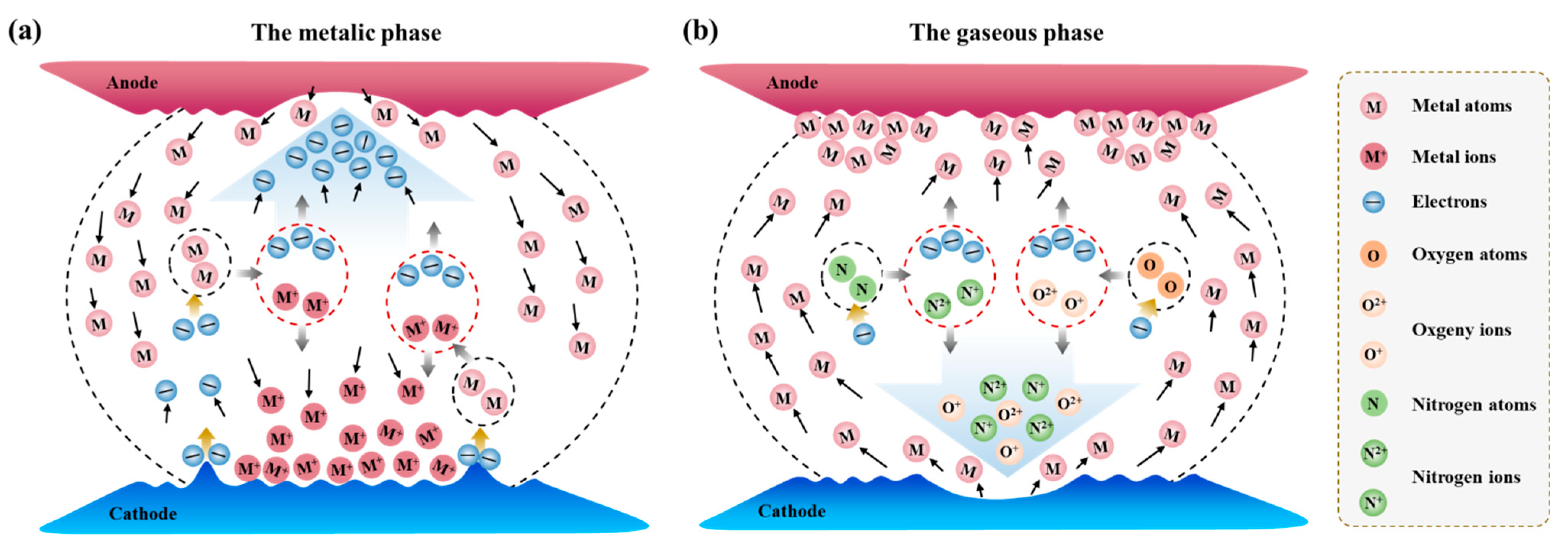

4.3. Effect of Y on Material Transfer of Pt–Ir Contact Materials
4.4. Comparison of Arc Behavior and Material Transfer between Pt–Ir, Pt–Ir–Y and Ag/SnO2, Ag/SnO2–Ni
5. Conclusions
Author Contributions
Funding
Data Availability Statement
Conflicts of Interest
References
- Huang, B.; Li, C.; Shi, L.; Qiu, G.; Zuo, T. Chinese Materials Engineering Ceremony Volume 5. Nonferrous Metal Materials Engineering, 1st ed.; Chemical Industry Press: Beijing, China, 2006; p. 423. [Google Scholar]
- Ning, Y.; Yang, Z.; Wen, F. Platinum, 1st ed.; Metallurgical Industry Press: Beijing, China, 2010; p. 201. [Google Scholar]
- Xanyuki, Y.; Dai, H.; Li, J.; Li, Z. Materials for electrical contacts III. Electr. Eng. Mater. 2011, 4, 48. [Google Scholar]
- Xanyuki, Y.; Dai, H.; Li, J.; Li, Z. Materials for electrical contacts II. Electr. Eng. Mater. 2011, 3, 50–52. [Google Scholar]
- Milenko Braunovic Valery, V.; Konchits, N.; Myshkin, K. Electrical Contacts Fundamentals, Applications and Technology, 1st ed.; Machinery Industry Press: Beijing, China, 2016; p. 69. [Google Scholar]
- Keil, A.; Merl, W.A.; Vinaricky, E. Electrical Contact and Electrical Contact Materials, 1st ed.; Machinery Industry Press: Beijing, China, 1993; pp. 214–216. [Google Scholar]
- Duan, K.; Guo, X.; Song, K.; Zhong, J.; Li, K.; Wang, X.; Feng, J.; Duan, J.; Zhang, Y. Microstructure, properties and arc erosin behavior of WC/CuCr30 composites. Trans. Met. Heat Treat. 2022, 43, 26–33. [Google Scholar]
- Leng, J.; Zhou, Q.; Li, Z.; Dong, Y.; Xia, C. Effect of graphene on microstructure and properties of Gr/CuCr10 composites. Trans. Nonferrous Met. Soc. China 2022, 32, 1217–1225. [Google Scholar] [CrossRef]
- Ma, D.; Xie, J.; Li, J.; Wang, A.; Wang, W. Contact Resistance and Arc Erosion of Tungsten-copper Contacts in Direct Currents. J. Wuhan Univ. Technol.-Mater. Sci. Ed. 2017, 32, 816–822. [Google Scholar]
- Dong, L.; Li, L.; Li, X.; Zhang, W.; Fu, Y.; Elmarakbi, A.; Zhang, Y. Enhancing mechanisms of arc-erosion resistance for copper tungsten electrical contact using reduced graphene oxides in situ modified by copper nanoparticles. Int. J. Refract. Met. Hard Mater. 2022, 108, 105934. [Google Scholar]
- Pang, Y.; Miao, X.; Zhang, Q.; Chen, Z.; Hao, L.; Zhong, J.; Liang, S. Effect of graphene on the high-energy arc erosion performance of the W-Cu composite. Vacuum 2023, 210, 111827. [Google Scholar] [CrossRef]
- Ngai, S.; Zhang, P.; Xie, H.; Wu, H.; Ngai, T.; Li, L.; Li, W.; Vogel, F. Influence of Ti3SiC2 content on erosion behavior of Cu–Ti3SiC2 cathode under vacuum arc. Ceram. Int. 2021, 47, 25973–25985. [Google Scholar]
- Huang, X.; Feng, Y.; Qian, G.; Zhao, H.; Song, Z.; Zhang, J.; Zhang, X. Arc corrosion behavior of Cu-Ti3AlC2 composites in air atmosphere. Sci. China Technol. Sci. 2018, 61, 551–557. [Google Scholar] [CrossRef]
- Zhang, P.; Ngai, T.L.; Wang, A.; Ye, Z. Arc erosion behavior of Cu-Ti3SiC2 cathode and anode. Vacuum 2017, 141, 235–242. [Google Scholar]
- Long, F.; Guo, X.; Song, K.; Jia, S.; Liang, S. Enhanced arc erosion resistance of TiB2/Cu composites reinforced with the carbon nanotube network structure. Mater. Des. 2019, 183, 108136. [Google Scholar] [CrossRef]
- Guo, X.; Yang, Y.; Song, K.; Shaolin, L.; Jiang, F.; Wang, X. Arc erosion resistance of hybrid copper matrix composites reinforced with CNTs and micro-TiB2 particles. J. Mater. Res. Technol. 2021, 11, 1469–1479. [Google Scholar] [CrossRef]
- Li, H.; Wang, X.; Hu, Z.; Qiu, Y. Effect of Ni addition on the arc-erosion behavior of Ag-4 wt.%SnO2 electrical contact material. J. Alloys Compd. 2020, 829, 154487. [Google Scholar] [CrossRef]
- Wang, Y.; Li, H. Improved Workability of the Nanocomposited AgSnO2 Contact Material and Its Microstructure Control During the Arcing Process. Metall. Mater. Trans. A 2017, 48, 609–616. [Google Scholar] [CrossRef]
- Liu, S.; Sun, Q.; Wang, J.; Guo, M.; Hou, H. Exploration of the Influence Mechanism of La Doping on the Arc Erosion Resistance of Ag/SnO2 Contact Materials by a Laser-Simulated Arc. J. Mater. Eng. Perform. 2021, 30, 7577–7583. [Google Scholar] [CrossRef]
- Cao, M.; Feng, Y.; Wang, L.; Zhao, T.; Zhao, H.; Zhou, Z. Effect of La2Sn2O7 content on Ag-La2Sn2O7/SnO2 arc erosion behavior and mechanism. J. Rare Earths 2022, 40, 1488–1498. [Google Scholar] [CrossRef]
- Wang, J.; Kang, Y.; Wang, C.; Wang, J.; Fu, C. Resistance to arc erosion characteristics of CuO skeleton-reinforced Ag-CuO contact materials. J. Alloys Compd. 2018, 756, 202–207. [Google Scholar] [CrossRef]
- Chen, S.; Wang, J.; Yuan, Z.; Wang, Z.; Du, D. Microstructure and arc erosion behaviors of Ag-CuO contact material prepared by selective laser melting. J. Alloys Compd. 2021, 860, 158494. [Google Scholar] [CrossRef]
- Li, A.; Xie, M.; Yang, Y.; Zhang, J.; Wang, S.; Chen, Y.; Zhou, W. Effect of CNTs content on the mechanical and arc-erosion performance of Ag-CNTs composites. Diam. Relat. Mater. 2022, 128, 109211. [Google Scholar] [CrossRef]
- Wang, X.; Yang, H.; Chen, M.; Zou, J.; Liang, S. Fabrication and arc erosion behaviors of AgTiB2 contact materials. Powder Technol. 2014, 256, 20–24. [Google Scholar] [CrossRef]
- Xi, Y.; Wang, X.-H.; Zhou, Z.-J.; Li, H.-Y.; Guo, X.-H. Material transfer behavior of AgTiB2 contact under different contact forces and electrode gaps. Trans. Nonferrous Met. Soc. China 2019, 29, 1046–1056. [Google Scholar] [CrossRef]
- Li, H.; Wang, X.; Xi, Y.; Liu, Y.; Guo, X. Influence of WO3 addition on the material transfer behavior of the AgTiB2 contact material. Mater. Des. 2017, 121, 85–91. [Google Scholar] [CrossRef]
- Li, H.; Wang, X.; Xi, Y.; Zhu, T.; Guo, X. Effect of Ni addition on the arc-erosion behavior of AgTiB2 contact material. Vacuum 2019, 161, 361–370. [Google Scholar] [CrossRef]
- Huang, X.; Feng, Y.; Ge, J.; Li, L.; Li, Z.; Ding, M. Arc erosion mechanism of Ag-Ti3SiC2 material. J. Alloys Compd. 2020, 817, 152741. [Google Scholar] [CrossRef]
- Zhou, Z.; Liu, D.; Wei, Y.; Hu, Y.; Tian, D.; Wen, G.; Liu, Z.; Huang, X. Investigation on arc erosion characteristics of Ag/Ti3SiC2 composites in SF6 mixed with buffer gases. Vacuum 2022, 206, 111536. [Google Scholar] [CrossRef]
- Ding, J.; Tian, W.B.; Zhang, P.; Zhang, M.; Zhang, Y.M.; Sun, Z.M. Arc erosion behavior of Ag/Ti3AlC2 electrical contact materials. J. Alloys Compd. 2018, 740, 669–676. [Google Scholar] [CrossRef]
- Wang, D.D.; Tian, W.B.; Ding, J.X.; Bin Ma, A.; Zhu, Y.F.; Zhang, P.G.; He, W.; Sun, Z.M. Anisotropic arc erosion resistance of Ag/Ti3AlC2 composites induced by the alignment of Ti3AlC2. Corros. Sci. 2020, 171, 108633. [Google Scholar] [CrossRef]
- Zhao, W.; Ye, Z.; Tao, Z.; Wang, X. Investigation of high temperature strengthening of platinum alloy containing the trace Y and Zr. J. Mater. Eng. 1992, 4, 17–19. [Google Scholar]
- Xie, M.; Chen, J.; Chen, L.; Fu, S.; Ning, D.; Zeng, R.; Yang, Y.; Li, R.; Duan, Y.; Zheng, F. Investigation on the Microstructure and Properties of Pt-24Ir-RE Alloys. Precious Met. 2003, 25, 25–28. [Google Scholar]
- Yamabe-Mitarai, Y.; Aoyagi, T.; Abe, T. An investigation of phase separation in the Ir–Pt binary system. J. Alloys Compd. 2009, 484, 327–334. [Google Scholar] [CrossRef]
- Chen, Z.; Sawa, K. Effect of arc behavior on material transfer: A review. IEEE Trans. Compon. Packag. Manuf. Technol. A 1998, 21, 310–322. [Google Scholar] [CrossRef]
- Boddy, P.J.; Utsumi, T. Fluctuation of arc potential caused by metalvapor diffusion in arcs in air. J. Appl. Phys. 1971, 42, 3369–3373. [Google Scholar] [CrossRef]
- Eoin, W.G. Some spectroscopic observations of the two regions (metallic vapor and gaseous) in break arcs. IEEE Trans. Plasma Sci. 1973, 1, 30–33. [Google Scholar]

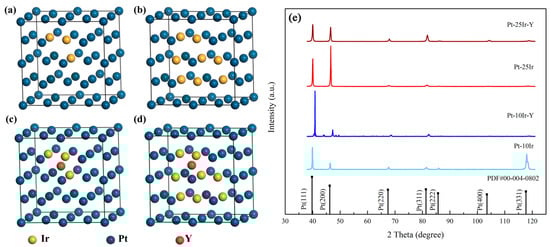

Materials | a/Å | b/Å | c/Å | α = β = γ |
---|---|---|---|---|
Pt–10Ir | 3.922 | 3.922 | 3.922 | 90° |
Pt–25Ir | 3.920 | 3.920 | 3.920 | 90° |
Pt–10Ir–Y | 3.918 | 3.918 | 3.918 | 90° |
Pt–25Ir–Y | 3.914 | 3.914 | 3.914 | 90° |
Pt | 3.923 | 3.923 | 3.923 | 90° |
Ir | 3.839 | 3.839 | 3.839 | 90° |
Circuit Condition | DC 24 V, 5 A, 15 A, 25 A, Resistive Load |
---|---|
Number of operations | 10,000 |
Frequency/Hz | 2 |
Contact force/cN | 20 |
Electrode spacing/mm | 1 |
Surrounding gas | Air |
Test mode | Only testing the breaking period of electrical contacts |
Materials | Mass Change (mg) | ||||||||
---|---|---|---|---|---|---|---|---|---|
5 A | 15 A | 25 A | |||||||
Anode | Cathode | Net Mass Change | Anode | Cathode | Net Mass Change | Anode | Cathode | Net Mass Change | |
Pt-10Ir | 0.01 | −0.02 | −0.01 | −0.10 | 0.08 | −0.02 | −0.52 | 0.39 | −0.13 |
Pt-25Ir | 0.03 | −0.06 | −0.03 | −0.07 | 0.04 | −0.03 | −0.55 | 0.50 | −0.05 |
Pt-10Ir-Y | 0.01 | −0.02 | −0.01 | 0.39 | −0.49 | −0.10 | 0.60 | −0.99 | −0.39 |
Pt-25Ir-Y | 0.03 | −0.10 | −0.07 | 0.59 | −0.62 | −0.03 | 0.63 | −0.98 | −0.35 |
Materials | Arc Erosion Morphology | Material Transfer |
---|---|---|
Pt–Ir | Relatively flat overall after 10,000 operations, and small melt zones are evenly distributed. | Transfer from anode to cathode |
Pt–Ir–Y | After 10,000 operations, the overall anodic erosion area is convex mound, the overall cathodic erosion area is concave pit, and the small melting area is clearly visible. | Transfer from cathode to anode |
Ag/SnO2 | After 5000 operations, the anode locally appeared with a few convex mounds; after 10,000 operations, there are no obvious convex mounds but it is uneven, no obvious small melting area. After 5000 times, the cathode as a whole is pit-like; after 10,000 times, the pit becomes shallow, and there is no obvious small melting area. | Transfer from anode to cathode |
Ag/SnO2–Ni | After 5000 operations, the anode localized the crater; after 10,000 operations, the localized crater still exists, and there is no obvious small melting area; after 5000 operations, the cathode as a whole is cratered; after 10,000 operations, the overall crater becomes shallow, and there is no obvious small melting area. | Transfer from anode to cathode |
