Article

Effect of Shot Peening and Nitriding on Toughness and Abrasive Wear Resistance of Powder Metallurgic Steels Highly Alloyed with Vanadium

by
Alejandro González-Pociño
*,
María A. García-García
,
Florentino Alvarez-Antolin
and
E. Segurado-Frutos
Advanced Metal Alloys, Metal Forming and Optimization of Industrial Processes (AMPIplus), Edificio Departamental Este, Campus de Gijón, University of Oviedo, Calle Wifredo Ricart, s/n, 33007 Gijón, Spain
*
Author to whom correspondence should be addressed.
Metals 2024, 14(1), 22; https://doi.org/10.3390/met14010022
Submission received: 21 November 2023 / Revised: 15 December 2023 / Accepted: 21 December 2023 / Published: 23 December 2023

Abstract

:
Böhler K390 steel is used for cold work tools, with 9% of V, made by using powder metallurgy. In this work, it has been studied the effect of shot peening and nitriding surface treatments on wear resistance and impact toughness of this type of steel. For this purpose, previous changes in several thermal processing factors related to quenching and tempering were carried out. The results allow for an increase in the hardness, impact toughness, and abrasive wear resistance of these steels. An austenitizing treatment at 1100 °C with air cooling and 3 tempering processes at 550 °C is suggested. These conditions foster a lower weight percentage of retained austenite, up to 3%, a higher carbide percentage, up to 15–16% in weight, and a greater impact toughness with no notch, of above 40 J/cm2. If this treatment is combined with further ion nitriding, the maximum level of abrasive wear resistance is reached. The only carbide type present in the microstructure is the MC type. Most of the V, Cr, and Mo contents are present in said carbides. The Co and the W tend to remain in solid solution in the matrix constituent. Both the shot peening treatment as well as ion nitriding offer a considerable increase in hardness, with values of up to 1500–1600 HV. Nevertheless, it has been confirmed that shot peening does not offer any abrasive wear resistance improvement. Such resistance may only be considerably improved by the application of an ionic nitriding treatment. The thickness of the nitrided layer fluctuates between 150 and 175 µm. The carbides are affected by nitriding, reaching levels that are higher than the atomic 10%, at an intermediate depth of the nitrided layer. These values are higher in the matrix constituent, as they are even higher than the atomic 20% in N.

1. Introduction

The cold work tool steels are highly used in the metallurgical industry as cutting tools, molds, punches, dies, etc. [1,2]. This type of steel is required to have highly strong properties such as a high level of toughness and wear resistance [3]. These steels are used in quenched and tempered conditions. Manufacturing of this type of steel using powder metallurgy (PM) gives the possibility to use chemical compositions that could not be used for steel manufacturing if conventional casting processes were implemented. This manufacturing technique gives the possibility to avoid micro-segregation of alloy elements. Thus, the Ms temperature is higher and homogeneous, reducing the existence of retained austenite. In traditional casting processes, elements such as C and Cr, which are common in tool steels, tend to segregate into the residual liquid phase, which favors a decrease of the Ms temperature in these zones and, therefore, the presence of retained austenite [4]. At the same time, this technology allows the manufacture of parts with dimensions that have narrow tolerance margins [5]. On the other hand, steels manufactured by powder metallurgy have a more homogeneous distribution of carbides, thus fostering wear resistance in comparison with traditional manufacturing techniques, such as forging [6,7].
These steels have a high content of C and the most frequent alloy elements are Cr, Mo, V, and W [8]. Hardened microstructure of this type of steel is mainly made up of martensite, with variable amounts of retained austenite and carbides [9]. Microstructure may include primary carbides of the M6C type, related to W, carbides of the MC type related to V, carbides of the M7C3 type related to Cr, and M2C carbides related to Mo [10], which improve wear resistance features [11]. The presence of a high density of VC (vanadium carbide) increases adhesive wear resistance and Mo improves steel hardenability [12,13]. On the other side, the effect given by W may also be achieved by adding Mo. Considering that the Mo atomic weight is half of the W one, half of the Mo weight will be needed to keep the same atomic relation when replacing W with Mo [11].
Ion nitriding allows the improvement of the wear resistance of these steels. This treatment uses electric discharge in gases to produce plasma, thus fostering nitrogen interstitial insertion [14]. The existence of tempered martensite fosters N diffusion through the octahedral gaps of Fe-BCC [15]. N reacts with Fe and with other alloy elements creating two layers: a highly thin first layer made up of nitrides of the ε-Fe2–3N type and of the γ’-Fe4N type [16]. They produce an important distortion in the ferritic matrix [17]. Generally, this layer usually does not exceed 25 µm [16]. The nitrided layer has a second thicker layer of about 200 µm. The existence of alloy elements, such as Cr, Al, Ti, Mo, V, and W, supports the creation of nitrides in said layer [5]. During nitriding, nanoprecipitates of the CrN type, coherent with the surrounding matrix, may appear. They will then increase their own size, losing consistency with the matrix [14]. Nanoprecipitates of VN may also be formed with a thickening kinetics quite slower than the previous ones [18,19]. Carbides present in the microstructure might also absorb atoms of N [14].
Shot peening is one of the usual treatments used in industry to improve fatigue behavior, even in the case of tool steels and when a high level of wear resistance is required [20,21,22,23,24,25]. This surface treatment, apart from leading to a surface plastic deformation that produces a residual compression stress field (which results in an important surface hardening) may also foster the increase of wear resistance [26,27,28,29,30].
Most degrading mechanisms, such as wear, fatigue, and corrosion, begin on the surface [31]. At present, it is possible to improve the surface properties of tool steels by using ion nitriding or shot peening [1,31].
The Böhler K390 steel is a cold work tool steel, highly alloyed in V, manufactured by PM, and having high wear resistance, good ductility, and suitable toughness properties [6,31,32]. In this work, it has been studied the effect of surface nitriding and shot peening treatments over wear resistance and impact toughness of this type of steel. At the same time, the influence of several thermal processing factors on these properties was also analyzed.

2. Materials and Methods

By implementing an experiment design, it was intended to study the effect of different parameters of thermal processing of the Böhler K390 steel, manufactured by PM. The main variables analyzed were abrasive wear resistance, according to the ASTM G65 Standard [33], and impact toughness. It also analyzed the effect of submitting the material to surface nitriding and shot peening treatments, subject to the previous thermal treatment. The experimental methodology followed was that of a divided experiment design, with 5 factors and 8 experiments. Table 1 shows the steel chemical composition, Table 2 shows the factors and levels analyzed and Table 3 shows the experiment matrix [34]. Four factors are related to the steel thermal processing (A to D codes). The other factor refers to surface treatments (E code).
The main purpose when following an experiment design is to deliberately modify the ordinary working conditions to produce changes in some of the responses being studied [35]. In this case, abrasive wear resistance and impact toughness. Such changes are made on specific factors, that are previously chosen. If 2 is the number of levels of each factor, and k is the number of factors, then 2k will be the number of experiments to be carried out in a factorial experiment design [36]. In this case, k = 5, thus, if it were a factorial design, 32 experiments would be necessary. Fractional designs make it possible to reduce the number of experiments, at the expense of losing some information which, in industrial practice, tends not to be relevant. Fractional designs allow the number of experiments to be reduced, at the expense of losing some information which, in industrial practice, tends not to be relevant [36,37]. In this case, the number of experiments would be 8 = 25−2, where the number of “generators” is 2: Column D=AB and E=AC [36]. A factor effect is defined as the variation of the response function as a consequence of the variation of said factor between its low (−1) and high (+1) levels. This analysis agrees with the main effects. Interactions between two factors are defined as the variation between the average effect of one factor with the other one at its low level, −1, and the average effect of that same factor with the other factor at its high level, +1 [38]. Similarly, interactions between more than two factors will be defined [36]. The influence of main effects on the response function tends to be higher than the influence of 2-factor interactions and the latter tends to be higher than 3-factor interactions and so on. This justifies the division of an experiment design [36]. Nevertheless, it is important to analyze interactions of type II hidden behind a main effect. These type II interactions are included in the “confusion pattern” column of Table 3. A certain effect is defined as relevant if it is highly “rare” to take place by chance. The Pareto charts give the possibility to organize the effects analyzed based on their importance [36]. The experimental response is subject to random variation. This variation will follow an ordinary law, where its typical deviation reflects the experimental error. Effects are linear combinations of responses. Thus, according to the Central Limit Theorem, they will follow an ordinary law [34,35]. Each effect may be considered a random variable where the value obtained is an estimation of its average. If all the effects are insignificant, they will follow an ordinary zero average law, and thus, they will be aligned on a standard probability paper plot [38]. Significant effects follow an ordinary distribution with an average that is different from zero so they do not appear aligned with the insignificant ones. When one significant effect separates itself from the ordinary probability line towards the right side and on its upper part, the conclusion is that if this factor is placed at its +1 level, the response function will “significantly” increase with reference to its −1 level. Additionally, if a significant effect separates from the ordinary probability line towards the left side and on its upper part, the conclusion is that if this factor is at its −1 level, the response function with reference to its +1 level will “significantly” increase [34,35]. Statistical analysis has been carried out with the STATGRAPHICS Centurion XVI software (V16.2.04, Statgraphics Technologies, Inc., The Plains, VA, USA) [39,40,41,42].
Utilizing X-ray diffraction, the percentage of precipitated stages was established. For this purpose, the Seifert XRD 3000 T/T equipment (Baker Hughes, Celle, Germany) was used. Radiation was emitted through a Mo tube with a power of 40 kV and 40 mA. Measurements were made in the angular range of 2θ, between 8° and 37°, with an angular step of 0.03° and counting period per step of 22 s. The determination of the percentage of crystalline phases has been established by adjusting the diffragtogram using the Rietveld structural refinement method [43]. For this purpose, crystollographic information files of the ICSD (Inorganic Crystal Structure Database, FIZ Karlsruhe, Eggenstein-Leopoldshafen, Germany) were used. The software used was FullProf.2k, the 6.20 version [44,45]. The width increase observed in the peaks of the majority phases has been modeled using Stephens’s formulation, implemented in this analysis software [46].
Abrasive wear resistance was measured according to the G65 Standard. Rectangular section specimens measuring 55 × 30 mm and 5 mm thick were used. Experiment parameters were the following ones: rubber tyre diameter = 228 mm; rubber Shore A hardness = 60; silica sand (AF60/70); sand flow = 300–400 g/min; turning speed = 200 rpm; testing time = 10 min; applied load = 130 N.
Shot peening treatment was carried out on abrasive wear specimens detailed above, by using high-toughness ceramic projectiles diameter measuring 300 μm to 425 μm (ZIr Shot Y300) with an Almen intensity of 10 A. Treatment was carried out following the SAE J442 and J443 specifications. A nozzle with a diameter of 5 mm with a 230 mm distance between the nozzle and the working piece was used. Shot peening time corresponding to “5 s” for a minimum of 100% coverage. The impact angle was 90° and 100% coverage [47,48,49]. The coverage was analyzed with the NIS-Elements BR v5.20.02 software of the optical microscope. Figure 1 shows SEM images of the Zir Shot Y300 projectile used in the treatment.
In this research, the roughness was not considered because a high hardness 1000 HV projectile was used that breaks without leaving corners, small in size, between 300 µm and 425 µm, and does not increase the surface roughness significantly [48].
Table 4 shows the main parameters of the process with which the plasma nitriding was carried out in experiments 1, 3, 6, and 8.
To determine Vickers hardness, the load implemented was 1000 N. To measure surface hardness, after surface treatments, the load implemented was 3 N. The Hardness value was estimated as the average value of 12 tracks.
The impact toughness (J/cm2) was determined by employing the Charpy test on non-notched specimens of square sections of 10 mm side and 55 mm length. The value for each experiment was estimated as the average value of 5 tests.
To disclose the microstructure, after the mechanical processes of grinding and polishing, Nital 4 was used as a chemical reagent. The optical microscope used was the NIKON Epiphot 200 (Nikon, Tokyo, Japan). The scanning electron microscope (SEM) used was JEOL JSM-5600, equipped with the characteristic dispersive X-ray microanalysis system (JEOL, Nieuw-Vennep, The Netherlands).

3. Results and Discussion

Figure 2 shows this steel microstructure in the annealed condition. Figure 2a shows high carbide density in a ferritic matrix. Material hardness in this condition is 280 HV. Figure 2b shows the points where the characteristic dispersive X-ray semi-quantitative microanalysis (EDX) was carried out.
Table 5 shows the results. Using the SEM-EDX technique it is not possible to determine with accuracy the atomic % of elements with low atomic numbers (as would be the carbon case). Therefore, the results shown in this table are semi-quantitative. These results are only intended to show the approximate distribution of alloying elements between the carbides and the matrix constituent in the annealed state. From spectra 1 to 5, it may be concluded that these carbides seem to be mixed V-rich carbides with MC stoichiometry [50]. Nevertheless, the matrix shows more V in solid solution, apart from Cr, Co, Mo, and W.
Table 6 shows the weight percentages and the lattice parameters of the crystal phases observed by X-ray diffraction. It must be taken into account that, in all experiments, ferrite (tempered martensite) is the majority phase, and that the VC was the only carbide observed. Besides, it must be mentioned the existence of retained austenite in all the experiments.
Figure 3 shows the global settings obtained by the Rietveld structural refinement. The vertical segments indicate the angular positions of the different phases identified. Each phase is assigned a color.
Table 7 shows the average values obtained in each experiment and the effects corresponding to the confusion patterns mentioned in Table 3. Considering that the X-ray diffraction analysis was carried out before the surface treatments (shot peening and nitriding), the E factor was not taken into account in the confusion patterns. The average shows the mean value obtained in the 8 experiments.
Figure 4 includes graphics showing the effects related to weight percentages of austenite, vanadium carbides, and ferrite (tempered martensite). Figure 4a,c,e show the Pareto charts, and Figure 4b,d,f, standardized effect representations on standard probability paper.
In the case of the austenite content, it seems that none of the analyzed factors has a significant effect. Nevertheless, Table 8 shows the average weight percentage of austenite based on destabilization temperature, cooling medium, and tempering temperature. It seems that high austenitizing temperatures (1200 °C) increase the retained austenite amount, as a consequence of higher carbon dissolution in austenite, which results in Ms temperature reduction. At the same time, air cooling allows carbide precipitation during cooling, and tempering temperatures of 550 °C foster a second austenite destabilization which gives rise to an additional transformation of austenite into martensite.
In the case of vanadium carbide content, it is found that the factors C (tempering temperature), A (austenitizing temperature), and B (quenching medium) have a significant effect. Within the analysis of the main effects of A and B, we have included the interactions between BD, “masked” in the effect of A, and AD, “masked” in the effect of B. To determine which of them has a significant “weight” on the VC content, the main effects and interactions must be carried out separately. Table 9 shows the results. It is concluded that the significant effects are due to the C factor (tempering temperature) and the BD and AD interactions. At tempering temperatures of 550 °C, a second destabilization of the austenite occurs, which favors the precipitation of carbides of the MC type, associated with V. On the other hand, if during the thermal processing the austenitizing temperature, the cooling medium, and the number of tempering are simultaneously at their −1 (1100 °C), −1 (air cooling), and +1 (3 tempering) levels, the weight percentage increase of the VC takes place. It may be observed that experiments 1 and 5, which fulfill these requirements, are the ones with a high level of VC content, 16.08%, and 16.47% respectively. Lower austenitizing temperatures (1100 °C) benefit better austenite destabilization compared to 1200 °C and air cooling allows more carbide precipitation during cooling. 3 temperings give rise to a second austenite destabilization.
On the other hand, if we analyze the effects with reference to ferrite content (tempered martensite), significant effects may be observed in factor C (tempering temperature) and AC interaction (austenitizing and tempering temperatures). Tempering at 550 °C increases ferrite percentage and such percentage is increased if, together with the tempering at 550 °C, austenitizing is previously carried out at 1200 °C. Table 10 shows a detailed analysis of the AC interaction. It is observed that, whenever austenitizing temperature is at 1100 °C, the ferrite-martensite percentage is high, without taking the tempering temperature into account. Nevertheless, if the austenitizing temperature were at 1200 °C, a lower level of ferrite-martensite formation would take place due to the high austenite percentage. However, this effect is balanced by a higher tempering temperature (550 °C), fostering this retained austenite destabilization. Therefore, it seems that tempering temperature is crucial. If, apart from the austenitizing temperature at 1200 °C, the tempering is carried out at 550 °C (experiments 6 and 8), the average ferrite percentage is 81.08%. However, if tempering is carried out at 500 °C (experiments 2 and 4), the average ferrite percentage decreases up to 71.14%, increasing that of retained austenite up to 17.7%.
Table 11 shows the average lattice parameter of ferrite (tempered martensite) in each of the 8 experiments and the effects corresponding to the pattern of confusion indicated in the experiment matrix (Table 3). Figure 5 shows the graphical representation of the effects linked to this lattice parameter. Figure 5a shows the Pareto diagram and Figure 5b shows the standardized effect representations on standard probability paper. It can be seen that the only factor with a significant effect is the C factor (tempering temperature), so if we place this factor at its level −1 (500 °C) this lattice parameter increases, which would show a lower degree of tempering of the martensite.
Figure 6 shows the microstructure of experiments 4 and 5, showing the points where the semi-quantitative microanalysis was carried out by characteristic X-ray dispersion (EDX). Results are shown in Table 12. If these results are compared with those obtained in the annealed condition (Table 4), it seems that, after thermal processing, MC carbides have greater V enrichment and the V amount in the matrix solid solution has considerably been reduced.
Figure 7 shows the relative concentration of each element along the scanning line. V is the most abundant alloying element. However, it can be observed that this element is mainly concentrated in the carbides, as opposed to its solid solution state. The same behavior seems to be repeated for Cr and Mo. W and Co, however, seem to tend to be found in solid solutions in the matrix constituent.
Table 13 shows the hardness results. The first hardness column shows material hardness before surface treatments. The second column shows the hardness of the material surface after said surface treatments. Figure 8 shows the graphic of effects using Pareto charts and standard probability paper. Based on Figure 8a,b it may be concluded that factor C (tempering temperature) and the AC interaction (austenitizing and tempering temperatures) exert an important effect on hardness before the surface treatment has been carried out. This means that with tempering temperatures of 500 °C, hardness increases, and this could be due to a lower degree of tempering of the martensite. However, said hardness is “improved” if previous austenitizing is carried out at 1200 °C. Both austenitizing and tempering temperatures also result in a higher retained austenite content, that reaches an average value of 16.5% under these conditions (experiments 2 and 4). It is, thus, concluded that retained austenite with a low level of destabilization causes hardness increase.
Table 14 shows the results obtained in the Charpy test with no notch. Figure 9 shows the graphic representation of effects using Pareto charts and standard probabilistic paper. The C factors (tempering temperature), A (austenitizing temperature), B (cooling mode) and the BD and AD interactions, which include the D factor (tempering number) have a significant effect. Table 15 shows the analysis of said interactions, and it demonstrates that the significant effect of the A factor also includes that of the BD interaction and the significant effect of the B factor also includes that of the AD interaction. The conclusion is that material impact toughness increases with austenitizing temperatures of 1100 °C, air cooling, together with 3 temperings, and tempering temperatures of 550 °C. Experiment 5 fulfils these requirements and it was the only one that exceeded the 40 J/cm2. The austenitizing temperature of 1100 °C, air cooling and tempering at 550 °C are the levels at which less retained austenite is obtained. As 3 temperings are included, the conditions at which a higher percentage of precipitated VC carbides is obtained, are reproduced, i.e., a higher level of austenite destabilization.
Table 16 shows the weight losses of the 8 experiments due to the abrasive wear test. Effects are included. Figure 10 shows the graphic representation of said effects. Figure 10a shows the graphic representation according to the Pareto chart and Figure 10b shows the graphic representation on standard probability paper. The only factor with a significant effect on abrasive wear resistance is surface treatment. Weight loss considerably increases if this factor is at its −1 level (shot peening). Thus, to increase wear resistance, the E factor should be at its +1 level (nitriding). The average weight loss of those experiments with shot peening (experiments 2, 4, 5 and 7) was 36.1 mg. However, the weight loss of those experiments submitted to nitriding (experiments 1, 3, 6 and 8) was 50% lower (18.2 mg). The conclusion is that the shot peening treatment has no positive effect on abrasive wear resistance.
Thicknesses of the nitrided layer were, in all cases, about 150 to 175 µm. Figure 11 shows an example of the distribution of nitrogen in the nitrided layer. It may be observed that N concentration is not homogeneous, as it considerably, decreases noticeably from the first 40 µm (approximately).
Figure 12 shows two representative pictures of the nitrided layer microstructure in an average area, located at about 80–90 µm from the sample surface. Table 17 shows the results of the semi-quantitative analysis of carbides and matrix constituents in the points specified in Figure 12. It may be observed that carbides are affected by nitriding, reaching variable levels which are higher than 10% in N (atomic %). Nevertheless, it seems that the conclusion is that in the matrix constituent, the values reached are higher than 20%. Anyway, and it may be observed in Figure 11, N content seems to be influenced by the depth reached in the nitrided layer.

4. Conclusions

In this work, it has been studied the effect of nitriding and shot peening surface treatments on wear resistance and impact toughness of the powder metallurgy steel Böhler K390. For this purpose, several factors related to this steel quenching and tempering have been previously modified. The following conclusions are the most important ones:
  • Before implementing surface treatment, it is recommended to carry out austenitizing treatment at 1100 °C with air cooling and 3 tempering treatments at 550 °C. This treatment gives the possibility to have less retained austenite amount (~3%), more carbide density (~15–16%) and the highest level of impact toughness without a notch, above 40 J/cm2. Besides, if this treatment is combined with further ion nitriding, a really high level of abrasive wear resistance will be obtained.
  • The only precipitated carbide is of the MC type, associated with V. These carbides also show the presence of Cr and Mo. These latter elements, although also found in solid solution, appear in greater proportion in these carbides. Co and W tend to remain in solid solution.
  • Both the shot penning treatment as well as ion nitriding offer a considerable increase in hardness, reaching values of 1500–1600 HV. Nevertheless, the highest level of abrasive resistance is obtained after ion nitriding, verifying that shot peening treatment does not improve this resistance.
  • The nitrided layer thickness is between 150 and 175 μm, and the N content gradually decreases from the surface towards the inner part. Carbides are affected by nitriding and, at an intermediate depth of the nitrided layers, they have about 10% atomic values in N variables. These values are higher in the matrix constituent, even above the 20% atomic value in N.

Author Contributions

Conceptualization, F.A-A., E.S.-F., A.G.-P. and M.A.G.-G.; methodology, F.A.-A., E.S.-F., A.G.-P. and M.A.G.-G.; software, F.A.-A. and A.G.-P.; validation, F.A.-A.; formal analysis, F.A.-A. and A.G.-P.; investigation, E.S.-F., A.G.-P. and M.A.G.-G.; data curation, F.A.-A.; writing—original draft preparation, F.A.-A.; writing—review and editing, A.G.-P.; visualization, A.G.-P.; supervision, F.A.-A., E.S.-F., A.G.-P. and M.A.G.-G.; project administration, F.A.-A. All authors have read and agreed to the published version of the manuscript.

Funding

This research has been funded by the University of Oviedo under the research project PAPI-23-GR-COM-06.

Data Availability Statement

Data are contained within the article.

Acknowledgments

We would like to thank the company VACUTREM, S.A. (https://vacutrem.es (12 March 2022)) for their disinterested collaboration in the performance of the ionic nitriding treatments and the Vicerectorate of Research of the University of Oviedo for the aid granted for this project in competitive concurrence for the maintenance of research activities in research groups of the University of Oviedo for the year 2023. We also thank the XRD Unit of the Scientific-Technical Services of the University of Oviedo, and in particular David Martínez-Blanco for his invaluable assistance.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Bingul, E.; Kacal, A. Hard Turning of Powder Metallurgical Cold Work Tool Steel Tempered in Different Tempering Temperature. J. Sci. Ind. Res. 2013, 72, 498–505. [Google Scholar]
  2. Barbedo, E.L.; Goncalves, P.H.; Lamoglia, M.S.; Pontes, A.M.P.; Kuffner, B.H.B.; Gomes, G.F.; Silva, G. Analysis of Milling Efficiency of the Vanadis (R) 8 Tool Steel with Additions of Vanadium and Molybdenum Carbides. Mater. Res.-Ibero-Am. J. Mater. 2021, 24, 5. [Google Scholar] [CrossRef]
  3. Podgornik, B.; Jerina, J. Surface topography effect on galling resistance of coated and uncoated tool steel. Surf. Coat. Technol. 2012, 206, 2792–2800. [Google Scholar] [CrossRef]
  4. Li, S.-H.; Li, J.; Zhang, J.; Shi, C.-B. Effect of nitrogen on microstructure and microsegregation of martensitic stainless steel 4Cr13 produced by electroslag remelting. J. Iron Steel Res. Int. 2023, 30, 1854–1861. [Google Scholar] [CrossRef]
  5. Riofano, R.M.M.; Casteletti, L.C.; Nascente, P.A.P. Study of the wear behavior of ion nitrided steels with different vanadium contents. Surf. Coat. Technol. 2006, 200, 6101–6110. [Google Scholar] [CrossRef]
  6. Surekha, K.; Els-Botes, A. Effect of Cryotreatment on Tool Wear Behaviour of Bohler K390 and AISI H13 Tool Steel During Friction Stir Welding of Copper. Trans. Indian Inst. Met. 2012, 65, 259–264. [Google Scholar] [CrossRef]
  7. Nemec, M.; Jurci, P.; Kosnacova, P.; Kucerova, M. Evaluation of structural isotropy of Cr-V ledeburitic steel made by powder metallurgy of rapidly solidified particles. Kov. Mater.-Met. Mater. 2016, 54, 453–462. [Google Scholar] [CrossRef]
  8. Krull, H.G.; van Soest, F.; Niederhofer, P.; Schneiders, T. Hot Working Tool Steel with Bainitic Microstructure-The Mechanical Properties at Elevated Temperature. Steel Res. Int. 2023, 94, 2200329. [Google Scholar] [CrossRef]
  9. Rehan, M.A.; Thuvander, M.; Hogman, B.; Skogholm, P.E. EBSD Analysis of Blocky Structures in Hardened and Tempered Microstructures of a 5 wt.% Cr Cold Work Tool Steel. Metallogr. Microstruct. Anal. 2021, 10, 862–875. [Google Scholar] [CrossRef]
  10. Godec, M.; Batic, B.S.; Mandrino, D.; Nagode, A.; Leskovsek, V.; Skapin, S.D.; Jenko, M. Characterization of the carbides and the martensite phase in powder-metallurgy high-speed steel. Mater. Charact. 2010, 61, 452–458. [Google Scholar] [CrossRef]
  11. Wan, S.H.; Li, H.; Tieu, K.; Xue, Q.; Zhu, H.T. Mechanical and tribological assessments of high-vanadium high-speed steel by the conventional powder metallurgy process. Int. J. Adv. Manuf. Technol. 2019, 103, 943–955. [Google Scholar] [CrossRef]
  12. Garcia, C.; Martin, F.; Herranz, G.; Berges, C.; Romero, A. Effect of adding carbides on dry sliding wear behaviour of steel matrix composites processed by metal injection moulding. Wear 2018, 414, 182–193. [Google Scholar] [CrossRef]
  13. Chales, R.; Martins Cardoso, A.d.S.; Pires Garcia, P.S.; da Igreja, H.R.; de Almeida, B.B.; Noris, L.F.; Pardal, J.M.; Maior Tavares, S.S.; da Silva, M.M. Behavior of constitutive models from slow strain rate test of maraging 300 and 350 steels performed in several environmental conditions. Int. J. Fract. 2022, 234, 159–175. [Google Scholar] [CrossRef]
  14. Jurci, P. Saturation of the Cr-V ledeburitic steel with nitrogen. Kov. Mater.-Met. Mater. 2010, 48, 217–226. [Google Scholar] [CrossRef]
  15. Selte, A.; Ozkal, B.; Arslan, K.; Ulker, S.; Hatman, A. Effect of Nitriding on the Wear Resistance of Tool Powder Steels with Different Contents of V, Cr and Mo. Met. Sci. Heat Treat. 2018, 59, 729–734. [Google Scholar] [CrossRef]
  16. Riofano, R.M.M.; Casteletti, L.C.; Canale, L.C.F.; Totten, G.E. Improved wear resistance of P/M tool steel alloy with different vanadium contents after ion nitriding. Wear 2008, 265, 57–64. [Google Scholar] [CrossRef]
  17. Binder, C.; Bendo, T.; Hammes, G.; Klein, A.N.; de Mello, J.D.B. Effect of nature of nitride phases on sliding wear of plasma nitrided sintered iron. Wear 2015, 332, 995–1005. [Google Scholar] [CrossRef]
  18. Hosmani, S.S.; Schacherl, R.E.; Mittemeijer, E.J. Nitrogen uptake by an Fe-V alloy: Quantitative analysis of excess nitrogen. Acta Mater. 2006, 54, 2783–2792. [Google Scholar] [CrossRef]
  19. Diaz, N.E.V.; Schacherl, R.E.; Zagonel, L.F.; Mittemeijer, E.J. Influence of the microstructure on the residual stresses of nitrided iron-chromium alloys. Acta Mater. 2008, 56, 1196–1208. [Google Scholar] [CrossRef]
  20. Sawada, T.; Yanagitani, A. Properties of Cold Work Tool Steel Shot Peened by 1200 HV-Class Fe-Cr-B Gas Atomized Powder as Shot Peening Media. Mater. Trans. 2010, 51, 735–739. [Google Scholar] [CrossRef]
  21. Anati, N.; Aqida, S.N.; Ismail, I.; Kasim, M.S. Mechanical characterisation of water-jet shot peened H13 tool steel surface. J. Mech. Eng. Sci. 2022, 16, 9122–9128. [Google Scholar] [CrossRef]
  22. Harada, Y.; Fukauara, K.; Kohamada, S. Effects of microshot peening on surface characteristics of high-speed tool steel. J. Mater. Process. Technol. 2008, 201, 319–324. [Google Scholar] [CrossRef]
  23. Chang, S.H.; Tang, T.P.; Tai, F.C. Enhancement of thermal cracking and mechanical properties of H13 tool steel by shot peening treatment. Surf. Eng. 2011, 27, 581–586. [Google Scholar] [CrossRef]
  24. Hong, H.D.T.; Hong, H.N.; Ngoc, M.N.; Ngoc, Q.H.T. Effects of the Destabilisation Heat Treatments on the Precipitation of Secondary Carbides and Their Effect on the Corrosion of 27 wt.% Chromium White Cast Iron. ISIJ Int. 2021, 61, 1660–1668. [Google Scholar] [CrossRef]
  25. Qian, W.; Wang, Y.; Liu, K.; Yin, X.; He, X.; Xie, L. Experimental Study on the Effect of Shot Peening and Re-Shot Peening on the Residual Stress Distribution and Fatigue Life of 20CrMnTi. Coatings 2023, 13, 1210. [Google Scholar] [CrossRef]
  26. Walczak, M.; Szala, M. Effect of shot peening on the surface properties, corrosion and wear performance of 17-4PH steel produced by DMLS additive manufacturing. Arch. Civ. Mech. Eng. 2021, 21, 157. [Google Scholar] [CrossRef]
  27. Yan, H.; Zhu, P.; Chen, Z.; Zhang, H.; Zhang, Y.; Zhang, Y. Effect of shot peening on the surface properties and wear behavior of heavy-duty-axle gear steels. J. Mater. Res. Technol.-JmrT 2022, 17, 22–32. [Google Scholar] [CrossRef]
  28. Tomaz, I.d.V.; Martins, M.C.; Meneses Costa, H.R.; Bastos, I.N.; Fonseca, M.C. Influence of residual stress on the sliding wear of AISI 4340 steel. Mater.-Rio Jan. 2020, 25, 2. [Google Scholar] [CrossRef]
  29. Vicen, M.; Bokuvka, O.; Trsko, L.; Drbul, M.; Nikolic, R.; Novy, F. Influence of Shot Peening on the Wear Behaviour of Medium Carbon Steel. Prod. Eng. Arch. 2022, 28, 241–245. [Google Scholar] [CrossRef]
  30. Lu, H.F.; Xue, K.N.; Xu, X.; Luo, K.Y.; Xing, F.; Yao, J.H.; Lu, J.Z. Effects of laser shock peening on microstructural evolution and wear property of laser hybrid remanufactured Ni25/Fe104 coating on H13 tool steel. J. Mater. Process. Technol. 2021, 291, 117016. [Google Scholar] [CrossRef]
  31. Moravcikova, J.; Moravcik, R.; Kusy, M.; Necpal, M. Influence of Laser Surface Texturing on Tribological Performance of Tool Steels. J. Mater. Eng. Perform. 2018, 27, 5417–5426. [Google Scholar] [CrossRef]
  32. Cetinkaya, S.; Kacal, A. Investigation of the heat treatment effect in milling of K390 powder metallurgical steel. Kov. Mater.-Met. Mater. 2014, 52, 209–218. [Google Scholar] [CrossRef]
  33. Landek, D.; Cajner, F.; Kovacic, S. Wear Resistance of the Multilayer TiN/Ti(B,N) Coating Deposited on Cold Work Tool Steels. Mater. Perform. Charact. 2017, 6, 871–881. [Google Scholar] [CrossRef]
  34. Kumar, S.; Bablu, M.; Janghela, S.; Misra, M.K.; Mishra, R.; Ranjan, A.; Prasad, N.E. Factorial design, processing, characterization and microstructure analysis of PIP-based C/SiC composites. Bull. Mater. Sci. 2018, 41, 17. [Google Scholar] [CrossRef]
  35. Prat-Bartés, A.; Tort-Martorell, X.; Grima-Cintas, P.; Pozueta-Fernández, L.; Solé-Vidal, I. Métodos Estadísticos, 2nd ed.; UPC: Barcelona, Spain, 2004; pp. 127–200. [Google Scholar]
  36. Fukuda, I.M.; Pinto, C.F.F.; Moreira, C.D.; Saviano, A.M.; Lourenço, F.R. Design of Experiments (DoE) applied to Pharmaceutical and Analytical Quality by Design (QbD). Braz. J. Pharm. Sci. 2018, 54, SI. [Google Scholar] [CrossRef]
  37. Cangussu, N.; Matos, A.M.; Milheiro-Oliveira, P.; Maia, L. Modelling and Predicting Self-Compacting High Early Age Strength Mortars Properties: Comparison of Response Models from Full, Fractioned and Small Central Composite Designs. Appl. Sci.-Basel 2023, 13, 8413. [Google Scholar] [CrossRef]
  38. Bingol, D.; Tekin, N.; Alkan, M. Brilliant Yellow dye adsorption onto sepiolite using a full factorial design. Appl. Clay Sci. 2010, 50, 315–321. [Google Scholar] [CrossRef]
  39. Gallardo-Sanchez, M.A.; Diaz-Vidal, T.; Navarro-Hermosillo, A.B.; Figueroa-Ochoa, E.B.; Casillas, R.R.; Hernandez, J.A.; Rosales-Rivera, L.C.; Martinez, J.; Enriquez, S.G.; Macias-Balleza, E.R. Optimization of the Obtaining of Cellulose Nanocrystals from Agave tequilana Weber Var. Azul Bagasse by Acid Hydrolysis. Nanomaterials 2021, 11, 520. [Google Scholar] [CrossRef]
  40. Mico-Vicent, B.; Perales, E.; Huraibat, K.; Martinez-Verdu, F.M.; Viqueira, V. Maximization of FDM-3D-Objects Gonio-Appearance Effects Using PLA and ABS Filaments and Combining Several Printing Parameters: “A Case Study”. Materials 2019, 12, 1423. [Google Scholar] [CrossRef]
  41. Mathivanan, N.R.; Babu, N.S.M.; Kumar, K.V. Empirical study on twisting force using Taguchi doe technique during drilling of hybrid FRP laminate. Rev. Compos. Mater. Av.-J. Compos. Adv. Mater. 2018, 28, 277–288. [Google Scholar] [CrossRef]
  42. Benavides-Prada, O.-A.; Guevara-Lastre, C.-A.; Baron-Nunez, F.-W.; Barajas-Ferreira, C.; Ortiz-Basurto, R.-I.; Torrestiana-Sanchez, B.; Muvdi-Nova, C.-J. Vacuum membrane distillation: Modeling and analysis for recovery of ethanol from ethanol/water solutions. CtF-Cienc. Tecnol. Y Futuro 2013, 5, 47–60. [Google Scholar] [CrossRef]
  43. Gasan, H.; Erturk, F. Effects of a Destabilization Heat Treatment on the Microstructure and Abrasive Wear Behavior of High-Chromium White Cast Iron Investigated Using Different Characterization Techniques. Metall. Mater. Trans. A-Phys. Metall. Mater. Sci. 2013, 44A, 4993–5005. [Google Scholar] [CrossRef]
  44. Mamidi, S.; Gundeboina, R.; Kurra, S.; Velchuri, R.; Muga, V. Aurivillius family of layered perovskites, BiREWO6 (RE = La, Pr, Gd, and Dy): Synthesis, characterization, and photocatalytic studies. Comptes Rendus Chim. 2018, 21, 547–552. [Google Scholar] [CrossRef]
  45. Guje, R.; Ravi, G.; Palla, S.; Rao, K.N.; Vithal, M. Synthesis, characterization, photocatalytic conductivity studies of defect pyrochlore KM0.33Te1·67O6 (M=Al, Cr and Fe). Mater. Sci. Eng. B-Adv. Funct. Solid-State Mater. 2015, 198, 1–9. [Google Scholar] [CrossRef]
  46. Stephens, P.W. Phenomenological model of anisotropic peak broadening in powder diffraction. J. Appl. Cryst. 1999, 32, 281–289. [Google Scholar] [CrossRef]
  47. SAE Standard. J442. Test Strip, Holder, and Gage for Shot Peening; SAE Standard: Pittsburgh, PA, USA, 2008. [Google Scholar]
  48. Segurado, E.; Belzunce, F.J.; Pariente, I.F. Effects of low intensity shot peening treatments applied with different types of shots on the fatigue performance of a high-strength steel. Surf. Coat. Technol. 2018, 340, 25–35. [Google Scholar] [CrossRef]
  49. Segurado, E.; Belzunce, J.; Fernández, I. Enhanced Fatigue Behavior in Quenched and Tempered High-Strength Steel by Means of Double Surface Treatments. J. Mater. Eng. Perform. 2019, 28, 2094–2102. [Google Scholar] [CrossRef]
  50. Gonzalez-Pociño, A.; Alvarez-Antolin, F.; Asensio-Lozano, J. Optimization of Quenching and Tempering Parameters for the Precipitation of M7C3 and MC Secondary Carbides and the Removal of the Austenite Retained in Vanadis 10 Tool Steel. Metals 2019, 9, 627. [Google Scholar] [CrossRef]

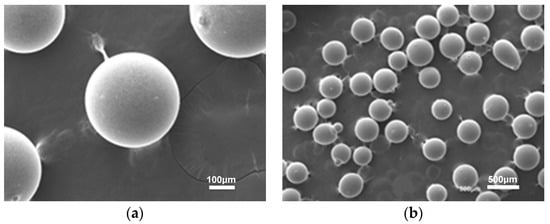

Figure 1. SEM images of the Zir Shot Y300 projectile used in the Shot peening treatment. (a) 120× magnification; (b) 30× magnification.
Figure 1. SEM images of the Zir Shot Y300 projectile used in the Shot peening treatment. (a) 120× magnification; (b) 30× magnification.
Metals 14 00022 g001

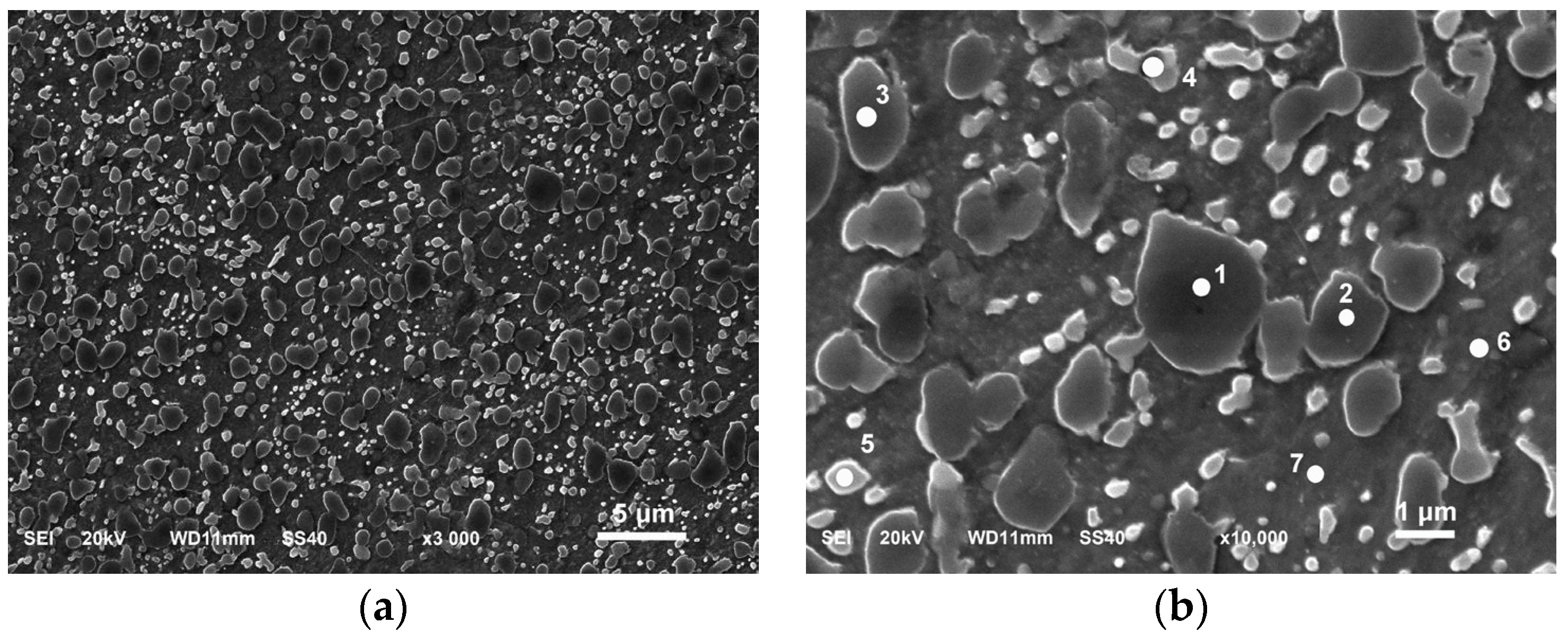

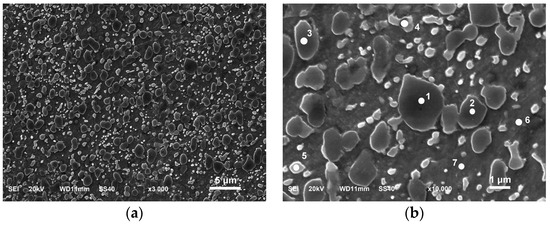

Figure 2. Microstructure of Böhler K390 steel in the annealed state (as delivered) using secondary electron images (SEI). (a) A high density of carbides is observed (magnification of 3000×); (b) points with EDX semi-quantitative microanalysis are pointed out (magnification of 10,000×).
Figure 2. Microstructure of Böhler K390 steel in the annealed state (as delivered) using secondary electron images (SEI). (a) A high density of carbides is observed (magnification of 3000×); (b) points with EDX semi-quantitative microanalysis are pointed out (magnification of 10,000×).
Metals 14 00022 g002

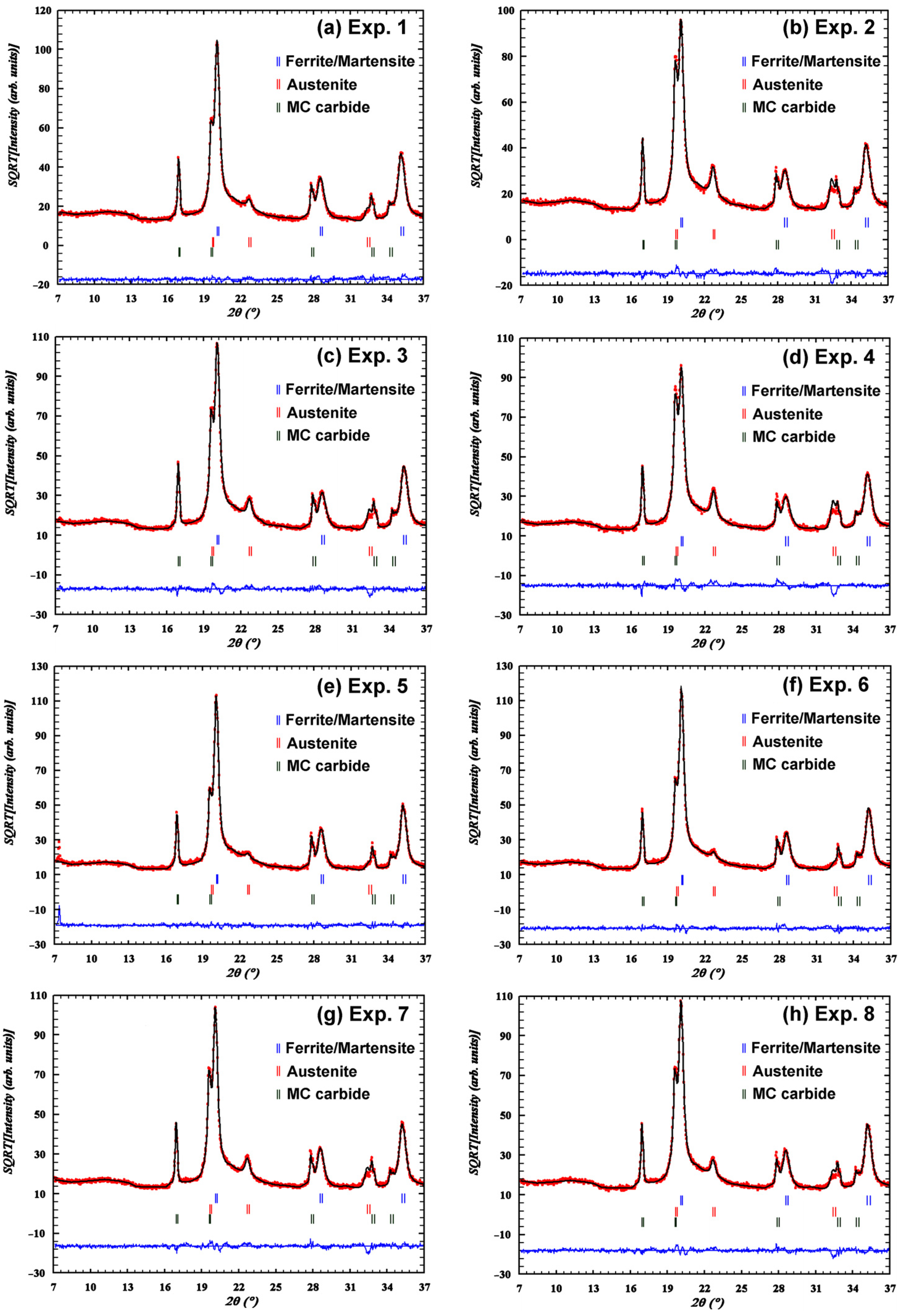

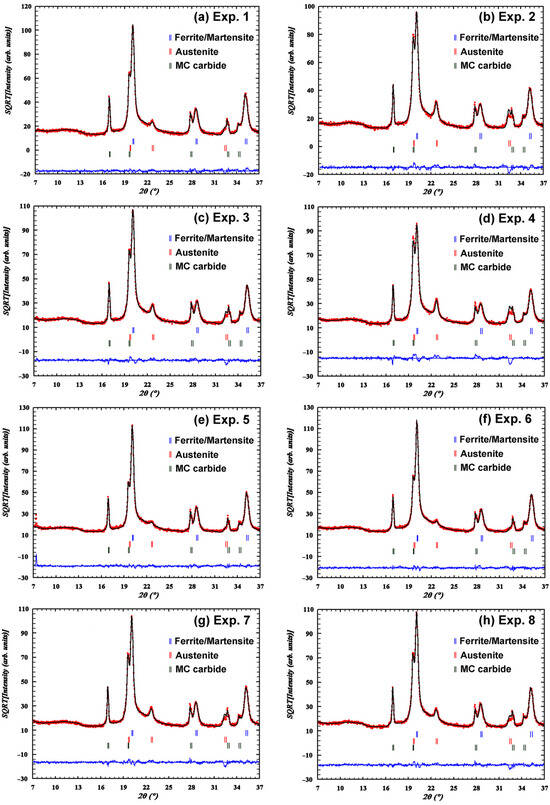

Figure 3. Overall fittings were obtained using Rietveld structural refinement. The red points show the observed intensities and the black line, the intensities obtained using the Rietveld structural model. The blue line indicates the difference between these intensities. The vertical colored lines show the identification of phases by Bragg position.
Figure 3. Overall fittings were obtained using Rietveld structural refinement. The red points show the observed intensities and the black line, the intensities obtained using the Rietveld structural model. The blue line indicates the difference between these intensities. The vertical colored lines show the identification of phases by Bragg position.
Metals 14 00022 g003

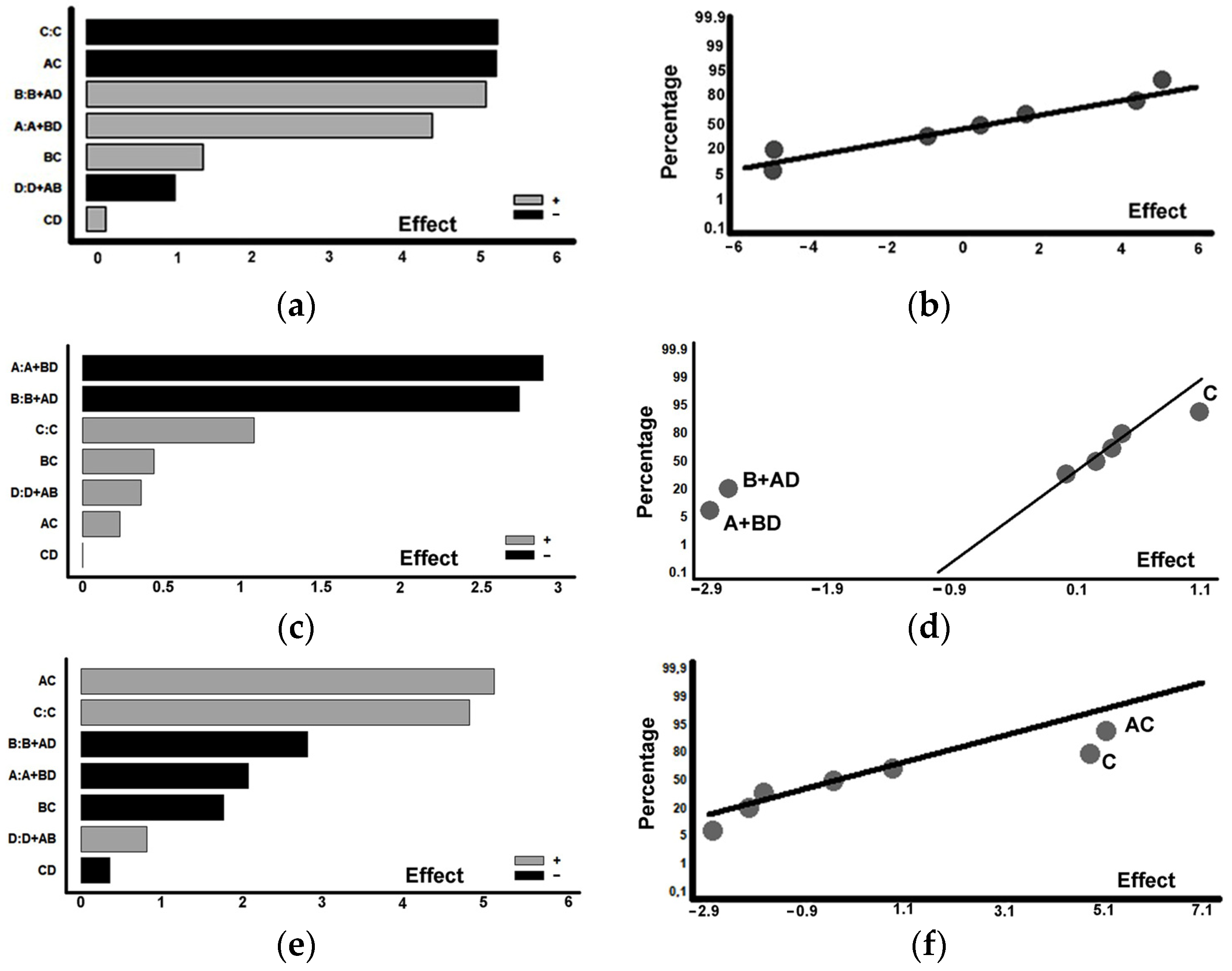

Figure 4. Graphic representation of the effects using Pareto charts and standard probability paper; (a,b) about austenite content; (c,d) about VC content; (e,f) about ferrite (tempered martensite) content. Factors with significant effects are specified.
Figure 4. Graphic representation of the effects using Pareto charts and standard probability paper; (a,b) about austenite content; (c,d) about VC content; (e,f) about ferrite (tempered martensite) content. Factors with significant effects are specified.
Metals 14 00022 g004

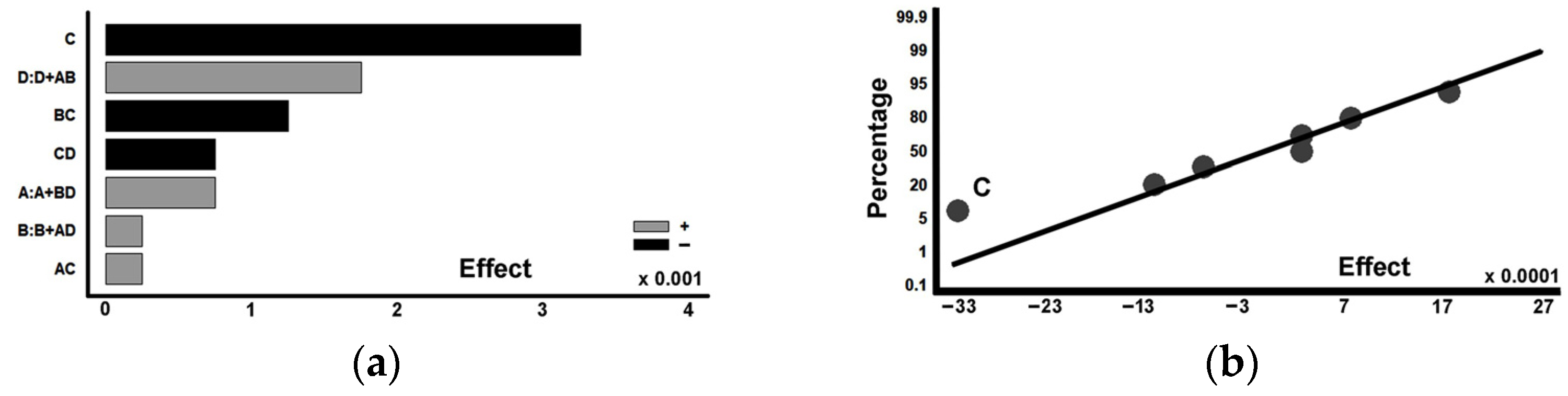

Figure 5. Graphical representation of the effects on the lattice parameter of ferrite (tempered martensite); (a) by Pareto diagram; (b) by standard probability paper. Factor C (tempering temperature) is shown as the only factor with a significant effect, so if the tempering temperature is set at 500 °C this lattice parameter increases.
Figure 5. Graphical representation of the effects on the lattice parameter of ferrite (tempered martensite); (a) by Pareto diagram; (b) by standard probability paper. Factor C (tempering temperature) is shown as the only factor with a significant effect, so if the tempering temperature is set at 500 °C this lattice parameter increases.
Metals 14 00022 g005

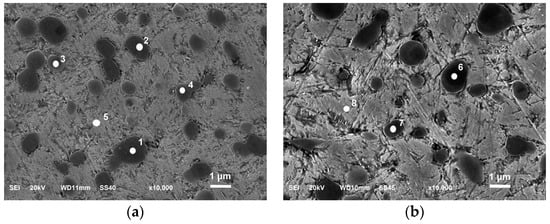

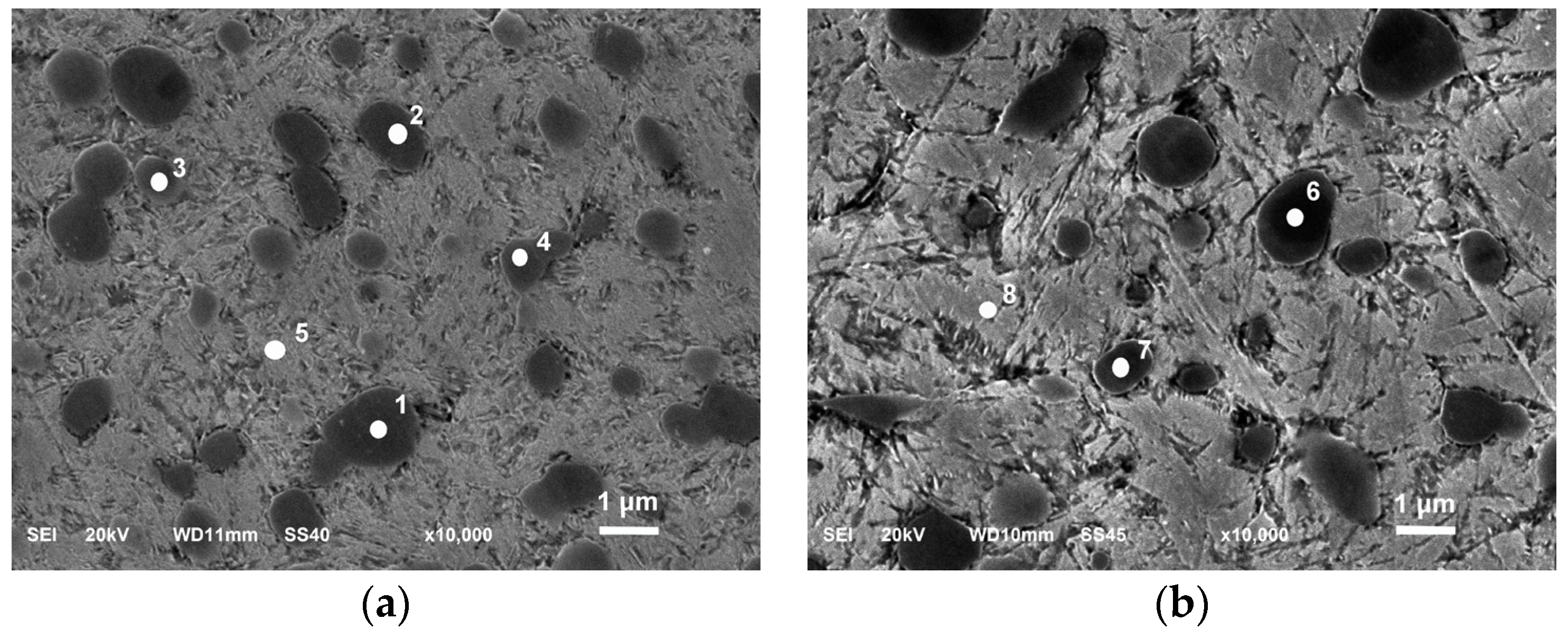

Figure 6. Microstructure after thermal processing using secondary electron images (SEI). (a) Experiment 5 (magnification of 10,000×); (b) Experiment 4 (magnification of 10,000×). Points submitted to semi-quantitative microanalysis by EDX have been pointed out.
Figure 6. Microstructure after thermal processing using secondary electron images (SEI). (a) Experiment 5 (magnification of 10,000×); (b) Experiment 4 (magnification of 10,000×). Points submitted to semi-quantitative microanalysis by EDX have been pointed out.
Metals 14 00022 g006

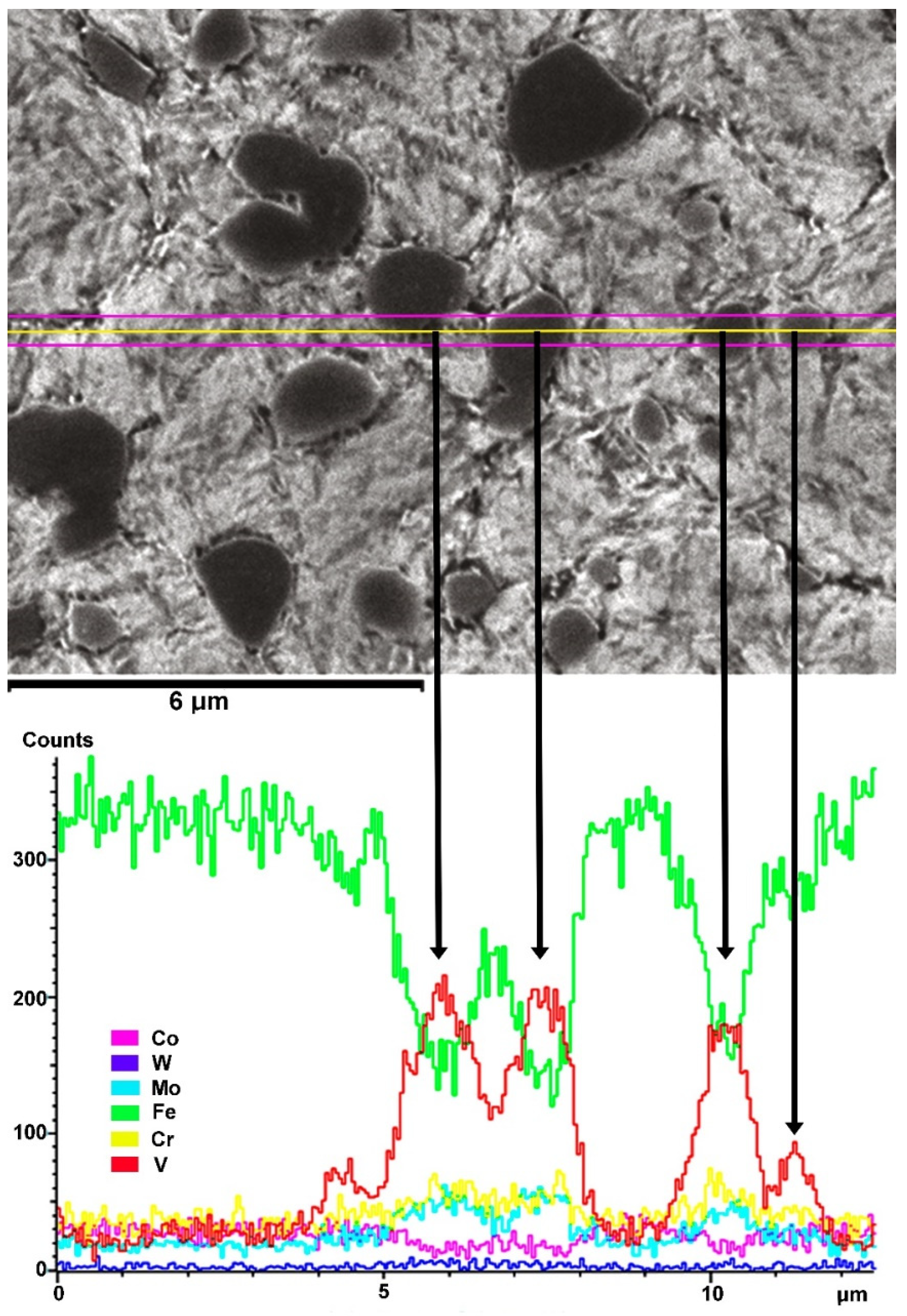

Figure 7. Semi-quantitative analysis by lineal SEM-EDX scanning on a sample taken from experiment 6. Arrows show the V relative concentration in carbides.
Figure 7. Semi-quantitative analysis by lineal SEM-EDX scanning on a sample taken from experiment 6. Arrows show the V relative concentration in carbides.
Metals 14 00022 g007

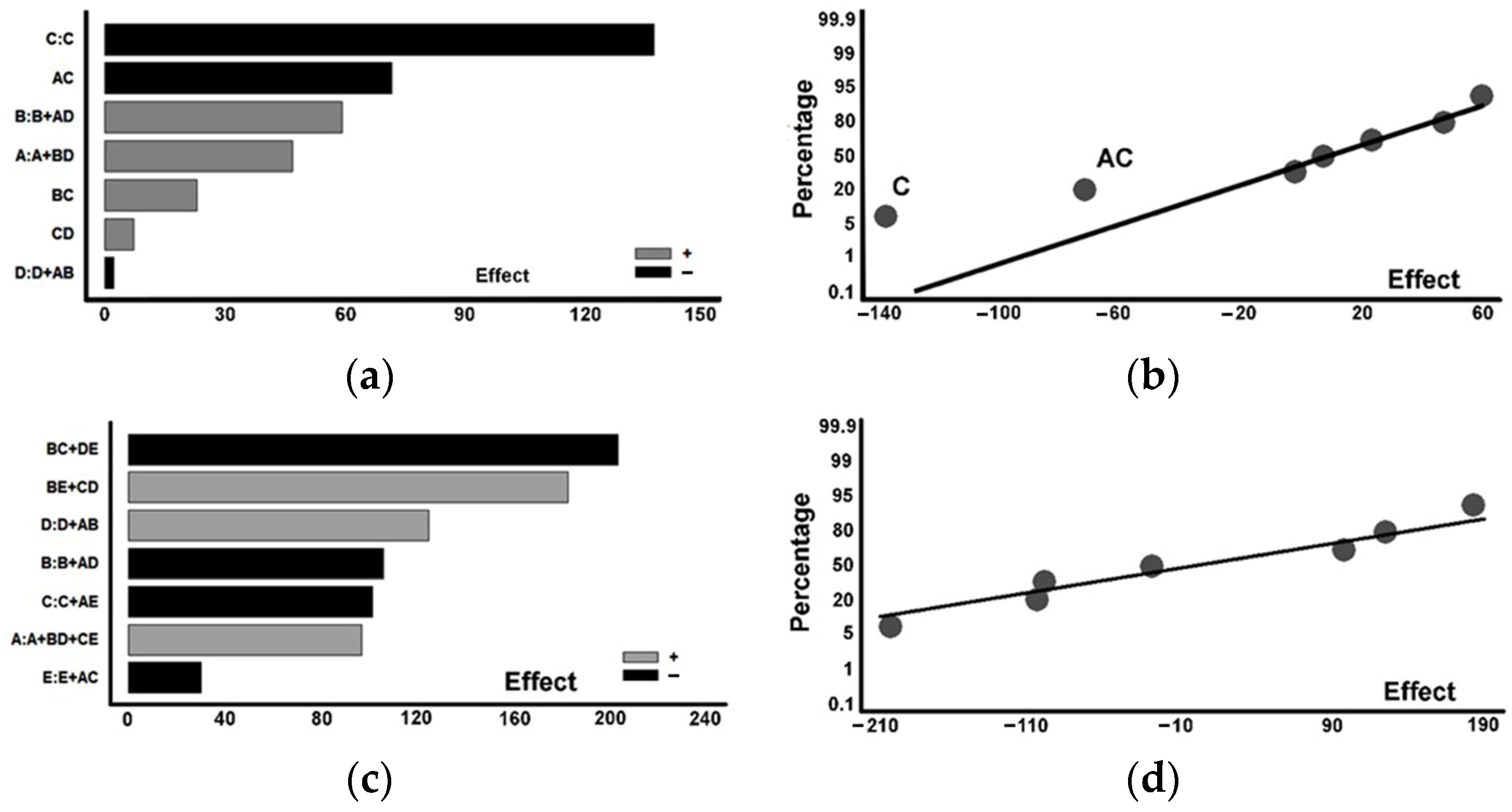

Figure 8. Graphic representation of effects on hardness by means of Pareto charts and standard probability paper; (a,b) effects on hardness of the material with no surface treatment; (c,d) effects on material hardness after surface treatment.
Figure 8. Graphic representation of effects on hardness by means of Pareto charts and standard probability paper; (a,b) effects on hardness of the material with no surface treatment; (c,d) effects on material hardness after surface treatment.
Metals 14 00022 g008

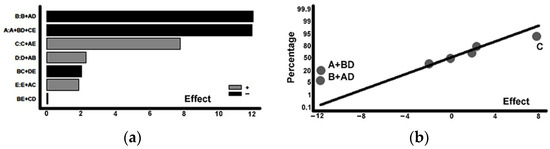

Figure 9. Graphic representation of effects on impact toughness using Charpy test; (a) Pareto chart; (b) standard probability paper. Factors and interactions with significant effects are distinguished.
Figure 9. Graphic representation of effects on impact toughness using Charpy test; (a) Pareto chart; (b) standard probability paper. Factors and interactions with significant effects are distinguished.
Metals 14 00022 g009

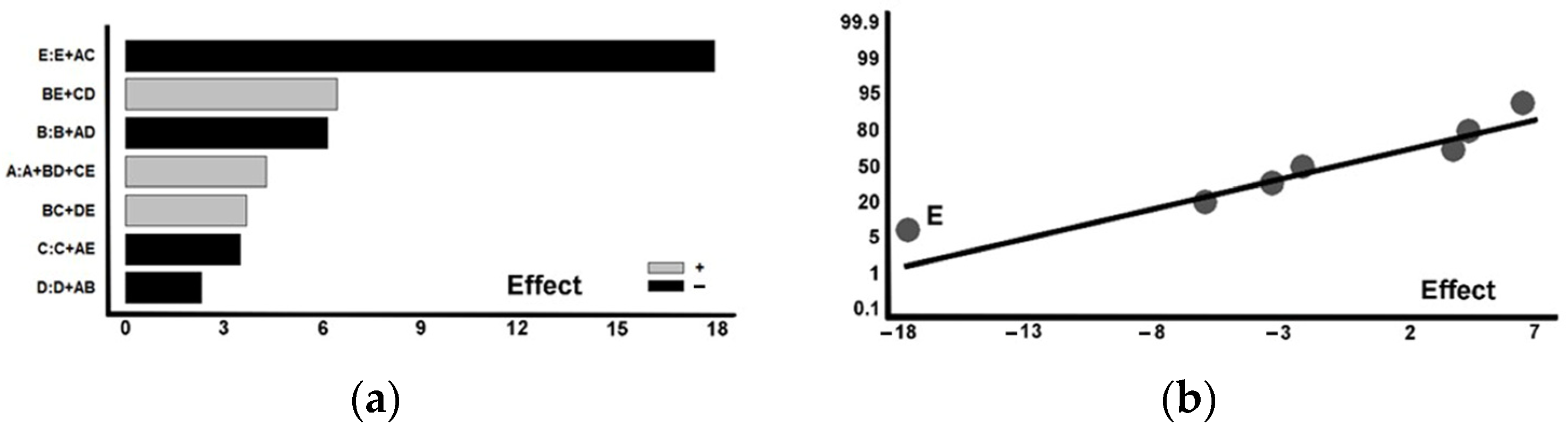

Figure 10. Graphic representation of effects on mass loss due to abrasive wear; (a) Pareto chart; (b) standard probability paper. The significant effect of the E factor (surface treatment) is distinguished.
Figure 10. Graphic representation of effects on mass loss due to abrasive wear; (a) Pareto chart; (b) standard probability paper. The significant effect of the E factor (surface treatment) is distinguished.
Metals 14 00022 g010

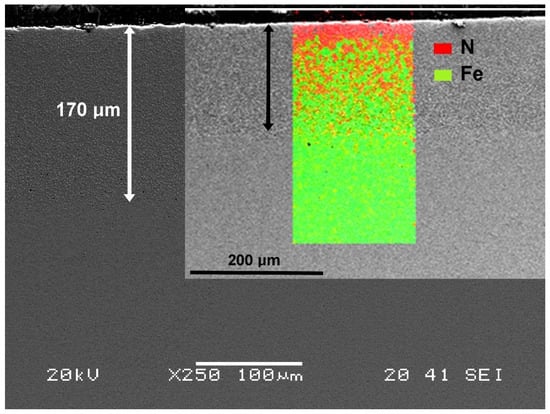

Figure 11. Nitrided layer thickness and N distribution in experiment 3.
Figure 11. Nitrided layer thickness and N distribution in experiment 3.
Metals 14 00022 g011

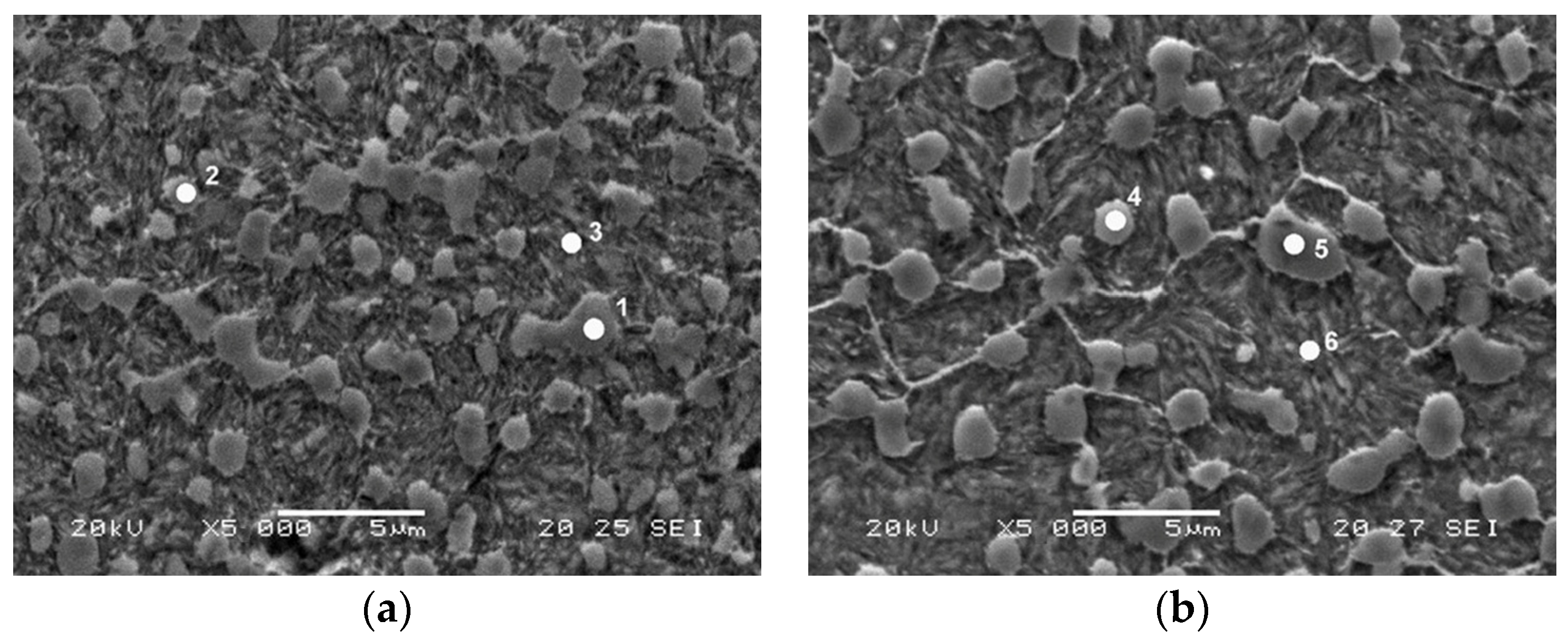

Figure 12. Nitrided layer thickness using secondary electron images (SEI). (a) Experiment 3; (b) Experiment 8. Both with a magnification of 5000×. Points submitted to semi-quantitative microanalysis by EDX are pointed out.
Figure 12. Nitrided layer thickness using secondary electron images (SEI). (a) Experiment 3; (b) Experiment 8. Both with a magnification of 5000×. Points submitted to semi-quantitative microanalysis by EDX are pointed out.
Metals 14 00022 g012
Table 1. Chemical composition of Böhler K390 steel (wt.%).
Table 1. Chemical composition of Böhler K390 steel (wt.%).
CompositionCCrMoVWCoMnSi
Böhler K3902.54.23.89.01.02.00.40.5
Table 2. Factors and levels analyzed in the design of experiments.
Table 2. Factors and levels analyzed in the design of experiments.
CodeFactorsLevel −1Level +1
AAustenitizing temperature1100 °C (1 h)1200 °C (1 h)
BCooling mediumairoil
CTempering temperature500 °C (2 h)550 °C (2 h)
DAmount of tempering23
ESurface treatmentShot-peeningnitriding
Table 3. A matrix of experiments followed in the design of experiments.
Table 3. A matrix of experiments followed in the design of experiments.
ExperimentABCDEConfusion Pattern
1−1−1−111A+BD+CE
B+AD
C+AE
D+AB
E+AC
BC+DE
BE+CD
21−1−1−1−1
3−11−1−11
411−11−1
5−1−111−1
61−11−11
7−111−1−1
811111
Table 4. Parameters used in the plasma nitriding process.
Table 4. Parameters used in the plasma nitriding process.
Gas mixture70%N2 + 30%H2
Gas flux (cm3/min)500
Temperature (°C)540
Pressure (Pa)400
Time (min)120
Output voltage (V)500
Table 5. Carbide semi-quantitative analysis is specified in Figure 2. EDX semi-quantitative microanalysis (atomic%).
Table 5. Carbide semi-quantitative analysis is specified in Figure 2. EDX semi-quantitative microanalysis (atomic%).
Spectrum%C%V%Cr%Fe%Co%Mo%W
149.006.412.5840.56--1.45--
244.696.682.3244.95--1.36--
346.915.352.1744.01--1.56--
448.784.324.2541.37--1.28--
541.928.243.2445.39--1.21--
6--13.895.0974.092.213.990.73
7--14.24.1575.781.963.220.69
Table 6. Microstructural parameters, weight distributions of the precipitated phases.
Table 6. Microstructural parameters, weight distributions of the precipitated phases.
No.Rietveld FittingPhasesa (Å)Error [a (Å)]Lattice Systemwt. %Error [wt. %]
1Rwp = 8.60Fe(BCC)2.878080.002cubic79.452.73
Rexp = 5.22Fe(FCC)3.595290.005cubic4.670.92
Chi2 = 2.71VC carbide4.172670.003cubic18.881.49
2Rwp = 9.80Fe(BCC)2.876260.002cubic71.072.57
Rexp = 5.07Fe(FCC)3.597240.003cubic16.351.41
Chi2 = 3.74VC carbide4.164490.004cubic12.581.40
3Rwp = 8.66Fe(BCC)2.877070.002Cubic77.232.46
Rexp = 4.99Fe(FCC)3.596210.004cubic10.251.11
Chi2 = 3.01VC carbide4.168320.003cubic12.521.22
4Rwp = 9.77Fe(BCC)2.880370.002cubic71.212.58
Rexp = 5.00Fe(FCC)3.601530.003cubic19.034.50
Chi2 = 3.82VC carbide4.169060.002cubic9.761.21
5Rwp = 8.18Fe(BCC)2.874920.002cubic80.552.71
Rexp = 5.43Fe(FCC)3.590230.008cubic2.980.81
Chi2 = 2.26VC carbide4.174170.003cubic16.471.41
6Rwp = 8.10Fe(BCC)2.874980.0015cubic83.142.63
Rexp = 5.22Fe(FCC)3.590250.008cubic3.400.80
Chi2 = 2.41VC carbide4.169060.002cubic13.451.21
7Rwp = 9.20Fe(BCC)2.873780.002cubic75.512.52
Rexp = 5.17Fe(FCC)3.596840.004cubic10.671.20
Chi2 = 3.16VC carbide4.168740.003cubic13.811.93
8Rwp = 8.99Fe(BCC)2.875070.002cubic79.022.59
Rexp = 5.09Fe(FCC)3.595970.004cubic9.461.12
Chi2 = 3.12VC carbide4.167940.003cubic11.521.23
Table 7. Average values and effects associated with austenite, VC, and ferrite contents.
Table 7. Average values and effects associated with austenite, VC, and ferrite contents.
ExperimentAusteniteVCFerriteEffect
(wt.%)Effect(wt.%)Effect(wt.%)Effect
14.679.60116.0813.27479.4577.147Average
216.354.91712.58−2.89271.07−2.07A + BD
310.255.50212.52−2.74277.23−2.81B + AD
419.03−5.9479.761.07771.214.81C
52.98−1.13216.470.36780.550.82D + AB
63.40−5.31213.450.23783.145.12AC
710.671.37213.810.44771.51−1.77BC
89.460.31711.52−0.00279.02−0.36CD
Table 8. Average percentages of austenite maintaining constant levels of factors A, B, and C.
Table 8. Average percentages of austenite maintaining constant levels of factors A, B, and C.
FactorLevelAustenite (wt.%)
A (austenitizing temperature)−1 (1100 °C)7.1
+1 (1200 °C)12.1
B (cooling medium)−1 (air)6.9
+1 (oil)12.4
C (tempering temperature)−1 (500 °C)12.6
+1 (550 °C)6.6
Table 9. Analysis of the A+BD and B+AD interactions, related to VC content.
Table 9. Analysis of the A+BD and B+AD interactions, related to VC content.
(a). A + BD analysis
A−1+1B(↓) × D(→)−1+1
−114.72 −113.0116.27
+1 11.82+113.1610.64
(b). B + AD analysis
B−1+1A(↓) × D(→)−1+1
−114.65 −113.1616.27
+1 11.90+113.0110.64
Table 10. Analysis of the AC interaction, related to ferrite (tempered martensite) content.
Table 10. Analysis of the AC interaction, related to ferrite (tempered martensite) content.
A(↓) × C(→)−1+1
−178.3478.03
+171.1481.08
Table 11. Ferrite (tempered martensite) lattice parameters and the effects associated with the pattern of confusion are indicated in the experimental matrix (Table 3).
Table 11. Ferrite (tempered martensite) lattice parameters and the effects associated with the pattern of confusion are indicated in the experimental matrix (Table 3).
ExperimentFe(BCC) Lattice ParameterEffect
a (Å)Effect (×10−3)
12.878082.87613Average
22.876260.7A+BD
32.877070.2B+AD
42.88037−3.2C
52.874921.7D+AB
62.874980.2AC
72.87378−1.2BC
82.87507−0.7CD
Table 12. Carbide semi-quantitative analysis is pointed out in Figure 6. Characteristic X-ray dispersion microanalysis (EDX). (atomic%).
Table 12. Carbide semi-quantitative analysis is pointed out in Figure 6. Characteristic X-ray dispersion microanalysis (EDX). (atomic%).
Spectrum%C%V%Cr%Fe%Co%Mo%W
160.1415.892.6218.39--2.96--
259.8114.562.621.2--1.83--
352.3322.773.3117.74--3.85--
444.55.753.0444.99--1.72--
5--3.005.1387.182.211.41.08
650.4421.373.2221.23--3.74--
754.426.013.1612.46--3.97--
8--5.495.0384.422.551.680.83
Table 13. Results of Vickers hardness test. Hardness was determined before surface treatments (shot peening and nitriding) by applying a load of 100 kp. Surface hardness refers to the hardness measured on the surface of the parts after the surface treatments. In this case, a load of 0.3 kp was applied. Average values and effects are included. The margin of error is included with a confidence level of 95%.
Table 13. Results of Vickers hardness test. Hardness was determined before surface treatments (shot peening and nitriding) by applying a load of 100 kp. Surface hardness refers to the hardness measured on the surface of the parts after the surface treatments. In this case, a load of 0.3 kp was applied. Average values and effects are included. The margin of error is included with a confidence level of 95%.
ExperimentHardnessSurface HardnessEffect
HV (100 Kp)CL (95%)EffectHV (0.3 Kp)CL (95%)Effect
1732±16745.61356±91446.4average
2861±747.21541±1296.7A+BD+CE
3778±1459.71511±12−105.7B+AD
4888±8−138.21582±15−101.2C+AE
5650±13−2.21670±17124.2D+AB
6620±15−72.21430±11−30.2E+AC
7728±1123.21055±4−202.7BC+DE
8708±127.21428±17182.2BE+CD
Table 14. Impact toughness results by Charpy test on unnotched specimens. Average values and effects are included. Minimum and maximum values are shown in parentheses.
Table 14. Impact toughness results by Charpy test on unnotched specimens. Average values and effects are included. Minimum and maximum values are shown in parentheses.
ExperimentCharpy TestEffect
J/cm2(J/cm2)Effect
133.91(32.39–35.18)24.74Average
217.75(16.73–18.76)−11.90A+BD
321.58(17.13–25.44)−11.97B+AD
410.19(9.65–10.81)7.77C
541.75(38.10–46.69)2.29D+AB
629.51(26.59–32.88)−1.87AC
725.54(23.28–29.32)−2.03BC
817.71(16.97–18.90)−0.09CD
Table 15. Analysis of A + BD and B + AD interactions, related to impact toughness.
Table 15. Analysis of A + BD and B + AD interactions, related to impact toughness.
(a). A + BD analysis
A−1+1B(↓) × D(→)−1+1
−130.70 −123.6337.83
+1 18.79+115.8813.95
(b). B + AD analysis
B−1+1A(↓) × D(→)−1+1
−130.73 −123.5637.83
+1 18.75+123.6313.95
Table 16. Abrasive wear resistance test results. Average values and effects are included.
Table 16. Abrasive wear resistance test results. Average values and effects are included.
ExperimentLoss WeightEffect
mgEffect
118.327.12average
249.34.3A+BD+CE
317.2−6.1B+AD
430.7−3.5C+AE
535.5−2.3D+AB
617.7−17.95E+AC
728.93.7BC+DE
819.46.4BE+CD
Table 17. Semi-quantitative analysis of points is shown in Figure 12. Typical X-ray dispersion micro-analysis (EDX). (atomic %).
Table 17. Semi-quantitative analysis of points is shown in Figure 12. Typical X-ray dispersion micro-analysis (EDX). (atomic %).
Spectrum%C%N%V%Cr%Fe%Co%Mo%W
154.0514.6411.452.8916.97------
255.3820.448.683.1512.35------
3--25.672.93.3263.642.231.390.85
455.5410.4213.442.6817.92------
554.5415.4916.982.0310.96------
6--24.292.444.6564.421.891.350.96
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

González-Pociño, A.; García-García, M.A.; Alvarez-Antolin, F.; Segurado-Frutos, E. Effect of Shot Peening and Nitriding on Toughness and Abrasive Wear Resistance of Powder Metallurgic Steels Highly Alloyed with Vanadium. Metals 2024, 14, 22. https://doi.org/10.3390/met14010022

AMA Style

González-Pociño A, García-García MA, Alvarez-Antolin F, Segurado-Frutos E. Effect of Shot Peening and Nitriding on Toughness and Abrasive Wear Resistance of Powder Metallurgic Steels Highly Alloyed with Vanadium. Metals. 2024; 14(1):22. https://doi.org/10.3390/met14010022

Chicago/Turabian Style

González-Pociño, Alejandro, María A. García-García, Florentino Alvarez-Antolin, and E. Segurado-Frutos. 2024. "Effect of Shot Peening and Nitriding on Toughness and Abrasive Wear Resistance of Powder Metallurgic Steels Highly Alloyed with Vanadium" Metals 14, no. 1: 22. https://doi.org/10.3390/met14010022

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
