Thermal Cracking and Friction Performance of Two Kinds of Compacted Graphite Iron Brake Discs under Intensive Braking Conditions
Abstract
:1. Introduction
2. Materials and Methods

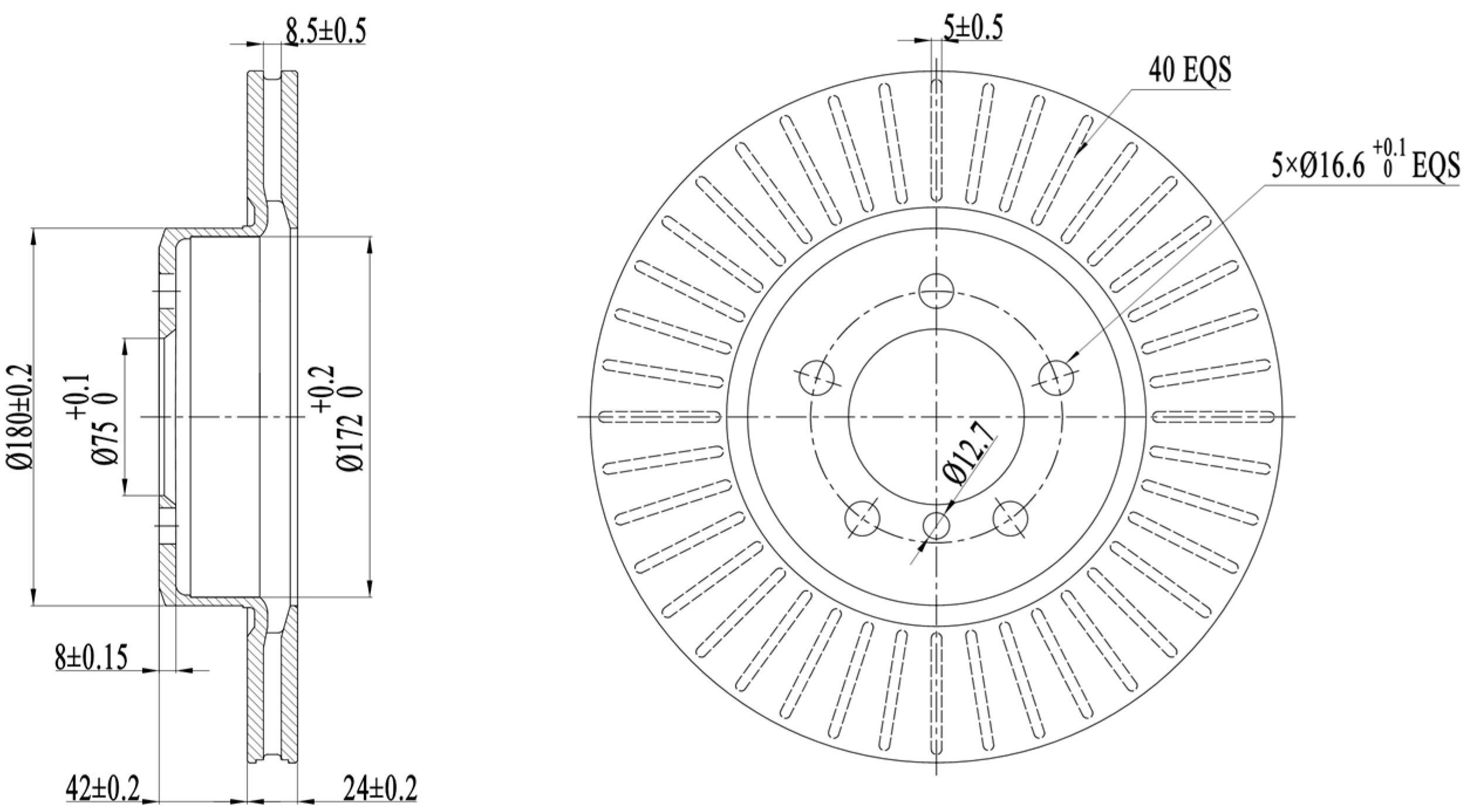

2.1. Materials
2.2. Microstructure Characterization
2.3. Mechanical and Physical Properties

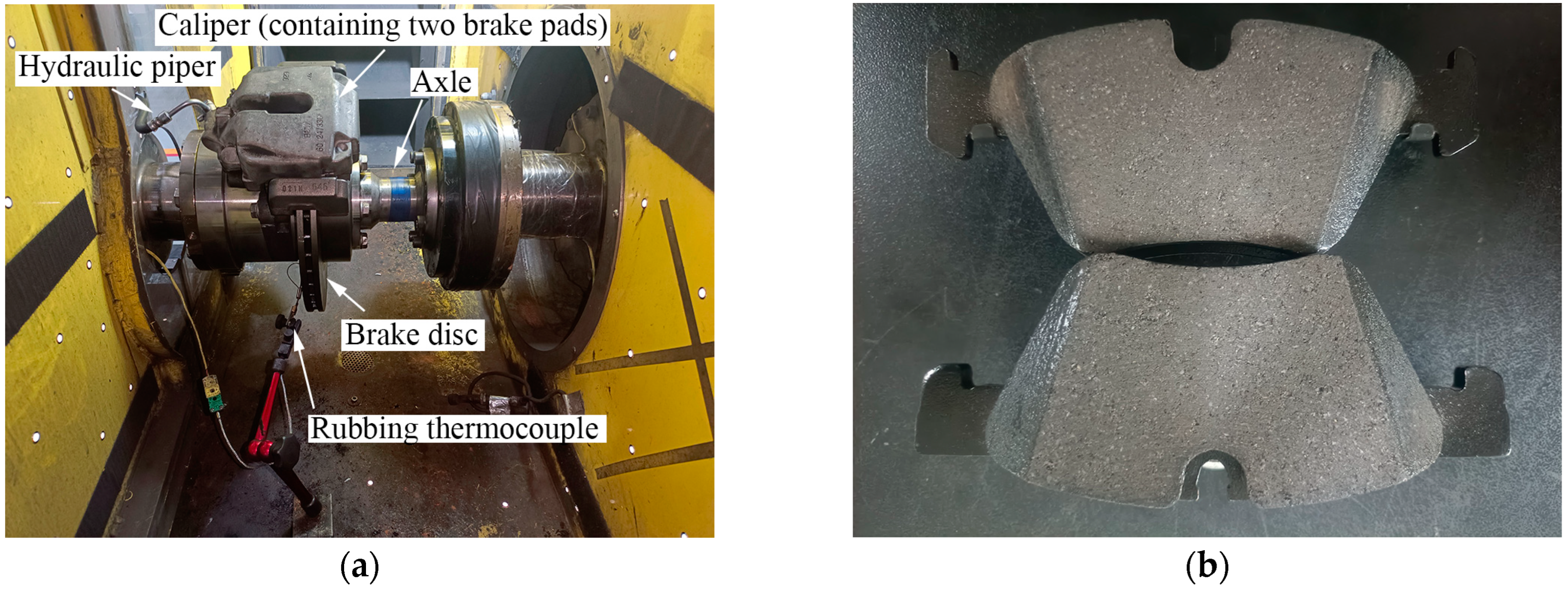

2.4. Inertia Friction Tests
3. Results and Discussion
3.1. Microstructure and Properties
3.2. Peak Temperature and Input Pressure
3.3. Friction Coefficient and Its Stability

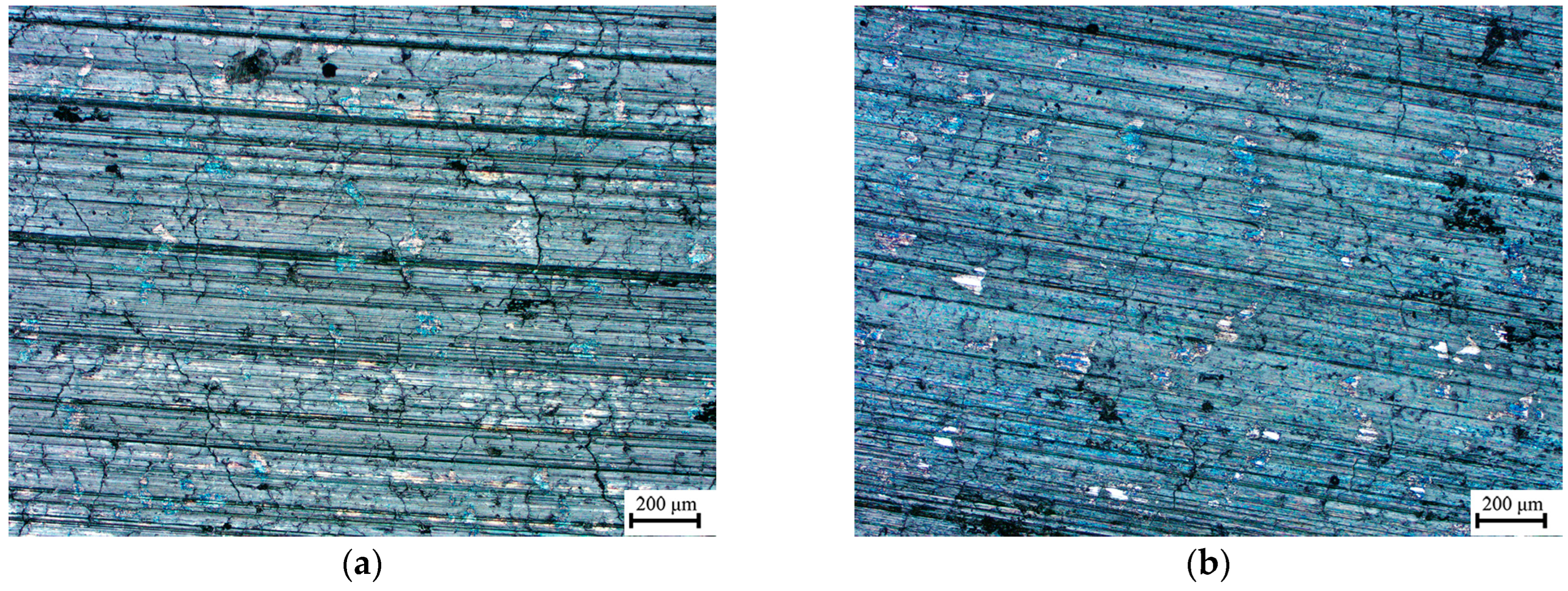

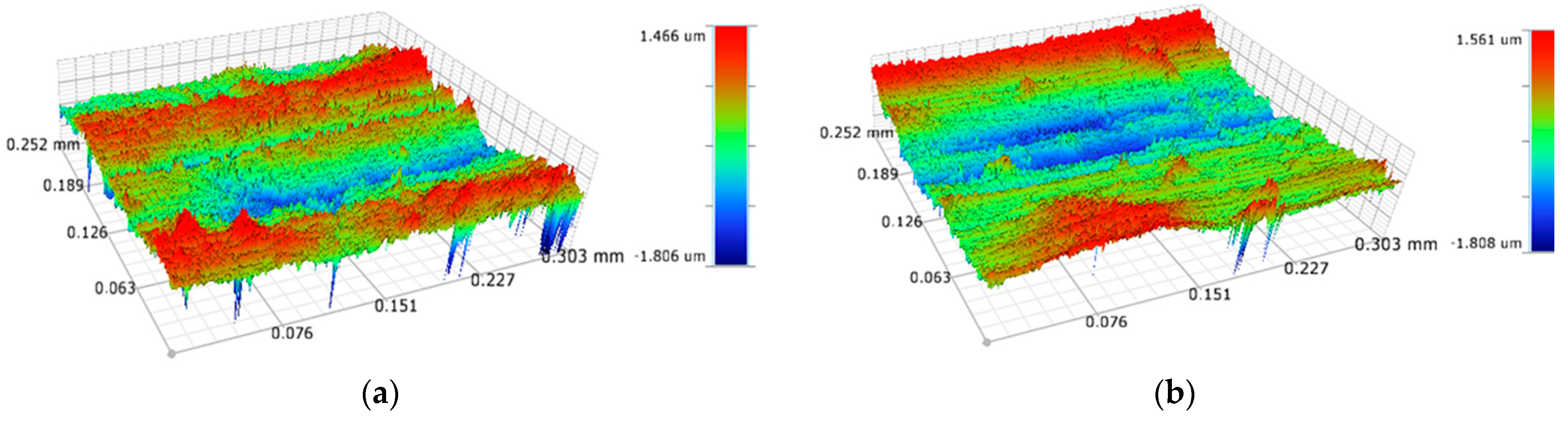

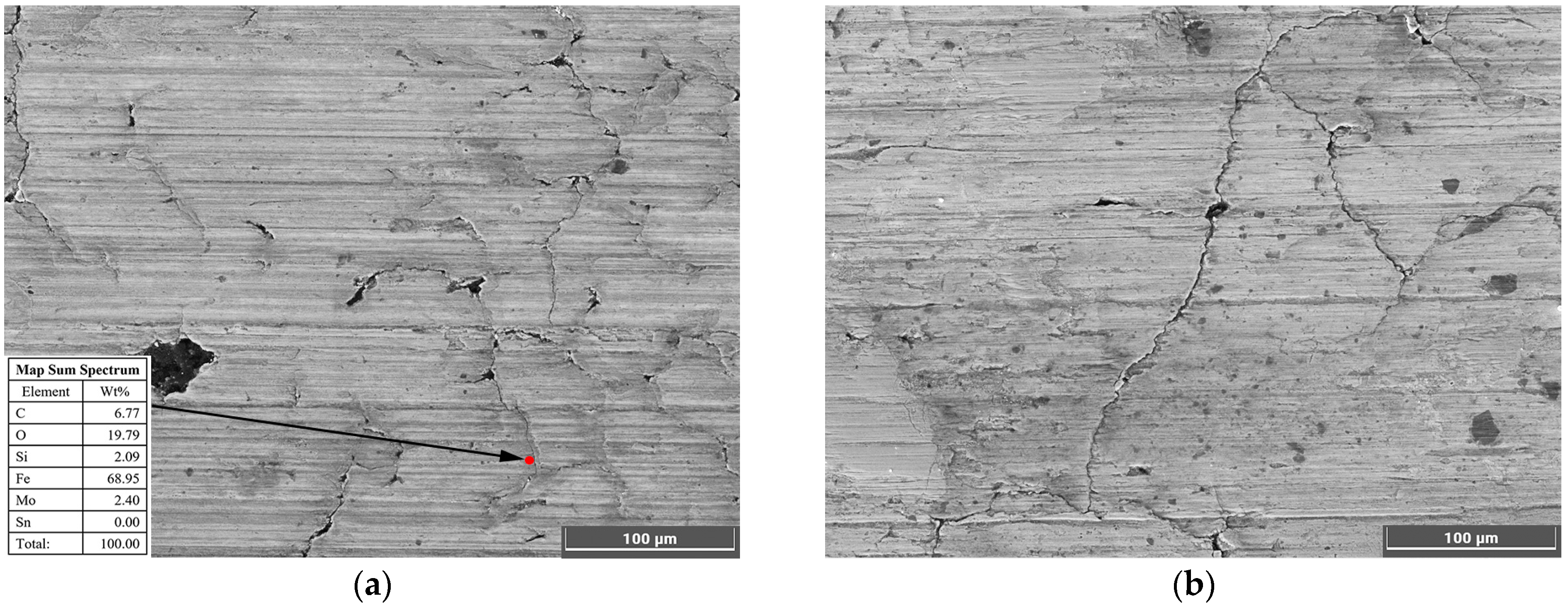

3.4. Thermal Cracks and Wear
4. Conclusions

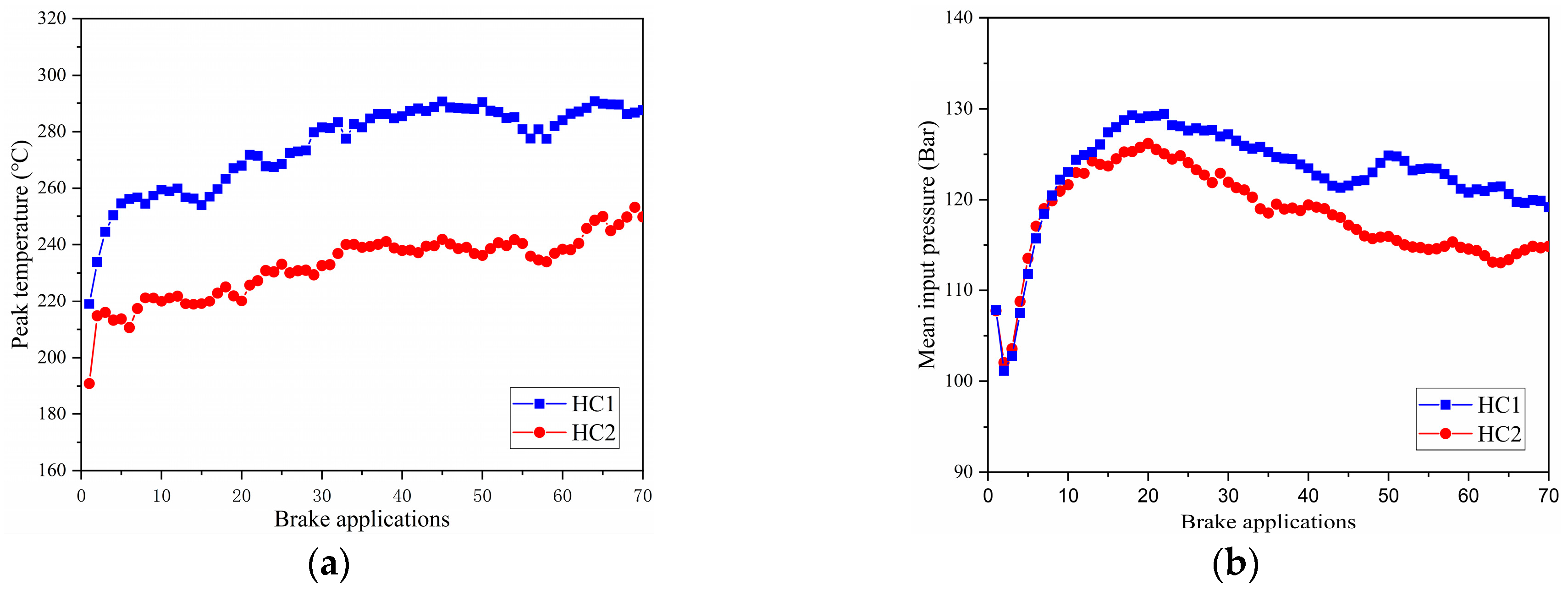

- Due to the higher thermal conductivity of ferrite compared to pearlite, the increased ferrite proportion led to a decrease in the thermal stress of the CGI discs. The peak temperature of the HC1 disc with a 49.4% ferrite proportion ranged from 250 °C to 290 °C, and the HC2 disc with an 80.1% ferrite proportion had a peak temperature range of 210 °C to 250 °C.

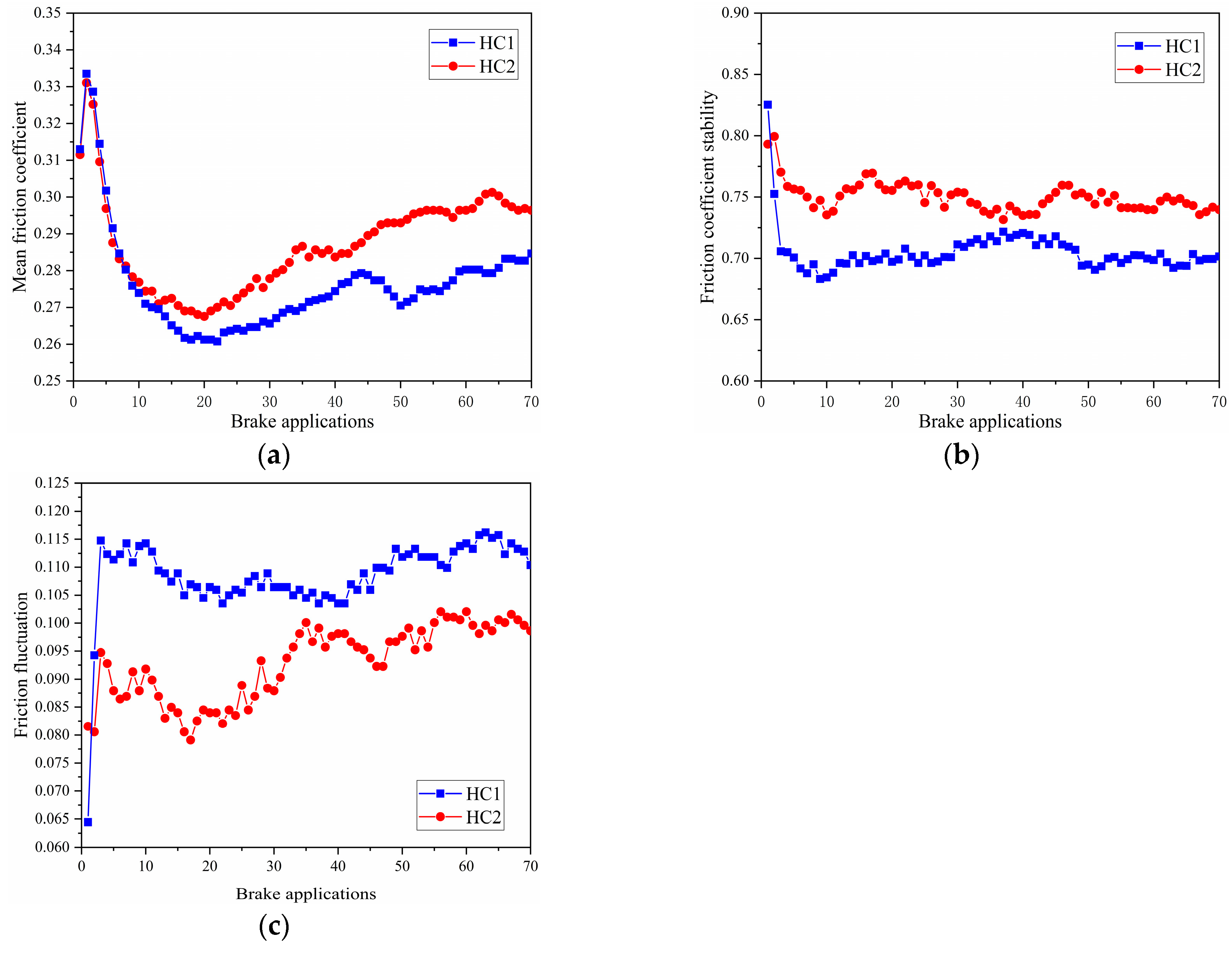

- The higher content of soft ferrite in the HC2 disc led to furrows with a larger height on the worn surface, which increased the contact area between the disc and pads. As a result, the HC2 disc–pads pair provided a higher friction coefficient and improved the stability in the friction coefficient despite having a lower peak temperature and smaller thermal expansion. Moreover, the higher friction coefficient in HC2 led to a decrease in the input pressure loads from pads under fixed deceleration.

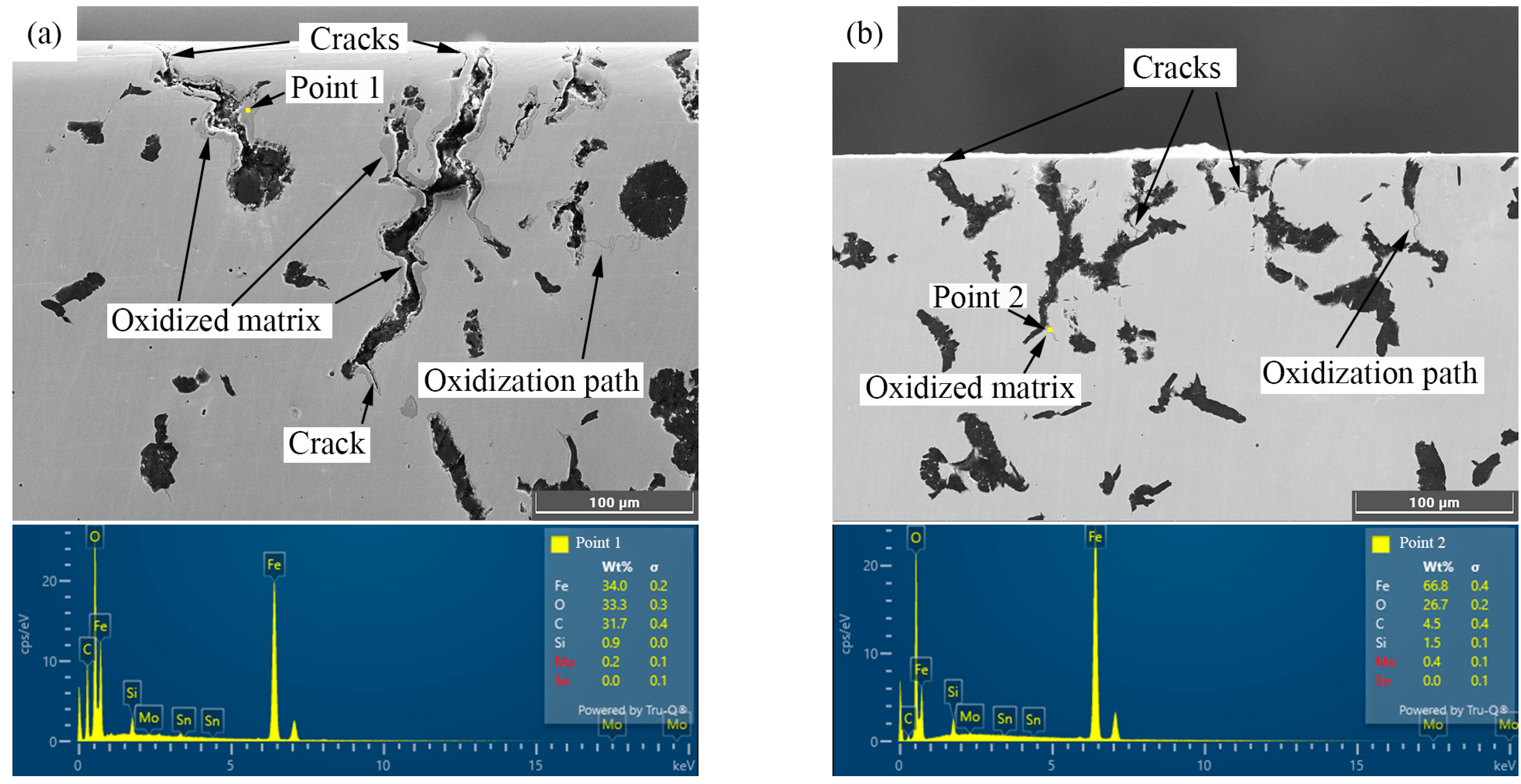

- The increase in the ferrite proportion also reduced the oxidation of the matrix in the HC2 brake disc due to lower disc temperatures. The decreased oxidation of the matrix, along with lower thermal stresses and reduced pressure loads, resulted in fewer thermal cracks in the HC2 brake disc.
