Martensitic Transformation in Ni-Mn-Sn-Co Heusler Alloys

Abstract

Thermal and structural austenite to martensite reversible transition was studied in melt spun ribbons of Ni₅₀Mn₄₀Sn₅Co₅, Ni₅₀Mn_37.5Sn_7.5Co₅ and Ni₅₀Mn₃₅Sn₁₀Co₅ (at. %) alloys. Analysis of X-ray diffraction patterns confirms that all alloys have martensitic structure at room temperature: four layered orthorhombic 4O for Ni₅₀Mn₄₀Sn₅Co₅, four layered orthorhombic 4O and seven-layered monoclinic 14M for Ni₅₀Mn_37.5Sn_7.5Co₅ and seven-layered monoclinic 14M for Ni₅₀Mn₃₅Sn₅Co₅. Analysis of differential scanning calorimetry scans shows that higher enthalpy and entropy changes are obtained for alloy Ni₅₀Mn_37.5Sn_7.5Co₅, whereas transition temperatures increases as increasing valence electron density.

1. Introduction

Ferromagnetic shape memory (FSM) alloys are of considerable interest due to their exceptional magnetoelastic properties. Their potential functional properties include: Magnetic superelasticity [1], large inverse magnetocaloric effect [2] and large magneto-resistance change [3]. Most of these effects are ascribed to the existence of a first order martensitic transformation with a strong magneto-structural coupling. Transformation temperatures of shape memory alloys depend on the composition and their values spread to a very wide range [4]. These materials are interesting for the development of new magnetically driven actuators, sensors and coolers for magnetic refrigeration [5].

FSM behavior is found in Heusler alloys, which have a generic formula X₂YZ and are defined as ternary intermetallic systems with L2₁ crystalline cubic structure. The most extensively studied Heusler alloys are those based on the Ni-Mn-Ga system. However, to overcome some of the problems related with practical applications (such as the high cost of Gallium and the usually low martensitic transformation temperature), Ga-free alloys have been searched and analyzed frequently during the last few decades, specifically with the introduction of In or Sn. Martensitic transformation in ferromagnetic Heusler Ni₅₀Mn_50−xSn_x bulk alloys with 10 ≤ x ≤ 16.5 was first reported by Sutou et al. [6]. Later, Krenke et al. studied magnetic and magnetocaloric properties and phase transformations in Ni₅₀Mn_50−xSn_x alloys with 5 ≤ x ≤ 25 [7]. Rapid solidification techniques, such as melt-spinning, are an alternative to obtain these materials (ribbon shape) [8,9].

Another important factor affecting the magnetic behavior of Ni-Mn-Sn and Ni-Mn-Sn-Co systems is the annealing process. Some authors have found different magnetic behavior in melt-spun Ni-Mn-Sn-Co ribbons annealed at temperatures from 973 K to 1173 K [10,11].

In our work, we investigate the structural and thermal behavior of three melt-spun alloys of the Ni-Mn-Sn-Co system (by modifying Mn and Sn atomic %). These ribbons were not annealed.

2. Experimental Section

Polycrystalline Ni-Mn-Sn-Co alloy ingots were prepared by arc melting high purity (99.99%) elements under argon environment in a water-cooled quartz crucible. The ingots were melted three times to ensure a good homogeneity. Thus, ingots were melt-spun on a rotating copper wheel (Buheler, Lake Bluff, IL, USA) set by controlling process parameters as: Linear wheel speed (48 ms⁻¹), atmosphere (argon, 400 mbar), injection overpressure (500 mbar) and distance between wheel and injection quartz crucible (3 mm). The as-spun ribbon samples (Alfa Aesar, Heysham, UK) obtained were: Ni₅₀Mn₄₀Sn₅Co₅, Ni₅₀Mn_37.5Sn_7.5Co₅ and Ni₅₀Mn₃₅Sn₁₀Co₅ (at. %). The main difference among these alloys is the partial substitution of Mn by Sn whereas the content of Co and Mn is constant.

Thermal and structural analyses were performed by applying several techniques. Scanning electron microscopy (SEM) investigations were carried out using a Zeiss DSM 960A microscope (Zeiss, Jena, Germany) operating at 30 kV and linked to an energy dispersive X-ray spectrometer (EDX; Zeiss, Jena, Germany). X-ray diffraction (XRD) analyses were performed at room temperature with a Siemens D500 X-ray powder diffractometer (Bruker, Bullerica, MA, USA) using Cu-K_α radiation. Thermal analyses were performed by differential scanning calorimetry (DSC) using a DSC822e calorimeter of Mettler-Toledo (Mettler Toledo, Columbus, OH, USA) working at a heating/cooling rate of 10 K/min under argon atmosphere.

3. Results and Discussion

Heusler alloys produced by melt spinning show a typical columnar structure in the fracture cross section. Figure 1 shows the micrographs of the fracture section of alloys Ni₅₀Mn₄₀Sn₅Co₅, Ni₅₀Mn_37.5Sn_7.5Co₅ and Ni₅₀Mn₃₅Sn₁₀Co₅, labeled as A, B and C respectively. All ribbon flakes have a similar morphology which consists of: fully crystalline and granular columnar type microstructure. This is a sign of the quick crystallization and fast growth kinetics of the samples. This suggests that the heat removal during rapid solidification process induces the directional growth of the crystalline phase. The ribbons’ width is also similar (between 12 and 15 µm).

Figure 1. SEM micrographs of the cross section of alloys Ni₅₀Mn₄₀Sn₅Co₅, Ni₅₀Mn_37.5Sn_7.5Co₅ and Ni₅₀Mn₃₅Sn₁₀Co₅, labeled as (A), (B) and (C) inside the figure.

Figure 1. SEM micrographs of the cross section of alloys Ni₅₀Mn₄₀Sn₅Co₅, Ni₅₀Mn_37.5Sn_7.5Co₅ and Ni₅₀Mn₃₅Sn₁₀Co₅, labeled as (A), (B) and (C) inside the figure.

Crystalline structures at room temperature were determined by analyzing X-Ray diffraction patterns of the three samples (see Figure 2, Figure 3 and Figure 4 for alloys Ni₅₀Mn₄₀Sn₅Co₅; Ni₅₀Mn_37.5Sn_7.5Co₅ and Ni₅₀Mn₃₅Sn₁₀Co₅ respectively). X-ray diffraction analysis begins with in an indexation based on the identification proposed by other authors [7,12,13]. The lattice parameters were first calculated minimizing the global interplanar spacing (d_hkl) error; defined as the difference between the values calculated from the Bragg equation to every identified peak of the XRD pattern compared to the crystal system geometry equation.

It is found that, at room temperature, all alloys have martensitic structure. This martensitic structure is confirmed to be four layered orthorhombic 4O for Ni₅₀Mn₄₀Sn₅Co₅, four layered orthorhombic 4O and seven-layered monoclinic 14M for Ni₅₀Mn_37.5Sn_7.5Co₅ and seven-layered monoclinic 14M for Ni₅₀Mn₃₅Sn₁₀Co₅. Lattice parameters are given in Table 1 (for Ni₅₀Mn_37.5Sn_7.5Co₅ alloy only parameters from the main phase, 4O, are given).

In our work it is found that substituting Mn with Sn favors to the formation of the modulated 14M monoclinic structure. Thus, the martensitic structure is 4O in samples with higher Mn/Sn ratio and 14M in samples with lower Mn/Sn ratio. Opposite behavior was found in Ni-Mn-Sn bulk alloys without Co [14]. Thus, the Co addition probably influences what kind of martensitic phase is more stable. In Ni-Mn-Sn-Co ribbons, it was found that the addition of Co favors the evolution of the martensitic crystalline structure from a four-layered orthorhombic (4O) to a five-layered orthorhombic (10M) and finally to a seven-layered monoclinic (14M) [15]. Thus, the addition of Co favors the formation of the 14M structure. This effect was not found in our alloys, probably because Co content is constant. Furthermore, it has been also found that the martensitic crystal structure changes from 14M in the bulk alloy to 4O in the melt spun ribbons due to the high oriented microstructure [16]. In summary, the differences between our results and results from bibliography can be influenced by the combination of these three factors: Co constant content, Mn/Sn ratio and high oriented ribbons microstructure. More than three alloys are needed to check the influence of these parameters.

Table 1. Crystalline structure and lattice parameters of Ni₅₀Mn₄₀Sn₅Co₅, Ni₅₀Mn_37.5Sn_7.5Co₅ and Ni₅₀Mn₃₅Sn₁₀Co₅. The angle of the monoclinic 14M structure is 95.56°, (for Ni₅₀Mn_37.5Sn_7.5Co₅ alloy only parameters from the main phase are given).

Alloy	Crystalline structure	Lattice Parameter a/nm	Lattice Parameter b/nm	Lattice Parameter c/nm
Ni50Mn40Sn5Co5	4O	0.8828	0.5817	0.4274
Ni50Mn37.5Sn7.5Co5	4O	0.8922	0.5892	0.4281
Ni50Mn35Sn10Co5	14M	0.4298	0.5612	2.9441

Table 1. Crystalline structure and lattice parameters of Ni₅₀Mn₄₀Sn₅Co₅, Ni₅₀Mn_37.5Sn_7.5Co₅ and Ni₅₀Mn₃₅Sn₁₀Co₅. The angle of the monoclinic 14M structure is 95.56°, (for Ni₅₀Mn_37.5Sn_7.5Co₅ alloy only parameters from the main phase are given).

Alloy	Crystalline structure	Lattice Parameter a/nm	Lattice Parameter b/nm	Lattice Parameter c/nm
Ni50Mn40Sn5Co5	4O	0.8828	0.5817	0.4274
Ni50Mn37.5Sn7.5Co5	4O	0.8922	0.5892	0.4281
Ni50Mn35Sn10Co5	14M	0.4298	0.5612	2.9441

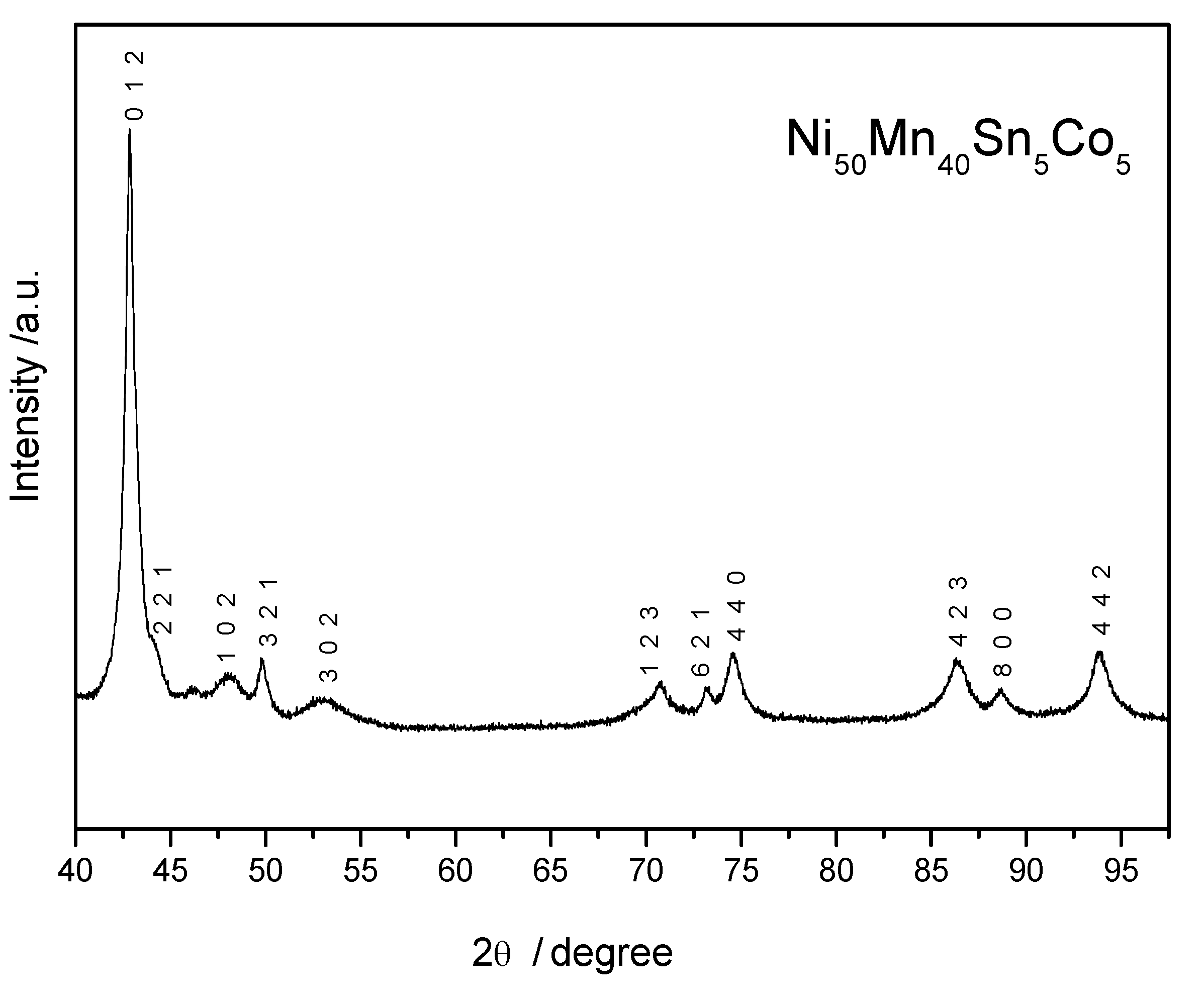

Figure 2. X-ray diffraction (XRD) pattern, at room temperature, of Ni₅₀Mn₄₀Sn₅Co₅ ribbon. The indexation corresponds to a four-layered 40 orthorhombic structure.

Figure 2. X-ray diffraction (XRD) pattern, at room temperature, of Ni₅₀Mn₄₀Sn₅Co₅ ribbon. The indexation corresponds to a four-layered 40 orthorhombic structure.

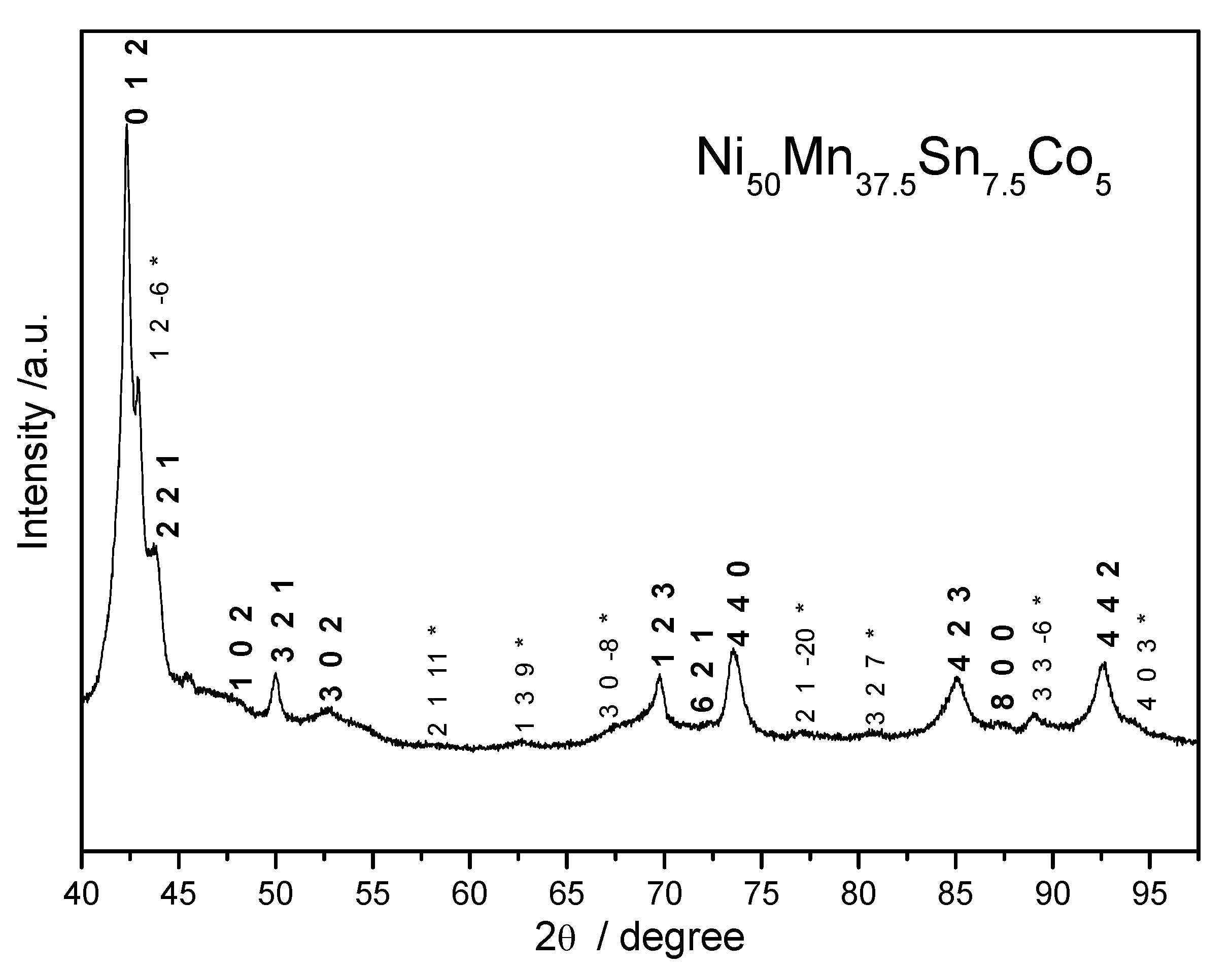

Figure 3. XRD pattern, at room temperature, of Ni₅₀Mn_37.5Sn_7.5Co₅ ribbon. The indexation of the main phase corresponds to a four-layered 40 orthorhombic structure, whereas peaks marked with * correspond to a modulated monoclinic seven-layered 14M structure.

Figure 3. XRD pattern, at room temperature, of Ni₅₀Mn_37.5Sn_7.5Co₅ ribbon. The indexation of the main phase corresponds to a four-layered 40 orthorhombic structure, whereas peaks marked with * correspond to a modulated monoclinic seven-layered 14M structure.

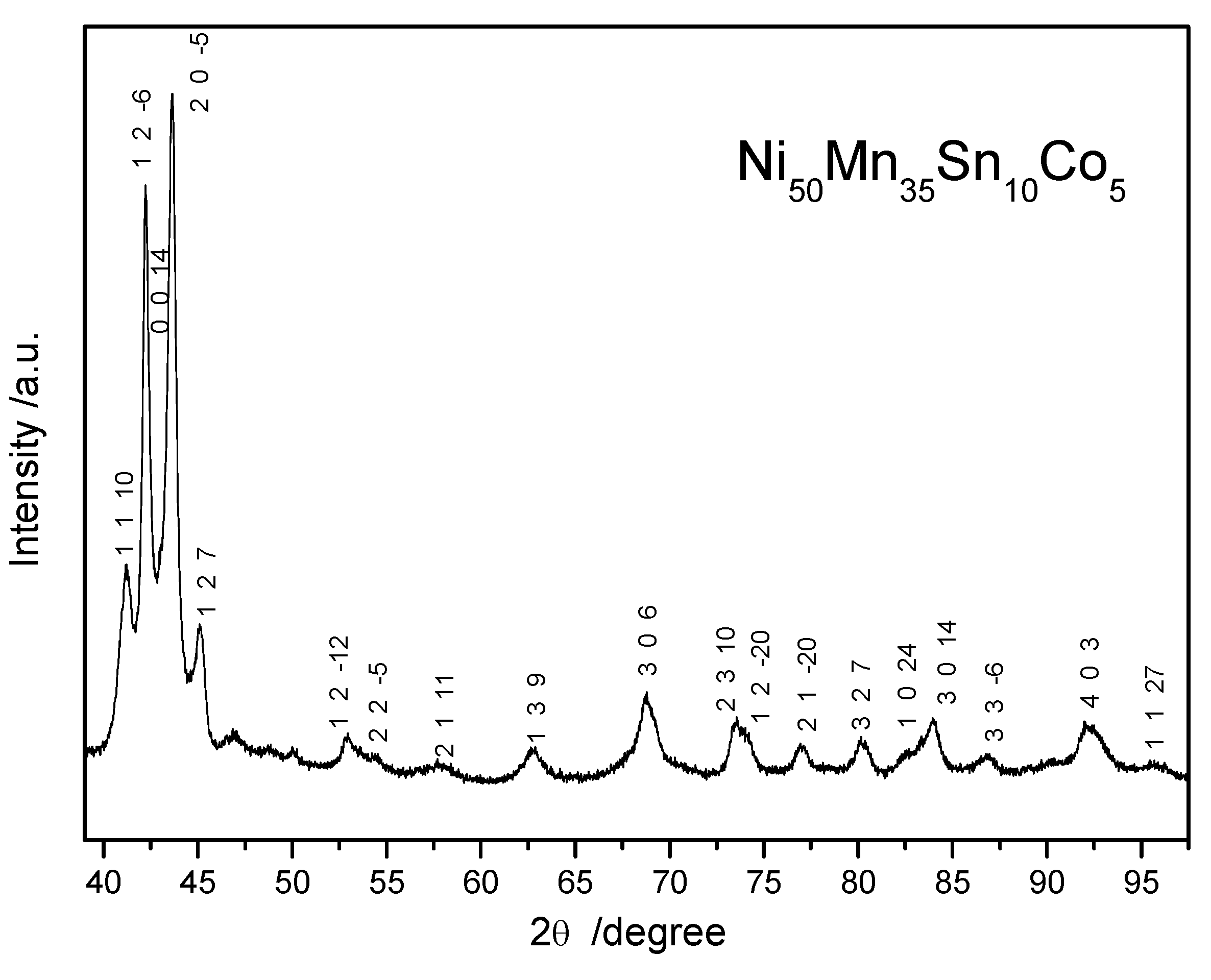

Figure 4. XRD pattern, at room temperature, of Ni₅₀Mn₃₅Sn₁₀Co₅ ribbon. The indexation of the main phase correspond to a modulated monoclinic seven-layered 14M structure.

Figure 4. XRD pattern, at room temperature, of Ni₅₀Mn₃₅Sn₁₀Co₅ ribbon. The indexation of the main phase correspond to a modulated monoclinic seven-layered 14M structure.

At room temperature, XRD show that all samples have a martensitic phase. Thus, the occurrence of the martensitic transformation should be checked by DSC heating from room temperature (see Figure 5, Figure 6 and Figure 7). The reversible austenite—martensite transformation was found in all samples. The absence of any secondary thermal process suggests that the produced ribbons are homogeneous. From DSC analysis characteristic transformation temperatures are determined. Start and finishing martensite and austenite transformation temperatures are referred as M_s, M_f and A_s, A_f respectively.

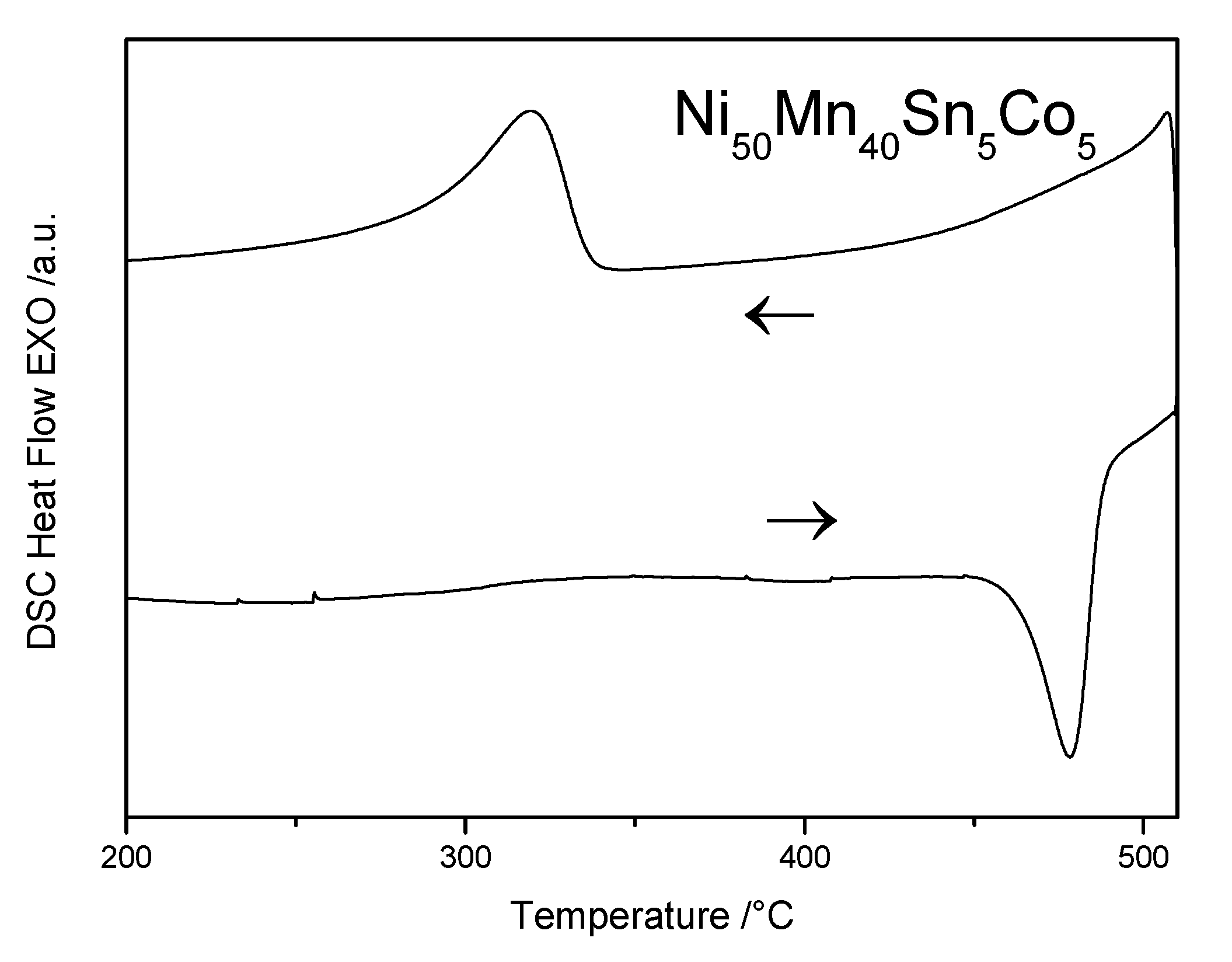

Figure 5. Differential scanning calorimetry (DSC) cyclic scan of alloy Ni₅₀Mn₄₀Sn₅Co₅.

Figure 5. Differential scanning calorimetry (DSC) cyclic scan of alloy Ni₅₀Mn₄₀Sn₅Co₅.

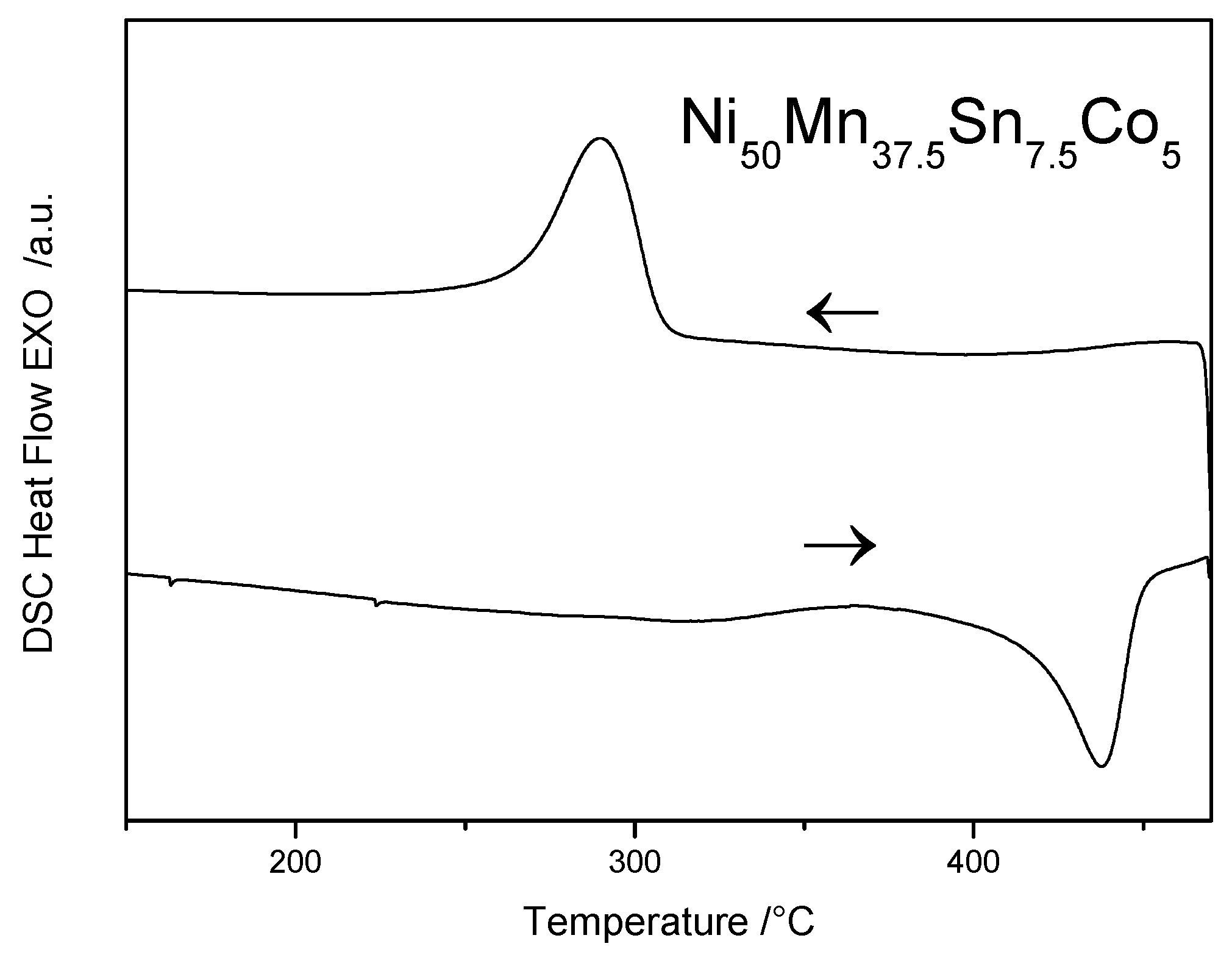

Figure 6. DSC cyclic scan of alloy Ni₅₀Mn_37.5Sn_7.5Co₅.

Figure 6. DSC cyclic scan of alloy Ni₅₀Mn_37.5Sn_7.5Co₅.

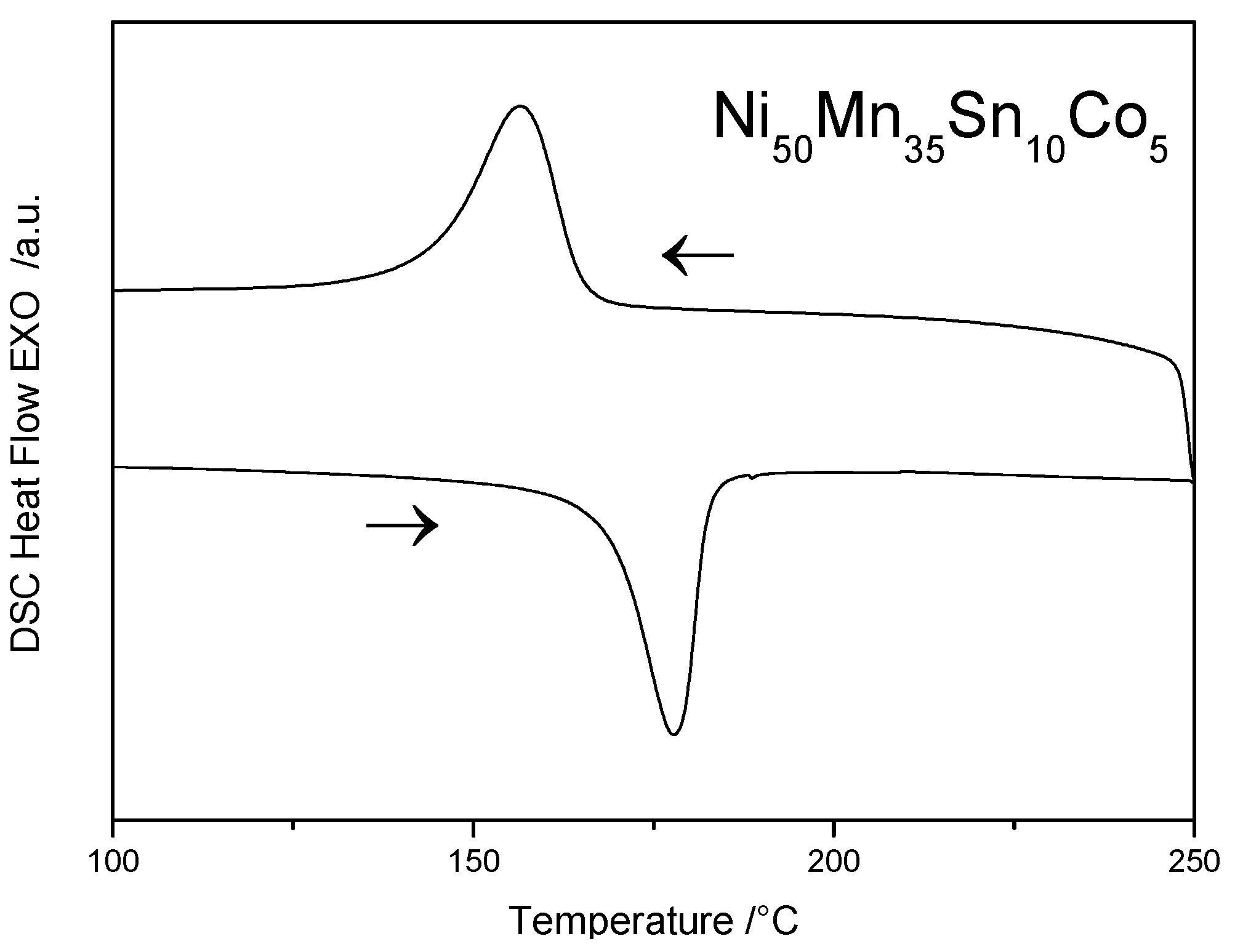

Figure 7. DSC cyclic scan of alloy Ni₅₀Mn₃₅Sn₁₀Co₅.

Figure 7. DSC cyclic scan of alloy Ni₅₀Mn₃₅Sn₁₀Co₅.

The martensitic transformation of Ni-Mn-Sn alloys is athermal in nature although a time-depending effect is observed through calorimetry interrupted measurements [17]. The thermal hysteresis, ΔT, exists due to the increase of the elastic and the surface energies during the martensitic formation. Thus, the nucleation of the martensite implies supercooling.

The equilibrium transformation temperature between martensite and austenite, T_o, is usually defined as (M_s + A_f)/2. All the characteristic temperatures are given in Table 2.

Table 2. Characteristic temperatures and thermal hysteresis as determined from DSC cyclic scans: Ni₅₀Mn₄₀Sn₅Co₅, Ni₅₀Mn_37.5Sn_7.5Co₅ and Ni₅₀Mn₃₅Sn₁₀Co₅. Start and finishing martensite and austenite formation temperatures are referred as M_s, M_f and A_s, A_f respectively. Thermal hysteresis, ΔT, and equilibrium transformation temperature between martensite and austenite, T_o.

Alloy	Ms/K	Mf/K	As/K	Af/K	To/K	ΔT/K
Ni50Mn40Sn5Co5	616.8	477.2	723.8	764.8	690.8	158.1
Ni50Mn37.5Sn7.5Co5	593.3	478.0	677.7	727.8	660.6	146.7
Ni50Mn35Sn10Co5	453.2	398.2	432.1	474.9	464.1	25.5

Table 2. Characteristic temperatures and thermal hysteresis as determined from DSC cyclic scans: Ni₅₀Mn₄₀Sn₅Co₅, Ni₅₀Mn_37.5Sn_7.5Co₅ and Ni₅₀Mn₃₅Sn₁₀Co₅. Start and finishing martensite and austenite formation temperatures are referred as M_s, M_f and A_s, A_f respectively. Thermal hysteresis, ΔT, and equilibrium transformation temperature between martensite and austenite, T_o.

Alloy	Ms/K	Mf/K	As/K	Af/K	To/K	ΔT/K
Ni50Mn40Sn5Co5	616.8	477.2	723.8	764.8	690.8	158.1
Ni50Mn37.5Sn7.5Co5	593.3	478.0	677.7	727.8	660.6	146.7
Ni50Mn35Sn10Co5	453.2	398.2	432.1	474.9	464.1	25.5

It is found that substituting Mn by Sn favors the decrease of the phase transition temperatures. Opposite effect was found in bulk Ni-Mn-Sn alloys without Co [14]. Similarly, the addition of Co in Ni-Mn-Sn melt-spun alloys increases martensitic transformation temperatures [16]. When doping the alloys, it is important which atom is substituted. In Ni-Mn-Sn-Fe bulk alloys the partial substitution of Mn by Fe causes a diminution of the transition temperatures [12]. The same effect is observed in our alloys by substituting Mn by Co. Likewise, the partial substitution of Mn does not induce a general trend in the temperatures [13] whereas Co addition in Ni-Mn-Ga alloys increases the temperatures of the martensitic transformation [18]. Furthermore, annealing also modifies transformation temperatures and thermal hysteresis [10]. Thus, so many parameters affect structural transformation to assure which parameter determines the behavior of our samples.

Changes in enthalpy, ΔH, and entropy, ΔS, during structural transformation are calculated from the area of the DSC peaks. Figure 8 shows its evolution as a function of the average valence electron density (e/a). The shift on the characteristic temperatures and thermodynamic parameters is related to e/a [19]. The valence electrons per atom are 10 (3d⁸4s²) for Ni, 9 (3d⁷4s²) for Co, 7 (3d⁵4s²) for Mn and 4 (5s²5p²) for Sn, respectively.

Energy-dispersive X-ray spectroscopy microanalysis has been used to obtain the exact composition of every sample and to calculate e/a parameter. EDX elemental composition and average valence electron density are presented in Table 3.

Higher values of enthalpy and entropy are those of Ni₅₀Mn_37.5Sn_7.5Co₅ alloy, probably due to the coexistence of two crystalline phases.

One of the most typical ferromagnetic shape memory alloy phase diagram is the graphical representation of the martensitic start temperature as a function of the Z element content or as a function of the average valence electron density. In Figure 9 we represent M_s temperatures obtained in this work (symbols) and those obtained assuming linear relation in Ni-Mn-Sn bulk alloys [20].

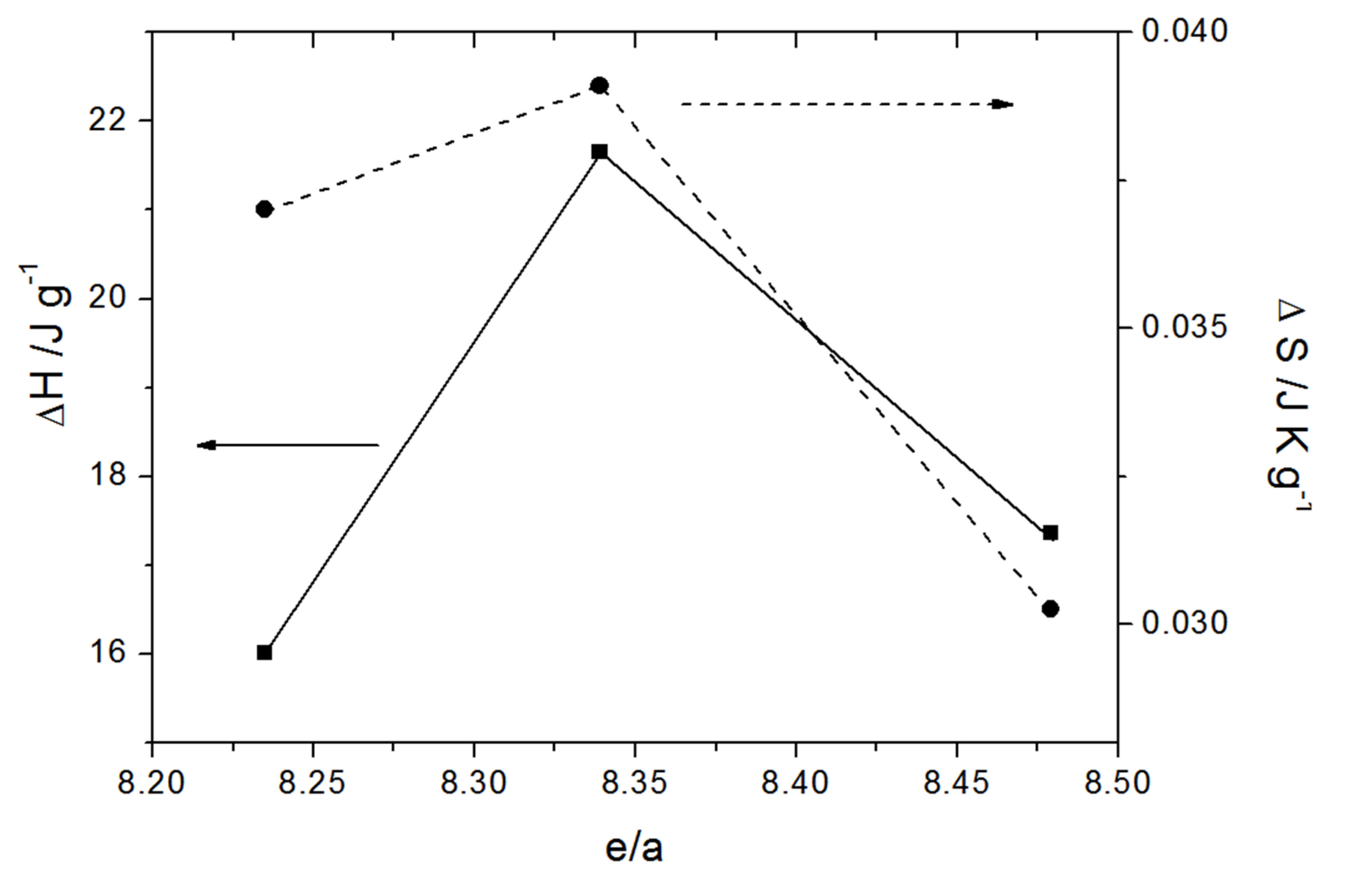

Figure 8. Enthalpy (ΔH) and entropy (ΔS) changes as a function of average valence electron density. Symbols: Enthalpy (square), entropy (circle). Error: <3%.

Figure 8. Enthalpy (ΔH) and entropy (ΔS) changes as a function of average valence electron density. Symbols: Enthalpy (square), entropy (circle). Error: <3%.

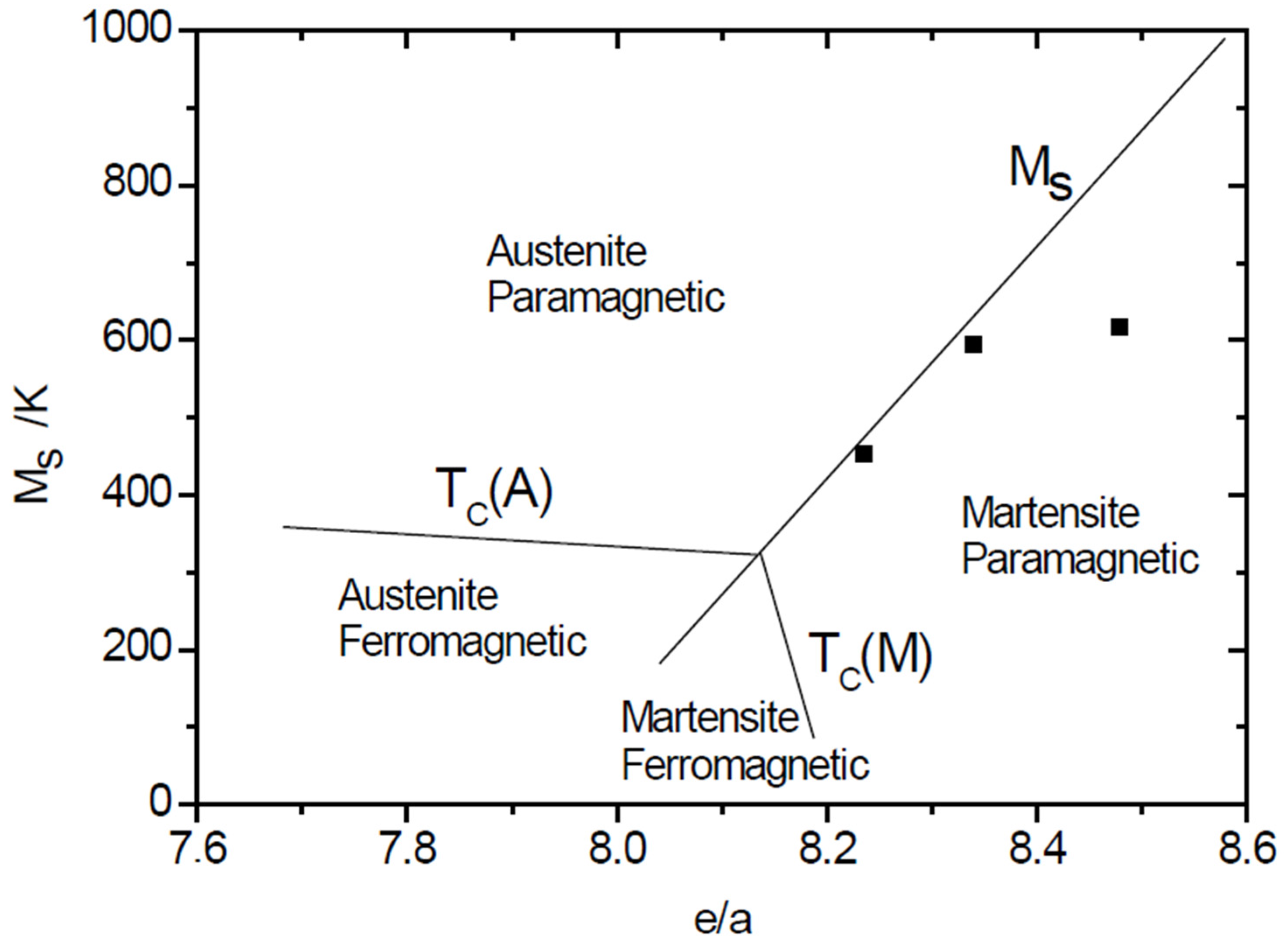

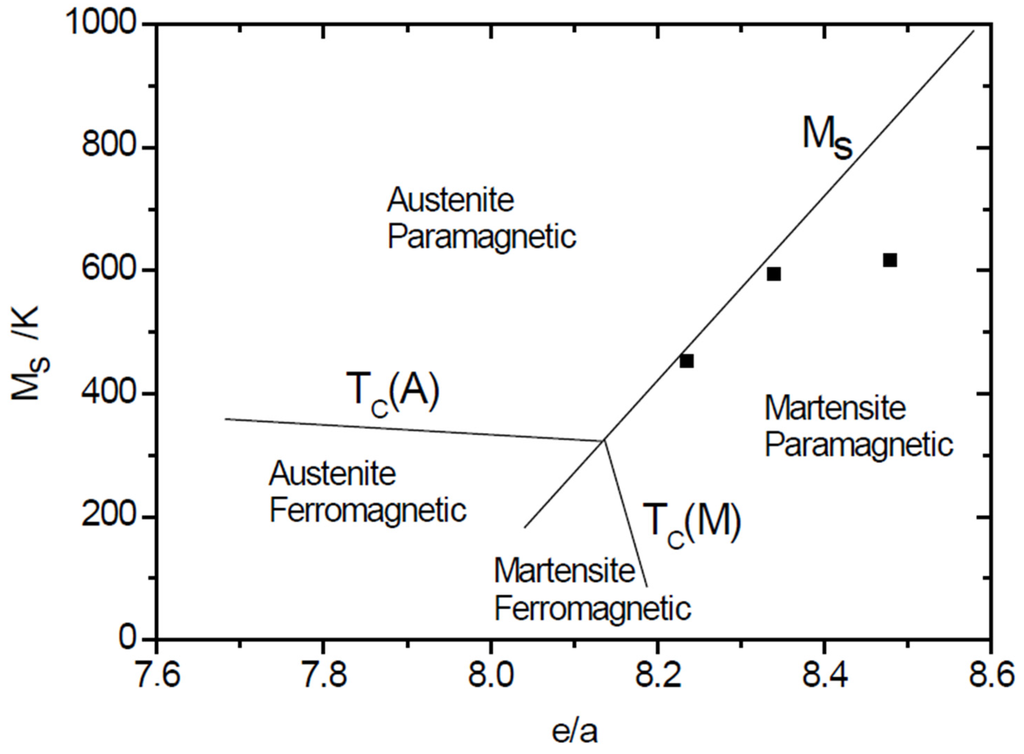

Figure 9. Martensitic start temperature versus average valence electron density. Lines correspond to bulk alloys [20] whereas square symbols correspond to our samples.

Figure 9. Martensitic start temperature versus average valence electron density. Lines correspond to bulk alloys [20] whereas square symbols correspond to our samples.

Table 3. Energy dispersive X-ray spectrometer (EDX) compositions of Ni₅₀Mn₄₀Sn₅Co₅, Ni₅₀Mn_37.5Sn_7.5Co₅ and Ni₅₀Mn₃₅Sn₅Co₅, and average valence electron density.

Alloy	Ni	Mn	Sn	Co	e/a
Ni50Mn40Sn5Co5	50.7	39.12	4.91	5.27	8.479
Ni50Mn37.5Sn7.5Co5	49.8	35.99	8.78	5.44	8.339
Ni50Mn35Sn10Co5	49.35	34.51	11.37	4.77	8.235

Table 3. Energy dispersive X-ray spectrometer (EDX) compositions of Ni₅₀Mn₄₀Sn₅Co₅, Ni₅₀Mn_37.5Sn_7.5Co₅ and Ni₅₀Mn₃₅Sn₅Co₅, and average valence electron density.

Alloy	Ni	Mn	Sn	Co	e/a
Ni50Mn40Sn5Co5	50.7	39.12	4.91	5.27	8.479
Ni50Mn37.5Sn7.5Co5	49.8	35.99	8.78	5.44	8.339
Ni50Mn35Sn10Co5	49.35	34.51	11.37	4.77	8.235

Our results show a diminution of the transformation temperatures. The main difference is for alloy Ni₅₀Mn₄₀Sn₅Co₅. In the literature it was found that the martensitic transformation, in Heusler Ni-Mn-Sn melt spun ribbons, occurs at lower temperatures than those compared to bulk alloys [15]. Moreover, a change of the martensitic crystalline structure from 14M to 4O takes place with the decrease of the martensitic transition temperature. It is proposed that the internal stress was induced due to the highly-oriented microstructure, which leads to the decrease of the transition temperature because of a refined martensite plate and the formation of dense martensitic variants with different orientations. These results were supported by high resolution transmission electron microscopy (HRTEM). Furthermore, it was also found that the partial substitution of Ni by Co shifts the martensitic transformation to lower temperatures in Ni-Mn-Sn-Co bulk alloys [21]. If our alloys have the same trend that bulk alloys (Figure 9), it is not clear the occurrence of the magnetic transformation.

4. Conclusions

Melt-spun ribbon of three alloys of the Ni-Co-Mn-Sn system has been produced: Ni₅₀Mn₄₀Sn₅Co₅, Ni₅₀Mn_37.5Sn_7.5Co₅ and Ni₅₀Mn₃₅Sn₁₀Co₅. The austenite to martensite reversible transformation was found in all samples. Transformation temperatures increase as Mn/Sn ratio increases.

Martensitic structure is four-layered orthorhombic 4O in samples with higher Mn/Sn ratio and monoclinic modulated seven-layered 14M in samples with lower Mn/Sn ratio. These results differ from other obtained in the bibliography. Probably, these differences are caused by the combination of three factors: constant Co content, Mn/Sn ratio and high oriented ribbons microstructure. Furthermore, substituting Mn by Sn favors to the decrease of the austenite-martensite reversible transition temperatures.
