Cyclic Oxidation of High Mo, Reduced Density Superalloys

Abstract

Cyclic oxidation was characterized as part of a statistically designed, 12-alloy compositional study of 2nd generation single crystal superalloys as part of a broader study to co-optimize density, creep strength, and cyclic oxidation. The primary modification was a replacement of 5 wt. % W by 7% or 12% Mo for density reductions of 2%–7%. Compositions at two levels of Mo, Cr, Co, and Re were produced, along with a midpoint composition. Initially, polycrystalline vacuum induction samples were screened in 1100 °C cyclic furnace tests using 1 h cycles for 200 h. The behavior was primarily delimited by Cr content, producing final weight changes of −40 mg/cm² to −10 mg/cm² for 0% Cr alloys and −2 mg/cm² to +1 mg/cm² for 5% Cr alloys. Accordingly, a multiple linear regression fit yielded an equation showing a strong positive Cr effect and lesser negative effects of Co and Mo. The results for 5% Cr alloys compare well to −1 mg/cm², and +0.5 mg/cm² for Rene′ N4 and Rene′ N5 (or Rene′ N6), respectively. Scale phases commonly identified were Al₂O₃, NiAl₂O₄, NiTa₂O₆, and NiO, with (Ni,Co)MoO₄ found only on the least resistant alloys having 0% Cr and 12% Mo. Scale microstructures were complex and reflected variations in the regional spallation history. Large faceted NiO grains and fine NiTa₂O₆ particles distributed along NiAl₂O₄ grain boundaries were typical distinctive features. NiMoO₄ formation, decomposition, and volatility occurred for a few high Mo compositions. A creep, density, phase stability, and oxidation balanced 5% Cr, 10% Co, 7% Mo, and 3% Re alloy was selected to be taken forward for more extensive evaluations in single crystal form.

1. Introduction

The cyclic oxidation of superalloys has been an active topic for many decades of research in high temperature materials. It is not the intent of the present study to revisit the many nuances that arise for various specific alloys; the general compositional trends of conventional alloys can be surmised from reviews [1,2]. In the broadest sense, Ni-base superalloys can be divided into Al₂O₃ and Cr₂O₃-formers, though other oxides will indeed be present. In this discussion and paper, all alloy compositions will be expressed in weight percent. At 1100 °C, cyclic oxidation performance will generally separate commercial alloys into these two groups, with most Al₂O₃-formers exceeding the performance of Cr₂O₃-formers [2]. (In fact, the groups can be roughly separated as high ≥5% Al, low ≤15% Cr and the inverse, all wt. % in this paper). Alumina-forming alloys excel over chromia-formers because of slower oxidation rates and corresponding reductions in spallation. While Al contents ≥6% are preferred for optimum behavior, some level of Cr, also ≥6%, is required to assist Al in the formation of a continuous rate controlling layer. Some transient oxidation always occurs and takes form as NiAl₂O₄ and NiCr₂O₄ spinels (or some solid solution thereof). These are not too detrimental provided they are effective before rapid NiO growth is allowed to proceed. Other alloying additions result in a variety of complex scale mixtures and variable performance. In general, it can be said that some Cr and Ta are beneficial in Al₂O₃-forming alloys, while Ti, Nb, and W are detrimental. Mo in moderation (≤10%) has not been identified with a strong beneficial or detrimental trend. NiTa₂O₆ tri-rutiles are generally associated with better performance, possibly because they assist in tying up Ni in dispersed, slowly growing fine particles. On the other hand, Ti, Mo, and W alloying additions can be manifested in fast growing, non-protective TiO₂, NiTiO₃, and Ni(Mo,W)O₄ phases, leading to rapid mass loss. Overall, the optimum performance is obtained with minimal NiAl₂O₄ transient spinel and a stable continuous α-Al₂O₃ layer growing under the spinel layer.

Alloy development has progressed well-enough to produce second generation single crystal superalloys that are also highly oxidation resistant, including CMSX-4, Rene′ N5, PWA 1484, SC180, RR2000, and TMS-82. While co-optimization was the primary focus of this study, there are some engineering and mechanistic oxidation aspects that can first be briefly reviewed for context. Most aero-engine single crystal alloys contain greater than 5% Al and less than 10% Cr, centered near Ni–10Co–6Al–8Cr–8Ta–6W–2Mo–0Ti–0Nb (wt. %). By comparison, one of the best performing conventional alloys, B1900, consists of Ni–10Co–6Al–8Cr–4.3Ta–0.1W–6Mo–1Ti–0.1Nb [2]. Now small levels of Hf, Y, C, B are included in single crystals with special attention to minimize or eliminate small ppm levels of a detrimental sulfur impurity. Thus 2nd generation single crystals have a great propensity for Al₂O₃ formation and provide some of the best cyclic oxidation performance of all commercial superalloys. While mechanistic details may abound, it can often be reduced to a preferred sequence of minimal Ni(Al,Cr)₂O₄ transient oxidation, followed by a rate-controlling Al₂O₃ healing layer, with concurrent, but apparently innocuous, fine particles of NiTa₂O₆ (tri-rutile) in the interfacial region of the transient-healing layers. Excursions to other scale phases, such as NiO, Cr₂O₃, NiTiO₃, Ni(Mo,W)O₄, are generally associated with non-protective behavior, internal or discontinuous Al₂O₃, and alloy compositions outside that preferred range.

Numerous studies have characterized the oxidation behavior of these alloys. For example, the importance of S, C, Hf, and Y is discussed in [3,4,5,6,7,8]. Some unusual orientation effects were categorized by Yuan [9]. Complex transient Ni(Al,Cr)₂O₄ spinel, and (Ti,Cr,Al)(Ti,Ta)O₄ rutile, and NiTa₂O₆ tri-rutile were reported in addition to more common NiO and Al₂O₃ structures [10]. Elegant cross-sectional STEM characterizations have documented Ta, Hf, Y, and Zr segregation at grain boundaries in the alumina scale formed at 1050–1150 °C on a Ni–6.1Al–7.3Cr–7.3Co–4.9W–6.5Ta–1.5Mo–2.9Re–0.15Hf–0.01Zr–0.02Y 2nd generation single crystal superalloy, most closely resembling doped Rene′ N5 [11]. The morphologies and transition from initial θ-Al₂O₃ to steady-state α-Al₂O₃ were also documented. Interestingly, no transient Ni(Al,Cr)₂O₄ spinel or NiTa₂O₆ was reported.

The primary direction of the present research was to reduce the density of a new alloy compared to second generation single crystal superalloys (Rene′ N5, PWA 1484, CMSX4, SC180, TMS-82, RR2000) for turbine blade applications, while maintaining other critical properties. This has significant implications for aero-turbines, where excess rotating airfoil weight cascades into large penalties (perhaps a multiplier as large as 10×) for overall engine thrust-to-weight efficiencies. In that regard an earlier study had also focused on reducing density to 8.1 g/cm³–8.5 g/cm³ and developed LEK 94 (Leichte Einkristalllegierung) with compositions near Ni–6.5Al–6.0Cr–7.5Co–3.5W–2.5Re–2.3Ta–2.1Mo–1.0Ti and with creep properties approaching those of CMSX-4 [12,13]. Basically the lower W, Re, Ta contents achieved the lower density of this superalloy. Another study concurrent with the present program had located optimal design spaces based on fundamentals [14]. Here, co-optimized projected creep strength, alloy stability, density, cost, and castability have been considered for a vast array of potential alloys. An alloy composition was identified that embodied these attributes: Ni–4Cr–10Co–3Re–3W–7Al–5Ta. These prior studies did not address oxidation directly. Other more recent high Cr, but lower Al, single crystal alloys were developed (SCA425/STAL-15) to promote Cr₂O₃ scales for corrosion resistance in stationary gas turbines and helium reactors [15,16,17].

In the present program higher Mo contents have been explored while eliminating W. Mo is a powerful solid solution strengthener, but with a density much closer to Ni than other refractory strengthening elements, such as Re and W. According to the fundamental design study, Mo is about 3× the cost of W, but are both relatively inexpensive for refractory metals [14]. The diffusion coefficient predicted for Ni–Mo alloys is only 2× that for Ni–W alloys [14]. And the microstructural stability factor based on d-electron band theory is about the same for Ni–Mo and Ni–W alloys [14]. In the present work, an empirical Design of Experiments (DoE) approach was employed to minimize the number of alloys cast while extracting the maximum predictive capability of a multi-factor regression model, yet including several engineering-judgement alloys. The design employed D-optimal methodology in JMP software by SAS Institute Inc., Chehalis, WA, USA [18,19].

The baseline alloy contained 6.1 wt. % Al, 6.2% Ta, 0.01% C and 50–100 ppm Y-doping, with selected variations in Cr, Co, Mo, and Re levels, but no W. The Mo levels were relatively high at 7% and 12%, (with Cr at 0% and 5%; Co at 0% and 10%, and Re at 0% and 3%). The same alloys have also been screened for phase stability and density. Coupled with these oxidation studies, the 5Cr–10Co–7Mo–3Re (nominal wt. %) alloy was selected as a most promising composition space and was taken along with limited other compositions for further studies as single crystals, doping with Hf, and more extensive oxidation/corrosion tests. Some oxidation and corrosion results were included in previous publications, along with density, phase stability, and creep resistance [20,21,22]. Ultimately, the composition range of greatest potential was targeted in an associated patent [23]. However the complete oxidation basis and compositional effects leading to these alloy choices had not been reported in detail. The purpose of this paper is to present the compositional oxidation effects from tests of polycrystalline samples leading to this optimized alloy design space. In that regard, since some alloys here contain the relatively high level of 12% Mo, some attention is given to the expected NiMoO₄ scale phase as an indicator of declining oxidation performance.

2. Experimental Section

Experimental polycrystalline superalloy castings were produced by vacuum induction melting (VIM) into 1.3 mm × 15 mm dia. cylindrical bars. The compositional matrix is given in Table 1, introducing a code (abcd), where 0 refers to the low value of the element in the design and 1 refers to the high value. As mentioned previously, the low Cr, Co, Mo, Re values were 0, 0, 7, 0 wt. % respectively, and would apply to the (0000) alloy. Conversely, the high Cr, Co, Mo, Re values were 5, 10, 12, 3 wt. % respectively, and would apply to a (1111) designation. Midlevel variations are given the designation “5”. (The two digit alloy prefix, when used, refer to casting sequence history, sometimes needed to distinguish preliminary versions of the same alloy). Material from a previous program (# 143), with 6.1 Al, 6.2 Ta and 13.8 Mo (wt. %), (no Cr, Co, or Re), was tested in fully heat treated single crystal (FHTSX) condition and included for comparison. The bars were sectioned into ~2 mm disks and polished through 600 grit emery. They were cyclically oxidized in pre-oxidized FeCrAl(Zr) cups that were automatically lowered in a vertical tube furnace at 1100 °C for 200 1-h cycles. Each cooling cycle achieved ~100 °C in ~10 min. Samples were weighed manually on an analytical balance at a graduated time frequency of 1 h, 2, 5, 10, 20, 40…200 h. A second weight was obtained at 100 h and 200 h to monitor delayed moisture-induced scale spallation (MIDS). Because of limited sample availability, TGA testing (Setaram, Caluire, France) for only one high Mo, low Cr, Co, Re alloy was performed, also at 1100 °C. Scale appearance was recorded by optical macro/micro photography and for selected alloys by scanning electron microscopy (SEM, Hitachi, Tokyo, Japan), at 15 kV, on carbon coated samples. Scale phases were determined by X-ray diffractometer (XRD, Brüker, Karlsruhe, Germany) scans.

Table 1. Alloy designation, nominal chemistry, and ranked mass change after cyclic oxidation of 12 LDS alloys for regression model. (Base alloy contains 7 Mo, 6 Al, 6.2 Ta, 50–100 ppm Y, and 80–100 ppm C).

Rank	Nominal, wt. %				Sample	∆W/A, mg/cm2
	Cr	Co	Mo	Re	Alloy Code	1100 °C, 200 h
1	5	0	7	0	63-1000	0.752
2	5	10	12	0	58-1110	−0.269
3	5	10	7	0	57-1100	−0.478
4	5	10	7	3	68-1101	−1.195
5	5	0	12	3	94-1011	−1.733
6	2.5	5	9.5	1.5	75-5555	−4.495
7	2.5	0	9.5	3	67-5051	−5.362
8	0	0	7	0	61-0000	−9.719
9	0	10	7	3	62-0101	−13.392
10	0	0	12	0	64-0010	−20.114
11	0	10	12	0	66-0110	−27.426
12	0	10	12	0	95-0111	−41.441

Table 1. Alloy designation, nominal chemistry, and ranked mass change after cyclic oxidation of 12 LDS alloys for regression model. (Base alloy contains 7 Mo, 6 Al, 6.2 Ta, 50–100 ppm Y, and 80–100 ppm C).

Rank	Nominal, wt. %				Sample	∆W/A, mg/cm2
	Cr	Co	Mo	Re	Alloy Code	1100 °C, 200 h
1	5	0	7	0	63-1000	0.752
2	5	10	12	0	58-1110	−0.269
3	5	10	7	0	57-1100	−0.478
4	5	10	7	3	68-1101	−1.195
5	5	0	12	3	94-1011	−1.733
6	2.5	5	9.5	1.5	75-5555	−4.495
7	2.5	0	9.5	3	67-5051	−5.362
8	0	0	7	0	61-0000	−9.719
9	0	10	7	3	62-0101	−13.392
10	0	0	12	0	64-0010	−20.114
11	0	10	12	0	66-0110	−27.426
12	0	10	12	0	95-0111	−41.441

3. Results

3.1. Mass Change

The cyclic weight change results are shown in Figure 1. Cr was the design parameter that exerted the largest effect. Accordingly, Figure 1a groups the alloys that contained nominally 2.5%–5% Cr. The alloys with 5% Cr (1bcd) were relatively oxidation resistant, showing modest mass gain, and some losses for the first 100 h. It is seen that alloy (1000), with 5% Cr, 0% Co, 7% Mo, and 0% Re, maintained a positive mass change for the entire 200-h test. The other 5 Cr alloys exhibited slight mass losses. After an extended exposure to ambient moisture at the 100-h mark, delayed interfacial spallation occurred (i.e., spalling to bare metal), resulting in an additional vertical drop in the curve for most alloys. This event produced a change in slope of the remainders of the curves due to re-oxidation of a freshly exposed metal surface and, possibly, a change in scale composition and kinetics. The additions of Co, Mo, and possibly Re, in various combinations, is seen to modestly affect oxidation resistance, giving a mass loss up to ~2 mg/cm². The alloys with 2.5% Cr, (5555 and 5051), show further degradation, losing ~5 mg/cm².

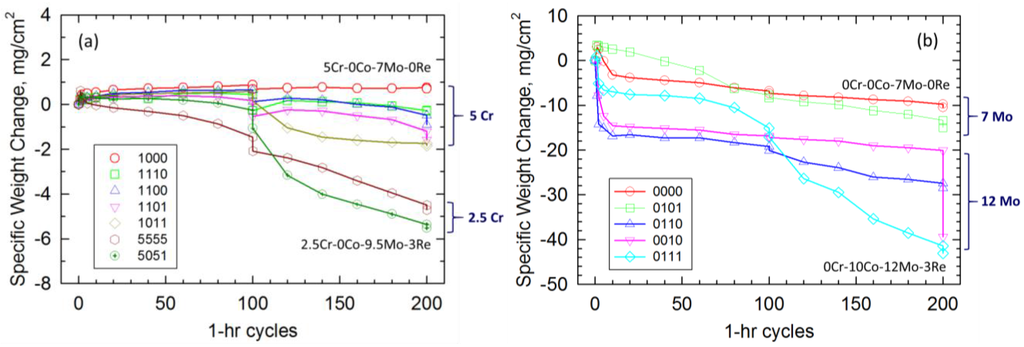

Figure 1. 1100 °C cyclic oxidation weight change for LDS VIM superalloys. (Cr, Co, Mo, Re) with 6.1 Al, 6.2 Ta, 50–100 ppm Y base composition. See Table 1 for (abcd) alloy code. (a) Cr-containing alloys exhibit moderate to good oxidation resistance, achieving small weight changes with minimal scale spallation; (b) Cr-Free alloys exhibit overall poor oxidation resistance, with weight losses >10 mg/cm² and severe scale spallation.

Figure 1. 1100 °C cyclic oxidation weight change for LDS VIM superalloys. (Cr, Co, Mo, Re) with 6.1 Al, 6.2 Ta, 50–100 ppm Y base composition. See Table 1 for (abcd) alloy code. (a) Cr-containing alloys exhibit moderate to good oxidation resistance, achieving small weight changes with minimal scale spallation; (b) Cr-Free alloys exhibit overall poor oxidation resistance, with weight losses >10 mg/cm² and severe scale spallation.

Figure 1b shows that the cyclic oxidation resistance of the alloys without Cr (0bcd) are severely degraded. The best alloy of this group, (0000), with 0% Cr, 0% Co, 7% Mo, and 0% Re, lost nearly 10 mg/cm². However, the worst of the group lost ~40 mg/cm². This grouping exhibited some similar, but unusual, behavior characterized by a rapid initial mass loss followed by a less severe spalling rate. One alloy, (0010) with 12% Mo, lost an additional 20 mg/cm² (vertical drop) due to ambient moisture effects after the test was completed at 200 h.

A ranking of the alloys can be constructed based on final weight change as shown in Table 1 and Figure 1. Again, the major delimiter is the Cr content, with the performance of all the 5% Cr alloys exceeding that of the 2.5% Cr alloys, which in turn were better than all the 0% Cr alloys. Note that the only alloy maintaining a positive weight change, about +1 mg/cm², was the higher 5% Cr level with the lowest Mo (7%) and no Co or Re, (1000). With the addition of Co, Mo, and Re, weight loss up to about 2 mg/cm² is produced. Specifically, additions of Co, (1100) and (0110), all others being equal, tended to produce more severe weight loss at both the 5% and 0% Cr level, respectively. At just 2.5% Cr, additional weight losses accrue (−5 mg/cm²), and with no Cr, the weight loss can become severe (−10 to −40 mg/cm²). For each of the three alloy sets, grouped by Cr content as shown, the lowest rank was achieved by simultaneously high Mo and Re contents, (1011), (5051), (0111).

Since Co, Mo, and Re variations were generally made in combinations, it is difficult to assign a similar overarching trend for a given element. Rather, this compositional matrix was statistically designed to allow step-wise, multiple linear regression to extract significant parameters and describe the final 200 h weight change quantitatively. Here transformed compositional parameters (P′) were used: each composition parameter (P) was adjusted by its midpoint (P_mid), then normalized by half of its range of variation (0.5ΔP): P′ = (P − P_mid)/(0.5ΔP). Here actual measured compositions were used for preciseness rather than the nominal targets. Thus these parameters P′ all vary from −1 to +1, and the derived regression equation coefficients indicate the strength of effect relative to the elemental variation:

ΔW/A (mg/cm²)_{1100 °C,200 h} = −9.39 + 10.84 × (Cr − 2.60)/2.60 − 4.29 × (Co − 5.11)/5.11 − 5.267 × (Mo − 9.66)/2.60 + 3.91 × ((Cr − 2.60)/2.60) × ((Mo − 9.66)/2.60) − 3.74 × ((Mo − 9.66)/2.60) × ((Re − 1.53)/1.53)

(1)

with a coefficient of determination R² = 0.95, adjusted for the number of estimated parameters R²_adj = 0.90, and root mean square residual error of 4.16 mg/cm². The standard error of each coefficient amounted to 10% to 40% of the predicted weight change at the compositional limits. It is seen that there is a high positive coefficient (+10.84) for Cr effects, a less positive (+3.91) Cr × Mo product interaction coefficient, and negative Co, Mo, and Mo × Re coefficents. The positive Cr × Mo interaction term indicates that higher Mo can be accommodated at higher Cr while maintaining oxidation resistance. However, the negative Mo × Re interaction term (−3.74) indicates that higher Mo could only be accommodated at lower Re while maintaining oxidation resistance. Other interaction terms were tested and found to be statistically insignificant. While not presented here, preliminary stepwise regression of weight change after 160 h had produced the same significant parameters, with estimates having the same signs and similar magnitudes to those at 200 h. This helped confirm the robust applicability of the equation.

Due to the interaction terms, this equation implies complex and not a transparent mechanistic model of the oxidation behavior. However, it is useful for projecting performance for proposed alloying schemes within this compositional design space. The overall faithfulness of the regression fit can be visualized in Figure 2. Here the actual 200-h weight change is compared to that predicted by Equation (1). In general, a straight line with slope 1.03 and passing near the origin (0.12) is obtained with some deviations and r² = 0.95. Some specific alloys are labeled to help orient the trends. High Cr (1000) is at the top and the selected co-optimal alloy (1101) is nearby. The compositional midpoint (5555) is somewhat better than the prediction. The original high Mo, zero Cr, Co, Re (0010) alloy, is near the fitted line and well down the trend of poor oxidation resistance. The regression fit is seen to characterize the results over a large range of oxidation behavior. In order to represent the wide range exhibited by poor low Cr behavior, fine tuning the good behavior of the high Cr alloys may have been compromised.

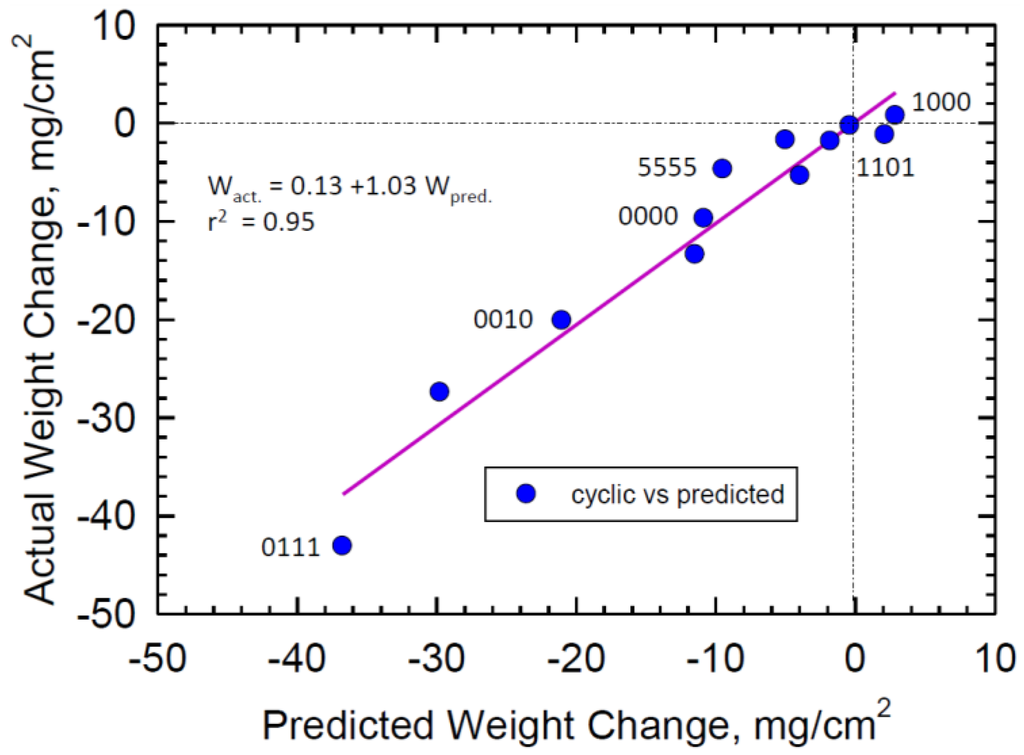

Figure 2. Distribution of actual 1100 °C, 200 h weight changes vs. those calculated from regression fitted Equation (1). Slope is ~1.0 and intercept ~0.1 mg/cm².

Figure 2. Distribution of actual 1100 °C, 200 h weight changes vs. those calculated from regression fitted Equation (1). Slope is ~1.0 and intercept ~0.1 mg/cm².

A general assessment of these alloys can be discerned by comparing these oxidation results to similar results obtained for common commercial alloys. Such a homogeneous data set is available from the Barrett cyclic oxidation database [24]. Accordingly, the 1100 °C, 200-h cyclic oxidation weight change is tabulated with ~30 other alloys in order, Table 2. It is seen that the high Cr LDS alloys populate the upper level, in company with Rene′ N5 ± Y, Rene′ N6, Rene′ N4, and B1900. The 0% Cr alloys populated a lower region bounded by Mar M 247 (8% Cr, 5.5% Al, 10% W) and NX 188 (0% Cr, 8% Al, 18% Mo).

As a further comparison to commercial alloys, long term 1100 °C cyclic oxidation behavior of Rene′ N4, Rene′ N5 ± Y, Rene′ N6, and Rene′ 80 were also obtained, Figure 3. It can be readily seen that the single crystal N5 and N6 alloys, having ~4%–7% Cr and 6% Al, performed very well. Rene′ N4, with 9% Cr, 3.7% Al (and 4.2% Ti), was inferior over this longer term. And Rene′ 80, at just 3% Al (and 14% Cr), performed so poorly at this temperature that the test was terminated at 200 h. This attests to the well-known synergy between Cr and Al, requiring some Cr and a minimum Al content for protective Al₂O₃ scales, and complex (negative) effects caused by other alloying elements.

Table 2. Comparative ranking of (a) LDS VIM alloys, (b) single crystals and (c) conventional commercial alloys for 1100 °C, 200 h cyclic oxidation mass change (From Barrett database).

(a) LDS Code	D.O.E. Composition (6.1Al, 6.2Ta)	∆W/A, mg/cm2	(c) Commercial Alloy Polycrystalline	∆W/A, mg/cm2
63-1000	5Cr–7Mo	0.75	MarM 247	−4.22
58-1110	5Cr–10Co–12Mo	−0.27	IN 713 LC	−6.20
57-1100	5Cr–10Co–7Mo	−0.48	Rene′ 125	−21.22
68-1101	5Cr–10Co–7Mo–3Re	−1.19	MarM 246	−24.44
94-1011	5Cr–12Mo–3Re	−1.73	Astroloy	−30.25
75-5555	2.5Cr–5Co–9.5Mo–1.5Re	−4.50	Rene′ 120	−38.57
67-5051	2.5Cr–9.5Mo–3Re	−5.36	NX 188	−48.76
61-0000	7Mo	−9.72	MarM 200	−53.59
62-0101	10Co–7Mo–3Re	−13.39	U 700	−55.21
64-0010	12Mo	−20.11	MarM 421	−74.11
66-0110	10Co–12Mo	−27.43	Waspalloy	−79.29
143 FHTSX	14–Mo	−30.51	MarM 200 + Hf	−89.80
95-0111	10Co–12Mo–3Re	−41.44	IN 792	−166.26
143 VIM	14Mo	−95.57	U 520	−172.80
(b) Single Crystals	(5–6Al, 4–12Ta)	ΔW/A, mg/cm2	IN 100	−180.33
H2 PWA 1480	10Cr–4W–1.5Ti(0.14S)	0.61	IN 939	−227.60
Rene′ N5−	7Cr–5W	0.57	IN 738	−232.45
Rene′ N6	4Cr–6W	0.56	MarM 211	−269.76
deS PWA 1484	5Cr–6W(0.3S)	0.49	U 710	−270.20
H2 PWA 1480	10Cr–4W–1.5Ti(0.01S)	0.45	IN 718	−284.60
Rene′ N5+	7Cr–5W + Y	0.41	IN 625	−293.20
PWA 1484	5Cr–6W(1.2S)	0.33	U 720	−313.50
Rene′ N4	4Al–9Cr–6W–4Ti	−1.07	Rene′ 80	−330.35
PWA 1480	10Cr–4W–1.5Ti(6.7S)	−7.44

Table 2. Comparative ranking of (a) LDS VIM alloys, (b) single crystals and (c) conventional commercial alloys for 1100 °C, 200 h cyclic oxidation mass change (From Barrett database).

(a) LDS Code	D.O.E. Composition (6.1Al, 6.2Ta)	∆W/A, mg/cm2	(c) Commercial Alloy Polycrystalline	∆W/A, mg/cm2
63-1000	5Cr–7Mo	0.75	MarM 247	−4.22
58-1110	5Cr–10Co–12Mo	−0.27	IN 713 LC	−6.20
57-1100	5Cr–10Co–7Mo	−0.48	Rene′ 125	−21.22
68-1101	5Cr–10Co–7Mo–3Re	−1.19	MarM 246	−24.44
94-1011	5Cr–12Mo–3Re	−1.73	Astroloy	−30.25
75-5555	2.5Cr–5Co–9.5Mo–1.5Re	−4.50	Rene′ 120	−38.57
67-5051	2.5Cr–9.5Mo–3Re	−5.36	NX 188	−48.76
61-0000	7Mo	−9.72	MarM 200	−53.59
62-0101	10Co–7Mo–3Re	−13.39	U 700	−55.21
64-0010	12Mo	−20.11	MarM 421	−74.11
66-0110	10Co–12Mo	−27.43	Waspalloy	−79.29
143 FHTSX	14–Mo	−30.51	MarM 200 + Hf	−89.80
95-0111	10Co–12Mo–3Re	−41.44	IN 792	−166.26
143 VIM	14Mo	−95.57	U 520	−172.80
(b) Single Crystals	(5–6Al, 4–12Ta)	ΔW/A, mg/cm2	IN 100	−180.33
H2 PWA 1480	10Cr–4W–1.5Ti(0.14S)	0.61	IN 939	−227.60
Rene′ N5−	7Cr–5W	0.57	IN 738	−232.45
Rene′ N6	4Cr–6W	0.56	MarM 211	−269.76
deS PWA 1484	5Cr–6W(0.3S)	0.49	U 710	−270.20
H2 PWA 1480	10Cr–4W–1.5Ti(0.01S)	0.45	IN 718	−284.60
Rene′ N5+	7Cr–5W + Y	0.41	IN 625	−293.20
PWA 1484	5Cr–6W(1.2S)	0.33	U 720	−313.50
Rene′ N4	4Al–9Cr–6W–4Ti	−1.07	Rene′ 80	−330.35
PWA 1480	10Cr–4W–1.5Ti(6.7S)	−7.44

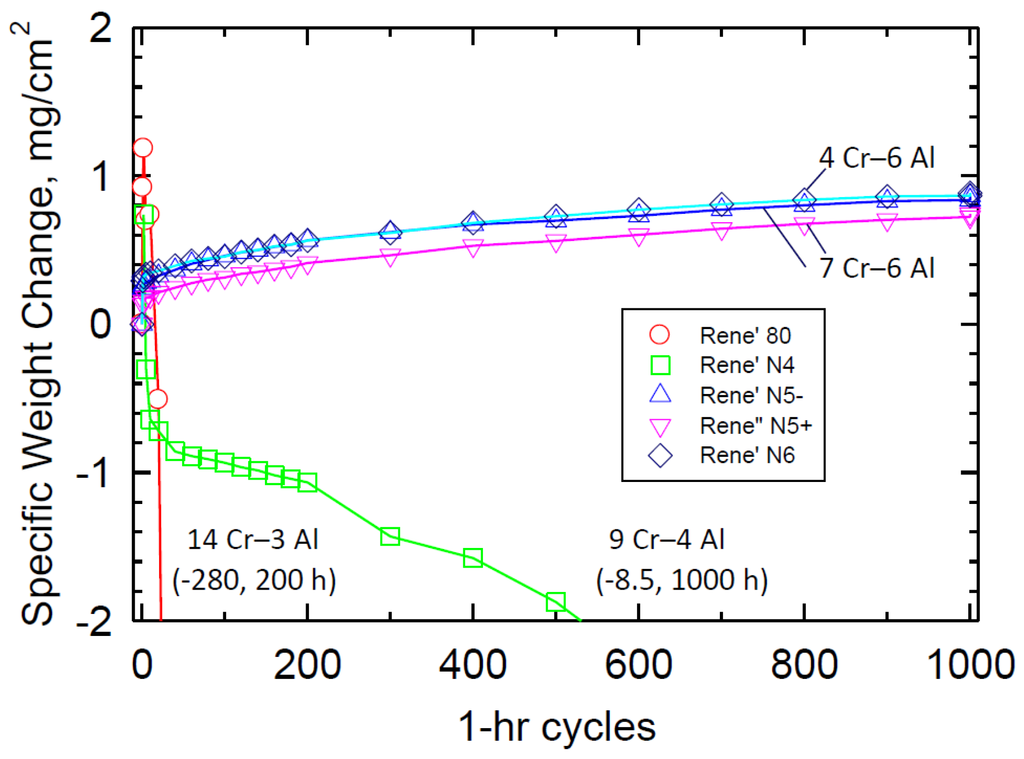

Figure 3. Long term 1100 °C cyclic oxidation weight change for commercial superalloys, showing superb behavior of high Al, zero Ti for Rene′ N5, N6 single crystal superalloys as compared to low < 4Al, high > 4Ti for both Rene′ N4 and 80.

Figure 3. Long term 1100 °C cyclic oxidation weight change for commercial superalloys, showing superb behavior of high Al, zero Ti for Rene′ N5, N6 single crystal superalloys as compared to low < 4Al, high > 4Ti for both Rene′ N4 and 80.

3.2. X-ray Diffraction

The phase content of the scales formed on this alloy set was determined by standard X-ray diffractometer scans. Sample surfaces and occasionally collected spall were analyzed. The phase analyses were remarkably similar, despite drastic differences in cyclic oxidation performance, as listed in Table 3 in decreasing order of oxidation resistance, from left to right. Typically, NiO, NiTa₂O₆, Ni(Al,Cr)₂O₄, and Al₂O₃ were the primary scale phases for nearly every alloy. It is expected that the order of intensity (top to bottom) was heavily affected by layering, with more transient Ni-rich phases lying in the outer region, with healing Ni(Al,Cr)₂O₄ and inward growing α-Al₂O₃ at the metal interface. The Ni(Al,Cr)₂O₄ spinel are identified by lattice parameter, with Al-rich indicated by lower values and Cr-rich for the higher values. No correlation of spinel lattice parameter with oxidation performance was obvious. A NiMoO₄ phase (with a better computer match to the published CoMoO₄ pattern) was identified on the poorest performing alloy, (0111), having a high Mo content. This Mo-rich scale phase was only identified on this sample, while all samples contained at least 7%–12% Mo. By comparison, the commercial alloys (Table 4) show some of these scale phases, additionally with TiO₂ for Rene′ 80 and Rene′ N4. Finally, the preliminary alloy set that corresponds to the same samples examined by SEM are presented in Table 5. NiO, NiAl₂O₄ spinel, and NiTa₂O₆ tri-rutile are again the primary phases identified. Fairly similar results are shown by alloy type and between retained and spalled scales.

Table 3. XRD analysis of scale phases formed on 12 LDS alloys after 200 h cyclic oxidation at 1100 °C corresponding to data in Figure 1. Listed in order of pattern strength, strongest to weakest. Spinel lattice parameters generally indicate Al predominance over Cr.

Alloy	Scale Phases	Alloy	Scale Phases	Alloy	Scale Phases
63-1000	NiO	94-1011	NiO	62-0101	NiO
	Al2O3		NiTa2O6		NiTa2O6
	NiTa2O6		spinel, 8.15 Å		spinel, 8.10 Å
	spinel, 8.10 Å		Al2O3(m)		Al2O3(vm)
58-1110	NiO	75-5555	NiO	66-0110	NiO
	spinel, 8.30 Å		NiTa2O6		NiTa2O6
	NiTa2O6		spinel, 8.10 Å		spinel, 8.10 Å
	Al2O3(m)		Al2O3(vm)		Al2O3(vm)
57-1100	NiO	67-5051	NiTa2O6	64-0010	NiO
	Al2O3		NiO		NiTa2O6
	spinel, 8.10 Å		spinel, 8.10 Å		spinel, 8.10 Å
	NiTa2O6		Al2O3(m)		Al2O3(vm)
68-1101	NiO	61-0000	NiO	95-0111	NiO
	NiTa2O6		NiTa2O6		NiTa2O6
	spinel, 8.15 Å		spinel, 8.05 Å		spinel, 8.10 Å
	-		Al2O3(m)		CoMoO4

Note: m = minor, vm = very minor. Spinels: NiAl₂O₄, a₀ = 8.05 Å; NiCr₂O₄, a₀ = 8.32 Å.

Table 3. XRD analysis of scale phases formed on 12 LDS alloys after 200 h cyclic oxidation at 1100 °C corresponding to data in Figure 1. Listed in order of pattern strength, strongest to weakest. Spinel lattice parameters generally indicate Al predominance over Cr.

Alloy	Scale Phases	Alloy	Scale Phases	Alloy	Scale Phases
63-1000	NiO	94-1011	NiO	62-0101	NiO
	Al2O3		NiTa2O6		NiTa2O6
	NiTa2O6		spinel, 8.15 Å		spinel, 8.10 Å
	spinel, 8.10 Å		Al2O3(m)		Al2O3(vm)
58-1110	NiO	75-5555	NiO	66-0110	NiO
	spinel, 8.30 Å		NiTa2O6		NiTa2O6
	NiTa2O6		spinel, 8.10 Å		spinel, 8.10 Å
	Al2O3(m)		Al2O3(vm)		Al2O3(vm)
57-1100	NiO	67-5051	NiTa2O6	64-0010	NiO
	Al2O3		NiO		NiTa2O6
	spinel, 8.10 Å		spinel, 8.10 Å		spinel, 8.10 Å
	NiTa2O6		Al2O3(m)		Al2O3(vm)
68-1101	NiO	61-0000	NiO	95-0111	NiO
	NiTa2O6		NiTa2O6		NiTa2O6
	spinel, 8.15 Å		spinel, 8.05 Å		spinel, 8.10 Å
	-		Al2O3(m)		CoMoO4

Note: m = minor, vm = very minor. Spinels: NiAl₂O₄, a₀ = 8.05 Å; NiCr₂O₄, a₀ = 8.32 Å.

Table 4. XRD analysis of scale phases formed on commercial superalloys after 1000 h cyclic oxidation at 1100 °C corresponding to mass change data in Figure 2. (Listed in order of pattern strength, strongest to weakest).

Alloy	Scale Phases (1100 °C, 1000 h)
Rene′ 80 (200 h)	NiO
	spinel, 8.35 Å
	TiO2
	Cr2O3
	Ni(Mo,W)O4
Rene′ N4 (1000 h)	spinel, 8.10 Å
	TiO2
	Al2O3
Rene′ N5 (1000 h)	NiTa2O6
	spinel, 8.10 Å
	Al2O3
Rene′ N5 + Y (1000 h)	NiTa2O6
	spinel, 8.10 Å
	Al2O3
Rene′ N6 (1000 h)	spinel, 8.10 Å
	NiO
	NiTa2O6
	Al2O3

Note: spinels: NiAl₂O₄, d₍₁₁₀₎ = 8.10 Å; NiCr₂O₄, d₍₁₁₀₎ = 8.35 Å.

Table 4. XRD analysis of scale phases formed on commercial superalloys after 1000 h cyclic oxidation at 1100 °C corresponding to mass change data in Figure 2. (Listed in order of pattern strength, strongest to weakest).

Alloy	Scale Phases (1100 °C, 1000 h)
Rene′ 80 (200 h)	NiO
	spinel, 8.35 Å
	TiO2
	Cr2O3
	Ni(Mo,W)O4
Rene′ N4 (1000 h)	spinel, 8.10 Å
	TiO2
	Al2O3
Rene′ N5 (1000 h)	NiTa2O6
	spinel, 8.10 Å
	Al2O3
Rene′ N5 + Y (1000 h)	NiTa2O6
	spinel, 8.10 Å
	Al2O3
Rene′ N6 (1000 h)	spinel, 8.10 Å
	NiO
	NiTa2O6
	Al2O3

Note: spinels: NiAl₂O₄, d₍₁₁₀₎ = 8.10 Å; NiCr₂O₄, d₍₁₁₀₎ = 8.35 Å.

Table 5. XRD summary of scale phases formed on preliminary LDS castings corresponding to SEM characterizations in Figure 4, Figure 5, Figure 6, Figure 7, Figure 8, Figure 9, Figure 10 and Figure 11. (200 h cyclic oxidation at 1100 °C).

Sample	LDS	%Cr	Weight, mg/cm2	α-Al2O3	Spinel Ni(Al,Cr)2O4	a0, Å	Rutile (Ni,Cr)Ta2O6	NiO	Ni
2-49 surface	1011	5Cr	−4.70		W	8.15	W	S	VS
2-49 spall	1011	5Cr			W	8.10	W	S	-
2-51 surface	1011	5Cr	−7.88		M	8.15	M	S	VS
2-51 spall	1011	5Cr			M	8.07	M	S	-
2-50 surface	5555	2.5Cr	−52.98		W	8.10	M	S	VS
2-50 spall	5555	2.5Cr			W	8.10	W	VS	-
2-48 surface	0010	0Cr	−109.23		M	8.05	M	S	-
2-48 spall	0010	0Cr			W	8.03	W	S	-
143 VIM surface	0010	0Cr	−95.57		W	8.05	M	VS	S
143 VIM spall	0010	0Cr		VVW	W	8.05	M	VS	-
143 SX surface	0010	0Cr	−30.51		W	8.05	W	VS	-
143 SX spall	0010	0Cr		VVW	M	8.05	M	VS	-

Note: S = strong, W = weak, M = medium, V = very.

Table 5. XRD summary of scale phases formed on preliminary LDS castings corresponding to SEM characterizations in Figure 4, Figure 5, Figure 6, Figure 7, Figure 8, Figure 9, Figure 10 and Figure 11. (200 h cyclic oxidation at 1100 °C).

Sample	LDS	%Cr	Weight, mg/cm2	α-Al2O3	Spinel Ni(Al,Cr)2O4	a0, Å	Rutile (Ni,Cr)Ta2O6	NiO	Ni
2-49 surface	1011	5Cr	−4.70		W	8.15	W	S	VS
2-49 spall	1011	5Cr			W	8.10	W	S	-
2-51 surface	1011	5Cr	−7.88		M	8.15	M	S	VS
2-51 spall	1011	5Cr			M	8.07	M	S	-
2-50 surface	5555	2.5Cr	−52.98		W	8.10	M	S	VS
2-50 spall	5555	2.5Cr			W	8.10	W	VS	-
2-48 surface	0010	0Cr	−109.23		M	8.05	M	S	-
2-48 spall	0010	0Cr			W	8.03	W	S	-
143 VIM surface	0010	0Cr	−95.57		W	8.05	M	VS	S
143 VIM spall	0010	0Cr		VVW	W	8.05	M	VS	-
143 SX surface	0010	0Cr	−30.51		W	8.05	W	VS	-
143 SX spall	0010	0Cr		VVW	M	8.05	M	VS	-

Note: S = strong, W = weak, M = medium, V = very.

3.3. Scanning Electron Microscopy

Generally this class of alloys forms a layered scale, with transient Ni-rich scales (NiO, NiAl₂O₄ and NiTa₂O₆) at the outer surface and a slow growing protective Al₂O₃ layer closest to the substrate. The NiTa₂O₆ normally takes the form of fine spherical particles on the surface and appear very bright in backscatter electron imaging. Since the distinguishing factor of this low density set of alloys is the high Mo content, an effort was made to look for distinctive Mo containing features in the scale, most likely present as NiMoO₄. Consequently, SEM (BSE) characterizations were performed for a preliminary (0010) alloy, 2-48, having high Mo and no Cr and therefore a greater propensity for Mo-induced accelerated oxidation.

Multiple scale thicknesses on the sample surface resulted from repeated spalling and regrowth that was non-uniform on this fine scale. Other regions of spalling to bare metal were apparent. The general structure of one region can be seen in Figure 4, with relatively flat scale on the right, large faceted grains in the center, and fine grains with surface precipitates on top of these. The distinctive large faceted NiO surface grain structure can be seen in Figure 5. In some areas, they are intermingled with fine grains on their surface (Figure 5a), others are relatively uniform, clean, faceted crystals (Figure 5b). Mo-rich features were not observed. To that point, a large scale spall fragment was collected and examined, Figure 6. It was found that the underlying, rather fragmented, granular features were extremely Mo-rich (points 2, 3). The fine Ta-rich nodules, identified by EDS, (point 4), again lay on top of these. It is therefore expected that this represents an outer surface of a thick, perhaps original, scale segment. Another spalled segment from an 1100 °C, 100-h TGA test of a 0% Cr-14 % Mo alloy (# 143) also exhibited isolated Mo-rich features, but less frequent and partially decomposed.

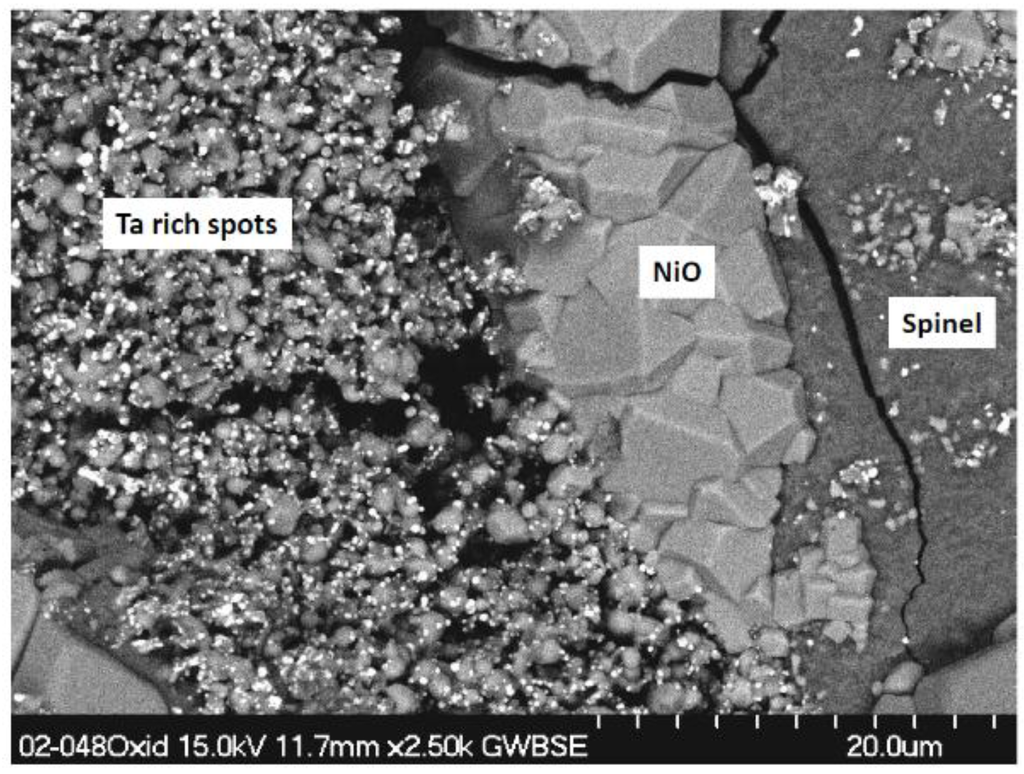

Figure 4. Representative alloy surface scale microstructures remaining on a high Mo alloy 2-48: (0010) after 200 h cyclic oxidation at 1100 °C. Features for NiO, NiAl₂O₄, and NiTa₂O₆ are represented.

Figure 4. Representative alloy surface scale microstructures remaining on a high Mo alloy 2-48: (0010) after 200 h cyclic oxidation at 1100 °C. Features for NiO, NiAl₂O₄, and NiTa₂O₆ are represented.

Figure 5. Characteristic large NiO grains in scales formed on high 12% Mo alloy 2-48 (0010). (a) SEM/SE image of sample surface; (b) SEM/BSE image of large spalled flake. 200 h cyclic oxidation at 1100 °C.

Figure 5. Characteristic large NiO grains in scales formed on high 12% Mo alloy 2-48 (0010). (a) SEM/SE image of sample surface; (b) SEM/BSE image of large spalled flake. 200 h cyclic oxidation at 1100 °C.

Figure 6. Micro-laminated high Mo oxide grains underlying Ta-rich spheroids. Spalled flake from high 12% Mo (0010) alloy 2-48 after 200 h cyclic oxidation at 1100 °C.

Figure 6. Micro-laminated high Mo oxide grains underlying Ta-rich spheroids. Spalled flake from high 12% Mo (0010) alloy 2-48 after 200 h cyclic oxidation at 1100 °C.

Correspondingly, one can see the appropriate EDS spectra in Figure 7a–d showing: (a) high Ni for the large NiO crystals; (b) high Al for the flat NiAl₂O₄ plateau region in Figure 4; (c) a mixture of fine grain Al₂O₃ with NiTa₂O₆ particles; and (d) Mo-rich NiMoO₄ grains (Figure 6).

At 2.5% Cr, alloy 2-50 (5555) similar features can be recognized in the detailed microstructure of Figure 8. Finally, at 5% Cr, alloy 2-49 (1011) some new features are presented, Figure 9. Large (bright) areas of spalling to bare metal are now observed, as verified by the oxide grain imprint morphology at higher magnification and EDS spectra with high Ni, Mo, Ta peaks. This is consistent with alumina-formers where interfacial spallation occurs. Other features in Figure 9b appear more typical of those described for 0% and 2.5% Cr previously, as are the Ta-rich spheroids in Figure 10 and Figure 11 shows dark regions of fractured Al₂O₃, identified by XRD primarily for the 5% Cr alloys. However these regions were quite complex and suggest multiple random spalling/regrowth features. No new Mo-rich regions were found except for the spalled flakes previously discussed. Some large grain NiO grain clusters were observed, but much of the area was covered with Ni(Al,Cr)₂O₄.

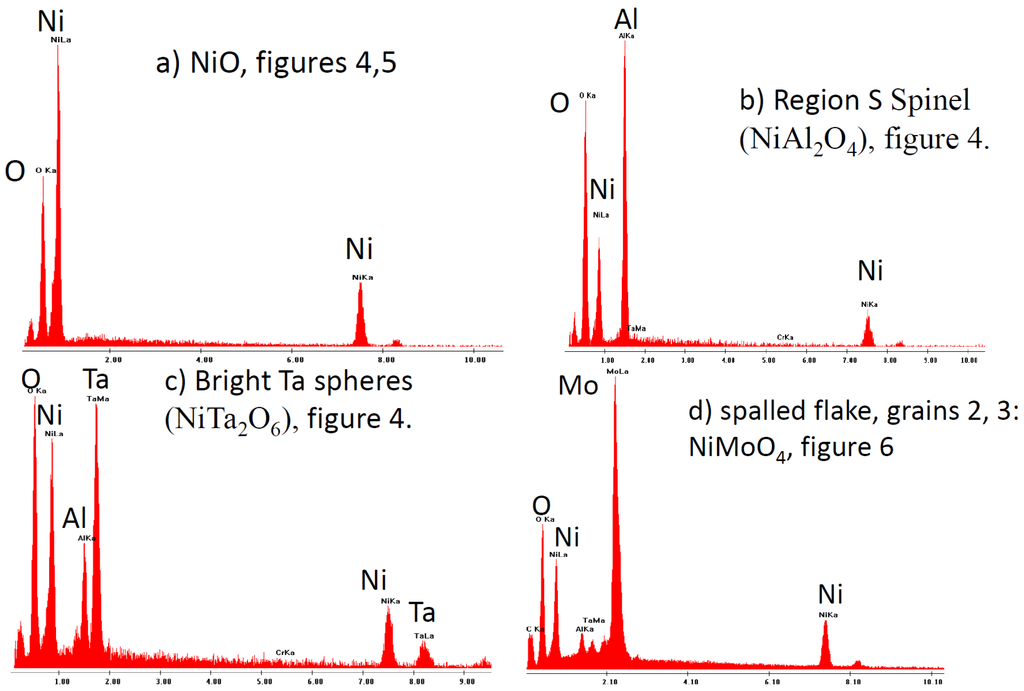

Figure 7. Typical EDS profiles corresponding to representative Ni-, Al-, Ta-, and Mo-rich features for high 12% Mo (0010) alloy 2-48, 200 h cyclic oxidation at 1100 °C. (a) large, striated NiO grains (Figure 5a); (b) flat NiAl₂O₄ plateau (Figure 4); (c) bright NiTa₂O₆ topmost spheroids (Figure 4); and (d) underlying NiMoO₄ grains from spalled flake (Figure 6), respectively.

Figure 7. Typical EDS profiles corresponding to representative Ni-, Al-, Ta-, and Mo-rich features for high 12% Mo (0010) alloy 2-48, 200 h cyclic oxidation at 1100 °C. (a) large, striated NiO grains (Figure 5a); (b) flat NiAl₂O₄ plateau (Figure 4); (c) bright NiTa₂O₆ topmost spheroids (Figure 4); and (d) underlying NiMoO₄ grains from spalled flake (Figure 6), respectively.

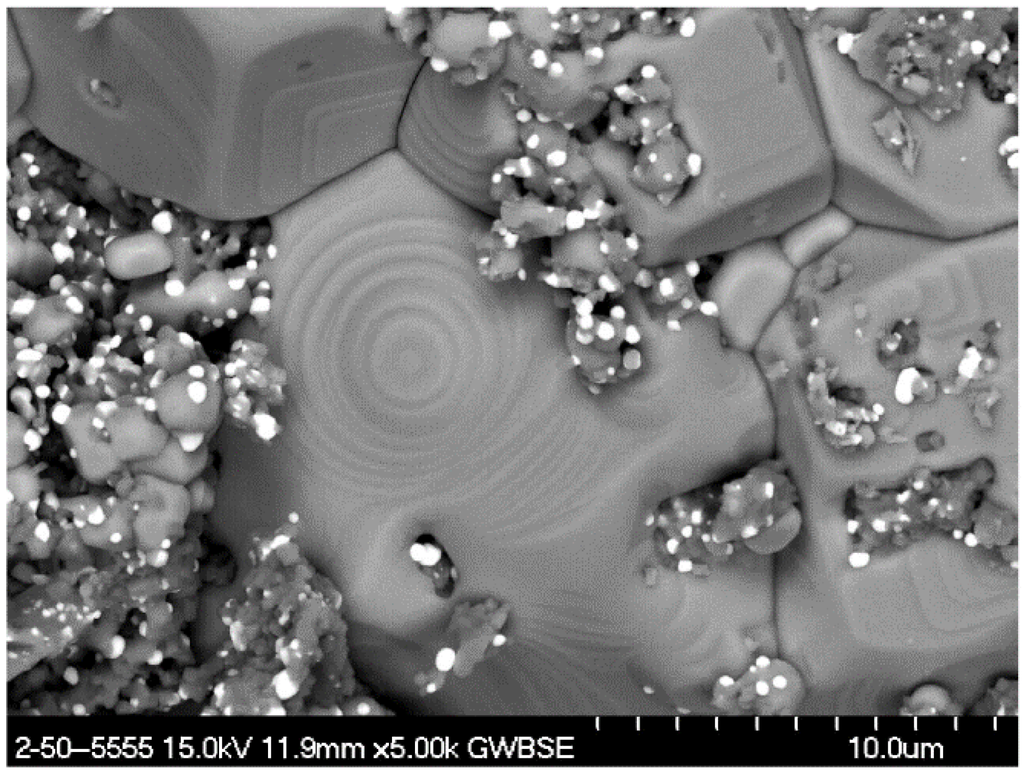

Figure 8. Scale features on midpoint alloy 2-50, (5555). Large NiO grains with growth facets, small NiTa₂O₆ spheroids atop NiAl₂O₄ fine grains. 200 h cyclic oxidation at 1100 °C.

Figure 8. Scale features on midpoint alloy 2-50, (5555). Large NiO grains with growth facets, small NiTa₂O₆ spheroids atop NiAl₂O₄ fine grains. 200 h cyclic oxidation at 1100 °C.

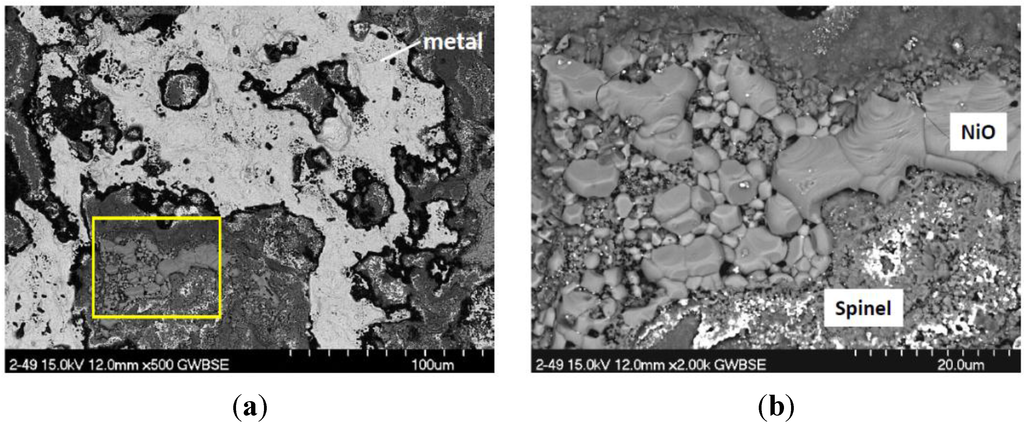

Figure 9. Oxidized surface of high Cr, Mo, Re alloy 2-49, (1011). (a) Bright areas of spalling to bare metal; (b) detail of (a) showing isolated colony of large NiO grains with growth facets. 200 h cyclic oxidation at 1100 °C.

Figure 9. Oxidized surface of high Cr, Mo, Re alloy 2-49, (1011). (a) Bright areas of spalling to bare metal; (b) detail of (a) showing isolated colony of large NiO grains with growth facets. 200 h cyclic oxidation at 1100 °C.

Figure 10. Small NiTa₂O₆ spheroids atop NiAl₂O₄ fine grains on 2-49 alloy (1011). 200 h cyclic oxidation at 1100 °C.

Figure 10. Small NiTa₂O₆ spheroids atop NiAl₂O₄ fine grains on 2-49 alloy (1011). 200 h cyclic oxidation at 1100 °C.

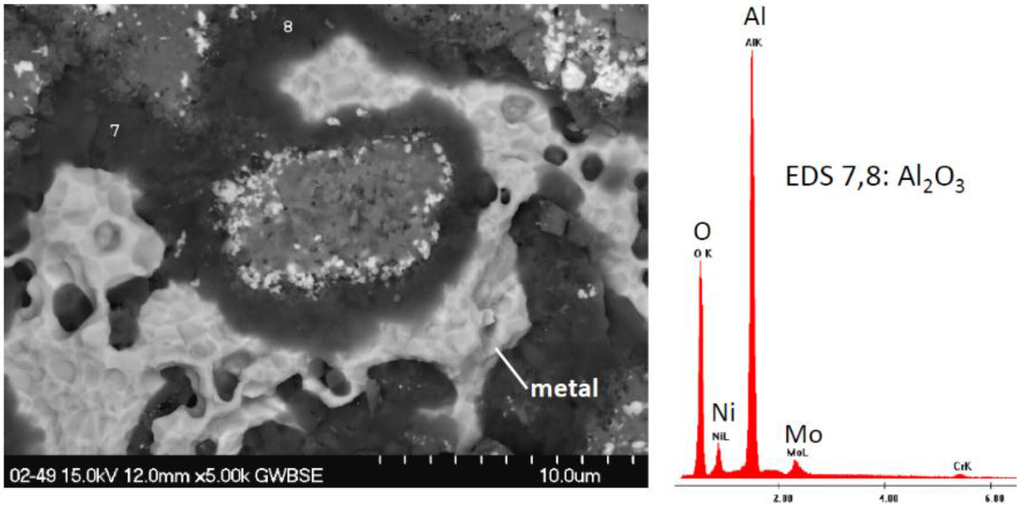

Figure 11. Dark Al₂O₃ bands and bright exposed metal features on 2-49 alloy (1011). 200 h cyclic oxidation at 1100 °C.

Figure 11. Dark Al₂O₃ bands and bright exposed metal features on 2-49 alloy (1011). 200 h cyclic oxidation at 1100 °C.

3.4. TGA Results

Continuous thermogravimetric analysis was only performed on selected samples with high Mo content for the purpose of NiMoO₄ elucidation. The unusual results for a heat treated early single crystal alloy (# 143 at 14% Mo) are shown in Figure 12 and are believed to represent behavior of other high 12% Mo alloys. Here a large initial mass gain of 4.6 mg/cm² is observed in the first 10 h, followed by a gradual weight loss of 50% of this maximum to 2.3 mg/cm² after 100 h. Optical and SEM microscopy identified large NiO grains in a thick outer scale. The underside of the spalled scale was also primarily large grained NiO, with clusters of smaller Ni(Al,Cr)₂O₄ spinel grains, dotted with Ta-rich particles, Figure 13. Only limited areas exhibited Mo-rich features, such as the feathery mound in the center of this image (circled).

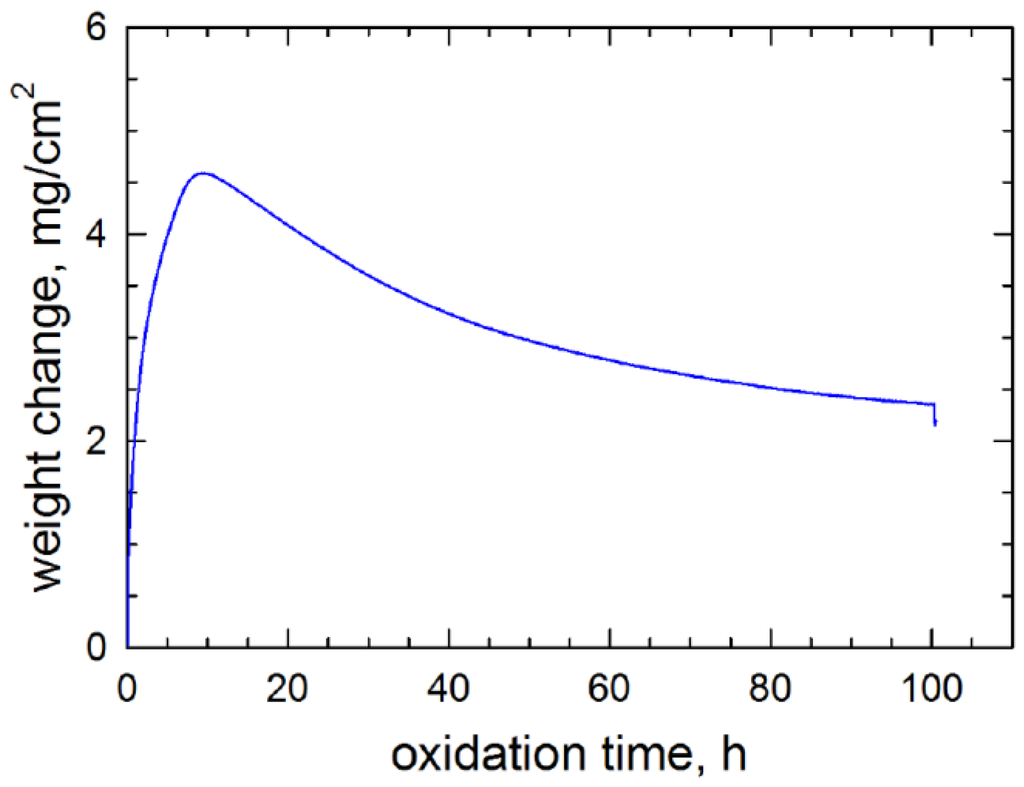

Figure 12. 1100 °C, 100 h TGA response for a Ni–6Al–6Ta–14Mo alloy (# 143) in air. A rapid increase of 5 mg/cm² is followed by a gradual loss of 2 mg/cm².

Figure 12. 1100 °C, 100 h TGA response for a Ni–6Al–6Ta–14Mo alloy (# 143) in air. A rapid increase of 5 mg/cm² is followed by a gradual loss of 2 mg/cm².

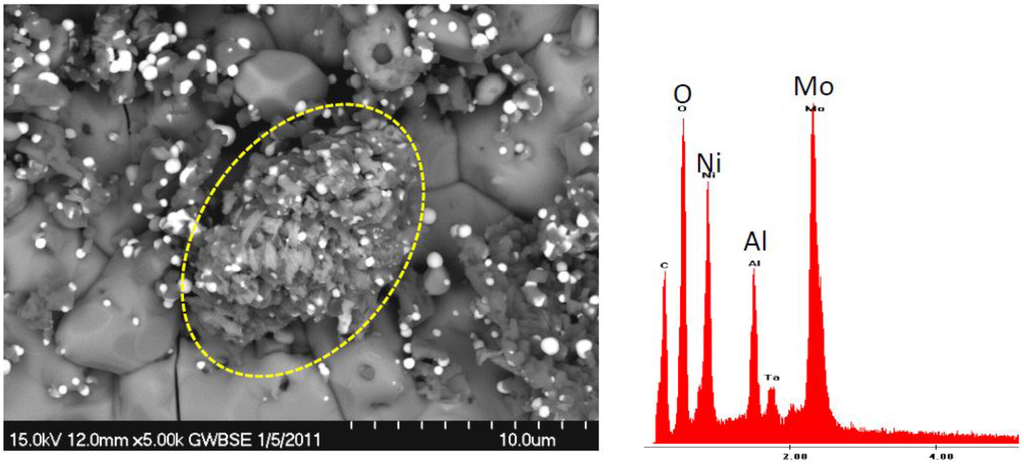

Figure 13. BSE/SEM and EDS spectra of a high Mo, flakey nodule (circled) on a NiO base scale. From detached flake of the TGA sample (# 143) in Figure 12.

Figure 13. BSE/SEM and EDS spectra of a high Mo, flakey nodule (circled) on a NiO base scale. From detached flake of the TGA sample (# 143) in Figure 12.

4. Discussion

4.1. Compositional Effects on Oxidative Mass Changes

The cyclic oxidation results above show an extensive range of behaviors produced by the D.O.E. matrix of compositional variations for Cr, Co, Mo, and Re. Final weight changes after 200 1-h cycles at 1100 °C varied from widely about −40 mg/cm² to + 1 mg/cm². From an engineering standpoint, behavior similar to that of highly oxidation resistant 2nd generation single crystal superalloys was approached in this preliminary screening test. This was accomplished in large part by retaining some key elements at the same levels (6% Al, 6.2% Ta, and no Ti). Of the four experimental design parameters, Cr is extremely necessary, as expected, and substitution of W by higher levels of Mo could be tolerated. Cr promoted thinner scales and less spallation.

Stepwise multiple linear regression produced a statistically significant equation that reproduced the major experimental trends within the compositional matrix, allowing further interpolation within that defined compositional space. The coefficients reflect the strong positive effect of Cr and lesser negative effects of Mo, including a positive Cr × Mo and a negative Mo × Re interaction term. The negative effect of Co, a common low level substitute for Ni in most single crystal superalloys, is surprising and unexplained at present. The effect of Cr follows established principles for dilute Ni–Al alloys in which transient Cr₂O₃ (and Ni(Al,Cr)₂O₄) scales assist in preventing rapid growing, non-protective NiO scale formation on isothermal and cyclic oxide maps [2,25,26], but with a greatly expanded transition region for cyclic behavior [2]. This allows time for a protective Al₂O₃ healing layer to form and establish slower oxidative rate control. The Y-dopant levels in the preliminary alloys studied by SEM, 2-48 (0010), 2-49 and 2-51 (1011), were notably below target levels, being only on the order of 5–10 ppm. This may not have been sufficient to maximize Al₂O₃ scale adhesion, as predicated by a critical Y/S ratio ≈ 3 (1:1 atomic) [7]. The notable spalling to bare metal (Figure 9 and Figure 11) suggests that the Y present was not completely effective or that additional factors were operative other than sulfur segregation mechanisms. The corresponding weight losses in Table 5 were considerably more severe than the 12 alloy VIM D.O.E. series having 50–100 ppm Y, Table 1.

Other mass change features distinguish this set of 12 alloys. There appears to be a rapid uptake of ~3 mg/cm² for the first hour for some Cr-free alloys that would be abnormal for most commercial single crystal alloys. This is believed to be due to rapid NiO layer growth and complete spallation, as portrayed in macrographs of loose scale formed on single crystals after 1 h. [21] It is then moderated to lower growth and spallation of a different scale chemistry. Some similarities can be seen for the Rene′ N4 weight data to some degree. External NiO growth is predicted for isothermal oxidation of alloys with low Cr and Al levels that fall below the boundary required for external Al₂O₃ scales. But the transition zone to protective behavior is widened to higher Cr, Al contents under cyclic conditions, as indicated on cyclic oxidation maps [2,26].

4.2. Effects of High Mo Content on Oxidation

The effect of high Mo contents is more elusive. From the X-ray diffraction results in Table 2, a distinct Mo-rich scale phase (NiMoO₄) only appeared on one poor performing alloy (0111), despite similar Mo contents in alloys (0010) and (0110). However in limited SEM surveys of scale features, distinct high Mo grains were found for the high Mo (0010) alloys. It is expected that these scales may be transient in light of Mo losses by MoO₃ vaporization. The gradual but extensive weight loss in the TGA test of the high Mo single crystal sample suggests that some MoO₃ volatility process may have occurred. However the degree of mass loss seems excessive relative to the limited amounts of Mo-containing scale phases observed overall.

In studies of NiAl–Mo in situ composites, analogous mass losses were established upon the formation of NiMoO₄ scale phases [27]. Furthermore, bulk NiMoO₄ samples were shown to decompose back to NiO due to MoO₃ losses, which accelerated greatly for temperatures above 1100 °C. Thus some of the NiO observed in the present study may be a daughter phase formed by NiMoO₄ decomposition. They further point out that NiMoO₄ is subject to phase changes at 250 °C on cooling, with corresponding volume changes that may increase scale spallation.

In a related study of NiAl–9Mo (atomic) directional eutectics, mass losses were observed in isothermal TGA tests, but only if the Mo rods were ~0.1 µm diameter [28]. Water vapor increased the loss, presumably by forming more volatile hydroxides, e.g., MoO₂(OH)₂, by reacting with MoO₃ vapor [28,29]. Ni(Mo,W)O₄ scales are occasionally observed for conventional superalloys [2,24]. That is the case for the Rene′ 80 alloy tested here, having 4% Mo. Other higher (Mo) commercial alloys would be Hastelloy X (9% Mo), IN 625 (9% Mo), and IN 617 (9% Mo), all with high ~20% Cr and little or no Al, or B1900 (6% Mo) and NX 188 (18% Mo), both with 6%–8% Al. It can be seen from Table 2 that most of these commercial alloys populate the entire range of performance as the LDS alloys, from the very good to very poor oxidation resistance at 1100 °C. Thus performance is not always pinned to Mo content. It should be noted that only the LDS and single crystal alloys in Table 2 were originally intended for use at temperatures as high as 1100 °C; the other conventional alloys are only included to give a broader compositional perspective.

4.3. Comparison of VIM Alloys to Oxidation of Low Density Single Crystals

Finally, it should be pointed out that the subsequent single crystal versions performed considerably better than initial VIM compositions in the same 1100 °C cyclic test. Some were very similar to the 1100 °C test results for Rene′ N5. The SX-VIM correlation can be seen in Figure 14 to be fairly divergent for low Cr alloys. For example, the single crystal (5555) alloy only lost ~1 mg/cm² at the end of the same test as compared to −5 mg/cm² for the VIM cast version. It is also important to point out that the high Cr single crystals all exhibited a low +0.4 mg/cm² weight gain and α-Al₂O₃ as the prominent scale for the three 5 Cr alloys [20]. The intent of the present paper is not to elaborate on the single crystal results. Yet, overall, the present oxidation tests of easily-obtained VIM specimens did allow successful projection of oxidation performance trends for the proposed alloying schemes in this compositional space. The explanation of why the single crystals performed better in oxidation than the polycrystalline VIM is not completely clear. It may be related to better homogenization and Y distribution in the single crystals or uncontrolled trace or tramp elements in the VIM versions. The lack of any grain boundary oxidation in the VIM specimens supports this screening approach. A recent study on (1101) single crystals has also shown that rough surface finish, i.e., machine grinding, promoted protective alumina scales at 817 °C, as opposed to fine polishing which resulted in fast growing external NiO, with internal Al₂O₃-spinel scales [22]. Thus subtle factors are likely to be significant in controlling transient oxidation issues of this alloy.

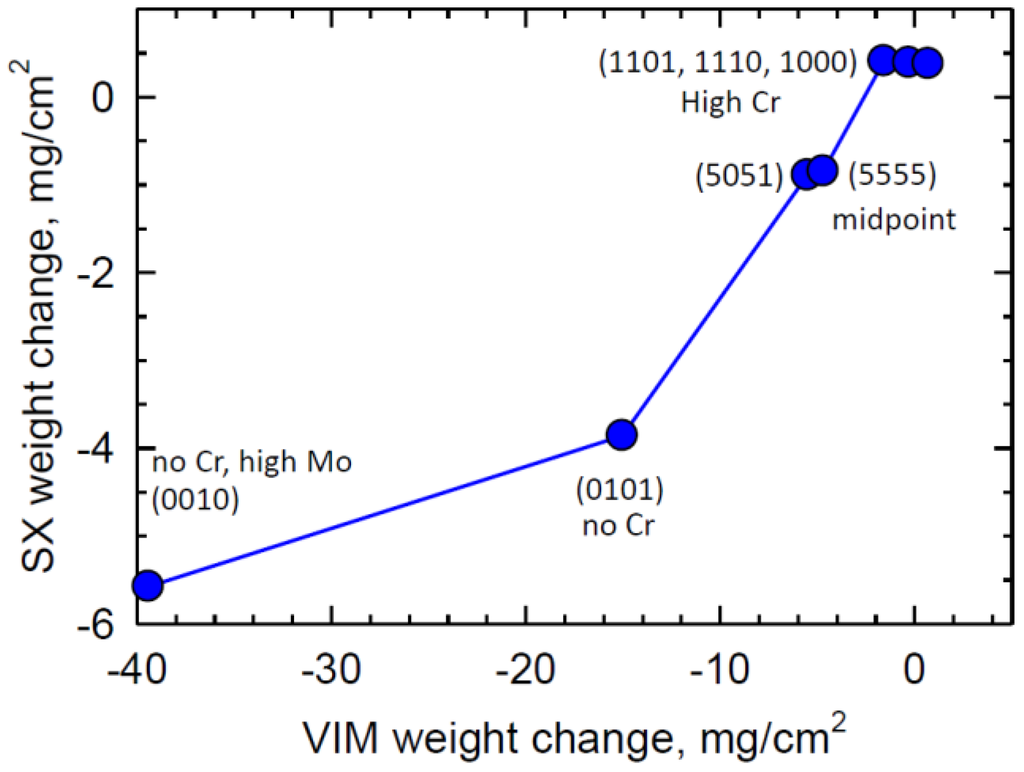

Figure 14. Correlation of improved single crystal oxidation for corresponding VIM results for the same 1100 °C, 200 h cyclic test.

Figure 14. Correlation of improved single crystal oxidation for corresponding VIM results for the same 1100 °C, 200 h cyclic test.

In another compositional study of similar single crystal superalloys, decreased oxidation resistance was reported for just 1–2 wt. % Mo [30]. However these were all at significantly lower 5.1%–5.3% Al and higher 4.4%–5.4% Re and 5%–6% W contents. Interestingly, creep strength was also reported to be lower for the alloys with Mo. The results for this composition space seems to be at odds with the present findings at 6% Al, 3% Re, and no W.

4.4. Broader Implications of Low Density Single Crystal Studies

It should be stressed that the single crystal versions of the present LDS alloys achieved significant gains in creep behavior (Larsen-Miller Diagram) to warrant this study of high Mo superalloys [20,21]. A 40 °C advantage with a 1.5% density reduction was demonstrated for alloy (1101) over Rene′ N5. Furthermore, density-normalized creep behavior was equivalent to those of 3rd generation single crystals. At 8.51 g/cm² this (1101) Ni–6Al–5Cr–10Co–7Mo–3Re–6.2Ta alloy exhibited density reductions of 2.2%, 3.8%, and 4.9% compared to CMSX-4, SC180, and PWA1484, respectively. Given the intended substitution of Mo for W, it is not especially different from the co-optimized composition arrived at from fundamental considerations, namely Ni–7Al–4Cr–10Co–3W–3Re–5Ta and Ni–6Al–8Cr–10Co–3Re–8W–8Ta [14]. Reasonable phase stability and burner rig hot corrosion resistance were also presented for the (1101) alloy, although severe hot corrosion was observed for some other high Mo alloys in this alloy group [20]. Only slight differences were produced by further minor variations on the (1101) target composition, with perhaps the best benefit accruing from the addition of 0.2% Hf. It was concluded that the Hf-modified (1101) alloy displayed an attractive balance of properties competitive with present commercial alloys. Since present single crystal airfoils are coated, the concept of using these reduced density alloys, and still benefitting from a protective coating to further minimize oxidation under extreme conditions, appears realistic.

5. Summary

The cyclic oxidation resistance of various high Mo LDS superalloys were screened for potential turbine blade applications, with statistically designed variations in the Cr, Co, Mo, and Re levels. The base alloy was analogous to 2nd generation single crystal compositions, at 6.1Al, 6.2Ta, and ~100 ppm Y and C, but with no Ti, Nb, or W. As expected, the use of low or no Cr overshadowed most other variations and produced fast growing, non-adherent outer, large grained NiO scales. These covered complex, layered Ni(Al,Cr)₂O₄ and Al₂O₃ phases, with fine, dispersed NiTa₂O₆ particulates. NiMoO₄, appearing feathery and only identified by XRD for the high Mo, low Cr LDS alloys (0111), was not widely present. It is suggested that some transitory Mo contribution to the scale may occur by evaporation of volatile MoO₃, leaving a NiO reaction product. The high Cr (5%) alloys generally resulted in good oxidation resistance analogous to commercial 2nd generation single crystal alloys, though some NiO was still observed.

Multiple linear regression fitting produced an equation describing the final cyclic oxidation weight changes with a high positive coefficient Cr term, negative Co and Mo terms, and positive Cr × Mo and negative Re × Mo interaction terms. Hence, high (12 wt. %) Mo without Cr was associated with the worst performance, while the behavior was much improved if 5 wt. % Cr was present. In single crystal form, quite attractive behavior was correspondingly retained even for a high 12% Mo alloy (1110). There appears to be a consistent oxidation benefit of single crystals compared to vacuum induction melting. This work is part of a broader study that has identified a co-optimized composition (1101), at 5Cr–10Co–7Mo–3Re (wt. %), achieved up to a 40 °C creep advantage over Rene′ N5 or up to a 5% density advantage compared to PWA1484, with good phase stability and somewhat comparable hot corrosion resistance. Accordingly, the demonstration of acceptable cyclic oxidation resistance helps qualify these alloys for turbine blade applications.
