Effect of Heat Treatment on the Phase Composition, Microstructure and Mechanical Properties of Al_0.6CrFeCoNi and Al_0.6CrFeCoNiSi_0.3 High-Entropy Alloys

Abstract

High-entropy alloys exhibit some interesting mechanical properties including an excellent resistance against softening at elevated temperatures. This gives high-entropy alloys (HEAs) great potential as new structural materials for high-temperature applications. In a previous study of the authors, oxidation behavior of Al_0.6CrFeCoNi and Al_0.6CrFeCoNiSi_0.3 high-entropy alloys at T = 800 °C, 900 °C and 1000 °C was investigated. Si-alloying was found to increase the oxidation resistance by promoting the formation of a continuous Al₂O₃ layer, avoiding the formation of AlN at T = 800 °C. Obvious phase changes were identified in the surface areas of both alloys after the oxidation experiments. However, the effects of heat treatment and Si-alloying on the phase transition in the bulk were not investigated yet. In this study, Al_0.6CrFeCoNi and Al_0.6CrFeCoNiSi_0.3 high-entropy alloys were heat-treated at T = 800 °C and T = 1000 °C to investigate the effect of heat treatment on microstructure, phase composition and mechanical properties of both alloys. The results show that alloying Al_0.6CrFeCoNi with Si caused a phase transition from dual phases consisting of BCC and FCC to a single BCC phase in an as-cast condition. Furthermore, increased hardness for as-cast and heat-treated samples compared with the Al_0.6CrFeCoNi alloy was observed. In addition, the heat treatment facilitated the phase transition and the precipitation of the intermetallic phase, which resulted in the change of the mechanical properties of the alloys.

1. Introduction

High-entropy alloys (HEAs), which typically contain five or more metallic elements in equal or near-equal concentrations, have recently received great attention due to their unconventional phase compositions, typically with BCC or/and FCC crystal structures [1], and their very interesting properties [2,3,4,5,6,7,8,9,10,11,12,13,14,15,16,17,18,19,20,21]. Among the interesting properties, it is particularly the excellent resistance against softening at elevated temperatures that gives HEAs great potential as new structural materials for high-temperature applications. Besides the mechanical properties, the oxidation behavior of metallic alloys is an important property of structural materials with respect to applications at high-temperature. In a previous study [22], the oxidation behavior of two HEAs, Al_0.6CrFeCoNi and Al_0.6CrFeCoNiSi_0.3, was investigated at T = 800 °C, T = 900 °C and T = 1000 °C to evaluate the temperatures at which they are applicable without additional coating protection, and to determine the effect of Si-alloying thereon. It was found that Si-alloying could increase the oxidation resistance by promoting the formation of a continuous Al₂O₃ layer, avoiding the formation of AlN at T = 800 °C compared to the alloy Al_0.6CrFeCoNi. The analysis of the oxidized surface areas of both alloys revealed that in the test temperature range, phase changes occurred in the surface areas of both alloys. Although the chemical compositions in the surface areas of both alloys differed significantly from the original chemical compositions due to the oxidation, the phase transition from a single BCC phase in an as-cast condition to both BCC phase and FCC phase for Al_0.6CrFeCoNiSi_0.3 after the oxidation tests was characterized by the formation of a large amount of FCC phase. This indicates that the change in the chemical composition of the surface areas was not the only cause of the phase transition. This phase transition occurs within the alloy during the heat treatment under the same conditions as were used in the oxidation tests, i.e., the phase transition is a property of the alloy. In order to investigate the effect of heat treatment on phase transition as well as on microstructure and mechanical properties, both alloys were heat-treated at T = 800 °C and T = 1000 °C for t = 100 h in this study. Phase composition, microstructure, indentation modulus and microhardness were analyzed and determined both in an as-cast condition as well as after the heat treatment by means of X-ray diffraction analysis, scanning electron microscopy (SEM) and indentation tests.

2. Experimental

A mixture of high-purity components (higher than 99.9 wt %) was used to prepare the Al_0.6CrFeCoNi and Al_0.6CrFeCoNiSi_0.3 HEA ingots. The mixed materials were melted by an arc in a water-cooled copper hearth in a Ti-gettered high-purity argon atmosphere. In the following, Al_0.6CrFeCoNi and Al_0.6CrFeCoNiSi_0.3 will be referred to as Al_0.6 and Al_0.6Si_0.3. Prior to the heat treatment experiments, specimens with a geometry of V = 20 × 20 × 10 mm³ were prepared, ground and cleaned with ethanol under ultrasonic vibrations. The heat treatment tests were conducted under ambient air at T = 800 °C and 1000 °C in a PKE 12-12 furnace (LAC, Rajhrad, Czech Republic) for t = 100 h; these conditions were used in the oxidation tests in the previous study [22]. After the heat treatment tests, the sample surfaces were ground, during which a thickness of at least d = 1mm was taken off in order to ensure the removal of the oxide layer. Because the oxidation-effected surface areas were smaller than d = 100 µm [22], an effect of the oxidation on the chemical composition in the surface area of the samples after grinding can be excluded. The phase compositions were investigated via X-ray diffraction analysis using XRD 3000 (GE Inspection Technologies GmbH, Hürth, Germany) with a Cu target. The diffraction angles were set in a range from 2θ = 20~90° with a step width of Δθ = 0.05° and t = 10 s/step. The microstructure of the HEAs in an as-cast condition as well as after the heat treatment was investigated using metallographically prepared samples by means of SEM by Carl Zeiss Microscopy GmbH, Germany equipped with an energy dispersive X-ray spectrometer (EDS, EDAX, Mahwah, NJ, USA). Furthermore, mapping measurements were conducted on the samples to determine the element distribution in the alloys. The Vickers hardness was measured using a Vickers tester (Buehler Ltd., Düsseldorf, Germany) with a load of F = 49.1 N (5 kg) and a dwell time of t = 10 s. Ten measurements were taken to calculate an average value. The Young’s modulus was estimated using the equation E_IT = E × (1 − v²) (E_IT: Indentation modulus, E: Young’s modulus, v: Poisson’s ratio). In this study, Poisson’s ratio was set to v = 0.3 for both alloys. The indentation modulus was measured on the polished samples using the micro-indentation system Fischerscope HM2000 by Helmut Fischer GmbH (Sindelfingen-Maichingen, Germany) with a load of F = 1000 mN and a dwell time of t = 20 s. Under this load, homogenous indentations could be produced that were large enough to cover different phases. In addition to the indentation modulus, the elastic work W_e and the plastic work W_p applied during the measurements were determined based on the force-displacement curve [23].

3. Results and Discussion

3.1. Phase Compositions and Microstructures

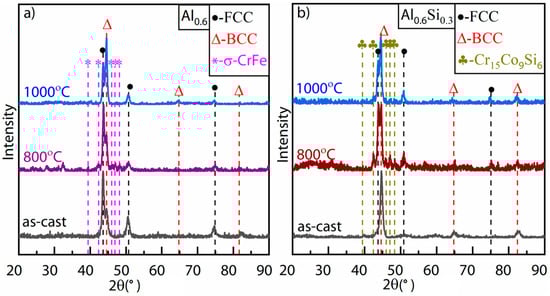

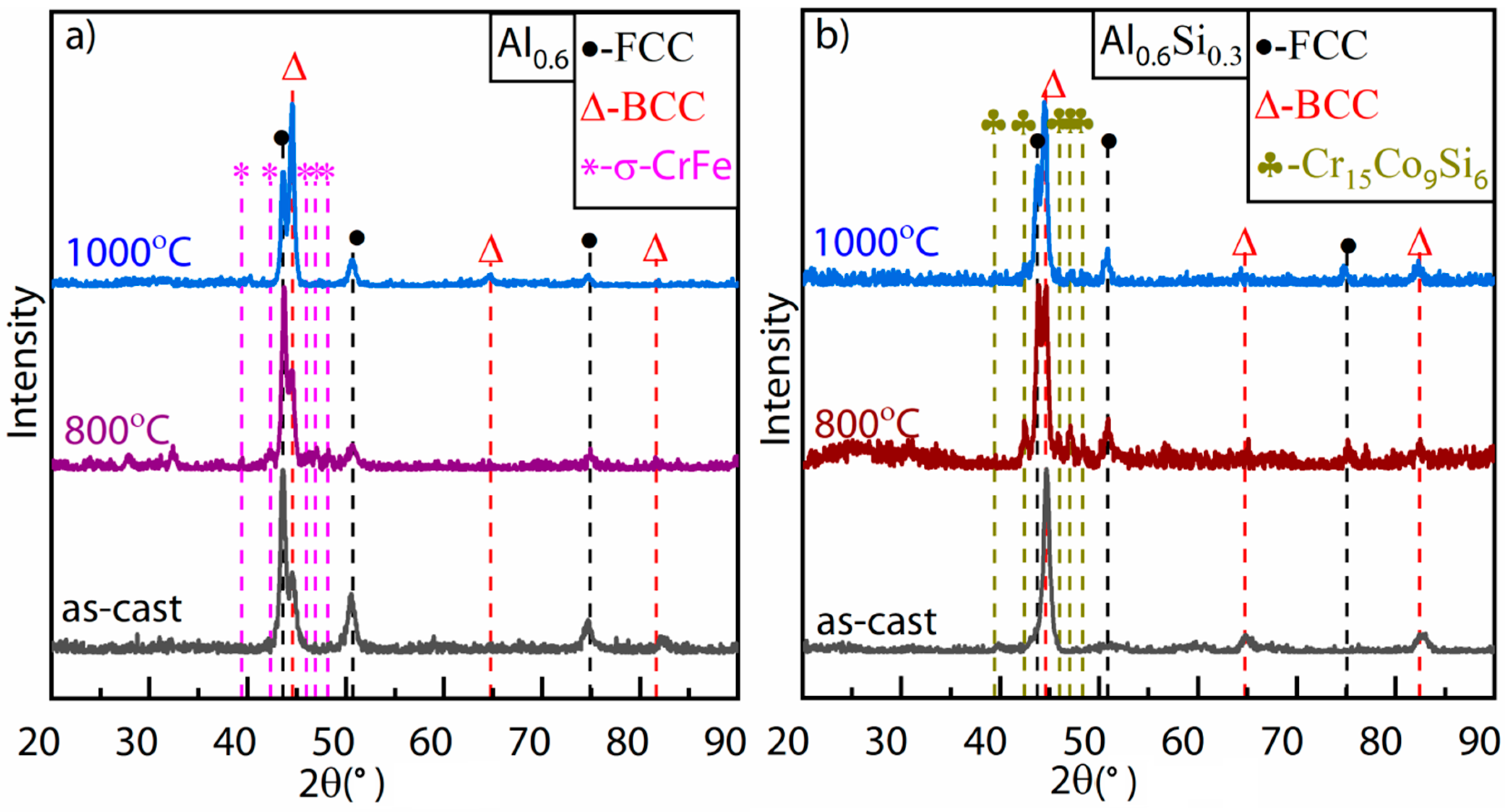

Figure 1 shows XRD diffraction patterns of Al_0.6 and Al_0.6Si_0.3 in their as-cast states and after the heat treatment tests. It is recognizable that Al_0.6 in its as-cast state exhibits BCC-type and FCC-type phases. The relative phase compositions are obtained by Rietveld analysis with XRD data and the results are shown in

Table 1. Relative phase composition from Rietveld analysis with XRD data for Al_0.6 and Al_0.6Si_0.3 samples.

Sample	FCC (wt %)	BCC (wt %)
Al0.6-as-cast	100.0	59.1
Al0.6-800 °C	100.0	66.3
Al0.6-1000 °C	61.0	100.0
Al0.6Si0.3-as-cast	-	100.0
Al0.6Si0.3-800 °C	95.0	100.0
Al0.6Si0.3-1000 °C	59.8	100.0

. The peak intensities of the FCC-type phase are significantly higher than those of the BCC-type phase, indicating a higher amount of the FCC-type phase compared to the BCC-type phase. Similar results were reported in [17,24,25,26]. Al_0.6Si_0.3, on the other hand, only exhibits a BCC-type phase in an as-cast state, showing that the Si-addition favors the formation of a BCC crystal structure. This was mainly attributed to the lower valence electron concentration in Si [27].

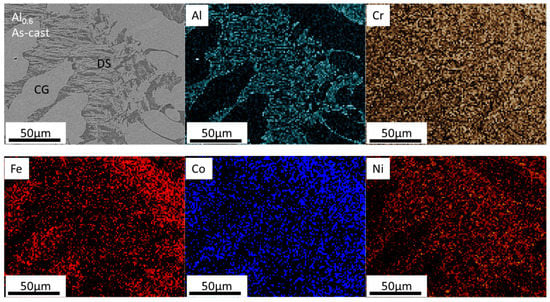

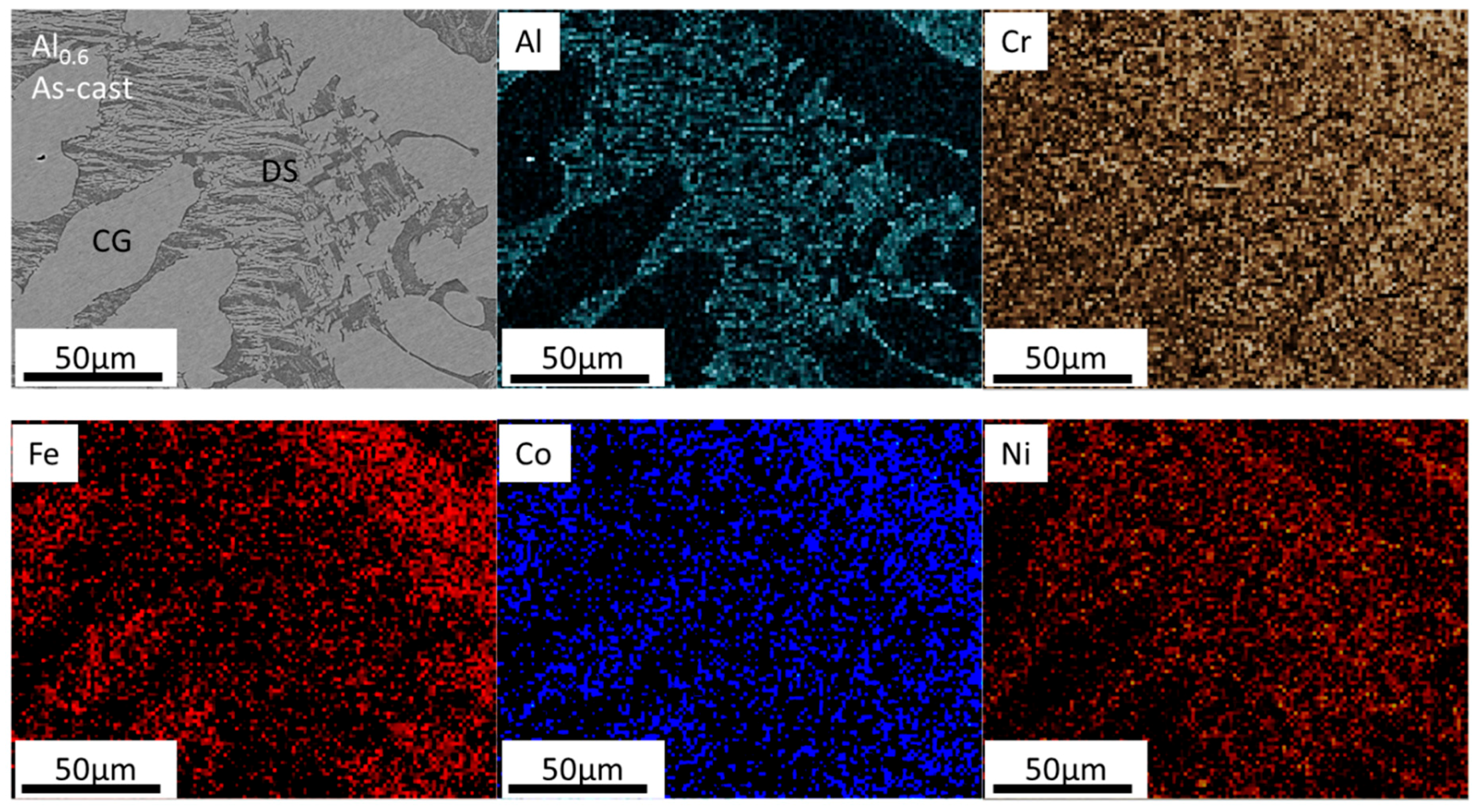

Figure 2 shows a BSE scanning electron microscopy (SEM)-micrograph and the corresponding EDS-mapping results of Al_0.6 in its as-cast state. Brighter, coarser columnar grains (marked as CG in Figure 2) and darker areas with a dendritic structure (marked as DS in Figure 2) are clearly recognizable. The darker areas with a dendritic structure comprise fine dark dendrites and fine bright dendrites. The dendritic structure indicates a eutectic solidification during the casting process. The microstructure of Al_0.6 is very typical for HEAs with similar chemical compositions as reported in other studies [12,26,28]. The EDS-results show that all elements can be detected in both brighter, coarser columnar grains and in darker areas. However, the elements are distributed non-uniformly. The brighter, coarser columnar grains are rich in Fe-Co, while the darker areas are rich in Al-Ni. By contrast, Cr is distributed more uniformly in both brighter, coarser columnar grains and in darker areas. The brighter, coarser columnar grains and the bright fine dendrites in the darker areas exhibit the FCC crystal structure according to the references [12,29], determined by transmission electron microscopy. The dark fine dendrites exhibit the BCC crystal structure [12,17].

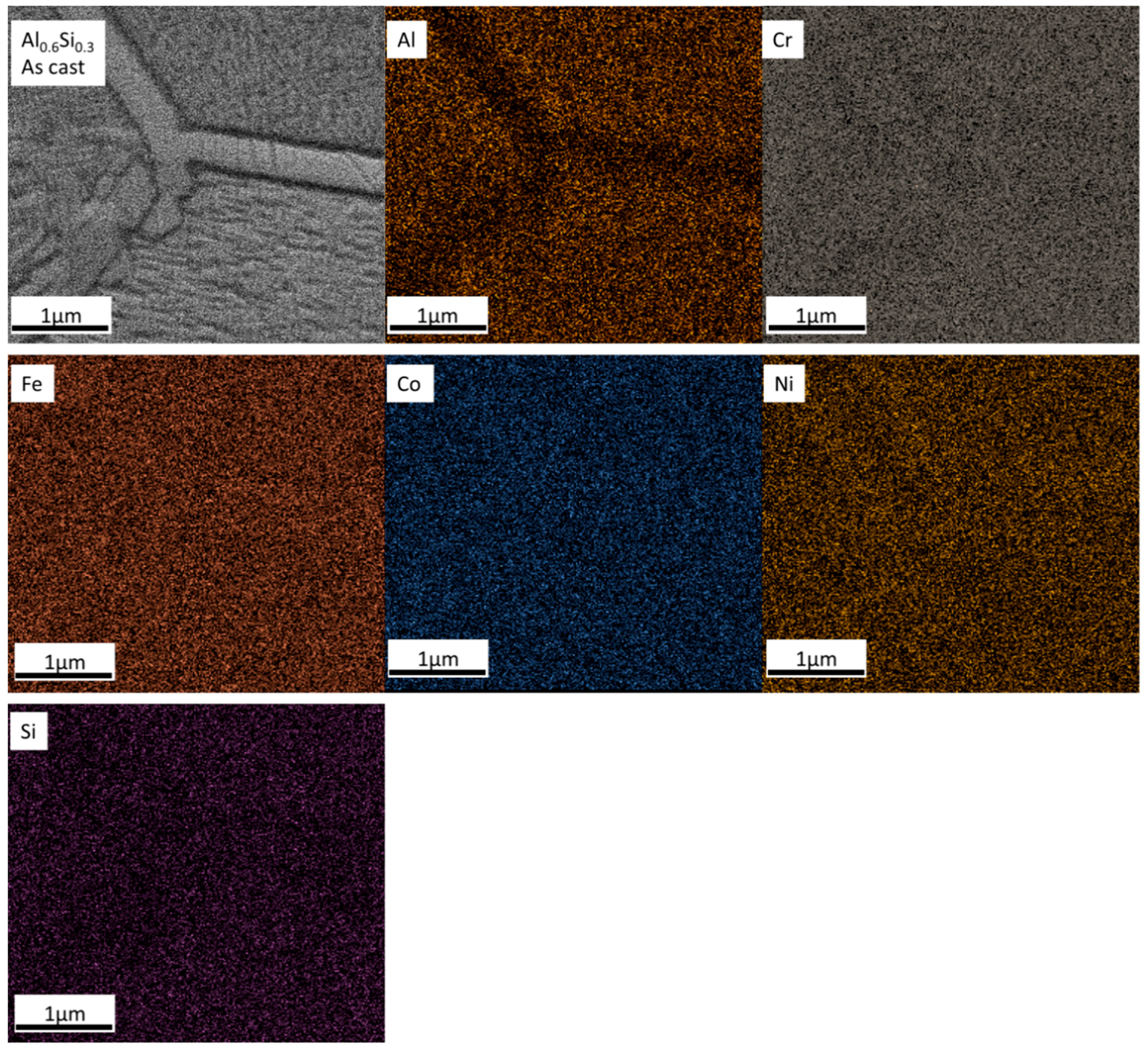

Figure 3 shows a BSE SEM-micrograph and EDS-mapping results of Al_0.6Si_0.3 in its as-cast state. The microstructure of Al_0.6Si_0.3 differs significantly to that of Al_0.6. Instead of columnar grains and a dendritic structure, only quasi-equiaxed grains are recognizable, which exhibits a BCC-type structure. The EDS-mapping results show that the elements Cr, Fe, Co, Ni and Si are distributed uniformly. By contrast, the element Al is distributed less uniformly. It is noticeable that the grain boundary is Al-depleted, indicating that the total amount of Al is limited locally. Because the dendritic structure was not formed, it is reasonable to assume that no eutectic-like solidification occurred as a result of the addition of Si.

The X-ray analysis of Al_0.6 after the heat treatment at T = 800 °C revealed that Al_0.6 exhibited mainly the FCC-type phase, but also the BCC-type phase, as shown in Figure 1. However, a change in peak intensity is well recognizable. The peak intensities of the FCC-type phase decrease in comparison with those in an as-cast state, while the intensity of the main peak of the BCC-type phase increases. This indicates that the amount of the FCC-type phase is decreased by the heat treatment while still remaining higher compared to the BCC-type phase. In addition to the FCC-type and BCC-type phases, a new phase is detectable in Figure 1. The peaks of the new phase agree very well with those of σ-CrFe phase. In the two-element system of Fe-Cr, the σ-CrFe phase is stable only in the temperature range of T = 500–830 °C [30,31]. By contrast, there is an σ-phase at room temperature in the heat-treated Al_0.6 sample indicating that the σ-phase in Al_0.6 is more stable than that in the Fe-Cr system. The reason for the higher phase stability is assumed to be that the σ-phase in Al_0.6 contains the elements Co, Ni and Al. The alloyed σ-phase is thermodynamically more stable on the one hand and the diffusion of elements in the alloyed σ-phase is slower on the other hand.

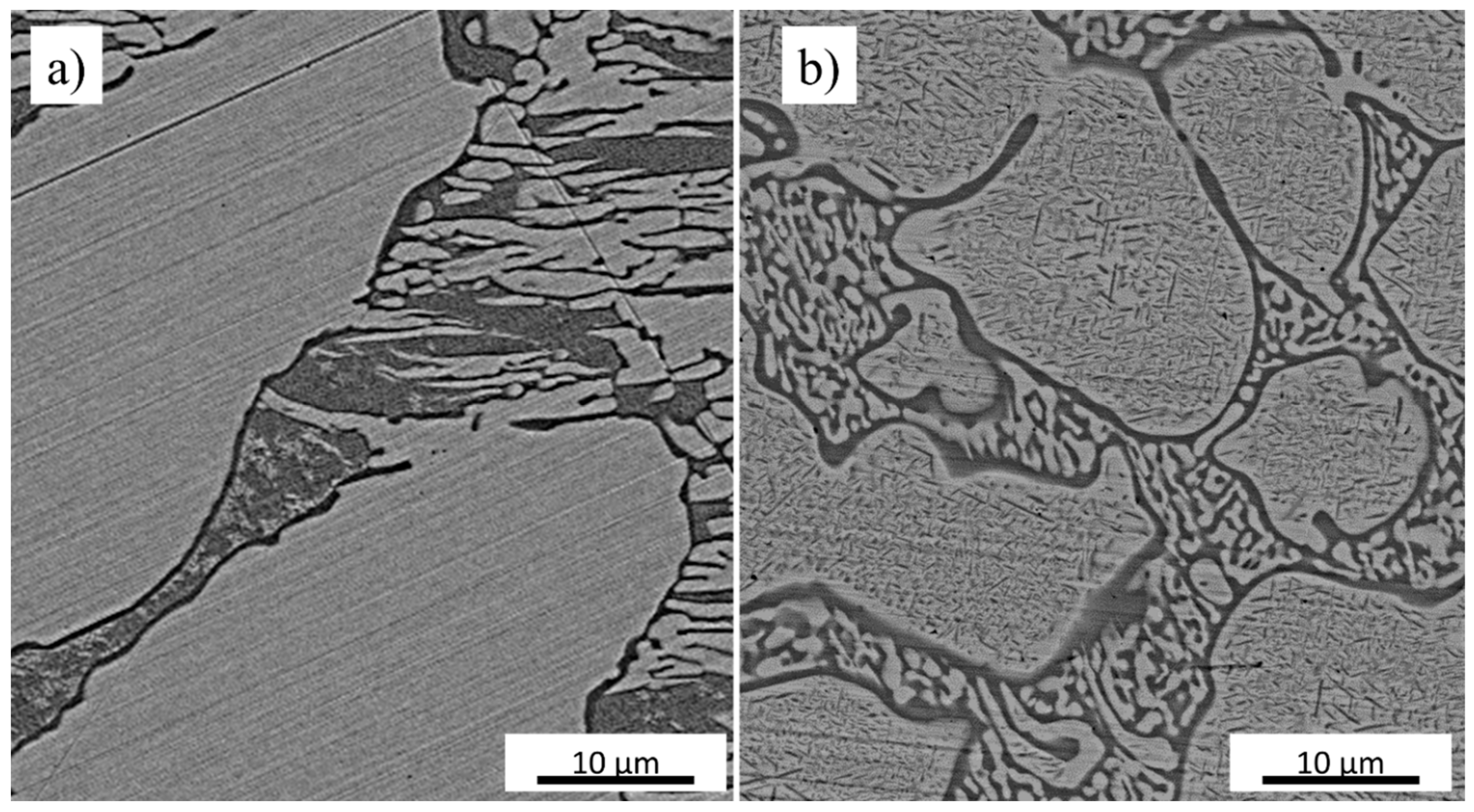

Figure 4 shows the high-magnification BSE SEM-micrographs of Al_0.6 in its as-cast state and after heat treatment at T = 800 °C. Compared to its as-cast state, significant changes in the microstructure are recognizable. In an as-cast state, it is recognizable that the brighter, coarser columnar grains became more regular in their shapes as a result of grain growth. The original dendrite structure (DS) becomes unrecognizable. The bright fine dendrite grew together in many locations. The largest change in the brighter, coarser grains is that dark needle-like precipitates are well recognizable under high amplification. The dark color of the precipitates indicates that these precipitates are rich in Al. It was demonstrated that these precipitates exhibit BCC-type AlNi phase [32]. This explains why the main intensity of the BCC phase increased in the X-ray pattern.

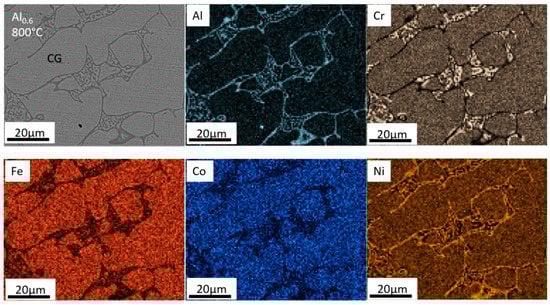

Figure 5 shows BSE SEM-micrographs and an EDS map scan of Al_0.6 after heat treatment at T = 800 °C. The elements are distributed more non-uniformly compared to an as-cast state. It is recognizable that the FCC-type columnar grain is still rich in Fe-Co, while the BCC-type black grain boundary is rich in Al-Ni. It should be noted that in the original dendrite structure area some bright particles are rich in Cr. Considering the XRD result shown in Figure 1, the particles should correspond to σ-CrFe phase. The columnar grain also shows needle-like precipitates, but it is hard to testify the element composition due to the low magnification of the picture.

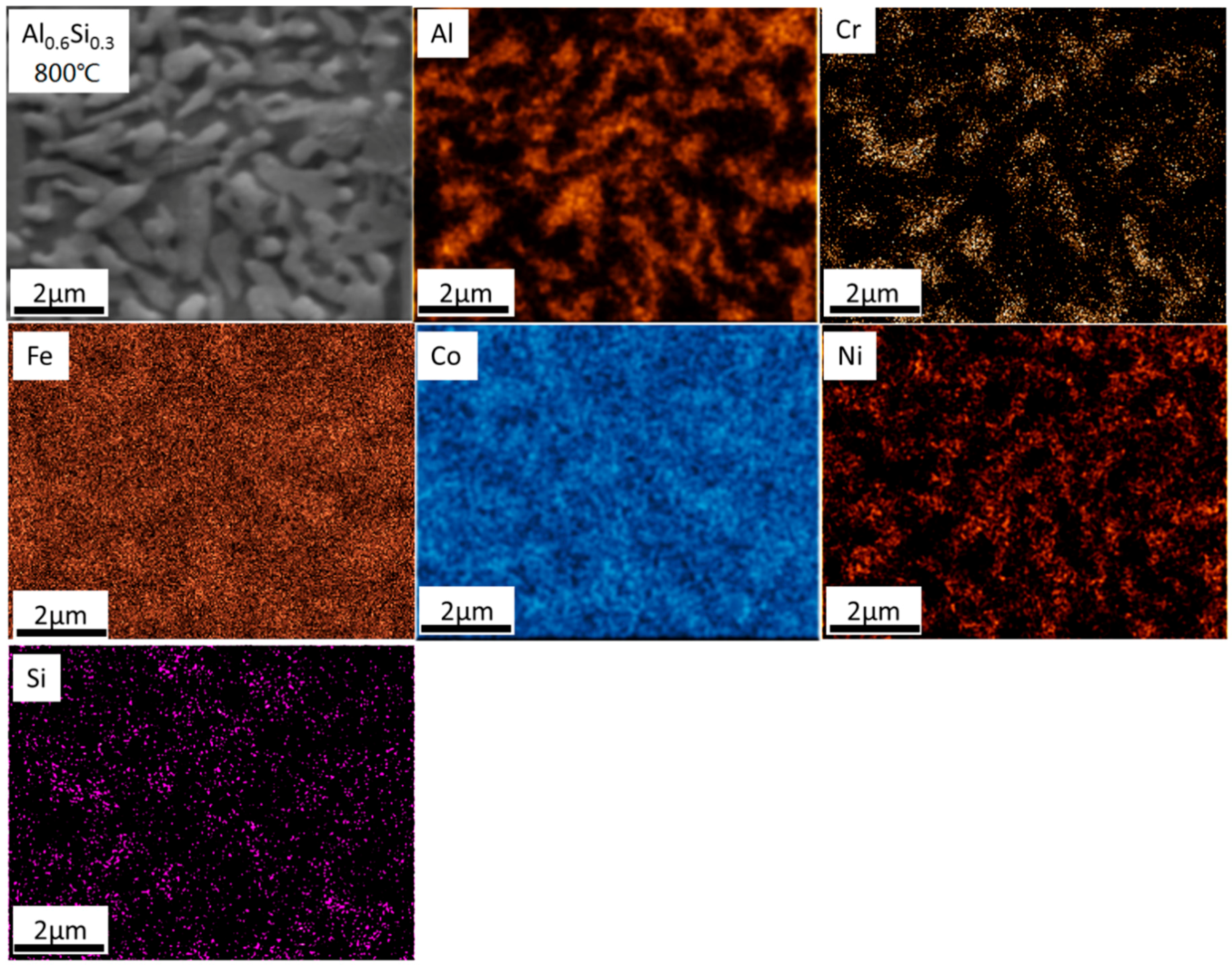

The X-ray analysis of Al_0.6Si_0.3 after the heat treatment at T = 800 °C revealed that the FCC-type phase precipitated from the BCC-type phase and exhibited a nearly equivalent intensity compared to the BCC phase, as shown in Figure 1. This means that a phase transformation happened during the heat treatment. This is probably a result of the metastable state of the Al_0.6Si_0.3 alloy due to the as-cast conditions. A similar phenomenon of phase transformation from a BCC to FCC was found by Wen et al. [33]. In addition to the FCC-type and BCC-type phases, a Cr₁₅Co₉Si₆ phase was detected. The Cr₁₅Co₉Si₆ phase is a stable and brittle phase even for elevated temperatures of up to T = 1000 °C. It was also reported by Fedorov et al. [34] who identified that the Cr₁₅Co₉Si₆ phase formed in Cobalt-based metallic glass at around T = 550 °C. The BSE SEM-micrographs and EDS map scan of Al_0.6Si_0.3 after the heat treatment at T = 800 °C is shown in Figure 6. In order to observe the fine structure of the alloy, the measurements were taken with a high-magnification micrograph, which produces a map scan with a low resolution. Compared to the as-cast state, there are no distinguishable quasi-equiaxed grains. However, two coexisting phases with different contrasts are observed in the morphology. The EDS-mapping results show that only Fe and Co were distributed uniformly. The other elements were distributed non-uniformly. The brighter, Cr-rich area was reported to be FCC-type [16] while the darker phase, which is rich in Al-Ni, remained BCC-type. This kind of microstructure indicates that the FCC-type phase emerged through the heat treatment of a BCC-type phase. Si was distributed locally in some Cr-rich areas. From the XRD result in Figure 1, it can be deduced that the Si-rich phase is a Cr₁₅Co₉Si₆ phase.

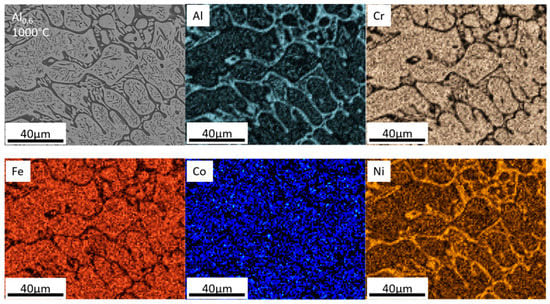

Compared to the Al_0.6 sample after the heat treatment at T = 800 °C, which is shown in Figure 1, the X-ray analysis after the heat treatment at T = 1000 °C shows a higher percentage of BCC-type phase in Al_0.6 in comparison to FCC-type phase. This indicates that the amount of the FCC-type phase is further decreased by the heat treatment at higher temperature. Additionally, the σ-CrFe phase is no longer detectable. Due to the fact, σ-CrFe phase is only stable with the temperature range between T = 500–830 °C [30,31], it is assumed that the phase dissolved in the alloy during heat treatment of T = 1000 °C. This phenomenon was also found by other researchers, for instance in [35], where the σ-CrFe phase dissolved into BCC phase above T = 975 °C in some high-entropy alloys. The BSE SEM-micrographs and EDS map scan of Al_0.6 after the heat treatment at T = 1000 °C are illustrated in Figure 7. Compared to the sample heat-treated at T = 800 °C, it is obvious that the brighter, coarser columnar grains grew more regularly, and the dark needle-like precipitates grew due to the higher temperature. The EDS-mapping results show that the FCC-type columnar grain is rich in Fe-Co-Cr, while the BCC-type black grain boundaries and needle-like precipitates are rich in Al-Ni. This could explain why the main intensity of the BCC phase is higher in the X-ray pattern. Furthermore, the σ-CrFe phase, which was found at T = 800 °C (as shown in Figure 5), is no longer observed. This is also consistent with the XRD results.

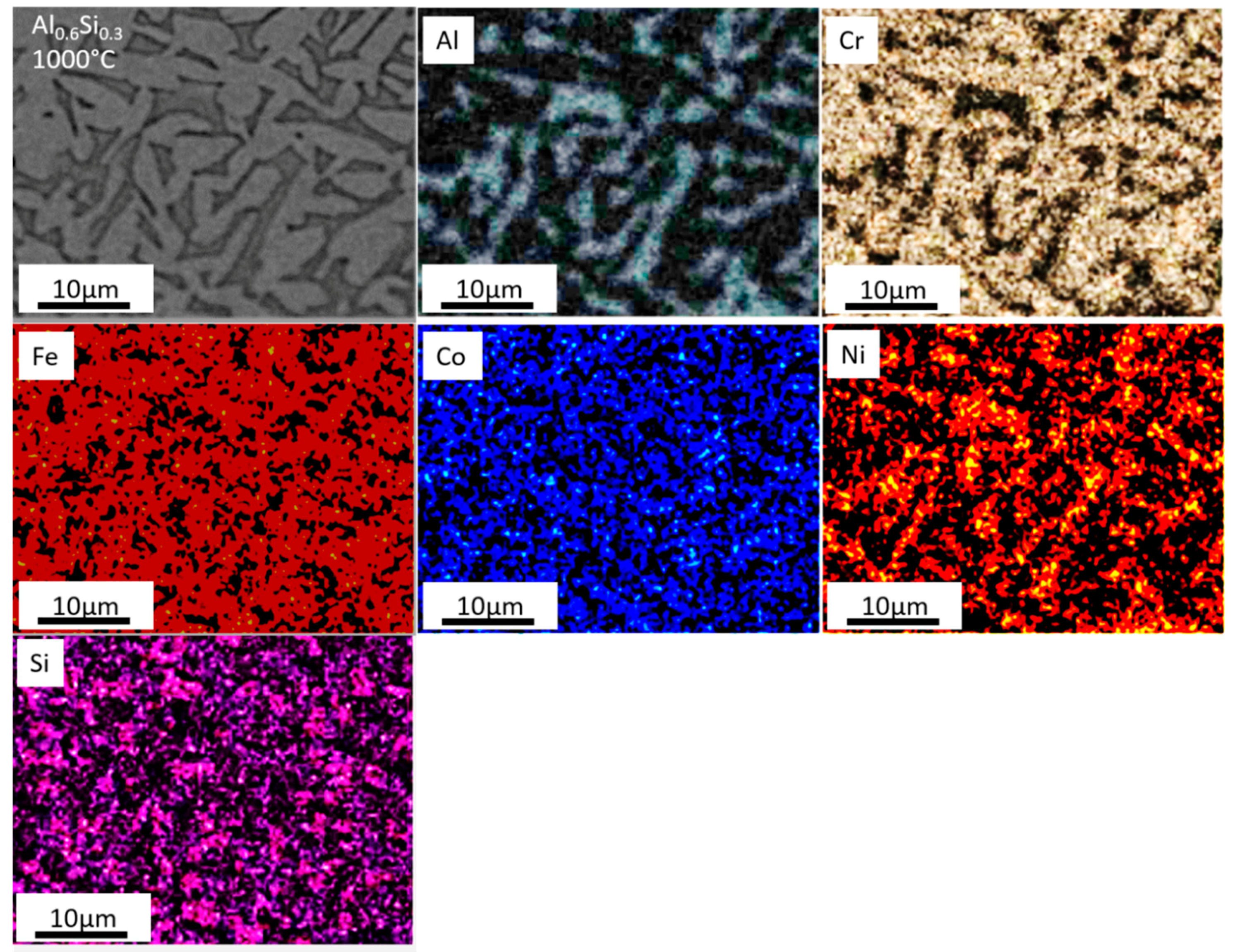

The X-ray analysis of Al_0.6Si_0.3 after the heat treatment at T = 1000 °C shows a similar phase composition as for T = 800 °C, shown in Figure 1. The main difference is that the Cr₁₅Co₉Si₆ phase decreased. The BSE SEM-micrographs and EDS map scan of Al_0.6Si_0.3 after the heat treatment at T = 1000 °C are shown in Figure 8. Compared to T = 800 °C, a coarser microstructure and a more non-uniform elemental distribution were observed. The brighter FCC-type phase is rich in Fe-Co-Cr, while the darker BCC-type phase is still rich in Al-Ni. Si is also distributed locally in the Cr-rich area. This observation is supported by the XRD results.

3.2. Young’s Modulus and Hardness

In order to investigate the mechanical properties of Al_0.6 and Al_0.6Si_0.3 alloys, Vickers hardness was measured with a load of F = 49.1 N (5 kg). The hardness indentation images of the Al_0.6 alloy are shown in Figure 9.

Table 2. Properties of Al_0.6 high-entropy alloys.

Sample	HV5	HV0.1	EIT/GPa	E/GPa	We/nJ	Wp/nJ	Wp/(We + Wp)
Al0.6-as-cast	245 ± 21	269 ± 25	158 ± 10	174 ± 12	186	1115	85.7%
Al0.6-800 °C	338 ± 30	363 ± 39	155 ± 11	170 ± 12	229	882	79.4%
Al0.6-1000 °C	241 ± 17	265 ± 20	152 ± 8	167 ± 9	210	1140	84.4%

shows the hardness of Al_0.6 in its as-cast state and heat-treated at T = 800 °C and T = 1000 °C. The sample of Al_0.6 heat-treated at T = 800 °C exhibited the highest hardness value, which is almost 1.4 times higher than the hardness of the other Al_0.6 samples. On the other hand, the hardness values of the as-cast sample and of the heat-treated sample at T = 1000 °C were nearly equivalent. This is attributed to the precipitation of the σ-CrFe phase (as shown in Figure 1) at T = 800 °C, since the σ-CrFe phase is hard and thereby affects the sample’s hardness by dispersion in a matrix finely distributed.

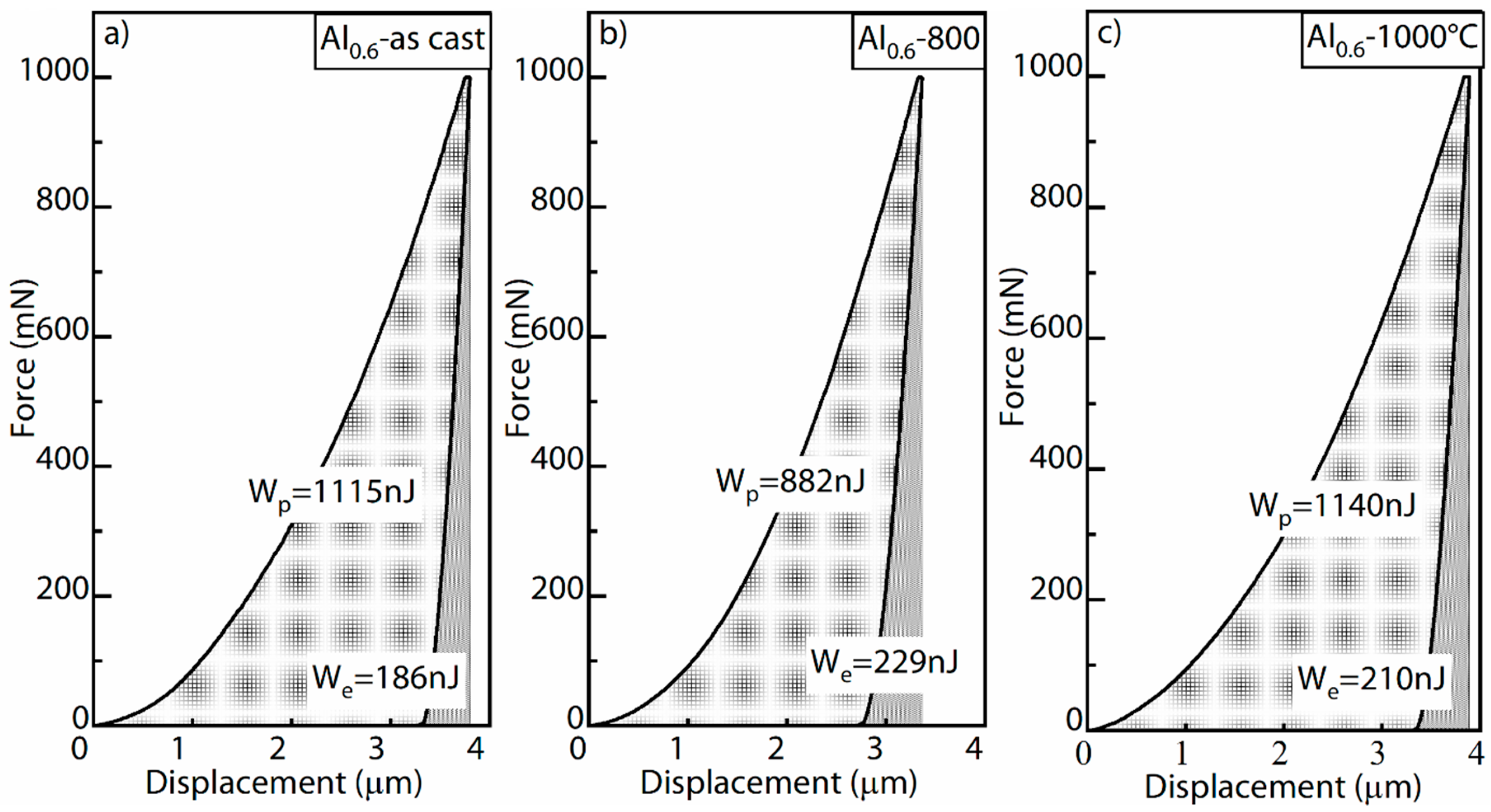

Figure 10 shows the force-displacement curves of the Al_0.6 alloy as well as the elastic work (W_e) and plastic work (W_p) during the indentation test. Young’ modulus and the percentage of plastic work during the indentation test are summarized in Table 2 as well. All of the three samples exhibit similar Young’s modulus values. The largest difference is the W_p/(W_e + W_p) value, for which that the sample at T = 800 °C had the smallest value. This means that the presence of the σ-CrFe phase causes a decrease in the plastic work, indicating a decreasing toughness of the alloy.

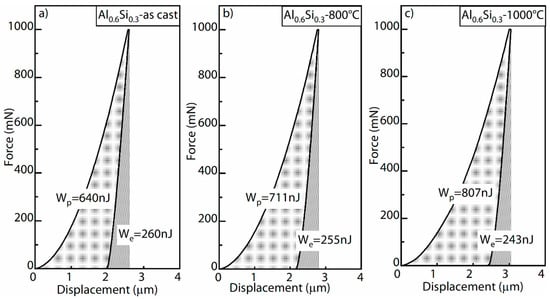

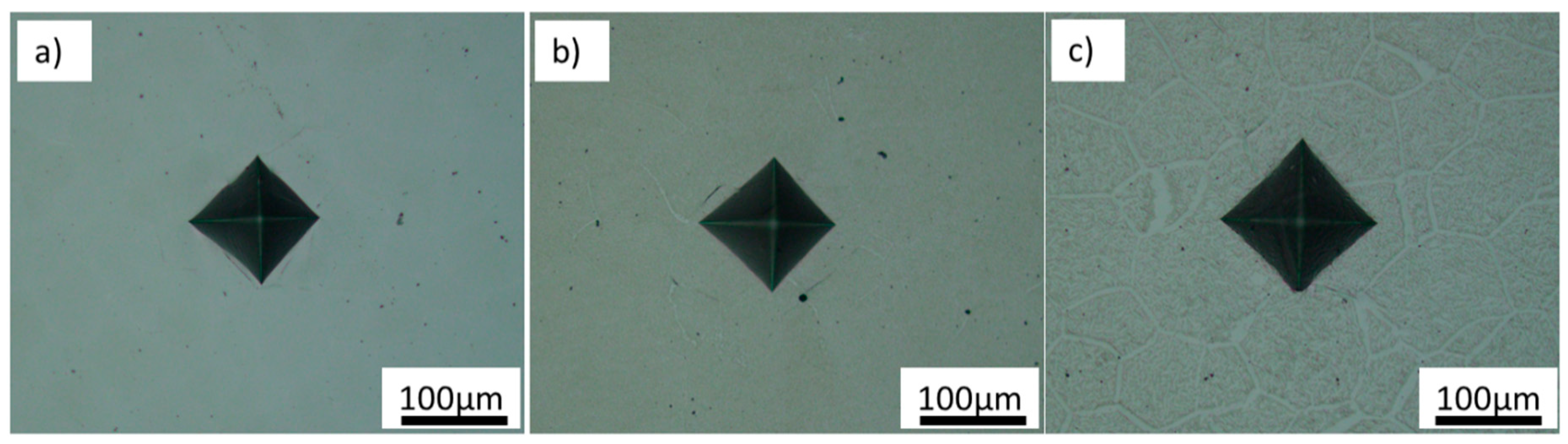

The hardness indentation images of the Al_0.6Si_0.3 alloy are shown in Figure 11. The properties of the Al_0.6Si_0.3 alloy and force-displacement curves are shown in

Table 3. Properties of Al_0.6Si_0.3 high-entropy alloys.

Sample	HV5	HV0.1	EIT/GPa	E/GPa	We/pJ	Wp/pJ	Wp/(We + Wp)
Al0.6Si0.3-as-cast	616 ± 54	669 ± 47	176 ± 12	194 ± 14	260	640	71.1%
Al0.6Si0.3-800 °C	558 ± 50	605 ± 39	166 ± 6	183 ± 7	255	711	73.6%
Al0.6Si0.3-1000 °C	425 ± 39	459 ± 56	162 ± 6	178 ± 7	243	807	76.8%

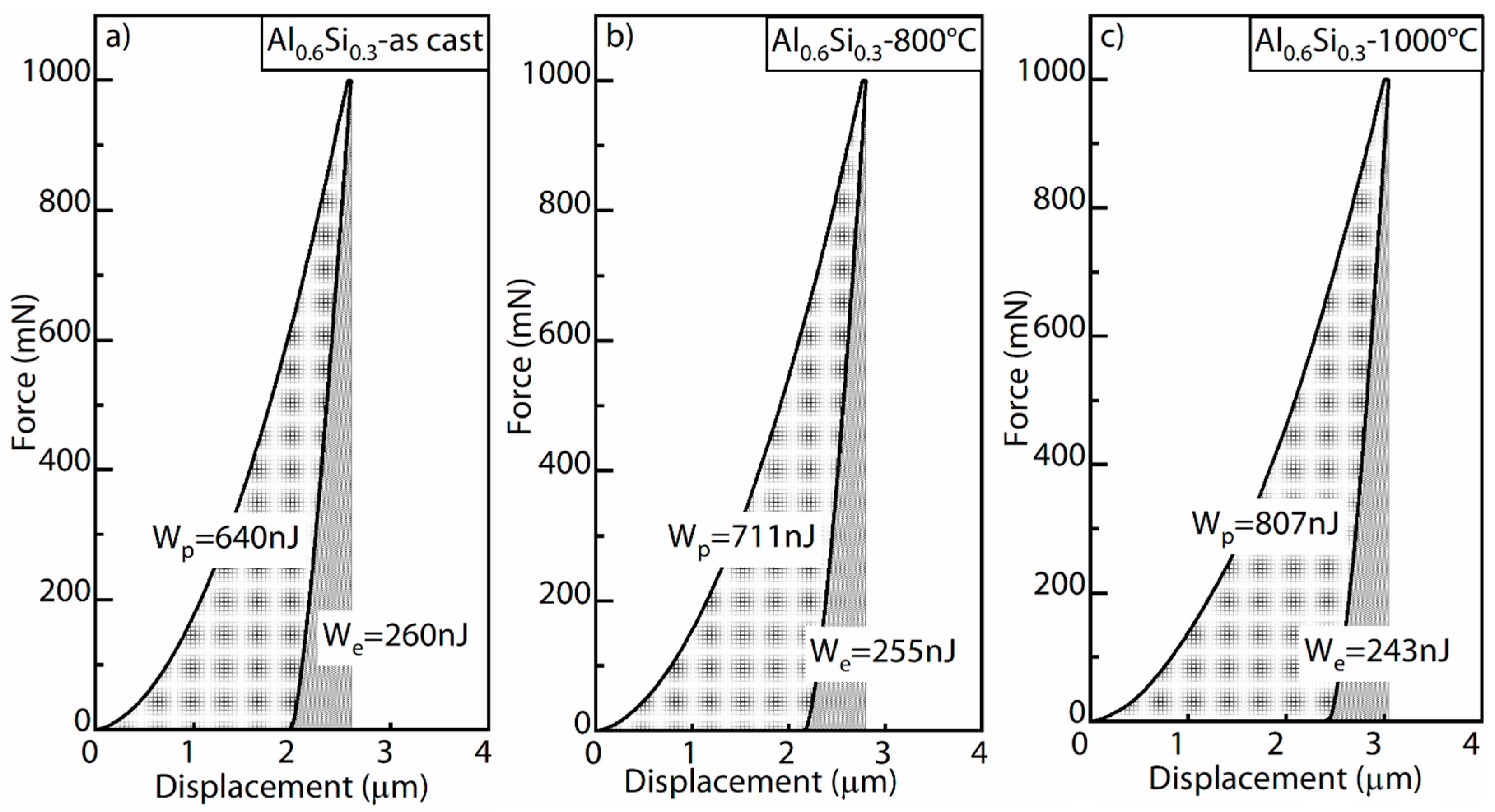

and Figure 12. Compared to Al_0.6, Al_0.6Si_0.3 exhibited a higher hardness and a higher Young’s modulus due to the Si-alloying effect. The as-cast alloy exhibited the highest hardness and the lowest W_p/(W_e + W_p) value. As the sample was heat-treated at T = 800 °C and T = 1000 °C, both the hardness and the percentage of plastic work changed gradually. At T = 800 °C, a large amount of the FCC phase precipitated from the BCC phase, resulting in a decreased hardness and an increased toughness. As the temperature increased to T = 1000 °C, the coarser microstructure resulting from the grain growth further decreased the hardness and increased the toughness of the alloy.

4. Conclusions

This study investigated the heat treatment effect on the microstructure, phase composition and mechanical properties of Al_0.6CrFeCoNi and Al_0.6CrFeCoNiSi_0.3 alloys after heat treatment at T = 800 °C and 1000 °C. The following conclusions can be made:

(1)

In its as-cast state, the Al_0.6CrFeCoNi alloy exhibited dual phases consisting of a BCC and a FCC phase. The Al_0.6CrFeCoNi alloy exhibited a single BCC phase due to the Si-alloying effect. Si-alloying increased the hardness of the Al_0.6CrFeCoNi alloy for all the samples.

(2)

For the Al_0.6CrFeCoNi alloy, the heat treatment at T = 800 °C and T = 1000 °C caused a phase transformation from a FCC-type to a BCC-type phase and coarsened the microstructure. A BCC-type needle-like precipitate started to emerge in the microstructure at T = 800 °C and became larger at T = 1000 °C. The σ-CrFe phase precipitated from the matrix at T = 800 °C and disappeared at T = 1000 °C.

(3)

For the Al_0.6CrFeCoNiSi_0.3 alloy, the FCC phase and the Cr₁₅Co₉Si₆ phase precipitated at T = 800 °C. At T = 1000 °C, the phase composition was similar to that observed at T = 800 °C, while the microstructure was coarser and the elemental distribution was more non-uniform.

(4)

The precipitation of the σ-CrFe phase in the Al_0.6CrFeCoNi alloy after heat treatment at T = 800 °C caused an increase in the alloy hardness and a decrease in toughness. The hardness and the percentage of plastic work during the indentation test were comparable for the as-cast sample and heat-treated sample at T = 1000 °C.

(5)

The phase transformation from BCC to FCC in the Al_0.6CrFeCoNiSi_0.3 alloy decreased the hardness and increased the toughness at T = 800 °C. As the microstructure got coarser, the hardness decreased and the toughness increased further at T = 1000 °C.
