Dissolution of M₂₃C₆ and New Phase Re-Precipitation in Fe Ion-Irradiated RAFM Steel

Abstract

The M₂₃C₆ precipitate plays a major role in preventing the sliding of the grain boundary and strengthens the matrix in the reduced-activation ferritic/martensic (RAFM) steel. However, its stability might be reduced under irradiation. The microstructural instability of the M₂₃C₆ precipitates in the RAFM steels irradiated at 300 °C with Fe ions up to a peak dose of 40 dpa was investigated by transmission electron microscopy. A “Core/Shell” morphology was found for the pre-existing M₂₃C₆ and a large number of new small phases appeared in parallel near the periphery of the precipitates after irradiation. The loss of crystallinity of the M₂₃C₆ periphery due to the dissolution of carbon atoms into the interface (C-rich “Shell”) actually decreased the size of the Cr-rich “Core”. The new phase that formed around the pre-existing precipitates was M₆C (Fe₃W₃C), which was formed through the carbide transformation of M₂₃C₆ to M₆C.

1. Introduction

Reduced-activation ferritic/martensic (RAFM) steels have excellent mechanical strength, low thermal expansion coefficient, high thermal conductivity and good resistance to radiation-induced swelling and helium embrittlement [1,2,3,4]. Thus, they have potential uses in new-generation fission reactors and future fusion reactors [5]. It is well known that several typical RAFM steels can be used for test blanket modules in the International Thermonuclear Experimental Reactor [6], which includes Eurofer97, 9Cr2WVTa and China Low Activation Martensitic (CLAM) steels. These RAFM steels undergo various transformation processes, including transformation of the ferritic steel structure (body centered cubic) to a martensitic steel structure (body centered tetragonal) after quenching. The M₂₃C₆ (Cr-rich carbide) precipitate preferentially forms at the martensitic lath and grain boundaries after thermal treatment. The M₂₃C₆ phase is very stable at temperatures below 820 °C [7], which plays a critical role in retaining the physical and mechanical properties of RAFM steels at elevated temperatures [6]. This prevents the grain boundary sliding [8] and strengthens the matrix by exerting a large Zener pinning force on the martensitic lath boundaries compared to the MX phase in RAFM steels [7,9]. However, under thermal, stress and irradiation conditions, the precipitate stability may be reduced [10,11,12]. Irradiation can increase the diffusion rates due to the production of point defects. The interface between the second-phase particle and the matrix was shown to function as a sink that traps point defects. It is reported that the interface is an important factor in element segregation and swelling behaviors due to the trapping of gas atoms and point defects [9,13,14]. The size of the M₂₃C₆ precipitates increases in the 9Cr-2WV steels during neutron irradiation [15] and CLAM steel after H and D ion irradiation [16]. The irradiation-induced amorphous transformation of M₂₃C₆ precipitates was observed in 800-MeV proton irradiated martensitic steels [17,18,19] and in 9Cr-1Mo ferritic/martensitic steel irradiated with 0.5 dpa at low temperatures [20]. The changes in the specimen microstructure, such as the secondary phases/precipitates induced by irradiation, will affect mechanical properties, including fracture toughness [21]. Therefore, examining and understanding the mechanism of M₂₃C₆ phase instabilities under irradiation is essential in evaluating the response of M₂₃C₆ against irradiation, which is also an essential part of developing radiation-resistant RAFM steels.

In this work, we investigate the microstructural instability of M₂₃C₆ precipitates in the RAFM steels due to irradiation. The mechanism of dissolution and re-precipitation will be discussed.

2. Experimental

2.1. Material Preparation

The chemical compositions of the RAFM steel test materials are shown in

Table 1. Chemical compositions of Reduced-activation ferritic/martensic (RAFM) steel in wt. %.

Fe	C	Cr	W	V	Mn	Si	P	S
Bal.	0.088	9.24	2.29	0.25	0.49	0.25	0.0059	0.001

. The bulk specimens underwent heat treatment as follows: quenching at 1000 °C for 40 min and water cooled, before being tempered at 740 °C for 2 h and air cooled. A disc-like specimen with a diameter of 3 mm was punched out from a ~0.1 mm thick sample cut from the bulk RAFM steel and thinned to its final thickness. The standard TEM specimens were prepared by the conventional jet electropolishing methods using 5% perchloric acid and 95% ethanol polishing solution at −30 °C.

2.2. Irradiation Experiments

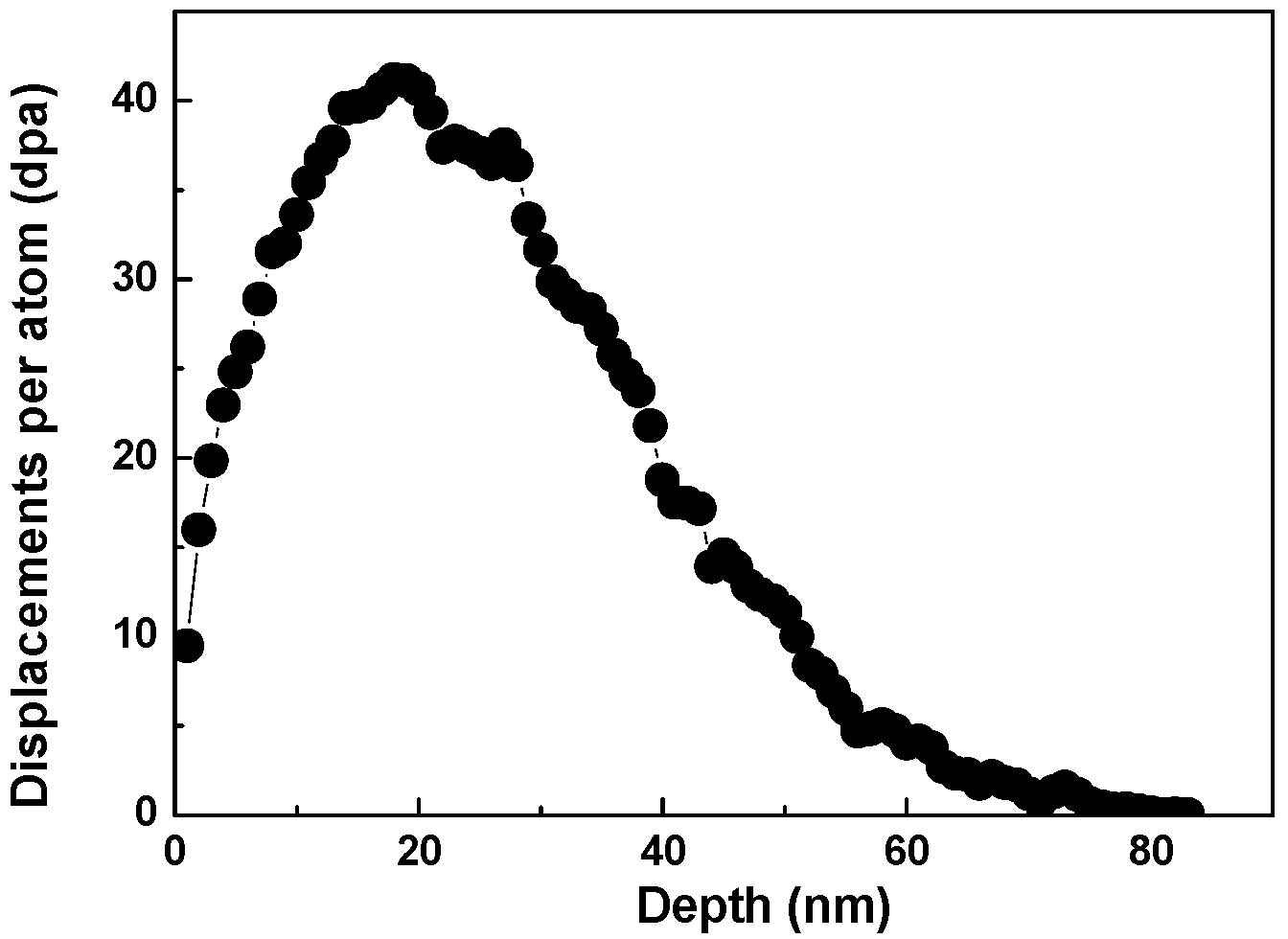

The irradiation experiments were carried out in the Accelerator Laboratory of Wuhan University and the samples were irradiated to a peak dose of 40 dpa with 100-keV Fe ion at 300 °C. The damage profile calculated by the Stopping and Range of Ions in Materials (SRIM) code simulation is shown in Figure 1, where the displacement energy was E_d = 40 eV. A uniform ion beam current (~1 μA) was created for holding by scanning in both the horizontal and vertical directions. The sample temperature was monitored with a thermocouple throughout the irradiation process, which touched the implantation surface of the sample. The microstructure analysis and composition measurements were conducted with a field-emission-gun analytical Tecnai G2 F30 microscope (Beijing, China), which had a nominal spot size of 0.5 nm, equipped with an energy dispersive X-ray spectroscopy (EDX) system.

3. Results and Discussion

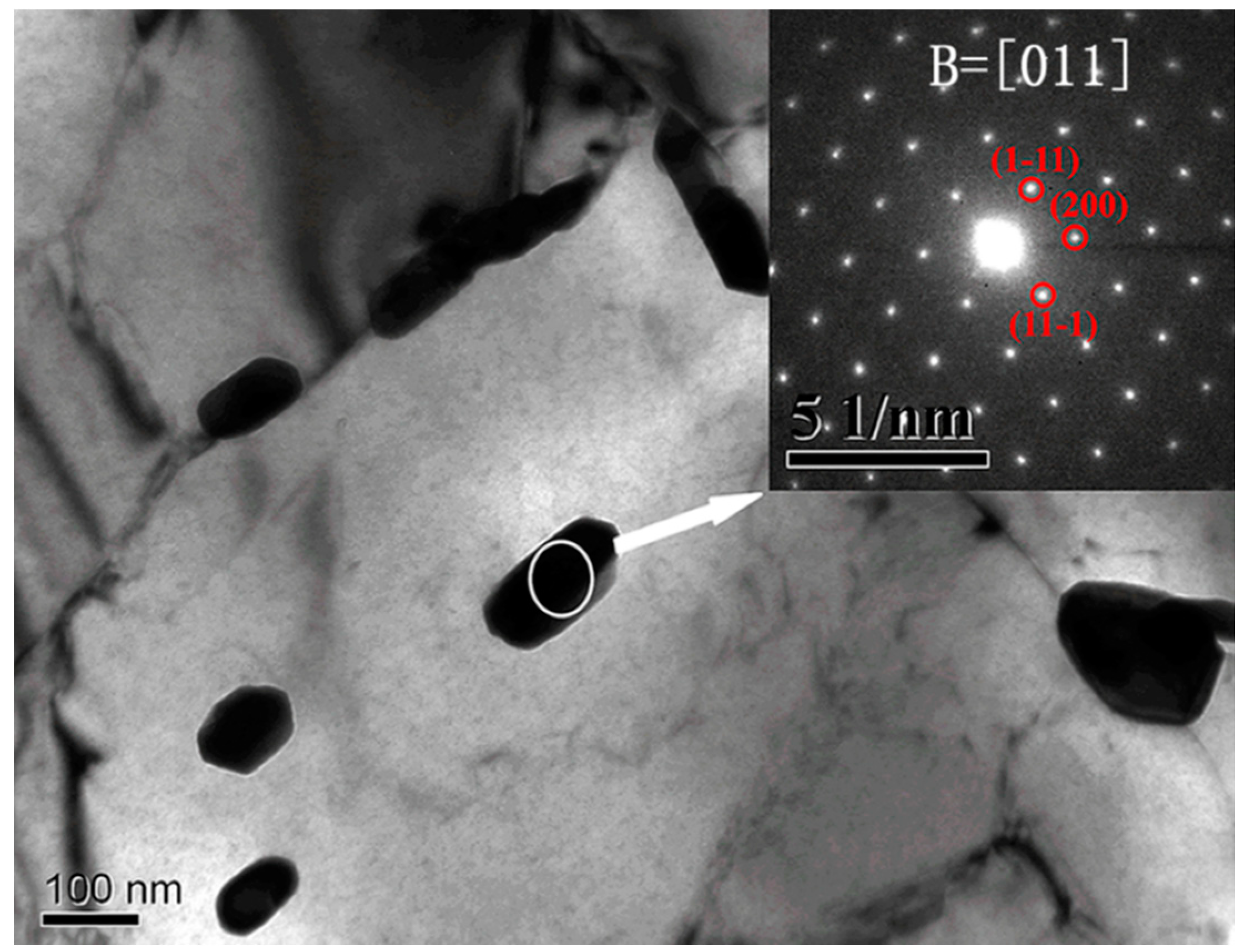

Figure 2 shows the unirradiated microstructure of a RAFM steel sample containing many pre-existing carbides with sizes of approximately 100–300 nm along the long axis in the matrix. A bright-field micrograph after 40 dpa of Fe ion irradiation at 300 °C is shown in Figure 3. A systematic selected-area electron diffraction (SAED) pattern of the pre-existing precipitates obtained from the unirradiated and irradiated specimens are shown in the upper right of the panels in Figure 2 and Figure 3a, respectively. The calculated d-spacing of the (111), (200), (331), (422) and (511) spots were 0.6145 nm, 0.532 nm, 0.244 nm, 0.217 nm and 0.205 nm, respectively, which is parallel with the Pcpdfwin file (No. 781500) that originated from the M₂₃C₆ consisting mainly of Cr and Fe. It should be noted that the $\left(11\overline{1}\right)$ and (200) reflections make a [011] zone axis (Figure 2), which paralleled the $\left[0\overline{1}1\right]$ zone axis by (422), $\left(1\overline{3}\overline{3}\right)$ and $\left(5\overline{1}\overline{1}\right)$ reflections in Figure 3a.

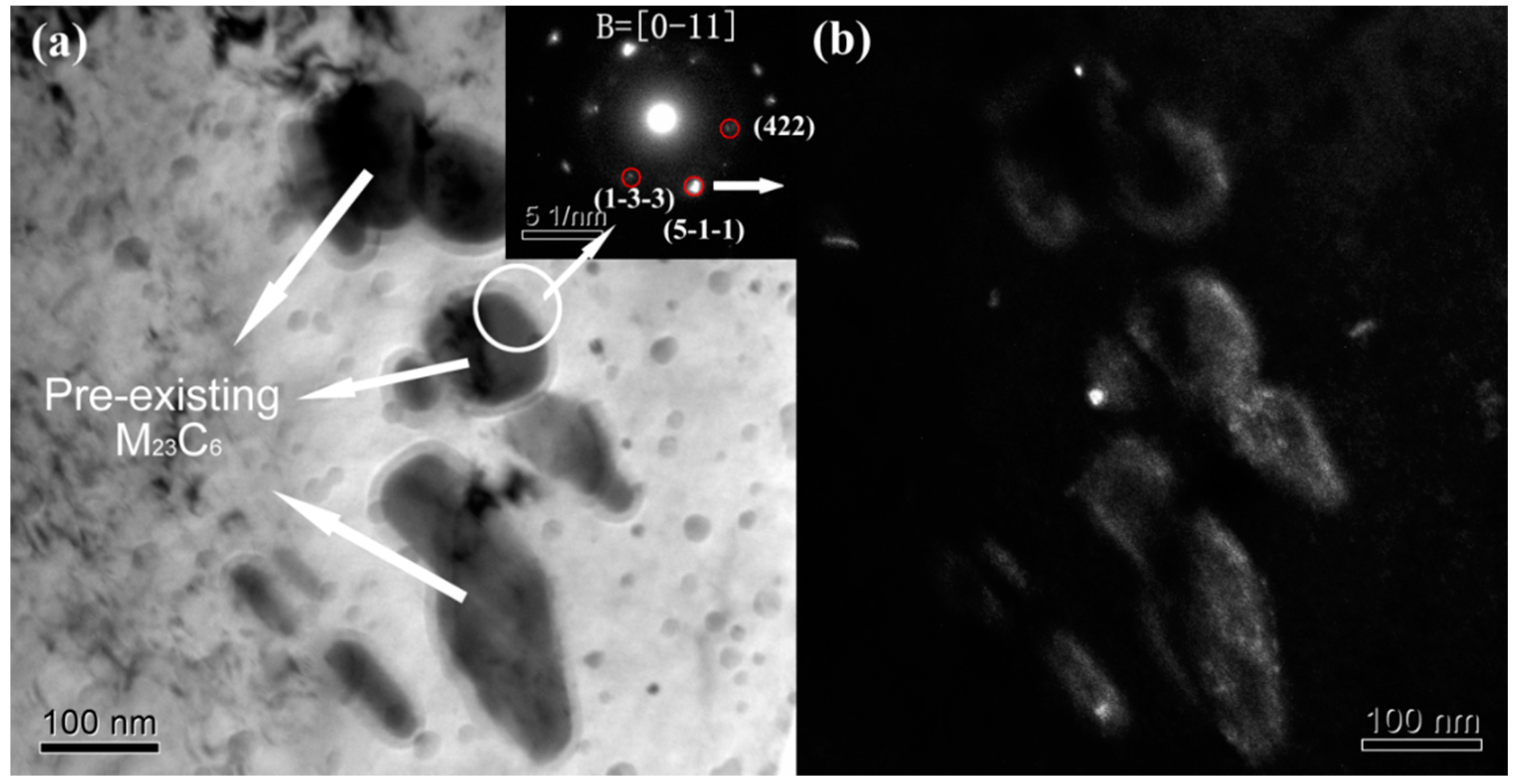

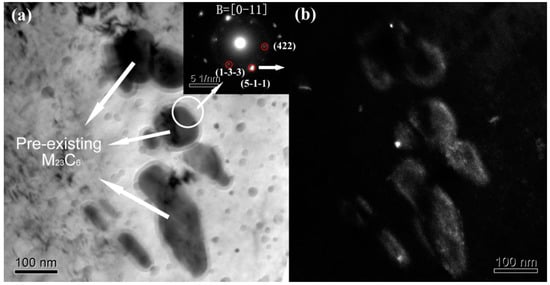

Remarkable changes in the original pre-existing M₂₃C₆ precipitates were found in the 40 dpa Fe ion irradiated specimen, which is shown in Figure 3a. The contrast at the periphery of the M₂₃C₆ precipitates was reduced or weakened. A large number of new small phases appeared in parallel near the pre-existing M₂₃C₆ precipitate after the irradiation. The original pre-existing M₂₃C₆ precipitate periphery (the matrix/carbide interface) seemed to grow, with the width of the extended region being about 10–30 nm. In the right inset of Figure 3a, the SAED patterns show the amorphous diffraction halos accompanied by diffraction spots. The patterns contain three parts: the M₂₃C₆ precipitate, matrix/carbide interface and the matrix, which is marked by a white circle. The $\left(5\overline{1}\overline{1}\right)$, $\left(1\overline{3}\overline{3}\right)$ and (422) diffraction spots originate from the M₂₃C₆ precipitate as discussed above. The dark-field image of the M₂₃C₆ precipitate shown in Figure 3b was from the $\left(5\overline{1}\overline{1}\right)$ diffraction spot marked by the white arrow. On the one hand, all the small phases were completely black in Figure 3b, which further indicated that the structure of the small new phase is not parallel to M₂₃C₆. On the other hand, Figure 3b shows that all M₂₃C₆ carbides were bright and the peripheral region was brighter than the center of carbide. The electron transmittance in the periphery region was higher than that in the M₂₃C₆ carbides. The appearance of diffraction halos indicated that the brighter periphery region (i.e., the matrix/carbide interface) is amorphous. From Figure 3, one can conclude that the pre-existing M₂₃C₆ precipitate periphery was unstable under Fe ion irradiation. The loss of crystallinity of the M₂₃C₆ particles also appeared in our previous studies [22,23]. The seemingly extended region indicates the dissolution of the pre-existing M₂₃C₆ precipitates, which is similar to the heavy ion-irradiated or neutron-irradiated ferritic steels at 300–500 °C [24,25]. They also indicate that the pre-existing M₂₃C₆ precipitates were partially dissolved after irradiation, especially at elevated irradiation temperatures. Kai et al. [24] also indicated that the modification of pre-existing M₂₃C₆ precipitates due to 14-MeV Ni ion irradiation was very similar to the results of the thermal annealed ferritic steel. A vague explanation was given that irradiation would accelerate the thermal diffusion and in turn, enhance the thermal/aging effect, which is consistent with the mechanism of radiation-enhanced diffusion [26]. However, a more detailed reason for the dissolution of pre-existing M₂₃C₆ should also be investigated from the view point of elemental segregation.

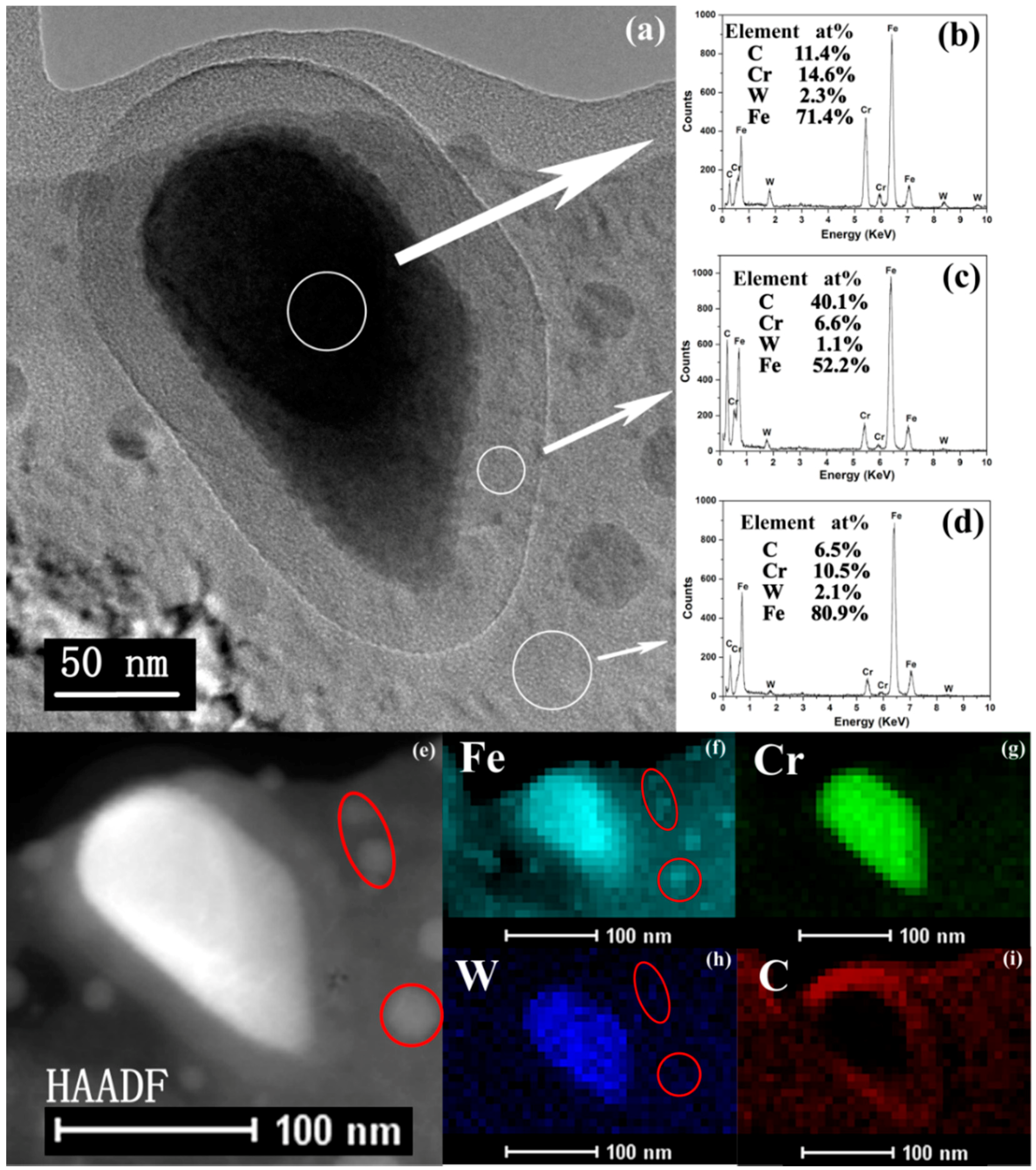

The compositions of the precipitate, peripheral amorphous region and matrix in the 40 dpa irradiated RAFM steel at 300 °C were investigated with STEM/EDX microanalysis (Figure 4). Fe, Cr, W and C were analyzed using EDX mapping, with no other elements having appeared in the spectra. The EDX spectra and the elemental compositions (in wt. %) of the different regions marked by white arrays (Figure 4a) are shown in Figure 4b–d. Compared to the chemical composition of the matrix (Figure 4d), the precipitate includes a greater content of C and Cr elements (Figure 4a). This also indicates that the precipitate is Cr-rich M₂₃C₆, which is consistent with the SAED result. The M mainly represents the Cr element and also contains Fe, W and other elements [16,27,28]. The EDX spectra collected from the interface between the precipitate and the matrix has a higher C amount. In addition, an elemental map was constructed in the same region as that in Figure 4a, while Figure 4e shows the High-Angle Annular Dark Field (HAADF) STEM images of the same precipitate. Figure 4f–i shows the EDX-Kα mapping of Fe, Cr, W and C in the pre-existing precipitates after irradiation. The bright contrast in EDX elemental map represents a high elemental concentration. Therefore, Cr is mainly present in the precipitate. They also highlight the increased Fe and W contents in the pre-existing precipitates. However, considering the uneven thickness between the precipitates and the matrix (the precipitate region is thicker than that of the matrix in Figure 4), Fe and W elements should be distributed homogeneously. It should be noted that a high C element concentration appears at the interface between the precipitate and the matrix (i.e., the amorphous region). The reasons for this are not clear but one possibility is that the M₂₃C₆ phases decompose during irradiation because of the loss of carbon atoms into the interface through irradiation-enhanced diffusion. The STEM/EDX map reveals a “Core/Shell” morphology for the M₂₃C₆ precipitates after irradiation with 40 dpa Fe ions and a percolated structure of C-enrichment extending from the precipitate. It has a C-rich “Shell” and a Cr-rich “Core”, with C atoms segregated in the peripheral amorphous region. As discussed above, the C-rich “Shell” region is brighter than the M₂₃C₆ carbides in the dark-field image. The electron transmittance in the C-rich “Shell” region is higher than that in the precipitate and matrix. As presented in the literature, the irradiation increases the diffusion rates and sustains the point defect flux from the precipitate/matrix to the sinks (i.e., the interface between carbide and matrix). The defect concentration gradient near the interface makes the undersize atoms (i.e., C atoms) segregate to the sinks assisted by the formation of the solute–self-interstitial complexes [29]. The oversized Cr atoms become depleted along the interface between the M₂₃C₆ precipitate and the matrix according to the solute-drag self-interstitial driven mechanisms [28,29,30]. Thus, the ion irradiation enhances the loss of crystallinity of the M₂₃C₆ phase and decreases the size of the Cr-rich “core” through the irradiation-enhanced diffusion.

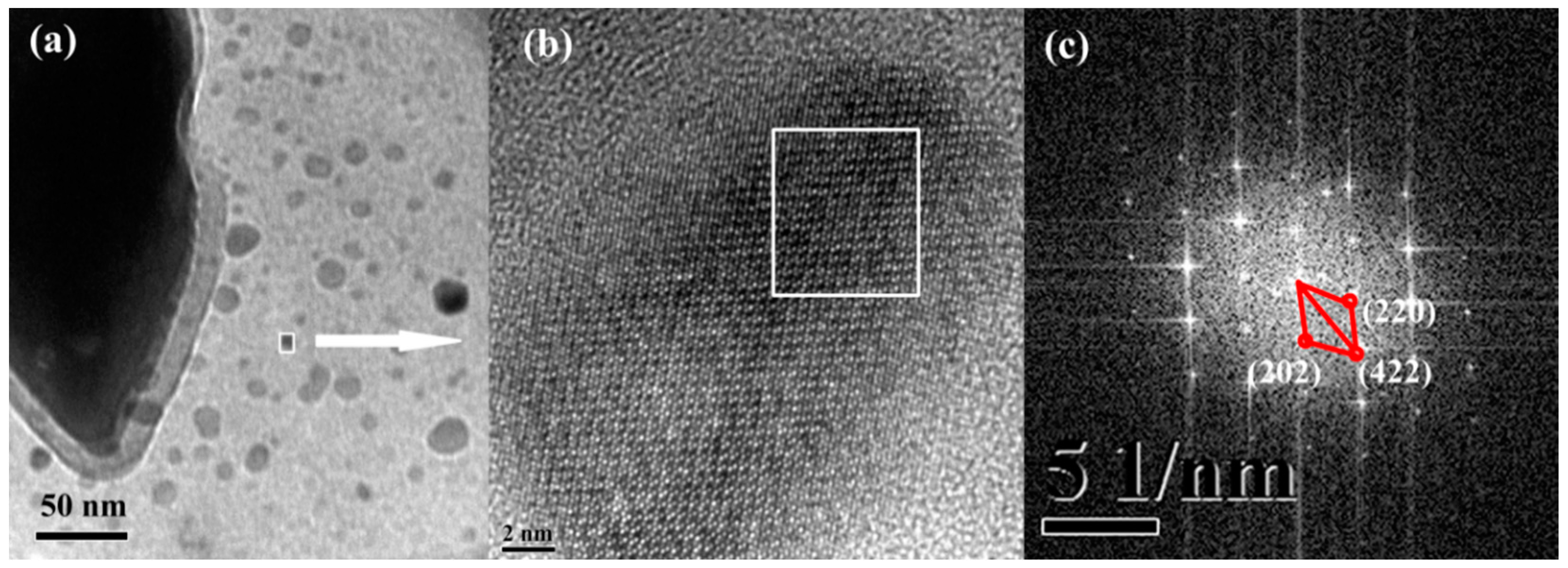

A large number of small new precipitates gathered around the pre-existing M₂₃C₆ precipitate in Figure 5, which are not M₂₃C₆ as indicated by Figure 3b. Thus, the EDX elemental maps were also measured for the new phase (see Figure 4f–i). The Fe and W elements were enriched in the new small precipitates (see the red circles in Figure 4). Tanigawa et al. [31] predicted the possibility of the formation of M₆C in the F82H steel after irradiation at 300 °C, but no detailed microstructure examination was performed. In order to clarify the structure of the new phase, a high-resolution TEM (HRTEM) image of the small precipitate was obtained as shown in Figure 5b. The calculated d-spacing of the (220) and (422) diffraction spots were 0.226 nm and 0.401 nm, respectively (Pcpdfwin file No. 781990). This confirms that the small precipitate has the M₆C (i.e., Fe₃W₃C) structure. Irradiation can increase the diffusion rates through the production of point defects, which can be trapped by the interface between M₂₃C₆ precipitates and matrices. In-situ observations revealed that the small M₂₃C₆ fragment can separate from the pre-existing M₂₃C₆ precipitates in 2-MV electron irradiated F82H steel [32]. The irradiation-induced phase transformations are possible because the free energies of the different phases are changed by the excess energy introduced into the lattice. The carbide transformations of M₂₃C₆ to M₆C have been observed at 700 °C by Inoue et al. [33], which was determined based on the following relationships of crystal orientations between M₂₃C₆ and M₆C: $\left(\overline{1}10\right)$ M₂₃C₆//$\left(\overline{1}10\right)$ M₆C, $\left(\overline{1}11\right)$ M₂₃C₆//$\left(11\overline{1}\right)$ M₆C, and (112) M₂₃C₆//(112) M₆C. Therefore, the formation of a new M₆C phase near the pre-existing M₂₃C₆ precipitate may be transformed from a small M₂₃C₆ fragment separated from the pre-existing precipitates, with irradiation at elevated temperature promoting these processes. As discussed above, the M₂₃C₆ carbides can prevent sliding of the grain boundary [8] and strengthen the mechanical properties of the RAFM steels [6]. The dissolution of the pre-existing M₂₃C₆ carbides was detrimental to the mechanical properties, especially the ductile-to-brittle transition temperature [34]. Simultaneously, the high energy precipitate–matrix interfaces due to Cr and C segregation favored fracture paths [5]. The precipitation of M₆C caused a reduction in material toughness [35]. Thus, the phase transformation (M₂₃C₆→M₆C) resulted in degraded mechanical properties, especially the ductile-to-brittle transition temperature. The effect of the M₂₃C₆ dissolution and re-precipitation of M₆C on the fracture toughness requires further research. Ghidelli et al. [21] suggested a possible approach to study the micro-scale fracture toughness by obtaining pillar splitting measurements.

4. Conclusions

In the present work, we investigated the instability of M₂₃C₆ precipitates in ion-damaged RAFM steel via STEM/EDX. A “Core/Shell” structure (C-rich “Shell” and Cr-rich “Core”) was formed in the pre-existing M₂₃C₆ precipitates after the irradiation with 40 dpa Fe ion at 300 °C. The SAED measurements combined with the bright/dark-field contrast images showed that the extended C-rich “Shell” was amorphous with carbon atoms percolated into the interface. Ion irradiation actually enhances the loss of crystallinity of the M₂₃C₆ phase and decreases the size of the Cr-rich “Core” through irradiation-enhanced diffusion. The small new phase gathering around the pre-existing M₂₃C₆ precipitate has a M₆C (Fe₃W₃C) structure, which was confirmed by SAED and EDX analyses. The irradiation at elevated temperatures promoted the separation of small M₂₃C₆ fragments from the pre-existing precipitates and transformation into a new M₆C phase.
