Wear Behavior of Austempered and Quenched and Tempered Gray Cast Irons under Similar Hardness
Abstract
:1. Introduction
2. Materials and Methods
2.1. Chemical Composition
2.2. As-Cast Gray Cast Iron
2.3. Austempering Heat Treatment
2.4. Quenching and Tempering Heat Treatment
2.5. Metallurgical Evaluation
2.6. Rotational Ball-on-Disk Sliding Wear Test
2.7. Rockwell C Hardness Measurement
3. Results
3.1. Metallurgical Evaluation of AGI and QTGI
3.2. Hardness Measurement
3.3. Ball-on-Disk Rotational Wear Tests
3.4. Worn Surface Analysis
4. Conclusions
Author Contributions
Funding
Conflicts of Interest
References
- ASTM International. ASTM Standard A247-Standard Test Method for Evaluating the Microstructure of Graphite in Iron Castings; ASTM International: West Conshohocken, PA, USA, 2017. [Google Scholar]
- Bain, E.C. Functions of the Alloying Elements in Steel; American Society for Metals: Materials Park, OH, USA, 1939. [Google Scholar]
- Hassani, A.; Habibollahzadeh, A.; Sadeghinejad, S. Influence of Vanadium and Chromium Additions on the Wear Resistance of a Gray Cast Iron. Int. J. Min. Metall. Mater. 2012, 19, 602–607. [Google Scholar] [CrossRef]
- Sarkar, T.; Bose, P.; Sutradhar, G. Mechanical and Tribological Characteristics of Copper Alloyed Austempered Gray Cast Iron (AGI). Mater. Today Proc. 2018, 5, 3664–3673. [Google Scholar] [CrossRef]
- Vadiraj, A.; Balachandran, G.; Kamaraj, M.; Kazuya, E. Mechanical and Wear Behavior of Quenched and Tempered Alloyed Hypereutectic Gray Cast Iron. Mater. Des. 2011, 32, 2438–2443. [Google Scholar] [CrossRef]
- Vadiraj, A.; Balachandran, G.; Kamaraj, M.; Gopalakrisshna, B.; Rao, K. Structure-Property Correlation in Austempered Alloyed Hypereutectic Gray Cast Irons. Mater. Sci. Eng. A 2010, 527, 782–788. [Google Scholar] [CrossRef]
- Balachandran, G.; Vadiraj, A.; Kamaraj, M.; Kazuya, E. Mechanical and Wear Behavior of Alloyed Gray Cast Iron in the Quenched and Tempered and Austempered Conditions. Mater. Des. 2011, 2, 4042–4049. [Google Scholar] [CrossRef]
- Vadiraj, A.; Balachandran, G.; Kamaraj, M.; Gopalakrishna, B.; Rao, K. Studies on Mechanical and Wear Properties of Alloyed Hypereutectic Gray Cast Irons in the As-Cast Pearlitic and Austempered Conditions. Mater. Des. 2010, 31, 951–955. [Google Scholar] [CrossRef]
- Ghaderi, A.; Ahmadabadi, M.; Ghasemi, H. Effect of Graphite Morphologies on the Tribological Behavior of Austempered Cast Iron. Wear 2003, 255, 410–416. [Google Scholar] [CrossRef]
- Sarkar, T.; Sutradhara, G. Investigation of Austenitizing Temperature on Wear Behavior of Austempered Gray Iron (AGI). IOP Conf. Ser. Mater. Sci. Eng. 2016, 149, 012048. [Google Scholar] [CrossRef] [Green Version]
- Solic, S.; Godec, M.; Schauperl, Z.; Donik, C. Improvement in Abrasion Wear Resistance and Microstructure Changes with Deep Cryogenic Treatment of Austempered Ductile Cast Iron (ADI). Metall. Mater. Trans. A 2016, 47, 5058–5070. [Google Scholar] [CrossRef]
- Sahin, Y.; Erdogan, M.; Kilicli, V. Wear Behavior of Austempered Ductile Irons with Dual Matrix Structures. Mater. Sci. Eng. A 2007, 444, 31–38. [Google Scholar] [CrossRef]
- Haseeb, A.; Islam, M.; Bepari, M. Tribological Behavior of Quenched and Tempered, and Austempered Ductile Iron at the Same Hardness Level. Wear 2000, 244, 15–19. [Google Scholar] [CrossRef]
- PourAsiabi, H.; Saghafian, H.; Pourasiabi, H. Effect of Austempering Process on Microstructure and Wear Behavior of Ductile Iron Containing Mn-Ni-Cu-Mo. Met. Mater. Int. 2013, 19, 67–76. [Google Scholar] [CrossRef]
- Wang, B.; Barber, G.; Sun, X.; Shaw, M.; Seaton, P. Characteristics of the Transformation of Retained Austenite in Tempered Austempered Ductile Iron. J. Mater. Eng. Perform. 2017, 26, 2095–2101. [Google Scholar] [CrossRef]
- Wang, B.; Barber, G.; Qiu, F.; Zou, Q.; Yang, H. A Review: Phase Transformation and Wear Mechanisms of Single-Step and Dual-Step Austempered Ductile Iron. J. Mater. Res. Technol. 2019. [Google Scholar] [CrossRef]
- Wang, C.; Du, X.; Li, S.; Sun, Y.; Yang, P. Morphology and Crystallography of Ausferrite in Austempered Ductile Iron. Metals 2017, 7, 238. [Google Scholar] [CrossRef]
- Konca, E.; Tur, K.; Koc, E. Effects of Alloying Elements (Mo, Ni, and Cu) on the Austemperability of GGG-60 Ductile Cast Iron. Metals 2017, 7, 320. [Google Scholar] [CrossRef] [Green Version]
- Sellamuthu, P.; Smuel, D.; Dinakaran, D.; Premkumar, V. Austempered Ductile Iron (ADI): Influence of Austempering Temperature on Microstructure, Mechanical and Wear Properties and Energy Consumption. Metals 2018, 8, 53. [Google Scholar] [CrossRef] [Green Version]
- ASTM International. ASTM Standard E18-16-Standard Test Methods for Rockwell Hardness of Metallic Materials; ASTM International: West Conshohocken, PA, USA, 2016. [Google Scholar]
- Amran, Y.; Katsman, A.; Schaaf, P.; Bamberger, M. Influence of Copper Addition and Temperature on the Kinetics of Austempering in Ductile Iron. Metall. Mater. Trans. B 2010, 41, 1052–1058. [Google Scholar] [CrossRef] [Green Version]
- Gorny, M.; Tyrala, E.; Lopez, H. Effect of Copper and Nickel on the Transformation Kinetics of Austempered Ductile Iron. J. Mater. Eng. Perform. 2014, 23, 3505–3510. [Google Scholar] [CrossRef] [Green Version]
- Wang, B.; Barber, G.; Tao, C.; Han, X.; Sun, X. Tribological Performance of Austempered and Tempered Ductile Iron. Metall. Mater. Trans. B 2018, 49, 2261–2269. [Google Scholar] [CrossRef]
- Panneerelvam, S.; Martis, C.; Putatunda, S.; Boileau, J. An investigation on the Stability of Austenite in Austempered Ductile Cast Iron (ADI). Mater. Sci. Eng. A 2015, 626, 237–246. [Google Scholar] [CrossRef]
- Tyrala, E.; Gorny, M.; Kawalec, M.; Muszynska, A.; Lopez, H. Evaluation of Volume Fraction of Austenite in Austempering Process of Austempered Ductile Iron. Metals 2019, 9, 893. [Google Scholar] [CrossRef] [Green Version]
- Zahiri, S.; Pereloma, E.; Davies, C. Model for Prediction of Processing Window for Austempered Ductile Iron. Mater. Sci. Technol. 2002, 18, 1163–1167. [Google Scholar] [CrossRef]
- Mutavdzic, M.; Lazic, V.; Milosavljevic, D.; Aleksandrovic, S.; Nikolic, R.; Cukic, R. Determination of the Optimal Tempering Temperature in the Hard Facing of the Forging Dies. Mater. Eng. 2012, 19, 95–103. [Google Scholar]
- Chandra, T.; Ionescu, M.; Mantovani, D. Effect of Tempering on Mechanical Properties and Microstructure of 1 9% Cr Heat Treatment Steel. Mater. Sci. Forum 2012, 706–709, 841–846. [Google Scholar]
- Materkowski, J.; Krauss, G. Tempered Martensite Embrittlement in SAE 4340 Steel. Metall. Mater. Trans. A 1979, 10, 1643–1651. [Google Scholar] [CrossRef]
- Wei, M.; Wang, S.; Wang, L.; Cui, X.; Chen, K. Effect of Tempering Conditions on Wear Resistance in Various Wear Mechanisms of H13 Steel. Tribol. Int. 2011, 44, 898–905. [Google Scholar] [CrossRef]
- Yang, J.; Putatunda, S. Improvement in Strength and Toughness of Austempered Ductile Cast Iron by A Novel Two-Step Austempering Process. Mater. Des. 2004, 25, 219–230. [Google Scholar] [CrossRef]
- Dong, C.; Wu, H.; Wang, X. Effect of Tempering Temperatures on Microstructure and Properties of 0.28C-0.22Ti Wear Resistance Steel. Mater. Sci. Technol. 2018, 34, 86–94. [Google Scholar] [CrossRef]
Elements | Percentage |
---|---|
Carbon, C | 3.53% |
Silicon, Si | 2.71% |
Manganese, Mn | 0.74% |
Chromium, Cr | 0.12% |
Copper, Cu | 0.94% |
Sulfur, S | 0.03% |
Phosphorous, P | 0.08% |
Iron, Fe | Remainder |
Heat Treatment Designs | ||
---|---|---|
Austempering Heat Treatment (AGI) | ||
Austenitizing Process: | Temperature: 832 °C; | |
Time: 20 min; | ||
Medium Temp Salt Bath Furnace | ||
Austempering Process: | Temperatures: 232 °C, 260 °C, 288 °C, | |
316 °C, 343 °C, 371 °C; | ||
Times: 1 min, 2 min, 3 min, 6 min, 10 min, 20 min, 30 min, 60 min, 90 min and 120 min; | ||
Water Cool; | ||
Low Temp Salt Bath Furnace | ||
Quenching and Tempering Heat Treatment (QTGI) | ||
Austenitizing Process: | Temperature: 832 °C; | |
Time: 20 min; | ||
Oil Cool; | ||
Medium Temp Salt Bath Furnace | ||
Tempering Process: | Temperatures: 316 °C, 371 °C, 399 °C, 454 °C, 482 °C, 510 °C; | |
Time: 60 min; | ||
Oil Cool; | ||
Electrical Heating Furnace | ||
Experiments | ||
Metallurgical Evaluations | ||
Sample | AGI and QTGI Coupons (15 mm × 15 mm × 15 mm) | |
Etching | 3% Nital for 2 s or 3 s | |
Test Facility | Optical Microscopy with 500× Magnification | |
Sample Size | 16 | |
Hardness Measurements | ||
Sample | AGI and QTGI Sample Coupons/Disks | |
Test Facility | Rockwell Hardness Tester | |
Repetition | 3 Times | |
Sample Size | 234 | |
Wear Tests | ||
Upper Sample | Alumina Ball (Diameter: 7.94 mm; Hardness: 75 HRC; | |
Surface Roughness (Ra): 10 nm) | ||
Lower Sample | AGI and QTGI Disks (Diameter: 64 mm; Thickness: 11 mm; Surface Roughness (Ra): ≈ 300 nm) | |
Normal Load | 300 N | |
Rotational Speed | 240 rpm | |
Lubricant | PAO4 Base Oil | |
Test Duration | 30 min | |
Test Facility | Rotational Ball-on-Disk Sliding Configuration | |
Repetition | 3 Times | |
Sample Size | 36 |
Group Number | 1 | 2 | 3 | 4 | 5 | 6 |
---|---|---|---|---|---|---|
Austempering Temperature (°C) | 232 | 260 | 288 | 316 | 343 | 371 |
Hardness (HRC) | 42.3 | 42 | 37.4 | 28.9 | 28.1 | 26.8 |

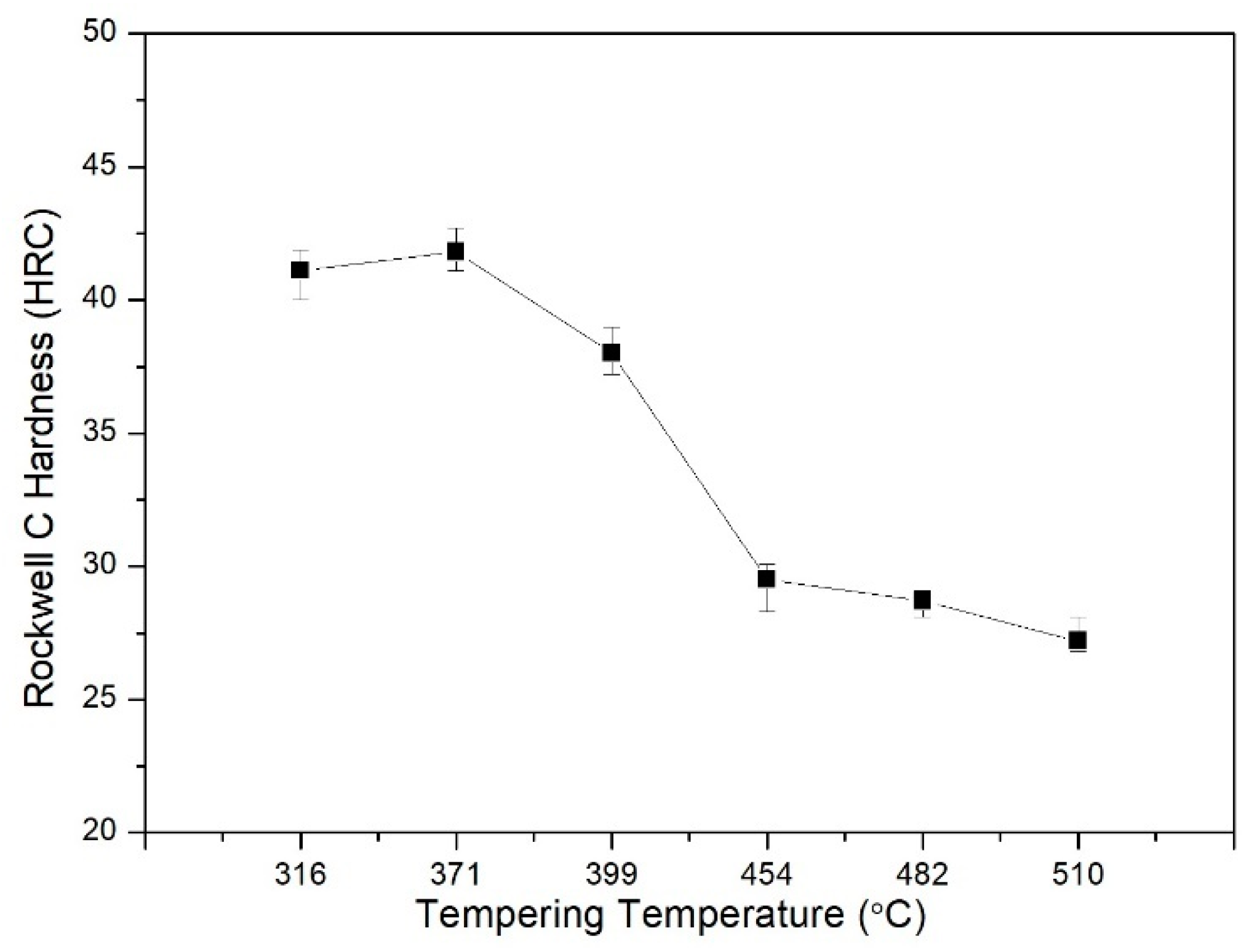

Tempering Temperature (°C) | 316 | 371 | 399 | 454 | 482 | 510 |
Hardness (HRC) | 41.1 | 41.8 | 38 | 29.5 | 28.7 | 27.2 |
