Hydrogen Solubility in Pd3Ag Phases from First-Principles Calculation
Abstract
:1. Introduction

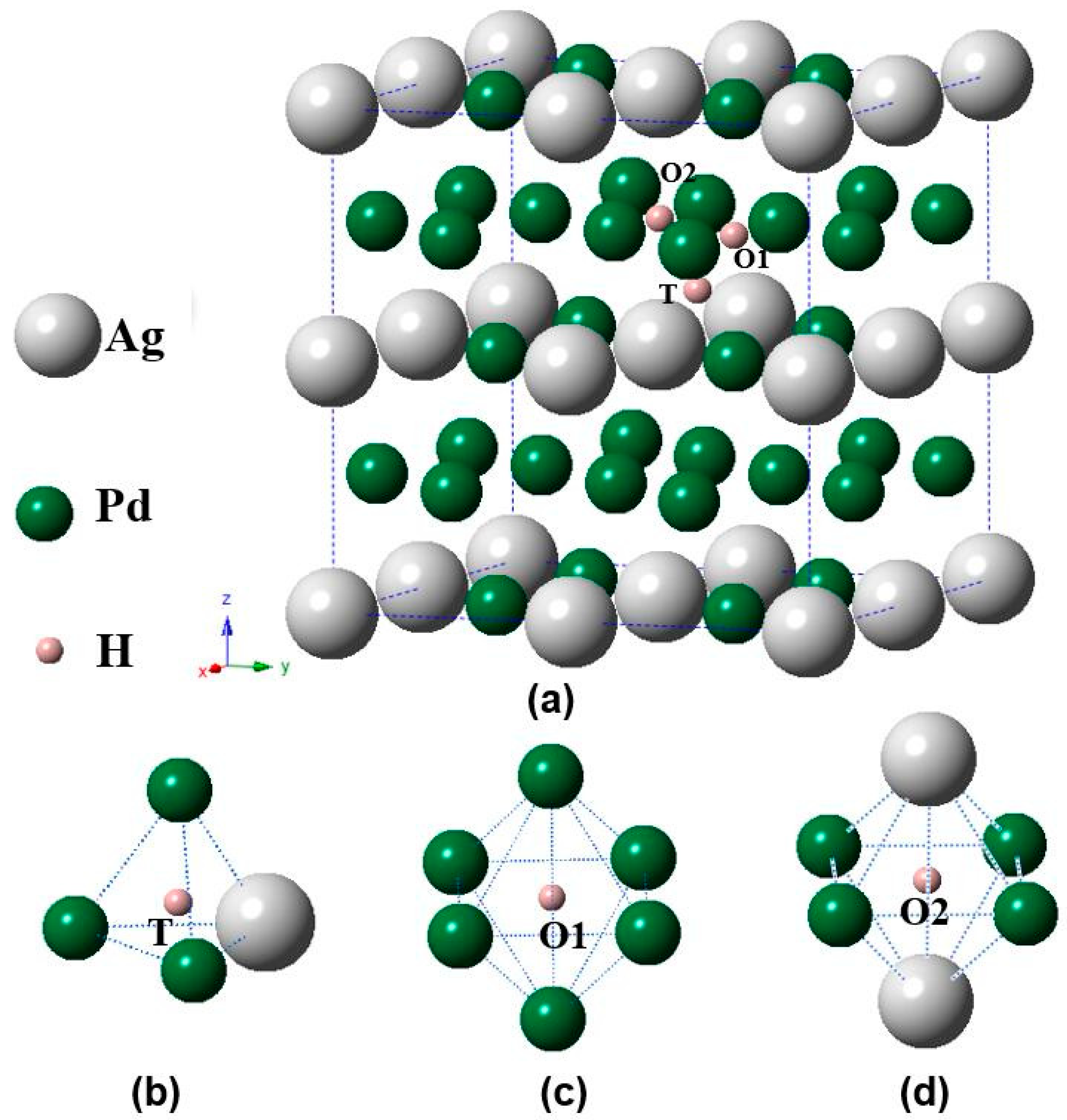

2. Theoretical Methods

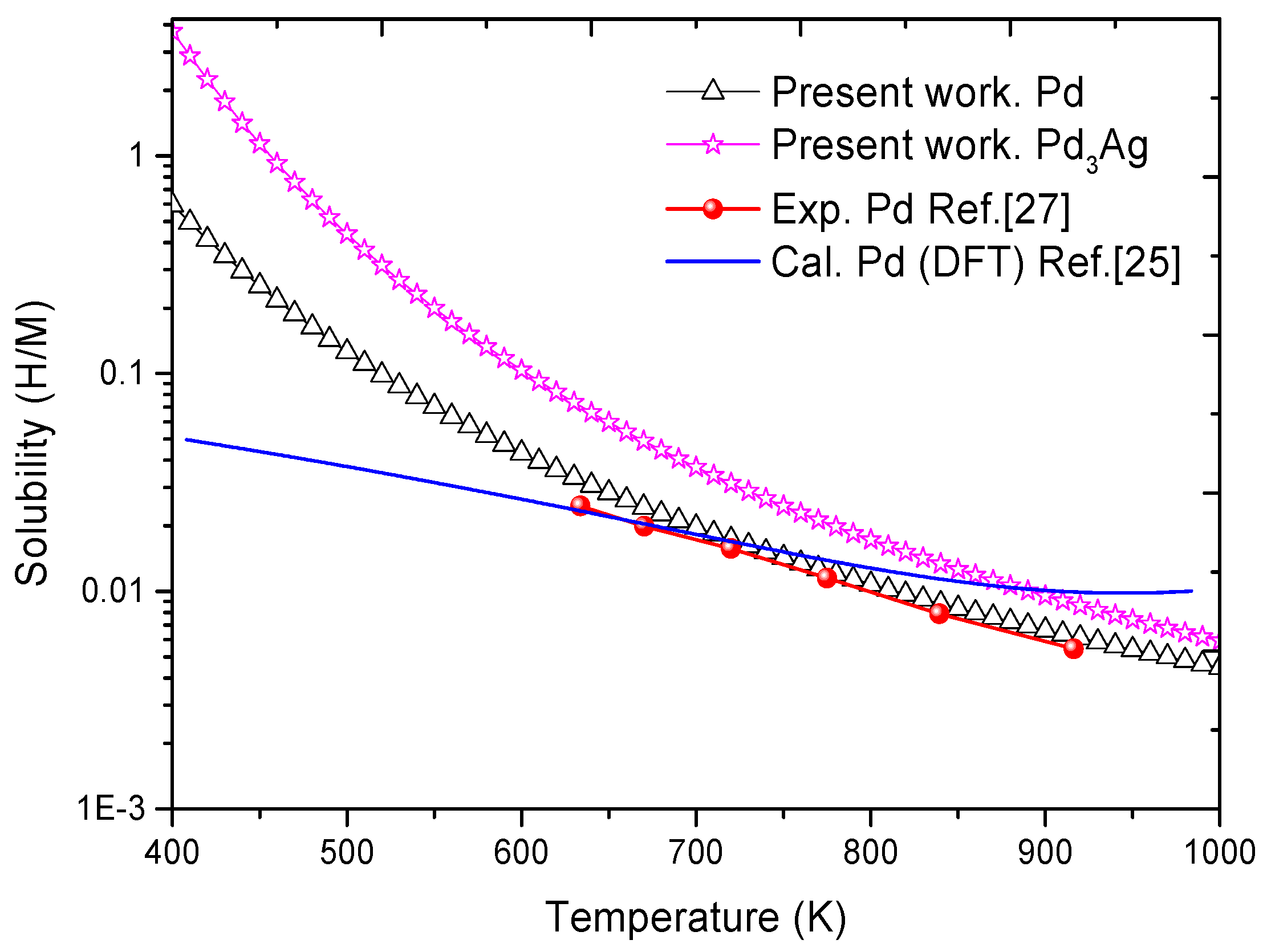

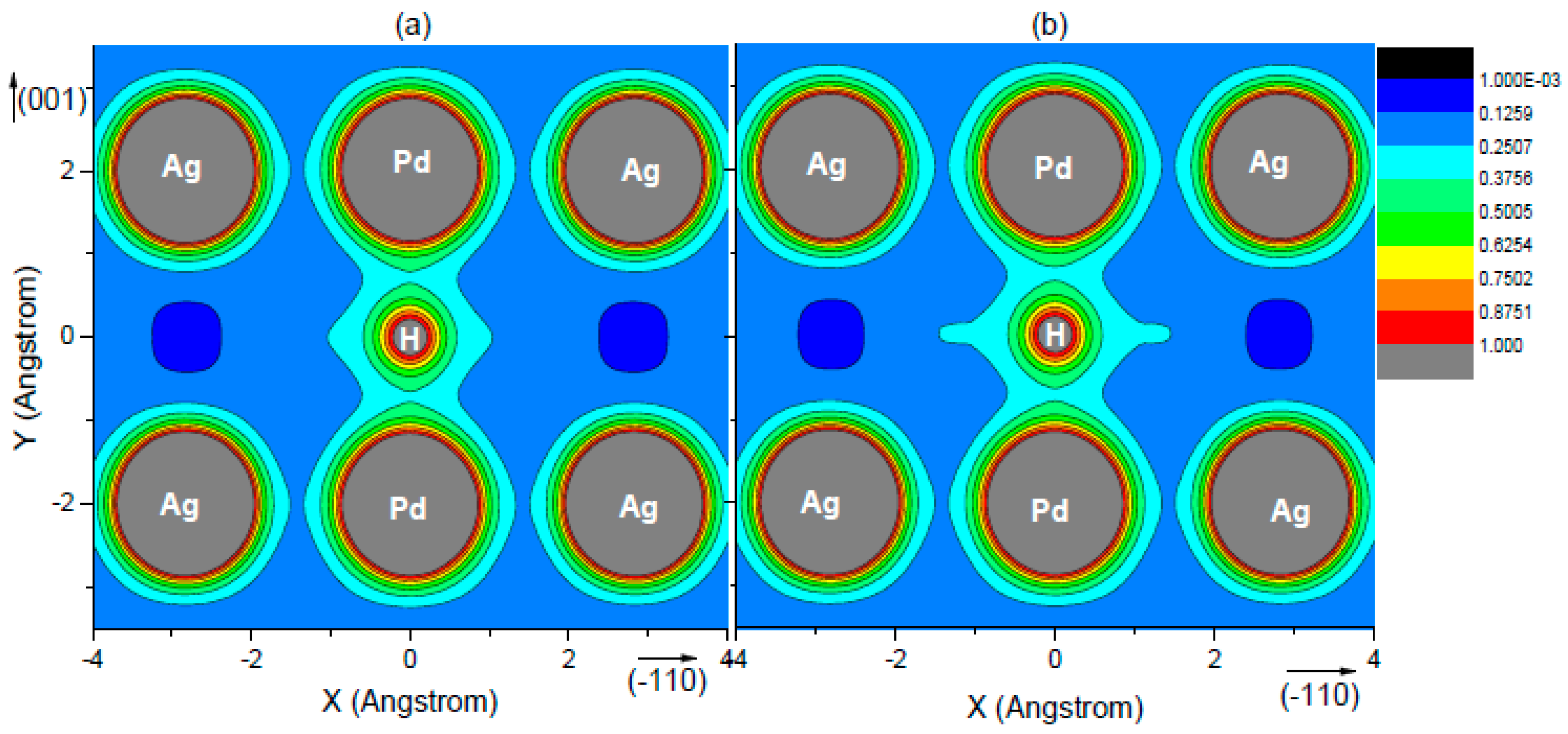

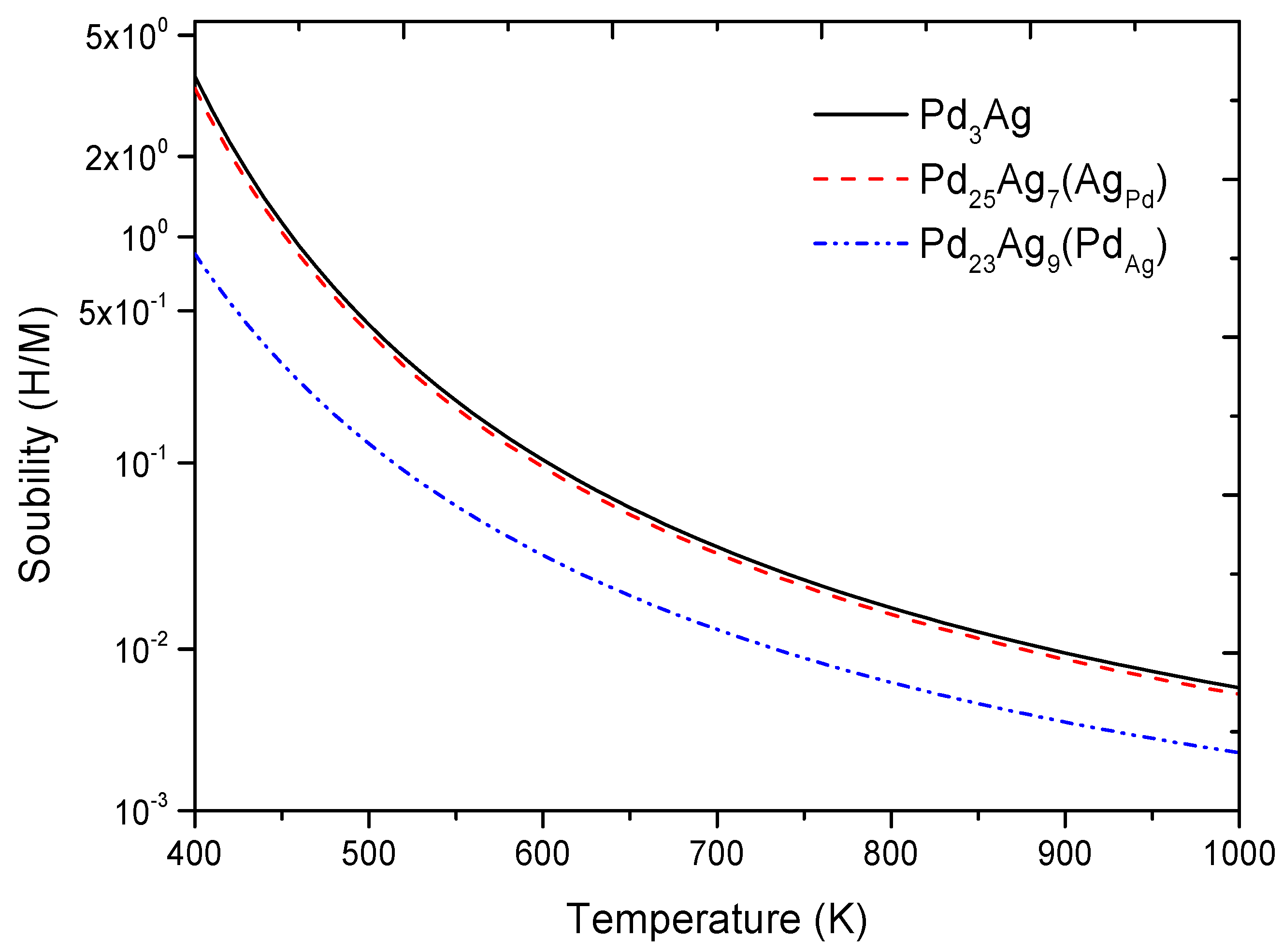

3. Results and Discussion
4. Conclusions
Author Contributions
Funding
Conflicts of Interest
References
- Shu, J.; Grandjean, B.P.A.; Vanneste, A.; Kaliaguine, S. Catalytic palladium-based membrane reactors: A review. Can. J. Chem. Eng. 1991, 69, 1036–1060. [Google Scholar] [CrossRef]
- Timofeev, N.I.; Berseneva, F.N.; Makarov, V.M. New palladium-based membrane alloys for separation of gas mixtures to generate ultrapure hydrogen. Int. J. Hydrogen Energy 1994, 19, 895–898. [Google Scholar] [CrossRef]
- Tosti, S.; Bettinali, L.; Violante, V. Rolled thin Pd and Pd–Ag membranes for hydrogen separation and production. Int. J. Hydrog. Energy 2000, 25, 319–325. [Google Scholar] [CrossRef]
- Zea, H.; Lester, K.; Datye, A.K.; Rightor, E.; Gulotty, R.; Waterman, W.; Smith, M. The influence of Pd–Ag catalyst restructuring on the activation energy for ethylene hydrogenation in ethylene–acetylene mixtures. Appl. Catal. A 2005, 282, 237–245. [Google Scholar] [CrossRef]
- Shu, J.; Bongondo, B.E.W.; Grandjean, B.P.A.; Adnot, A.; Kaliaguine, S. Surface segregation of Pd-Ag membranes upon hydrogen permeation. Surf. Sci. 1993, 291, 129–138. [Google Scholar] [CrossRef]
- Peters, T.; Kaleta, T.; Stange, M.; Bredesen, R. Development of thin binary and ternary Pd-based alloy membranes for use in hydrogen production. J. Membr. Sci. 2011, 383, 124–134. [Google Scholar] [CrossRef]
- Pietrzak, R.; Szatanik, R.; Szuszkiewicz, M. Investigation of diffusion and electromigration of hydrogen in palladium and PdAg alloy. J. Aollys Compd. 1999, 282, 130–136. [Google Scholar] [CrossRef]
- Armor, J.N. Catalysis with permselective inorganic membranes. Appl. Catal. 1989, 49, 1–25. [Google Scholar] [CrossRef]
- Uemiya, S.; Matsuda, T.; Kikuchi, E. Hydrogen permeable palladium–silver alloy membrane supported on porous ceramics. J. Membr. Sci. 1991, 56, 315–325. [Google Scholar] [CrossRef]
- Gryaznov, V.M. Metal containing membranes for the production of ultrapure hydrogen and the recovery of hydrogen isotopes. Sep. Purif. Methods 2000, 29, 171–187. [Google Scholar] [CrossRef]
- Santos, R.B.; Rivelino, R.; Mota, F.B.; Gueorguiev, G.K. Exploring Hydrogenation and Fluorination in Curved 2D Carbon Systems: A Density Functional Theory Study on Corannulene. J. Phys. Chem. C 2012, 116, 9080–9087. [Google Scholar] [CrossRef]
- Georgieva, A.K.; Gueorguiev, G.K.; Stafström, S.; Hultman, L.; Janzén, E. AlGaInN metal-organic-chemical-vapor-deposition gas-phase chemistry in hydrogen and nitrogen diluents: First-principles calculations. Chem. Phys. Lett. 2007, 431, 346–351. [Google Scholar] [CrossRef]
- Wang, J.W.; Song, M.; He, Y.H.; Gong, H.R. Stability, adsorption, and diffusion of hydrogen in Pd3Ag phases. J. Membr. Sci. 2016, 503, 124–131. [Google Scholar] [CrossRef]
- Kurokawa, H.; Yakabe, H.; Yasuda, I.; Peters, T.; Bredesen, R. Inhibition effect of CO on hydrogen permeability of Pd-Ag membrane applied in a microchannel module configuration. Int. J. Hydrogen Energy 2014, 39, 17201–17209. [Google Scholar] [CrossRef]
- Amandusson, H.; Ekedahl, L.G.; Dannetun, H. Hydrogen permeation through surface modified Pd and PdAg membranes. J. Membr. Sci. 2001, 193, 35–47. [Google Scholar] [CrossRef]
- Chen, L.; Fan, J.L.; Song, M.; Gong, H.R. Structural stability and magnetic properties of WFeH phases. Int. J. Hydrogen Energy 2016, 41, 13093–13100. [Google Scholar] [CrossRef]
- Liang, C.P.; Gong, H.R. Atomic structure, mechanical quality, and thermodynamic property of TiHx phases. J. Appl. Phys. 2013, 114, 043510. [Google Scholar] [CrossRef]
- Kresse, G.; Joubert, J. From ultrasoft pseudopotentials to the projector augmented-wave method. Phys. Rev. B 1999, 59, 1758–1775. [Google Scholar] [CrossRef]
- Wang, Q.; Chen, L.; Xiong, L.; Gong, H.R. Mechanical and thermodynamic properties of cubic boron nitride from ab initio calculation. J. Phys. Chem. Solids 2017, 104, 276–280. [Google Scholar] [CrossRef]
- Chen, L.; Wang, Q.; Xiong, L.; Gong, H.R. First-principles calculations of hydrogen in perfect WFe and WFeNb crystals. Solid State Commun. 2017, 249, 24–29. [Google Scholar] [CrossRef]
- Liu, L.C.; Wang, J.W.; He, Y.H.; Gong, H.R. Solubility, diffusivity, and permeability of hydrogen at PdCu phases. J. Membr. Sci. 2017, 542, 24–30. [Google Scholar] [CrossRef]
- Chen, L.; Wang, Q.; Xiong, L.; Gong, H.R. Computationally predicted fundamental behaviors of embedded hydrogen at TiC/W interfaces. Int. J. Hydrogen Energy 2018, 43, 16180–16186. [Google Scholar] [CrossRef]
- Wolf, R.J.; Mansour, K.A.; Lee, M.W.; Ray, J.R. Temperature dependence of elastic constants of embedded-atom models of palladium. Phys. Rev. B 1992, 46, 8027–8035. [Google Scholar] [CrossRef]
- Fowler, R.H.; Smithells, C.J. A theoretical formula for the solubility of hydrogen in metals. Proc. R. Soc. Lond. Ser. A 1937, 160, 37–47. [Google Scholar] [Green Version]
- Sonwane, C.G.; Wilcox, J.; Ma, Y.H. Solubility of Hydrogen in PdAg and PdAu Binary Alloys Using Density Functional Theory. J. Phys. Chem. B 2006, 110, 24549–24558. [Google Scholar] [CrossRef] [PubMed] [Green Version]
- Rowe, J.M.; Rush, J.J.; De, G.L.A.; Ferguson, G.A. Neutron quasielastic scattering study of hydrogen diffusion in a single crystal of palladium. Phys. Rev. Lett. 1972, 29, 1250–1253. [Google Scholar] [CrossRef]
- Yoshihara, M.; McLellan, R.B. Thermodynamics of Pd-Cu-H solid solutions. Acta Metall. 1983, 31, 61–68. [Google Scholar] [CrossRef]
- Kamakoti, P.; Morreale, B.D.; Ciocco, M.V.; Howard, B.H.; Killmeyer, R.P.; Cugini, A.V.; Sholl, D.S. Prediction of Hydrogen Flux Through Sulfur-Tolerant Binary Alloy Membranes. Science 2005, 307, 569–573. [Google Scholar] [CrossRef]
- Knapton, A.G. Palladium alloys for hydrogen diffusion membranes. Platinum Met. Rev. 1977, 21, 44–50. [Google Scholar]
- Graham, T. On the relation of hydrogen to palladium. Proc. R. Soc. Lond. 1869, 17, 212–220. [Google Scholar] [CrossRef]
- Uemiya, S. State-of-the-art of supported metal membranes for gas separation. Sep. Purif. Methods 1999, 28, 51–85. [Google Scholar] [CrossRef]
- Zhang, Y.; Ozaki, T.; Komaki, M.; Nishimura, C. Hydrogen permeation characteristics of V–15Ni membrane with Pd/Ag overlayer by sputtering. J. Alloys Compd. 2003, 356–357, 553–556. [Google Scholar] [CrossRef]
- Tang, W.; Sanville, E.; Henkelman, G. A grid-based Bader analysis algorithm without lattice bias. J. Phys. Condens. Matter 2009, 21, 084204. [Google Scholar] [CrossRef] [PubMed] [Green Version]
- Sanville, E.; Kenny, S.D.; Smith, R.; Henkelman, G. An improved grid-based algorithm for Bader charge allocation. J. Comput. Chem. 2007, 28, 899–908. [Google Scholar] [CrossRef] [PubMed]
- Chen, L.; Wang, Q.; Xiong, L.; Gong, H.R. Mechanical properties and point defects of MC (M = Ti, Zr) from first-principles calculation. J. Alloys Compd. 2018, 747, 972–977. [Google Scholar] [CrossRef]
- Zhang, C.M.; Jiang, Y.; Yin, D.F.; Tan, H.J.; Sun, S.P.; Yao, J.G. Effects of point defect concentrations on elastic properties of off-stoichiometric L12-type A13Sc. Acta Phys. Sin. 2016, 65, 076101. [Google Scholar]

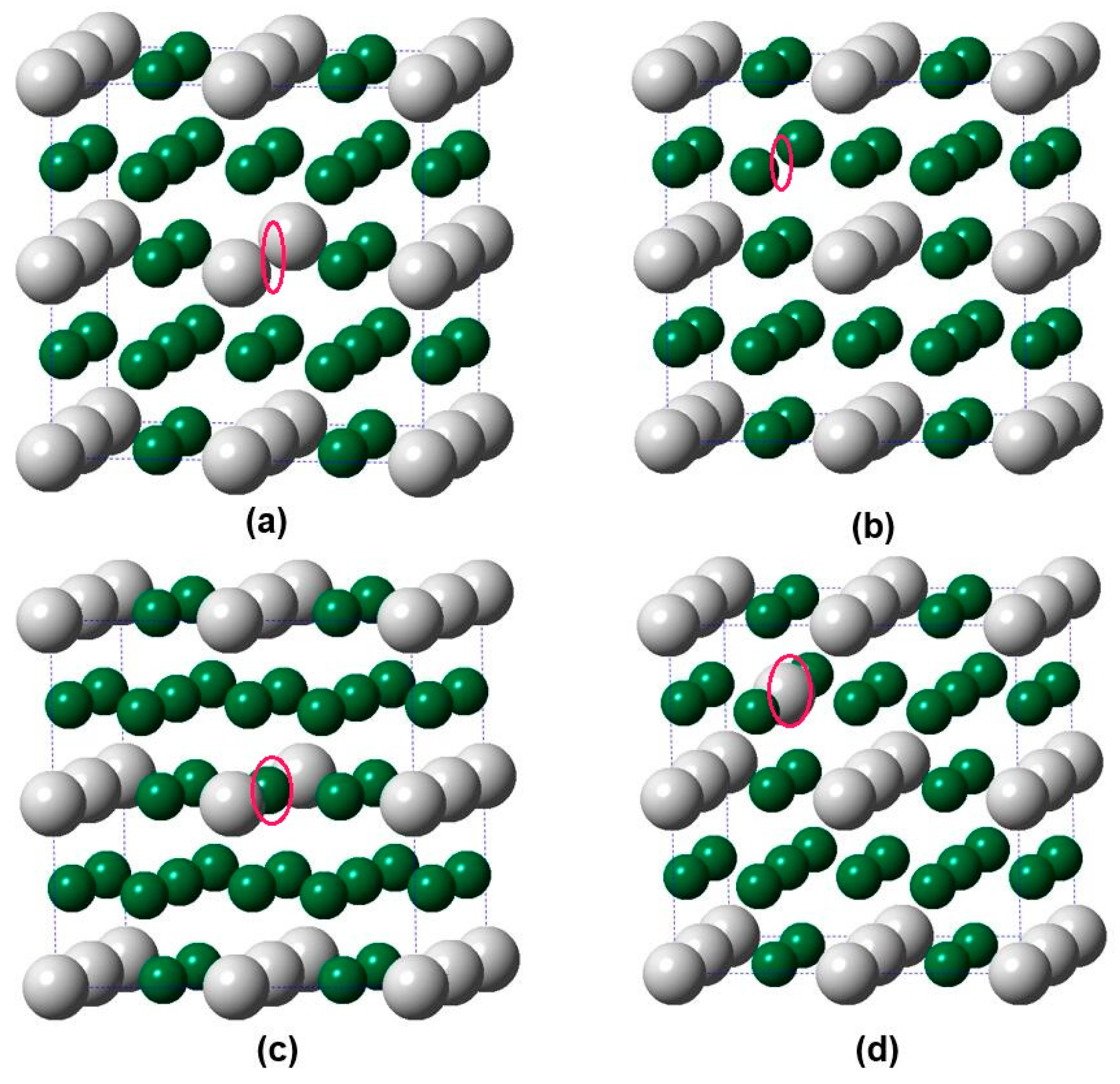

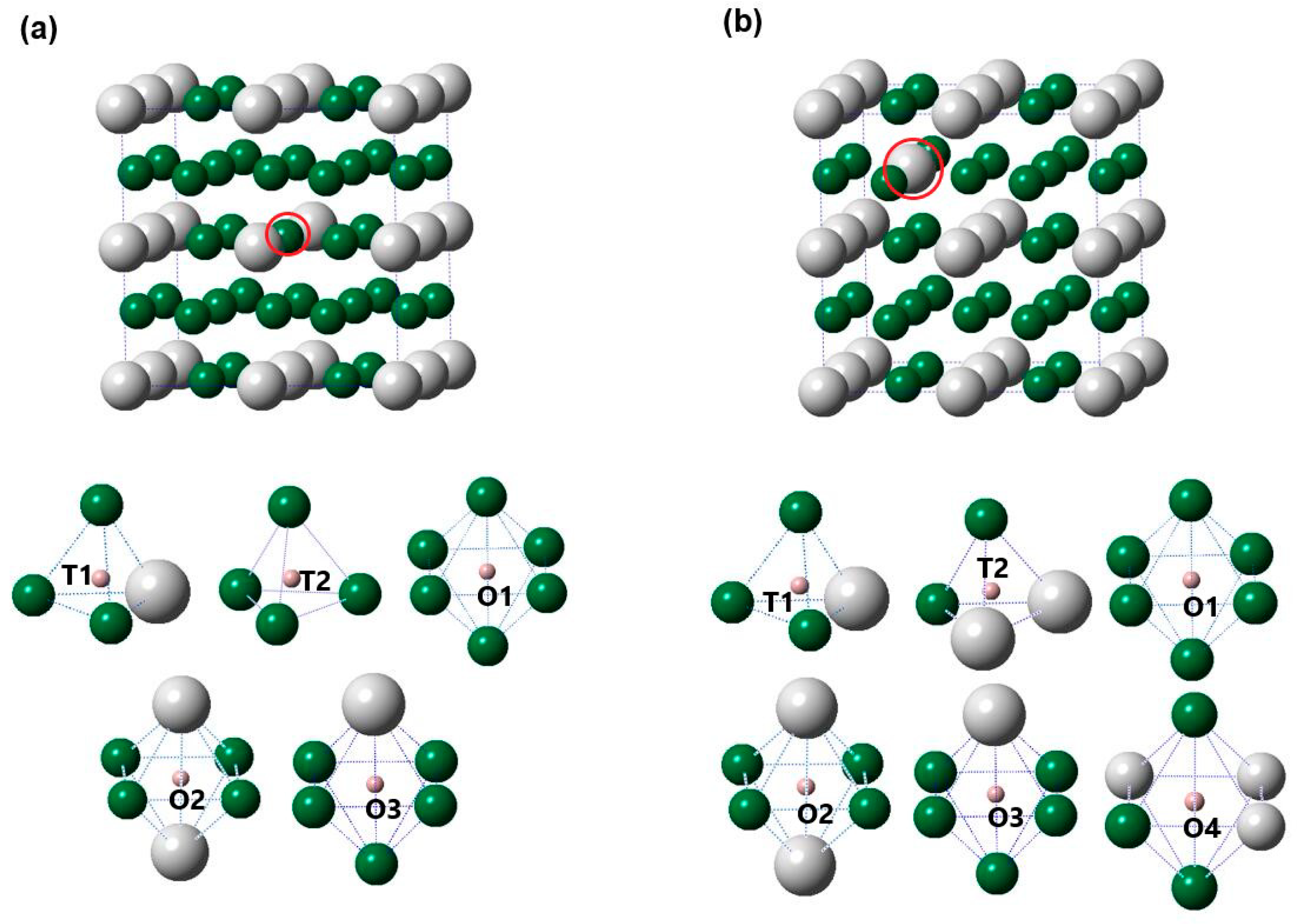

Phase | Lattice (Å) | H Site | ZPE (eV/atom) | Eb (eV) | ||
---|---|---|---|---|---|---|
This Work | Others | This Work | Others | |||
Pd | 3.950 | Exp. 3.89 a Cal. 3.954 b | T | 0.182 | −0.082 | Cal. −0.058 d |
O | 0.056 | −0.132 | Cal. −0.11 d | |||
Pd3Ag | 3.993 | Exp. 3.928 c Cal. 4.002 b | T | 0.181 | −0.051 | - |
O1 | 0.042 | −0.227 | - | |||
O2 | 0.045 | 0.046 | - |
Phases | Structure | Lattice Constant (Å) | ΔHf (eV) | Defect Formation Enthalpy, Hd (eV) | ||
---|---|---|---|---|---|---|
a | b | c | ||||
Pd3Ag | FCC | 3.993 | 3.993 | 3.993 | −0.022 | - |
Pd24Ag7 (VAg) | FCC | 3.977 | 3.977 | 3.977 | 0.0232 | 1.401 |
Pd23Ag8 (VPd) | FCT | 3.963 | 3.963 | 4.027 | 0.0142 | 1.122 |
Pd25Ag7 (AgPd) | FCC | 3.991 | 3.991 | 3.991 | −0.0193 | 0.086 |
Pd23Ag9 (PdAg) | FCT | 3.997 | 3.997 | 4.017 | −0.0225 | −0.016 |
Phases | H Site | ZPE (eV/atom) | Eb (eV) |
---|---|---|---|
Pd25Ag7 | T1 | 0.158 | −0.082 |
T2 | 0.183 | −0.173 | |
O1 | 0.049 | −0.232 | |
O2 | 0.046 | 0.02 | |
O3 | 0.072 | −0.136 | |
Pd23Ag9 | T1 | 0.179 | −0.015 |
T3 | 0.185 | 0.180 | |
O1 | 0.051 | −0.196 | |
O2 | 0.047 | 0.095 | |
O3 | 0.070 | −0.146 | |
O4 | 0.107 | 0.137 |
© 2019 by the authors. Licensee MDPI, Basel, Switzerland. This article is an open access article distributed under the terms and conditions of the Creative Commons Attribution (CC BY) license (http://creativecommons.org/licenses/by/4.0/).
Share and Cite
Chen, L.; Wang, Q.; Jiang, W.; Gong, H. Hydrogen Solubility in Pd3Ag Phases from First-Principles Calculation. Metals 2019, 9, 121. https://doi.org/10.3390/met9020121
Chen L, Wang Q, Jiang W, Gong H. Hydrogen Solubility in Pd3Ag Phases from First-Principles Calculation. Metals. 2019; 9(2):121. https://doi.org/10.3390/met9020121
Chicago/Turabian StyleChen, Liang, Qian Wang, Wugui Jiang, and Haoran Gong. 2019. "Hydrogen Solubility in Pd3Ag Phases from First-Principles Calculation" Metals 9, no. 2: 121. https://doi.org/10.3390/met9020121
