Article

Evaluation of Shale Source Rocks and Clay Mineral Diagenesis in the Permian Basin, USA: Inferences on Basin Thermal Maturity and Source Rock Potential

by
Hunter Green
1,*,
Branimir Šegvić
1,
Giovanni Zanoni
1,
Silvia Omodeo-Salé
2 and
Thierry Adatte
3
1
Department of Geosciences, Texas Tech University, 1200 Memorial Circle, Lubbock, TX 79409, USA
2
Department of Earth Sciences, University of Geneva, Rue des Maraîchers 13, 1205 Geneva, Switzerland
3
Institut des sciences de la Terre, Université de Lausanne, Bâtiment GEOPOLIS, 1015 Lausanne, Switzerland
*
Author to whom correspondence should be addressed.
Geosciences 2020, 10(10), 381; https://doi.org/10.3390/geosciences10100381
Submission received: 4 September 2020 / Revised: 17 September 2020 / Accepted: 19 September 2020 / Published: 23 September 2020
(This article belongs to the Special Issue Temperature in Sedimentary Basins)
Browse Figures
Versions Notes

Abstract

:
The use of mineral diagenetic indices and organic matter maturity is useful for reconstructing the evolution of sedimentary basins and critical assessments for potential source rocks for petroleum exploration. In this study, the relationship of clay mineral diagenesis and organic matter thermal indices (Rock-Eval Tmax) and calculated vitrinite reflectance (%Ro) were used to constrain the maximum burial depths and temperatures of three distinct intervals within the northern Permian Basin, USA. X-ray diffraction of clay fractions (<2 µm) consists of illite, chlorite, and illite-smectite intermediates. Primary clay mineral diagenetic changes progressively increase in ordering from R0 to R1 I-S between 2359.5 and 2485.9 m and the appearance of chlorite at 2338.7 m. Rock-Eval pyrolysis data show 0 to 14 wt% TOC, HI values of 40 to 520 mgHC/g TOC, and S2 values of 0 to 62 mg HC/g, with primarily type II kerogen with calculated %Ro within the early to peak oil maturation window. Evaluation of the potential for oil generation is relatively good throughout the Tonya 401 and JP Chilton wells. Organic maturation indices (Tmax, %Ro) and peak burial temperatures correlate well with clay mineral diagenesis (R0–R1 I-S), indicating that maximum burial depths and temperatures were between 2.5 and 4 km and <100 °C and 140 °C, respectively. Additionally, the use of clay mineral-derived temperatures provides insight into discrepancies between several calculated %Ro equations and thus should be further investigated for use in the Permian Basin. Accordingly, these findings show that clay mineral diagenesis, combined with other paleothermal proxies, can considerably improve the understanding of the complex burial history of the Permian Basin in the context of the evolution of the southern margin of Laurentia.

1. Introduction

Fine-grained organic-rich sedimentary rocks when subjected to sufficient heating and pressure are capable of becoming petroleum source rocks and/or important reservoirs for unconventional hydrocarbon production [1,2,3]. Unconventional reservoir production potential is highly dependent on a variety of physical and chemical properties that are controlled by depositional environment and post-depositional diagenetic history [4,5,6,7,8,9]. Post-depositional thermal histories are likely the biggest factor in transforming both inorganic components (i.e., minerals), which in turn affect rocks’ physical nature [10,11,12,13], and organic matter by maturation into hydrocarbon [14,15,16,17,18]. Therefore, an understanding of both the mineral and organic matter histories during burial and subsequent thermal progression are key to comprehending the potential for unconventional hydrocarbon exploration, and provide important insight to the geologic evolution of sedimentary basins [11,19,20,21].
Thermal history reconstruction, especially within a hydrocarbon producing basin, is typically assessed by means of Rock-Eval pyrolysis, which produces data related to the quality and quantity of organic matter. The temperature index (Tmax) obtained from Rock-Eval pyrolysis is widely used as a maturity index due to its correlation with the increase of organic matter maturation [14]. However, Tmax must be cautiously considered as a thermal maturity indicator due to factors, such as (i) small amount of organic matter in the sample, (ii) deterioration of organic matter, and (iii) varying types of organic matter at the maximum of their thermal maturity [22,23,24,25,26]. Vitrinite reflectance (%Ro) observations through organic petrography, especially in shale, has become the standard evaluation tool for thermal maturity [27,28,29,30,31]. Vitrinite reflectance is useful due to its systematic increase with increased organic matter maturation and burial depths as well as preferred arrangements in structure due to overlying stress from load pressure [27]. However, %Ro interpretations can be time consuming, relying heavily on the experience of the organic petrographer [29]. Calculated vitrinite reflectance conversion values using Rock-Eval pyrolysis data have been theoretically developed for several source rocks within a number of sedimentary basins [23,30] and can be further adjusted with the incorporation of mineral maturation indices [31].
Alterations of clay mineral assemblages, in particular mixed-layer illite-smectite (I-S) ratios and illite or chlorite crystallinity indices, have also been used to determine the maximum burial depths and interpret thermal evolution in sedimentary basins [11,12,13,14,20,21,24,32,33,34,35,36]. The smectite to illite ratio in mixed-layer I-S as well as the ordering of mixed-layers are both variables that are susceptible to the temperature increase with depth and are controlled by the illitization process [12,37,38]. These diagenetic changes coincide with temperatures at which organic matter starts to generate liquid hydrocarbons [11,33,37]; therefore, understanding the mineralogy and presence of I-S mixed-layered phases can be used as a geothermal indicator of potential source rocks and maximum burial temperatures.
The ability to constrain different maturation techniques at times in which only some data are available or when techniques must be modified (calculated %Ro by Rock-Eval pyrolysis [30,31]) can prove helpful during the development of unconventional shale reservoirs. The Wolfcamp, and to a lesser extent Barnett, unconventional shale plays within the Midland Basin, a small sub-basin of the Permian Basin, are some of the largest producing shale plays in the world [39]. The development of these plays has led to sizeable amounts of research employing various analytical approaches, such as vitrinite reflectance, palynofacies, total organic carbon (TOC) variability, and Rock-Eval pyrolysis, to evaluate the types of organic matter presence and source rock potential (e.g., [28,40,41,42]). However, the assessment of clay mineral presence, particularly the mixed-layered I-S phases, and diagenesis has been severely generalized in most mineralogical studies and limited to just few reports on the specifics of clay mineral phases [43,44]. Due to potential variability of maturation indices dealing with organic materials, the importance of using inorganic maturation indices as an indicator for thermal history becomes essential to better understand maturation processes for the construction of diagenetic models [19,20,21,23,24,25]. This study aimed to (1) determine the mineralogy and diagenesis of clay minerals within the northern Midland Basin, (2) determine the relationship between clay mineral thermal indices and organic matter maturation parameters (Tmax and calculated %Ro), and (3) extrapolate northern Midland Basin data throughout the basin to better refine thermal history regimes.

2. Geological Background

2.1. Paleogeography and Tectonics

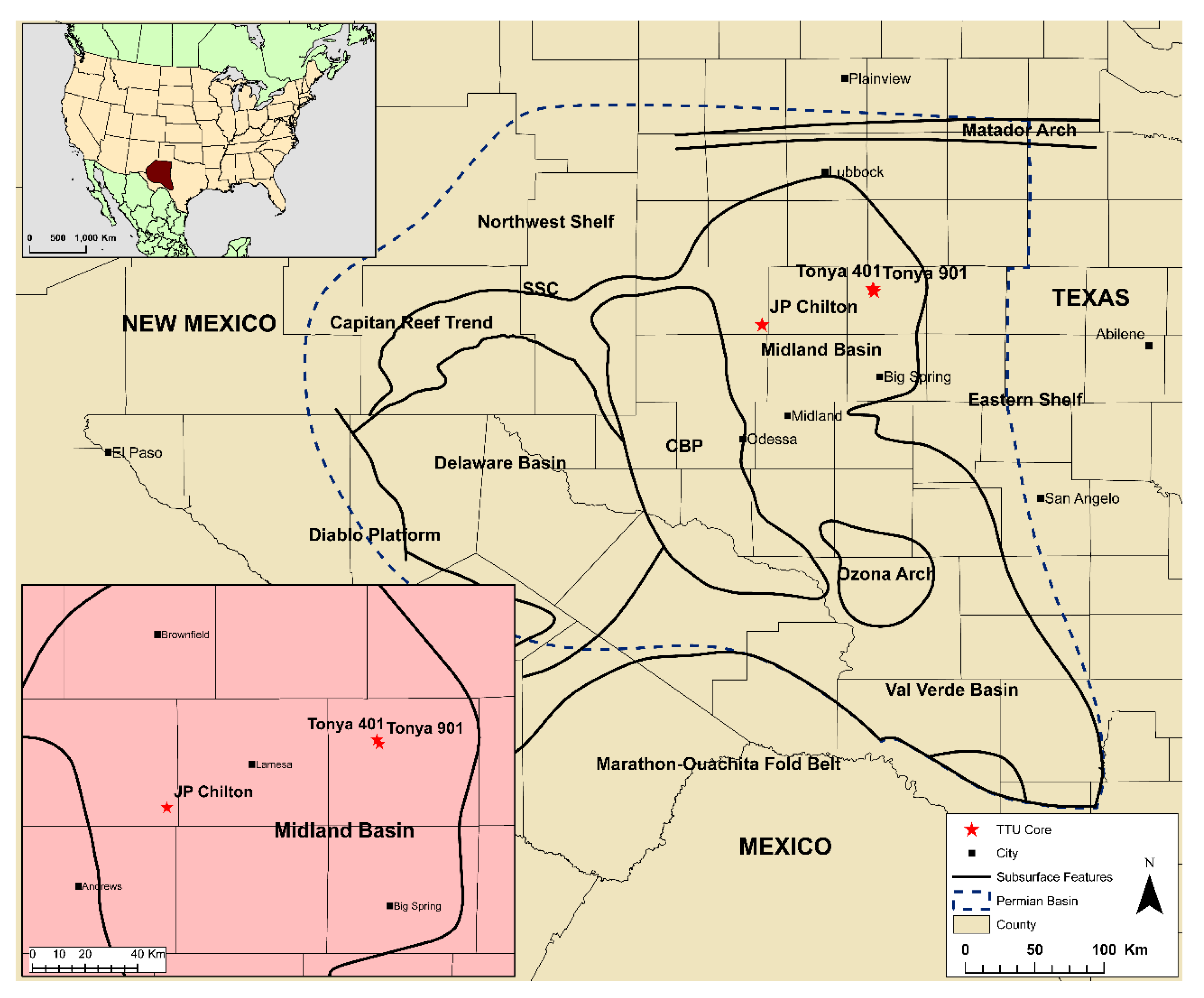

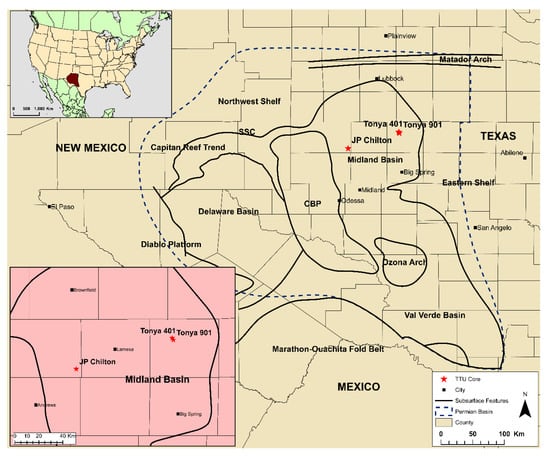

The area of Permian Basin (Figure 1) was located along the southern margin of Laurentia where a series of sedimentary basins developed throughout the Paleozoic [45,46]. The ancestral Tobosa Basin, a low-relief marine depression [47,48], covered much of southern craton during the Early Paleozoic. The basin was fairly inactive tectonically until the Late Mississippian when weak crustal extension and subsidence began to deepen the basin [49]. During the Pennsylvanian, the collision of Laurentia and Gondwana led to the development of the Marathon-Ouachita fold-thrust belt, creating the modern foredeep Permian Basin [50,51,52]. Deformation continued along high-angle fault structures through the Pennsylvanian, establishing three distinct sub-basins, the Midland (the focus of this study), Delaware, and Val Verde Basins [49,50,53]. The Midland Basin actively started to assemble during the Middle Pennsylvanian, with several pulses of subsidence through the Early Triassic [45,50,54]. Following this period, the Midland Basin would remain virtually inactive throughout the Mesozoic, until Laramide tectonics lifted and tilted the basin asymmetrically from west to east to its present-day depths [49].

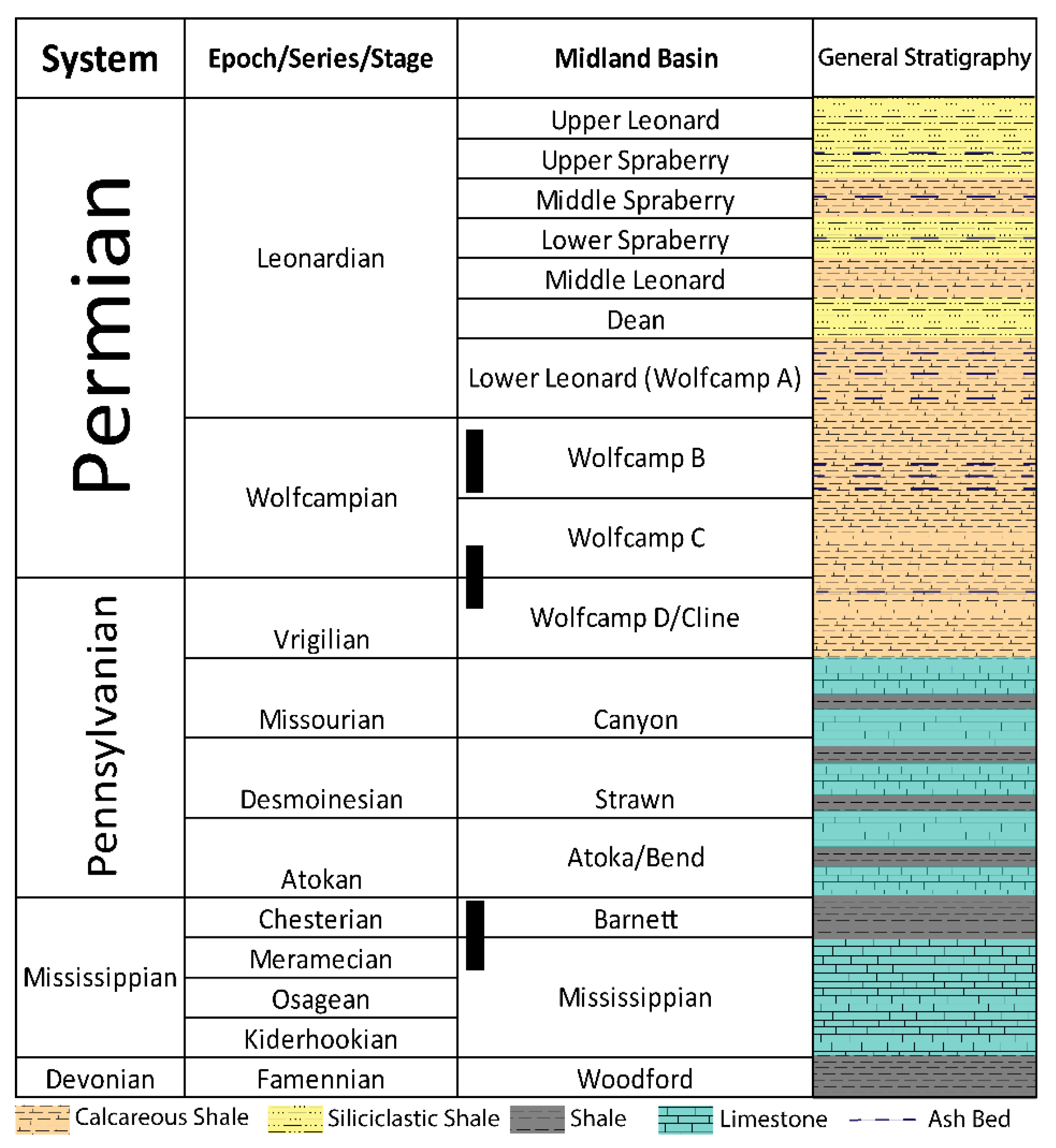

2.2. Deposition and Stratigraphy

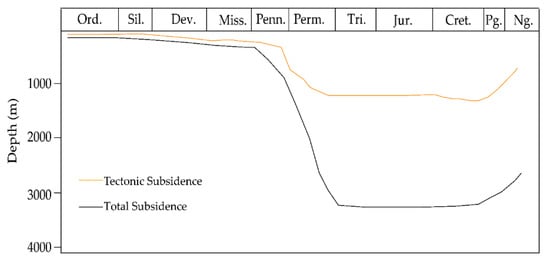

Passive margin secessions dominated the ancestral Tobosa Basin during the Early Paleozoic, alternating between thick accumulations of shelf carbonates, basinal shales, and nearshore clastics [54]. Late Mississippian transgressions in the region deposited fine-grained, dark gray and brown, organic-rich sediments of the Barnett formation (Figure 2; [55]). This section is unconformably overlain by Pennsylvanian age Atoka and Bend formations and marks the fall of relative sea-level ending the Kaskaskia megasequence [54,55]. At the beginning of the Pennsylvanian, regional structures started to shift, creating uplifts within and around the basin, altering sedimentary regimens and constructing environments conducive to clastic deposition along the northwest margin and progressively more sediment starved towards the center and southern margins [56,57]. As time progressed through the Pennsylvanian, tectonic activity, rapid subsidence, and intense glacio-eustatic sea-level deviations controlled the widespread deposition of cyclothems, creating sequences of Strawn and Canyon formation shelf carbonates with time-equivalent detrital limestones and basinal clastic turbidity deposits (Figure 2, [54,57,58,59,60,61]). Upper Pennsylvanian Wolfcamp D/Cline formation is commonly gray to black organic-rich marine shales with increased carbonated detritus near the margins of the basin (Figure 2) [57]. In the Early Permian, continued subsidence accompanied by deltaic progradation from the north and east supplied clastic sediment from the Ouachita fold-thrust belt [58] though incised valleys and troughs along the Eastern Shelf, giving rise to the Wolfcamp formation (Figure 2) [61,62,63]. Sediment conduits captured carbonate detritus and debris from exposed platform shelves, creating a series of mass flows, turbidite, and basin-floor submarine facies fanning throughout the basin [61,64,65,66]. As sea water receded, the basin began to fill with additional clastics and prograding carbonate margins until the Late Permian when thick accumulations of evaporite deposits covered the area [54,57]. Previously, several subsidence curves were constructed [50,67], depicting steady rates throughout the Paleozoic until the Middle to Late Pennsylvanian, in which rates dramatically increased during the Permian. These previous models suggest that Wolfcampian-aged rocks within the eastern Midland Basin (Figure 3) reached depths of approximately 2–2.5 km at the end of the Permian. Subtle uplifts and erosional events during the Mesozoic allowed the exhumation and non-deposition of sediments [54]. Finally, during the Cretaceous, marine sediments covered the entire Midland Basin, once again burying Pennsylvanian and Permian source rocks within the Western Interior seaway, until uplift from Laramide events positioned them to current depths [54,67,68,69].

3. Materials and Methods

3.1. Sample Materials

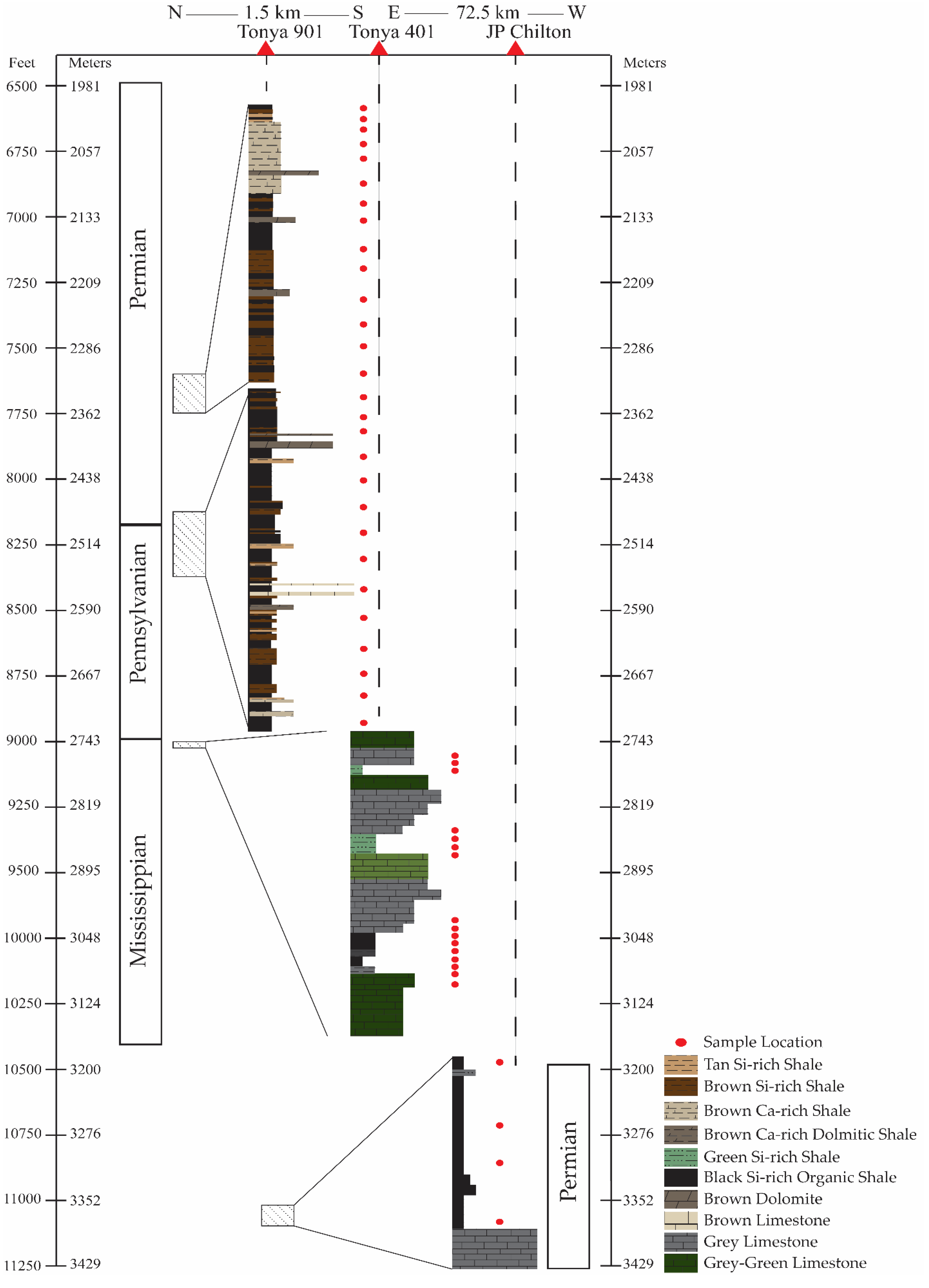

Samples listed in Table 1, were selected from three cores located within the Midland Basin from depths ranging between 2322 and 3400 m (7620–11,200 ft.) with a focus on three primarily fine-grained siliciclastics units of Mississippian, Pennsylvanian, and Permian age. Tonya 401 and Tonya 901 cores are located in eastern Midland Basin, with the JP Chilton core located in western Midland Basin (Figure 4). Cores were described using petrological techniques and nomenclature schemes developed by Lazar et al., 2015 [72]. Representative samples were then chosen for X-ray diffraction (XRD), clay mineral modeling, and Rock-Eval pyrolysis analyses.

3.2. X-Ray Diffraction

Sample preparation for XRD analyses initially included material powdering in an agate mortar prior to whole-rock measurements. To prevent possible mixing of coarse detrital phases with authigenic clays, the samples were not powdered but gently disaggregated. The clay fraction was separated from the crushed material by centrifugation, which involved the addition of Na-metaphosphate to disperse the clays. Further disaggregation was accomplished in an ultrasonic bath. To ensure a uniform cation exchange, clay fractions separated by centrifugation were saturated by Mg using a solution of 10 mL of 4 M MgCl2. Suspensions were washed and centrifuged with distilled water at least three times to minimize the free-ion content. The oriented mounts were prepared by pipetting a suspension on glass slides, which were left to dry at 50 °C prior to their utilization. The measurements were undertaken in air-dried (AD) conditions and after ethylene-glycol (EG) saturation using a Bruker D8 Advance diffractometer installed at the Geoscience Clay Laboratory of Texas Tech University (Lubbock, TX, USA). This instrument features a horizontal goniometer axis and synchronized rotation of both the X-ray source and the detector arms. Measurement parameters consisted of a step scan in the Bragg-Brentano geometry using CuKα radiation (40 kV and 40 mA). Sample mounts were scanned at a counting time of 1.8 s per 0.02 °2θ, from 3 to 70 °2θ and from 3 to 30 °2θ for the whole rock and the clay fraction, respectively. The mineral phases were identified using the PDF4+ database.

3.3. Interpretation and Modeling of XRD Patterns

X-ray diffraction patterns of clay minerals were examined using methods described by Moore and Reynolds, 1997 [73] and Środoń, 2006 [74]. For chlorite-mineral interpretation, the recommendations of Lagaly et al., 2006 [75] and Meunier, 2007 [76] were followed. To characterize the mixed-layer clay XRD, clay fraction patterns were modeled using Sybilla© software based on the formalism of Drits and Sakharov, 1976 [77]. The modeling included a trial-and-error procedure that provided optimal clay-mineral structural and probability parameters to obtain the best fit between experimental and calculated patterns and of the intensities of the 00l reflections for each of the clay phases present. For mixed-layer minerals, the number, nature, and stacking sequence of different compositional layers were taken as modifiable values. Experimental spectra were produced using two discrete phases (illite and chlorite) along with a series of low-ordered (R0) illite-smectite (I-S; I-SS; I-SSS), high-ordered (R1 and R3) I-S phases, and chlorite-smectite-smectite (C-SS) following the procedures in Uzarowicz et al., 2012 [78] and Zanoni et al., 2016 [36]. The second S in disordered illite-smectite (R0 I-SS) denotes a multiple type of smectite component differing from the preceding one in terms of charge and, therefore, in terms of d spacing. In other words, expandable layers in R0 I-S are bi-hydrated and in R0 I-SS they are mono- and bi-hydrated (e.g., [79,80]). Modeling parameters of mixed-layer minerals consisted of (1) the extent of the preferred orientation of particles on the mounted X-ray slides (σ*), (2) coherent scattering domain sizes (CSDS) expressed in number of layers, and (3) the amounts of illite component in mixed-layer phases, Table 2. Quantification of whole-rock diffractograms (Table A1) is based on the reference intensity ratio (RIR), which considers the ratio between an internal standard (i.e., corundum) and minerals of interest [81]. Conversely, the abundances of clay minerals were reported from clay fraction diffractograms as relative values from modeled samples (Table A2).

3.4. Rock-Eval pyrolysis

All samples were analyzed at the Institute of Earth Sciences of the University of Lausanne (Switzerland) except T401-9034, which was analyzed by Weatherford Laboratories (Houston, TX, USA). Samples were homogenized using a mortar grinder for Rock-Eval analyses performed using a Rock-Eval 6 pyrolizer (Vinci Technologies) on aliquots of 55 to 70 mg in Incoloy crucibles. Analytical procedures closely followed detailed instructions provided by Ordonez et al., 2019 [82] and primarily include the following: TOC (wt%), the total content of organic matter in the rock; S1 (mg HC/g rock), free hydrocarbons contained in the organic matter; S2 (mg HC/g rock), the amount of hydrocarbons formed by the rock; S3 (mg CO2/g rock), CO2 pyrolized; and Tmax (°C), the temperature when the S2 peak is recorded. Additionally, source rock parameters, such as HI (mgHC/g TOC), OI (mg CO2/g TOC), and PI (S1/S1 + S2), were calculated, to evaluate the type of kerogen and the hydrocarbon generation and expulsion potential [13,83]. Traditionally, vitrinite reflectance (%Ro) is used to infer the maturation of hydrocarbon by means of organic petrography; however, this technique may be time consuming and is dependent on the presence of vitrinite itself [29]. Furthermore, additional maturation indices, such as Rock-Eval (Tmax, HI) and clay mineral maturation, may be used in case of a paucity of %Ro data. Since petrographical %Ro data was not available during this study, calculated %Ro values were determined by Tmax obtained from Rock-Eval pyrolysis using developed formalism [43,84] from data collected in the adjacent Fort Worth Basin, USA. Subsequently, the calculated %Ro was employed to determine peak burial temperatures [85].

4. Results

4.1. Lithofacies

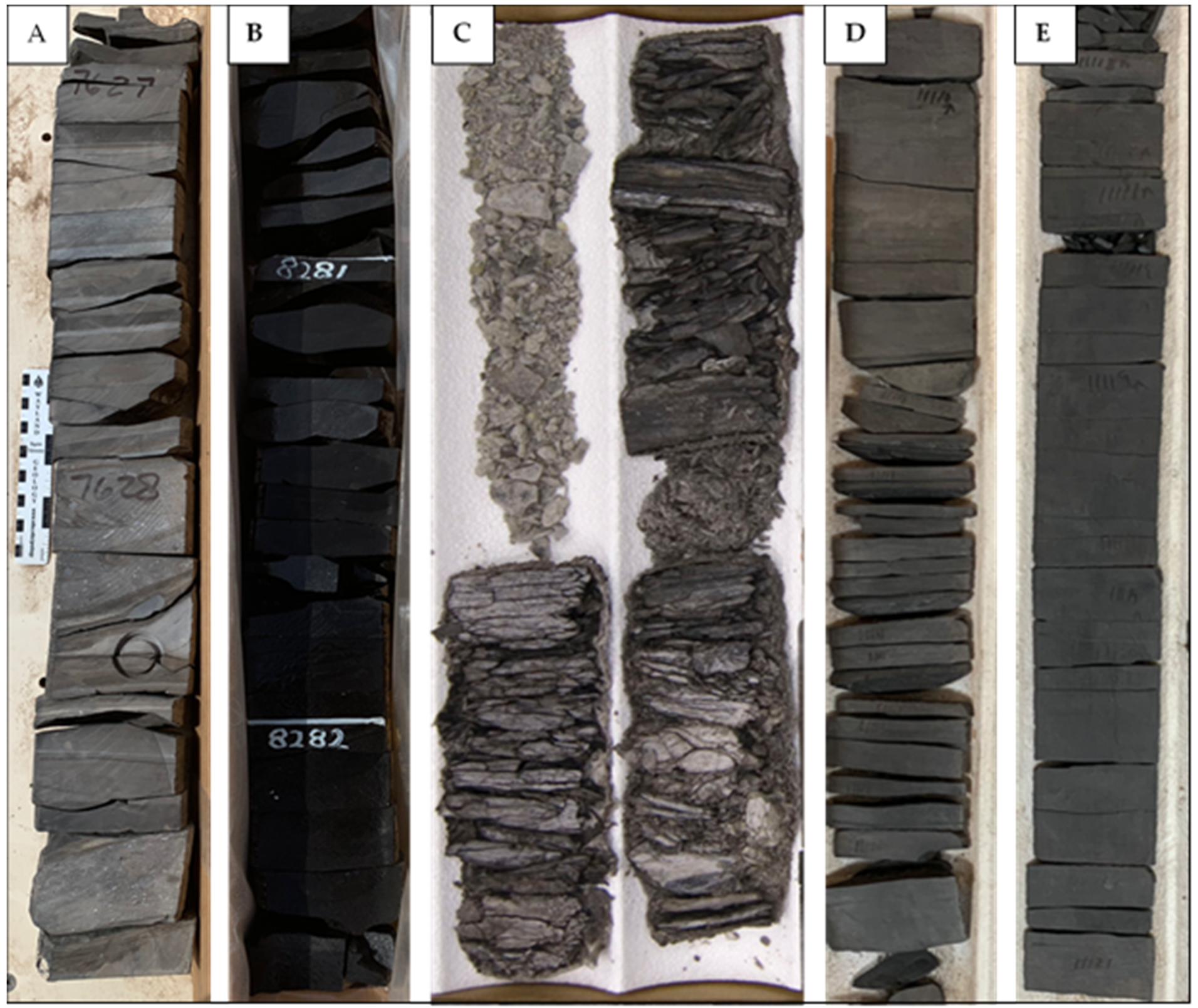

The Tonya 401 and 901 cores located in the northeastern Midland Basin are geographically separated by approximately 1.5 km (1 mi) with no evidence of displacement; therefore, the two were combined to create a single stratigraphic section represented by three distinct intervals: the upper (2323–2359 (7620–7741 ft.)), middle (2486–2547 m (8156–8357 ft.)), and lower (2744–2754 m (9003–9041 ft.)) sampling intervals (Figure 4). The upper sampling interval lithofacies are mostly interbedded black siliceous shales and black calcareous shales with occasional limestone and dolomitic intervals. The middle sampling interval lithofacies are predominantly black shales with very thin interbedded limestone and dolomite. These two sections represent the Wolfcamp formation of Permian (upper section) and Pennsylvanian (middle section) ages (Figure 5). In the lowest section, the lithofacies are more variable and consist of grey-black siliceous shale, grey to black calcareous shale, green-grey siltstone, and massive grey limestone, which represent the Barnett formation of Mississippian age. The JP Chilton core interval (3381–3394 m (10,091–11,135 ft.)) (Figure 4) is mostly calcareous-rich shales at the top of the interval with more silica-rich shale at the bottom that overlie massive grey grainstone carbonates (Figure 5). This core interval is part of the Wolfcamp formation within the northwestern Midland Basin.

4.2. XRD Mineralogy

4.2.1. Whole-Rock Fraction

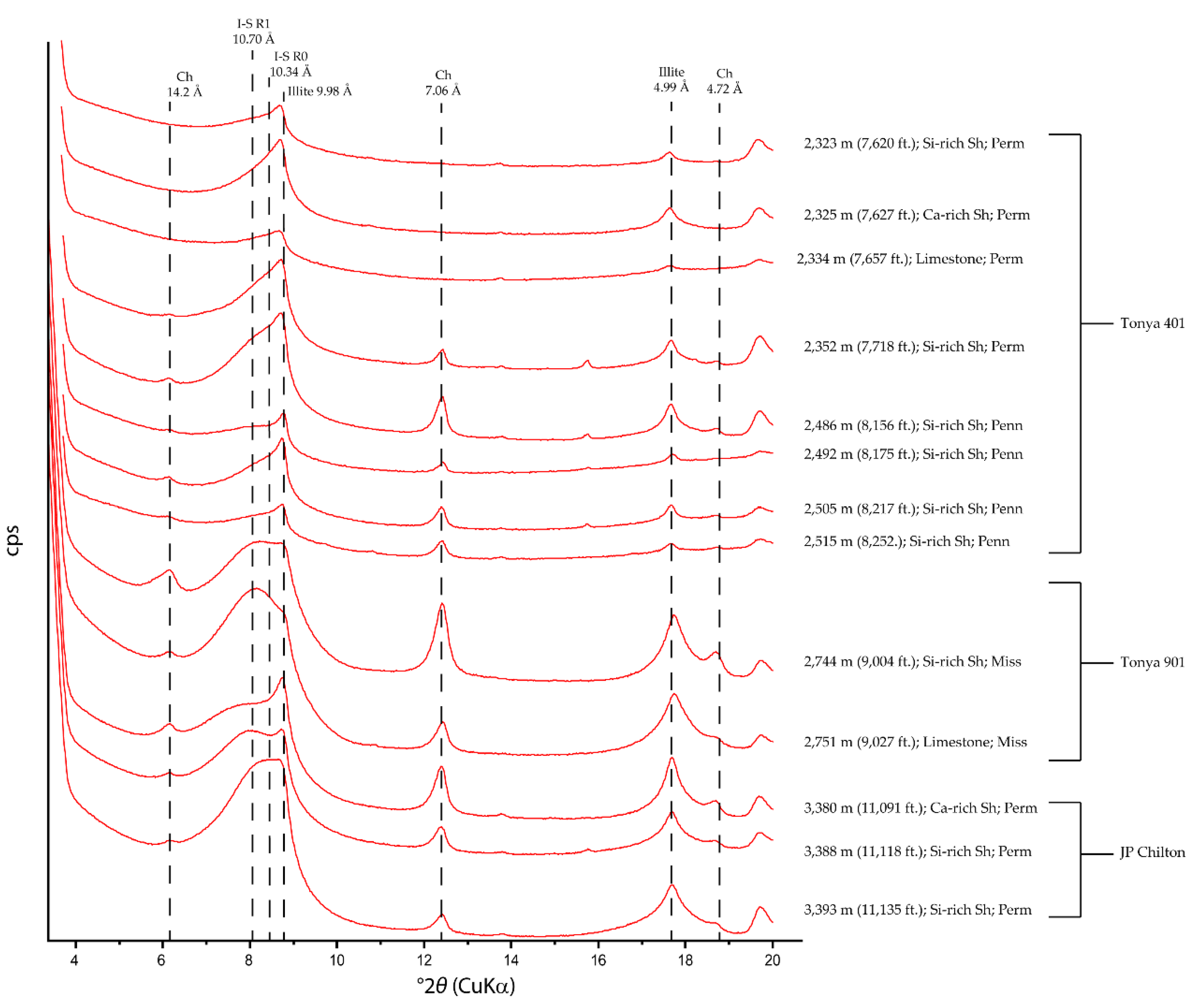

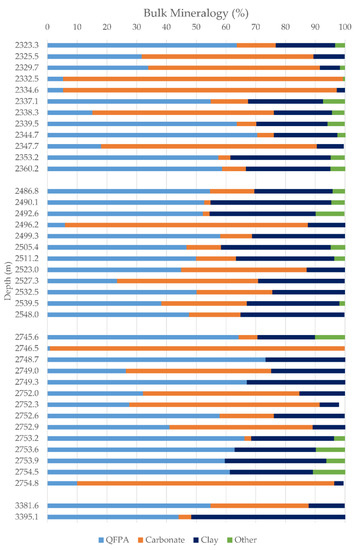

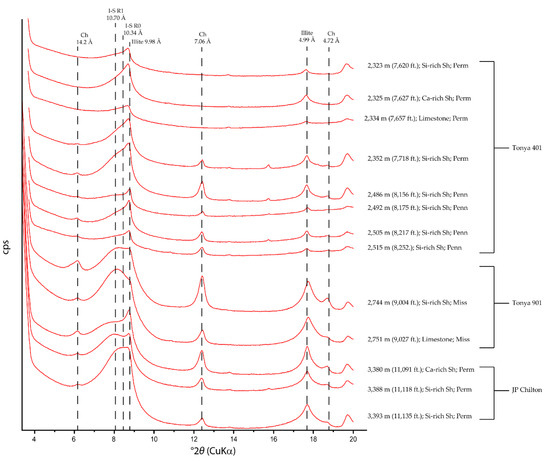

Whole-rock XRD diffractograms within the Tonya sampling intervals indicate primary phases of quartz, calcite, albite, and clay minerals, with minor phases consisting of pyrite, dolomite, microcline, analcime, and lesser amounts of Fe sulfide and gypsum. Mineral phases and their relative abundances are summarized in Figure 6 with detailed amounts found within Appendix A. Primary phases’ presence corresponds well with lithofacies and appear to be mostly controlled by the depositional environment. Hence, the content of quartz and mica are abundant in Si-rich shale facies whereas calcite within Ca-rich facies is largely controlled by the amount of fossiliferous and limestone clasts debris. The minor phase of analcime is primarily found in upper and middle cores of the combined Tonya well (2322.6–2505.4 m (7620–8236 ft.)) with little presence in the lower sampling interval or the JP Chilton core. Reference intensity ratio (RIR) quantification showed that Wolfcamp formation samples average 40% quartz, 18.5% carbonate, and 26% clay minerals, depending on the prevalence of detrital carbonate, whilst Barnett formation samples average 37% quartz, 20% carbonate, and 23% clay minerals. Whole-rock diffractograms of the JP Chilton core show similar phases to those of the Tonya cores with the occurrence of quartz, calcite, dolomite, K-feldspar, clay, and pyrite and no presence of analcime. RIR quantification displays higher abundances of calcite in the upper portion of the core and dissipating near the bottom of the sampling interval.

4.2.2. Clay Fraction

Clay minerals present within the sample interval account for illite, various mixed-interlayered illite-smectite (R0 I-S, R0 I-SS, R0 I-SSS, R1 I-S, and R3 I-S), chlorite, and mixed-layer chlorite-smectite (R0 C-SS). Clay mineral abundances are given in Appendix B. Discrete illite was identified predominantly by the 10- and 5-Å peaks corresponding to the 001 and 002 reflections (Figure 7) ranging from 0% to 41.3%. Interstratified mixed-layer phases are recognized by using the criteria of Reynolds and Hower, 1970 [86] featuring the broad diffraction peak near 17 Å appearing in glycolated samples as well as additional broadening of peaks near 10 Å. Once identified, pattern fitting and deconvolution of original experimental spectra (Appendix C) indicated the presence of multiple disordered mixed layered phases (R0 I-S, I-SS, and I-SSS) (Figure 7) throughout the study interval. The disordered mixed layer phases primarily occur within the upper sampling interval of the Tonya core (2322.6–2485.9 m (7620–8156 ft.)) (Figure 8). Additionally, the illite components of R0 I-S and R0 I-SS ranged from 5% to 25% and 10% to 38%, respectively. Furthermore, ordered mixed layered phases of R1 I-S (Figure 7 and Figure 8) were recognized by reflections near 11.1 and 13.3 Å. These two reflection points indicate a long-range ordering of the second-ordered superstructure unit cell of three 10 Å illite layers and one 17 Å smectite layer [73]. R1 I-S phases mostly occur within the middle sampling interval of the Tonya core (2485.9–2516.4 m (8156–8256 ft.)) and throughout the JP Chilton core (3380.5–3393.9 m (11,091–11,135 ft.)). The illite abundance within the R1 I-S phases range from 75–95%. Long-ordered R3 I-S phases were observed solely within the lower Tonya interval (2744.4–2753.3 m (9004–9033 ft.)). This phase contains 92–99% illite within the R3 I-S phase. Discrete chlorite was identified by peaks at 14.1, 7.1, and 4.5 Å, Figure 7. Discrete chlorite begins to appear at 2339 m (7673 ft.) and ranges from 0.9–5.5%. This phase is most abundant in lower Wolfcamp samples from depths of 2339–3393 m (7673–8256 ft.). Furthermore, mixed-layer C-SS phases were observed primarily within the lower Wolfcamp samples in the Tonya core and lower most samples in the JP Chilton core (Appendix C) and sporadically reached abundances up to 17%.

4.3. Rock-Eval Pyrolysis

TOC values from all samples range between <1 wt% and 13.57 wt% throughout the study interval. The middle sampling interval within the Tonya 901 core from 2486–2547 m produced the most consistent TOC values, averaging 4.39 wt% (Table 2). S1 values are mostly consistent, ranging from near 0.50 to 3.34 mgHC/gTOC, except in Tonya 401 samples, where values are extremely low, whereas S2 values range from 0.30–62.08 mgHC/gTOC and correlate well with TOC amounts. HI amounts typically range from 137 to 518, with most samples falling within 200 to 400 mgHC/gTOC except for two samples: T401-9027 and T401-9034. OI values mostly range from 3.78–28.90 mgHC/gTOC, with five samples over 40.23 up to 108.59 mgHC/gTOC. Kerogen types consist primarily of Type II [87,88,89]. Tmax values range from 434 to 442 °C, with two samples (T401-9004 and T401-9015) at 347 °C. These low Tmax values are possibly due to the very low abundance of organic matter (<0.22 wt%) within the samples and disallowing the expulsion of free hydrocarbons or cracking, thus reducing the S2 peak for which Tmax is dependent [18,90]. Calculated vitrinite reflectance (%Ro) using the Jarvie et al. [84] equation range 0.55–0.78 (Table 2). The Tmax and %Ro values suggest that sediments were exposed to temperatures near the beginning of the oil window ([20] and references therein). The %Ro values when using the Lewan and Pawlewicz [43] equation are slightly higher ranging from 0.91–1.22, indicating later maturation (Table 2).

5. Discussion

5.1. Clay Mineral Evolution

The conversion of smectite to illite through a series of mixed-layered I-S is a common diagenetic transformation within sedimentary basins, whereby the conversion dynamics and component ordering are primarily controlled by the increase in temperature, but other factors, such as reservoir characteristics, K availability, or starting composition of smectite, may also affect the conversion process [12,36,91,92,93]. Therefore, illite-smectite composition and ordering can be utilized as a relative geothermometer to indicate the maximum burial temperatures within a sedimentary basin [11,12,33,94,95]. Within the upper Tonya 401 core (2322.6–2359.5 m (7620–7741 ft.)), the primarily clay component is random ordered (R0) I-S and I-SS (Figure 7). Of these, the illite constituent of R0 I-S averages 90% (Appendix C). This suggests that analyzed lithofacies within this interval were likely exposed to temperatures near 100 °C based on the paleogeothermometer calibration of Środoń (1999) [12] using the proportion of smectite in I-S (Appendix C). However, with no evident appearance of R1 I-S phases within this upper Tonya 901 sections (2322.6–2359.5 m (7620–7741 ft.)), maximum temperatures likely did not surpass 100–110 °C [12,33,96]. Using a geothermal gradient of 40 °C/km for the Permian Basin [71], the maximum burial depths of this interval were less than 2.5 km and have been and still are at least moderately exposed to mesogenesis [11,12,33,97,98].
Mixed layered R1 I-S phases were observed beginning at 2485.9 m (8156 ft.) and appear throughout the middle sampling interval of the Tonya 901 (2485.9–2156.4 m (8156–8252 ft.)) core as well as the entire JP Chilton core (3381–3394 m (11,091–11,135 ft.)). The presence of R1 I-S phases implies that facies were exposed to higher paleogeothermal temperatures near or above 100–110 °C and further mesogenesis [96]. The increased ordering within the two cores can be attributed to a temperature increase to depth within the JP Chilton core and increased residence time (duration of heating) in the Tonya. As mentioned before, for the normal geothermal gradient of 40 °C/km [71], the depth for conversion of R0 to R1 (100–110 °C, [96]) should surpass 3 km below the surface. Furthermore, the lack of higher-ordered I-S in the deeper JP Chilton core suggests that both the Tonya and JP Chilton facies within the R1 I-S interval were subjected to the same maximum burial depths, and present-day depths (Tonya, 2485.9 m; JP Chilton, 3380.5 m) of core facies reflect asymmetrical deepening of the Midland basin toward the west and uplifting along the Bend arch to the east [54,67].
Additionally, I-S phases identified in the Tonya 401 facies beginning at 2744.4 m (9004 ft.) have increased illite in I-S, and significantly less smectite (Appendix C) proposes that these facies were exposed to paleotemperatures likely above 130 °C and depths greater than 4 km based on models by Hower (1981) [83] and Środoń and Eberl, 1987 [99]. These approximations appear to relate well to the calculated %Ro from Tmax using the Jarvie (2018) [84] equation (Table 2), which estimates sediments were exposed to maximum temperatures of near 120 °C [85] and possible burial depths of 3 km (40 °C/km). However, when applying the Lewan and Pawlewicz [43] equation for calculated %Ro to data from this study, increases in both calculated %Ro (0.85–1.15) and maximum burial temperatures (129–140 °C) (Table 2) were seen. This increase may better correlate with the inferred increase in burial temperatures from clay diagenesis from the Tonya 401 facies but appears to overestimate paleotemperatures for the Tonya 901 and JP Chilton facies. The differences in clay mineral and organic maturation indices may be attributed to various factors. First, the Tonya 401 facies are of Mississippian age and have been exposed to long-term burial and heating regimes since at least Morrowan (Early Bashkirian) time [56], allowing illitization of I-S to steadily increase over approximately 320 Ma. Secondly, the calculations used for the %Ro data presented here (Table 2) were developed from datasets within the Fort Worth basin (Texas, USA) [43,84,100] and have not been calibrated with optical organic petrography data from the Midland basin and thus should be treated as approximations until the direct measurement of %Ro can be conducted.
Likewise to illitization, the chloritization of smectite through a series of mixed-layered chlorite-smectite (C-S) to chlorite occurs in sedimentary basins in response to time, temperature, fluid to rock ratio, the nature of the initial material, and transformation mechanisms; however, these processes are more complex and limited than those of illitization [34,101]. The widely accepted mechanism of chlorite formation in clastic sediments proposes a continuous increase in the percentage of chlorite layers within the parental smectite material as the burial depth or temperature increases [34]. The temperature of chlorite conversion is unclear; however, studies have suggested that the transformation takes place within eogenetic temperatures beginning near 40 °C and ending approximately at 120 °C [34,102,103,104]. Within the Tonya core, mixed-layer C-SS first appear at 2359.5 m (7741 ft.), with 41% of chlorite in C-SS (Appendix B), which indicates that at this depth the rocks commenced to diagenetically alter. As depth increased, the chlorite percentage grew to 64% at 2491.7 m (8175 ft.) and stayed consistent at 60–65% throughout the remainder of the study interval (see Appendix B). These data show that with burial, temperature increased, providing a diagenetic environment for more chlorite layers to be added to C-SS but did not reach a maximum temperature to convert all smectitic layers. While the huge difference (50%) in the chlorite content of C-S within just 160 m of the core is hard to explain relying on the present-day prevailing geothermal gradient in the Permian Basin of 40 °C/km [71], it is more likely that such an abrupt increase is due to hydrothermal activity or the presence of volcanoclastic component in the Wolfcamp formation [34,70].
Multiple studies have identified the occurrence of volcanic ash and pyroclastic deposits within the upper Wolfcamp formation in both the Midland [70] and Delaware [105] basins, along with the observation of analcime, a zeolite formed by the reaction of volcanic ash with saline water [106] within the 2323–2540 m interval reported here. This suggests that the chlorite-rich mixed-layer chlorite-smectite, which emerges at 2329 m, reflects possible the presence and rapid alteration of volcanoclastic material [34,36], which we relate to the volcanic arc environment that came into being through the collision of Laurentia and Gondwana [107,108]. A proposed source area of volcanic material for the Permian Wolfcamp formation is the Sonoran volcanic arc along the southwestern margin of Laurentia [70]. Additionally, arc-related environments associated with the convergence of Laurentia and Gondwana directly south of the Midland basin may propose a more proximal source volcanic material during the Late Pennsylvanian to Early Permian (e.g., [109,110,111,112]). In addition to C-S, discrete chlorite has also been reported in the upper Wolfcamp formation and is likely detrital in nature due to the mineral being relatively slow to undergo weathering and alteration during relatively short transport [113]. Detrital chlorite is generally transported from the continents into the oceans as a part of metamorphic or hydrothermally altered igneous lithic fragments, which essentially break down to fine-grained marine sediment [114,115]. Discrete chlorite phases reported here were possibly derived from metamorphic environments to the south of the Midland basin along the southern Laurentian and northern Gondwanan collisions zones during the formation of Pangea at the beginning of the Pennsylvanian [116].

5.2. Source Rock Potential

The capability of source rocks to generate a significant amount of hydrocarbons and become productive unconventional reservoirs is commonly assessed in terms of organic matter quantity, quality, and maturity, e.g., [18,117]. These parameters are mostly related to the depositional environment where the organic matter forms, as well as, the diagenetic processes experienced by the rock. Variation of these parameters can considerably control the properties of an unconventional reservoir and influence heterogenic organic-lean intervals alternating with organic-rich intervals [44,118,119]. The total organic content (TOC) within the Tonya study interval (2323–2754 m) averages 3.31 wt% (n = 20) (Table 2); however, the highest TOC values appear to be within the Ca-rich shales (4.01 wt%, n = 4) versus the Si-rich shales (3.39 wt%, n = 13) (Figure 9). These are contrasting results from Baumgardner and Hamlin [119] who reported higher TOC values in Si-rich mudrocks (3.0 wt%) and lower TOC values in Ca-rich mudrocks (2.0 wt%) of Wolfcamp and Leonardian age rocks. These comparisons, however, should be investigated further due to the complexity of depositional systems within the Midland basin affecting the lateral variation in debris flows as well as the local depositional conditions affecting bottom water anoxia for the preservation of organic matter [18]. Along with TOC, S2 (hydrocarbon potential index) and production index (PI) may be used to determine if source rocks have the potential to generate and expel hydrocarbons [117]. First, S2 results are not shown to be dependent on lithofacies but overall increase within the younger Pennsylvanian – Permian sediments within the Tonya 901 and JP Chilton cores (Figure 9). Second, the PI values show that facies within Pennsylvanian-Permian Tonya 401 interval (Figure 9) have the best potential to expulse hydrocarbons falling within ranges of suggested by Peters and Cassa [117].
Kerogen types are useful in source rock assessment to determine which type of hydrocarbons are likely to form during thermal maturation [18,109,111] based on hydrogen and oxygen indices obtained from pyrolysis [26,117]. Pseudo-van Krevelen diagram results (Figure 10) shows that kerogen types are primarily type II and are oil prone upon reaching thermal maturation. Moreover, the kerogen types do not appear to be lithofacies dependent. The use of hydrogen and oxygen indices can also be used to infer changes in temperature with depth [120]. The evolution from more abundant HI within the Tonya 901 (Permian) core to lower concentrations of HI in the Tonya 401 (Mississippian) core shows a clear picture of increasing temperature with depth and time, thus indicating more mature facies (Figure 11). Furthermore, the variation in HI is likely a result of a temperature increase than a change in the depositional environment [120]. Furthermore, Tmax values stay rather consistent throughout the stratigraphic interval uniformly, further indicating early to middle oil conditions and maturation due to loss of HI (Figure 12).
Tmax from Rock-Eval pyrolysis along with OM petrography have been used to develop empirical formulas for calculating %Ro for when more sufficient data is unavailable [30,43,85]. Additionally, peak burial temperature equations have also been established using %Ro [85] to provide useful tools for insights into the thermal evolution and source rock generation potential of different lithofacies and sedimentary basins for oil and gas exploration [20,24]. Jarvie, 2018 [84] developed an equation for calculated %Ro (calculated %Ro = (0.0165 × Tmax) − 6.5143) using Rock-Eval pyrolysis data sets from the Barnett Formation (Fort Worth Basin, USA) for rocks within the 430–485 °C Tmax window. When this equation is applied to samples from this study, calculated %Ro ranges from 0.55–0.78 within Tonya cores and 0.74–0.78 in the JP Chilton core (Table 2, Figure 13), again suggesting early to peak oil window maturations [117]. As mentioned before, however, when the Lewan and Pawlewicz [43] equation was applied, calculated %Ro values were higher (0.85–1.15) (Table 2, Figure 13). However, when clay mineral indices are applied in addition to calculated %Ro, the calculated %Ro from Jarvie [84] appear to fit well with the R0 to R1 I-S maturation index (100–110 °C) of early oil window maturation within the Tonya 901 and JP Chilton cores. Further, the increase in illite component in R1 I-S does suggest more heating to Tonya 901 facies, thus the higher %Ro values using the Lewan and Pawlewicz [43] equation may reflect more correlatable thermal indices.
The discrepancies in the calculated %Ro formulas used here further indicated the importance of a secondary maturation index to check common organic matter maturation indices [13,20,21,33,97]. Organic matter maturation begins earlier due to increased temperatures than silicate minerals. Additionally, relationships of Tmax and clay mineral evolution are not clearly defined [121] and the interaction between kerogen and mixed-layer I-S phases can differ significantly due to reaction kinetics [13,122]. Furthermore, the importance of the pyrolysis program especially in shale lithologies has been shown to affect the quality of data [18,123]. Carvajal-Ortiz and Gentzis (2018) [123] showed that contrasting Rock-Eval methods yielded significantly different in data when being applied to shale lithologies. Therefore, calculated %Ro values determined from pyrolysis data should be further verified. Finally, it should be noted that the equations stated before have been applied to rocks within the Midland Basin [43,85] but have not been verified due to the scarcity of optical organic petrography within the basin [23,30].

5.3. Correlation of Inorganic and Organic Indices

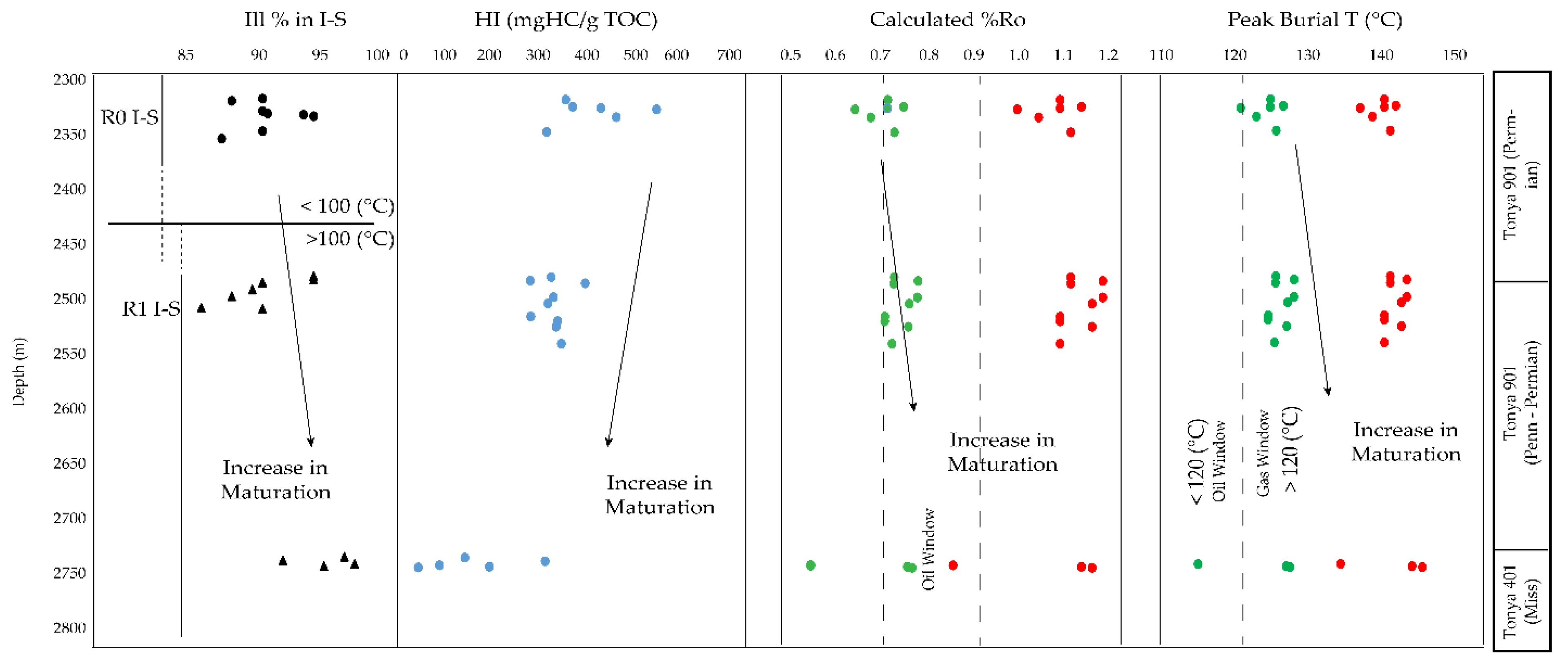

The use of Rock-Eval pyrolysis data, vitrinite reflectance (%Ro), and illite-smectite mineralogy have been widely used to determine thermal maturation and evolution in sedimentary basins [13,20,24,30,33,43,96,97]. The percentage of illite in I-S typically increases with increased %Ro and Tmax and decreases with decreased HI during burial and increased temperatures (Figure 13). Moreover, the changes from R0 to R1 I-S occurring near 100 °C–110 °C, 0.5–0.65%Ro, and Tmax of 430 °C–435 °C coincide closely with the onset of catagenesis and onset of the oil generation window [11,12,13,33,96,97,117]. Within the Tonya 901 cores, the thermal transition temperature is represented well between the upper (Permian) and lower (Pennsylvanian) cores, with the disappearance of R0 and appearance of R1 representing the transition from eogenesis to mesogenesis and temperatures of at least 100 °C under normal geothermal conditions [1,24]. The steady increase in the illite component in I-S also indicates a rise in temperatures. Organic data from Tonya 901 cores show a trend of increasing temperature by the loss of HI from the upper (Permian) to lower (Pennsylvanian) facies. Tmax values throughout the cores display a very faint increase and are likely suppressed due to the overall increase in maturation depicted by the loss of HI and subsequent loss of expelled hydrocarbons before pyrolysis, especially in the Mississippian aged Tonya 401 samples. Accordingly, calculated %Ro values should also be suppressed due to the lower Tmax values from which they are derived. Therefore, %Ro values calculated from Jarive (2018) [84] are likely lower than actual %Ro and calculated %Ro from Lewan and Pewlewicz (2017) [43] may be abundantly higher. The transition of R0 to R1 I-S near 100 C suggests %Ro values of near 1.0 for which uncorrected calculated %Ro Lewan and Pewlewicz [43] are closest to clay mineral maturation but should be taken only as approximation until further OM petrography is conducted and equations are calibrated for samples from the Midland basin.

6. Conclusions

Three cores from the northern Midland Basin spanning from the Late Mississippian to Early Permian were sampled to acquire the whole-rock and fine-grain (<2 µm) mineral assemblages along with geochemical organic characteristics to better understand the robust diagenetic and thermal evolution of the Permian Basin. Petrological and XRD measurements of whole-rock fractions showed varied lithofaices of Si-rich and Ca-rich shale with thin intervals of limestone and dolomite. Clay mineral assemblages consist of discrete phases of illite and chlorite throughout the study interval. XRD pattern modeling of fine-grain fractions displays complex mixed-layered illite-smectite (I-S), I-SS, and I-SSS, with progressive ordering from R0 to R1, with accompanied chlorite-smectite-smectite (C-SS). Geochemical analysis of organic matter through Rock-Eval pyrolysis showed primarily TOC-rich sediments of mainly type II kerogens with limited type III. Calculated %Ro appears to be appropriate when applying the Jarvie [79] equation based on the transition and appearance of R0 to R1 I-S. However, this calculation appears to be inadequate when applied to older-age sediments due to the appearance of long-range ordered I-S. However, when applying the Lewan and Pawlewicz [41] equation, the calculated %Ro values are higher and appear to correspond closer to observed clay mineral indices, which suggests further investigation into these calculations for use in the Permian Basin. Using I-S, Tmax, calculated %Ro, and HI maturation indices, sediments were exposed to sufficient heating for early maturation of hydrocarbons and possibly higher temperatures within the oldest age sediments. Progressive ordering of I-S also implies that lithofacies experienced transformation through eogenesis to mesogenesis conditions and maximum burial paleotemperatures ranging from < 100 °C to near 140 °C and maximum burial depths from 2.5–4 km. This study shows the importance of using two dependent maturation indices (organic and mineral) when investigating the modifications of fine-grained source rocks. In future work, measured %Ro along with kerogen type identification should be conducted in order to fully understand the nature of organic matter diagenesis. Furthermore, these findings show that clay mineral diagenesis can be applied and be of practical use to better understand regional subbasins within the larger Permian Basin and reconstruct the complex burial history in context to the geotectonic evolution of the southern margin of Laurentia.

Author Contributions

Conceptualization, B.Š. and H.G.; Data curation, H.G.; Formal analysis, H.G., G.Z., and T.A.; Funding acquisition, H.G. and B.Š.; Supervision, B.Š.; Writing—original draft, H.G. and B.Š.; Writing—review and editing, H.G., B.Š., and S.O.-S. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by Texas Tech University, AAPG-Grants-in-Aid, SPWLA Research Funds, and the Texas Academy of Science.

Acknowledgments

The authors would like to thank the Geology department at Wayland Baptist University (Plainview, TX, USA) and Tim Walsh for access and use of cores for observations, sampling, and additional geochemical and well log data. The constructive reviews by three anonymous reviewers contributed significantly to the manuscript quality.

Conflicts of Interest

The authors declare no conflict of interest.

Appendix A

Table
Table A1. Relative mineral abundances determined by RIR of analyzed samples from the Midland Basin.
Table A1. Relative mineral abundances determined by RIR of analyzed samples from the Midland Basin.
SampleDepth (m)LithofaciesQtzCalDolFeldsparPyMcaChlGypJarFlu
T401-76202322.6Si-rich Sh51.410.62.44.77.616.53.50.00.00.0
T401-76272324.7Ca-rich Sh23.153.34.41.76.910.50.00.00.00.0
T401-76412328.9Ca-rich Sh29.156.01.72.32.56.70.00.00.00.0
T401-76502331.7Limestone4.894.00.00.50.00.00.00.00.00.0
T401-76572333.9Limestone3.291.40.50.81.32.80.00.00.00.0
T401-76652336.3Si-rich Sh40.39.03.54.99.725.20.00.00.00.0
T401-76692337.5Dolomite6.610.450.62.56.019.50.00.00.00.0
T401-76732338.7Si-rich Sh50.24.02.55.38.217.76.20.00.00.0
T401-76902343.9Si-rich Sh61.21.93.73.95.418.42.90.00.00.0
T401-77002346.9Limestone12.065.96.62.93.19.10.00.00.00.0
T401-77182352.4Si-rich Sh44.31.22.95.47.726.67.10.00.00.0
T401-77412359.5Si-rich Sh44.35.52.55.68.819.49.00.00.00.0
T401-81562485.9Si-rich Sh42.311.53.35.17.317.98.40.00.00.0
T401-81672489.3Si-rich Sh41.30.02.15.36.130.410.20.00.00.0
T401-81752491.7Si-rich Sh37.30.02.35.29.726.88.80.00.00.0
T401-81872495.3Dolomite3.67.773.92.30.012.60.00.00.00.0
T401-81972498.4Si-rich Sh45.27.63.16.06.922.48.80.00.00.0
T401-82172504.5Si-rich Sh34.06.35.34.87.928.08.90.00.00.0
T401-82362510.3Si-rich Sh34.910.23.35.89.224.48.60.00.00.0
T401-82752522.2Ca-rich Sh32.739.82.42.59.712.90.00.00.00.0
T401-82892526.4Dolomite12.811.635.83.47.220.98.20.00.00.0
T401-83062449.3Ca-rich Sh39.522.62.95.55.117.37.10.00.00.0
T401-83292538.6Ca-rich Sh28.125.53.23.86.422.19.00.00.00.0
T401-83572547.2Si-rich Sh34.313.43.95.57.825.39.60.00.00.0
T901-90052745.6Si-rich Sh53.66.40.08.12.519.30.00.00.010.1
T901-90082746.5Limestone0.599.10.00.00.30.00.00.00.00.0
T901-90152748.7Si-rich Sh57.00.00.013.52.826.80.00.00.00.0
T901-90162749.0Ca-rich Sh18.548.80.06.31.624.80.00.00.00.0
T901-90172749.3Si-rich Sh49.30.00.014.23.533.10.00.00.00.0
T901-90262752.0Limestone22.152.60.05.54.511.34.00.00.00.0
T901-90272752.3Limestone22.564.00.01.93.16.10.40.00.00.0
T901-90282752.6Si-rich Sh43.818.20.07.56.621.62.20.00.00.0
T901-90292752.9Limestone32.848.10.04.63.69.31.70.00.00.0
T901-90302753.2Si-rich Sh42.60.02.35.414.523.90.03.73.70.0
T901-90312753.6Si-rich Sh33.40.00.010.014.427.30.09.85.10.0
T901-90322753.9Si-rich Sh36.30.00.013.44.334.10.06.35.60.0
T901-90342754.5Si-rich Sh38.90.00.09.712.727.90.010.90.00.0
T901-90352754.8Limestone9.686.40.00.00.42.60.50.00.00.0
JP-110913380.5Ca-rich Sh37.422.710.314.92.58.73.40.00.00.0
JP-111353393.9Si-rich Sh15.00.73.520.48.748.33.50.00.00.0
Abbreviations: Qtz = quartz; Cal = calcite; Dol = dolomite; Alb = albite; Mic = microcline; Py = pyrite; Mca = mica-group mineral; Chl = chlorite; Anl = analcime; Gyp = gypsum; Jar = Jarosite; Flu = fluroapitite. Mineral abbreviations after Whitney and Evans (2010); Si-rich Sh = silica rich shale; Ca-rich Sh = calcite rich shale.

Appendix B

Table
Table A2. Relative clay mineral abundances determined by Sybilla modeling of analyzed samples from the Midland Basin.
Table A2. Relative clay mineral abundances determined by Sybilla modeling of analyzed samples from the Midland Basin.
SampleDepth (m)LithofaciesIllR0 I-SR0 I-SSR0 I-SSSR1 I-SR3 I-SChlR0 C-SS
T401-76202322.6Si-rich Sh7.331.919.041.70.00.00.00.0
T401-76272324.7Ca-rich Sh7.582.50.010.00.00.00.00.0
T401-76572333.9Limestone3.627.868.60.00.00.00.00.0
T401-76652336.3Si-rich Sh2.853.343.90.00.00.00.00.0
T401-76692337.5Dolomite4.056.439.60.00.00.00.00.0
T401-76732338.7Si-rich Sh20.340.437.90.00.00.01.40.0
T401-77182352.4Si-rich Sh15.482.10.00.00.00.02.50.0
T401-77412359.5Si-rich Sh7.955.728.90.00.00.02.84.7
T401-81562485.9Si-rich Sh24.80.025.80.045.20.00.93.4
T401-81672489.3Si-rich Sh32.50.00.00.062.80.01.53.3
T401-81752491.7Si-rich Sh19.80.010.00.065.70.01.23.3
T401-81972498.4Si-rich Sh21.90.00.00.073.90.03.40.9
T401-82172504.5Si-rich Sh19.80.00.00.075.90.02.61.7
T401-82522515.2Si-rich Sh16.00.00.00.079.90.04.10.0
T401-82562516.4Si-rich Sh21.40.00.00.073.80.04.80.0
T901-90042744.4Si-rich Sh7.30.050.70.00.021.43.217.4
T901-90052744.7Si-rich Sh2.60.00.00.048.038.40.011.0
T901-90152747.8Si-rich Sh41.30.016.90.00.041.80.00.0
T901-90272751.4Ca-rich Sh2.60.00.00.00.092.42.32.6
T901-90332753.3Si-rich Sh0.00.069.70.00.030.30.00.0
JP-110913380.5Ca-rich Sh16.737.50.00.040.70.05.00.0
JP-111073385.4Ca-rich Sh18.818.70.00.057.00.05.50.0
JP-111183388.8Si-rich Sh27.10.00.00.063.80.02.76.4
JP-111353393.9Si-rich Sh8.40.030.50.058.30.01.11.7
Abbreviations: Ill—illite; I-S, I-SS, and I-SSS—mixed-layered illite-smectite, illite-smectite-smectite, illite-smectite-smectite-smectite; Chl—chlorite; C-SS—chlorite-smectite-smectite; R—Reichweit (measure of order); Mineral abbreviations after Kretz (1983) and Whitney and Evans (2010).

Appendix C

Table
Table A3. Sybilla© parameters of main phyllosilicates and mixed-layered phases used for XRD spectra modelling of representative clay fraction samples.
Table A3. Sybilla© parameters of main phyllosilicates and mixed-layered phases used for XRD spectra modelling of representative clay fraction samples.
Phase/Mixed-layer PhaseSampleσ*CSDSIll (%)Ch (%)FeIVICC
Illite/MuscoviteT401-762012.0021.67--1.521.50
T401-762719.9427.91--1.041.50
T401-765712.0027.91--0.501.50
T401-766512.0028.30--0.501.50
T401-76697.4618.16--1.001.50
T401-767312.0020.00--0.501.00
T401-771812.0020.11--0.521.50
T401-774112.0024.79--2.001.81
T401-815612.0018.55--0.521.50
T401-816712.0016.60--0.241.50
T401-817512.0019.72--0.441.56
T401-819712.0020.00--0.501.50
T401-821712.0020.00--0.501.50
T401-825212.0018.55--0.721.50
T401-825612.0020.00--0.081.50
T901-900412.0018.16--0.521.50
T901-900512.0029.08--0.521.50
T901-901512.004.51--0.201.50
T901-902712.0022.06--1.841.50
JP-1109112.0020.00--0.501.50
JP-1110712.0020.00--0.501.50
JP-1111812.0013.87--0.081.50
JP-1113512.0020.00--0.281.50
R0 I-ST401-762012.0016.0890.00-1.961.50
T401-762712.0016.6687.00-2.201.50
T401-765712.1422.1790.00-2.681.50
T401-766513.70–15.266.80-19.8587.00–94.00-0.76–2.001.50
T401-766916.047.0994.00-2.121.50
T401-767312.005.3595.00-3.001.50
T401-771812.006.2290.00-2.001.50
T401-774112.0023.6286.00-2.881.50
JP-1109112.006.2289.00-1.560.96
JP-1110712.0011.4490.00-0.501.00
R0 I-SST401-762012.007.3882.00-0.841.50
T401-762754.2610.8672.00-0.501.50
T401-765712.008.25–12.0273.00–90.00-0.64–1.161.50
T401-766513.70–16.046.22–20.4380.00–81.00-0.52–2.521.50
T401-766912.00–16.8215.50–15.7965.00–84.00-0.501.50
T401-767312.006.2270.00-0.501.50
T401-774112.0012.0280.00-0.501.50
T401-81569.026.2280.00-1.601.50
T401-817512.003.3262.00-0.501.50
T901-900412.004.7783.00-3.081.50
T901-901515.2614.0510.00-1.001.50
T901-903312.0024.2075.00-0.841.50
JP-1113512.008.2569.00-3.001.51
R0 I-SSST401-762012.004.4887.00-0.501.50
T401-762712.001.29–2.7411.00–53.00-0.501.50
R1 I-ST401-815610.585.6495.00-1.881.50
T401-816710.584.7795.00-1.881.51
T401-817512.005.6490.00-1.201.50
T401-819712.005.9389.00-1.881.50
T401-821712.006.5187.00-2.001.50
T401-825212.005.6484.00-1.521.50
T401-825612.005.6490.00-2.561.50
T401-900512.004.1988.00-0.521.50
JP-1109112.0013.1875.00-1.801.50
JP-1110712.003.6190.00-2.721.29
JP-1111812.0011.1577.00-3.801.50
JP-1113512.007.0993.00-1.881.50
ChloriteT401-767312.0020.00--1.801.00
T401-771812.0014.65--1.721.00
T401-774112.0015.04--1.001.08
T401-815612.0027.13--1.961.98
T401-816712.0022.06--1.441.02
T401-817512.0020.00--2.201.00
T401-819712.0015.43--2.001.98
T401-821712.0017.38--2.001.00
T401-825212.0013.87--2.001.00
T401-825212.0013.87--2.081.80
T901-900412.0017.77--2.321.14
T901-902712.0011.53--3.001.02
JP-1109112.0011.92--2.081.00
JP-1110712.0013.09--1.961.00
JP-1111812.0014.26--1.841.98
R0 Di C-SST401-774112.0010.86-59.000.501.00
T401-819712.005.64-37.000.501.00
T401-821712.005.64-38.000.501.00
T901-900512.008.54-25.003.322.04
JP-1111812.0013.18-76.001.442.04
R0 Tri C-SST401-815612.0019.27-83.002.804.56
T401-816712.009.99-81.002.884.92
T401-817512.003.90-36.002.001.00
T901-900412.005.35-68.001.361.98
T901-902712.003.03-50.000.501.00
JP-1113512.006.51-85.001.761.02
Abbreviations: σ*—orientation of particles on the mounted X-ray slide; CSDS—coherent scattering domain sizes expressed in layers; Ill (%), Chl (%)—illite component, and chlorite component in the respective mixed-layered minerals (in %); I-S, I-SS, I-SSS, Di-SS, Di C-SS, and Tri C-SS—mixed-layered illite-smectite, illite-smectite-smectite, illite-smectite-smectite-smectite, dioctahedral smectite, dioctahedral chlorite-smectite-smectite, and trioctahedral chlorite-smectite-smectite; R—Reichweit (measure of order); FeVI—octahedral Fe in illite (I), and chlorite (C); ICC—interlayer cation content in illite (Ill) and chlorite (Chl).

References

  1. Tissot, B.; Welte, D.H. Petroleum Formation and Occurrence, 2nd ed.; Springer: Berlin, Germany, 1984. [Google Scholar]
  2. Hunt, J.M. Petroleum Geochemistry and Geology, 2nd ed.; W.H. Freeman and Company: New York, NY, USA, 1996. [Google Scholar]
  3. Killops, S.; Killops, V. Introduction to Organic Geochemistry, 2nd ed.; Blackwell Publishing: Malden, MA, USA, 2005. [Google Scholar]
  4. Gouze, P.; Coudrain-Ribstein, A. Chemical reactions and porosity changes during sedimentary diagenesis. Appl. Geochem. 2002, 17, 39–47. [Google Scholar] [CrossRef]
  5. Aplin, A.C.; Macquaker, J.H.S. Mudstone diversity: Origin and implications for source, seal, and reservoir properties in petroleum systems. AAPG Bull. 2011, 95, 2031–2059. [Google Scholar] [CrossRef]
  6. Ilgen, A.G.; Heath, J.E.; Akkutlu, I.Y.; Bryndzia, L.T. Shales at all scales: Exploring coupled processes in mudrocks. Earth Sci. Rev. 2017, 166, 132–152. [Google Scholar] [CrossRef] [Green Version]
  7. Sayed, M.A.; Al-Muntasheri, G.A.; Liang, F. Development of shales reservoirs: Knowledge gained from developments in North America. J. Pet. Sci. Eng. 2017, 157, 164–186. [Google Scholar] [CrossRef]
  8. Rahman, H.M.; Kennedy, M.; Lohr, S.; Dewhurst, D.N. Clay-organic association as a control on hydrocarbon generation in shale. Org. Geochem. 2017, 105, 42–55. [Google Scholar] [CrossRef]
  9. Rahman, H.M.; Kennedy, M.; Lohr, S.; Dewhurst, D.N. The influence of shale depositional fabric on the kinetics of hydrocarbon generation through control of mineral surface contact area on clay catalysis. Geochim. Cosmochim. Acta 2018, 220, 429–448. [Google Scholar] [CrossRef]
  10. Hillier, S. Origin, diagenesis, and mineralogy of chlorite minerals in Devonian lacustrine mudrocks, Orcadian basin, Scotland. Clays Clay Miner. 1993, 41, 240–259. [Google Scholar] [CrossRef]
  11. Pevear, D.R. Illite and hydrocarbon exploration. Proc. Natl. Acad. Sci. USA 1999, 96, 3440–3446. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  12. Środoń, J. Nature of mixed-layer clays and mechanisms of their formation and alteration. Annu. Rev. Earth Planet. Sci. 1999, 27, 19–53. [Google Scholar] [CrossRef]
  13. Dellisanti, F.; Pini, G.A.; Baudin, F. Use of Tmax as a thermal indicator in organic successions and comparison with clay mineral evolution. Clay Miner. 2010, 45, 115–130. [Google Scholar] [CrossRef]
  14. Tissot, B.P.; Pelet, R.; Ungerer, P.H. Thermal History of Sedimentary Basins, Maturation Indices, and Kinetics of Oil and Gas Generation. AAPG Bull. 1987, 71, 1445–1466. [Google Scholar] [CrossRef]
  15. Landis, C.R.; Castano, J.R. Maturation and bulk chemical properties of a suite of solid hydrocarbons. Org. Geochem. 1995, 22, 137–149. [Google Scholar] [CrossRef]
  16. Rimmer, S.M.; Thompson, J.A.; Goodnight, S.A.; Robl, T.L. Multiple controls on the preservation of organic matter in Devonian—Mississippian marine black shales: Geochemical and petrographic evidence. Paleogeogr. Paleoclimatol. Paleoecol. 2004, 215, 125–154. [Google Scholar] [CrossRef]
  17. Bernard, S.; Wirth, R.; Schreiber, A.; Schulz, H.M.; Horsfield, B. Formation of nanoporous pyrobitumen residues during maturation of the Barnett Shale (Fort Worth Basin). Int. J. Coal Geol. 2012, 103, 3–11. [Google Scholar] [CrossRef]
  18. Curiale, J.A.; Curtis, J.B. Organic geochemical applications to the exploration for source-rock reservoirs—A review. J. Unconv. Oil Gas. Resour. 2016, 13, 1–31. [Google Scholar] [CrossRef]
  19. Pollastro, R.M.; Barker, C. Applications of clay-mineral, vitrinite reflectance, and fluid inclusion studies to the thermal and burial history of the Pindale Anticline, Green River Basin, Wyoming. In Organic Matter in Sediment Diagenesis; Gautier, D.L., Ed.; Society of Economic Paleontologists and Mineralogists Special Publication 38; Society for Sedimentary Geology: Tulsa, OK, USA, 1986; pp. 73–83. [Google Scholar]
  20. Ferreiro Mählmann, R.; Bozkaya, Ö.; Potel, S.; Bayon, R.L.; Šegvić, B.; Nieto, F. The pioneer work of Bernard Kübler and Martin Frey in very low-grade metamorphic terranes: Paleo-geothermal potential of variation in Kübler-Index/organic matter reflectance correlations. A review. Swiss J. Geosci. 2012, 105, 121–152. [Google Scholar] [CrossRef]
  21. Ola, P.S.; Aidi, A.K.; Bankole, O.M. Clay mineral diagenesis and source rock assessment in the Bornu Basin, Nigeria: Implications for the thermal maturity and source rock potential. Mar. Pet. Geol. 2018, 89, 653–664. [Google Scholar] [CrossRef]
  22. Wust, R.A.J.; Hackley, P.C.; Nassichuk, B.R. Vitrinite reflectance versus pyrolysis Tmax Data: Assessing thermal maturity in shale plays with special reference to the Duvernay shale play of the western Canadian sedimentary basin, Alberta, Canada. In Proceedings of the SPE Unconventional Resources Conference and Exhibition-Asia Pacific, Brisbane, Australia, 11–13 November 2013. SPE 167031. [Google Scholar]
  23. Hackley, P.C.; Guevara, E.H.; Hentz, T.F.; Hook, R.W. Thermal maturity and organic composition of Pennsylvanian coals and carbonaceous shales, north-central Texas: Implications of coalbed gas potential. Int. J. Coal Geol. 2009, 77, 294–309. [Google Scholar] [CrossRef]
  24. Merriman, R. Clay minerals and sedimentary basin history. Eur. J. Mineral. 2005, 17, 7–20. [Google Scholar] [CrossRef] [Green Version]
  25. Peters, K.E. Guidelines for Evaluating Petroleum Source Rock Using Programmed Pyrolysis. AAPG Bull. 1986, 70, 318–329. [Google Scholar] [CrossRef]
  26. Baludikay, B.K.; Francois, C.; Sforna, M.C.; Beghin, J.; Cornet, Y.; Strome, J.; Fagel, N.; Fontaine, F.; Littke, R.; Baudet, D.; et al. Raman microspectroscopy, bitumen reflectance and illite crystallinity scale: Comparison of different geothermetry methods on fossiliferous Proterozoic sedimentary basins (DR Congo, Mauritania and Australia). Int. J. Coal Geol. 2018, 191, 80–94. [Google Scholar] [CrossRef]
  27. Tobin, R.C.; Claxton, B.L. Multidisciplinary thermal maturity studies using vitrinite reflectance and fluid inclusion mirothermometry: A new calibration of old techniques. AAPG Bull. 2000, 84, 1647–1665. [Google Scholar] [CrossRef]
  28. Suarez-Ruiz, I.; Flores, D.; Graciano, J.G.M.; Hackley, P.C. Review and update of the applications of organic petrology: Part 1. Int. J. Coal Geol. 2012, 99, 54–112. [Google Scholar] [CrossRef]
  29. Hackley, P.C.; Cardott, B.J. Application of organic petrography in North American shale petroleum systems: A review. Int. J. Coal Geol. 2016, 163, 8–51. [Google Scholar] [CrossRef] [Green Version]
  30. Hackley, P.C.; Zhang, T.; Jubb, A.M.; Valentine, B.J.; Dulong, F.T.; Hatcherian, J.J. Organic petrography of Leonardian (Wolfcamp A) mudrocks and carbonates, Midland Basin, Texas: The fate of oil-prone sedimentary organic matter in the oil window. Mar. Pet. Geol. 2020, 112, 104086. [Google Scholar] [CrossRef]
  31. Hackley, P.C.; Araujo, C.V.; Borrego, A.G.; Bouzinos, A.; Cardott, B.; Cook, A.C.; Eble, C.; Flores, D.; Gentzis, T.; Gonҫalves, P.A.; et al. Standardization of reflectance measurements in dispersed organic matter: Results of an exercise to improve interlaboratory agreement. Mar. Pet. Geol. 2015, 59, 22–34. [Google Scholar] [CrossRef]
  32. Jarvie, D.M.; Claxton, B.L.; Henk, F.; Breyer, J.T. Oil and Shale Gas from the Barnett Shale, Ft. Worth Basin, Texas. In Proceedings of the AAPG National Convention, Denver, CO, USA, 3–6 June 2001. [Google Scholar]
  33. Matava, T.; Matt, V.; Flannery, J. New insights on measured and calculated vitrinite reflectance. Basin Res. 2019, 31, 213–227. [Google Scholar] [CrossRef]
  34. Caritat, P.; Hutcheon, I.; Walshe, J.L. Chlorite geothermometry: A review. Clays Clay Miner. 1993, 41, 219–239. [Google Scholar] [CrossRef]
  35. Pollastro, R.M. Considerations and applications of the illite/smectite geothermometer in hydrocarbon-bearing rocks of Miocene to Mississippian Age. Clays Clay Miner. 1993, 41, 119–133. [Google Scholar] [CrossRef]
  36. Beaufort, D.; Rigault, C.; Billon, S.; Billault, V.; Inoue, A.; Inoue, S.; Patrier, P. Chlorite and chloritization processes through mixed-layer mineral series in low-temperature geological systems—A review. Clay Miner. 2015, 50, 497–523. [Google Scholar] [CrossRef]
  37. Wilson, M.J.; Shaldybin, M.V.; Wilson, L. Clay mineralogy and unconventional hydrocarbon shale reservoirs in the USA. I. Occurrence and interpretation of mixed-layer R3 ordered illite/smectite. Earth-Sci. Rev. 2016, 158, 31–50. [Google Scholar] [CrossRef]
  38. Zanoni, G.; Šegvić, B.; Moscariello, A. Clay mineral diagenesis in Cretaceous clastic reservoirs from West African passive margins (the South Gabon Basin) and its impact on regional geology and basin evolution history. Appl. Clay Sci. 2016, 134, 186–209. [Google Scholar] [CrossRef]
  39. Perry, E.A.; Hower, J. Burial diagenesis in Gulf Coast pelitic sediments. Clays Clay Miner. 1970, 29, 165–177. [Google Scholar] [CrossRef]
  40. Dudek, T.; Środoń, J. Thickness distribution of illite crystals in shales. II: Origins of the distribution and the mechanism of smectte illiization in shales. Clay Clay Miner. 2003, 51, 529–542. [Google Scholar] [CrossRef]
  41. Energy Information Administration (EIA). Permian Basin Wolfcamp and Bone Spring Shale Plays: Geology Review. Available online: https://www.eia.gov/maps/pdf/Wolfcamp_BoneSpring_EIA_Report_July2019.pdf (accessed on 23 June 2020).
  42. Kvale, E.P.; Rahman, M. Depositional facies and organic content of upper Wolfcamp Formation (Permian) Delaware Basin and implications for sequence stratigraphy and hydrocarbon source. In Proceedings of the Unconventional Resources Technology Conference (URTeC), San Antonio, TX, USA, 1–3 August 2016. [Google Scholar]
  43. Lewan, M.D.; Pawlewicz, M.J. Reevalutaion of thermal maturity and stages of petroleum formation of the Mississippian Barnett Shale, Fort Worth Basin, Texas. AAPG Bull. 2017, 101, 1945–1970. [Google Scholar] [CrossRef]
  44. MacRitchie, C.; Zobaa, M.K. Multiproxy sedimentary organic matter analysis of the upper Wolfcamp Formation in the Collier-1201 well, southeastern Delaware Basin, Texas. Interpretation 2019, 7, SK45–SK52. [Google Scholar] [CrossRef]
  45. Landis, C.R. Organic Maturation, Primary Migration, and Clay Mineralogy of Selected Permian Basin Shales. Ph.D. Thesis, Texas Tech University, Lubbock, TX, USA, 1990. [Google Scholar]
  46. Sivagnanam, S. Clay Diagenesis of the Source Rocks from the Permian Basin. Ph.D. Thesis, Texas Tech University, Lubbock, TX, USA, 1990. [Google Scholar]
  47. Echegu, S. Geological and Geochemical Investigation of the Petroleum Systems of the Permian Basin of west Texas and southeast New Mexico. Ph.D. Thesis, University of Houston, Houston, TX, USA, 2013. [Google Scholar]
  48. Hills, J.M. Sedimentation, tectonism, and hydrocarbon generation in the Delaware Basin, west Texas and southeastern New Mexico. AAPG Bull. 1984, 68, 250–267. [Google Scholar]
  49. Candelaria, M.P. “Atoka” detrital a subtle stratigraphic trap in the Midland Basin. In Permian Basin Oil and Gas Fields; Innovative Ideas in Exploration and Development; Flis, J.E., Price, R.C., Eds.; West Texas Geological Society: Midland, TX, USA, 1990; pp. 87–90. [Google Scholar]
  50. Comer, J.B. Stratigraphic Analysis of the upper Devonian Woodford Formation, Permian Basin, West Texas and Southeastern New Mexico; Bureau of Economic Geology: Austin, TX, USA, 1991; Report of Investigation 201. [Google Scholar]
  51. Horak, R.L. Tectonic and hydrocarbon maturation history in the Permian Basin. Oil Gas. J. 1985, 27, 124–129. [Google Scholar]
  52. Yang, K.M.; Dorobek, S.L. The Permian Basin of west Texas and New Mexico: Tectonic history of a “composite” foreland basin and its effects on stratigraphic development. In Stratigraphic Evolution of Foreland Basins; Dorobek, S.L., Ross, G.M., Eds.; Society for Sedimentary Geology: Tulsa, OK, USA, 1995; pp. 149–174. [Google Scholar]
  53. Ye, H.; Royden, L.; Burchfield, C.; Schuepbach, M. Late Paleozoic deformation of interior North America: The greater Ancestral Rocky Mountains. AAPG Bull. 1996, 80, 1397–1432. [Google Scholar] [CrossRef]
  54. Helm, J.M. The Depositional Environment and Thermal Maturity of the upper Wolfcamp Formation in Crockett County, TX, MS; University of Louisiana at Lafayette: Lafayette, LA, USA, 2015. [Google Scholar]
  55. Schumaker, R.C. Paleozoic structure of the Central Basin Uplift and adjacent Delaware Basin, West Texas. AAPG Bull. 1992, 76, 1804–1824. [Google Scholar] [CrossRef]
  56. Ewing, T.E. Texas through Time: Lone Star Geology, Landscapes, and Resources; Bureau of Economic Geology, Udden Series No. 6: Austin, TX, USA, 2016. [Google Scholar]
  57. Kinley, T.J.; Cook, L.W.; Breyer, J.A.; Jarive, D.M.; Busbey, A.B. Hydrocarbon potential of the Barnett Shale (Mississippian), Delaware Basin, west Texas and southeastern New Mexico. AAPG Bull. 2008, 92, 967–991. [Google Scholar] [CrossRef]
  58. Hills, J.M. Structural evolution of the Permian Basin of west Texas and New Mexico. In Structure and Tectonics of Trans-Pecos Texas; Dickerson, P.W., Muehlberger, W.R., Eds.; West Texas Geological Society Guidebook: Midland, TX, USA, 1985; pp. 89–99. [Google Scholar]
  59. Frenzel, H.N.; Bloomer, R.R.; Cline, R.B.; Cys, J.M.; Galley, J.E.; Gibson, W.R.; Hills, J.M.; King, W.E.; Seager, W.R.; Kottlowski, R.E.; et al. The Permian Basin region. In The Geology of North America Sedimentary Cover—North American Craton: U.S.; Sloss, L.L., Ed.; Geological Society of America: Boulder, CO, USA, 1988; Volume D-2, pp. 261–306. [Google Scholar]
  60. Wright, W.R. Pennsylvanian paleodepositional evolution of the greater Permian Basin, Texas and New Mexico: Depositional systems and hydrocarbon reservoir analysis. AAPG Bull. 2011, 95, 1525–1555. [Google Scholar] [CrossRef]
  61. Alnazghah, M.; Kerans, C. Late Pennsylvanian glaciation: Evidence of icehouse conditions from Canyon and Cisco units, Midland Basin, Texas. Mar. Pet. Geol. 2018, 94, 198–211. [Google Scholar] [CrossRef]
  62. Kohn, J.; Barrick, J.E.; Wahlman, G.P.; Baumgardner, R. Late Pennsylvanian (Virgilian) to Early Permian (Leonardian) conodont biostratigraphy of the “Wolfcamp Shale,” northern Midland Basin, Texas. In Geologic Problem Solving with Microfossils IV; Society for Sedimentary Geology: Tulsa, OK, USA, 2019; pp. 245–261. [Google Scholar]
  63. Handford, C.R. Deep-water facies of the Spraberry Formation (Permian), Regan County, Texas. In Deep-Water Clastic Sediments; Siemers, C.T., Tillman, R.W., Williamson, C.R., Eds.; Society for Sedimentary Geology: Tulsa, OK, USA, 1981; pp. 375–395. [Google Scholar]
  64. Brister, B.S.; Stephens, W.C.; Norman, G.A. Structure, stratigraphy, and hydrocarbon system of Pennsylvanian pull-apart basin in north-central Texas. AAPG Bull. 2002, 86, 1–20. [Google Scholar]
  65. Yang, W.; Kominz, M.A. Characteristics, stratigraphic architecture, and time framework of multi-order mixed siliciclastic and carbonate depositional sequence, outcropping Cisco Group (Late Pennsylvanian and Early Permian, Eastern Shelf, north-central Texas, USA. Sediment. Geol. 2002, 154, 53–87. [Google Scholar] [CrossRef]
  66. Mazzullo, S.J.; Reid, A.M. Lower Permian platform and basin depositional systems, northern Midland Basin, Texas. In Controls on Carbonate Platforms and Basin Development; Crevello, P.D., Wilson, J.L., Sarg, J.F., Read, J.F., Eds.; Society for Sedimentary Geology: Tulsa, OK, USA, 1989; pp. 305–320. [Google Scholar]
  67. Hamlin, H.S.; Baumgardner, R.W. Wolfberry (Wolfcampian–Leonardian) Deep-Water Depositional Systems in the Midland Basin Stratigraphy, Lithofacies, Reservoirs, and Source Rocks; Bureau of Economic Geology: Austin, TX, USA, 2012; Report of Investigations 277. [Google Scholar]
  68. Heij, G.W.; Elmore, R.D. The magnetic fabric of the Wolfcamp shale, Midland Basin, west Texas: Understanding petrofabric variability, hydrocarbon associations, and iron enrichment. AAPG Bull. 2019, 103, 2785–2806. [Google Scholar] [CrossRef]
  69. Ewing, T.E. Erosional margins and patterns of subsidence in the late Paleozoic west Texas basin and adjoining basins of west Texas and New Mexico. In Carlsbad Region (New Mexico and West Texas), Proceedings of the New Mexico Geological Society 44th Annual Fall Field Conference Guidebook, Carlsbad, CA, USA, 6–9 October 1993; Love, D.W., Hawley, J.W., Kues, B.S., Austin, G.S., Lucas, S.G., Eds.; NM Bureau of Geology & Mineral Resources (NMBGMR): Socorro, NM, USA, 1993. [Google Scholar]
  70. Leslie, C.; Waite, L.; Ndungu, J.; Johnson, E.; Foster, D.; Maymi, N.; O’Connell, L.; Edmonds, J. Occurrence of volcanic ash beds in the Wolfcamp and Spraberry of the Midland Basin and their potential challenges to drilling. In Proceedings of the AAPG Southwest Section Meeting, Dallas, TX, USA, 6–9 April 2019. Search and Discovery Article #51637. [Google Scholar]
  71. Heij, G.W.; Elmore, R.D. Burial diagenesis and tectonism inferred from paleomagnetism and magnetic fabrics in the Wolfcamp Shale, Midland Basin, TX, USA. J. Geophys. Res. Solid Earth 2020, 125, e2019JB019046. [Google Scholar] [CrossRef]
  72. Lazar, O.R.; Bohacs, K.M.; MacQuaker, J.H.S.; Schieber, J.; Demko, T. Capturing key attributes of fine-grained sedimentary rocks in outcrops, cores, and thin sections: Nomenclature and description guidelines. J. Sediment. Res. 2015, 85, 230–246. [Google Scholar] [CrossRef] [Green Version]
  73. Moore, D.M.; Reynolds, R.C. X-ray Diffraction and the Identification and Analysis of Clay Minerals, 2nd ed.; Oxford University Press: Oxford, UK, 1997. [Google Scholar]
  74. Środoń, J. Identification and quantitative analysis of clay minerals. In Handbook of Clay Science; Bergaya, F., Theng, B.K.G., Lagaly, G., Eds.; Developments in Clay Science, Elsevier: Amsterdam, Netherlands, 2006. [Google Scholar]
  75. Lagaly, G.; Ogawa, M.; Dékány, I. Clay mineral organic interactions. In Handbook of Clay Science; Bergaya, F., Theng, B.K.G., Lagaly, G., Eds.; Developments in Clay Science, Elsevier: Amsterdam, Netherlands, 2006. [Google Scholar]
  76. Meunier, A. Soil hydroxy-interlayered minerals: A reinterpretation of their crystallochemical properties. Clays Clay Miner. 2007, 55, 380–388. [Google Scholar] [CrossRef]
  77. Drits, V.A.; Sakharov, B.A. X-ray Structural Analysis of Mixed-Layer Minerals; Nauka: Moscow, Russia, 1976. [Google Scholar]
  78. Uzarowicz, Ł.; Šegvić, B.; Michalik, M.; Bylina, P. The effect of hydrochemical conditions and pH of the environment on phyllosilicate transformations in the weathering zone of pyrite-bearing schists in Wieściszowice (SW Poland). Clay Miner. 2012, 47, 401–417. [Google Scholar] [CrossRef]
  79. Suquet, H.; De la Calle, C.; Pezerat, H. Swelling and structural organization of saponite. Clays Clay Miner. 1975, 23, 1–9. [Google Scholar] [CrossRef]
  80. Ferrage, E.; Lanson, B.; Sakharov, B.A.; Drits, V.A. Investigation of smectite hydration properties by modeling of X-ray diffraction profiles. Part 1. Montmorillonite hydration properties. Am. Mineral. 2005, 90, 1358–1374. [Google Scholar] [CrossRef] [Green Version]
  81. Zhou, X.; Liu, D.; Bu, H.; Deng, L.; Liu, H.; Yuan, P.; Du, P.; Song, H. XRD-based quantitative analysis of clay minerals using reference intensity ratios, mineral intensity factors, Rietveld, and full pattern summation methods: A critical review. Solid Earth Sci. 2018, 3, 16–29. [Google Scholar] [CrossRef]
  82. Ordonez, L.; Vogel, H.; Sebag, D.; Ariztegui, D.; Adatte, T.; Russell, J.M.; Kallmeyer, J.; Vuillemin, A.; Friese, A.; Crowe, S.A.; et al. Empowering conventional Rock-Eval pyrolysis for organic matter characterization of the siderite-rich sediments of Lake Towuti (Indonesia) using End-Member Analysis. Org. Geochem. 2019, 134, 32–44. [Google Scholar] [CrossRef]
  83. Hower, J. Shale diagenesis. In Clays and the Resource Geologist; Longstaffe, F.J., Ed.; Smithsonian Libraries: Washington, DC, USA, 1981; pp. 60–80. [Google Scholar]
  84. Jarvie, D.M. Correlation of Tmax and Measured Vitrinite Reflectance. Available online: http://www.wildcattechnologies.com/application/files/9915/1689/1979/Dan_Jarvie_Correlation_of_Tmax_and_measured_vitrinite_reflectance.pdf (accessed on 15 July 2020).
  85. Barker, C.E.; Pawlewicz, M.J. Calculation of vitrinite reflectance from thermal histories and peak temperatures. A comparison of methods. In Vitrinite Reflectance as a Maturity Parameter: Applications and Limitations; Mukhopadhyay, P.K., Dow, W.G., Eds.; ACS Publications: Washington, DC, USA, 1994; pp. 216–229. [Google Scholar]
  86. Reynolds, R.C.; Hower, J. The Nature of Interlayering in Mixed-Layer Illite-Montmorillonites. Clays Clay Miner. 1970, 18, 25–36. [Google Scholar] [CrossRef]
  87. Espitalié, J.; Deroo, G.; Marquis, F. La pyrolyse Rock-Eval et ses applications: Première Partie. Oil Gas. Sci. Technol. 1985, 40, 563–580. [Google Scholar] [CrossRef]
  88. Espitalié, J.; Deroo, G.; Marquis, F. La pyrolisis Rock-Eval et ses applications: Deuxième partie. Oil Gas. Sci. Technol. 1985, 40, 755–784. [Google Scholar]
  89. Espitalié, J.; Deroo, G.; Marquis, F. La pyrolyse Rock-Eval et ses applications. Troisième partie. Oil Gas. Sci. Technol. 1986, 41, 73–89. [Google Scholar] [CrossRef]
  90. Peters, K.E. Rock-Eval pyrolysis. In Geochemistry. Encyclopedia of Earth Science; Springer: Dordrecht, Netherlands, 1998. [Google Scholar]
  91. Hower, J.; Eslinger, E.V.; Hower, M.E.; Perry, E.A. Mechanism of burial metamorphism of argillaceous sediment: Mineralogical and chemical evidence. Geol. Soc. Amer. Bull. 1976, 87, 725–737. [Google Scholar] [CrossRef]
  92. McKinley, J.M.; Worden, R.H.; Ruffell, A.H. Smectite in Sandstones: A Review of the Controls on Occurrence and Behaviour During Diagenesis. In Clay Mineral Cements in Sandstones; Worden, R.H., Morad, S., Eds.; Blackwell Publishing Ltd.: Oxford, UK, 2003; pp. 109–128. [Google Scholar]
  93. Gao, Y.; Wang, C.; Liu, Z.; Du, X.; Ibarra, D.E. Diagenetic and Paleoenvironmental Controls on Late Cretaceous Clay Minerals in the Songliao Basin, Northeast China. Clays Clay Miner. 2015, 63, 469–484. [Google Scholar] [CrossRef]
  94. Pollastro, R.M. The Illite/Smectite Geothermometer—Concepts, Methodology, and Application to Basin History and Hydrocarbon Generation. In Applications of Thermal Maturity Studies to Energy Exploration; Society for Sedimentary Geology: Tulsa, OK, USA, 1990; pp. 1–18. [Google Scholar]
  95. Cuadros, J.; Linares, J. Experimental kinetic study of the smectite-to-illite transformation. Geochim. Cosmochim. Acta 1996, 60, 439–453. [Google Scholar] [CrossRef]
  96. Hoffman, J.; Hower, J. Clay mineral assemblages as low grade metamorphic geothermometers: Application to the thrust faulted disturbed belt of Montana. In Aspects of Diagenesis; Scholle, P.A., Schluger, P.S., Eds.; Society for Sedimentary Geology: Tulsa, OK, USA, 1979; pp. 55–79. [Google Scholar]
  97. Hillier, S.; Matyas, J.; Matter, A.; Vasseur, G. Illite/Smectite diagenesis and its variable correlation with vitrinite reflectance in the Pannonian Basin. Clays Clay Miner. 1995, 43, 174–183. [Google Scholar] [CrossRef]
  98. Meunier, A. Clays; Springer: Berlin, Germany, 2005. [Google Scholar]
  99. Środoń, J.; Eberl, D.D. Illite. In Micas; Bailey, S.W., Ed.; Mineralogical Society of America: Chantilly, VA, USA, 1984; pp. 495–544. [Google Scholar]
  100. Jarvie, D.M.; Hill, R.J.; Ruble, T.E.; Pollastro, R.M. Unconventional shale-gas system: The Mississippian Barnett Shale of north-central Texas as one model for thermogenic shale-gas assessment. AAPG Bull. 2007, 91, 475–499. [Google Scholar] [CrossRef]
  101. Barrenechea, J.F.; Rodas, M.; Frey, M.; Alonso-Azcárate, J.; Mas, J.R. Chlorite, corrensite, and chlorite-mica in Late Jurassic fluvio-lacustrine sediments of the Cameros basin of Northeastern Spain. Clays Clay Miner. 2000, 48, 256–265. [Google Scholar] [CrossRef]
  102. Ehrenberg, S.N. Relationship between diagenesis and reservoir quality in sandstones of the Garn Formation, Haltenbanken, Mid-Norwegian Continental Shelf (1). AAPG Bull. 1990, 74, 1538–1558. [Google Scholar]
  103. Aagaard, P.; Jahren, J.; Harstad, A.; Nilsen, O.; Ramm, M. Formation of grain-coating chlorite in sandstones. Laboratory synthesized vs. natural occurrences. Clay Miner. 2000, 35, 261–269. [Google Scholar] [CrossRef]
  104. Worden, R.H.; Morad, S. Clay minerals in sandstones: Controls on formation, distribution and evolution. In Clay Mineral Cements in Sandstones; Worden, R.H., Morad, S., Eds.; Special Publication of the International Association of Sedimentologists, Blackwells: Oxford, UK, 2003; pp. 3–41. [Google Scholar]
  105. Kvale, E.P.; Bowie, C.M.; Flenthrope, C.; Mace, C.; Parrish, J.M.; Price, B.; Anderson, S.; DiMichele, W. Facies variability within a mixed carbonate-siliciclastic sea-floor fan (upper Wolfcamp Formation, Permian, Delaware Basin, New Mexico). AAPG Bull. 2020, 104, 525–563. [Google Scholar] [CrossRef]
  106. Coombs, D.S.; Whetten, J.T. Composition of Analcime from sedimentary and burial metamorphic rocks. Geol. Soc. Amer. Bull. 1967, 78, 269–282. [Google Scholar] [CrossRef]
  107. Niu, B.; Yoshimura, T. Smectite Conversion in Diagenesis and Low Grade Hydrothermal Alteration from Neogene Basaltic Marine Sediments in Niigata Basin, Japan. Clay Sci. 1996, 10, 37–56. [Google Scholar] [CrossRef]
  108. Hints, R.; Kirsimäe, K.; Somelar, P.; Kallaste, T.; Kiipli, T. Chloritization of Late Ordovician K-bentonites from the northern Baltic Palaeobasin–influence from source material or diagenetic environment? Sediment. Geol. 2006, 191, 55–66. [Google Scholar] [CrossRef]
  109. Salda, L.H.D.; Luchi, M.G.L.; de Cingolani, C.A.; Varela, R. Laurentia-Gondwana Collision: The Origin of the Famatinian-Appalachian Orogenic Belt (a Review); Geological Society: London, UK, 1998; pp. 219–234, Special Publications 142. [Google Scholar]
  110. Tollo, R.P.; Bartholomew, M.J.; Hibbard, J.P.; Karabinos, P.M. From Rodinia to Pangea: The Lithotectonic Record of the Appalachian Region; Geological Society of America: Boulder, CO, USA, 2010; Memoir 206. [Google Scholar]
  111. Torres, R.; Ruiz, J.; Patchett, P.J.; Grajales, J.M. Permo-Triassic continental arc in eastern Mexico: Tectonic implications for reconstructions of southern North America. In Mesozoic Sedimentary and Tectonic History of North-Central Mexico; Bartolini, C., Wilson, J.L., Lawton, T.F., Eds.; Geological SocietyAmerica: Boulder, CO, USA, 1999; pp. 191–196. [Google Scholar]
  112. Kirsch, M.; Keppie, J.D.; Murphy, J.B.; Solari, L.A. Permian–Carboniferous arc magmatism and basin evolution along the western margin of Pangea: Geochemical and geochronological evidence from the eastern Acatlán Complex, southern Mexico. Geol. Soc. Amer. Bull. 2012, 124, 1607–1628. [Google Scholar] [CrossRef]
  113. Hartmann, J.; West, A.J.; Renforth, P.; Kohler, P.; De La Rocha, C.L.; Wolf-Gladrow, D.; Dürr, H.H.; Scheffran, J. Enhanced chemical weathering as a geoengineering strategy to reduce atmospheric carbon dioxide, supply nutrients, and mitigate ocean acidification. Rev. Geophys. 2013, 51, 113–149. [Google Scholar] [CrossRef] [Green Version]
  114. Worden, R.H.; Griffiths, J.; Wooldridge, L.J.; Utley, J.E.P.; Lawan, A.Y.; Muhammed, D.D.; Simon, N.; Armitage, P.J. Chlorite in sandstones. Earth-Sci. Rev. 2020, 204, 103105. [Google Scholar] [CrossRef]
  115. Chamley, P.D.H. Terrigenous Supply in the Ocean. In Clay Sedimentology; Springer: Berlin/Heidelberg, Germany, 1989; pp. 163–192. [Google Scholar]
  116. Ortega-Gutierrez, F.; Elias-Herrea, M.; Moran-Zenteno, D.J.; Solari, L.; Weber, B.; Luna-Gonzalez, L. The pre-Mesozoic metamorphic basement of Mexico, 1.5 billion years of crustal evolution. Earth-Sci. Rev. 2018, 183, 2–37. [Google Scholar] [CrossRef]
  117. Peters, K.E.; Cassa, M.R. Applied source rock geochemistry. In The Petroleum System—from Source to Trap; Magoon, L.B., Dow, W.G., Eds.; American Association of Petroleum Geologists: Tulsa, OK, USA, 1994; pp. 93–120. [Google Scholar]
  118. Jarvie, D.M. Shale resource systems for oil and gas: Part 1—Shale-gas resource systems. In Shale Reservoirs—Giant Resources for the 21st Century; Breyer, J.A., Ed.; American Association of Petroleum Geologists: Tulsa, OK, USA, 2012; pp. 69–87. [Google Scholar]
  119. Baumgardner, R.W.; Hamlin, H.S. Core-based geochemical study of mudrocks in basinal lithofacies in the Wolfberry play, Midland Basin, Texas, Part II. In Proceedings of the AAPG Annual Convention and Exhibition, Pittsburgh, PA, USA, 19–22 May 2013. Search and Discovery Article #10572. [Google Scholar]
  120. Taylor, G.H.; Teichmüler, M.; Davis, A.; Diessel, C.F.K.; Littke, R.; Robert, P. Organic Petrology; Gebrüder Borntraeger: Berlin, Germany; Stuttgart, Germany, 1998. [Google Scholar]
  121. Burtner, R.L.; Warner, M.A. Relationship between illite/smectite diagenesis and hydrocarbon generation in Lower Cretaceous Mowry and Skull Creek Shales of the Northern Rocky Mountain area. Clays Clay Miner. 1986, 34, 390–402. [Google Scholar] [CrossRef]
  122. Velde, B.; Espitalié, J. Comparison of kerogen maturation and illite/smectite composition in diagenesis. J. Pet. Geol. 1989, 12, 103–110. [Google Scholar] [CrossRef]
  123. Carvajal-Ortiz, H.; Gentzis, T. Geochemical screening of source rocks and reservoirs: The importance of using the proper analytical program. Int. J. Coal Geol. 2018, 190, 56–69. [Google Scholar] [CrossRef]
Geosciences 10 00381 g001 550
Figure 1. Geographic location of the Greater Permian Basin region with associated subsurface basins. The cored samples are denoted by the red stars within the northern Midland Basin.
Figure 1. Geographic location of the Greater Permian Basin region with associated subsurface basins. The cored samples are denoted by the red stars within the northern Midland Basin.
Geosciences 10 00381 g001
Geosciences 10 00381 g002 550
Figure 2. Stratigraphic nomenclature used within the Midland Basin. Core intervals are noted by the black columns. General lithologies and stratigraphy are modified after Ewing (2016) [54] and Hamlin and Baumgardner, (2012) [65]. Ash bed intervals are modified after Leslie et al. (2019) [70].
Figure 2. Stratigraphic nomenclature used within the Midland Basin. Core intervals are noted by the black columns. General lithologies and stratigraphy are modified after Ewing (2016) [54] and Hamlin and Baumgardner, (2012) [65]. Ash bed intervals are modified after Leslie et al. (2019) [70].
Geosciences 10 00381 g002
Geosciences 10 00381 g003 550

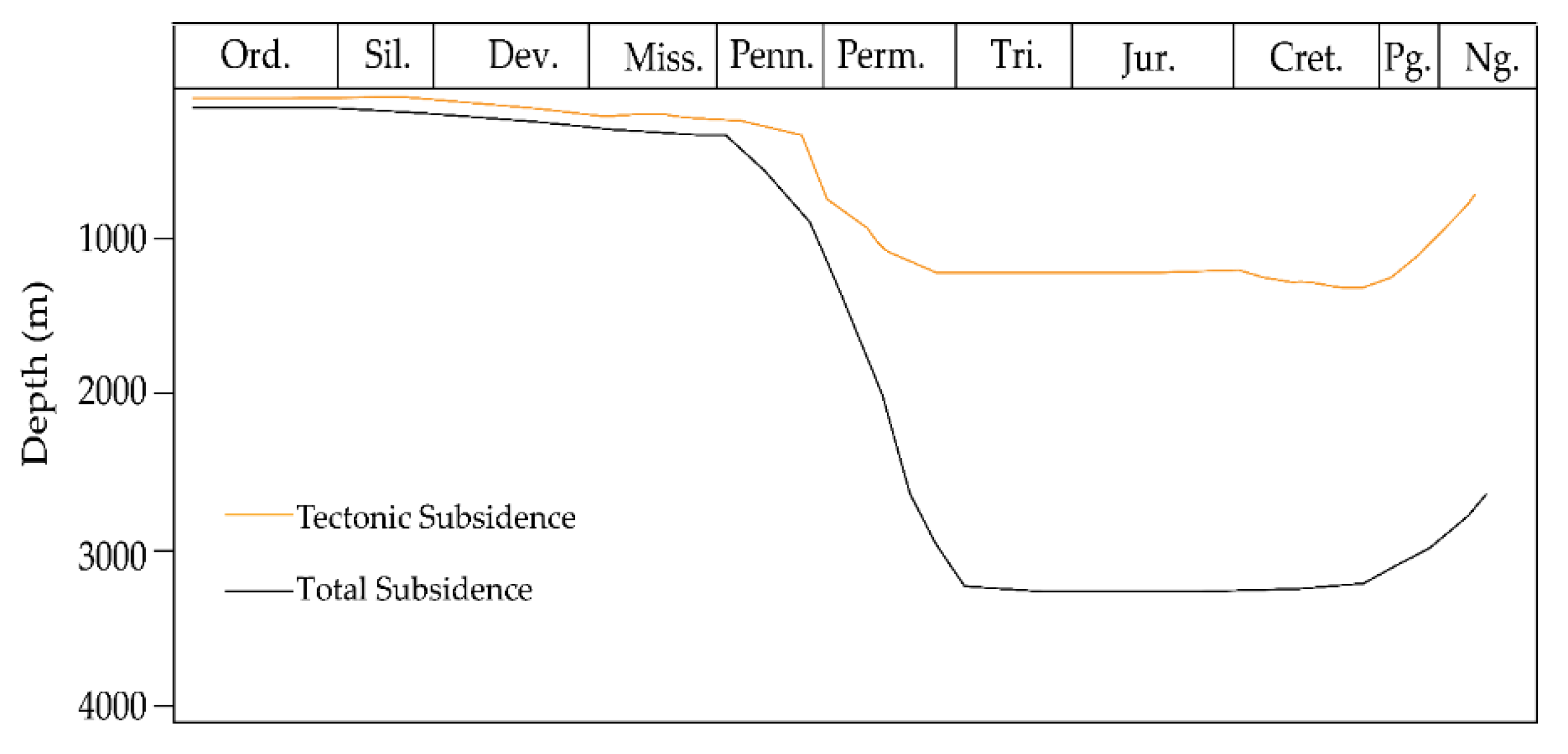

Figure 3. Subsidence curve for the eastern part of the Midland Basin after Yang and Dorobek, 1995 [54], Ewing, 1993 [67], and Heij and Elmore, 2020 [71].
Figure 3. Subsidence curve for the eastern part of the Midland Basin after Yang and Dorobek, 1995 [54], Ewing, 1993 [67], and Heij and Elmore, 2020 [71].
Geosciences 10 00381 g003
Geosciences 10 00381 g004 550

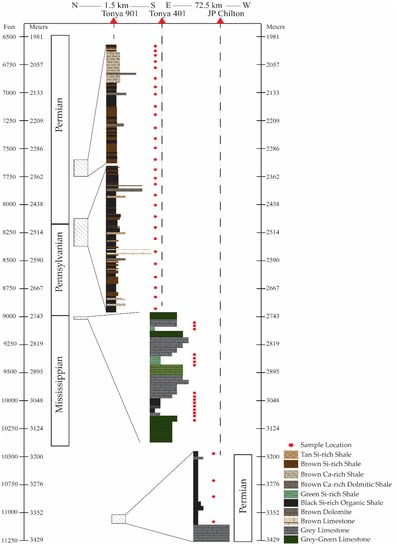

Figure 4. Stratigraphic column of the Tonya 401, Tonya 901, and JP Chilton cores used for this study. Core intervals are exaggerated to depict grain size and lithologies associated to the sampling interval. Vertical scale 1in. = 76.2 m (250 ft.). Refer to Figure 1 for well locations within the northern Midland Basin.
Figure 4. Stratigraphic column of the Tonya 401, Tonya 901, and JP Chilton cores used for this study. Core intervals are exaggerated to depict grain size and lithologies associated to the sampling interval. Vertical scale 1in. = 76.2 m (250 ft.). Refer to Figure 1 for well locations within the northern Midland Basin.
Geosciences 10 00381 g004
Geosciences 10 00381 g005 550
Figure 5. Lithofacies within the Tonya 901 (A,B), Tonya 401 (C), and JP Chilton (D,E) cores. (A) Interbedded Si-rich and Ca-rich shale. (B) Si-rich black shale. (C) Green-grey siltstone and claystone. (D) Ca-rich shale. (E). Si-rich shale.
Figure 5. Lithofacies within the Tonya 901 (A,B), Tonya 401 (C), and JP Chilton (D,E) cores. (A) Interbedded Si-rich and Ca-rich shale. (B) Si-rich black shale. (C) Green-grey siltstone and claystone. (D) Ca-rich shale. (E). Si-rich shale.
Geosciences 10 00381 g005
Geosciences 10 00381 g006 550

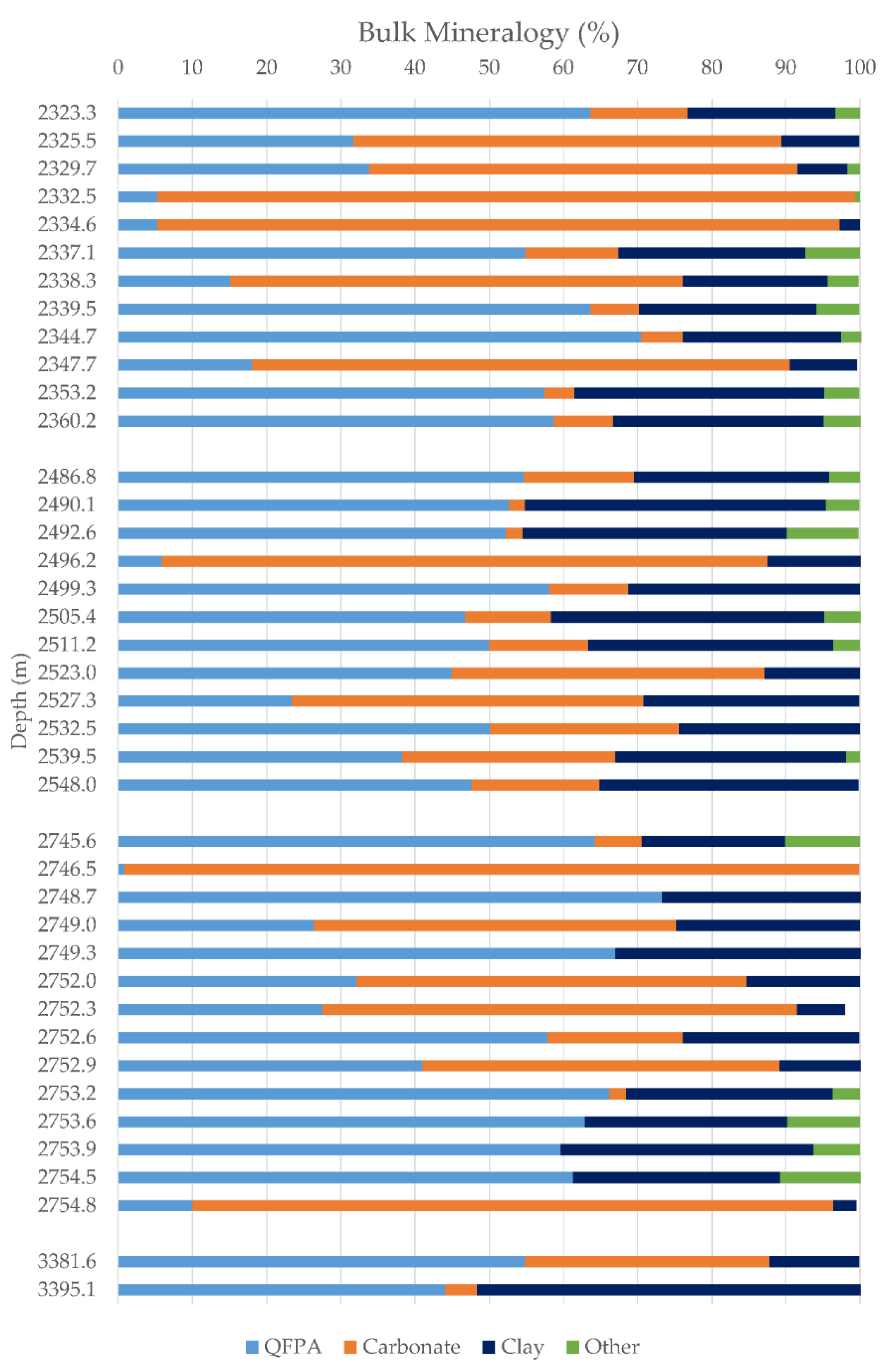

Figure 6. RIR quantifications of representative whole rock samples from the study interval. Phases were combined into four major groups. QFPA = quartz, feldspars, pyrite, apatite; carbonates = calcite and dolomite; clay = mica and clinochlore; other = remaining minor phases, see Appendix A.
Figure 6. RIR quantifications of representative whole rock samples from the study interval. Phases were combined into four major groups. QFPA = quartz, feldspars, pyrite, apatite; carbonates = calcite and dolomite; clay = mica and clinochlore; other = remaining minor phases, see Appendix A.
Geosciences 10 00381 g006
Geosciences 10 00381 g007 550

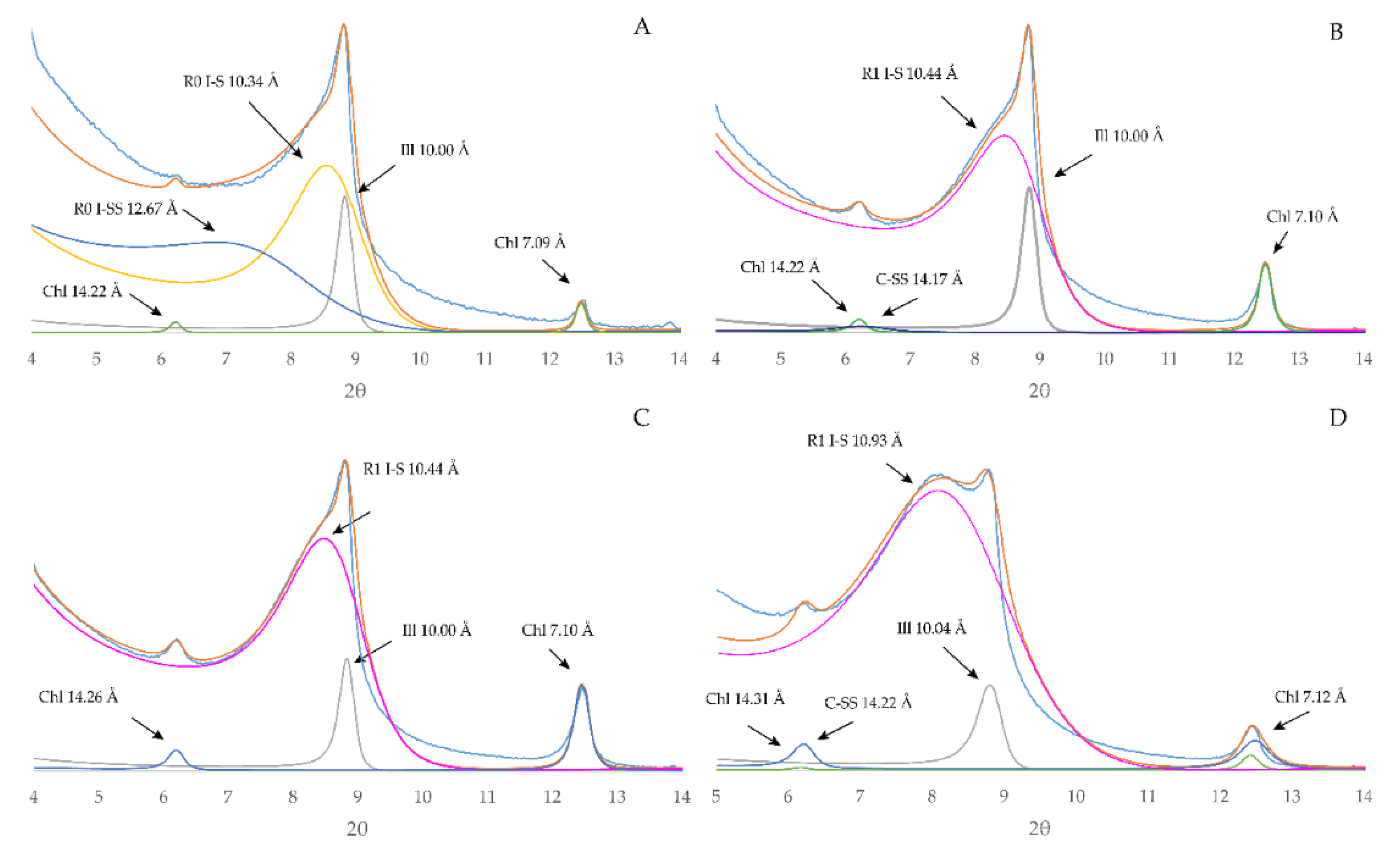

Figure 7. Deconvolution of XRD patterns of clay fraction for four representative samples. (A-T401-7673, B-T401-8197, C-T401-8252, and D-JP Chilton-11118). The experimental XRD pattern is blue with the modeled fit being orange, with phases of illite (grey), chlorite (green), R0 I-S (yellow), R1 I-S (pink), R3 I-S (red), and R0 I-SS (dark blue).
Figure 7. Deconvolution of XRD patterns of clay fraction for four representative samples. (A-T401-7673, B-T401-8197, C-T401-8252, and D-JP Chilton-11118). The experimental XRD pattern is blue with the modeled fit being orange, with phases of illite (grey), chlorite (green), R0 I-S (yellow), R1 I-S (pink), R3 I-S (red), and R0 I-SS (dark blue).
Geosciences 10 00381 g007
Geosciences 10 00381 g008 550
Figure 8. Mineral composition of clay fraction analyzed samples from representative samples. Si-rich Sh = silica rich shale; Ca-rich Sh = calcium rich shale, Perm = Permian; Penn = Pennsylvanian, Miss = Mississippian.
Figure 8. Mineral composition of clay fraction analyzed samples from representative samples. Si-rich Sh = silica rich shale; Ca-rich Sh = calcium rich shale, Perm = Permian; Penn = Pennsylvanian, Miss = Mississippian.
Geosciences 10 00381 g008
Geosciences 10 00381 g009 550

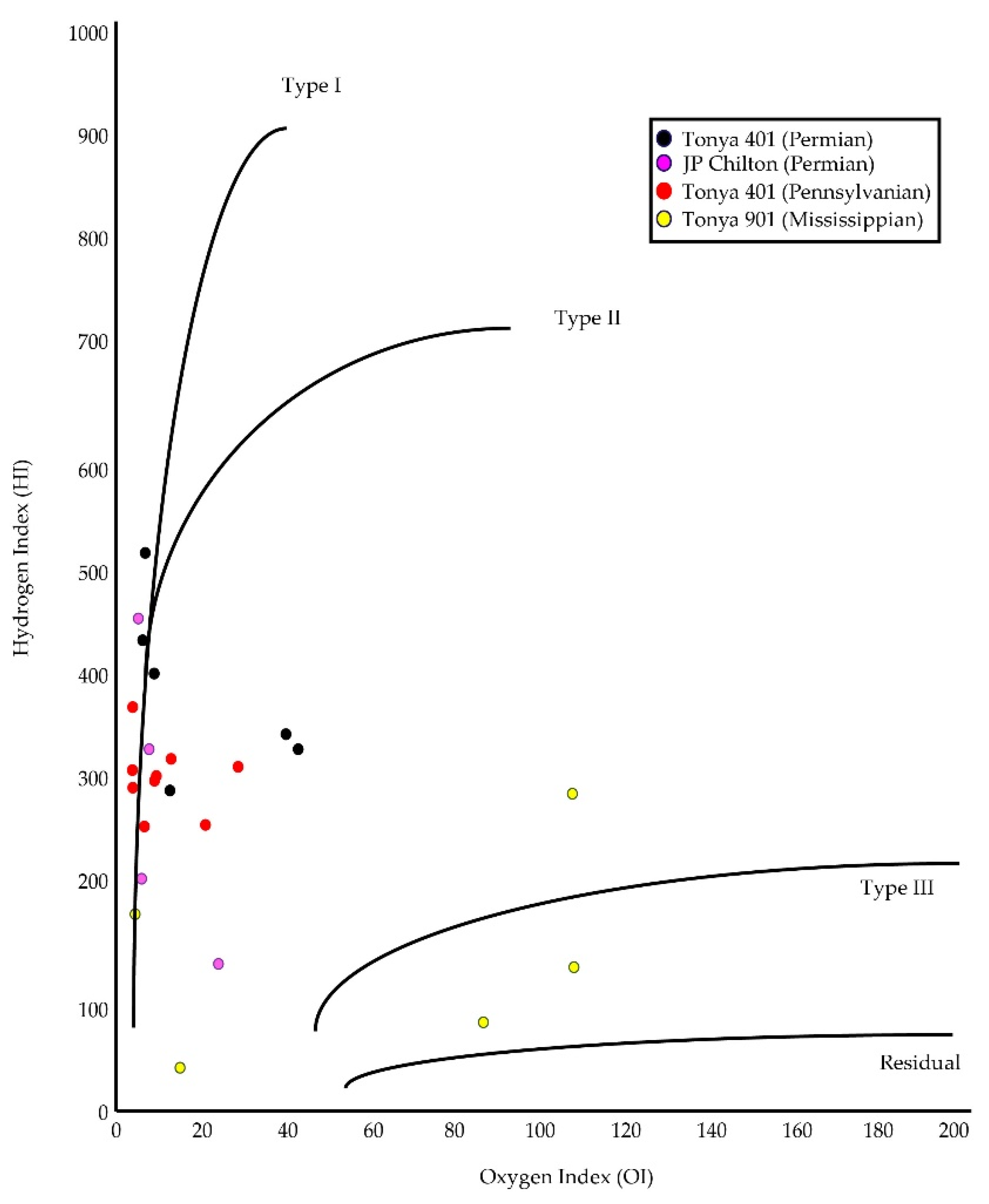

Figure 9. Pseudo-van Krevelen diagram modified from Espitalié et al., 1986 [87].
Figure 9. Pseudo-van Krevelen diagram modified from Espitalié et al., 1986 [87].
Geosciences 10 00381 g009

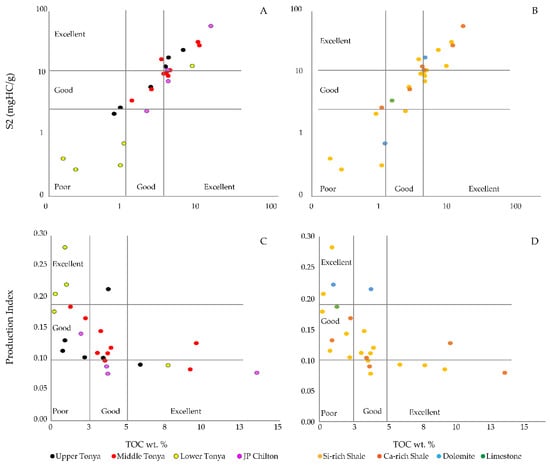

Geosciences 10 00381 g010 550

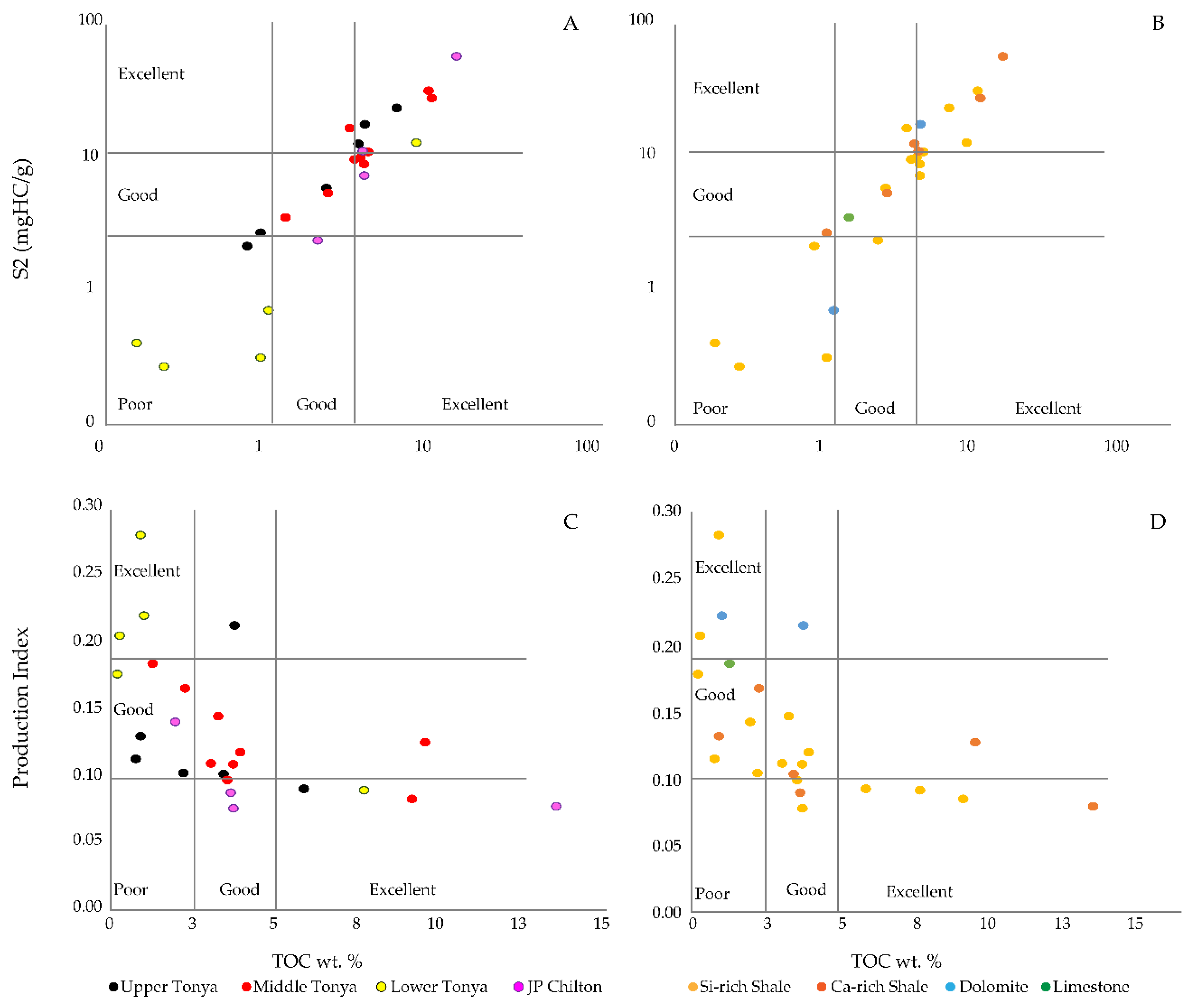

Figure 10. Source rock evaluation indices sorted by depth and lithofacies modified from Peters and Cassa (1994) [117] and Peters (1998) [90]. (A,B) Display of S2 yields increasing with TOC wt. % and indicate good potential for Permian and Pennsylvanian age sediments regardless of lithofacies. (C,D) Production index versus TOC wt% plots show that samples have generally good potential for oil generation (0.10–0.30) with moderate to good potential for sizeable expulsion (TOC > 3%) despite of lithofacies and depth.
Figure 10. Source rock evaluation indices sorted by depth and lithofacies modified from Peters and Cassa (1994) [117] and Peters (1998) [90]. (A,B) Display of S2 yields increasing with TOC wt. % and indicate good potential for Permian and Pennsylvanian age sediments regardless of lithofacies. (C,D) Production index versus TOC wt% plots show that samples have generally good potential for oil generation (0.10–0.30) with moderate to good potential for sizeable expulsion (TOC > 3%) despite of lithofacies and depth.
Geosciences 10 00381 g010
Geosciences 10 00381 g011 550

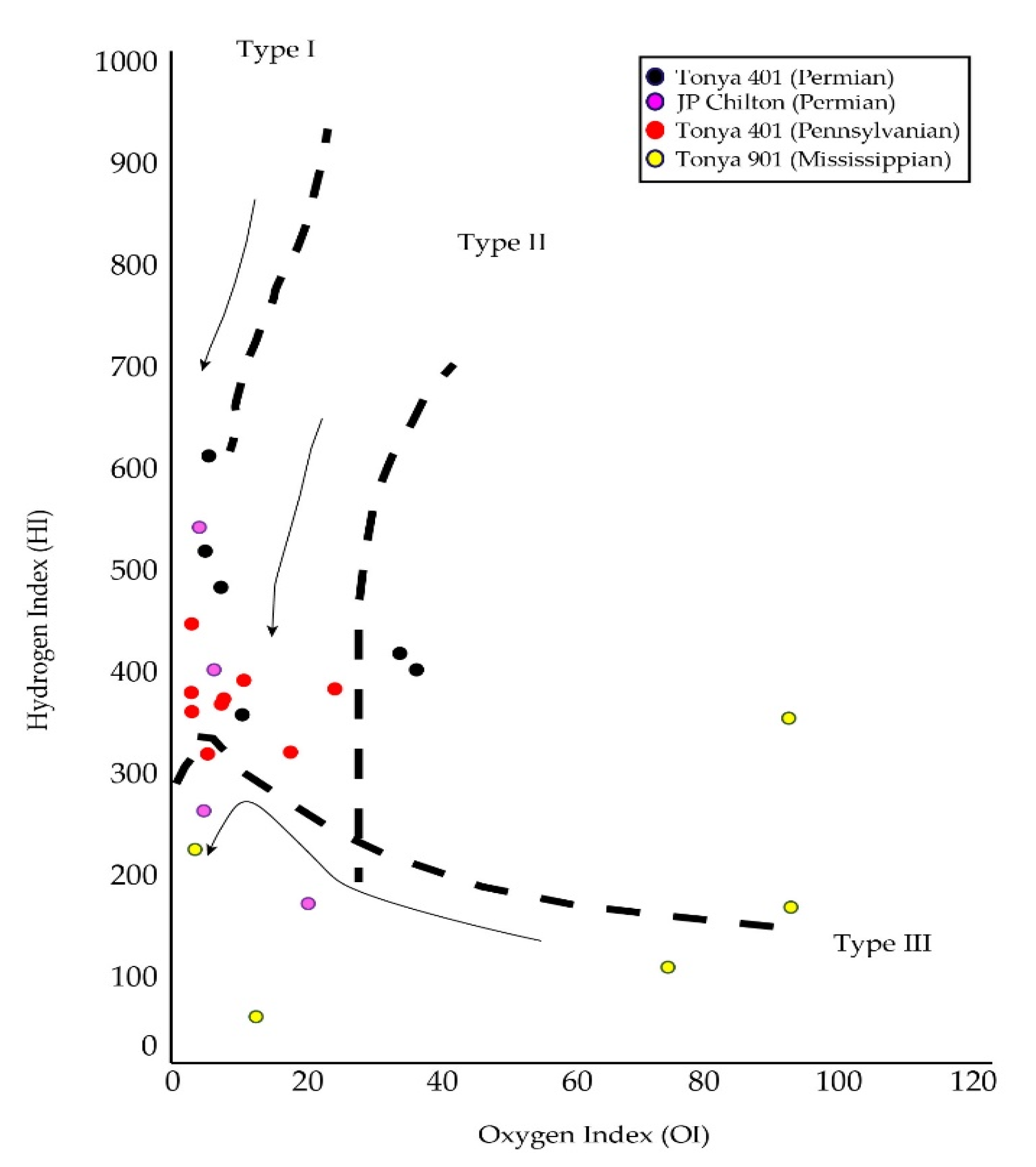

Figure 11. Organic matter types with arrows indicating the progression of maturation modified from Taylor et al., 1998 [120].
Figure 11. Organic matter types with arrows indicating the progression of maturation modified from Taylor et al., 1998 [120].
Geosciences 10 00381 g011
Geosciences 10 00381 g012 550

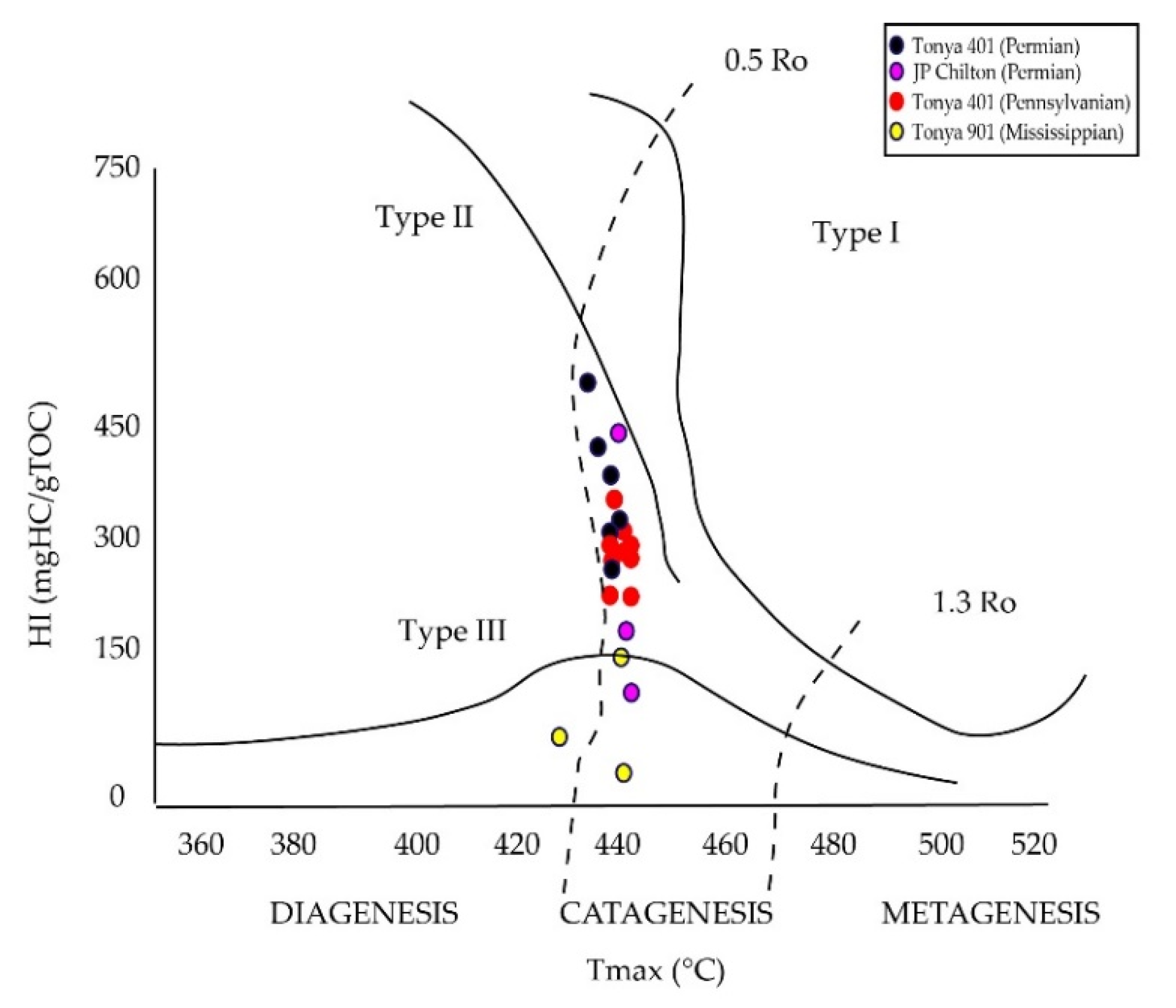

Figure 12. Cross plot diagram of HI versus Tmax modified from Espitalié et al., 1986 [88]. Tmax does not vary through the stratigraphic section and indicates primarily early to middle oil window conditions.
Figure 12. Cross plot diagram of HI versus Tmax modified from Espitalié et al., 1986 [88]. Tmax does not vary through the stratigraphic section and indicates primarily early to middle oil window conditions.
Geosciences 10 00381 g012
Geosciences 10 00381 g013 550
Figure 13. Maturation index data from three cores spanning the study interval. Progressive ordering of I-S corresponds well with an increase of temperature proxies with depth. Calculated %Ro after Jarvie (2018) (calculated %Ro = (0.0165 × Tmax) − 6.5143) (green dots) and after Lewan and Pawlewicz (2017) (calculated %Ro = (0.022 × Tmax) − 8.57) (red dots). Calculated peak burial temperature (T (°C) = (ln(v%Ro) + 1.68) / 0.0124) after Barker and Pawlewicz (1994) [80].
Figure 13. Maturation index data from three cores spanning the study interval. Progressive ordering of I-S corresponds well with an increase of temperature proxies with depth. Calculated %Ro after Jarvie (2018) (calculated %Ro = (0.0165 × Tmax) − 6.5143) (green dots) and after Lewan and Pawlewicz (2017) (calculated %Ro = (0.022 × Tmax) − 8.57) (red dots). Calculated peak burial temperature (T (°C) = (ln(v%Ro) + 1.68) / 0.0124) after Barker and Pawlewicz (1994) [80].
Geosciences 10 00381 g013
Table
Table 1. List of analyzed drill core samples from multiple wells within the Midland Basin.
Table 1. List of analyzed drill core samples from multiple wells within the Midland Basin.
SampleLeaseCountyLocationDepth m (ft)LithofaciesApplied Methods
T901-7620Tonya 901BordenNE MB2323 (7620)Black siliceous shaleXRD, CL, CM, REP
T901-7627Tonya 901BordenNE MB2324 (7627)Brown calcareous shaleOP, XRD, CL, CM
T901-7641Tonya 901BordenNE MB2329 (7641)Brown calcareous shaleOP, XRD, REP
T901-7645Tonya 901BordenNE MB2330 (7645)Brown calcareous shaleREP
T901-7649Tonya 901BordenNE MB2330 (7649)Brown calcareous shaleOP, REP
T901-7650Tonya 901BordenNE MB2330 (7650)Brown dolomiteOP, XRD
T901-7657Tonya 901BordenNE MB2333 (7657)Brown calcareous shaleOP, XRD, CL, CM
T901-7665Tonya 901BordenNE MB2336 (7665)Brown mudstoneXRD, CL, CM
T901-7669Tonya 901BordenNE MB2337 (7669)Brown dolomitic shaleOP, XRD, CL, CM
T901-7673Tonya 901BordenNE MB2339 (7673)Black siliceous shaleXRD, CL, CM, REP
T901-7690Tonya 901BordenNE MB2343 (7690)Black siliceous shaleOP, XRD
T901-7700Tonya 901BordenNE MB2133 (7000)Brown calcareous shaleOP, XRD
T901-7718Tonya 901BordenNE MB2352 (7718)Black siliceous shaleOP, XRD, CL, CM, REP
T901-7741Tonya 901BordenNE MB2359 (7741)Black shaleXRD, CL, CM
T901-8156Tonya 901BordenNE MB2486 (8156)Black shaleOP, XRD, CL, CM, REP
T901-8167Tonya 901BordenNE MB2489 (8167)Black shaleOP, XRD, CL, CM, REP
T901-8175Tonya 901BordenNE MB2492 (8175)Black shaleXRD, CL, CM, REP
T901-8187Tonya 901BordenNE MB2495 (8187)Brown dolomiteOP, XRD
T901-8197Tonya 901BordenNE MB2498 (8197)Black shaleOP, XRD, CL, CM
T901-8217Tonya 901BordenNE MB2505 (8217)Black shaleOP, XRD, CL, CM, REP
T901-8236Tonya 901BordenNE MB2510 (8236)Black shaleXRD, REP
T901-8252Tonya 901BordenNE MB2515 (8252)Black shaleCL, CM
T901-8256Tonya 901BordenNE MB2516 (8256)Black shaleCL, CM
T901-8275Tonya 901BordenNE MB2522 (8275)Brown limestoneOP, XRD, REP
T901-8289Tonya 901BordenNE MB2526 (8289)Brown dolomitic shaleOP, XRD, REP
T901-8306Tonya 901BordenNE MB2532 (8306)Brown siltstoneOP, XRD, REP
T901-8239Tonya 901BordenNE MB2511 (8239)Black shaleXRD
T901-8357Tonya 901BordenNE MB2547 (8357)Black shaleOP, XRD, REP
T401-9004Tonya 401BordenNE MB2744 (9004)Dark grey mudstoneOP, CL, CM, REP
T401-9005Tonya 401BordenNE MB2744 (9005)Green claystoneOP, XRD
T401-9008Tonya 401BordenNE MB2745 (9008)Dark grey limestoneXRD
T401-9015Tonya 401BordenNE MB2748 (9015)Dark green siltstoneOP, XRD, CL, CM, REP
T401-9016Tonya 401BordenNE MB2748 (9016)Dark green siltstoneXRD
T401-9017Tonya 401BordenNE MB2748 (9017)Dark green siltstoneOP, XRD
T401-9026Tonya 401BordenNE MB2751 (9026)Black limestoneOP, XRD
T401-9027Tonya 401BordenNE MB2751 (9027)Black mudstoneOP, XRD, CL, CM, REP
T401-9028Tonya 401BordenNE MB2751 (9028)Black mudstoneXRD
T401-9029Tonya 401BordenNE MB2752 (2029)Grey mudstoneXRD
T401-9030Tonya 401BordenNE MB2752 (9030)]Black-grey shaleOP, XRD
T401-9031Tonya 401BordenNE MB2752 (9031)Black shaleOP, XRD, REP
T401-9032Tonya 401BordenNE MB2752 (9032)Black-grey shaleXRD
T401-9033Tonya 401BordenNE MB2752 (9033)Black shaleOP
T401-9034Tonya 401BordenNE MB2753 (9034)Black-grey shaleOP, XRD, REP
T401-9035Tonya 401BordenNE MB2753 (9035)Black limestoneXRD
JP11091JP Chilton #1GainesNW MB3381 (11091)Black shaleCL, CM, REP
JP11107JP Chilton #1GainesNW MB3385 (11107)Black shaleCL, CM, REP
JP11118JP Chilton #1GainesNW MB3389 (11118)Black shaleCL, CM, REP
JP11135JP Chilton #1GainesNW MB3394 (11135)Black shaleCL, CM, REP
Abbreviations: NE—Northeast; NW—Northwest; MB—Midland Basin; OP—Optical petrography; XRD—whole rock x-ray diffraction; CL—clay fraction (<2 µm) X-ray diffraction; CM—clay mineral modeling; REP—Rock-Eval pyrolysis.
Table
Table 2. Rock-Eval pyrolysis data from analyzed samples from the Midland basin.
Table 2. Rock-Eval pyrolysis data from analyzed samples from the Midland basin.
SampleDepth (m)TOC (wt%)HI (mg HC/g TOC)OI (mg CO2/g TOC)Tmax (°C)S1 (mg HC/g)S2 (mg HC/g)S3S2/S3Production Index S1/(S1 + S2)Calculated %Ro *Calculated %Ro ^Estimate Peak Burial Temperature (°C) **Estimate Peak Burial Temperature (°C) ^^
T901-762023230.71336.0743.154380.322.380.317.790.120.711.07123137
T901-764123290.86350.0440.234400.473.000.358.700.140.751.11125139
T901-764523303.40406.368.974381.6613.830.3145.290.110.711.07123137
T901-764923313.73518.216.864345.3919.320.2675.500.220.640.98119134
T901-767323395.85437.156.224362.7225.570.3670.280.100.681.02121136
T901-771823522.17297.7612.704390.786.450.2823.450.110.731.09124138
T901-815624863.91306.929.034391.6912.010.3533.970.120.731.09124138
T901-816724893.69264.556.654421.269.750.2539.770.110.771.15126140
T901-817524929.16375.143.854393.3434.360.3597.390.090.721.09124138
T901-821725053.51311.309.494421.2510.920.3332.810.100.771.15126140
T901-823625103.01300.433.914412.3518.060.2376.930.120.761.13125139
T901-827525222.22265.9521.134381.225.910.4712.580.170.711.07123137
T901-828925261.22319.8328.904380.913.890.3511.070.190.711.07123137
T901-830625329.56316.793.784414.5630.290.3683.900.130.751.13125139
T901-835725473.23327.1812.984381.8710.570.4225.200.150.721.07124137
T401-900427440.22133.95108.593470.080.300.241.230.21
T401-901527480.15294.84108.233470.100.450.172.720.18
T401-902727510.9682.8287.094280.230.790.840.950.230.550.91114132
T401-903127537.69183.124.434401.4814.090.3441.380.100.751.18125141
T401-9034 *27540.8640.6515.104410.140.350.132.690.290.761.22125142
JP11091338113.57457.395.204405.6262.080.7187.890.080.751.11125139
JP1110733853.62336.147.764411.2512.160.2843.890.090.771.13126139
JP1111833891.92137.0124.224420.452.630.465.660.150.781.15126140
JP1113533943.70216.006.004410.718.000.2235.990.080.761.13126139
Abbreviations: TOC—total organic carbon; HI—hydrogen index; OI—oxygen index; Tmax—temperature at which maximum amount of S2 hydrocarbons are generated; S1—amount of free hydrocarbons released at 200 °C; S2—hydrocarbon generated by pyrolytic degradation of kerogen; S3—carbon dioxide generated by pyrolytic degradation; S2/S3 = generative types of hydrocarbon (<3 = gas, 3–5 = gas and oil, <5 = oil) (Peters, 1986); Production Index = oil window index (0.1–0.4) (Peters, 1986); Calculated %Ro * from Tmax = (0.0165 × Tmax) − 6.5143 (Jarvie et al., 2018); Calculated %Ro ^ from Tmax = (0.022 × Tmax) − 8.57 (Lewan and Pawlewicz, 2017); Estimate Peak Burial Temperature (C) ** using %Ro * = (LOG(%Ro *) + 1.68)/0.0124 (Baludikay et al., 2018); Estimate Peak Burial Temperature (C) ^^ using %Ro ^ = (LOG(%Ro ^) + 1.68)/0.0124 (Baludikay et al., 2018). Sample T401-9034 data was obtained by Weatherford Laboratories.

Share and Cite

MDPI and ACS Style

Green, H.; Šegvić, B.; Zanoni, G.; Omodeo-Salé, S.; Adatte, T. Evaluation of Shale Source Rocks and Clay Mineral Diagenesis in the Permian Basin, USA: Inferences on Basin Thermal Maturity and Source Rock Potential. Geosciences 2020, 10, 381. https://doi.org/10.3390/geosciences10100381

AMA Style

Green H, Šegvić B, Zanoni G, Omodeo-Salé S, Adatte T. Evaluation of Shale Source Rocks and Clay Mineral Diagenesis in the Permian Basin, USA: Inferences on Basin Thermal Maturity and Source Rock Potential. Geosciences. 2020; 10(10):381. https://doi.org/10.3390/geosciences10100381

Chicago/Turabian Style

Green, Hunter, Branimir Šegvić, Giovanni Zanoni, Silvia Omodeo-Salé, and Thierry Adatte. 2020. "Evaluation of Shale Source Rocks and Clay Mineral Diagenesis in the Permian Basin, USA: Inferences on Basin Thermal Maturity and Source Rock Potential" Geosciences 10, no. 10: 381. https://doi.org/10.3390/geosciences10100381

APA Style

Green, H., Šegvić, B., Zanoni, G., Omodeo-Salé, S., & Adatte, T. (2020). Evaluation of Shale Source Rocks and Clay Mineral Diagenesis in the Permian Basin, USA: Inferences on Basin Thermal Maturity and Source Rock Potential. Geosciences, 10(10), 381. https://doi.org/10.3390/geosciences10100381

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
