Are Past Sea-Ice Reconstructions Based on Planktonic Foraminifera Realistic? Study of the Last 50 ka as a Test to Validate Reconstructed Paleohydrography Derived from Transfer Functions Applied to Their Fossil Assemblages

Abstract

Since its existence, paleoceanography has relied on fossilized populations of planktonic foraminifera. Except for some extreme environments, this calcareous protist group composes most of the silty-to-sandy fraction of the marine sediments, i.e., the foraminiferal oozes, and its extraction is probably the simplest among the currently existing set of marine fossil proxies. This tool has provided significant insights in the building of knowledge on past climates based on marine archives, especially with the quantification of past hydrographical variables, which have been a turning point for major comprehensive studies and a step towards the essential junction of modelling and paleodata. In this article, using the modern analog technique and a database compiling modern analogs (n = 1007), we test the reliability of this proxy in reconstructing paleohydrographical data other than the classical sea-surface temperatures, taking advantage of an update regarding a set of extractions from the World Ocean Atlas for transfer functions. Our study focuses on the last glacial period and its high climatic variability, using a set of cores distributed along the European margin, from temperate to subpolar sites. We discuss the significance of the reconstructed parameters regarding abrupt and extreme climate events, such as the well-known Heinrich events. We tested the robustness of the newly obtained paleodata by comparing them with older published reconstructions, especially those based on the complementary dinoflagellate cyst proxy. This study shows that the potential of planktonic foraminifera permits going further in reconstructions, with a good degree of confidence; however, this implies considering ecological forcings in a more holistic perspective, with the corollary to integrate the message of this fossil protist group, i.e., the obtained parameters, in light of a cohort of other data. This article constitutes a first step in this direction.

1. Introduction

Planktonic foraminifera (PF) have constituted key material for paleoceanographers, especially for stratigraphical and hydrographical reconstructions, for nearly a century (e.g., from Phleger, 1939 [1] to Schiebel et al., 2018 [2]; CLIMAP [3]). Their shells are at the basis of nearly all the biochronological scales established for marine sequences during the Quaternary. They provide not only valuable raw material for stratigraphical determinations (especially radiocarbon dating and stable-isotope measurement), but also and above all diverse and well-preserved fossil assemblages, which are at the basis of paleoenvironmental reconstructions (e.g., from Pflaumann et al., 1996 [4] to Siccha and Kučera, 2017 [5] and references therein). However, as calcareous proxies, their robustness is also known to be limited in some extreme conditions, especially in oceanographical basins where either the lysocline or the temperature of the first hundred-meter-water column hamper their preservation or diversity (e.g., Kučera et al., 2005 [6,7]; Nguyen and Speijer, 2019 [8]; Greco et al., 2019 [9] and 2021 [10]).

Recently, in parallel with an effort to diversify the PF tool, its modern calibration and accuracy were reconsidered and challenged [9,11,12]. Apart from geochemical considerations on their tests, major questions were raised regarding the value of fossil assemblages in deciphering basin-wide hydrological past changes, since complex patterns of habitats (depending on seasonality and water depth, for instance) are known for PF populations. For example, working on the basis of high-latitude assemblages is often hampered by their monospecific diversity, with the polar species Neogloboquadrina pachyderma nearly exclusively dominating the assemblages. However, weaknesses can also be strengths, as, conversely, monospecific polar assemblages are outstanding markers of specific cold events within glaciations (e.g., Ruddiman, 1977 [13]; Eynaud et al., 2009 [14]).

In this context, approaches relying on the compilation of modern eco-biogeographical databases derived from the analysis of recently fossilized populations in the topmost oceanic sediment layers provide comprehensive sets which have considerably improved our bioclimatic knowledge of PF. These modern sedimentary spectra, analyzed for their contents/relative abundances in PF, offer the advantage of integrating regional taphonomic processes; furthermore, they can be statistically tested and exploited to provide proxies of oceanic conditions, as conducted, for instance, with transfer functions sensu lato ([6,12]; Guiot and de Vernal, 2007 [15]).

Here, we test the robustness of the modern analog technique to reconstruct past hydrography with PF assemblages, focusing on the North Atlantic Ocean (Figure 1), using (1) a training set of modern analogs (n = 1007), improved with new extractions of oceanic parameters from the World Ocean Atlas (initiated with de Vernal et al., 2020 [16]), and (2) calculations based on key archives covering the last 50 thousand years. We document the coherency of the results obtained for past hydrographical changes regarding the climatological context of this period; further, we focus on the parameters directly or indirectly quantifying the sea-ice cover evolution at millennial scales in comparison with other tools, providing comparable reconstructions. The investigations here conducted are especially fruitful and rich of learnings for Heinrich events (HEs), which punctuate the last 50 ka. They also question the robustness of PF assemblages in providing accurate paleohydrographical contexts, despite the recurrent criticisms on the accuracy of this historical fossil tool.

2. Past Hydrographical Quantifications Based on Planktonic Foraminifera

Prior to its application in the present study, the methodology used to quantify past hydrography, i.e., the Modern Analog Technique (MAT), has been tested several times on different reference marine records (see [17,18,19,20,21] for concrete produced data and [22,23] for a review on this approach), using the MAT1007 transfer function developed at EPOC, based on the MARGO program (multiproxy approach for the reconstruction of the glacial ocean surface [6,7,24,25]). The performed calculations rely on a statistical comparison among past assemblages and a modern reference database of 1007 modern samples distributed in the North Atlantic Ocean and its adjacent seas, including the Nordic seas (Figure 1a). Using a script developed by Guiot and Brewer (https://www.eccorev.fr/spip.php?article389, accessed on 25 August 2021) for the R software (“R” version 2.7.0, R Development Core Team, 2008), the statistical assessment of the distance between the fossil and modern assemblages was obtained. Hydrographical parameters were thus estimated from an average weighted inversely to the distance (or dissimilarity) of the five best analogues selected. The significant novelty, here introduced, is that the set of parameters reconstructed on the basis of PF was considerably enlarged thanks to an update of the modern hydrographical references. Usually, published reconstructions based on PF assemblages are limited to sea-surface temperatures (SSTs). This limitation is the result of long lasting questionings on the significance of the derived reconstructions with regard to the ecology of PF. It is difficult to disentangle ecological parameters in the marine realm [25] and SSTs often carry the most significant weight in the distribution of species [12]. However, following what has been obtained with other fossil protist groups, we decided to go beyond this limitation in order to expand the potential of the PF tool.

The new hydrographical set was generated mostly thanks to extractions obtained from the World Ocean Atlas 2013 (WOA13; https://www.nodc.noaa.gov/OC5/woa13/woa13data.html, accessed on 20 September 2018). These data permit reconstructing quantified past SSTs and salinities at two depths, i.e., 0 and 50 m, to infer thermocline migration for means calculated monthly, seasonally (according to the astronomical definition of seasons [26]), or annually. In this study, we performed calculations for the whole set of new parameters; however, here, we only report annual, winter (i.e., January–February–March) and summer (i.e., July–August–September) means, together with seasonal extremes (i.e., the warmest, August, and the coldest, February, month of the year). The derived errors (root mean square error of prediction (RMSEP)) calculated for each reconstructed parameter were a maximum of 1.4 °C, for temperatures, and of 0.7 psu, for salinities (in August, at 0 m); these maximal error values are plotted on graphs hereafter. Reconstructions of sea-surface dissolved oxygen (do), phosphate and nitrate concentrations were also obtained thanks to our new WOA13 extractions, but only do is here presented (with an RMSEP of 0.1 mL/L on past reconstructions). Their significance as key ecological parameters of the North hemisphere marine planktonic fossil populations was tested with the updated dinocyst transfer function published in 2020 (see [16] for details, especially for multivariate analysis). Sea-ice cover (SIC) data, compiled at a ¼-degree resolution from the NSIDC website (http://nsidc.org/data/G10010, 20 September 2021, see [16]), are now also updated in the database. They are expressed in two ways and conform strictly to the extractions conducted for dinocysts [16] in order to provide comparable past quantified reconstructions; SIC data are expressed as SIC mean monthly concentrations (coverage percentages from 0 to 100%; in this article, only February means are shown, with an RMSEP of 10%) and SIC duration (number of months/year with sea-ice concentration >50%, with an RMSEP of 1.5 month/year).

Monthly primary productivity (PP) values (obtained from NASA’s Moderate Resolution Imaging Spectroradiometer (MODIS) database; https://modis.gsfc.nasa.gov/data/dataprod, 20 September 2021, see [16] for the extraction methodology) were also introduced for PF for the same purpose, i.e., to test their relevance and potential versus the dinocyst tool for common reconstructions, particularly in relation to the same cores in the North Atlantic. In this article, only PP values for June are shown (with an RMSEP of 360 mgC/m³/day).

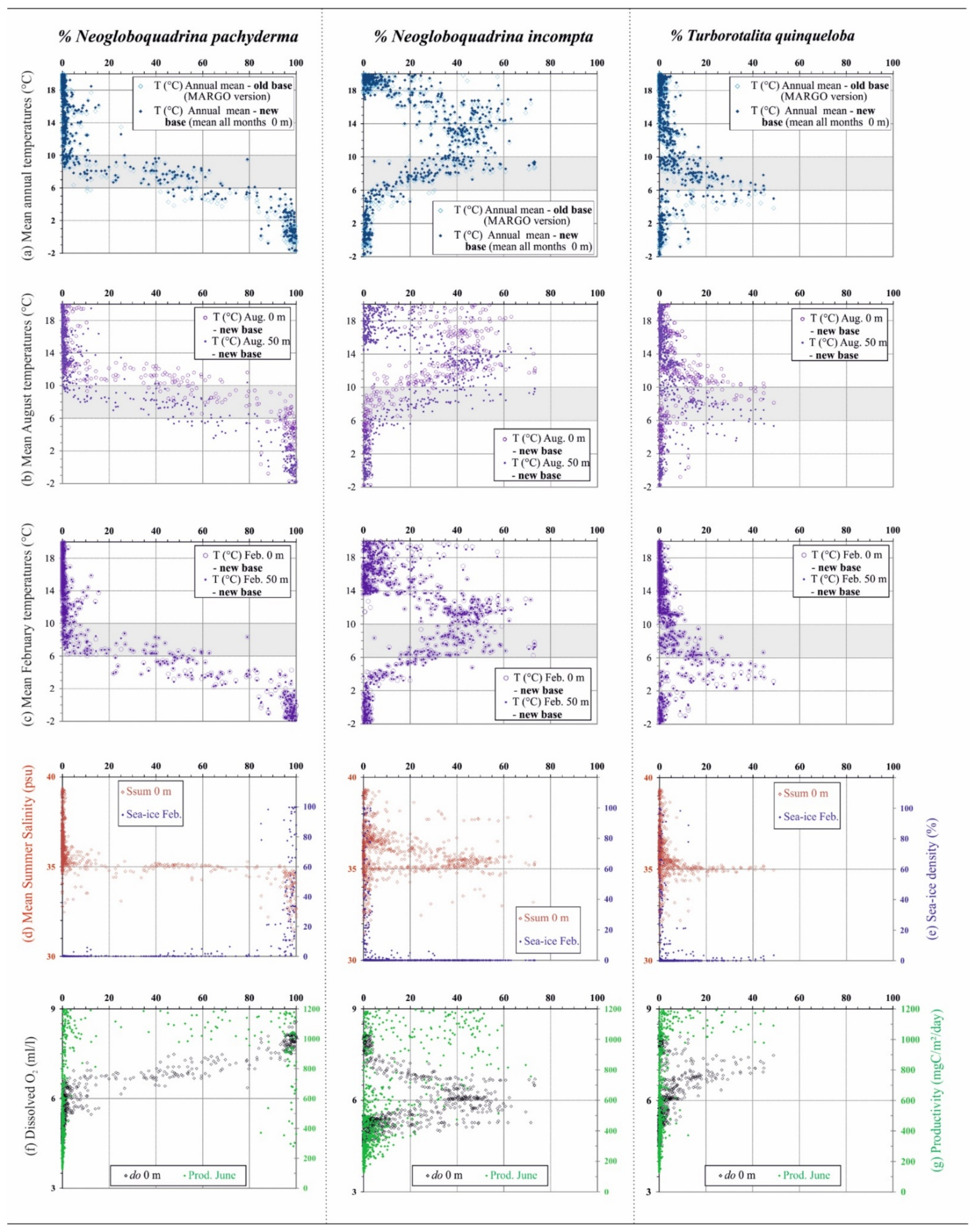

Regarding PF assemblages, the modern spectra constituting the dataset (with no change since the compilation of the database based on the MARGO program) were also tested using statistical tools and graphic mappings, focusing on the biogeography of the species (see Figure 2 for species response curves and also references [14,23]). The modern biogeography of PF is fairly well known at the scale of oceanic basins (ever since the study by Bé and Tolderlund, 1971 [27]) and has even been numerically modeled ([28,29] and references therein), despite some outstanding uncertainties regarding the parameters describing their habitats; for instance, the depths at which PF can live have not yet been well defined. Using the topmost sediment deposits as a modern reference for their biogeography somewhat circumvents this limitation, as the deposited and fossilized assemblages are the result of a temporal integration over several years, as well as the result of a three-dimensional spatial integration. This type of integration was also applied to the requests performed for modern parameters, as they were extracted over a time window of several decades (1955–2012), with a spatial resolution grid of one degree at maximum (with a minimum size of a 1/12 degree spatial resolution for PP, see [16]); this spatial resolution is key for the description of the scale of oceanic structures (e.g., [30]).

The graphs plotted in Figure 2 are enough to show how modern PF populations, even if tracked, here, with the sedimentological filter, are sensitive to hydrographical parameters. The fairly narrow SST ranges of distribution for PF clearly illustrate specific restricted habitats (and a high degree of endemicity) for the selected species, with, interestingly, the SST interval of 6–10 °C identifying a key physical barrier for those species, regardless of the season. These values are typical of the ones registered in the modern subpolar latitudinal bands. The tolerance for salinity variations is greater for Neogloboquadrina incompta, whose distribution is known to be more ubiquitous in the North Atlantic than Neogloboquadrina pachyderma (NP) and Turborotalita quinqueloba. Further, this species seems to be distributed along a wide range of PP contexts (with low dissolved oxygen contents), whereas the two most polar species only occur in high abundance for high PP values (over 800 mgC/m²/day) and well oxygenated surface-waters.

As shown in Figure 2, the newly extracted oceanic parameters provide the opportunity to test the significance of a more complete set of ecological variables, especially among those known to impact PF distribution and/or those that have been critical during extreme past climatic changes, i.e., the thermocline position versus the depth of the mixed layer (compare, for instance, Figure 2b,c, where the temperatures at 0 m and 50 m depths are plotted), both known here thanks to the new information related to the temperature at 50 m, but also thanks to the dissolved oxygen content, which is also correlated to productivity conditions. Among the parameters to be tested in order to determine past conditions, those related to the SIC are crucial for a better understanding of the oceanic changes associated to melt-water events, such as those linked to HEs or stadials.

To validate the robustness of the calculations regarding past periods, reconstructions derived from the study of four marine cores (mapped in Figure 1), which were already published on the basis of the MAT transfer function (

Table 1. Information on the investigated cores (MD95-2040, MD95-2002, MD99-2281 and MD99-2285).

Core	Latitude	Longitude	Water Depth (m)	Mean Modern SST (°C) **			Relevant References, with Those Using Transfer Functions Derived from PF in Bold	Transfer Function Method
				Annual	Winter-JFM	Summer-JAS
MD95-2040	40.580	–9.860	2465	16.2	14.0	18.6	de Abreu et al., 2003 [31]; Eynaud et al., 2009 [14]; Voelker and de Abreu, 2011 [32]	MAT (number of spectra in the database n = 1066), SIMMAX28, distance-weighted, data available at: http://doi.pangaea.de/10.1594/PANGAEA.737449, 20 September 2021
MD95-2002	47.450	–8.530	2174	13.9	11.4	17.2	Auffret et al., 2002 [33]; Grousset et al., 2000 [34], 2001 [35], 2002 [36]; Zaragosi et al., 2001 [37]; Menot et al., 2005 [38]; Eynaud et al., 2007 [39]; 2012 [22]; 2018 [17]	MAT (number of spectra in the database: n = 556, n = 1007 for publication after 2005) and Imbrie & Kipp method * (number of spectra in the database: n = 556)
MD99-2281	60.342	–9.456	1197	9.7	8.3	11.5	Zumaque et al., 2012 [40]; Caulle et al., 2013 [41]; Wary et al., 2015 [21]	MAT (number of spectra in the database: n = 1007)
MD99-2285	62.694	–3.572	885	8.0	6.2	10.4	Wary et al., 2015 [21], 2016 [42], 2017 [43], 2018 [44]	MAT (number of spectra in the database: n = 1007)

** extracted with the WOA ATLAS sample tool, Schäfer-Neth and Manschke 2002, http://www.geo.uni-bremen.de/geomod/staff/csn/woasample.html, last consultation on the 29 May 2015. * Imbrie, J., Kipp, N.G., 1971. A new micropaleontological method for quantitative paleoclimatology. In: Turekian, K.K. (Ed): Late Cenozoic Glacial Ages. Yale University Press, New Haven, CT, USA, p. 71−182.

), were run for this new set of oceanic data. This set of cores embraces a modern SST range of 8 °C along the western European margin (from warm temperate (40° N) to subpolar environments (63° N)). We also tested the coherency of the reconstructions with other proxies; the newly produced quantified data were then compared to existing ones derived from other bioindicators (dinocysts especially) when possible. The age models of the compiled sequences were not modified, and they all conform to the last ones published (see references in Table 1).

3. Heinrich Events and Their PF-Derived Signatures

3.1. Basic Features and Knowledge

The recent comprehensive work on HEs by Andrews and Voelker (2018) [45] has drawn a capital, timely constrained and defined framework for the distribution of those climatic and ecological dramatic disruptions (Figure 3). Their review pertinently reaffirmed and underlined that HEs are complex, multiphase events and demonstrated that their causalities and effects have often been amalgamated.

HEs are specific to glacial periods, the most recent six being called HEs sensu stricto (Heinrich et al., 1988 [49]; excluding the Younger Dryas event, despite this event being called H0 on the North Atlantic western side [50]). HE-like events have also been recognized during penultimate glaciations up to one million years BP (e.g., [51,52]); some cold periods within interglacial stages have been assimilated to occur in oceanic conditions similar to those of HEs, with a disruption of the Atlantic Overturning circulation ([53,54,55] and references therein). During the last glaciation, they were part of contrasting climatic extremes in relation to the well-known stadial and interstadial pacing of Dansgaard Oeschger (DO) cycles (Dansgaard et al., 1993 [56,57]; see Figure 3). Their impacts on the marine realm were vast [58,59,60,61] and they are known to be marked by drastic sea-surface population changes in the North Atlantic; those changes are commonly used as biostratigraphical tie intervals, especially based on PF assemblages (from [13] to [48]).

Thus, the 50–10 ka interval constitutes a key time period for testing our reconstructions and their reliability, both for determining the chronological pacing of the detected events and for validating the recorded hydrographical shifts. To achieve this, we selected four cores from different locations along the western European margin (Figure 1, Table 1) in order to capture a sensitivity gradient based on the new extractions and MAT calculations. The selected cores were all used in key articles which have contributed to enlarge our knowledge on the marine counterpart expression of HEs/DO and can be considered as reference records for the western European margin (see references in Table 1).

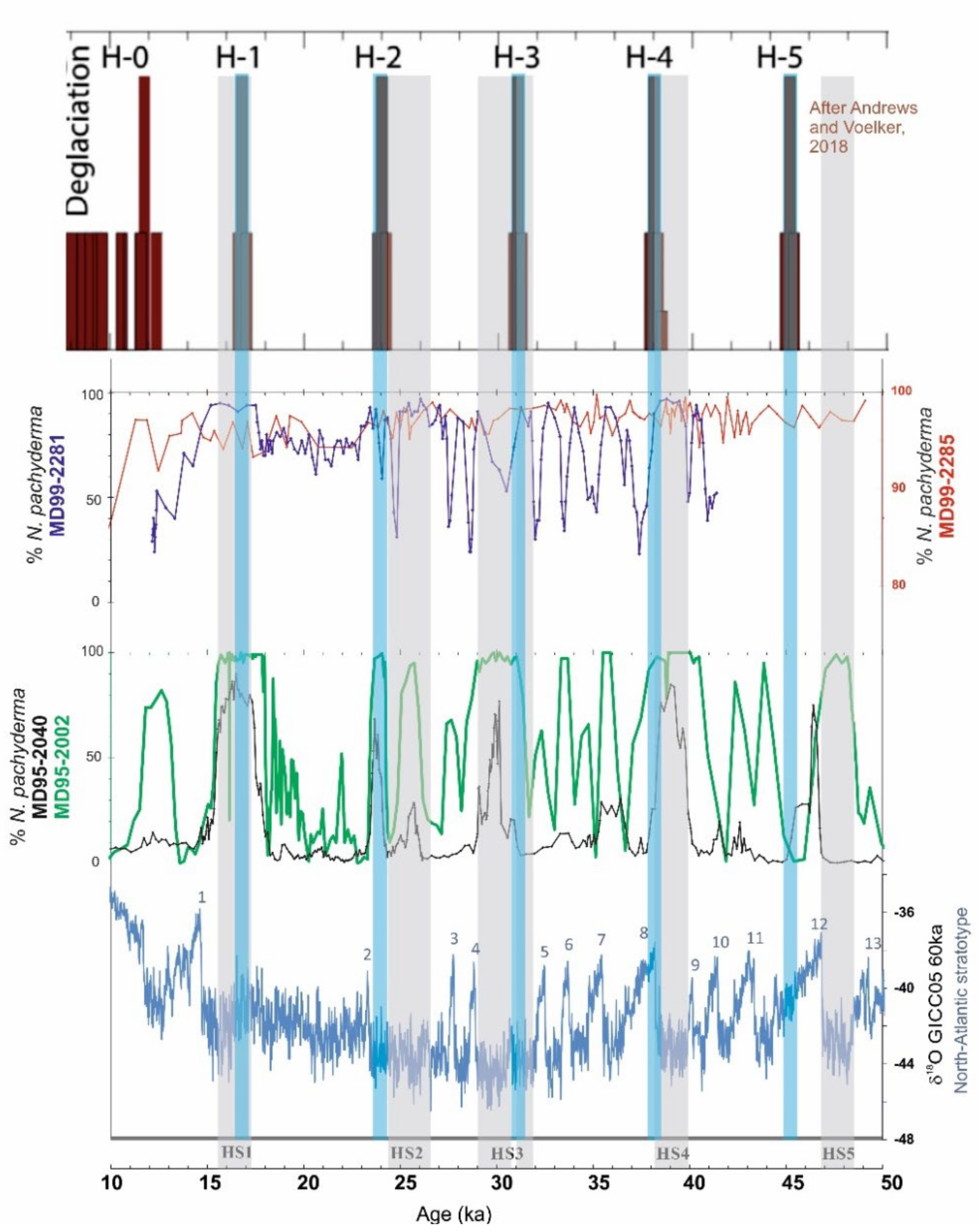

The relevance of their selection is expressed in Figure 3, where the simple use of the abundance of the polar species NP, as a basic bioindicator of the last 50 ka of climatic history, underlines marked shifts in PF populations. Those shifts were detected along the entire latitudinal gradient covered by the chosen set of cores. A poleward decrease in their amplitudes, mirrored by steady NP abundances during cold events (including HEs and stadials) and warmings, was recorded. As expected, the PF sensitivity was saturated in the polar domains, where NP occurs in monospecific values. This problem was raised very soon with PF reconstructions as a severe hamper to their use with no precaution in cold environments to track past hydrographical changes (e.g., [4,7]). It is also worth noting the time lag recorded latitudinally during the deglacial warming after HE1. Finally, the “ideal” sensitivity window to track hydrographic changes with PF seems to be the temperate belt, as seen with the MD95-2002 NP record.

3.2. New Hydrographic Signals to Better Understand HEs

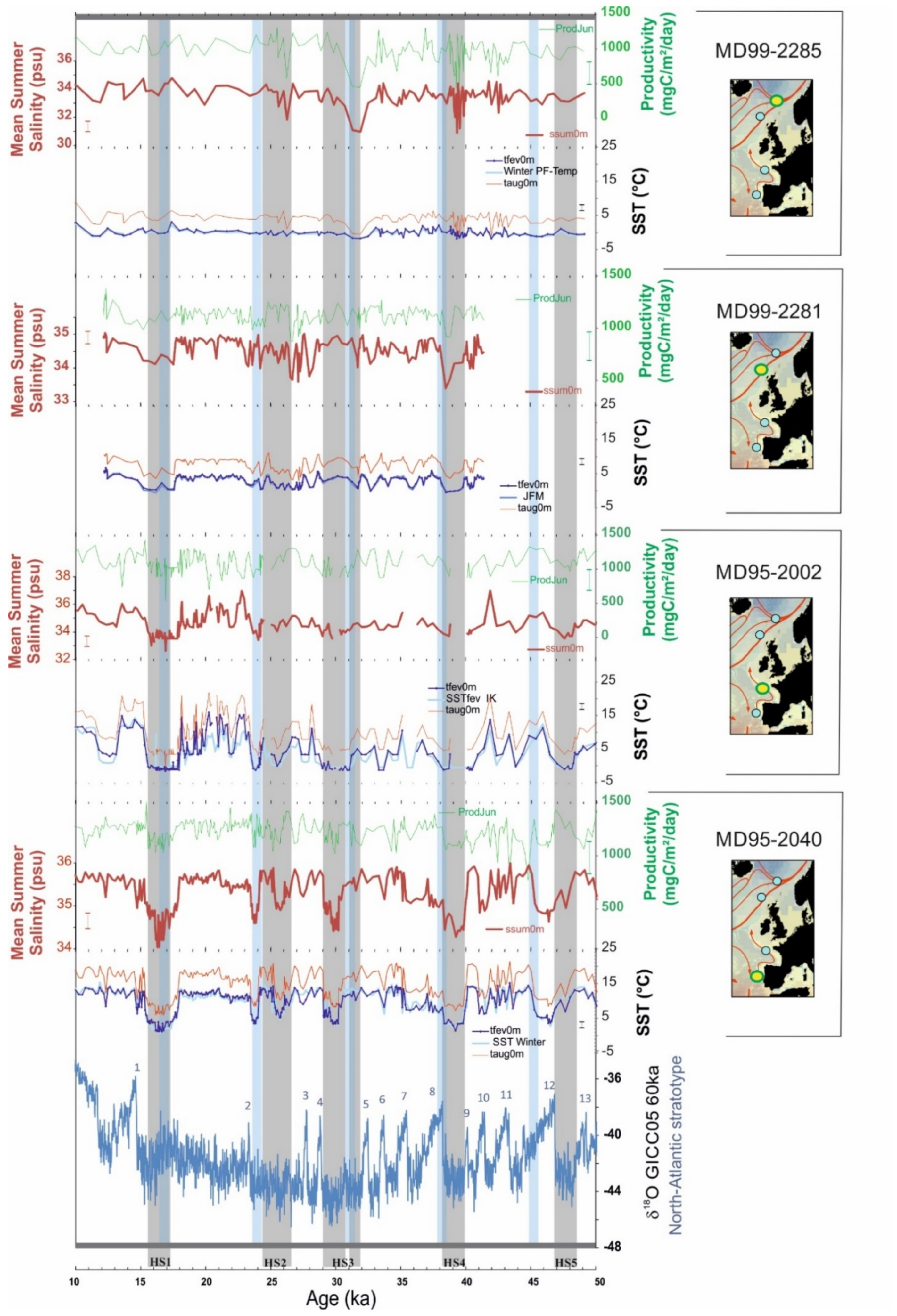

In this article, we focus on the study of specific newly reconstructed parameters which bring relevant constraints on sea-surface conditions during HEs, such as salinities, SIC, oxygenation and productivity. The objective is to test their significance in relation to existing knowledge about HE-induced changes in the North Atlantic Ocean. At this stage, the absolute values reconstructed thanks to the new database cannot be considered exact, as more tests are needed to infer the ecological patterns which relate PF populations to the newly extracted parameters, especially regarding correlations and inter-regulation among the different parameters. The fundamental laws at the basis of PF-based transfer function development indicate that, as with most of the marine species, PF distribution is accurately predicted exclusively by SSTs. Thus, SSTs have long been traditionally and routinely reconstructed with a high degree of confidence in Paleoceanography on the basis of PF assemblages. Yet, how ecological parameters relate to each other is a key question in the marine realm and no true independency exists in this environment characterized by the absence of perennial physical barriers. Consequently, our procedure was to first consider the SST results, as their reproducibility is a way to infer the strength of the method, irrespectively the implements accompanying any update of the database. This important validation step is illustrated in Figure 4, in which are compiled, for each of the selected cores, in the range 50–10 ka, the reconstructed SSTs at 0 m for August and February; for the latter, the plot of the most recent published data based on PF transfer functions is shown in the same graph, using the same scale (however, data are not always from the same database or the same method of calculations; see Table 1). This comparison shows that the reproducibility is optimal, despite minor methodological discrepancies, arguing for a very robust mathematical approach. The summer means of the reconstructed salinities (this season being, for the boreal hemisphere, the one subject to the largest melting events) and productivities in June, are also plotted in Figure 4. Here, the latitudinal reduction in the sensitivity of PF can be again observed, as shown by the flattening of the signals obtained when approaching subpolar latitudes (note that salinities and PP are not displayed with identical scales for each core). The compilation drawn in Figure 4 shows that the reconstructed parameters closely correspond the reference climate variability known for the last glaciation; HEs, stadials and interstadials are imprinted in the reconstructed signals. This underlines the potential of PF populations in tracking climate changes and the desirable performance of transfer functions (here, MAT) sensu lato in converting variations in species/assemblages into quantified hydrographical values (other than SSTs). Decreases of up to 10 °C in SSTs (similar for winter and summer means) were recorded along the Iberian margin and in the Bay of Biscay during HEs (HE1 and HE4 having recorded the largest amplitude shifts). Higher salinities corresponded to higher temperatures and vice versa, with low values always being recorded during HEs. Salinity drops by a minimum of 2 units can be seen in all records; these values are coherent with previously reconstructed ones along the European margin [22,62]. Interestingly, the reconstructed productivity values do not follow the same trends as SST and salinity ones do (which can be superposed with a few deviant excursions); this suggests that the parameter of productivity is independent from the other two and that it probably finds expression in groups of species that are different from the ones that are firstly regulated by SSTs. Such finding stands as an incentive for pursuing efforts towards the diversification of parameters to reconstruct on the basis of PF. If, as already mentioned, using the absolute values for PP is unrealistic at this stage, we can nonetheless remark that coherent low values are reached during HEs, in agreement with previous studies [60,61]. Once again, this is very encouraging for further investigations focusing on the PF significance in productivity changes.

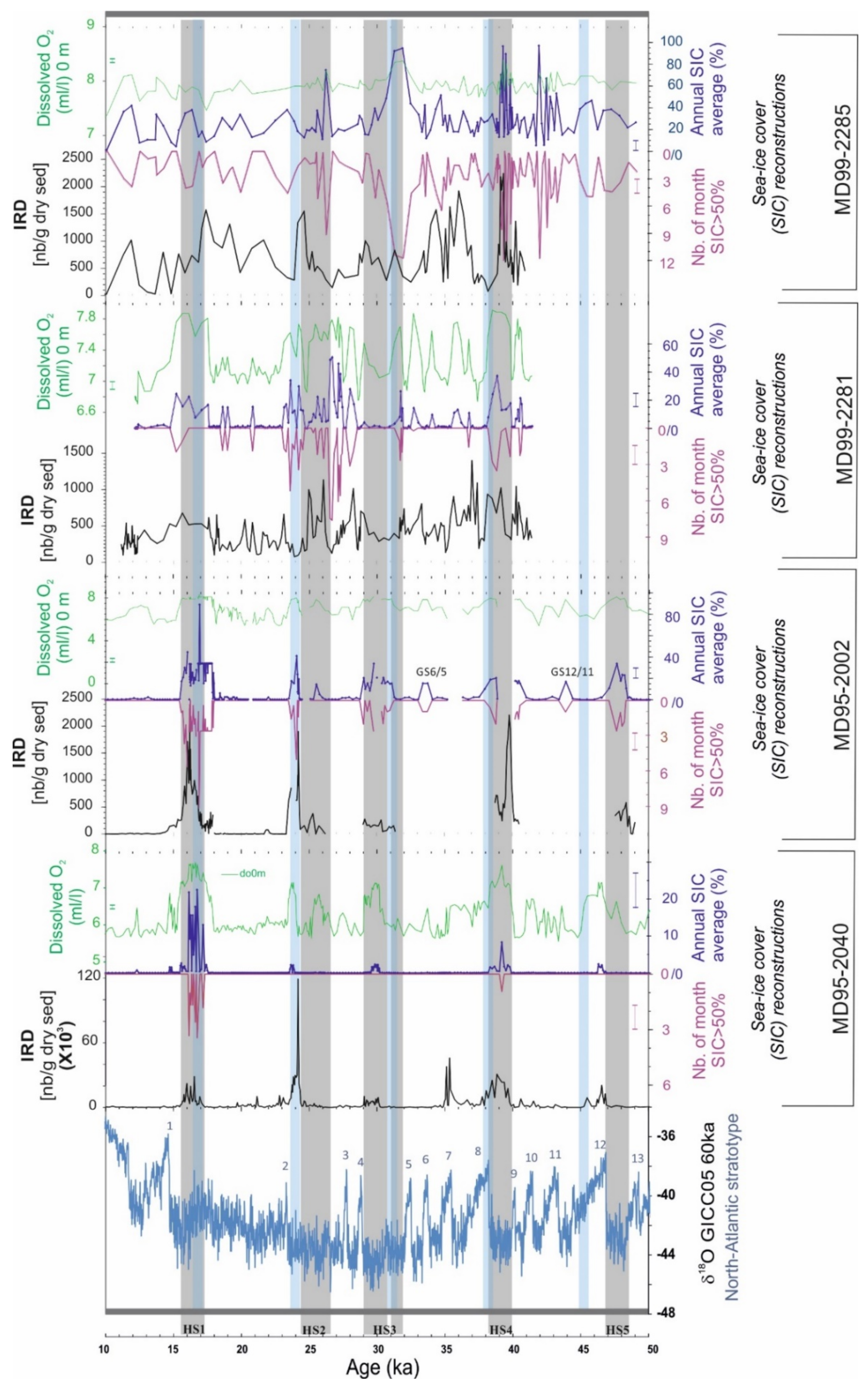

Figure 5 compiles original new reconstructions with a focus on indicators marking ice presence or dynamics in the past surface of the North Atlantic Ocean. Ice-rafted debris (IRD; i.e., large grains >150 µm) concentrations in the sediment obtained from previous publications (see Table 1; note that HE5 is not correctly dated in core MD95-2040, assigning a younger age to the IRD peak [32], which identifies its occurrence at this latitude) are here compared to the newly reconstructed do values and to SIC data (for concentration and duration, see Methods in Section 2). It is worth noting that reconstructed concentrations seem to point to a more sensitive response of PF, as additional events are identified using this parameter. The do values closely match DO climatic shifts, with cold events being systematically associated with higher oxygen contents, independent of the latitude. This could signify, as previously identified, low PP; however, it could also be due to a more dynamic surface ocean caused by iceberg drifting, together with the southward migration of major oceanic and climatic fronts.

In accordance with what is known of HEs, the maximum impact regarding (sea)-ice dynamics is recorded close to the sources of iceberg release (e.g., [13]). SIC variations are increasingly significant (reconstructed values largely above the RMSEP) and frequent when moving northwards. The subpolar basins of the North Atlantic Ocean recorded multiple events, in comparison to the Ocean temperate edge, where only extreme events are marked by the reconstructed parameters linked to ice occurrence. In fact, at 40° N, a SIC signal was recorded, but the reconstructed values are within the error bar of the reconstructions. The very discrete peaks identified at this latitude are strictly limited to HEs, but, interestingly, indices of ice presence derived from PF reconstructions and IRD deposits are not perfectly synchronous, except for HE1. Relative to the Iberian margin, the question about the hydrographical impact of icebergs during HEs remains unanswered; many authors believe that, if iceberg drifting occurred, their size and/or melting were not consequent enough to generate changes other than SST and salinity drops (e.g., [31,32,62,63]). The low values of the newly reconstructed SIC concentrations obtained with our approach do not permit to confirm whether sea-ice did, even episodically, develop during HEs, but its occurrence at this latitude merits to be questioned in future research.

There are no doubts on SIC developments during HEs when examining the northern Bay of Biscay, where durations of up to 3 months per year were recurrently recorded over the last 50 ka. Given this temperate record, HEs still appear as the most favorable circumscribed periods for SIC developments, although SIC occurrence is also seen for a limited number of stadials (two stadials between DO 12/11 and DO 6/5). The MD95-2002 record shows a complex structure of SIC developments within HEs, with no HE responding in the same way as the previous or following one. The largest SIC values were registered during moderate IRD peaks, with the largest recorded IRD amounts resulting in non-analogous situations within the newly tested database and, thus, in a lack of quantification. This result could be related to what was also detected in the two cores located further north. Though the SIC signal was less easily readable, as noise was introduced by shifts of similar amplitudes for HEs and stadials, here, again, the maximum SICs are not associated with maximum IRD releases. This is especially obvious for HE3 and HE2, with a larger SIC rather surrounding the core of HEs, where IRD pulses occurred. Such a situation is coherent with what is observed in the modern fjords of Greenland [64]; icebergs, even if calving from upstream glaciers, do not break out, as long as they are trapped in multiyear sea-ice (called sikussac by Dowdeswell et al., 2000 [64]), and their drifting, with IRD deposits, only occurs when the SIC is melting. This process was also simulated in the Weddell sea [65]. This can explain the apparent lack of synchronicity between IRD and SIC found in our results. Additionally, highly unsteady conditions, marked by a rupture of the thermocline and upwelling phenomena, also accompany large iceberg drifting [66,67], which may prevent SIC occurrence. Conversely, iceberg melting, by injecting freshwaters, may positively influence the formation of SIC [68]. Consequently, a direct relation between their presence and SIC is difficult to infer and requires the consideration of their latitudinal trajectories. During HEs, iceberg melting was predominant in the temperate belt (in what has been called the Ruddiman band [13,58]), but many complex feedbacks are associated with their surges and are far from being understood especially during the last glaciation [57]. This also includes considerations about the impact of iceberg melting on PP; if the low reconstructed values for this parameter, on the basis of our approach, are coherent with those in previous studies, this result shall be put in perspective with the recent work by Romero et al., 2021 [69], who assert that the melting of icebergs during past iceberg discharges along the Alaskan coasts contributed to the fertilization of the surface ocean layer.

As previously mentioned, oxygenation of surface water can bring some indices regarding the stability of the water column. The presence of do within the topmost layers of the ocean is a function of several main parameters, such as the ventilation of the water masses, itself a function of their degree of mixing and of the efficiency of their exchanges with the atmosphere (notably depending on SSTs), and, directly and indirectly, of PP. These parameters are highly variable in terms of latitudinal and geographical position (distance from the coast and, especially, from continental distributaries [70]). According to our reconstructions, PP was mostly low during HEs and do was high. This result itself logically satisfies the marine biological loop inference on O₂; low PP implies low carbon remineralization, therefore, little O₂ consumption. We must also consider that the parameters are ecologically related and that the transfer function cannot permit their deconvolution. While the inference of the physical structure might be regarded as risky, our results support this attempt. In fact, the reconstructed PP and do do not follow the exact same patterns within the tested records; sometimes, they are in antiphase (during HEs especially), while, at other times, they are not (see Supplementary Figure S1 for a detailed comparison). Thus, it confirms that they are reconstructed independently, probably thanks to the significantly different PF assemblages at the basis of the MAT calculation (neither the same species, nor the same associations of species). Therefore, a high do during HEs could also stand for a better ventilation of the surface water column. Mechanisms leading to a better ventilation of surface waters are numerous and partly recall those cited when treating the impact of icebergs. Among them (and not fully developed here) is the impact of wind. This parameter was recently investigated in coupled ice sheet–GCM Heinrich event simulations [71], showing that it could contribute to the persistence of HE cold conditions well after the peak of iceberg release. These authors demonstrated that changes in this parameter were related to cascading effects both implying the ocean, atmosphere and ice-sheet dynamics with, especially, the ice-sheet elevation decrease after the iceberg collapses, as a very important component of the climate system imprinted by HEs. Regarding our reconstructions, the detection of wind effects is still ambiguous, but this parameter could have acted by deepening the mixed layer, contributing to the increase in do and the decrease in SSTs. In the following sections, the comparison among proxies providing quantified parameters helps us to diagnose what is realistically inferable from our results.

4. Discussion: Is the Reconstruction of New Hydrographical Parameters with PF Progress?

The previously introduced discussion on the newly derived parameters from PF demonstrates their good coherency with the known paleoceanographical history of the North Atlantic Ocean during the last glaciation. The potential of these new quantifications as valuable and robust paleodata could be justified on this basis only, but we cannot elude one of the main problems which downplays the reliance of quantitative approaches in Paleoclimatology, i.e., the divergence in the response of paleoproxies. This is a problem frequently encountered when using multiple bioindicators or biomarkers on proximal (or even identical) marine cores (a striking example was published by Marchal et al., 2002 [72]); many reconstructions are derived from protist groups, having in common to be planktonic and fossilizable, but which show strong ecological and physiological discrepancies (in terms of size, nature of the test, food regime, etc.). Incongruences in the absolute reconstructed values of parameters are not unexpected but may prevent the building of a robust and comprehensive picture for selected time periods or areas. Conversely, comparing the results is a way to progress in the knowledge of the used proxies (see, for instance, [6] or Wary et al., 2015 [21] and their discussion on signals derived from PF published as a supplement). With this in mind, we took advantage of the published reconstructions derived from dinocyst assemblages on three of the four presented cores (MD95-2002, MD99-2281 and MD99-2285; see ref. in Table 1). The comparable reconstructed data for August SSTs (with the addition of SSTs at 50 m newly obtained from PF) and SIC duration are plotted in Figure 6, with the same scales. We can observe that large differences were recorded between the two generated sets (i.e., those derived from PF versus those derived from dinocysts) for SSTs. Though SIC data reveal fluctuations apparently similar in amplitude, the detected events are not always synchronous.

PF-derived SSTs recorded a notable decrease in August during HEs and stadials, even in the northern core, where fluctuations were moderate (scale effect on Figure 6 cumulated to the already discussed artefact of subpolar environments). It is important to note that these decreases were not observed during the whole duration of the events, but rather at their onset or termination. Dinocyst-derived SST patterns present few similarities and only very limited portions of time show evolutions (warmings/coolings) in the same way. Opposite trends were detected with dinocysts, especially in core MD99-2281 which is located at the entrance of the Nordic basins. SIC reconstructions depict much more coherency, but PF seem to fail to detect some events, or their detection appears delayed in time. This delay is physically not realistic and rather indicates differences and incongruities in the sensitivity of the two proxies.

The striking discrepancies seen for SSTs are amplified in the northern cores, with systematic overestimations obtained with dinocysts, with the reconstructed values being significantly above the modern summer ones. This pattern was also registered during HEs in the northern Bay of Biscay, suggesting that specific environmental conditions, related to the coldest contexts, may generate strong divergences in the sensitivity ranges of the two groups. As previously discussed in references where dinocyst data were published (see Table 1), this can be partly explained by their ecological affinities, which can be seen as antagonist when dealing with an organic phytoplanktonic group, i.e., dinocysts, versus a calcareous one, i.e., foraminifera, with the latter grazing on diverse substrates and inhabiting a large depth interval within the water column. As seen in Figure 4, low sea-surface salinities were recorded between 50 and 10 ka, conditions that PF, known to form stenohaline populations, rather avoid (even if the dominant species, NP, tolerates low values [9]). Regarding the mechanisms ruling the water column structure during the last glaciation and especially HEs or stadials, a segregation in space, mainly depth, and time, mainly the season of growth, can be the reason behind the detected discrepancies. Thus, which group has better recorded past events? It is impossible to speculate, given the current limited knowledge available, but incoherencies have to be taken into account when interpreting paleoceanographical and paleoclimatological changes. For the two populations here compared, stratification is probably one of the key parameters; however, the whole set of hydrographical parameters, biological and physical, has to be considered and questioned. Interpretations are further complicated by the fact that none of the parameters are independent. Therefore, additional new reconstructions, such as those we propose with this article, are useful, as they enlarge the set of variables to be tested. It could be argued that this introduces more instability to the debate; on the contrary, we claim that it raises important fundamental questions and new ways for researchers to better monitor past environments.

The array of nowadays existing proxies that can help progress in this direction is large; many developments have occurred in the last decade, especially with geochemistry, but for both “old” and “new” proxies, calibrations are imperfect. Their potential (and their limitations) is not equal, but, rather, variable between an oceanic sector and another. Future studies need to compile the greatest amount of information possible; to question a set of proofs is more desirable than to retain the easiest one to interpret or the latest one developed. PF can be considered to be a historical tool in paleoceanography, an advantage on which the rationality of this article was based. This work also shows that we can further explore their use for past quantifications, bearing in mind that their ecological distribution is still quite imperfectly modelled (transfer functions can be seen as ecological models).

5. Conclusions

This work was conducted in order to provide and test the relevance and reliability of new hydrographical reconstructions obtained on the basis of PF using the modern analog technique approach. By enriching the set of quantified paleodata derived from PF, we demonstrate that SSTs are not the only parameter that can be robustly reconstructed and investigate the potential of PF to also capture other ecological parameters, similar to those already obtained from other proxies (productivity, salinity and sea-ice cover from diatoms or dinocyst, for instance). Despite known weaknesses regarding the understanding of the modern physiology and ecology of PF, our results argue for a real interest to widen the set of possible reconstructions on their basis. The produced data are consistent with the paleoclimatic history and the paleoceanographical context of the North Atlantic Ocean between 50 and 10 ka. Limitations emerged when we confronted the quantified results to other results obtained from the study of dinocysts, but discrepancies have already been pointed out in many published references using both proxies, such as it is often the case with any multiproxy approach. Testing new parameters is also a way to better understand what lies at the basis of PF distribution, in the past and now. PF have long been considered as powerful paleotools, but, in a way, studies of their assemblages in marine sediments are also considered to be old-fashioned. Our study shows that we can delve further into the exploitation of their census counts. The databases used for transfer functions (sensu lato) are the first step towards a macroecological perspective, which still often lacks in studies relying on PF. Recent fossil assemblages picture the living ones incompletely, but the signal trapped within them is the only one that is comparable to the one found archived deeper in the sedimentary column. Further work is clearly needed to relate or, conversely, deconvolute the parameters at play for the distribution of PF populations: this is crucial to (re)give this tool all the consideration it deserves in the paleoclimatology community now enlarged by many non-geologists.
