Geochemistry of Sub-Depositional Environments in Estuarine Sediments: Development of an Approach to Predict Palaeo-Environments from Holocene Cores

Abstract

In the quest to use modern analogues to understand clay mineral distribution patterns to better predict clay mineral occurrence in ancient and deeply buried sandstones, it has been necessary to define palaeo sub-environments from cores through modern sediment successions. Holocene cores from Ravenglass in the NW of England, United Kingdom, contained metre-thick successions of massive sand that could not be unequivocally interpreted in terms of palaeo sub-environments using conventional descriptive logging facies analysis. We have therefore explored the use of geochemical data from portable X-ray fluorescence analyses, from whole-sediment samples, to develop a tool to uniquely define the palaeo sub-environment based on geochemical data. This work was carried out through mapping and defining sub-depositional environments in the Ravenglass Estuary and collecting 497 surface samples for analysis. Using R statistical software, we produced a classification tree based on surface geochemical data from Ravenglass that can take compositional data for any sediment sample from the core or the surface and define the sub-depositional environment. The classification tree allowed us to geochemically define ten out of eleven of the sub-depositional environments from the Ravenglass Estuary surface sediments. We applied the classification tree to a core drilled through the Holocene succession at Ravenglass, which allowed us to identify the dominant paleo sub-depositional environments. A texturally featureless (massive) metre-thick succession, that had defied interpretation based on core description, was successfully related to a palaeo sub-depositional environment using the geochemical classification approach. Calibrated geochemical classification models may prove to be widely applicable to the interpretation of sub-depositional environments from other marginal marine environments and even from ancient and deeply buried estuarine sandstones.

1. Introduction

Reservoir quality studies in the petroleum industry have led to improved production strategies for oil and gas fields [1]. The improvement in production due to reservoir quality studies has been enabled through advances in downhole logging (e.g., NMR), laboratory analysis (e.g., SEM-EDS), and forward modelling (e.g., diagenetic modelling) [2]. Sedimentary facies analysis should be employed in reservoir quality studies [3,4], because the primary characteristics of sediment typically influence the way sediment fabric and mineralogy change during diagenesis [5]. Sedimentary facies are distinguishable units of sedimentary deposits, each with a unique set of characteristics developed during a specific mode of sediment transport and deposition [6]. The environment of deposition of clastic sediment has a profound impact on sediment characteristics, because it influences grain size, sorting, degree of bioturbation, clay infiltration, water composition, in situ mineral processes, and water flux [2].

Dalrymple and Choi [7] suggested that estuarine sediments are uniquely complex because of the interplay of a wide variety of processes that give rise to a suite of specific depositional environments. Reservoir quality prediction in ancient estuarine and mixed fluvial–marine clastic sediments therefore presents a challenge [8]. These problems are compounded by the presence of multiple sediment sources (variable hinterland geology as well as sediment sourced from the sea), the spatial and temporal variability in sediment transport related to the interaction of tidal and riverine processes, and the susceptibility of these environments to evolve as a result of relative sea-level change [7]. We advocate that, given the complexity of ancient estuarine and mixed fluvial–marine environments, a multi-disciplinary and quantitative approach is required to generate robust interpretations. Geochemical approaches offer a practical way to effectively characterise and interpret estuarine and mixed fluvial–marine sediments, which may be linked to reservoir quality analysis of ancient and deeply buried strata because sediment geochemistry influences the mineral processes during diagenetic transformations [9].

Estuaries are strongly influenced by the fluvial and marine processes that together control mineral and elemental distribution patterns [10]. Estuaries tend to act as sinks for elements such as Fe and Mn due to flocculation, a process by which colloidal particles come out of suspension to sediment under the form of flocs, or flakes, due to a change of water composition [11]. Accumulated flocs that are rich in Fe and Mn can be flushed out of the estuary during storm events [12] and during longer-term episodes of relative sea-level fall [13,14,15,16]. In the United Kingdom, the site of the current study, modern estuaries tend to act as sinks rather than sources for elements such as Fe and Mn because tidal and flocculation processes limit river output to the ocean [17].

Although the bulk geochemistry of primary sediment is considered to control the mineralogical architecture of petroleum reservoirs [18], our knowledge of the abundance and concentration of rock-forming elements (i.e., the elements that comprise rock-forming minerals) in surface sediments is limited [19]. Geochemical analysis of sediments can unlock some of the challenges in basin analysis, for example the interpretation of sediment provenance and differentiation of specific depositional environment [20].

Unlike rocks that are at, or close to, equilibrium, such as most metamorphic rocks [21], clastic sediments are typically distant from thermodynamic equilibrium. Clastic sediments can have a large number of discrete mineral phases [2] that far exceeds that expected by the phase rule. A consequence of this is that a given element can be associated with numerous minerals (or phases) in a clastic sedimentary system. The composition of surface sediment is controlled by a number of factors including the geology of the hinterland, climatic conditions, the vigour and distance of sediment transport, and redox conditions at the site of deposition [22].

There is a broad relationship between clastic sediment grain size and its geochemical composition [23,24] because phases in fine-grained sediment fractions, i.e., clay minerals, hydroxides and sesqui-hydroxides, tend to concentrate elements such as Al, Mn and Fe. In contrast, coarse-grained fractions tend to enrich Si and elements such Zr and Ti, which are concentrated in heavy minerals [10]. In the field of sedimentology, the application of grain size distribution to determine sedimentary environment, is well established [25,26]. In this study, we have attempted to discriminate estuary sub-depositional environments using geochemical signatures derived by portable X-ray fluorescence spectrometry (pXRF).

The use of pXRF spectrometers in exploration and environmental geochemistry has developed significantly over the last decade owing to its ease of use, speed of analysis and an acceptable level of precision for sedimentary rocks [27,28,29] and soils [30,31,32]. pXRF spectrometers have been applied successfully in surface sediment characterisation [33]. Recent developments have allowed pXRF to be used for the analysis of up to 42 major, minor and trace elements [34]. The detection limits of pXRF are commonly sufficient for many geochemical analyses. pXRF can detect element concentrations ranging from high percentages down to a few parts per million; this allows monitoring of many elements in sediment [35]. However, pXRF suffers from low sensitivity for some elements, e.g., magnesium has a high detection limit (typically >1000 ppm) [36].

Portable XRF has been used for a wide range of geochemical applications such as lithogeochemical exploration [37], mineral abundance studies during studies of oil field core [38], studies of mineral enrichment in ores [39], geological reconnaissance and mapping [40], assessment of metal distribution in modern sediments [41], geochemical characterisation and provenance determination of sediments [42], and linking mineralogy to elemental distribution [43,44]. We here introduce a novel approach for sedimentary sub-environment classification and prediction using pXRF data from the Ravenglass Estuary in NW England. This is an area previously studied as a modern analogue for ancient estuarine and mixed fluvial–marine sediments [45,46,47,48,49,50,51,52]. The Ravenglass Estuary offers a wide range of estuarine sub-depositional environments that are relatively pristine and easily accessible. The main aims of this study were to understand surface sediment geochemistry across the Ravenglass Estuary sub-depositional environments, assess compositional differences between sediments from sub-depositional environments, develop a geochemical method to classify sub-depositional environments and use the classification to predict sub-depositional environments from core samples. This new approach to the classification of sub-depositional environments has been applied to a core drilled into the Holocene succession in the Ravenglass Estuary to reveal palaeo-sub-depositional environments.

This study addressed the following research questions:

• What elements are dominant within the surface sediment in the Ravenglass Estuary?
• What controls elemental abundance and distribution patterns at Ravenglass?
• Do specific estuarine sub-depositional environments have characteristic element concentrations?
• Can surface pXRF data be used to discriminate subsurface estuarine sub-depositional environments?

2. Study Area: The Ravenglass Estuary

The Ravenglass Estuary is situated on the west coast of Cumbria in northwest England, UK and covers an area of approximately 5.6 km² (Figure 1). The estuary is macro-tidal with a maximum recorded tidal range of ~7.55 m; up to approximately 86% of the area of the estuary is exposed at low tide [45,46,47,48,49,53,54]. The estuary extends eastwards up to the tidal reaches of the Rivers Mite, Irt and Esk and is connected to the Irish Sea through a single tidal inlet, 500 m in width, that flows between two, dune-topped coastal spits (Drigg and Eskmeals spits). The coastal spits shelter the estuary from wave-action, but the estuary has strong tidal currents as result of the macro-tidal regime. The Rivers Mite, Irt and Esk have average flow rates of 0.4, 3.4, and 4.2 m³s⁻¹, respectively [54]. Kelly, Emptage [55] classified the estuary as tide- and wave-dominated and ‘dual-funnelled’ and described the shallow bathymetry which causes frictional effects and promotes strong tidal-asymmetry, with a longer outward ebb tidal-flow than inward flood tidal-flow. The impact of anthropogenic activities on the Ravenglass Estuary is relatively low because the surrounding environment is sparsely populated. However, the construction of the Esk and Mite railway bridges in 1868 led to expansion of salt marsh due to added localised sheltering from tidal currents [56].

The inner estuary contains brackish water and has moderate fluvial influences from the Rivers Irt, and Esk (Figure 1 and Figure 2). The central part of the estuary, containing Saltcoats tidal flat, has mixed energy (fluvial, tide and wave-influenced) with near-seawater salinity (Figure 1 and Figure 2). The outer estuary is dominated by seawater with wave and/or tidal currents; this covers the main tidal channel, estuary mouth and the foreshore (Figure 1 and Figure 2).

Sedimentary deposits are fed into the estuary via the Rivers Mite, Irt and Esk. The sediments drain from a range of different bedrock types and Quaternary drift-deposits. The hinterland geology is comprised of Ordovician Borrowdale Volcanic Group (BVG), Devonian Eskdale Granite and Cambrian Skiddaw Group slate; a small area of Triassic Sherwood Sandstone Group, at the west of the drainage area, is largely covered by drift. Quaternary drift-deposits are dominated by glacial diamicton, peat, and glacial-fluvial-lacustrine deposits [47,48,49,57]. Eskdale Granite-sourced sediment was transported into the estuary via the River Esk, while BVG andesite-sourced sediment was transported into the estuary via the River Irt [47,48,49,50]. The post-glacial, Holocene, record represents approximately 10,000 years of deposition [58]. The estuary has been extensively studied in terms of sedimentary systems and processes, detrital clay mineralogy and distribution, detrital clay coat origin, mineralogy and distribution [45,46,47,48,49,50,51] and so represents an ideal field site to answer the research questions set out in the introduction.

3. Samples and Methods

3.1. Field-Based Mapping and Samples Collection

Based on geomorphological mapping criteria, together with the use of aerial imagery and grain size analysis, we have mapped eleven sub-depositional environments across the estuary (Figure 2). The sub-depositional environments are gravel beds, vegetated surfaces, barrier spits, tidal flats (sub-divided into mud flat, mixed flat and sand flat), tidal bars, tidal inlet, backshore, foreshore, ebb-tidal delta (Figure 2). The subdivision of tidal flats was based laboratory-derived sand percentages, modified from a scheme initially proposed by Brockamp and Zuther [59], where: 90–100% sand is sand flat, 50–90% sand is mixed flat, and 15–50% sand is mud flat.

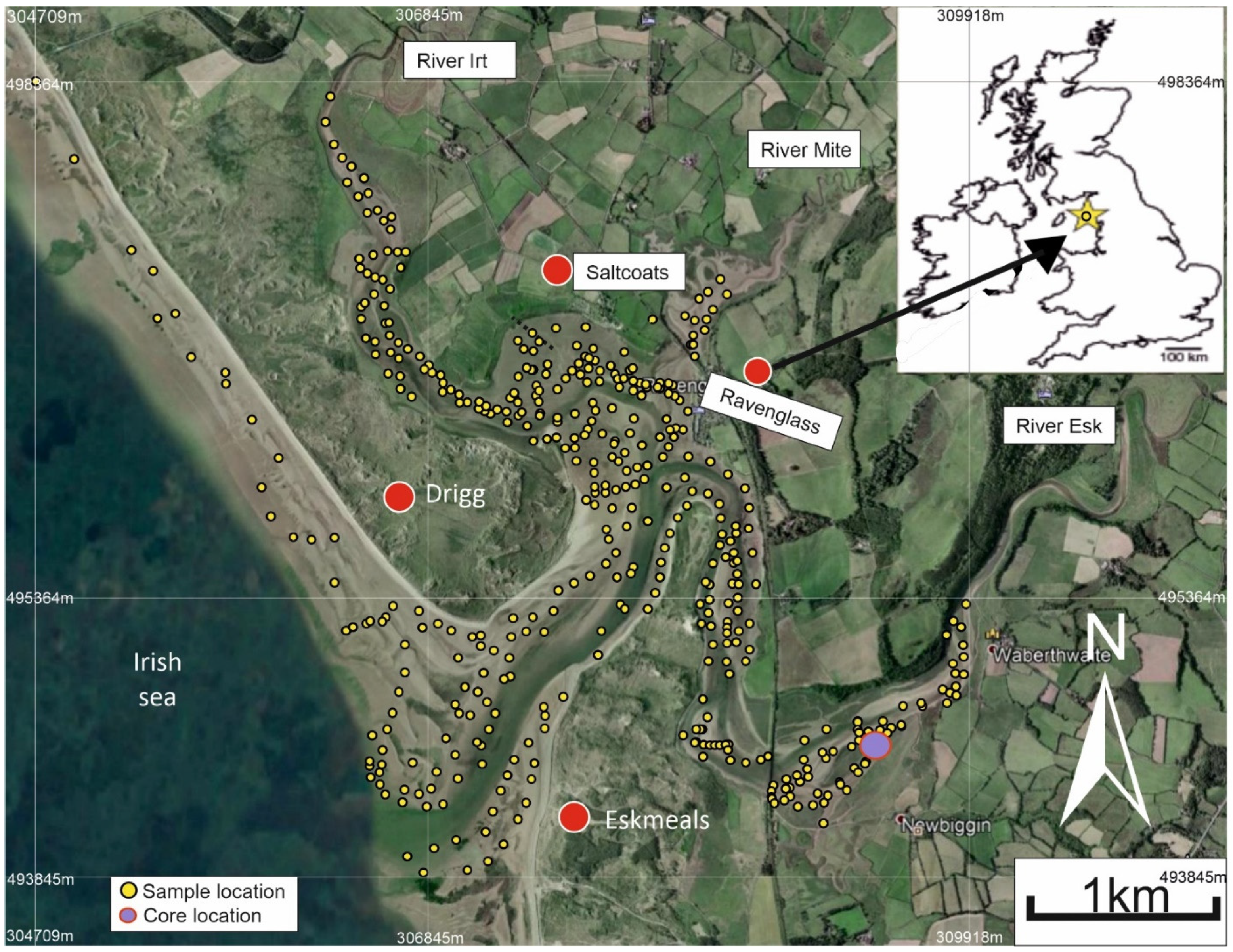

We sampled surface sediment (from <2 cm below the surface) from 497 sites covering the entire estuary and the coastal portion of the system (Figure 1). Sediment samples were placed in airtight plastic bags in the field and dried in the laboratory prior to geochemical pXRF analysis.

3.2. Grain Size Analysis

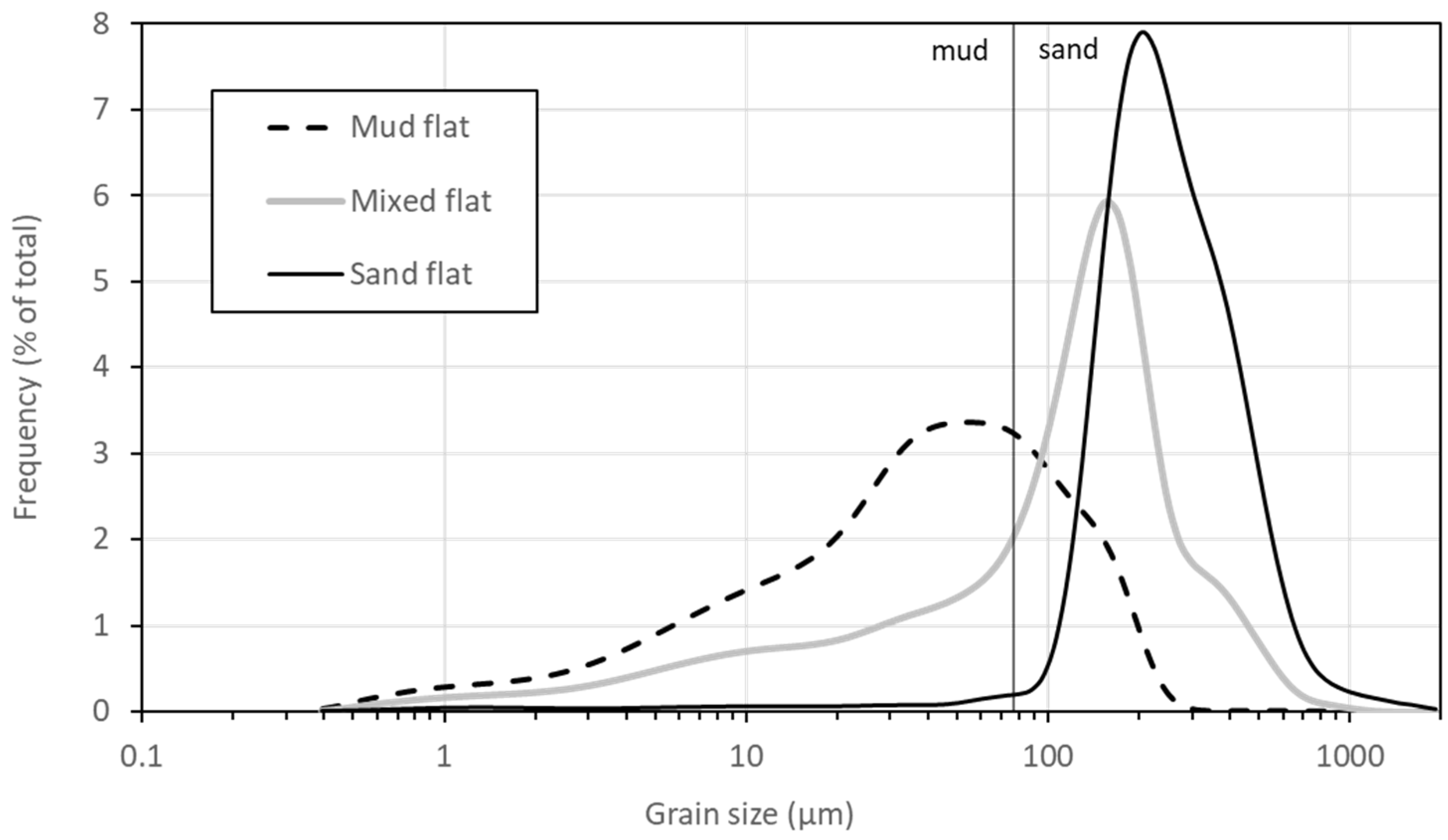

Grain size analysis was undertaken solely to differentiate the sediments of the tidal flats into mud-, mixed- and sand-flat sub-depositional environments. Grains <2 mm were separated from the sample using a sieve and then this fraction was analysed for grain size distribution using laser particle size analysis (LPSA) with a Beckman Coulter LS13 320 Counter. Organic matter was removed using established laboratory procedures for sample digestion [50]. A small amount of Calgon was added to convert the dried sediment into a paste for mixing and homogenisation, prior to analysis [52]. The LPSA data were analysed using GRADISTAT^© to define grain size parameters of the sediment.

3.3. Multi-Element Analyses Using Handheld Niton +XL3t GOLDD pXRF Spectrometer

All sediment samples from Ravenglass were analysed using a handheld Thermo Scientific Niton +XL3t GOLDD XRF spectrometer (pXRF) to measure the abundance of major, minor and trace elements. The pXRF equipment is a self-contained, energy dispersive XRF spectrometer with a variable intensity energy source (6–50 kV, 0–200 μA) Ag anode X-ray tube. It is equipped with a factory-calibrated, GOLDD (Geometrically Optimised Large area Drift Detector) detection system, optimised by the manufacturer for low detection limits, and high-precision measurements of more than 40 elements. Sediment samples were prepared by air drying whole-sediment samples in a 50 mm Petri dishes which was then placed 2 mm from the pXRF detector. Problems of horizontal and vertical heterogeneity of the sample, variable moisture and surface roughness, associated with core-based, “point and shoot” pXRF studies [30,60,61,62] have here been avoided [63].

Despite concentrations for 40 elements being reported by the pXRF, only 12 elements were present in all samples. These elements are Al, Si, K, Ca, Ti, Fe, Mn, Rb, Sr, Zr, Ba and Cs. Other elements were variably present at concentrations above the element-specific detection limit, but these elements, with values below detection in some samples, could not easily be incorporated into any scheme to interrogate the relationship between composition and the sub-depositional environment.

The reported limit of detections of the instrument for Al, K, Ca, Ti, Fe, Mn, Rb, Sr, Zr, Ba and Cs are listed in

Table 1. Factory reported detection limit for some key elements plus mean and standard deviations of one sample analysed 30 times to assess credibility of reported concentration data.

Element	Reported Detection Limit (ppm)	Mean of 30 Repeat Analyses from One Sample (ppm)	Standard Deviation of 30 Repeat Analyses from One Sample (ppm)
Al	2000	64,099	1685
K	250	18,234	145
Ca	70	2610	46
Ti	6	2477	92
Fe	25	11,837	90
Mn	30	172	19
Rb	6	70	1
Sr	8	73	2
Zr	3	352	3
Ba	50	487	18
Cs	12	85	4

. The instrument’s high precision and accuracy was validated by replicating the pXRF analysis, on a single sample 30 times; the average and standard deviation of Al, K, Ca, Ti, Fe, Mn, Rb, Sr, Zr, Ba and Cs are listed in Table 1. Each analysis was conducted, for 150 s, in “Test All GEO” mode; this combines mining and soil modes which thus permits the determination of major and trace elements. The optimum analysis time of 150 s was selected by repeating analysis of one sample for different replicate durations in order to identify when there was no significant improvement in the reported uncertainty.

3.4. Spatial Mapping

Spatial distribution maps of elements and element indices were generated using ArcGIS software, via an inverse distance weighted (IDW) interpolation function. The IDW approach has lower mean prediction errors and higher correlations between predicted and measured values than other mapping tools [64]. IDW was also selected to avoid the automatic generation of physically-meaningless negative concentrations, such as are produced by spline-based interpolation methods, and to avoid the formation of valleys or ridges [65]. A polyline in ArcGIS was drawn down the long axes of the Drigg and Eskmeals spits, to separate the marine data from estuarine data when performing the interpolations [48].

3.5. Statistical Multivariate Analysis

Multivariate statistical techniques are powerful tools commonly used to investigate variability in large datasets [66,67,68,69]. Although we will display concentration maps of elements, there is a risk that all we will display is greater or smaller amounts of element dilution by SiO₂ due to variable quantities of the dominant mineral, quartz. To evaluate the more meaningful relative abundance of elements, we have calculated a range of indices (e.g., X/(X+Y)) and mapped these values. We choose not to use ratios as they vary from infinitely large to infinitely small and multi-order of magnitude ranges are difficult to map and present problems for machine learning approaches. We have avoided indices of elements that are strongly autocorrelated due to their geochemical similarity (e.g., K and Rb; Ca and Sr; Fe and Mn). We produced a correlogram (available on request) using R statistical software to identify the presence of strong element correlations (e.g., K and Rb) and to identify elements that have the greatest non-correlation and so reveal most about the geochemical variability of the estuary. The indices we have employed are: K/(K + Si), K/(K + Al), K/(K + Ca), K/(K + Ti), K/(K + Mn), K/(K + Sr), Sr/(Sr + Rb), Ca/(Ca + Fe), and Mn/(Mn + Sr); maps and boxplots of these indices will be presented. These elemental indices were selected as they were the ones that subsequent machine learning (recursive partitioning) employed to differentiate sub-depositional environments (see later text in Section 5.5). However, we have also mapped the spatial distributions of Fe/(Fe+Ti), K/K + Fe) and Al/(Al + Fe), because Fe is of relevance to the understanding of Fe-clay minerals in the estuary.

3.6. ANOVA and Tukey’s Post Hoc Test

Analysis of variance (ANOVA) tests were used in R statistical software [70], to investigate the statistical significance of geochemical differences between various pairs of sub-depositional environments. Following ANOVA, Tukey’s post hoc honestly significant difference (HSD) test was then employed, using R statistical software [70], to determine which individual depositional environments were statistically different from one another as a function of elemental indices. The difference between each pair, for each elemental index, is defined as being significant if the “p” value is less than 0.05 [70,71].

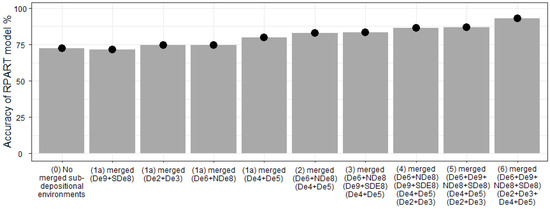

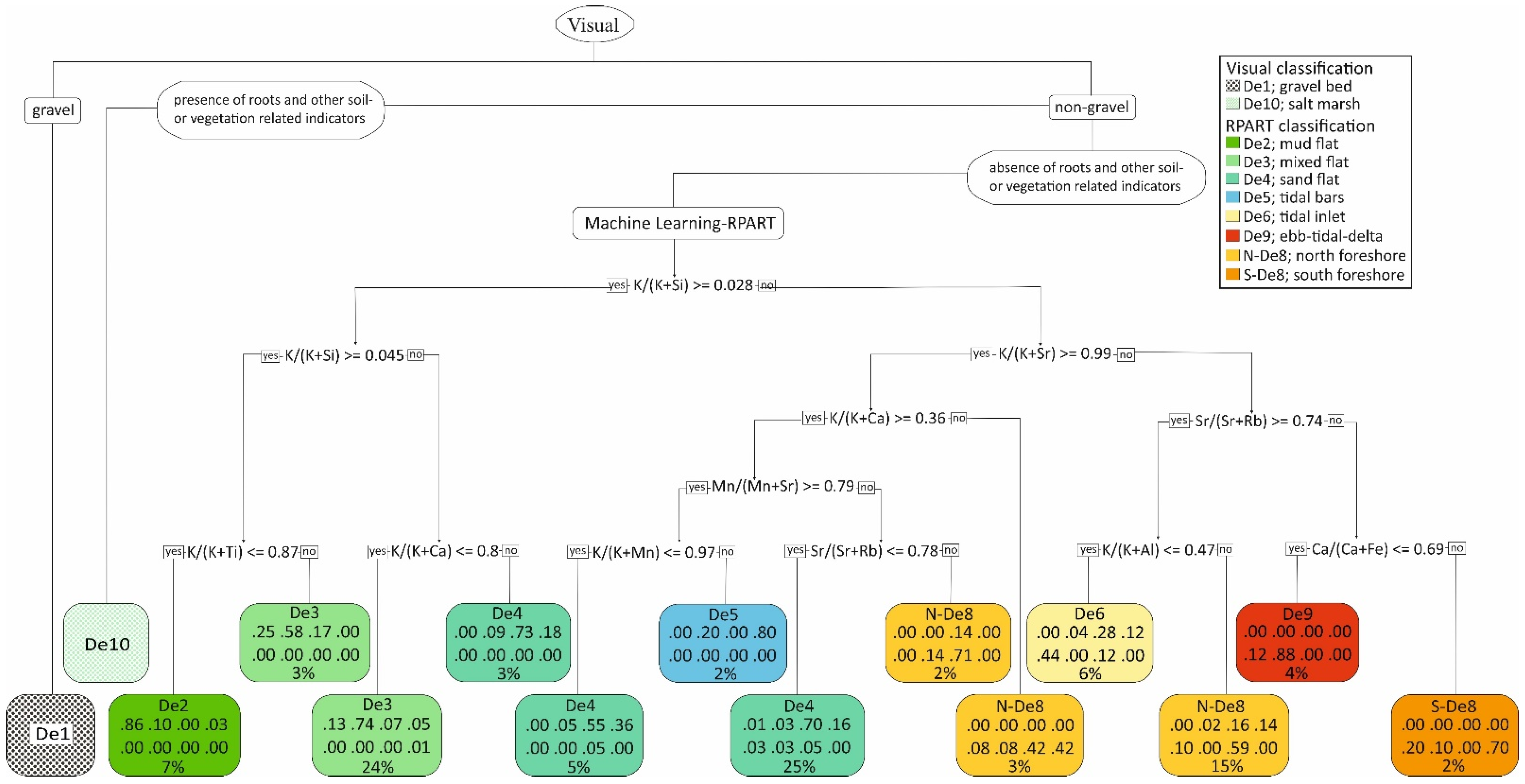

3.7. Boxplots and Classification Trees

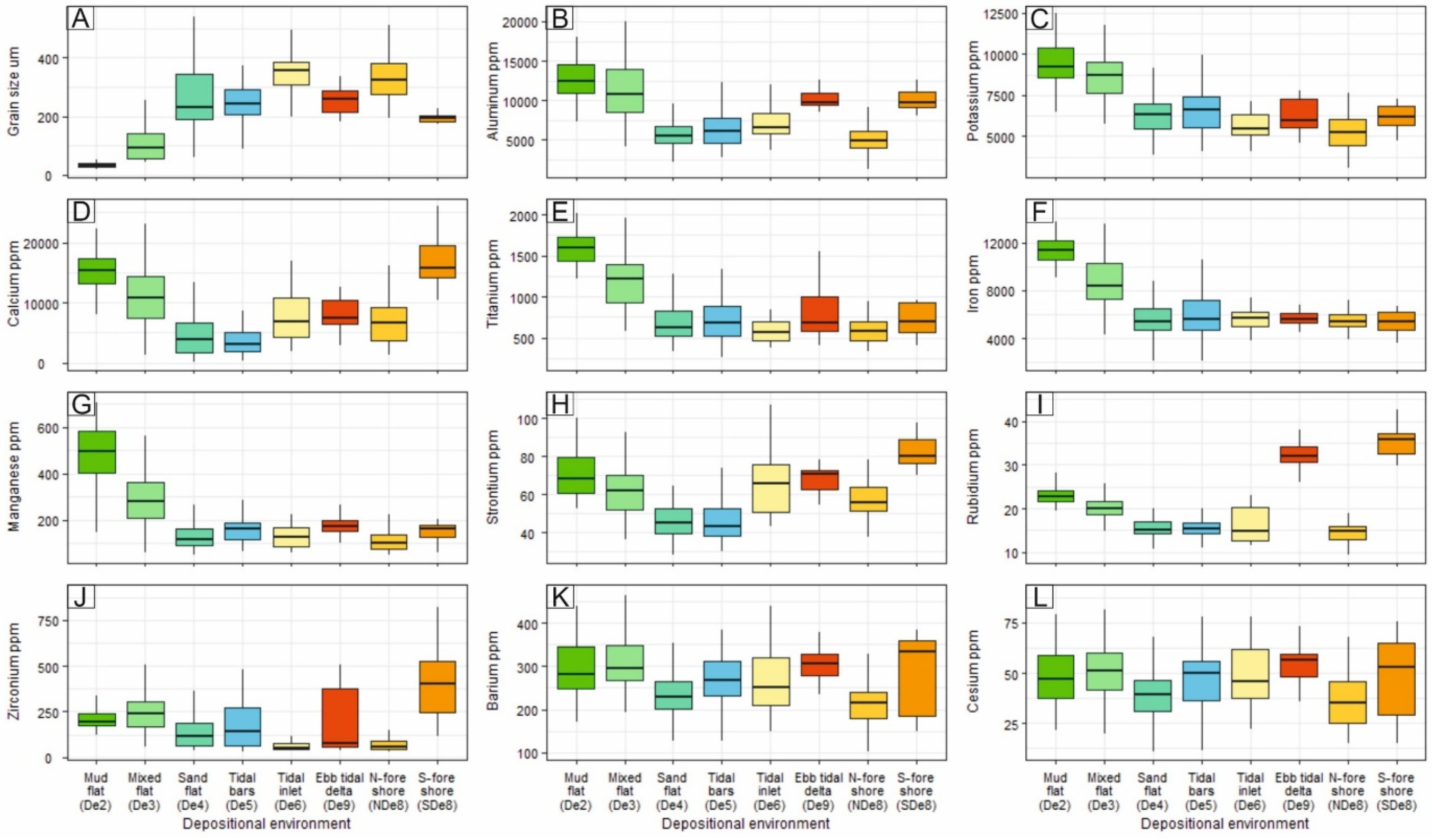

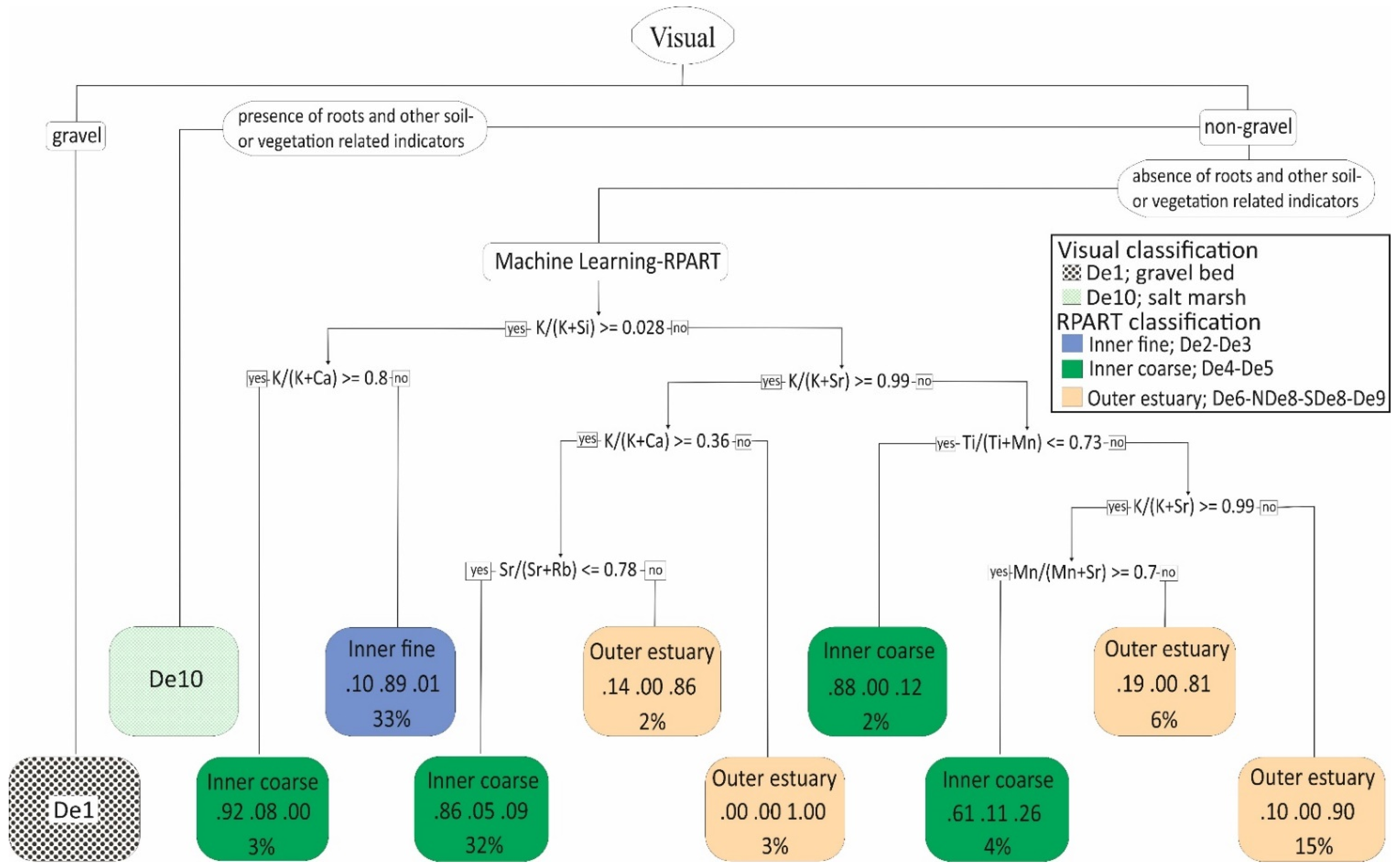

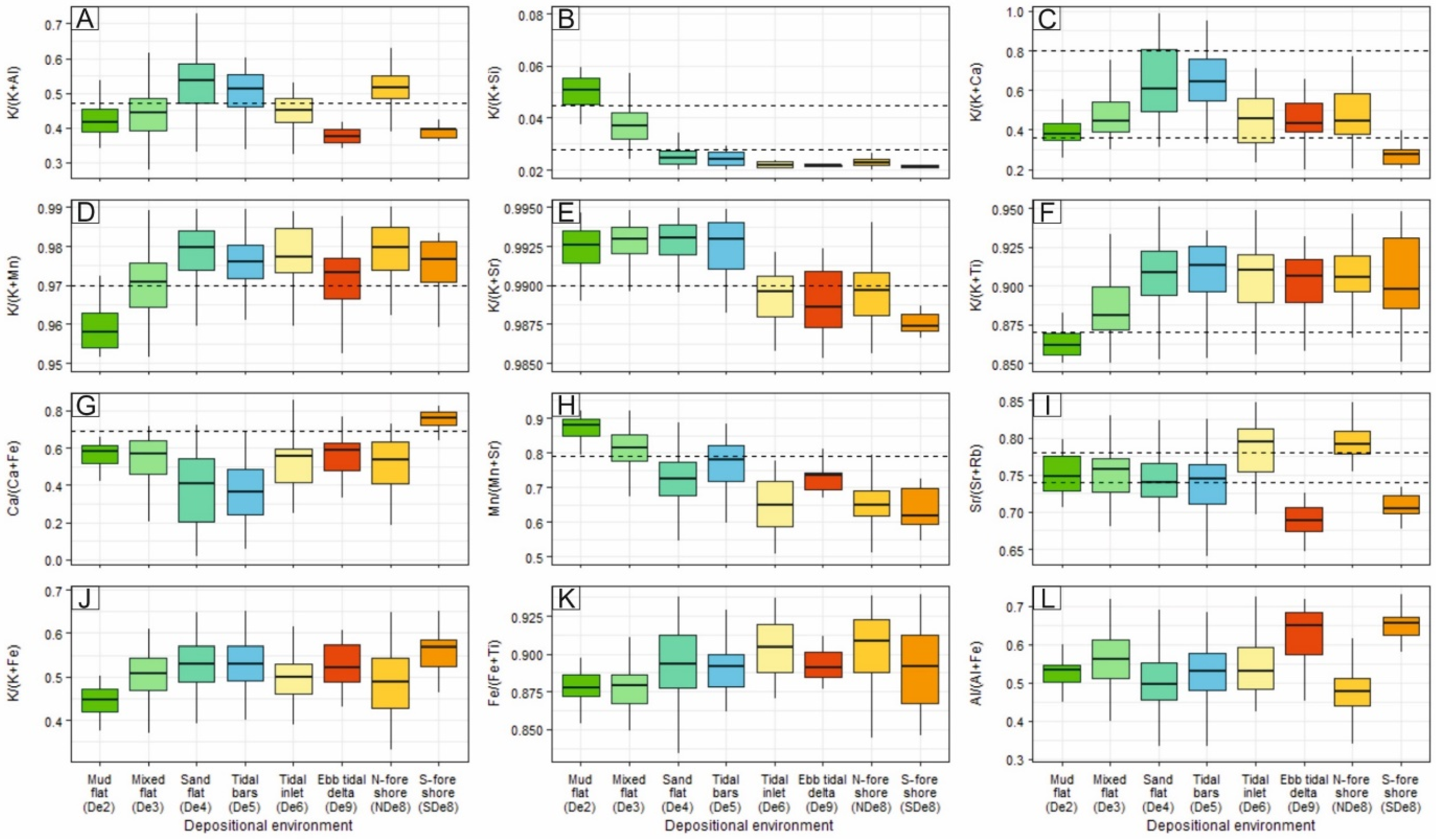

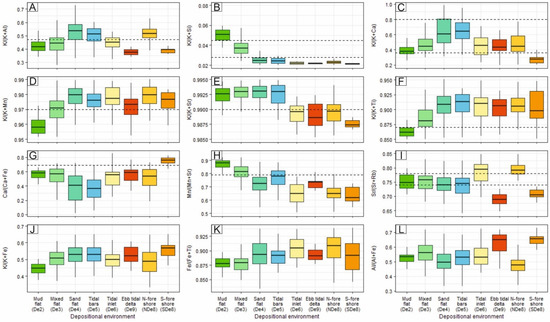

Univariate analysis of geochemical indices, split by the sub-depositional environment, was undertaken using boxplots produced using ggplot2 in RStudio [72]. The Recursive Partitioning and Regression Tree (RPART) package [73], available in R statistical software [70], was used to classify the sub-depositional environments (categorical data) using sediment geochemical signatures (continuous data). The RPART routine allows the development of a classification tree by using one or more variable (in this case, elemental indices) to find the optimum splits of the dataset, into different categories (e.g., sub-depositional environment) [52].

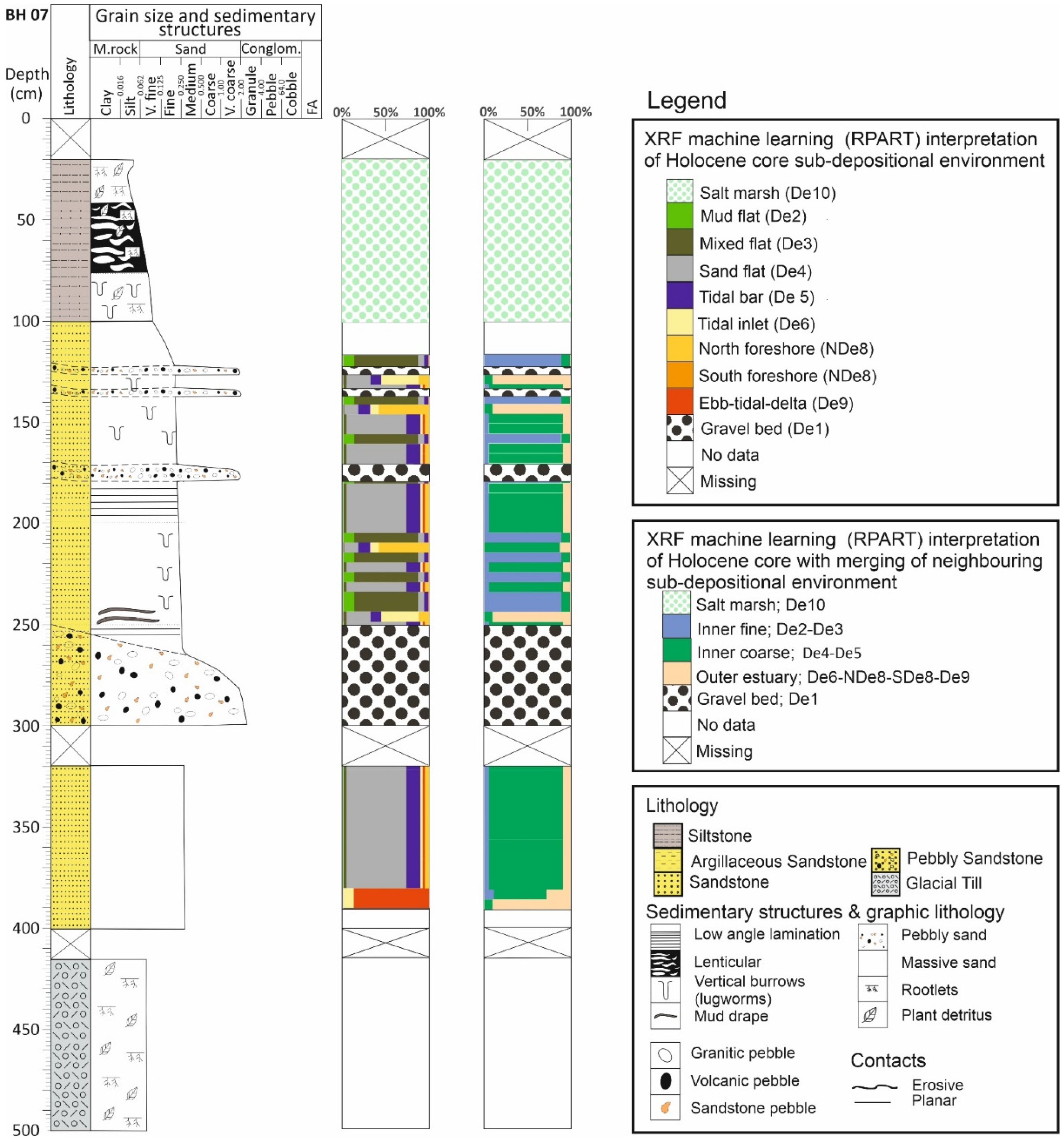

3.8. Holocene Cores

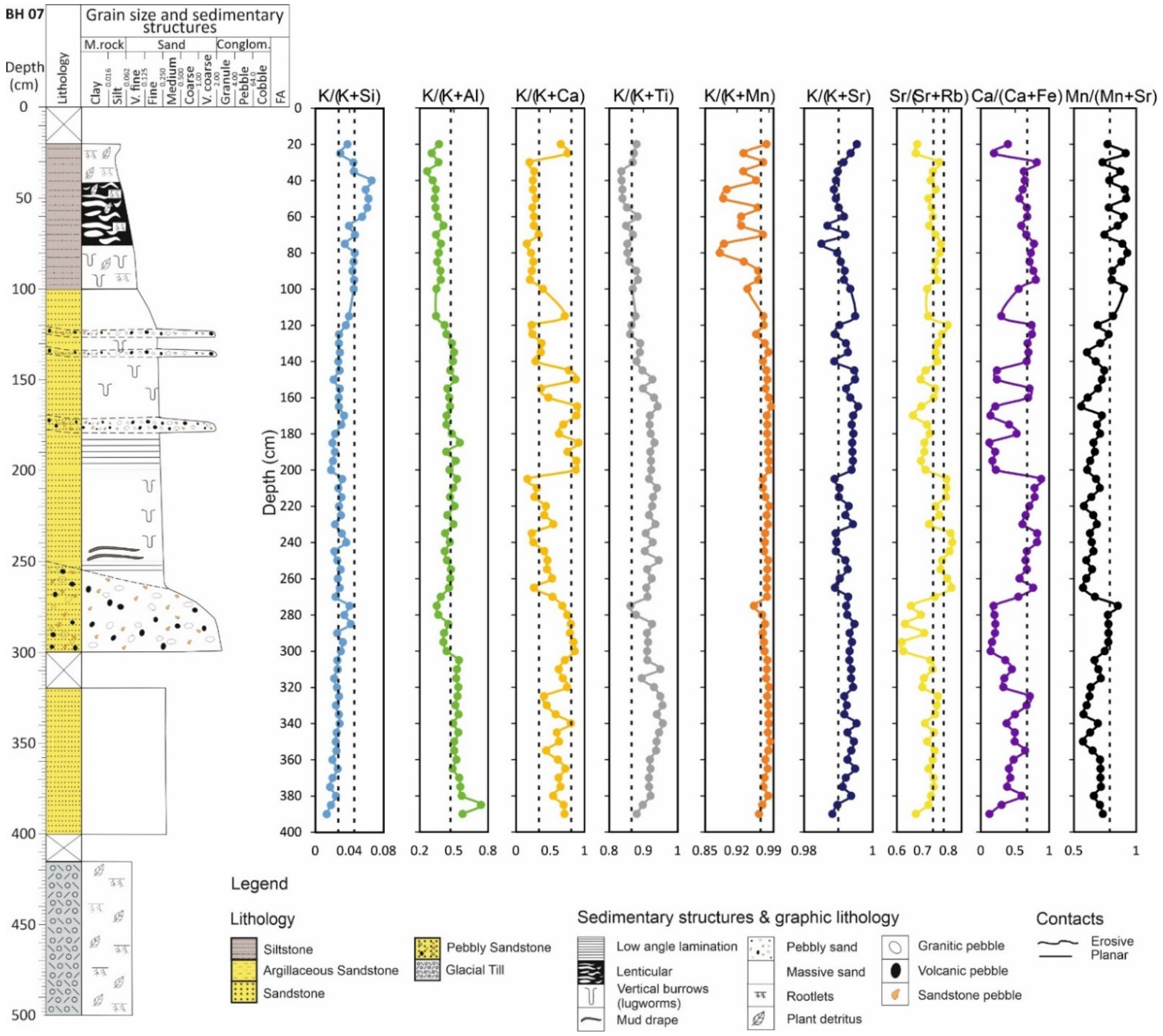

A sediment core was drilled through the Holocene succession in the tidal bar sub-depositional environment in the Esk arm of the inner Ravenglass Estuary, under tender by Geotechnical Engineering Ltd. (GEL) [58]. The drilled core was retrieved in a series of 12 cm diameter, 1 m length, semi-rigid plastic liners for protection and easy transport. Each 1 m segment of the sediment core was sliced and photographed wet and air-dried for extensive study and subsequent analysis at the University of Liverpool. The core description involved detailed sedimentary logging of each core segment, at a scale of 1:5, and lithofacies were characterised in terms grain size, colour, sedimentary structures, bed thickness, presence of roots and shell fragments, bioturbation extent and type. The core was sampled at 5 cm intervals for pXRF and LPSA analyses, using techniques described above.

4. Results

Here, we present details of the distributions of sub-depositional environments in the Ravenglass Estuary and the absolute and relative distribution of elements.

4.1. Sub-Depositional Environments Present across the Estuary

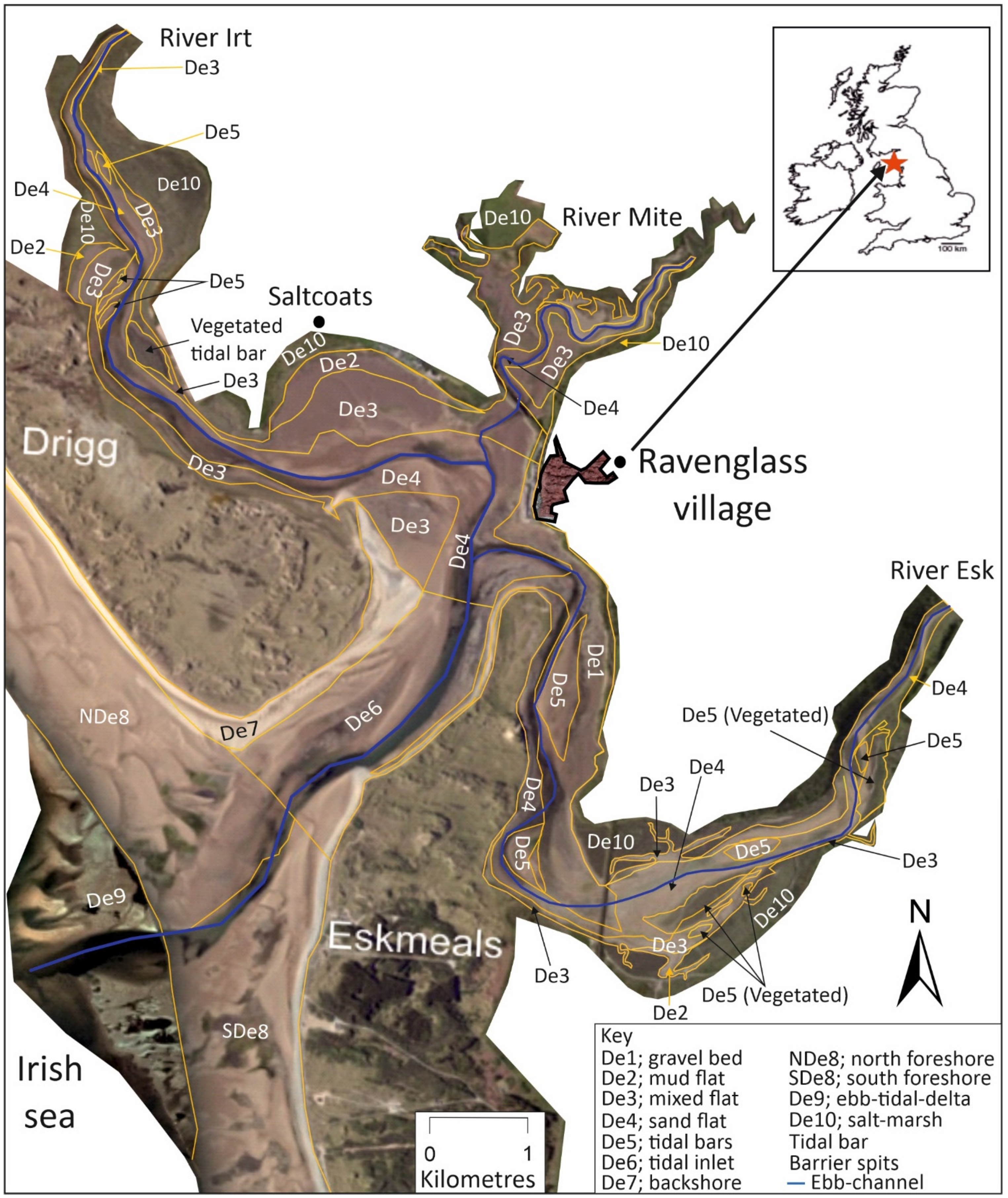

The sub-depositional environments identified and mapped (Figure 2) across the Ravenglass Estuary are gravel beds (De1), tidal flats (sub-divided into mud flats, De2, mixed flats, De3, and sand flats, De4), tidal bars (De5), tidal inlet (De6), backshore (De7), foreshore (De8), ebb-tidal delta (De9), and salt marsh (De10). The subdivision of tidal flats was based on laboratory-derived laser particle size analysis data, with average grain size distribution curves for the mud, mixed and sand flats illustrated in Figure 3.

The inner estuary comprises: (a) gravel beds (De1), which are locally distributed in the lower part of the Esk and Irt arms of the estuary and are dominated by a loose aggregate of rock fragments; (b) salt marsh (De10), which is present in the Esk and Irt arms of the estuary and is dominated by salt-tolerant plants; (c) tidal bars (De5), which are sand bars present in the intertidal zone and which usually have a long axis oriented parallel to the direction of the main current; (d) sand flats (De4), which are intertidal flats bordering the main channel; (e) mixed flats (De3), which are sandwiched between sand mud flats; (f) mud flats (De2), which are furthest away from the main channel (Figure 2).

The central estuary includes extensive tidal flats and comprises: (a) sand flats (De4); (b) mixed flats (De3); (c) mud flats (De2); and (d) salt marsh (De10).

The outer estuary contains: (a) the main tidal inlet (De6) that cuts between the Eskmeals and Drigg barrier spits; (b) foreshore (De8), which is the part of the beach, that lies between the backshore and the mean-low-water line; and (c) backshore (De7), which is situated above the mean-low-water line and can be inundated during spring tides and storm events. The foreshore has been split into two portions, north and south of the main channel (becoming NDe8 and SDe8), as these areas have texturally (and, as it turns out, geochemically) distinct sediment. NDe8 is coarser grained than SDe8.

4.2. Element Concentrations in the Ravenglass Estuary

The number of samples from each depositional environment that are above the detection limit is shown in

Table 2. Summary of geochemical elements identified by the handheld pXRF tool and number of samples for which the element is above the limit of detection.

Sub-Environment	Samples	Al	Si	P	S	Cl	K	Ca	Sc	Ti	V	Cr	Mn
Foreshore	69	69	69	17	24	69	69	69	3	69	48	35	67
Gravel bed	28	28	28	10	18	28	28	28	4	28	17	19	26
Mixed flat	94	94	94	1	54	94	94	94	2	94	51	66	93
Mud flat	55	55	55	1	52	55	55	55	16	55	33	52	54
Ebb-tidal delta	21	21	21	9	20	21	21	21	2	21	6	7	20
Sand flat	120	120	120	0	28	120	120	120	1	120	102	40	113
Tidal bars	53	53	53	0	12	53	53	53	1	53	43	18	50
Tidal inlet	25	25	25	5	8	25	25	25	0	25	20	6	24
Salt marsh	17	17	17	17	17	17	17	17	5	17	14	11	17
Sub-Environment	Samples	Fe	Ni	Cu	Zn	As	Rb	Sr	Zr	Nb	Pd	Ag
Foreshore	69	69	0	0	28	15	69	69	69	25	3	0
Gravel bed	28	27	0	1	23	13	28	28	28	14	0	0
Mixed flat	94	94	0	0	93	20	94	94	94	88	0	2
Mud flat	55	54	0	0	55	19	55	55	55	55	0	0
Ebb-tidal delta	21	21	0	0	14	2	21	21	21	4	4	0
Sand flat	120	119	0	0	76	12	120	120	120	69	0	0
Tidal bars	53	52	1	0	39	6	53	53	53	31	0	2
Tidal inlet	25	25	1	1	14	6	25	25	25	7	2	1
Salt marsh	17	17	8	1	17	16	17	17	17	13	2	3
Sub-Environment	Samples	Cd	Sn	Sb	Te	Cs	Ba	Hg	Pb	Bi	Th	U
Foreshore	69	13	32	20	60	65	69	3	13	0	14	8
Gravel bed	28	11	17	10	28	28	28	0	13	1	14	3
Mixed flat	94	0	51	15	92	93	94	6	3	1	46	5
Mud flat	55	0	28	4	48	54	55	3	11	8	41	1
Ebb-tidal delta	21	17	21	19	21	21	21	0	19	0	5	1
Sand flat	120	0	64	27	106	118	120	2	2	1	7	6
Tidal bars	53	0	35	8	49	53	53	2	2	1	3	1
Tidal inlet	25	4	17	9	25	25	25	3	5	0	8	1
Salt marsh	17	16	17	17	17	17	17	1	17	3	15	7

. A summary of elements with their minimum reported values is presented in

Table 3. Summary of reported elements showing the minimum detected value for each in the Ravenglass Estuary.

Elements	Al	Si	P	S	Cl	K	Ca	Sc	Ti
Minimum value (ppm)	1246	56,322	119	90	266	2189	73	6	257
Samples above minimum value	100%	100%	12%	48%	100%	100%	100%	7%	100%
Elements	V	Cr	Mn	Fe	Ni	Cu	Zn	As	Rb
Minimum value (ppm)	44	20	52	2245	18	17	9	4	9
Samples above minimum value	69%	53%	96%	99%	2%	1%	74%	23%	100%
Elements	Sr	Zr	Nb	Pd	Ag	Cd	Sn	Sb
Minimum value (ppm)	28	29	2	4	100	10	13	12
Samples above minimum value	100%	100%	63%	2%	2%	13%	59%	27%
Elements	Te	Cs	Ba	Hg	Pb	Bi	Th	U
Minimum value (ppm)	30	10	93	6	5	5	3	6
Samples above minimum value	93%	98%	100%	4%	18%	3%	32%	7%

, where, for elements that have many samples below detection, the minimum reported value effectively represents the detection limit in Ravenglass surface sediments.

The elements present in Ravenglass surface sediments include major elements typically present in all samples: Al, Si, K, Ca, Fe, S and Ti. Minor elements, here defined as between 100 and 1000 ppm, include Cl, Mn, Rb, Zr, and Ba. These minor elements were detected in all samples from all the different sub-environments. Trace elements, here defined as <100 ppm, present in Ravenglass sediments include P, Sc, V, Cr, Ni, Cu, Zn, As, Sr, Nb, Pd, Ag, Sn, Sb, Te, Cs, Hg, Pb, Bi, Th and U. These trace elements were detected in small to negligible quantities in some samples but were below detection in many samples (Table 3 and

Table 4. Collation of some of the significance values resulting from the ANOVA analysis and Tukey’s post hoc honestly significant difference (HSD) tests for the sand-dominated sedimentary environments. The following symbols presented here highlight the statistical significance; significant when p < 0.05 (*), very significant when p < 0.01 (**), and extremely significant when p < 0.001 (***). We have excluded differences that are marginally significant (when p < 0.1).

Sub-Environment	Variable	p-Value	Sub-Environment	Variable	p-Value
De3-De2	K/(K + Si)	0.0000000	De9-De4	K/(K + Ca)	0.0000007
De4-De2	K/(K + Si)	0.0000000	N-De8-De4	K/(K + Ca)	0.0000000
De5-De2	K/(K + Si)	0.0000000	S-De8-De4	K/(K + Ca)	0.0000000
De6-De2	K/(K + Si)	0.0000000	De6-De5	K/(K + Ca)	0.0000012
De9-De2	K/(K + Si)	0.0000000	De9-De5	K/(K + Ca)	0.0000044
N-De8-De2	K/(K + Si)	0.0000000	N-De8-De5	K/(K + Ca)	0.0000000
S-De8-De2	K/(K + Si)	0.0000000	S-De8-De5	K/(K + Ca)	0.0000000
De4-De3	K/(K + Si)	0.0000000	S-De8-De6	K/(K + Ca)	0.0041914
De5-De3	K/(K + Si)	0.0000000	S-De8-De9	K/(K + Ca)	0.0112902
De6-De3	K/(K + Si)	0.0000000	S-De8-N-De8	K/(K + Ca)	0.0001769
De9-De3	K/(K + Si)	0.0000000	De3-De2	K/(K + Ti)	0.0000007
N-De8-De3	K/(K + Si)	0.0000000	De4-De2	K/(K + Ti)	0.0000000
S-De8-De3	K/(K + Si)	0.0000000	De5-De2	K/(K + Ti)	0.0000000
De6-De4	K/(K + Si)	0.0033850	De6-De2	K/(K + Ti)	0.0000000
N-De8-De4	K/(K + Si)	0.0000060	De9-De2	K/(K + Ti)	0.0002649
N-De8-De5	K/(K + Si)	0.0000939	N-De8-De2	K/(K + Ti)	0.0000000
De4-De2	K/(K + Al)	0.0000000	S-De8-De2	K/(K + Ti)	0.0000084
De5-De2	K/(K + Al)	0.0000005	De4-De3	K/(K + Ti)	0.0000000
N-De8-De2	K/(K + Al)	0.0000000	De5-De3	K/(K + Ti)	0.0004749
De4-De3	K/(K + Al)	0.0000000	De6-De3	K/(K + Ti)	0.0018964
De5-De3	K/(K + Al)	0.0000132	N-De8-De3	K/(K + Ti)	0.0035633
De9-De3	K/(K + Al)	0.0039216	De3-De2	K/(K + Mn)	0.0000000
N-De8-De3	K/(K + Al)	0.0000000	De4-De2	K/(K + Mn)	0.0000000
De6-De4	K/(K + Al)	0.0000027	De5-De2	K/(K + Mn)	0.0000000
De9-De4	K/(K + Al)	0.0000000	De6-De2	K/(K + Mn)	0.0000000
S-De8-De4	K/(K + Al)	0.0000000	De9-De2	K/(K + Mn)	0.0000000
De9-De5	K/(K + Al)	0.0000000	N-De8-De2	K/(K + Mn)	0.0000000
S-De8-De5	K/(K + Al)	0.0000044	S-De8-De2	K/(K + Mn)	0.0000000
N-De8-De6	K/(K + Al)	0.0006158	De4-De3	K/(K + Mn)	0.0000000
N-De8-De9	K/(K + Al)	0.0000000	De5-De3	K/(K + Mn)	0.0086938
S-De8-N-De8	K/(K + Al)	0.0000001	De6-De3	K/(K + Mn)	0.0004807
De3-De2	K/(K + Ca)	0.0320513	N-De8-De3	K/(K + Mn)	0.0000001
De4-De2	K/(K + Ca)	0.0000000	De6-De2	K/(K + Sr)	0.0000000
De5-De2	K/(K + Ca)	0.0000000	De9-De2	K/(K + Sr)	0.0000000
De4-De3	K/(K + Ca)	0.0000000	N-De8-De2	K/(K + Sr)	0.0000000
De5-De3	K/(K + Ca)	0.0000000	S-De8-De2	K/(K + Sr)	0.0000000
S-De8-De3	K/(K + Ca)	0.0000884	De6-De3	K/(K + Sr)	0.0000000
De6-De4	K/(K + Ca)	0.0000001	De9-De3	K/(K + Sr)	0.0000000
N-De8-De3	K/(K + Sr)	0.0000000	S-De8-De4	Ca/(Ca + Fe)	0.0000000
S-De8-De3	K/(K + Sr)	0.0000000	De6-De5	Ca/(Ca + Fe)	0.0002164
De6-De4	K/(K + Sr)	0.0000000	De9-De5	Ca/(Ca + Fe)	0.0000749
De9-De4	K/(K + Sr)	0.0000000	N-De8-De5	Ca/(Ca + Fe)	0.0000170
N-De8-De4	K/(K + Sr)	0.0000000	S-De8-De5	Ca/(Ca + Fe)	0.0000000
S-De8-De4	K/(K + Sr)	0.0000000	S-De8-De6	Ca/(Ca + Fe)	0.0013038
De6-De5	K/(K + Sr)	0.0000000	S-De8-De9	Ca/(Ca + Fe)	0.0116983
De9-De5	K/(K + Sr)	0.0000000	S-De8-N-De8	Ca/(Ca + Fe)	0.0000284
N-De8-De5	K/(K + Sr)	0.0000000	De3-De2	Mn/(Mn + Sr)	0.0059663
S-De8-De5	K/(K + Sr)	0.0000000	De4-De2	Mn/(Mn + Sr)	0.0000000
De6-De2	Sr/(Sr + Rb)	0.0015649	De5-De2	Mn/(Mn + Sr)	0.0000001
De9-De2	Sr/(Sr + Rb)	0.0000001	De6-De2	Mn/(Mn + Sr)	0.0000000
N-De8-De2	Sr/(Sr + Rb)	0.0000002	De9-De2	Mn/(Mn + Sr)	0.0000000
S-De8-De2	Sr/(Sr + Rb)	0.0063469	N-De8-De2	Mn/(Mn + Sr)	0.0000000
De6-De3	Sr/(Sr + Rb)	0.0002659	S-De8-De2	Mn/(Mn + Sr)	0.0000000
De9-De3	Sr/(Sr + Rb)	0.0000000	De4-De3	Mn/(Mn + Sr)	0.0000000
N-De8-De3	Sr/(Sr + Rb)	0.0000000	De5-De3	Mn/(Mn + Sr)	0.0220222
S-De8-De3	Sr/(Sr + Rb)	0.0019248	De6-De3	Mn/(Mn + Sr)	0.0000000
De6-De4	Sr/(Sr + Rb)	0.0000004	De9-De3	Mn/(Mn + Sr)	0.0000003
De9-De4	Sr/(Sr + Rb)	0.0000005	N-De8-De3	Mn/(Mn + Sr)	0.0000000
N-De8-De4	Sr/(Sr + Rb)	0.0000000	S-De8-De3	Mn/(Mn + Sr)	0.0000000
S-De8-De4	Sr/(Sr + Rb)	0.0367545	De5-De4	Mn/(Mn + Sr)	0.0105295
De6-De5	Sr/(Sr + Rb)	0.0000033	De6-De4	Mn/(Mn + Sr)	0.0009477
De9-De5	Sr/(Sr + Rb)	0.0000104	N-De8-De4	Mn/(Mn + Sr)	0.0000000
N-De8-De5	Sr/(Sr + Rb)	0.0000000	S-De8-De4	Mn/(Mn + Sr)	0.0001308
De9-De6	Sr/(Sr + Rb)	0.0000000	De6-De5	Mn/(Mn + Sr)	0.0000000
S-De8-De6	Sr/(Sr + Rb)	0.0000000	De9-De5	Mn/(Mn + Sr)	0.0238969
N-De8-De9	Sr/(Sr + Rb)	0.0000000	N-De8-De5	Mn/(Mn + Sr)	0.0000000
S-De8-N-De8	Sr/(Sr + Rb)	0.0000000	S-De8-De5	Mn/(Mn + Sr)	0.0000000
De4-De2	Ca/(Ca + Fe)	0.0000000	N-De8-De9	Mn/(Mn + Sr)	0.0161029
De5-De2	Ca/(Ca + Fe)	0.0000000	De3-De2	Ti/(Ti + Mn)	0.0135132
S-De8-De2	Ca/(Ca + Fe)	0.0041582	De4-De2	Ti/(Ti + Mn)	0.0000000
De4-De3	Ca/(Ca + Fe)	0.0000000	De5-De2	Ti/(Ti + Mn)	0.0064950
De5-De3	Ca/(Ca + Fe)	0.0000000	De6-De2	Ti/(Ti + Mn)	0.0016346
S-De8-De3	Ca/(Ca + Fe)	0.0001215	N-De8-De2	Ti/(Ti + Mn)	0.0000000
De6-De4	Ca/(Ca + Fe)	0.0002233	S-De8-De2	Ti/(Ti + Mn)	0.0473812
De9-De4	Ca/(Ca + Fe)	0.0000826	De4-De3	Ti/(Ti + Mn)	0.0085386
N-De8-De4	Ca/(Ca + Fe)	0.0000040	N-De8-De3	Ti/(Ti + Mn)	0.0076982

).

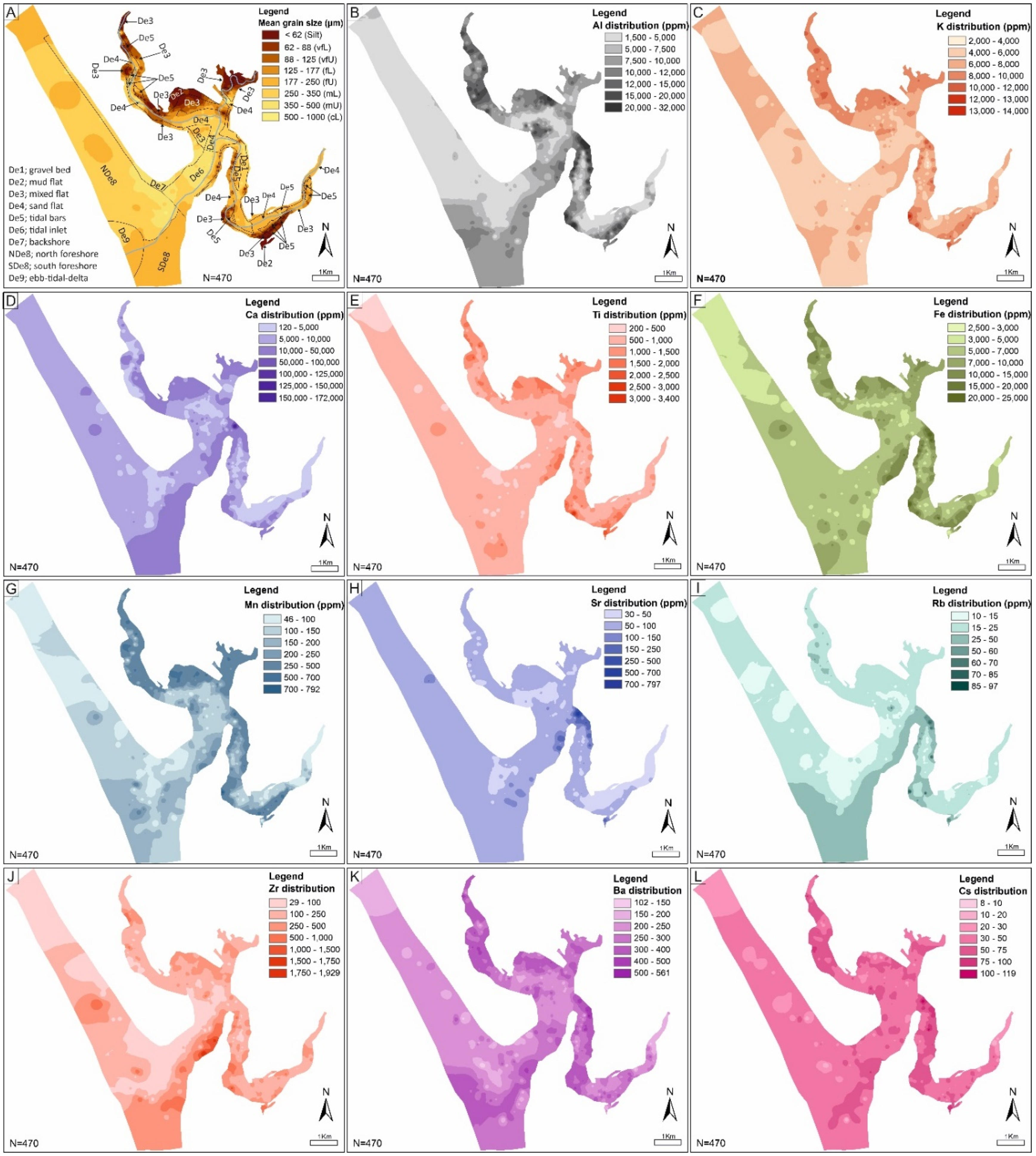

Maps of the distribution of elemental concentrations of major, minor and trace elements have been plotted to assess the distribution in relation to geographic location and sub-depositional environments. Maps of grain size, and the concentrations of Al, K, Ca, Ti, Fe, Mn, Sr, Rb, Zr, Ba and Cs are shown in Figure 4. The map showing grain size distribution across the estuary (Figure 4A) has had boundaries between sub-depositional environments from Figure 2 superimposed.

Grain size tends to increase down channel and decrease toward the margin of inner estuary and central basin (Figure 4A). The map of Al abundance (Figure 4B) has a marked similarity to the grain size map (Figure 4A). Aluminium is not homogeneously distributed between different sub-depositional environments (Figure 5B). Aluminium is present at elevated concentrations in the mud and mix flat environments (De2 and De3); Al is present at intermediate concentrations in the ebb-tidal delta and southern foreshore (De9, SDe8); Al is present at relatively low concentrations in the sand-dominated sand flat, tidal bar, tidal channel and northern foreshore environments (De4, De5, De6 and NDe8).

The spatial distributions of K and Fe are heterogeneous and have some similar features (Figure 4C,F). Potassium abundance decreases progressively toward the open sea and tends to be highest in tidal flat sediments; there is a relative increase in K abundance in the upper reaches of the northern foreshore (Figure 4C). Iron and Ti abundances also have some similarities as they have highest concentrations in tidal flats, tidal bars, and in <2 mm sediment from gravel beds. Overall, the relative abundance of Fe and Ti decreases progressively toward the open sea (Figure 4E,F). Potassium, Fe and Ti are unevenly distributed between different sub-depositional environments (Figure 5C,E,F). Potassium, Fe and Ti are present at elevated concentrations in the mud and mix flat environments (De2 and De3); they are present at relatively lower concentrations in all remaining sub-depositional environments (De4, De5, De6, NDe8, SDe8 and De9).

The concentration of Ca in the Ravenglass Estuary sediment is heterogeneous; across the southern foreshore and tidal inlet and some pockets within the inner estuary and central basin, there is significant Ca enrichment (>10,000 ppm) (Figure 4D). Some of the highest concentrations of Ca (>100,000) are found in <2 mm sediment from gravel beds located at the boundary with the central basin and the upper Esk arm (Figure 4D). Boxplots show that calcium is not homogeneously distributed between different sub-depositional environments (Figure 5D). Calcium is present at elevated concentrations in the mud and mix flat environments and in the southern foreshore (De2, De3 and SDe8); calcium is present at intermediate concentrations in the tidal inlet, ebb-tidal delta, and northern foreshore (De6, De9, NDe8); calcium is present at relatively low concentrations in the sand-dominated sand flat and tidal bar environments (De4, De5).

The abundance of Mn is highest (200 to 700 ppm) in the upper and lower reaches of the Irt arm of the estuary, in the mud and mixed flats of the central basin and in the finer-grained parts of the upper and lower Esk arm (Figure 4G). Manganese is heterogeneous across the outer estuary with abundance broadly decreasing progressively toward the open sea. Manganese is unevenly distributed between different sub-depositional environments (Figure 5G). Manganese is present at elevated concentrations in the mud and mix flat environments (De2 and De3); manganese is present at relatively low concentrations in all remaining sub-depositional environments (De4, De5, De6, NDe8, SDe8 and De9).

Strontium is mostly a trace element with concentrations <100 ppm across much of the estuary, but the <2 mm sediment from gravel beds has unusually high Sr concentrations (>700 ppm) (Figure 4H). Strontium is heterogeneously distributed between different sub-depositional environments (Figure 5H); the sub-environment distribution of strontium closely matches the distribution of calcium.

Rubidium is a trace element with relatively low concentration (<15 ppm) across the estuary except in the southern foreshore, part of the tidal inlet, gravel beds and margins of the upper Esk estuary, where the concentrations are highest and reach up to 70 ppm (Figure 4I). Rubidium is not uniformly distributed between different sub-depositional environments (Figure 5I). Rubidium has the highest concentration in the ebb-tidal delta and southern foreshore (De9, SDe8); rubidium is present at intermediate concentrations in the mud and mixed flats (De2 and De3) and low concentrations in all other sub-depositional environments.

Zirconium varies from <100 to nearly 2000 ppm (Figure 4J). The most noteworthy aspects of the distribution of Zr are the high concentration along the southern part of the tidal inlet and southern foreshore and the low concentration along the northern part of the tidal inlet and northern foreshore. Like all other elements, zirconium is heterogeneously distributed between different sub-depositional environments (Figure 5J). Zirconium is present at the highest concentrations in the southern foreshore (SDe8).

Barium concentrations range from approximately 160 to 540 ppm (Figure 4K). Barium is present at highest concentration in parts of the Esk and Irt arms of the estuary, along the southern side of the tidal inlet and in the ebb-tidal delta. Barium concentrations do not seem to show any systematic pattern with the sub-environments of deposition (Figure 5K).

Caesium has a modal concentration of 35 to 50 ppm (Figure 4L). Caesium concentrations are slightly higher in the lower part of the Esk estuary, the upper part of the Irt estuary and along part of the southern side of the tidal inlet. Like barium, caesium concentrations (Figure 5L) do not seem to show any systematic pattern for the sub-environments of deposition.

We have here not mapped the distribution of Cl as it is wholly linked to halite precipitation from seawater and may reflect estuary water composition rather than sediment composition. Similarly, we have not mapped the distribution of sulphur as it is present as a sulphate mineral in the sediment and will be an evaporite mineral, like halite, or linked to Fe-sulphide oxidation.

4.3. Relative Element Concentrations

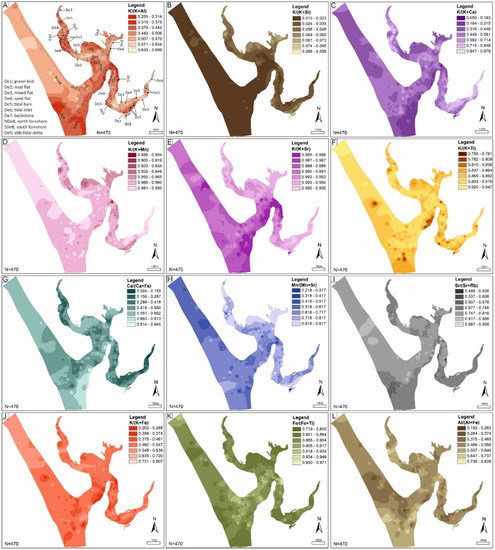

Maps displaying surface sediment characteristics, such as elemental concentration, are generally considered to be an important tool for sediment analysis [74]. However, elemental concentrations in quartz-rich sediment will be strongly influenced by the diluting effect of quartz [48], as this mineral is effectively pure SiO₂ and contains next to no trace elements. All element concentration maps (Figure 4B–H) will be strongly influenced by variable depletion and enrichment of quartz. However, the observation that not all the elemental concentration maps are identical (Figure 4B–H) suggests that there are meaningful differences in the sediment composition that are not due to variable depletion and enrichment of quartz.

The element index maps show that the spatial distributions of K/(K + Al) and K/(K + Mn) have some similar features (Figure 6A,D). The data from the index maps are summarised as a series of boxplots, displayed in Figure 7. K/(K + Al) and K/(K + Mn) increase progressively toward the open sea and tend to be low in tidal flat sediments (Figure 6A,D and Figure 7A,D). K/(K + Al) in the foreshore and tidal inlet is relatively lower in the north side than the south side. K/(K + Mn) has variable distribution in the upper reaches of both Esk and Irt arms, and in the outer estuary (Figure 6D).

K/(K + Si), K/(K + Sr), and Mn/(Mn + Sr) tend to decrease progressively toward the open sea and are highest in the inner estuary and central basin (Figure 6B,E,H and Figure 7B,E,H). Sr/(Sr + Rb) has a narrow range of values, with most falling between 0.677 and 0.816, except along the upper reaches of both the Esk and Irt arms of the estuary, and in the ebb-tidal delta and south foreshore where it is low (Figure 6I).

K/(K + Ca) and K/(K + Ti) are quite variable across the study area (Figure 6C,G,F and Figure 7C,G,F). K/(K + Ti) is low in a range of areas including the southern foreshore, ebb-tidal delta, the southern part of the main channel and the mixed and mud flats of the central basin and a few other sporadic localities (Figure 6F). K/(K + Ca) is highest in both the upper reaches of the Irt and Esk arms of the estuary; it is intermediate in the gravel bed, the middle part of the central basin, and the northern part of the tidal inlet and into the northern foreshore (Figure 6C).

Indices related to Fe concentration are variable across the estuary. The Ca/(Ca + Fe) index is lowest in both the upper reaches of the Irt and Esk arms of the estuary and it is intermediate in the mixed and mud flats of the central basin and much of the northern and southern foreshores (Figure 6G and Figure 7G). The southern foreshore and parts of the southern side of the tidal inlet have the highest Ca/(Ca + Fe) index values (Figure 6G). K/(K + Fe), related to the Fe/K index used for clastic sedimentary rock geochemical classification by [75], shows that most values fall into an intermediate category (Figure 6J and Figure 7J). The highest values are in the tidal bars of the Esk and Irt and at some localities within the foreshore and tidal inlet. Fe/(Fe+Ti), where both elements are mafic indicators, is highest in the middle part of the system, from the uppermost Esk arm through the northern part of the main channel (Figure 6K and Figure 7K). This index is lowest in the southern foreshore, ebb-tidal delta, and mixed and mud flats of the Esk and Irt inner estuaries. Al/(Al + Fe) is lower in the Esk arm than the Irt arm of the estuary; it is also low in parts of the northern foreshore (Figure 6L). Al/(Al + Fe) is highest in the southern foreshore, the ebb-tidal delta and parts of the Irt arm of the estuary (Figure 6L).

4.4. Holocene Cores

Based on the sedimentary log of the geotechnical core [58], mud and sand are the dominant lithologies in the tidal bar in the Esk arm of the estuary (Figure 8). This sand-dominated core has a narrow grain size range. The core was drilled into a vegetated tidal bar (fresh marsh) sub-depositional environment at the surface; the uppermost part down to 100 cm in depth is dominated by mud to very fine sand (Figure 8). Below this depth, most of the sediment is composed of different units of medium- and coarse-grained sand that may represent mixed fluvial-tidal deposits [58]. The specific sedimentary sub-depositional environments in this core could not have been automatically predicted as there is a range of grains sizes (gravel beds through to mud-dominated sediment) not typical of vegetated tidal bars. The Holocene core was analysed using the pXRF spectrometer, and the nine key indices used to classify the sediment (and see Figure 6 and Figure 7 and Section 5.5) are shown with critical cut-off values marked by dashed lines.

5. Discussion

The primary objective of this study was to determine the ability of pXRF data to discriminate sedimentary environment in an estuarine setting. To ascertain how elemental data can be used to predict sub-depositional environments, parameters such as sediment source areas, and the statistical relationship between element concentrations and sub-environment, will be evaluated and discussed.

5.1. Elemental Distribution in the Ravenglass Estuary

One of the aims of this research was to understand the controls on the distribution of elements across an entire estuarine system. This is of interest to clastic sedimentary geologists, especially those who work with rock properties, because elemental distribution reflects, and potentially controls, mineral distribution via clay synthesis, Fe-reduction and silica precipitation [50,76,77,78,79].

The distributions of Al, K, Ca, Ti, Fe, Mn, Sr, and Rb, as well as Zr, Ba and Cs, in the sediment of the Ravenglass Estuary vary greatly with some apparent links to sub-depositional environment and geographic location (Figure 4). For example, Al and K display similar maps of concentration patterns (Figure 4B,C). Aluminium and K are present at the highest concentrations in the finest-grained sediments of the mud and mixed flat sediment (De2 and De3) and are present at the lowest concentrations in coarsest-grained sediments of the northern foreshore and parts of the tidal inlet (De6 and NDe8) (Figure 4A–C and Figure 5A–C). Aluminium sits predominantly in the detrital minerals K-feldspar, muscovite, plagioclase, and in the dominant clay mineral, illite, with lesser quantities of detrital biotite and chlorite and weathering-related kaolinite [48]. Potassium sits predominantly in K-feldspar, muscovite, and illite with lesser quantities in biotite [48]. The distribution patterns of Al and K are almost certainly controlled by illite clay distribution as they are present at the highest concentrations in the finest-grained sediment (Figure 4A–C). Conversely, if Al and K were largely controlled by K-feldspar distribution, then the highest concentrations of these elements would be in the coarser sedimentary sub-depositional environments. The dominant role of weathering-related illite in controlling Al and K distribution reveals the important role of chemical weathering in the hinterland. Rubidium has similar geochemical properties to K, in terms of ionic radius and charge [80], and the two elements seem to have broadly similar distributions in the estuary (Figure 4I), although the concentration of K is high in the mixed and mud flats (Figure 4C) whereas the concentration of Rb is relatively low, possibly indicating that Rb is partly controlled by variable K-feldspar as well as illite abundance (given that mixed and mud flats are the finest-grained sediment in the estuary (Figure 4A).

Iron, Mn and Ti concentrations display some similarities in terms of their mapped distributions at Ravenglass (Figure 4E–G). Iron, Mn and Ti are present at the highest concentrations in the finest-grained sediments of the mud and mixed flat sediment (De2 and De3) and are present at the lowest concentrations in coarsest-grained sediments of the foreshore, tidal inlet, tidal bar (De5, De6, SDe8, NDe8, and De9) (Figure 4A,E–G and Figure 5E–G). Iron and Mn have similar geochemical properties, as they can have a similar ionic radius and charge (when divalent) but they both have variable oxidation states. Iron and Mn probably exist in the Ravenglass sediment in a combination of divalent ions within detrital lithic grains and minerals (e.g., chlorite and biotite) [48] and in higher valence states in weathering products such as hydroxides [51]. Iron is preferentially concentrated in the upper reaches of the Ravenglass Estuary (Figure 4F), confirming that fluvially-transported iron is trapped at the site of mixing between river water and seawater [81]. In contrast, Ti can sit in ilmenite and rutile (and other oxides) or as a trace element in mica minerals. In the Ravenglass Estuary surface sediments, the rutile concentration is approximately 0.40% in mud and mixed flats and approximately 0.10% in the sand-dominated environments [82]. The increase in Ti in the finest-grained sediments is therefore likely to be due to rutile as well as mica minerals (illite, muscovite and biotite) (Figure 4A,E).

Calcium displays a strongly variable distribution (Figure 4D). The concentration of calcium closely matches the distribution of CaCO₃ (calcite and aragonite) [48]. CaCO₃ is largely found as bioclastic material, including large (10 cm) shells in the gravel beds on the lower Esk Estuary and the southern side of the tidal inlet. Strontium has similar geochemical properties to calcium and is present in carbonate minerals, especially aragonite; Sr can substitute for Ca in carbonates [83]. However, the relationship between Ca and Sr maps is not especially strong (Figure 4D,H). Strontium seems to display a weak relationship with Ravenglass sub-depositional environments but there are some pockets of local enrichment, especially in gravel-rich sediment deposits, potentially due to their present in lithic fragments [84,85], and shell fragments possibly due to the Sr–Ca association

Zirconium is probably only present in the mineral zircon. The distribution of Zr reveals the distribution of zircon (Figure 4J). The map of Zr (Figure 4J) seems to follow the inverse of the grain size map, with the lowest concentrations of Zr in the coarsest-grained sands (Figure 4A).

Barium might be present, substituting for K, in detrital K-feldspar or possibly in barite. Caesium may also substitute for K in micas and feldspars. Barium and Cs have similarly bland distribution maps (Figure 4K,L), with most values varying tightly about the modal value, with the lowest concentrations in the coarsest-grained sands (Figure 4A). Variable dilution by quartz may be responsible for much of the variation in Zr, Ba and Cs.

5.2. Relationship between Element Indices and Sub-Depositional Environment

One of the problems with element concentration maps (Figure 4) is that they are strongly influenced by variable dilution by quartz and, perhaps to a lesser extent, calcite. Given that quartz has negligible trace elements, doubling the quantity of quartz would halve the concentration of a trace element, all other factors remaining the same. We therefore consider that relative element concentrations are more useful to understanding the relationship between sediment supply, weathering intensity, etc., and the sub-depositional environment [86]. Element indices have been analysed in terms of the sub-depositional environment as these will be useful for developing a quantitative classification tool.

K/(K + Al) is low in mud flats, ebb-tidal delta, and southern foreshore sub-environments (De2, De3, De9 and SDe8) (Figure 7A). It is highest in sand flat, tidal bar and northern foreshore sediment sub-environments (De4, De5 and NDe8). It has intermediate values in mixed flat and tidal inlet environments (De3 and De6). In these sediments, the K/(K + Al) index reflects the relative concentrations of K-feldspar, illite (and muscovite) and kaolinite (there is no gibbsite in these sediments); high values imply more K-feldspar, low values imply more kaolinite and illite.

K/(K + Si) simply reflects dilution by quartz of the collection of K-bearing minerals (K-feldspar, illite, muscovite and, to a lesser extent, biotite). This index is highest in the least quartz-rich, most fine-grained mud flat sediments (De2) (Figure 7B). It has consistently low values in the sand-rich sub-depositional environments (De4–De9) and an intermediate value in mixed flats (Figure 7B). Every other element indexed to silicon looks like Figure 7B, reflecting variable dilution by quartz; we have therefore chosen not to replicate such distributions as they all show the same pattern and do not help to further discern the sub-depositional environment. Silicon and its element indices seem to have minimal value to this study of estuarine sub-environments.

K/(K + Ca) is low in mud flats and southern foreshore sub-environments (De2, De3, SDe8) (Figure 7C). It is highest in sand flat and tidal bar sub-environments (De4, De5). It has intermediate values in mixed flat tidal inlet, northern foreshore, and ebb-tidal delta sub-environments (De3, De6, NDe8, De9). In these sediments, the K/(K + Ca) index reflects the relative concentrations of K-bearing K-feldspar, illite (and muscovite) compared to carbonate concentrations. As K concentration seems to be broadly consistent in all sand-dominated sub-environments (Figure 5C), the variation in K/(K + Ca) in these sandy sediments is largely due to variations in Ca (Figure 5D) and therefore CaCO₃ minerals.

K/(K + Mn) is low in mud flats (De2) (Figure 7D). It is highest in sand flat, tidal bar, tidal inlet, and northern and southern foreshore (De4, De5, De6, NDe8, SDe8) sub-environments. It has intermediate values in mixed flat tidal inlet and ebb-tidal delta sub-environments (De3, De9). In these sediments, the K/(K + Mn) index (Figure 7D) reflects the subtle changes in the relative concentrations of K-bearing K-feldspar, illite (and muscovite) (Figure 5C) compared to mafic minerals and/or Mn oxides and hydroxides (Figure 5G). K/(K + Ti) resembles the boxplot distribution of K/(K + Mn) (Figure 7D,F), which suggests that Ti and Mn come from the same mafic sources.

K/(K + Sr) is uniformly high in inner estuary mud, mixed and sand flats and tidal bar sub-environments (De2, De3, De4, De5) (Figure 7E). It is lowest in mid and outer estuary tidal inlet, northern and southern foreshore, and ebb-tidal delta (De6, NDe8, SDe8, De9) sub-environments. In these sediments, the K/(K + Sr) index (Figure 7D) reflects the subtle changes in the relative concentrations of K-bearing K-feldspar, illite (and muscovite) (Figure 5C) compared to Sr-bearing carbonate minerals (Figure 5H). K/(K + Sr) better differentiates inner and outer estuarine sub-environments than either K or Sr on their own (Figure 5C,H,E). Mn/(Mn + Sr) resembles the boxplot distribution of K/(K + Sr) (Figure 7E,H), which suggests that Sr dilution is an important discriminator in these sediments.

Ca/(Ca + Fe) is lowest in sand flat and tidal bar sub-environments (De4, De5) (6G). It is highest in southern foreshore sediment (SDe8) and intermediate in all other sub-environments (De2, De3, De6, NDe8, De9). The Ca/(Ca + Fe) index reflects subtle variations in the amount of Ca and therefore CaCO₃ minerals (Figure 5D) and iron in mafic minerals and oxides and hydroxides (Figure 5G).

Sr/(Sr + Rb) is lowest in ebb-tidal delta and southern foreshore (De9, SDe8) (Figure 7I). It is highest in tidal inlet and northern foreshore (De6 and NDe8), showing that this index is a good differentiator of the two parts of the lower estuary/marine system. The inner estuary sub-environments have intermediate values (De2, De3, De4, De5).

K/(K + Fe) (Figure 7J), related to the K/Fe ratio used by Herron [75] for log-based clastic identification, has a similar, but more muted, pattern than K/(K + Mn). The latter will thus prove to be better at discriminating sub-environments. Fe/(Fe+Ti) (Figure 7K), involving two mafic-associated elements, has a limited range of overlapping values with highest values in the tidal inlet and northern foreshore sub-environments (De6, NDe8), lowest values in the mud and mixed flat sub-environments (De2, De3) and intermediate for all other sub-environments (De4, De5, De9, SDe8).

Al/(Al + Fe) (Figure 7L) has high values in ebb-tidal delta and southern foreshore sub-environments (De9, SDe8) and low values in the northern foreshore sub-environments (NDe8) but similar and overlapping values in all other sub-environments (De2, De3, De4, De5, and De6).

5.3. Multi-Element Analyses in Discriminating Estuarine Sub-Depositional Environments

The application of compositional geochemical signatures in the classification of sediments for the interpretation of large-scale depositional environments has been widely reported [87,88,89,90,91,92,93]. However, the use of major and trace element compositional data has not been used to differentiate sub-depositional environments.

Here, we have developed a new technique for the independent classification of sedimentary sub-depositional environments using bulk compositional data. Given that the classification scheme is intended for application to core samples, or poorly-defined depositional environment, we have elected to initially discriminate gravel beds (De1) and salt marsh (De10), as this can be achieved by inspecting any core for the obvious presence of gravel and roots. Additionally, aeolian sediment (De11) was excluded because of its poor preservation potential in estuarine sedimentary systems [94]. We have used element indices (Figure 6 and Figure 7) and supervised machine learning (RPART) with natural splits in the indices illustrated by the dashed lines superimposed on boxplots (Figure 7) to develop an automated way to determine sub-depositional environments based on pXRF-derived compositional data (Figure 4, Figure 5, Figure 6 and Figure 7).

5.4. ANOVA and Tukey’s Post Hoc Test to Differentiate Estuarine Sub-Depositional Environments

To establish whether there are statistically significant differences in index values between pairs of sub-depositional environments, we have employed analysis of variance (ANOVA) and Tukey’s post hoc honestly significant different (HSD) statistical tests using R [70]. The statistical significance of a difference is defined by the derived “p” values: p > 0.1 represents an insignificant difference, p < 0.05 represents a significant difference, p < 0.01 represents a very significant difference, and p < 0.001 represents an extremely significant difference [70,71]. Table 4 presents p-values based on elemental index values that indicate statistically significant geochemical differences between pairs of sub-depositional environments.

5.5. Development and Application of A Classification Diagram Using a Supervised Machine Learning Approach (RPART)

The results of the statistical ANOVA and HSD tests (Table 4) can also be visualised using the boxplots in Figure 7 [95,96]. We have here illustrated boxplots of the key indices K/(K + Si), K/(K + Ca), Mn/(Mn + Sr), K/(K + Al), K/(K + Mn), K/(K + Ti), K/(K + Sr), Sr/(Sr + Rb), and Ca/(Ca + Fe), all of which will be used to differentiate the estuarine sub-depositional environment (Figure 7).

The combination of initial visual discrimination of gravel beds and root-bearing salt marsh, followed by the use of numerous element indices via a supervised machine learning approach, in the form of recursive partitioning (RPART), has led to a new quantitative classification approach to discriminate sub-depositional environments in an estuarine setting.

The RPART package [73], available in R statistical software [70], was employed to classify the geochemical signatures of sediments into sub-depositional environments. We employed Recursive Partitioning and Regression Tree (RPART) software in R to develop a classification tree by using elemental indices to find best splits for the dataset into different sub-depositional environments in the Ravenglass Estuary. A similar approach was employed by Simon et al. [52] to subdivide sediment textural data from the Ravenglass Estuary. It was hoped that the geochemical data might lead to an improved classification compared to the textural data; note that the risk of closed datasets [97], has here been circumvented by using element indices.

Classification trees, derived by machine learning, create quantitative decision node split-points for a given index. The software establishes the dominant discriminators; these sit highest up the tree. The RPART-supervised machine learning approach (Figure 9) selected decision nodes of the following elemental indices to achieve a supervised classification: K/(K + Si), K/(K + Al), K/(K + Ca), K/(K + Ti), K/(K + Mn), K/(K + Sr), Sr/(Sr + Rb), Ca/(Ca + Fe), and Mn/(Mn + Sr). Initially, we trained the model to identify all eight sub-depositional environments: De2, De3, De4, De5, De6, NDe8, SDe8 and De9. At the end of each branch, there is either another decision node or a terminal leaf node. For each terminal leaf node, the software states the sub-depositional environment that has the highest probability (i.e., the name or the “answer”), but it also lists the fractional probability of each sub-depositional environment in the order in which they are listed in the key. The percentage of all samples in that terminal leaf node is also stated. The classification is most successful when the highest fractional values in each leaf node are close to 1.00. Values are less than 1.00 when there are overlaps in the geochemical attributes of two or more sub-depositional environments.

The decision nodes each relate to a specific question imposed on the data by the software, in terms of whether values are greater or less than a given value for a specific index (Figure 9). We have transposed the critical values for the software-selected optimal indices onto the boxplots in Figure 7. For example, towards the left-hand side of the classification diagram, K/(K + Ti) has a critical value of 0.87, whereby if samples are less than this value, there is an 86% probability that the samples are from mud flat sub-depositional environments. We have superimposed the value of 0.87 as a dashed line on Figure 7F, which illustrates the previous point about discriminating De2 and De3 sediments.

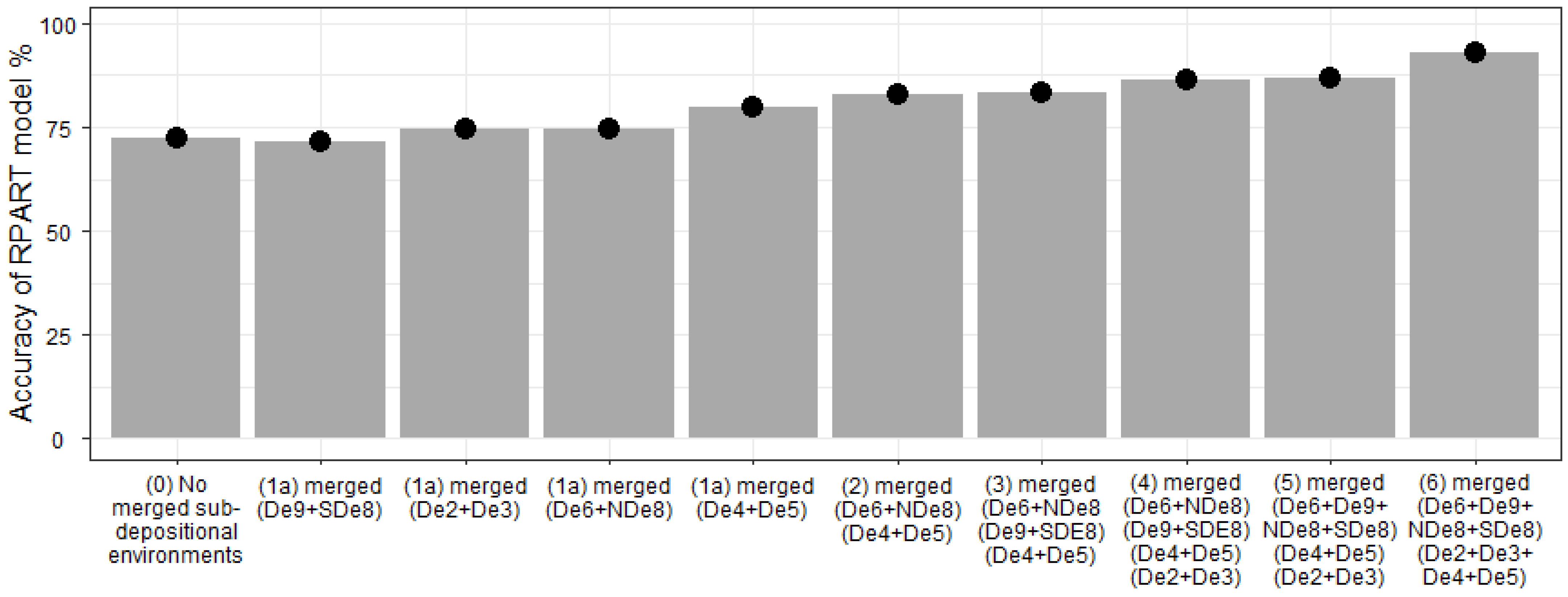

The code in R can be used to evaluate the accuracy of the RPART classification. In the case of the eight sub-depositional environments, the accuracy is 72.3% (Figure 10). We have engineered the dataset, to try to achieve higher-accuracy models, by selectively merging neighbouring sub-depositional environments. The most accurate classification model resulted from merging all inner estuary sediments (De2, De3, De4, and De5) and all outer estuary sediments (De6, De9, NDe8, and NDe8), leading to an accuracy of 92.9% (Figure 10). One of the single biggest improvements is in the merging of sand flat and tidal bar sediment (De4 and De5) sediments, as this led to a 7.5% increase in the model accuracy (Figure 10).

We have here displayed one of the simpler classification trees, based on partly merged sub-depositional environments (Figure 11). This model was developed with all outer estuary sediments grouped (De6, De9, NDe8, and NDe8) but leaving inner estuary sediments grouped into coarser (De4 and De5) and finer (De2 and De3) sediments. This classification approach led to a model accuracy of 87.0% (Figure 10 and Figure 11).

The method proposed above, calibrated with geochemical data from the Ravenglass Estuary surface sediments from known sub-depositional environments, has been applied to the geochemical data from the Holocene core (Figure 8).

5.6. Application of Proposed Model for Discrimination of Estuarine Sub-Environments

We have applied the fully resolved RPART model (no merging of sub-depositional environments) (Figure 9) to the geochemical data from the Holocene core (Figure 8). The output from the application of the model has allowed us to define palaeo-sub-depositional environments, instead of using an indirect method of describing sedimentary facies, grouping these into facies associations and then interpreting palaeo-sub-depositional environments [58]. We first applied visual identification to establish the presence of gravel beds and salt marsh in the core. Using our new approach, we were able to identify mud flat, mixed flat, sand flat, tidal bar, tidal inlet, northern foreshore, and ebb-tidal delta sub-depositional environments throughout the core interval (Figure 12).

In detail, the massive, texturally-bland, section between a depth of 300 and 400 cm was hard to interpret in terms of descriptive facies-based analysis. On the basis of core description, the sand between depths of 300 and 400 cm may have been due to inner or outer estuary deposition, given the lack of diagnostic sediment structures, trace fossils, or other features. The application of the automated classification approach has here revealed that this section was due to inner estuary deposition.

The sediment accumulation in this core started with a late glacial event and the accumulation of glacial diamicton [58]. The first sediments preserved on top of the till were apparently from a marine outer estuary environment (De9, Figure 12). This was succeeded by 100 cm of sand bar deposits (De4) and then approximately 200 cm of interbedded sand flat and mixed flat deposits (De3, Figure 12). The final 100 cm of deposition represents salt marsh deposits. This overall sequence could represent a time of (a) falling sea level, or (b) a greater rate of delivery of sediment to the estuary compared to net flux to the ocean. Salt marsh commonly represents the final stages of the levelling of marine coastal plains and the presence of marsh above the implies a phase of abandonment due to river migration [58]. Overall, the Holocene core shows an upward-fining profile at the multi-metre scale and represents a highstand-into-regression sequence. The newly revised interpretation, based on the geochemical classification of sub-depositional environments, shows that the core, drilled into a present-day tidal bar sub-depositional environment, was not always the site of a tidal bar throughout the Holocene.

The interpretation of the occurrence of a few discrete samples of northern foreshore and tidal inlet sediments is probably anomalous and a consequence of the fact that the RPART models are not 100% accurate, as shown by the leaf nodes in the classification diagram not having values of 1.0 in the dominant sub-depositional environment (Figure 9 and Figure 11). It is probably appropriate to be led by the overall stacking pattern of the sediments rather than be driven by potentially anomalous 5 cm beds that seem to be out of sequence. Note that this interpretation is based on the concept that all environments in the core exist in the estuary at the present time; this assumption is reasonable but is difficult to unequivocally prove.

A question remains about the significance of the interpretation of the basal ebb-tidal delta sediments in Figure 12. This question arises as there are no intermediate sediments from foreshore, tidal inlet or tidal bar sub-depositional environments between the ebb-tidal delta and sand flat successions, thus seeming to break Walther’s law. It seems unlikely that sand flat deposits would sit directly on top of ebb-tidal delta deposits as they are not adjacent sub-depositional environments. There is no sign of erosion of intermediate sediment between tidal delta and sand flat deposits (Figure 8). The significance of the ebb-tidal delta sub-depositional environment in the core in Figure 12 is unclear, but it may be due to mis-classification due to overlapping characteristics of the ebb-tidal delta and sand flat sediments. Despite this question, the development of a ML-approach, using a surface sediment calibration dataset, has proved to be a valuable tool to better understand palaeo-environments in 10,000 years of post-Holocene deposition recorded in a core.

This novel geochemical classification of sub-depositional environments has a good level of accuracy at discriminating outer estuary sediments, fine-grained inner estuary sediments and coarse-grained inner estuary sediments. It can also differentiate eight sub-depositional environments but with a lower degree of accuracy than the less refined classification scheme. The Ravenglass classification models (Figure 9 and Figure 11) may be applicable to other estuaries but differences in provenance and in-basin geochemical processes may result in different cut-offs at decision nodes: such an approach remains to be tested. It is also possible that the geochemical indices, that proved to be useful at differentiating modern and Holocene sub-depositional environments, could also be effective for estuarine cores from deeply buried and ancient sandstones. As a final point, the approach laid out here could also be applied to other modern and ancient depositional environments that also have subtleties that are not easy to differentiate using classical core description and facies analysis approaches.

6. Conclusions

• This work represents a detailed study of sediment, analysed for composition using pXRF analyses, from the Ravenglass Estuary, NW England, United Kingdom.
• Sub-depositional environments, mapped and defined across the estuary, include gravel beds, salt marsh, mud flats, mixed flats, sand flats, tidal bars, tidal inlet, foreshore, and ebb-tidal delta. The foreshore of the Ravenglass Estuary was subdivided into discrete northern and southern portions as they have distinct textural and elemental attributes.
• Elements concentrations vary throughout the estuary, especially in terms of localised differences of Al, K, Ca, Fe, Mn, Zr, Rb, some of which will be the result of localised dilution due to preferential accumulation of detrital quartz.
• Major, minor and trace element indices, varying between 0 and 1, were employed for the discrimination of sub-depositional environments, instead of raw concentration data, to circumvent the problem of variable dilution by quartz and closed datasets.
• Element indices are heterogeneously distributed throughout the estuary, showing that element concentration patterns are not simply due to variable dilution by quartz.
• There are strong relationships between specific sub-depositional environments and element indices within the estuary.
• Provenance, sediment mineralogy and grain size, controlled by estuarine hydrodynamics, are the dominant controls on the distribution of elements (and their indices) in the Ravenglass Estuary.
• A supervised machine learning method was developed, using the RPART routine in R Statistical Software, for the automatic discrimination of palaeo sub-depositional environments, with the model calibrated using surface sediment element indices. The model was successfully applied to a core drilled through the Holocene succession at Ravenglass to predict palaeo sub-depositional environments over the last 10,000 years.
• This work has proved that there are strong and predictable relationships between estuarine sub-depositional environments and sediment geochemistry.
