When Proterozoic Crusts Became Thick: New Insights from Magma Petrology

Abstract

The Earth’s continental crust represents the outermost envelope of the solid Earth, controlling exchanges within the geosphere and reflecting geodynamics processes. One of the fundamental issues of Earth Science aims to determine crustal thickness in past geodynamic environments in order to discuss the evolution of certain geodynamic processes through time. Despite presenting a continuing challenge, the evolution of crustal thickness during the last 3 billion years can be investigated using indirect clues yielded by the chemical signature of mafic magmas and associated ferromagnesian minerals (pyroxene, amphibole). Here, we present a new statistical assessment of a global database of magmatic and mineral chemical information. Analysis reveals the increasing occurrence of high-temperature pyroxenes and amphiboles growing in Ca-rich, Fe-poor magma since ~1 Ga, which contrasts with lower temperature conditions of minerals crystallization throughout the Meso- and Palaeoproterozoic times. This is interpreted to reflect temporal changes in the control of Earth’s crust on mantle-derived magma composition, related to changes in lithospheric thickness and mantle secular cooling. We propose that thick existing crust is associated with deeper, hotter magmatic reservoirs, potentially elucidating the mineral chemistry and the contrasting iron content between primary and derivative mafic magmas. Based on both the chemical and mineral information of mafic magma, an integrated approach provides qualitative estimates of past crustal thickness and associated magmatic systems. Our findings indicate that the Proterozoic was characterized by thicker crustal sections (>40–50 km) relative to the Phanerozoic and Archean (<35 km). This period of crustal thickening appears at the confluence of major changes on Earth, marked by the onset of mantle cooling and Plate Tectonics and the assembly of Columbia, the first supercontinent.

1. Introduction

The continental crust provides a window into past geodynamic processes. However, its thickness in the Archean and Proterozoic times remains an unresolved issue. On this knowledge hinges key parameters for geodynamics models aimed at testing secular changes in tectonics processes and continental crust formation ([1,2] among many others). For some authors, secular change in crustal thickness followed the progressive cooling of the mantle since 2.5 Gyrs [3,4]. The thickest crusts are therefore expected in the Archean compared to the Proterozoic times, acknowledging that the melting of hotter mantle should result in thickest crustal sections of mafic composition. For others, the secular cooling of the mantle predated change in crustal thickness, acknowledging that hotter thermal gradients in the Archean crusts should limit their thickening ([5,6] and Ref. therein). It was also argued that crustal thickening in a lithospheric section can be modulated by the presence of water and increasing differentiation of the continental crust toward felsic composition in the Precambrian, triggered by the advent of plate tectonic processes, should result in progressively thicker sections with time [7].

Unfortunately, such controversy surrounding evolutionary models of the continental crust has not been resolved by geophysical investigations on the Moho. In the most recent compilation of seismic images, the global average crust is apparently thickest in Proterozoic provinces relative to Archean ones [8,9]. These comparisons, however, face a number of uncertainties related to the interpretation of seismic reflectors and their apparent arbitrary selection within individual provinces [10]. In short, it would mask a more heterogeneous Moho whose depth doesn’t necessarily follow a secular evolution. Different lines of evidence also suggest that the architecture of the crust has often been modified by multiple tectono-metamorphic and magmatic events and that, potentially, the present-day interpretation of the associated Moho depth doesn’t accurately reflect the original crustal thickness [11,12].

Despite these limitations, a number of geochemical indices are proposed as proxies which record changes in crustal thickness and may be investigated using data mining techniques on large geochemical databases [13,14,15,16,17,18]. Such proxies are based on different correlations established between the composition of young lava formed in arc-settings and the thickness of the crust through which lava were likely to evolve. However, the significance of these correlations has been recently questioned [19]. It was suggested they mostly reflect temperature changes and the degree of melting in the sub-arc mantle [20] rather than differentiation in the arc lithosphere (including crust) ([21,22,23,24] among many others). Furthermore, it was suggested that changes in lithosphere thickness could only be a consequence of the evolution of mantle temperature modulated by plate dynamics [25]. It was stressed that high-pressure fractionation at the bottom of the crust, within deep hot zones (Figure 1), was unlikely to explain the global systematics of mafic magma composition. This conclusion deeply challenges the idea that estimates of past crustal thickness can be obtained simply from magma chemistry because temperature in the mantle is a difficult parameter to constrain in both modern and past geodynamic environments [26,27,28].

Another problem surrounding these proxies concerns the use of modern calibration for chemistry versus crustal thickness relative to older lava, given potential differences in primary magma composition and crustal differentiation. It may be also argued that lava considered for proxies have been sampled in young arc settings and it is not yet clear how far these proxies can be applied to unknown tectonic settings in the past. The last and most fundamental problem is that none of these proxies have hitherto been tested against both the mineral and chemical records of magma that, together, integrate much of the high-frequency variations and complex details that can exist within magmatic systems. Such a test is possible through the examination of crystallization conditions of magmatic minerals, like amphiboles and pyroxenes, which can provide petrological and temperature constraints to understand the potential control of crustal thickening on magma evolution [29].

In this paper, we propose an investigation of paired chemical and mineral information of mafic rocks to extract qualitative estimates of the crustal thickness of past magmatic systems. In order to assess the sensitivity of different mineral, chemical and thermal parameters to crustal thickness, we first present a multidimensional database of chemical and mineral information of young (<ca. 10 Ma) igneous rocks (lava), sampled in continental settings. The empirical correlations are then tested against the independently constrained estimates of crustal thickness for the global magmatic record [18]. In a broader geodynamic context, this new integrated approach sheds light on the growth of thick (>40–50 km) continental crusts in the Proterozoic times, likely forming in lithospheric sections thicker than today, and their subsequent destruction in the Phanerozoic. Finally, we show that the chemical record of primary magmas and their derivative melts (i.e., mafic magmas) can be used as a marker of magmatic differentiation throughout the lithosphere; and that changes in the differentiation of these magmas over time reflect the influence of long-term geodynamic drivers such as mantle secular cooling and the evolution of plate tectonic regime [27,30].

2. Material and Methods

2.1. Database & Statistical Analysis

Data from the GEOROC database were compiled with published and unpublished data. Results for global mean geochemical and T & P values with time are reported with associated 1-standard-error uncertainties of the mean at different intervals. These means were generated by Monte Carlo analysis, using the standard bootstrap resampling approach detailed in a previous paper [31].

Because contrasting trends can reflect different tectono-magmatic systems, we have organized our data into three groups according to the inferred tectonic environment proposed by the authors of data referenced in GEOROC. These three groups are (1) continental margins, (2) intra-continental settings (CFBs, LIPs, rift-related magmatism and intraplate volcanism, including syn- to post-orogenic magmatism) and (3) oceanic domains. Lavas sampled in the actual oceanic domains have been discarded from our correlations, largely comprising MORBs or OIBs younger than 200 Ma. In the rest of the discussion, only magma (lava) sampled in arc or continental domains will be considered. Such magmas are grouped into the term “continental s.l.”, without further distinction (Figure 2). We acknowledge that major element contents of primary magmas are affected by melting conditions in the mantle and that hydrous lava from arcs may be not securely compared directly to intercontinental basalts. However, there are also some benefits in performing our calculations on a complete dataset of lava, even though they were sampled in different continental s.l. settings, to obtain qualitative or semi-quantitative information. We think the benefits of this approach exceed the intrinsic risk to which we are exposed in discarding or selecting inappropriate arc-type basalts in the Precambrian record, accounting for supposed discriminant ratio in trace elements [32]. There is also some evidence that both hydrous & anhydrous melting processes occur below continents and arcs, which are likely to generate variations in our range of mafic magma composition at any one time but will not affect the temporal trends of chemical values reported in Figure 3. Basically, if melting conditions in the Precambrian have been over- or underestimated, it is also the case for the Phanerozoic ones.

Overall, the robustness of our statistical approach is strengthened by the limited number of temporal gaps in the database. The most inherent risk of sampling bias concerns the >ca. 3 Gyrs period for which the “Komatiite” singularity has distorted the discussion of Archaean crust formation, resulting in an elevated proportion of ultramafic rock samples compared to their relative distribution within Archaean greenstone belts (<10 to 30% of the volcanic mafic record; [33,34]). For this reason, we limited our investigation to the last 3 Gyrs of the Earth.

2.2. Composition of Primary Magmas

Retrieving the composition of primary magmas is not an easy task. It relies heavily on the geochemical record of carefully selected igneous lava that might have formed by melting ambient mantle (fertile peridotite) and subsequently underwent limited differentiation (fractional crystallization) before magma emplacement in the crust. Inferences, though limited, already provide fundamental information about the evolution of the thickness of oceanic crust or the thermal state of the upper mantle as a function of time [26]. Only lavas ranging in SiO₂ composition from 43 to 51 wt% (~22,000 samples) have been considered in the calculation of primary magma composition. Such a pre-selection of data into different major element ranges will be discussed later in the paper (see Section 4.2). It is classically used for distinguishing between mantle melting and subsequent evolution and fractionation processes in the lithosphere or continental crust [35]. Conversely, no pre-selection of data into different trace element ranges was applied, in order to minimize the chance of introducing any unintentional selection bias.

Primary magma (lava) compositions were obtained for our filtered database using the PRIMELT3 MEGA software [36]. PRIMELT is a very selective method for large data populations (successful solutions of calculations <1–3%; [28]), which is used to identify mafic magma derived from primary magma composition, having undergone only olivine fractionation. In most cases, there is no successful solution for the calculation of mafic magma derived from a source other than peridotites, like metasomatized mantle or pyroxenite, nor for primary magma that have experienced fractionation of minerals other than olivine, such as plagioclase or clinopyroxene or that have been enriched with these elements (magma replenishment).

The software is calibrated by anhydrous melting experiments on fertile peridotite, and its application to lavas assumes a similar fertile and dry peridotite source. Uncertainties in fertile peridotite composition do not propagate to significant errors in mantle potential temperatures (Tps) [37]. Conversely, melting of wet peridotite is likely to propagate to erroneously high MgO. We excluded all samples that have undergone clinopyroxene and/or plagioclase fractionation as indicated by depletion of CaO (Ca) and Al₂O₃ (Al) or enrichment in FeOt (Fe) (total iron reported as a single oxide). Such discrepancies can be highlighted in a simple graph [28] by plotting the chemistry of sample against its “liquid line of descent” (i.e., L.L.D.). In the end, our calculation solutions have been filtered according to a graphic procedure [37], leading to reduced uncertainties that may arise from pyroxenite source lithology, source volatile content from metasomatized peridotite, and cpx fractionation. The remaining samples were assumed to have been affected only by variable amounts of olivine addition and subtraction.

2.3. Thermometers for Magmatic Systems

A large set of temperature (T) values is included in our database [31]. These values were calculated using different equations proposed in different excel files (available at http://www.fresnostate.edu/csm/ees/faculty-staff/putirka.html#downloads), the accuracy and range of applicability of which is discussed in Putirka [38]. Keeping in mind that T estimates for samples with significant volatile contents, typical of arc-setting magma, are less accurate, the reported standard error of the estimate (SEE) for hydrous samples is larger. For instance, the SEE for the clinopyroxene calibration of Putirka (Equation (32a)) [38] increases from ±58 °C for anhydrous samples using to ±87 °C for hydrous samples. Clinopyroxene-liquid calculations reported in Figure 4a,c use Equation (33) calibrated against experiments at temperatures less than 2400 °C to produce a SEE of ±45 °C. Clinoamphibole-liquid calculations reported in Figure 4d,b use Equation (4a) [38] calibrated against experiments at temperature less than 1200 °C to produce a SEE of ±23 °C.

3. Results

3.1. Composition of Magma and Minerals through Geological Times

Statistical approaches were first applied to the large multidimensional clinoamphibole (amph) and clinopyroxene (cpx) database. Elaborative diagrams of the results are provided in Figure 3 and Figure 4c,d. They detail the chemical changes, linked to T stability ranges, of magmatic amph and cpx through geological times. The database demonstrates a progressive increase of Ti and Al content in the crystalline structures of magmatic amph and cpx during the Phanerozoic (Figure 3). The inversion of these chemical evolution trends to T crystallization conditions [38] reveals an increasing occurrence of high-T magmatic amph and cpx (Figure 4e) since ~0.6 Gyr, which contrasts with more monotonous crystallization conditions throughout the Precambrian.

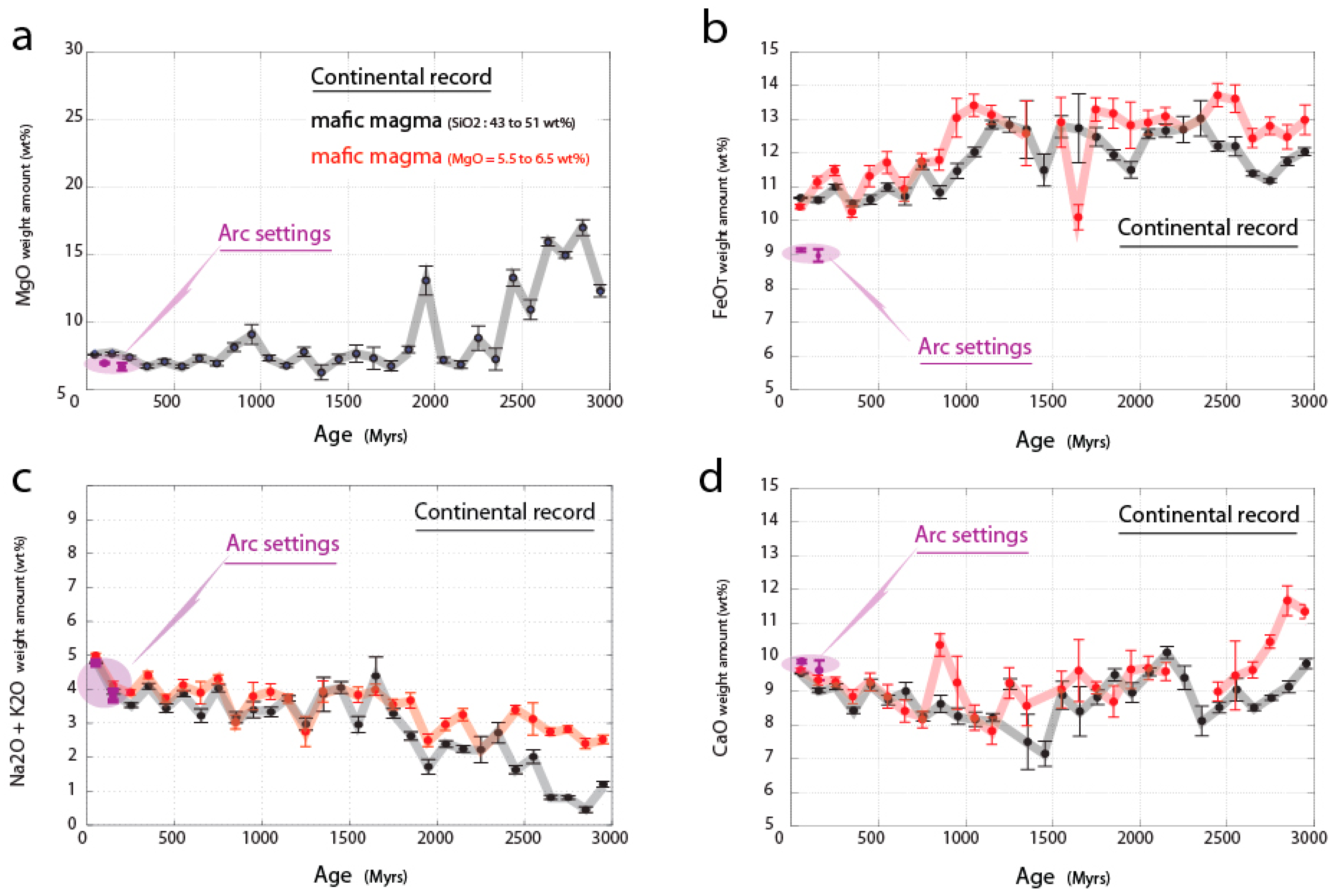

Figure 5 and Figure 6 display the chemical changes of mafic lavas (e.g., ~19,000 samples ranging in SiO₂ (Si) composition from 43 to 51 wt%) and primary magmas (103 samples; data available in [28]) throughout geological time. The database demonstrates elevated MgO (Mg) values of mafic magmas in the Archaean, then a marked decrease after ca. 2.5 Gyrs (Figure 5a), consistent with the findings of [35]. This chemical evolution is accompanied by a progressive increase of the Fe content at the end of the Archaean (Figure 5b). Despite an irregular evolution throughout the Palaeo- and Mesoproterozoic times, the Fe content of mafic magma reached its maximum at the beginning of the Neoproterozoic, then decreased in the last billion years. A stabilization of Fe, at around 10–11 wt%, is observed in the Phanerozoic times (<ca. 600 Myrs). Notably, a progressive increase of alkali contents (Na + K) is observed throughout the course of the last 2.5 Gyrs (Figure 5c).

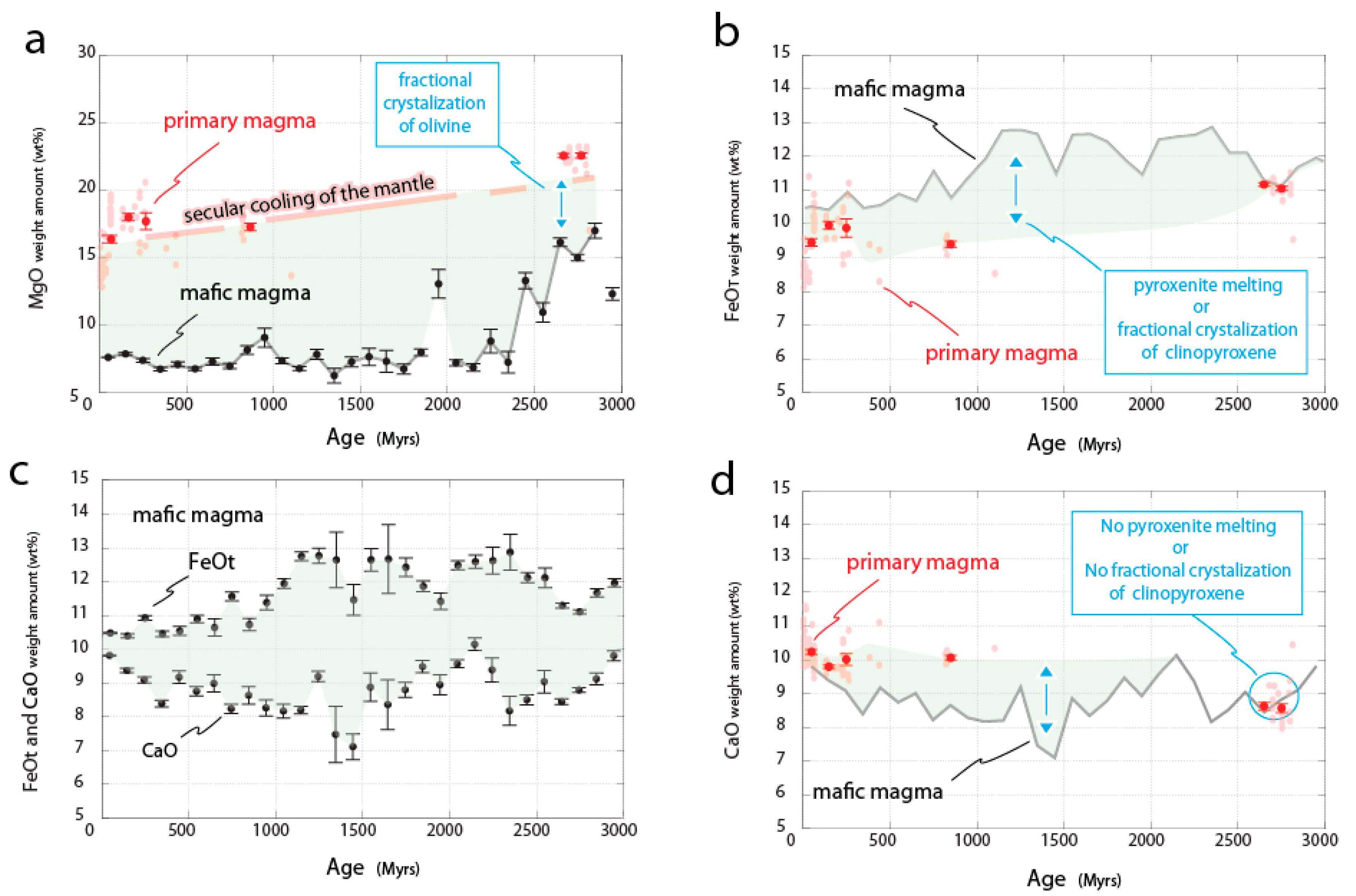

At the end of the Archean, we observe a slight increase in the Mg content of primary magmas (red points in Figure 6a), corrected from olivine fractionation (Mg decrease), followed by a decrease in Proterozoic times. This chemical evolution has been matched with the global record of mafic magmas (black points). The greatest divergence in Fe and Ca content between mafic and primary magmas occurs at the end of the Archaean, reaching its maximum in the Palaeo- and Mesoproterozoic times then progressively decreasing after ca. ~1 Gyr (Figure 6b,d).

3.2. Composition of Magma and Minerals as a Proxy for Crustal Thickness

Figure 7a shows that crustal thickness exerts a first-order control on the composition of young Cenozoic magmas, which become less calcic with increasing crustal thickness. This was achieved through the compilation of a comprehensive database for the geochemistry of geologically young magma for which the crustal thickness is known [9]. For each data point, we plotted the corresponding crustal thickness hosting the magma, thus allowing us to explore relationships between the chemical and mineral signature of magma and crustal thickness. We minimized errors induced by a possible thickening of crust subsequent to magma emplacement by discarding data older than ca. 10 Ma.

Figure 7b shows that the Ca content of young mafic magma (e.g., Si_43–51: samples ranging in SiO₂ composition from 43 to 51 wt%) strongly decreases with increasing crustal thickness, evolving from Ca values of <12 to 8 wt% for crustal thickness ranging from 10 to 45 km. Beyond this threshold of 45 km, less confidence can be given to these values because they are not supported by high-density data. The chemical trend in Ca for mafic magma, selected with a different range of composition (Si_45–55 or Mg₀₆), does not fundamentally differ. Moreover, two major elemental concentrations can be used conjointly as crustal thickness proxies and yield consistent results when larger global and regional datasets are averaged out. Accordingly, Figure 7b shows that mafic magmas become more potassic and sodic and comparatively less calcic with increasing crustal thickness.

In extension of that conclusion, Figure 4a,b presents correlations between the chemical composition of mafic magmas in the continental record and the associated composition Ca content of magmatic ferromagnesian minerals. The data provide evidence for a marked decrease in cpx and amph Mg content for decreasing bulk rock Ca content.

3.3. Composition of Magma through Geodynamic Environments

The chemical changes of magmatic samples from an oceanic spreading context (e.g., mid-ocean ridges) or in highly productive mantle upwelling context within oceans (e.g., some hotspots like Hawaii, La Réunion, Iceland, etc) are displayed in Figure 8d (green dots), with respect to those sampled in continental s.l. settings (Figure 8a; red dots). A significant increase of the alkali (e.g., Na + K) content of magma with increasing differentiation (e.g., Si increase) is observed in the oceanic record. Conversely, only a slight increase in the alkali content in magma is observed when the crustal thickness in the continental setting increases. Figure 8b,c yield correlations between the gradual increase or decrease of alkali magma occurrences in the continental record and the crustal thickness at the site of eruption (black dots). Bootstrapping of the total-alkali content reveals a negative correlation between Na + K and Si in the less evolved (basaltic) composition of magmas (Si_45–52 wt%). The negative correlation is related to a more important increase of Si with respect to Na and K in thin crust, that persists over a large range of mafic magma compositions: Si_43–51, Si_45–55 or Mg₀₆, Figure 9) but correlation becomes weaker with increasing crustal thickness. For comparison, the average trend of basaltic magma (black dots) emplaced in the continental crust has been reported on the diagrams (Figure 8b,c). It reveals a convergence of trends (black versus red dots) with increasing crustal thickness. These findings are consistent with those reported by Farmer & Lee [39], showing that the most silicic magmas (>70 wt.% SiO₂) are paradoxically found in thin crust settings like the South Chile-Patagonia magmatic systems (Figure 10), where average compositions are low in silica (basaltic).

3.4. Probing Crust in the Past through Magma Evolution

To track changes in crustal thickness through time, we used a new empirical proxy established between Ca content and crustal thickness for mafic rocks from modern magmatic systems (<ca. 10 Myr) that do not include oceanic-like magmatic settings such as mid-oceanic ridges (Figure 11). This proxy is built on Mg values at around 7 to 8 wt% and it cannot account—in theory—for large dispersions in Mg. Accordingly, magmatic rocks older than 2.2 Gyrs have not been considered in our analysis because Mg content increases from 8 to 15 wt% between 2.2 and 3 Ga (Figure 5a). Using this approach, we document the progressive build-up of thick (>50 km) juvenile crust in the Proterozoic and its destruction in the Phanerozoic times (Figure 12a). The elevated Ca content in mafic magmas shows that the juvenile crust was still rather thin at the beginning of the Palaeoproterozoic (<35 km). About 2 billion years ago, the Ca content of magma decreased, indicating that the newly formed crust became thicker. Thickening of the juvenile crust increased until the end of the Mesoproterozoic (>40–50 km). Subsequent to this, at ca. 1 Ga, the Ca content of magma increased, indicating that the newly formed crust became thinner (<35 km).

4. Discussion

The first aim of this discussion is to demonstrate, with petrological and modeling arguments, that high-pressure fractionation of minerals in mafic magma has a geological reality and can significantly deplete a mafic magma in calcium. Such control of the crust (or lithosphere) on the primary magma differentiation toward mafic magma composition is the theoretical justification of all proxies for probing crustal thickness in the past, including our new proxy.

The second aim is to show that remarkable correlations previously observed between chemistry of mafic magma and crustal thickness [19,20,25] are consistently demonstrated for an even wider range of magma composition. We also discuss the relevance of using mafic magma from different geodynamic settings, acknowledging that fluid-induced or fluid-absent melting can profoundly impact the primary composition of mafic magma and their subsequent chemical evolution through calc-alkaline or tholeiitic differentiation in the lithosphere, respectively.

Finally, we question how temperature changes in the mantle through time can impact these correlations and magmatic differentiation (calc-alkaline versus tholeiitic), acknowledging that hotter temperatures propagate to primary magmas with more elevated magnesium and calcium composition, and comparatively lower iron contents. This point is important as, over the last 600 Ma, mantle heating below Pangea interacted with a broader secular cooling of the Earth mantle [31].

4.1. Chemical Differentiation of Primary Magma Controlled by Temperature

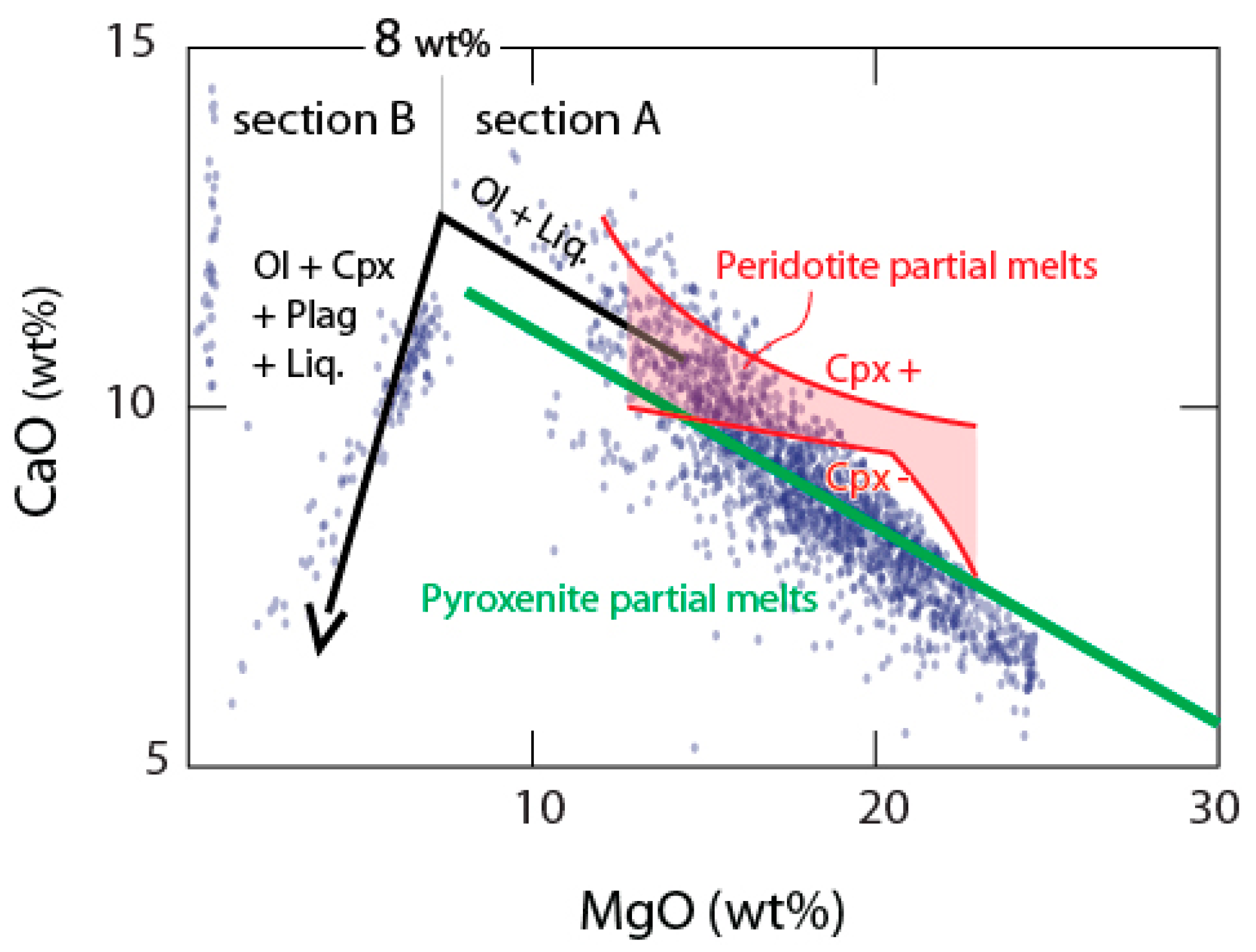

A key point for our new proxy is to demonstrate whether or not the variation in Ca and Fe contents of mafic magma is the result of increased cpx fractionation during differentiation of primary magma. Figure 11 reveals that prior to cpx fractionation, olivine fractionation will result in an increase of Ca and a decrease of Fe in the melt [37]. In Figure 6a, the Mg content of primary magma is positioned at around 15 wt%, in the range of composition where only olivine fractionation is expected (Section A of the LLD in Figure 11). It means that early crystallization of olivine likely contributed to Ca increase and Fe decrease in primary melt, until a point on their LLD (8 wt% in MgO) where cpx starts to crystallize with plagioclase (Section B, Figure 11), stopping the Ca enrichment in primary magma and inverting their positive Ca/Fe evolution. Ca and Fe content in mafic magma thus reflects this two-step but opposite evolution.

Distinguishing which of the two steps (Section A or B) dominantly contributed to the Ca and Fe content of mafic magma in Figure 6b,c requires us to know the proportion of cpx in the fractionating assemblage, which is currently impossible. A more simplistic approach in assessing the effective contribution of cpx fractionation in the differentiation of primary magma, is to consider their compositions in Ca, which broadly do not change with time (~10 wt% in Figure 6d). If early fractionation of olivine has been involved (section A of the LLD) (Figure 11), increasing the Ca content of primary magma, it cannot explain by itself the final composition in Ca of mafic magma which now plots below 5–10% (Section B of the LLD) (Figure 11). We, therefore, conclude that cpx fractionation is a necessary step to explain the difference in Ca between mafic and primary magma.

4.2. Chemical Differentiation of Primary Magma Controlled by Pressure and Temperature

Another key point for our new proxy is to demonstrate whether the chemical differentiation of primary magmas is the result of crustal or lithospheric processes. Accordingly, chemical variations in mafic magmas could only demonstrate the extent of cpx fractionation in the primary melt with decreasing temperature and have no relationship to the pressure of crystal fractionation in the crustal or lithospheric section.

Testing this hypothesis would require the comparison of the composition of primary magma produced at different depths but similar temperatures. A normalized range of temperatures for mafic magma is thus necessary. It can be constrained by their Mg content that linearly increases with increasing temperature of melting in the mantle [37]. The Mg₀₆ was proposed by Plank & Langmuir [20] as a reference value because, within such range of composition (5.5–6.5 wt% in MgO), primary magma will experience limited cpx or plagioclase fractionation along their LLD (Section B in Figure 11). Using this value, some remarkable correlations have been established between the composition of mafic magma and the thickness of the crust hosting the lava. Notably, it was shown that Ca content negatively correlates with the increase of alkali elements in magma (Na and K) and the crustal thickness.

Such evolution was likely controlled by the rate of melting (F) in the sub-lithospheric mantle [19]. It is known that low melting rates promote concentration of alkali elements in primary magma. Furthermore, F proportionally decreases with the depth of melting in the sub-lithospheric mantle. The logical conclusion is that increasing the depth of initial melting of the mantle at constant temperature will lead to more alkali magmatic signature. It was thus proposed that the alkali magma signature in arc setting was the hallmark of thick lithosphere hosting a thick crustal section and that lithosphere and crustal thicken together, controlled by tectonic processes operating at plate boundaries [25].

An important aspect of the authors’ demonstration is that mafic magma forming in arc setting cannot derive from a single (unique) parental magma (primary magma) but rather reflect different sources and degrees of melting in the ambient mantle, as controlled by plate dynamics. It was also stressed that mafic magmas acquire their main chemical characteristic early in the chain of igneous processes, at the time of mantle melting. Subsequent differentiation in the lithospheric or crustal section is unlikely to modify such peculiarity and will only strengthen it, as demonstrated by their alkalinity in the TAS diagram (Figure 9).

Turner & Langmuir [25] build their demonstration on the fact that little evidence exists for high-pressure fractionation of magmatic minerals within deep hot zones [23]. Global systematics of magma chemistry would better suggest the evolution of mafic magma is controlled by the fractionation of olivine, not pyroxene at pressures up to 12 Kb [22]. However, taken at face value, the LLD of individual arc magma selected by authors (Figure 9 in [19]) could also mimic the experimental fractionation trend of Nandedkar et al. [43] obtained at middle-pressure (7 Kb) conditions reflecting intra-crustal differentiation.

Accordingly, there is growing evidence that magma storage and evolution can proceed at different levels in the crust within mush columns [44]. In a mush context, the middle crust likely constitutes an important zone of transfer and mingling for magma, marking a physical threshold between mafic and felsic reservoirs present in the lower and upper crust, respectively. A marked decrease of Fe in magma at the middle-crust boundary was recently highlighted by Ganne et al. [45], which can potentially be explained by the crystallization of pyroxene or amphibole trapping Fe. Likewise, different lines of evidence exist in the literature that indicate that pyroxene can crystallize in the crust or down to the sub-Moho lithospheric section of arcs (Figure 1 in Putrika [46]) and oceans (Figure 4 in Herzberg [47]).

The question is whether the pressure of mineral fractionation in the lithosphere is a sufficiently reproducible function of lithospheric thickness—at some definable set of parameters—to provide insights into the latter?

4.3. Chemical Differentiation of Primary Magma Controlled by Geodynamic Settings?

Figure 4, Figure 5 and Figure 7 show that comparable trends for elements and similar correlations with the crustal thickness can be observed when considering (1) different categories of mafic magma (Si_43–51; Si_45–55 or Mg₀₆) and (2) different geodynamic settings (e.g., continental record s.l. versus arc settings). The only exception concerns the Fe content of mafic magma which is lower in arc settings compared to the undifferentiated continental record (Figure 5b). Such a discrepancy brings us to discuss the relevance of using mafic magma formed in different continental settings (s.l.) as proposed in Figure 5, acknowledging that fluid-induced or fluid-absent melting can profoundly impact the primary composition of mafic magma and its subsequent chemical evolution through calc-alkaline or tholeiitic differentiation, respectively. This is an important point as a tholeiitic evolution will increase the Fe content of magma, especially in the range of mafic magma composition (Mg₀₆) for which previous correlations have been established between crustal thickness and magma chemistry [20].

Considering these correlations, sodium content (wt%) linearly increases with the decreases of calcium (R² = 0.77) and the thickening of the crust (R² = 0.74) whereas a weak correlation (R² = 0.51) is observed between iron (Fe₀₆) and sodium (Na₀₆). A loss of correlation between iron and sodium is at odds with petrological experiments predicting that iron, calcium and magnesium proportionally decrease with decreasing melting conditions in the mantle, accompanied by a gradual increase in alkali elements in the primary magma. A possible explanation is that iron content in primary magma reflects the heterogeneous composition and redox conditions of the mantle source, not only the temperature or pressure at which the mantle crossed its solidus. However, we suppose that a heterogeneous mantle source should propagate to less clear correlations in the global systematics, which is obviously not the case. The discrepancy between experimental results and global analysis of data instead suggests that mafic magmas are not directly connected to primary magma composition along an LDD controlled by olivine fractionation. Rather, it is likely that the mafic magma underwent chemical differentiation, altering the Fe content.

We suggest that iron fluctuations in the mafic magma record reflect a duality between two types of primary magma evolution, that is a tholeiitic differentiation proceeding in thin arc sections and a calc-alkaline one occurring in thick sections [14,15]. The dependence on fluid-induced melting is likely of second order. This hypothesis differs from previous conclusions [19,25], which argue that high-pressure fractionation within deep hot zones exists but was unlikely to explain the global chemical characteristics of young arc-derived mafic magma.

4.4. Chemical Differentiation of Primary Magma in the Past

Finally, we assess the impact of mantle temperature changes through time on these correlations, acknowledging that hotter temperatures produce primary magmas with elevated Mg and Ca composition, and lower Fe contents. This point is important as, over the last 600 Myrs, mantle heating below supercontinents has interacted with a broader secular cooling of the Earth’s mantle [28,48].

The Phanerozoic chemical evolution of mafic magma reveals a peak in temperature (T) recorded by cpx at around ~300 Myrs (Figure 4). This appears to be consistent with the presence of Ca-rich and comparatively less alkaline mafic magma at that time (Figure 7c). On either side of the T peak, there is an increase in the alkalinity of mafic magmas, which indicates a drop in magma temperature likely related to lower ambient mantle temperatures (Tps) below continents [31]. However, there are some deviations on the temporal trends, suggesting that changes in Tps through times cannot fully explain the change in Ca and Fe for mafic magmas. A lithospheric (pressure-related) control on primary magma differentiation is logically expected. We suggest that both the temperature of melting in the mantle and the pressure of mineral fractionation in the lithosphere control the chemical characteristics of mafic magma and that the thicker the lithospheric (and crustal) section in the past, the more pressure-dependent (first order control) the evolution of primary magma toward mafic composition. The dependence on Tps is likely a second order control.

The sub-lithospheric mantle below active arcs appears rather thin compared to cratonic regions and, along the Circum-Pacific Orogenic Belts (CPOB), it does not exceed 100 km in thickness on average [49], excluding localized sections of very thin lithosphere that have experienced delamination [50]. Lithospheric thickness is primarily controlled by temperature in the ambient mantle and elevated Tps below arcs often result in thin lithospheric sections [51]. This results in limited fractionation of minerals in a primary magma within thin lithospheric sections relative to thick lithospheric sections formed in association with cooler mantle temperatures. A hotter mantle in the past would, therefore, likely result in a thinner sub-arc lithosphere, limited mineral fractionation and Ca depletion in mafic magma. However, this is not what we observe in Figure 6. Ca depletion for mafic magmas reaches a maximum in the Mesoproterozoic when the ambient mantle is hotter, suggesting a parameter other than Tps controlled the sub-arc lithospheric thickness in the past.

Isotopic signatures of Phanerozoic lavas formed in arc settings reveal that the lithosphere below the CPOB has been fully reworked and rejuvenated by abundant magma production [52,53]. Subduction-related magmatism operated continuously since >550 Myrs on the external margins of Pangea (e.g., external accretionary orogens) whereas internal orogens (e.g., Variscan, Alpine-Himalayan, etc.), occurring in the core of Pangea, are predominantly characterized by collisional orogenesis and minor episodic subduction. These major differences resulted in the production of lower volumes of magma and limited transfer of material from the mantle to the lithosphere within slightly thicker lithospheric sections (100–150 km) relative to thinner lithosphere underlying the external orogens (<100 km) [54].

Given the lack of clear evidence of correlations between lithospheric thickness and magma composition, we can only speculate that crust thickened or thinned with the lithosphere. As discussed in this paper, however, thickened lithosphere is a prerequisite for models of deep fractionation, as well as models relying upon different degrees of mantle melting are modulated by lithospheric thickness [19,20,25].

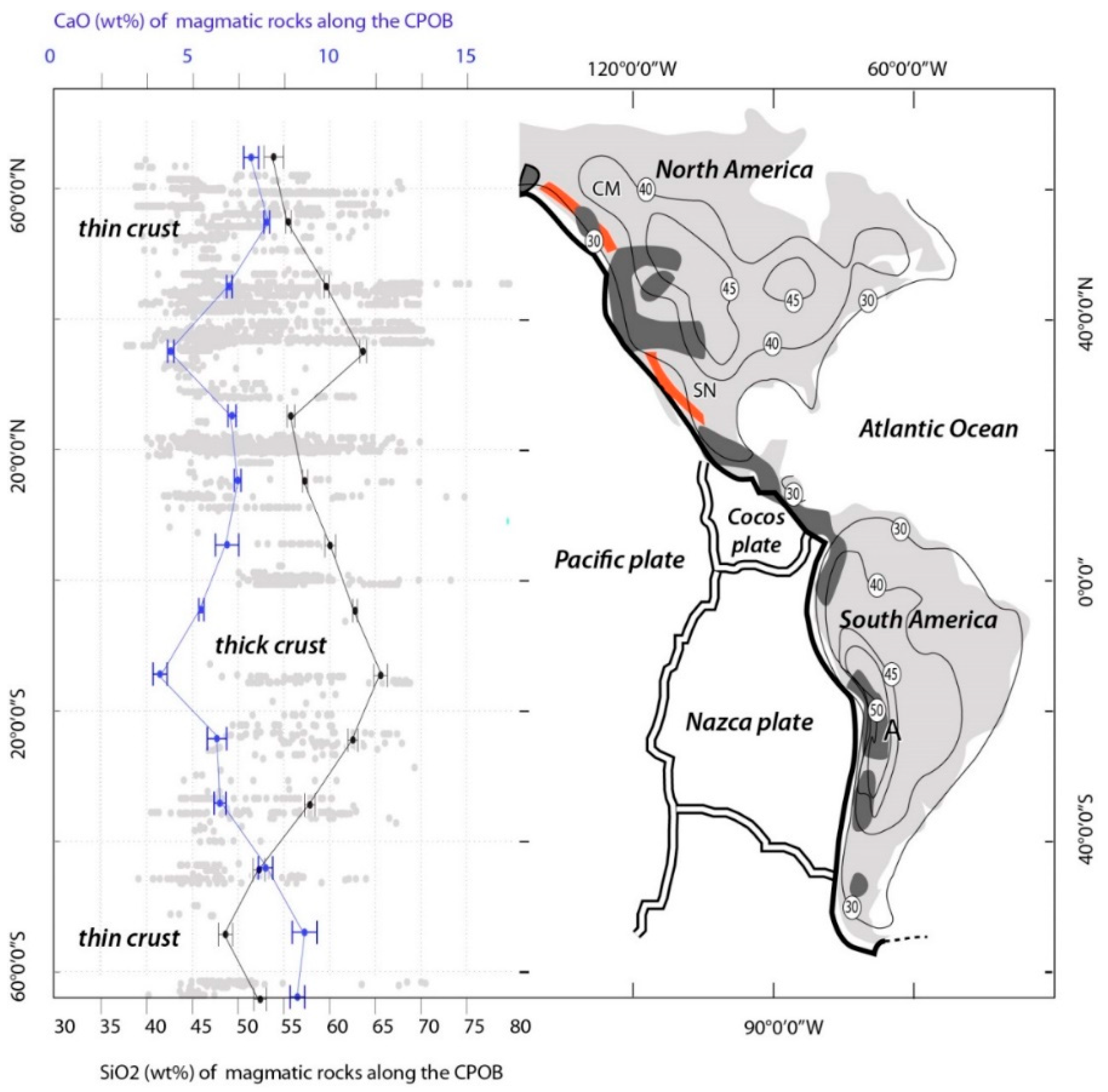

A test site was proposed by Turner et al. [25] for mafic magma emplaced in individual stratovolcanoes along the western coast of South America. It confirms that Ca correlates negatively with crustal thickness and similar results can be obtained using a different set of data from our database. Igneous samples considered in Figure 10 crop out along the western margin of North and South America, covering the compositional range of basalts to rhyolites (40–75 wt% SiO₂). As illustrated by Figure 7a, the Ca content of magma increases with decreasing crustal thickness although there is no clear evidence of lithospheric increase along the strike of the belt [49,55].

How can we explain such an apparent difference between crust and lithosphere thickening along the strike of the belts? First, the determination of the lithosphere-asthenosphere boundary (LAB) below arcs and continents is surrounded by some uncertainties [56], blurring correlations of magma composition with LAB, at the difference with Moho probed at the kilometer scale [9]. Secondly, it may be argued that changes in lithospheric thickness due to tectonic and magma processes occur more rapidly (or preferentially operated) in the crustal section than in the lithospheric mantle. Finally, it is possible that that the crust and lithospheric mantle do not thicken proportionally. If this is the case, effective changes in crustal thickness would be modulated by limited change of the mantellic section of lithosphere. Accordingly, Lee et al. [57] demonstrated that mountain elevation directly correlates with the Moho depth, indicating that high elevations are isostatically compensated by crustal thickness, with second order mantle contributions.

The corollary of our conceptual petrogenetic model (aimed at explaining what is behind our new proxy) is that the thicker the existing crust and lithosphere, the deeper the potential reservoirs (e.g., “deep hot zones”, Figure 1) and the higher the difference in iron and calcium between primary and derived mafic magmas. The causes and consequences of such a deep fractionation of magma in Proterozoic crusts can be now addressed.

4.5. Geodynamic Perspectives

Our new proxy using Ca content (wt%) in mafic lava (Figure 12a) suggests that the Archaean crust (<35 km) thickened during the Proterozoic (>50 km) and thinned in the Phanerozoic, which is consistent with results of Dhuime et al. [18]. If correct, this change in global crustal thickness likely resulted from the interplay of several factors evolving throughout time and space, such as the secular cooling of mantle and its continental crust, as well as changes in geodynamic processes with the development of the plate tectonic regime we know today [30,42,58,59,60]. Such interplay potentially resulted in the formation of the first supercontinent (Columbia) on Earth, toward ca. 1.8 Gyrs (Figure 12c).

Geological and palaeomagnetic evidence reveals that the supercontinent, Columbia, was formed and stabilized between 1.8 and 1.3 Gyrs, undergoing limited reworking during its transformation to Rodinia between 1.1 and 0.9 Gyrs [61]. Ernst [62] proposed that Columbia represents a period of “lid tectonics,” with active subduction-related accretionary orogens focused along its margins during the Earth’s middle age [63,64]. We suggest that the prolonged existence (~1 Gyrs) of Columbia either contributed to or was the product of thick crustal sections within the supercontinent. One of the characteristic features of the Proterozoic magmatic record is the temporally limited appearance of massif-type anorthosites, largely between 1.8 and 1.0 Gyrs (Figure 12b), coincident with the existence of Columbia. The genesis of anorthosite magmas is attributed the deep-seated emplacement and partial crystallization of Fe-rich basalts, with the accumulation of buoyant plagioclase mush in magma chambers at pressures of (11–13 kbar), whereby gravitational instabilities drive the subsequent diapiric emplacement of the low density, plagioclase-rich mush at mid-crustal levels [41,65,66,67,68,69]. We propose that the lower crust accumulation of Fe-rich magma was facilitated by thickened crustal sections during the Proterozoic, potentially explaining the temporal distribution of anorthosite massifs in Earth’s history [63]. The reasons why continental crusts thinned in the Phanerozoic, closing the anorthosite factory, remain a challenge for future research. We posit that parts of the solution lie in the increasing reworking of the lithospheric mantle at active plate margin during supercontinent drifts ([70] and Ref. therein) as subduction zones became more prominent and Plate Tectonics more efficient.
