Rock Mass Behavior under Tunnel Widening in Asymmetric and Symmetric Modes Considering Different Shapes and Parametric Conditions
Abstract
:1. Introduction
2. Engineering Overview and Numerical Methods
2.1. Lowari Tunnel Project
2.1.1. Geology of the Site
2.1.2. Conversion of Rail to Road Tunnel

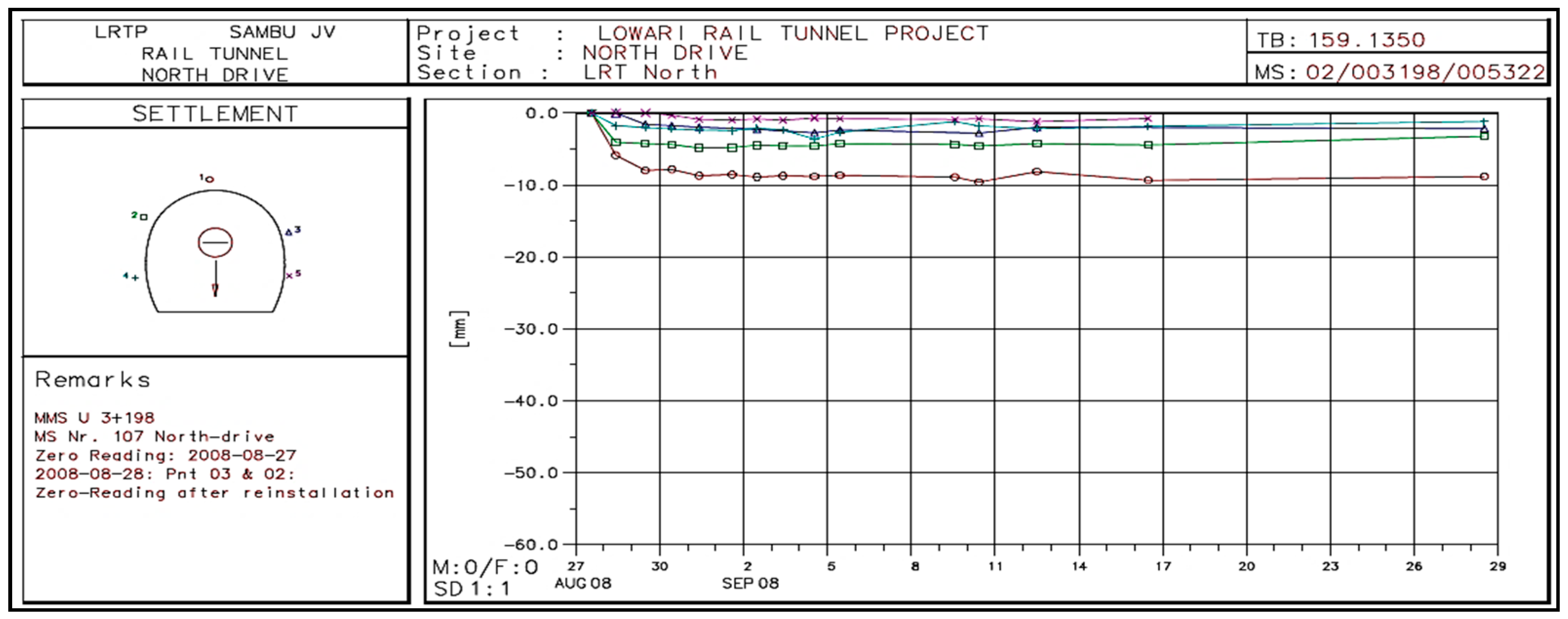

2.2. Correlation of Tunnel Deformation Obtained through In Situ Monitoring and Numerical Simulation

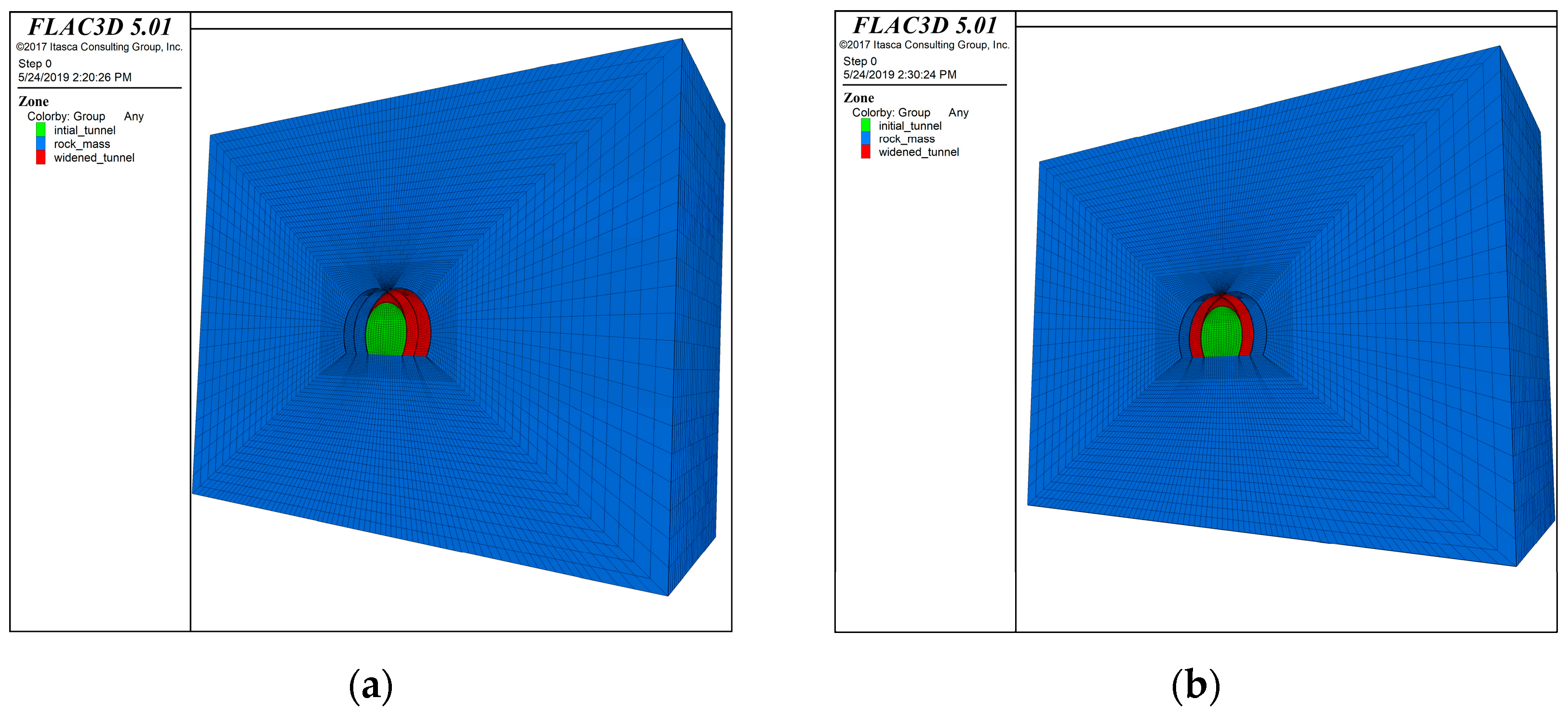

2.3. Initial Model Preparation for Asymmetric and Symmetric Widening
3. Simulation of Asymmetric and Symmetric Widening Models
3.1. Different Tunnel Modes for Evaluation
3.2. Different Tunnel Shapes for Evaluation

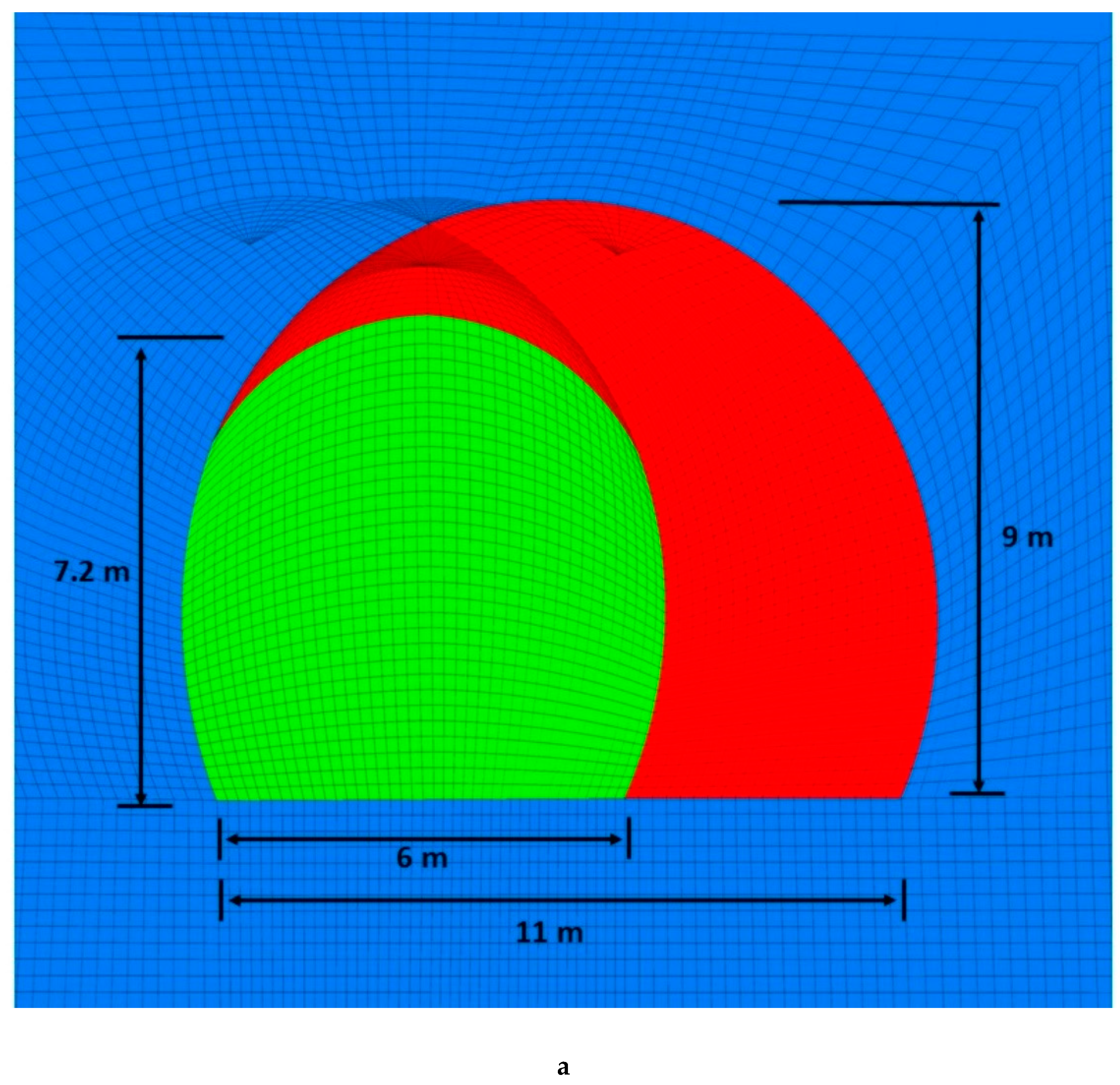

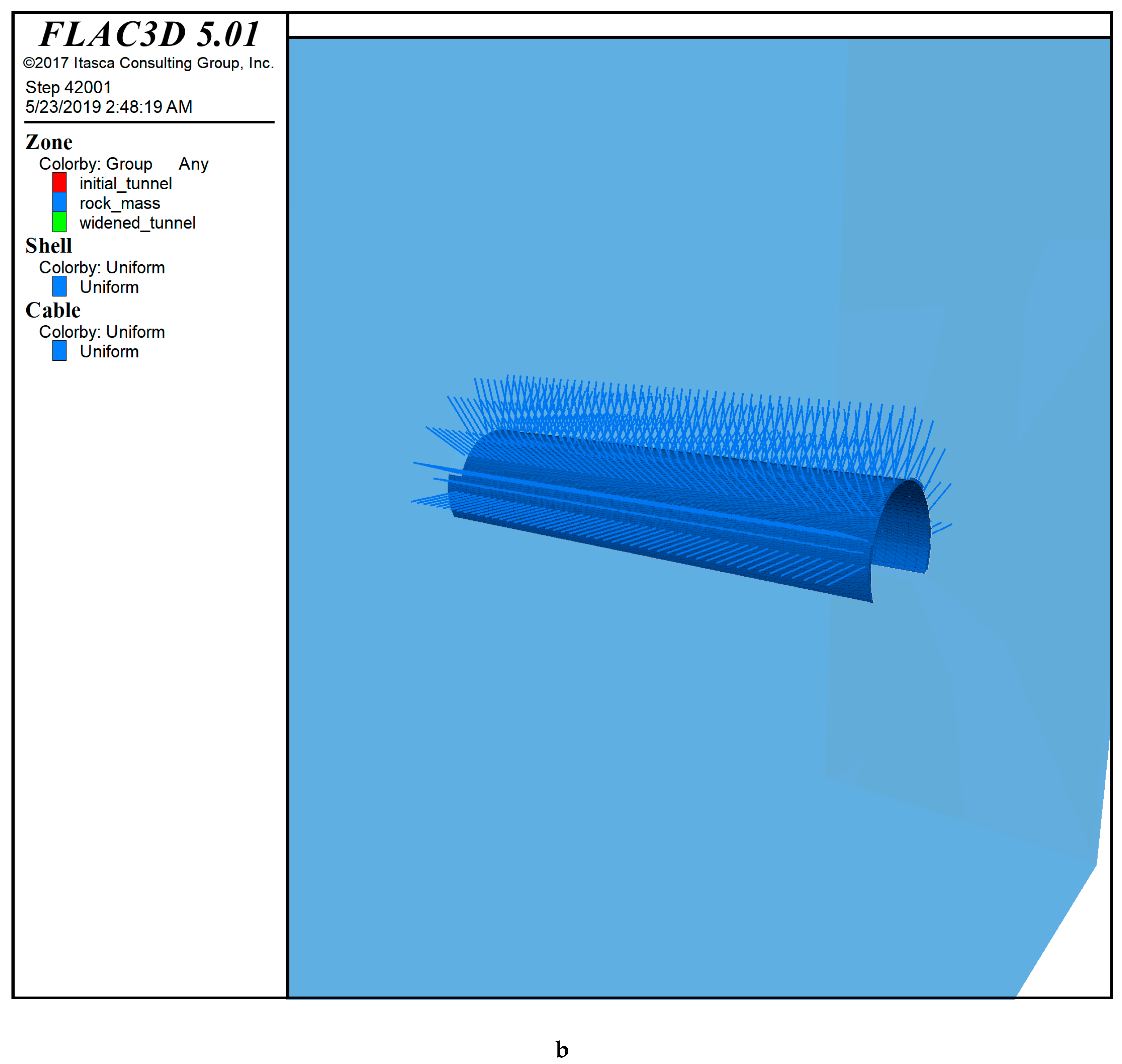

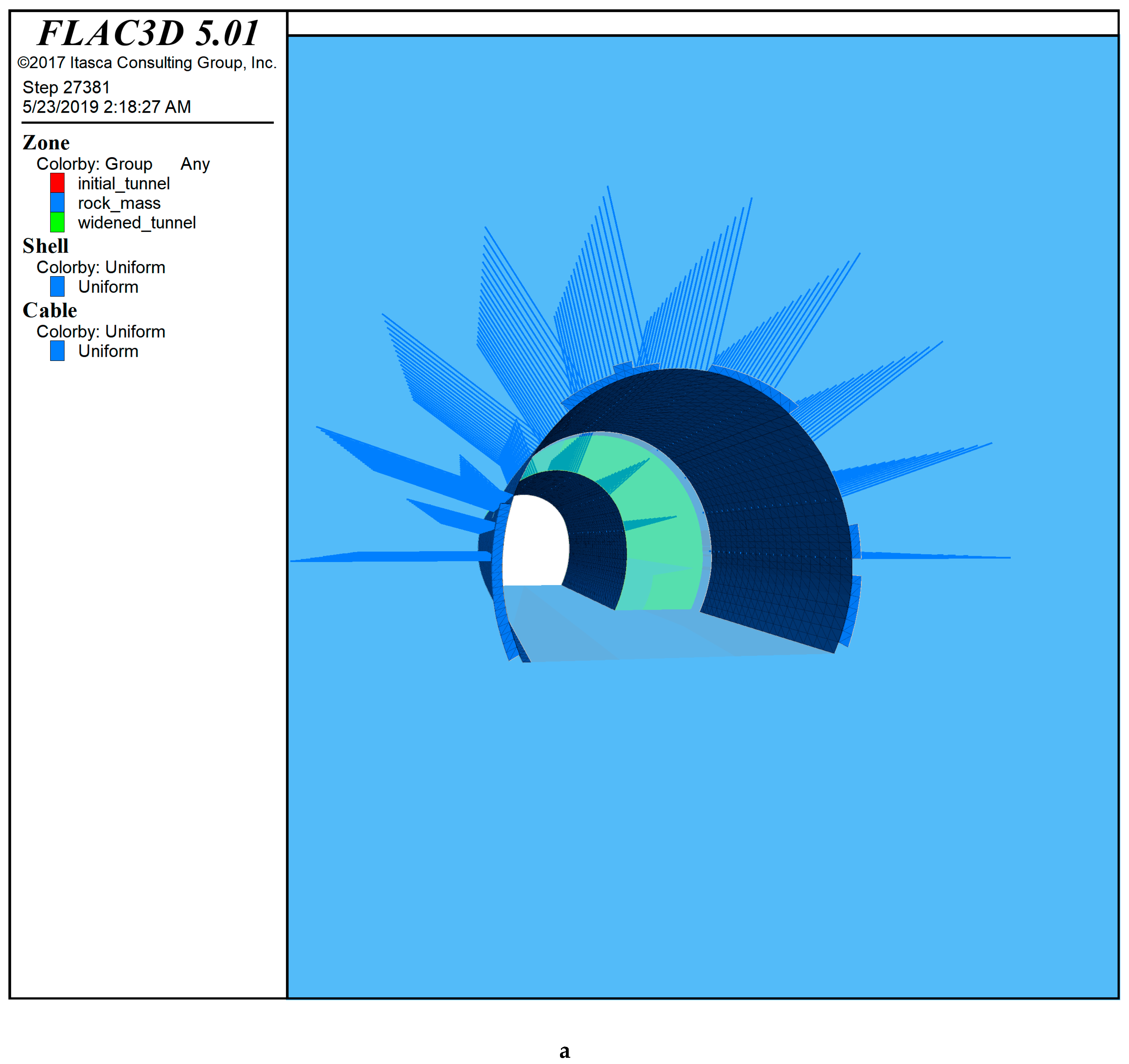

3.3. Models Geometry and Tunnel Support Characteristics
4. Results

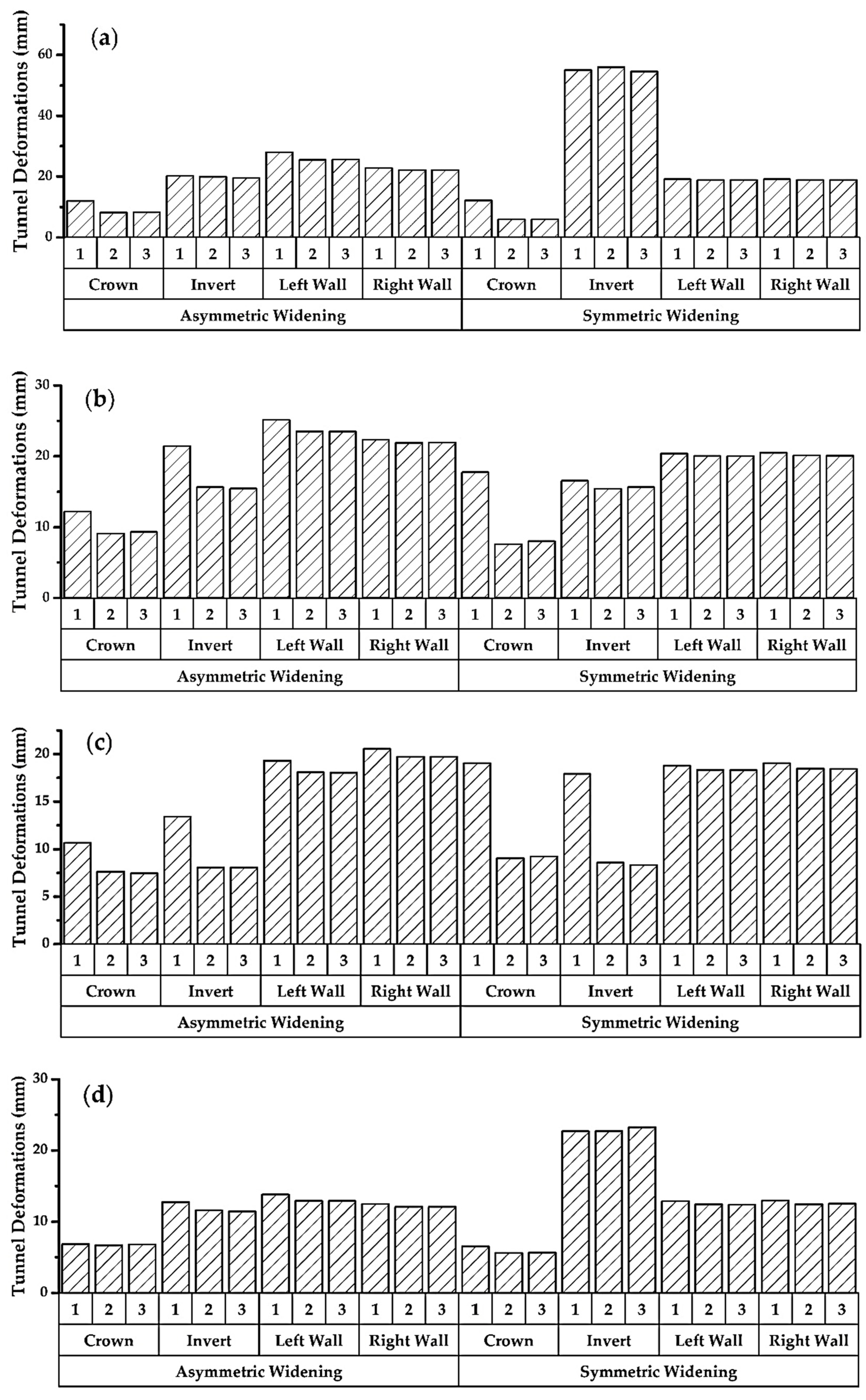

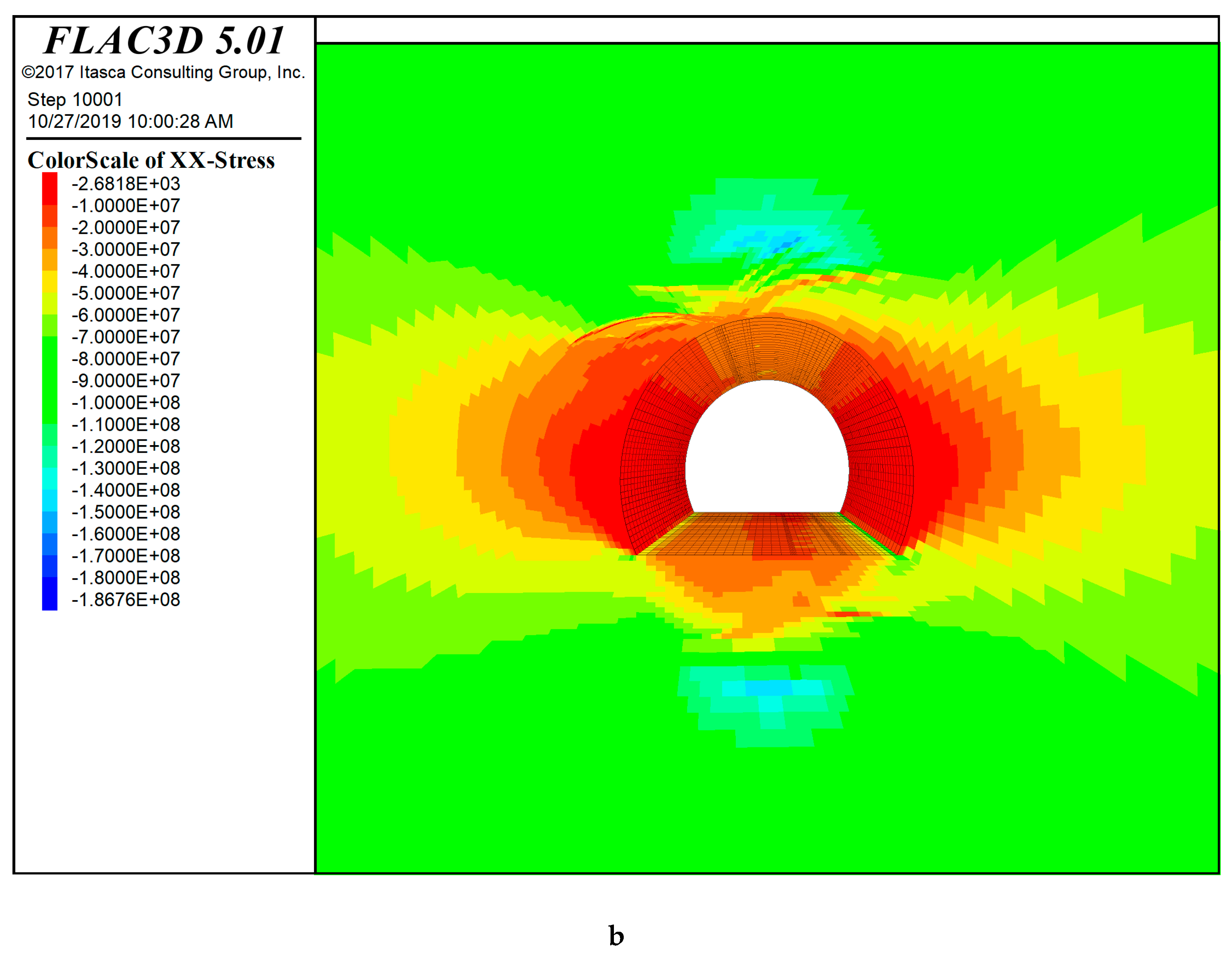

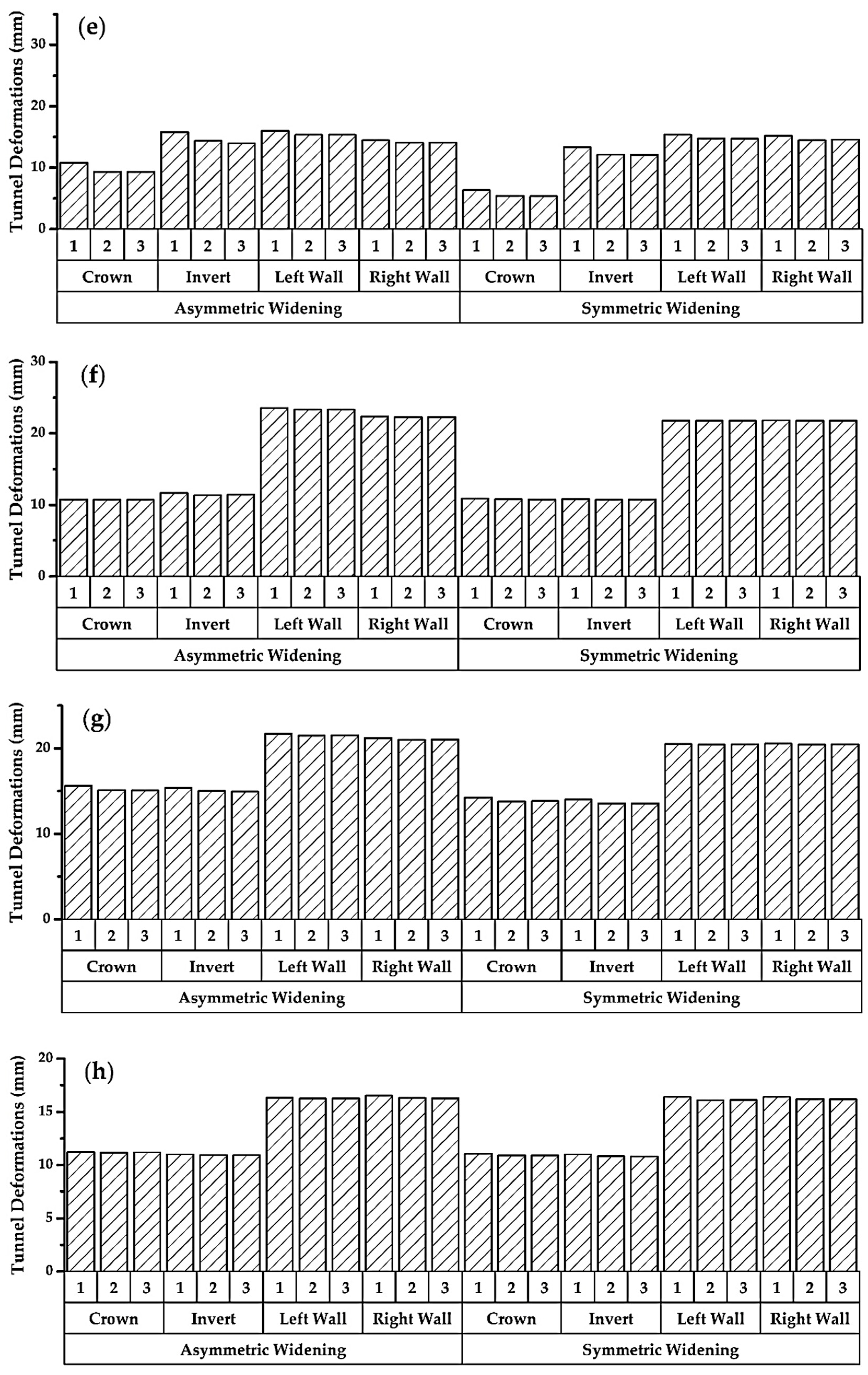

4.1. Simulated Deformation of Different Tunnel Shapes
4.2. Full Factorial Design

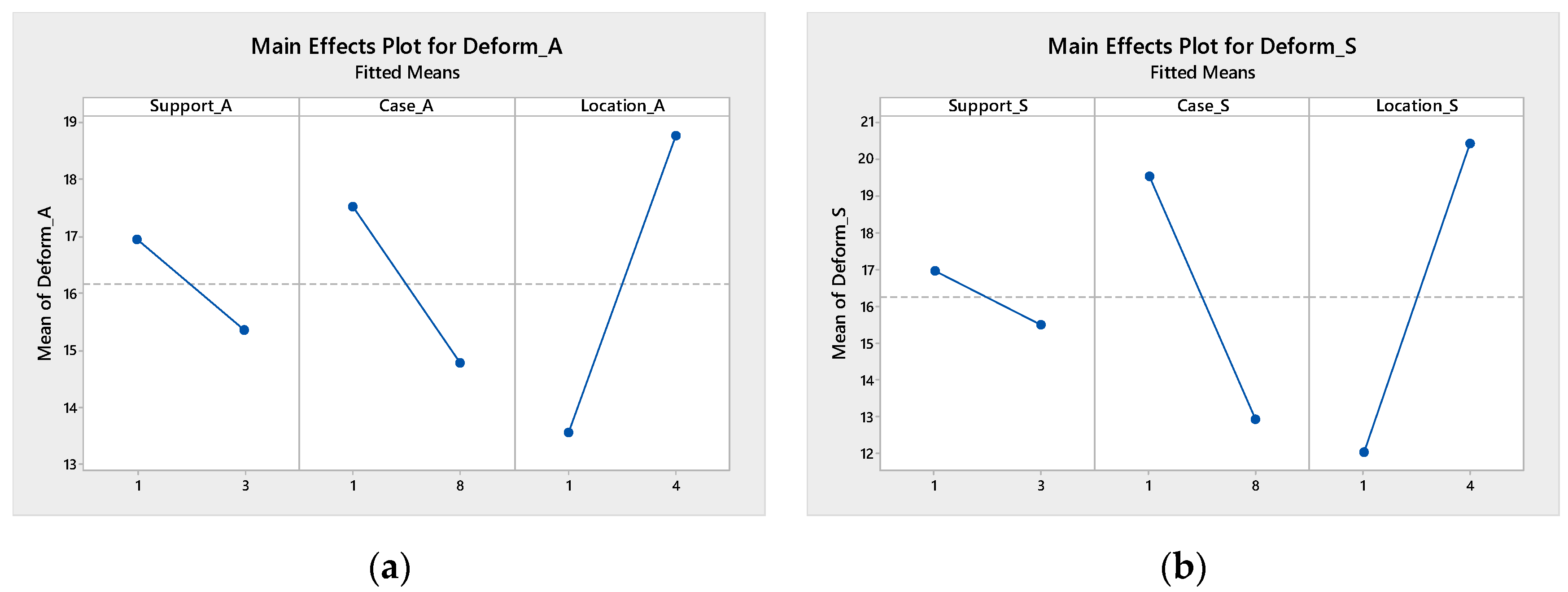

4.2.1. Main Effect Plot
4.2.2. Interaction Effect Plot

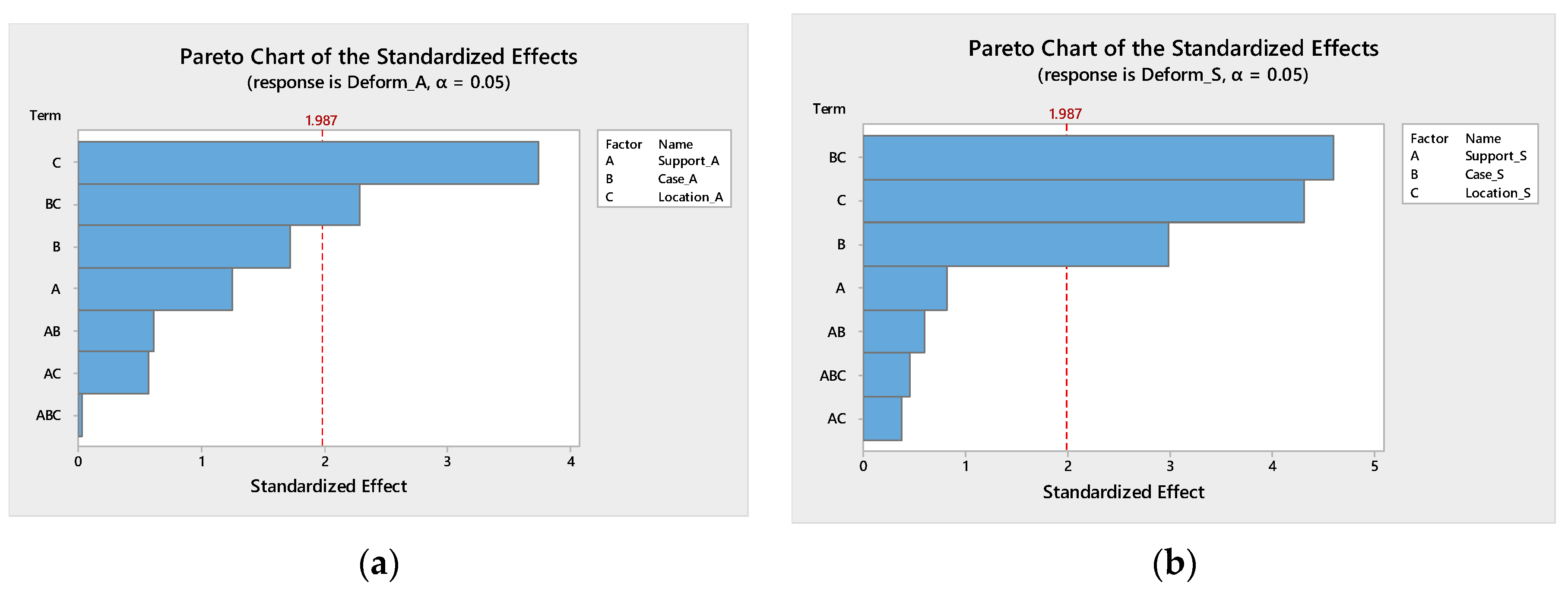

4.2.3. Pareto Chart
4.3. Parametric Study

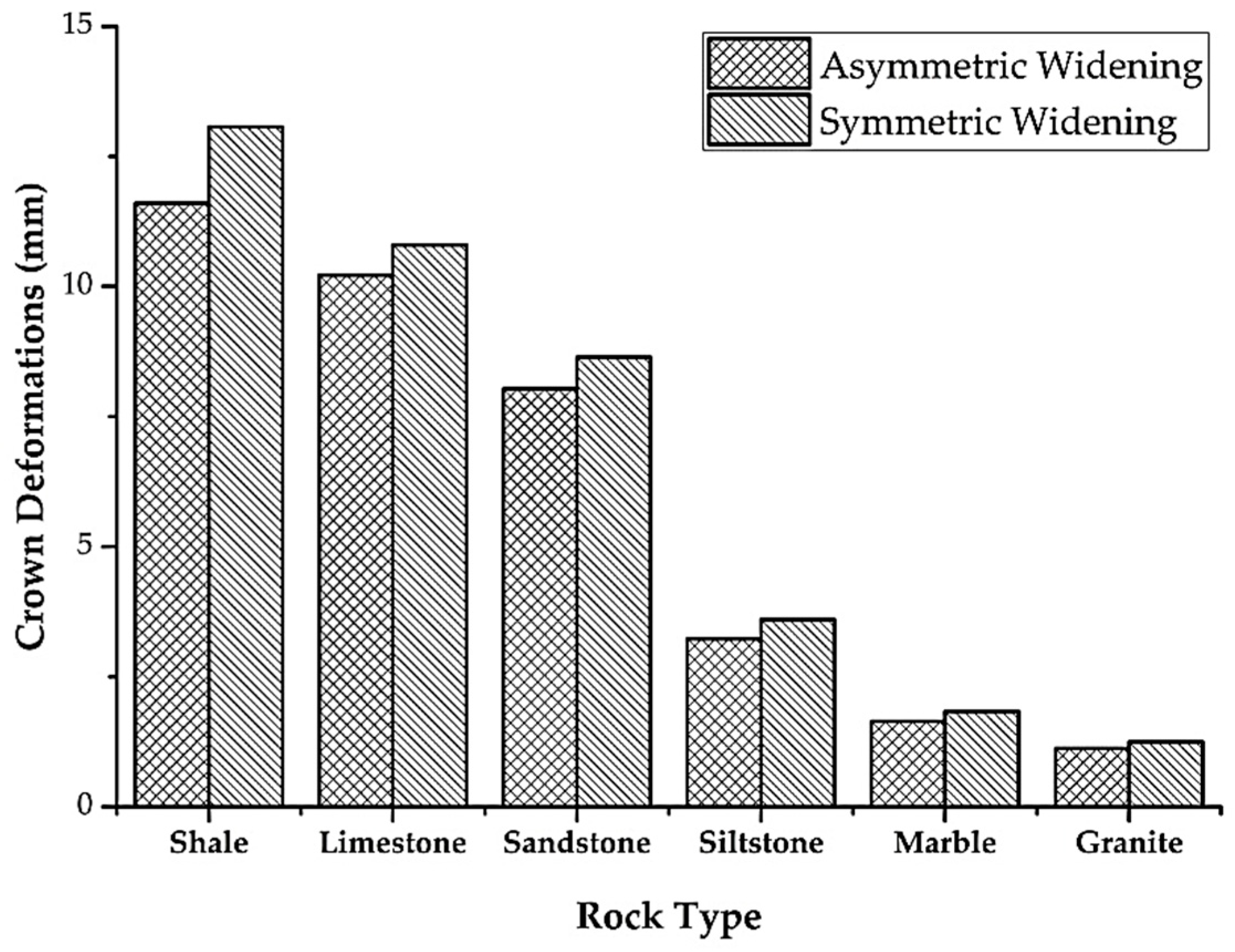

4.3.1. The Effects of Different Rock Types on Rock Mass Behavior

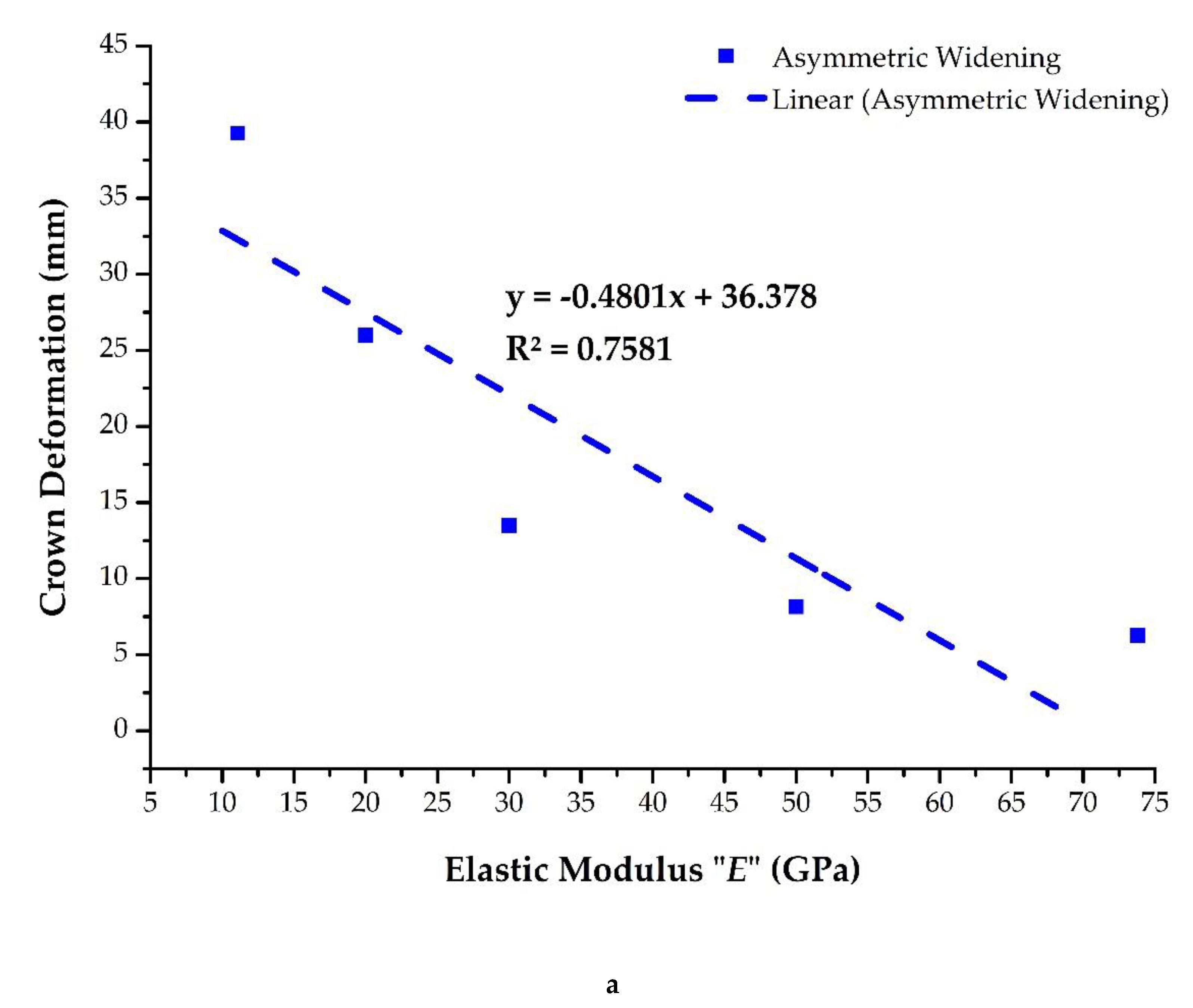

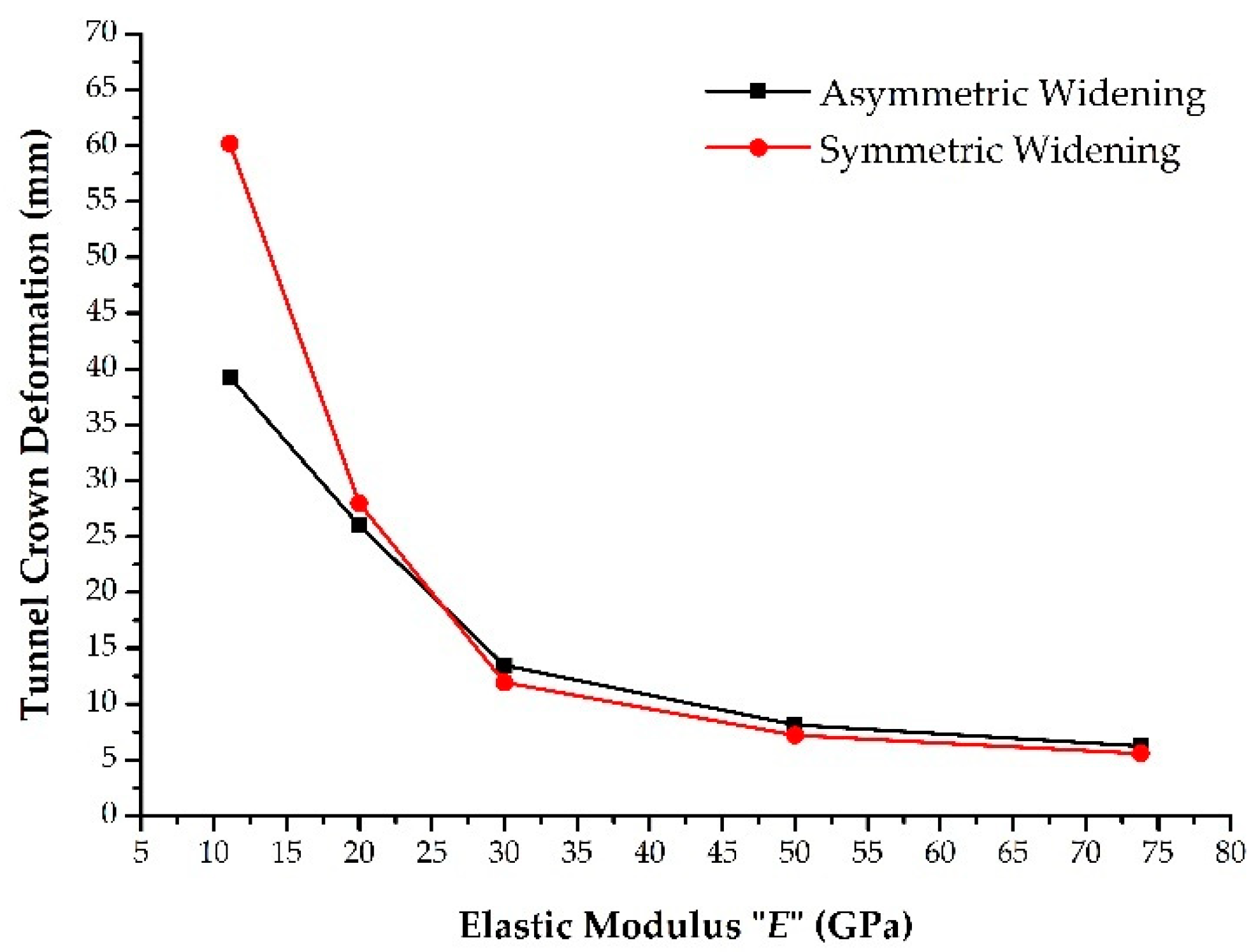

4.3.2. The Effect of the Elastic Modulus (E) on Rock Mass Behavior

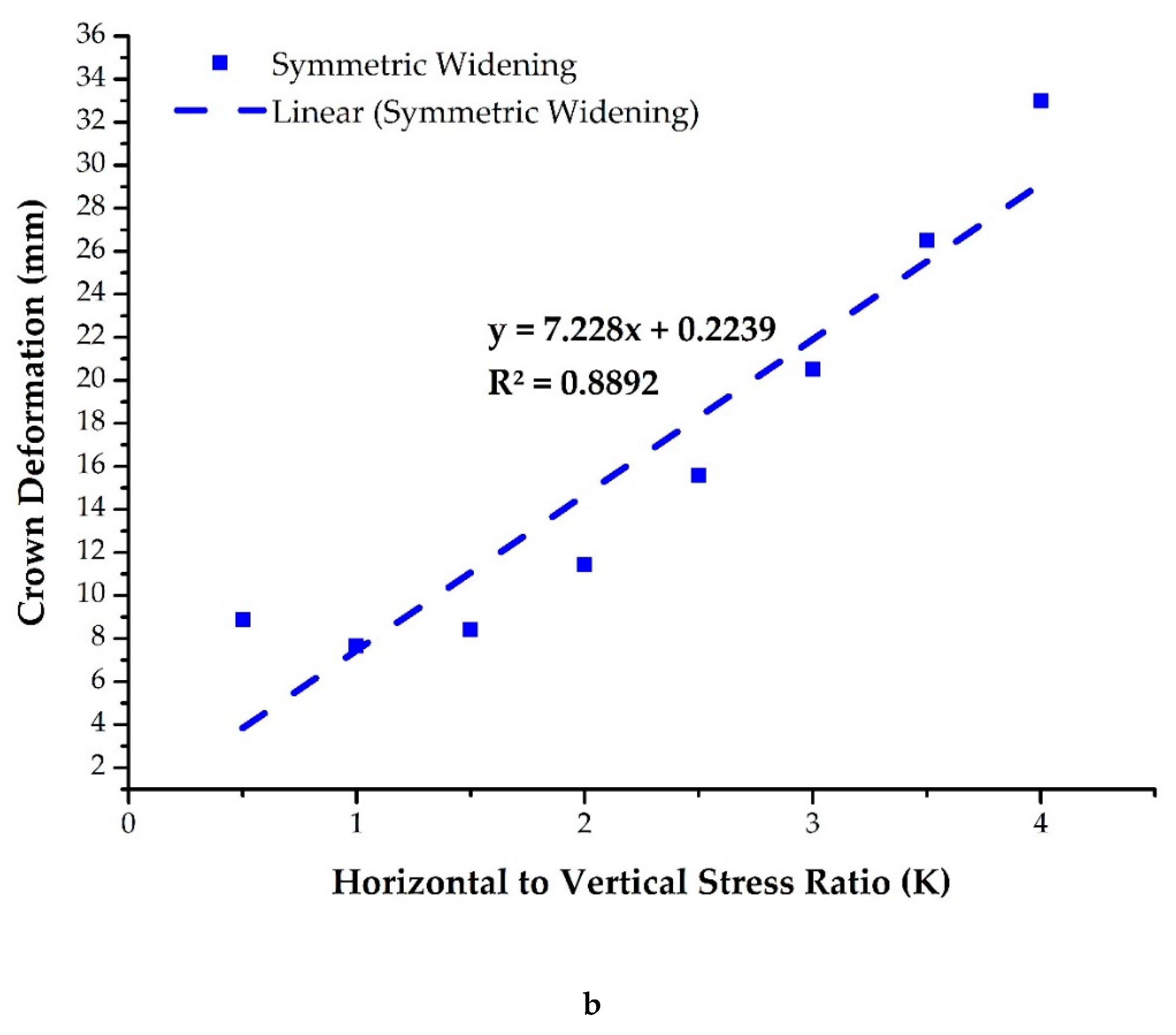

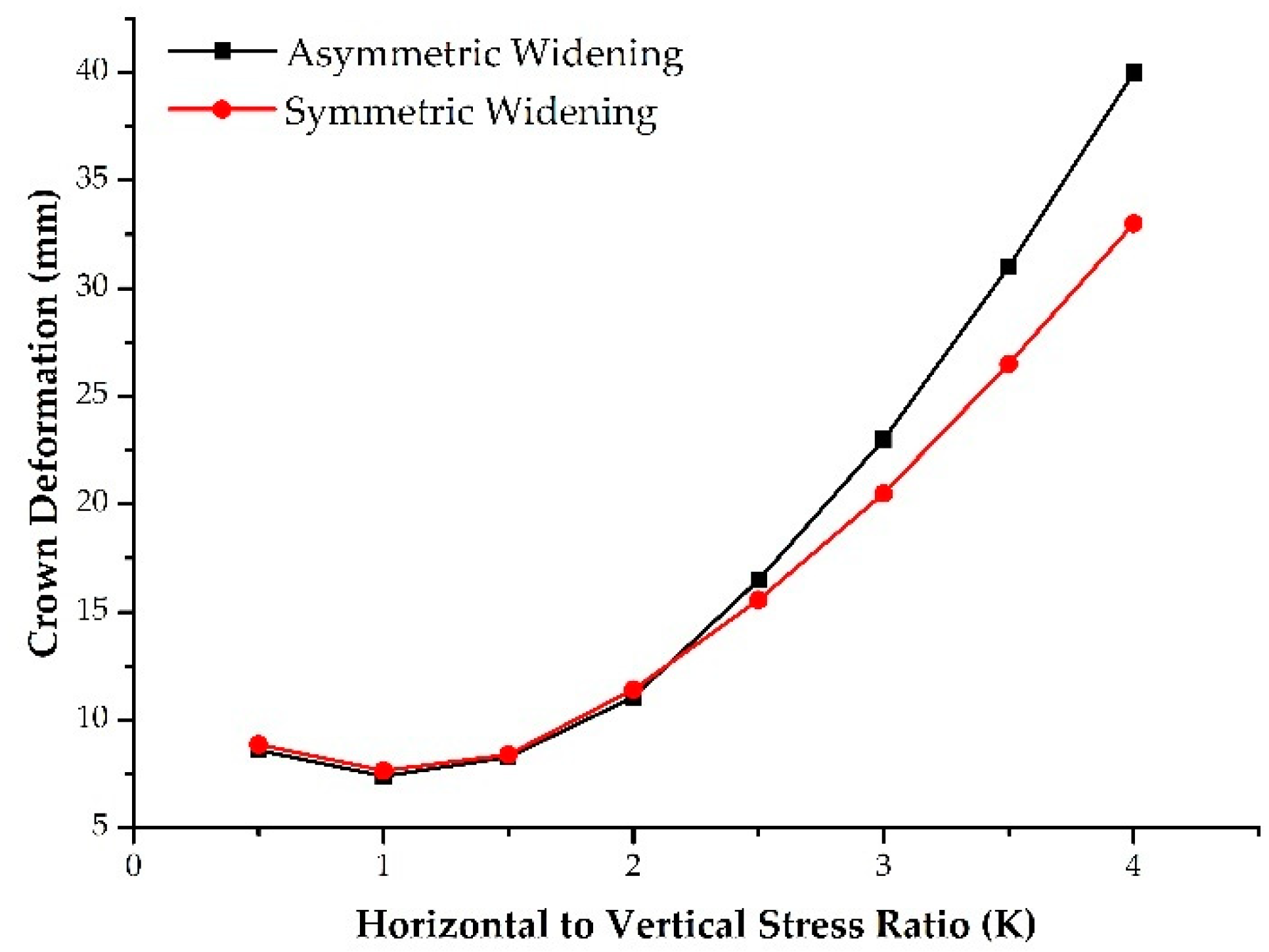

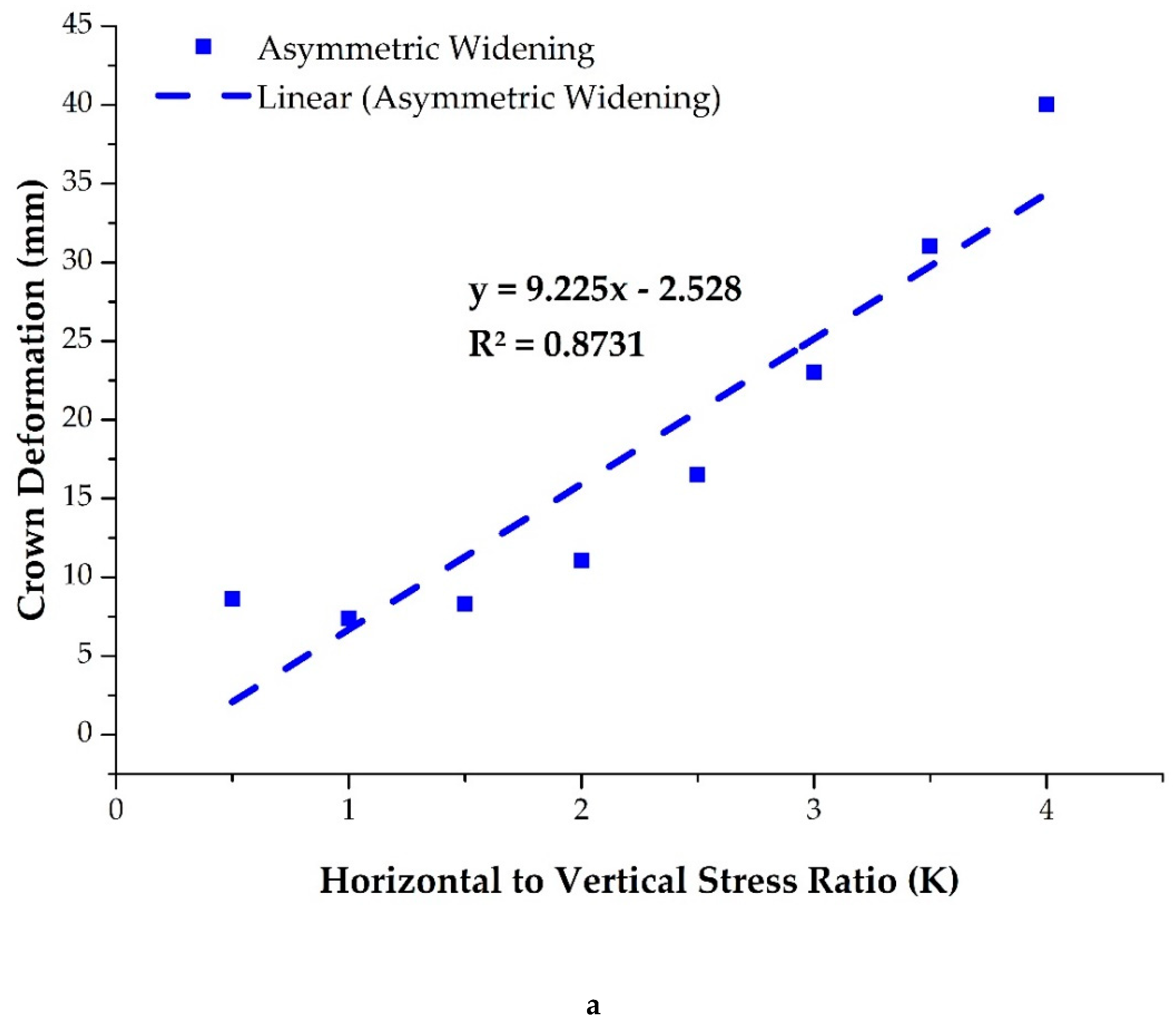

4.3.3. The Effect of the Horizontal to Vertical Stress Ratio (K) on Rock Mass Behavior

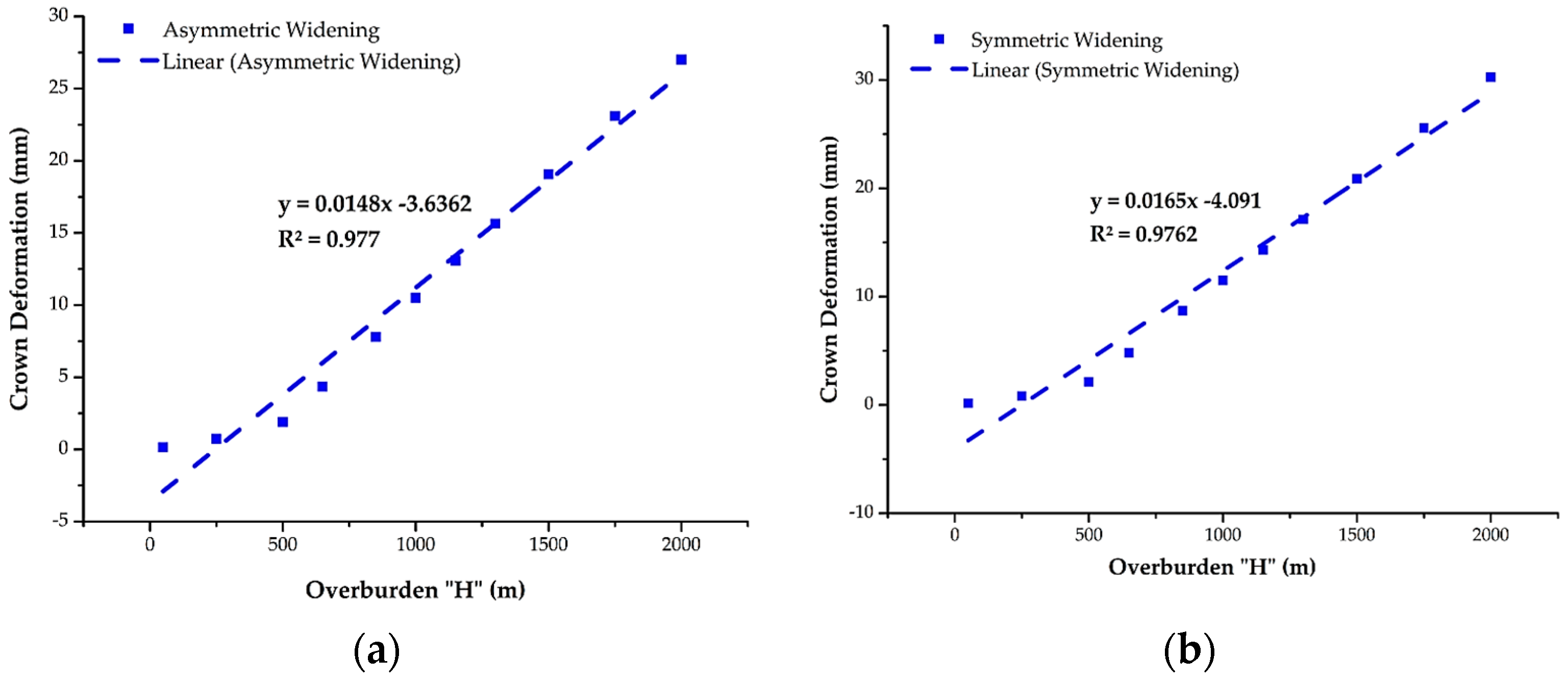

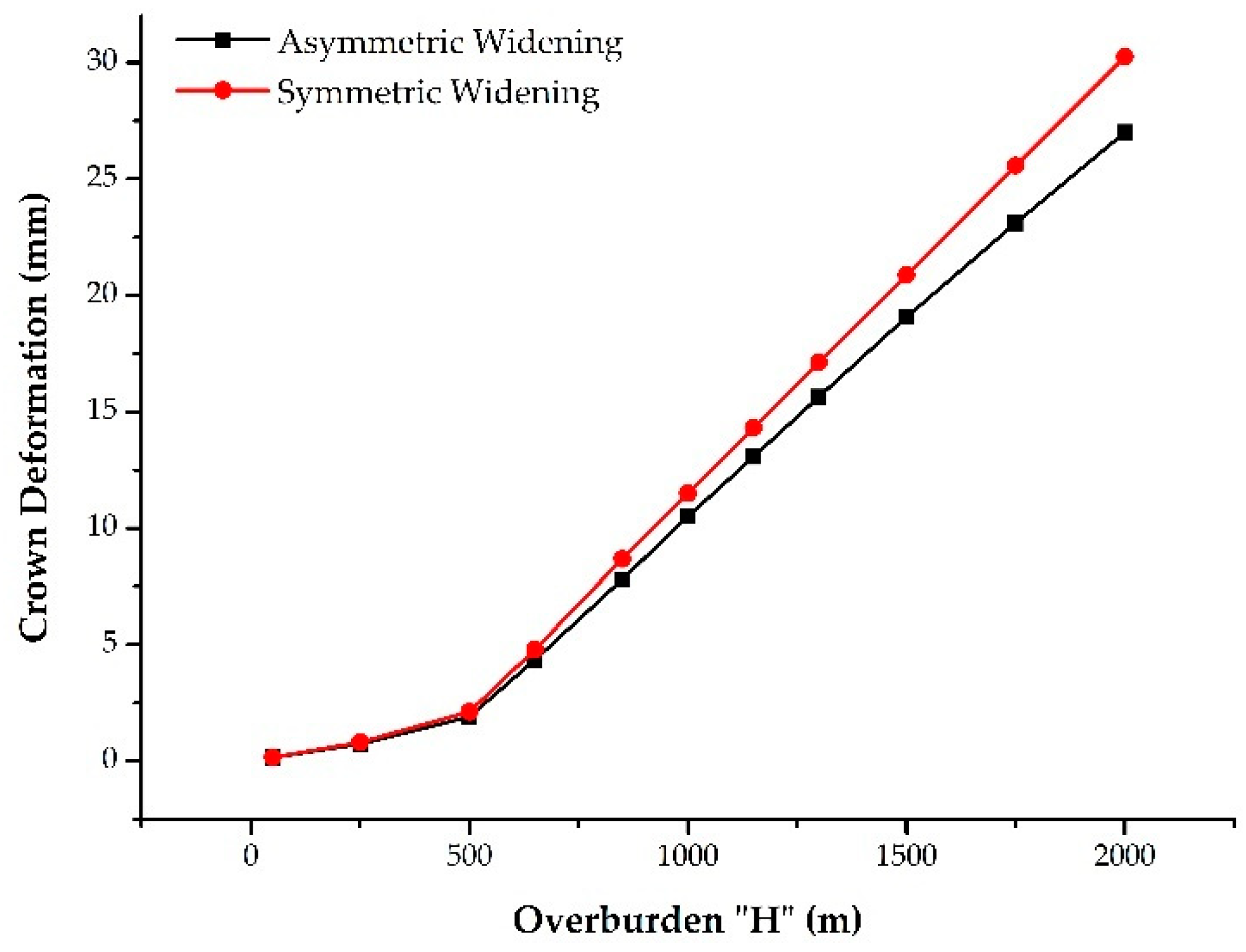

4.3.4. Effect of the Overburden Height (H) on Rock Mass Behavior

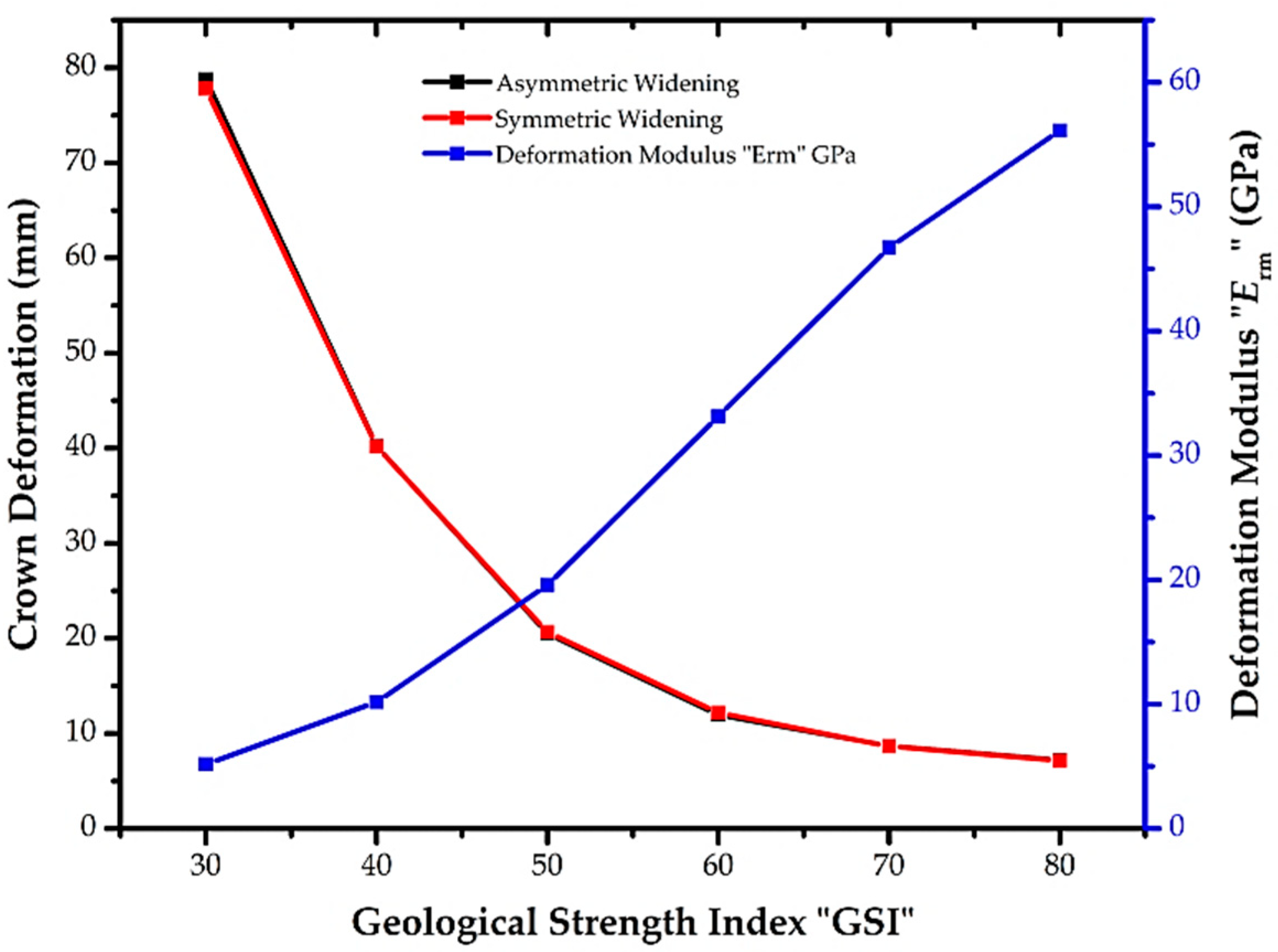

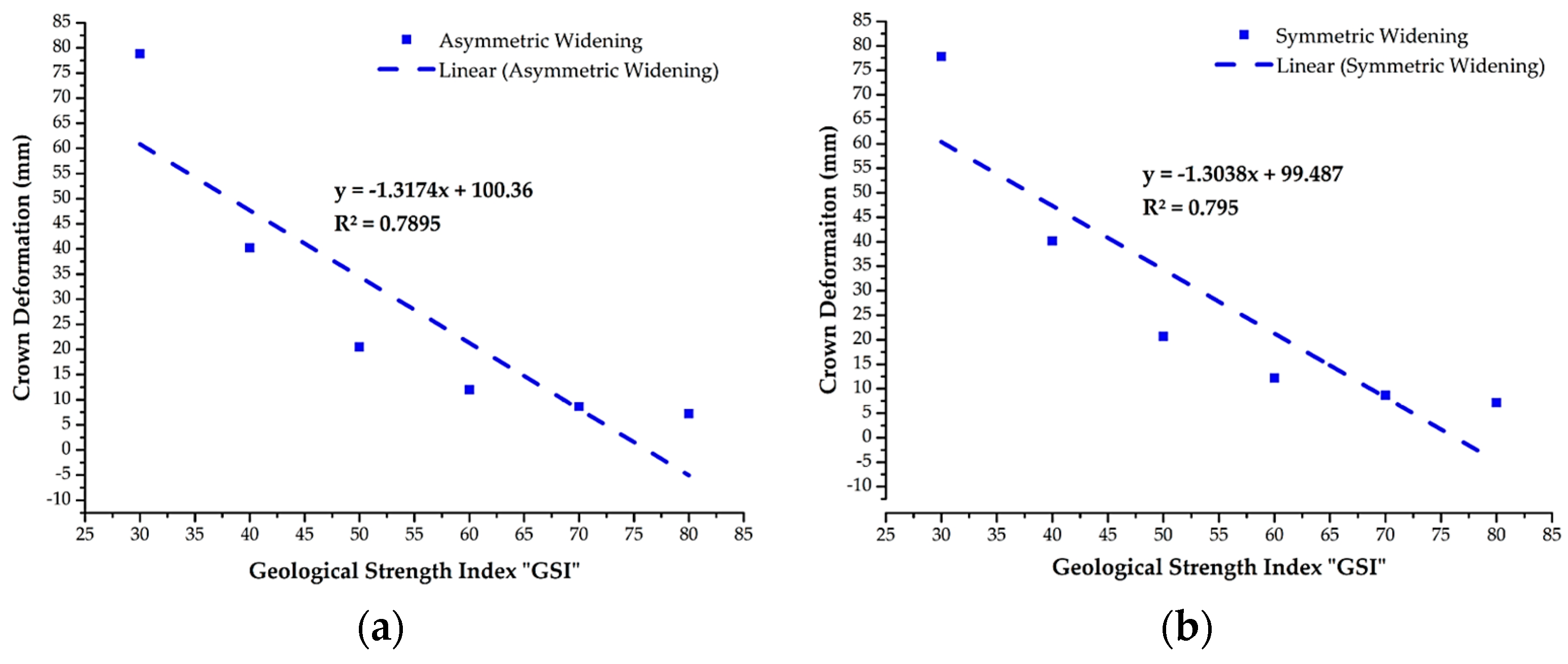

4.3.5. Effect of the Geological Strength Index (GSI) on Rock Mass Behavior
5. Conclusions
- During symmetrical widening, tunnels with a round shape, like horseshoe and semicircular with flatbed, have accumulated stress and deformations at the invert, whereas such deformations can be controlled through asymmetric widening of the tunnel.
- By introducing the round invert to round shape tunnels, the deformations at invert can be minimized. Moreover, in contrast to the flatbed case, symmetric widening can provide more controlled tunnel deformations than asymmetric widening.
- Symmetric widening is recommended for circular tunnels under unsupported conditions; however, there is the same behavior for both types of widening in the case of tunnel support.
- There is an insignificant effect of the difference between asymmetric and symmetric widening in regular shaped tunnels, i.e., box, rectangular, and semi-elliptical shapes.
- In the asymmetric condition, the tunnel’s left side wall remains unaltered during tunnel widening, which provides support to the open cavity around the excavation periphery.
- In the statistical analysis, it was found that the tunnel support system in different tunnel shapes decreases tunnel deformation by an average of 13.33% in asymmetric tunnel widening and around 8.82% in symmetric tunnel widening.
- The shotcrete provides more stability in the widening process, especially in asymmetric widening. However, the rock bolts reduce the deformation but impart less effect on the difference in deformation between the two widening modes.

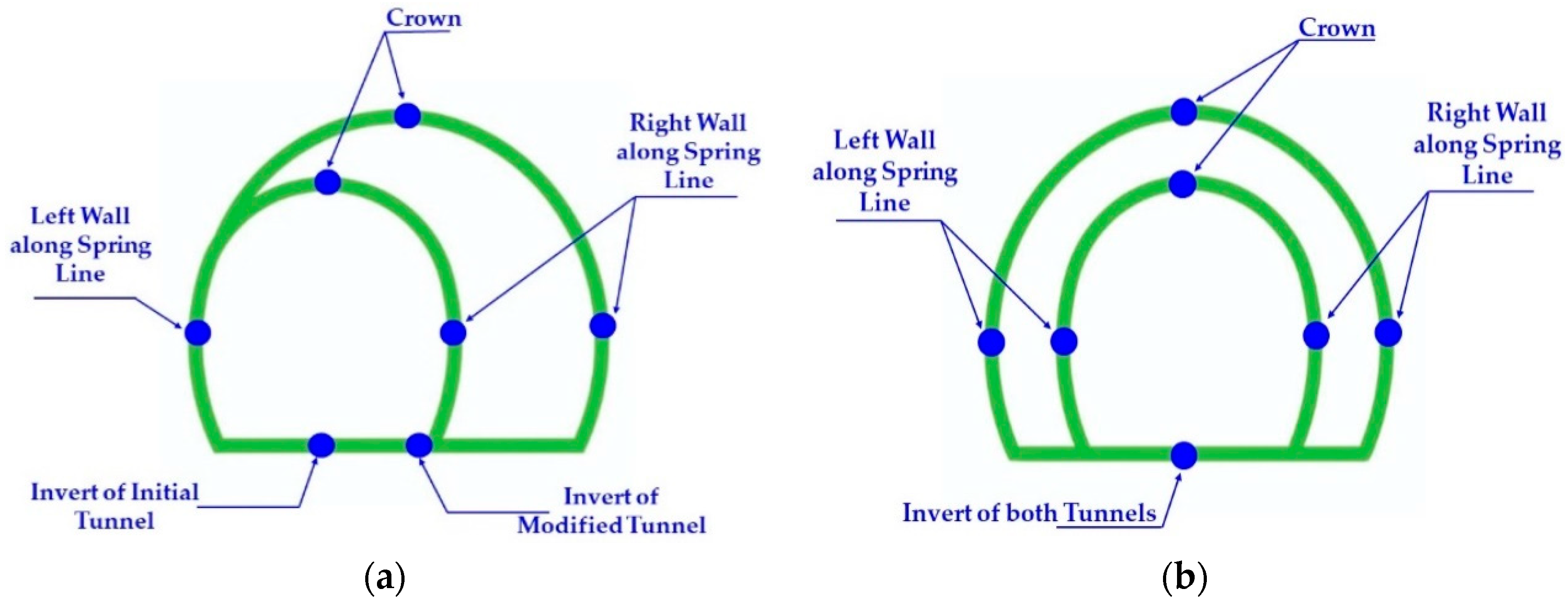

- The differences in tunnel monitoring locations, i.e., crown, right wall, left wall, and invert have significant relationships with each other and with the interaction of different tunnel support modes.
- The tunnel deformation is inversely proportional to the rock strength, wherein the ratio of the difference in deformation at the crown of the horseshoe tunnel between asymmetric and symmetric widening is the same from high to low strength rock.
- In a parametric study, the results revealed that the lower elastic modulus value, higher horizontal to vertical stress ratio, and higher overburden height values have a greater difference in deformation for both widening options.
- Geological Strength Index variation is inversely proportional to tunnel deformation, whereas it imparts an insignificant deformation difference between asymmetric and symmetric widening.
- The study provides a better understanding and guidelines for the planning stage of tunnel and cavern widening scenarios for different shapes under different in situ stress conditions and with different underground support conditions under a variety of parametric conditions, which ultimately increases the tunnel and cavern stability as well as the safety and provides a viable economical solution.
- For future research, it is advisable to work out the rock mass behavior with different widths and the size of asymmetric and symmetric widening of different shapes of the tunnel. Furthermore, the effect of asymmetric widening tunnel on the Longitudinal Displacement Profile (LDP) should also be studied.
