U–Pb Geochronology of Hydrothermal Monazite from Uraniferous Greisen Veins Associated with the High Heat Production Mount Douglas Granite, New Brunswick, Canada

Abstract

A combination of in situ laser ablation inductively coupled plasma–mass spectrometry (LA ICP–MS) analyses guided by Scanning Electron Microscope–Back-Scattered Electron imaging (SEM–BSE) was applied to hydrothermal monazite from greisen veins of the Late Devonian, highly evolved, uraniferous Mount Douglas Granite, New Brunswick, Canada. Understanding the uraniferous nature of the suite and characterizing the hydrothermal system that produced the associated mineralized greisen veins were the main goals of this study. The uraniferous nature of the Mount Douglas Granite is evident from previous airborne radiometric surveys, whole-rock geochemical data indicating high U and Th (2–22 ppm U; 19–71 ppm Th), the presence of monazite, zircon, xenotime, thorite, bastnaesite, and uraninite within the pluton and the associated hydrothermal greisen veins, as well as anomalous levels of U and Th in wolframite, hematite, and martite within greisen veins. New U–Pb geochronology of hydrothermal monazite coexisting with sulfide and oxide minerals yielded mineralization ages ranging from 344 to 368 Ma, with most of them (90%) younger than the crystallization age of the pluton (368 ± 3 Ma). The younger mineralization age indicates post-magmatic hydrothermal activities within the Mount Douglas system that was responsible for the mineralization. The production of uraniferous greisen veins by this process is probably associated with the High Heat Production (HHP) nature of this pluton, resulting from the radioactive decay of U, Th, and K. This heat prolongs post-crystallization hydrothermal fluid circulation and promotes the generation of hydrothermal ore deposits that are younger than the pluton. Assuming a density of 2.61 g/cm³, the average weighted mean radiogenic heat production of the Mount Douglas granites is 5.9 µW/m³ (14.1 HGU; Heat Generation Unit), in which it ranges from 2.2 µW/m³ in the least evolved unit, Dmd1, up to 10.1 µW/m³ in the most fractionated unit, Dmd3. They are all significantly higher than the average upper continental crust (1.65 µW/m³). The high radiogenic heat production of the Mount Douglas Granite, accompanied by a high estimated heat flow of 70 mW/m², supports the assignment of the granite to a ‘hot crust’ (>7 HGU) HHP granite and highlights its potential for geothermal energy exploration.

1. Introduction

The highly fractionated peraluminous Mount Douglas Granite (MDG), composed of three units (Dmd1, Dmd2, and Dmd3; Figure 1 and Figure 2), has characteristic features of High Heat Production (HHP) Granites, in which the granites have elevated concentrations of K₂O, Rb, LREE, U, and Th. They produce anomalous heat generated by the radioactive decay of unstable isotopes, such as ²³⁸U, ²³²Th, and ⁴⁰K, that makes such shallow high-heat producing intrusions potentially important geothermal sources. The uraniferous nature of the MDG has been reported previously by Chandra [1], Hassan [2], Hassan and Hale [3], and Hassan et al. [4] and was confirmed in this study as well (e.g., see

Table 1. A summary of whole rock U and Th concentrations of the Mount Douglas Granite (units Dmd1, Dmd2, and Dmd3). The data are from McLeod [17] and Mohammadi [15]. Analytical methods (laser ablation inductively coupled plasma–mass spectrometry, LA ICP–MS) on fused glass beads) and geochemical data are available in the 37], refer to supplementary data of the journal (Table S2).

Unit	U (ppm) Range	U (ppm) Mean	U (ppm) Median	Th (ppm) Range	Th (ppm) Mean	Th (ppm) Median	n*
Dmd1	2-11	7	6.8	19–66	37	40	15
Dmd2	2-22	10	8.8	18–60	40	42	24
Dmd3	5-22	13	11.1	30–71	51	52	31

“n*” is the number of data for each unit. Mean values are “weighted mean”.

). Their investigations followed up on airborne radiometric (Airborne Gamma-Ray Spectrometer survey) anomalies in New Brunswick that demonstrated a high potential for U-enrichment in the eastern part of the Saint George Batholith, i.e., the area underlain by the MDG. There are other places in New Brunswick that are associated with high U anomalies, such as the Late Devonian Mount Pleasant Volcanic Complex, Late Devonian Harvey Group [5], as well as the North Pole Granitic Suite in north-central New Brunswick, which is considered a high-heat producing granite [6,7]. Demonstrating the effects of the pluton on any associated hydrothermal systems and elucidating the association of hydrothermal veins with specific hydrothermal events or a single magmatic phase are critical to understand in such a geologically complex system. The radiogenic heat production of the MDG was also examined to determine any potential Hot Dry Rock (HDR) geothermal resources in this area.

Monazite, a light rare-earth element (LREE)-rich phosphate (LREEPO₄), that has a closure temperature of Pb diffusion >800 °C due to slow diffusivity of Pb [8,9,10], is a desirable geochronometer for dating hydrothermal ore deposits. Although there are some difficulties in distinguishing between hydrothermal and igneous monazite, in situ analytical techniques [11,12,13,14] were applied to hydrothermal monazite to determine the evolution and chronology of ore deposits and the associated hydrothermal systems.

Greisen/sheeted veins associated with the MDG contain various endogranitic Sn, W, Mo, Bi, and Zn occurrences that are hosted by two highly differentiated units of the pluton, i.e., Dmd2 and Dmd3 (Figure 1 and Figure 2). Complex hydrothermal parageneses include a number of oxide and sulfide minerals, e.g., pyrite, arsenopyrite, hematite, martite/magnetite, wolframite, sphalerite, chalcopyrite, galena, cassiterite, and native bismuth with locally U-, Th-, and REE-bearing minerals, including monazite, zircon, xenotime, thorite, bastnaesite, and uraninite. Thus, these veins provide an excellent opportunity to determine the timing of greisenization relative to magma crystallization. For this study, hydrothermal monazite was considered for further examination and was analyzed using an in situ laser ablation quadrupole inductively coupled plasma–mass spectrometry (LA ICP–MS) to better understand the complex hydrothermal system in the MDG.

2. Geological Setting

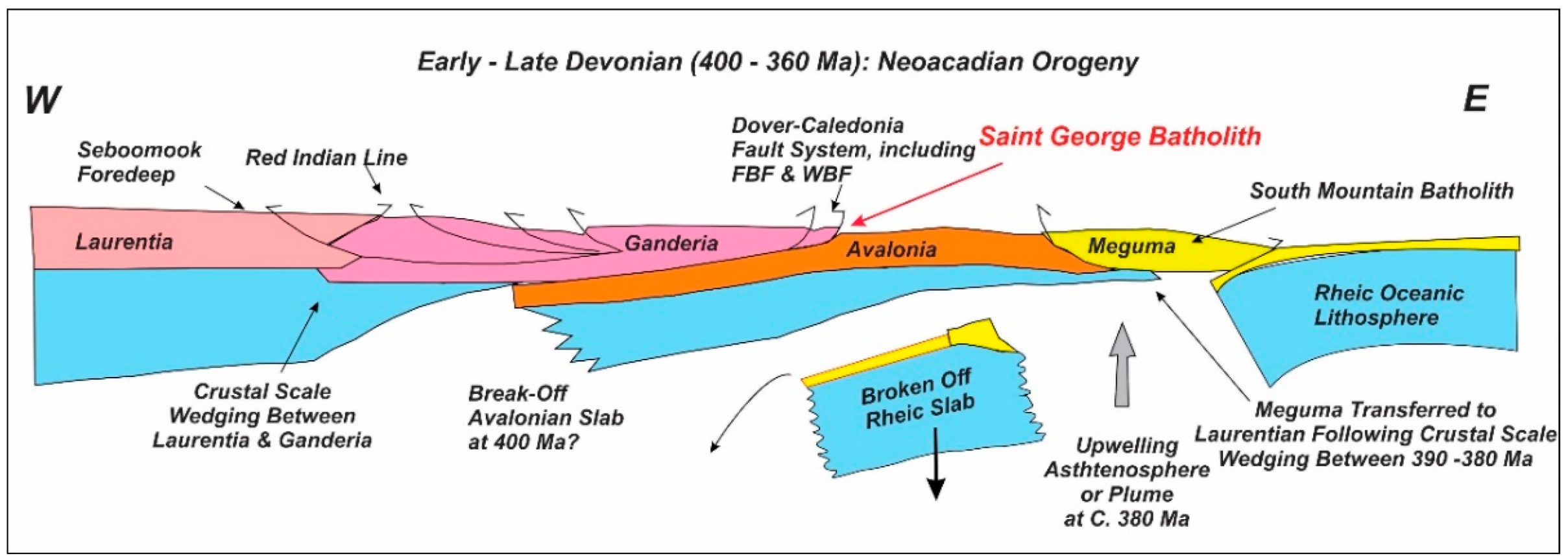

The Late Devonian Mount Douglas Granite (368 ± 3 Ma, U–Pb monazite and zircon geochronology [15]), located in Southwestern New Brunswick, ~40 km east of the well-known Mount Pleasant W–Mo–Bi and Sn–Zn–Cu–In deposits, forms the eastern part of the Late Silurian to Late Devonian Saint George Batholith (Figure 1 and Figure 2). The MDG, along with other intrusions of the Saint George Batholith was emplaced at the junction of the Avalon and Gander terranes following the accretion of the Gander and Avalon zones (Figure 3). The batholith emplacement occurred after assembly of these terranes during the waning stages of the Acadian Orogeny (continent–continent collision) [16,17]. Accretion of the Meguma terrane to the upper plate (Laurentia) between 390–380 Ma is believed to have been accompanied by wedging and breakoff of the down-going Rheic slab (Figure 3, [18]). Subsequent magmatism led to the formation of the Saint George Batholith at the boundary between the Avalon and Gander zones (Figure 3; modified after [18,19,20]). The MDG marks the last stage of magmatism in the Saint George Batholith that coincided with reactivation of the Falls Brook Fault (FBF, Figure 3).

It is believed that the MDG is the deeper-level equivalent of shallower-level granites responsible for mineralization at Mount Pleasant (Figure 1) [17,21,22]. The intrusion is composed of a suite of metaluminous to peraluminous leucogranitic rocks that apparently evolved from a zoned magma chamber in a three-stage process, resulting in compositionally and chronologically distinct units (Figure 2), i.e., units Dmd1, Dmd2, and Dmd3 [17]. The peraluminous MDG displays characteristics of hybrid S- and A-type (within-plate: WPG) granites; however, a syn-collisional granite setting (SCG, S-type, due to closure of the Acadian seaway between composite Ganderia and Avalonia [23]) is also possible as extreme fractionation may shift the geochemical data into the WPG field in the discrimination diagrams of Pearce et al. [24] and Christiansen and Keith [25]. Petrochemical studies (whole-rock geochemical data, Table S2) suggest that a single genetic group originating from a homogeneous parental magma (Dmd1) underwent varying degrees of fractionation, leading to the generation of units Dmd2 and Dmd3 [15,17,26]. Metallic mineral occurrences of Sn and W (Zn, Bi), locally with base-metals and U, are primarily associated with the most highly differentiated intrusive unit, Dmd3, and, to a lesser degree, unit Dmd2 [15,17]. Previous TIMS U–Pb monazite geochronology [17,27,28] suggests a Late Devonian age for the MDG. The ages are 366 ± 1 and 367 ± 1 Ma for units Dmd2 and Dmd3, respectively [28]. The reported crystallization ages are verified by recent U–Pb zircon and monazite geochronology of this granite (368 ± 3 Ma; [15]).

3. Analytical Procedures

Mineralized greisen veins associated with units Dmd2 and Dmd3 were examined in order to determine the mineralization ages of the complex hydrothermal system of the MDG. More than forty samples taken from different greisen veins distributed throughout the pluton were examined in terms of petrography and mineralogy. Polished slabs and standard polished thin sections (thickness of 30 µm) were prepared at the Department of Earth Sciences, University of New Brunswick (UNB). Four monazite-bearing greisen veins with monazite grains large enough to accommodate a typical laser ablation crater (i.e., a 17 µm diameter in this study) were chosen for U–Pb geochronology.

The ages of mineralization of U–Pb were determined from hydrothermal monazite using in situ laser ablation inductively coupled plasma–mass spectrometry (LA ICP–MS) supported by a JEOL6400 Scanning Electron Microscope–Back-Scattered Electron imaging (SEM–BSE). SEM–BSE images of monazite-bearing specimens were collected using the dPict32 software application (developed by Geller Microanalytical Laboratories) at UNB. This method was applied to monazite-bearing greisen veins taken from the northeast (sample #50-2A), west (sample #149), and southern (sample #263 and #268) parts of the pluton (Figure 2). The detailed analytical procedures are as follows.

Monazite grains were analyzed using a Resonetics S-155-LR 193 nm ArF Excimer laser ablation (LA) system coupled to an Agilent 7700X quadrupole inductively coupled plasma–mass spectrometer (ICP–MS) (see [29,32,33,34,35]) using a laser beam with a diameter of 17 µm (a few microns depth). Measurements were performed on monazite grains following SEM–BSE imaging to determine any internal textural variations of the grains. Masses of ⁸⁹Y, ²⁰²Hg, ²⁰⁴Pb, ²⁰⁶Pb, ²⁰⁷Pb, and ²⁰⁸Pb, ²³²Th, and ²³⁸U were determined using ³¹P as a guide mass and internal standardization (assuming ~13 wt.% P in monazite) for calculating Y, Pb, Th, and U concentrations.

A total of eight analyses of monazite grains from sample #50-2A, 10 from sample #149, and 21 and 11 spots from samples #263 and #268, respectively, were ablated for U–Pb geochronology. U–Pb isotope data were standardized using GSC-8153 monazite (a monazite sample provided by the Geological Survey of Canada; 507 Ma; [36]) and the accuracy of the results was confirmed using the 44069 monazite standard (424.9 ± 0.4 Ma [37]). The long-term reproducibility of the 44069 standard was assessed in [38] and analyses showed that expansion of 2σ errors to 1% on ²⁰⁷Pb/²³⁵U and 0.5% on ²⁰⁶Pb/²³⁸U were required to overlap the ‘true’ age of 424.9 ± 0.4 Ma [37] for 44069 monazite analyzed by TIMS and SHRIMP. The data related to the 44069 monazite standard are presented in the Supplementary Materials. The data were reduced using the VizualAge U–Pb geochronology data reduction scheme utilizing the Iolite software v. 2.5. Concordia ages and weighted mean ²⁰⁶Pb/²³⁸U ages were calculated using Isoplot version 3.75 [39] and a data subset that was <5% discordant was considered to calculate the concordia ages. The data were plotted on either conventional concordia plots (Wetherill concordia plot; ²⁰⁶Pb/²³⁸U versus ²⁰⁷Pb/²³⁵U) or the inverse concordia plot (Tera–Wasserburg concordia plot; ²⁰⁷Pb/²⁰⁶Pb versus ²³⁸U/²⁰⁶Pb). The concordia age of 423 ± 3 Ma (MSWD = 1.6; Probability = 0.21) obtained for the 44069 monazite standard matches the accepted age of the grain (~424.9 ± 0.4 Ma, [37], refer to Supplementary Materials; Table S1, Figure S1). Weighted mean ²⁰⁸Pb/²³²Th ages were also calculated for each sample; however, only sample 263 had a sufficient number of high-precision Pb/Th ages to calculate a reasonable weighted mean ²⁰⁸Pb/²³²Th age. Part of the problem with this approach is that there is no accepted ²⁰⁸Pb/²³²Th age for the 44069 monazite standard that was used in this study. The weighted mean ²⁰⁸Pb/²³²Th age obtained for the 44069 monazite standard in this study was 414 ± 3 Ma (n = 5; MSWD = 0.65) which is ~10 million years younger than its Pb/U age (i.e., 424 Ma; [37]).

4. Greisen Veins: Petrographical Observations and Mineralogy

Extreme fractional crystallization of the parental and least-evolved magma of the Mount Douglas system, unit Dmd1, produced the fertile magmas of units Dmd2 and Dmd3 [15,17,26] with economically interesting endogranitic Sn, W (Mo), Bi, and Zn (U) occurrences (the black diamonds in Figure 2). Oxide and sulfide mineralized zones are typically associated with greisen and sheeted veins that originated from or are hosted within the two highly evolved units, Dmd2 and Dmd3. The endogranitic granophile mineralization (Sn, W, Mo, Zn, Bi, and U intra-granite mineralization) is structurally controlled by reactivation of two fault systems in this area, including Fall Brook Fault (FBF) and Wheaton Brook Fault (WBF), and emplacement of the granite occurred in three stages [15]. Greisen mineralization typically develops near the roof zone, near cupolas, along margins of an intrusion or beneath internal contacts within granitic rocks. During this process, metals, such as Sn and W, become concentrated in late-stage melts and exsolving hydrothermal fluids [40]. Pressure release and quenching of silica-rich melts results in the liberation of metalliferous fluids [41]. These fluids can migrate along pre-existing structures, such as joints/fracture cleavage within the pluton and generate endogranitic mineral deposits associated with greisen veins, greisen alteration, stockwork veinlets, breccia fillings, quartz-vein systems, and disseminated mineralization [40].

Dark greisen veins (ranging from a few mm to ~20 cm wide; Figure 4a,b), represent parts of the host granite that have interacted with hydrothermal fluids during later stages of crystallization (auto-metasomatism). They are dominated by assemblages of extensively sericitized pseudomorphed K-feldspar and plagioclase, quartz, with fluorite and muscovite that are accompanied by a diverse assemblage of sulfide and oxide minerals (Figure 4c). It seems that the breakdown of the biotite lattices and conversion to muscovite or sericite during magmatic-hydrothermal processes, i.e., greisenization, was one of the most important processes in forming mineralized greisen veins [15]. Biotite, as the principal carriers of metals, exhibit a considerable enrichment of metals and metalloids such as Zn (≤879 ppm), Sn (≤164 ppm), Sc (≤150 ppm), and Pb (≤248 ppm) followed by Ga, Ta, and W. The concentrations of these elements in biotite increases with the degree of fractionation from lower values in Dmd1 to higher values in the highly fractionated units, Dmd2 and Dmd3 [15]. Sulfide and oxide minerals primarily occur along the margins of inner veins situated in the center of greisen veins that represent probable hydrothermal fluid pathways or disseminated grains distributed along greisenized zones and commonly include pyrite, arsenopyrite, hematite, martite/magnetite, Ta-rich wolframite (Figure 4d–f), Cd- and In-rich sphalerite, chalcopyrite, galena, W-rich cassiterite, and native bismuth [15,42,43].

Locally, some greisen veins are uraniferous and contain U-, Th-, and REE-bearing minerals. The common U- and Th-bearing minerals are monazite, zircon, xenotime, thorite, and uraninite (Figure 5), and are accompanied by other sulfide and oxide minerals that also have notably high concentrations of U and Th [15]. These common oxide minerals include wolframite (9–143 ppm U; 1–83 ppm Th; Figure 4f), hematite, and martite (pseudomorphed magnetite). Radiating fibrous to platelet-shaped hematite and martite contain up to 41 ppm U and 6 ppm Th [44]. Uranium is incorporated into the hematite lattice as U⁶⁺ in a distorted, octahedrally coordinated site, replacing Fe³⁺ [45]. These types of veins provide an ideal opportunity to test the potential of hematite, cassiterite, wolframite, and uraninite as U–Th–Pb geochronometers in comparison to well-known geochronometers, i.e., monazite and zircon.

5. Results

5.1. U–Pb Monazite Geochronology of the Greisen Veins

Hydrothermal monazite grains selected for U–Pb geochronology are part of complex uraniferous greisens, and coexist with other U-, Th-, and REE-bearing minerals, (e.g., zircon, xenotime, and bastnasite, and U- and Th-rich hematite and martite, rarely thorite, and pyrite; Figure 5). Monazite occurs as subhedral to anhedral from very fine grains up to 200 µm in size. Rounded irregular monazite is locally heterogeneous and exhibits faint patchy zoning, demonstrating successive growth episodes.

Monazite grains from sample 50-2A are associated with a greisenized granite that consists of assemblages of severely sericitized feldspars, quartz, fluorite, and muscovite. They are accompanied by a diverse assemblage of sulfide and oxide minerals, such as pyrite, chalcopyrite, wolframite, hematite, and REE, U, and Th-bearing minerals, including monazite, zircon, and xenotime (Figure 5d). Monazite grains occur as clusters of very small grains (Figure 6b) to subhedral grains of up to 40 µm in diameter. Compared to monazite grains from the other samples, they have higher ThO₂, ranging from 2.5 wt.% to 11.0 wt.% with a weighted mean of 6.0 wt.%. The U contents vary from 88 ppm to 2911 ppm (weighted mean = 1203 ppm).

Sample 149 is a greisenized granite that is overprinted by many different veins (e.g., quartz veins, breccia veins) with ambiguous crosscutting relationships. They contain a complex hydrothermal paragenesis of quartz, muscovite, sericite, and fluorite accompanied by fibrous iron-oxide (hematite and martite), pyrite, chalcopyrite, monazite, and zircon. The monazite grains are subhedral to rounded and irregular and vary from very small grains to 80 µm in diameter (Figure 5b and Figure 7a,b). The larger grains display complex patchy zoning, in which the brighter BSE domains have higher U and Th contents (Figure 7b). The ThO₂ and U contents range from 1.1 to 5.7 wt.% (weighted mean = 3.6 wt.%) and 307 to 1207 ppm (weighted mean = 900 ppm), respectively.

Analyzed monazite in sample 263-7B is associated with a thin hydrothermal vein that is hosted by a severely greisenized granite. The granite consists of assemblages of highly sericitized feldspar, quartz, muscovite, and fluorite in which the original texture of the granite is retained. The vein includes radiating fibrous and needle-shaped to tabular crystals of hematite and martite (pseudomorphed magnetite, distinguished via Raman spectroscopy) sphalerite, pyrite, with monazite and, locally, zircon (Figure 5a and Figure 7c,d). Occasionally, pre-existing quartz grains from greisenized zones are surrounded by the mentioned assemblage (fibrous iron-oxide + monazite ± zircon), demonstrating the formation of the vein after the first greisenization. The same pattern, quartz being surrounded by the assemblage, is present in different places throughout the vein. The monazite grains vary from a few microns up to ~180 µm in diameter. The U content in the monazite grains ranges from 533 to 1824 ppm (weighted mean = 1287 ppm) and ThO₂ varies from 1.3 to 5.1 wt.% with a weighted mean of 3.3 wt.%. Some grains show complex patchy zoning with a compositionally heterogeneous rim with higher Th concentrations (brighter BSE domain in Figure 7c,d).

Monazite grains associated with sample #268 are related to a large greisen, in which no original texture of the granite is preserved. The greisen is composed of very fine-grained assemblages of quartz, sericite, muscovite, chlorite, and fluorite, in which monazite occurs as small rounded and irregular grains (up to 50 µm) in clusters or in association with pyrite (Figure 5c and Figure 6a) and re-crystallized quartz. The data related to monazite grains of this sample are associated with 11 individual monazite grains. The U content ranges from 285 to 2535 ppm (weighted mean = 1050 ppm) and ThO₂ values are from 0.1 to 3.12 wt.% (weighted mean = 0.88 wt.%).

Only those monazite grains that are large enough to accommodate a 17 µm diameter crater are measurable using laser ablation. The results of the U–Pb hydrothermal monazite geochronology are summarized in

Table 2. U–Pb conventional Wetherill and Tera–Wasserburg concordia ages obtained by Laser Ablation ICP–MS for monazite from greisen veins of the Mount Douglas Granite *.

Sample	Material	Type	ThO2 (wt.%) Range	ThO2 (wt.%) Weighted Mean	ThO2 (wt.%) Median	U (ppm) Range	U (ppm) Weighted Mean	U (ppm) Median	U/Th	Age (Ma)	Error	Age (Ma) Range	MSWD	Conc./Inverse	Spot	n
50-2A	Monazite *	igneous	2.49–10.56	6.02	6.2	88–2911	1203	920	0.01–0.03	362	14	347–376	5.3	inverse	8	6
149#	Monazite	hydrothermal	1.09–5.68	3.60	3.7	307–1207	899	1031	0.02–0.04	361	7	354–368	1.6	inverse	10	10
263#	Monazite	hydrothermal	1.29–5.12	3.3	3.3	533–1824	1287	1371	0.02–0.12	359	3	356–362	0.0021	concordia	22	6
268#	Monazite	hydrothermal	0.1–3.12	0.88	0.4	285–2535	1050	968	0.04–0.45	349	5	344–354	0.0075	concordia	11	7

* Note: The location of each sample is shown in Figure 2. Age (Ma) = conventional Wetherill or Tera–Wasserburg concordia ages (Ma) of samples; Error = two standard deviations; MSWD = Mean Squares of Weighted Deviates; Conc./inverse = conventional concordia ages (²⁰⁶Pb/²³⁸U versus ²⁰⁷Pb/²³⁵U) or inverse concordia ages (Tera–Wasserburg concordia plot ²⁰⁷Pb/²⁰⁶Pb versus ²³⁸U/²⁰⁶Pb). Spot = total number of analyzed spots of monazite grains; n = number of analyzed points that were used to calculated concordia or inverse concordia ages. All data related to monazite grains from sample 50-2A were excluded for further interpretation as they seem to be igneous monazite rather than hydrothermal monazite (refer to Section 6.1).

, and all the data are represented in

Table 3. Results of in-situ LA ICP–MS U–Pb hydrothermal monazite geochronology of samples 50-2A, 149, 263, and 268 from greisen veins of the Mount Douglas Granite ^*.

Spot	Approx. conc.		U/Th	204Pb (Cps)	206PbCps/ 204PbCps	%Pb*	Final Isotope Ratios (Used for Tera-Wasserburg Concordia Diagrams)				err. corr.	Ages (Ma)				%conc.	Final Isotope Ratios (Used for Conventional Concordia Diagram)				err. corr.
	U (ppm)	Th (ppm)					238U/ 206Pb	2σ	207Pb/ 206Pb	2σ		207Pb/ 235U	2σ	206Pb/ 238U	2σ		207Pb/ 235U	2σ	206Pb/ 238U	2σ
50-2A-1	1977	61400	0.03	79	108	83.13	14.08	0.40	0.178	0.012	−0.02	1011	50	442	12	43.7	1.725	0.160	0.071	0.002	0.479
50-2A-2	88	24300	0.00	58	20	53.60	4.27	0.22	0.595	0.030	0.44	3033	61	1347	64	44.4	18.900	1.200	0.234	0.012	0.686
50-2A-3	178	21850	0.01	137	21	49.10	3.85	0.12	0.690	0.026	0.23	3259	50	1493	43	45.8	23.800	1.200	0.260	0.008	0.608
50-2A-4	1330	55200	0.02	600	24	53.97	4.73	0.13	0.626	0.015	−0.01	2973	37	1236	30	41.6	17.820	0.680	0.212	0.006	0.886
50-2A-5	191	35780	0.01	596	22	99.02	0.77	0.02	0.767	0.019	0.19	4986	40	5389	110	108.1	134.800	5.500	1.306	0.040	0.851
50-2A-6	509	53300	0.01	396	20	54.50	1.89	0.08	0.766	0.021	0.04	4062	52	2732	89	67.3	53.500	2.700	0.529	0.021	0.871
50-2A-7	2436	78800	0.03	181	68	73.90	12.74	0.45	0.254	0.017	−0.82	1313	72	487	17	37.1	2.790	0.270	0.079	0.003	0.944
50-2A-8	2911	92800	0.03	3	3573	99.01	17.53	0.34	0.056	0.002	0.26	365	14	358	7	98.0	0.435	0.020	0.057	0.001	0.064
149-1	1151	30550	0.04	111	55	60.20	10.40	0.27	0.354	0.012	−0.06	1796	36	592	14	33.0	4.820	0.200	0.096	0.003	0.560
149-2	1080	47300	0.02	206	41	55.40	8.33	0.42	0.453	0.019	−0.67	2152	78	728	35	33.8	7.730	0.640	0.120	0.006	0.938
149-3	667	33400	0.02	121	31	58.70	9.07	0.99	0.388	0.034	−0.22	1986	130	673	66	33.9	6.070	1.700	0.110	0.012	0.778
149-4	307	9580	0.03	98	28	52.60	6.04	0.26	0.525	0.025	−0.32	2585	71	985	39	38.1	12.400	0.960	0.166	0.007	0.610
149-5	1207	35500	0.03	445	27	56.10	4.82	0.46	0.582	0.018	−0.23	2916	85	1215	97	41.7	16.690	2.100	0.208	0.020	0.839
149-6	770	31270	0.02	526	24	52.90	4.00	0.27	0.648	0.019	−0.04	3186	63	1436	80	45.1	22.190	2.400	0.250	0.017	0.869
149-7	1073	49900	0.02	582	22	55.50	2.86	0.11	0.668	0.022	−0.21	3554	54	1930	60	54.3	32.100	1.700	0.350	0.013	0.840
149-8	988	22400	0.04	26	152	91.60	15.70	0.52	0.113	0.015	−0.08	690	69	398	13	57.7	1.000	0.170	0.064	0.002	0.389
149-9	621	22090	0.03	729	23	53.60	2.44	0.19	0.713	0.018	0.37	3787	63	2209	130	58.3	40.600	3.400	0.409	0.031	0.547
149-10	1130	34220	0.03	26	177	93.88	16.58	0.39	0.095	0.005	0.19	582	25	377	9	64.8	0.783	0.044	0.060	0.001	0.158
263-1	1227	38820	0.03	152	45	58.90	13.06	0.26	0.367	0.011	0.42	1612	28	476	9	29.5	3.901	0.140	0.077	0.002	0.214
263-2	1022	23990	0.04	180	41	53.10	9.83	0.21	0.407	0.012	0.39	1944	32	624	13	32.1	5.800	0.210	0.102	0.002	0.395
263-3	1513	42000	0.04	146	55	66.50	12.79	0.44	0.307	0.017	0.16	1483	62	485	16	32.7	3.260	0.330	0.078	0.003	0.596
263-4	1285	22320	0.06	184	48	61.00	10.59	0.36	0.347	0.016	0.75	1757	61	581	19	33.1	4.640	0.350	0.094	0.003	0.892
263-5	1416	34000	0.04	93	89	73.00	13.18	0.30	0.255	0.012	−0.34	1314	44	472	10	35.9	2.680	0.160	0.076	0.002	0.679
263-6	1287	34900	0.04	73	98	74.70	13.11	0.34	0.242	0.010	−0.20	1288	43	474	12	36.8	2.560	0.150	0.076	0.002	0.625
263-7	1560	27590	0.06	122	69	75.30	13.19	0.28	0.241	0.010	−0.37	1264	39	471	10	37.3	2.480	0.130	0.076	0.002	0.672
263-8	1482	22430	0.07	84	98	78.60	14.12	0.32	0.211	0.012	−0.44	1134	50	441	10	38.9	2.130	0.150	0.071	0.002	0.641
263-9	619	37570	0.02	348	25	52.30	5.10	0.23	0.623	0.018	−0.48	2911	66	1150	48	39.5	16.730	1.000	0.196	0.009	0.947
263-10	1312	26330	0.05	794	24	53.00	5.15	0.23	0.603	0.017	−0.62	2886	64	1145	46	39.7	16.450	1.100	0.194	0.009	0.960
263-11	1567	31000	0.05	55	131	87.32	15.43	0.31	0.145	0.006	0.31	850	26	405	8	47.6	1.316	0.057	0.065	0.001	0.109
263-12	1316	37480	0.04	39	147	91.21	16.30	0.35	0.113	0.005	0.14	694	25	384	8	55.3	0.981	0.049	0.061	0.001	0.194
263-13	1362	22480	0.06	1936	21	52.03	2.53	0.06	0.723	0.016	0.15	3764	35	2148	41	57.1	39.920	1.400	0.396	0.009	0.862
263-14	1380	11300	0.12	39	164	94.65	16.98	0.35	0.088	0.004	0.14	543	22	369	7	67.9	0.710	0.037	0.059	0.001	0.262
263-15	533	32730	0.02	−13	−174	97.67	15.90	0.53	0.065	0.012	0.08	469	68	393	13	83.8	0.573	0.130	0.063	0.002	0.194
263-16	1468	27570	0.05	−4	−1570	99.09	17.36	0.36	0.055	0.003	0.19	369	17	361	7	97.9	0.432	0.025	0.058	0.001	0.096
263-17	1824	24680	0.07	−23	−342	99.20	17.49	0.43	0.054	0.010	0.22	363	48	358	8	98.7	0.426	0.090	0.057	0.001	0.152
263-18	1490	44980	0.03	−6	−1025	99.15	17.32	0.36	0.053	0.003	0.10	366	18	362	7	99.0	0.431	0.025	0.058	0.001	0.192
263-19	1426	12320	0.12	−18	−353	99.07	17.42	0.39	0.055	0.003	0.27	363	18	360	8	99.1	0.434	0.026	0.057	0.001	0.032
263-21	1117	34510	0.03	−8	−565	99.14	17.42	0.42	0.053	0.005	0.27	360	27	360	9	99.9	0.428	0.042	0.057	0.001	0.053
263-22	1466	21280	0.07	−16	−404	99.43	17.67	0.34	0.051	0.003	0.43	339	19	355	7	104.7	0.398	0.027	0.057	0.001	0.096
268-1	344	1721	0.20	−11	−58	87.30	37.17	3.04	0.147	0.023	0.61	368	38	171	14	46.5	0.456	0.055	0.027	0.002	0.101
268-2	1187	2625	0.45	−9	−458	99.26	16.84	0.60	0.066	0.007	0.33	344	23	340	8	98.7	0.402	0.033	0.054	0.001	0.025
268-3	734	2253	0.33	7	411	99.08	18.48	0.44	0.053	0.004	0.46	361	23	358	9	99.3	0.428	0.033	0.057	0.002	0.091
268-4	915	2870	0.32	−13	−154	99.20	17.48	0.46	0.056	0.004	0.21	345	29	344	10	99.6	0.402	0.042	0.055	0.002	0.146
268-5	1123	27400	0.04	−3	−1293	99.01	15.85	0.50	0.055	0.006	−0.02	355	27	354	9	99.8	0.419	0.040	0.057	0.002	0.104
268-6	1211	4335	0.28	−14	−339	99.25	18.25	0.53	0.053	0.006	0.03	354	20	354	7	99.9	0.419	0.028	0.056	0.001	0.105
268-7	1616	7250	0.22	6	640	99.23	17.70	0.47	0.056	0.005	0.36	356	23	357	8	100.1	0.425	0.032	0.057	0.001	0.094
268-8	552	2167	0.25	4	592	99.03	17.72	0.38	0.053	0.004	0.28	374	30	379	11	101.3	0.459	0.043	0.061	0.002	0.021
268-9	2535	25890	0.10	2	2475	99.33	17.57	0.40	0.055	0.004	0.32	335	17	341	8	101.7	0.390	0.024	0.054	0.001	0.106
268-10	455	4210	0.11	−4	−461	99.06	16.53	0.49	0.054	0.005	0.30	374	33	381	10	101.9	0.457	0.052	0.061	0.002	0.179
268-11	2016	18500	0.11	7	487	99.60	18.43	0.41	0.052	0.003	0.21	312	20	330	8	105.7	0.366	0.027	0.053	0.001	0.129

^* Note: Approx. conc. = Approximate concentrations; Cps: Count per second; %Pb*: percentage of radiogenic Pb calculated from Andersen’s method [46]; 2σ = two standard deviations; err. corr. = error correlation; %conc. = degree of discordance calculated as 100 × [(²⁰⁶Pb/²³⁸U)_{age (Ma)}/(²⁰⁷Pb/²³⁵U)_{age (Ma)} − 1]. Samples numbers with grey cells (data subset that is <5% discordant) are used in final concordia age calculations.

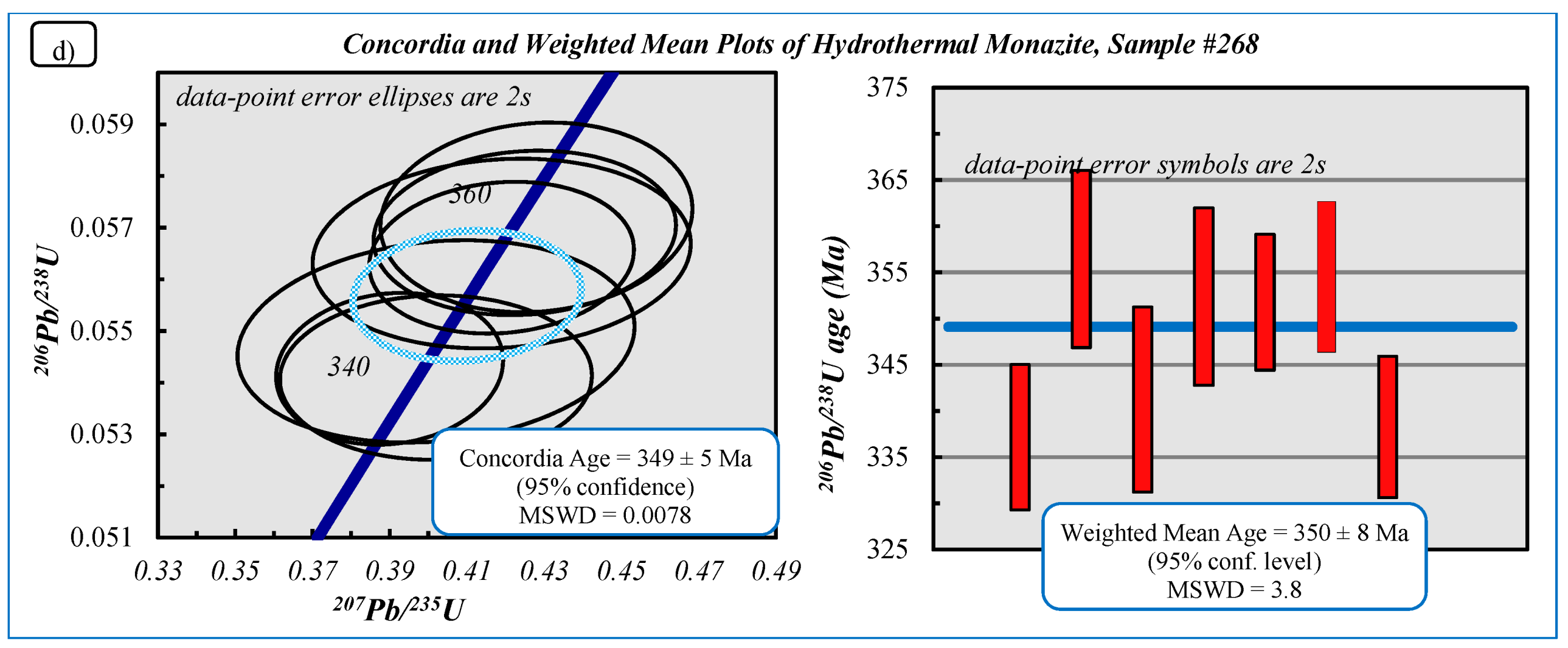

. Plotting the data on Wetherill and Tera–Wasserburg concordia plots produced a range of ages with a total spread (considering 2σ errors) from 344 Ma to a maximum of 376 Ma. The inverse concordia plots are used to calculate concordia-intercept ages by regressing a suite of discordant analyses [39] when the data exhibit variable distributions of common Pb or U/Pb ratios. In LA ICP–MS measurements, it is inevitable that some spots will display mixed signals as a result of inadvertent sampling of non-target phases (e.g., inclusions or slight overlapping with neighboring grains). Some spots may record differential Pb loss and variations in standard unknown matrix mismatch can also contribute to the scatter. Thus, semi-total Pb/U (i.e., Tera–Wasserburg isochron) regression lines are typically refined to obtain the lowest MSWD while using the largest number of data points. In most cases, the final refined age overlaps within error with the ‘raw’ age but has a much better precision owing the lower degree of ‘real’ scatter in the data.

The ages derived from hydrothermal monazite on the conventional concordia diagram range from 349 ± 5 to 359 ± 3 Ma, whereas the Tera–Wasserburg concordia diagrams yielded intercept ages between 361 ± 7 and 362 ± 14 Ma (Figure 8). The Tera–Wasserburg concordia diagram of ²⁰⁷Pb/²⁰⁶Pb versus ²³⁸U/²⁰⁶Pb yielded ages of 362 ± 14 Ma (MSWD = 5.3; n = 6) for sample #50-2A (Figure 8a). The same diagram was used for sample #149 (Figure 8b) and the data yielded a mineralization age of 361 ± 7 Ma (MSWD = 1.6; n = 10). The upper intercept records the common-Pb composition and only the lower-intercept is an acceptable age. The percentage of radiogenic Pb (%Pb*) was calculated using Andersen’s method [46] and the results are presented in Table 3.

The most concordant data in sample 263 yielded an age of 359 ± 3 Ma (MSWD = 0.0021; n = 6), which overlaps the regression age for this sample at 358 ± 3 Ma (MSWD = 0.7; n = 17) (Table 2). The conventional concordia diagram depicts a mineralization age of 349 ± 5 Ma (MSWD = 0.0078; n = 7) for sample 268# (Figure 8d).

The weighted mean ²⁰⁸Pb/²³²Th age calculated for sample 263# (the only sample with a sufficient number of high precision Pb/Th) is 345 ± 2.5 (Figure 9; MSWD = 2.5; n = 17), which is much younger than and outside of the error of the magmatic age (368 ± 3 Ma).

5.2. High Heat Production Nature of the Mount Douglas Granite

The radiogenic heat production of the MDG was examined to determine if there is any potential for a Hot Dry Rock (HDR) geothermal resource. This would be a local, renewable, and clean energy source associated with deep hot crystalline rocks with temperatures generally higher than 150 °C [47]. HHP granites have elevated concentrations of K₂O, Rb, LREE, U, and Th and produce high values of heat production above the average crustal heat production generated by radioactive decay of unstable isotopes, such as ²³⁸U, ²³²Th, and ⁴⁰K [48]. Previous studies confirm that granites, especially young S-type granites, are commonly suitable for HDR geothermal development [47,48,49].

The radiogenic heat production rates of the units Dmd1, Dmd2, and Dmd3 were calculated using the following equation developed by Rybach [50] (Equation (1)):

A [µW/m³] = 10⁻⁵ × ρ [kg/m³] × (2.56 × C_Th [ppm] + 9.52 × C_U [ppm] + 3.48 × C_K [%])

(1)

where A is heat production and ρ is density. The C_U and C_Th are the concentrations of U and Th (in ppm), respectively, and C_K is the concentration of K in wt.%. The related values (

Table 4. Weighted mean Th, U, K₂O contents for the Mount Douglas Granite, units Dmd1, Dmd2, and Dmd3 and their radiogenic heat production rates (A) ^*.

Unit	Density (kg/m3)	Th (ppm)	U (ppm)	Th/U	K2O (%)	A (µW/m3)
Dmd1	2610	38.00	6.68	6.5	5.19	4.59
Dmd2	2610	40.20	10.12	4.5	4.95	5.58
Dmd3	2610	50.09	12.61	4.4	4.89	6.85
Antarctica	2600	≤60.7	≤28.6	≤3.8	-	5.35
Zhuguang Granite	2600	40	11	4.83	5.43	5.98
Malani Igneous Suite	-	54.63	8.97	7.41	4.69	6.69
Continental Crust	-	3.5	0.91	3.85	1.1	1.60
Upper Continental Crust	-	10.5	2.7	-	-	1.65

^* Note: The data related to granites in Antarctica are from Leat et al. [52]. The data related to Zhuguang Granite (representative of one of the granites from Southern China) are from Sun et al. [47]. The data for Malani igneous suite, Northwestern India are from Shrivastva et al. [54]. Continental crust values are from Taylor and McLennan [55]. The average of 3.8 HGU (Heat Generation Unit) for the continental crust (1 HGU = 0.418 µW/m3) is from Taylor [56]. The average upper continental crust values are from Rudnick and Gao [53]. A density of 2661 kg/m³ was assumed for all samples from the Mount Douglas Granite [51]. The U, Th, and K₂O values of the MDG are from Mohammadi [15] (Table 1 and Table S2) and McLeod [17].

) are taken from whole-rock geochemical data of Mohammadi (Table 1 and Table S2) [15] and McLeod [17]. A density of 2.61 g/cm³ has been considered for all samples based on a representative granite from the Mount Douglas pluton [51]. The estimated radiogenic heat production rates (µW/m³) for the MDG ranged from 2.8 to 6.9 in Dmd1 (weighted mean = 4.67), from 2.2 to 9.5 in Dmd2 (weighted mean = 5.65), and from 4.2 to 10.1 in Dmd3 (weighted mean = 6.92), and were calculated based on the whole-rock weighted mean Th, U, and K₂O of each unit (Table 1 and Table S2). These values are significantly higher than the average upper continental crust, which is 1.65 µW/m³ [52].

Figure 10 displays a plot of the calculated heat production values versus whole-rock U and Th abundances. The data demonstrate that the heat production values increase with the degree of fractional crystallization, i.e., from Dmd1 to Dmd3. Unit Dmd3 has the highest concentration of U and Th, and the greatest potential for geothermal energy resources. The blue arrows denote the fractional crystallization trend, whereas the yellow stars depict the average upper continental crust composition (Th = 10.5 ppm; U = 2.7 ppm; A = 1.65 µW/m³; [52,53]).

6. Discussion

6.1. Mineralization Ages of Greisen Veins

The term “hydrothermal monazite” is used here to distinguish primary monazite hosted by granite (igneous monazite) from secondary hydrothermal monazite that formed in greisen veins in association with other hydrothermal minerals, such as hematite, magnetite, pyrite, etc. Monazite, with a high blocking temperature (>800 °C), is one of the most reliable U–Th–Pb geochronometers for hydrothermal ore systems [11,12]. The commonly similar morphology of igneous and hydrothermal monazite prevents discrimination of these two types on the basis of petrographic analysis alone; however, hydrothermal monazite can generally be distinguished from the igneous grains by lower ThO₂ contents that typically range between 0 and 1 wt.%, whereas igneous monazite typically contains from 3 to >12 wt.% ThO₂ [12]. This difference is due to the very low solubility of Th in hydrothermal fluids relative to felsic igneous melts [12]. In addition to its low Th content, textural evidence for co-precipitation of monazite with other common minerals present in the greisen veins and, in some cases, its distinct morphology (Figure 5), allow for the unequivocal recognition of hydrothermal monazite. A characteristic feature of hydrothermal monazite in the Mount Douglas system is its intergrowth with oxide (Figure 5a,b) and sulfide minerals (Figure 5c) and its occurrence in clusters with other U-, Th-, and REE-rich minerals (Figure 5d).

Compared to hydrothermal-type monazite, disseminated igneous-type monazite is primarily hosted by biotite and occasionally exhibits faint patchy zoning, occurs as subhedral to anhedral, rounded irregular grains up to 150 µm in diameter, and is commonly in contact with accessory minerals, such as Fe–Ti oxides, apatite, xenotime, and thorite (Figure 6c,d).

A characteristic feature of hydrothermal monazite in the MDG is that it generally occurs as rounded or anhedral and irregular grains that are distributed along veins (Figure 5c and Figure 6a). In most cases, they are accompanied by oxide (mostly hematite, Figure 5a,b) and sulfide minerals, such as pyrite (Figure 5c). Another characteristic feature of the hydrothermal monazite grains is that they occur as clusters of very small grains (~5µm to 20µm) sometimes with more than 100 grains. In these cases, they are distinguished from more sparsely distributed igneous monazite, which is included in primary minerals (mainly biotite, Figure 6c,d) or is interstitial or intergrown with other igneous minerals, such as xenotime and apatite (Figure 6c,d) in the groundmass. In addition, hydrothermal monazite occurs dispersed with other neoform hydrothermal minerals such as hematite, xenotime, and even zircon in which the assemblage is distributed along margins of veins (Figure 5d).

Geochemically, the ThO₂ contents of igneous monazite from the host granite ranges from 1.02 to 15.82 wt.% with a weighted mean of 6.72 wt.% [15], which is considerably higher than the hydrothermal monazite collected from greisen veins where the ThO₂ content ranges from 0.10 to maximum 4.77 wt.% (weighted mean = 2.47 wt.%). Additionally, the U/Th ratio of the hydrothermal monazite ranges from 0.01 to 0.45 (mean = 0.09), and the U content ranges from 43 to 1824 ppm (weighted mean = 867 ppm), which is considerably lower than the U content of the igneous monazite [15].

Wetherill concordia and Tera–Wasserburg concordia plots accompanied by weighted mean ²⁰⁶Pb/²³⁸U ages (Ma) and ²⁰⁸Pb/²³²Th ages (Ma) of monazite grains suggest mineralization ages ranging from 344 Ma to 376 Ma (Table 2, Figure 8 and Figure 9). Considering the high ThO₂ content of monazite from sample 50-2A and its association with primary biotite and zircon, it is probably not hydrothermal and, rather, it is most likely an igneous monazite. The age obtained for this sample (362 ± 14 Ma) cannot be used to reliably assess the age of mineralization. The estimated age for sample 268 was calculated using the weighted mean ²⁰⁶Pb/²³⁸U age as well for the main cluster of 7 of 11 spots that fall between 340 and 360 Ma, giving a weighted mean age of 350 ± 7 Ma (Figure 8d). The three older spots on this sample could represent mixing between hydrothermal and older inherited (e.g., 420 Ma) components, whereas the youngest spot outside the main cluster may have experienced minor Pb loss.

6.2. Time Gap Between Mineralization and Intrusion: Implication for High Heat Production Granite in Metallogenesis

Mineralization ages derived from in situ laser ablation ICP–MS U–Pb dating of hydrothermal monazite using the conventional Wetherill and Tera–Wasserburg concordia diagrams (excluding sample 50-2A) yielded lower intercept ages, ranging from 344 to 368 Ma (Figure 8; Table 2). Figure 11 depicts the mineralization ages accompanied by crystallization ages of the MDG (368 ± 3 Ma, data from Mohammadi [15]) to illustrate any relationships between emplacement timing of the granite and post-magmatic activities in this system. The data demonstrate that the mineralization ages are mainly younger than the crystallization age of the MDG (365 to 371 Ma; [15]); there is a small window between 365 and 368 Ma that mineralization and crystallization ages overlap (Figure 11). However, there is a time gap between emplacement of the granite and the timing of the mineralization, that is between 365 Ma (the youngest crystallization age) and 344 Ma (the youngest mineralization age), suggesting post-magmatic hydrothermal activities occur during this time. Mineralization occurring millions of years after emplacement of the pluton suggests another source of heat that was involved in the post-magmatic hydrothermal activity associated with greisen formation. The heat could be associated with thermal anomalies within and near plutons that are produced by the radioactive decay of K, U, and Th [54].

HHP granites are evolved granites with anomalously high Th, U, K, and total REE [37,54,57,58,59] and are responsible for parts of the crustal heat flow due to radiogenic decay of Th, U, and K [60,61] and have been reported from different places (e.g., [45,62,63,64,65,66,67,68,69,70,71]). Granites with approximately four times or more uranium than the average crustal abundance (3.5 ppm U [72]; 4 ppm U [73]) are considered to be HHP granites. This is consistent with previous investigations which show that the Mount Douglas pluton lies within an area of present High Heat Production [2,3,4] attributed to its enrichment in U and Th (2–22 ppm U; 19–71 ppm Th; [15]). HHP intrusions act as a ‘heat engine’ to prolong hydrothermal fluid activity [74,75] and produce mineral deposits that are not related directly to the initial heat generated by the pluton [54].

Gravity modeling in the eastern part of the Saint George Batholith, near the Welsford heat-flow site (northeastern part of the Mount Douglas Granite, Figure 2) indicates a thickness of about 6.5 km for the granite, considerably thicker than the thickness estimated by Drury et al. [76] who used a heat-flow-heat-generation relationship (1.4–3.3 km radiogenic thickness). The difference between estimated geothermal and gravity depth may be attributed to the enrichment of the intrusion with radiogenic minerals [52]. Drury et al. [76] noted that the lower thickness estimated from the radiogenic thickness model may be attributed to a high degree of alteration (greisenization) in the borehole that was used for that study. In this hypothesis, large-scale movement of groundwater led to redistribution and concentration of radioactive elements near the surface, implying depletion of the radioactive elements in the deeper levels and enrichment in the upper levels of granites, thereby yielding a shallower modeled depth in terms of geothermal modeling [51]. The higher concentration of radioactive materials in the near surface indicates that radioactive element-rich water might have been carried up from a great depth by hydrothermal convection generated by the decay of the radioactive elements themselves [51]. The Conway Granite of New Hampshire is a well-known example of such a long-lived hydrothermal convective system [75]. Here, attempts were made to demonstrate that heat generated by uranium-rich granites (granites with > 10 ppm uranium) can produce fluid convection that develops hydrothermal uranium deposits. Fehn et al. [75] established that the permeability of the pluton and the adjacent country rock exerts a critical control on flow rates. They also demonstrated that hydrothermal uranium deposits associated with granites with high contents of radioactive elements could be produced by convection-driven cells, in which the required heat is generated by radioactive decay within a few million years post-pluton-crystallization. The St. Austell Granite of Southwest England is another example of long-lived hydrothermal convective systems, in which the hydrothermal fluid cells were periodically rejuvenated by tectonic activity, generating multiple fracture fillings of uranium mineralization and yielding a range of ages from 224 to 45 Ma [77]. The theory described above can be applied to the Mount Douglas system, i.e., a high uranium content (2–22 ppm), long-lived hydrothermal activities, and the time gap between pluton emplacement and the associated mineralization. The most evolved granites with the highest silica contents and the lowest density are associated with the highest concentrations of heat-producing elements, such as U, Th, and K [2,3,4,51,75].

In addition to radioactive decay, later intrusions or multi-episodic intrusions could yield thermal pulses, thereby producing a long-lived hydrothermal system. Intrusions cool very rapidly in terms of the geological time scale [75], particularly when heat is lost through a combination of conductive and convective fluid flow [78]. In a thermal model developed by Cathles [79], for a small intrusion (1–2 km wide) to cool to 25% of its initial temperature by conduction alone, the magmatic-hydrothermal fluid circulation is effectively over in about 10⁵–10⁶ years; however, if cooling is accompanied by convective heat loss, this time is reduced to 10⁴ years. In a geothermal two-dimensional conductive cooling model developed for granitic intrusions [80], the top of the pluton cools rapidly; however, internal heat generation causes the base of the pluton to remain hot. In some cases, this high basal temperature leads to increasing temperatures below and around the base of the pluton and may locally generate partial melts in the country rock, which eventually produces smaller intrusions within the pluton. This case can be investigated in the Mount Douglas system by documenting the crystallization ages of the aplitic dikes to demonstrate if they are younger than the pluton. In addition, geochemical data can be used to determine if the dikes are more fractionated than the main pluton as younger intrusions formed by crustal anatexis should have higher ⁸⁷Sr/⁸⁶Sr than the “mother” pluton.

To summarize, hydrothermal convection cells are initiated in the pluton immediately, following emplacement. In granitic systems, the convective cells are prolonged by high internal heat generation [80]. Radioactive decay and later intrusions, or combinations of the two, are the factors affecting the time span of hydrothermal activity in the Mount Douglas system.

6.3. Mount Douglas Granite: High Potential for Geothermal Energy Resources

Results obtained from this study demonstrate that the Mount Douglas granitic rocks may have great potential for dry geothermal energy sources; however, surface heat flow, which is a function of radioactive element contents below the continents, the latest thermal event, and the intensity of tectonic activities [47] are important parameters that should be considered when evaluating potential geothermal resources. In addition, Nisbet and Fowler [81] established that the geothermal gradient is controlled by some internal and external parameters of the rock column. The internal parameters are the conductivity, heat capacity of the rock, and the radioactive heat generation from K, U, and Th decay, whereas external factors are heat flow into the column from below and the erosion rate at which material is removed from the top of the column. As an example, increasing the radioactive heat generation to 6 HGU (Heat Generation Unit; 2.51 × 10⁻³ mWm⁻³) raises the equilibrium geotherm from 30 °C/km to over 50 °C/km [81].

The MDG’s heat production values (weighted mean = 5.9 µW/m³) and heat flow rates (70 mW/m²; [1]) are comparable to values in other locations that have been classified as HHP granites (e.g., [52,82,83,84,85]) which have the potential to host geothermal energy resources. As an example, estimated heat production values from 207 samples taken from granites in Southern China have been considered as having great potential for developing an HDR geothermal resource [47]. These granites are characterized by high heat flow values (>80 mW/m²) and a weighted mean radiogenic heat production rate of 4.11 µW/m³ [47,86,87]. In addition, the radiogenic heat production rates estimated for the Jurassic weakly peraluminous A-type HHP granites associated with the Weddell Sea rift system, Antarctica, have high Th (60.7 ppm) and U (28.6 ppm), and a high mean heat production of 5.35 µW/m³ and predicted heat flow of 70–95 mW/m² [52].

These examinations suggest that the MDG with a High Heat Production of 5.9 µW/m³ (14.1 HGU), which is higher than the average total heat generation of the continental crust (3.8 HGU; [56]), can be considered as ‘hot crust’. In a discrimination definition, the heat generation value of 7 HGU (2.91 µW/m³) is taken as the boundary between the ‘hot crust’ and ‘cold crust’ [54]. Such High Heat Production values are expected to result in local heat flow anomalies for the area, although further investigation, such as airborne radiometric surveys, seismic data, and satellite magnetic data, are required.

7. Conclusions

U–Pb geochronology of hydrothermal monazite coexisting with sulfide and oxide minerals in greisen veins from the Mount Douglas Granite yielded mineralization ages ranging from 344 to 368 Ma, with most of the ages being younger than the crystallization age of the pluton (368 ± 3 Ma). The younger ages that was calculated for hydrothermal monazite indicate post-magmatic hydrothermal activity within the Mount Douglas pluton that resulted in the formation of uraniferous greisen veins. This indicates its HHP nature, i.e., this pluton produced additional heat via radioactive decay of U, Th, and K during prolonged/protracted hydrothermal activity, ultimately, generating hydrothermal ore-deposits that were younger than the pluton.

The uraniferous nature of the MDG is well-established by a number of criteria, including high U and Th contents (2–22 ppm U; 19–71 ppm Th), previous airborne radiometric survey, whole-rock geochemical data, the presence of U-, Th-, and REE-bearing minerals (e.g., monazite, zircon, xenotime, thorite, and uraninite) and significant anomalies of U and Th in some oxide and sulfide minerals, (e.g., wolframite, hematite, and martite). On the basis of the above, it is hypothesized that a combination of radioactive decay and, later blind intrusions are the likely heat-generators that prolonged the hydrothermal activity responsible for greisen mineralization long after pluton emplacement.

Assuming a density of 2.61 g/cm³, the calculated average weighted mean radiogenic heat production of the MDGs is 5.9 µW/m³, and ranges from 2.2 µW/m³ in unit Dmd1 to 10.1 µW/m³ in unit Dmd3, i.e., heat production increases with the degree of fractional crystallization. The average heat production, 5.9 µW/m³ (14.1 HGU), is significantly higher than the average upper continental crust (1.65 µW/m³), and is accompanied by a high heat flow of 70 mW/m², which supports the classification of MDGs as a ‘hot crust’ regime (>7 HGU). This classification suggests the pluton has significant potential for geothermal energy resource development.
