Magnetic Properties and Redox State of Impact Glasses: A Review and New Case Studies from Siberia

Abstract

High velocity impacts produce melts that solidify as ejected or in-situ glasses. We provide a review of their peculiar magnetic properties, as well as a new detailed study of four glasses from Siberia: El’gygytgyn, Popigai, urengoites, and South-Ural glass (on a total of 24 different craters or strewn-fields). Two types of behavior appear: 1) purely paramagnetic with ferromagnetic impurities at most of the order of 10 ppm; this corresponds to the five tektite strewn-fields (including the new one from Belize), urengoites, and Darwin glass. Oxidation state, based in particular on X-ray spectroscopy, is mostly restricted to Fe²⁺; 2) variable and up to strong ferromagnetic component, up to the 1 wt % range, mostly due to substituted magnetite often in superparamagnetic state. Accordingly, bulk oxidation state is intermediate between Fe²⁺ and Fe³⁺, although metallic iron, hematite, and pyrrhotite are sometimes encountered. Various applications of these magnetic properties are reviewed in the field of paleomagnetism, magnetic anomalies, recognition of glass origin, and formation processes.

1. Introduction

Various types of silicate glass occur in nature [1] and may show exotic iron-bearing inclusions representative of a wide range of redox state [2,3,4]. Impact generated glasses, having often recorded particularly high pressures and temperatures (>10 GPa and >1700 °C; see [5]) on a short time scale (seconds) and endured equally fast quenching, may yield original magnetic properties that we will describe in the present review.

Hypervelocity impacts on the Earth surface generate deformation, metamorphism, and melting of the target rocks (e.g., [5]). The melted material can be subsequently fragmented and/or mixed with unmelted material. It may also be ejected outside the crater as liquid masses, injected in the target rocks as dikes, or remain in the crater as a melt sheet. They may be subsequently altered by the impact-induced hydrothermalism. Depending on these modalities, and especially on cooling rate, the rock derived from this melted material may be a pure glass (case of fully melted material rapidly cooled during ballistic ejection, like tektites), or a more or less cryptocrystalline material mixed with unmelted material, with variable proportions of glass, crystals grown from the melt, and unmelted material. In this review on the magnetic properties of impact glasses, the term ‘impact glass’ will be restricted to impact generated rocks (or large pockets within these rocks) that are mainly in a glassy state at a macroscopic scale. Therefore, we will not treat impactites that contain only small or comminuted fraction of glass or former glass (altered by hydrothermalism or crystallized by slow cooling). These impactites may correspond to suevite or other types of breccia, in particular impact melt dikes often used to perform paleomagnetic dating of impact craters. In fact, a recent review on this subject has been performed by Gilder et al. [6]. Therefore, we will mostly restrict this review to impact glasses with the above definition, still including a few cases, where the melt has, partly-to-totally, crystallized in a microcrystalline rock.

The most peculiar and studied impact glasses are tektites. These correspond to (almost) pure glasses that have been ejected far away from their impact source (distance larger than 100 km and up to 11,000 km, e.g., [7]). These distal materials, besides showing typical splash forms due to their transport in air or vacuum, have quite distinctive properties. This differentiates them from other impact glasses that are found near or inside their source crater. Only five tektite (and three microtektite) strewn fields have been identified on Earth (Figure 1), the largest field by far being the Australasian one [1,8]. The latter is the only confirmed strewn field for which a source crater has not been identified. On the other hand, impact glasses have been found within or around a significant proportion of the >190 impact craters identified on the Earth. A few impact glasses have been found unrelated to a source crater but on a rather limited surface (thus not corresponding to tektites) and are thus enigmatic, the most spectacular case being the Libyan desert glass (LDG). The typical size for ballistically ejected glasses is centimetric, with maximum size hardly exceeding 10 cm.

The purpose of the present paper, besides a summary of early studies, is to present a synthesis review of the magnetic properties of impact glasses, updating [9] using recent publications [10,11,12] as well as new results. These include a specific effort on glasses from Siberia (site 7–10 in Figure 1) either associated to a known crater (Popigai and El’gygytgyn) or not (Urengoite and South-Ural glass; [13]). We will also review the oxidation state (based on XANES and EXAFS data) and petrography of magnetic minerals in those glasses.

2. Early Studies

The magnetic properties of tektites were first studied by Sigamony [14], who reported the paramagnetic susceptibility of one Australasian tektite from Indonesia, at 98 × 10⁻⁹ m³/kg, and noted that this susceptibility was isotropic. Later, Senftle and Thorpe [15] reported the high field paramagnetic susceptibility (χ_hf) of 22 Australasian tektites, between 64 and 99 × 10^–9 m³/kg (average: 84), as well as on 7 North American tektites, and 2 moldavites. Besides one LDG and one Aouelloul glass were reported. All those samples show negligible saturation magnetization (M_S, measured on a high field Curie balance using 1–10 mg samples, with a sensitivity better than 10^–4 Am²/kg). Several other glasses (Georgiaite, Australasian microtektite, Tikal glass) were measured later using the same technique [16,17,18].

In two PhD theses [19,20] aimed at testing the paleomagnetic potential of tektites (mostly Australasian), a very different measurement technique was used: a superconducting magnetometer, allowing to measure natural and saturation remanence on much larger, i.e., more representative samples (in the 10 g range) with a sensitivity of 10⁻⁸ Am²/kg (for a 10 g sample). Furthermore, low field susceptibility (χ) was also estimated by measuring magnetization in a 28 µT field, frozen into the superconducting shield. They obtained a mean χ of (79 ± 6) × 10⁻⁹ m³/kg for australasites, in agreement with χ_hf measured in [15], supporting a paramagnetic origin for susceptibility. Saturation remanence (M_RS) of tektite was usually of the order of 10⁻⁶ Am²/kg, except for Muong Nong tektites (i.e., layered australasite from central Indochina) that yielded M_RS in the (5–200) × 10⁻⁶ Am²/kg range.

Werner and Boradaile [21] measured also susceptibility of tektites on large samples (1–10 g range) using a low field AC susceptibility bridge, on 152 australasites (mostly from Australia, with a mean χ at 82 ± 10 × 10⁻⁹ m³/kg) and 15 moldavites. Contrary to previous studies, they reported M_S in the 10⁻³–10⁻² Am²/kg range, using an AGFM magnetometer with few mg samples, and also large M_RS. Finally, Rochette et al. [9] reported new measurements on all five tektite fields, as well as on LDG and five types of non tektite splash-form impact glasses (called tektoids). They also developed the study of the ferromagnetic contribution in their samples, and showed that the high M_S reported in tektites in [21] were artifacts of the AGFM system (likely faulty sample holder subtraction). They also confirm M_RS of tektites is of the order of 10⁻⁶ Am²/kg.

3. Measurements and Samples

We obtained new data for this paper using two different approaches:

1) measuring on site the magnetic susceptibility of two large collections of tektites and impact glasses (collection of the Natural History Museum of Leyden, and the personal Belizite collection of Jean Cornec) using a SM150 susceptibility meter (operating field 320 A/m at 1 kHz frequency) which, by measuring simultaneously susceptibility and mass, can process very large collections. Using sample mass above 5 g can obtain a noise level of the order of 10⁻⁹ m³/kg. This target mass was sometimes obtained by pooling specimens in a single measurement;

2) Obtaining samples from various collections and measuring them in the laboratory (CEREGE, Aix-en-Provence, or Russia: Institute of Earth Physics RAS, Moscow and St Petersburg State University, St Petersburg). Low-field magnetic susceptibilities at two frequencies (F1 = 1 kHz and F3 = 16 kHz, both at 200 A/m) were measured using an Agico MFK1 bridge. Reported values are at F1 frequency and we computed the frequency dependence as fd% = (χ_F1 − χ_F3)/χ_F1 × 100. Susceptibility versus temperature curves were obtained by heating under argon flow using the CS3 attachment. Hysteresis data were obtained on a Princeton Measurements vibrating sample magnetometer (VSM) with maximum field of 1 Tesla. High-field susceptibility (χ_hf of mostly paramagnetic origin) was computed from the above 0.7 T part of the cycle. Natural and saturation remanence were measured with a 2G Enterprises superconducting magnetometer. Low temperature remanence curves for urengoites, South-Ural glass, and selected Popigai samples were measured using a Quantum design magnetic property measurement system MPMS 3 instrument in St. Petersburg. The saturation isothermal remnant magnetization (SIRM) acquired in a 5 T field at 1.8 K after zero field cooling (ZFC) and cooling in a strong (5 T) field (FC), respectively, was traced during the subsequent warming to 300 K in zero field. SIRM acquired at 300 K was measured during the cooling–warming cycle between 300 and 1.8 K, also in zero field. Both experiments were carried out with temperature sweeping at 2 K/min in the VSM mode (~6000 points per temperature sweep from 1.8 K to 300 K) for Popigai samples, and in the DC mode (~350 point per sweep) for urengoites and South-Ural glass.

Microprobe analyses of South-Ural glass were carried out at IGEM RAS (Moscow, Russia) using JEOL8200. Water content of the South-Ural glass was determined in Grenoble using Fourier transform infra-red (FTIR) transmission microscopy with a VERTEX V70 spectrometer coupled to a Hyperion 3000 infrared microscope (see [11] for further details on the methodology). XAS measurements at the K-edge of Fe were performed at the LISA CRG beamline (BM-08) [22] at the European Synchrotron Radiation Facility (ESRF, Grenoble – France). Samples were measured using a pair of Si (311) flat monochromator crystals, providing an energy resolution (ΔE/E) of ≈4 × 10⁻⁵, corresponding to an incoming beam energy bandwidth of ≈ 0.3 eV at 7 keV. Si coated focusing mirrors (E_cutoff ≈ 16 KeV) were used for harmonic rejection, providing a beam of a roughly circular spot with a diameter of ≈200 μm. Measurements were performed on urengoite sample U1 in the fluorescence mode by means of a 12-element solid state (high purity Germanium) detector [23]. The step size in the pre-edge and in the XANES region was 0.1 and 0.3 eV, respectively. The post-edge EXAFS region of the spectrum was acquired with a fixed k step of 0.03 Å⁻¹ up to a maximum value of 13 Å⁻¹. Measurements were carried out at room temperature. Standard procedures [24] were followed for background removal, spline modeling of bare atomic background, edge step normalization using a region far above the edge, and energy calibration using the software ATHENA [25]. The energy has been calibrated by means of a Fe K-edge XANES spectrum of a Fe metallic foil and imposing the edge energy of Fe to equal 7112.0 eV. Pre-edge peak data were extracted and fitted according to the procedure reported by [26,27,28].

4. Results and Discussion

4.1. Essentially Paramagnetic Glass: Tektites and Darwin Glass

As demonstrated by previous literature (see introduction) using comparison of high-field and low-field susceptibilities, and the match of average χ values with predicted paramagnetic plus diamagnetic signal assuming all iron into Fe²⁺ form (Figure 2 redrawn from [9]), tektites as well as Darwin glass are essentially paramagnetic. As these materials have rather limited range in Fe amount, it leads to a narrow susceptibility range, with a standard deviation relative to mean (i.e., coefficient of variation CF) in the 19–24% range (case of Darwin glass, bediasite, and moldavite) or even in the 3–12% range (other tektite fields, see

Table 1. Magnetic susceptibility of tektites and Darwin glass ordered by FeO amount after [9] and this work, excluding anomalies over two times the average for australasite and belizite (see text). * and **: comparison with data from [20] and [21]. N is number of measurements (can be pooled specimens, or several specimens from one sample). When known the diameter in km of the source crater is indicated within brackets.

Strewnfield	Mean χ (10−9 m3/kg)	Coefficient of Variation (%)	χ Range	N
Moldavite (24)	31	19	25 to 60	39
Moldavite *	26	19	15 to 60	31
Moldavite **	35	34	23 to 78	15
Darwin (1.2)	53	23	34 to 79	45
Bediasite-Georgiaite (40)	65	23	43 to 129	65
Bediasite-Georgiaite *	70	32	49 to 88	12
Australasite S. China	87	3	74 to 94	668
Muong Nong	93	10	81 to 107	20
Cambodgia, Laos and Thailand	88	7	76 to 104	40
Vietnam	93	10	82 to 128	55
Indonesia	102	7	81 to 125	215
Phillipines	94	7	79 to 129	77
Australia	86	8	73 to 94	22
Australasite *	79	8	54 to 94	111
Australasite **	82	10	57 to 103	152
Ivoirite	103	12	62 to 138	109
Ivoirite * (10)	103	4	99 to 107	4
Belizite (14?)	125	3	112–193	1120

). This situation is due to the fact that Fe is essentially under the form of Fe²⁺, based on EXAFS and XANES investigations [27,29,30,31]. In that case, neither magnetite nor metal can form in significant amounts during solidification of the melt.

As our last study of australasites [9] relied only on the 152 samples, mostly from Australia, reported in [21], we attempted to obtain a much larger database allowing discussion of geographic variability among the australasite strewnfield. Indeed, Donofrio [20], using his database of 111 geographically well-distributed samples proposed that tektites from Indonesia and Malaysia are significantly more magnetic than the ones from the rest of the strewnfield. This was already visible in [15] data on 22 australasites (see their Figure 1).

To test the homogeneity of χ on a single locality we measured 668 samples from a site in South China (Maoming) and obtained a very narrow range of χ: 87 ± 3 × 10⁻⁹ m³/kg, i.e., with a standard deviation 3 times smaller than that from the database [21]. The only outlier (over twice the mean) appeared to be due to an inclusion of hardened oxide rich soil within a large bubble connected with the exterior. Indeed, Donofrio [20] already pointed out that the main source for higher than normal magnetic signal (susceptibility or remanence) was soil impurities encrusted on the surface. Therefore, they thoroughly cleaned their samples before measurement.

At the Leyden museum, we measured 572 splash-form tektites using SM150 instrument and found only 11 anomalies (defined as values higher than two times the mean), 1 from the Philippines and 10 from Indonesia. These samples, all visibly incrusted with brown red material, were brought to the CEREGE laboratory for further cleaning using a metal needle under a binocular microscope for the large embedded encrustation, as well as subsequent ultrasonic cleaning in diluted hydrochloric acid. This cleaning resulted in large decrease of χ, turning back nearly to normal values. Apart from these anomalies, one may still observe that data from Indonesia, and to a lesser extent the Philippines, are higher than for Indochina and Australia (Figure 3 and Table 1). This agrees with the results of [20] on Indonesia versus other sources. We also note that, within Indochina, the samples from Vietnam (only 48 samples) have also significantly higher χ, equaling the Philippines average. Based on the fact that soils from Indonesia, the Philippines, and Vietnam are mainly derived from volcanic rocks, while the rest of Indochina, China, and Australia are mainly non-volcanic, our average value differences may be due to a widespread small magnetic soil contamination. On the other hand, the non-anomalous samples from Indonesia, the Philippines, and Vietnam appeared visually devoid of soil contamination during measurement, while the database [20] was obtained on thoroughly cleaned samples. The dispersion of data according to geographic provenance is also consistent with a genuine distinction of Indonesia, the Philippines, and Vietnam with respect to the rest of the strewn-field (Figure 3). We therefore leave open the possibility of a genuine regional variation of χ within australasites, either due to higher Fe amount (plus eventually minor paramagnetic elements such as Mn, Cr, etc.) or higher ferromagnetic contamination (see discussion below).

We also obtained a database on nearly 4000 specimens (pooled in 1120 measurements) of belizites using the SM150. Only 30 anomalies ( χ higher than two times the mean) were detected, that is less than 1% of the whole population. Excluding these anomalies leads to an average χ of 125 ± 4 × 10⁻⁹ m³/kg, i.e., with a coefficient of variation identical to the South China case, again confirming the extremely high homogeneity of tektites, except very minor anomalies. The belizite anomalies (with χ up to 57 × 10⁻⁶ m³/kg, median at 1.1 × 10⁻⁶ m³/kg) have been subjected to further investigation in the laboratory, showing that they contain variable amounts of titanomagnetite inclusions. These anomalous samples will be further described in a forthcoming publication.

As already pointed out measurements of saturation remanence (M_RS) of tektite (except for Muong Nong and anomalous belizites) and Darwin glass yield values of the order of 10⁻⁶ Am²/kg, at most [9,20]. This means that ferromagnetic impurities, either magnetite or metal, should be in amounts less than 1 ppm, assuming that M_RS/M_S is above 0.01 and 0.004 for magnetite and metal (M_S of 92 and 250 × 10⁻⁶ Am²/kg), respectively. The contribution to χ corresponding to 1 ppm of ferromagnetic impurities is 0.5 × 10⁻⁹ m³/kg, which further grounds the essentially paramagnetic nature of tektite susceptibility. Still, inclusions of metallic iron have been described in Australasian tektites of anomalous color and texture [32,33] from the Philippines and South Vietnam (Dalat). There is thus the possibility to find such anomalous samples by surveying the magnetic susceptibility of large collections; in Vietnam, Chao et al. [32] reported two anomalous samples over more than 1500 examined; in the Philippines it was 330 anomalies over several thousand samples.

Muong Nong layered tektites from the australasite strewn-field stands out by showing consistently higher M_RS in the range 5–200 × 10⁻⁶ Am²/kg [19] (our unpublished measurements on 8 samples). For samples with the highest remanence, ferromagnetic contribution to χ ought to be significant. Indeed, in our database, the sample with the highest M_RS (116 × 10⁻⁶ Am²/kg) yields also the highest χ (107 × 10⁻⁹ m³/kg). This sample produced a significant ferromagnetic signal after paramagnetic slope subtraction (Figure 4a). Magnetite amount, estimated from M_S, is about 20 ppm. Still, on average, Muong Nong tektites show χ values similar to other australasites (Table 1). Note that de Gasparis et al. [19] propose titanomagnetite as the carrier of remanence. Kleinmann [34] extracted magnetic spherules from crushed tektite from Indochina and the Philippines and found they were mostly made of magnetite.

Australasian microtektites may also be more magnetic than the standard tektites. Senftle et al. [17] report in microtektite samples with mass above 0.2 mg χ from 23 to 147 10⁻⁹ m³/kg (note that we discarded the lower mass due to questionable reliability of the measurements). They also report M_S up to 10⁻³ Am²/kg. This indicates significant amount of ferromagnetic impurities, as confirmed by our observation that a significant part of large microtektite from the South China Sea we studied in [35] are attracted by a magnet and present a dark color.

4.2. Magnetic Properties of Impact Glasses from Siberia

4.2.1. El’gygytgyn Impact Glasses

El’gygytgyn impact crater is a 3.6 Ma, 18 km diameter impact structure located in the central part of Chukotka peninsula and centered at 67°30′ N and 172°05′ E (e.g., [36]). Target rocks are rhyolitic to andesitic lavas. The crater depression is occupied by a lake having the same name. The El’gygytgyn impact bombs used in this study were collected in the southern and western sections of El’gygytgyn lake shore and from bed deposits of a stream falling into the lake. The bombs consist of translucent (in thin splits) homogeneous black SiO₂-rich glasses without rock and mineral inclusions and are similar to the glasses described previously [37,38].

We investigated low-field susceptibility χ on subsamples with masses ranging from 0.3 to 18 g. χ varies from 1231 to 2772 × 10⁻⁹ m³/kg with similar mean values for the first two glass bombs and from 417 to 507 × 10⁻⁹ m³/kg for the third glass bomb. The average χ values with standard deviation for each of three glass bombs are presented in

Table 2. Main magnetic properties of impact glasses: new cases from Siberia. χ is low-field magnetic susceptibility; Fd is frequency dependence of χ; χ_HF is high-field magnetic susceptibility; M_S is saturation magnetization; M_RS is saturation remnant magnetization; B_C is coercivity, B_CR is remanent coercivity; N is the number of sub-samples measured; for Popigai, only samples with hysteresis data are reported.

Name (N)	χ × 10−9 (m3/kg)	Fd (%)	MS × 10−3 (Am2/kg)	MRS/MS	BC (mT)	BCR (mT)	χHF × 10−9 (m3/kg)	χHF/χ0 (%)
Popigai Glasses
PO-1	280	2.9	28.8	0.440	47	82	132	37
PO-4	170	5.8	3.6	0.330	30	65	128	60
PO-6	914	5.2	16.8	0.142	10	35	78	7
PO-7	335	5.1	61.2	0.350	48	115	141	33
PO-9	211	2.4	41.6	0.350	45	70	109	41
PO-15	227	1.7	22.6	0.250	43	65	117	41
PO-22	270	2.0	361	0.177	13	29	72	21
PO-23	4970	2.6	344	0.226	22	48	125	2
PO-24	572	13.8	67.7	0.337	28	42	133	18
PO-27	381	2.1	79.2	0.317	29	48	137	29
PO-29	220	1.7	21.8	0.297	38	71	135	49
El Gygytgyn Glasses
elg-1 (5)	2035±492	9–12	61.9	0.027	2.9	31	60	5
elg-2 (3)	2464±281	10–11	79.9	0.047	3.9	36	57	-
elg-3 (4)	473±42	6–7	41.6	0.040	6.6	35	88	-
Uregoites
U-1	19.2	3	-	-	-	-	-	-
U-2	9.98	-	-	-	-	69.0	-	-
U-3	19.9	-	0.535	0.083	12.5	68.5	-	-
South-Ural Glass
A-1	4.7	-	-	-		-	-	-

.

The average χ for all El’gygytgyn glass samples is (1622 ± 924) × 10⁻⁹ m³/kg (12 samples from 3 glass bombs). Frequency dependence of χ is non-negligible and varies from 6 to 12%, which may point out to the presence of superparamagnetic (i.e., nm-sized) grains.

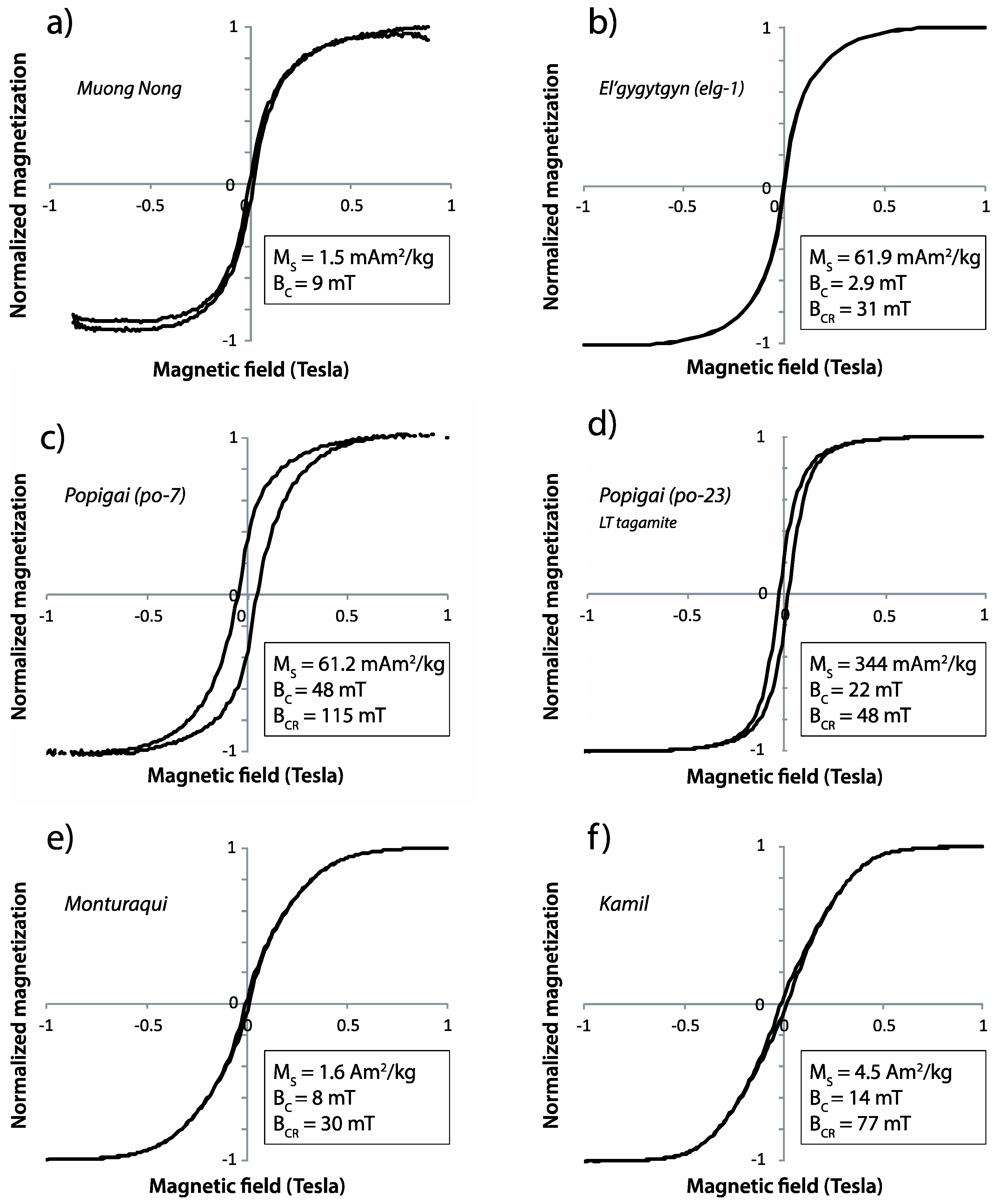

We used smaller chips (0.3–0.5 g) to acquire hysteresis loops and backfield remanence demagnetization curves. All data are presented in Table 2 (an example in Figure 4b), and are typical for substituted magnetite of variable grain size, as observed using electron microscopy by [38]. Saturation magnetization values M_S range from 42 to 80 ×10⁻³ Am²/kg pointing to the presence of a non-negligible ferrimagnetic contribution (1‰ range).

4.2.2. Popigai Impact Glasses

Popigai impact structure is located in Siberia, Russia (northern margin of the Anabar shield, 71°38′ N 111°11′ E): its diameter is ~100 km and estimated age 35.7 ± 0.2 Ma [36,39]. Its melt sheet exceeds several km in thickness. We investigated 27 samples of Popigai impact melt rocks (tagamites) from 15 different boreholes and impact glasses from a variety of glass bombs from surface outcrops (sample collection from VSEGEI, Russia, provided by V.L. Masaitis). The 5–15 cm glass bombs were taken from suevite outcrops. Tagamite samples were collected from depths of 21–981 m. Geochemistry and petrology of the samples is described in [39,40].

Magnetic susceptibility χ was measured for all 27 samples with masses ranging from 3.5 to 13.9 g. If we exclude one clear outlier (PO-23, see Table 2), χ ranges from 104 to 914 with the average χ = (248 ± 165) × 10⁻⁹ m³/kg. Some of these data are presented in Table 2.

We used smaller chips to measure hysteresis loops and backfield remanence demagnetization curves (Table 2). Saturation magnetization M_S of the samples varies from 3.6 to 361×10⁻³ Am²/kg, which indicates up to a few wt ‰ of ferrimagnetic minerals. Hysteresis points toward two types of magnetic minerals: one hard (Figure 4c) and one soft (Figure 4d), with S ratio (remanence at 0.3 T divided by remanence at 1 T) down to 0.67 and >0.95, respectively. Significant frequency dependence, up to 14%, may be observed in both behaviors although the majority of samples have fd% < 3.

It is tempting to identify these two phases as magnetite and pyrrhotite, respectively. Indeed, pyrrhotite was previously reported in Popigai impact glasses [39,40]: low-temperature (LT) tagamites were reported to have single domain and multidomain pyrrhotite grains, whereas high-temperature (HT) tagamites were reported to have superparamagnetic pyrrhotite grains [39]. In this study, PO-23 is LT tagamite, PO-24 is HT tagamite [39].

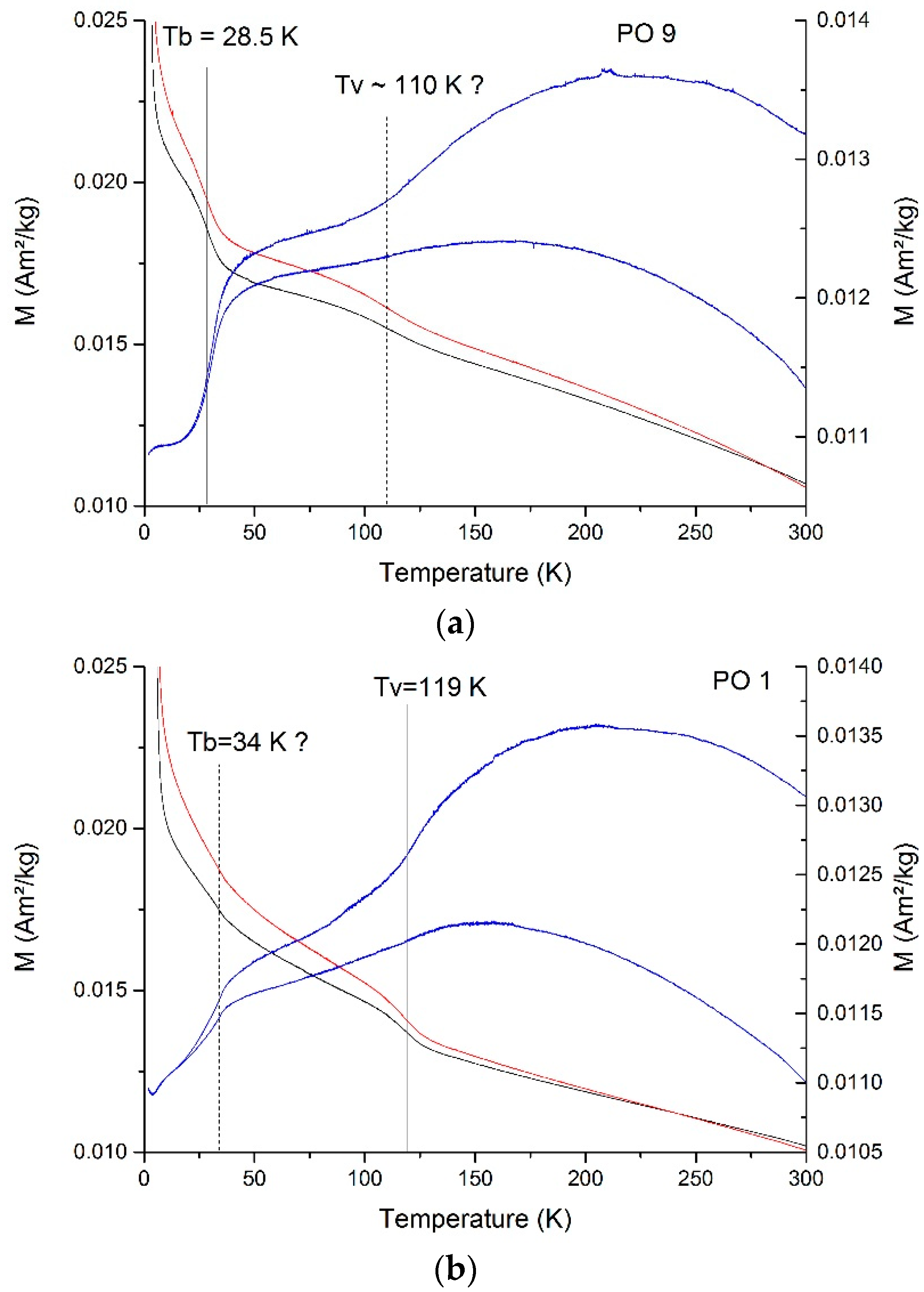

To confirm this identification, we studied further two extreme cases, PO-7 and PO-23, respectively hard and soft, with large M_S. Both contain sulfides visible under the binocular microscope, with blebs up to 1 mm in the case of PO-23. A magnetic extract performed on gently crushed PO-23 confirms that the sulfides are magnetic, and are thus likely pyrrhotite. However, low-field magnetic susceptibility versus temperature measurements on both samples reveal only a minor or hardly visible (PO-7 case) Curie temperature of monoclinic pyrrhotite (~320 °C) (Figure 5a,c).

This is particularly surprising for the PO-7 case, which exhibits a pure fine-grained pyrrhotite-like hysteresis. Hysteresis at variable temperature up to 400 °C for PO-7 (Figure 5b) shows that the high coercivity signal promptly disappear with hardy visible discontinuity around 320 °C. Cooling from 400 °C results in a soft behavior at room temperature, suggesting that the magnetically hard behavior is due to a metastable phase or defects disappearing on annealing, as proposed for martian meteorites [41]. On the other hand, another high coercivity sample (PO-9) does show a significant inflexion near 330 °C on coercivity and M_RS/M_S values. Low temperature remanence curves (Figure 6) show in some samples low amplitude expression of the pyrrhotite (i.e., Besnus transition, better expressed in PO-9) and pure magnetite (i.e., Verwey transition). The magnetic mineralogy of Popigai glasses is obviously complex (see Figure 5b with a suggestion of up to four different phase transitions) and deserves further dedicated investigations.

4.2.3. Urengoites

Masaitis et al. [42] reported the finding of three glass pebbles (U1 to U3) in fluvioglacial sand deposits, separated by a 40 km distance near Novi Urengoï in West Siberia (66°N, 78°E). Their size varies from 1 to 3 cm, with light green color. Their composition is SiO₂-rich (89.4 to 95.2 wt %), with FeO from 0.32 to 1.03 wt % [13]. They show fluidal texture and lechatelierite-like inclusions (Figure 7), as well as very low water content, from 80 to 240 ppm [43], both suggestive of tektite-like impact glass.

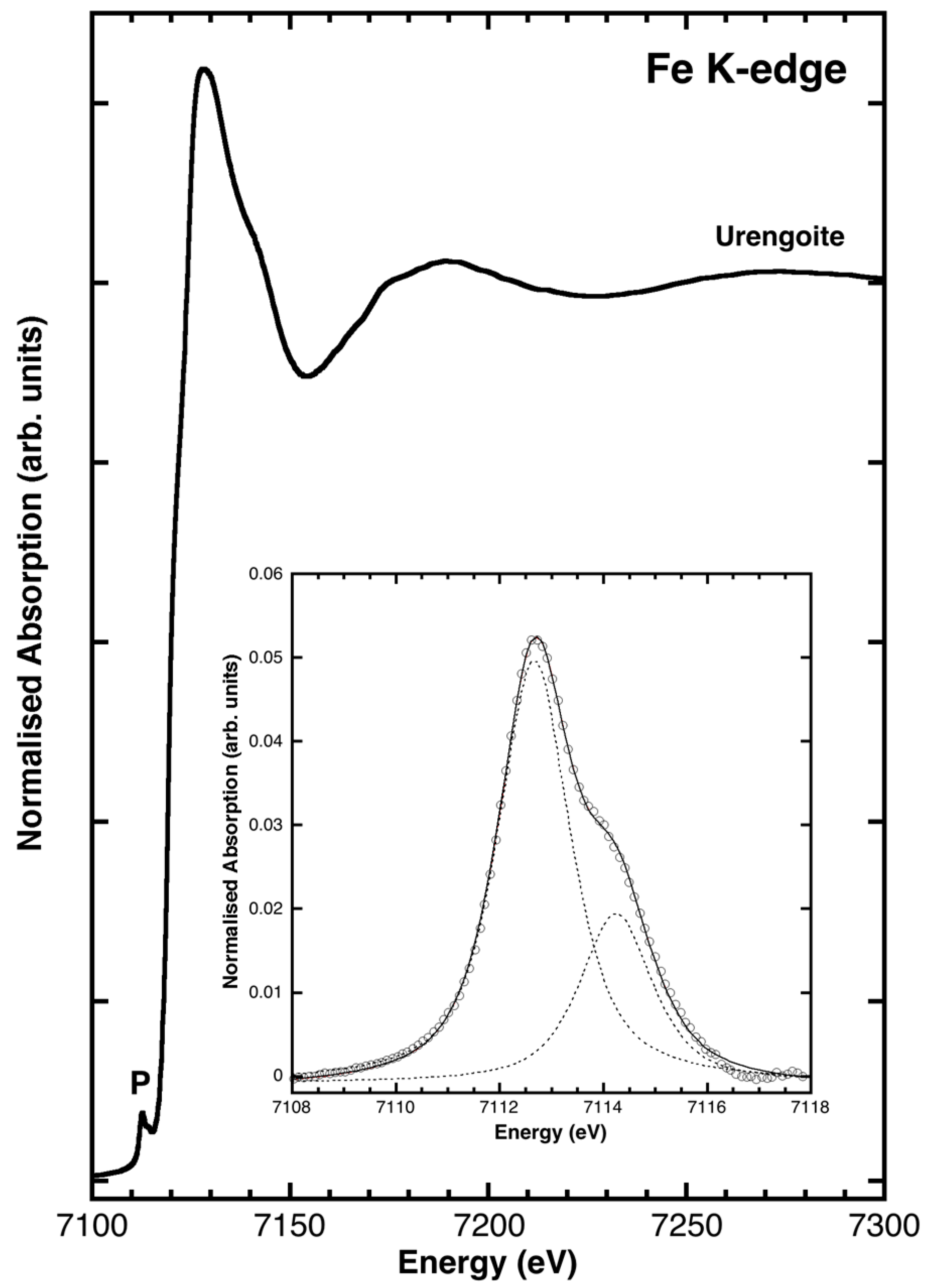

Masaitis et al. [42] reported Mössbauer spectroscopy (MS) data compatible with the lack of Fe³⁺. As MS data may be ambiguous to allow discussion of the oxidation state of iron [44], we undertook X-ray spectroscopic investigations at the Fe edge of U1 sample (the richest in iron). The Fe K-edge XANES spectrum of the urengoite sample is shown in Figure 8, whereas the background subtracted pre-edge peak (labeled P in the XANES spectrum) is shown in the inset.

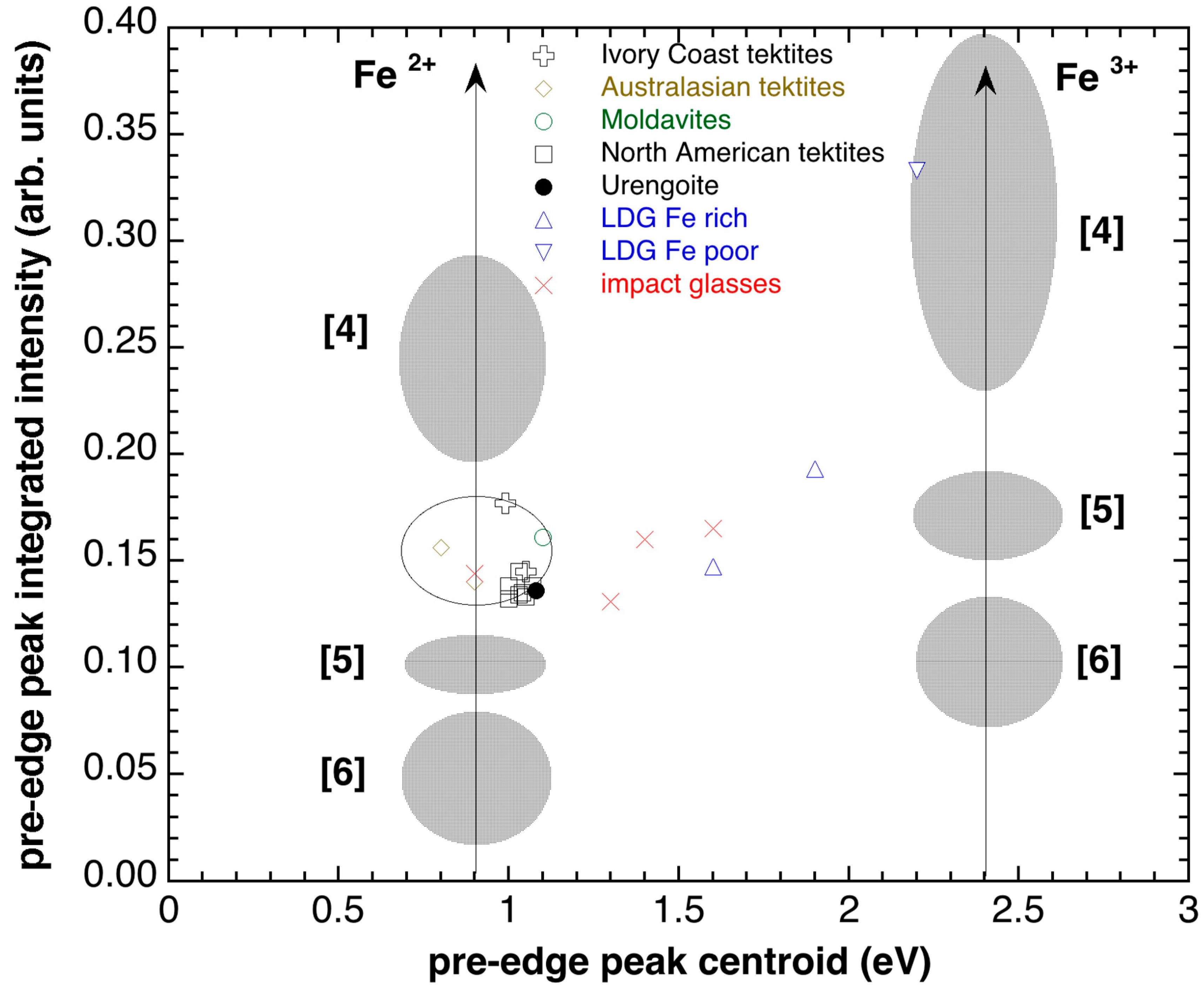

The spectrum displays only broad features, compatible with the glassy nature of the sample. The edge energy, as determined by the maximum in the first derivative spectrum, is located at 7119.2 eV, compatible with the presence of divalent iron. The general shape of the spectrum is very similar to that of tektites from the Australasian, Central European, Ivory Coast, and North American strewn fields (see [27,29,30]). The background-subtracted pre-edge peak has been fitted with two pseudoVoigt functions constrained to have the same full width at half maximum (FWHM) and Lorentian degree, resulting in a centroid energy of 7113.08 and an integrated intensity of 0.136. Comparison of pre-edge peak data with those of Fe model compounds allow to determine Fe³⁺/(Fe²⁺ + Fe³⁺) = 0.06 ± 0.05 and an average Fe²⁺ coordination number intermediate between [4] and [5]. All the XAS data measured are compatible with those of tektite and Darwin glass reported in the literature so far (Figure 9), and distinct from other glasses such as irghizites and LDG.

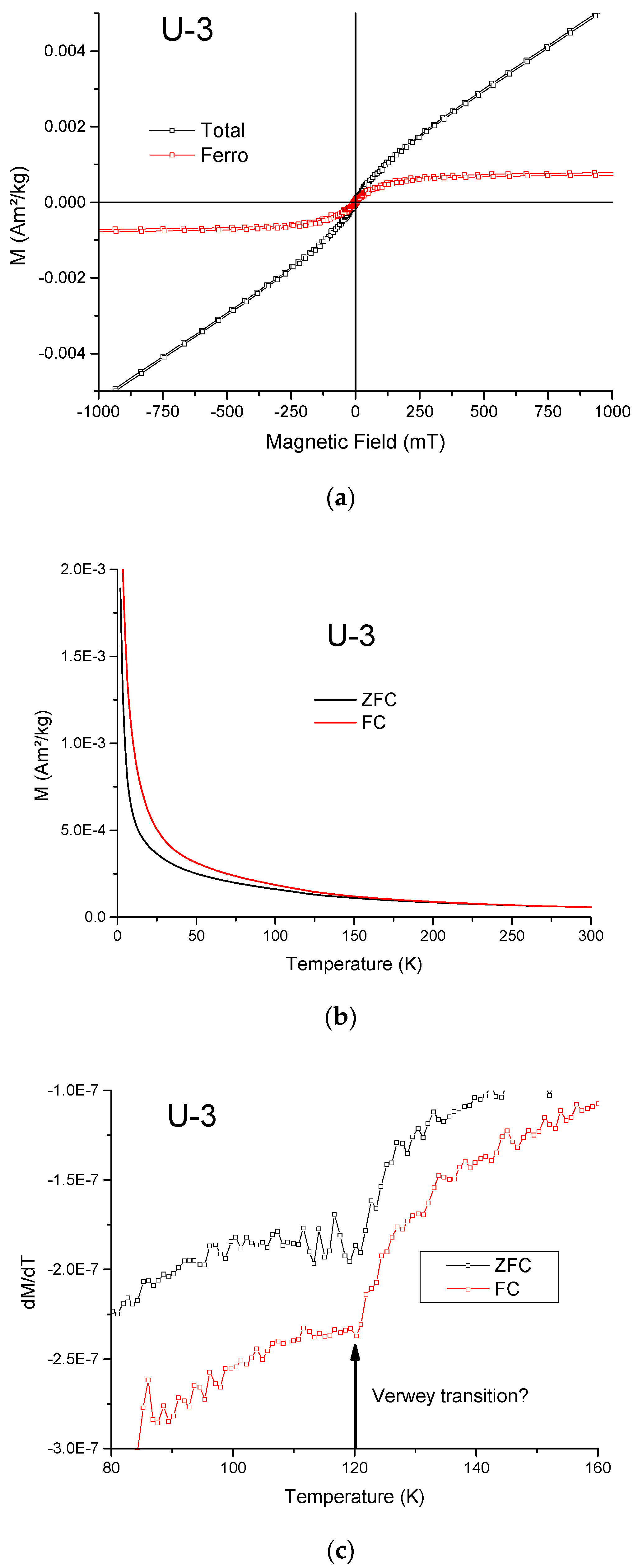

Magnetic susceptibility as well as M_RS are very low: 10 to 20 × 10⁻⁹ m³/kg and 4 (U1) to 62 (U3) 10⁻⁶ Am²/kg, respectively (Table 2). For U1 the magnetic susceptibility appears dominated by paramagnetism (Figure 2 inset), while U3 (and to a lesser extent U2) shows a significant ferromagnetic signal (Figure 10a). Low temperature SIRM warming curve (Figure 10b) shows a strong continual decrease typical of superparamagnetic grains. A slight hint of the Verwey transition around ~120 K is seen on the magnetization derivative (Figure 10c), indicating some magnetite. M_S value corresponds to 6 ppm of magnetite, i.e., of the order of Muong Nong magnetite content.

Urengoites, dated around 24 Ma by fission tracks and K/Ar [13], share a number of characteristics of tektites: fluidal glass with low vesicularity and no other inclusions than lechatelierite, very low water content, reduced nature, and very low ferromagnetic content. However, some features indicate they are not typical tektites, in particular the chemical and isotopic heterogeneity [13]. Together with the variable ferromagnetic content observed (up to 6 ppm), we propose that the closest analogs to urengoites are either Muong Nong tektites or Darwin glass.

4.2.4. South-Ural Glass

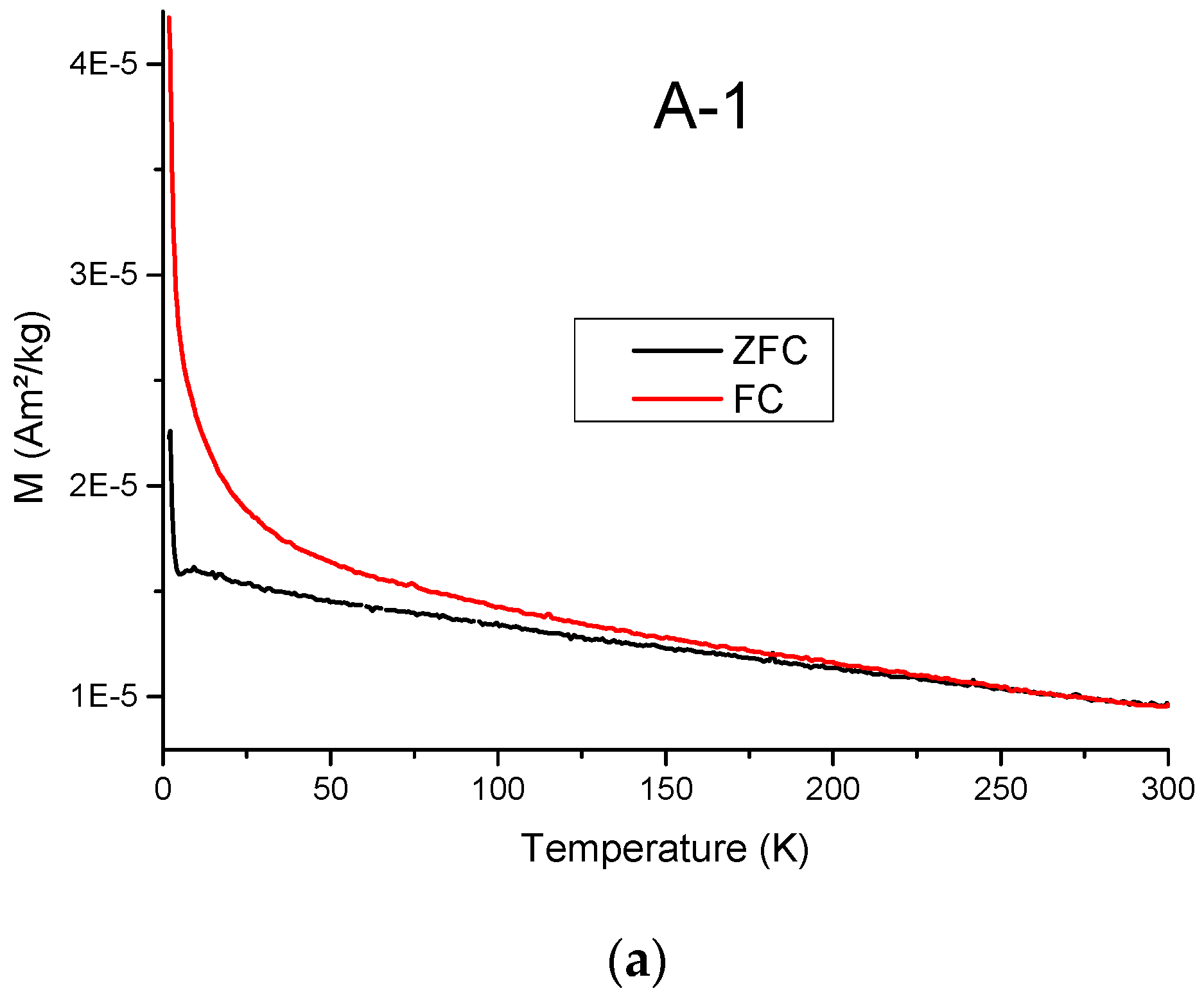

A single light green glass pebble weighing 90 g was found in eluvial–dealluvial placer at the Astaf’evskoe piezoquartz deposit 75 km east of Magnitogorsk (53°37′ N, 60°10′ E) and first studied in [46]. Deutsch et al. [13] report amounts of SiO₂ of 66.9 wt % and FeO of 0.43 wt %, as well as lack of Fe³⁺ based on Mössbauer spectroscopy. On the other hand, electron spin resonance indicated minor but detectable Fe³⁺ [46]. Our microscopic investigations reveal no sign of fluidality (contrary to [46]) and no inclusions in this very homogeneous glass. We measured with FTIR a water content of 414 ppm, higher than all impact glasses except LDG [43]. Magnetic measurements on a 3.7 g sample yield a susceptibility of 4.7 × 10⁻⁹ m³/kg and M_RS of 6–9 × 10⁻⁶ Am²/kg (2 samples). Susceptibility is compatible with pure paramagnetism (Figure 2 inset). A SIRM warming curve reveals a pronounced superparamagnetic or spin glass behavior, typical of nanometric clusters of iron, with no Verwey transition (Figure 11).

Microprobe data show that chemical composition is homogeneous but anomalous for tektites regarding the high CaO content (12.1 wt %) and non-zero P₂O₅ (0.19 wt %). Moreover, the fluorine content is as high as 3.5 wt % that is unusual for natural glasses. Together with other characteristics (lack of inclusions and fluidality, water content), this suggests that South-Ural glass may be a man-made glass, rounded in the surface for some decades. Indeed, the region of Magnitogorsk (and more general South-Ural) was a site on intense heavy industry during the Soviet Union period since 1930, leading to spill of numerous by-products of metal and glass production or other high-temperature processes. It is nowadays among the most polluted sites in Russia. This makes the casual finding of manufactured glass rounded in surface gravels not an impossible event. Note that in the urengoite case, at the Novy Urengoi area, the only industry is natural gas extraction that started in 1975.

The K/Ar age of 6.2 ± 0.3 Ma obtained on this glass [46] sounds contradictory with a man-made origin. However, it is possible that during the manufacture of this glass starting from old geological material, the ⁴⁰Ar initially present was not fully degassed.

4.3. Overview of Impact Glasses with Variable Ferromagnetic Content

Apart from Darwin glass and urengoites (neglecting the 6 ppm magnetite content of U3), all other studied non tektite glasses appear to have variable but often significant ferromagnetic contributions, as demonstrated in [9] on irghizite, atacamaite, Aouelloul, Wabar, and Libyan desert glasses (LDG). This general behavior is due to the fact that a significant part of total iron is in Fe³⁺ form in these glasses with an average oxidation state of up to 3 for LDG and 2.8 for zamanshinite [27,45,47]. These studies also show that, within a strewn field, average oxidation may be quite variable. On the other hand, one may find metallic iron spherules due to impactor contamination [48,49]. The present synthesis will build on the two new Siberian impact glasses studied above, previous synthesis [9] as well as magnetic studies on Lappajärvi crater melt rocks [50], Lonar crater glass [51,52], of Mistastin crater melt rocks [53], of Jänisjärvi crater melt rocks [10], of Pantasma crater glass [11], complemented with M_RS data from [20]. Data from [12] on irghizites will also be used to complement the database [9]. New magnetic data on glasses from Lonar, Ries, Kamil, Monturaqui, Lappajärvi, and Henbury craters have also been acquired for this study. Among the 16 cases reviewed in this chapter (see

Table 3. Synthesis on magnetic properties of non paramagnetic impact glasses, after [9] complemented with data from [10,11,12,20,50,52,53] and this work. Sites are ordered by increasing mean susceptibility, with impact melt sheets at the end. When known the diameter in km of the source crater is indicated within brackets. N is the number of data used for mean susceptibility, and CF its coefficient of variation. Fd%, M_S, and M_RS may rely on less samples.

Glass	Mean χ (10−9 m3/kg)	CF (%)	Range	N	Fd%	MS (10−3 Am2/kg)	MRS (10−3 Am2/kg)
LDG (?) normal	−2.3	39	−3.3 to −0.6	10
LDG (?) dark	4.4	71	−0.1 to 10.8	8	11		0.01
Aouelloul (0.4)	82	89	38 to 463	65	14	0.3–19.6	0.04–2.9
Irghizite (6-14)	167	126	45 to 3320	835	3 to 20	1 to 278	0.006 to 23
Wabar (0.1)	468	58	125 to 1025	14	20	12	1.9
Atacamaite (?)	302	286	84 to 20500	3291	7 to 16	0.4–2350	0.02–280
Ries (24)	417	44	262 to 685	6	7 to 10		1.5
El’gygytgyn (18)	1712	90	180 to 4459	7	6 to 12	42 to 80	2.1 to 2.4
Henbury (0.2)	3316	36	2190 to 4550	3			5 to 20
Lonar (1.8)	5100	61	288 to 9705	20	2.5 to 4.5	8.2 to 1290	0.3 to 558
Kamil (0.05)	8710	141	146 to 26 100	7	3 to 11	18 to 4511	5 to 225
Monturaqui (0.5)	12 000	30	7 600 to 17 200	10	2	67 to 1629	3 to 65
Pantasma (14)	13 600	72	370 to 25 600	3	3 to 23	26 to 926	5.5 to 111
Melt sheets
Lappajärvi (23)	277	20	210 to 420	23	1.4	80 to 230	34 to 58
Popigai (90)	427	212	90 to 4965	28	0 to 14	4 to 361	1 to 78
Jänisjärvi (17)	1978	82	74 to 2769	29		1.9 to 184	0.06 to 33
Mistastin (28)	3390	53	580- 8400	115		65 to 1460	12 to 400

), two are glass strewn-fields of a few tens of km extension without known source craters: LDG and atacamaite.

While the first is yet enigmatic (e.g., LDG have been proposed to be the result of an airburst rather than a crater [54]), the strong analogy between atacamaite and irghizite (both resembling miniature splash-form tektites, thus the term tektoid coined by Rochette et al. [9]) suggest a proximal impact crater for atacamaite. In the remaining cases, 4 come from impact melt sheets found within the crater (Jänisjärvi, Lappajärvi, Mistastin, Popigai cases) while the 10 others are clearly proximal ejecta. We point out that the melt sheets studied here are often not real glass but cryptocrystalline material with minor devitrified glass, although real glass may dominate in Mistastin and Popigai.

The magnetic susceptibitility of these glasses or rocks may, for some samples, be strongly dominated by paramagnetism (case of Aouelloul glass, irghizite, and atacamaite [9]) but a significant to major part of the samples is dominated by variable ferromagnetism. This results in a large spread of susceptibility (highlighted by coefficient of variation much higher than 30%, see distribution in Figure 12 compared to the tektite cases) and M_S or M_RS values (up to 4 orders of magnitude for M_RS of atacamaites). A frequent characteristic of these glasses is also large frequency dependence of susceptibility (Table 3), indicative of the abundance of superparamagnetic (SP) grains (grain size below about 20 nm). This abundance is confirmed by the hysteresis parameters and viscosity tests (e.g., Figure 5 and Figure 6 in [9]); in the case of irghizite, liquid helium temperature remanence warming curves also indicated abundant SP grains [12]. Note that low fd% may either be due to the lack of SP particles or to a predominance of paramagnetic contribution in susceptibility.

Magnetic mineralogy of these impact glasses is dominated by substituted magnetite [9,10,11,12,51], as expected by their generally oxidized nature indicated for example by XANES (for LDG, Aouelloul, irghizite, Wabar; [27,45]) or Mössbauer spectroscopy studies (for Aouelloul, irghizite, Wabar; [44]). Substitution in magnetite is revealed by the spread of Curie or remanence unblocking temperatures well below 580 °C, as well as the lack or subdued character of the Verwey transition [10,12,53]. Besides the very fine-grained magnetite inclusions, one may encounter large oxide inclusions, likely derived from the melting of large iron oxides grains present within the target. In that case, microanalysis is possible, showing that the substituted elements are not what is usually observed in volcanic rocks. In the Pantasma glass case, substitution varied between 0.14 to 0.71 and average formula was: Fe_2.5Ti_0.28Al_0.09Mg_0.06Mn_0.05V_0.01O₄. The corresponding Curie points were spreaded up to 510 °C. A peculiar morphology, named granular magnetite by Rochette et al. [11], has been encountered in these large grains from Pantasma, El’gygytgyn, and irghizite glasses (Figure 13). It is reminiscent of a two immiscible liquids texture, or of granular zircon found in impact glass [55]. This morphology may be typical of impact melts generated from target bearing large oxide grains, but this generalization needs further investigation. We note that some of the target rocks of these three craters are similar: andesitic to rhyolitic lavas [11,36]. Lavas are the only target rocks for Pantasma and El’gygytgyn while sedimentary target rocks dominate over lavas in Zhamanshin.

Other magnetic minerals are sometimes encountered, usually together with magnetite: hematite in the case of irghizite [9]; metal in the case of Aouelloul, Henbury, Wabar, Kamil, and Monturaqui glass [48,49,56,57]; pyrrhotite in the case of Lappäjarvi and Popigai glass. Metal and pyrrhotite occur usually as spherical droplets, indicative of immiscible liquid state. The discrimination between these different minerals may be performed at room temperature using hysteresis loops (Figure 4) and back-field curves, although the fact that more than one mineral may coexist makes the interpretation more complex. Metal seems more often encountered in rather small craters (see diameters in Table 3), and pyrrhotite in melt sheets within large craters.

5. Synthesis

The origin of the observed dichotomy in magnetic properties and oxidation ratio between paramagnetic glasses (five tektite strewn-fields, Darwin glass and urengoites) and the other partly ferromagnetic impact glasses (from 17 different craters) call for a fundamental difference in formation processes. The source material of tektites, being at the Earth surface with significant soil or continental sediment component [35], should initially have a large Fe³⁺/Fe^tot ratio. Various hypotheses were put forward in [9] to explain the reduction endured by tektites including the effect of very high temperature and pressure, degassing of sulfur or mixing with reducing material (e.g., carbon). Another hypothesis may be put forward here, with the eventual high temperature equilibration of tektites in near zero pressure during high altitude flight, resulting in oxygen evaporation. We note that we have possibly three cases where we can compare distal glasses (tektite) with proximal glasses deriving from the same crater: Ries glass bombs or melt with respect to moldavites; Bosumtwi melts with respect to ivoirites; Pantasma glass with respect to belizites, assuming that their proposed common origin from Pantasma crater is firmly established in the future [11]. The present review shows that the proximal glasses of Ries and Pantasma are partly ferromagnetic and oxidized with large difference in susceptibility and ferromagnetic content with respect to their corresponding tektites (Table 1 and Table 3). Concerning Bosumtwi glasses, the rock magnetic measurements reported in the literature are sparse, and unclear in terms of a susceptibility difference. However, significant natural or saturation remanence is reported in [20,58,59], supporting the hypothesis that Bosumtwi glass is oxidized compared to ivoirite. Still, the ‘long distance flight’ model does not account for the reduced character of Darwin glass.

One may question the possible use of magnetic measurements to distinguish impact glasses from other glasses produced by volcanism, lightning, pyrometamorphism (coal, hydrocarbon, and vegetation fire; see [1]) and human activity. The presence of metal for example cannot be taken as a proof for interaction with extraterrestrial matter (as described in [48,49,56,57]). Indeed, metal and other reduced phases of iron can be encountered in fulgurite [2], natural glass generated by vegetation fire (e.g., [60]), and of course man-made glass (e.g., [61]). As pointed out in [9], the discrimination between volcanic (e.g., obsidian) and partly ferromagnetic impact glass is not straightforward. Compared to impact glasses, obsidian seldom shows dominant paramagnetism or strong frequency dependence and other indications for grain size in the superparamagnetism to single domain range. However, that is just a tendency with exceptions (e.g., [3]) thus not allowing secure discrimination. We note that the doubt expressed in our work on the natural origin of the South-Ural glass does not rely on magnetic properties.

One general feature of impact glasses is often to contain very fine magnetic grains, which is favorable for paleomagnetic applications, i.e., using the natural remanence (NRM) record of the magnetic field present during glass cooling. However, high proportion of grains near the superparamagnetic threshold can lead to an unreliable NRM record. For in situ glasses and melts (either as sheets or dikes), this has led to numerous applications to crater studies, reviewed in [6], see also [50,53]. Paleomagnetic studies of ejecta are much rarer [19,20,52,62], due to the fact that directional data may not be of interest on material cooled during the flight. They have been used to test the hypothesis that the layering of Muong Nong tektite corresponds to the paleohorizontal (i.e., the liquid spread on the soil surface) in the study [62], or to obtain indications on the magnetic field intensity during glass cooling [52]. Future applications may rely on directional data in the case of flight-oriented glass, by analogy with the case of elongated cosmic spherules fallen in Antarctica [63]. In that case, it was possible to decide if the oriented spherule fell in a normal or reverse geomagnetic field.

Our review shows that impact glasses can have highly variable susceptibility, and remanence intensity ranging from negligible to basalt-like values. However, glasses found inside the crater as large masses are usually strongly magnetic, with a signal that may be higher than the host rock (see e.g., [50]). This may result in a magnetic anomaly associated with the melt sheet (see review in [64], and e.g., [65]).

6. Conclusions

Using a review of literature and new measurements, in particular on four glasses from Siberia with proven or proposed impact origin (El’gygytgyn, Popigai, urengoites, and South-Ural glass) we provide a comprehensive survey of the magnetic properties of 24 different glass types, in relation with their redox state. We separated two types of behavior:

1) Purely paramagnetic behavior related to a redox state mostly restricted to Fe²⁺; this characterizes the five tektite distal strewn-fields (including belizites), as well as the urengoites and Darwin glass. Our study confirms the tektite-like nature of urengoites.

2) Variable ferromagnetic behavior in the other craters and glass strewn-fields, all proven or inferred (case of LDG and atacamaite) proximal ejecta as well as in situ melt sheets. Substituted magnetite in the only or dominant magnetic mineral in most cases, although metallic iron can be encountered, as well as pyrrhotite and hematite. Grain size corresponds often to the superparamagnetic or near single domain state.

This review will help in various applications of magnetic properties of impact glasses: definition of petrogenetic conditions including redox state, discrimination with glasses of other origins, paleomagnetism, magnetic anomalies.
