Article

Enhanced O2/N2 Separation of Mixed-Matrix Membrane Filled with Pluronic-Compatibilized Cobalt Phthalocyanine Particles

by
S. A. S. C. Samarasinghe
1,2,†,
Chong Yang Chuah
1,†,
H. Enis Karahan
1,3,†,
G. S. M. D. P. Sethunga
1,2 and
Tae-Hyun Bae
1,4,*
1
Singapore Membrane Technology Centre, Nanyang Environment and Water Research Institute, Nanyang Technological University, Singapore 637141, Singapore
2
Interdisciplinary Graduate School, Nanyang Technological University, Singapore 637335, Singapore
3
School of Chemical and Biomedical Engineering, Nanyang Technological University, Singapore 637459, Singapore
4
Department of Chemical and Biomedical Engineering, Korea Advanced Institute of Science and Technology, Daejeon 305-338, Korea
*
Author to whom correspondence should be addressed.
†
These authors contributed equally to this work.
Membranes 2020, 10(4), 75; https://doi.org/10.3390/membranes10040075
Submission received: 28 March 2020 / Revised: 16 April 2020 / Accepted: 16 April 2020 / Published: 18 April 2020
(This article belongs to the Special Issue Membranes for Gas Separation)
Browse Figures
Versions Notes

Abstract

:
Membrane-based air separation (O2/N2) is of great importance owing to its energy efficiency as compared to conventional processes. Currently, dense polymeric membranes serve as the main pillar of industrial processes used for the generation of O2- and N2-enriched gas. However, conventional polymeric membranes often fail to meet the selectivity needs owing to the similarity in the effective diameters of O2 and N2 gases. Meanwhile, mixed-matrix membranes (MMMs) are convenient to produce high-performance membranes while keeping the advantages of polymeric materials. Here, we propose a novel MMM for O2/N2 separation, which is composed of Matrimid® 5218 (Matrimid) as the matrix, cobalt(II) phthalocyanine microparticles (CoPCMPs) as the filler, and Pluronic® F-127 (Pluronic) as the compatibilizer. By the incorporation of CoPCMPs to Matrimid, without Pluronic, interfacial defects were formed. Pluronic-treated CoPCMPs, on the other hand, enhanced O2 permeability and O2/N2 selectivity by 64% and 34%, respectively. We explain the enhancement achieved with the increase of both O2 diffusivity and O2/N2 solubility selectivity.

Graphical Abstract

1. Introduction

Separation of oxygen (O2) and nitrogen (N2) from the air has attracted a vast amount of interest in the medical and chemical industries [1]. For instance, the application of oxygen-enriched air is often preferred in fuel combustion processes since an increased oxygen content in the oxidant gas assures a higher energy efficiency in the overall process [2,3]. In addition, oxygen-enriched air can improve treatment efficiency in sewage treatment plants [4]. On the other hand, high-purity nitrogen is used in food preservation to allow a longer storage time, in coal extraction to extinguish potential release of fires during the mining process [5], in the creation of an inert atmosphere in laboratory syntheses and chemical transport [6,7,8], and in cryogenic storage with the use of liquid nitrogen [9,10,11,12].
Conventionally, cryogenic distillation and pressure-swing adsorption have been extensively used in air separation processes. Even though these technologies are able to produce high-purity gases in large quantities, substantial encumbrance in terms of high energy consumption and capital cost [13,14] is foreseen. Thus, recently, membrane-based gas separation has attracted substantial research interest due to its simplicity and cost-effectiveness. Nevertheless, polymeric membranes that are commonly utilized in gas separation processes suffer from the trade-off relationship between permeability and selectivity [15,16] as the gas transport in such membranes is governed by the solution-diffusion mechanism. On the other hand, pure molecular sieve membranes are still hard to be utilized in industrial applications due to their poor scalability [17]. Therefore, the development of a mixed-matrix membrane (MMM), which combines the advantages of both polymeric membranes and molecular sieves, has been considered as a technically-viable option to produce high-performance membranes in a scalable manner [18,19].
At the present stage, effective separation of O2 and N2 from the air is an uphill struggle due to their close effective diameters (O2: 2.89 Å; N2: 3.04 Å) [20,21]. The small difference in their diameters brings a great challenge for employing molecular sieving (by porous fillers such as zeolites or reticular frameworks) as the sole driving force of separation. In addition, most adsorbents tend to show favorable adsorption towards N2 over O2 due to the former possessing higher polarizability (O2: 17.4 × 10−25 cm3; N2: 15.8 × 10−25 cm3) [22]. Nevertheless, certain metal-organic frameworks (MOFs), such as chromium(II) carboxylate MOF (Cr3BTC2) and MOF-5, possess high O2/N2 selectivity. However, their structural instability with the increase in the number of operating cycles limits the prospects of practical use [23,24,25]. On the other hand, polymers of intrinsic microporosity (PIMs) have shown high-performance for O2/N2 separation [26,27,28]. Nonetheless, polymer aging is highly evident in PIMs, leading to a substantial decrease in membrane performance over time [29,30,31,32]. At this point, the facilitated carriers (as molecules and solid particles) offer new opportunities for designing composite membranes for O2/N2 separation.
Facilitated carriers typically favor the permeation of one of the gas species in a gas mixture by the hopping mechanism. For the case of O2/N2 separation, the hopping mechanism takes place in the selective and reversible complexation of O2 by jumping from one carrier to another through transport events, while N2 is inert [33]. Among the carrier alternatives for facilitating the transport of O2, cobalt-based complexes, namely cobalt(II) phthalocyanine (CoPC), cobalt(II) tetraphenylporphyrin (CoTPP), and cobalt(III) acetylacetonate (Co(acac)3), stand out for their O2 selectivity [33,34,35,36,37]. Considering its wide availability and low cost, we decided to test the effect of CoPC on the O2/N2 separation performance of polyimide-based membranes. Aimed at achieving a high-performance MMM design, we selected Matrimid® 5218 as the polymer matrix, which provides an intrinsic O2/N2 selectivity close to six [22].
The permeability of Matrimid® 5218 needs improvement for fabricating a high-performance MMM out of it. As observed by Midda and coworkers using the polysulfone-CoPC system [38], non-selective voids forming between the polymer matrix and carriers might enhance gas permeability. Nevertheless, non-selective voids might lead to the formation of more substantial defects, causing a dramatic reduction in selectivity performance as well [39]. Therefore, it is imperative to compatibilize CoPC particles with the polymer matrices very well. To this end, the surface modification of CoPC particles with tert-butyl groups, for example, is a viable strategy [34,38]. However, an additional step for chemical modification is typically necessary. Alternatively, as reported by several groups, block copolymers might serve as efficient compatibilizers between fillers and polymer matrices [40,41]. As such, this research introduces the innovative idea to compatibilize fixed carriers in polymer matrices using suitable block copolymers. The approach to accomplish this task is described in detail in the experimental section.
Here, we report a high-performance MMM for O2/N2 separation based on Matrimid® 5218 (in short, Matrimid) as a polymer matrix, CoPC microparticles (CoPCMPs) as fixed-site carriers, and Pluronic® F-127 (in short, Pluronic) as a block copolymer compatibilizer. Based on the gas permeation analysis, the incorporation of 5 wt.% CoPCMP and 10 wt.% Pluronic improves the O2 permeability and O2/N2 selectivity by 68% and 34%, respectively. By performing a solubility/diffusivity analysis, we found that the Pluronic-compatibilized Matrimid-CoPCMP system exhibits improvement in both O2 diffusivity and O2/N2 solubility selectivity as compared to the neat polymer (Matrimid). Given each component of the Matrimid-Pluronic-CoPCMP system is commercially available and reasonably affordable, it is justifiable to expect that the demonstrated MMM design is promising for large-scale membrane production.

2. Materials and Methods

2.1. Materials

Cobalt(II) phthalocyanine microparticles (CoPCMPs) and Pluronic® F-127 (Pluronic) were purchased from Sigma-Aldrich. N,N-dimethylformamide (DMF) was purchased from VWR (Radnor, PA, USA). Matrimid® 5218 (Matrimid) was purchased from Huntsman Corporation (Conroe, TX, USA). All chemicals were used as received without further purifications. Chemical structures of CoPCMPs and commercial polymers are illustrated in Figure 1.

2.2. Membrane Fabrication

Pure Matrimid membrane was fabricated by dissolving 0.5 g of polymer in 2.3 g of DMF. The dope solutions containing CoPCMPs were prepared by mixing the required amounts of Matrimid, CoPCMPs, and/or Pluronic inside glass vials, which was followed by the addition of DMF, according to the literature, with slight modifications [38,42]. For instance, the composite membrane containing 85 wt.% Matrimid, 5 wt.% CoPCMPs, and 10 wt.% Pluronic was prepared by adding 0.4 g of Matrmid, 0.05 g of CoPCMPs, and 0.05 g of Pluronic into 2.3 g of DMF. The dope solution was agitated overnight with the aid of magnetic stirring. Once the mixtures became well-mixed to the naked eye, the membranes were prepared by casting on a Teflon-made Petri dish in a glove bag that was filled with DMF vapor. After allowing the membrane to be dried at room temperature for approximately 1 h, the Petri dishes were placed in the oven at 60 °C overnight for pre-drying. Lastly, the pre-dried membranes were further dried and annealed in a vacuum oven at ~76 cm Hg at 160 °C for 24 h prior to the gas permeation test.

2.3. Characterization

The morphology of the CoPCMPs was studied by field emission scanning electron microscopy (FESEM) on a JSM-7600F (JEOL, Akishima, Tokyo, Japan). For the preparation of microscopy specimens, the CoPCMPs were dispersed in ethanol, and several drops of CoPCMP dispersion were deposited on a freshly cleaned silicon wafer substrate. For observation of the cross-sectional views of the membrane samples, the annealed membranes were fractured in liquid nitrogen, followed by air drying at room temperature, and platinum sputtering. Energy-dispersive X-ray spectroscopy (EDX, JSM-7600F, JEOL, Akishima, Tokyo, Japan) was further supplemented for the best performing membrane (from the gas permeation test) in order to verify the dispersibility of CoPCMPs in the MMM. The porosity properties of CoPCMPs were measured by N2 physisorption at 77 K, where a volumetric gas sorption analyzer (NOVATouch LX2, Quantachrome, Boynton Beach, FL, USA) was utilized. The samples were outgassed at 160 °C for 8 h prior to measurement to remove any residual solvents that were present in the sample. Fourier-transform infrared (FTIR) spectra of CoPCMPs, Pluronic, and membranes (neat Matrimid and MMM) were determined using IRPrestige-21 spectrophotometer (Shimadzu Corporation, Kyoto, Japan). The X-ray diffraction (XRD) patterns of CoPcMPs, Pluronic, and membranes were collected at ambient conditions on a Bruker D2 PHASER (Billerica, MA, USA). The thermal behavior of CoPcMPs, Pluronic, and membranes was measured using a thermogravimetric/differential thermal analyzer (TG/DTA, SDT Q600, TA Instruments, New Castle, DE, USA) between 40 to 700 °C. The heating rate of 10 °C min−1 was conducted under purging of pure nitrogen, at the flow rate of 100 mL min−1. The density of the membrane was measured using an analytical balance (Mettler Toledo, ME204, Columbus, OH, USA), which uses ethanol as the auxiliary liquid. The mechanical properties of the blended (Matrimid-Pluronic) and neat (Matrimid) membranes were tested at room temperature using a tensile meter (Instron 5543, Norwood, MA, USA) that was equipped with 100 N load cell. The reproducibility of the results was conducted by studying at least three different samples for each membrane and reported with standard deviation.

2.4. Gas Adsorption Analysis

Pure O2 and N2 adsorption isotherms of the membranes were measured at 35 °C under the pressure range of 0–5 bar, using a volumetric gas sorption analyzer (iSorb HP1, Quantachrome, Boynton Beach, FL, USA) Due to low adsorption for both O2 and N2 at the point of interest (0.21 bar for O2 and 0.79 bar for N2), the amount of gas adsorbed (q) was determined from the extrapolation of the O2 and N2 isotherm for each membrane, considering that the isotherm is considered linear under this measurement range. The solubility of a gas in the membrane, S (e.g., O2 and N2) can be calculated using the following relationship, as described in the literature [6,43]:
S = q ρ p
where q is the amount of gas adsorbed per mass of membrane, p is the pressure, and ρ is the density of the membrane. This calculation assumes that there is no competitive adsorption between O2 and N2 in the membrane [7,37,44]. Gas diffusivity in the membrane, D, could then be calculated by dividing permeability with the solubility.

2.5. Gas Permeation Test

The gas permeation tests were performed using a constant pressure-variable volume setup (GTR Tec Corporation, Kyoto, Japan). Helium (He, ≥99.9995%) and compressed air (O2/N2: 21/79, O2 ≥ 99.8%, and N2 ≥ 99.9995%) were purchased from Air Liquide Singapore Pte Ltd. The membrane was first mounted onto the permeation cell, with the temperature set at 35 °C. The feed pressure was operated at 1 bar. Throughout the analysis, O2/N2 mixture and He were flown continuously on the upstream and downstream, respectively, by controlling the flow rates with mass flow controllers. When the concentration of O2 and N2 did not fluctuate, the downstream gas permeating through the membrane was swept periodically by He. The concentrations of O2 and N2 were determined using gas chromatography attached to the gas permeation setup. The permeability, P, can be computed from Equation (2) below, where q, l, a, p, and t correspond to concentration, membrane thickness, permeation area, pressure, and measurement time (the time taken for the permeate gas to pass through a measuring pipe in the gas chromatography), respectively. To ensure the reproducibility of the gas permeation results, the measurements were repeated at least three times with different samples for each membrane. We took the average of both permeability and selectivity values and reported the standard deviations with error bars.
P = q l a p t

3. Results and Discussion

3.1. Characterization of Facilitated Carrier and Compatibilizer

The structural properties of CoPCMPs and Pluronic were first verified using FTIR (Figure S1a). The characteristic peaks of C−H aliphatic stretching, O−H in-plane bending, and C−O stretching of Pluronic can be observed at the frequency of 2850, 1350, and 1100 cm−1, respectively. On the other hand, Co−N bond vibration, C−H plane bending, C−N stretching, and C=C ring deformation of CoPCMPs can be identified at the frequencies of 750, 1100, 1450, and 1550 cm−1, respectively. The FTIR spectra of CoPCMPs and Pluronic used in this work were comparable to the results reported in the literatures [45,46]. In addition, the characteristic peaks of CoPCMPs and Pluronic were identified in the powder XRD patterns (Figure S1b), in which the peak positions coincide with the results reported in previous works [46,47]. Thermal stabilities of CoPCMPs and Pluronic were determined using TGA analysis (Figure S1c). Both materials demonstrate the thermal decomposition temperature of 620 °C and 380 °C, respectively, indicating that the annealing temperature of 160 °C does not compromise the overall crystallinity of CoPCMPs and stability of Pluronic when these fillers are incorporated in the Matrimid matrix. Furthermore, the DTA analyses reveal another sharp feature in the heat flows at 55 °C (Figure S1d), which corresponds to the melting temperature of Pluronic [48]. N2 sorption of CoPCMPs at 77 K (Figure S2) indicates that the particles utilized in this work do not possess any porosity (Type III isotherm). In addition, based on the t-plot analysis (which is used to access the microporosity of a porous material) [49,50], it can be concluded that N2 molecules are mostly adsorbed on the external surface (Brunauer-Emmett-Teller (BET) surface area, SBET and external surface area, Sext are similar to each other, in Table S1) of the CoPCMP.

3.2. Characterization of Neat, Blended, and Composite Membranes

FTIR measurement was performed on all membranes that were prepared and tested in this work. FTIR spectrum of pure Matrimid (Figure 2a) indicates the presence of characteristic imide feature, with the peaks of 1770, 1720, and 1380 cm−1 corresponding to the asymmetric C=O stretching, symmetric C=O stretching, and C–N stretching, respectively, which is in agreement with the results reported in the literature [7]. Superimposition was observed among absorption bands of Pluronic, CoPCMPs, and Matrimid for the case of Matrimid-CoPCMP and Matrimid-Pluronic (Figure 2a,b), where a noticeable shift in their spectra was not observed. Nonetheless, for the case of the Matrimid-CoPCMP-Pluronic system, although the interaction between CoPCMP and Matrimid is weak, the shift of C−H, C−O, and C=C−H bands in Pluronic possibly indicates a potential interaction between Pluronic and Matrimid (Figure 2c,d) [37,51]. In addition, based on the XRD measurement (Figure 3), it was verified that the CoPCMPs remained in crystalline form in the MMM. Pluronic, on the other hand, did not remain in crystalline form upon being blended with Matrimid. Notably, the comparison of TG/DTA profiles of neat/blended and composite membranes indicates that the CoPCMPs did not alter the thermal stability of Matrimid or Pluronic (Figure S3).
The interfacial morphologies of the composite membranes provided valuable insights regarding the compatibility of matrices and fillers. Therefore, the cross-sectional views of neat (Matrimid) and blended (Matrimid-Pluronic) membranes were compared with composite membranes (Matrimid-CoPCMP and Matrimid-Pluronic-CoPCMP) under FESEM (Figure 4 and Figure S4). The morphology of CoPCMP is included in Figure 4b. The cross-sectional image of the neat Matrimid (Figure 4a) membrane was considerably smooth, with features attributed to the fracture lines, which appear inevitably. CoPCMPs (Figure 4c,d), on the other hand, caused the formation of a non-ideal interfacial morphology, which was in agreement with previous work [45]. Further increase of CoPCMPs to 10 wt.% (Figure S4a,b) seemingly triggered the aggregation of particles, which can be considered as “defects” in a practical sense. However, the Matrimid-Pluronic blended membrane did not look rich in defects (Figure 4e,f). Such behavior is further supported with the mechanical test of the blended membrane, where an increase in the ductility (decrease in Young’s modulus by 38% for Pluronic-blended membrane) with respect to the neat Matrimid membrane is observed (Table S2). As visual evidence on the promise of the Pluronic-based compatibilization approach, the Matrimid-Pluronic-CoPCMP (10 wt.%, 5 wt.%) gives a much smoother cross-sectional morphology (Figure 4h,i) as compared to Pluronic-free composite membranes. Nonetheless, for the case of Matrimid-Pluronic-CoPCMP (5 wt.%, 5 wt.%), it was observed that the addition of Pluronic compatibilizer was deemed insufficient to heal the “defects” that are present between Matrimid and CoPCMPs. This observation indicates that Pluronic served its desired functionality as a compatibilizer in the Matrimid-Pluronic-CoPCMP system by suppressing the adverse effect of the interfacial incompatibility of Matrimid and CoPCMPs.

3.3. Gas Permeation Analysis

The O2/N2 separation performance of all membranes was evaluated using constant-volume variable pressure gas permeability analysis, and the results are summarized in Table 1. At 3 wt.% CoPCMP, the O2/N2 selectivity increased by 14.5% at the expense of over 40.7% decrease in O2 permeability. When CoPCMP loading increased from 3% to 5 wt.%, the O2/N2 selectivity further increased from 14.5% to 31.6%, respectively. This is possibly attributed to the barrier effect caused by the agglomeration of CoPCMPs (Figure 4a), as reported in previous work [38]. In contrast, the Matrimid-Pluronic blended membrane exhibited an improved O2/N2 selectivity at the expense of limited O2 permeability. At 10 wt.% loading of Pluronic in the Matrimid membrane, the enhancement of O2/N2 selectivity was found to be 6.9% with a sharp decrease in O2 permeability (55.2%). This is plausibly attributed to the reduction of the fractional free volume of the Matrimid-Pluronic blends due to the potential presence of intermolecular interactions between them, as observed from FTIR spectra (Figure 2c,d), which was also observed in other studies [52,53,54]. On the other hand, the Pluronic-compatibilized MMM (80 wt.% Matrimid, 5 wt.% Pluronic, and 10 wt.% CoPCMP) showed increases in both O2 permeability by 64% and O2/N2 selectivity by 34%, respectively, leading to the enhancement of O2/N2 separation performance towards a favorable direction (Figure S5). Although their performance is generally inferior (with reference to the upper bound limit), our Matrimid-based membranes offer a higher chance of scalability in comparison to in-house polymers reported in the literature [26,28,55]. These results indicate that the presence of Pluronic at sufficient loading (10 wt.%) helps improve the interfacial morphology between the matrix (Matrimid) and the filler (CoPCMP), which provides performance-based support to the conclusion we reached based on the FESEM image (Figure 4 h,i).
Facilitated carriers such as CoPCMPs generally promote gas separation performance by selectively diffusing one of the gas species (for this case, O2) through the hopping mechanism. When the carriers are free to move (as observed in a liquid medium), the transport event is rather straightforward, commonly involving the carrying of the solute as a “cargo.” However, when the carrier is immobilized in a solid matrix (like polymer-based separation membranes), it is of importance to have a homogeneous dispersion of the carriers within the solid matrix for “hopping” events to occur effectively. Thus, it is essential to prevent the aggregation of carriers. The Pluronic-family polymers are commercially available amphiphilic triblock copolymers of hydrophobic polypropylene oxide (PPO) units (as mid-blocks) and hydrophilic polyethylene oxide (PEO) units (as side-blocks) [56]. This amphiphilic nature of Pluronic helps to bridge Matrimid and CoPCMPs, thereby enhancing the compatibility of the resulting composite. As a result, the hopping of the O2 molecules takes place in a more homogeneously dispersed web of carrier sites (as supported by EDX mapping of the MMM with 5 wt.% CoPCMP and 10 wt.% Pluronic in Matrimid, Figure S6), which consequently leads to an increase in O2 diffusion through the membrane. However, it should be emphasized that the mixing ratio is critical to achieving the desired performance improvement with the Pluronic-based compatibilization approach.
To better explain the nature of performance improvement in our Pluronic-compatibilized composite membrane (Matrimid-Pluronic-CoPCMP), solubility-diffusivity analyses were performed. By measuring the pure component O2 and N2 adsorption isotherm at 35 °C, the adsorption properties of neat (Matrimid), blended (Matrimid-Pluronic), and composite (Matrimid-CoPCMP and Matrimid-Pluronic-CoPCMP) membranes were first characterized (Figure 5). By doing so and accounting the density of each membrane, a solubility-diffusivity analysis was performed later, as summarized in Table 2. This evaluation, in overall, shows that the incorporation of Pluronic and/or CoPCMP (yielding blended or composite membranes) suppresses the solubility of both O2 and N2 as compared to the neat Matrimid membrane. Nevertheless, the incorporation of CoPCMPs improves the solubility selectivity, with the enhancement of 11.6% at 5 wt.% loading (Table 2 and Figure S7). On the other hand, the blended membrane (with 10 wt.% Pluronic) suffered from a notable decrease in diffusivity selectivity as compared to the neat Matrimid membrane. However, when all three components are incorporated to form a composite membrane, a harmony between the components takes place, although a sharp decrease in diffusivity selectivity was reported for composite membranes at 50.2% (5 wt.% CoPCMP and 5 wt.% Pluronic) and 40.7% (5 wt.% CoPCMP and 10 wt.% Pluronic) as given in Table 2. Such a strategy allowed us to overcome the limitations of blended (Matrimid-Pluronic) and Matrimid-CoPCMP composite membranes, resulting in significant enhancements in both O2 diffusivity and O2/N2 solubility selectivity.

4. Conclusions

Using two commercially available materials, Pluronic and CoPCMP, the O2/N2 separation performance of Matrimid membrane was successfully enhanced. The CoPCMP served as a functional carrier but failed at performance enhancement without the use of Pluronic, which presumably improved the homogeneity of the resulting membrane. It was found that 5 wt.% CoPCMPs improve both O2 permeability (by 64%) and O2/N2 selectivity (by 34%) when 10 wt.% Pluronic are used for compatibilization, owing to the increases in both O2 diffusivity and O2/N2 solubility selectivity by 12.8% and 37.2%, respectively. Thus, this study exemplifies that no sophisticated strategy is needed to modify carrier particles for achieving performance improvement in O2/N2 separation. Due to its practicability, the proposed strategy is promising for designing membranes potentially useful for actual applications.

Supplementary Materials

The following are available online at https://www.mdpi.com/2077-0375/10/4/75/s1, Figure S1: Characterization of the facilitated carrier (CoPCMP) and compatibilizer (Pluronic) by (a) FTIR; (b) powder XRD; (c) TGA, and (d) DTA analysis (for the case of Pluronic, due to its onset of degradation occurs around 200 °C; thus the DTA curve beyond 200 °C is indicated as dotted line). Figure S2: N2 sorption for CoPCMP at 77 K. Figure S3: (a) TGA and (b) TDA of neat (Matrimid), blended (Matrimid-Pluronic), and composite (Matrimid-CoPCMP and Matrimid-Pluronic-CoPCMP) membranes. Figure S4: Cross-sectional FESEM image of Matrimid-CoPCMP (10 wt.%) under (a) low magnification; (b) high magnification. Figure S5: Comparison of the membrane performance (in Table 1) with the upper bound limit (1991, 2008, 2015). Figure S6: EDX mapping of 5 wt.% CoPCMP and 10 wt.% Pluronic in Matrimid membranes. Figure S7: Solubility and diffusivity selectivity of the studied membranes. Table S1: Porosity properties of CoPCMP. Table S2: Mechanical test of neat (Matrimid) and blended (Matrimid-Pluronic) membranes.

Author Contributions

Conceptualization, S.A.S.C.S. and C.Y.C.; methodology, S.A.S.C.S.; validation, S.A.S.C.S. and H.E.K.; resources, S.A.S.C.S. and G.S.M.D.P.S.; data curation, S.A.S.C.S., C.Y.C., and G.S.M.D.P.; writing—original draft preparation, S.A.S.C.S. and H.E.K.; writing—review and editing, C.Y.C. and H.E.K.; supervision, T.-H.B.; funding acquisition, T.-H.B. All authors have read and agreed to the published version of the manuscript.

Funding

This research is supported by the National Research Foundation, prime Minister’s Office, Singapore, and the National Environment Agency, Ministry of the Environment and Water Resources, Singapore, under the Waste-to-Energy Competitive Research Programme (WT.E CRP 1601 105). T.-H.B. would like to thank KAIST for additional funding support.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Fernández-Barquín, A.; Casado-Coterillo, C.; Valencia, S.; Irabien, A. Mixed matrix membranes for O2/N2 separation: The influence of temperature. Membranes 2016, 6, 28. [Google Scholar] [CrossRef] [PubMed]
  2. Rana, D.; Matsuura, T. Oxygen–Nitrogen Separation. In Encyclopedia of Membrane Science and Technology; John Wiley & Sons, Inc.: Hoboken, NJ, USA, 2013; pp. 1–26. [Google Scholar]
  3. Chong, K.; Lai, S.; Thiam, H.; Teoh, H.; Heng, S. Recent progress of oxygen/nitrogen separation using membrane technology. J. Eng. Sci. Technol. 2016, 11, 1016–1030. [Google Scholar]
  4. Stafford, T.M. Indoor air quality and academic performance. J. Environ. Econ. Manag. 2015, 70, 34–50. [Google Scholar] [CrossRef] [Green Version]
  5. Ismail, A.F. Separation. In Encyclopedia of Membranes; Drioli, E., Giorno, L., Eds.; Springer: Berlin/Heidelberg, Germany, 2016; pp. 1421–1422. [Google Scholar]
  6. Gong, H.; Chuah, C.Y.; Yang, Y.; Bae, T.-H. High performance composite membranes comprising Zn(pyrz)2(SiF6) nanocrystals for CO2/CH4 separation. J. Ind. Eng. Chem. 2018, 60, 279–285. [Google Scholar] [CrossRef]
  7. Chuah, C.Y.; Li, W.; Samarasinghe, S.; Sethunga, G.; Bae, T.-H. Enhancing the CO2 separation performance of polymer membranes via the incorporation of amine-functionalized HKUST-1 nanocrystals. Micropor. Mesopor. Mater. 2019, 290, 109680. [Google Scholar] [CrossRef]
  8. Meyer, G.M. Method and Apparatus for the Production of Nitrogen for Use as an Inert Gas. U.S. Patent 3,891,411, 24 June 1975. [Google Scholar]
  9. Wellman, A.; Stewart, G. Storage of brewing yeasts by liquid nitrogen refrigeration. Appl. Environ. Microbiol. 1973, 26, 577–583. [Google Scholar] [CrossRef] [Green Version]
  10. Parfitt, D.E.; Almehdi, A.A. Cryogenic storage of grape pollen. Am. Soc. Enol Viticulture 1983, 34, 227–228. [Google Scholar]
  11. Ordonez, C.; Plummer, M. Cold thermal storage and cryogenic heat engines for energy storage applications. Energy Sources 1997, 19, 389–396. [Google Scholar] [CrossRef]
  12. Bonner, F.T. Storage of seeds: Potential and limitations for germplasm conservation. For. Ecol. Manag. 1990, 35, 35–43. [Google Scholar] [CrossRef]
  13. Smith, A.; Klosek, J. A review of air separation technologies and their integration with energy conversion processes. Fuel Process. Technol. 2001, 70, 115–134. [Google Scholar] [CrossRef]
  14. Chuah, C.Y.; Kim, K.; Lee, J.; Koh, D.-Y.; Bae, T.-H. CO2 absorption using membrane contactors: Recent progress and future perspective. Ind. Eng. Chem. Res. 2020, 59, 6773–6794. [Google Scholar] [CrossRef]
  15. Robeson, L.M. Correlation of separation factor versus permeability for polymeric membranes. J. Membr. Sci. 1991, 62, 165–185. [Google Scholar] [CrossRef]
  16. Robeson, L.M. The upper bound revisited. J. Membr. Sci. 2008, 320, 390–400. [Google Scholar] [CrossRef]
  17. Li, W.; Goh, K.; Chuah, C.Y.; Bae, T.-H. Mixed-matrix carbon molecular sieve membranes using hierarchical zeolite: A simple approach towards high CO2 permeability enhancements. J. Membr. Sci. 2019, 588, 117220. [Google Scholar] [CrossRef]
  18. Chuah, C.Y.; Goh, K.; Yang, Y.; Gong, H.; Li, W.; Karahan, H.E.; Guiver, M.D.; Wang, R.; Bae, T.-H. Harnessing filler materials for enhancing biogas separation membranes. Chem. Rev. 2018, 118, 8655–8769. [Google Scholar] [CrossRef]
  19. Yang, Y.; Chuah, C.Y.; Nie, L.; Bae, T.-H. Enhancing the mechanical strength and CO2/CH4 separation performance of polymeric membranes by incorporating amine-appended porous polymers. J. Membr. Sci. 2019, 569, 149–156. [Google Scholar] [CrossRef]
  20. Li, J.-R.; Kuppler, R.J.; Zhou, H.-C. Selective gas adsorption and separation in metal–organic frameworks. Chem. Soc. Rev. 2009, 38, 1477–1504. [Google Scholar] [CrossRef]
  21. Teplyakov, V.; Meares, P. Correlation aspects of the selective gas permeabilities of polymeric materials and membranes. Gas. Separ. Purif. 1990, 4, 66–74. [Google Scholar] [CrossRef]
  22. Chuah, C.Y.; Bae, T.-H. Incorporation of Cu3BTC2 nanocrystals to increase the permeability of polymeric membranes in O2/N2 separation. BMC Chem. Eng. 2019, 1, 2. [Google Scholar] [CrossRef]
  23. Adam, J.; Michael, Z.; David, M.H.; Naomi, B.; Ryan, M.; Khetpakorn, C.; Jeffrey, A.R.; Jeffrey, R.L. Selective, High-Temperature O2 Adsorption in Chemically Reduced, Redox-Active Iron-Pyrazolate Metal–Organic Frameworks. ChemRxiv 2019. [Google Scholar] [CrossRef]
  24. Murray, L.J.; Dinca, M.; Yano, J.; Chavan, S.; Bordiga, S.; Brown, C.M.; Long, J.R. Highly-selective and reversible O2 binding in Cr3(1,3,5-benzenetricarboxylate)2. J. Am. Chem. Soc. 2010, 132, 7856–7857. [Google Scholar] [CrossRef] [PubMed]
  25. Li, Y.; Yang, R.T. Gas adsorption and storage in metal− organic framework MOF-177. Langmuir 2007, 23, 12937–12944. [Google Scholar] [CrossRef] [PubMed]
  26. Fuoco, A.; Rizzuto, C.; Tocci, E.; Monteleone, M.; Esposito, E.; Budd, P.M.; Carta, M.; Comesaña-Gándara, B.; McKeown, N.B.; Jansen, J.C. The origin of size-selective gas transport through polymers of intrinsic microporosity. J. Mater. Chem. A 2019, 7, 20121–20126. [Google Scholar] [CrossRef]
  27. Kakuchi, R.; Theato, P. Efficient multicomponent postpolymerization modification based on Kabachnik-Fields reaction. ACS Macro Lett. 2014, 3, 329–332. [Google Scholar] [CrossRef]
  28. Swaidan, R.; Ghanem, B.; Pinnau, I. Fine-tuned intrinsically ultramicroporous polymers redefine the permeability/selectivity upper bounds of membrane-based air and hydrogen separations. ACS Macro Lett. 2015, 4, 947–951. [Google Scholar] [CrossRef] [Green Version]
  29. Alberto, M.; Bhavsar, R.; Luque-Alled, J.M.; Vijayaraghavan, A.; Budd, P.M.; Gorgojo, P. Impeded physical aging in PIM-1 membranes containing graphene-like fillers. J. Membr. Sci. 2018, 563, 513–520. [Google Scholar] [CrossRef] [Green Version]
  30. Bernardo, P.; Bazzarelli, F.; Tasselli, F.; Clarizia, G.; Mason, C.R.; Maynard-Atem, L.; Budd, P.M.; Lanč, M.; Pilnáček, K.; Vopička, O.; et al. Effect of physical aging on the gas transport and sorption in PIM-1 membranes. Polymer 2017, 113, 283–294. [Google Scholar] [CrossRef]
  31. Hou, R.; Smith, S.J.D.; Wood, C.D.; Mulder, R.J.; Lau, C.H.; Wang, H.; Hill, M.R. Solvation Effects on the Permeation and Aging Performance of PIM-1-Based MMMs for Gas Separation. ACS Appl. Mater. Interfaces 2019, 11, 6502–6511. [Google Scholar] [CrossRef]
  32. Harms, S.; Rätzke, K.; Faupel, F.; Chaukura, N.; Budd, P.M.; Egger, W.; Ravelli, L. Aging and Free Volume in a Polymer of Intrinsic Microporosity (PIM-1). J. Adhesion 2012, 88, 608–619. [Google Scholar] [CrossRef]
  33. Nagar, H.; Vadthya, P.; Prasad, N.S.; Sridhar, S. Air separation by facilitated transport of oxygen through a Pebax membrane incorporated with a cobalt complex. RSC Adv. 2015, 5, 76190–76201. [Google Scholar] [CrossRef]
  34. Preethi, N.; Shinohara, H.; Nishide, H. Reversible oxygen-binding and facilitated oxygen transport in membranes of polyvinylimidazole complexed with cobalt-phthalocyanine. React. Funct. Polym. 2006, 66, 851–855. [Google Scholar] [CrossRef]
  35. Li, H.; Choi, W.; Ingole, P.G.; Lee, H.K.; Baek, I.H. Oxygen separation membrane based on facilitated transport using cobalt tetraphenylporphyrin-coated hollow fiber composites. Fuel 2016, 185, 133–141. [Google Scholar] [CrossRef]
  36. Zheng, Q.; Thompson, S.J.; Zhou, S.; Lail, M.; Amato, K.; Rayer, A.V.; Mecham, J.; Mobley, P.; Shen, J.; Fletcher, B. Task-specific ionic liquids functionalized by Cobalt (II) salen for room temperature biomimetic dioxygen binding. Ind. Eng. Chem. Res. 2018, 58, 334–341. [Google Scholar] [CrossRef]
  37. Samarasinghe, S.; Chuah, C.Y.; Li, W.; Sethunga, G.; Wang, R.; Bae, T.-H. Incorporation of CoIII acetylacetonate and SNW-1 nanoparticles to tailor O2/N2 separation performance of mixed-matrix membrane. Sep. Purif. Technol. 2019, 223, 133–141. [Google Scholar] [CrossRef]
  38. Midda, M.O.; Suresh, A.K. Some mechanistic insights into the action of facilitating agents on gas permeation through glassy polymeric membranes. AIChE J. 2018, 64, 186–199. [Google Scholar] [CrossRef] [Green Version]
  39. Rezakazemi, M.; Amooghin, A.E.; Montazer-Rahmati, M.M.; Ismail, A.F.; Matsuura, T. State-of-the-art membrane based CO2 separation using mixed matrix membranes (MMMs): An overview on current status and future directions. Prog. Polym. Sci. 2014, 39, 817–861. [Google Scholar] [CrossRef]
  40. Emplit, A.; Tao, F.F.; Lipnik, P.; Heunen, G.; Bailly, C.; Huynen, I. Polypropylene Carbon Nanotubes Nanocomposites: Combined Influence of Block Copolymer Compatibilizer and Melt Annealing on Electrical Properties. J. Nanomater. 2017, 2017. [Google Scholar] [CrossRef] [Green Version]
  41. Patel, R.; Park, J.T.; Hong, H.P.; Kim, J.H.; Min, B.R. Use of block copolymer as compatibilizer in polyimide/zeolite composite membranes. Polym. Advan. Technol. 2011, 22, 768–772. [Google Scholar] [CrossRef]
  42. Bushell, A.F.; Budd, P.M.; Attfield, M.P.; Jones, J.T.A.; Hasell, T.; Cooper, A.I.; Bernardo, P.; Bazzarelli, F.; Clarizia, G.; Jansen, J.C. Nanoporous Organic Polymer/Cage Composite Membranes. Angew. Chem. Int. Ed. 2013, 52, 1253–1256. [Google Scholar] [CrossRef]
  43. Samarasinghe, S.; Chuah, C.Y.; Yang, Y.; Bae, T.-H. Tailoring CO2/CH4 separation properties of mixed-matrix membranes via combined use of two-and three-dimensional metal-organic frameworks. J. Membr. Sci. 2018, 557, 30–37. [Google Scholar] [CrossRef]
  44. Li, W.; Chuah, C.Y.; Nie, L.; Bae, T.-H. Enhanced CO2/CH4 selectivity and mechanical strength of mixed-matrix membrane incorporated with NiDOBDC/GO composite. J. Ind. Eng. Chem. 2019, 74, 118–125. [Google Scholar] [CrossRef]
  45. Al Kayal, T.; Panetta, D.; Canciani, B.; Losi, P.; Tripodi, M.; Burchielli, S.; Ottoni, P.; Salvadori, P.A.; Soldani, G. Evaluation of the effect of a gamma irradiated DBM-pluronic F127 composite on bone regeneration in Wistar rat. PLoS ONE 2015, 10, e0125110. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  46. Yin, X.; Daintree, L.S.; Ding, S.; Ledger, D.M.; Wang, B.; Zhao, W.; Qi, J.; Wu, W. Itraconazole solid dispersion prepared by a supercritical fluid technique: Preparation, in vitro characterization, and bioavailability in beagle dogs. Drug Des. Devel. Ther. 2015, 9, 2801. [Google Scholar] [PubMed] [Green Version]
  47. Ji, X.; Zou, T.; Gong, H.; Wu, Q.; Qiao, Z.; Wu, W.; Wang, H. Cobalt phthalocyanine nanowires: Growth, crystal structure, and optical properties. Crys. Res. Technol. 2016, 51, 154–159. [Google Scholar] [CrossRef]
  48. Karolewicz, B.; Górniak, A.; Owczarek, A.; Żurawska-Płaksej, E.; Piwowar, A.; Pluta, J. Thermal, spectroscopic, and dissolution studies of ketoconazole–Pluronic F127 system. J. Therm. Anal. Calorim. 2014, 115, 2487–2493. [Google Scholar] [CrossRef] [Green Version]
  49. Chuah, C.Y.; Yang, Y.; Bae, T.-H. Hierarchically porous polymers containing triphenylamine for enhanced SF6 separation. Micropor. Mesopor. Mater. 2018, 272, 232–240. [Google Scholar] [CrossRef]
  50. Thommes, M.; Kaneko, K.; Neimark, A.V.; Olivier, J.P.; Rodriguez-Reinoso, F.; Rouquerol, J.; Sing, K.S. Physisorption of gases, with special reference to the evaluation of surface area and pore size distribution (IUPAC Technical Report). Pure Appl. Chem. 2015, 87, 1051–1069. [Google Scholar] [CrossRef] [Green Version]
  51. Wu, X.; Tian, Z.; Wang, S.; Peng, D.; Yang, L.; Wu, Y.; Xin, Q.; Wu, H.; Jiang, Z. Mixed matrix membranes comprising polymers of intrinsic microporosity and covalent organic framework for gas separation. J. Membr. Sci. 2017, 528, 273–283. [Google Scholar] [CrossRef]
  52. Zhou, Q.; Zhang, L.; Zhang, M.; Wang, B.; Wang, S. Miscibility, free volume behavior and properties of blends from cellulose acetate and castor oil-based polyurethane. Polymer 2003, 44, 1733–1739. [Google Scholar] [CrossRef]
  53. Yong, W.F.; Li, F.; Xiao, Y.; Li, P.; Pramoda, K.; Tong, Y.; Chung, T. Molecular engineering of PIM-1/Matrimid blend membranes for gas separation. J. Membr. Sci. 2012, 407, 47–57. [Google Scholar] [CrossRef]
  54. Yong, W.F.; Li, F.Y.; Xiao, Y.C.; Chung, T.S.; Tong, Y.W. High performance PIM-1/Matrimid hollow fiber membranes for CO2/CH4, O2/N2 and CO2/N2 separation. J. Membr. Sci. 2013, 443, 156–169. [Google Scholar] [CrossRef]
  55. Cheng, Y.; Wang, X.; Jia, C.; Wang, Y.; Zhai, L.; Wang, Q.; Zhao, D. Ultrathin mixed matrix membranes containing two-dimensional metal-organic framework nanosheets for efficient CO2/CH4 separation. J. Membr. Sci. 2017, 539, 213–223. [Google Scholar] [CrossRef]
  56. Pitto-Barry, A.; Barry, N.P. Pluronic® block-copolymers in medicine: From chemical and biological versatility to rationalisation and clinical advances. Polym. Chem. 2014, 5, 3291–3297. [Google Scholar] [CrossRef] [Green Version]
Membranes 10 00075 g001 550

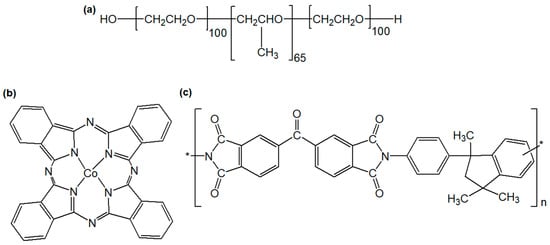

Figure 1. Chemical structures of (a) Pluronic®, (b) cobalt(II) phthalocyanine microparticles (CoPCMPs), and (c) Matrimid®.
Figure 1. Chemical structures of (a) Pluronic®, (b) cobalt(II) phthalocyanine microparticles (CoPCMPs), and (c) Matrimid®.
Membranes 10 00075 g001
Membranes 10 00075 g002 550

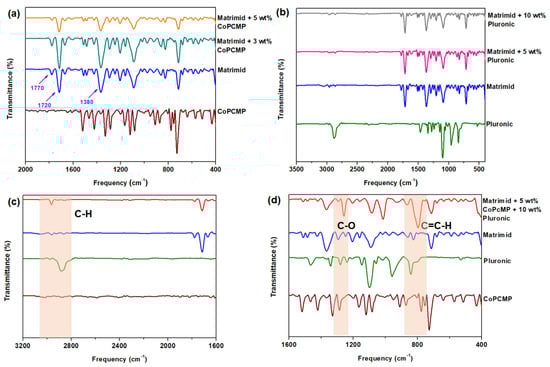

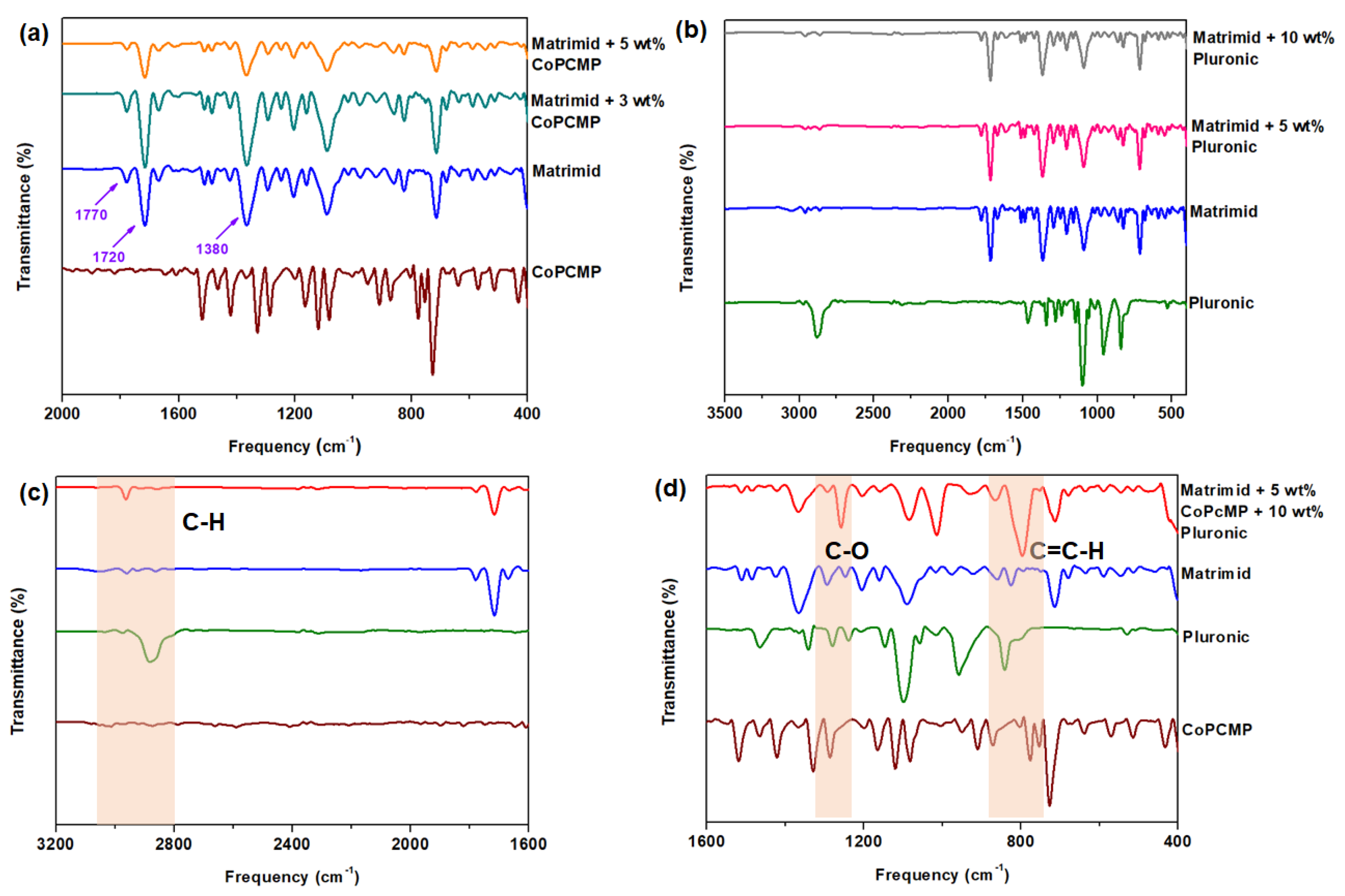

Figure 2. Fourier transform infrared (FTIR) spectra of (a) CoPCMP-based membranes and (b) Pluronic-based membranes; (c,d) FTIR spectra of CoPCMP, Pluronic® F-127 (Pluronic), Matrimid® 5218 (Matrimid), and composite (Matrimid-Pluronic-CoPCMP) containing 5 wt.% CoPCMP and 10 wt.% Pluronic. The shift in absorption bands in (c,d) are indicated for easy comparison.
Figure 2. Fourier transform infrared (FTIR) spectra of (a) CoPCMP-based membranes and (b) Pluronic-based membranes; (c,d) FTIR spectra of CoPCMP, Pluronic® F-127 (Pluronic), Matrimid® 5218 (Matrimid), and composite (Matrimid-Pluronic-CoPCMP) containing 5 wt.% CoPCMP and 10 wt.% Pluronic. The shift in absorption bands in (c,d) are indicated for easy comparison.
Membranes 10 00075 g002
Membranes 10 00075 g003 550

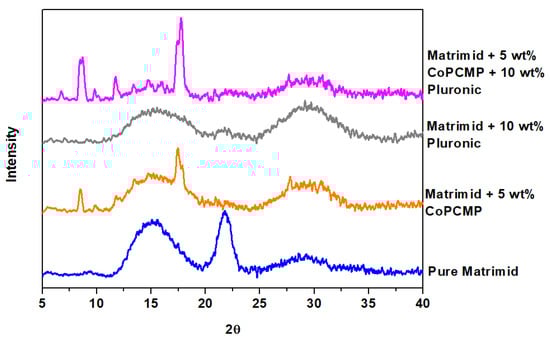

Figure 3. X-ray diffraction (XRD) patterns of neat (Matrimid), blended (Matrimid-Pluronic), and composite (Matrimid-CoPCMP and Matrimid-Pluronic-CoPCMP) membranes.
Figure 3. X-ray diffraction (XRD) patterns of neat (Matrimid), blended (Matrimid-Pluronic), and composite (Matrimid-CoPCMP and Matrimid-Pluronic-CoPCMP) membranes.
Membranes 10 00075 g003
Membranes 10 00075 g004 550

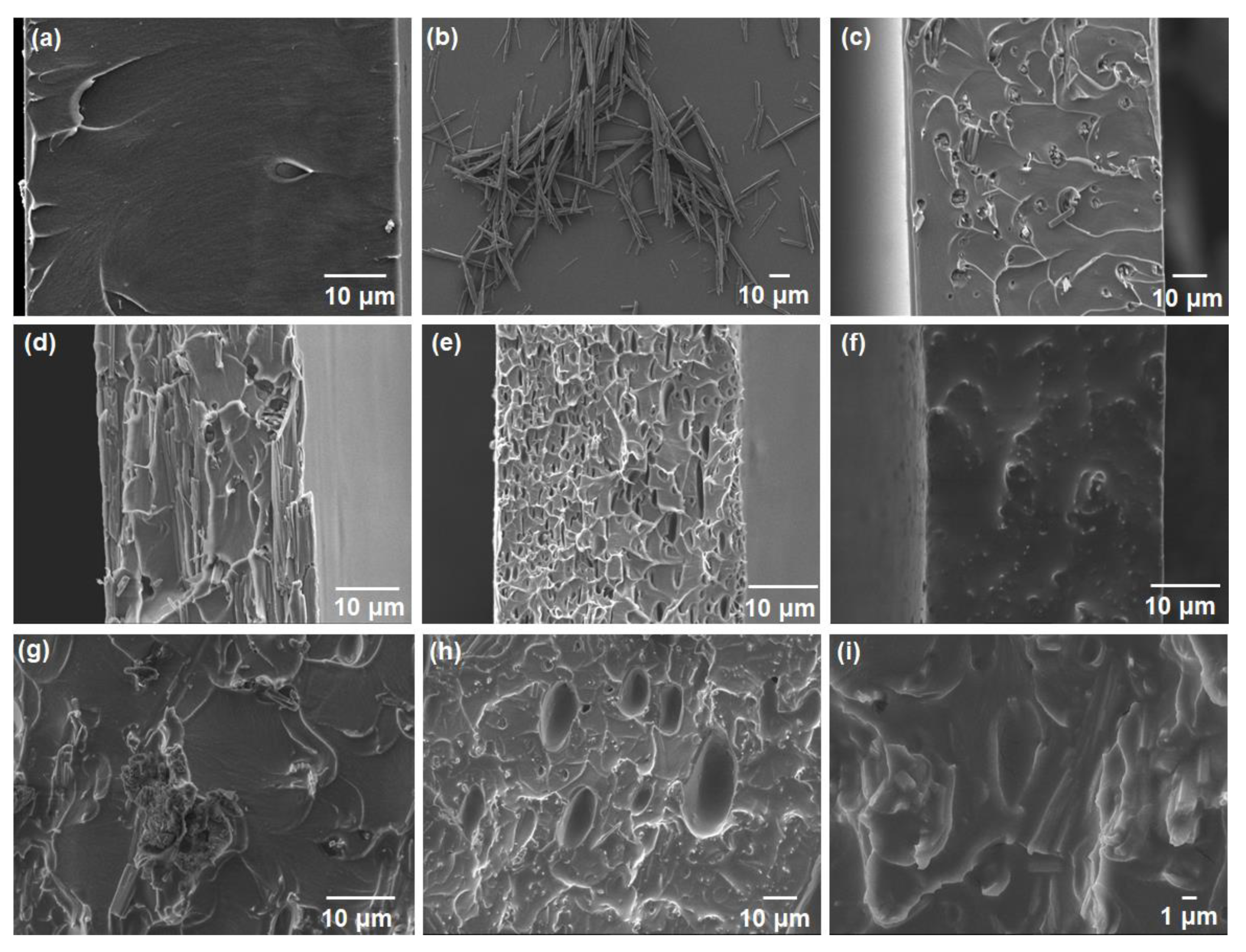

Figure 4. Cross-sectional FESEM images of (a) pure Matrimid membrane; (b) CoPCMP (deposited on a silicon wafer substrate); (c) Matrimid-CoPCMP (3 wt.%); (d) Matrimid-CoPCMP (5 wt.%); (e) Matrimid-Pluronic (5 wt.%); (f) Matrimid-Pluronic (10 wt.%); (g) Matrimid-Pluronic-CoPCMP (5 wt.%, 5 wt.%); (h) Matrimid-Pluronic-CoPCMP (10 wt.%, 5 wt.%); and (i) Matrimid-Pluronic-CoPCMP (10 wt.%, 5 wt.%) at higher magnification.
Figure 4. Cross-sectional FESEM images of (a) pure Matrimid membrane; (b) CoPCMP (deposited on a silicon wafer substrate); (c) Matrimid-CoPCMP (3 wt.%); (d) Matrimid-CoPCMP (5 wt.%); (e) Matrimid-Pluronic (5 wt.%); (f) Matrimid-Pluronic (10 wt.%); (g) Matrimid-Pluronic-CoPCMP (5 wt.%, 5 wt.%); (h) Matrimid-Pluronic-CoPCMP (10 wt.%, 5 wt.%); and (i) Matrimid-Pluronic-CoPCMP (10 wt.%, 5 wt.%) at higher magnification.
Membranes 10 00075 g004
Membranes 10 00075 g005 550

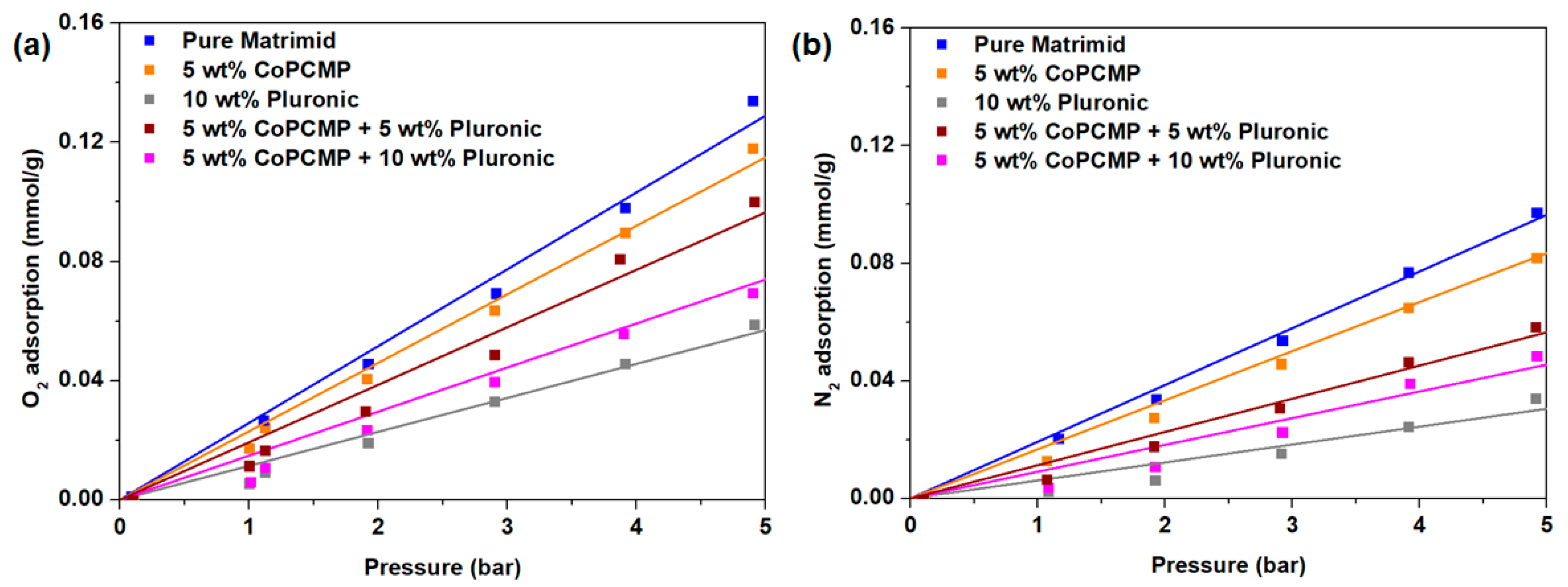

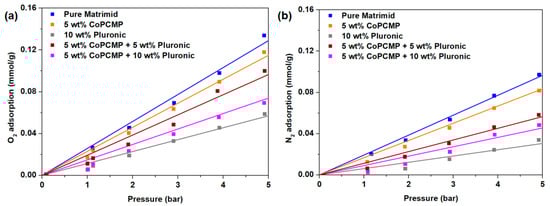

Figure 5. (a) O2 and (b) N2 adsorption of neat (Matrimid), blended (Matrimid-Pluronic), and composite (Matrimid-CoPCMP and Matrimid-CoPCMP-Pluronic) membranes at 35 °C at different pressures.
