Article

First-Principles Density Functional Theory Calculations of Bilayer Membranes Heterostructures of Ti3C2T2 (MXene)/Graphene and AgNPs

by
Golibjon. R. Berdiyorov
1,
Mohamed E. Madjet
2 and
Khaled. A. Mahmoud
1,*
1
Qatar Environment and Energy Research Institute, Hamad Bin Khalifa University, Doha P.O. Box 34110, Qatar
2
Max Planck Institute for the Physics of Complex Systems Nöthnitzer Str. 38, 01187 Dresden, Germany
*
Author to whom correspondence should be addressed.
Membranes 2021, 11(7), 543; https://doi.org/10.3390/membranes11070543
Submission received: 24 June 2021 / Revised: 12 July 2021 / Accepted: 14 July 2021 / Published: 16 July 2021
(This article belongs to the Special Issue Advancements of 2D Materials-Based Membranes)
Browse Figures
Review Reports Versions Notes

Abstract

:
The properties of two-dimensional (2D) layered membrane systems can be medullated by the stacking arrangement and the heterostructure composition of the membrane. This largely affects the performance and stability of such membranes. Here, we have used first-principle density functional theory calculations to conduct a comparative study of two heterostructural bilayer systems of the 2D-MXene (Ti3C2T2, T = F, O, and OH) sheets with graphene and silver nanoparticles (AgNPs). For all considered surface terminations, the binding energy of the MXene/graphene and MXene/AgNPs bilayers increases as compared with graphene/graphene and MXene/MXene bilayer structures. Such strong interlayer interactions are due to profound variations of electrostatic potential across the layers. Larger interlayer binding energies in MXene/graphene systems were obtained even in the presence of water molecules, indicating enhanced stability of such a hybrid system against delamination. We also studied the structural properties of Ti3C2X2 MXene (X = F, O and OH) decorated with silver nanoclusters Agn (n ≤ 6). We found that regardless of surface functionalization, Ag nanoclusters were strongly adsorbed on the surface of MXene. In addition, Ag nanoparticles enhanced the binding energy between MXene layers. These findings can be useful in enhancing the structural properties of MXene membranes for water purification applications.

1. Introduction

MXenes, a growing family of layered low-dimensional transition metal carbides and nitrides, have attracted a lot of attention in the scientific community due to their unique chemical, physical and mechanical properties [1,2]. Electrochemical energy storage applications represent one of the areas where MXenes have already shown great potential due to their impressive capacitive performance [3,4,5,6]. Excellent electrical conductivity and functionalized surface properties make MXene a good candidate for electrochemical sensing applications [7,8,9,10]. MXenes are also shown to be a suitable candidate for nanocomposite fabrication [11,12,13,14]. These composite materials have already shown promising results in terms of both operational stability and functionality (i.e., mechanical strength and flexibility, electrical conductivity) as compared to standalone MXene. For example, the MXene/carbon nanotube hybrid system was shown to be an excellent electrode material for supercapacitors due to its high volumetric capacitances, good operational rate performances, and excellent cycling stability [12].
MXenes have also emerged as high-flux, ultrathin, and size/charge selective nanofiltration membranes for water purification [15,16,17]. As a membrane for water purification applications, this material has already shown good mechanical flexibility, demonstrated thermal and chemical stability, and exhibited large-scale membrane creation and the possibility of surface termination with both hydrophilic and hydrophobic groups, etc. In addition, these low-dimensional materials have profound antibacterial properties which are also beneficial for water treatment [18]. Due to their metallic conductivity, MXenes are also considered to be promising materials for developing highly sensitive electrocatalytic sensors which can detect different chemical contaminants in drinking water, such as bromate [19].
MXene/graphene oxide (GO) hybrid systems have received a lot of interest due to their capacity to deliver enhanced mechanical properties (e.g., tensile strength and elasticity), profound electrical conductivity, and very rich surface chemistries (e.g., the coexistence of hydrophilic and hydrophobic surfaces) [20,21,22]. This hybrid system has the potential to operate as electrode material in electrochemical storage applications due to its fast diffusion and transport of electrolyte ions, high metallic conductivity, and enhanced stability. Such nano-engineered MXene/graphene composites have been used for membrane desalination and water treatment [23,24], as well as for electromagnetic wave shielding applications [25]. In addition to a high surface-to-value ratio and enhanced mechanical strength, MXene/graphene heterostructures provide the coexistence of two types of surfaces which can be beneficial for desalination purposes. Particularly, the hydrophobic surface of graphene may increase the water flux through the system, whereas the hydrophilic surface of MXene will enhance the antifouling properties of the membrane [26]. Due to its chemical stability, graphene layers can also be used to prevent the surface degradation of MXene caused by oxidation. MXene has been used to enforce reduced graphene oxide (rGO) sheets by crosslinking through Ti-O-C covalent bonding to improve the alignment and mechanical properties of graphene platelets. The synergistic interfacial interaction and the resulting high toughness of the hybrid were proven by the in situ Raman spectroscopy and molecular dynamic simulations [27]. Kong et al. have utilized DFT to show a slight distortion in the structure of graphene when forming Ti3C2O2/MXene quantum dots/graphene heterostructures, causing changes to the electronic structure of QDs [28].
Smaller water flux is one of the main issues preventing MXene membranes from being used in large-scale water purification applications. However, the water flux through MXene membranes can be increased significantly by increasing the interlayer spacing (see Ref. [29] for review). This can be achieved by mechanical intercalation of colloidal particles between the MXene layers [30] or by the chemical deposition of metallic nanoparticles during the MXene membrane formation. For example, Pandey et al. decorated the surface of MXene membranes with Ag nanoparticles during the self-reduction of AgNO3 on the surface of MXene layers, which acts as a reducing agent) [31]. Depending on the nanoparticle load, the flux in this composite system can be three times larger than the pristine MXene membrane under the same operational conditions. The composite membranes also demonstrated a higher rejection rate for organic molecules/foulants and profound bacterial growth inhibition, indicating their potential for water treatment and biomedical applications. The electrochemical properties of MXene can also be enhanced considerably after decoration with Ag nanoparticles [32]. Rakhi et al. showed the great potential of MXene/Au nanocomposites in developing electrochemical biosensors and in environmental remediation applications [14]. Such MXene/metal nanoparticle hybrid systems are also promising for addressing critical issues in membrane-based separation and biosensor processes [33].
In this work, we have conducted first-principle density functional theory (DFT) calculations to study the structural properties of the MXene/graphene bilayer system with and without the presence of water molecules. Special attention has been given to surface termination of MXene, which is known to be very important in determining both structural and electronic properties of the material [34,35,36,37,38,39]. We considered fluorinated, oxygenated, and hydroxylated surfaces (Ti3C2F2, Ti3C2O2, and Ti3C2(OH)2), which are predominant functional groups of Ti3C2 MXene [40]. We found that for all considered systems, the binding energy of the graphene/MXene bilayer increases as compared to graphene/graphene and MXene/MXene samples. Such enhanced interlayer interactions originate from the strong variations of electrostatic potential across the layers. Partial charge calculations show the charge transfer from MXene to graphene in the hybrid systems. Stronger interlayer binding energy is also obtained in the presence of water molecules, indicating the enhanced stability of the mixed system against membrane delamination.
Motivated by the recent experiments [31,33], we also studied the structural properties of silver nanoclusters Agn (n ≤ 6) absorbed on the surface of MXene layers using DFT calculations. We considered smaller nanoclusters (n ≤ 6), which preserve the planar arrangement of silver atoms. We found strong adsorption of Agn nanoparticles regardless of the surface termination of MXene. The smallest adsorption energies were obtained for fluorinated MXene. In addition, we found that metal clusters enhance the binding energy between MXene layers; this could be useful for increasing the stability of MXene-based membranes against delamination.

2. Computational Method

We first optimized the geometry of the freestanding graphene and Ti3C2 MXene with different surface functionalization, separately using DFT within the generalized gradient approximation of Perdew–Burke–Ernzerhof (PBE) to account for the exchange-correlation energy [41]. The Brillouin zone was sampled using 15 × 15 × 15 k-point sampling [42]. Grimme’s empirical dispersion correction to the PBE was used to account for non-bonding interactions [43]. Double-zeta-polarized basis sets of local numerical orbitals were used, and the electrostatic potentials were calculated on a real-space grid with a mesh cutoff energy of 150 Ry. The convergence criteria for total energy and Hellmann–Feynman forces were 10−4 eV and 0.01 eV/Å, respectively. The hexagonal lattice parameter of graphene was 2.478 Å and the MXene samples had the following lattice parameters: 3.126 Å (Ti3C2F2), 3.094 Å (Ti3C2O2) and 3.142 Å (Ti3C2(OH)2). After optimizations, we constructed graphene/graphene, MXene/MXene, and MXene/graphene bilayer structures (see Figure 1a–c). Due to the lattice mismatch, the mean absolute strain in constructing MXene/graphene bilayer systems was less than 1% (see Table 1). Periodic boundary conditions were applied along the planes and a vacuum spacing of 100 Å was always kept across the layers. For the Brillouin zone integration, 7 × 7 × 1 k-points were used.
For MXene/Ag systems, we first optimized isolated silver clusters with up to 6 Ag atoms. We then placed the Ag nanoclusters on the top of 4 × 4 supercell of MXene layers and optimized further using 7 × 7 × 1 k-points. We also constructed MXene bilayers with and without the Ag nanoclusters between them. During the optimization, a vacuum spacing of 100 Å was always kept across the MXene layers. Model system building and calculations were performed using the first-principles computational package Atomistix toolkit [44,45,46]. The analysis in the present work is based on total energy calculations, with a particular focus on the electrostatic contribution. The binding energies between different layers and adsorption energies of the silver clusters are also based on total energy calculations.

3. MXene/Graphene Bilayer

First, we tried to minimize the energy of the constructed bilayer systems by varying the interlayer distance d. This was performed by explicit calculations for the total energy as a function of bilayer distance. Van der Waals interactions are considered during this energy minimization process. Figure 1d shows the energy of the system as a function of the interlayer distance for graphene/graphene and MXene/graphene systems. Note that the interlayer distance is calculated from the surface atoms of MXene, and the value of the minimal total energy is subtracted from the energy values obtained for a given d. Since the considered structures have different interfacial areas (see Table 1), the energies of the system are shown per surface area. The energy of the system shows a minimum at a certain distance, and it increases rapidly as the interplanar distance decreases. The minimum energy distance becomes smaller for MXene/graphene systems compared to that of the graphene/graphene bilayer. At larger distances, we obtained a saturation of the total energy. The maximum saturation value was obtained for the Ti3C2(OH)2/graphene system (open squares in Figure 1d), indicating stronger interlayer interactions as compared to the other hybrid structures. Note that regardless of the surface functionalization, the MXene–graphene distance was larger than the MXene–MXene interlayer distance [1].
Second, we optimized the structures in a more straightforward manner, i.e., by a direct force relaxation, considering van der Waals forces to accurately describe the interlayer interactions. The optimized structures for MXene/graphene bilayers are shown in Figure 2a–c. The optimized interlayer distance values are close to the ones obtained from explicit energy–distance optimization. Figure 2d shows the calculated binding energies of all considered bilayer systems. Among these structures, graphene/graphene bilayer has the smallest binding energy per atom in the system. Among the MXene/MXene structures, Ti3C2(OH)2/Ti3C2(OH)2 system has the largest binding energy. Interestingly, regardless of the surface terminations, MXene/graphene hybrid structures have stronger binding energy as compared to graphene/graphene and MXene/MXene systems, which are highlighted in Figure 2d. The largest binding energy is obtained for hydroxylated MXene.
To find the origin for such strong non-bound interactions between graphene and MXene layers, we have calculated the electrostatic potential in the considered systems. Figure 3 shows the electrostatic potential variations across the layers, averaged over the x–y plane. For the graphene/graphene system (solid-black curve in Figure 3a), we obtained no variations of the electrostatic potential except at the graphene planes. For MXene/MXene bilayers, the smallest variations of the potential were found for the Ti3C2O2/Ti3C2O2 system (dotted green curve in Figure 3a), which explains the smallest binding energy for MXene/MXene systems (see Figure 2d). The amplitude of the electrostatic potential oscillations become more pronounced for the Ti3C2F2/Ti3C2F2 (dashed red curve in Figure 3a) and Ti3C2(OH)2/Ti3C2(OH)2 (dash-dotted blue curve in Figure 3a) systems, which explains the stronger interlayer interaction in these two systems. Interestingly, we obtained much stronger variations of the electrostatic potential across MXene/graphene bilayer structures (Figure 3b). The smallest oscillations were obtained for the fluorinated MXene (dashed red curve in Figure 3b), but they remained larger than the potential oscillations in the Ti3C2F2/Ti3C2F2 system. The largest potential variations were obtained for the hydroxylated MXene, which explains the strongest binding energy of the Ti3C2(OH)2/graphene systems as compared to the other samples (see Figure 2d).
Thirdly, we calculated the partial atomic charge in MXene/graphene bilayer structures using the density-derived electrostatic and chemical (DDEC) charges method [47,48], which is one of the most suitable charge partitioning methods for organic and inorganic hybrid systems [49]. We were mostly interested in the induced charges on carbon atoms on graphene in MXene/graphene structures, keeping in mind the fact of the charge neutrality in the graphene bilayer. The results show that an average charge of 0.0053|e| was induced on the carbon atoms of graphene due to the presence of fluorine groups on MXene. A charge transfer over three times larger was obtained in the case of the Ti3C2O2/graphene system; the average charge of carbon atoms was now 0.0192|e|. Contrary to these two systems, we obtained a charge transfer from the hydroxylated surface of MXene to graphene in the Ti3C2(OH)2/graphene sample. Then, the averaged induced charge on the carbon atoms was −0.0186|e|. Such redistribution of the charges resulted in pronounced electromagnetic potential variations across the MXene/graphene structures (see Figure 3b).
Finally, we studied the binding energies of MXene and graphene layers in the presence of water molecules at the interface between the layers. As a reference, we also studied the structural properties of graphene/graphene bilayer systems. We first conducted geometry optimizations starting from different initial positions and orientations of a single water molecule between the layers. The fully optimized structures are shown in Figure 4a–d. The presence of the water molecule resulted in significant structural changes in the graphene layers of the graphene bilayer (Figure 4a). The water molecules were positioned closer to the MXene layers in MXene/graphene systems and, therefore, the graphene layers were less affected (Figure 4b,c). The orientation of the water molecules also changed depending on the surface functional groups of MXene (see Figure 4d). We have calculated the binding energies of the considered systems as
E b = E M + g + H 2 O − ( E M + E g + E H 2 O )
where EM+g+H2O is the total energy of the total system, EH2O is the total energy of isolated water molecules, and EM/Eg is the total energy of the isolated MXene/graphene bilayer. The calculated binding energies are shown in Figure 4e. Among the considered systems, graphene/graphene bilayer had the smallest binding energy, even in the presence of the water molecule. The interlayer interactions became stronger for MXene/graphene structures. The largest interplanar interactions were obtained for hydroxylated MXene: the binding energy was more than three times larger as compared to the one for the graphene/graphene system. These results indicate the enhanced stability of MXene/graphene layered structures against the delamination that occurred in the presence of water molecules.

4. Ag Nanocluster-Decorated MXene

In this section, we study the structural properties of MXene layers decorated with Ag nanoparticles. Experimentally, Ag nanoparticles can be created by self-reduction of AgNO3 on the surface of MXene nanosheets (as it acts as a reducing agent) with an average size of 44 nm [31]. Since it is difficult to model such large nanoparticles using the first-principles calculations, we focused on smaller Ag nanoparticles on the surface of MXene. Figure 5a shows the lowest energy configurations of Agn nanoclusters with n ≤ 6. The considered nanoparticles had planar structures. Interestingly, they preserved their planar geometry even after adsorption on the surface of MXene (Figure 5c,d). For all three surface functional groups, no covalent bonding was obtained between the silver nanoclusters and the surface atoms of MXene. Figure 6 shows the adsorption energies of Ag nanoclusters on the surface of MXene, which were calculated as
E a d s = E M + A g n − ( E M + E A g n )
where EM is the total energy of isolated MXene, EAgn is the total energy of isolated Ag nanoclusters, and EM+Agn is the total energy of MXene layer with Ag nanoparticle adsorbed. Although the calculated binding energy values are negative, in what follows we discuss the absolute values of the binding energies. It is seen from this figure that regardless of the surface functional groups, Ag nanoclusters were strongly adsorbed on the surface. More than 0.5 eV adsorption energy per Ag atom was obtained for all considered systems. For all three MXene samples, the adsorption energies increased as the cluster size increased. For all Ag nanoparticles (black columns in Figure 6), the smallest binding energies were obtained for fluorinated MXene. For most of the cluster sizes, the maximum adsorption energies were obtained for the oxygenated sample (red columns in Figure 6). Similar adsorption energies were also obtained for hydroxylated MXene (blue columns in Figure 6).
Next, we studied the effect of Agn nanoparticles on the binding energy between MXene layers. We first inserted Agn nanoclusters between two MXene layers of the same surface functional groups for large initial interlayer spacing (d ≥ 6 Å). We then conducted direct force relaxation, considering van der Waals forces to accurately describe the interlayer interactions. The lattice parameters that are perpendicular to the layers were equal to 100 Å during the geometry optimization. Figure 7a–c show the optimized structures of MXene bilayers of different surface functionalization with a Ag6 nanocluster between the layers. For the fluorinated sample (Figure 7a), the cluster kept its planar geometry and was located in the middle of the layer with an average distance of 2.63 Å away from the surface fluorine atoms. Similar results were obtained for the hydroxylated MXene, although the distance between surface hydrogen atoms and silver atoms was smaller (1.9 Å). A very different situation was obtained in the case of Ti3C2O2/MXene (see Figure 7b): all the silver atoms covalently bonded with the surface oxygen atoms, and the clustering was not energetically favorable anymore. Similar covalent bonding was also observed for all considered Ag nanoclusters (see the inset in Figure 7d).
Table 2 summarizes our findings of the effect of silver clusters on the structural properties of bilayer MXene samples; the table presents the averaged interlayer spacing for all considered silver clusters. The insertion of the smallest cluster (Ag2) increased the interlayer spacing considerably (compare columns two and three). For the fluorinated sample, the interlayer spacing increased only slightly (less than 1%) when the size of the nanocluster was increased. For the Ti3C2O2 sample, the interlayer spacing reduced significantly (~9.5%) when the cluster size was increased. This was due to the formation of covalent bonds between Ag and O atoms. A larger reduction in the interlayer spacing (~10%) was also obtained for Ti3C2(OH)2 MXene when the cluster size was increased (last row in Table 2).
To see how the intercalating Ag nanoclusters affect the interlayer interactions, we have calculated the binding energies of bilayer MXene using the following formula
E b i n d = E M + M + A g n − ( E M + E M + E A g n )
where EM+M+Agn is the total energy of the whole system, EAgn is the total energy of an isolated silver cluster, and EM is the total energy of the isolated MXene layer. The calculated binding energies are shown in Figure 7d for all considered functional groups. Interestingly, the binding energy slightly increased when Ag nanoclusters were inserted between fluorinated MXene layers (see black columns in Figure 7d). This indicates that the AgNPs have a very small effect on the stability of the material against delamination. However, the nanoparticles enhanced the binding energy for the hydroxylated sample (see blue columns in Figure 7d). The effect became more pronounced for the larger cluster. The largest binding energy among the considered systems is obtained for the Ti3C2O2 MXene. This is due to Ag nanocluster intercalation (red columns in Figure 7d). More than 1 eV gain in energy per silver atom can be obtained. Such strong interlayer interactions are due to the formation of covalent bonds between silver atoms and surface oxygen atoms. Thus, regardless of the surface termination, insertion of silver nanoparticles between the MXene layers increases the interlayer interaction, which should result in the mechanical stability of the system [31] against delamination.

5. Conclusions

We have used DFT calculations to study the structural properties of graphene/MXene bilayer structures with different surface terminations of MXene. Regardless of the surface functional groups, stronger interlayer interactions were obtained in these hybrid systems as compared to graphene/graphene and MXene/MXene bilayers. Such enhanced interactions may have originated from the induced charges in the system, which resulted in strong electrostatic potential variations across the system. Larger binding energies were also obtained in the presence of water molecules in the system, indicating the possibility of enhancing the stability of such hybrid systems against delamination. We also studied the structural properties of Ti3C2X2 (X = F, O and OH) MXene decorated with Ag nanoclusters. We found that regardless of surface functionalization, the Ag nanoparticles were strongly adsorbed on the surface of MXene. This is despite non-covalent bonding between the silver and the surface atoms. The AgNPs also increased the binding energy of stacked MXene layers, which could be useful for enhancing the operational stability of MXene membranes for, e.g., water treatment applications.

Author Contributions

The manuscript was written through an equal contribution from all authors. All authors have read and agreed to the published version of the manuscript.

Funding

This report was supported by NPRP grant (NPRP9-254-2-120) from the Qatar National Research Fund (a member of Qatar Foundation).

Acknowledgments

The findings achieved herein are solely the responsibility of the authors. Computational resources were provided by the research computing center at Texas A&M University in Qatar.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Naguib, M.; Mochalin, V.N.; Barsoum, M.W.; Gogotsi, Y. 25th Anniversary Article: MXenes: A New Family of Two-Dimensional Materials. Adv. Mater. 2014, 26, 992–1005. [Google Scholar] [CrossRef]
  2. Lei, J.-C.; Zhang, X.; Zhou, Z. Recent advances in MXene: Preparation, properties, and applications. Front. Phys. 2015, 10, 276–286. [Google Scholar] [CrossRef]
  3. Naguib, M.; Come, J.; Dyatkin, B.; Presser, V.; Taberna, P.L.; Simon, P.; Barsoum, M.W.; Gogotsi, Y. MXene: A promising transition metal carbide anode for lithium-ion batteries. Electrochem. Commun. 2012, 16, 6164. [Google Scholar] [CrossRef] [Green Version]
  4. Lukatskaya, M.R.; Mashtalir, O.; Ren, C.E.; Dall’Agnese, Y.; Rozier, P.; Taberna, P.L.; Naguib, M.; Simon, P.; Barsoum, M.W.; Gogotsi, Y. Cation intercalation and high volumetric capacitance of two-dimensional titanium carbide. Science 2013, 341, 15021505. [Google Scholar] [CrossRef] [Green Version]
  5. Xie, Y.; Dall’Agnese, Y.; Naguib, M.; Gogotsi, Y.; Barsoum, M.W.; Zhuang, H.L.L.; Kent, P.R.C. Prediction and characterization of MXene nanosheet anodes for non-lithium-ion batteries. ACS Nano 2014, 8, 96069615. [Google Scholar] [CrossRef]
  6. Xiong, D.; Li, X.; Bai, Z.; Lu, S. Recent Advances in Layered Ti3C2Tx MXene for Electrochemical Energy Storage. Small 2018, 14, 1703419. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  7. Peng, Q.M.; Guo, J.X.; Zhang, Q.R.; Xiang, J.Y.; Liu, B.Z.; Zhou, A.G.; Liu, R.; Tian, Y. Unique lead adsorption behavior of activated hydroxyl group in two-dimensional titanium carbide. J. Am. Chem. Soc. 2014, 136, 41134116. [Google Scholar] [CrossRef] [PubMed]
  8. Xu, B.Z.; Zhu, M.S.; Zhang, W.C.; Zhen, X.; Pei, Z.X.; Xue, Q.; Zhi, C.; Shi, P. Ultrathin MXene-micropattern-based field-Effect transistor for probing neural activity. Adv. Mater. 2016, 28, 3333–3339. [Google Scholar] [CrossRef] [PubMed]
  9. Xiao, B.; Li, Y.C.; Yu, X.F.; Cheng, J.B. MXenes: Reusable materials for NH3 sensor or capturer by controlling the charge injection. Sens. Actuators B Chem. 2016, 235, 103–109. [Google Scholar] [CrossRef]
  10. Lorencova, L.; Bertok, T.; Dosekova, E.; Holazova, A.; Paprckova, D.; Vikartovska, A.; Sasinkova, V.; Filip, J.; Kasak, P.; Jerigova, M.; et al. Electrochemical performance of Ti3C2Tx MXene in aqueous media: Towards ultrasensitive H2O2 sensing. Electrochim. Acta 2017, 235, 471–479. [Google Scholar] [CrossRef] [Green Version]
  11. Ling, Z.; Ren, C.E.; Zhao, M.Q.; Yang, J.; Giammarco, J.M.; Qiu, J.S.; Barsoum, M.W.; Gogotsi, Y. Flexible and conductive MXene films and nanocomposites with high capacitance. Proc. Natl. Acad. Sci. USA 2014, 111, 16676–16681. [Google Scholar] [CrossRef] [Green Version]
  12. Zhao, M.Q.; Ren, C.E.; Ling, Z.; Lukatskaya, M.R.; Zhang, C.F.; Van Aken, K.L.; Barsoum, M.W.; Gogotsi, Y. Flexible MXene/Carbon nanotube composite paper with high volumetric capacitance. Adv. Mater. 2015, 27, 339–345. [Google Scholar] [CrossRef] [PubMed]
  13. Gao, Y.P.; Wang, L.B.; Li, Z.Y.; Zhou, A.G.; Hu, Q.K.; Cao, X.X. Preparation of MXene-Cu2O nanocomposite and effect on thermal decomposition of ammonium perchlorate. Solid State Sci. 2014, 35, 62–65. [Google Scholar] [CrossRef]
  14. Rakhi, R.B.; Nayuk, P.; Xia, C.; Alshareef, H.N. Novel amperometric glucose biosensor based on MXene nanocomposite. Sci. Rep. 2016, 6, 36422. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  15. Ren, C.E.; Hatzell, K.B.; Alhabeb, M.; Ling, Z.; Mahmoud, K.A.; Gogotsi, Y. Charge- and Size-Selective Ion Sieving Through Ti3C2Tx MXene Membranes. J. Phys. Chem. Lett. 2015, 6, 4026–4031. [Google Scholar] [CrossRef] [PubMed]
  16. Osti, N.C.; Naguib, M.; Ostadhossein, A.; Xie, Y.; Kent, P.R.C.; Dyatkin, B.; Rother, G.; Heller, W.T.; van Duin, A.C.T.; Gogotsi, Y.; et al. Effect of Metal Ion Intercalation on the Structure of MXene and Water Dynamics on its Internal Surfaces. ACS Appl. Mater. Interfaces 2016, 8, 8859–8863. [Google Scholar] [CrossRef]
  17. Berdiyorov, G.R.; Madjet, M.E.; Mahmoud, K.A. Ionic sieving through Ti3C2(OH)2 MXene: First-principles calculations. Appl. Phys. Lett. 2016, 108, 113110. [Google Scholar] [CrossRef]
  18. Rasool, K.; Mahmoud, K.A.; Johnson, D.J.; Helal, M.; Berdiyorov, G.R.; Gogotsi, Y. Efficient antibacterial membrane based on two-dimensional Ti3C2Tx (MXene) nanosheets. Sci. Rep. 2017, 7, 1598. [Google Scholar] [CrossRef]
  19. Abdul Rasheed, P.; Pandey, R.P.; Rasool, K.; Mahmoud, K.A. Ultra-sensitive electrocatalytic detection of bromate in drinking water based on Nafion/Ti3C2Tx (MXene) modified glassy carbon electrode. Sens. Actuators B Chem. 2018, 265, 652–659. [Google Scholar] [CrossRef]
  20. Xu, S.; Wei, G.; Li, J.; Han, W.; Gogotsi, Y. Flexible MXene graphene electrodes with high volumetric capacitance for integrated co-cathode energy conversion/storage devices. J. Mater. Chem. A 2017, 5, 17442–17451. [Google Scholar] [CrossRef]
  21. Ma, Z.; Zhou, X.; Deng, W.; Lei, D.; Liu, Z. 3D Porous MXene (Ti3C2)/Reduced Graphene Oxide Hybrid Films for Advanced Lithium Storage. ACS Appl. Mater. Interfaces 2018, 10, 36343643. [Google Scholar] [CrossRef] [PubMed]
  22. Yue, Y.; Liu, N.; Ma, Y.; Wang, S.; Liu, W.; Luo, C.; Zhang, H.; Cheng, F.; Rao, J.; Hu, X.; et al. Highly Self-Healable 3D Microsupercapacitor with MXene—Graphene Composite Aerogel. ACS Nano 2018, 12, 4224–4232. [Google Scholar] [CrossRef]
  23. Al Aani, S.; Wright, C.J.; Ali Atieh, M.; Hilal, N. Engineering nanocomposite membranes: Addressing current challenges and future opportunities. Desalination 2017, 401, 1–15. [Google Scholar] [CrossRef] [Green Version]
  24. Rasool, K.; Pandey, R.P.; Abdul Rasheed, P.; Buczek, S.; Gogotsi, Y.; Mahmoud, K.A. Water treatment and environmental remediation applications of two-dimensional metal carbides (MXenes). Mater. Today 2019, 30, 80–102. [Google Scholar] [CrossRef]
  25. Liang, L.; Li, Q.; Yan, X.; Feng, Y.; Wang, Y.; Zhang, H.-B.; Zhou, X.; Liu, C.; Shen, C.; Xie, X. Multifunctional Magnetic Ti3C2Tx MXene/Graphene Aerogel with Superior Electromagnetic Wave Absorption Performance. ACS Nano 2021, 15, 6622–6632. [Google Scholar] [CrossRef] [PubMed]
  26. Kim, J.-S.; Choi, J.S.; Lee, M.J.; Park, B.H.; Bukhvalov, D.; Son, Y.-W.; Yoon, D.; Cheong, H.; Yun, J.-N.; Jung, Y.; et al. Between Scylla and Charybdis: Hydrophobic Graphene-Guided Water Diffusion on Hydrophilic Substrates. Sci. Rep. 2013, 3, 2309. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  27. Zhou, T.; Wu, C.; Wang, Y.; Tomsia, A.P.; Li, M.; Saiz, E.; Fang, S.; Baughman, R.H.; Jiang, L.; Cheng, Q. Super-tough MXene-functionalized graphene sheets. Nat. Commun. 2020, 11, 2077. [Google Scholar] [CrossRef] [PubMed]
  28. Kong, Q.; An, X.; Huang, L.; Wang, X.; Feng, W.; Qiu, S.; Wang, Q.; Sun, C. A DFT study of Ti3C2O2 MXenes quantum dots supported on single layer graphene: Electronic structure an hydrogen evolution performance. Front. Phys. 2021, 16, 53506. [Google Scholar] [CrossRef]
  29. Al-Hamadani, Y.A.J.; Jun, B.-M.; Yoon, M.; Taheri-Qazvini, N.; Snyder, S.A.; Jang, M.; Heo, J.; Yoon, Y. Applications of MXene-based membranes in water purification: A review. Chemosphere 2020, 254, 126821. [Google Scholar] [CrossRef]
  30. Ding, L.; Wei, Y.Y.; Wang, Y.J.; Chen, H.B.; Caro, J.; Wang, H.H. A Two-Dimensional Lamellar Membrane: MXene Nanosheet Stacks. Angew. Chem. Int. Ed. 2017, 56, 1825–1829. [Google Scholar] [CrossRef]
  31. Pandey, R.P.; Rasool, K.; Madhavan, V.E.; Aissa, B.; Gogotsi, Y.; Mahmoud, K.A. Ultrahigh-flux and fouling-resistant membranes based on layered silver/MXene (Ti3C2Tx) nanosheets. J. Mater. Chem. A 2018, 6, 3522–3533. [Google Scholar] [CrossRef]
  32. Zhang, Z.; Li, H.; Zou, G.; Fernandez, C.; Liu, B.; Zhang, Q.; Hu, J.; Peng, Q. Self-Reduction Synthesis of New MXene/Ag Composites with Unexpected Electrocatalytic Activity. ACS Sustain. Chem. Eng. 2016, 4, 6763–6771. [Google Scholar] [CrossRef]
  33. Li, C.; Zhuo, Y.; Xiao, X.; Li, S.; Han, K.; Lu, M.; Zhang, J.; Chen, S.; Gu, H. Facile Electrochemical Microbiosensor Based on In Situ Self-Assembly of Ag Nanoparticles Coated on Ti3C2Tx for In Vivo Measurements of Chloride Ions in the PD Mouse Brain. Anal. Chem. 2021, 93, 7647–7656. [Google Scholar] [CrossRef] [PubMed]
  34. Tang, Q.; Zhou, Z.; Shen, P. Are MXenes Promising Anode Materials for Li Ion Batteries? Computational Studies on Electronic Properties and Li Storage Capability of Ti3C2 and Ti3C2X2 (X = F, OH) Monolayer. J. Am. Chem. Soc. 2012, 134, 16909. [Google Scholar] [CrossRef] [PubMed]
  35. Zhang, X.; Ma, Z.; Zhao, X.; Tang, Q.; Zhou, Z. Computational studies on structural and electronic properties of functionalized MXene monolayers and nanotubes. J. Mater. Chem. A 2015, 3, 4960–4966. [Google Scholar] [CrossRef]
  36. Xie, Y.; Kent, P.R.C. Hybrid density functional study of structural and electronic properties of functionalized Tin+1Xn (X = C, N) monolayers. Phys. Rev. B 2013, 87, 235441. [Google Scholar] [CrossRef] [Green Version]
  37. Berdiyorov, G.R. Effect of surface functionalization on the electronic transport properties of Ti3C2 MXene. Eurphys. Lett. 2015, 111, 67002. [Google Scholar] [CrossRef]
  38. Berdiyorov, G.R. Effect of lithium and sodium ion adsorption on the electronic transport properties of Ti3C2 MXene. Appl. Surf. Sci. 2015, 359, 153–157. [Google Scholar] [CrossRef]
  39. Berdiyorov, G.R. Optical properties of functionalized Ti3C2T2 (T = F, O, OH) MXene: First-principles calculations. AIP Adv. 2016, 6, 055105. [Google Scholar] [CrossRef] [Green Version]
  40. Hope, M.A.; Forse, A.C.; Griffith, K.J.; Lukatskaya, M.R.; Ghidiu, M.; Gogotsi, Y.; Grey, C.P. NMR reveals the surface functionalisation of Ti3C2 MXene. Phys. Chem. Chem. Phys. 2016, 18, 5099–5102. [Google Scholar] [CrossRef] [Green Version]
  41. Perdew, J.P.; Burke, K.; Ernzerhof, M. Generalized Gradient Approximation Made Simple. Phys. Rev. Lett. 1996, 77, 3865. [Google Scholar] [CrossRef] [Green Version]
  42. Monkhorst, H.J.; Pack, J.D. Special points for Brillouin-zone integrations. Phys. Rev. B 1976, 13, 5188. [Google Scholar] [CrossRef]
  43. Grimme, S. Semiempirical GGA-type density functional constructed with a long-range dispersion correction. J. Comp. Chem. 2006, 27, 1787–1799. [Google Scholar] [CrossRef] [PubMed]
  44. QuantumATK. Synopsys QuantumATK. 2019. Available online: https://www.synopsys.com/silicon/quantumatk.html (accessed on 1 January 2019).
  45. Smidstrup, S.; Markussen, T.; Vancraeyveld, P.; Wellen-dorff, J.; Schneider, J.; Gunst, T.; Verstichel, B.; Stradi, D.; Khomyakov, P.A.; Vej-Hansen, U.G. QuantumATK: An integrated platform of electronic and atomic-scale modelling tools. J. Phys. Condens. Matter 2020, 32, 015901. [Google Scholar] [CrossRef]
  46. Smidstrup, S.; Stradi, D.; Wellendorff, J.; Khomyakov, P.A.; Vej-Hansen, U.G.; Lee, M.-E.; Ghosh, T.; Jonsson, E.; Jonsson, H.; Stokbro, K. First-principles Green’s-function method for surface calculations: A pseudopotential localized basis set approach. Phys. Rev. B 2017, 96, 195309. [Google Scholar] [CrossRef] [Green Version]
  47. Manz, T.A.; Limas, N.G. Introducing DDEC6 atomic population analysis: Part 1. Charge partitioning theory and methodology. RSC Adv. 2016, 6, 47771–47801. [Google Scholar] [CrossRef] [Green Version]
  48. Limas, N.G.; Manz, T.A. Introducing DDEC6 atomic population analysis: Part 2. Computed results for a wide range of periodic and nonperiodic materials. RSC Adv. 2016, 6, 45727–45747. [Google Scholar] [CrossRef]
  49. Madjet, M.E.; El-Mellouhi, F.; Carignano, M.A.; Berdiyorov, G.R. Atomic partial charges on CH3NH3PbI3 from first-principles electronic structure calculations. J. Appl. Phys. 2016, 119, 165501. [Google Scholar] [CrossRef]
Membranes 11 00543 g001 550

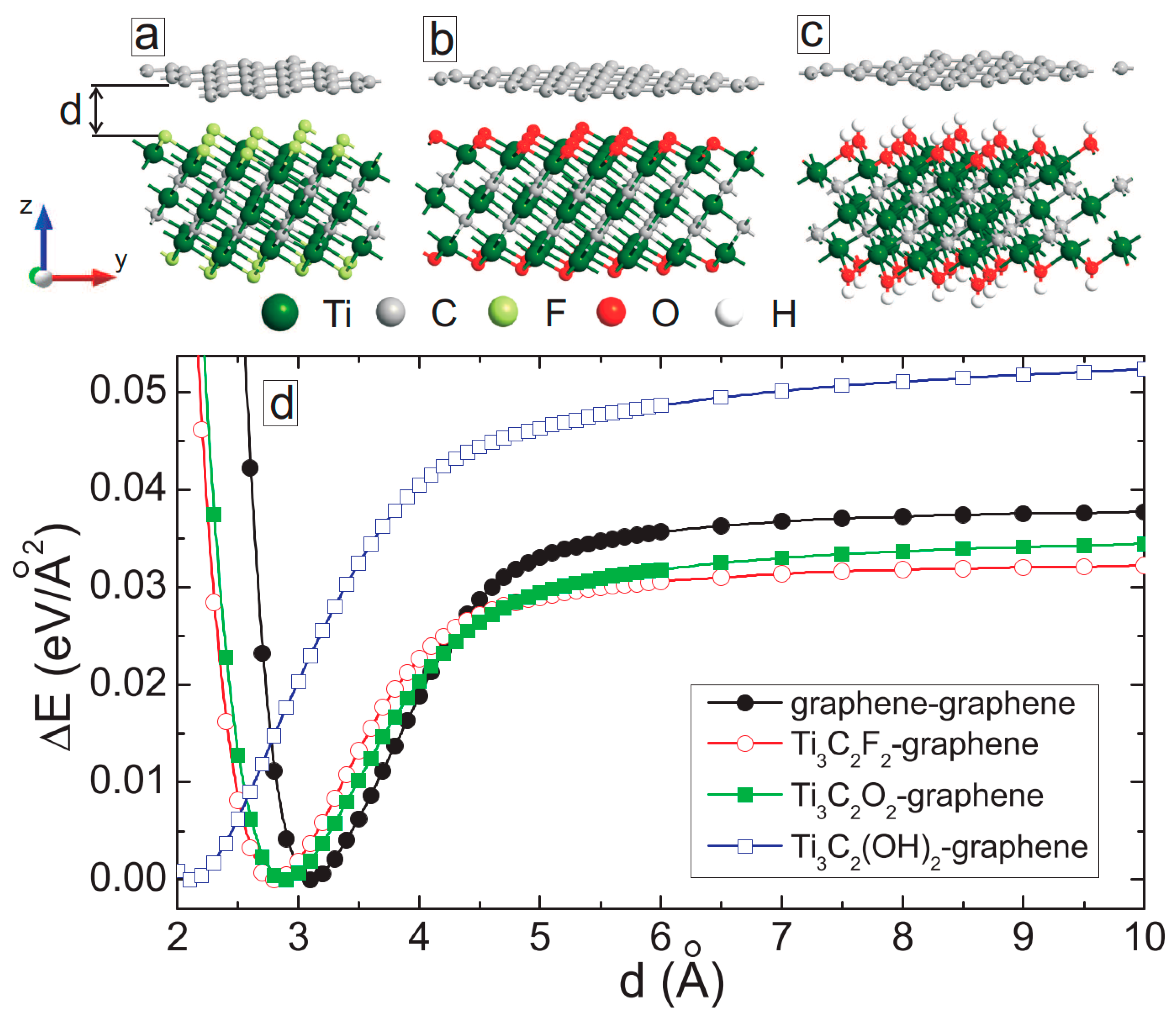

Figure 1. (a–c) Optimized structures of MXene/graphene bilayers with respect to the interlayer distance d. (d) The total energy difference of graphene/graphene and MXene/graphene samples as a function of d.
Figure 1. (a–c) Optimized structures of MXene/graphene bilayers with respect to the interlayer distance d. (d) The total energy difference of graphene/graphene and MXene/graphene samples as a function of d.
Membranes 11 00543 g001
Membranes 11 00543 g002 550

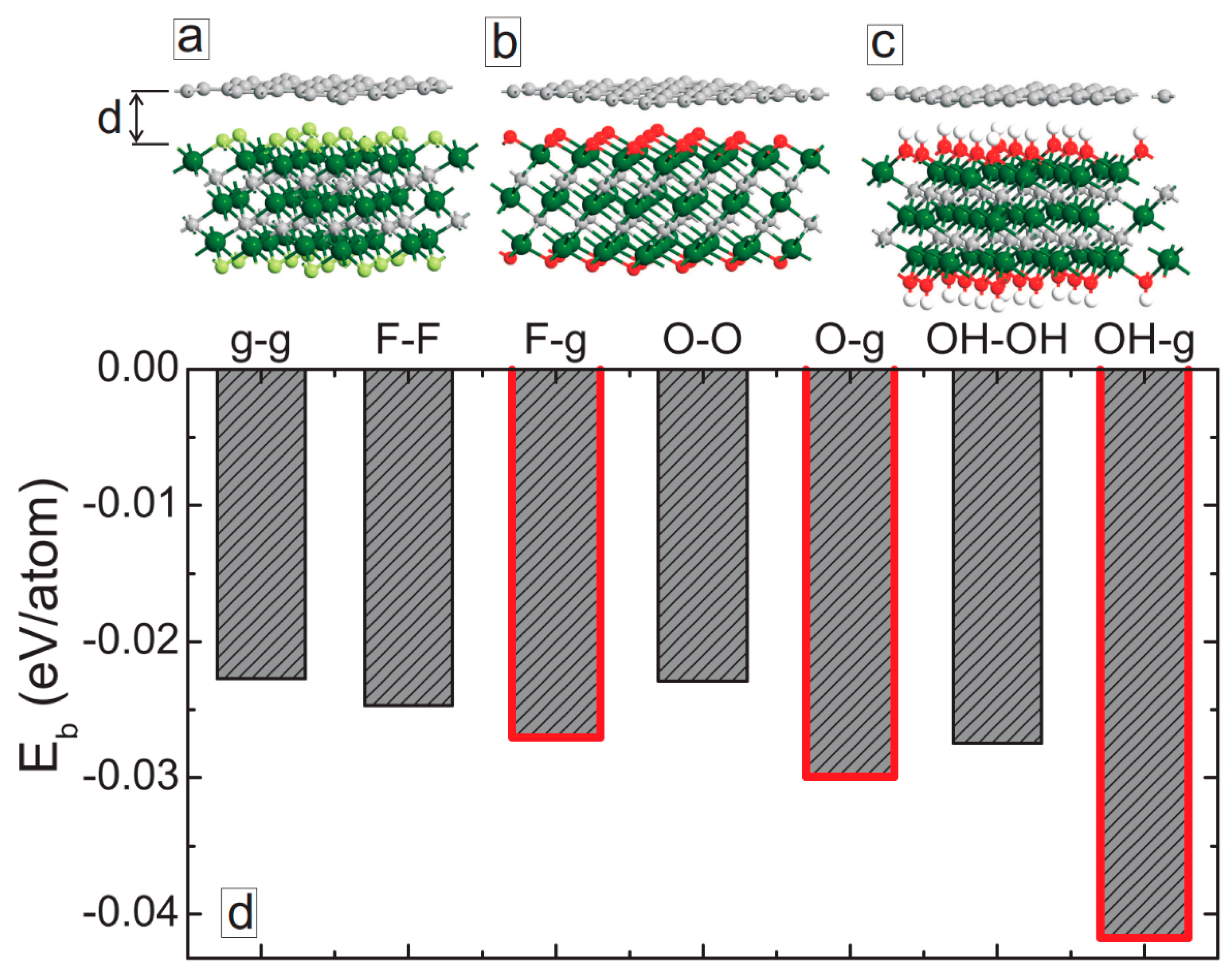

Figure 2. (a–c) Fully optimized structures of MXene/graphene systems. (d) Binding energies (per atom) of graphene/graphene, MXene/MXene, and MXene/graphene bilayer systems. The results for MXene/graphene systems are highlighted by thick red curves.
Figure 2. (a–c) Fully optimized structures of MXene/graphene systems. (d) Binding energies (per atom) of graphene/graphene, MXene/MXene, and MXene/graphene bilayer systems. The results for MXene/graphene systems are highlighted by thick red curves.
Membranes 11 00543 g002
Membranes 11 00543 g003 550

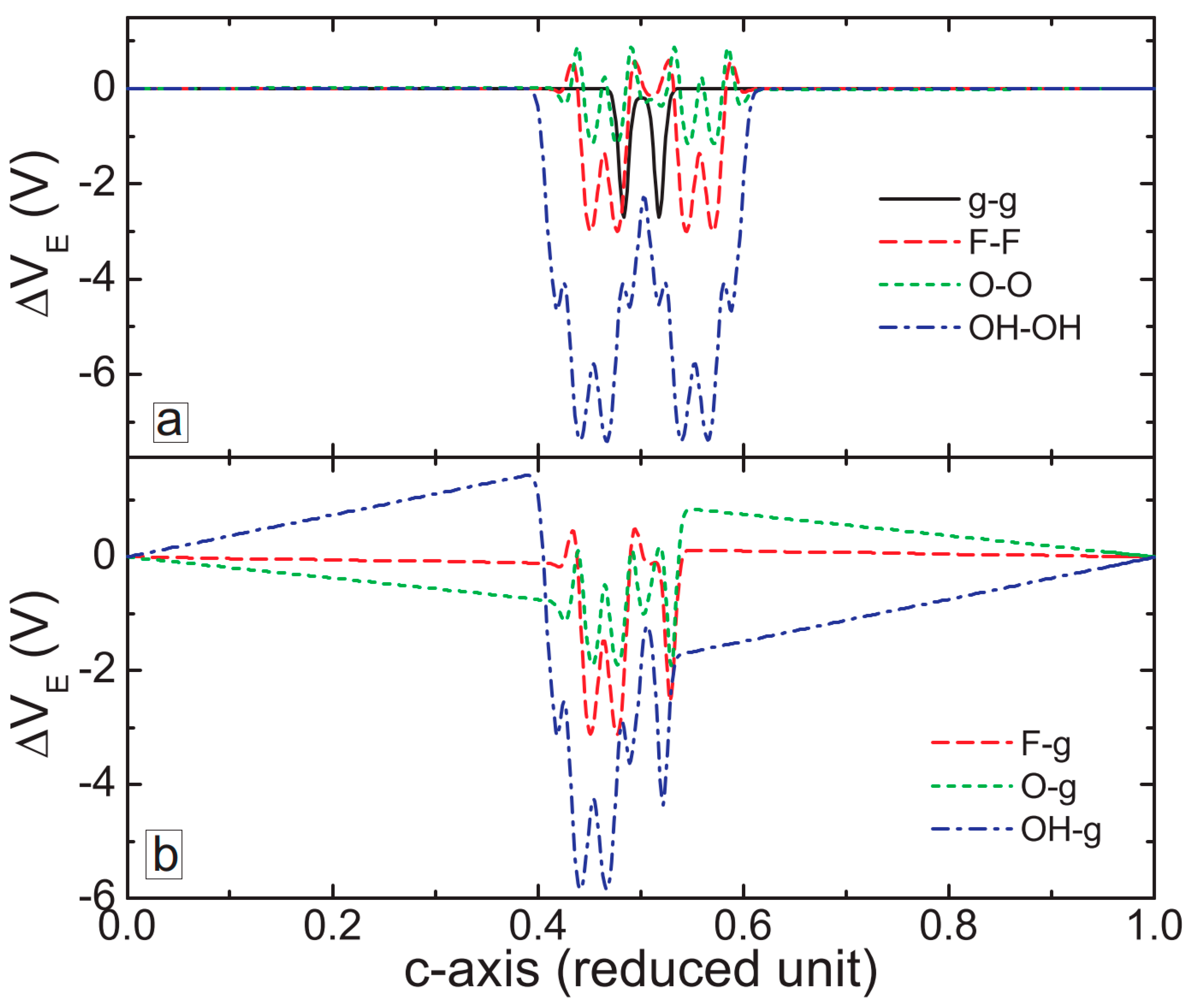

Figure 3. Electrostatic potential variations across the layers of graphene/graphene, MXene/MXene (a), and MXene/graphene bilayer samples (b).
Figure 3. Electrostatic potential variations across the layers of graphene/graphene, MXene/MXene (a), and MXene/graphene bilayer samples (b).
Membranes 11 00543 g003
Membranes 11 00543 g004 550

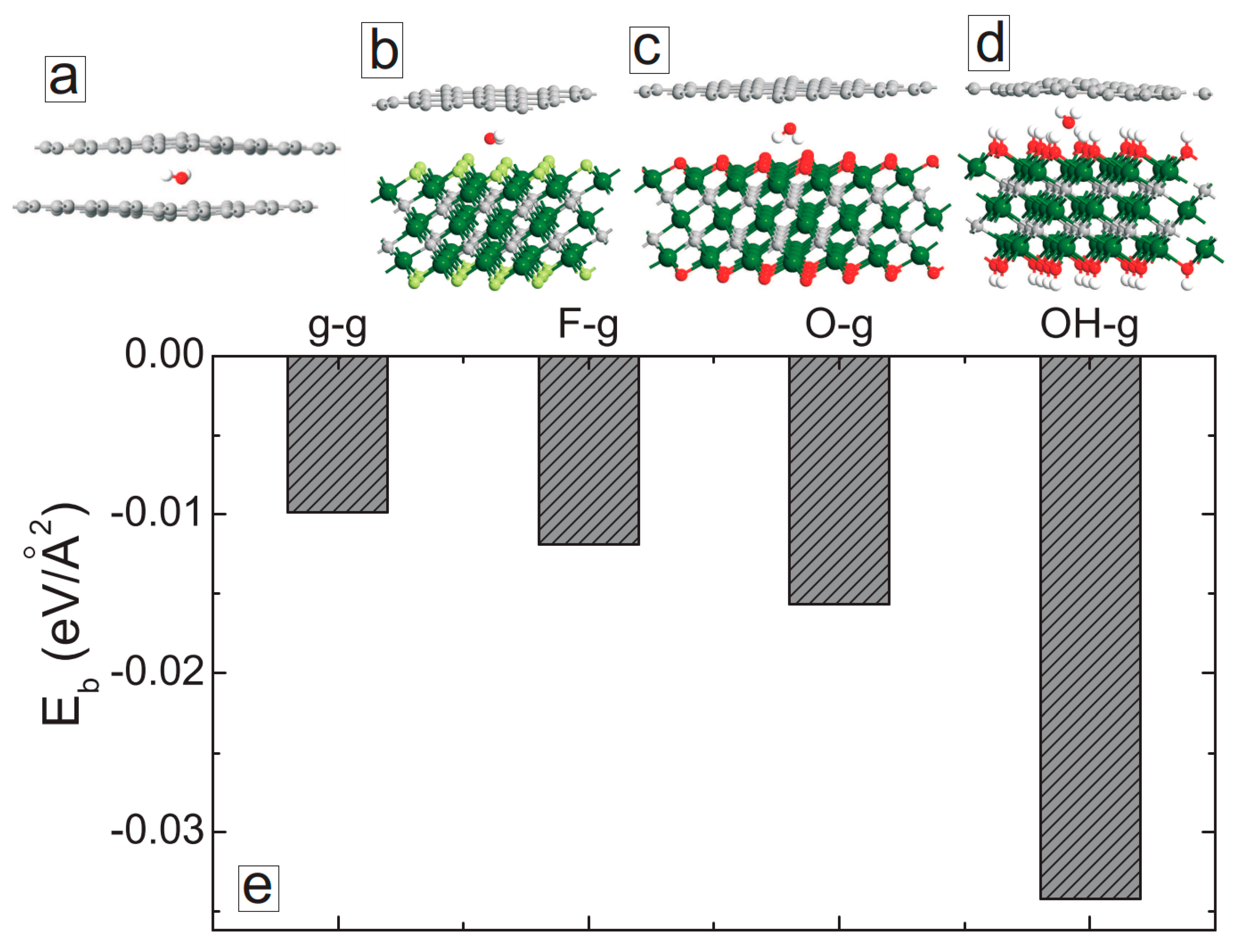

Figure 4. (a–d) Fully optimized structures of graphene/graphene and MXene/graphene systems in the presence of water molecules. (e) Binding energies of graphene/graphene and MXene/graphene systems in the presence of water molecules.
Figure 4. (a–d) Fully optimized structures of graphene/graphene and MXene/graphene systems in the presence of water molecules. (e) Binding energies of graphene/graphene and MXene/graphene systems in the presence of water molecules.
Membranes 11 00543 g004
Membranes 11 00543 g005 550

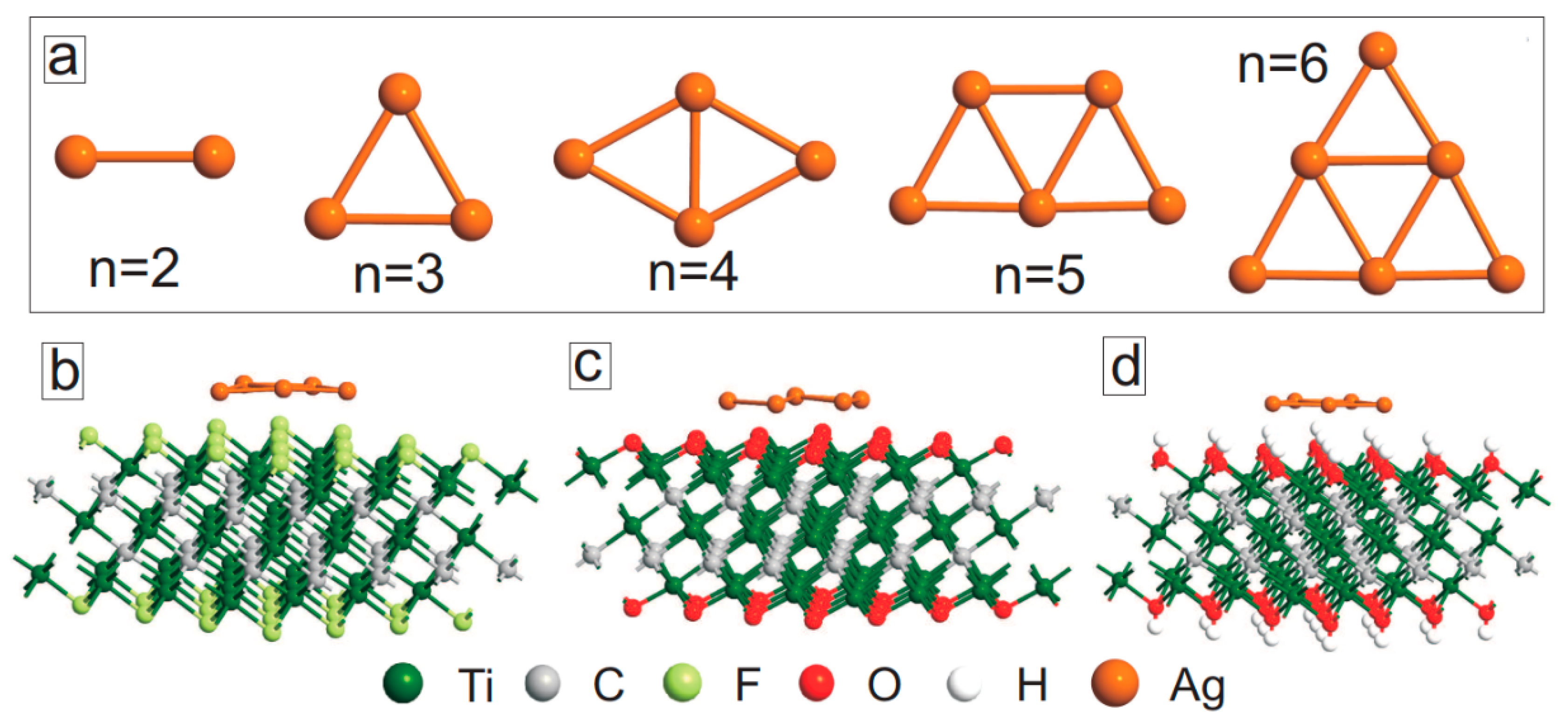

Figure 5. (a) Optimized structures of isolated Agn nanoclusters. (b–d) Optimized structures of Ag5 nanoparticles on Ti3C2F2 (b), Ti3C2O2 (c) and Ti3C2(OH)2 (d).
Figure 5. (a) Optimized structures of isolated Agn nanoclusters. (b–d) Optimized structures of Ag5 nanoparticles on Ti3C2F2 (b), Ti3C2O2 (c) and Ti3C2(OH)2 (d).
Membranes 11 00543 g005
Membranes 11 00543 g006 550

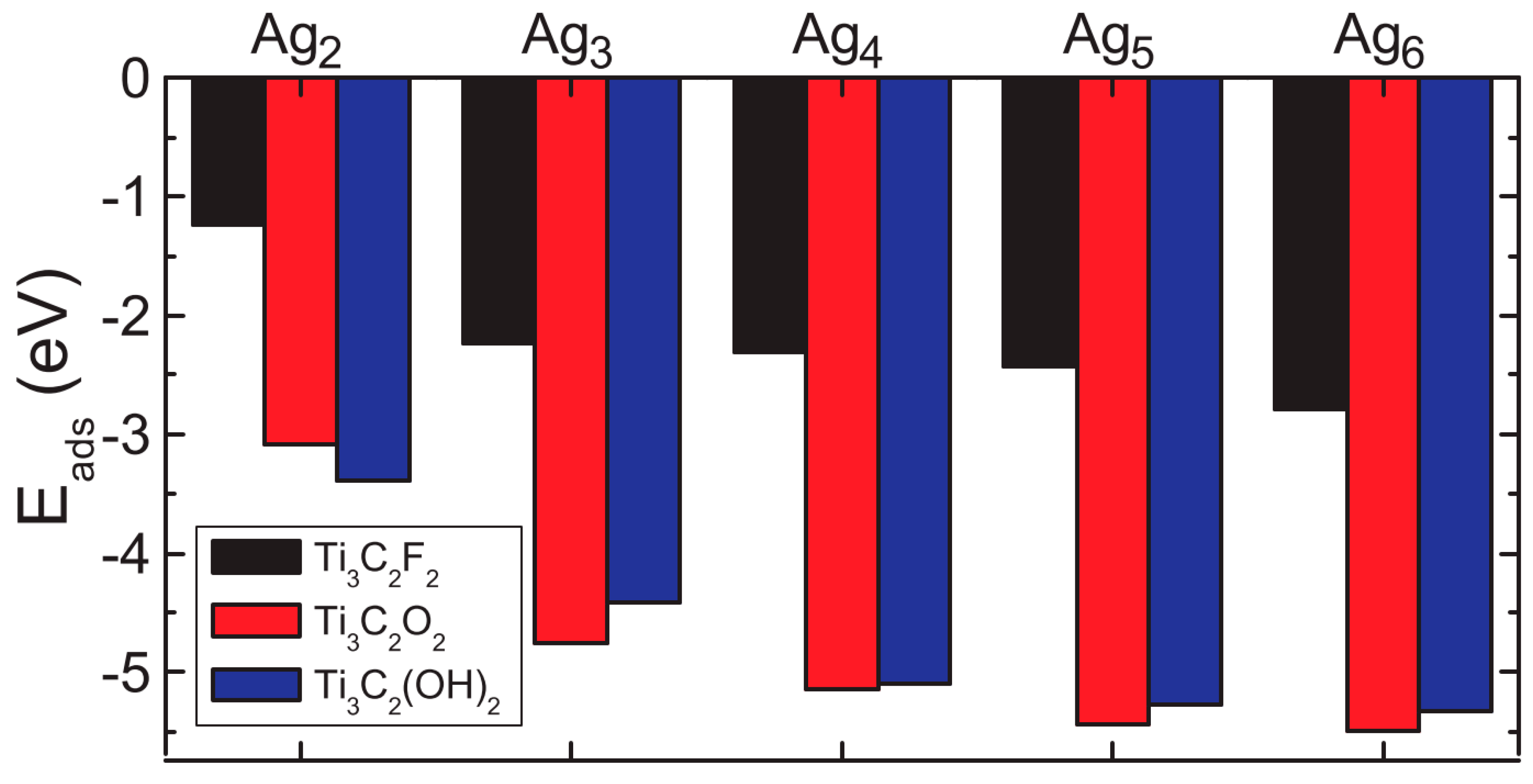

Figure 6. Adsorption energies of Agn nanoclusters on the surface of Ti3C2F2 (black columns), Ti3C2O2 (red columns), and Ti3C2(OH)2 (blue columns).
Figure 6. Adsorption energies of Agn nanoclusters on the surface of Ti3C2F2 (black columns), Ti3C2O2 (red columns), and Ti3C2(OH)2 (blue columns).
Membranes 11 00543 g006
Membranes 11 00543 g007 550

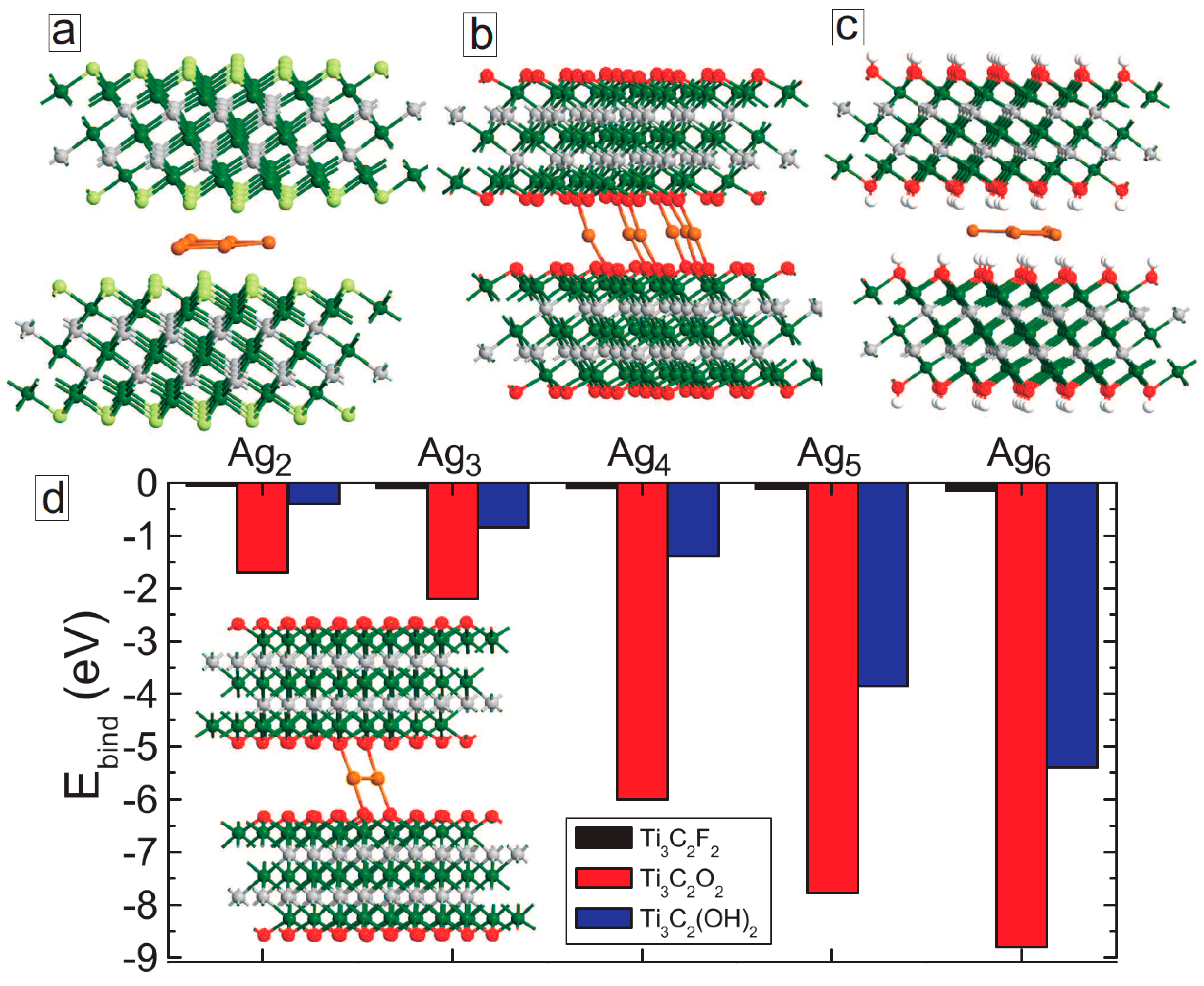

Figure 7. (a–c) Optimized structures of Ti3C2F2 (a), Ti3C2O2 (b) and Ti3C2(OH)2 (c) bilayer MXene structures with Ag6 nanocluster intercalation. (d) Binding energies of MXene layers for different Agn nanoparticles. Inset in (d) shows the optimized structure of Ti3C2O2 MXene bilayer with Ag2 nanocluster between the layers.
Figure 7. (a–c) Optimized structures of Ti3C2F2 (a), Ti3C2O2 (b) and Ti3C2(OH)2 (c) bilayer MXene structures with Ag6 nanocluster intercalation. (d) Binding energies of MXene layers for different Agn nanoparticles. Inset in (d) shows the optimized structure of Ti3C2O2 MXene bilayer with Ag2 nanocluster between the layers.
Membranes 11 00543 g007
Table
Table 1. Structural parameters of the bilayer systems.
Table 1. Structural parameters of the bilayer systems.
SystemsNumber of AtomsArea (Å2)Mean Absolute Strain (%)
graphene/Ti3C2F2122101.30.09
graphene/Ti3C2O2162132.60.03
graphene/Ti3C2(OH)2159111.40.07
Table
Table 2. MXene–MXene interlayer spacings (Å) for different Ag clusters.
Table 2. MXene–MXene interlayer spacings (Å) for different Ag clusters.
SystemsNo Ag ClusterAg2Ag3Ag4Ag5Ag6
Ti3C2F22.0134.9954.9815.0124.9955.011
Ti3C2O22.2984.4414.0174.0394.0424.043
Ti3C2(OH)20.4864.1553.8453.9353.7013.704
