1. Introduction
As oil and gas exploration extends to deep and ultra-deep water, the technological challenges of the riser system increase rapidly [
1]. An important issue for the riser system is the fatigue failure caused by the vortex-induced vibration (VIV). A real-time and effective monitoring device is urgently needed to monitor the VIV of riser. Due to the advantages of multi-parameters, high capacity and accuracy, low cost, easy deployment, and realization of long-distance monitoring, the fiber optic sensing cables bundled together with the riser can achieve the real-time monitoring of the VIV of riser. However, due to the proximity interference between the cable and riser, the dynamic responses of vortex-induced vibration for the coupled riser-cable system are much more complicated than that of an isolated riser.
Over the past few decades, the investigation of the vortex-induced vibration for a single elastically mounted cylinder has been extensively conducted [
2,
3,
4,
5]. Feng [
6] and Williamson et al. [
7] experimentally investigated one-degree-of-freedom (1-DOF) vortex-induced vibration of a single cylinder. The initial branching, upper branching, and lower branching were observed with the variation in reduced velocity, while the lock-in and hysteresis phenomena were demonstrated. Verma and De [
8] numerically investigated the two-degree-of-freedom (2-DOF) VIV of an elastically mounted circular cylinder. Two branches (Initial Branch, Lower Branch) and three branches (Initial Branch, Upper Branch, Lower Branch) amplitude responses were observed for the low and high Re values, respectively. It was found that the dynamic responses and wake flow patterns of two-degree-of-freedom (2-DOF) VIV have a more complicated behavior than those of 1-DOF vortex-induced vibrations [
2,
9,
10].
The investigation of vortex-induced vibration of two cylinders have drawn considerable attention. Borazjani and Sotiropoulos [
11] conducted the numerical investigations of VIV for two tandem cylinders with equal diameter at Re = 200. It was found that the gap flow between two cylinders induces the pressure gradients, resulting in significant oscillatory forces in phase with the vortex shedding. Ping et al. [
12] studied the transverse VIV of two coupled cylinders in a tandem arrangement. It was found that the gap flow appearing in the lower branch can lead to complex vortex-to-body and vortex-to-vortex interactions that substantially alter the VIV response. Papaioannou et al. [
13] investigated the effect of spacing ratio on the 2-DOF vortex-induced vibration of two tandem cylinders for Re = 160, where the spacing ratio plays an important role in the synchronization region of the upstream cylinder. The maximum amplitude and synchronization range of the downstream cylinder increase with a decrease in spacing ratio. Chung [
14] numerically investigated the 2-DOF VIV of two identical spring-supported cylinders with the mass ratio of 2 and Re =100. The streamwise amplitude is generally comparable to the transverse amplitude and is accompanied by with irregular trajectories. Chen et al. [
15] conducted the numerical simulations of the VIV of two cylinders in side-by-side configuration at Re = 100 using the immersed boundary method. The dynamic response of the cylinders can be divided into four different branches. The asymmetric in-flow vibrations are observed at 4.0 <
Ur < 4.4 for
L/D = 2.5 (
L is the center-to-center distance between two cylinders). Chen et al. [
16] numerically studied the FIV of two side-by-side circular cylinders for the Reynolds number of 60–200. The phase jump between the lift and displacement is related to the presence of multiple harmonic frequencies, which is different from that of an isolated cylinder.
The complex interference between two cylinders with unequal diameters undergoing VIV has been extensively studied. Zang [
17] performed a series of experiments using particle image velocimetry (PIV) to investigate the VIV of piggyback pipelines in the subcritical flow regime. For
G/D ≥ 0.3, the effect of the piggyback could be ignored due to the weak interaction between two pipelines. Zang and Gao [
18] experimentally investigated the effects of diameter ratios, gap ratios, and incident angles on the VIV responses of piggyback pipelines. The results show that the VIV is suppressed significantly for
G/D = 0.25 and α = 90°. The lock-in regime and vibration amplitude of two piggyback pipelines are greatly influenced by the incident angle. Assi [
19] investigated the wake-induced vibration of the downstream cylinder for different diameter ratios of 0.33 ≤
D1/
D2 ≤ 1 (
D1 and
D2 represent the diameters of the upstream and downstream cylinders, respectively). The transverse amplitudes reach 1.5
D at high reduced velocity range outside the lock-in region. Moreover, the transverse displacement of the upstream cylinder becomes larger than that of downstream cylinder when the spacing ratio reaches a relatively small value. Zhao et al. [
20] carried out the numerical investigation of flow past two side-by-side cylinders with unequal diameters at low Reynolds numbers based on the finite element method. Three types of vortex shedding modes were observed and classified as a single-wake shedding mode, interaction mode, and two-wake mode as the gap ratio increased.
The above-mentioned studies are mostly focused on the VIV of two cylinders with equal diameter in the low Reynolds number regime. However, the dynamic response and vortex shedding pattern of coupled two cylinders with unequal diameters are not well-understood. Zhu et al. [
21] investigated the flow-induced vibration (FIV) of two rigidly coupled tandem cylinders with unequal diameters at
Re = 150, the results indicate that the flow regime transition was sensitive to the gap ratio and the reduced velocity. Zhao et al. [
22] investigated the 1-DOF VIV of two coupled cylinders with equal diameter in tandem and side-by-side configurations in the cross-flow direction. They found that the maximum vibration amplitude occurs in the lock-in range at
G/D = 0.5 (
G is the gap between two cylinders,
D is the diameter of the cylinder) in side-by-side configuration, and the maximum value is approximately twice that of a single cylinder. Zhao and Yan [
23] conducted the investigation focused on the effect of incident angle α on the lock-in regime of VIV for two cylinders with unequal diameters using the Petrov–Galerkin Finite Element Method (PG-FEM). The results show that the lock-in range is expanded considerably. The 2-DOF VIV of two coupled cylinders at
d/D = 0.1 was investigated numerically by Rehmanian et al. [
24]. The vibration frequency component, vibration amplitude, and force coefficient are sensitive to the incident angle and gap ratios. The largest vibration amplitudes in the cross-flow and in-line directions both occur at α = 67.5° and
G/D = 0.1. The lock-in regime and vibration frequency of small cylinder are consistent with that of the large cylinder [
25]. Serta and Janocha [
26] performed the numerical simulation of 2-DOF flow-induced vibration of two coupled cylinders at Re = 3.6 × 10
6, the extended lock-in range is observed at
G/D = 0.1 with the incident angles of α = 90° and 180°. The motion trajectories and vortex shedding patterns behave more irregularly at α = 90°. Ping et al. [
27] numerically investigated the VIV of two rigidly connected cylinders of unequal diameters at Re = 250 and
d/D = 0.2. The structural dynamic responses and hydrodynamic forces are strongly depended on the configurations.
As mentioned above, few investigations have been performed for vortex-induced vibrations of two coupled cylinders with unequal diameters, especially at subcritical Reynolds numbers. The purpose of the present study is to investigate the 2-DOF VIV of two coupled cylinders with unequal diameters to optimize the configuration of coupled riser-cable systems. The effects of incident angle, spacing ratio, and diameter ratio on the VIV response and vortex shedding mode of two coupled cylinders are further analyzed. The paper is organized as follows. In

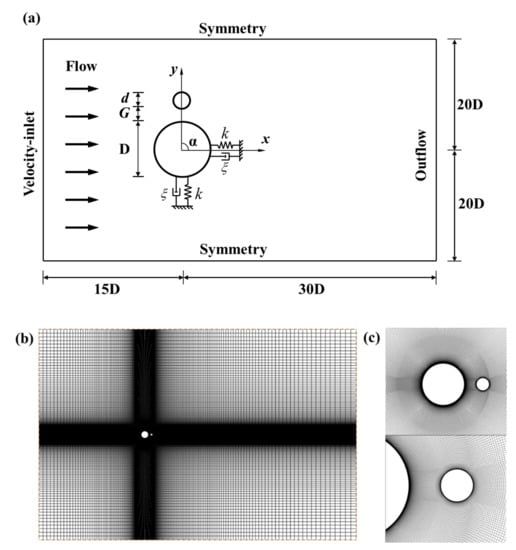

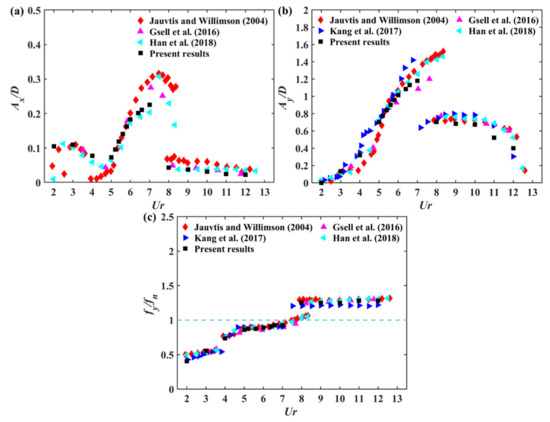

Section 2, the numerical method and validation are described in detail. In
Section 3, the numerical results for vibration amplitude, force coefficient, motion trajectory, and wake flow pattern are analyzed. Finally, the conclusions are drawn in
Section 4.
3. Results and Discussion
3.1. Vibration Amplitudes and Frequencies
Numerical simulations were performed to investigate the effects of incident angle, spacing ratio, and diameter ratio on the VIV of coupled cylinders with unequal diameters.

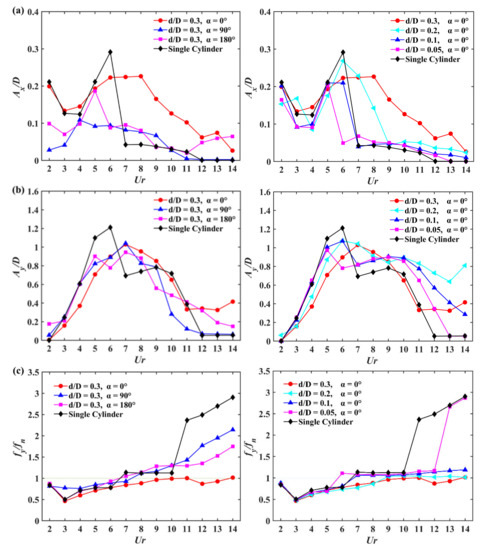

Figure 3 presents the variations in the non-dimensional vibration amplitudes and the ratio of transverse vibration frequency to natural frequency with the reduced velocities at different incident angles and diameter ratios, with the value of diameter ratio and spacing ratio kept constant. It is found that the variations in the vibration amplitudes of two rigidly coupled cylinders with the reduced velocities seem more complicated than that of a single cylinder especially in the range of high reduced velocity. The incident angles and diameter ratios have significant effects on the vibration amplitudes and frequency for two coupled cylinders.
For d/D = 0.3, at the incident angle α = 0°, the transverse vibration amplitude of Ay is reduced for 3 ≤ Ur ≤ 6 compared with the single cylinder and the maximum value of Ay reaches 1.03D for Ur = 7. Moreover, Ax is increased significantly for 7 ≤ Ur ≤ 14 and the frequency ratio fy/fn varies around 1 for 7 ≤ Ur ≤ 14. The comparisons of VIV responses obtained from three different incident angles at a large diameter ratio (d/D = 0.3) were performed. The vibration amplitudes and frequencies at the high reduced velocities range are significantly different regardless of the incident angle, and the increase in diameter of the small cylinder leads to different flow patterns and pressure distributions, resulting in the significant variation in vibration amplitude of the large cylinder. As d/D decreases from 0.3 to 0.1, the variations in streamwise and transverse vibration amplitudes become similar to those of an isolated cylinder. For d/D = 0.1, the transverse vibration amplitude of Ay is increased for 7 ≤ Ur ≤ 14 and the maximum value of Ay is equal to 1.07D at Ur = 6. The variation in vibration amplitudes with reduced velocities show some similarities to those of the isolated cylinder. The transverse vibration frequency ratio fy/fn is constant at 1.15 for 11 ≤ Ur ≤ 14. The lock-in ranges for d/D = 0.1 and 0.3 extend beyond Ur = 14. Moreover, as d/D decreases to 0.05, both the streamwise and transverse vibration amplitudes decrease significantly for Ur = 6. The variations in transverse vibration frequency ratio and the lock-in range are consistent with those of the isolated cylinder. For d/D = 0.05, the small cylinder has slight effects on the frequency ratio and vibration amplitude of the large cylinder compared with the large diameter ratios at α = 0°.

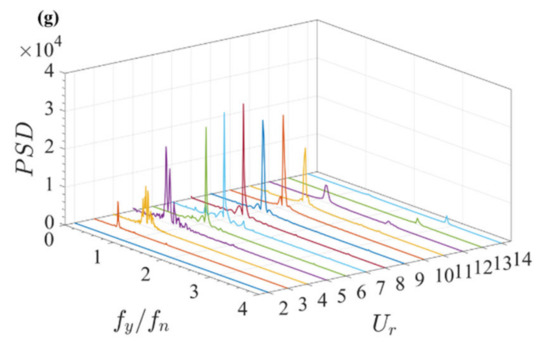

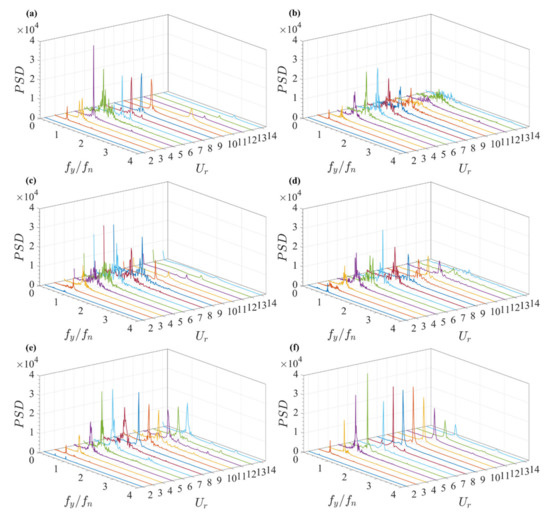

The normalized Fast Fourier Transform (FFT) amplitude spectra of the transverse displacement are presented as functions of
Ur and
fy/fn in
Figure 4. For
d/D = 0.3, the peak is not obvious due to the presence of small cylinder, especially at high reduced velocities. Compared with the isolated cylinder, the frequency ratio
fy/fn for the dominant peak is varied from 0.7 to 1.0 in the lock-in region 7 ≤
Ur ≤ 14 at α = 0°. Meanwhile, the spectra of the transverse displacement for two coupled cylinders have a wide bandwidth with multiple peak frequencies for 4 ≤
Ur ≤ 10. A similar phenomenon is also observed for other incident angles in
Figure 4c,d. The appearance of multiple peaks may be caused by the interference between the reattachment of shear layers and shed vortices. The proximity interferences between two coupled cylinders lead to the irregularities of lift force and vibration amplitude. The peak becomes more obvious with the decrease in
d/D compared with that of α = 0°. The coupled cylinders can be regarded as a single bluff body for
d/D = 0.05, and a single distinct peak is generally observed in the power spectrum for the single bluff body mode. As shown in
Figure 4f, the frequency ratio
fy/fn for the dominant peak is varied from 0.8 to 1.2 for 6 ≤
Ur ≤ 14. The peak response is different from that of the isolated cylinder at high reduced velocities 11 ≤
Ur ≤ 14. For
d/D = 0.05, the frequency ratio
fy/fn for the dominant peak is varied from 2.6 to 2.9 for 13 ≤
Ur ≤ 14. It can be seen that two coupled cylinders for the configuration of
d/D = 0.05 and α = 0° exhibit similar features to the isolated cylinder, indicating the weak effect of the small cylinder on the large cylinder.
3.2. Force Coefficient
Figure 5 shows the variations in
,
, and
for two coupled cylinders with reduced velocities
Ur at different diameter ratios and incident angles. For the configuration of
d/D = 0.3 at α = 90° and 180°, the
of the large cylinder exhibits different behavior from that of the single cylinder at the lock-in range. However, similar variations are observed for different incident angles at large reduced velocities. The
of the large cylinder is reduced at 3 ≤
Ur ≤ 6 and increased at 7 ≤
Ur ≤ 8 compared with that of the isolated cylinder. Moreover, the mean drag coefficient
of the large cylinder reaches the peak value at
Ur = 6 for α = 0° and 180°, consistent with the variation in the single cylinder. Meanwhile, it can be seen that the
of the small cylinder varies significantly for different incident angles. The large value of
for the small cylinder is observed in the range of 2.0–2.5 at α = 90°. A significant decreasing in
is observed at α = 0° and the negative value of
is observed for
Ur = 3 and 11 ≤
Ur ≤ 14 due to the shielding effect of the large cylinder. A strong backflow is formed in the wake shield region, resulting in a force reversal of the small cylinder. As shown in

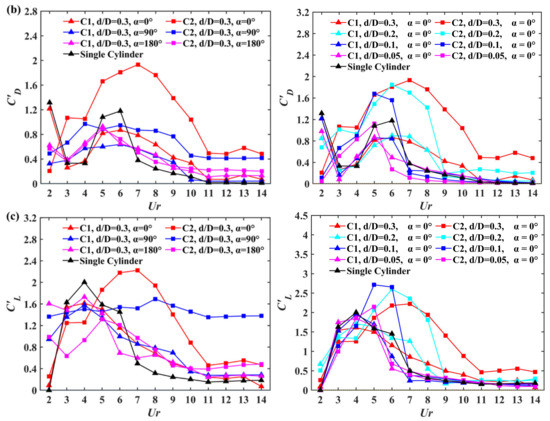

Figure 5b,c, the variations in
and
for coupled cylinders are more complex especially for 2 ≤
Ur ≤ 10. For α = 0°, the maximum values of
and
on the large cylinder decrease by 26.2% and 19.4% compared with the isolated cylinder, respectively. Moreover,
of small cylinder
C2 is significantly larger for 5 ≤
Ur ≤ 10 compared with other configurations, which may be caused by the disturbances from the unsteady vortex shedding mode of large cylinder. It can be seen that the force coefficients of two coupled cylinders with
d/D = 0.3 vary significantly with different incident angles.
For α = 0°, with the decrease in
d/D, the variations in the force coefficients with
Ur for the large cylinder are similar to those of the isolated cylinder. As shown in

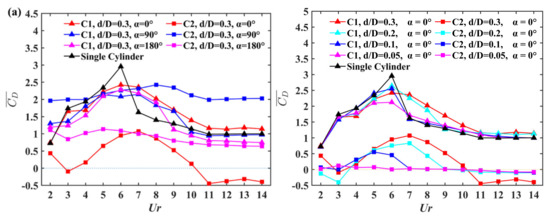

Figure 5a, the mean drag coefficient
of the large cylinder reaches the peak value at
Ur = 6 as
d/D decreases to 0.1 or 0.05, consistent with that of the isolated cylinder. When
d/D decreases to 0.05, the maximum value of
becomes smaller. Moreover, it is interesting to note that the
of the small cylinder approaches to 0 for
d/D = 0.05. For
d/D = 0.1, although the variations in
for the large cylinder are most similar to the single cylinder among all configurations, the small cylinder is subject to a certain amount of drag force for 4 ≤
Ur ≤ 6 and the values of
and
are kept at larger values for 5 ≤
Ur ≤ 6.

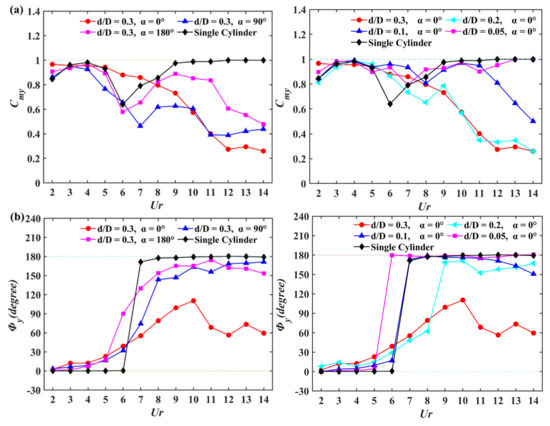

The cross-correlation coefficients and phase difference between the transverse displacement and lift force for the large cylinder at different incident angles and diameter ratios are presented in
Figure 6. The cross-correlation coefficient
of transverse displacement and lift force is calculated, similar to the method used in Gao et al. [
32], as follows:
where
is the time lag. The phase angle
between the transverse vibration amplitude and lift force is calculated from the phase difference between the peak frequency component of the vibration amplitude and lift force at the same frequency.
As shown in
Figure 6, the correlation coefficient of the isolated cylinder between the transverse vibration amplitude and lift force is about 1 when they are in phase or anti-phase with each other [
33], and the minimum value of the maximum correlation coefficient
reaches to 0.64 for
Ur = 6. When
Ur increases to 7,
changes from 0° to 170°. The responses of lift force and transverse displacement are always in the in-phase or anti-phase modes, while the variations in the maximum correlation coefficients are more complicated for two coupled cylinders than that of the isolated cylinder. For
d/D = 0.3, when the harmonic of the transverse vibration amplitude and lift force is in anti-phase, the maximum correlation coefficients of two coupled cylinders at different incident angles are smaller than 1. Moreover, the maximum value decreases to about 0.27 at high reduced velocities
Ur ≥ 12 for α = 0°. The decrease in the correlation coefficient may be due to the enhancement of nonlinear effects of the vortices shed from two coupled cylinders. The vortices shed from the surfaces of two cylinders are influenced by the gap flow, which may lead to phase variation between the lift force and vibration displacement. As shown in
Figure 4b, the peak of the spectra at large reduced velocity is not obvious and the spectra of the transverse displacement for two cylinders are broadband with multiple peak frequencies, which indicates that the variations in the transverse vibration amplitude and lift force are significantly random. Different from the sudden change in the phase for the isolated cylinder at
Ur = 7, the phase of two coupled cylinders gradually changes at 4 ≤
Ur ≤ 10 for α = 90° or α = 180°. It is interesting to note that for α = 0°, the phase is always in the transition at high reduced velocities and not strictly in-phase or anti-phase. In the VIV of two coupled cylinders, the phase shift between transverse vibration amplitude and lift force for
d/D = 0.3 or 0.2 appears to be significantly different from that of the isolated cylinder at different incident angles. For the larger diameter ratio, there is no relatively regular periodic motions in the lock-in region and the corresponding vibration displacement is poorly correlated with the lift force.
As the diameter ratio decreases, the effects of the small cylinder on the correlation coefficients and phase angles of two coupled cylinders become weak for α = 0°. The phase angle is about 0° for Ur ≤ 6 and jumps to 180° for Ur ≥ 7, and there is no transition phase for d/D = 0.3 and α = 90° or 180°. However, both the correlation coefficient and phase angle decrease with Ur for Ur ≥ 12, which indicates the transverse vibration amplitude and lift force coefficient are not strictly anti-phase. When d/D decreases to 0.05, the minimum value of the correlation coefficient is observed at Ur = 7, while changes from 0° to 180° as Ur increases to 6. At Ur > 6, the phase angle is about 180°, indicating that the transverse displacement is in anti-phase with the lift force coefficient. It can be seen that as d/D decreases to 0.05, the correlation coefficients and phase angle of two coupled cylinders are almost similar to those of the isolated cylinder.
3.3. Trajectory Response

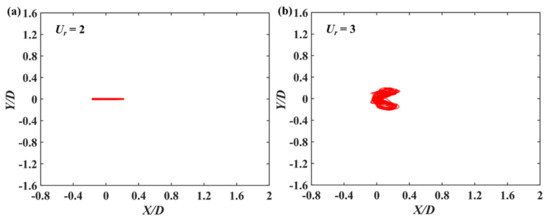

As shown in
Figure 7,
Figure 8,
Figure 9 and
Figure 10, the X-Y trajectories of the two coupled cylinders are different at different incident angles and diameter ratios. These figures show that the dynamic responses are strongly depended on the incident angle, spacing ratio, and reduced velocity. For the case of α = 0° and
d/D = 0.3, the streamwise vibration response is dominant and the transverse vibration amplitude is extremely small at low reduced velocity
Ur = 2. For
Ur = 3, the trajectories are chaotic and similar to the shapes of “flat
Figure 8”, the reason may be attributed to the effect of streamwise vibration on the transverse vibration frequency. With the increase in reduced velocities
Ur to 5 and 6, the transverse vibration amplitude becomes dominant. Moreover, the trajectories of two coupled cylinders become more regular, exhibiting the disordered figure of “8”.

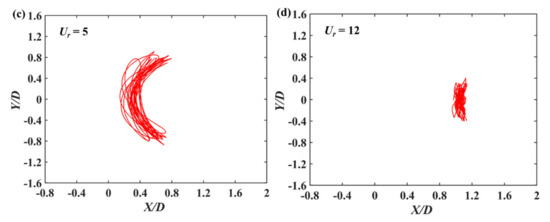

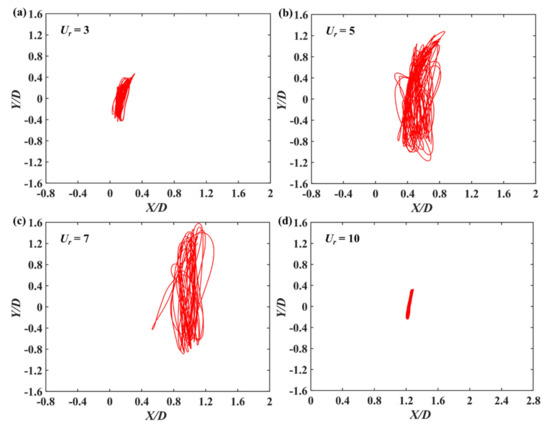

For the incident angle α = 90° and
d/D = 0.3 presented in
Figure 8, different from the configuration for α = 0°, the trajectories exhibit inclined enclosed loop shapes, which are slightly disordered. At 5 ≤
Ur ≤ 7, more chaotic trajectories are observed. For 10 ≤
Ur ≤ 13, the trajectories become regular and exhibit the inclined enclosed loop shapes. When two cylinders are arranged at α = 90°, the trajectories are not strictly symmetrical along the cross-flow direction and present a certain inclination, which indicates that the presence of small cylinder has significant effects on the vibration response of the large cylinder. The X-Y trajectories for α = 180° with

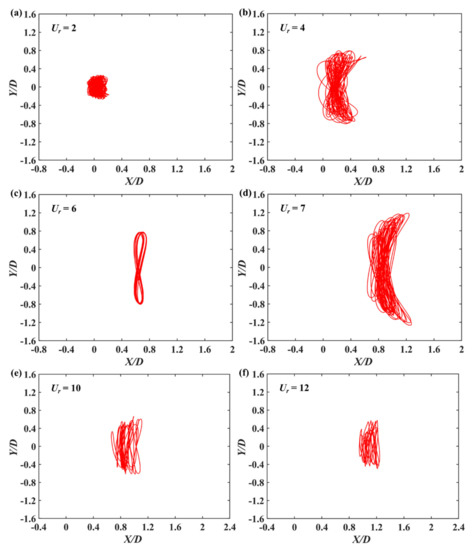

d/D = 0.3 are shown in
Figure 9. An irregular and chaotic circular trajectory is observed at
Ur = 2. The figure of “8” trajectories are observed at 4 ≤
Ur ≤ 7. Moreover, the trajectories exhibit the enclosed loop shape and become more chaotic at high reduced velocities
Ur ≥ 10.
To investigate the effect of diameter ratios on the motion trajectory responses of two coupled cylinders, the X-Y trajectories of two coupled cylinders for

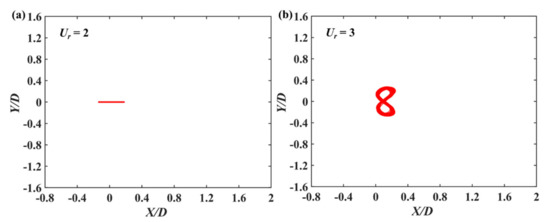

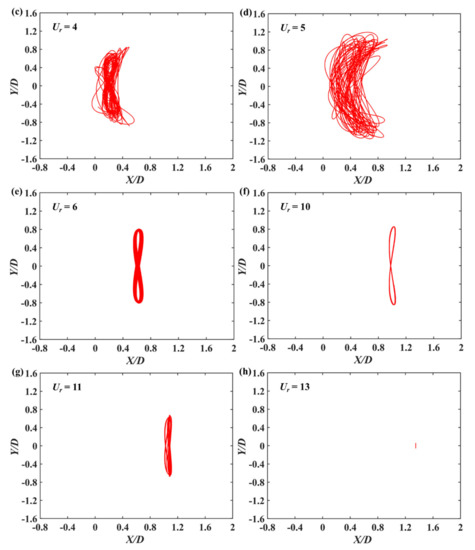

d/D = 0.05 at α = 0° with different reduced velocities are shown in
Figure 10. Different from the complex and disordered trajectories shown in
Figure 7,
Figure 8 and
Figure 9, the trajectories for small diameter ratio
d/D = 0.05 behave in a more regular manner. The trajectories of two cylinders resemble the flattened shape of “8” at
Ur = 3. As the reduced velocity
Ur increases to 4 and 5, the trajectories become a little chaotic, but show obvious figures of “8”. The dynamic response of the system in the lock-in region is disturbed slightly due to the presence of small cylinder. At
Ur ≥ 6, the trajectory behaves as an obvious figure of “8”. As
Ur increases to 13, the transverse vibration amplitude decreases significantly.
3.4. Wake Flow Pattern

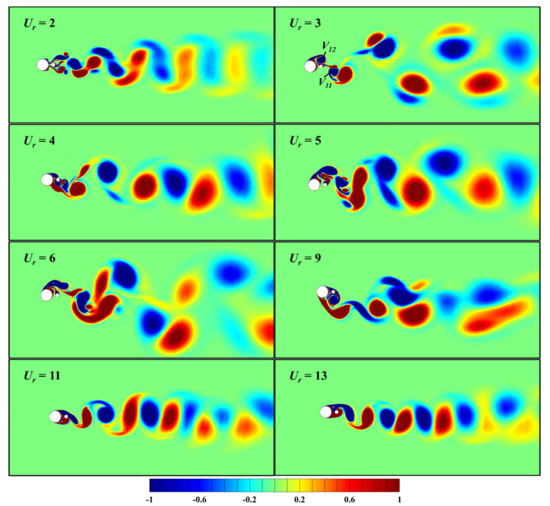

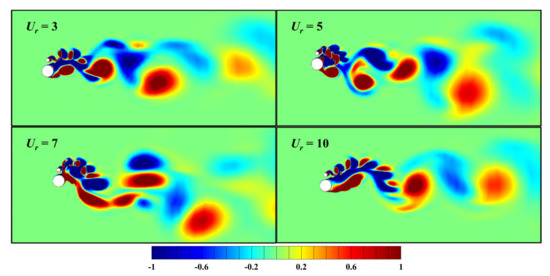

Figure 11,
Figure 12 and
Figure 13 show the instantaneous vorticity contours behind two coupled cylinders with
d/D = 0.3 at different incident angles. The incident angle and reduced velocity play important roles in the wake flow pattern behind two coupled cylinders.
At α = 0°, the vortices shedding from the large cylinder impinge on the small cylinder and separate on the top and bottom sides due to the dominant streamwise motion at Ur = 2. The vortex shedding mode in the far wake is similar to 2S mode. When Ur increases to 3, a negative vortex from the large cylinder divides into two small vortices during the formation process, leading to a “2P” vortex shedding mode. Then the wake flow pattern becomes 2S mode at Ur = 4. As the reduced velocity further increases to 6 ≤ Ur ≤ 9, the vortices shedding become more complicated. Moreover, the typical and regular vortex shedding pattern of VIV is not observed, leading to the significant chaotic motions of two coupled cylinders. An obvious 2S mode is observed at high reduced velocities 11 ≤ Ur ≤13.

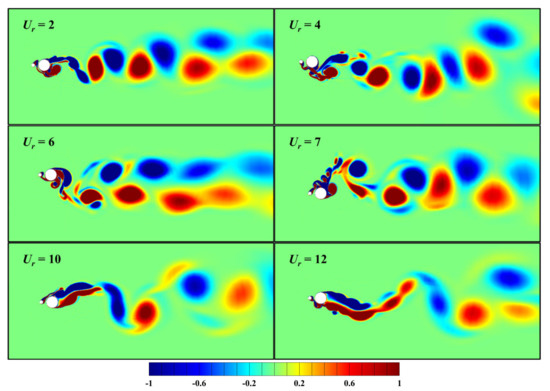

For the case of
d/D = 0.3 and α = 90°, the presence of the small cylinder plays an important role on the vortex shedding from the large cylinder, resulting in a more complex and chaotic flow field. The vortices shedding from two coupled cylinders are amalgamated. A pair of vortices is shed from the rear side of the two coupled cylinders and a triplet or quadruplet is observed on the upside. The wake flow pattern is significantly irregular at different reduced velocities. For α = 180° shown in
Figure 13, the wake flow pattern can be classified as 2S at
Ur ≤ 4. As
Ur increases to 7, similar to the case of α = 90°, the vortex shedding from the surface of small cylinder is amalgamated with the shear layer on the upper side of large cylinder. The vortices shed from the small cylinder significantly affect the vortex shedding pattern of two coupled cylinders. For
Ur ≥ 10, the vortices attach to the surface of the large cylinder for a long period and the vortex formation length increases compared with
Ur ≤ 9, which indicates that the transverse displacement decreases with slower separation of shear layer.
For the case of

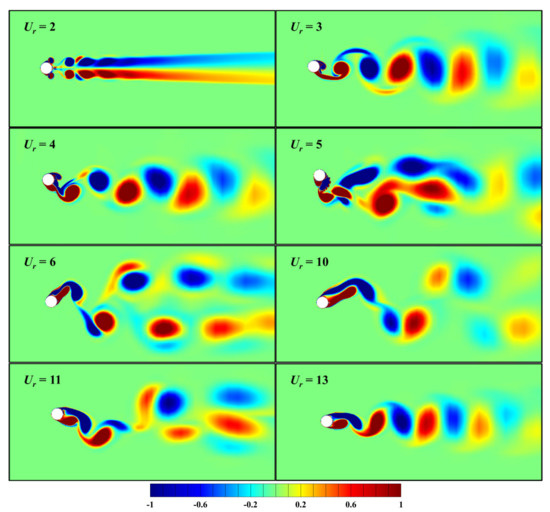

d/D = 0.05 and α = 0° as shown in
Figure 14, with the decrease in the diameter ratio, the flow field becomes more regular. A symmetric pair of vortices is observed at
Ur = 2. As
Ur increases to 3 ≤
Ur ≤ 4, a 2S mode is observed obviously. For
Ur = 5, the flow field becomes slightly irregular, and the vortex pattern is similar to a P+S mode. The vortices shed from the small cylinder suppress the normal formation and development of vortices shed from the large cylinder. As the reduced velocity further increases to 6 ≤
Ur ≤ 10, the vortex pattern becomes a 2P mode, corresponding to the lower branch. With the increase in reduced velocities, the vortex shedding pattern changes to a 2S mode for
Ur ≥ 13. The variation in the wake flow patterns of two coupled cylinders is similar to that of an isolated cylinder, which indicates that the effect of small cylinder on the coupled system becomes weakened with the decrease in the diameter ratio.
In order to provide a better understanding of the flow topology modifications induced by a small cylinder, the instantaneous vorticity fields in one vibration period
T are further analyzed. The instantaneous vorticity contours for
d/D = 0.3, α= 0° and
Ur = 5 are presented in

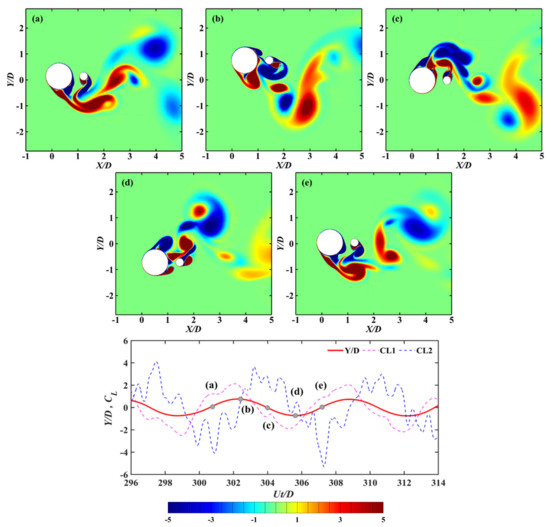

Figure 15. At
Ut/D = 300.8, the positive vortices are shed from the bottom side of the large cylinder surface. At
Ut/D = 302.4, the negative vortices shed from the large cylinder surface are merged with those shed from the small cylinder. The appearance of the negative vortices below the cylinders complicates the variations in the lift force coefficients of two coupled cylinders, leading to a slightly disordered figure of “8”. The flow field and dynamic response become complicated with the presence of the small cylinder.
For
d/D = 0.3, α= 90°, and

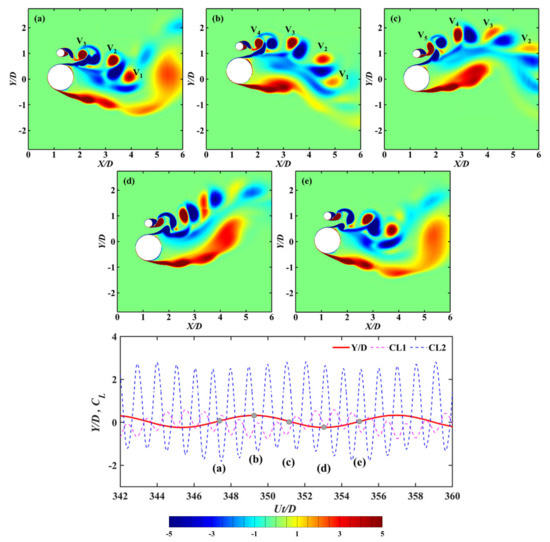

Ur = 10, more complex interactions are observed in
Figure 16. Since the gap distance between two cylinders is sufficiently large the drop-off of the shear layer is not directly affected by large cylinder. It can be seen from the time histories of Y-displacement and
, two cylinders have four lift periods in one vibration period, leading to the large positive vortex in the rear of large cylinder consisting of four small vortices. Moreover, the large period is consistent with the vibration period. A typical galloping phenomenon is observed at a remarkably lower frequency with respect to the vortex shedding frequency. The vibration of the coupled two-cylinder system in one cycle is affected by the combination of four pairs of vortices. At
Ut/D = 347.4 and 349.3, three or four pairs of vortices shed from the small cylinder are mixed with the vortex on the top side of the large cylinder and the vortex formation length of the large cylinder increases due to the presence of the small cylinder, resulting into the smaller vortex intensity on the top side than that on the bottom.
The instantaneous vorticity contours for
d/D = 0.05, α = 0°, and

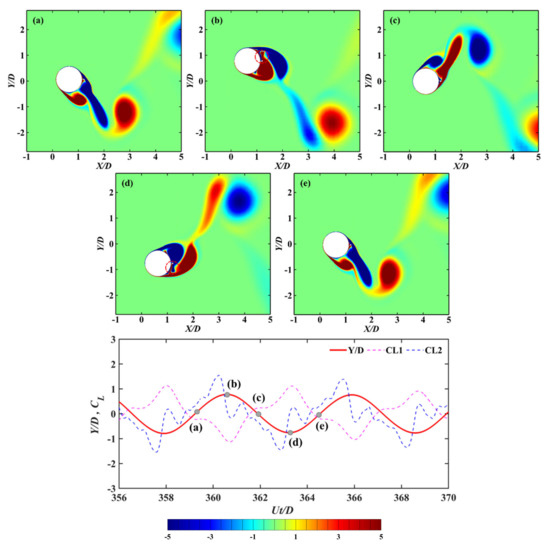

Ur = 6 are shown in
Figure 17. When two coupled cylinders move to the uppermost position, a pair of vortices is formed above small cylinder and interact with the upper shear layer of large cylinder. The vortices shed from the two lateral sides of the small cylinder with opposite sign are canceled out, resulting in the drag coefficients of small cylinder being almost zero. As can be seen from
Figure 17b–d, the small cylinder is always surrounded by vortices of the large cylinder when the cylinders move from the uppermost position to the lowest position. The vortex pattern of the coupled cylinders is similar to that of a single cylinder, and the coupled cylinders can be regarded as a single bluff body. Although the vortex shedding of the large cylinder appears not to be significantly affected by small cylinder, the presence of small cylinder has an effect on the fluctuation of the lift coefficients of two cylinders.
