Computing Vegetation Indices from the Satellite Images Using GRASS GIS Scripts for Monitoring Mangrove Forests in the Coastal Landscapes of Niger Delta, Nigeria

Abstract

This paper addresses the issue of the satellite image processing using GRASS GIS in the mangrove forests of the Niger River Delta, southern Nigeria. The estuary of the Niger River Delta in the Gulf of Guinea is an essential hotspot of biodiversity on the western coast of Africa. At the same time, climate issues and anthropogenic factors affect vulnerable coastal ecosystems and result in the rapid decline of mangrove habitats. This motivates monitoring of the vegetation patterns using advanced cartographic methods and data analysis. As a response to this need, this study aimed to calculate and map several vegetation indices (VI) using scripts as advanced programming methods integrated in geospatial studies. The data include four Landsat 8-9 OLI/TIRS images covering the western segment of the Niger River Delta in the Bight of Benin for 2013, 2015, 2021, and 2022. The techniques included the ’i.vi’, ’i.landsat.toar’ and other modules of the GRASS GIS. Based on the GRASS GIS ’i.vi’ module, ten VI were computed and mapped for the western segment of the Niger River Delta estuary: Atmospherically Resistant Vegetation Index (ARVI), Green Atmospherically Resistant Vegetation Index (GARI), Green Vegetation Index (GVI), Difference Vegetation Index (DVI), Perpendicular Vegetation Index (PVI), Global Environmental Monitoring Index (GEMI), Normalized Difference Water Index (NDWI), Second Modified Soil Adjusted Vegetation Index (MSAVI2), Infrared Percentage Vegetation Index (IPVI), and Enhanced Vegetation Index (EVI). The results showed variations in the vegetation patterns in mangrove habitats situated in the Niger River Delta over the last decade as well as the increase in urban areas (Onitsha, Sapele, Warri and Benin City) and settlements in the Delta State due to urbanization. The advanced techniques of the GRASS GIS of satellite image processing and analysis enabled us to identify and visualize changes in vegetation patterns. The technical excellence of the GRASS GIS in image processing and analysis was demonstrated in the scripts used in this study.

1. Introduction

1.1. Background

This paper presents a GRASS GIS-based mapping framework for computing and visualization Vegetation Indices (VI). The GRASS GIS provides a principled way to calculate the VI from the bands of the satellite images using special module ’i.vi’. We derived experimental performance bounds of the GRASS GIS for remote sensing data analysis, and demonstrated its utility with a challenging task of environmental monitoring of mangroves ecosystems located in the coastal area of the Niger River Delta in southern Nigeria, West Africa.

Mangroves have a high environmental and socioeconomic value. They provide important functions as a habitat for species that live in the intertidal environment [1] and services for human well-being including economic, environmental, and social aspects [2]. At the same time, recently mangrove ecosystems threatened with extinction which is proved by the increasing rate of deforestation [3,4,5,6]. Identifying the conditions and dynamics of mangrove ecosystems is possible through the comparison of the VI computed from the bands of the satellite images [7,8,9]. The VI enable the investigation of the spatial-temporal trends in the distribution of mangroves detected when comparing several images.

Remote sensing data and advanced programming methods provide a valuable combination for monitoring mangrove distribution to evaluate the level of degradation [10]. This is possible due to the fundamental feature of the remote sensing data of different absorption and reflectance of solar radiation by various land cover types: water, vegetation, urban spaces, deserts, sands, bare soil, and rocks. Moreover, spectral reflectance of diverse types of vegetation vary across various channels of satellite images. This enables us to detect various patterns of vegetation and discriminate them from other land cover types. The combination of spectral bands of a satellite image enables us to calculate and visualise the distribution of vegetation patterns as characteristics of the Earth’s landscapes [11,12,13].

Comparison of the VI computed from the images taken for several consecutive years enables us to evaluate the vegetation patterns [14,15]. This approach builds on quantifying the difference between the values of pixels on bands in a satellite image. Since spectral reflectance of pixels corresponding to vegetation varies in selected channels, e.g., Near-Infrared (NIR) and Red, such properties can be used for discriminating healthy green plants. For instance, the Normalized Difference Vegetation Index (NDVI) is a well known indicator of vegetation health and is widely used for assessment of degradation in sensitive coastal ecosystems through the ratio of NIR and Red [16,17]. Besides the NDVI, other indices have been developed which differ in their computational approach, various combinations of Red and NIR bands or addition of other bands, e.g., Green, Blue, SWIR [18,19].

Previous studies used the Geographic Information System (GIS) to quantitatively evaluate and map environmental degradation and decline of vegetation of mangroves [20,21,22,23,24]. However, there is a deficiency in functionality of the traditional GIS: slow-speed data processing, manual operational workflow and subjectivity and biased data analysis. In contrast, using programming techniques support accurate computations and mapping [25,26,27,28,29] presenting more advanced tools for environmental monitoring of mangroves. This paper is a continuation of our previous work [30] on the use of GRASS GIS scripts for cartographic data processing, where spatial data were processed by the GRASS GIS modules. Herein, we provided an extended application of scripts towards satellite image analysis and used GRASS GIS for computing the VI to achieve a better performance compared to the traditional GIS in terms of both accuracy through automation of data processing, and computational costs due to open source availability of the GRASS GIS. Specifically, we computed several VI to evaluate their performance for monitoring mangrove ecosystems.

1.2. Study Focus

Mangroves are a unique halophyte type of the shrubs and forests that have a unique complex root system with prop roots [31]. Mangroves exist only in the saline waters of the intertidal coastal zone of tropics and subtropics. Southern Nigeria, located along the tropical coasts of the Atlantic Ocean, has favorable environmental and climate setting for mangrove distribution. In particular, the Niger River Delta has the most extensive area of mangroves in West Africa [32], and it is the third largest wetland in the world [33]. A wide variety of mangrove species are adapted to the environmental setting of Nigeria [34,35]. For instance, the Niger River Delta (Figure 1) provides a habitat for Rhizophora which is the most common species located along the coasts, or shrub genera Avicennia and Laguncularia that growth in the lagoon areas of southern Nigeria [36]. The dynamics of mangrove habitats and the distribution of these species depend on various factors—salinity [37,38,39], distance from coast, repeatability of tidal cycles and freshwater inflow. Other factors include landscape characteristics that vary in the coastal ecosystems of southern Nigeria in the lagoon, mud beach, the Niger River Delta and in the coastal areas that extend along the coasts of the Bight of Benin in the Gulf of Guinea [40]. The mangrove forests have a year-round growing season which continuous vegetation cycle in the mangrove development which includes opening the forest canopy, growing rapidly young trees, and mature phase formed by the large trees [41].

The deforestation of mangrove forests in southern Nigeria has diverse reasons. The most important are the effects from climate change such as temperature and rainfall variability [45,46,47], because the Niger River Delta is the most vulnerable region to climate issues in Nigeria [48,49]. Specifically, the decrease in precipitation and rise in temperatures results in changed balance of the saline-fresh water with regard to hydrology, and variations in the length of periods of dry and wet seasons with regard to soil-landscapes systems. As a consequence, this results in land cover change and deforestation [50,51]. Furthermore, environmental processes such as droughts, soil erosion, and the invasion of external species also affect the health of mangroves ecosystems [52]. Finally, the impacts of wave variability and increased frequency of flash floods changed the shape of the coastlines and contributed to sea level rise and land subsidence, which in turn affected mangrove habitats [53,54].

Another important threat to the distribution of mangroves is presented by the anthropogenic activities such as oil and gas exploration in the Niger River Delta [55], which results in environmental problems such as oil bunkering, oil spillage [56], refining of crude oil [57]. Related processes include air pollution due to gas flaring, fossil fuel burning and transportation contribute to the degradation of the coastal landscapes [58]. Oil spillage increases the concentration of the polycyclic aromatic hydrocarbons in the sediments [59]. In turn, the dynamics of the suspended sediments is controlled by different density in fresh and salt waters, energy of waves and tides [60]. In contrast to the turbulent waters, the pollution in the Niger River Delta is aggravated by a more complex hydromorphological structure of the tidal network [61].

Due to a dense pattern of fluvial and tidal channels, bars and inner lakes interspersed in the lower plain of the Niger River Delta, polluted water remains stagnant. Furthermore, clayey soil texture in the meander belt of the Niger River Delta [62] creates favorable conditions for the accumulation of pollutants and toxic chemicals [63,64,65], and retains heavy metals [66,67,68]. All these factors facilitate the spread of oil into stagnant waters of delta and contribute to the decline of mangroves [69,70,71]. The habitats of mangroves are also affected by industrial works such as road construction, housing, clearing waterfront vegetation [72], and the development of seaports, which all affected the natural landscapes of the Niger River Delta [73]. Finally, the use of aquaculture reagents in the Niger River Delta lead to the pollution of waters which resulted in the decline of mangrove landscapes by up to 35% since 1960s [74].

Losses in mangroves in the coastal landscapes at a global scale are reported to be up to 62% between 2000 and 2016, as a result of the land-use change, expansion of the aquaculture land, fishing, and agriculture plantations [75]. Such activities contribute to the environmental changes in the coastal regions of West Africa [76,77,78]. Finally, timber production, wood harvesting, expansion of agriculture and bio-fuel plantations, and coastal development contribute to the extinction of mangroves [79]. The cumulative effects from all these triggers lead to the decline of mangroves at high rates and reduce the number of their remaining habitats. As a result, mangrove forests are nowadays among the most vulnerable marine ecosystems in West Africa [80].

2. Materials and Methods

The distribution of the mangroves within the coastal landscapes of Nigeria was evaluated by using ten different vegetation indices, namely: Atmospherically Resistant Vegetation Index (ARVI), Green Atmospherically Resistant Vegetation Index (GARI), Green Vegetation Index (GVI), Difference Vegetation Index (DVI), Perpendicular Vegetation Index (PVI), Global Environmental Monitoring Index (GEMI), Normalized Difference Water Index (NDWI), Second Modified Soil Adjusted Vegetation Index (MSAVI2), Infrared Percentage Vegetation Index (IPVI), and Enhanced Vegetation Index (EVI). Technically, the methods of computing the ten VI were implemented using the GRASS GIS scripts.

2.1. Data

Rapid growth of the satellite data derived from the Earth observation sensors enhances the cartographic possibilities of the environmental monitoring of the coastal landscapes. The Landsat 8-9 OLI/TIRS images have become a precious data source for a wide range of geospatial applications, e.g., monitoring the coastal ecosystems that are difficult to access, such as mangrove habitats in southern Nigeria. The advantages of the Landsat scenes consist in multi-spectral characteristics and global temporal and spatial coverage which enable to derive information on the Earth’s landscapes. The Landsat 8-9 OLI/TIRS images have 11 spectral bands including visible, thermal, and panchromatic ones, which can be used for the analysis of the reflectance spectra for a particular land cover types and their spatial and spectral characteristics.

Specifically for inaccessible areas of mangrove ecosystems in southern Nigeria, the Landsat data provide a precious source of spatial information which enables accurate mapping and analysis of the vegetation patterns. Processing the satellite images by the advanced scripting technologies is an effective and profitable means of data analysis and information retrieval. Due to such reasons, we used the Landsat 8-9 OLI/TIRS satellite images to monitor the decline in mangrove habitats based on the computed and visualized ten VI which cover the western segment of the Niger River Delta. The images were collected for the following years: 2013, 2015, 2021, and 2022, see Figure 2.

The data capture was performed using the EarthExplorer repository of the USGS (URL https://earthexplorer.usgs.gov/ (accessed on 3 March 2023)), with main metadata summarized in

Table 1. Satellite images used for computing ten VIs: Landsat 8-9 OLI/TIRS from the USGS ¹.

Date	Spacecraft	Landsat Product ID	Scene ID	Cloudiness
20 December 2013	Landsat 8	LC08_L1TP_189056_20131220_20200912_02_T1	LC81890562013354LGN01	6.46
26 December 2015	Landsat 8	LC08_L1TP_189056_20151226_20200908_02_T1	LC81890562015360LGN01	17.54
18 December 2021	Landsat 8	LC09_L1TP_189056_20211218_20220121_02_T1	LC91890562021352LGN01	32.32
29 December 2022	Landsat 9	LC08_L1TP_189056_20221229_20230104_02_T1	LC81890562022363LGN00	0.59

¹ The Sensor ID is common for all the scenes: Landsat 8-9 OLI/TIRS (Operational Land Imager and Thermal Infrared Sensor), Collection 2 Level-2. Path/row parameters are common for all the images: 189/56. Coverage: Niger River Delta, southern Nigeria, the Bight of Benin. Image source: United States Geological Survey (USGS).

.

Among all the existing Landsat products, the Landsat OLI/TIRS sensor has improved technical and spectral characteristics, such as narrower spectral bands including Red and NIR channels which are crucial for calculation of the VI. Moreover, it has better calibration, higher radiometric resolution and corrections signal for noise. A thorough comparative analysis of the Landsat OLI/TIRS against earlier sensors is presented in [81]. Since the spectral characteristics of the older Landsat products (TM and MSS) have coarser parameters, we only used the images obtained from the Landsat OLI/TIRS. At the same time, the first Landsat 8 OLI/TIRS sensor was launched in 2013, which explains the choice of the first image selected in this study. Another important parameter for data selection was low cloudiness of the images and comparable span for a short time series.

The images were imported into the GRASS GIS software and processed for data analysis and visualization using modules for satellite images and raster data processing. The mapping of mangroves of Nigeria using satellite images and GIS techniques has been attempted and reported earlier [82,83,84,85] with proven effectiveness of the satellite data for monitoring mangroves. We continued these and similar studies by applying the programming methods of the GRASS GIS scripts instead of the traditional approaches of GIS for computing the VI of the landscapes in southern Nigeria.

While the Landsat 8-9 OLI/TIRS images formed the dataset for computing and visualizing the VI, the GEBCO/SRTM raster data were used for visualizing the base map for this study using the techniques of the Generic Mapping Tools (GMT) scripts [86,87]. To determine the variation in a spatial extent of the mangroves in western segment of the Niger River Delta, ten VI representing the distribution of healthy vegetation were computed to discriminate the swamp forests from the other land cover types such as water, urban areas and agricultural lands. The image processing was implemented using the GRASS GIS, version 8.2.1, URL https://grass.osgeo.org/ (access date 3 March 2023). The GRASS GIS scripts were used in the ’i.vi’ module, which was applied for computing the VI along with auxiliary modules.

2.2. Data Preprocessing

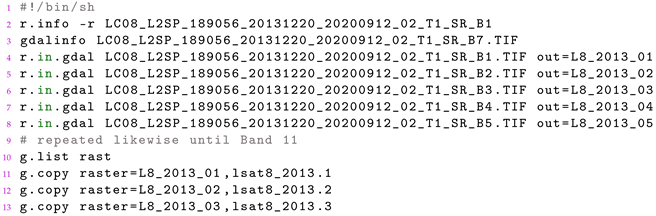

The GRASS GIS code used for data preprocessing is presented in Listing A1. It includes the steps of importing Landsat channels by the Geospatial Data Abstraction Library (GDAL) and selected auxiliary modules. The GDAL library was applied to import raster images of the subset with 11 Landsat bands into the GRASS GIS mapset using the r.in.gdal module. After importing, the data were checked and listed using the g.list module which lists the available files in a working folder. Then, the metadata of the selected random bands were inspected using the gdalinfo module. The raster metadata were displayed using the r.info module for further display of the raster maps.

The principal approach here was the conversion of the digital numbers (DN) of the pixel values into the reflectance values which were used for computing the VI, as shown in Listing A1. Afterwards, the 11 Landsat bands were reformatted and copied to match the input structure of the i.landsat.toar through the g.copy module. The i.landsat.toar module was used to remove the haze effect from the original scenes by correction of the top-of-atmosphere radiance in the Landsat bands. The conversion of the DN pixel values into the reflectance values was implemented by using the DOS1 method. Upon the completing of the data preprocessing, the ten VI were computed using the processed bands by the i.vi module, as described below in the relevant subsections.

2.3. Atmospherically Resistant Vegetation Index (ARVI)

The Atmospherically Resistant Vegetation Index (ARVI) is based on using the spectral bands with wavelengths ranging between 0.650 µm and 0.865 µm. In the Landsat 8-9 OLI sensor, this corresponds to the Bands Red (0.64–0.67 µm) and NIR (0.85–0.88 µm). Additionally, the Blue band with wavelength of 0.45–0.51 µm in the Landsat OLI/TIRS is distracted from the Red band according to Equation (1), [88,89]:

$$ARVI=\frac{NIR-(2.0\times Red-Blue)}{NIR+(2.0\times Red-Blue)}.$$

(1)

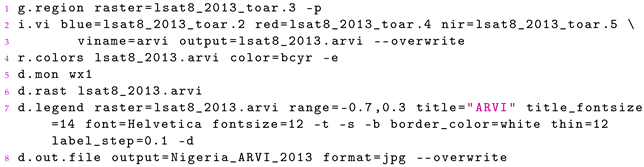

In the GRASS GIS, the ARVI was computed using Listing A2 presented in the Appendix A.2.

The advantage of ARVI is that it reduces the role of the atmospheric scattering that affects the images. Such effects are caused by the aerosols of both natural origin (e.g., rain and fog) or urban air pollution (e.g., dust or smog). Initially proposed and developed for the assessment of vegetation from the Earth Observing System (EOS) Moderate Resolution Imaging Spectroradiometer (MODIS) sensor, ARVI can also be applied for the Landsat OLI/TIRS sensors since it contains necessary spectral bands: Blue, Red and NIR.

2.4. Green Atmospherically Resistant Vegetation Index (GARI)

The Green Atmospherically Resistant Index (GARI) is more perceptive to a wide range of chlorophyll content in leaves of mangroves. This correlates with the difference between the reflectance of Green, Red and NIR bands, since the Green band is used in the formula of GARI, in addition to Red and NIR spectral bands. Adding the Blue spectral band makes it less dependent on possible atmospheric effects such as aerosol conditions. The theoretical computation of GARI is based on Equation (2), developed initially by [90]:

$$GARI=\frac{NIR-(Green-(Blue-Red\left)\right)}{NIR+(Green-(Blue-Red\left)\right)}.$$

(2)

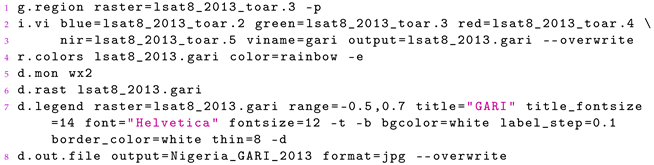

The computation of GARI in the GRASS GIS was performed according to the embedded formula and performed by Listing A3, as shown in the Appendix A.3.

2.5. Green Vegetation Index (GVI)

The technique of the Tasselled Cap transformation in remote sensing was originally developed by [91]. The Tasselled Cap GVI provides more detailed information on the distinct features of the landscapes such as plant canopy, water bodies and bare land or sandy areas. The method of the Tasselled Cap performs a transformation of the original pixels in bands into a new 4D dimension where the following parameters are separated: soil brightness index, green vegetation index (GVI), yellow stuff index, and those related to atmospheric effects [92]. Of these, we used the GVI, which is based on the estimation of greenness in leaves of mangrove canopies as information on values of the weighted sums of pixels derived from the color composites of the Landsat bands. The computation of the Tasselled Cap Green Vegetation Index (GVI) was based on Equation (3) developed by [93]:

$$\begin{array}{c}\hfill GVI=-0.2848\times Blue-0.2435\times Green-0.5436\times Red+ \\ \hfill \hspace{1em}+0.7243\times NIR+0.0840\times SWIR1-0.1800\times SWIR2.\end{array}$$

(3)

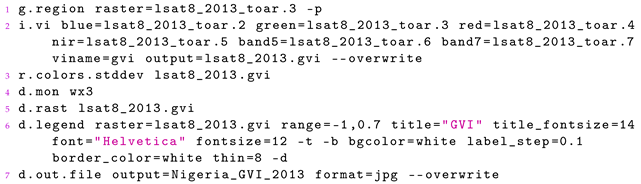

We used Listing A4 for the computation of of the GVI, as shown in the Appendix A.4.

2.6. Difference Vegetation Index (DVI)

The advantage of the Difference Vegetation Index (DVI) consists in the discrimination of soil from the vegetation biomass. However, the disadvantage is that it does not considers the difference between the spectral reflectance and radiance of soil surface caused by the atmospheric effects [94]. The use of the DVI is based on the ratio between the NIR and Red spectral bands [95] as shown in Equation (4):

$$DVI=(NIR-Red).$$

(4)

This is the original formula used later in a modified version for computing the NDVI, which is based on the DVI in the adjusted way and has been applied in many works [96,97,98] as shown in Equation (5):

$$NDVI=\frac{(NIR-Red)}{(NIR+Red)}.$$

(5)

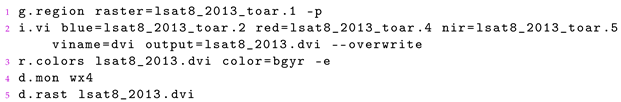

The above formulae are embedded in the GRASS GIS in the function ‘dvi’ of the module i.vi used for computing the DVI as illustrated in Listing A5.

2.7. Perpendicular Vegetation Index (PVI)

The use of the PVI is based on the formula originally developed by [99]. Sensitive to the atmospheric variations, the PVI is intended to monitor the productivity of range, forest, and croplands. Similar to DVI, it measures the perpendicular distance of the pixels from the soil line, since it is based on the assumption that soil reflectance supplies the background signal of the vegetated surfaces. The formula used for calculation of the PVI is presented in Equation (6):

$$PVI=\frac{1}{\sqrt{a^2+1}}\times (NIR-aR-b),$$

(6)

where a and b are constants indicating slope and gradient of the soil line and R is a Red band (for the Landsat OLI/TIRS sensor, it is a spectral Band 4). However, the embedded formula of GRASS GIS was slightly modified, because the calculation of the PVI here is made using the concept of “isovegetation”. The isovegetation line shows the distribution of area covered by equal types of vegetation. Therefore, the pixels in this case were parallel to the soil line which was assigned to a = 1. Hence, the constants for soil were removed and the computation of the PVI was adjusted. In this case, it included the sine and cosine of the NIR and Red channels using the following formula shown in Equation (7), [100]:

$$PVI=sin\left(a\right)NIR-cos\left(a\right)Red.$$

(7)

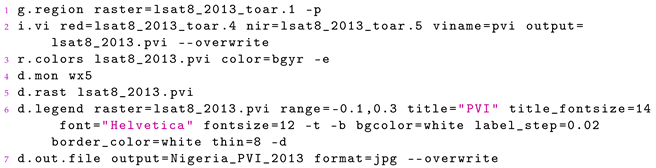

Using the syntax of GRASS GIS, we defined the PVI as follows in Listing A6, shown in the Appendix A.6.

2.8. Global Environmental Monitoring Index (GEMI)

The Global Environmental Monitoring Index (GEMI) was originally developed by Pinty and Verstraete in 1992 [101]. The formula of GEMI has a nonlinear nature and is more complex compared to the previous indices, see Equation (8). It was designed for global environmental monitoring using the remote sensing data, which explains its improved performance, which better considers all types of vegetation.

$$\begin{array}{c}\hfill GEMI=\left(\frac{2\times \left[\right(NIR\times NIR)-(Red\times Red\left)\right]+1.5\times NIR+0.5\times Red}{NIR+Red+0.5}\right)\times \\ \hfill (1-0.25\times \frac{2\times \left[\right(NIR\times NIR)-(Red\times Red)+1.5\times NIR+0.5\times Red]}{NIR+Red+0.5})-\frac{Red-0.125}{1-Red}.\end{array}$$

(8)

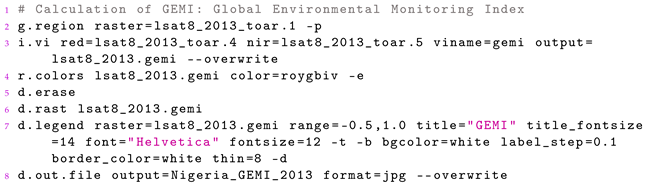

The algorithm for computing and plotting the GEMI is presented in Listing A7, shown in Appendix A.7.

Although GEMI is, in general, comparable to NDVI, it shows less sensitivity to atmospheric effects. Instead, it is influenced by the brightness of the bare soil. For these reasons, it does not work well in desert arid and semi-arid regions covered by sands, rocks, and soil with sparse or no vegetation. For the case of southern Nigeria, however, GEMI works well since tropical dense forests are suitable for the performance of this index. Moreover, the decline of mangroves is well-depicted using a comparison of GEMI several satellite images.

2.9. Normalized Difference Water Index (NDWI)

The values of the Normalized Difference Water Index (NDWI) are strongly dependent on the water content in the landscapes. Hence, the NDWI serves as an accurate indicator of the water areas and water bodies (rivers, lakes, estuaries, deltas). The NDWI is derived from the NIR and Green bands using the original formula developed by [102] as a ratio of Green and NIR spectral bands, as seen in Equation (9):

$$NDWI=\frac{green-NIR}{green+NIR}.$$

(9)

Another formula of the NDWI was proposed by [103], which is a different index withthe same name, since both indices were developed simultaneously in 1996. The NDWI by [103] focuses on the identification of water content in the plant leaves using the formula presented in Equation (10):

$$NDWI=\frac{NIR-SWIR}{NIR+SWIR}.$$

(10)

However, this is more for the semi-arid and arid regions covered by savannah. In this study, we used the NDWI proposed by [102], using Green and NIR bands for detecting areas covered by Niger River Delta, tributaries and lagoon. Using the embedded algorithm in the GRASS GIS, we can identify the NDWI using its syntax by the script shown in Listing A8 and demonstrated in Appendix A.8.

2.10. Second Modified Soil Adjusted Vegetation Index (MSAVI2)

The Second Modified Soil Adjusted Vegetation Index (MSAVI2) was adjusted to provide accurate data in sparse vegetation or plant canopies with a deficit of chlorophyll. Originally developed as Modified Soil Adjusted Vegetation Index (MSAVI) by Qi et al. in 1992 [104], MSAVI2 was slightly modified by Qi et al. in 1994 [105] with a novel developed formula presented in Equation (11) which aims at better identifying the bare soil between the seedlings during leaf development, which is useful for agricultural mapping.

$$MSAVI2=\frac{1}{2}\times \left(2\times NIR+1-\sqrt{{(2\times NIR+1)}^2-8\times (NIR-red)}\right).$$

(11)

According to the analysis of the parameters of MSAVI (NIR and Red bands in complex combinations) and its documentation, it allows the precise detection of the seasonal vegetation patterns since it includes a soil factor which varies in moisture by different seasons in Nigeria. Moreover, MSAVI2 works well in the areas of the sparse and scattered vegetation, for instance, occupied by urban infrastructure, covered by buildings and roads in the agglomerations and urbanized areas, where it shows good correlation with the NDVI [106]. Therefore, the MSAVI2 is useful for detecting urban growth in the rapidly developing towns of southern Nigeria. In GRASS GIS, MSAVI2 was computed using i.vi module by Listing A9.

2.11. Infrared Percentage Vegetation Index (IPVI)

The specifics of the Infrared Percentage Vegetation Index (IPVI) consist in the ratio-based computationally fast approach with values ranging from 0 to 1. As one can see from the formula in Equation (12), the IPVI is based on the ratio between the Red and NIR spectral bands. In this regard, it is similar and linearly equivalent to the NDVI, yet is implemented in a more straightforward way [107]:

$$IPVI=\frac{NIR}{(NIR+Red)}.$$

(12)

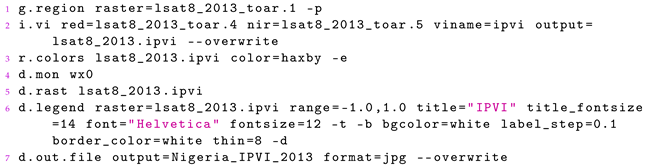

To compute and plot the IPVI, we used the GRASS GIS script presented in Listing A10 in the Appendix A.10.

2.12. Enhanced Vegetation Index (EVI)

The Enhanced Vegetation Index (EVI) was designed to quantify vegetation greenness by the combination of NIR, Red, and Blue spectral bands. The extended formula of EVI includes the corrections for the atmospheric conditions and considers the effects from the canopy background. Due to such properties, EVI is well-adjusted to identify the areas with dense vegetation which is suitable for mangrove mapping [108]. Similar to the NDVI, the values of EVI range from −1 to +1, with the range indicating healthy vegetation located between 0.2 and 0.8. The formula of EVI is presented in the Equation (13):

$$EVI=2.5\times \left(\frac{NIR-Red}{NIR+6.0\times Red-7.5\times Blue+1.0}\right).$$

(13)

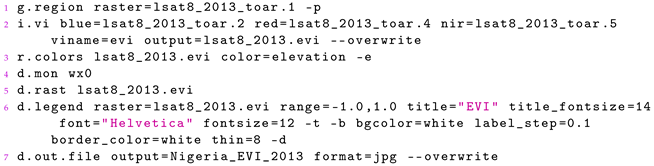

In the GRASS GIS, EVI was technically implemented using Listing A11.

3. Results

In this section, we compare and discuss the results of the computed VI with regard to their performance and suitability to identify mangrove habitats and to discriminate them against other land cover types along the coasts of southern Nigeria. The results were obtained using the GRASS GIS framework, which aimed at image processing and analysis. Ten diverse vegetation indices were calculated with the aim of finding the variations in the distribution of the vegetation patterns and, in particular, the mangrove habitats of the coastal Nigeria. The VI were visualized in maps and evaluated over several years for the target region in the western segment of the Niger River Delta. Sidewise histograms are placed on the left of the legend in each of the images, demonstrating the data distribution within the study area for each index.

Computing the vegetation indices using algorithms embedded in ‘i.ivi’ and scripting approach was integrated consistently for the comparative analysis of time series of the Landsat 8-9 OLI/TIRS images covering the Niger River Delta. The GRASS GIS modules were used in the scripting approach for automation of data processing and accurate satellite image analysis. To produce the color-consistent images and evaluate the spatio-temporal changes, these maps were derived from the computed vegetation indices and visualized in the identical color ranges for each set of the four images. The results demonstrated that the scripting methods of the GRASS GIS are effective for mapping the VI in topical regions. Specifically, the evaluation of the VI is useful for the comparative assessment of vegetation patterns and environmental monitoring in coastal Nigeria where applying and practically evaluating the programming methods for remote sensing data processing supports research on mangrove distribution through advanced cartographic tools.

3.1. Difference Vegetation Index (DVI)

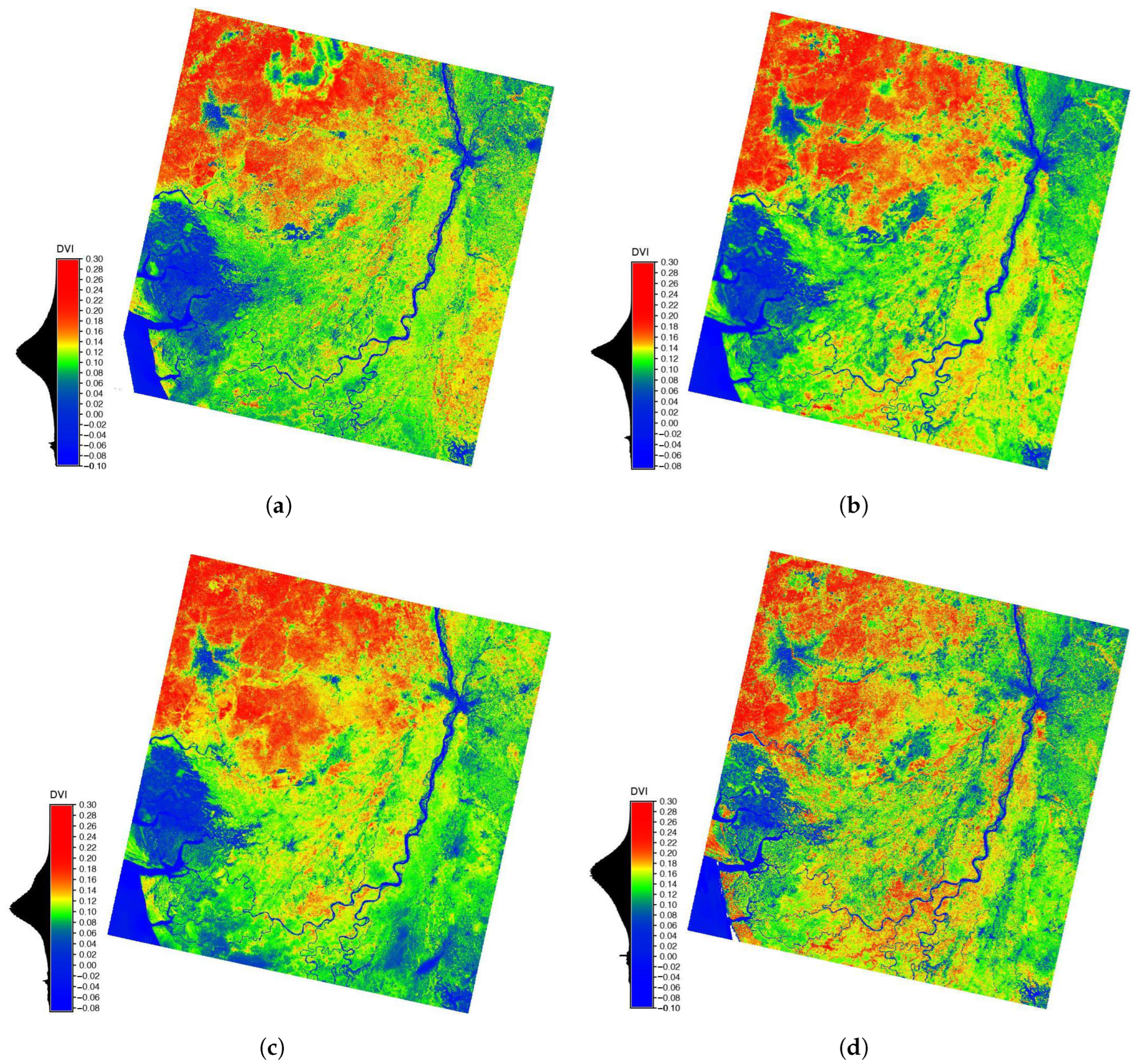

The DVI is visualized in Figure 3. The DVI (Figure 3) is a slope-based type of VI which is more straightforward to compute compared to the NDVI, which is beneficial for mangroves since they are located at the interface between land and sea. The DVI is sensitive to the total content of vegetation and density of canopy. Moreover, it well-distinguishes the areas between the bare soil and vegetation canopies in general and identifies urban areas in the small settlements.

The majority of the values obtained for 2013 are located within the range of 0.06 to 0.18 since it is the index sensitive to variations in chlorophyll content. The interpretation is as follows. The lowest values around zero indicate bare soil; slightly higher values from 0.10 to 0.12 stand for vegetation canopies, while negative values colored in blue show water bodies. The values of 2015 show a similar data range with a slight increase of upper values towards 0.20. The distribution of mangrove swamps is visible as a large slate-blue-colored spot in the left low corner of the image. The comparison of several images of 2013 and 2015 to 2021 and 2022 shows the decrease in this areas with mangroves, replaced by the values dominated by bare soils and other types of vegetation, colored in green. The bright red colors indicate tropical forests located in the northern part of the area.

3.2. Atmospherically Resistant Vegetation Index (ARVI)

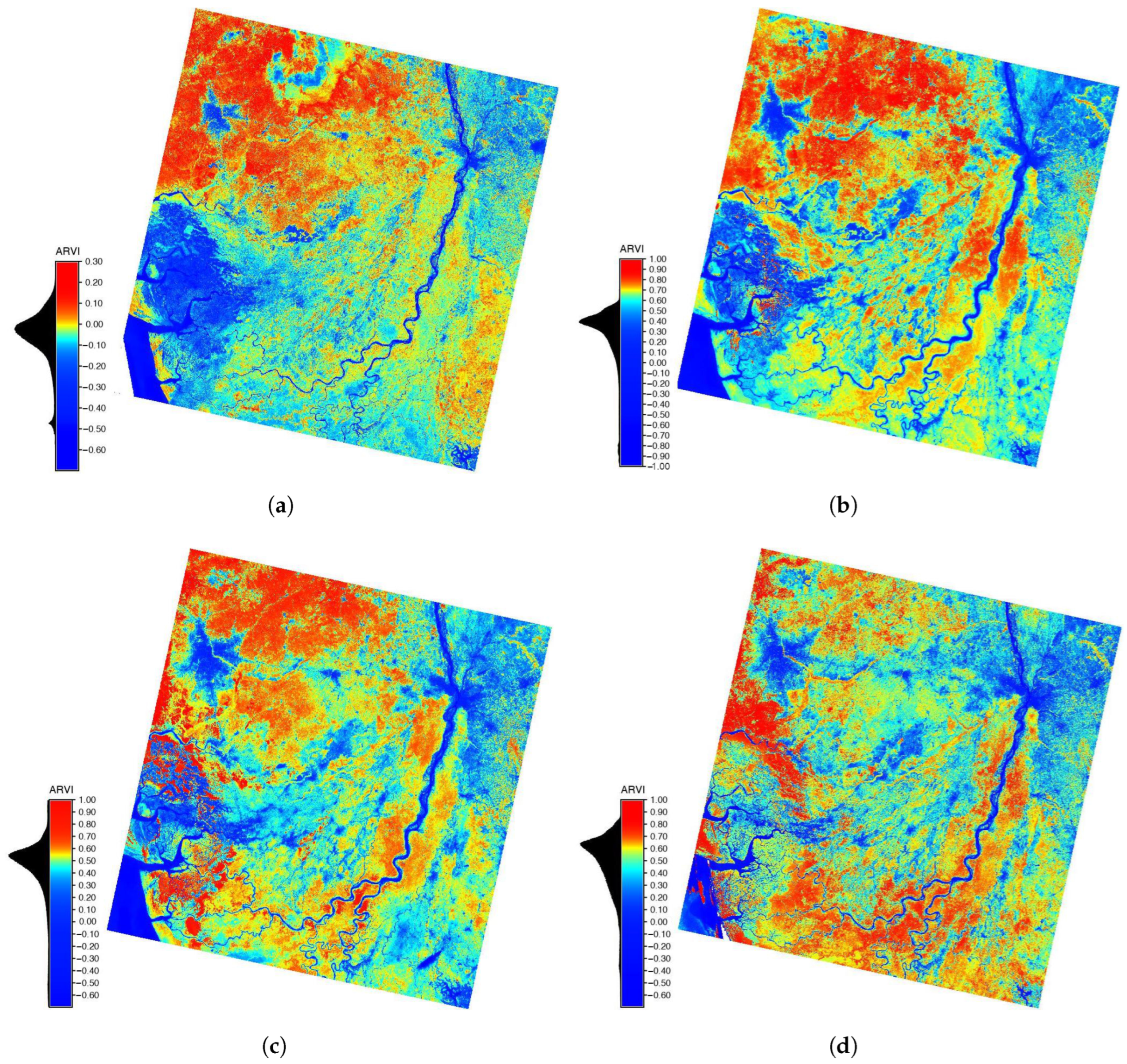

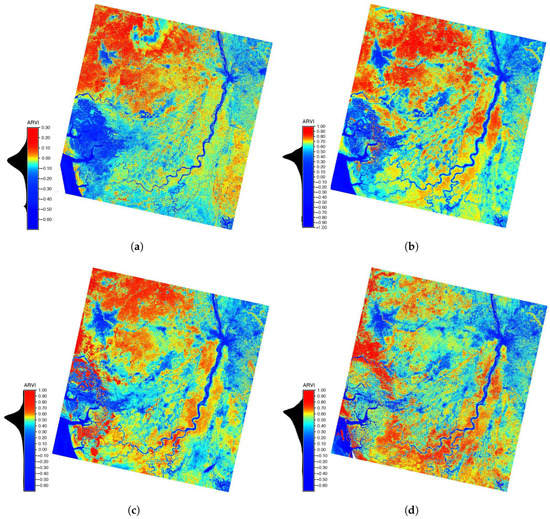

The ARVI (Figure 4) was designed for regions of high atmospheric aerosol content as a robust modification of the NDVI. Therefore, it corrects the image scenes for the effects from the atmospheric scattering and air contamination related to dust and smog in the industrial areas where a high concentration of atmospheric aerosols is presented due to the oil exploration. The sideway histograms showing distribution of pixels on the images show various values for the years 2013, 2015, 2021, and 2022. Thus, the histogram for 2013 shows a classic bell-shaped data distribution with values ranging from −0.20 to +0.20, distributed equally on the histogram with a prominent mound in the center and identical tapering to the left and right flings of the histogram.

The data for 2015 are distributed from −0.10 to +0.60, showing a more oblique data distribution with more data distributed within the positive interval which indicates the increased areas covered by green healthy vegetation. The data for 2021 show variation with the diapason from −0.20 to 0.80 and the data for 2022 from 0.00 to 0.85 with residuals in the negative values that indicate water areas. This indicate the increase in the areas covered by the tropical forests in the northern part of the area, while decreased area of mangroves. As mentioned above, the advantage of using ARVI for Nigeria is that it reduces the impacts of the aerosols such as such as rain, fog, dust, smoke, or air pollution by using the Blue band in making atmospheric corrections on the Red band. This is beneficial for Nigeria in the areas of industrial activities such as oil exploration where higher contamination of air is reported. Another important factor is a high humidity, which is around 80% all year throughout for southern Nigeria, which makes ARVI beneficial specifically in these regions since it makes corrections for atmospheric scattering caused by high humidity and moisture.

3.3. Green Atmospherically Resistant Vegetation Index (GARI)

The results of the computed Green Atmospherically Resistant Vegetation Index (GARI) (Figure 5) rely on the estimated chlorophyll content in plants linked to photosynthetic activity. Therefore, this index demonstrates the higher positive values in the areas with healthy and dense vegetation canopies, which is related to an increase in photosynthetic activity of leaves, while negative values indicate water areas as seen as a sharp peak in the histogram shape. For all four images, the results of Landsat OLI/TIRS images processing with GARI algorithm produce pixel values ranging from −0.50 to +1.0. Based on the GARI results, the peak values in data variations were analyzed to facilitate the visual interpretation of the obtained maps, namely the range of values. Specifically for 2013, the majority of positive values range from 0.15 to 0.45, for 2015—from 0.30 to 0.90 with a more gentle gradual shape of histogram; for 2021, the histogram has a rather narrow shape with values varying from 0.35 to 0.75, and for 2022, from 0.20 to 0.80, see Figure 5. Such variations illustrate changes in vegetation coverage and the greenness of canopies in mangroves and other vegetation types in the Niger River Delta.

In 2013, the mangrove forests were dominated by the high GARI values, i.e., between 0.15 and 0.20, while in the 2015, the low-medium values corresponding to the mangroves are replaced by the higher values (0.80 to 1.00) that indicate the other vegetation types (colored in red in Figure 5). Further, values of histograms increased which indicate the replacement of the mangroves by other vegetation types (e.g., agricultural crop areas) with bright green canopies that correspond to higher values of GARI. The mangrove habitats with moderate values of GARI are represented by the relatively scattered areas in the southern edge of the study area in the Niger River Delta.

This performance of GARI is explained by its high sensitivity to the nuances of chlorophyll content in plants since the computation of GARI is based on the use of Green, Blue and NIR spectral bands. Similar to ARVI and in contrast to NDVI, it is less sensitive to the atmospheric effects such as aerosol due to the rigorous optimization of its algorithm. Moreover, GARI is sensitive to the vegetation fraction in the canopy as can be seen in the interspersed pattern of diverse colors which represent different values of the index. As a development of the present study, GARI can be further applied for the estimation of other biophysical properties of mangrove canopy such as Leaf Area Index (LAI), ratio of absorbed photosynthetically active radiation, and net primary production for the environmental monitoring of the Niger River Delta.

3.4. Green Vegetation Index (GVI)

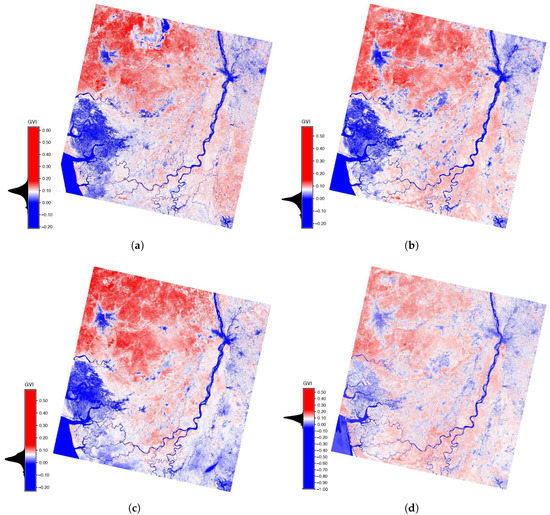

The GVI is useful for classifying the land cover as it recognises the density and vigor of plants in green vegetation (bright red areas in Figure 6), detects stressed plants (light blue areas in Figure 6), and accurately identifies wetland areas (dark areas in Figure 6). The values of GVI range from −0.20 to 0.60 for 2013, and then change to the range between −0.20 and 0.50 in 2015, which indicates a slight decrease in values corresponding to the green vegetation, while the urban spaces slightly increase; this can also be seen when comparing the area covered by the Benin City for 2013 and 2015. Further analysis of the GVI images for 2021 and 2022 shows the range in values varying from −0.20 to +0.50 for 2021 and from −1.00 to +0.50 for 2022 with the peaks in histogram in the narrow range of −0.10 to +0.10 for 2021 and from −0.5 to 0.15 for 2022, respectively. Here, the mean mangrove GVI values are around 10, with a maximum value of 15 and a minimum value of 5.0.

In the mangrove forest coverage in 2013, the obtained values of GVI have a range between 0.2 and 0.8, while for the later periods (2015, 2021 and 2022), they demonstrate lower values which can be seen on the histograms. Such fluctuations in the values of GVI indicate the environmental changes in the study area and, specifically, the decline of the spatial extent of the mangrove swamps. The reasons for the decline of the mangroves areas include the effects from climate changes and anthropogenic activities such as logging, industrial and oil exploration activities, farming, and fishing. The effects from oil exploration and related engineering works, such as dredging, contribute to the decline of mangroves mostly through water contamination. Moreover, the expansion of the urban areas and related air pollution, as well as the effects from climate change, also create negative conditions for mangrove habitats and all contribute to the gradual extinction of mangroves.

3.5. Perpendicular Vegetation Index (PVI)

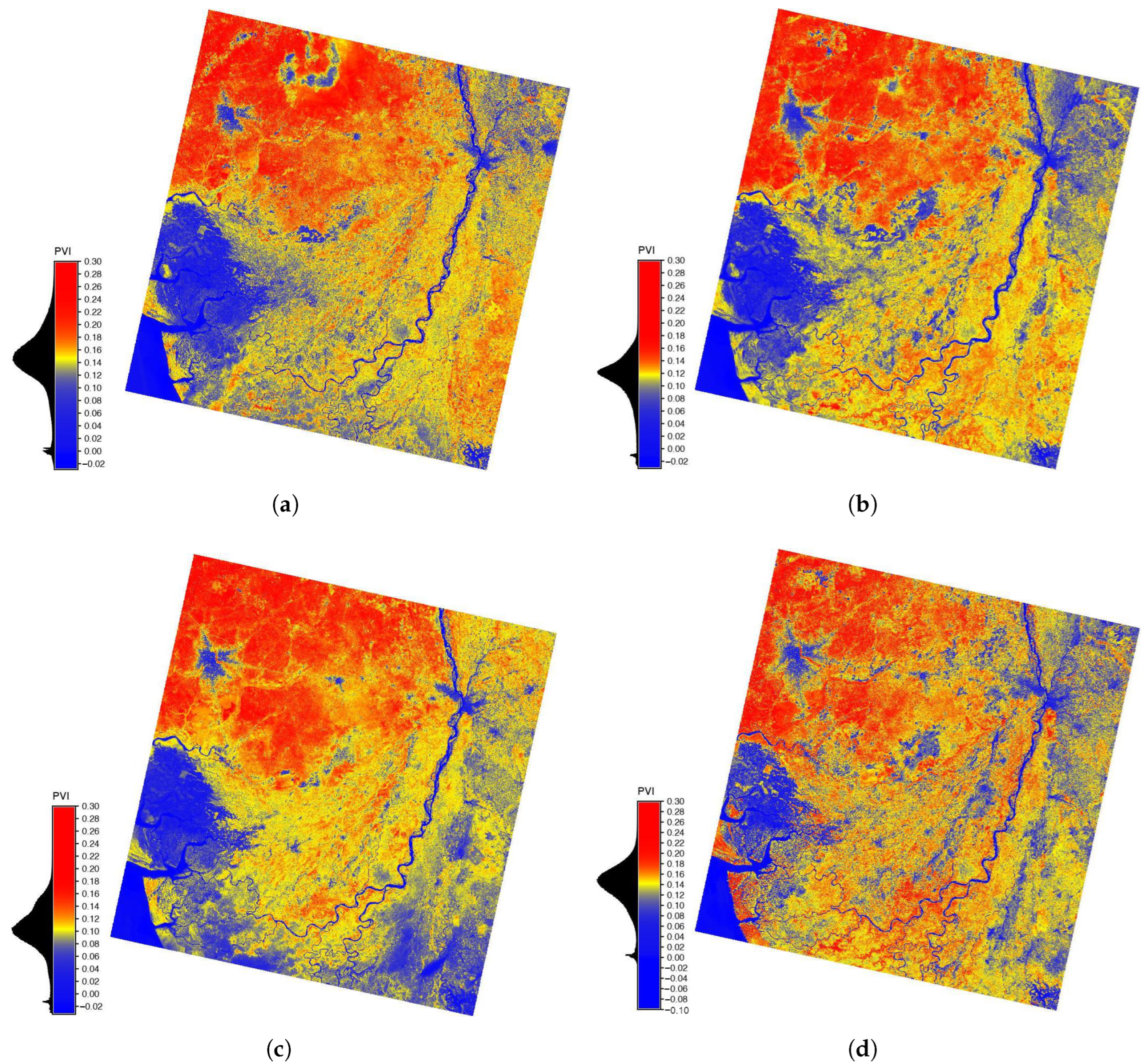

The distance-based PVI index (Figure 7) computes the perpendicular distance of the pixel from the soil line which linearly correlates with the area covered by the vegetation canopy. Therefore, higher PVI values which are shown as red colors point at the effects from brighter soil background in the agricultural areas in the Edo State of Nigeria. According to the sidewise histograms, the majority of values for 2013 roughly range from 0.10 to 0.22; for 2015, from 0.06 to 0.18; for 2021, from 0.05 to 0.18 with a less distinct peak; and for 2022, from 0.06 to 0.22. The disadvantage of the PVI consists in the atmospheric effects, where it performs less accurately compared to ARVI and GARI.

The trend to broaden the range of values is visible in Figure 7 with the inclusion of lower values. Thus, the green areas of the mangrove swamps have most values between 0.20 and 0.30 compared to the other types of vegetation (rain forests and woodlands) which cover the higher values from 0.30 to 0.80. The decline in mangrove forests is visible in the decrease of dark blue-colored areas in the lower left segment of the images. The PVI corrects for the difference between the soil background which, however, has a better performance in arid and semiarid regions. As for tropical regions, such as Nigeria with its tropical climate and dense swamp forests, PVI is less effective and suitable compared to IPVI and MSAVI2. The latter two indices better show the difference in state of the mangrove forests. Additionally, the PVI is strongly affected by the atmospheric effects which are significant for this region, since southern Nigeria is located in the wet equatorial climate, where the mean annual temperature is 26.9 °C and high relative humidity is above 88% for Lagos. It is also characterized by a high cloudiness throughout the country.

3.6. Global Environmental Monitoring Index (GEMI)

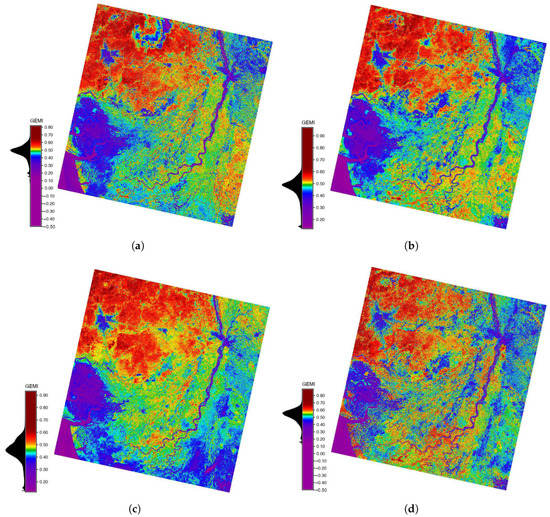

The GEMI is visualized in Figure 8.

The visualized GEMI in Figure 8 shows the discrimination between the major vegetation classes and other land cover areas such as water bodies (dark purple areas of the Bight of Benin and the Niger River with its tributaries), landscapes of the mangrove forests (lilac color), fresh water swamps (cyan color), and rain forests near the area of the Benin City (green color), as well as woodlands with tall grass savannah (bright red color).

According to the sidewise histograms, the majority of values for year 2013 roughly range from 0.40 to 0.60; for 2015, from 0.35 to 0.60; for 2021, from 0.32 to 0.62; and for 2022, from 0.30 to 0.70. GEMI corrects the computation for atmospheric and soil-related changes, mostly in the areas where bare soil is presented, which is identified by the dark pixels on the images. Hence, the computed GEMI indicates the dynamics in vegetation activity and the separated areas of the wetlands and the dry lands. Furthermore, GEMI highlights the urban areas (dark blue) separated from the natural landscapes (red color), and other land cover types such as water bodies (dark lilac color), mangroves with fresh water swamps (light purple), and rainforests (cyan color). The sparse vegetation areas and agricultural fields are colored in yellow to orange hues, while the exposed surfaces are colored green.

3.7. Normalized Difference Water Index (NDWI)

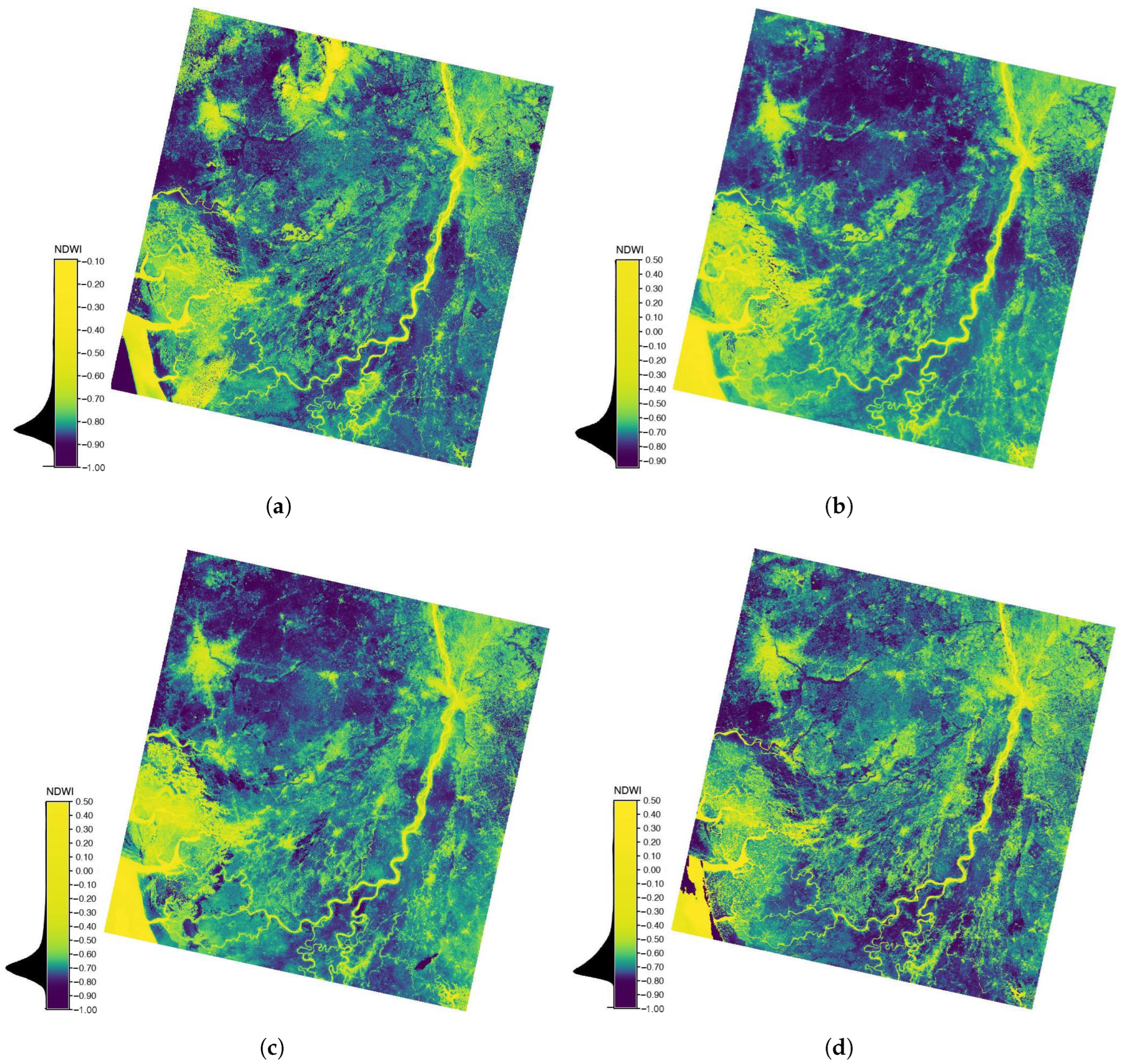

The values of the NDWI range from −0.90 to −0.70 in 2013, and from −0.90 to −0.50 according to the sideway histograms visualized in Figure 9.

As a general trend, this indicates a decrease in high values corresponding the green vegetation canopies. Thus, for 2021 and 2022, the range of values lies within the interval from −0.85 to −0.45 for 2021, and from −0.80 to −0.40 for 2022. For the latter, the histogram has an oblique shape with a peak visibly inclined towards the lower values. Such variations in values correspond to the environmental changes in the Niger Delta River and a gradual decline in the distribution of the mangrove swamps. The identification of vegetation biomass relies on the contrast between the spectral reflectance of the land cover types corresponding to the soil and vegetation. Therefore, the NIR and Red wavelengths surpass other spectral bands of the Landsat images, which is beneficial for the discrimination of the green canopies of mangroves.

As discussed above, the distribution and health conditions of mangroves in the Niger River Delta exhibits complex characteristics due to the cumulative effects from climate and anthropogenic factors. Several species might be presented, including the presence of other vegetation species with similar spectral characteristics which complicate the discrimination of mangroves from similar vegetation types. Furthermore, the distribution of mangroves is controlled by variation in salinity. Therefore, as demonstrated above, the distribution of mangrove habitats varies on the Landsat images taken for different years.

3.8. Second Modified Soil Adjusted Vegetation Index (MSAVI2)

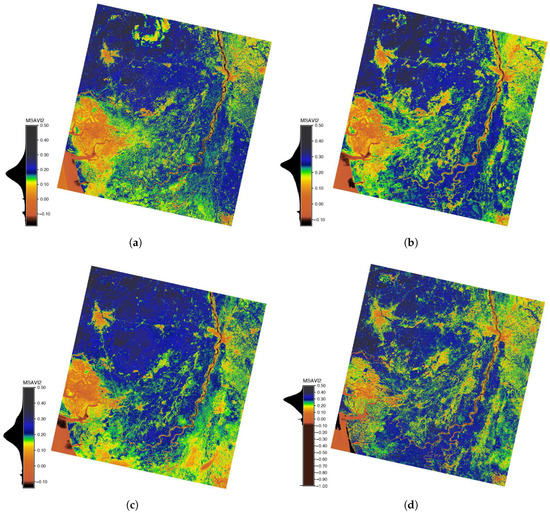

The computed MSAVI2 is visualised in Figure 10.

The general range of values of MSAVI2 varies from −1 to 1, which is similar to the classic NDVI index, Figure 10. More specifically for the case of southern Nigeria, the data in 2013 show that the majority of values range between 0.05 to 0.30 according to the histogram; for 2015, from 0.05 to 0.40; for 2021, from 0.00 to 0.40 with small fluctuations of the negative data range from −0.15 to 0.00; in 2022, the data mostly vary from −0.10 to 0.50, see Figure 10.

The values of MSAVI2 in the range 0.2–0.4 indicate areas covered with grasslands and shrubs which are situated mostly in the urbanized parts of the settlements such as Onitsha, Sapele, Warri, and the Benin City. Therefore, the use of the MSAVI2 index is profitable for highlighting the heterogeneity of soil and vegetation patterns which are visible in such areas. Mangrove forests on the maps of MSAVI2 are colored in the light orange color (0.05 to 0.10); water areas—in dark orange tones (0.2 to 0.4); fresh water swamps—in light green; rainforests—in blue colors (0.20 to 0.25), urban spaces—in orange (0.1 to 0.2); and agricultural lands—in yellow colors (0.05 to 0.10). The range of the slightly negative values (−0.20 to −0.10) indicates bare soil and areas of the exposed land, see Figure 10.

In contrast to Soil Adjusted Vegetation Index SAVI, MSAVI reduces the effects from the bare soil, which is especially for the agricultural areas. Thus, it presents the improved version of the SAVI. In turn, SAVI better adjusts the values in the areas with sparse vegetation coverage and low density of the plant canopy, which helps to indicate the areas with the decreased vegetation or high deforestation rates. Since MSAVI2 uses the combination of the ratio of NIR (wavelength 0.85–0.88 µm) and Red (wavelength 0.64–0.67 µm), where the values reflect the amount of the chlorophyll presented in the plant canopy, it is suitable for estimating the biomass, grass/plant canopy or LAI, because healthy moist vegetation of mangroves reflects high in the NIR spectrum while absorbs more in the Red. The contrast between these values enables us to highlight the areas of the distribution of mangrove habitats.

3.9. Infrared Percentage Vegetation Index (IPVI)

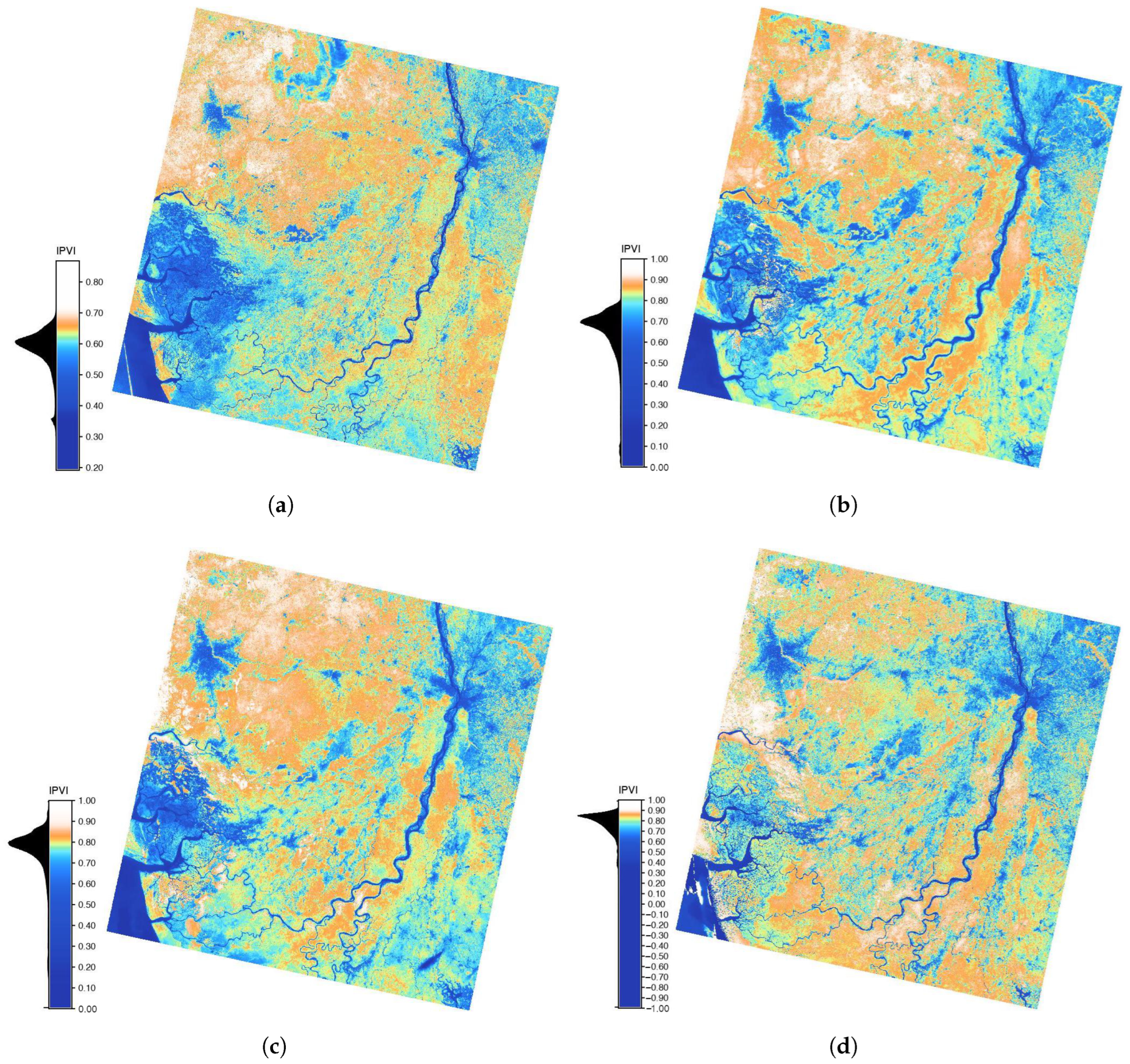

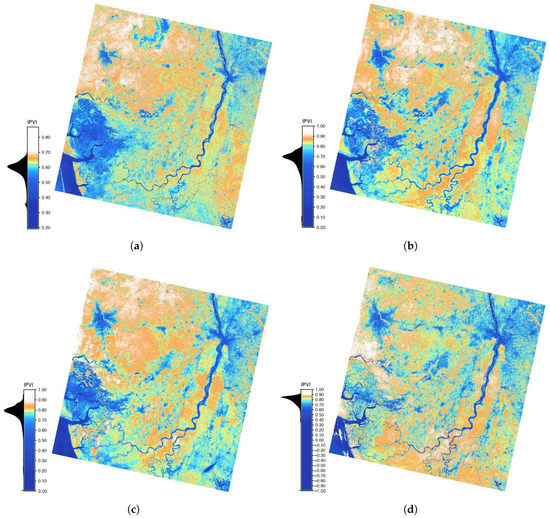

The distinct feature of the IPVI (Figure 11) consists in its always-positive range. Thus, the data vary from 0 to +1, unlike the typical range of −1 to +1 for the NDVI and other indices. Specifically, according to the histogram, for the year 2013, the majority of the IPVI values range from 0.50 to 0.70; for 2015, from 0.50 to 0.80 with a more sharp increase in values; for 2021, from 0.70 to 0.90; and for 2022, from 0.60 to 0.90. Thus, one can note the trend of the generally increasing higher values that indicate rainforests while the area of mangroves declines. The mangroves are depicted by the dark blue colors, gradually replaced by the areas of light green color when comparing the data for 2013 with other years and, specifically, 2022, Figure 11.

Although the IPVI is functionally similar to the NDVI, it is better-adjusted for detecting the vegetation in small villages and urban spaces due to a more fine gradation of the positive values. Moreover, the analysis of values of the IPVI enabled us to better identify smaller spots of urban vegetation coverage as well as mangrove wetlands in the Niger River Delta. Further, IPVI is well-adjusted to classify urban ecosystems since the areas of the main cities in the study area are distinguishable from the nature vegetation: Warri, Onitsha, and Benin City as the largest cities, and minor settlements such as Agbor, Sapele, and Adanisievbe villages in the Delta State.

3.10. Enhanced Vegetation Index (EVI)

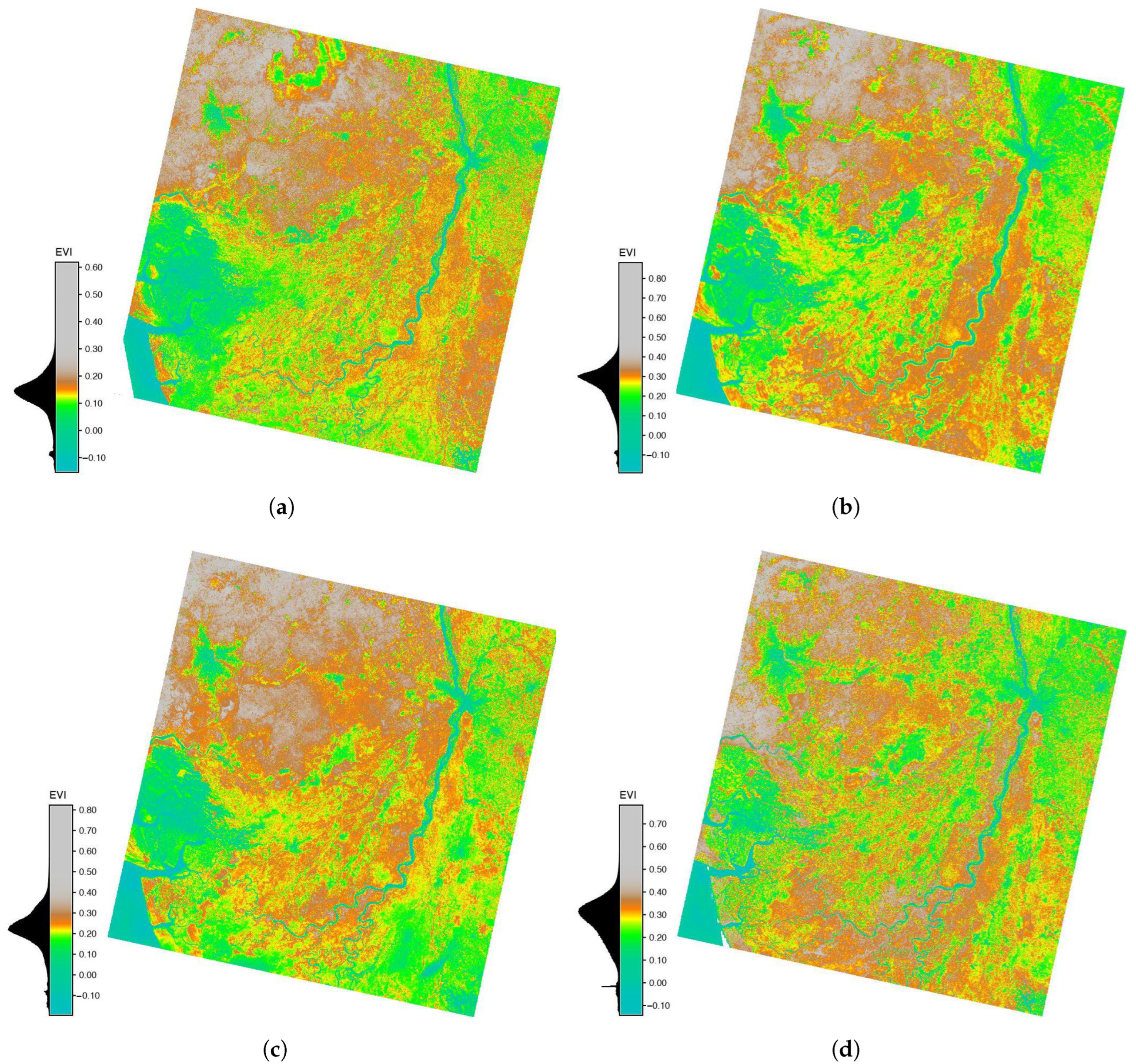

The values of EVI (Figure 12) quantify vegetation greenness in the Niger River Delta. The general data range for this index is between the values of −1 and +1. However, specifically for the case of Niger River Delta in southern Nigeria, most of the values are distributed between 0.00 and 0.30 in 2013, while for 2015, the highest values increase up to 0.40. Negative values indicate water areas in all the cases, while mangrove fields colored by the bright green correspond to values ranging from 0.10 to 0.15, see Figure 12.

3.11. Statistical Analysis

The statistical analysis of the size and number of pixels representing various classes over the study area was performed in R using the K-means method applied for Landsat bands 4-3-2 in natural color composites. Ten vegetation classes correspond to the coastal landscapes of southern Nigeria, see

Table 2. Results of the land cover class computations of the Landsat-8 OLI/TIRS satellite images ¹.

Class	2013		2015		2021		2021
ID	nr. of pixels	cluster size	nr. of pixels	cluster size	nr. of pixels	cluster size	nr. of pixels	cluster size
1	0.0	1	99,304.0	2	0.0	1	0.0	1
2	24,202.5	2	793,875.9	3	179,803.3	3	324,638.7	1
3	535,828.3	4	768,423.9	3	249,647.7	6	367,419.8	3
4	686,438.4	8	432,318.7	4	305,940.8	11	416,219.5	6
5	740,729.6	9	426,391.2	8	408,108.2	11	556,665.7	9
6	783,803.7	9	291,778.8	10	603,527.3	12	647,066.0	9
7	906,337.9	10	263,588.5	14	628,916.8	12	750,900.1	12
8	915,597.2	16	259,272.9	16	629,041.5	13	984,741.4	13
9	999,878.2	18	1,483,831.7	20	645,075.3	14	1,162,375.3	18
10	2,292,524.5	23	1,094,319.1	20	1,372,956.2	17	1,516,837.6	18

¹ The statistical summary is computed within cluster sum of squares by cluster using K-means performed in R library ’raster’. The table is sorted by ascending values of the pixels in land cover types.

. The results of the classification by K-means clustering show that 10 distinct classes including mangrove classes can be derived from the Landsat OLI/TIRS data. These include the following land cover classes: (1) mangrove swamps; (2) water areas (river and shallow areas); (3) water areas (coastal areas of the Bight of Benin); (4) forests; (5) built-up urban areas and settlements; (6) bare soil and exposed land surfaces; (7) woodland; (8) agricultural areas; (9) farmland/grasslands; and (10) other vegetation types. The classification is based on the modified existing studies [109,110,111,112]. The table is sorted by the ascending values of pixels.

The land cover analysis of the Niger River Delta was implemented in R using the K-means clustering method of the unsupervised automatic classification. The approach of the land cover types identification using this method was performed by the partition of the images through sampling the pixels evaluated for their DN values and assigning them to the target land cover classes. It shows a distribution of pixels by clusters of mangroves and other land cover types using clustering of the four images in Landsat OLI/TIRS band combinations 4-3-2, i.e., natural band composites. The land cover categories corresponding to the mangroves showed gradual losses from 535,828.3 in 2013 (ID Class 3 for 2013), to 432,318.7 in 2018 (ID Class 4 for 2018), 408,108.2 in 2021 (ID Class 5 for 2021), and 416,219.5 in 2022 (ID Class 4 for 2022), Table 2.

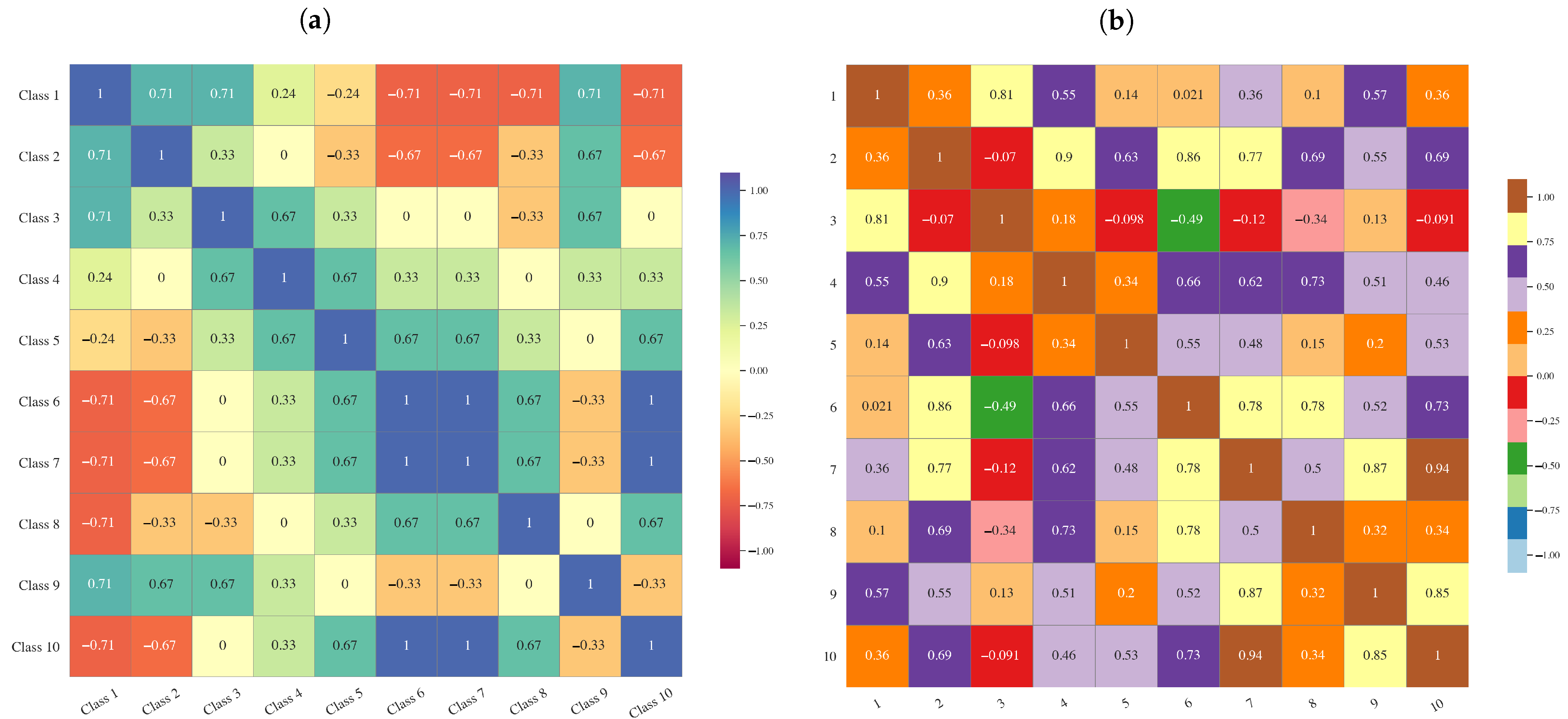

The heat map graph shows the confusion matrix plotted using Python showing the probability cases for pixel distribution according to land cover classes (10 selected ID classes) in the Niger River Delta, Nigeria, Figure 13.

The data were evaluated between 2013 and 2022, based on clustering of the Landsat 8-9 OLI/TIRS images and the results are presented

Table 3. Results of the land cover class classification by pixel content in Band 4 (Red), Band 3 (Green) and Band 2 (Blue) of the Landsat-8 OLI/TIRS satellite images.

Class		2013			2018			2021			2022
ID	B4	B3	B2	B4	B3	B2	B4	B3	B2	B4	B3	B2
1	9362.333	9803.222	8742.333	10,352.65	10,539.35	8699.400	9150.500	9643.167	8150.667	11,409.333	11,031.333	9693.000
2	9631.111	9699.000	8448.778	10,848.50	11,077.50	9607.300	11,394.000	11,449.667	9541.667	9672.556	9612.056	8631.333
3	12,549.750	12,197.500	10,335.750	10,879.55	10,833.90	8936.950	9900.929	10,211.571	8387.929	23,552.000	22,211.000	18,896.000
4	8920.261	9311.826	8221.783	9816.75	10,058.75	8333.625	10,262.692	10,408.692	8676.462	10,117.556	9809.111	8729.111
5	10,144.625	10,144.875	8946.250	9825.25	10,284.50	8776.500	9463.333	9956.667	8546.000	8466.667	8940.750	8148.417
6	8151.000	9824.000	8126.500	10,372.43	10,680.93	9107.500	10,811.182	10,739.182	8965.091	8179.333	8705.333	7906.833
7	8658.938	9129.000	8067.750	11,872.33	11,513.67	9631.333	9408.917	9741.917	8132.583	8887.889	9152.389	8166.667
8	8276.889	8930.222	8045.611	10,080.38	10,360.25	8400.188	15,769.000	14,325.000	12,446.000	9110.308	9375.154	8483.538
9	8939.500	9494.900	8524.100	11,897.50	11,900.00	10,818.000	9763.182	10,158.000	8879.636	10,554.909	10,198.455	9056.000
10	9217.000	10,015.000	5465.000	13,052.00	12,427.00	10,482.333	9559.706	9997.765	8030.059	9374.222	9420.889	8187.556

. The Kendall correlation shows the average values, while the Spearman correlation shows the pixels by bands 4 (Red), 3 (Green), and 2 (Blue) used for the classification of land cover types. The correlation plots showing probability cases for pixel distribution according to land cover classes (10 selected ID classes) in the Niger River Delta are shown in Figure 13; they show the data between 2013 and 2022, based on the results of the clustering of the Landsat 8-9 OLI/TIRS images.

4. Discussion

This paper demonstrated that the scripting techniques of the GRASS GIS used with freely-available Landsat OLI/TIRS satellite images are beneficial for evaluating the spatial patterns in the vegetation areas of coastal Nigeria. The results obtained from the satellite image processing and computing the VI for assessing mangrove distribution show that MSAVI2 (Figure 10) and GVI (Figure 6) indices ranked the highest with the most accurate presented areas of the mangrove fields, while EVI (Figure 12) and GEMI (Figure 8) were judged to rank the lowest. Changes in mangrove fields for the four different time periods estimated by the atmospherically adjusted indices ARVI and GARI are presented in Figure 4 and Figure 5, showing the VI corrected for the atmospheric effects. Here the distribution of the mangrove fields (showed by the light orange colors) recorded the highest value in 2013, while the lowest value was in 2022 due to the declined area of distribution of mangrove habitats, as discussed above. The DVI (Figure 3) and PVI (Figure 7) indices demonstrated the comparable results with visible reduction of mangroves, showed as the reduced area in both the PVI and DVI. Nevertheless, the use of the DVI is less effective for mapping mangroves and densely vegetated areas of tropical forests, since this index is better identifies urban areas and settlements. The NDWI (Figure 9) and the IPVI (Figure 11) also highlighted the decline of mangrove swamps as areas in the lower left segment of the images colored in yellow-green for the NDWI and light blue for the IPVI.

The results of the classified images are also confirmed by the existing studies on changes in mangrove habitats in southern Nigeria reporting the environmental degradation [113,114]. For instance, [115] confirms the losses in mangroves in southern Nigeria since mid-1980s through the early 2000s due to the urbanization, dredging, and oil and gas industrial activities. The effects from the rapid urbanization on deforestation are also reported in other relevant works [116,117] and are reflected in the undertaken measures on creating the sustainable green infrastructure [118]. Despite their environmental value, mangrove forests along the West African coasts are subject to a range of natural threats which motivate environmental monitoring. The environmental mapping of the coastal landscapes of the Niger River Delta proposed and presented above using the application of the GRASS GIS modules has provided the capability to integrate remote sensing of multi-temporal data, covering a target region in southern Nigeria with scripting techniques.

Given the level of mangrove degradation in the Niger River Delta, there is a need for mangrove conservation in the coastal communities [119]. With this regard, the presented cartographic framework based on the use of the GRASS GIS contributes to this issue by presenting a case of computed and mapped VI showing recent changes in vegetation communities of southern Nigeria. To evaluate these changes, we visualized ten vegetation indices using the remote sensing data and scripting techniques of selected modules of the GRASS GIS. To this end, we applied and proposed several modules of the GRASS GIS including the ’i.vi’ which is specially adjusted for satellite image processing. Using these tools, we performed an analysis of the vegetation patterns in the coastal regions of Nigeria using the Landsat 8-9 OLI/TIRS scenes. The VI were computed on the western segment of the Niger River Delta situated along the Bight of Benin in the Gulf of Guinea, southern Nigeria. Ten computed and visualized VI were processed using GRASS GIS scripts. A comparative analysis of the environmental changes was applied for the following vegetation indices: ARVI, GARI, GVI, DVI, PVI, GEMI, NDWI, MSAVI2, IPVI, and EVI. The use of the advanced scripting methods for mapping changes in the VI within a western segment of the Niger River Delta revealed declining mangrove swamp habitats in southern Nigeria.

5. Conclusions

Identifying spatiotemporal trends in the vegetation patterns is one of the fundamental problems in environmental assessment. Using several satellite images for computing a time series of VI helps to estimate the extent to which mangrove communities are declining. The use of time series of the satellite-derived VI to perform change detection in the distribution of mangroves through the comparative analysis of images has been reported previously to show temporal variations in the Niger River Delta. In this paper, we illustrated the benefits of using scripts for satellite image processing with a special aim of computing and visualizing the vegetation indices in the mangrove landscapes of Nigeria. Specifically, we applied the GRASS GIS for computing the VI, aiming to evaluate the health and greenness of vegetation patterns in southern Nigeria.

The use of the GRASS GIS programming scripts is an efficient optimization method of remote sensing data processing. Its benefits for computing the VIs consist in a superior performance with respect to the speed and accuracy of mapping compared to the traditional GIS software. Using modules of the GRASS GIS, we have extracted information from the Landsat OLI/TIRS images for the analysis of vegetation patterns in southern Nigeria and compared the results over several years. The algorithms of the GRASS GIS demonstrated powerful functionality in satellite image processing which resulted in an accurately-produced series of maps based on the calculated VI in the western segment of the Niger River Delta for the years 2013, 2015, 2021, and 2022, respectively. This allowed for a better understanding of vegetation patterns derived from the analysis of the remote sensing data.

Moreover, image processing implemented by the GRASS GIS scripts supports effective environmental monitoring due to rapid and accurate mapping. As a result, this novel cartographic results in a series of VI-based maps which can be used to support the protection of sensitive ecosystems in the Niger River Delta. Thus, mapping the VI helps to evaluate vegetation health, using the information for adaptive planning and identifying the decline in the mangrove habitats which play a crucial role in the environmental sustainability of Nigeria. The environmental monitoring of the coastal areas of West Africa supports measures aimed at minimizing the threats to mangroves and maintaining the human–nature balance for sustainable development in Nigeria.
