Numerical Simulation of Production Behavior with Different Complex Structure Well Types in Class 1-Type Hydrate Reservoir

Abstract

Enhancing the production capacity of natural gas hydrates (NGHs) is critical for its commercial development. Complex structure wells may efficiently increase drainage areas while enhancing exploitation efficiency. Based on the field data of China’s first offshore NGH test production, the numerical method was used to analyze the production performance of different complex structure well types by continuous depressurization production for 360 days under the preconditions of fixed effective completion length of 300 m and a pressure difference of 6 MPa. Results indicated that the complex structure well types deployed at the three-phase layer demonstrated superior production performance within 240 days of production; the DLW2 and HW2 well types stood out, with an average gas production rate Q_g reaching 43,333 m³/d and a specific production index J of 24.1. After 360 days of production, benefiting from multi-layer combined production, the Cluster vertical well deployed at the multi-layer had the best production performance, with an average Q_g of 34,444 m³/d and a J-index of 19.1. The research results provided insights into the complex structure well-type selection strategy for NGH depressurization in this sea area.

1. Introduction

Natural gas hydrates (NGHs) are widely present in permafrost regions and deep-sea sediments. It is estimated that there is approximately 10¹⁵–10¹⁸ m³ CH₄ in the global NGH resources, which is considered to be enough to have the potential to replace fossil fuels [1,2,3,4,5]. The first NGH field test production was completed in 2002 at the Mallik facility in Canada [6]. Recent offshore NGH field test production at Japan’s Nankai Trough and China’s Shenhu Sea area have demonstrated the feasibility and superiority of the depressurization method [7,8,9,10]. However, the offshore field test production capacity remains significantly below the commercialization standard of 50 × 10⁴ m³/d [1]. As a result, improving gas recovery efficiency has become a critical challenge for the industrial exploitation of hydrates. Through the comprehensive analysis of various extraction methods and technologies for NGHs, complex structure well types represented by a horizontal and multilateral well are considered as the primary approaches to increasing NGH productivity [11]. Complex structure wells include all well types except that the traditional vertical well, such as horizontal well, extended reach well, and multilateral well [12].

Therefore, extracting hydrates from complex structured wells has become a research hotspot. For example, Xin X. et al. found that the deployment depth of the lateral branches in a multilateral well is the key factor affecting production capacity [13]. Mao P. et al. evaluated the influence of different parameters related to helical multilateral well on production capacity and believed that it had the potential to achieve commercial development of natural gas hydrates [14]. Ye H. et al. discovered that a directional well and a multilateral well can greatly improve productivity, particularly in a cluster well, which can enhance gas productivity by around 2.2 times compared to a single well [15]. Mahmood M. et al. compared the production capacity of a radial lateral well (RLW) and a horizontal snake well (HSW) in extracting gas hydrates and found that RLW’s productivity is directly related to the number, length, and radius of laterals; two key parameters affect HSW production capacity: one is wellbore length, and the other is radius [16]. Jin G. et al. found that under the same completion length, a multilateral well and a single well produced almost equivalent amounts of gas and water. Interference near branch intersections improves the hydrate dissociation [17]. Ye H. et al. evaluated the impact of different parameter settings on the productivity of different well types, and the results showed that branch parameters have the most significant impact on the productivity of a cluster horizontal well [18]. Hao Y. et al. found that a cluster multilateral well and a fishbone well are the optimal well types for the short- and long-term development of hydrates, respectively [19]. Ye H. et al. found that enlarging the wellbore diameter of a complex structure well can significantly increase production capacity in short-term production [20]. Cao X. et al. found that well interference occurs between lateral branches of a multilateral well, which is unfavorable for gas production and becomes worse as the number of branches increases [21]. Jin G. et al. estimated that 22 sets of multilateral wells each with a completion length of 1000 m are sufficient to achieve commercial development of NGHs in China’s Shenhu Sea area [22]. He J. et al. simulated the productivity of a fishbone well with different lateral branch numbers and found that the production capacity of the six-branch fishbone well was about 59.3% higher than that of the single horizontal well [23].

However, the previous research on complex structure wells mentioned above generally targets 1~4 types of complex structure wells, such as cluster vertical well, cluster horizontal well, herringbone lateral well, and radial lateral well. As of today, both single vertical and single horizontal well have been validated for their technical feasibility through hydrate production testing, and these two types of wells can significantly improve the fault tolerance of the production system. The herringbone lateral well and radial lateral well have not undergone actual application of hydrate production testing, and still face technical challenges in the future. Previous research mainly focuses on the effects of different well deployment or branch lengths, angles, and other parameters of complex structure well on production capacity in the Class 3-type hydrate reservoir. Meanwhile, it is still unclear which complex structure well type has the best production capacity and cost advantage under the different parameter setting in the Class 1-type hydrate reservoir, which consists of an upper hydrate layer and a lower free gas layer (where gas and water can flow freely). The pressure and temperature distribution of the entire reservoir enables the stable existence of hydrates. Therefore, based on the field data of China’s first offshore NGH test production, we take up to eight types of complex structure wells as the research object and use the numerical method to evaluate the production capacity of these well types under the precondition of the total completion length of 300 m and a fixed pressure difference of 6 MPa.

2. Methodology

2.1. Geological Background

China’s first offshore NGH test site is located between the Xisha and Dongsha sea areas (Figure 1) [19]. Due to the exceptional geological and engineering conditions, this site is assessed to be the best location for field trials. The water depth at this site is about 1266 m and the seafloor temperature is around 3 °C with a geothermal gradient of 43.653 °C/km [24,25]. The reservoir is mainly composed of three layers: the free gas layer (FGL, 251–278 mbsf, which is composed of low saturation free gas and water), the three-phase layer (TPL, 236–251 mbsf, which contains hydrates, high saturation free gas, and water), and the gas hydrate-bearing layer (GHBL, 201–236 mbsf, which is rich in hydrate and water) [26,27].

2.2. Numerical Simulator

TOUGH+HYDRATE V1.0 is a well-known simulator widely used to predict NGH production [28,29,30]. To overcome the major issue in hydrate modeling, numerous grids are necessary for large-scale simulation [30]. Herein, we used the parallel version of this code and adopted the equilibrium model in this work [31,32]. But it can only simulate up to 50,000 grids, which is insufficient for predicting a large-scale model. Herein, we adopted the parallel version of this code (pT+H v1.0) and the equilibrium model in this work [31,32,33]. Furthermore, the user’s manual for this code has a detailed description of the governing equations [27]. During the simulation process, we assumed that the Darcy’s law is effective in the model and the wellbore is stable. The movement of geological media was neglected. The main governing equations were given as follows [27,34]:

• Components and phases

Phase(β) = A, G, H, I is aqueous, gas, hydrate, and ice, respectively; Component(κ) = w, m, i, h is water, methane, salt, and hydrate, respectively.

2.

Mass balance

The flow control equation for multi-component fluid mixtures follows mass conservation and is defined as follows:

$$\frac{d}{dt}{\int }_{V_n}{M}^{\kappa }dV={\int }_{{\Gamma }_n}{F}^{\kappa }\cdot \mathrm{n}d\Gamma +{\int }_{V_n}{q}^{\kappa }dV$$

(1)

Here, M^κ is the mass accumulation, F^κ is the flux, and q^κ is the source/sink ratio.

3.

Energy balance

The heat flow control equation follows energy conservation and is defined as follows:

$$\frac{d}{dt}{\int }_{V_n}{M}^{\theta }dV={\int }_{{\Gamma }_n}{F}^{\theta }\cdot \mathrm{n}d\Gamma +{\int }_{V_n}{q}^{\theta }dV$$

(2)

Here, θ is the heat component, M^θ, F^θ, and q^θ are the heat accumulation, flux, and source/sink ratio, respectively.

2.3. Model Construction and Well Type Design

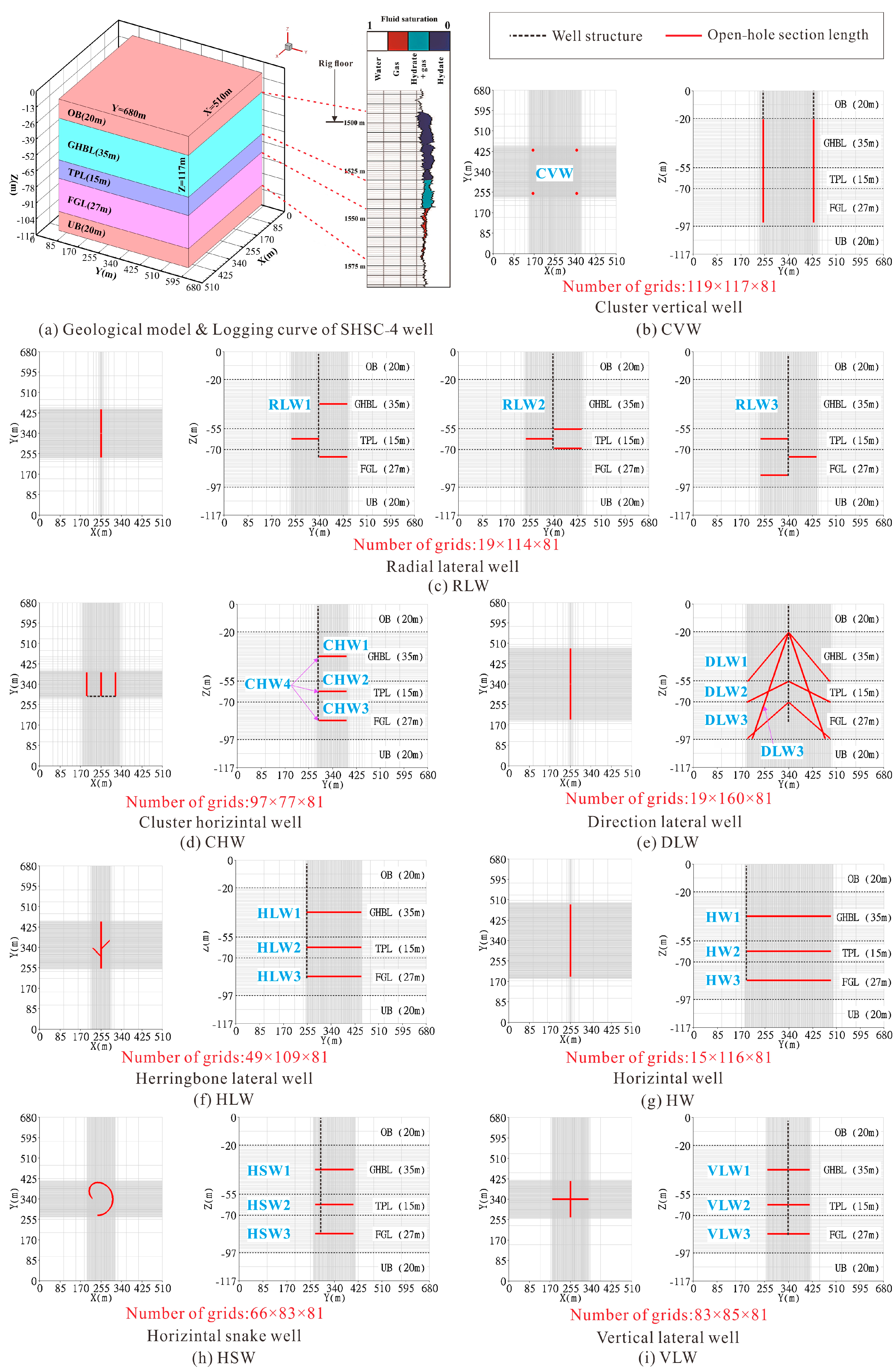

The logging curve of SHSC-4 was used to establish the reservoir’s numerical model (Figure 2a), and the domain was 510 × 680 × 117 m in (x, y, z). The boundary layer with 20 m is enough to eliminate the boundary effects [35]. The reservoir can be divided into three layers based on the logging curve. The thicknesses of GHBL, TPL, and FGL were 35, 15, and 27 m, respectively [36]. To evaluate the gas production performance for different complex structure well types, a total of eight well types, including twenty-four simulation cases, were established in this work: (1) Cluster vertical well (CVW): CVW had four vertical wellbores with a wellbore spacing of 180 m, each vertical wellbore was an open hole completion with a length of 75 m and covered GHBL, TPL, and FGL (abbreviated as ML for multi-layer), as shown in Figure 2b. (2) Radial lateral well (RLW): RLW1–3 each had three lateral wellbores with a total open hole completion length of 300 m. RLW1’s three lateral wellbores were located in the middle of the GHBL and TPL, as well as the upper part of the FGL. RLW2’s three lateral wellbores were located at the top, middle, and lower part of the GHBL. RLW3’s three lateral wellbores were located in the middle of the GHBL, as well as the upper and lower parts of the FGL, as shown in Figure 2c. (3) Cluster horizontal well (CHW): CHW1–3 each had three horizontal wells with a total open hole completion length of 300 m. CHW1–3 were located at the middle of GHBL, TPL, and FGL respectively, while CHW4 were located at the ML, as shown in Figure 2d. (4) Direction lateral well (DLW): DLW1–4 each contained 2 lateral wellbores with a total open hole completion length of 300 m; DLW1–4 were located at the GHBL, TPL, GHBL and ML, respectively, as shown in Figure 2e. (5) Herringbone lateral well (HLW): HLW1–3 had one main wellbore and two lateral wellbores each, with a total open hole completion length of 300 m; HLW1–3 were located at GHBL, TPL, and FGL respectively, as shown in Figure 2f. (6) Horizontal well (HW): HW1–3 had an open hole completion with a length of 300 m; HW1–3 were located at the middle of GHBL, TPL, and FGL, respectively, as shown in Figure 2g. (7) Horizontal snake well (HSW): HSW1–3 with a open hole completion length of 300 m and located in the middle of the GHBL, TPL, and FGL, respectively, as shown in Figure 2h. (8) Vertical lateral well (VLW): VLW1–3 had four lateral wellbores with a total open hole completion length of 300 m; VLW1–3 were located at the GHBL, TPL, and FGL, respectively, as shown in Figure 2i. The above simulation cases were divided into four groups, as listed in

Table 1. The main parameters of simulation cases.

Groups	Case	Main Parameters
		L/(m)	l/(m)	n	Location of Open Hole Section
A	CHW1	300	100	3	GHBL
	DLW1	300	150	2
	HLW1	300	50	2
	HW1	300	/	/
	HSW1	300	/	/
	VLW1	300	75	4
B	CHW2	300	100	3	TPL
	DLW2	300	150	2
	HLW2	300	50	2
	HW2	300	/	/
	HSW2	300	/	/
	VLW2	300	75	4
C	CHW3	300	100	3	FGL
	DLW3	300	150	2
	HLW3	300	50	2
	HW3	300	/	/
	HSW3	300	/	/
	VLW3	300	75	4
D	CHW4	300	100	3	ML
	DLW4	300	150	2
	CVW	300	75	4
	RLW1	300	100	3
	RLW2	300	100	3
	RLW3	300	100	3

Note: n is the quantity of lateral wellbore or single wellbore; ML is the abbreviation for multi-layer.

.

The discretization was carried out by the following steps to reduce the number of grids and decrease the computational resources: Different well type x-y plane domains were discretized separately and then extruded into 3D discretized grids along the z-axis. To depict the intricate multiphase flow near the wellbore, the minimum grid sizes in the x-, y- and z-axis directions were 2 m, 2 m, and 1 m, respectively. The x-y plane domain of the different well types, CVW, RLW, CHW, DLW, HLW, HW, HSW, and VLW were discretized into 13,923, 2166, 7469, 3040, 5341, 1740, 5478, and 7055 grids, respectively. The total grid was 1,127,763, 175,446, 604,989, 246,240, 432,621, 140,940, 443,718, and 571,455 respectively.

2.4. Initial and Boundary Conditions

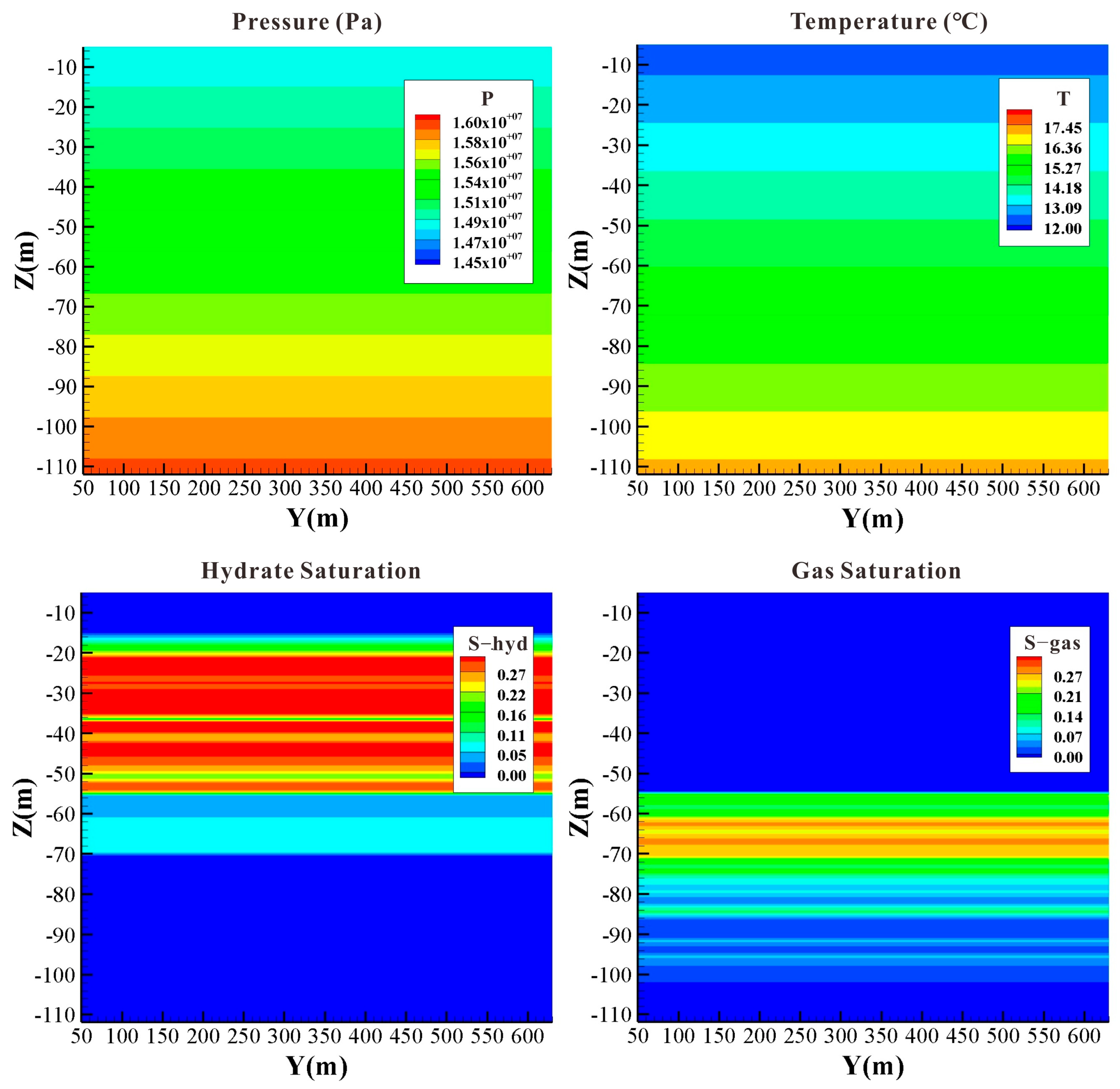

The initial conditions of the model can be calculated by the code’s self-balancing function, as shown in Figure 3 [36,37,38,39]. In order to establish the Dirichlet boundary, the top and bottom of the model were set to a fixed temperature and pressure [40]. The wellbore grids were given a fixed pressure difference of 6 MPa and pressure loss along the wellbore was ignored.

The reservoir characteristics (porosity, permeability, saturation) of each sublayer were according to the on-site measured data as follows: (a) The’ porosity values of the three sublayers were 0.35, 0.33 and 0.32; (b) the permeability values of the three sublayers were 2.9, 1.5, and 7.4 mD; (c) the initial gas and hydrate saturations of the GHBL, TPL, and FGL were extracted from the logging curve [9]. It was assumed that the mean porosity of the OB and UB was 0.3 and the permeability was 2.0 mD.

Table 2. Model’s detailed parameter settings.

Parameter	Value and Unit
OB and UB’s thickness [9,21,26,41]	20 m
GHBL’s thickness [9,21,26,41]	35 m
TPL’s thickness [9,21,26,41]	15 m
FGL’s thickness [9,21,26,41]	27 m
OB and UB’s permeability	2.0 mD
GHBL’s permeability [9,21,26,41]	2.9 mD
TPL’s permeability [9,21,26,41]	1.5 mD
FGL’s permeability [9,21,26,41]	7.4 mD
Wellbore radius [9,21,26,41]	0.1 m
Salinity [9,21,26,41]	3.5%
GHBL and TPL’s hydrate saturation [9,21,26,41]	Reference from logging curve (Figure 2a)
FGL’s gas saturation [9,21,26,41]	Reference from logging curve (Figure 2a)
OB and UB’s porosity	0.30
GHBL’s porosity [9,21,26,41]	0.35
TPL’s porosity [9,21,26,41]	0.33
FGL’s porosity [9,21,26,41]	0.32
Grain density [21,26,41]	2600 kg/m3
Geothermal gradient [21,26,41]	43.653 °C/km
Grain specific heat [21,26,41]	1000 J·kg−1·K−1
Gas composition [21,26,41]	100% CH4
Dry thermal conductivity [21,26,41]	1.0 W·m−1·K−1
Wet thermal conductivity [21,26,41]	3.1 W·m−1·K−1
Capillary pressure model [21,26,41]	$P_{cap}=-P_0{\left[{\left(S^{*}\right)}^{-1/\mathsf{\lambda }}-1\right]}^{1-\mathsf{\lambda }}$, $S^{*}=\frac{\left(S_A-S_{irA}\right)}{\left(S_{mxA}-S_{irA}\right)}$
Maximum reference aqueous saturation of capillary SmxA [21,26,41]	1
Porosity distribution index λ [21,26,41]	0.45
Entry pressure P0 [21,26,41]	104 Pa
Relative permeability model [21,26,41]	KrA = [(SA − SirA)/(1 − SirA)]nA, KrG = [(SG − SirG)/(1 − SirA)]nG
Permeability reduction exponent for aqueous phase nA [21,26,41]	3.5
Permeability reduction exponent for gas phase nG [21,26,41]	2.5
Irreducible saturation of gas phase SirG [21,26,41]	0.03
Irreducible saturation of aqueous phase SirA [21,26,41]	0.30

lists the model’s detailed parameter settings.

2.5. Grid Independence Test

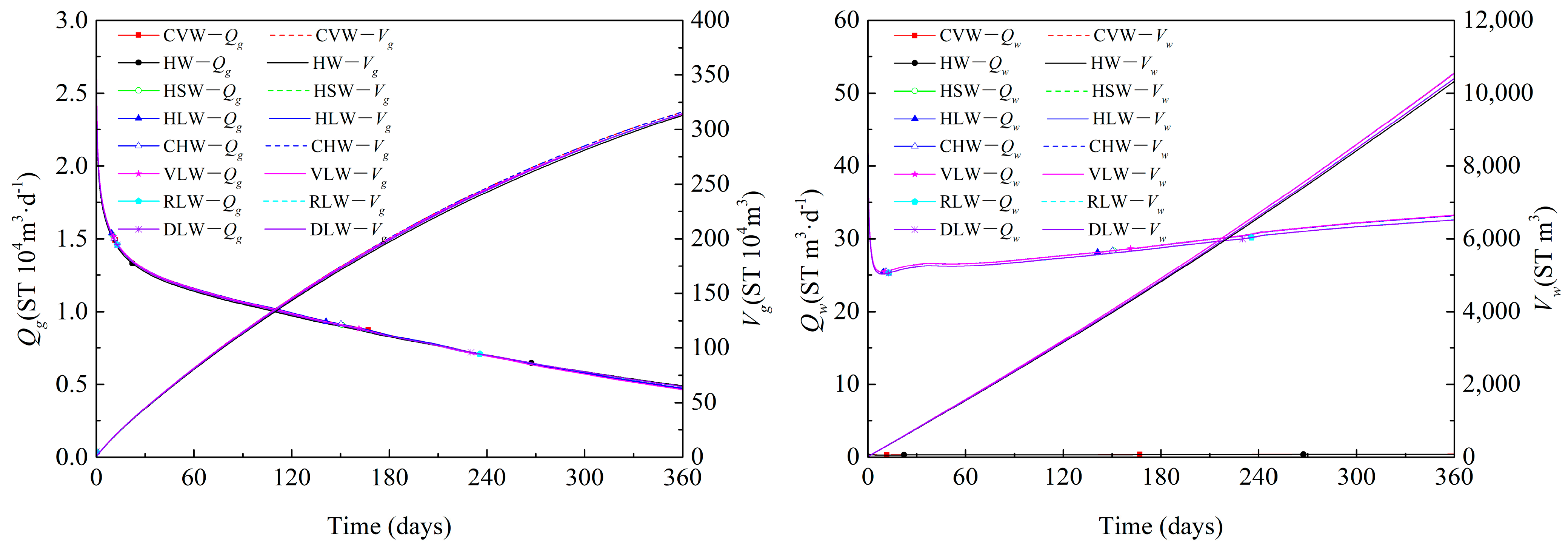

The numerical models established in this work were discretized separately in x-y plane domains, and the total number of grids between these models was different. To verify the errors of these models in predicting gas and water production within an acceptable range, we conducted the grid independence test. First, a vertical well with a completion section length of 70 m was set in the middle of these models, and then the same production pressure difference of 6 MPa was applied for continuous production for 360 days. Figure 4 shows the production results of these models within 360 days. The inconsistency number of grids among different models has almost no impact on the overall gas and water production. Therefore, these models can be used for subsequent comparison production performance of different complex structure well types.

3. Results and Discussion

3.1. Well Types Deployed at GHBL

3.1.1. Gas and Water Characteristics

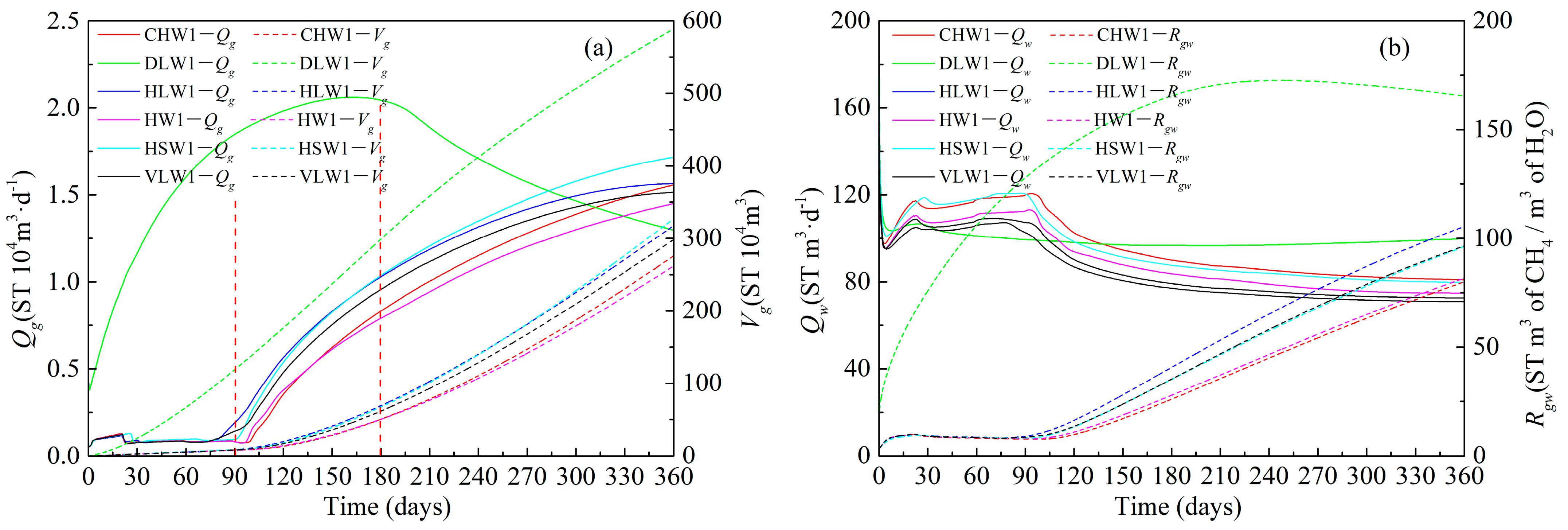

Figure 5a depicts the evolutions of the gas production rate (Q_g) and cumulative gas production (V_g) of different well types deployed in the middle of the GHBL within 360 days of production. In the initial stage (within 90 days), the Q_g of CHW1, HLW1, HW1, HSW1, and VLW1 were maintained relatively low. The presence of solid hydrates resulted in very low effective permeability of reservoirs. With the decomposition of solid hydrates, the seepage conditions near the wellbore gradually improved. After 90 days of depressurization, the Q_g and V_g curves began to show a sudden increase and enter the second stage, which was due to the free gas from the TPL beginning to reach and flow into the wellbores. In the later stage, it was gradually decreasing due to the effects of weak driving force. Unlike the other well types, DLW1 has distinct gas production trends that may likewise be separated into two stages. Q_g steadily increases and achieves a high value of 20,597 m³/d in the first stage (within 180 days) and then decreases to 12,966 m³/d by 360 days in the second stage. This is mainly because the lateral branches of DLW covered the entire GHBL and the root ends reached TPL. Due to the weakened of pressure driving force and the sustained Joule–Thomson effect, secondary hydrates were generated at the root ends of its lateral branches. As a result, the average Q_g is 16,666 m³/d with a total V_g of 589 × 10⁴ m³ after 360 days of production, which is better than the values of the above well types. The evolution of the water production rate (Q_w) corresponds to the gas production behavior as shown in Figure 5b. The gas-to-water ratio R_gw (ST m³ of CH₄/ST m³ of water) is an important indicator for assessing gas production efficiency, and a high R_gw means higher recoverability. DLW1 has a higher R_gw of around 170 after 360 days of production, which indicates that it is more adaptable than the other well types during production.

Table 3. Productivity of different well types deployed at GHBL after 360 days of production.

Case	Average Qg (104 m3/d)	Vg (104 m3)	Compared to the Reference Case
DLW1	1.64	589	224.81%
HSW1	0.91	327	124.81%
HLW1	0.88	317	120.99%
VLW1	0.83	298	113.74%
CHW1	0.77	276	105.34%
HW1 (ref)	0.73	262	100.00%

presents the production capacity of the aforementioned well types.

3.1.2. Characteristics of Reservoir Parameters

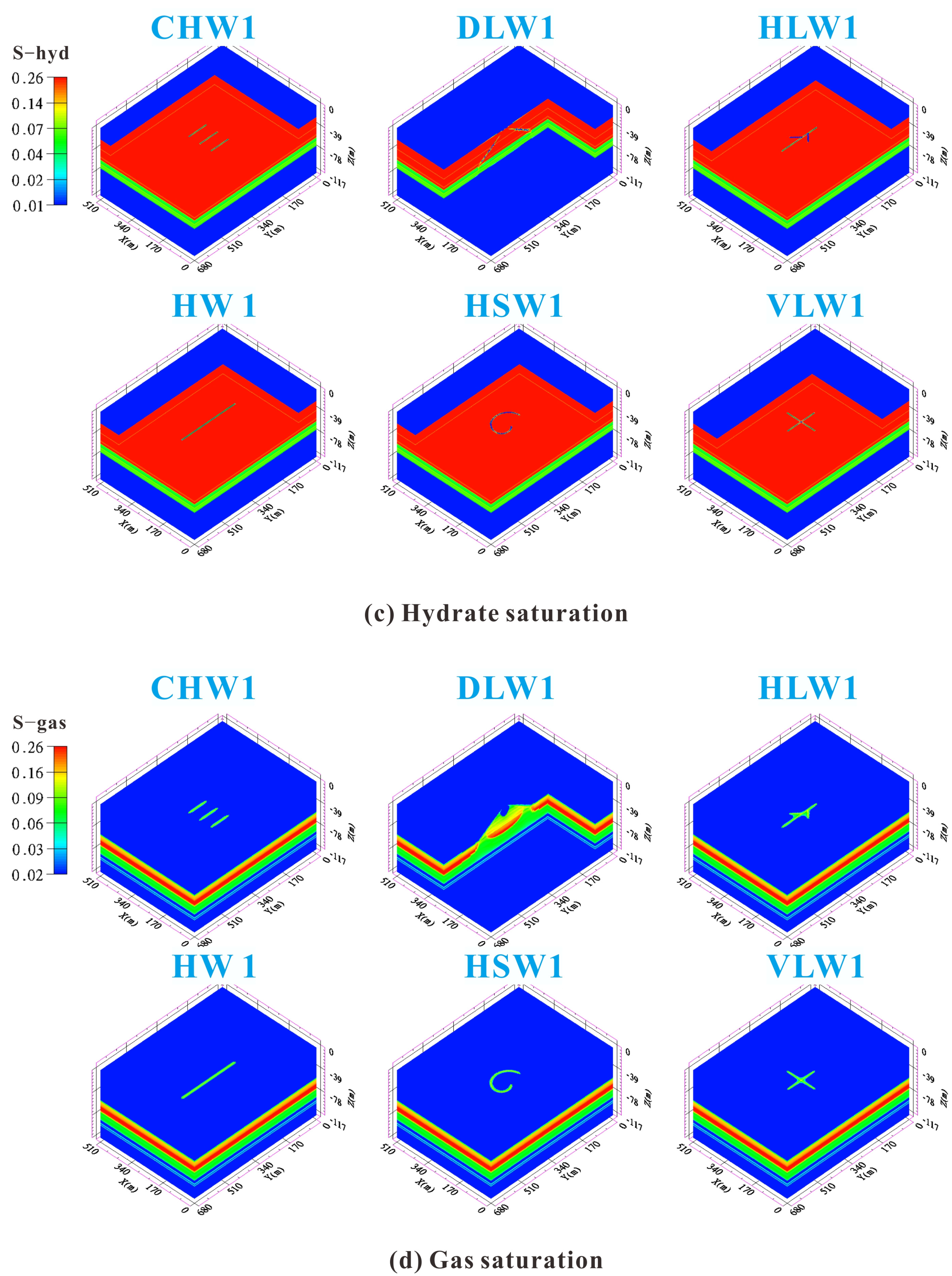

As shown in Figure 6a, due to the pressure drop superposition effect, the pressure drop areas between the main wellbore, and lateral branches of DLW1, HLW1, and VLW1 are larger. Similar to the pressure distribution diagram, in the temperature distribution diagram, Figure 6b, under the Joule–Thomson effect and the heat absorption of hydrate decomposition, the temperature near the wellbore of each well type significantly decreases and the low-temperature areas between the main wellbore and lateral branches of DLW1, HLW1 and VLW1 are larger. As shown in Figure 6c,d, after 360 days of production, the saturation of hydrates near the wellbore tends to be almost zero. The released gas accumulates near the wellbore, providing gas for long-term production.

3.2. Well Types Deployed at TPL

3.2.1. Gas and Water Characteristics

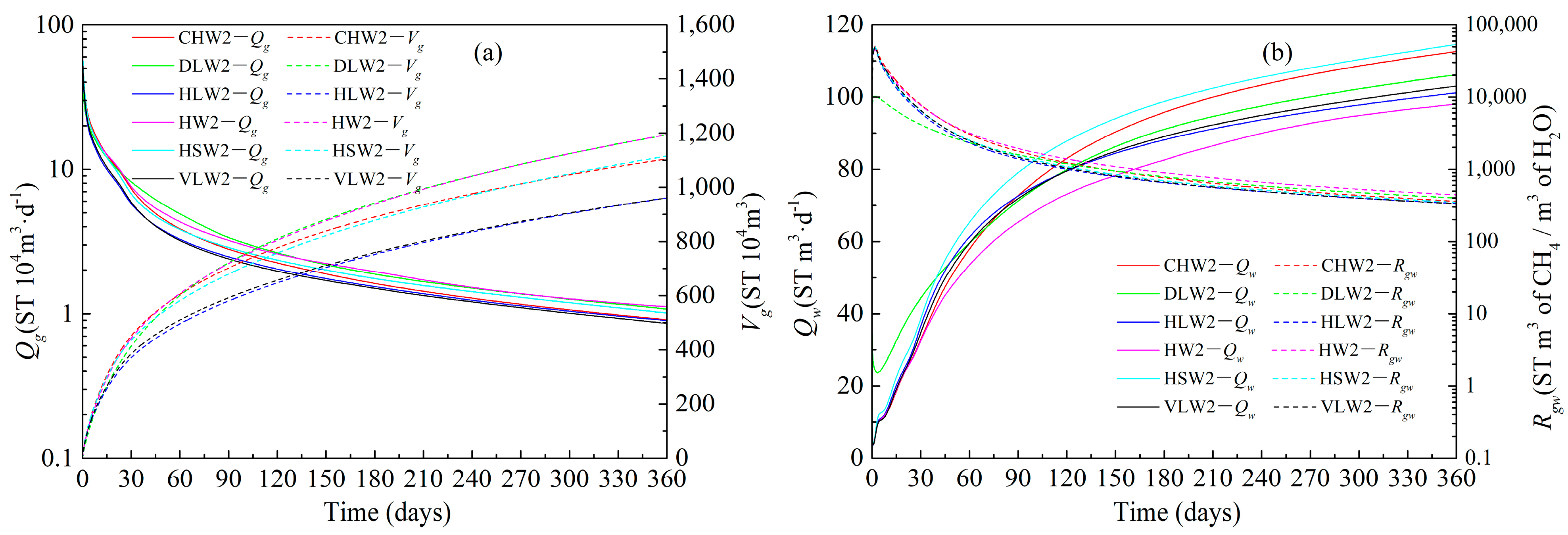

Figure 7a shows the evolutions of Q_g and V_g of different well types deployed in the middle of TPL within 360 days of production. When the different production well types were deployed in the middle of TPL, the high-saturation free gas of TPL and the hydrate decomposition gas of GHBL could be recovered at the same time, which greatly improved the overall productivity performance. The Q_g of all well types reached its peak in the initial stage, but slowly decreased in the later stage due to the weakening of the pressure driving force. As shown in Figure 8c, all well types generated a small amount of secondary hydrates at the root and toe ends of the wellbore after 360 days of production. Among all well types, the DLW2 and HW2 well types had the best productivity performance, with an average Q_g of 33,055 m³/d and a total V_g of 1190 × 10⁴ m³ after 360 days of production, and the R_gw of all well types tended to be around 300~400 after 360 days of production.

Table 4. Productivity of different well types deployed at the TPL after 360 days of production.

Case	Average Qg (104 m3/d)	Vg (104 m3)	Compared to the Reference Case
DLW2	3.31	1190	123.96%
HW2	3.31	1190	123.96%
HSW2	3.08	1110	115.63%
CHW2	3.06	1100	114.58%
HLW2	2.67	960	100.00%
VLW2 (ref)	2.67	960	100.00%

presents the production capacity of the aforementioned well types.

3.2.2. Characteristics of Reservoir Parameters

As shown in Figure 8a, the pressure distribution of different well types deployed in the middle of the TPL is similar to that when deployed at the middle of the GHBL, with more obvious and larger areas of pressure drop between the main and lateral branches. It can be seen from Figure 8b that a large amount of gas from TPL is extracted in a short period, which leads to a strong Joule–Thomson effect and the low-temperature areas generated by all well types were significantly larger than those deployed at GHBL. As shown in Figure 8c,d, after 360 days of production, different amounts of secondary hydrates were generated at the root and toe ends of all types of wellbores, and corresponding low gas saturation areas also formed near the wellbores.

3.3. Well Types Deployed at FGL

3.3.1. Gas and Water Characteristics

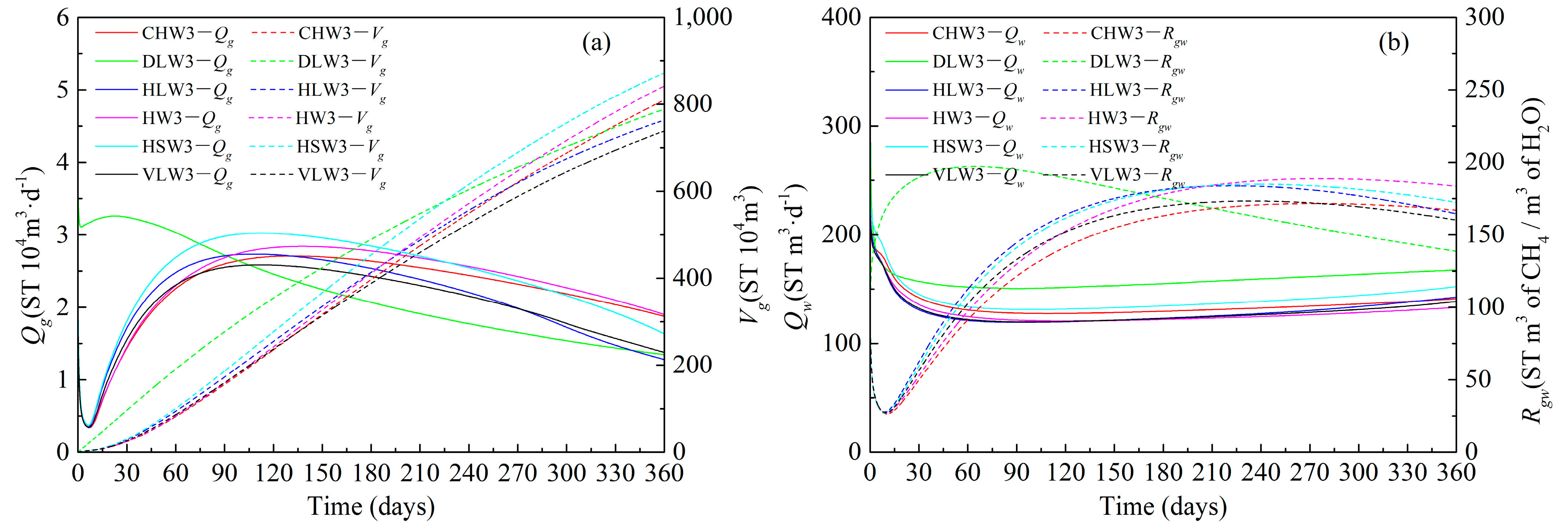

Figure 9a depicts the evolutions of Q_g and V_g of different well types deployed in the middle of FGL within 360 days of production. The Q_g curves of different well types show a sudden increase at 8 days. This is because the high-saturation free gas from TPL begins to reach and flow into the wellbores. Similarly, due to the effects of weak driving force, there is a gradual decrease trend in the later stage. The Q_g curves trend of DLW is inconsistent with that of other well types. This is because the lateral branches of DLW cover the entire FGL, and its Q_g is the highest among all well types in the initial stage. Among all well types deployed in the middle of the FGL, the HSW3 has the best gas performance, with an average Q_g of 24,222 m³/d and a total V_g of 872 × 10⁴ m³ after 360 days of production. Water production behaviors are similar to gas production, as shown in Figure 9b; the R_gw of all well types remains steady around 135~180 after 360 days of production.

Table 5. Productivity of different well types deployed at the FGL after 360 days of production.

Case	Average Qg (104 m3/d)	Vg (104 m3)	Compared to the Reference Case
HSW3	2.42	872	118.16%
HW3	2.34	842	114.09%
CHW3	2.25	810	109.76%
DLW3	2.19	789	106.91%
HLW3	2.12	763	103.39%
VLW3 (ref)	2.05	738	100.00%

presents the production capacity of the aforementioned well types.

3.3.2. Characteristics of Reservoir Parameters

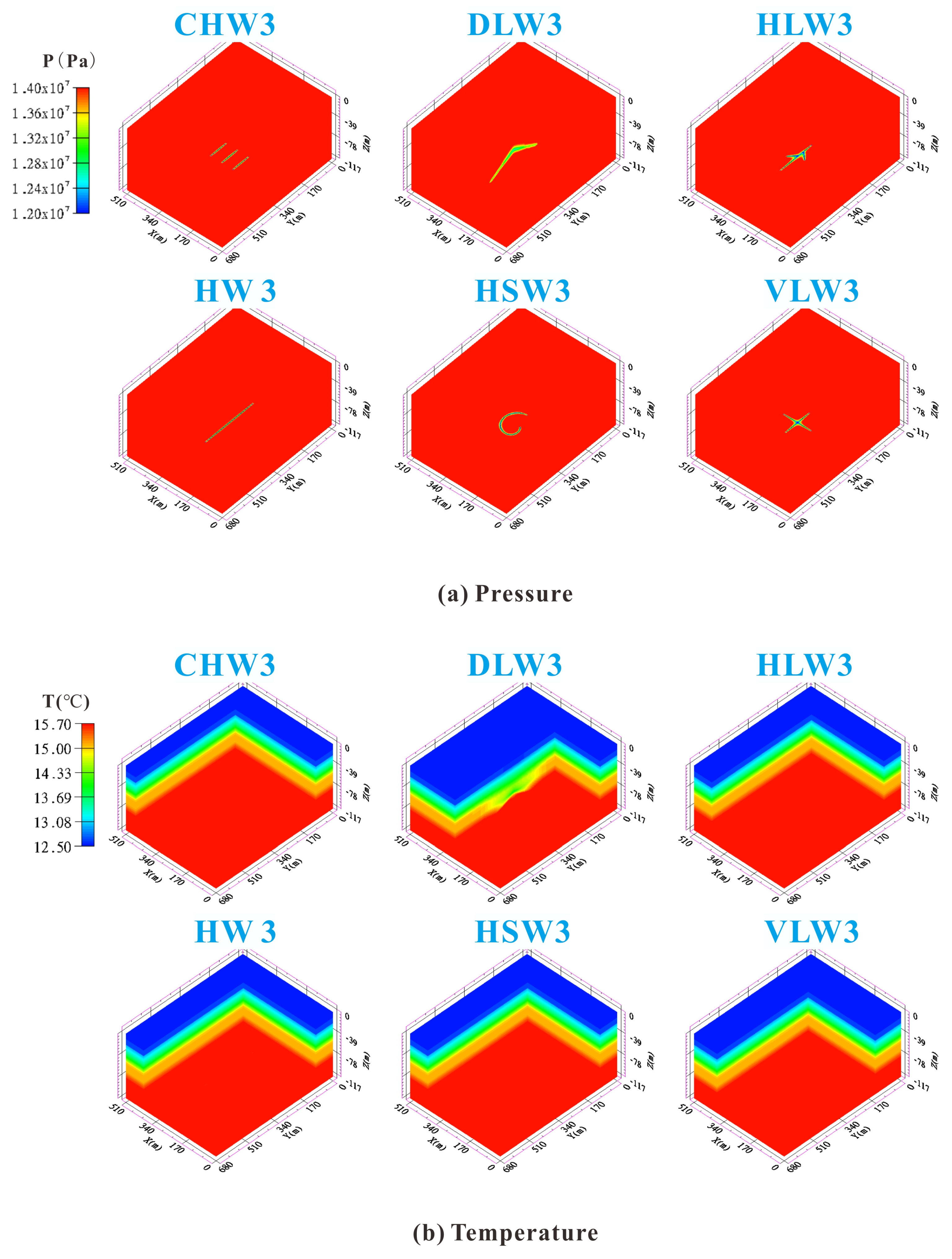

As shown in Figure 10a, due to the presence of a gas expansion effect in the FGL, the pressure drop cannot be effectively transmitted to a distance; after 360 days of production, the pressure gradient around the DLW’s wellbore is significantly lower than that of other well types. The areas of pressure drop between the main wellbore and lateral branches of other well types are bigger. As for the temperature distribution diagram (Figure 10b), due to the high initial sensible heat in the middle of the FGL, the low-temperature areas are not obvious after 360 days of production for all well types.

3.4. Well Types Deployed at ML

3.4.1. Gas and Water Characteristics

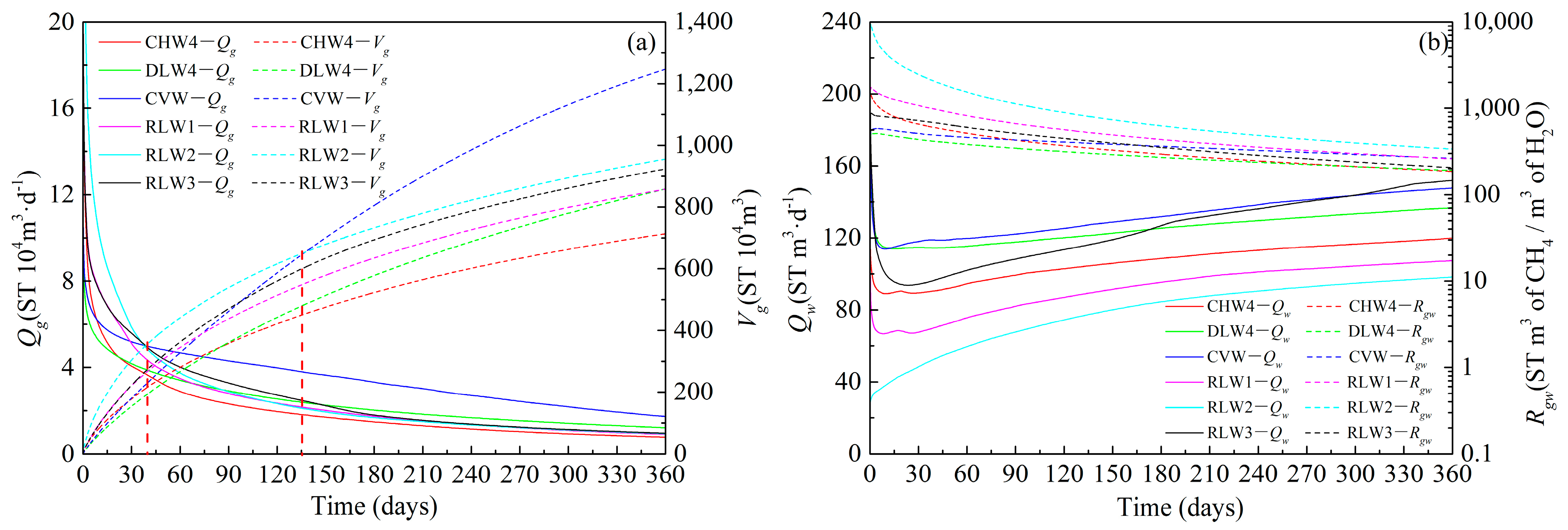

Figure 11a depicts the evolutions of Q_g and V_g of different well types deployed in the middle of ML within 360 days of production. Due to the advantages of multi-layer combined production, the Q_g curves peaked early and then gradually declined with the weakening of the driving force in the later stage. After 360 days of production, the CVW well type stood out with a wellbore spacing of 180 m and an average Q_g of 34,444 m³/d with a total V_g of 1240 × 10⁴ m³. It is worth noting that starting from 40 days, the Q_g of the CVW well type began to surpass that of other well types. After 135 days of production, its V_g also began to surpass that of other well types. The RLW2 well had the highest productivity among the RLW well types because its three lateral branches were located at the upper, middle, and lower parts of the TPL, which means it could effectively recover free gas from the TPL and FGL, as well as hydrate decomposition gas from the GHBL, resulting in the average Q_g of 26,527 m³/d with a total V_g of 955 × 10⁴ m³ after 360 days of production. The R_gw of all well types remained steady at around 200~300 after 360 days of production, as shown in Figure 11b.

Table 6. Productivity of different well types deployed at the ML after 360 days of production.

Case	Average Qg (104 m3/d)	Vg (104 m3)	Compared to the Reference Case
CVW	3.44	1240	173.91%
RLW2	2.65	955	133.94%
RLW3	2.56	923	129.45%
RLW1	2.38	857	120.20%
DLW4	2.38	858	120.34%
CHW4 (ref)	1.98	713	100.00%

presents the production capacity of the aforementioned well types.

3.4.2. Characteristics of Reservoir Parameters

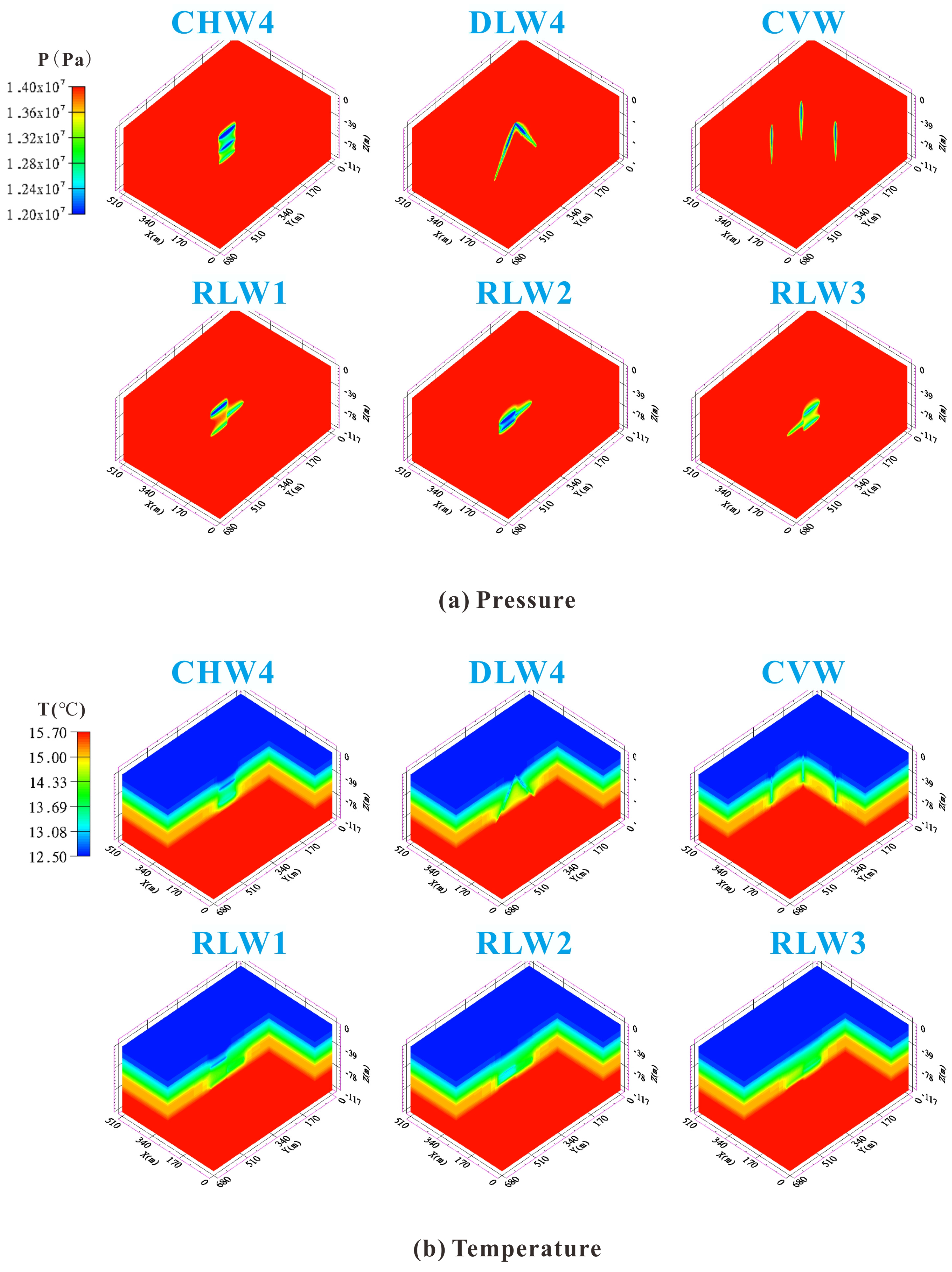

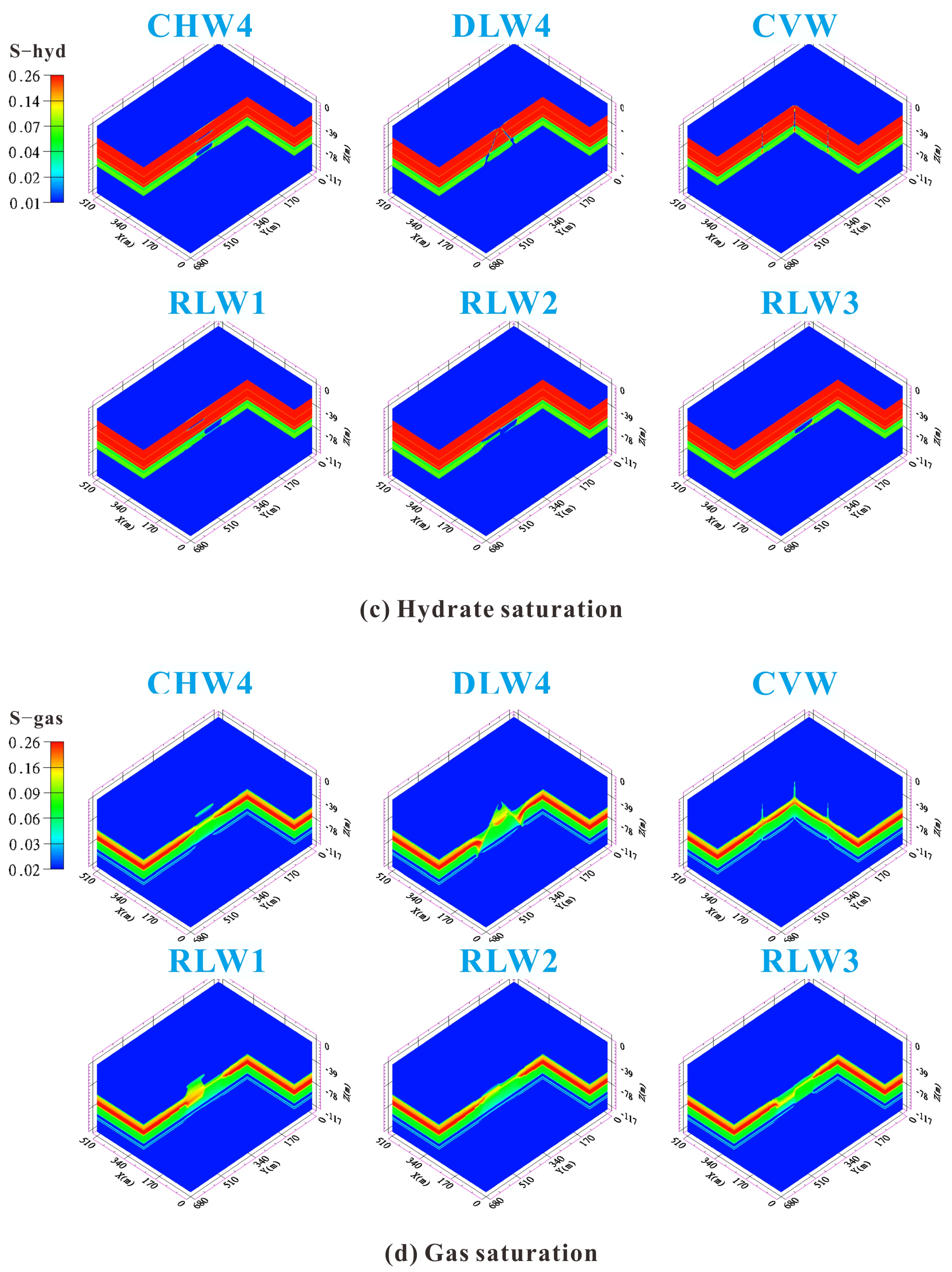

As shown in Figure 12a, it can be observed that the pressure gradient of the lower part of the wellbore structure of all well types was greater than the upper part. Especially for RLW3, the pressure gradient after 360 days of production were significantly lower than other well types. This is mainly because the gas expansion effect in the lower gas-bearing layer limited the pressure propagation. As for the temperature distribution diagram (Figure 12b), the wellbore structures located at the GHBL and TPL layers of all well types formed a noticeable low-temperature area around them. From Figure 12c,d, it can be seen that due to the high initial sensible heat of the FGL, there was no secondary hydrate formation near the wellbore structures located here. Secondary hydrates tend to generate near the wellbore structures located at TPL with high-saturation free gas here, such as the CVW well type where secondary hydrates are most prominent and the gas accumulates near the wellbore.

3.5. Comparisons of Production Performances

In general, the average Q_g is the most direct indicator used to evaluate the yield-increasing effect, while relative criterion R_gw is used to evaluate hydrate production efficiency. The yield-increasing mechanism of complex structure wells mainly depends on enlarging the drainage area. However, the increase in production may not be entirely related to the length of completion of the well. Herein, specific index J is recommended as an additional indicator in this section to evaluate production capacity, which is mainly affected by the well type. The following is the definition of the index [10]:

J = Q_g/hΔP

(3)

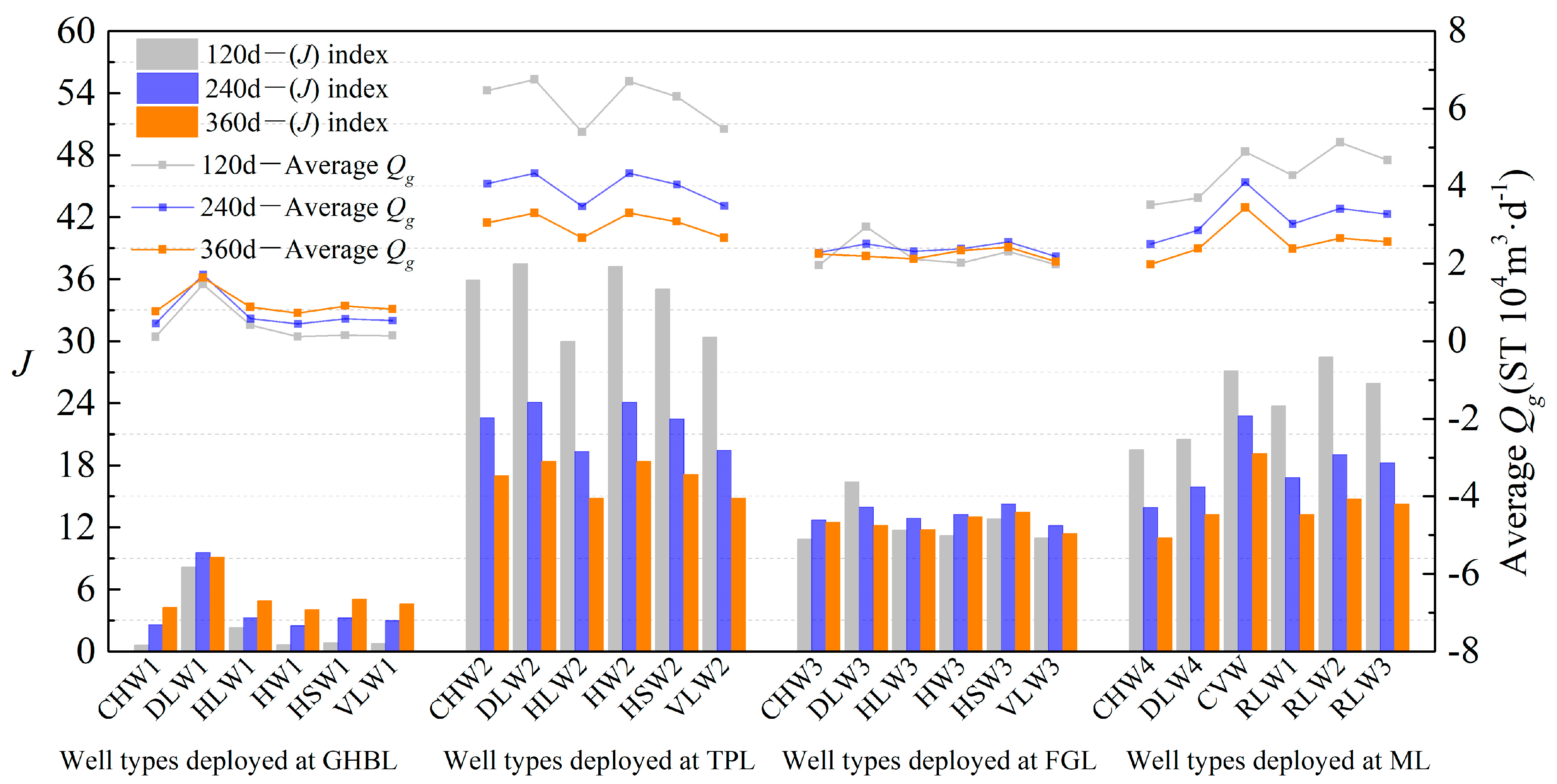

h represents the completion length (m), and P represents the pressure difference (MPa). In this work, different complex well types were deployed at the GHBL, TPL, FGL, and ML, respectively. The average Q_g and the J index of these well types after 360 days production are shown in Figure 13. Only in terms of production capacity, during the 240-day production period, the production performance of different complex well types with different deployment were as follows: TPL > ML > FGL > GHBL, and the DLW2 and HW2 well types stood out, with an average Q_g of 43,333 m³/d and a J-index of 24.1. After 360 days of production, the CVW well type deployed at ML had the best production capacity performance, with an average Q_g of 34,444 m³/d and a J-index of 19.1. This is mainly due to the advantage of the multi-layer combined production, as well as the synergistic pressure reduction effect between wellbores. However, it is worth noting that no matter what kind of well type is adopted, one single well production mode cannot meet the commercial development of the offshore NGH. The “well factory” production mode such as a multi-complex well combined with depressurization is the best option for economic exploitation of NGH. Herein, we suggest adopting the CVW as the basic well type for the “well factory” production mode, not only because it has better production performance, but also because the technology threshold and cost involved are relatively low. CVW can improve system redundancy, and any single well can be easily converted into a monitoring or injection well during the production process, which is beneficial for adjusting production plans and requires further research.

4. Conclusions

Based on the field data of China’s NGH test production in the Shenhu Sea area, the numerical method was used to evaluate the production capacity of different complex structure well types by continuous depressurization production for 360 days under the preconditions of fixed effective completion length of 300 m and a pressure difference of 6 MPa. The following results were obtained: during the 240-day production period, the complex structure well deployed at the TPL demonstrated higher production performance, and the DLW2 and HW2 well types stood out with an average Q_g of 43,333 m³/d and a J-index of 24.1. After 360 days of production, the CVW deployed at the ML had the best production performance due to the advantage of the multi-layer combined production, as well as the synergistic pressure reduction production effect between wellbores, with an average Q_g of 34,444 m³/d and a J-index of 19.1. According to the simulation results, CVW has excellent gas production performance, with the advantages of low technical threshold and cost. More importantly, CVW can improve the fault tolerance of the production system and can easily convert any single well into a monitoring well or injection well. Herein, we suggest adopting CVW as the basic well for the “well factory” production mode, which is worth further research.
