Fault-Tolerant Control of Tidal Stream Turbines: Non-Singular Fast Terminal Sliding Mode and Adaptive Robust Method

Abstract

This paper addresses the issues of maximum power point tracking (MPPT) and fault-tolerant control in tidal steam turbines under complex marine environments. In order to solve the conflicting problems in the existing sliding mode control between dynamic performance and chatter reduction as well as the use of fault estimation link in the fault-tolerant control, which increases the system complexity, an adaptive non-singular fast terminal sliding mode and adaptive robust fault tolerance method (ANFTSMC-ARC) is proposed. First, a speed controller equipped with adaptive non-singular fast terminal sliding mode control (ANFTSMC) is designed to improve the power capture efficiency under swell disturbances. This design achieves fast convergence and circumvents the singularity problem. Then, a new reach law is proposed based on the adaptive hybrid exponential reaching law (AHERL), which ensures high tracking performance while reducing chattering. In addition, considering that the hydraulic pitch system is prone to failure, a fault-tolerant controller with automatically adjustable gain is designed under the adaptive robust scheme. With the help of Lyapunov theory, the closed-loop system is proved to be uniform and ultimately bounded. Finally, comparative simulation results verify the efficiency of the proposed control strategy.

1. Introduction

With the rapid development of the global economy, the energy structure, which is dominated by fossil energy sources such as coal and oil, has put pressure on the ecological environment. In recent years, many renewable energy sources have been studied, among which tidal current energy has received widespread attention for its predictability and high energy density. As shown in Figure 1, the tidal stream turbine (TST) consists of a turbine that produces mechanical energy, a generator that produces electrical energy, and a power converter for power control and connection to the grid. The control objective of a tidal stream turbine is to maximize energy capture, and the power it produces is proportional to the cube of the current flow velocity ($V_{tide}$) and the power coefficient (Cp). Due to the variation of tidal current flow rate, the power variation of TST is divided into different regions, in which the maximum power point tracking (MPPT) and variable pitch control are the two common control methods to obtain the maximum power. The pitch angle ($\beta$) is usually kept zero below the rated current flow rate, and Cp depends on the tip speed ratio (TSR,λ), which allows the MPPT control speed to track the optimal speed and thus maximize the output power. However, the MPPT faces the challenge of internal disturbances such as system nonlinearities and model uncertainties as well as external disturbances due to swell effects and turbulence. In order to maximize the power in the presence of varying tidal velocity, it is necessary to design control strategies to improve the real-time performance, interference immunity, and stability of the TST [1]. And, variable pitch control is usually used to maintain a constant power output above the rated current speed [2]. It is necessary to consider that under high speed currents or strong sea conditions [3], the pitch system may suffer from mechanical fatigue, which causes the pitch angle not to reach the desired value, and in extreme cases, it may even lead to faults such as the failure of the pitch system. Therefore, it is necessary to design control strategies with fault tolerance to stabilize the output power of the TST system when it operates above the rated power.

For MPPT, researchers have conducted many studies. The classical PI controller is widely used because of its simple structure and easy parameter adjustment [1], but it is not sufficient to cope with the nonlinearity of the system as well as parameter variations. In [4,5], fuzzy adaptive PI control is used to adjust the controller parameters. In [6], a fuzzy fractional order PID controller based on passivity is proposed which is robust to swell effects and parameter variations. But the control accuracy and dynamic characteristics of the fuzzy control under transient disturbances are not satisfactory. In [7,8], a backstepping control method is proposed for MPPT. In [9], an MPC control strategy based on economic metrics is proposed for a TST system, which improves the speed of solving the traditional quadratic function. However, these methods require precise system parameters, and the control accuracy decreases when the nonlinearity and uncertainty of the system are large. Sliding mode control methods have received wide attention in tidal power generation control for their robustness, low sensitivity to parameter changes, and fast response speed. In [10], the second-order sliding mode control method is used to solve the demagnetization problem of the PMSG, and the simulation results show that the method is robust to demagnetization. In [11], continuous approximation and saturation function are used to reduce the chattering of the sliding mode control for wind turbine systems, but there is a finite steady state error. A higher order sliding mode control based on a super-twisting algorithm was investigated in [12,13] to reduce torque pulsation in the DSPMG, but the strongly coupled system makes the parameter tuning complex. In [14,15], a fractional order sliding mode control (FOSMC) was proposed to improve the output power quality of the PMSG; however, this method requires accurate tuning of the fractional operators. In [16], an integral sliding mode surface was proposed to improve the power extraction efficiency of wind turbines. In [17], an adaptive super-twisting sliding mode control was proposed to reduce chattering through adaptive gain and second-order sliding mode. In [18,19], the application of fast terminal sliding mode in a wind power generation system was investigated. But the fractional order term in the sliding mode control may lead to a singularity problem, which makes the control signal tend to become infinite in some regions. In [20,21], for the trajectory tracking problem with system uncertainty and external interference, the NFTSM theory is used to ensure a fast convergence speed, avoid singular points, and be robust to uncertainty and external interference. In [22], a non-singular fast terminal sliding mode was used for the first time for MPPT in wind power systems and avoided unnecessary singularities. However, the parameter tuning of the above method under external disturbances and parameter uncertainties is complicated, the convergence speed and chattering of the system depend on the control parameters, and there is a contradiction between the reduction of chattering and fast convergence. Therefore, a trade-off is required.

In the full load region, variable pitch control is required to keep the output power at the rated value for system reliability. In [23,24,25], the design and life prediction of variable pitch blades of a TST were studied to protect the turbine under strong tidal conditions. In [26,27], variable pitch controllers with variable gain scaling and composite stratification strategies were designed to stabilize the output power of the TST at high tidal current speeds. In [28,29], a pitch control strategy with tidal current speed preview was proposed to reduce the frequent actions of the pitch mechanism. In [30], an independent pitch control method was investigated to reduce the asymmetric loading on the blades. The aforementioned studies on TST pitch systems have focused on blade design, load reduction, and power quality optimization. However, TST blades are subjected to harsh environmental conditions and the pitch system inevitably fails. The most common failures include pump wear, hydraulic leaks, and high air content in the oil, which cause the dynamic response of the pitch angle to slow down and fail to track the desired value, leading to fluctuations in generator speed and power output [31,32]. Current research on fault-tolerant control of pitch systems has focused on wind power generation systems. In [33,34], a disturbance observer is used for fault diagnosis and combined adaptive neural networks with sliding mode control to achieve fault-tolerant control. In [35,36], a fault detection and isolation scheme based on a sliding mode observer is proposed for the case where actuator faults exist in both the pitch and drive train systems of a wind turbine. In [37,38], faults and uncertainties are estimated using a time delay estimator and then active fault-tolerant control is used to remove the effects of the faults. In [39,40,41,42], an unknown input observer is used to estimate and compensate for pitch actuator faults. In [43], an adaptive sliding mode observer is investigated, which estimates actuator and sensor faults and compensates for them. However, all these methods rely on fault estimation links, and fault observers are susceptible to parameter uncertainties and nonlinearities, in addition to the fact that adding fault estimation links affects the real-time nature of the control. Additional sensors are also required to measure the system state, increasing the complexity of the system. In addition, much research has been conducted on fault-tolerant control in wave energy converters. In [44], the current research progress in fault-tolerant control of wave energy converters is described in detail. In [45], a nonlinear servo compensator based on a generalized internal model is proposed for the faults that tend to occur in the WEC braking subsystem. However, the passive FTC requires high accuracy of the system model. In [46], a multi-controller FTC based on an adaptive fault observer and a suitable H-performance metric is proposed for improving the fault tolerance of WEC. In [47], a WEC control method based on Bayesian policy gradient is proposed, which is useful for being able to adapt to sensor failures and return to almost full power operation. However, a large amount of data training is required.

Therefore, this paper investigates the MPPT problem and pitch fault-tolerant control of a TST when there are swell disturbances, parameter uncertainties, and sudden changes in flow velocity. In this paper, adaptive non-singular fast terminal sliding mode control (ANFTSMC) and adaptive robust controller (ARC) are proposed for power stabilization control of a TST at full tidal velocity. The non-singular fast terminal sliding mode surface is designed in order to achieve fast convergence and avoid singularities. An adaptive hybrid exponential reaching law (AHERL) is proposed to balance the conflict between chatter reduction and dynamic performance. The proposed ARC method correlates pitch angle with torque, establishes the error dynamic relationship between rotational speed and pitch angle, and enables the pitch system to adaptively adjust parameters to actuator faults through the constructed adaptive hybrid exponential convergence rate; the fault observation link is avoided, the calculation is simplified, and the real-time performance of the system is improved.

This paper is organized as follows: Section 2 describes the model of the TST and the control objective. Section 3 designs the AHERL-based ANFTSMC controller. Section 4 designs the ARC pitch fault-tolerant controller. In Section 5, the simulation results are analyzed and compared to verify the superiority of the proposed method. Finally, the results are summarized in Section 6.

2. Problem Description

In this section, the TST model and operating regions are described. The control framework of the method proposed in this paper is introduced, including the MPPT control of the ANFTSMC and the pitch angle fault-tolerant control of the ARC.

2.1. Tidal Stream Turbine Modeling

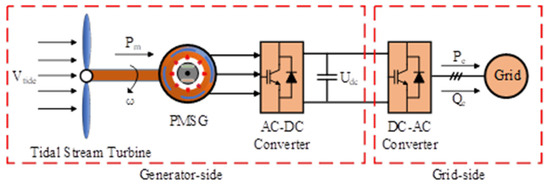

In this paper, a PMSG-based direct-drive, horizontal-axis TST system is investigated, and the mechanical power $P_{\mathrm{m}}$ and torque $T_{\mathrm{m}}$ captured by the TST are as follows:

$$P_{\mathrm{m}}=\frac{1}{2}\rho \pi R^2{v}_{tide}^3{C}_p(\lambda ,\beta )$$

(1)

$$T_{\mathrm{m}}=P_{\mathrm{m}}/{\omega }_r$$

(2)

where $\rho$ is the density of water, $R$ is the radius of the turbine blade, $v_{tide}$ is the tidal current speed, $\beta$ is the pitch angle of the TST system, ${\omega }_r$ is the rotor speed, $C_P$ is the power coefficient, and $\lambda$ is the tip speed ratio. The tip speed ratio, which is the ratio of the tip speed to the tidal current speed, can be expressed as follows:

$$\lambda =\frac{{\omega }_{r}R}{v_{tide}}$$

(3)

The $C_p(\lambda ,\beta )$ is a function of the blade tip speed ratio and pitch angle [48], which is generally obtained by the look-up table method and can be approximated using curve fitting as follows:

$$\{\begin{array}{c}{C}_p\left(\lambda ,\beta \right)=c_1(\frac{c_2}{{\lambda }_i}-c_3\beta -c_4)e^{-\frac{c_5}{{\lambda }_i}}+c_6\lambda \\ \frac{1}{{\lambda }_i}=\frac{1}{\lambda +0.08\beta }-\frac{0.035}{{\beta }^3+1}\end{array}$$

(4)

where $c_1$ = 0.5176, $c_2$ = 116, $c_3$ = 0.4, $c_4$ = 5, $c_5$ = 21, and $c_6$ = 0.0068.

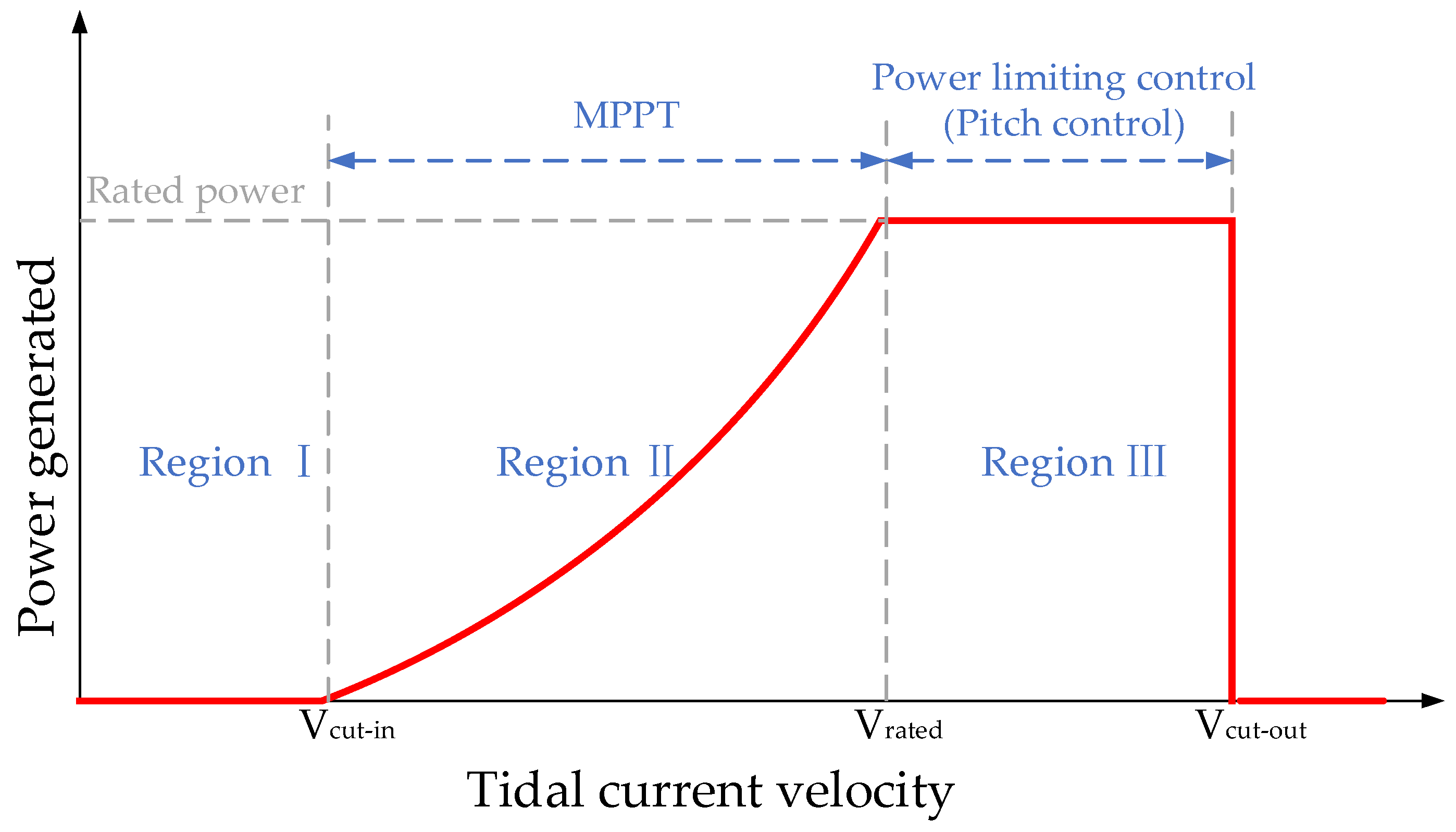

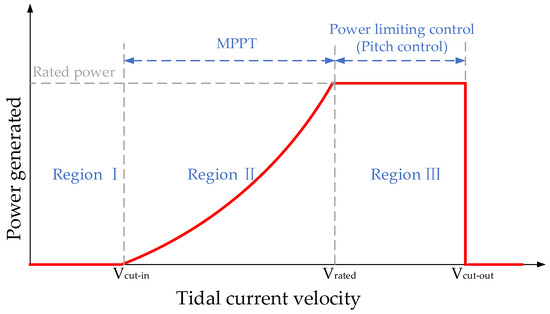

Typically, the TST operates in three operating regions due to the variation in tidal current speed. Figure 2 shows the control block diagram of the TST system studied in this paper, and Figure 3 shows the operating regions of the TST. The operating process of the TST can be divided into three stages: startup, MPPT, and constant power operation. The tidal current speed between the cut-in speed and the rated speed corresponds to region II, and MPPT control is required at this stage to ensure maximized power capture; when the rated speed is reached (region III), the rated power needs to be maintained in order to ensure the structural safety of the TST. The cut-off speed is the maximum tidal current speed that the turbine can withstand, and when the tidal current speed exceeds this value, the blades should be smoothly paddled for protection.

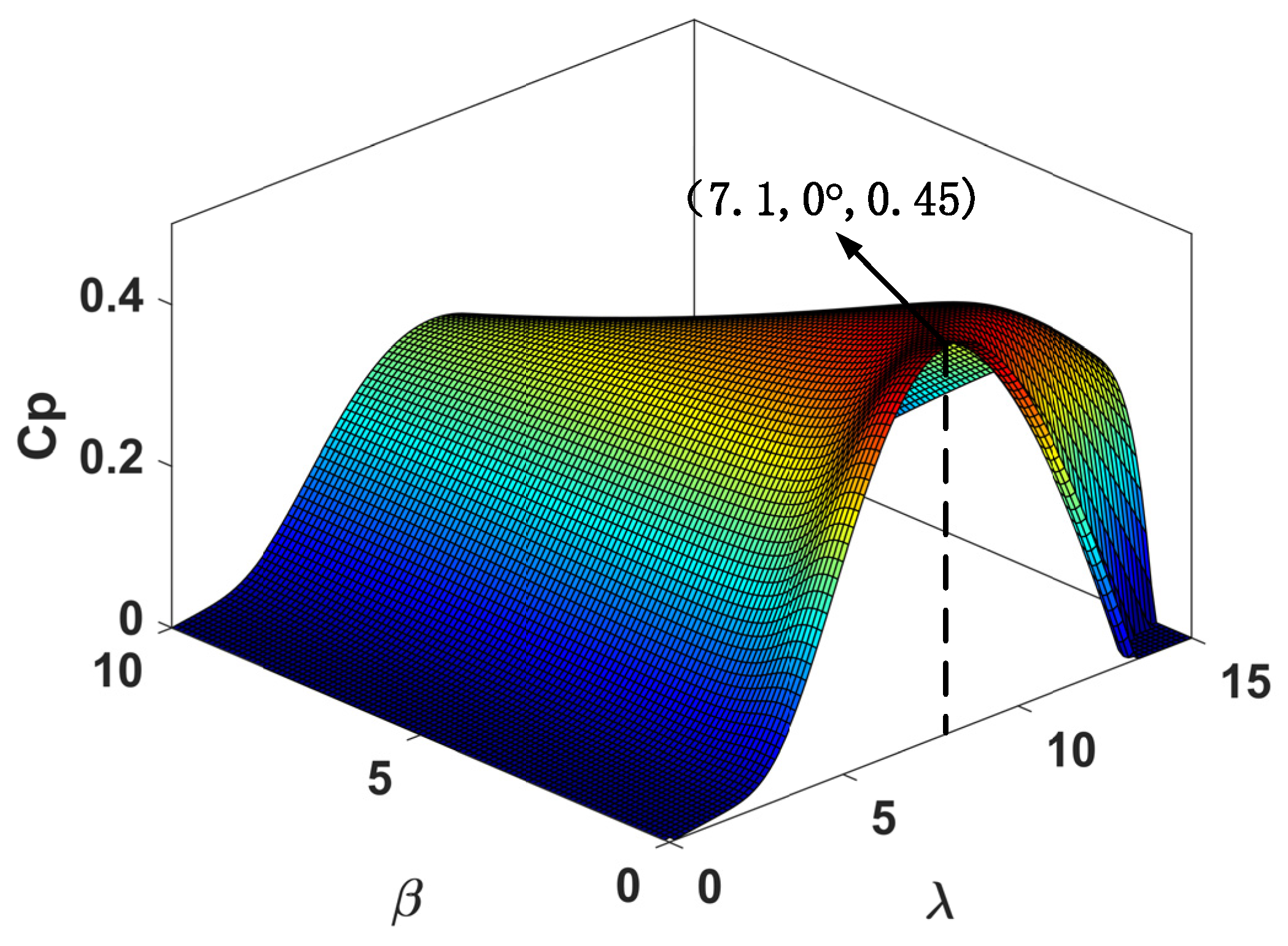

In order to achieve MPPT, it is necessary to obtain the maximum Cp. The Cp curve is shown in Figure 4. When the TST is operated in region II and the pitch angle is kept at 0°, the maximum power coefficient Cp is obtained as long as $\lambda$ is kept at its maximum value at any tidal current speed. In this paper, the optimum blade tip speed ratio method is used to obtain the optimum reference speed of the TST:

$${\omega }_{ref}=\frac{{\lambda }_{opt}}{R}{v}_{tide}$$

(5)

The dynamical model of the TST system is expressed as follows:

$$J\frac{d{\omega }_r}{dt}=T_m-T_e-B{\omega }_r$$

(6)

where $T_e$ is the electromagnetic torque of the PMSG, $B$ is the friction coefficient, and $J$ is the generator inertia. From Equation (6), the rotor speed of the TST is made optimal by controlling $T_e$ of the PMSG.

2.2. Pitch System Modeling

The pitch system can be represented by the following second-order dynamics model:

$$\ddot{\beta }=-{\omega }_n^2\beta -2\xi {\omega }_n\dot{\beta }+{\omega }_n^2{\beta }_{ref}$$

(7)

where ${\beta }_{ref}$ is the desired value of the pitch angle and ${\omega }_n$ and $\xi$ are the natural frequency and damping ratio of the pitch system, respectively. The pitch actuator needs to satisfy certain constraints in practical operation, and its operating range is considered to be $0°\le \beta \le 90°$; the pitch rate is between $-5^{°}/\mathrm{s}$ and $5^{°}/\mathrm{s}$.

The effect of the failure of the pitch actuator on the system dynamics is reflected in the ${\omega }_n$ and $\xi$ of the pitch system, which can be expressed as follows, respectively:

$$\begin{array}{l}{\tilde{\omega }}_n=(1-{\mu }_{fi}){\omega }_n+{\mu }_{fi}{\omega }_{n,fi}\\ \tilde{\xi }=(1-{\gamma }_{fi})\xi +{\gamma }_{fi}{\xi }_{fi}\end{array}$$

(8)

where $0\le {\mu }_{fi}\le 1,0\le {\gamma }_{fi}\le 1,i=1,2,3$ indicate the degree of failure of the three faults of pump wear, hydraulic leakage, and high air content in the oil, respectively. ${\omega }_{n,fi}$ and ${\xi }_{fi}$ are the values under the three faults, respectively. Pump wear is an early failure that occurs slowly and results in low pump pressure. Hydraulic leaks occur more quickly than pump wear and result in a pressure drop so low that the vanes cannot move. ${\mu }_{fi}=0$ indicates normal condition and ${\mu }_{f1}={\mu }_{f2}={\mu }_{f3}=1$ corresponds to 75% pump pressure, 50% hydraulic pressure loss, and 15% air content in the oil [49].

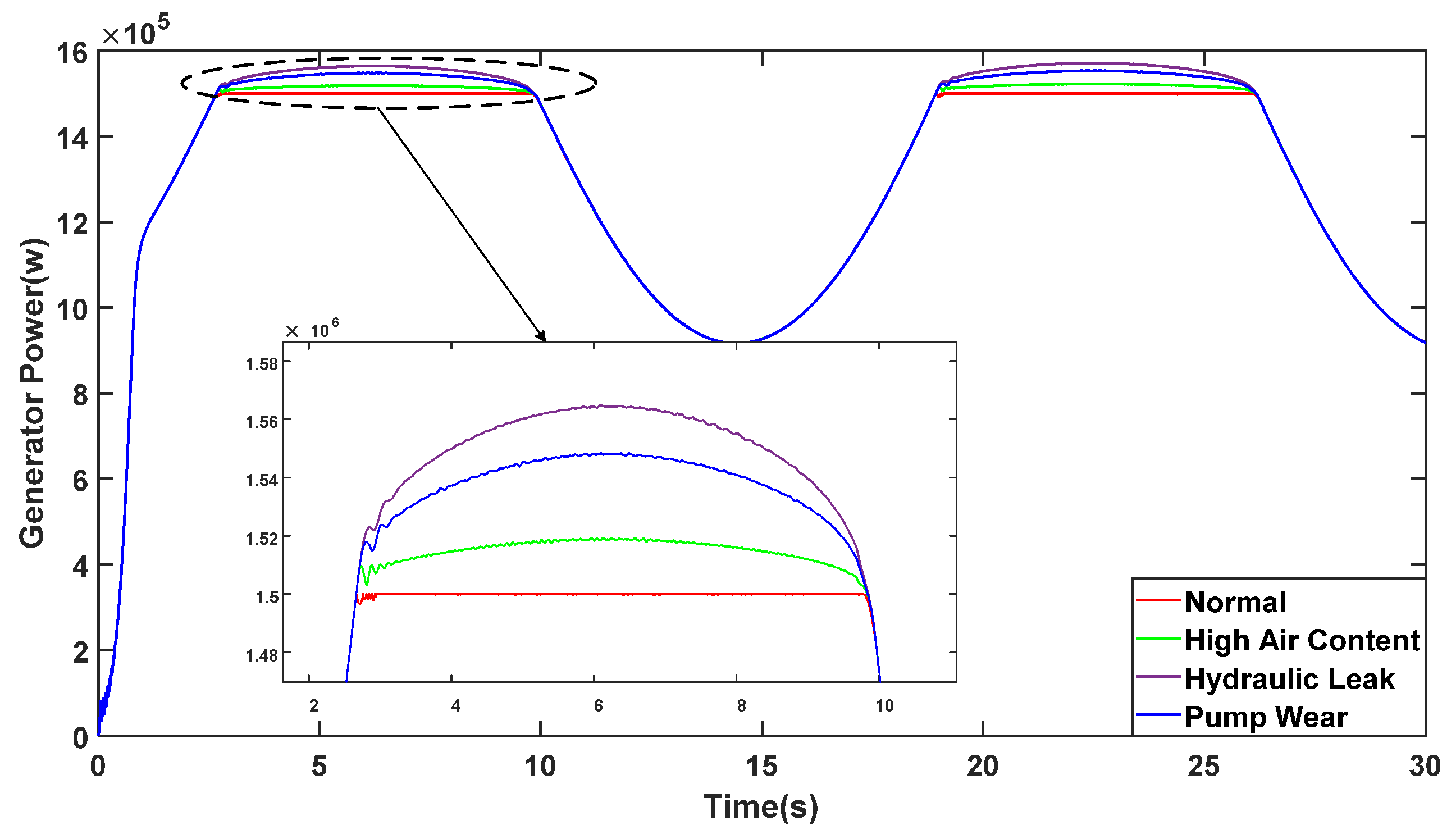

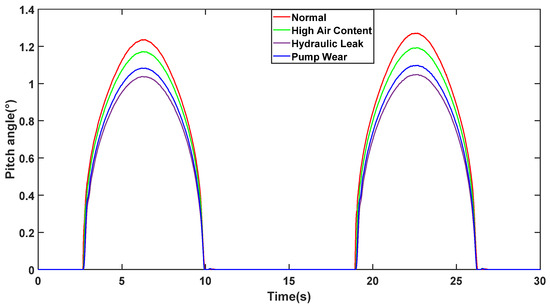

Figure 5 shows the operation of the pitch system under different fault conditions. The fault parameters are shown in

Table 1. Effects of different faults on the dynamics of the pitch system.

Faults	${\mathit{\omega }}_{\mathit{n}}$ (rad/s)	ξ
Normal	11.11	0.6
High air content in the oil	5.73	0.45
Hydraulic leakage	3.42	0.9
Pump wear	7.27	0.75

. It can be seen that the pitch angle cannot reach the desired value due to the fault. The corresponding output power is shown in Figure 6, where the fault caused the output power to exceed the rated power, causing the generator to be overloaded, thus affecting the lifetime of the generator in long-term operation. In addition, the pitch actuator may fail in extreme cases, resulting in degradation or deviation of the pitch action performance from the desired value, which can be represented as follows:

$${\beta }_u=\sigma (t){\beta }_{ref}+\phi (t)$$

(9)

where ${\beta }_u$ is the control input for the pitch actuator, $0\le \sigma (t)\le 1$ represents the effectiveness of the pitch actuator, $\sigma (t)=1$ indicates that the actuator is normal, and $\sigma (t)=0$ indicates that the actuator is completely disabled. $\phi (t)$ represents the unknown pitch actuator bias. Combining Equations (7)–(9), the dynamic changes and failures of the pitch actuator are expressed as follows:

$$\ddot{\beta }=-{\omega }_n^2\beta -2\xi {\omega }_n\dot{\beta }+{\omega }_n^2(\sigma (t){\beta }_{ref}+\phi (t))+\mathsf{\Delta }\tilde{f}$$

(10)

where $\mathsf{\Delta }\tilde{f}=-{\mu }_{fi}\mathsf{\Delta }({\widehat{\omega }}_n^2)\beta -2{\gamma }_{fi}\mathsf{\Delta }(\widehat{\xi }{\widehat{\omega }}_n)\dot{\beta }+{\mu }_{fi}\mathsf{\Delta }({\widehat{\omega }}_n^2)$, $\mathsf{\Delta }({\widehat{\omega }}_n^2)={\omega }_{n,fi}^2-{\omega }_n^2$, and $\mathsf{\Delta }(\widehat{\xi }{\widehat{\omega }}_n)={\xi }_{fi}{\omega }_{n,fi}-\xi {\omega }_n$.

In summary, the main problems of the TST system are poor tracking accuracy of the MPPT in region II due to disturbances such as swells and turbulence, and in region III, the output power fluctuates due to the failure of the pitch actuator resulting in the pitch angle not tracking the desired value. The traditional sliding mode control is robust to disturbances, but there is a contradiction between the convergence speed and the suppression of chattering, and the fast terminal sliding mode also suffers from the singularity problem. Moreover, traditional fault-tolerant control relies on fault estimators, and the fault-tolerance performance suffers due to the uncertainty and nonlinearity of the TST system. Therefore, the next sections present the ANFTSMC-ARC method proposed in this paper to solve these problems.

3. Adaptive Non-Singular Fast Terminal Sliding Mode Controller

To solve the problem of poor MPPT accuracy due to swell and turbulence disturbances as well as system nonlinearities and parameter uncertainties, the ANFTSMC method is proposed in this section. It consists of three main parts: (1) The design of a non-singular fast terminal slip mode surface is used to avoid the singularity problem. (2) Adaptive hybrid exponential reaching law balances the conflict between dynamic performance and chatter reduction. (3) Construction of the Lyapunov function to prove system stability.

3.1. Adaptive Hybrid Exponential Reaching Law

The conventional exponential reaching law consists of an exponential term and a constant velocity term with the following expression:

$$\dot{s}=-\epsilon \mathrm{sgn}s-ks$$

(11)

where $\epsilon$ is the constant velocity term coefficient, $k$ is the exponential term coefficient, $k>0$, and $s$ is the sliding mode surface function.

The sliding mode controller moves away from the sliding mode surface when $s$ is large, at which point the exponential term stabilizes the system to the sliding mode surface quickly, with the convergence velocity depending on $k$. When the controller reaches the sliding mode surface, it slides down to the origin with the constant velocity term, with the convergence velocity depending on $\epsilon$. The sign function $\mathrm{sgn}s$ maintains the system’s sliding modes, but it also introduces chattering.

Increasing the exponential term coefficient $k$ can speed up the convergence rate, but it will cause chattering when approaching the sliding mode surface. Decreasing $\epsilon$ can reduce chattering, but at the same time, it slows down the convergence rate. Therefore, the traditional exponential reaching law makes it difficult to balance the contradiction between convergence speed and chattering reduction.

To address the shortcomings of the exponential reaching law, this paper proposes an adaptive hybrid exponential reaching law:

$$\{\begin{array}{c}\dot{s}=-f(x_1,s)\mathrm{sgn}s-k{s}^{\alpha }\\ f(x_1,s)=\frac{\eta }{\delta +(1+\frac{1}{{\left|x_1\right|}^g}-\delta )e^{-\chi \left|s\right|}}\end{array}$$

(12)

where $x_1$ is the state variable; $\alpha ,g$ are the power term coefficients, $\alpha$ is odd and $\alpha >1,g>1$; $\eta$ is the variable speed term coefficients, $\eta >0$; and $0<\delta <1$, $\chi >0$.

When the system is far away from the sliding mode surface, $x_1$ and $s$ are large, $e^{-\chi \left|s\right|}$ is negligible, the variable speed term $f(x_1,s)$ is approximately equal to $-\frac{\eta }{\delta }$, and the system converges to the sliding mode surface at a faster speed under the action of the exponential and variable speed terms. As the system approaches the sliding mode surface, $s$ approaches 0, the exponential term is negligible, the variable speed term is approximately equal to $-\frac{\eta {\left|x_1\right|}^g}{{\left|x_1\right|}^g+1}$, and the system tends to the origin under the action of the variable speed term. During this process $x_1$ becomes gradually smaller, so the switching band near the sliding mode surface decreases and chattering is suppressed.

3.2. Proposed Adaptive Non-Singular Fast Terminal Sliding Mode Controller

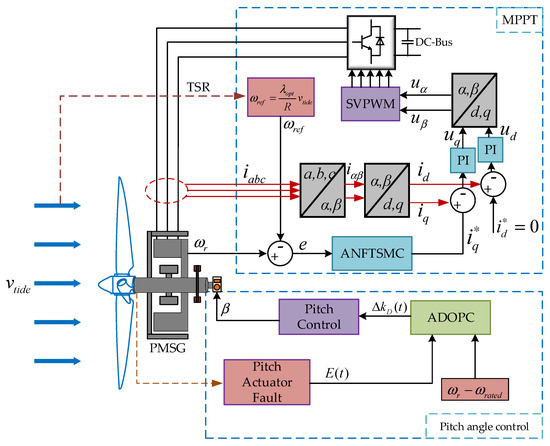

An ANFTSMC controller is designed to track the rotor speed of the PMSG. The reference optimal speed ${\omega }_{ref}$ is obtained from Equation (5) and combined with Equation (6), and the dynamic expression for the speed tracking error can be obtained as follows:

$$x_1=\omega -{\omega }_{ref}$$

(13)

$${\dot{x}}_1=x_2=\dot{\omega }-{\dot{\omega }}_{ref}=\frac{1}{J}(T_m-T_e-B\omega )-{\dot{\omega }}_{ref}$$

(14)

$${\ddot{x}}_1={\dot{x}}_2=\ddot{\omega }-{\ddot{\omega }}_{ref}=\frac{1}{J}({\dot{T}}_m-{\dot{T}}_e-B\dot{\omega })-{\ddot{\omega }}_{ref}$$

(15)

The non-singular fast terminal sliding mode surface is designed to

$$s=x_1+k_1{x}_1^{\frac{a}{b}}+k_2{x}_2^{\frac{m}{n}}$$

(16)

where $k_1>0,k_2>0$, $a,b,m,n$ are all odd and satisfy $1<m/n<2,a/b>m/n$.

The derivation for the sliding mode surface (16) is obtained as follows:

$$\dot{s}={\dot{x}}_1+\frac{k_{1}a}{b}{x}_1^{\frac{a}{b}-1}{\dot{x}}_1+\frac{k_{2}m}{n}{x}_2^{\frac{m}{n}-1}{\dot{x}}_2$$

(17)

This can be obtained by combining AHERL (12):

$${\dot{x}}_1+\frac{k_{1}a}{b}{x}_1^{\frac{a}{b}-1}{\dot{x}}_1+\frac{k_{2}m}{n}{x}_2^{\frac{m}{n}-1}{\dot{x}}_2=-f(x_1,s)\mathrm{sgn}s-k{s}^{\alpha }$$

(18)

Then, continued simplification yields the following:

$${\dot{x}}_2=-\frac{n}{k_{2}m}{x}_2^{1-\frac{m}{n}}[x_2(1+\frac{k_{1}a}{b}{x}_1^{\frac{a}{b}-1})+f(x_1,s)\mathrm{sgn}s+k{s}^{\alpha }]$$

(19)

Bringing Equation (15) into Equation (19) yields the following:

$${\dot{T}}_e=\frac{Jn}{k_{2}m}{x}_2^{1-\frac{m}{n}}[x_2(1+\frac{k_{1}a}{b}{x}_1^{\frac{a}{b}-1})+f(x_1,s)\mathrm{sgn}s+k{s}^{\alpha }]+{\dot{T}}_m-B\dot{\omega }-J{\ddot{\omega }}_{ref}$$

(20)

Integrating both its sides, the control output $T_e$ of ANFTSMC is obtained as follows:

$$T_e={\displaystyle {\int }_0^t\{\frac{Jn}{k_{2}m}{x}_2^{1-\frac{m}{n}}[x_2(1+\frac{k_{1}a}{b}{x}_1^{\frac{a}{b}-1})+f(x_1,s)\mathrm{sgn}s+k{s}^{\alpha }]+{\dot{T}}_m-B\dot{\omega }-J{\ddot{\omega }}_{ref}}\}dt$$

(21)

Finally, the input $i_q^{\ast }$ of the current loop is obtained as follows:

$$i_q^{\ast }=\frac{2}{3p_n\phi }{\displaystyle {\int }_0^t\{\frac{Jn}{k_{2}m}{x}_2^{1-\frac{m}{n}}[x_2(1+\frac{k_{1}a}{b}{x}_1^{\frac{a}{b}-1})+f(x_1,s)\mathrm{sgn}s+k{s}^{\alpha }]+{\dot{T}}_m-B\dot{\omega }-J{\ddot{\omega }}_{ref}}\}dt$$

(22)

where $p_n$ is the pole pair number of the PMSG and $\phi$ is the permanent magnet magnetic flux.

3.3. Stability Analysis

TST is able to make the system error converge quickly in finite time under the action of the ANFTSMC. The stability of the system is proved by constructing Lyapunov functions and using Lyapunov stability theorem.

$$V=\frac{1}{2}{s}^2$$

(23)

Combining Equations (15), (17) and (19), the derivative of Equation (23) is as follows:

$$\begin{array}{c}\dot{V}=s\dot{s}\\ =s({\dot{x}}_1+\frac{k_{1}a}{b}{x}_1^{\frac{a}{b}-1}{\dot{x}}_1+\frac{k_{2}m}{n}{x}_2^{\frac{m}{n}-1}{\dot{x}}_2)\\ =s(-\frac{\eta }{\delta +(1+\frac{1}{{\left|x_1\right|}^{\beta }}-\delta )e^{-\chi \left|s\right|}}\mathrm{sgn}s-k{s}^{\alpha })\\ =-\frac{\eta }{\delta +(1+\frac{1}{{\left|x_1\right|}^{\beta }}-\delta )e^{-\chi \left|s\right|}}\left|s\right|-k{s}^{\alpha +1}\end{array}$$

(24)

Since $\eta >0,1>\delta >0$ and $\alpha$ is odd, $\dot{V}<0$. The designed controller satisfies Lyapunov stability, and the system state asymptotically converges to the sliding mode surface.

4. Adaptive Robust Fault-Tolerant Controller

The ARC fault-tolerant control method is proposed in this section for the pitch actuator failure of the TST. First, the system error dynamics are described in order to relate the pitch angle to the rotational speed. Second, the controller is designed based on the error dynamics. Then, the adaptive rate is designed for adaptively adjusting the controller gain in the presence of uncertain faults.

4.1. Error Dynamics Analysis

From Equations (1) and (2), the hydrodynamic torque $T_m$ can be expressed as a non-affine function of the variable pitch angle, which can be handled by using the median theorem in [50]. For any given $(v_{tide},{\omega }_r)$, there exists $\mathsf{\Theta }\in (0,1)$ such that

$$T_m(t)=T_m(t){|}_{{\beta }^{*}}+(\beta (t)-{\beta }^{*})\frac{\partial T_m(t)}{\partial \beta (t)}{|}_{{\beta }_k}$$

(25)

where ${\beta }^{*}$ is the pitch angle corresponding to the given $(v_{tide},{\omega }_r)$, ${\beta }_k=\mathsf{\Theta }\beta +(1-\mathsf{\Theta }){\beta }^{*}$.

Remark 1.

Obviously, the torque $T_m$ is bounded and there exists Z and D as positive con stants such that $-Z\le \frac{\partial T_m(t)}{\partial \beta (t)}\le -D<0$ and $0<D<Z$. This indicates that the hydrodynamic torque $T_m$ decreases as the paddle pitch angle $\beta$ increases for increasing tidal flow velocity $v_{tide}$. The derivative of (25) yields ${\dot{T}}_m(t)=\dot{\beta }(t)\frac{\partial T_m(t)}{\partial \beta (t)}=\dot{\beta }(t)T_{m,\beta }(t)$, which can be obtained by taking it into Equation (6):

$${\dot{\omega }}_r=[T_m(t){|}_{{\beta }^{*}}+(\beta (t)-{\beta }^{*})T_{m,\beta }(t){|}_{{\beta }_k}-T_e-B{\omega }_r]/J$$

(26)

$${\ddot{\omega }}_r=[\dot{\beta }(t)T_{m,\beta }(t)-{\dot{T}}_e-B{\dot{\omega }}_r]/J$$

(27)

This can be obtained by bringing Equation (10) into (27):

$${\ddot{\omega }}_r=({\omega }_n^2\phi (t)-\ddot{\beta }-{\omega }_n^2\beta +\mathsf{\Delta }\tilde{f})T_{m,\beta }(t)/2J\xi {\omega }_n-({\dot{T}}_e+B{\dot{\omega }}_r)/J+{\beta }_{ref}{\omega }_n^2\sigma (t)/2J\xi {\omega }_n$$

(28)

When the TST operates in region III, the control objective is to stabilize the rotor speed at the rated speed by adjusting the pitch angle, and the rotor tracking error is expressed as follows:

$$\begin{array}{l}e={\omega }_r-{\omega }_{rated}\\ \dot{e}={\dot{\omega }}_r\\ \ddot{e}={\ddot{\omega }}_r\end{array}$$

(29)

where ${\omega }_{rated}$ is the rated speed, which in this paper is set to 2.84 rad/s.

Assumption 1: the range of variation of the paddle pitch angle $\beta$ is bounded, and therefore, the uncertainty terms $\phi (t)$ and $\mathsf{\Delta }\tilde{f}$ are also bounded, and there exist unknown positive constants $\overline{\phi }(t)$ and $\mathsf{\Delta }\overline{\tilde{f}}$ such that $\left|\phi (t)\right|\le \overline{\phi }(t)$ and $\left|\mathsf{\Delta }\tilde{f}\right|\le \mathsf{\Delta }\overline{\tilde{f}}$; in addition, the variation of the torque is bounded due to the fact that $-Z\le T_{m,\beta }(t)\le -D<0$.

4.2. Proposed Adaptive Robust Fault-Tolerant Controller

Inspired by [51,52], a tracking control scheme in the form of PID can be designed for the error dynamics (29) as follows:

$$u=-(k_{p0}+\mathsf{\Delta }{k}_p(t))e-(k_{I0}+\mathsf{\Delta }{k}_I(t)){\displaystyle {\int }_0^{t}ed}\tau -(k_{D0}+\mathsf{\Delta }{k}_D(t))\dot{e}$$

(30)

where parameters $k_{p0},k_{I0},k_{D0}$ are constants and $\mathsf{\Delta }{k}_p(t),\mathsf{\Delta }{k}_I(t),\mathsf{\Delta }{k}_D(t)$ are time-varying parameters. To simplify the design, a designable value $L>0$ is introduced to associate these parameters:

$$\begin{array}{l}{k}_{p0}=2L{k}_{D0}\\ k_{I0}=L^2{k}_{D0}\\ \mathsf{\Delta }{k}_p(t)=2L\mathsf{\Delta }{k}_D(t)\\ \mathsf{\Delta }{k}_I(t)=L^2\mathsf{\Delta }{k}_D(t)\end{array}$$

(31)

According to Equations (30) and (31), the controller can be further represented as follows:

$$u=-(k_{D0}+\mathsf{\Delta }{k}_D(t))\left(2Le+L^2{\displaystyle {\int }_0^{t}ed}\tau +\dot{e}\right)$$

(32)

The simplified controller only requires the design of two gains, $k_{D0}$ and $\mathsf{\Delta }{k}_D(t)$, where $k_{D0}$ is a constant and $\mathsf{\Delta }{k}_D(t)$ can be automatically adjusted by the designed adaptive robust method.

The generalized error is defined as follows:

$$\mathsf{{\rm E}}(t)=2Le+L^2{\displaystyle {\int }_0^{t}ed}\tau +\dot{e}$$

(33)

The derivation of this is obtained by relating it to the system dynamics model:

$$\begin{array}{l}\dot{\mathsf{{\rm E}}}(t)=2L\dot{e}+L^{2}e+\ddot{e}\\ \hspace{1em}=2L\dot{e}+L^{2}e+({\omega }_n^2\phi (t)-\ddot{\beta }-{\omega }_n^2\beta +\mathsf{\Delta }\tilde{f})T_{m,\beta }(t)/2J\xi {\omega }_n-({\dot{T}}_e+B{\dot{\omega }}_r)/J+{\beta }_{ref}{\omega }_n^2\sigma (t)/2J\xi {\omega }_n\\ \hspace{1em}=J(x,t)+I(x,t){\beta }_{ref}\end{array}$$

(34)

where the coefficients and uncertainty terms of the above Equation are denoted as $I(x,t)$ and $J(x,t)$, respectively, with $I(x,t)={\omega }_n\sigma (t)/2J\xi$ and $J(x,t)=({\omega }_n^2\phi (t)-\ddot{\beta }-{\omega }_n^2\beta +\mathsf{\Delta }\tilde{f})T_{m,\beta }(t)/2J\xi {\omega }_n-({\dot{T}}_e+B{\dot{\omega }}_r)/J+2L\dot{e}+L^{2}e$.

According to Assumption 1 and the system properties, $I(x,t)$ and the uncertainty term $J(x,t)$ are bounded and can be expressed as follows:

$$\begin{array}{l}0\le I(x,t)\le \gamma \\ \left|J(x,t)\right|=\left|({\omega }_n^2\phi (t)-\ddot{\beta }-{\omega }_n^2\beta +\mathsf{\Delta }\tilde{f})T_{m,\beta }(t)/2J\xi {\omega }_n-({\dot{T}}_e+B{\dot{\omega }}_r)/J+2L\dot{e}+L^{2}e\right|\\ \hspace{1em}\hspace{1em}\le h_f{\psi }_f+\left|2L\dot{e}+L^{2}e\right|\le h_f{\psi }_f+2L\left|\dot{e}\right|+L^2\left|e\right|\\ \hspace{1em}\hspace{1em}\le h_1{\psi }_1\end{array}$$

(35)

where $\gamma >0,h_1>h_f>0$ are unknown positive constants and ${\psi }_f$ is a core function [53]:

$$h_1=\max \{h_f,2L,L^2\}$$

(36)

$${\psi }_1={\psi }_f+\left|\dot{e}\right|+\left|e\right|$$

(37)

Definition 1.

For a system $\dot{x}=f(x)$ within an open set D, there exists a positive constant $\varphi$, and a positive definite continuously differentiable scalar function $V_B$ with $V_B\to \infty$ as the variable $x$ converges to the boundary of the set D. Then, $V_B$ is known as the barrier Lyapunov function as in Equation (38) [54,55].

$$V_B=\frac{1}{2}\ln \left(\frac{{\varphi }^2}{{\varphi }^2-{\left|E\right|}^2}\right)$$

(38)

The adaptive robust gain of the controller can be designed as follows:

$$\begin{array}{l}\mathsf{\Delta }{k}_D(t)=\frac{{\epsilon }_0{\widehat{h}}_1{\psi }_1^2}{{\varphi }^2-{\left|E(t)\right|}^2}\\ {\dot{\widehat{h}}}_1=-{\epsilon }_1{\widehat{h}}_1+\frac{{\epsilon }_0{\psi }_1^2{\left|E(t)\right|}^2}{{({\varphi }^2-{\left|E(t)\right|}^2)}^2}\end{array}$$

(39)

where ${\epsilon }_0$ and ${\epsilon }_1$ are positive constants, ${\widehat{h}}_1$ is the estimated value of $h_1$, and according to Definition 1, $\varphi$ is the error boundary of the design, satisfying $\left|E(t)\right|<\varphi$.

4.3. Stability Analysis

The Lyapunov function is constructed to prove the stability of the proposed controller:

$$V=\frac{1}{2}\ln \left(\frac{{\varphi }^2}{{\varphi }^2-{\left|E\right|}^2}\right)+\frac{1}{2}{\tilde{h}}_1^2$$

(40)

where ${\tilde{h}}_1=h_1-{\widehat{h}}_1$ is the parameter estimation error. The derivative of Equation (40) is obtained as follows:

$$\begin{array}{ll}\dot{V}& =\frac{1}{{\varphi }^2-{\left|E\right|}^2}E\dot{E}-{\tilde{h}}_1{\dot{\widehat{h}}}_1\\ & =\frac{1}{{\varphi }^2-{\left|E\right|}^2}E[J(x,t)+I(x,t)(k_{D0}+\mathsf{\Delta }{k}_D(t))E]-{\tilde{h}}_1{\dot{\widehat{h}}}_1\\ & \le \frac{h_1{\psi }_1}{{\varphi }^2-{\left|E\right|}^2}E-\frac{(k_{D0}+\mathsf{\Delta }{k}_D(t))}{{\varphi }^2-{\left|E\right|}^2}\gamma E^2-{\tilde{h}}_1{\dot{\widehat{h}}}_1\end{array}$$

(41)

From the square inequality, ${\psi }_{1}E\le \frac{{\epsilon }_0{\psi }_1^2{E}^2}{{\varphi }^2-{\left|E\right|}^2}+\frac{{\varphi }^2-E^2}{4{\epsilon }_0}$ and ${\tilde{h}}_1{\widehat{h}}_1\le \frac{1}{2}{h}_1^2-\frac{1}{2}{\tilde{h}}_1^2$, which can be obtained by bringing (39) into Equation (41):

$$\begin{array}{l}\dot{V}\le \frac{{\epsilon }_0{h}_1{\psi }_1^2{E}^2}{({\varphi }^2-{\left|E\right|}^2{)}^2}+\frac{h_1}{4{\epsilon }_0}-\frac{(k_{D0}+\mathsf{\Delta }{k}_D(t))}{{\varphi }^2-{\left|E\right|}^2}\gamma E^2+{\epsilon }_1{\tilde{h}}_1{\widehat{h}}_1-\frac{{\tilde{h}}_1{\epsilon }_0{\psi }_1^2{\left|E\right|}^2}{{({\varphi }^2-{\left|E\right|}^2)}^2}\\ \le \frac{{\epsilon }_0{h}_1{\psi }_1^2{E}^2}{({\varphi }^2-{\left|E\right|}^2{)}^2}+\frac{h_1}{4{\epsilon }_0}-\frac{k_{D0}}{{\varphi }^2-{\left|E\right|}^2}\gamma E^2-\frac{{\epsilon }_0{\widehat{h}}_1{\psi }_1^2}{({\varphi }^2-{\left|E\right|}^2{)}^2}\gamma E^2+{\epsilon }_1{\tilde{h}}_1{\widehat{h}}_1-\frac{{\tilde{h}}_1{\epsilon }_0{\psi }_1^2{\left|E\right|}^2}{{({\varphi }^2-{\left|E\right|}^2)}^2}\\ \le -\frac{k_{D0}}{{\varphi }^2-{\left|E\right|}^2}\gamma E^2+\frac{h_1}{4{\epsilon }_0}+\frac{{\epsilon }_1}{2}(h_1^2-{\tilde{h}}_1^2)\end{array}$$

(42)

According to Equation (39), there is $\left|E\right|<\varphi$ for all $E$. Hence

$$\frac{E^2}{{\varphi }^2-{\left|E\right|}^2}<\frac{1}{2}\ln \frac{{\varphi }^2}{{\varphi }^2-{\left|E\right|}^2}$$

(43)

So $\dot{V}$ can be further derived as follows:

$$\begin{array}{l}\dot{V}\le -\frac{k_{D0}\gamma }{2}\ln \frac{{\varphi }^2}{{\varphi }^2-{\left|E\right|}^2}-\frac{{\epsilon }_1}{2}{\tilde{h}}_1^2+\frac{{\epsilon }_1}{2}{h}_1^2+\frac{h_1}{4{\epsilon }_0}\\ \hspace{1em}\le -\upsilon V+\vartheta \end{array}$$

(44)

where $\upsilon =\min \{k_{D0}\gamma ,{\epsilon }_1\},\vartheta =\frac{{\epsilon }_1}{2}{h}_1^2+\frac{h_1}{4{\epsilon }_0}$. From the above derivation, it is clear that $V$ is bounded, and according to Equation (39), $E$ and ${\tilde{h}}_1$ are bounded; the boundedness of $E$ ensures the boundedness of $e,{\displaystyle {\int }_0^{t}ed}\tau ,\dot{e}$, as seen in Equation (32). According to Definition 1, it is known that the value of $E$ is restricted to a certain range $\left|E\right|<\varphi$, i.e., the error $e$ is also restricted to a certain range. Therefore, from Equations (31), (32), (35), and (39), it can be concluded that $u,\dot{E},{\dot{\widehat{h}}}_1,e,k_{D0}$ are bounded, the signals within the system are bounded, and the system errors are uniformly and ultimately bounded.

5. Simulation Results and Analysis

In order to validate the effectiveness of the proposed method, in this section, numerical simulation of 1.5 MW TST has been carried out using Matlab/Simulink, and the system parameters are shown in

Table 2. Parameters of the TST system.

Parameter	Value
Sea water density	1025 kg/m3
Turbine blade radius	8 m
Maximum Cp value	0.45
Optimal tip speed ratio for MPPT	7.1
Rated marine current speed	3.2 m/s
Generator rated power	1.5 MW
System total inertia	1.31311 × 106 kg.m2
Rotor rated speed	2.84 rad/s
DC-bus rated voltage	1500 V
Pole pair number	125
Permanent magnet flux	2.458 Wb
Generator stator resistance	0.0081 Ω
Generator d–q axis inductance	1.2 mH

.

Table 3. The parameters of the ANFTSMC controller.

Parameter	Numerical Value
$\alpha$	1
g	3
$\chi$	3
$\delta$	0.8
k	10
$\eta$	50
$a$	21
$b$	13
$m$	13
$n$	11
$k_1$	1
$k_2$	0.1

and

Table 4. The parameters of the ARC.

Parameter	Numerical Value
$L$	4
$k_{D0}$	1
${\epsilon }_0$	0.1
${\epsilon }_1$	100
$\varphi$	50

show the parameters of the proposed ANFTSMC and ARC, respectively. The proposed ANFTSMC method is evaluated below the rated tidal current speed and the results are compared with fuzzy adaptative backstepping control (FABC) , active disturbance rejection control (ADRC) [1], integral sliding mode control (ISMC) [56], and non-singular fast terminal sliding mode control (NFTSMC) [22]. Then, a comparison of variable pitch control methods, including gain scheduling proportional integral derivative (GSPID) [57], ISMC, and pseudo-tip-speed ratio and adaptive genetic algorithm (PTSRAGA) [58], are considered. The effectiveness of the proposed ANFTSMC-ARC method above the rated tidal velocity was evaluated by comparing the ANFTSMC-ARC method with the FABC-GSPID, ISMC-ISMC, and ADRC-PTSRAGA methods by combining MPPT with pitch control.

5.1. Simulation Results Below Rated Tidal Current Speeds

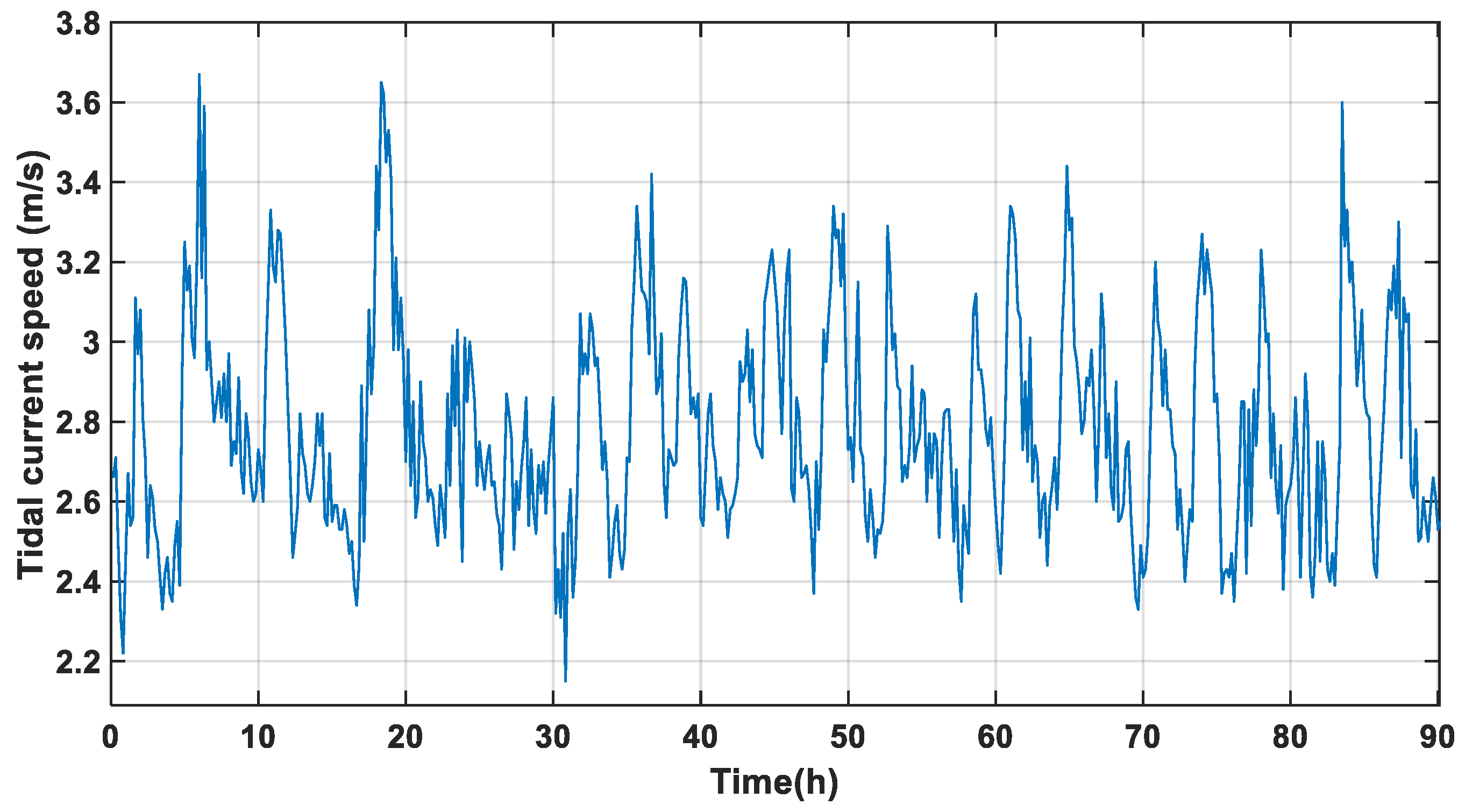

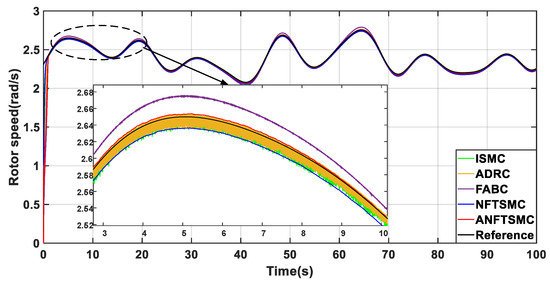

For the TST, swell and turbulence are unavoidable. Figure 7 shows the actual tidal current velocity data for the Xihoumen area in Zhoushan for 90 h. In this section, a flow velocity lower than the rated velocity of 3.2 m/s is selected to verify the performance of the proposed method. Figure 8 and Figure 9 show the generator rotor speed versus rotor speed error for different control methods, respectively. It can be seen that the FABC controller has a large amount of overshooting, especially during the change in flow velocity when there is a tracking error of 0.025 rad/s, which is about 1% of the reference value. The ISMC method has a smaller amount of overshooting, but there is a significant chattering phenomenon, with an error of about 0.02 rad/s. The ADRC method has a much better tracking accuracy, but there is a chattering of 0.01 rad/s near the reference rotor speed. The NFTSMC method significantly reduces chattering; however, there is a tracking error of 0.015 rad/s. The proposed ANFTSMC method has minimized chattering and accurately tracks the optimal rotational speed with a tracking error around 0.08%, as the flow rate varies.

To evaluate the performance of the proposed method even further, the ISE (Integral of the Square Error) and ITAE (Integral of the Time-weighted Absolute Error) are used:

$$ISE={\displaystyle {\int }_0^t{e}^2(t)dt}$$

(45)

$$ITAE={\displaystyle {\int }_0^{t}t\left|e(t)\right|dt}$$

(46)

where $e(t)$ denotes the error, ISE reflects the overall performance of the controller tracking, and ITAE reflects the persistence of the error; the smaller the value of ISE and ITAE, the better its error suppression ability.

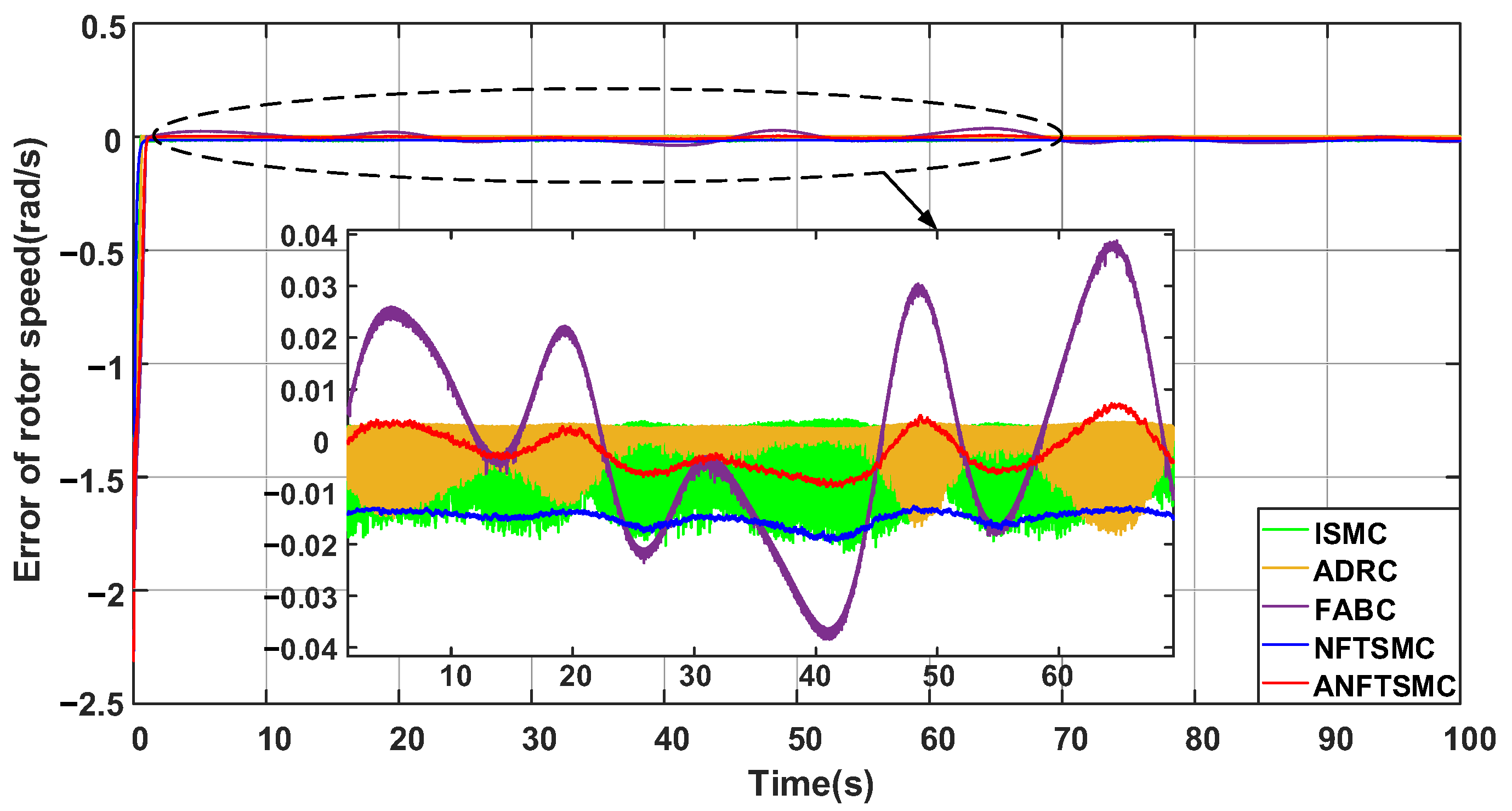

The rotor speed error $e(t)=\omega -{\omega }_{ref}$ and power error $e(t)=P-P_{ref}$ are evaluated separately as shown in

Table 5. Performance metrics for comparative methods.

	$\mathit{I}\mathit{S}{\mathit{E}}_{\mathit{\omega }}$	$\mathit{I}\mathit{T}\mathit{A}{\mathit{E}}_{\mathit{\omega }}$	$\mathit{I}\mathit{S}{\mathit{E}}_{\mathit{P}}$	$\mathit{I}\mathit{T}\mathit{A}{\mathit{E}}_{\mathit{P}}$
ISMC	$9.96\times {10}^{-4}$	0.816	$7.55\times {10}^7$	$2.62\times {10}^5$
FABC	$3.51\times {10}^{-3}$	1.181	$3.78\times {10}^8$	$3.85\times {10}^5$
ADRC	$4.23\times {10}^{-4}$	0.416	$4.53\times {10}^7$	$1.37\times {10}^5$
NFTSMC	$2.56\times {10}^{-3}$	1.574	$1.79\times {10}^8$	$5.06\times {10}^5$
ANFTSMC	$8.33\times {10}^{-5}$	0.241	$7.04\times {10}^6$	$7.62\times {10}^4$

, and the above metrics are denoted as $IS{E}_{\omega },IS{E}_P,ITA{E}_{\omega },ITA{E}_P$. It can be seen that, although the chattering of FABC and NFTSMC is not serious, the presence of large tracking errors leads to larger values of both ISE and ITAE; the chattering of ADRC is smaller than that of ISMC, and thus its metrics are smaller than ISMC; and the proposed ANFTSMC method has the smallest evaluation metrics compared with the other methods, which shows the excellent error suppression capability of the proposed method.

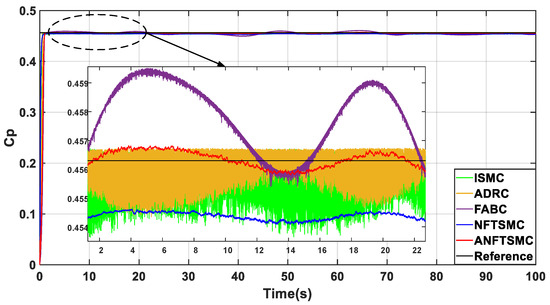

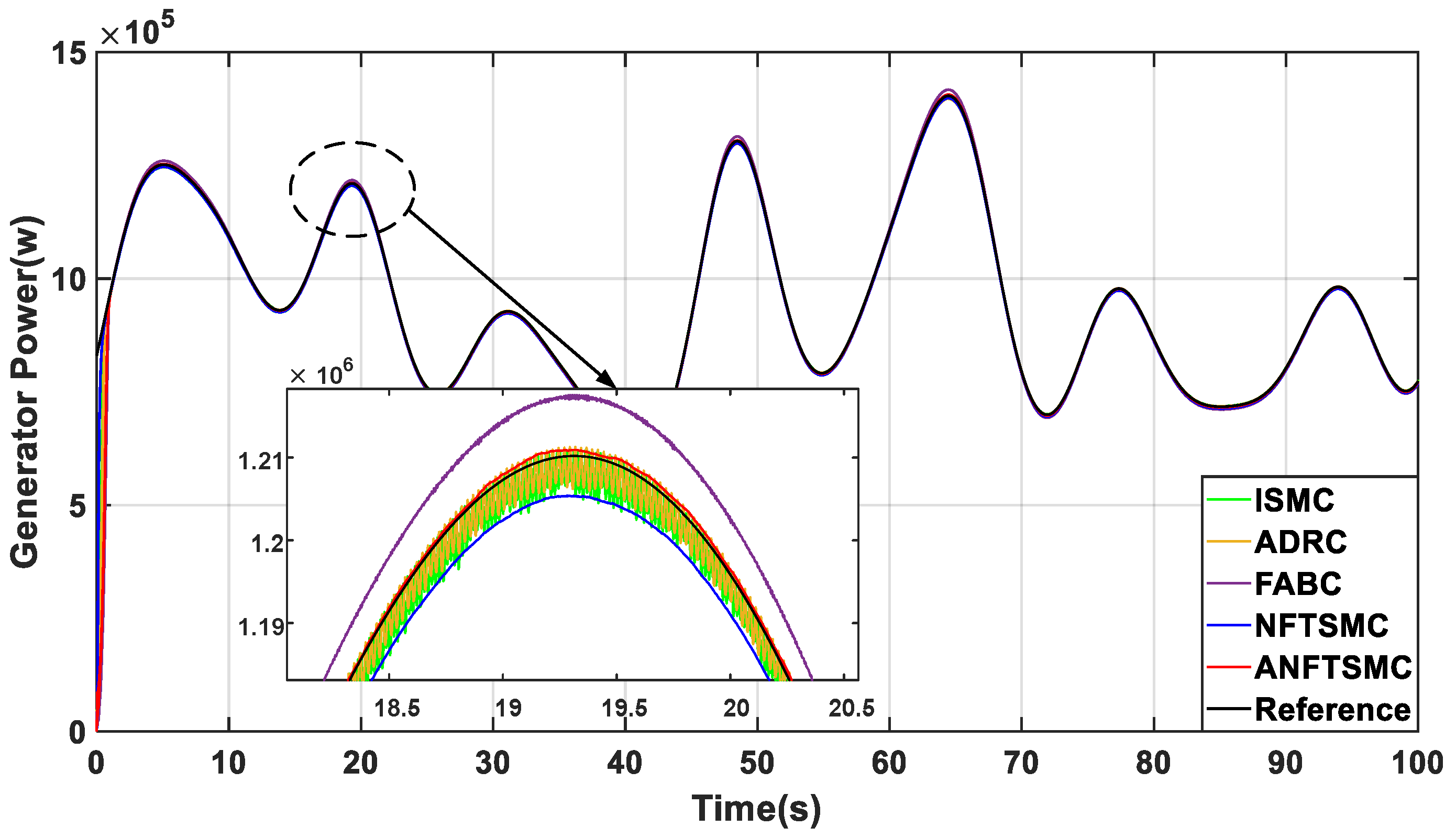

Figure 10 and Figure 11 show the comparison of power coefficient Cp and output power, respectively. From this, the same conclusion can be drawn that the proposed ANFTSMC method has minimum chattering and optimal power tracking accuracy when compared to other methods.

5.2. Simulation Results for Higher-Than-Rated Tidal Current Speeds

5.2.1. Fault-Free Scenarios

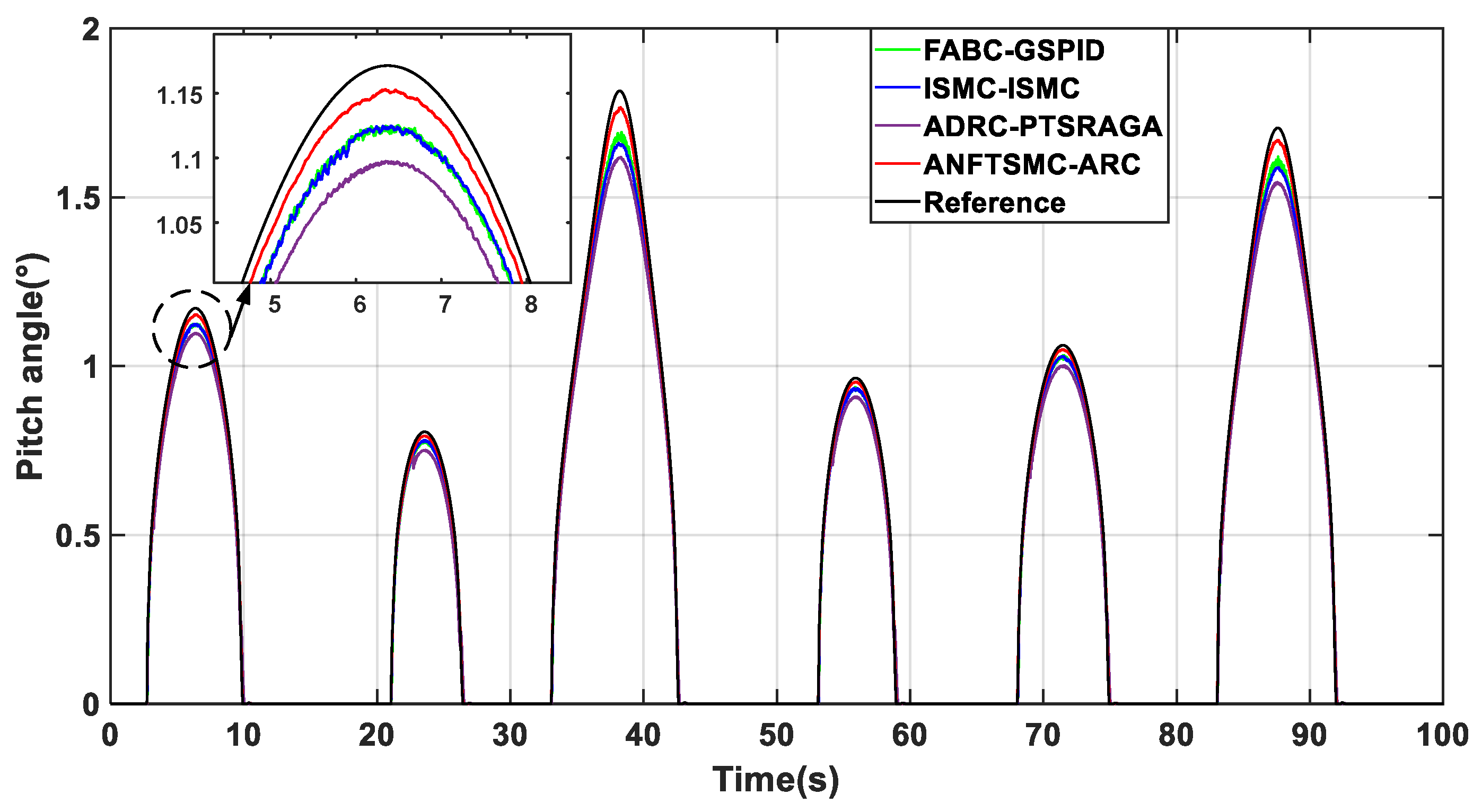

In this section, ARC is compared with GSPID, ISMC, and PTSRAGA in a fault-free system, and the speed controllers are ANFTSMC, FABC, ISMC, and ADRC, respectively, to evaluate the performance of the maximum power tracking and pitch controllers of the proposed method.

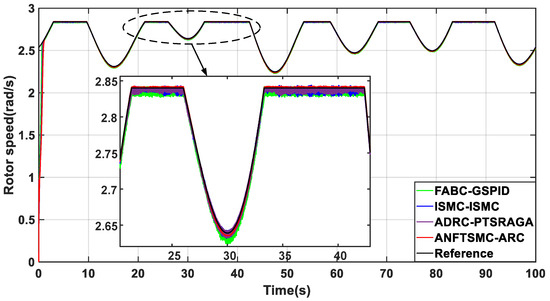

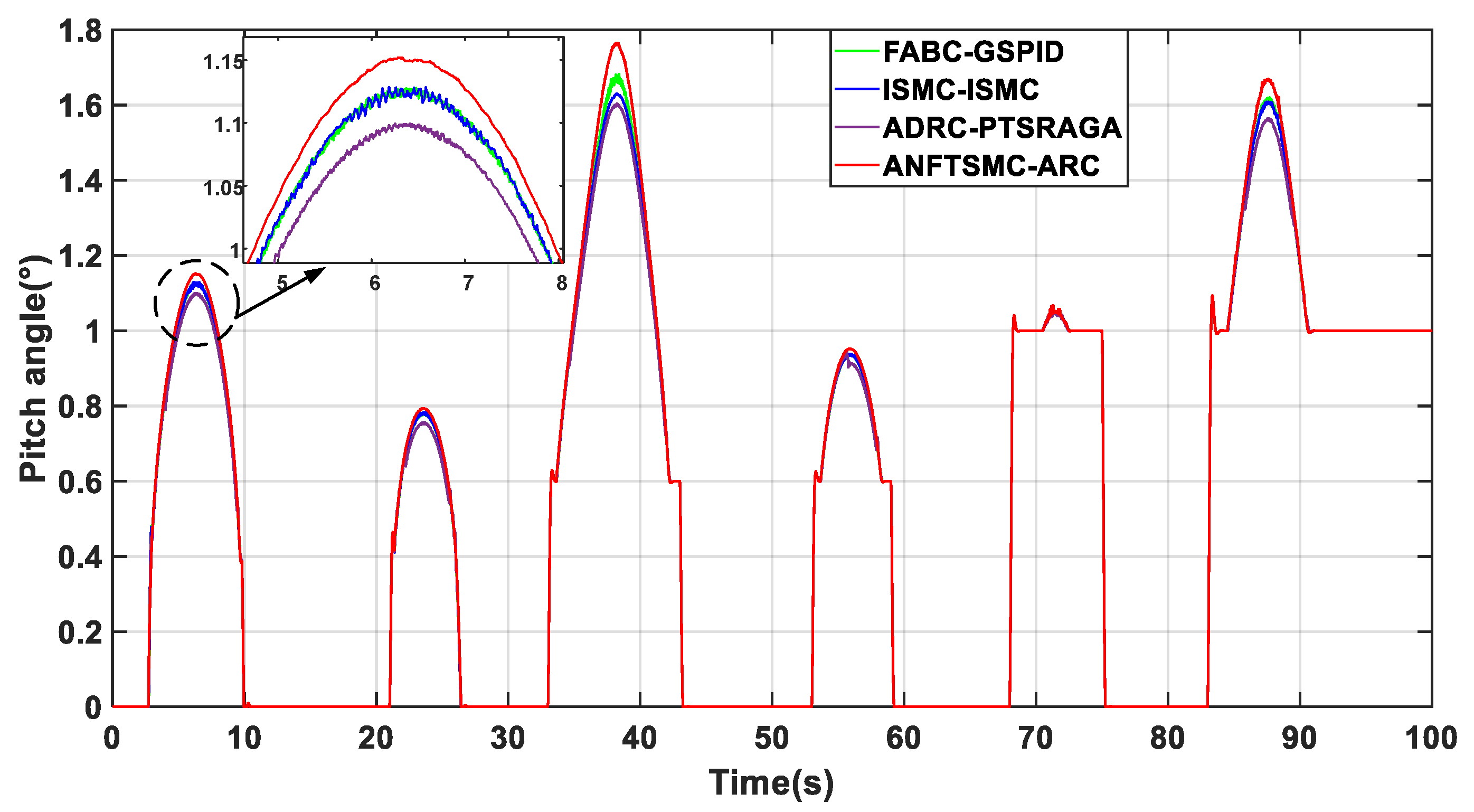

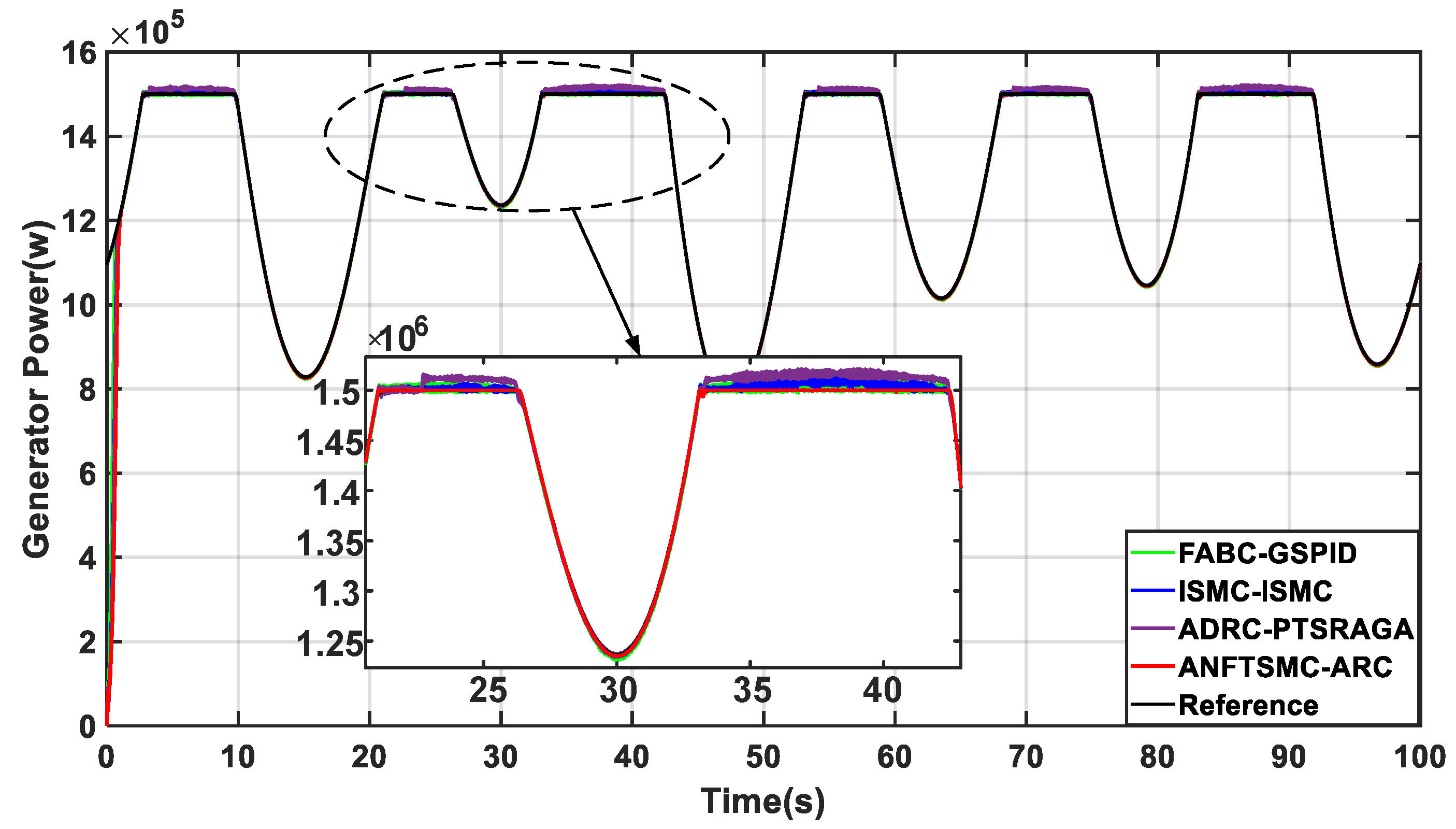

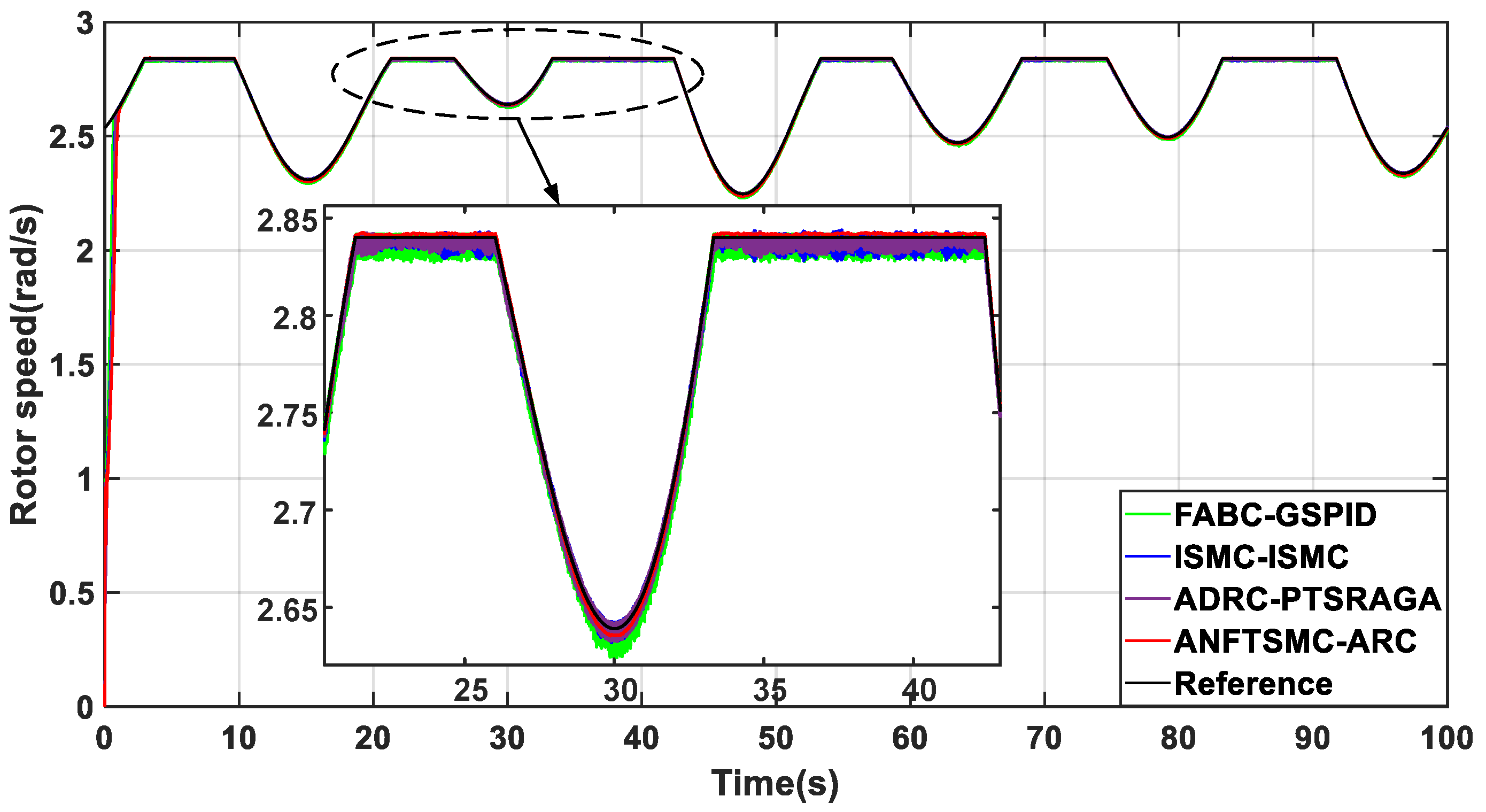

When the tidal current speed exceeds the rated speed of 3.2 m/s, the change in the pitch angle is shown in Figure 12. The PTSRAGA method has the effect of reducing the frequent pitch change, so it has the smallest pitch angle, which results in the output power not being stabilized at the rated power, and the rotor speed exhibits a tracking error of 0.005 rad/s, as shown in Figure 13 and Figure 14. The pitch angle of the ISMC and GSPID methods exhibit some chattering, the rotor speed oscillates around the rated value, and there is some chattering in the output power. The proposed ARC method has the best pitch angle dynamic performance and can ensure the stability of the rated power, and the ANFTSMC method has the best speed tracking performance.

Table 6. Performance metrics for comparative methods.

	$\mathit{I}\mathit{S}{\mathit{E}}_{\mathit{\omega }}$	$\mathit{I}\mathit{T}\mathit{A}{\mathit{E}}_{\mathit{\omega }}$	$\mathit{I}\mathit{S}{\mathit{E}}_{\mathit{P}}$	$\mathit{I}\mathit{T}\mathit{A}{\mathit{E}}_{\mathit{P}}$
ISMC	$1.69\times {10}^{-4}$	0.283	$1.18\times {10}^8$	$1.86\times {10}^5$
GSPID	$7.37\times {10}^{-4}$	0.675	$2.57\times {10}^8$	$3.26\times {10}^5$
PTSRAGA	$1.51\times {10}^{-4}$	0.276	$1.09\times {10}^9$	$5.89\times {10}^5$
ARC	$9.52\times {10}^{-5}$	0.145	$1.92\times {10}^7$	$1.14\times {10}^5$

also shows that the proposed method has the smallest rotor speed error and power tracking error, which verifies the superiority of the proposed method.

5.2.2. Fault Scenarios

This section considers a situation where there are multiple failures of the pitch actuator occurring simultaneously, including pump wear, hydraulic leaks, high air content in the oil, actuator bias, and loss of efficiency, with the following fault settings:

$$\begin{gathered} \{\begin{array}{l}({\omega }_{n,f1},{\xi }_{f1})=(7.27,0.75),0\left(\mathrm{s}\right)<\mathrm{t}<30\left(\mathrm{s}\right)\\ ({\omega }_{n,f2},{\xi }_{f2})=(3.42,0.90),30\left(\mathrm{s}\right)<\mathrm{t}<50\left(\mathrm{s}\right)\\ ({\omega }_{n,f3},{\xi }_{f3})=(5.73,0.45),50\left(\mathrm{s}\right)<\mathrm{t}<80\left(\mathrm{s}\right)\end{array} \\ \{\begin{array}{l}\phi (t)=0.4°,\sigma (t)=0.9,0\left(\mathrm{s}\right)<\mathrm{t}<30\left(\mathrm{s}\right)\\ \phi (t)=0.6°,\sigma (t)=0.7,30\left(\mathrm{s}\right)<\mathrm{t}<60\left(\mathrm{s}\right)\\ \phi (t)=1°,\sigma (t)=0.6,60\left(\mathrm{s}\right)<\mathrm{t}<100\left(\mathrm{s}\right)\end{array} \end{gathered}$$

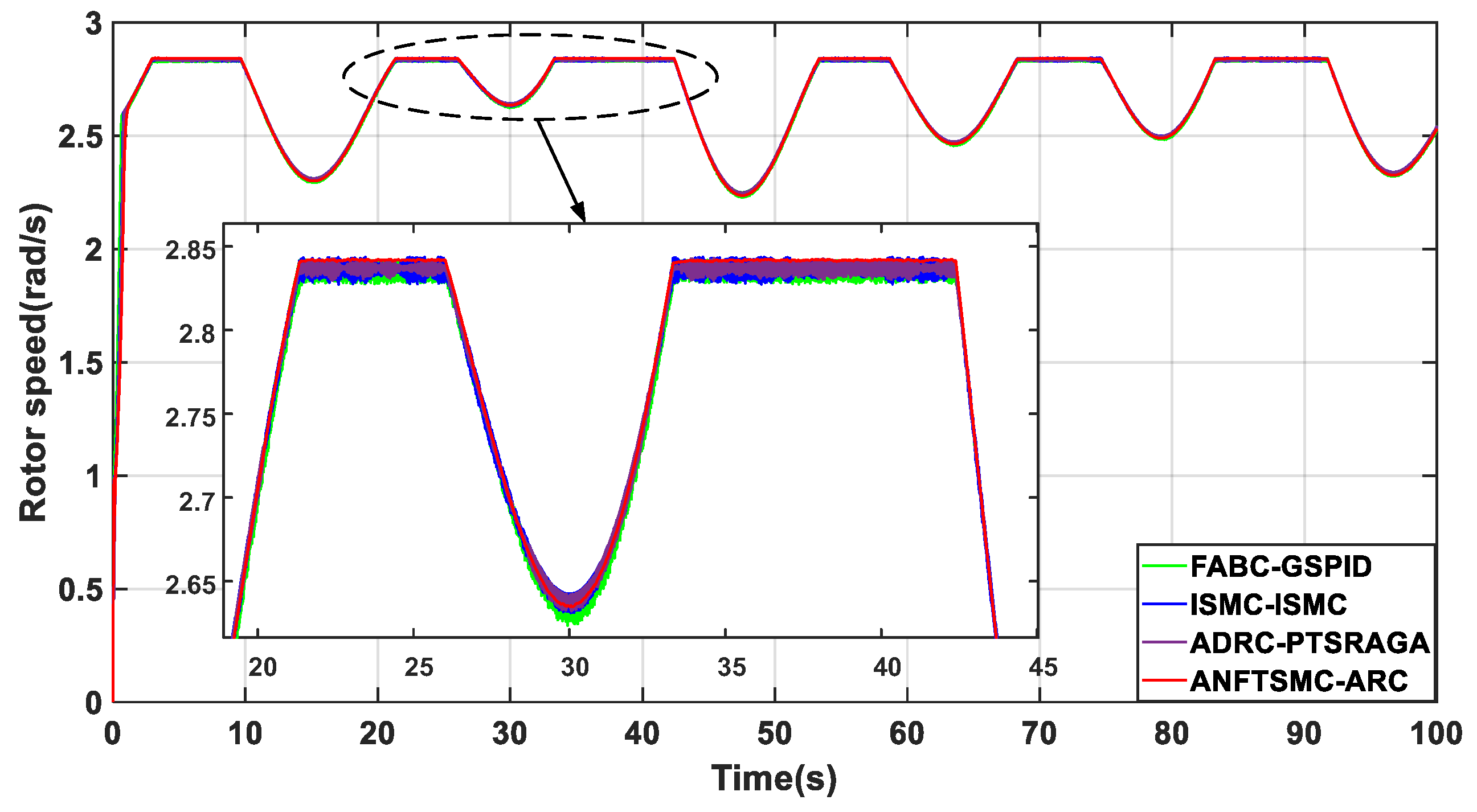

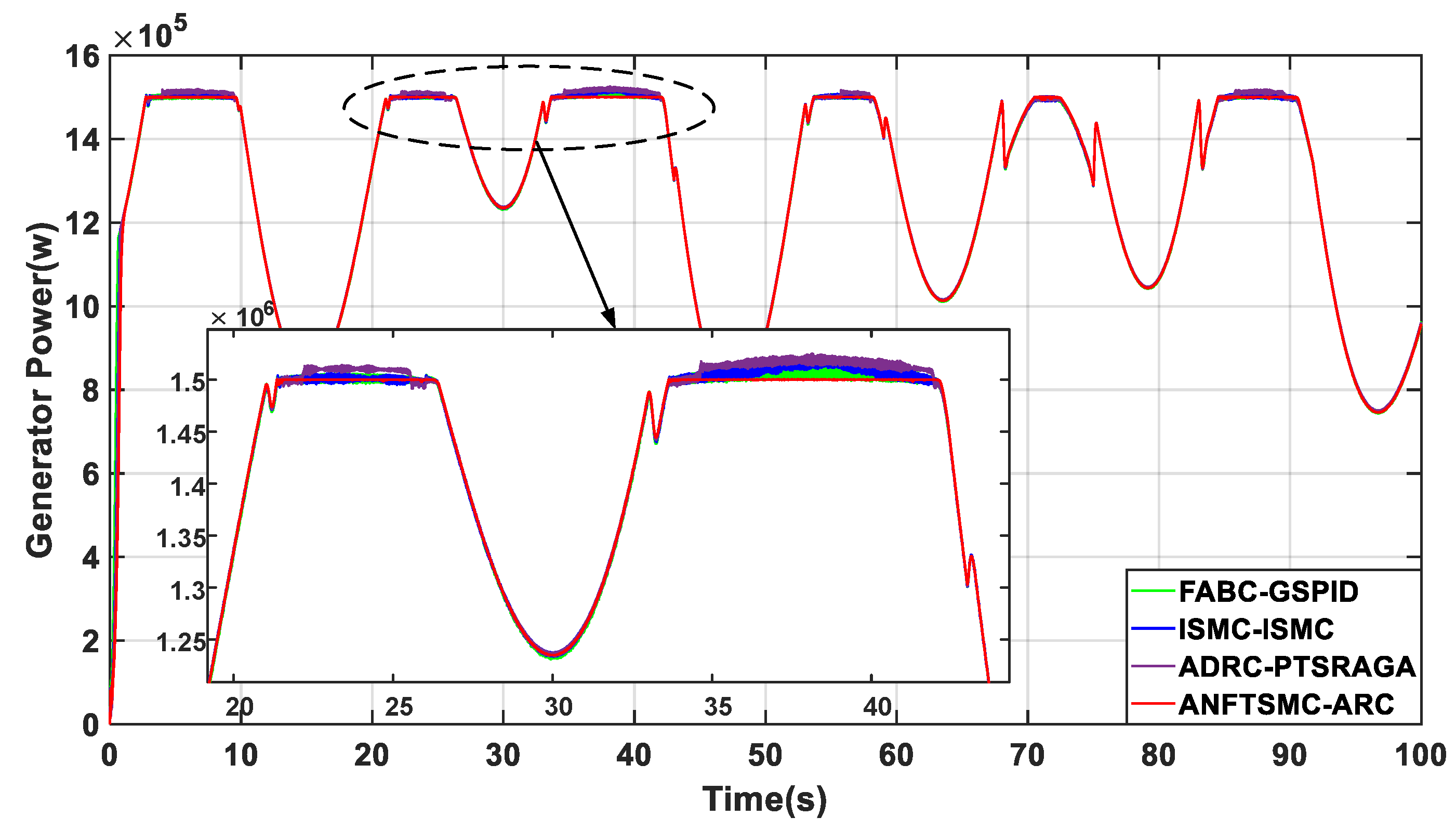

As shown in Figure 15, in the presence of actuator failure, bias, and efficiency loss, the proposed ARC method is still able to maintain accurate tracking of the pitch angle compared to other methods. Figure 16 shows that the rotor speed is maintained at the rated speed with a significantly smaller error than the other methods. Figure 17 shows that the output power is also stably controlled at a rated power above the rated flow rate with minimal fluctuation error. Comparing the performance metrics in

Table 7. Performance metrics for comparative methods.

	$\mathit{I}\mathit{S}{\mathit{E}}_{\mathit{\omega }}$	$\mathit{I}\mathit{T}\mathit{A}{\mathit{E}}_{\mathit{\omega }}$	$\mathit{I}\mathit{S}{\mathit{E}}_{\mathit{P}}$	$\mathit{I}\mathit{T}\mathit{A}{\mathit{E}}_{\mathit{P}}$
ISMC	$2.09\times {10}^{-4}$	0.314	$2.49\times {10}^8$	$2.30\times {10}^5$
GSPID	$8.17\times {10}^{-4}$	0.753	$3.27\times {10}^8$	$3.91\times {10}^5$
PTSRAGA	$1.83\times {10}^{-4}$	0.305	$1.22\times {10}^9$	$6.06\times {10}^5$
ARC	$1.09\times {10}^{-4}$	0.210	$1.08\times {10}^8$	$1.54\times {10}^5$

, it is obvious that the proposed ARC method has the best performance in both speed tracking error and output power error. Therefore, the simulation results verify the stable speed tracking performance of the proposed method under swell fluctuations, and it is still able to generate an accurate pitch angle when the pitch actuator fails, which ensures the maximum power capture and fault tolerance of the tidal stream turbine.

6. Conclusions

In order to improve the power capture efficiency of the TST in the case of swell and to consider the susceptibility of the pitch actuator to failure, an ANFTSMC-ARC is proposed in this study. Extensive comparisons are made with existing methods through simulation experiments. The advantages of the proposed method are as follows:

(1) Different from the traditional exponential reaching law, AHERL balances the conflicting issues of convergence and chattering suppression in sliding mode control.

(2) ANFTSMC is robust to uncertain disturbances and nonlinearities in the TST system and reduces chattering, improving the efficiency of MPPT.

(3) The ARC automatically adjusts the controller gain according to the fault state, which mitigates the fault-induced deviation of the pitch angle action and improves the fault tolerance of the pitch system.

The analyzed ISE and ITAE performance metrics reflect the best performance of the ANFTSMC-ARC in terms of speed tracking and output power. The experimental results show that the proposed control method can achieve accurate rotor speed tracking at full tidal current speed, and the variable pitch angle can respond quickly and control the rated power stably even in the case of actuator failure. Future research can consider tidal current speed prediction for better maximum power tracking and can combine modeling and data approaches to improve fault tolerance performance.
