Buffer Blocks as Wave Energy Dissipators: Flow Depth Reduction
Abstract
:1. Introduction
2. Tsunami Mitigation Techniques

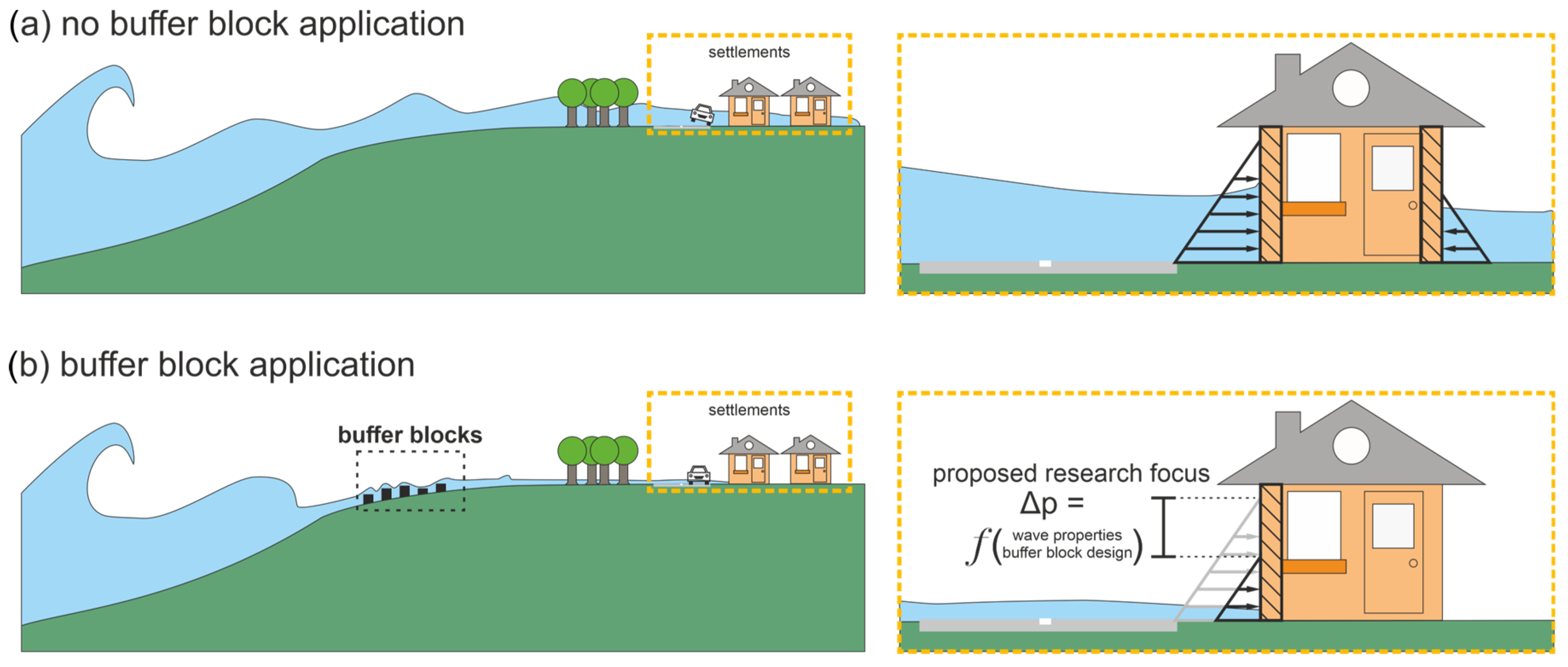

2.1. Shortcomings of Traditional Approaches

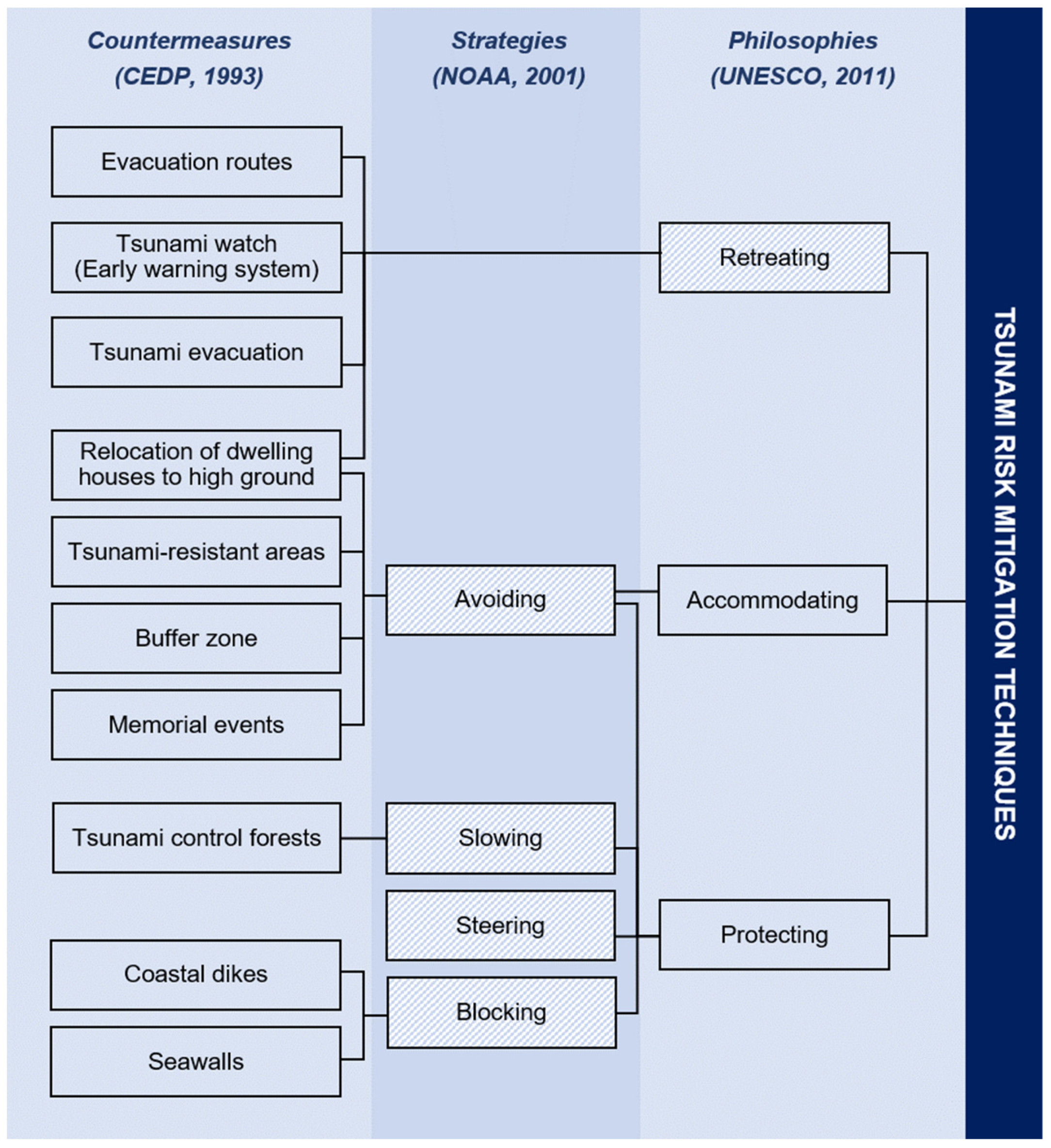

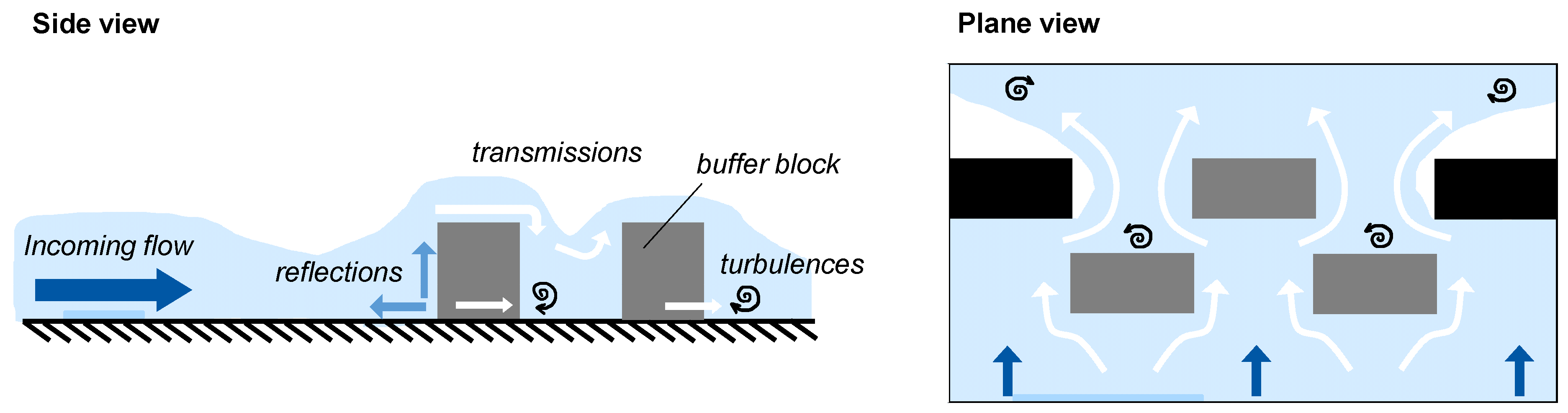

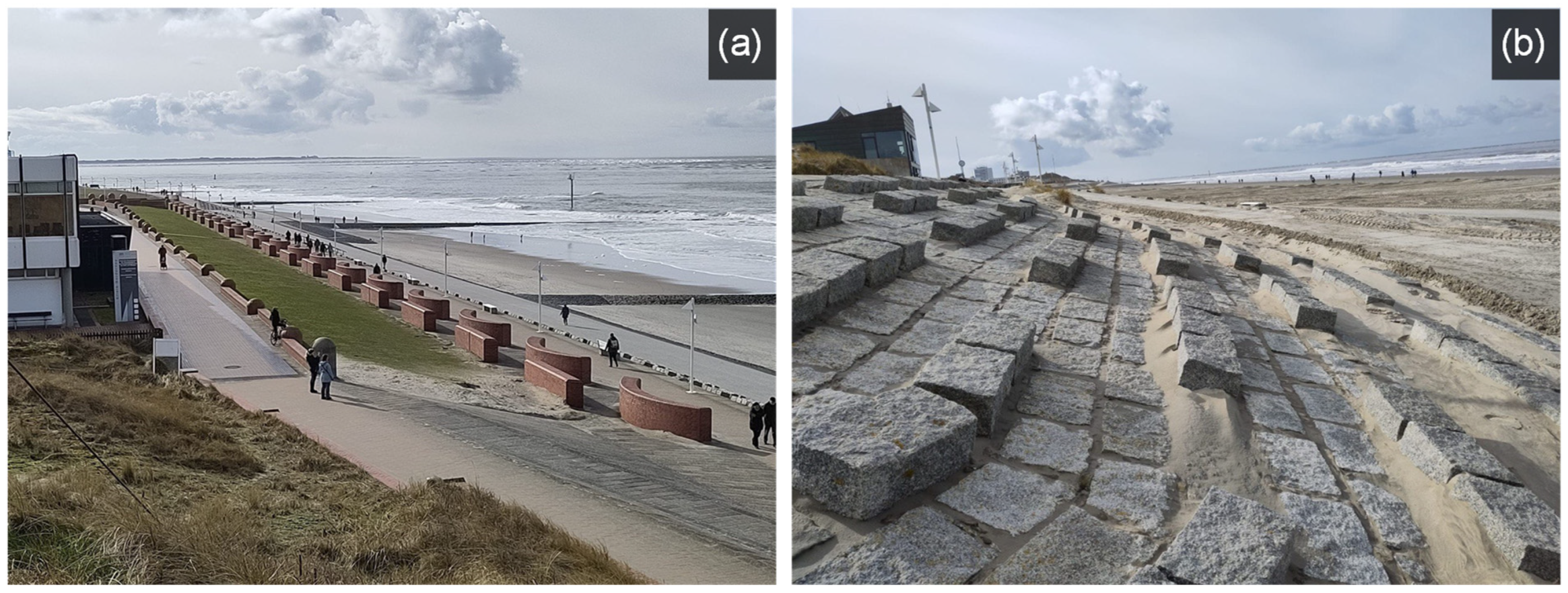

2.2. Macro-Roughness Elements
3. Materials and Methods

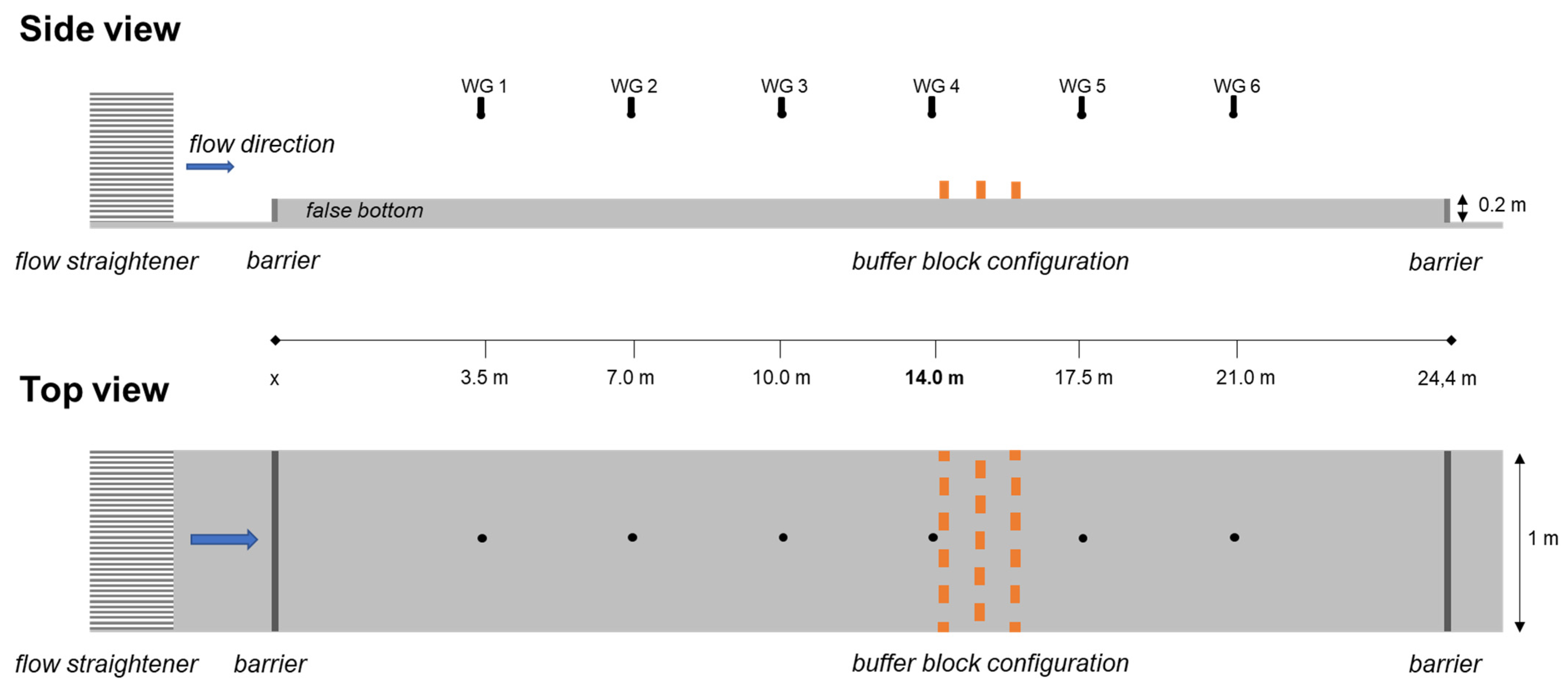

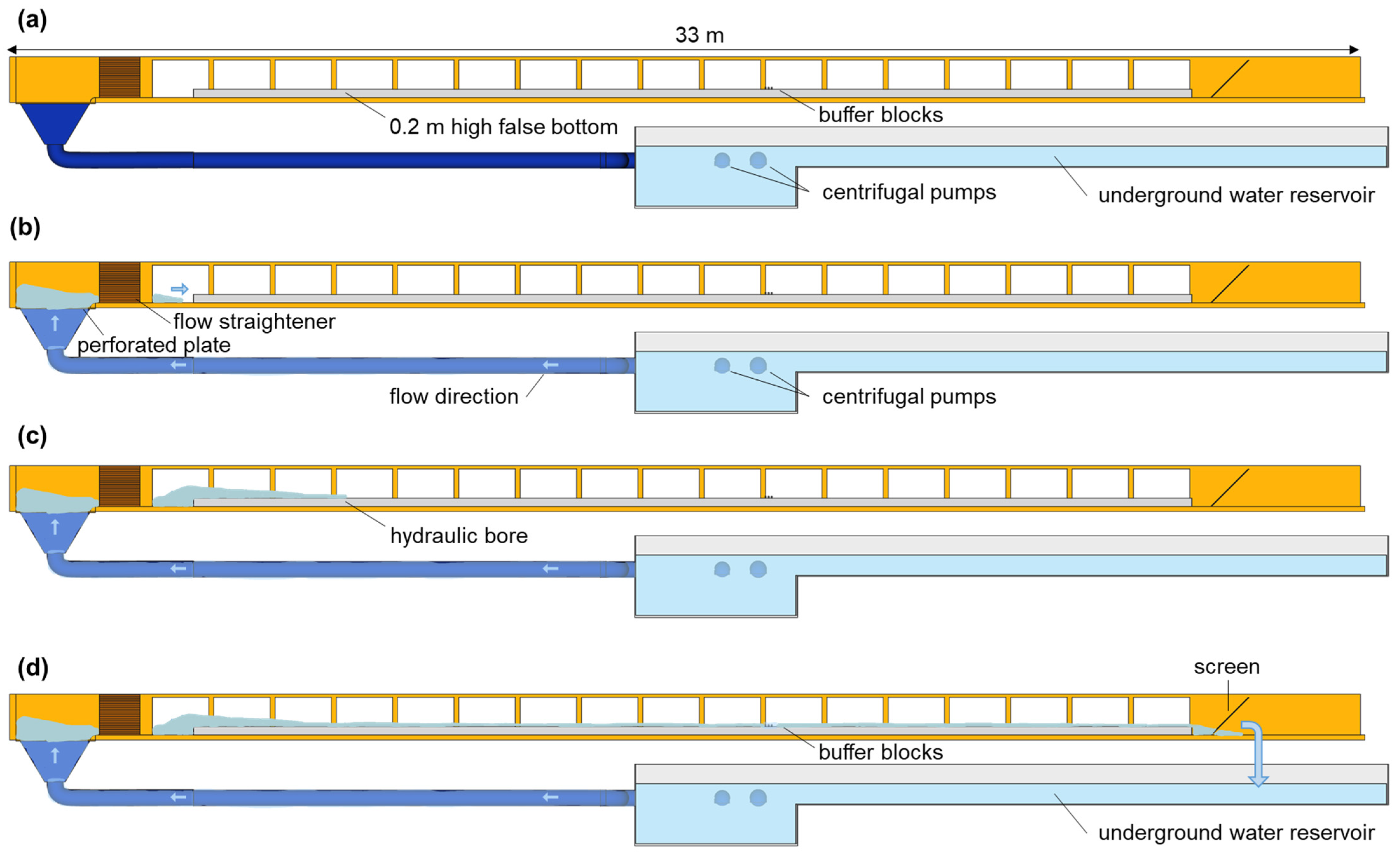

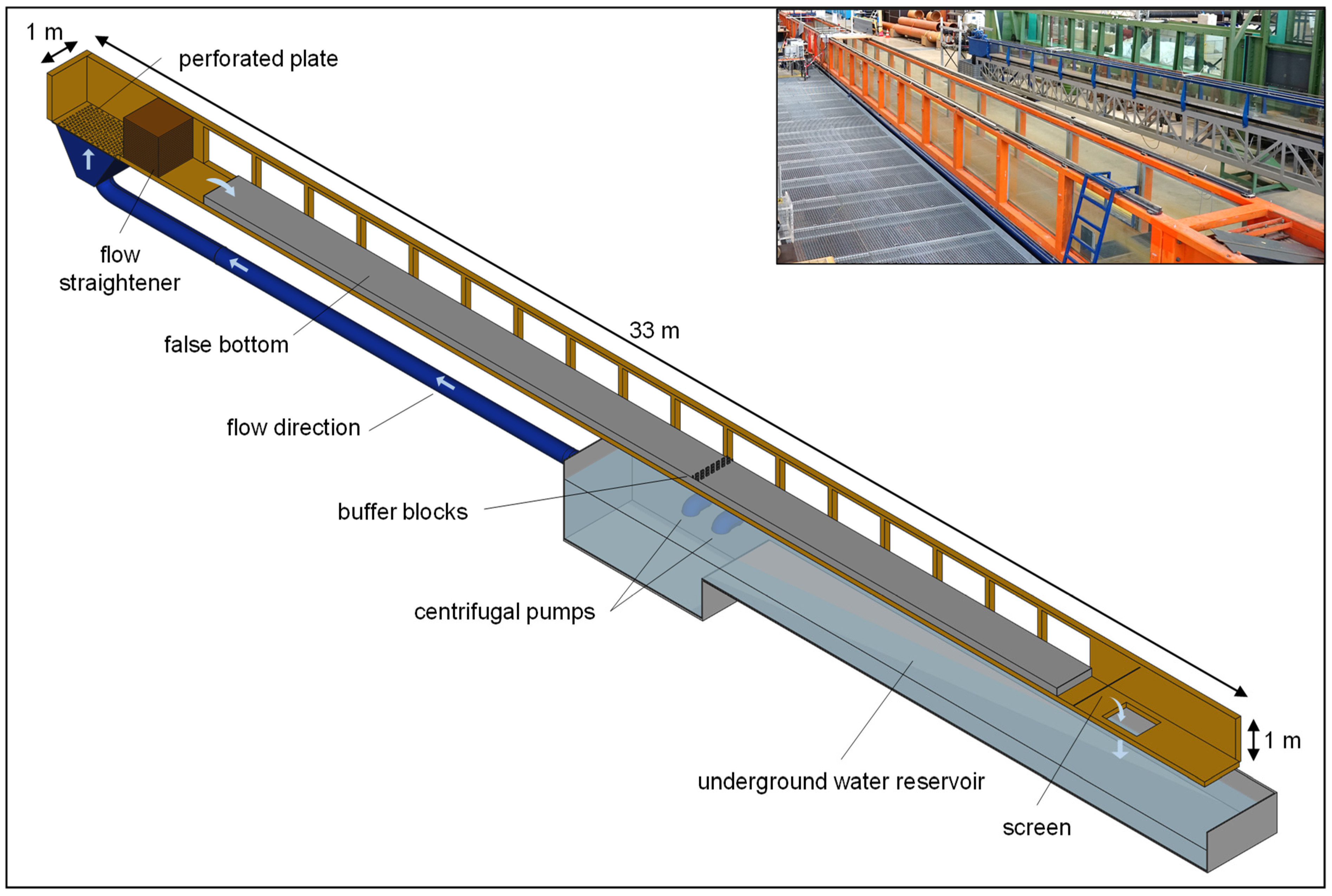

3.1. Experimental Facility

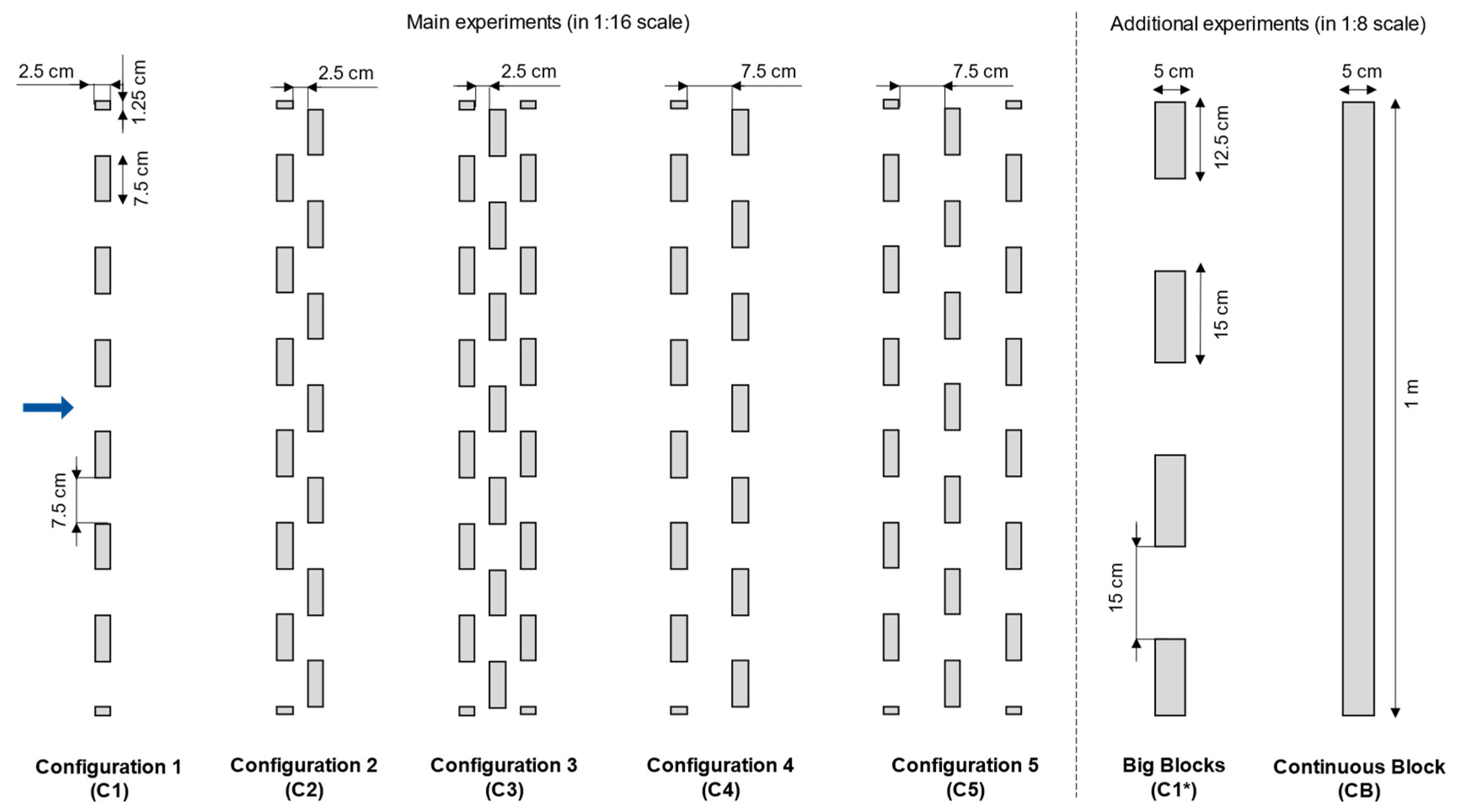

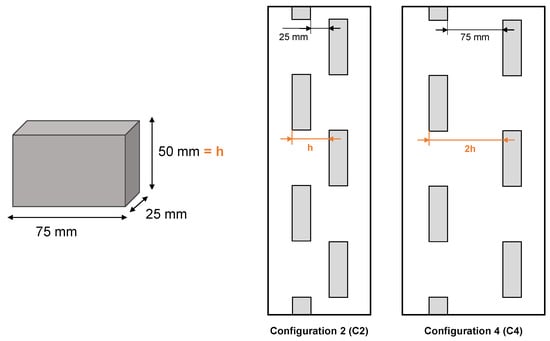

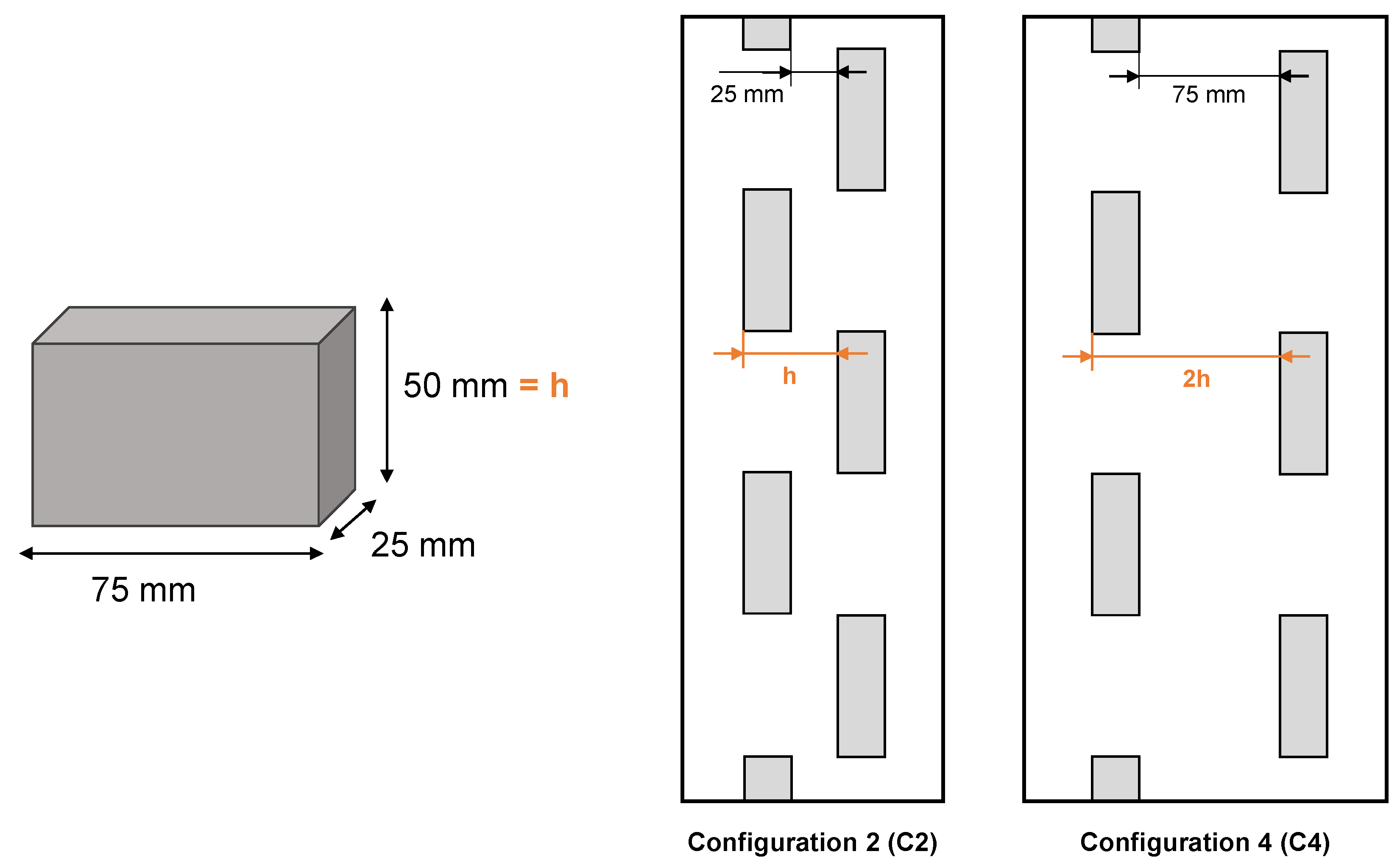

3.2. Model Setup

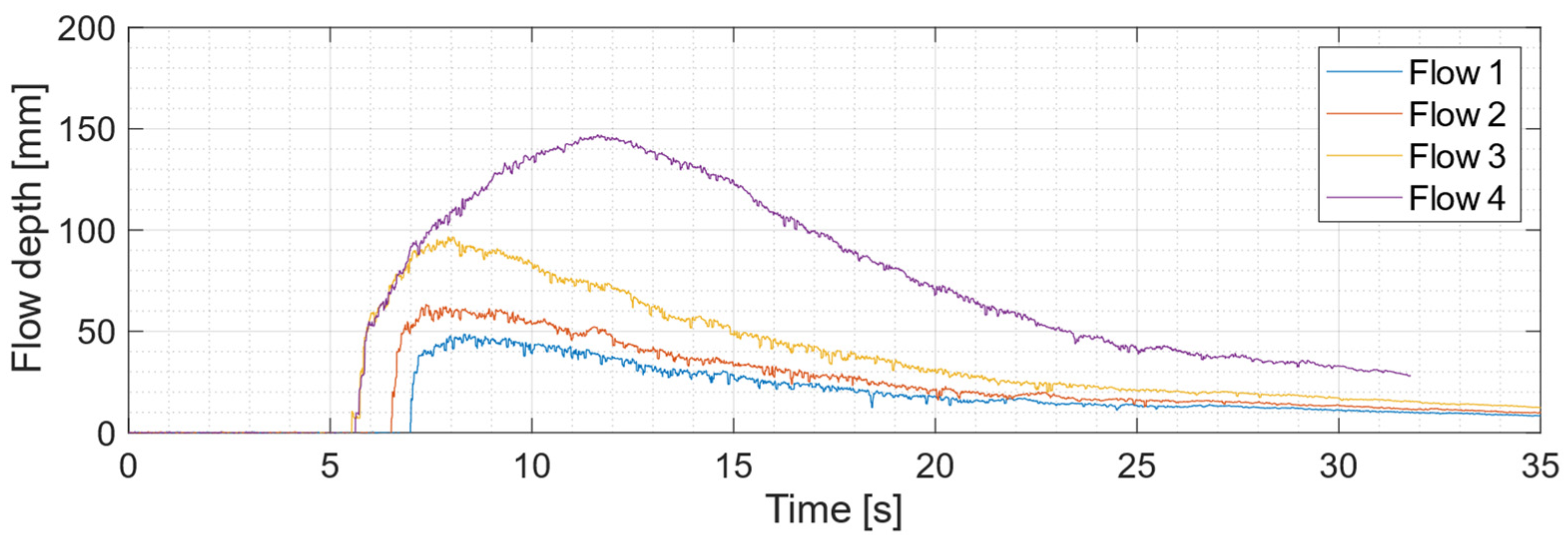

3.3. Test Program
3.4. Instrumentation
4. Results and Discussion

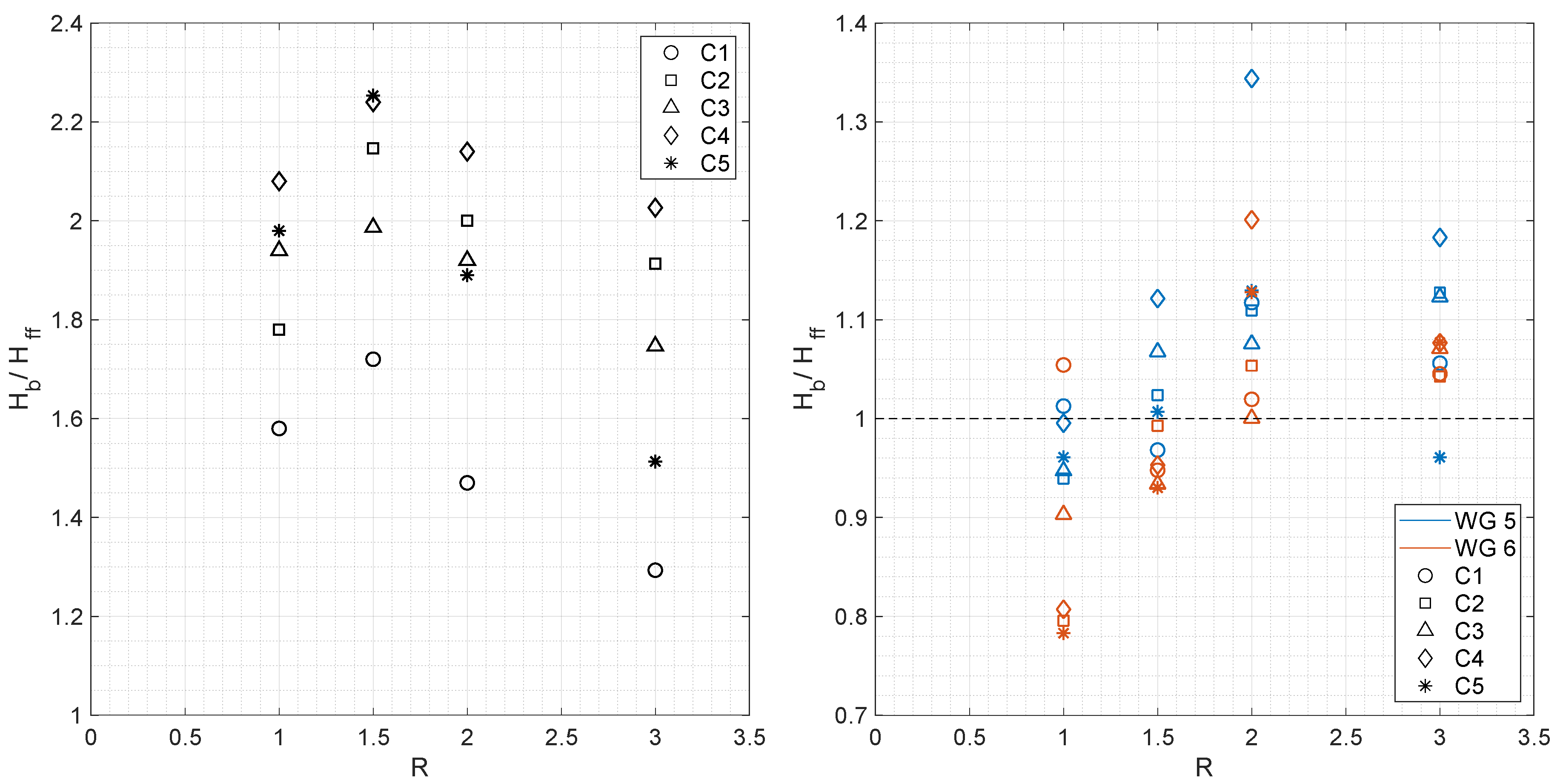

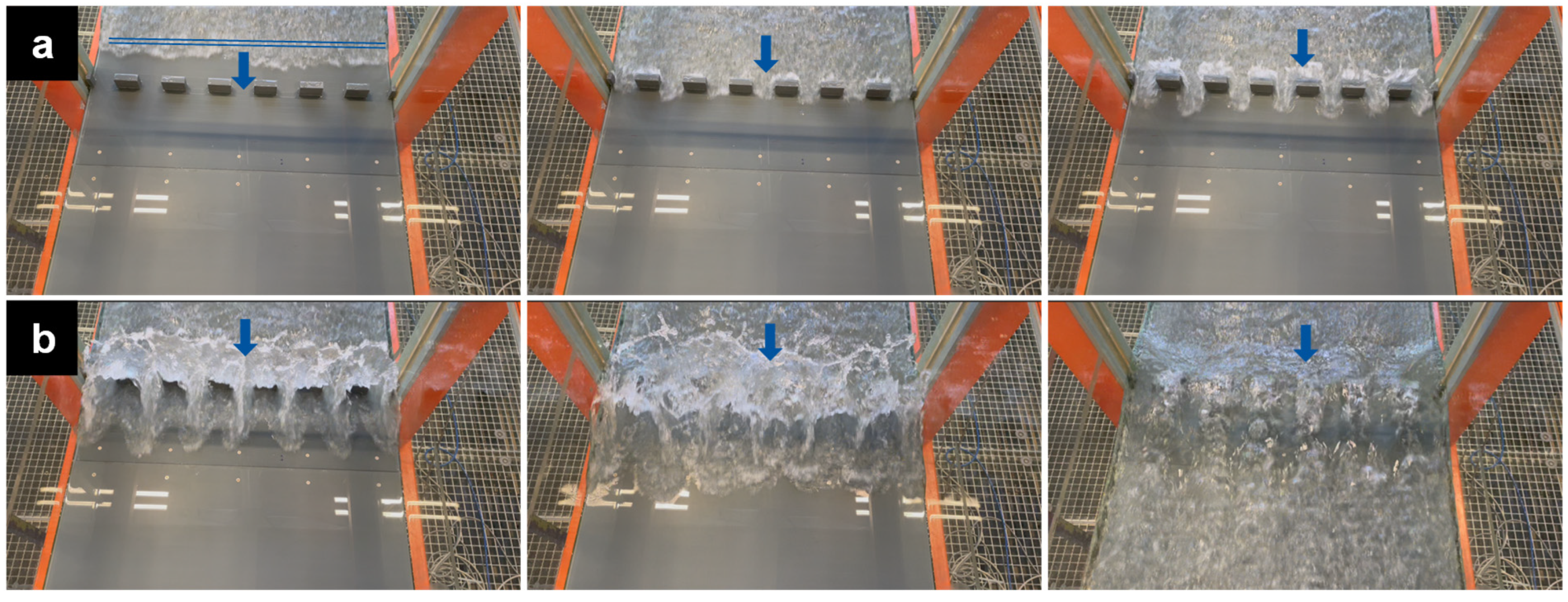

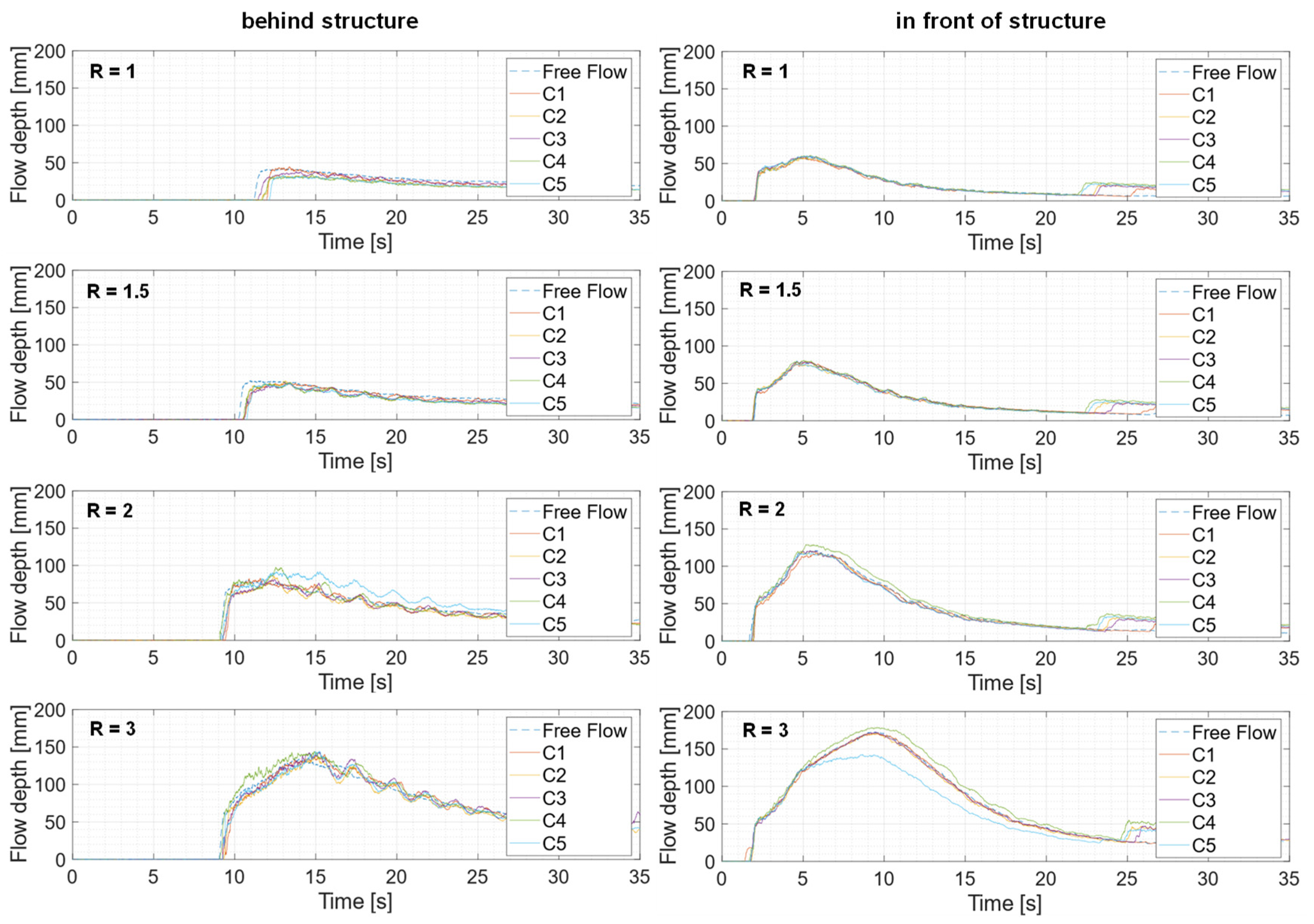

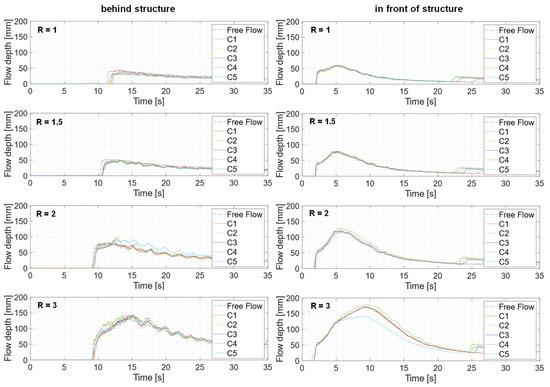

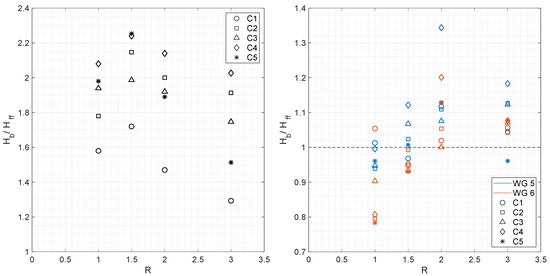

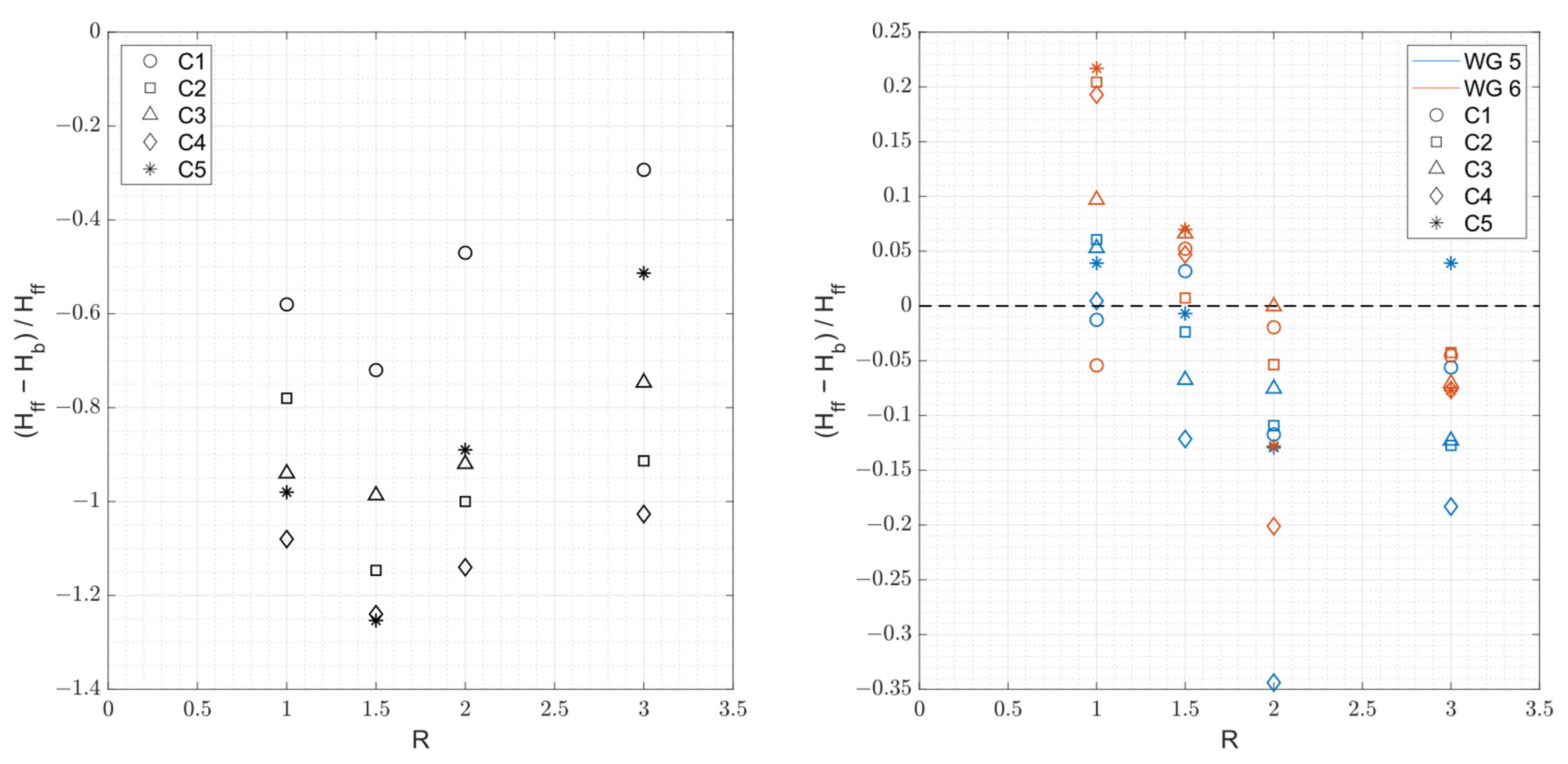

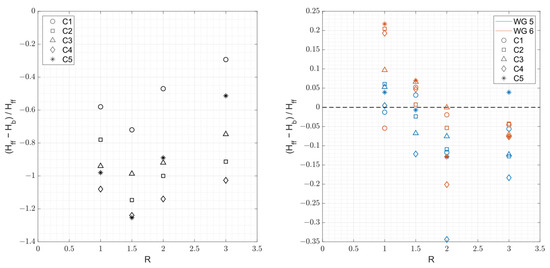

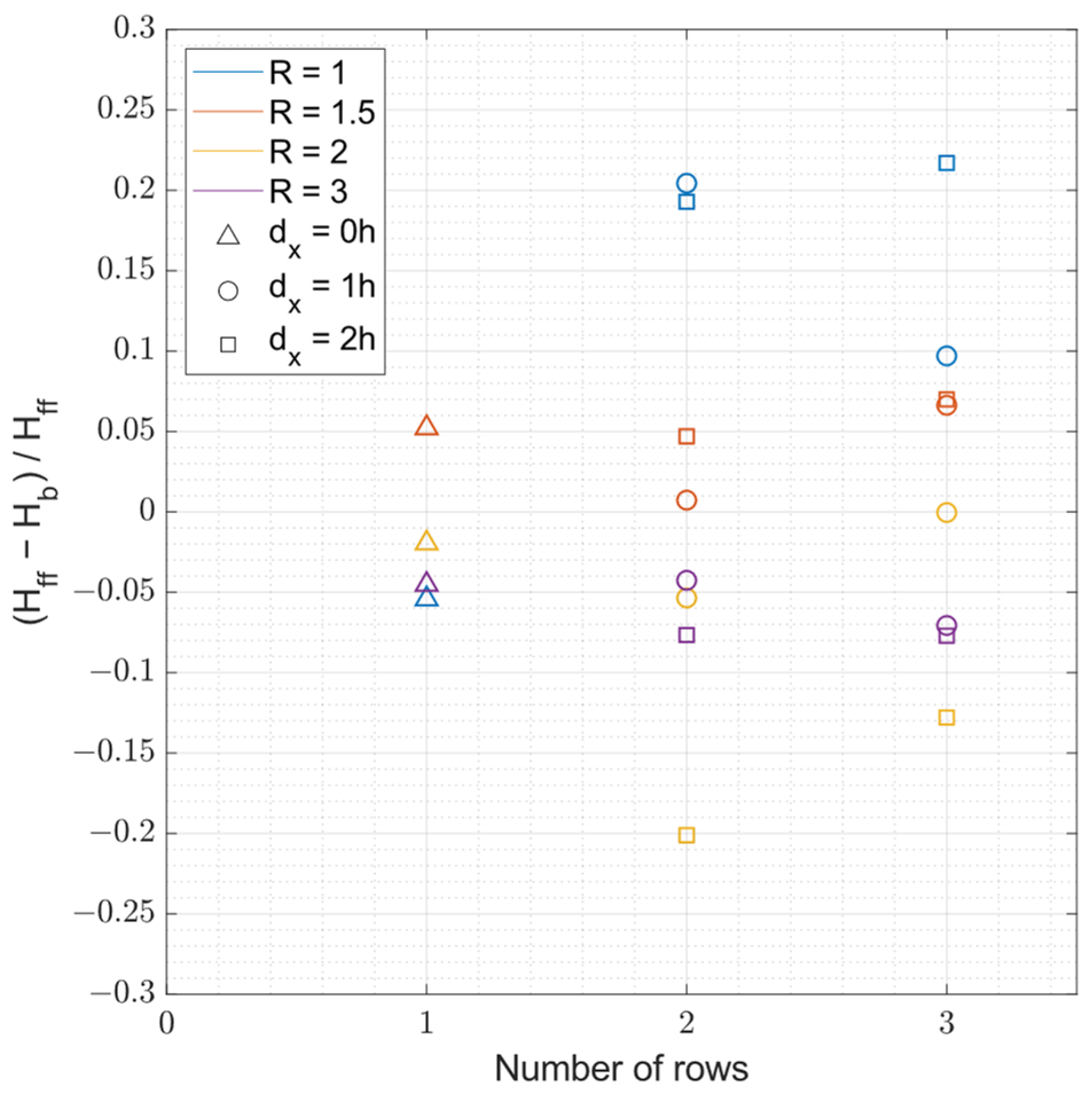

4.1. Experiments with Configurations C1 to C5

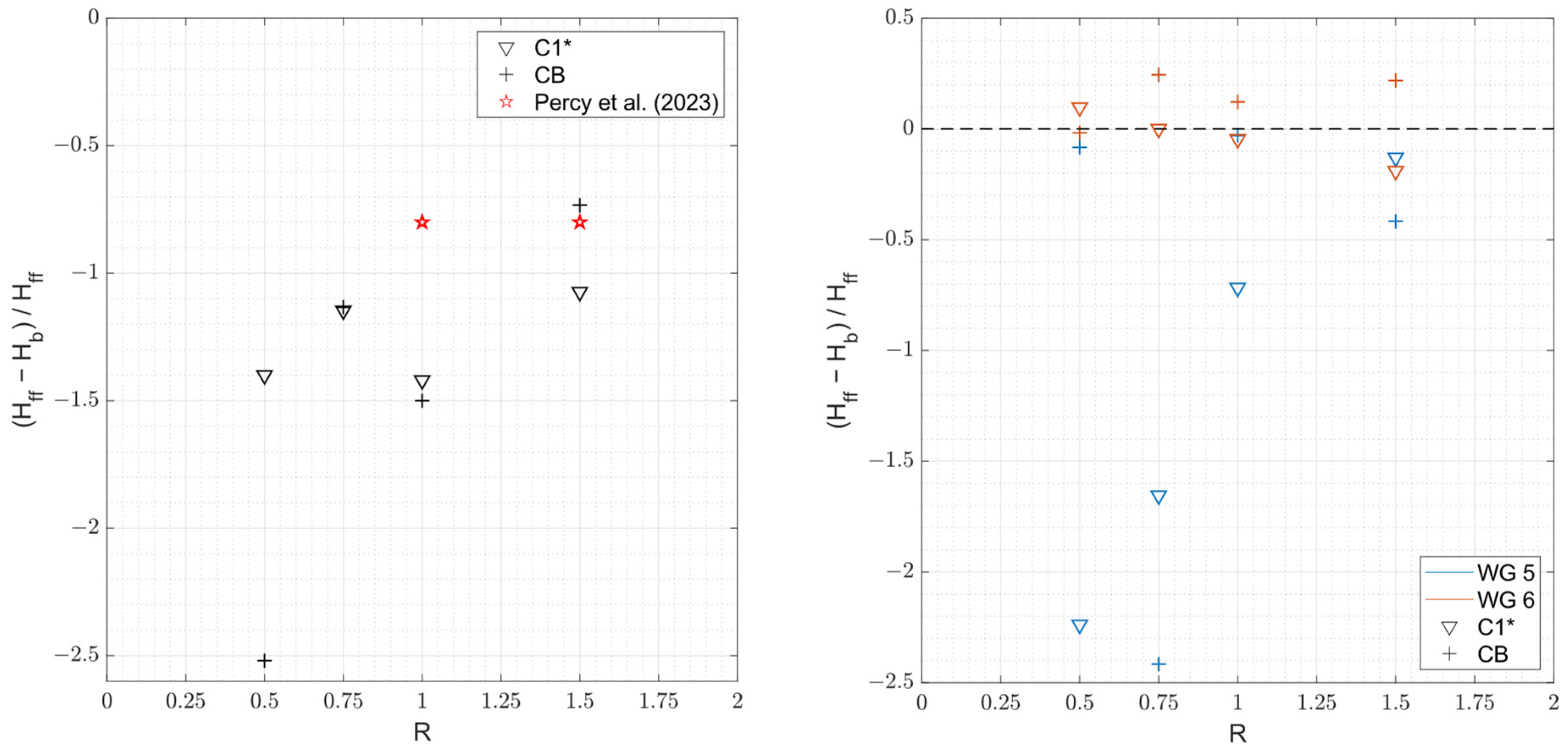

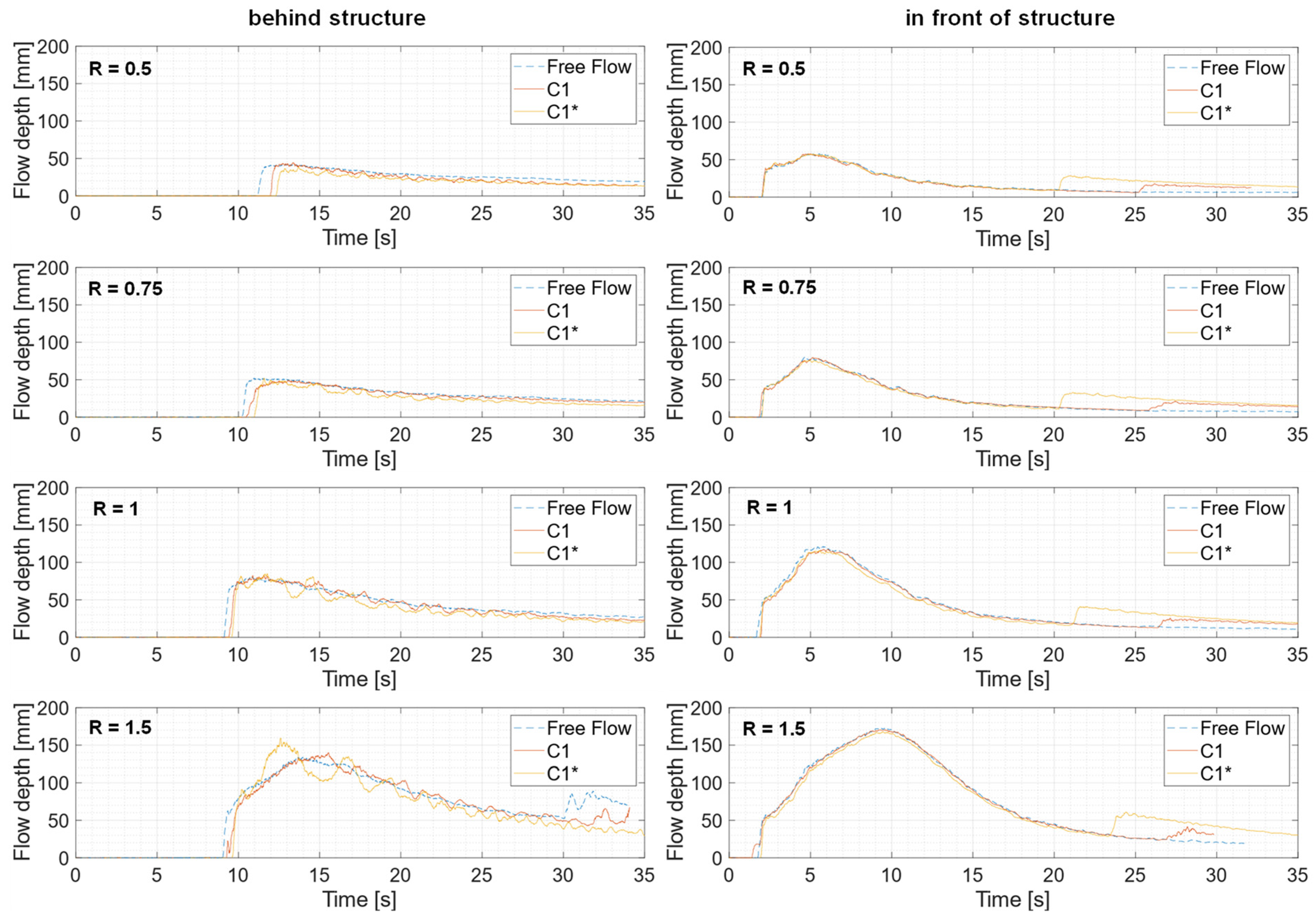

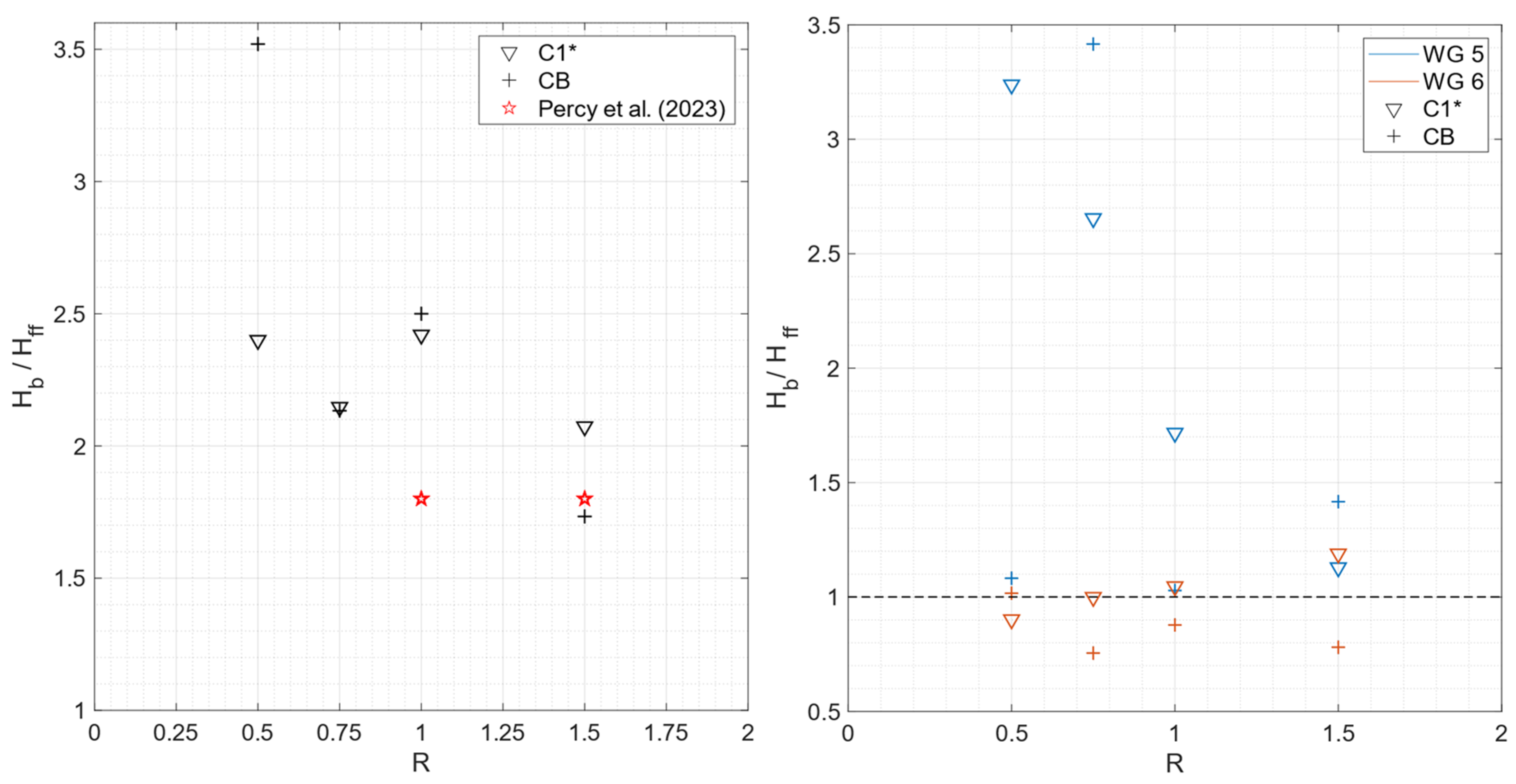

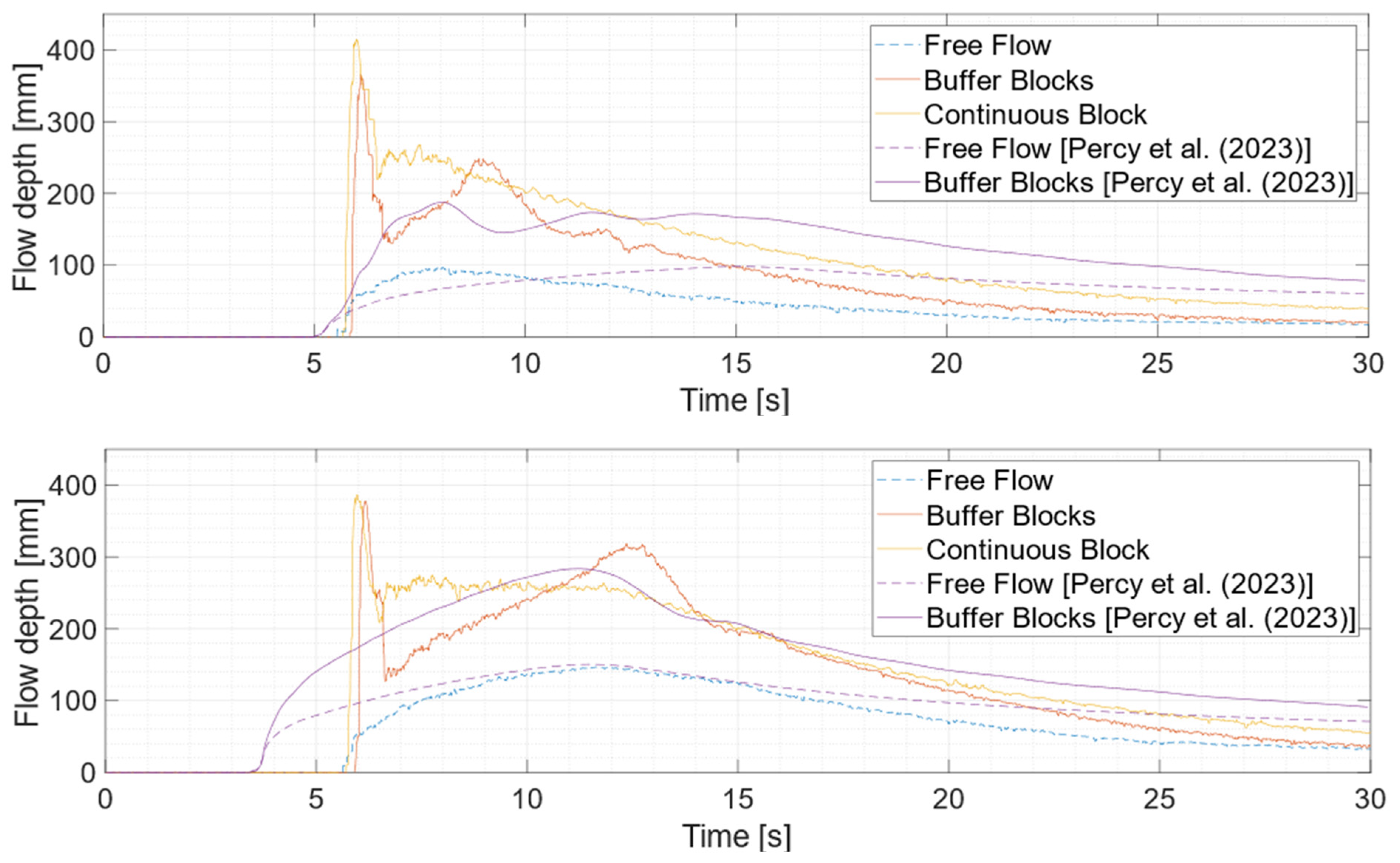

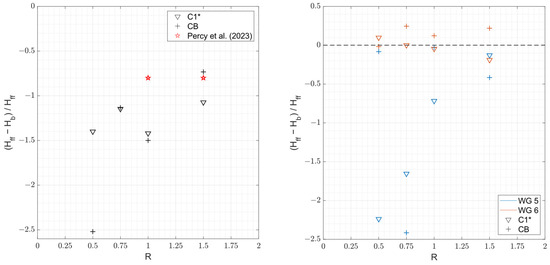

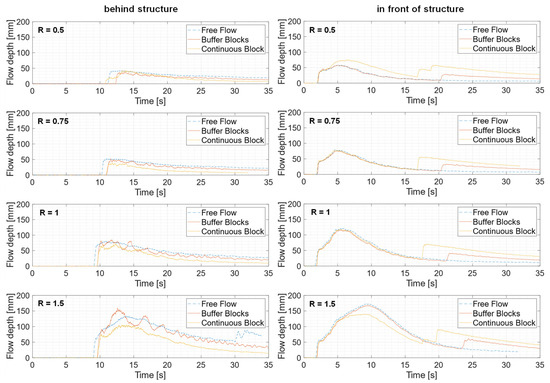

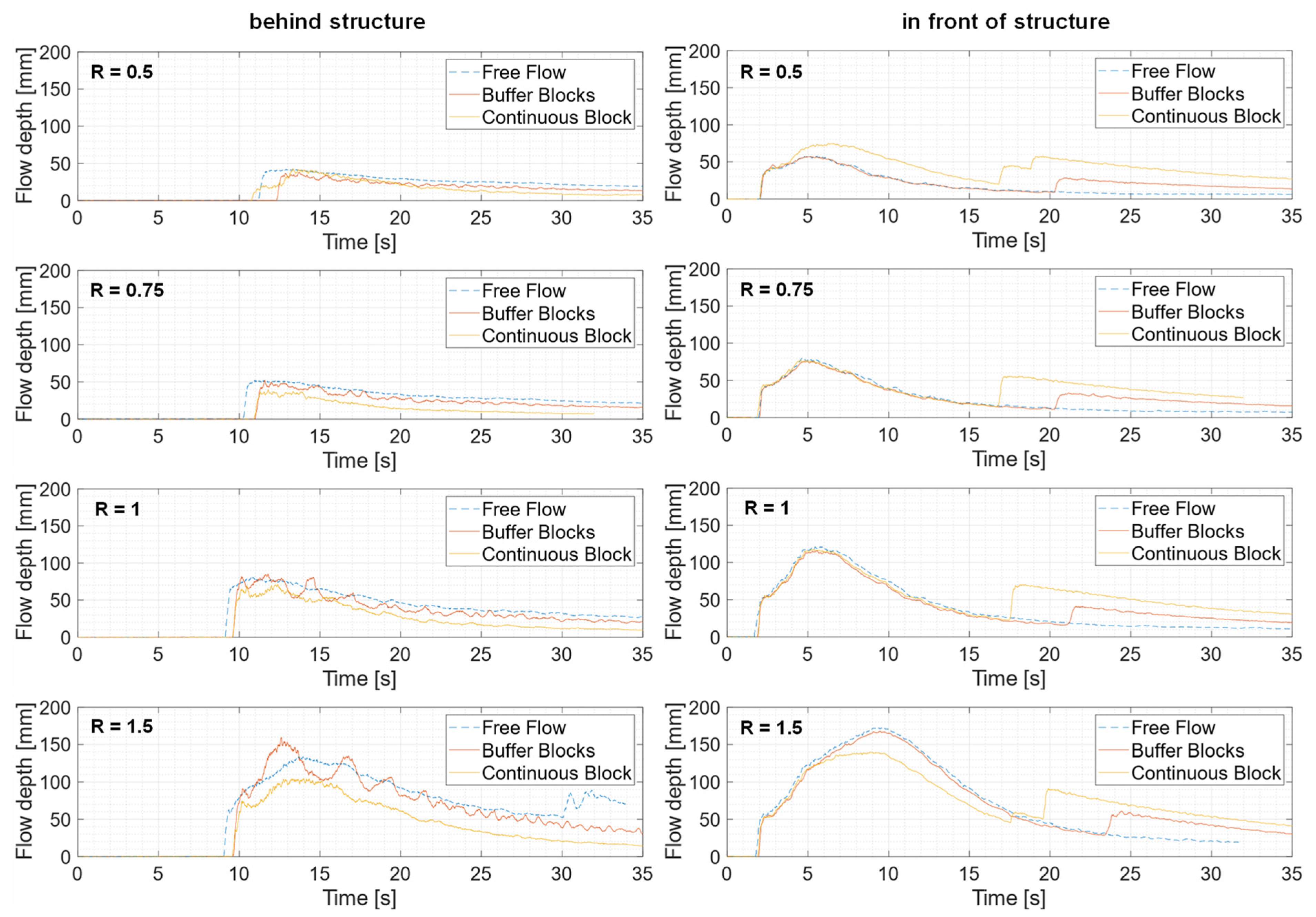

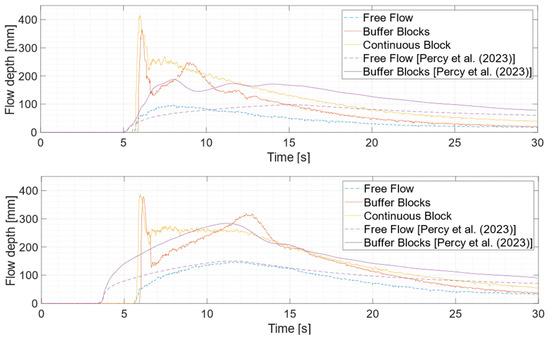

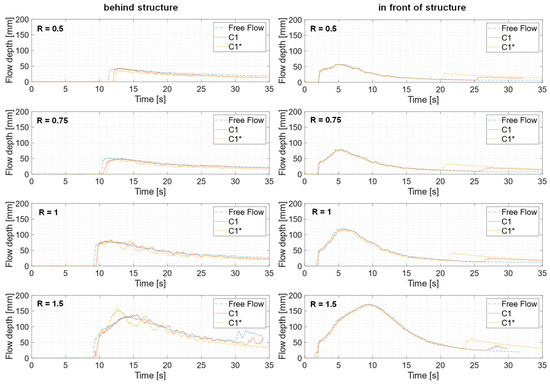

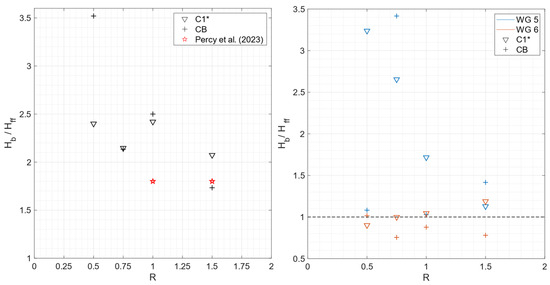

4.2. Additional Experiments with Configuration C1* and CB
5. Conclusions and Future Research
- Buffer blocks effectively delay flow arrival and reduce flow depths for flow depth to block height ratios (R) below 1.5. However, their effectiveness reduces for higher R as the flow overtops the blocks. The flow overtopping, in most cases, resulted in increased flow depth immediately behind the buffer blocks and, hence, behaves negatively.
- Increasing the number of rows enhanced the flow depth reduction behind the buffer blocks and increased the flow depth in the vicinity of the buffer blocks on its upstream side due to the increase in the obstruction.
- Multiple-row configurations with wider spacing achieved the best flow depth reduction behind the buffer blocks, hence necessitating sufficient space between the buffer blocks’ rows. C5 configuration yielded the best results out of the tested configuration when R ≤ 1.5.
- Comparisons with continuous block structures revealed that buffer blocks perform better in flow depth reduction by inducing more turbulence and oscillations. Thus, buffer blocks can be realized as an alternative to the conventional sea walls of low heights.
