Impulse Wave Generation: Comparison of Free Granular with Mesh-Packed Slides

Laboratory of Hydraulics, Hydrology and Glaciology (VAW), ETH Zurich, CH-8093 Zürich, Switzerland
*
Author to whom correspondence should be addressed.
J. Mar. Sci. Eng. 2015, 3(1), 100-110; https://doi.org/10.3390/jmse3010100
Submission received: 14 October 2014 / Accepted: 12 February 2015 / Published: 4 March 2015
(This article belongs to the Special Issue Tsunami Science and Engineering)

Abstract

:
Slides generating impulse waves are currently generated using either block models or free granular material impacting a water body. These procedures were mainly developed to study plane impulse waves, i.e., wave generation in a rectangular channel. The current VAW, ETH Zurich, research is directed to the spatial impulse wave features, i.e., waves propagating in a wave basin. The two wave generation mechanisms mentioned above complicate this process for various reasons, including experimental handling, collection of slide material in the wave basin, poor representation of prototype conditions for the block model, and excessive temporal duration for free granular slides. Impulse waves originating from slides with free granular material and mesh-packed slides are compared in this paper. Detailed test series are presented, so that the resulting main wave features can be compared. The results highlight whether the simplified procedure involving mesh-packed slides really applies in future research, and specify advantages in terms of impulse wave experimentation.

1. Introduction

Mass wasting including rockfalls, landslides, or avalanches may cause large water waves in oceans, bays, lakes, and reservoirs. As the kinetic energy is transferred from the slide mass to the water body these waves are referred to as impulse waves. They may run-up the shoreline several meters or overtop a dam, endangering thereby adjacent settlements and infrastructure. Therefore, procedures for assessing the generation and propagation of landslide-generated impulse waves form the integral part of an effective risk management strategy [1].
The generation of landslide-generated impulse waves is a complex process encompassing the interaction of the phases slide material, water, and air. To reproduce this process within a hydraulic scale model subaerial slides have so far been mainly represented by either a free granular slide or a rigid block [2]. Free granular slide material was used e.g., by Fritz [3], Heller [4], Mohammed and Fritz [5], and Viroulet et al. [6]; while e.g., Di Risio et al. [7], Heller and Spinneken [2], Kamphuis and Bowering [8], Noda [9], Panizzo et al. [10], Sælevik et al. [11], and Viroulet et al. [12] conducted experiments with block models. Ataie-Ashtiani and Nik-Khah [13] and Zweifel [14] presented results comprising both approaches. Block models are unable to account for the granular slide matrix, whereas free granular slides imply a significant procedural and temporal effort for the experimental execution.
Fritz [3], Zweifel [14], and Heller [4] conducted a total of 434 experiments involving free granular material and a pneumatic landslide generator using the two-dimensional (2D) wave channel at the Laboratory of Hydraulics, Hydrology and Glaciology (VAW). The relevant wave characteristics were among others the maximum wave amplitude and wave height, as well as their decay along the propagation distance [4]. The observed wave characteristics were correlated to the measured slide parameters to establish general design information. These empirical equations for significant wave parameters are used as a reference for the experiments presented hereinafter, since they were established on a sound data basis.
As described by Slingerland and Voight [15], Davidson and Whalin [16] also applied bags containing loose iron and lead elements for generating impulse waves. Yet their results were not compared to free granular slides. As a prerequisite to investigate the generation and propagation of spatial impulse waves in a wave basin, experiments with mesh-packed granular material in a 2D wave channel were conducted. The focus of these tests comprised only selected wave features as the wave amplitudes and heights, their decay, and the wave crest celerity. However, no comprehensive test program involving further test parameters was attempted, because this will be the purpose of future research. The measured wave characteristics are compared with the empirical equations derived from the 2D data resulting from the free granular material to assess whether mesh-packed slides provide a sufficient reproducibility. The following therefore involves a comparison between free and mesh-packed slides to investigate whether the simplifications offered by the latter approach are justified by the experimental data. If mesh-packed slides would be able to adequately reproduce the former approach, substantial simplifications in terms of experimental effort, test duration including material package and collecting from the test facility, among others, would result.

2. Previous Research and Experimental Setup

2.1. Impulse Product Parameter

2D experiments involving free granular material were conducted by systematically varying the slide parameters to study 2D impulse waves. Heller and Hager [17] identified the slide (subscript s) impact velocity Vs, the slide thickness s, the slide mass ms, the still water depth h, and the slide impact angle α as the relevant parameters for impulse wave generation (Figure 1). A set of dimensionless quantities, namely the slide Froude number F, the relative slide thickness S, and the relative slide mass M, entirely define the physics of impulse waves, namely
F   =   V s / ( g h ) 1 / 2
S   =   s / h
M   =   m s / ( ρ w b h 2 )
Based on these dimensionless quantities, Heller and Hager [17] developed the so-called impulse product parameter P for describing the 2D characteristics of landslide generated impulse waves as
P   =   F S 1 / 2 M 1 / 4 { c o s [ ( 6 / 7 ) ] } 1 / 2

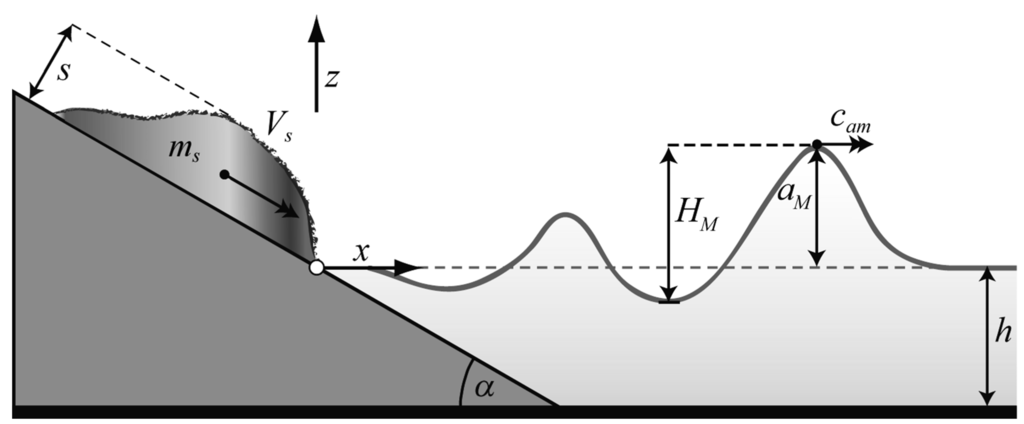

Figure 1. Relevant slide parameters and wave characteristics (adapted from Heller [4], with permission from VAW).
Figure 1. Relevant slide parameters and wave characteristics (adapted from Heller [4], with permission from VAW).
Jmse 03 00100 g001

2.2. Wave Characteristics

To study the reproducibility of waves generated by mesh-packed slides compared with free granular slides, the maximum (subscript M) wave amplitude aM and the maximum wave height HM as shown in Figure 1, as well as their decay along the propagation distance x were analyzed. The governing 2D wave characteristics include the relative maximum wave amplitude AM = aM/h and height YM = HM/h plus their decay A(X) and Y(X) along the relative distance X = x/h measured from the location of the free water surface at the slide plane (Figure 1). Heller and Hager [17] empirically derived these wave characteristics as
A M   =   ( 4 / 9 ) P 4 / 5
Y M   =   ( 5 / 9 ) P 4 / 5
A ( X )   =   ( 3 / 5 )   ( P X   1 / 3 ) 4 / 5
Y ( X )   =   ( 3 / 4 )   ( P X   1 / 3 ) 4 / 5
Further, the mean (subscript m) wave crest celerity cam of the mean wave amplitude am is [4]
c a m / ( g h ) 1 / 2 =   ( 1   +   2 ( a m / h ) 2 ) 1 / 2

2.3. Experimental Setup and Procedure

For the present experiments with mesh-packed slides the identical wave channel was used as for these involving free granular material. The instrumentation consisted of six Capacitance Wave Gauges (CWG) (Figure 2). The slide impact velocity Vs and the slide thickness s were measured by laser distance sensors mounted perpendicularly to the slide plane. In contrast to the previous experiments, Vs of the mesh-packed slides was not determined as a slide centroid velocity, but as the velocity of the slide front under dry conditions, given that the loose mesh bag does not allow for a correct capturing of the slide profile.

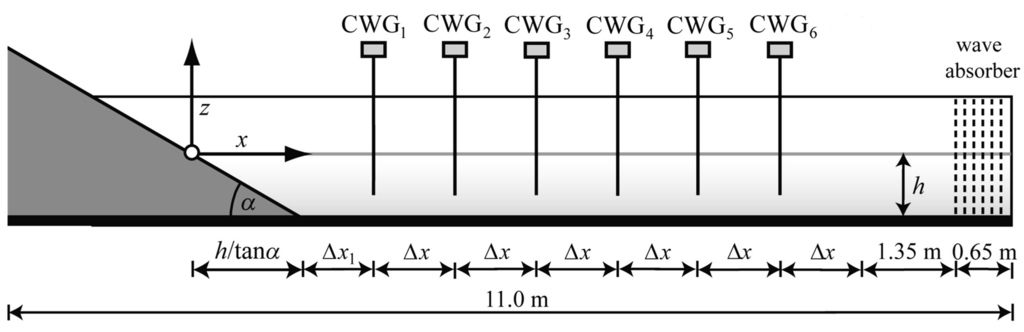

Figure 2. Capacitance Wave Gauge (CWG)1–6 positions with Δx1 = 0.71 m and Δx = 1.00 m for α = 30°; Δx1 = 1.13 m and Δx = 1.00 m for α = 45°; Δx1 = 1.27 m and Δx = 1.06 m for α = 60° (adapted from Heller [4], with permission from VAW).
Figure 2. Capacitance Wave Gauge (CWG)1–6 positions with Δx1 = 0.71 m and Δx = 1.00 m for α = 30°; Δx1 = 1.13 m and Δx = 1.00 m for α = 45°; Δx1 = 1.27 m and Δx = 1.06 m for α = 60° (adapted from Heller [4], with permission from VAW).
Jmse 03 00100 g002
Table 1. Overview of experimental parameters and dimensionless quantities.
Table 1. Overview of experimental parameters and dimensionless quantities.
ParameterFree Granular Slides [4]Mesh-Packed Slides
h [m]0.15, 0.20, 0.30, 0.45, 0.60, 0.6750.20, 0.30, 0.40
s [m]0.05–0.2490.062–0.145
Vs [m/s]2.06–8.771.2–9.2
ms [kg]10.09–113.3019.5–20.1
α [°]30, 45, 6030, 45, 60
F [-]0.86–6.830.70–5.36
S [-]0.09–1.640.16–0.65
M [-]0.11–10.020.24–1.01
P [-]0.17–8.130.26–2.78
The granular slide material used for the mesh-packed experiments corresponded to that used by Heller [4]. It has a grain (subscript g) diameter of dg = 8 mm and a grain density of ρg = 2,429 kg/m3. The granular material is loosely packed into mesh bags made of sifting media (SEFAR NYTAL® PA-38GG-500, Sefar AG, Heiden, Switzerland) with a mesh opening of 500 μm and a porosity of 47%. The bags were accelerated with the pneumatic landslide generator [18]. The main parameters and dimensionless quantities of the mesh-packed slides considered herein are compared with these of the free granular slides in Table 1. The total number of mesh-packed experiments evaluated is 42.

3. Results and Discussion

3.1. Slide Impact and Wave Generation Process

In Figure 3 the slide impact and wave generation processes are documented by means of high-speed photography at various times for slide impact angles of α = 30° and α = 60°. Free granular slides are affected by compaction and strong deformation processes during the impact onto the still water and the underwater movement to the channel bottom [3]. The mesh-packed slides are both bended and lifted upwards after impacting the water body, depending on the slide impact angle α. For α = 30° these effects are larger than for α = 60°. These effects significantly increase the slide thickness s resembling the mechanisms of compaction and deformation of free granular slides. Also the process of flow separation and the formation of an impact crater along with air entrainment are observed in both cases.

3.2. Maximum Wave Amplitude and Height

The relative maximum wave amplitude AM and wave height YM of waves generated with mesh-packed slides versus the impulse product parameter P including Equations (5) and (6) are shown in Figure 4. The maxima are recorded independently from their position within the wave train and along their propagation distance. In most wave trains the wave maxima were observed at the first wave crest and were fully developed at CWG1. The data of both wave maxima predominantly scatter within ±30% of Equations (5) and (6), as do these for free granular slides. A concentrated undercut of the −30% curve for P ≤ 1 is also detected in the corresponding plots of Heller [4]. The coefficients of determination are R2 = 0.82 and R2 = 0.85 for maximum wave amplitude and height, respectively, compared to R2 = 0.89 and R2 = 0.85 for the 434 free granular slide experiments [4].
Note the effect of the slide impact angle α on the relative maximum wave amplitude AM and height YM. For α = 60° the maxima are predominantly scattered within the area between the curves of Equations (5) and (6) and their corresponding −30% curves; at α = 45° the wave maxima are narrowly scattered along Equations (5) and (6), while the maxima of α = 30° are located in the upper half above the equations up to the +30% curves. In summary, a good overall reproducibility of maximum impulse wave amplitudes and heights results by using mesh-packed slides.

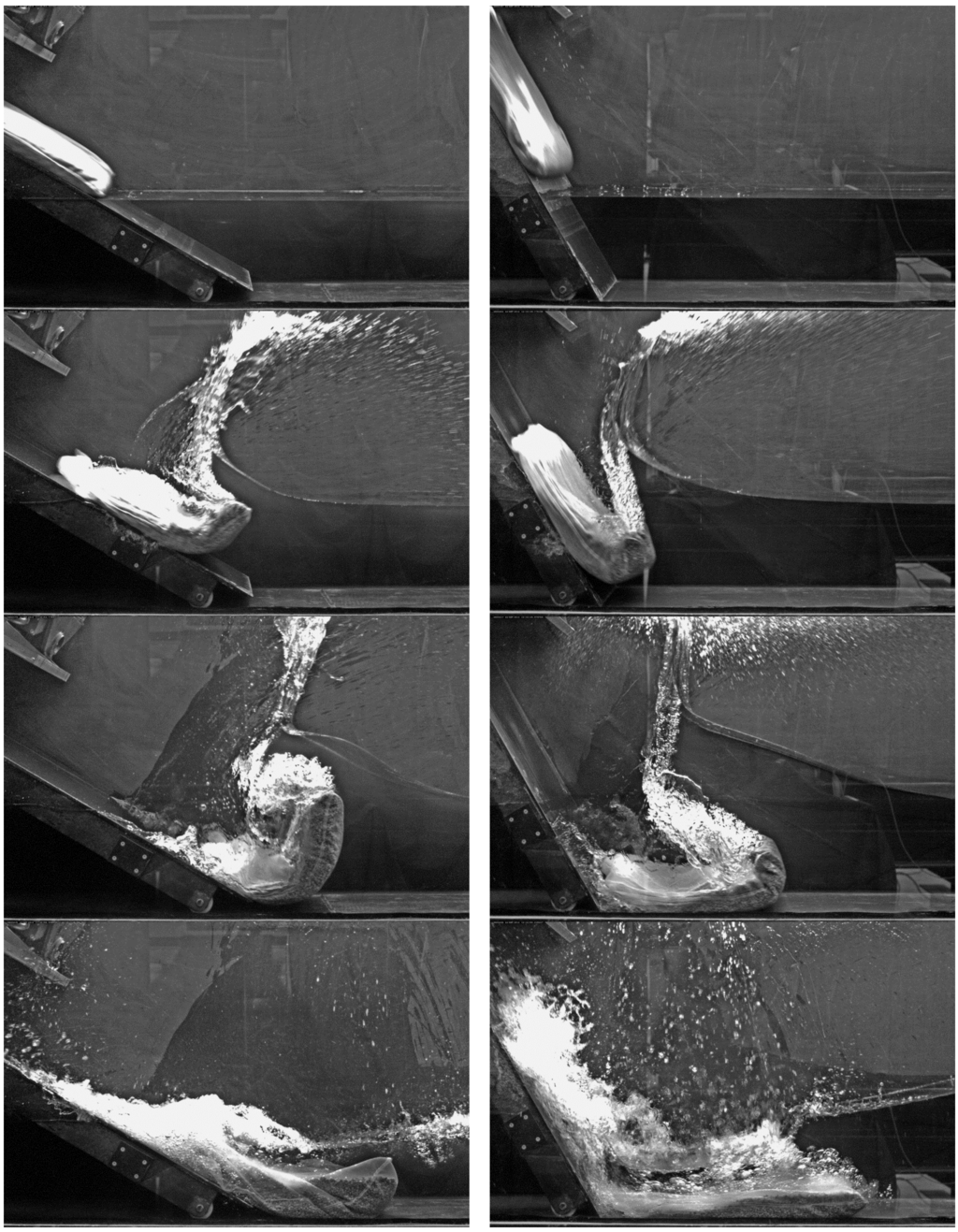

Figure 3. Photographs at various stages of wave generation process with mesh-packed slides. Left column: α = 30° with F = 2.27, S = 0.23, M = 0.45, and P = 0.84 at t = 0.00, 0.14, 0.34, and 0.90 s. Right column: α = 60° with F = 3.03, S = 0.21, M = 0.45, and P = 0.90, at t = 0.00, 0.11, 0.31, and 0.76 s.
Figure 3. Photographs at various stages of wave generation process with mesh-packed slides. Left column: α = 30° with F = 2.27, S = 0.23, M = 0.45, and P = 0.84 at t = 0.00, 0.14, 0.34, and 0.90 s. Right column: α = 60° with F = 3.03, S = 0.21, M = 0.45, and P = 0.90, at t = 0.00, 0.11, 0.31, and 0.76 s.
Jmse 03 00100 g003

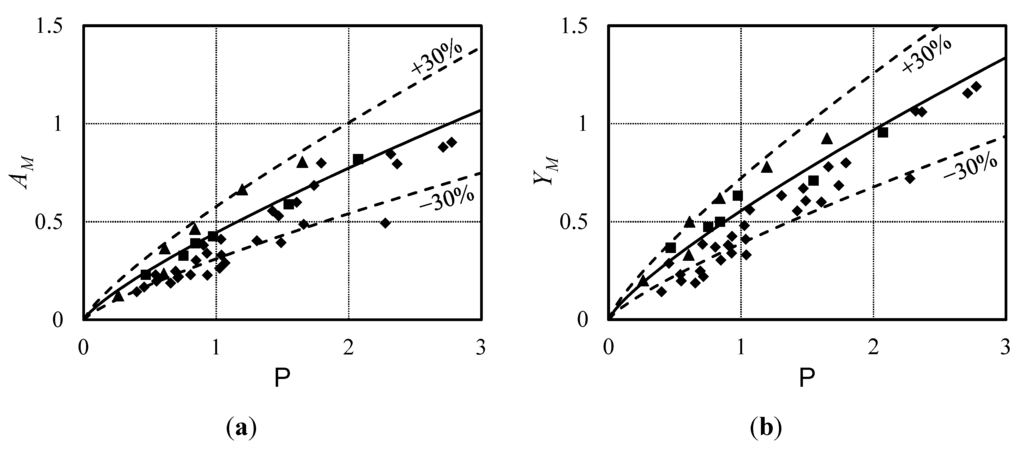

Figure 4. Waves generated by mesh-packed slides (a) relative maximum wave amplitude AM(P) with (─) Equation (5); (b) wave height YM(P), with (─) Equation (6) for (▲) α = 30°, (■) α = 45°, (♦) α = 60.
Figure 4. Waves generated by mesh-packed slides (a) relative maximum wave amplitude AM(P) with (─) Equation (5); (b) wave height YM(P), with (─) Equation (6) for (▲) α = 30°, (■) α = 45°, (♦) α = 60.
Jmse 03 00100 g004

3.3. Wave Amplitude and Height Decay

To evaluate the wave amplitude and height decays, only the first wave crest was considered. This applies also to wave trains, where these maxima occur at the second wave crest. The relative wave amplitude A(X) and height Y(X) decays generated with mesh-packed slides versus PX−1/3 as well as the Equations (7) and (8) are shown in Figure 5, from where good overall agreement results. In contrast to the maxima of wave amplitude and height, no immediate effects of the slide impact angle α result. For wave trains with PX−1/3 ≤ 0.75 at XCWG1 an increase in wave amplitude and height is observed. These wave trains developed their maxima at CWG2. An increased undercut of the −30% curve of Equation (7) of A(X) for PX−1/3 ≤ 1 applies also to the data of Heller [4]. This statement is valid for the data exceeding the +30% curves of A(X) as well as Y(X) for 0.5 ≤ PX−1/3≤ 1. Despite the values of wave amplitude and height decay that undercut and exceed the ±30% curves of Equations (7) and (8) in certain ranges of PX−1/3, they reproduce the results of free granular slides well. The coefficients of determination are R2 = 0.71 and R2 = 0.78 for wave amplitude and height decay, respectively, compared to R2 = 0.83 and R2 = 0.84 for the 434 free granular slide experiments [4].

3.4. Wave Crest Celerity

The wave crest celerity was evaluated by averaging the wave amplitudes of the first crests of CWG1 to CWG6 to a mean wave amplitude am. By accounting for the runtime of the first wave crest between CWG1 to CWG6 the mean wave crest celerity cam was determined in analogy to [4]. The relative celerity cam/(gh)1/2 of waves generated with mesh-packed slides shown in Figure 6 lies within the experimental scatter of free granular material and reproduces Equation (9) well. The coefficient of determination is R2 = 0.95, compared to R2 = 0.91 for the 434 free granular slide experiments [4].

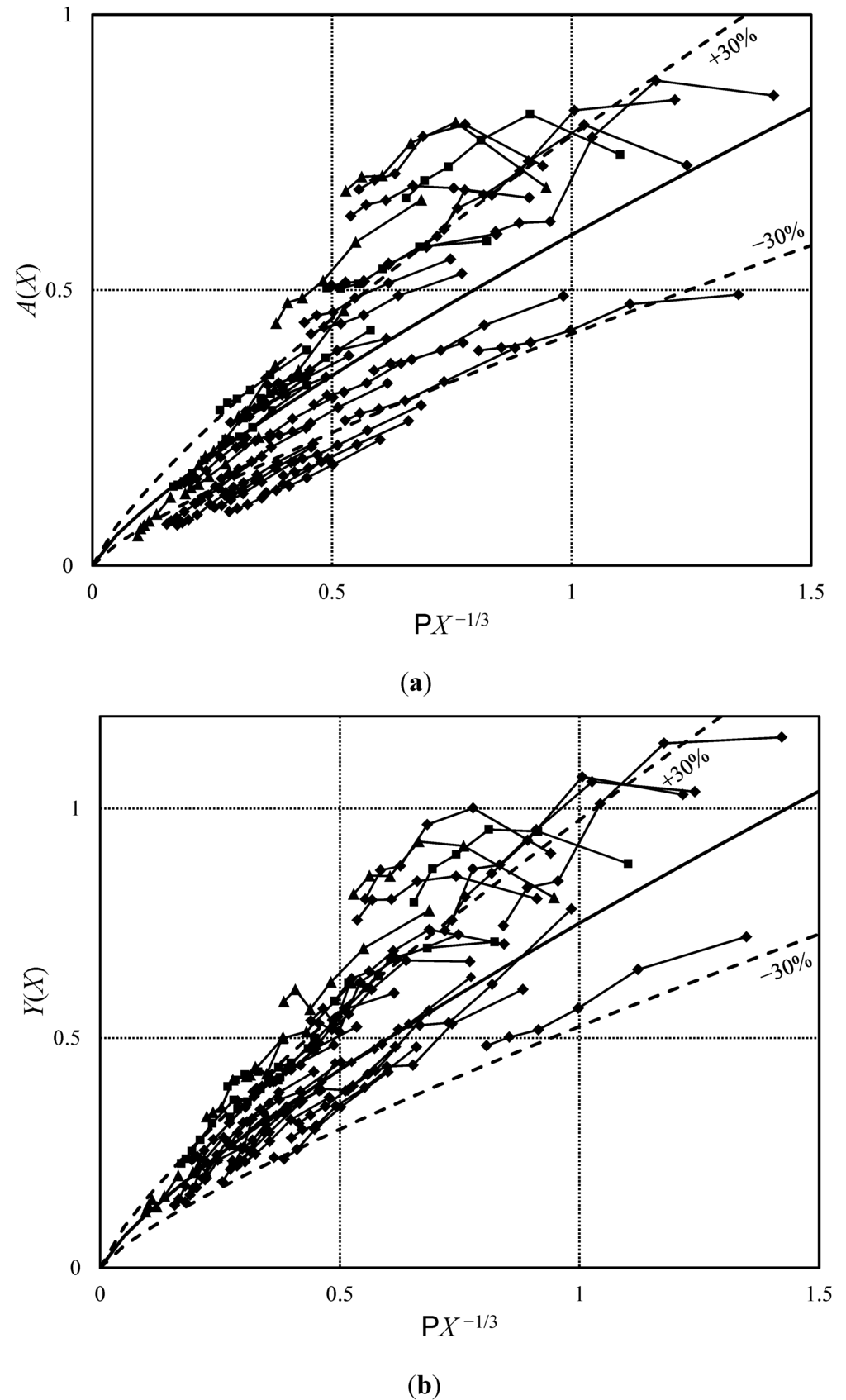

Figure 5. Mesh-packed slides (a) relative wave amplitude decay A(X) with (─) Equation (7); (b) relative wave height decay Y(X) with (─) Equation (8) versus PX−1/3 for α = 30° (▲), α = 45° (■), α = 60° (♦).
Figure 5. Mesh-packed slides (a) relative wave amplitude decay A(X) with (─) Equation (7); (b) relative wave height decay Y(X) with (─) Equation (8) versus PX−1/3 for α = 30° (▲), α = 45° (■), α = 60° (♦).
Jmse 03 00100 g005

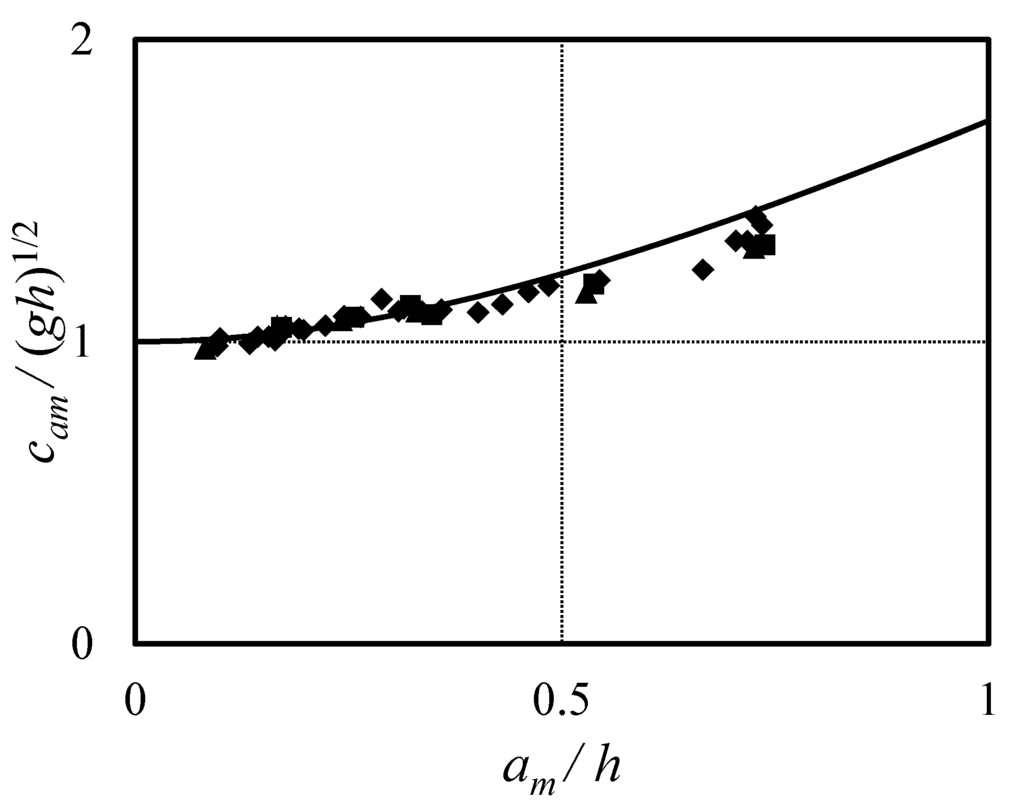

Figure 6. Waves generated by mesh-packed slides, mean relative wave crest celerity cam/(gh)1/2 versus mean relative wave amplitude am/h for (▲) α = 30°, (■) α = 45°, (♦) α = 60°, (─) Equation (9).
Figure 6. Waves generated by mesh-packed slides, mean relative wave crest celerity cam/(gh)1/2 versus mean relative wave amplitude am/h for (▲) α = 30°, (■) α = 45°, (♦) α = 60°, (─) Equation (9).
Jmse 03 00100 g006

4. Conclusions

This research explores the question whether impulse waves can be generated by mesh-packed slides as an alternative to free granular slides mainly in view of experimental effort and reduction of test preparation. Therefore, the prominent wave features induced by mesh-packed slides were investigated in a 2D wave channel. The impulse waves generated were analyzed regarding their main characteristics, including the maximum wave amplitude and height, the distance related decay, and the wave crest celerity. These features were compared with the previously established empirical equations derived from experiments involving free granular material to assess their reproducibility. The main findings are:
  • The impulse product parameter P describes adequately both waves generated by mesh-packed and free granular slides;
  • Waves generated by mesh-packed slides follow a ±30% scatter around the equations derived from experiments with free granular material. This scatter applies equally to free granular slides;
  • For small values of P, the present data may undercut the −30% range. This behavior applies also for the corresponding ranges of free granular slides; and
  • For values of PX−1/3 ranging between 0.5 and 1, the present data may exceed the +30% range, similar as for free granular slides.
The present experiments evidence that mesh-packed slides suit for model experimentation of landslide-generated impulse waves which are physically similar regarding selected wave parameters to these generated with free granular material. This implies a substantial improvement of efficiency for the standard test procedure and is especially beneficial for future experiments in a wave basin.

Acknowledgments

This work was supported by the Swiss National Science Foundation (Project No 200021-143657/1).

Author Contributions

The experiments were designed by WHH and FME. The experiments and the data analysis were conducted by FME. The article was written by FME and improved by WHH.

Conflicts of Interest

The authors declare no conflict of interest.
