UUV Simulation Modeling and its Control Method: Simulation and Experimental Studies

Abstract

This paper presents the development of an unmanned underwater vehicle (UUV) platform, especially the derivation of the vehicle’s simulation model and its control method to overcome strong sea current. The platform is designed to have a flattened ellipsoidal exterior so as to minimize the hydrodynamic damping on the horizontal plane. Four horizontal thrusters with the identical specifications are symmetrically mounted on the horizontal plane, and each of them has the same thrust dynamics in both forward and reverse directions. In addition, there are three vertical thrusters used to handle the vehicle’s roll, pitch and heave motions. Control strategy proposed in this paper to overcome strong current is that: maximizing the vectored horizontal thrust force against the sea current without or with the least of the vehicle’s rotation on the horizontal plane. For the vehicle model, due to it being symmetric in all of three axes, the vehicle dynamics can be simplified and all of hydrodynamic coefficients are calculated through both of theoretical and empirically-derived formulas. Numerical simulations and experimental studies in both of the water tank and the circulating water channel are carried out to demonstrate the vehicle’s capability of overcoming strong current.

1. Introduction

In the sea around the Korean peninsula, especially in the West Sea also known as the Yellow Sea, strong sea currents usually pose tough technical challenges in the salvage operations as well as in the various scientific activities. In both cases of ROKS Cheonan sinking on 26 March 2010 [1] and sinking of MV Sewol on 16 April 2014 [2], one of the most difficult problems during the initial response for salvage was that there was not any underwater vehicle able to be deployed in the strong sea current environment [3] so as to collect the swift on-site disaster scene information. Recently, how to overcome strong sea current has become a hot topic in the UUV community, especially in Korea. In [4], a ROV called Crabster CR200 was introduced. The vehicle has about 188 kg of negative buoyancy in the water. So in the case of strong current which can be up to 3 knots, the vehicle can land on the sea floor and using its 6 legs can resist the current. In [5], the authors presented a two-body vehicle, where the lower body can land on the sea floor and overcome strong current using a sort of anchor system. In both cases, the whole vehicle or part of the body should be land on the sea floor to resist the sea current. This kind of mechanism might constrain the vehicle’s precise underwater inspection capability. Other attempts to counter strong turbulence using the high velocity water itself include [6].

This paper presents the development of a UUV platform and its motion control technology for the purpose of overcoming strong sea current. The vehicle has the flattened ellipsoidal exterior to minimize the hydrodynamic damping in the water, as seen in Figure 1. Four horizontal thrusters with the identical specification are mounted symmetrically on the horizontal plane. Each thruster has the same thrust dynamics in both forward and reverse directions. This kind of horizontal thrust mechanism can guarantee the uniform distribution of vectored thrust forces in all horizontal directions. On the other hand, this is also beneficial for easily stabilizing the vehicle’s horizontal motion in the dynamic sea current environment. Three vertical thrusters, as seen in Figure 1, are used to stabilize the vehicle’s roll, pitch, and heave motions.

The control strategy for this vehicle to overcome strong current is to maximize the vectored horizontal thrust force along certain direction, usually against the sea current, while keeping its heading or with the least of heading rotation on the horizontal plane. Three vertical thrusters, as mentioned before, are used to stabilize the roll, pitch and heave motion. General PD controllers [7,8] are designed independently for each of the horizontal and vertical thrusters groups.

Some of the simulation and experimental studies are carried out to demonstrate the performance of the platform design and its motion control technologies. In the simulation, the hydrodynamic coefficients are calculated through both of the theoretical and empirically-derived formulas [9,10,11]. Furthermore, in the controller design, four horizontal thrusters are modeled under the consideration of the fact that the maximum thrust force will be reduced in compliance with the increasing of fluid speed flow through the thruster [12,13]. In addition, through circulating water channel test, it is observed that the vehicle can get forward motion while keeping its heading in the strong current environment where the current is up to 2.5 knots.

The remainder of this paper is organized as follows. Section 2 describes the vehicle’s kinematic and hydrodynamic model, and the vehicle motion sensor’s lever arm effects are considered in Section 3. Controllers for both of horizon keeping and maximum forward speed on the horizontal plane are presented in Section 4. Furthermore, Section 5 shows the simulation result, while experimental studies are presented in Section 6. A brief conclusion and some future works are discussed in Section 7.

2. Vehicle Modeling

2.1. Kinematics and Dynamics

Usually, the kinematics and dynamics of underwater vehicles can be expressed as follows [9],

$$\begin{array}{cc}\hfill \dot{\eta }& =C_b^n\nu ,\hfill \end{array}$$

(1)

$$\begin{array}{cc}\hfill M_{RB}\dot{\nu }+C_{RB}\nu & =\sum F_{ext},\hfill \end{array}$$

(2)

where $\eta ={[x,y,z,\varphi ,\theta ,\psi ]}^T$ is the position and attitude vector defined in the navigation frame (NED-frame), and $\nu ={[u,v,w,p,q,r]}^T$ is the linear and angular velocity vector defined in the vehicle’s body-fixed frame; and $C_b^n$ denotes the coordinate transformation matrix from the body-fixed frame to the navigation frame, and can be expressed as

$$C_b^n=\left[\begin{array}{cc}{J}_1& 0^{3\times 3}\\ 0^{3\times 3}& J_2\end{array}\right]$$

(3)

where

$$J_1=\left[\begin{array}{ccc}c\psi c\theta & -s\psi c\varphi +c\psi s\theta s\varphi & s\psi s\varphi +c\psi s\theta c\varphi \\ s\psi c\theta & c\psi c\varphi +s\psi s\theta s\varphi & -c\psi s\varphi +s\psi s\theta c\varphi \\ -s\theta & c\theta s\varphi & c\theta c\varphi \end{array}\right],J_2=\left[\begin{array}{ccc}1& s\varphi t\theta & c\varphi t\theta \\ 0& c\varphi & -s\varphi \\ 0& s\varphi /c\theta & c\varphi /c\theta \end{array}\right],$$

with $s(·)=sin(·)$, $c(·)=cos(·)$, $t(·)=tan(·)$.

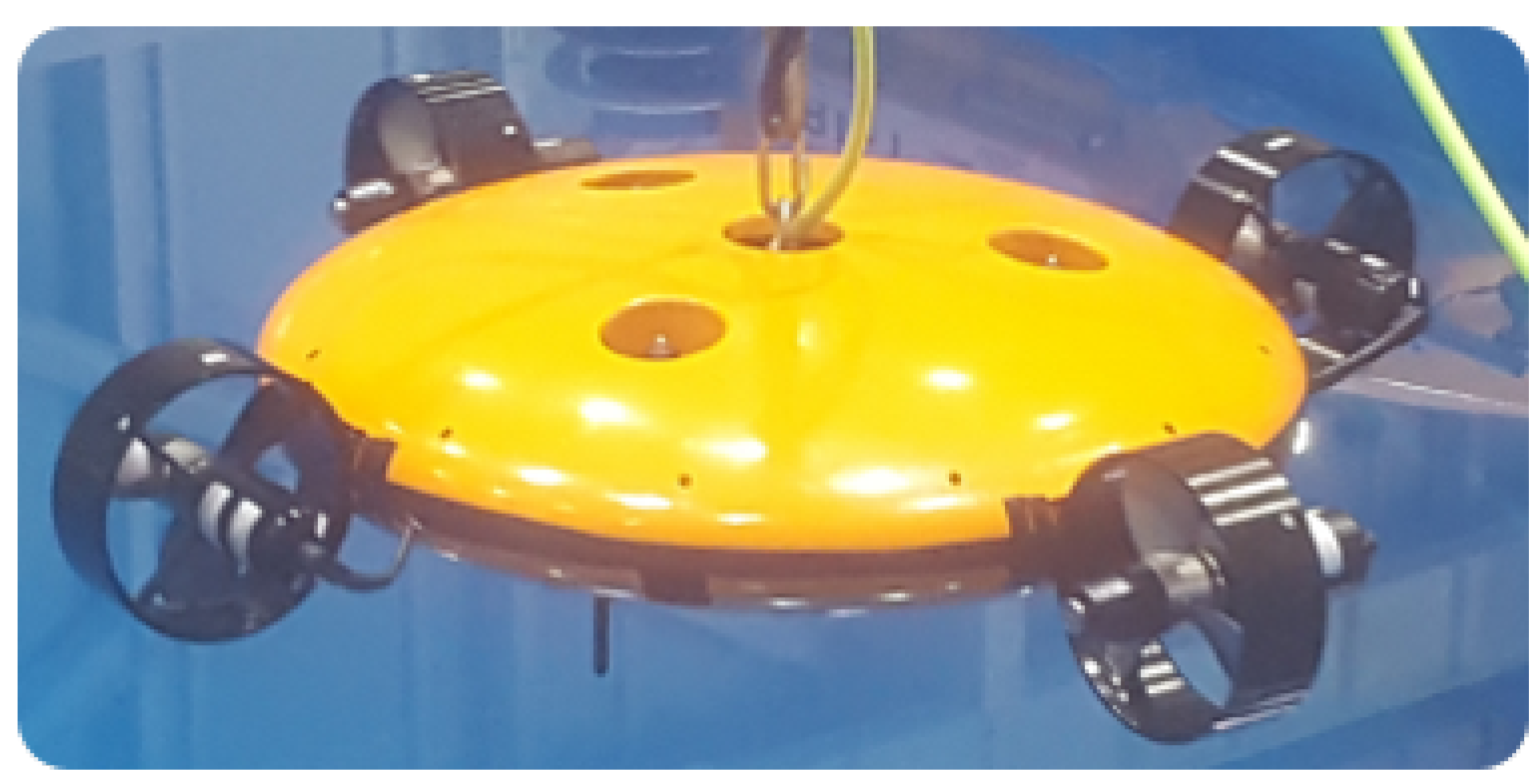

For the vehicle developed as seen in Figure 1, its body-fixed frame is centered at the vehicle’s buoyancy center as in [11] and the weight center is located at $(x_g,y_g,z_g)=(0,0,4.51\mathrm{mm})$ after being neutrally ballasted. Therefore, the rigid-body inertia matrix $M_{RB}$ and Coriolis and centripetal matrix $C_{RB}$ can be simplified as follows

$$M_{RB}=\left[\begin{array}{cccccc}m& 0& 0& 0& m{z}_g& 0\\ 0& m& 0& -m{z}_g& 0& 0\\ 0& 0& m& 0& 0& 0\\ 0& -m{z}_g& 0& I_{xx}& 0& 0\\ m{z}_g& 0& 0& 0& I_{yy}& 0\\ 0& 0& 0& 0& 0& I_{zz}\end{array}\right],$$

(4)

$$\begin{array}{c}\hfill C_{RB}=\left[\begin{array}{cccccc}0& 0& 0& m{z}_{g}r& mw& -mv\\ 0& 0& 0& -mw& m{z}_{g}r& mu\\ 0& 0& 0& -m(z_{g}p-v)& -m(z_{g}q+u)& 0\\ -m{z}_{g}r& mw& m(z_{g}p-v)& 0& I_{zz}r& -I_{yy}q\\ 0& -m{z}_{g}r& m{z}_{g}q& -I_{zz}r& 0& I_{xx}p\\ 0& 0& 0& I_{yy}q& -I_{xx}p& 0\end{array}\right],\end{array}$$

(5)

where $m=58.94$ kg is the rigid body mass, and $I_{xx},I_{yy}$, and $I_{zz}$ denote the inertia moments each along the $X,Y$, and Z axes. Calculated inertia moments are as shown in

Table 1. Inertia Moments.

Parameters	Value	Unit
$I_{xx}$	$3.33e+000$	kg·m${}^2$
$I_{yy}$	$3.33e+000$	kg·m${}^2$
$I_{zz}$	$7.45e+000$	kg·m${}^2$

.

For the vehicle dynamics as in (2), the sum of external forces and moments can be expressed as follows as in [9,11]

$$\sum F_{ext}=F_{hydrostatics}+F_{drag}+F_{added\_mass}+F_{control},$$

(6)

where $F_{hydrostatics}={[0,0,0,-z_{g}Wc\theta s\varphi ,-z_{g}Ws\theta ,0]}^T$ with W the rigid body weight.

2.2. Hydrodynamic Damping Term $F_{drag}$

The vehicle is symmetric along all three of $X,Y$, and Z axes, see Figure 1. Therefore, the movement-induced moments $A_{b\left|b\right|}$ with $A=\{K,M,N\}$ and $b=\{u,v,w\}$, and the rotation-induced forces $B_{a\left|a\right|}$ with $B=\{X,Y,Z\}$ and $a=\{p,q,r\}$ are all negligible. In addition, to simplify the vehicle’s model and therefore to avoid complicated mathematical calculations, the following assumptions similar to [11] are made in the vehicle modeling, where [14] describes deterministic artificial intelligence methods to deal with coupled disturbances. Preliminary research in overcome linear coupling is contained in [15], while methods to counter angular coupling is described in [16], following an established lineage of continuing research from [17,18,19,20,21,22,23].

• Linear and angular coupled damping terms are ignorable.
• Any damping terms greater than second-order are negligible.

Consequently, $F_{drag}$ can be simplified as

$$F_{drag}=[X_{u\left|u\right|}u\left|u\right|,Y_{v\left|v\right|}v\left|v\right|,Z_{w\left|w\right|}w\left|w\right|,K_{p\left|p\right|}p\left|p\right|,M_{q\left|q\right|}q\left|q\right|,N_{r\left|r\right|}{r\left|r\right|]}^T.$$

(7)

Corresponding coefficients are calculated using the following formulas

$$\begin{array}{cc}\hfill X_{u\left|u\right|}& =Y_{v\left|v\right|}=-0.5\rho c_{dc}^{{}^{\prime }}\pi aR-4\left(0.5\rho s_D{c}_{dD}\right),\hfill \end{array}$$

(8)

$$\begin{array}{cc}\hfill Z_{w\left|w\right|}& =-0.5\rho c_{dc}\pi R^2-4\left(0.5\rho s_F{c}_{dF}\right),\hfill \end{array}$$

(9)

$$\begin{array}{cc}\hfill K_{p\left|p\right|}& =M_{q\left|q\right|}=2\left[-0.5\rho c_{dc}{\int }_0^{R}D\left(r\right)r^{3}dr-2x_{TF}^3\left(0.5\rho s_F{c}_{dF}\right)\right],\hfill \end{array}$$

(10)

$$\begin{array}{cc}\hfill N_{r\left|r\right|}& =2\left[-0.5\rho c_{dc}^{{}^{\prime }}{\int }_0^R{D}^{{}^{\prime }}\left(r\right)r^{3}dr-2x_{TD}^3\left(0.5\rho s_D{c}_{dD}\right)\right],\hfill \end{array}$$

(11)

where $a=0.128\mathrm{m},R=0.435\mathrm{m},x_{TF}=x_{TD}=0.543\mathrm{m},s_F=0.163{\mathrm{m}}^2,s_D=0.023$ m${}^2$, and the drag coefficients are derived through empirical graph as Figure 2.4 in (p. 19, [1]), and selected as $c_{dc}=1.12,c_{dc}^{{}^{\prime }}=0.3,c_{dF}=0.63,c_{dD}=0.9$.

Calculated coefficients are shown in

Table 2. Hydrodynamic Damping Coefficients.

Parameters	Value	Unit
$X_{u\left|u\right|}$	$-6.74e+001$	kg/m
$Y_{v\left|v\right|}$	$-6.74e+001$	kg/m
$Z_{w\left|w\right|}$	$-5.38e+002$	kg/m
$K_{p\left|p\right|}$	$-3.73e+001$	kg·m${}^2$/rad${}^2$
$M_{q\left|q\right|}$	$-3.73e+001$	kg·m${}^2$/rad${}^2$
$N_{r\left|r\right|}$	$-6.92e+001$	kg·m${}^2$/rad${}^2$

.

2.3. Added Mass Term $F_{added\_mass}$

As mentioned before, the vehicle is symmetric in all three axes. Therefore, only the diagonal terms in the vehicle’s added mass matrix are considered in this paper. The coefficients are estimated through empirical graph as Figure 4.8 in Newman [10] (p. 147), and calculated as shown in

Table 3. Added Mass Coefficients.

Parameters	Value	Unit
$X_{\dot{u}}$	$-1.75e+001$	kg
$Y_{\dot{v}}$	$-1.75e+001$	kg
$Z_{\dot{w}}$	$-2.09e+002$	kg
$K_{\dot{p}}$	$-5.03e+000$	kg·m${}^2$/rad
$M_{\dot{q}}$	$-5.03e+000$	kg·m${}^2$/rad
$N_{\dot{r}}$	$-1.17e+000$	kg·m${}^2$/rad

.

3. Compensation of Motion Sensors Lever Arm Effect

For the majority of underwater vehicles, the motion sensors such as Doppler Velocity Log (DVL) and Attitude and Heading Reference System (AHRD) cannot be arranged on the same center point or center line. Instead, they are usually separated from each other and also from the center point of the body-fixed frame. Therefore, raw measurements of these motion sensors should be suitably compensated in order to acquire the accurate vehicle motion information, which is further used for the vehicle’s navigation and motion control [24,25].

For the vehicle seen in Figure 1, DVL and AHRS arrangements are as shown in Figure 2a, where DVL is mounted at the center of the body-fixed frame and AHRS is 0.218 m away from the center line.

3.1. Angular Rate Correction

As seen in Figure 2, AHRS body frame $X_A{Y}_A{Z}_A$ is rotated from the vehicle’s body-fixed frame $XYZ$ at ${\varphi }_A=0^{\circ },{\theta }_A=0^{\circ },{\psi }_A={135}^{\circ }$. For this reason, the angular rate $\omega ={[p,q,r]}^T$ in the $XYZ$ frame can be calculated through the following coordinate transformation

$$\left[\begin{array}{c}p\\ q\\ r\end{array}\right]=\left[\begin{array}{ccc}cos{\psi }_A& -sin{\psi }_A& 0\\ sin{\psi }_A& cos{\psi }_A& 0\\ 0& 0& 1\end{array}\right]\left[\begin{array}{c}{p}_r\\ q_r\\ r_r\end{array}\right],$$

(12)

where ${\omega }_r={[p_r,q_r,r_r]}^T$ is the angular velocity measured by AHRS.

Remark 1.

$X_A{Y}_A{Z}_A$ and $XYZ$ are two of fixed frames in the vehicle’s rigid body. In this case, it is necessary to mention that the coordinates transformations of all vectors including angular rate should obey the linear velocity transformation Equation (2.16) in [9], not the angular velocity transformation of Equation (2.26) in [9].

3.2. Acceleration Correction

In the vehicle’s body-fixed frame $XYZ$, AHRS center point coordinate is $(x_A,y_A,z_A)$. In addition, lever arm effect usually causes additional acceleration at the AHRS center point in the case of vehicle’s rotation. The velocity $V_A$ at the AHRS center point in the frame $X_A^{{}^{\prime }}{Y}_A^{{}^{\prime }}{Z}_A^{{}^{\prime }}$ (see Figure 2b) and the velocity $V_B$ in the vehicle’s body-fixed frame $XYZ$ has the following relationship [24,26]

$$V_A=V_B+\omega \times R,$$

(13)

where $R={[x_A,y_A,z_A]}^T$.

Differentiating (13), have

$${\dot{V}}_A={\dot{V}}_B+\dot{\omega }\times R+\omega \times V_B+\omega \times (\omega \times R).$$

(14)

From Figure 2b, it is easy to see that the frame $X_A^{{}^{\prime }}{Y}_A^{{}^{\prime }}{Z}_A^{{}^{\prime }}$ is tilted from AHRS body frame $X_A{Y}_A{Z}_A$ at ${\varphi }_A^{{}^{\prime }}=atan(z_A/\sqrt{x_A^2+y_A^2})$. So, it has

$${\dot{V}}_A=\left[\begin{array}{ccc}1& 0& 0\\ 0& cos{\varphi }_A^{{}^{\prime }}& sin{\varphi }_A^{{}^{\prime }}\\ 0& -sin{\varphi }_A^{{}^{\prime }}& cos{\varphi }_A^{{}^{\prime }}\end{array}\right]{\dot{V}}_{AHRS}=C_{AHRS}^A{\dot{V}}_{AHRS},$$

(15)

where ${\dot{V}}_{AHRS}$ is the acceleration measurement by AHRS.

Consequently, the acceleration vector $V_B$ in the vehicle’s body-fixed frame can be estimated from AHRS measurement through the following equation

$${\dot{V}}_B=C_{AHRS}^A{\dot{V}}_{AHRS}-\dot{\omega }\times R-\omega \times V_B-\omega \times (\omega \times R),$$

(16)

where $\dot{\omega }$ is the angular acceleration and should be properly calculated. One option is that it can be estimated through a sort of low-pass filter as follows

$$\dot{\omega }(k+1)=(1-\lambda )\dot{\omega }\left(k\right)+\lambda {\dot{\omega }}_m(k+1),\dot{\omega }\left(0\right)={\dot{\omega }}_m\left(0\right),$$

(17)

where ${\dot{\omega }}_m(k+1)=[\omega (k+1)-\omega \left(k\right)]/\Delta T$ with $\Delta T$ sampling time, and $0<\lambda \le 1$ is a design parameter.

Remark 2.

Vehicle’s angular rate ω and acceleration ${\dot{V}}_B$ in the body-fixed frame can be calculated through each of (12) and (16). Furthermore, the vehicle’s attitude is calculated by $(\varphi ,\theta ,\psi )=({\varphi }_m,{\theta }_m,{\psi }_m-{\psi }_A)$, where $({\varphi }_m,{\theta }_m,{\psi }_m)$ is the measurement of AHRS and ${\psi }_m-{\psi }_A$ is defined in the domain $[0,2\pi )$. Since the DVL is located at the center point, its measurement is directly used as $V_B$.

4. Control Design

As mentioned before, the control strategy proposed in this paper to overcome strong current is to maximize the vectored horizontal thrust force along the direction against the current, while keeping the vehicle’s heading or with the minimum heading rotation. To do so, it needs to spread the vectored horizontal thrust force on the horizontal plane as uniformly as possible.

4.1. Maximum Horizontal Vectored Thrust Force

As shown in Figure 3, four horizontal thrusters are mounted symmetrically around the ellipsoidal shape of platform. Each of the thrusters has the same forward and reverse thrust dynamics.

Definition 1.

Given the direction α as seen in Figure 3, the maximum horizontal vectored thrust force means the maximum of $F_f$ caused by four symmetrically mounted horizontal thrusters with the following properties

P1.

The orthogonal component $F_l=0$.

P2.

Horizontal rotation moment is zero.

Remark 3.

In the case of maximum horizontal vectored thrust force, it has $F_{H{T}_{fl}}=F_{H{T}_{br}}$ and $F_{H{T}_{fr}}=F_{H{T}_{bl}}$ where $F_{H{T}_a}$ denotes the thrust force for thruster $H{T}_a$ with $a\in \{fl,fr,br,bl\}$. For example, consider the case $\alpha ={45}^{\circ }$. To maximize $F_f$, the thrusters $H{T}_{fl}$ and $H{T}_{br}$ have to take the maximum of forward thrusts. Due to the fact that these four thrusters have the same thrust dynamics, it has $F_{H{T}_{fl}}=F_{H{T}_{br}}=F_{max}$ with $F_{max}$ the maximum thrust force provided by one thruster. On the other hand, in order to satisfy the P1 and P2 in Definition 1, the remainder thrusters have to set as $F_{H{T}_{fr}}=F_{H{T}_{bl}}=0$.

Lemma 1.

Given four of the symmetrically mounted horizontal thrusters as shown in Figure 3, the maximum horizontal vectored thrust force can be calculated as follows

$$F_f=\left\{\begin{array}{cc}\hfill \frac{{\displaystyle 2F_{max}}}{{\displaystyle cos(\alpha -{45}^{\circ })}},& if{0}^{\circ }\le \alpha <{90}^{\circ }\hfill \\ \hfill -\frac{{\displaystyle 2F_{max}}}{{\displaystyle cos(\alpha +{45}^{\circ })}},& if{90}^{\circ }\le \alpha <{180}^{\circ }\hfill \\ \hfill -\frac{{\displaystyle 2F_{max}}}{{\displaystyle cos(\alpha -{45}^{\circ })}},& if{180}^{\circ }\le \alpha <{270}^{\circ }\hfill \\ \hfill \frac{{\displaystyle 2F_{max}}}{{\displaystyle cos(\alpha +{45}^{\circ })}},& if{270}^{\circ }\le \alpha <{360}^{\circ }\hfill \end{array}\right.$$

(18)

Proof of Lemma 1.

From Figure 3, it is easy to get

$$\begin{array}{cc}\hfill F_f& =F_{A}cos(\alpha -{45}^{\circ })+F_{B}cos(\alpha +{45}^{\circ }),\hfill \end{array}$$

(19)

$$\begin{array}{cc}\hfill F_l& =F_{A}sin(\alpha -{45}^{\circ })+F_{B}sin(\alpha +{45}^{\circ }),\hfill \end{array}$$

(20)

where $F_A=F_{H{T}_{fl}}+F_{H{T}_{br}}$ and $F_B=F_{H{T}_{fr}}+F_{H{T}_{bl}}$.

In order for $F_l=0$ with (20), it has

$$\frac{{\displaystyle F_A}}{F_B}=-cot(\alpha -{45}^{\circ }).$$

(21)

Therefore, $F_A$ and $F_B$ cannot be taken the maximum value at the same time if $\left|cot\right(\alpha -{45}^{\circ }\left)\right|\ne 1$. In the case of $\alpha \in \{[0^{\circ },{90}^{\circ })\cup [{180}^{\circ },{270}^{\circ })\}$, it has $\left|cot\right(\alpha -{45}^{\circ }\left)\right|\ge 1$. Substituting $F_B=-F_A·tg(\alpha -{45}^{\circ })$ into (19), it can be get

$$F_f=F_A\left[cos(\alpha -{45}^{\circ })-cos(\alpha +{45}^{\circ })\frac{sin(\alpha -{45}^{\circ })}{cos(\alpha -{45}^{\circ })}\right]=\frac{F_A}{cos(\alpha -{45}^{\circ })}.$$

(22)

In the case $\alpha \in [0^{\circ },{90}^{\circ })$, it has $F_A=2F_{max}$ and if $\alpha \in [{180}^{\circ },{270}^{\circ })$ then $F_A=-2F_{max}$. Therefore, (22) can be rewritten as

$$F_f=\left\{\begin{array}{cc}\hfill \frac{{\displaystyle 2F_{max}}}{{\displaystyle cos(\alpha -{45}^{\circ })}}& if{0}^{\circ }\le \alpha <{90}^{\circ },\hfill \\ \hfill -\frac{{\displaystyle 2F_{max}}}{{\displaystyle cos(\alpha -{45}^{\circ })}}& if{180}^{\circ }\le \alpha <{270}^{\circ }\hfill \end{array}\right.$$

(23)

Similarly, in the case of $\alpha \in \{[{90}^{\circ },{180}^{\circ })\cup [{270}^{\circ },{360}^{\circ })\}$, substituting $F_A=-F_{B}cot(\alpha -{45}^{\circ })$ into (19), have

$$F_f=F_B\left[cos(\alpha +{45}^{\circ })-\frac{co{s}^2(\alpha -{45}^{\circ })}{sin(\alpha -{45}^{\circ })}\right]=-\frac{F_B}{sin(\alpha -{45}^{\circ })}.$$

(24)

If $\alpha \in [{90}^{\circ },{180}^{\circ })$, then $F_B=-2F_{max}$, and if $\alpha \in [{270}^{\circ },{360}^{\circ })$, then $F_B=2F_{max}$. Consequently, (24) can be rewritten as

$$F_f=\left\{\begin{array}{cc}\hfill -\frac{{\displaystyle 2F_{max}}}{{\displaystyle sin(\alpha -{45}^{\circ })}}& if{90}^{\circ }\le \alpha <{180}^{\circ },\hfill \\ \hfill \frac{{\displaystyle 2F_{max}}}{{\displaystyle sin(\alpha -{45}^{\circ })}}& if{270}^{\circ }\le \alpha <{360}^{\circ }\hfill \end{array}\right.$$

(25)

Combining (23) and (25) can conclude the Proof.

Remark 4.

Calculated maximum horizontal vectored thrust force field is the red-colored square shown in Figure 3. The maximum vectored thrust force is $2\sqrt{2}{F}_{max}$ and minimum value is $2F_{max}$. It is easy to see that to align the maximum vectored thrust force with the opposite direction of arbitrarily given sea current, the vehicle’s maximum rotation angle is less than ${45}^{\circ }$.

4.2. Maximum Forward Speed Controller with Heading-Keeping

One of the important target specifications of this project is the vehicle’s maximum forward speed while keeping its heading angle. Proposed control law is as follows:

$if\delta \psi \in \{[0^{\circ },{45}^{\circ })\cup [{315}^{\circ },{360}^{\circ })\}$

 $F_{H{T}_{fl}}=F_{H{T}_{fr}}=F_{max}$

 $ifdt\ge 0$

  $F_{H{T}_{br}}=F_{max}-dt;F_{H{T}_{bl}}=F_{max}$

 $else$

  $F_{H{T}_{br}}=F_{max};F_{H{T}_{bl}}=F_{max}+dt$

 $end$

$elseif\delta \psi \in [{45}^{\circ },{135}^{\circ })$

 $F_{H{T}_{fr}}=-F_{max};F_{H{T}_{br}}=F_{max}$

 $ifdt\ge 0$

  $F_{H{T}_{bl}}=-F_{max}+dt;F_{H{T}_{fl}}=F_{max}$

 $else$

  $F_{H{T}_{bl}}=-F_{max};F_{H{T}_{fl}}=F_{max}+dt$

 $end$

$elseif\delta \psi \in [{135}^{\circ },{225}^{\circ })$

 $F_{H{T}_{br}}=F_{H{T}_{bl}}=-F_{max}$

 $ifdt\ge 0$

  $F_{H{T}_{fl}}=-F_{max}+dt;F_{H{T}_{fr}}=-F_{max}$

 $else$

  $F_{H{T}_{fl}}=-F_{max};F_{H{T}_{fr}}=-F_{max}-dt$

 $end$

$else$

 $F_{H{T}_{bl}}=F_{max};F_{H{T}_{fl}}=-F_{max}$

 $ifdt\ge 0$

  $F_{H{T}_{fr}}=F_{max}-dt;F_{H{T}_{br}}=-F_{max}$

 $else$

  $F_{H{T}_{fr}}=F_{max};F_{H{T}_{br}}=-F_{max}-dt$

 $end$

$end$

where $\delta \psi ={\psi }_r-\psi$ with ${\psi }_r$ the reference heading and $dt=K_{hp}\delta \psi +K_{hd}r$ with $K_{hp}$ and $K_{hd}$ control gain parameters.

4.3. Horizon Keeping Controller

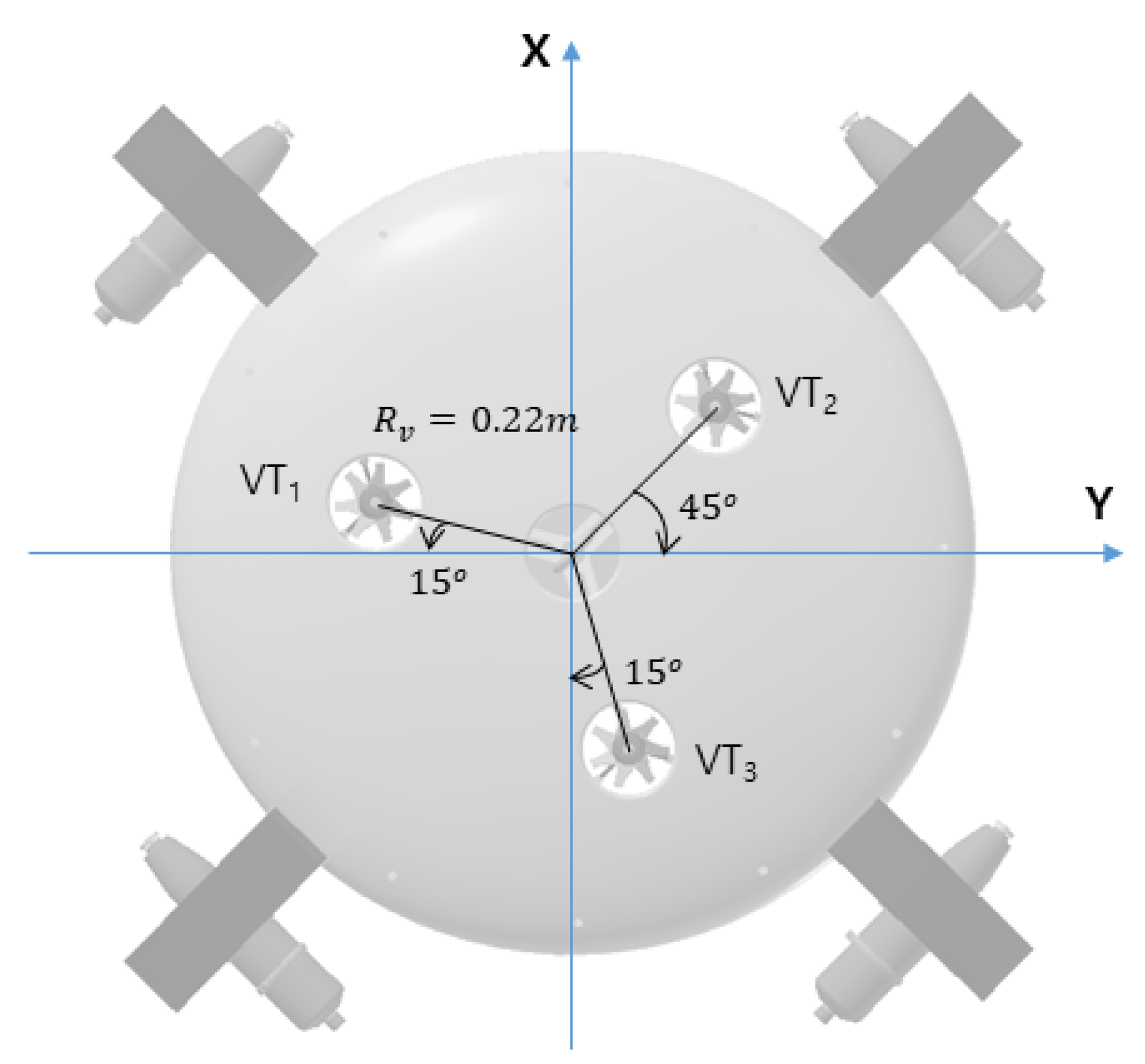

Three vertical thrusters are mounted as seen in Figure 4.

4.3.1. Roll Motion Control

The roll motion control component for $V{T}_1$ is designed as

$$V{T}_{r1}=K_{vp}({\varphi }_r-\varphi )+K_{vd}p,$$

(26)

where ${\varphi }_r$ is the reference roll angle, $K_{vp}$ and $K_{vd}$ are two gain parameters.

In the case of roll motion control, the remainder of two control components $V{T}_{r2}$ and $V{T}_{r3}$ are designed through simultaneously satisfying the following two conditions

C1.

$V{T}_{r1}·cos{15}^{\circ }=-V{T}_{r2}·cos{45}^{\circ }-V{T}_{r3}·sin{15}^{\circ }$.

C2.

$V{T}_{r1}·sin{15}^{\circ }+V{T}_{r2}·cos{45}^{\circ }=V{T}_{r3}·cos{15}^{\circ }$.

Remark 5.

Here, C1 is the condition to balance the right and left torques about the X-axis, and C2 is to neutralize the pitch torque during the roll motion control.

Combining C1 and C2, it is easy to get

$$\begin{array}{cc}\hfill V{T}_{r2}& =-1.1547·V{T}_{r1},\hfill \end{array}$$

(27)

$$\begin{array}{cc}\hfill V{T}_{r3}& =-0.5774·V{T}_{r1}.\hfill \end{array}$$

(28)

4.3.2. Pitch Motion Control

The design procedure is similar to the roll motion control. First, the pitch motion control component for $V{T}_3$ is chosen as

$$V{T}_{p3}=K_{vp}({\theta }_r-\theta )+K_{vd}q,$$

(29)

where ${\theta }_r$ is the reference pitch angle.

Control law for other two vertical thrusters is to simultaneously satisfying the following two conditions

C3.

$-V{T}_{p3}·cos{15}^{\circ }=V{T}_{p2}·cos{45}^{\circ }+V{T}_{p1}·sin{15}^{\circ }$.

C4.

$V{T}_{p1}·cos{15}^{\circ }=V{T}_{p2}·cos{45}^{\circ }+V{T}_{p3}·sin{15}^{\circ }$.

Remark 6.

Here C3 is to balance the pitch torque about the Y-axis, and C4 is to neutralize the roll torque during the pitch motion control.

Consequently, have

$$\begin{array}{cc}\hfill V{T}_{p1}& =-0.5774·V{T}_{p3},\hfill \end{array}$$

(30)

$$\begin{array}{cc}\hfill V{T}_{p2}& =-1.1547·V{T}_{p3}.\hfill \end{array}$$

(31)

Remark 7.

In both of roll and pitch motion controls, any of three vertical thrusters can be selected and designed its thrust force using (26) or (29), and other two thrusters are designed through simultaneously satisfying C1 and C2, or C3 and C4. In the case of horizon keeping, ${\varphi }_r$ and ${\theta }_r$ can be simply set as zero values.

4.3.3. Depth Control

The following simple PD controller is designed for depth control

$$V{T}_{di}=K_{vp}^d(z_r-z)+K_{vd}^{d}w,i=1,2,3,$$

(32)

where $V{T}_{di}$ is the depth control component for the thruster $V{T}_i$, $z_r$ is the reference depth, and $K_{vp}^d$ and $K_{vd}^d$ are gain parameters.

4.4. Thruster Models

4.4.1. Vertical Thruster Model

For each vertical thruster, its thrust versus input relationship is as follows [27]

$$F_{VT}\left(x\right)=\left\{\begin{array}{cc}74.5N·sat(x/5),\hfill & ifx\ge 0\hfill \\ -31.4N·sat(x/5),\hfill & ifx<0\hfill \end{array}\right.$$

(33)

where $sat(·)$ is the saturation function.

Consequently, the thrust force provided by each vertical thruster can be calculated as

$$F_{V{T}_i}=F_{VT}(V{T}_{ri}+V{T}_{pi}+V{T}_{di}),i=1,2,3.$$

(34)

Remark 8.

In most of the practical cases, the vehicle takes low speed motion in the vertical direction. For this reason, in the case of vertical thrusters, it is not considered the effect where the thruster’s maximum thrust force decreases in compliance with the increase of the fluid speed flow through the thruster [12].

4.4.2. Horizontal Thruster Model

In the case of horizontal thrusters, the fact that the thruster’s maximum thrust force decreases in compliance with the increase of fluid speed flow through the thruster has to be considered.

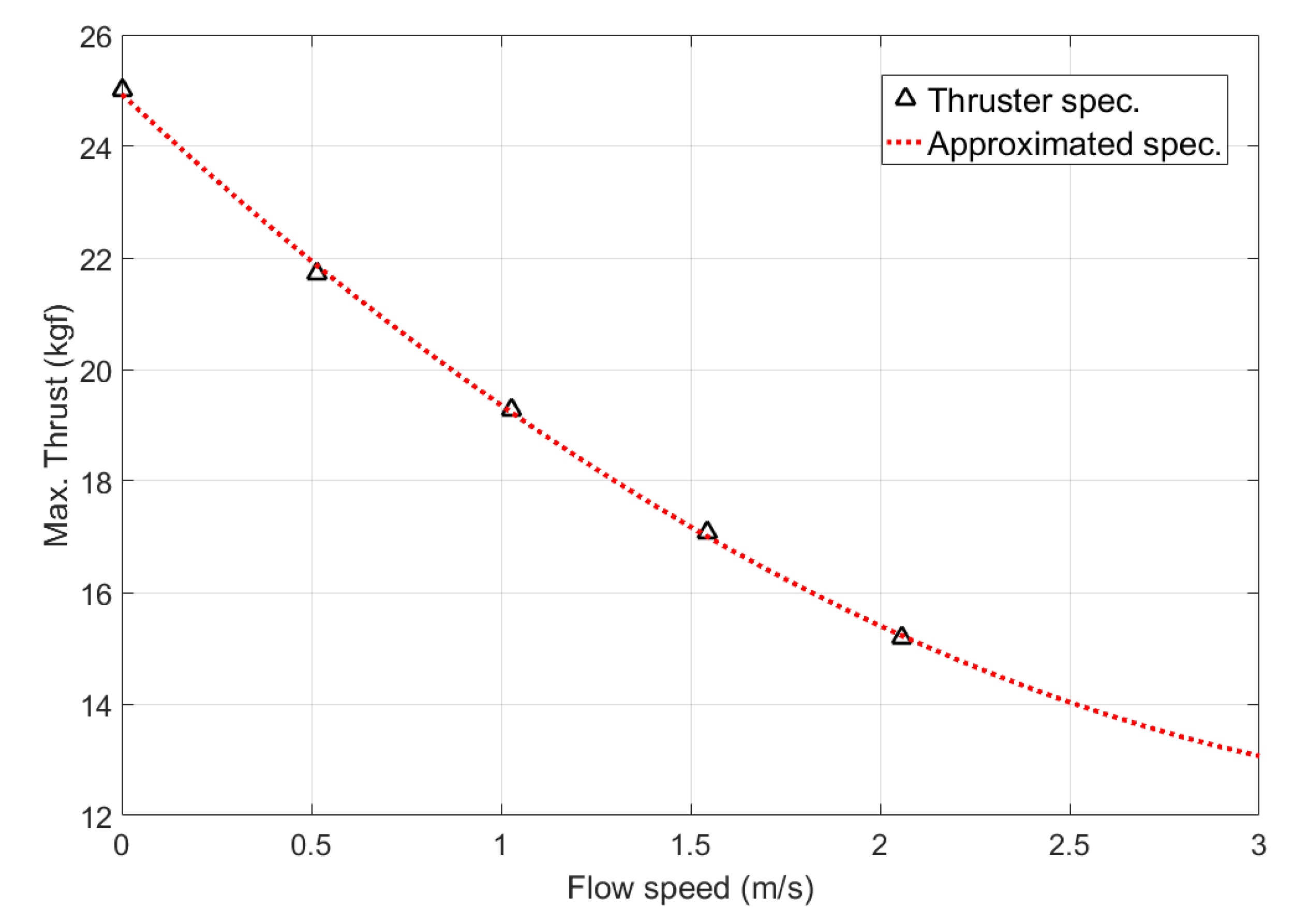

According to the thruster’s specifications [13], the approximated relationship between the thruster maximum thrust force versus fluid flow speed (red dotted line in Figure 5) can be obtained as follows

$$F_{max}\left(U\right)=g·(0.811U^2-6.3903U+24.9384),$$

(35)

where $F_{max}$ denotes the maximum thrust force with the unit N, $g=9.8066$ m/s${}^2$ is the standard gravity, and U is the fluid speed flow through the thruster.

According to Figure 3, fluid speed for each of the four horizontal thrusters can be approximated using DVL measurement as follows

$$\left[\begin{array}{c}{U}_{H{T}_{fl}}\\ U_{H{T}_{fr}}\\ U_{H{T}_{br}}\\ U_{H{T}_{bl}}\end{array}\right]=\frac{\sqrt{2}}{2}\left[\begin{array}{cc}\hfill 1& \hfill 1\\ \hfill 1& \hfill -1\\ \hfill 1& \hfill 1\\ \hfill 1& \hfill -1\end{array}\right]\left[\begin{array}{c}u\\ v\end{array}\right].$$

(36)

As mentioned before, the horizontal thruster has the same forward and reverse dynamics which can be expressed as follows

$$F_{HT}\left(x\right)=F_{max}\left(U\right)·sat(x/5).$$

(37)

4.5. Calculation of $F_{control}$

Consequently, the control force $F_{control}$ in (6) can be calculated as follows

$$F_{control}=\left[\begin{array}{c}\frac{\sqrt{2}}{2}(F_{H{T}_{fl}}+F_{H{T}_{fr}}+F_{H{T}_{br}}+F_{H{T}_{bl}})\hfill \\ \frac{\sqrt{2}}{2}(F_{H{T}_{fl}}-F_{H{T}_{fr}}+F_{H{T}_{br}}-F_{H{T}_{bl}})\hfill \\ -F_{V{T}_1}-F_{V{T}_2}-F_{V{T}_3}\hfill \\ F_{V{T}_1}{R}_{v}cos{15}^{\circ }-F_{V{T}_2}{R}_{v}cos{45}^{\circ }-F_{V{T}_3}{R}_{v}sin{15}^{\circ }\hfill \\ F_{V{T}_1}{R}_{v}sin{15}^{\circ }+F_{V{T}_2}{R}_{v}cos{45}^{\circ }+F_{V{T}_3}{R}_{v}cos{15}^{\circ }\hfill \\ R_h(F_{H{T}_{fl}}-F_{H{T}_{fr}}-F_{H{T}_{br}}+F_{H{T}_{bl}})\hfill \end{array}\right].$$

(38)

5. Simulation Studies

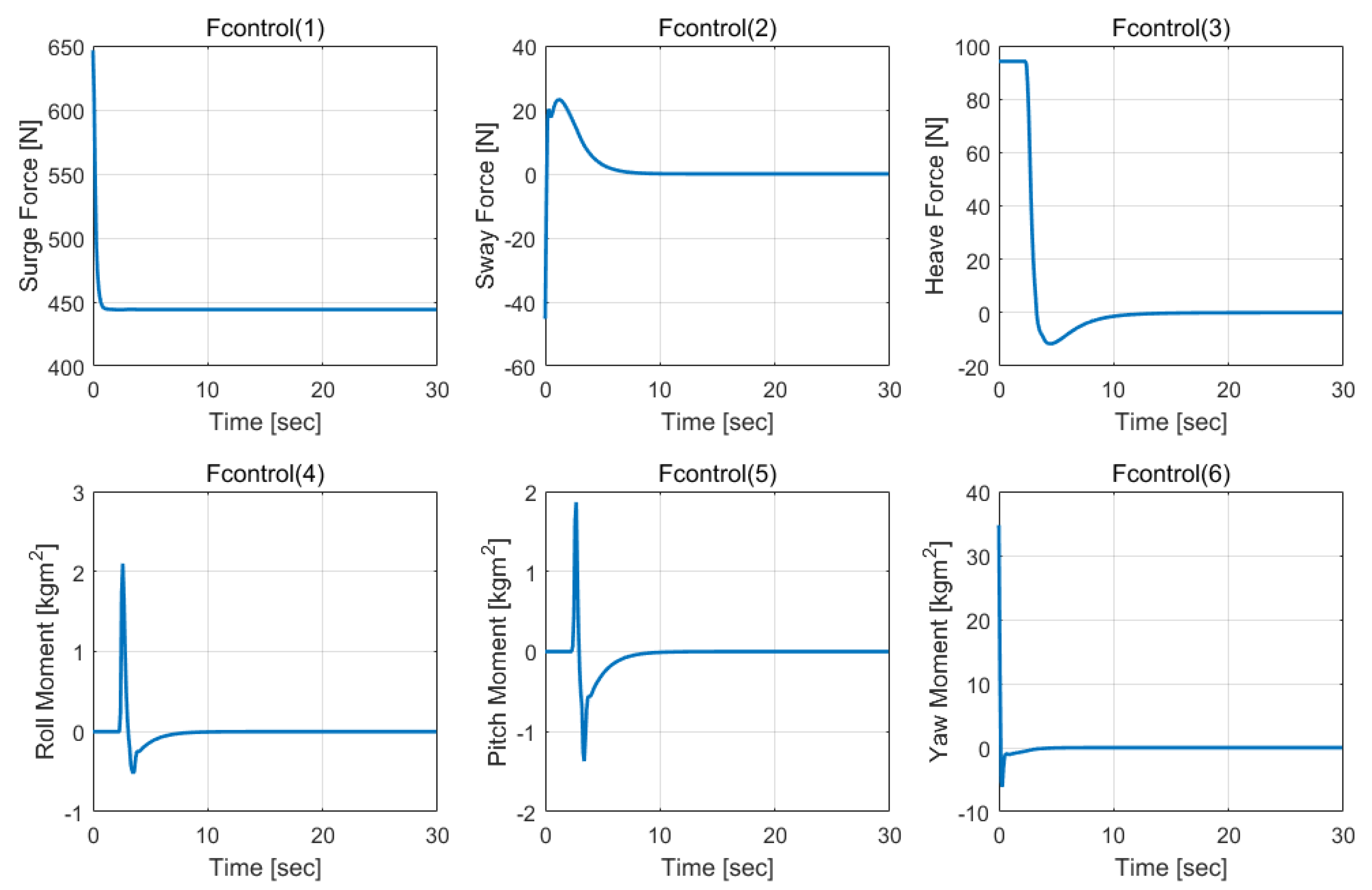

First, the vehicle’s platform stability on the horizontal plane is observed. The initial condition is set as $\eta ={[1.54,0,0,{10}^{\circ },{20}^{\circ },0,0,0,0,0,0,0]}^T$, and simulation result is shown in Figure 6, from which it can be seen that the vehicle possesses suitable self-stability. Obviously, this kind of stability is caused by the fact that the vehicle’s gravity center is designed to be lower than the buoyancy center.

Then, it carries out the maximum forward speed simulation combined with the horizon and heading keeping tests. In the simulation, control gains are set as $K_{vp}=5,K_{vd}=-10,K_{vp}^d=15,$ $K_{vd}^d=-45,K_{hp}=2.5,K_{hd}=-3$, and other parameters are taken as ${\varphi }_r={\theta }_r=0,{\psi }_r={30}^{\circ },$ $z_r=1.5\mathrm{m}$, and sampling time is $\Delta T=0.1\mathrm{s}$. Figure 7 shows the control force $F_{control}$ calculated using (38), and Figure 8 presents the corresponding vehicle motion information. From Figure 8, it can be seen that the vehicle’s maximum forward speed is about 2.56 m/s. This speed is lower than 3.2 m/s which is the simulation result in [28] where the effect of the relationship between the maximum thrust force and the fluid speed flow through the thruster was not considered. However, 2.56 m/s is still larger than the experimental result of 2.1 m/s, and this will be further discussed in the next section.

6. Experimental Studies

Experimental tests are carried out in the water tank and circulating water channel both in the Underwater Construction Robotics R&D Center (UCRC) in the Korea Institute of Ocean Science and Technology (KIOST) [29].

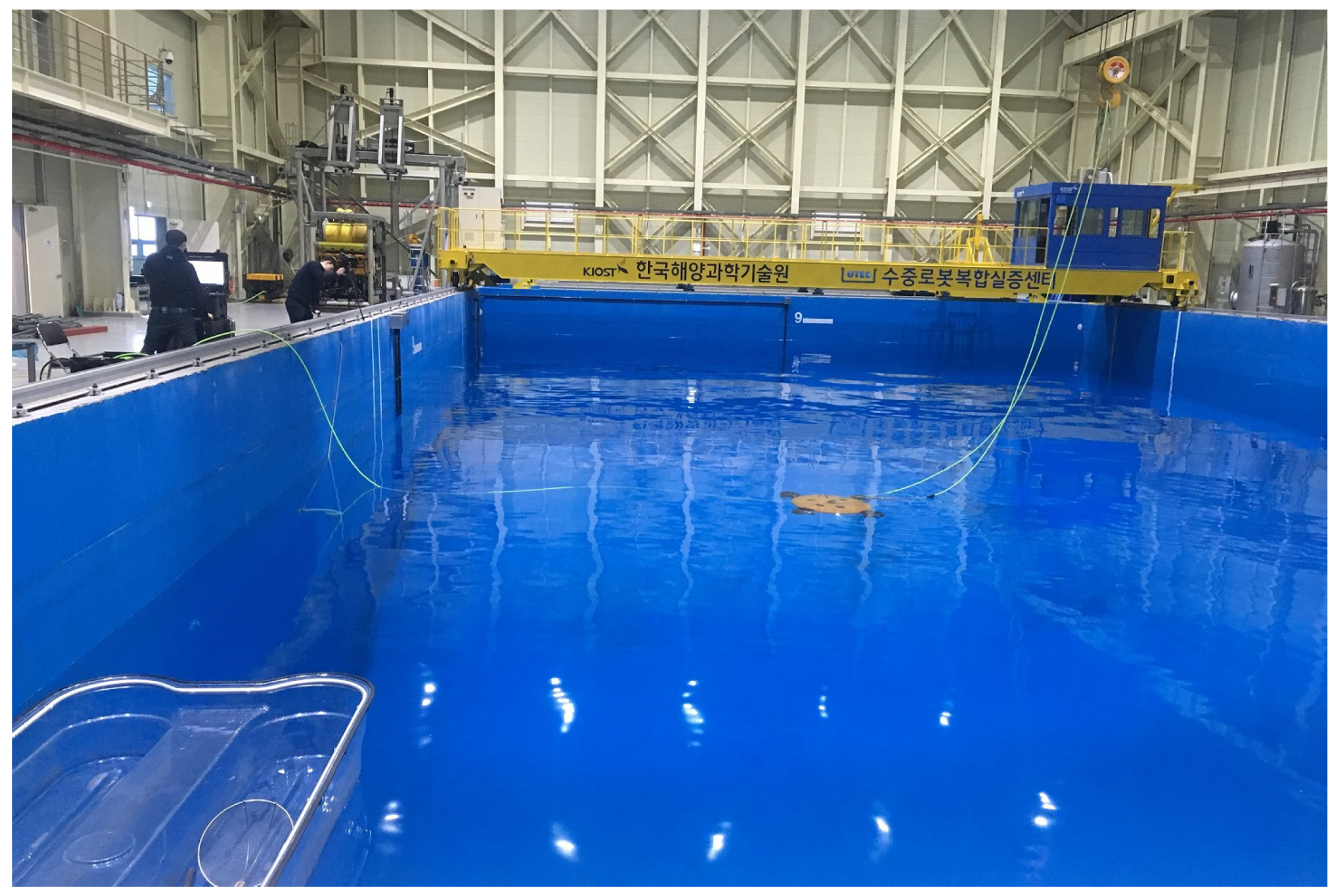

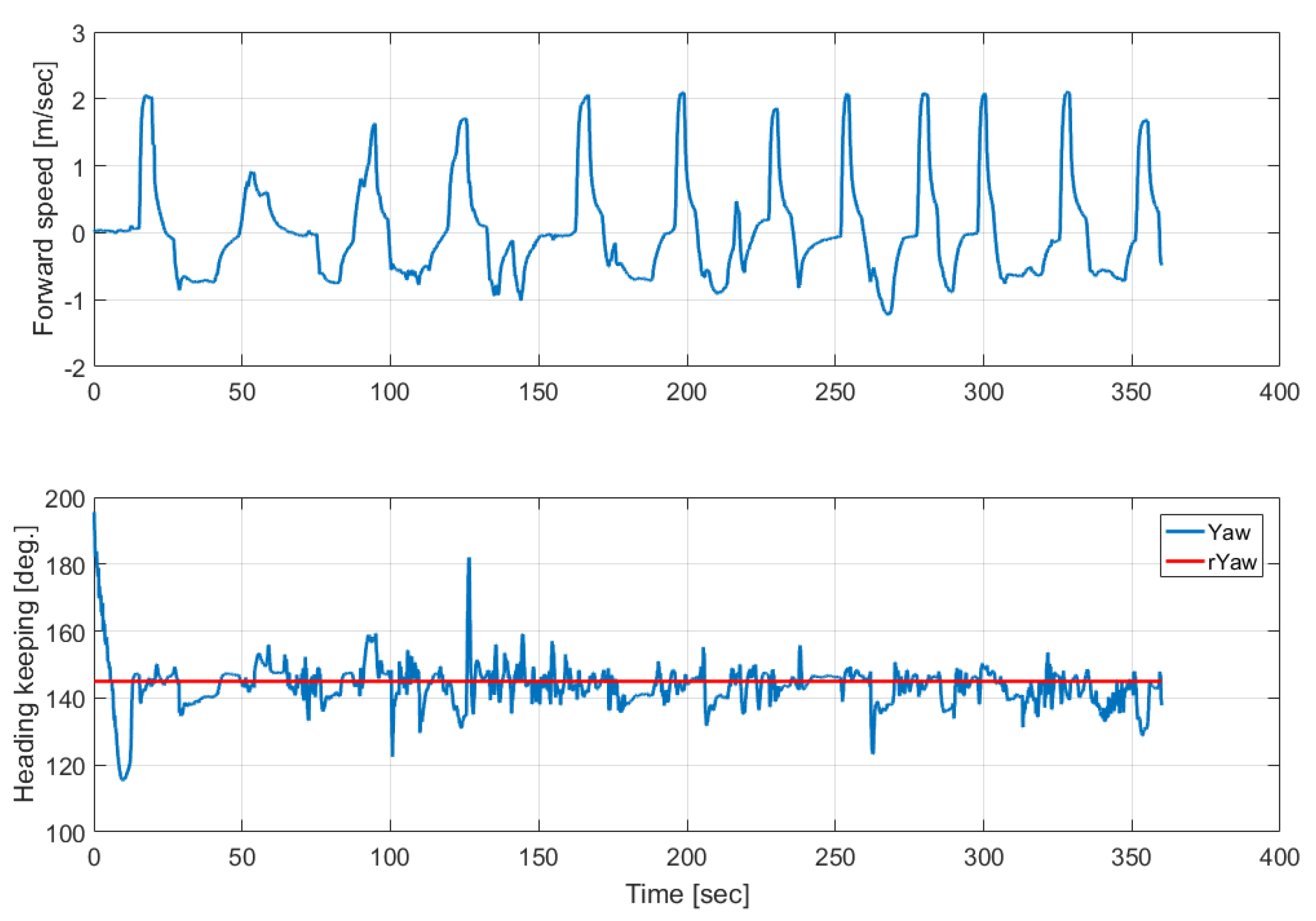

Figure 9 shows the engineering basin where the maximum forward speed test is taken. The experimental result is shown in Figure 10, from which it can be seen that the vehicle’s maximum forward speed is about 2.1 m/s. This speed is lower than the simulation result of 2.56 m/s. This might be caused by several reasons. One is that there are quite a number of coupled and complicated hydrodynamic terms that are not included in the vehicle’s model in the simulation. The second is that the drag component caused by the tether cable is not considered in the simulation. Indeed, this drag term might be significant in the case of the small size of underwater vehicles. From this point of view, whether the vehicle can be operated in AUV mode might be an important issue for the vehicle to overcome strong current. Figure 11 shows the control inputs for four of horizontal thrusters in this maximum forward speed test.

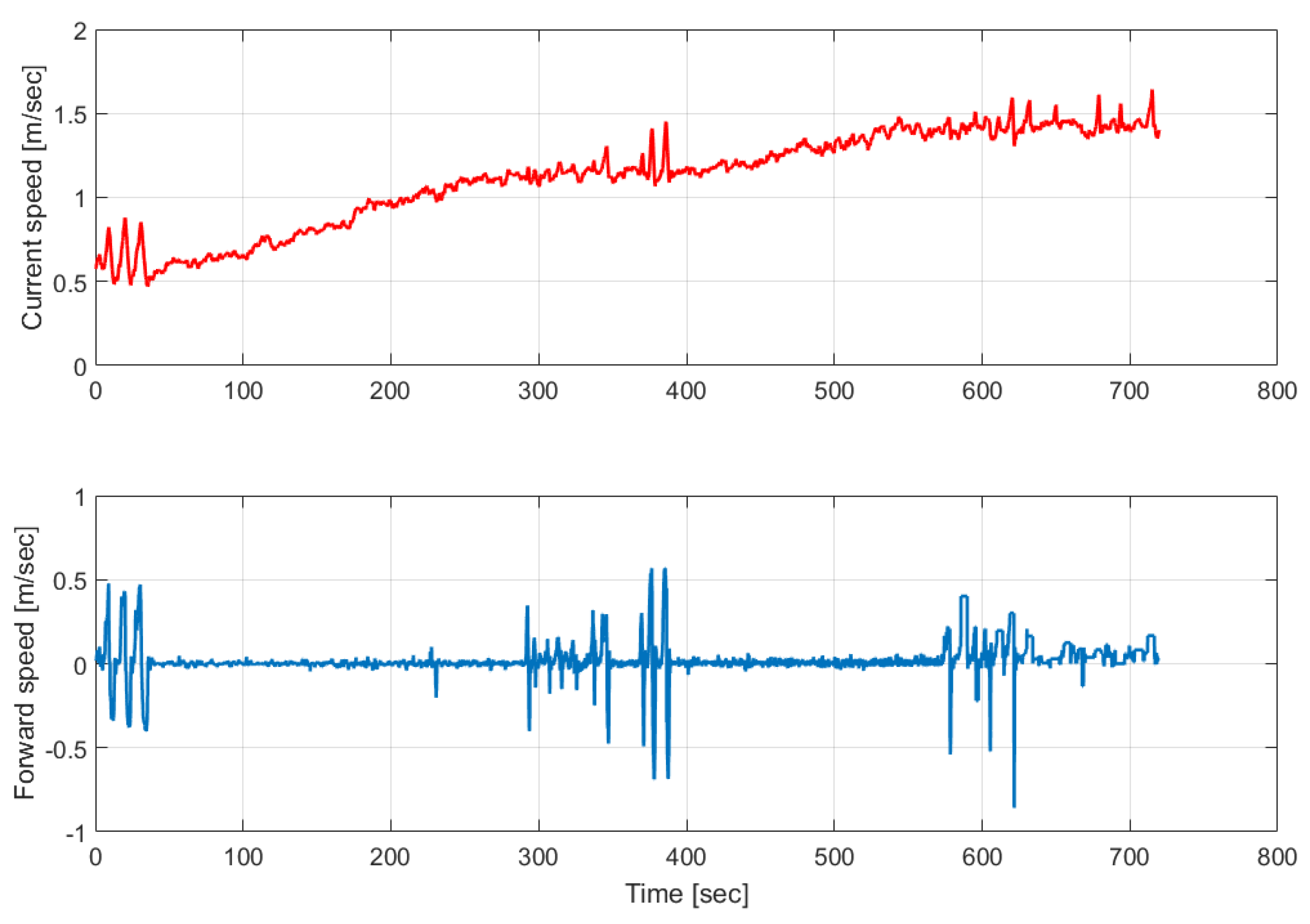

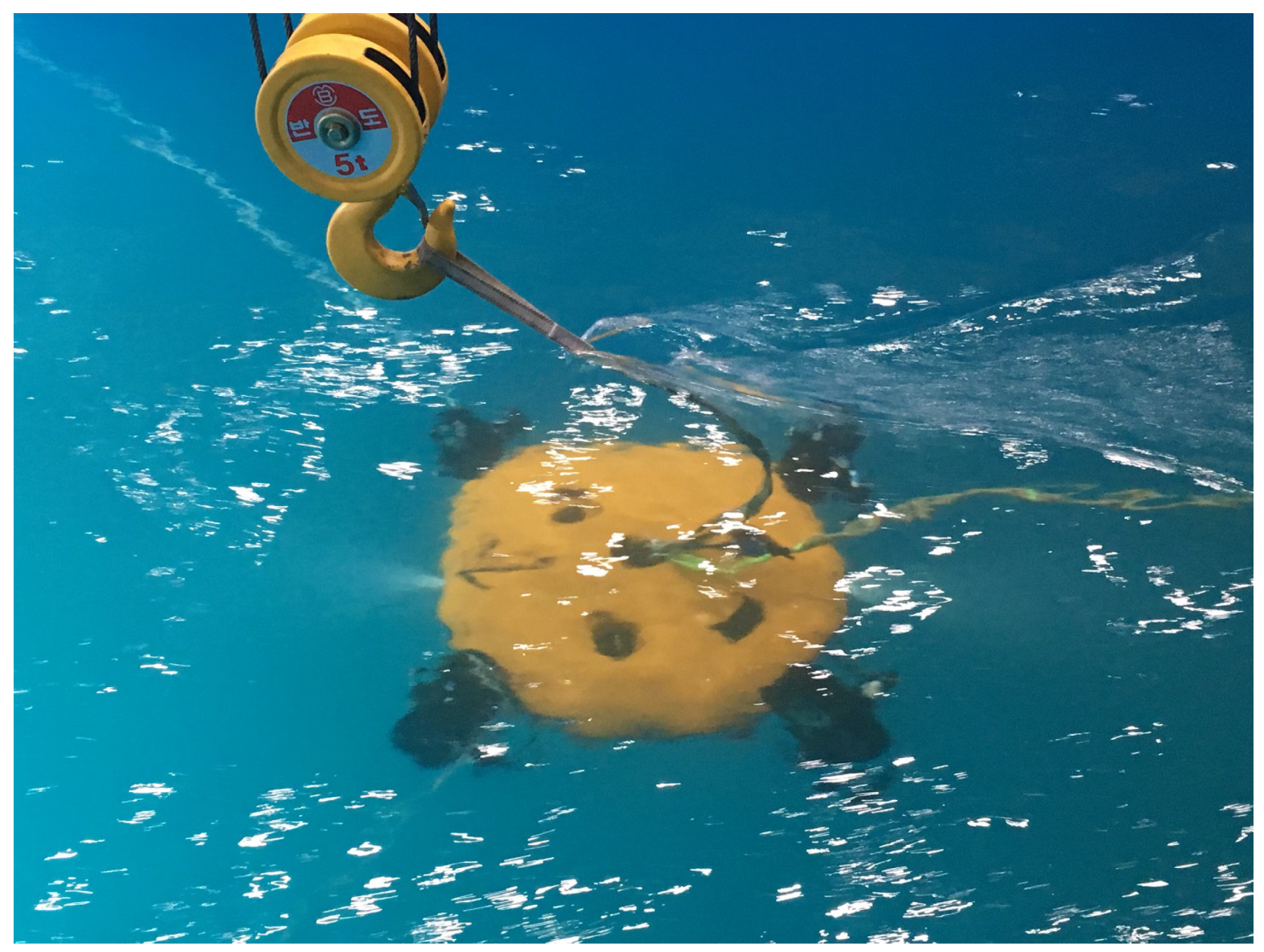

In addition, the test is taken where the vehicle is installed in the circulating water channel as in Figure 12, and it investigates if the vehicle can take the forward speed motion while keeping its heading in the strong current environment. In the test, the current speed is adjusted from 1.0 knots to 2.0 knots and further up to 2.5 knots. From the experimental result shown in Figure 13, it can be concluded that the vehicle can take forward motion even in the case where the current increased up to 2.5 knots.

7. Conclusions

This paper has presented the development of a UUV platform and its control method to overcome strong current. The vehicle has been designed to have a flattened ellipsoidal exterior to minimize the hydrodynamic damping. In addition, vectored thrust force control algorithm has been developed to maximize its horizontal speed. All of these technologies have been evaluated through both simulation and experimental tests. Especially, through the experimental studies carried out in the water tank and circulating water channel, it is found that, for the current version of vehicle platform, more strong roll and pitch moments might be needed to guarantee the vehicle’s horizontal stabilization.

During the next step of research works, the current version of the platform will be upgraded to have four vertical thrusters mounted symmetrically and each of the thrusters, similar to the horizontal thrusters, has the same forward and reverse dynamics. Moreover, each thruster will be more powerful compared to the current version and mounted more farther away from the center point. All of these are supposed to significantly increase the vehicle’s capability of stabilizing horizontal motion in the strong current environment.
