Load Transfer of Offshore Open-Ended Pipe Piles Considering the Effect of Soil Plugging
Abstract
:1. Introduction
2. Load Transfer Model of Open-Ended Pipe Piles
2.1. Computational Assumptions

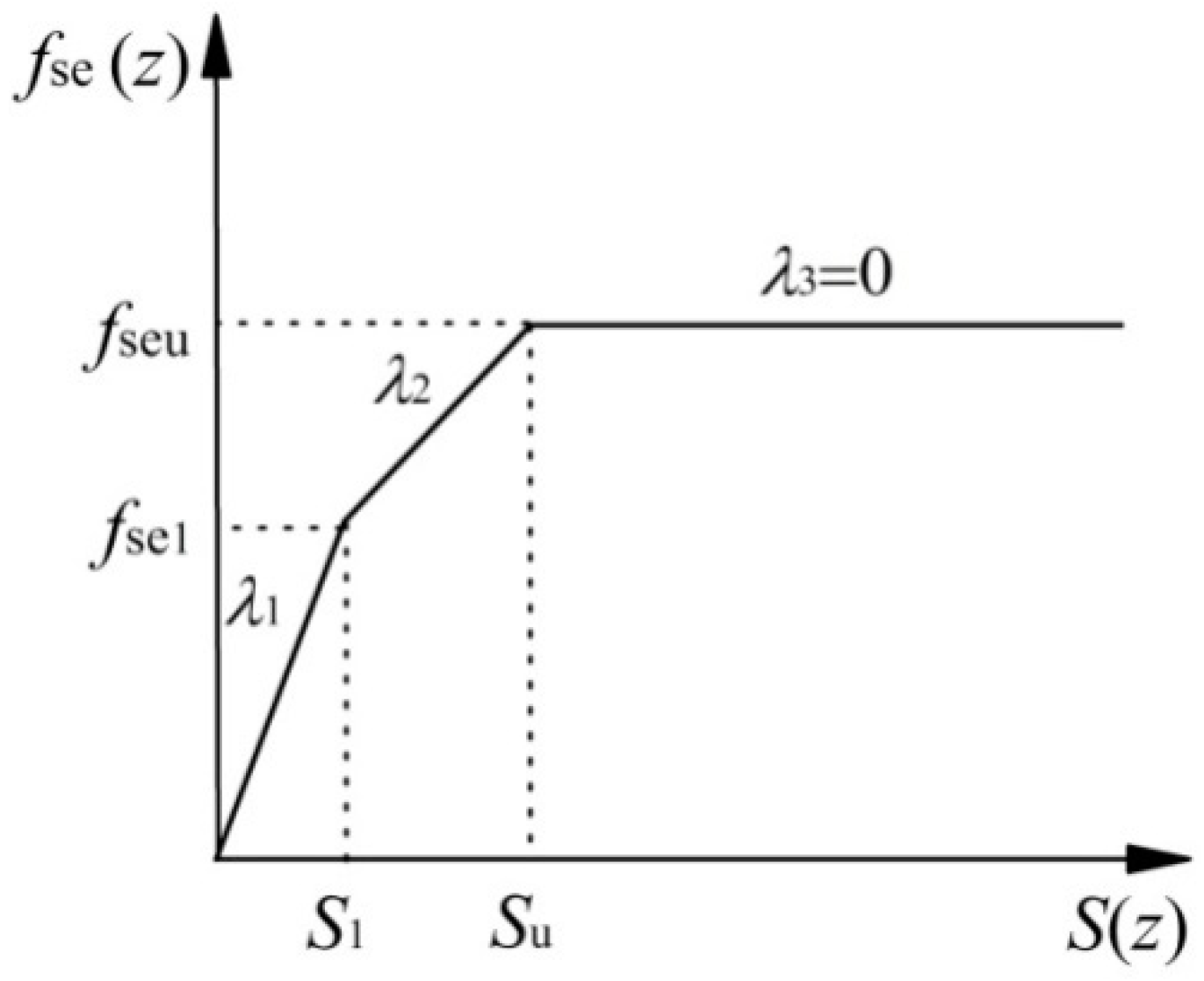

2.2. Load Transfer Model of Outside Pile Annulus

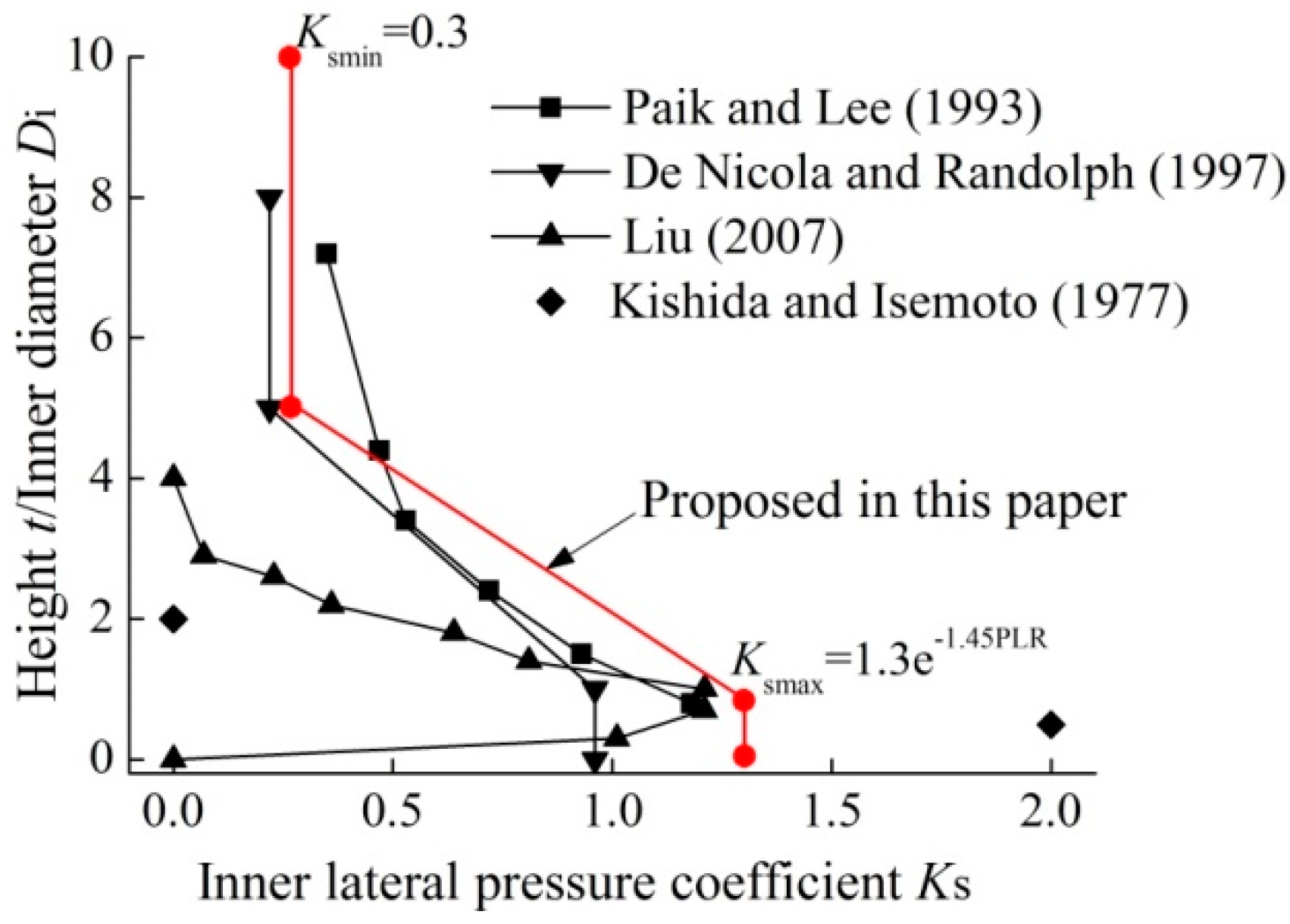

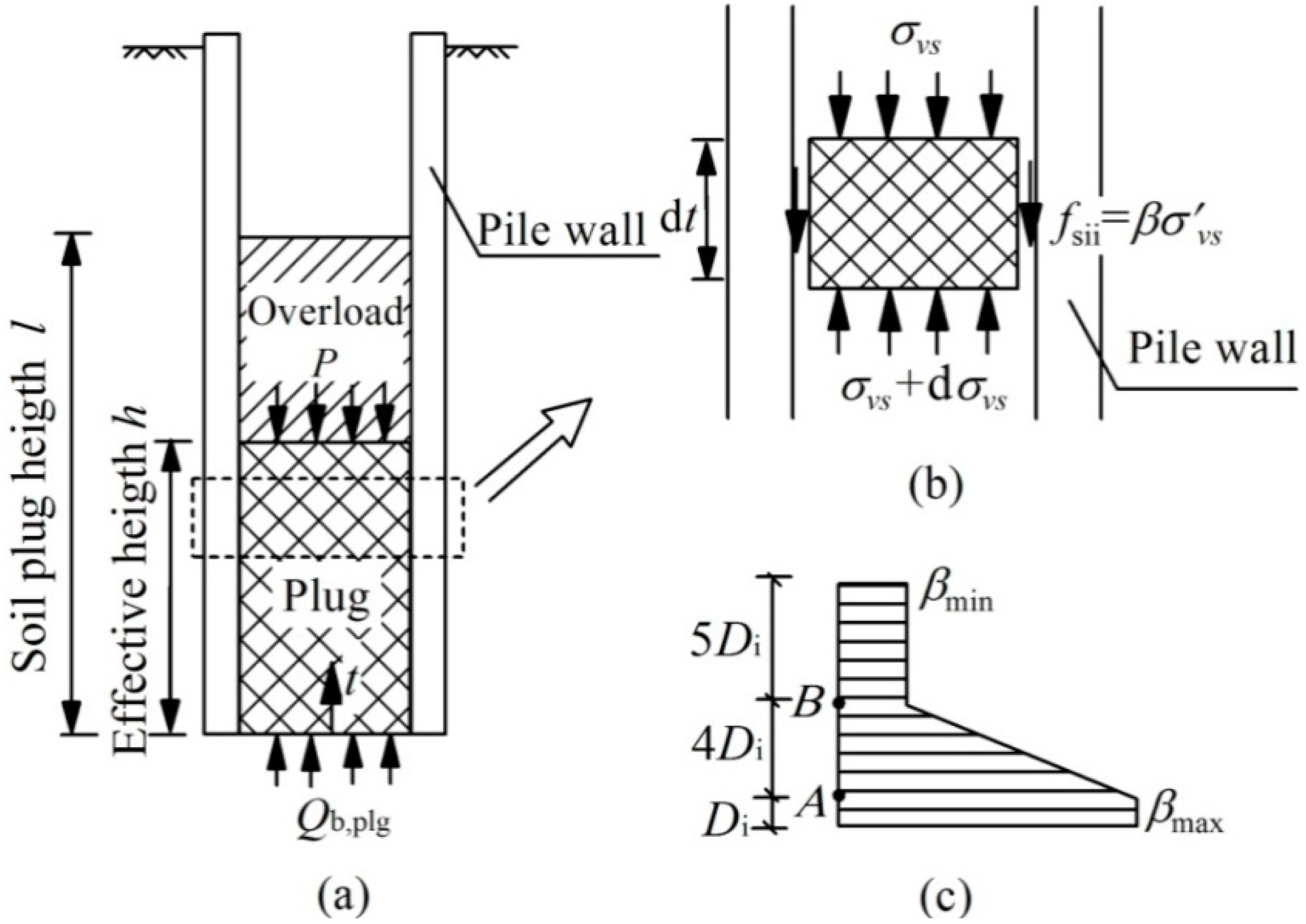

2.3. Load Transfer Model inside the Pile Annulus

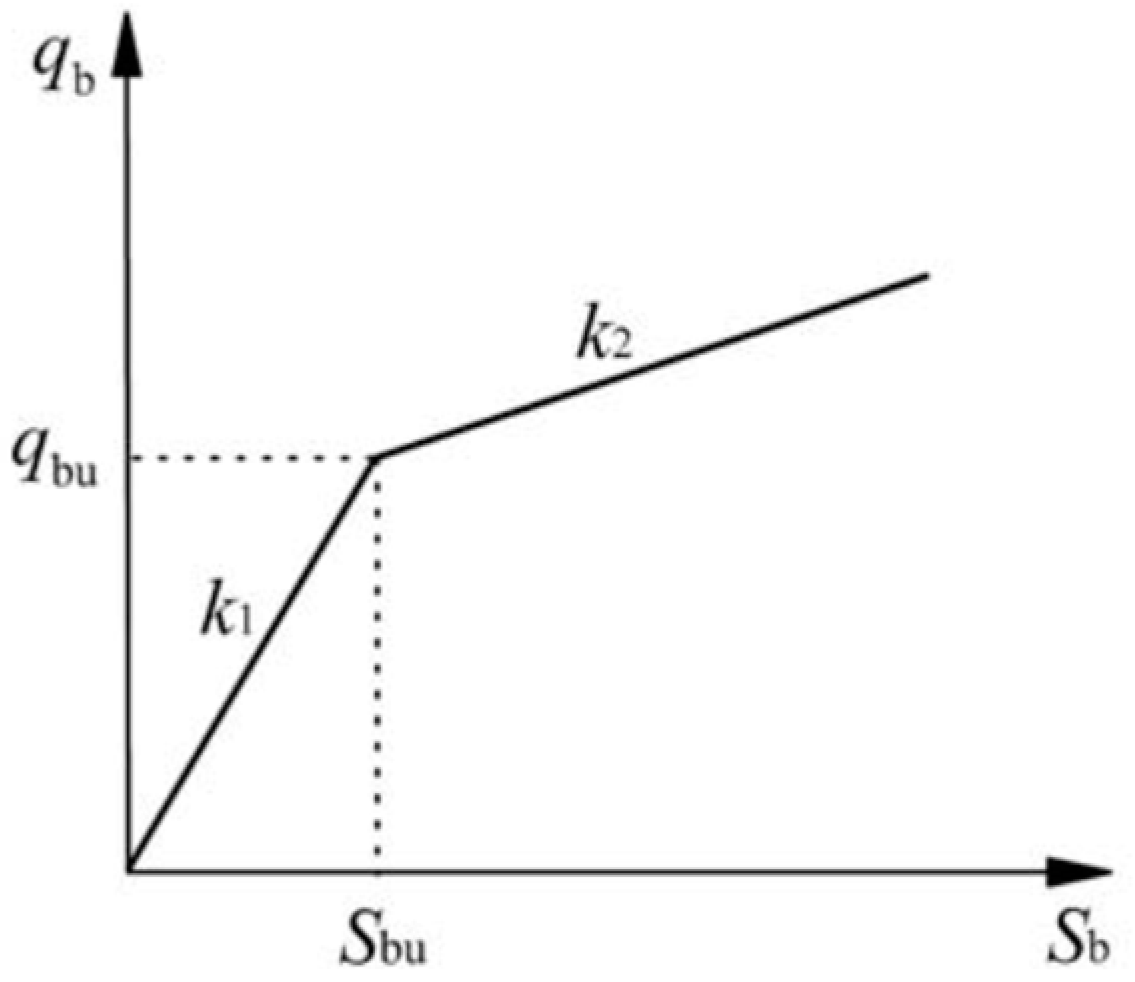

2.4. Load Transfer Model for Pile Tip

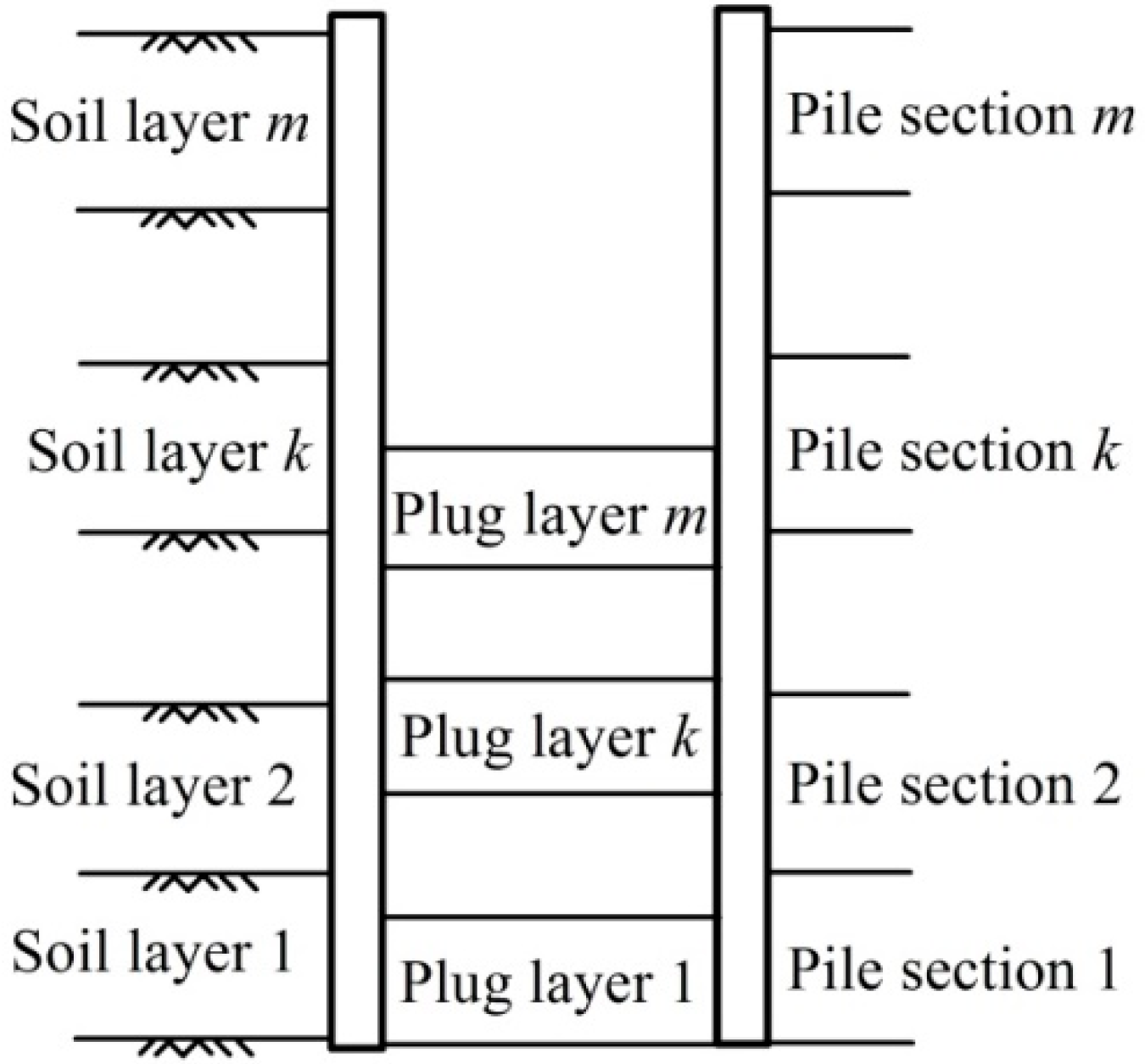

3. Load Transfer Analysis on Open-Ended Pipe Piles

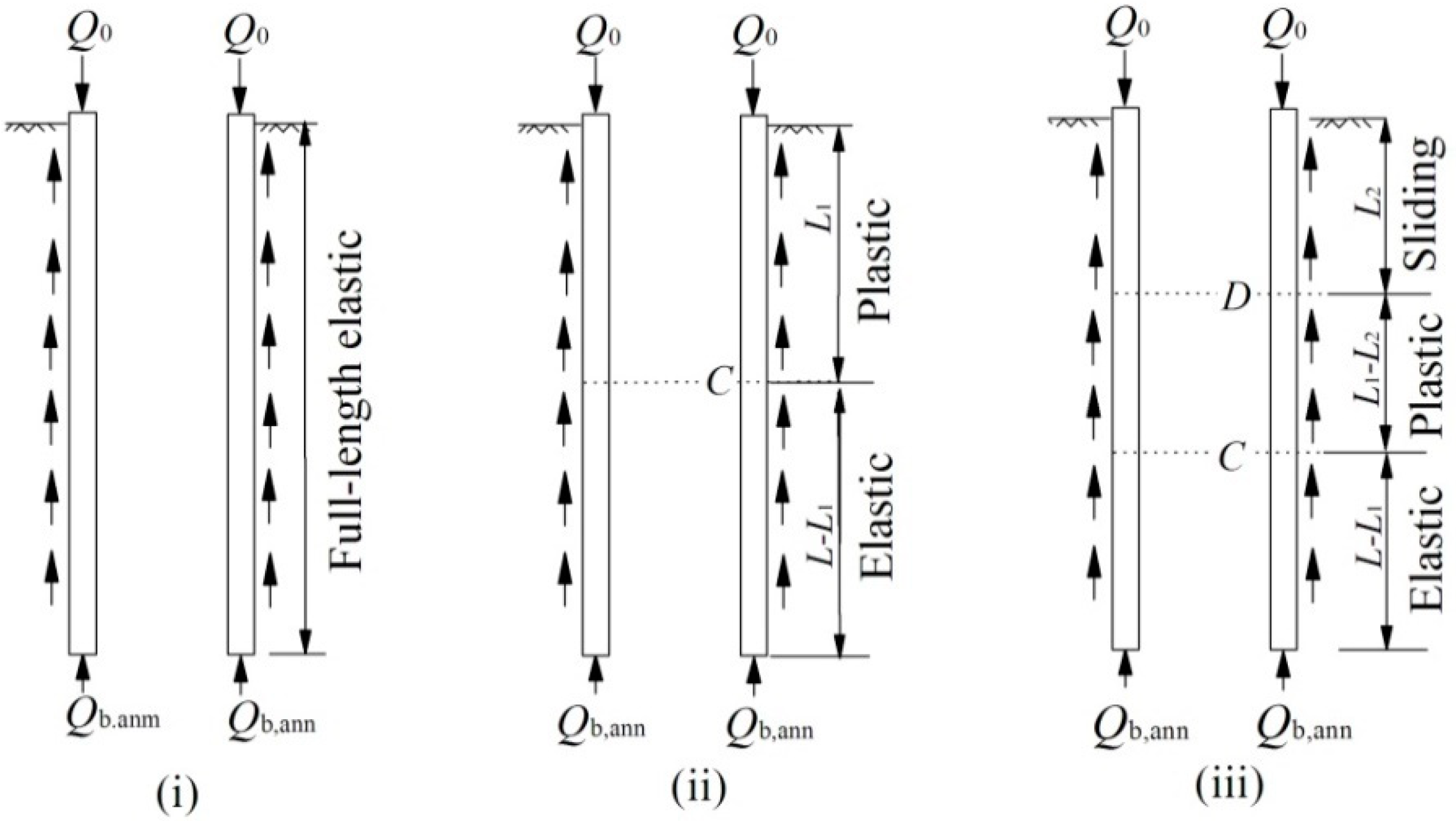

3.1. Load Transfer Analysis outside Pile Annulus
3.2. Load Transfer Analysis inside the Pile Annulus
3.3. Computation Steps
- (1)
- First it was assumed that there was a small displacement at the annulus end Sb,ann1, and from Equation (14) pile annulus end resistance Pb,ann1 was determined.
- (2)
- With the assumed pile annulus end displacement Sb,ann1, and the final filing ratio (FFR) at the moment when pile driving ends, we used Equation (40) and Equations (14) to determine the descending amount of soil below the soil plug end Sb,plg1 and vertical stress at the soil plug end qb,plg1, as well as Equation (39) to compute the effective height of soil plug h.
- (3)
- From Equations (33), (35) and (38), the vertical effective stress σ′vs at various heights within the effective height h can be calculated, so that from Equation (11) the internal skin friction fsi, and hence from Equations (42) and (43), the resulting axial force and compaction are obtained.
- (4)
- From Equations (19), (20), (23) and (28), the compute axial force and pile shaft displacement was found to be caused by the external skin friction corresponding to displacement of pile annulus Sb,ann1.
- (5)
- By superposing the previous two steps, we obtained the distribution of axial force and settlement of open-ended pipe pile shaft under both inner and outer side frictions, as well as the load and settlement.
- (6)

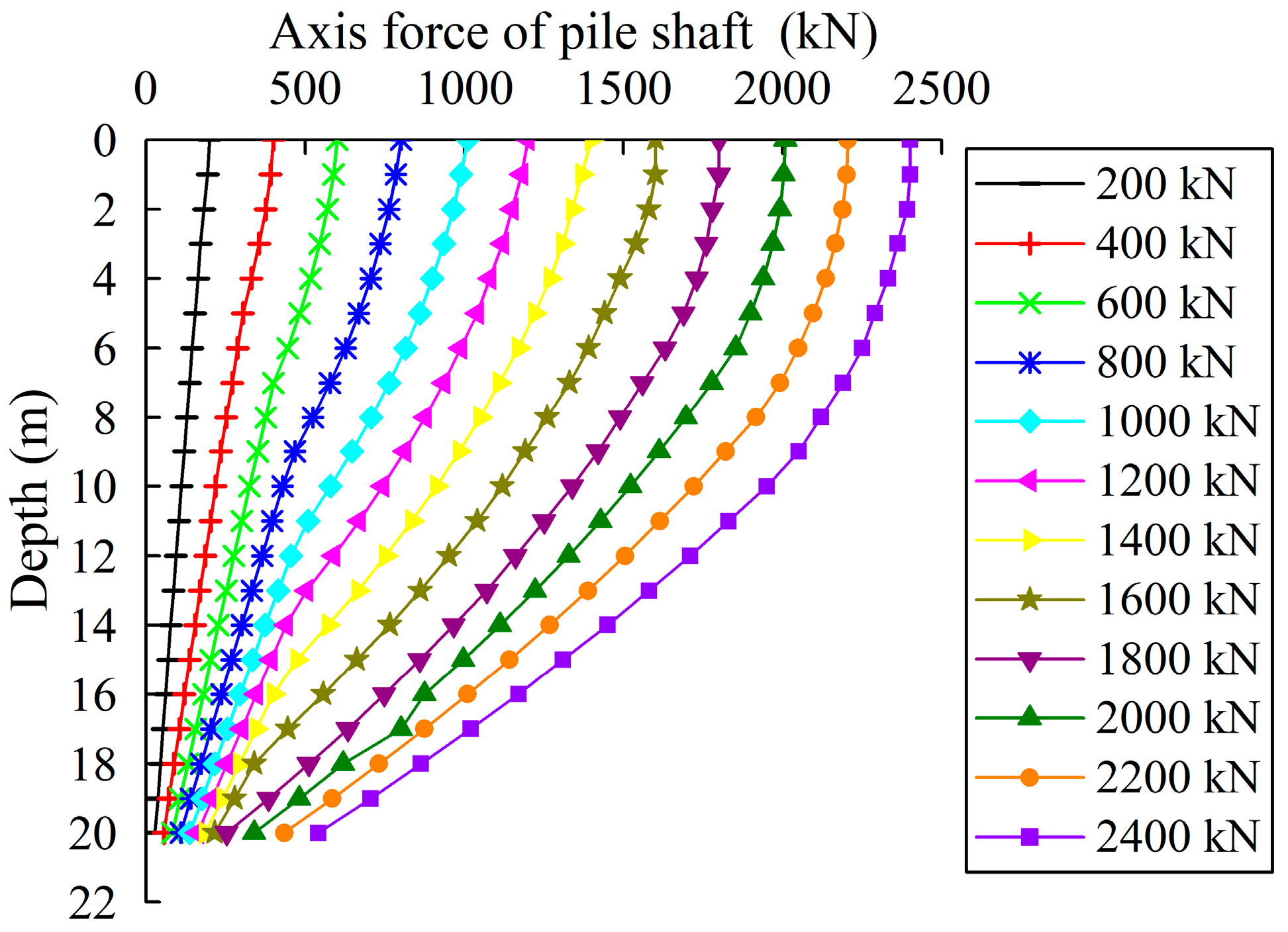

- As displacement at pile end Sb,ann increased, the load-settlement curve of the pile top and the stress distribution of the pile draft were obtained.

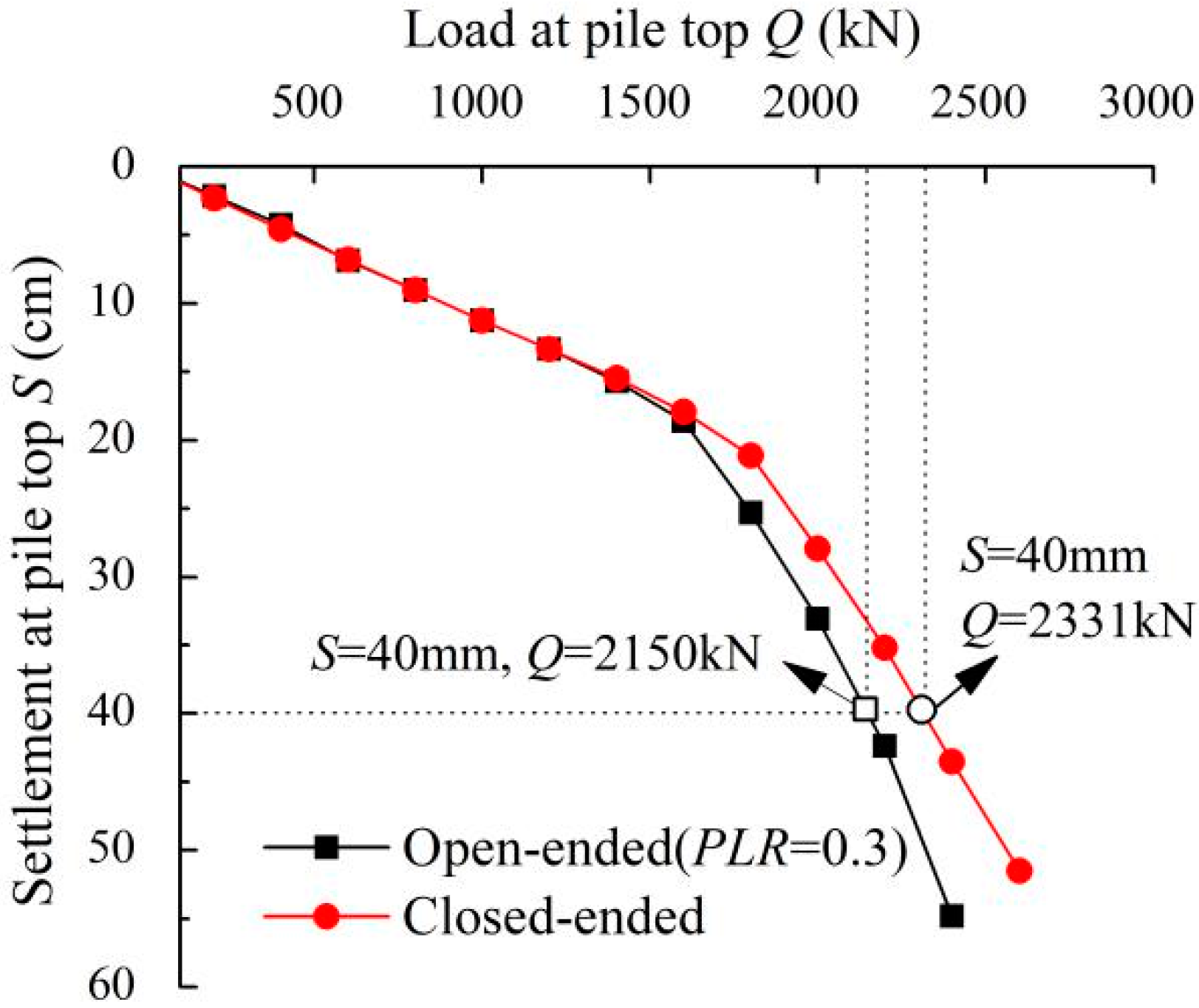

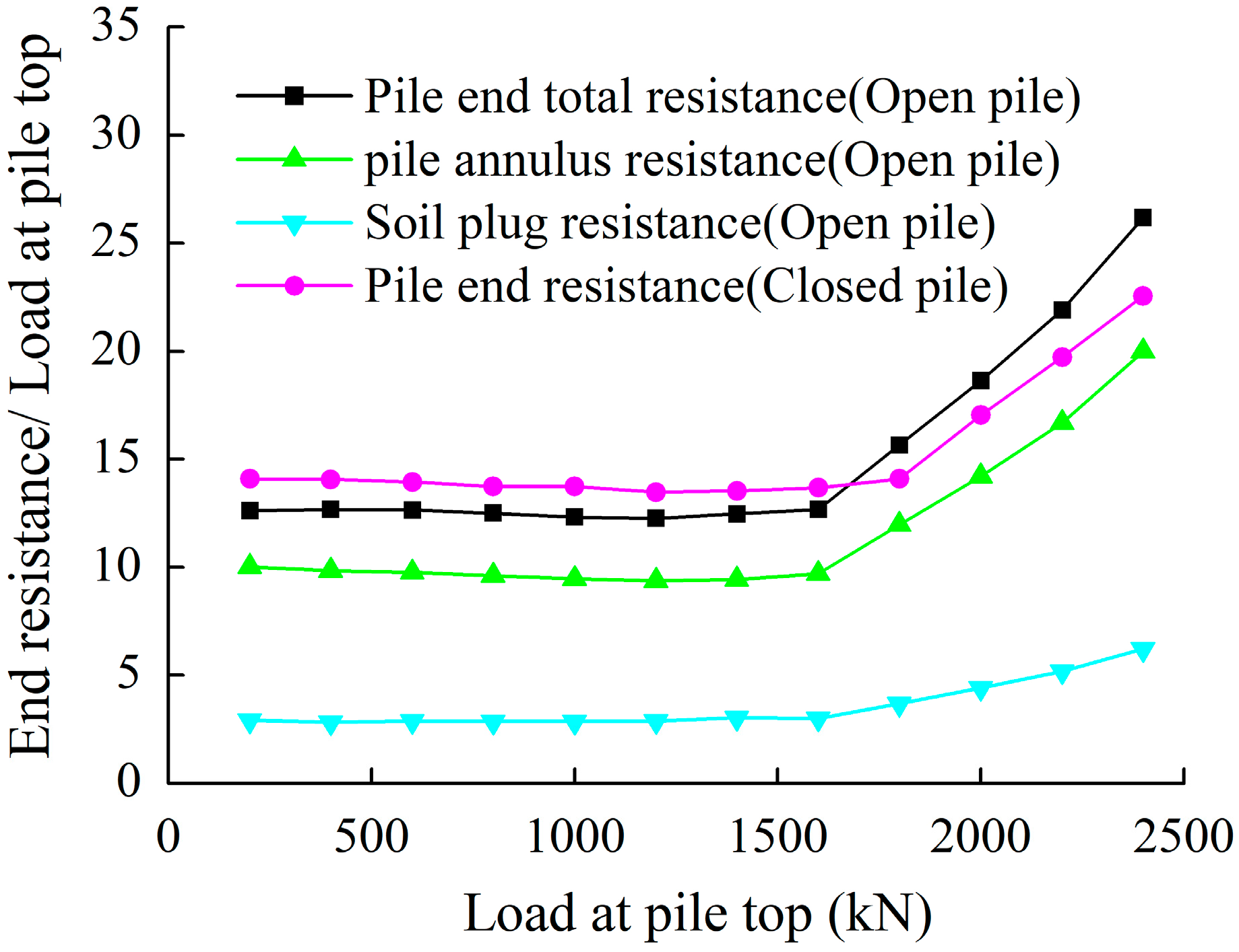

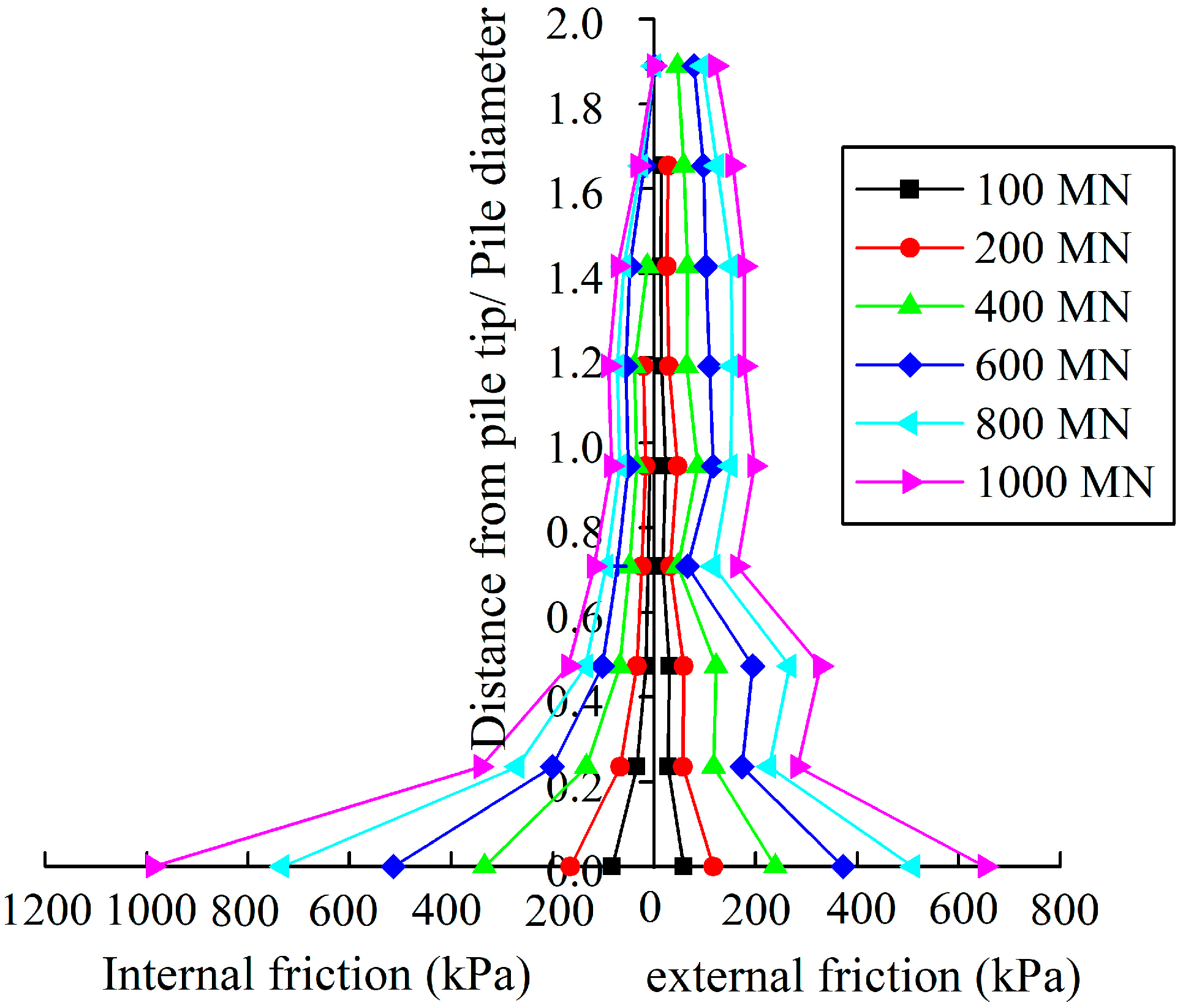

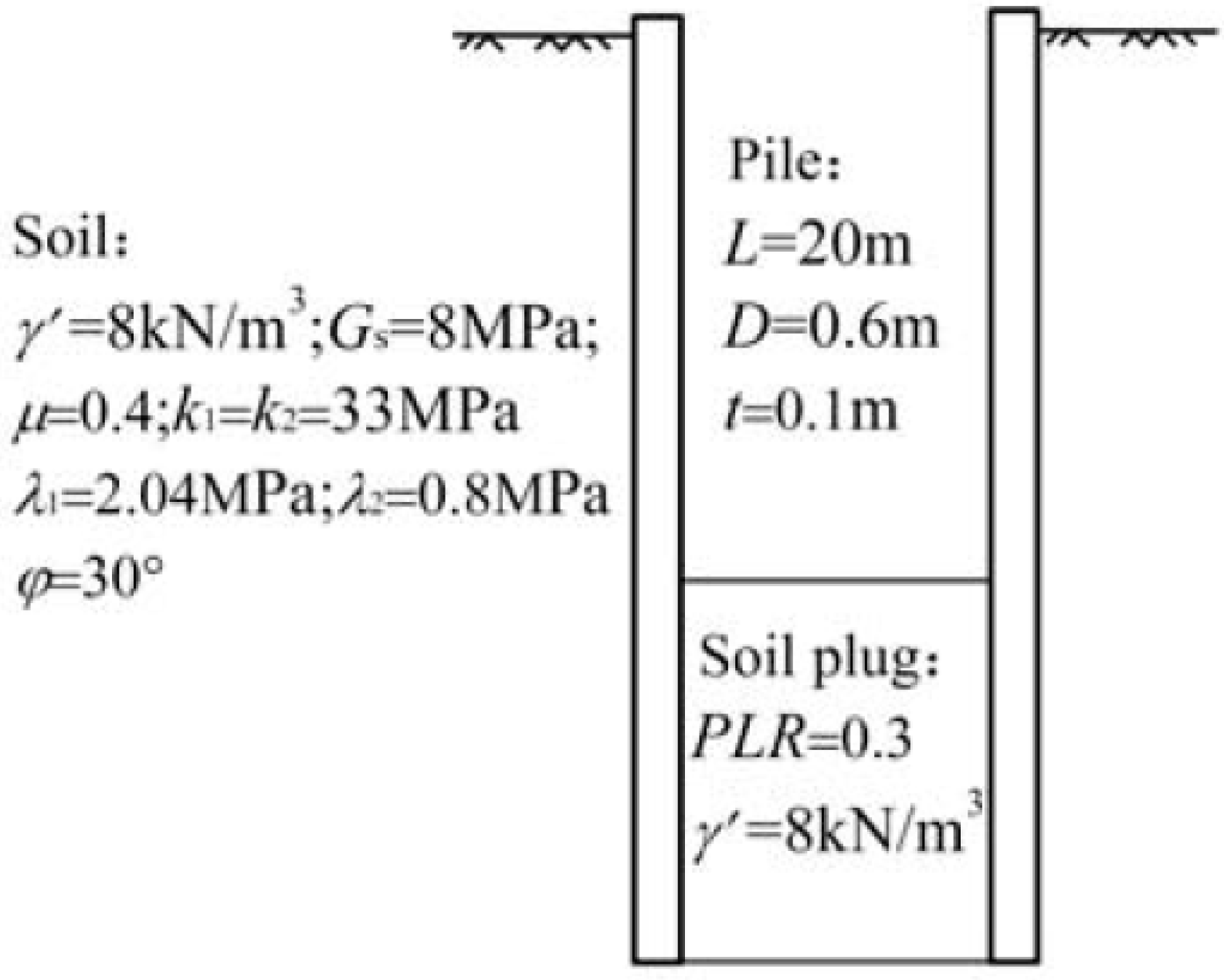

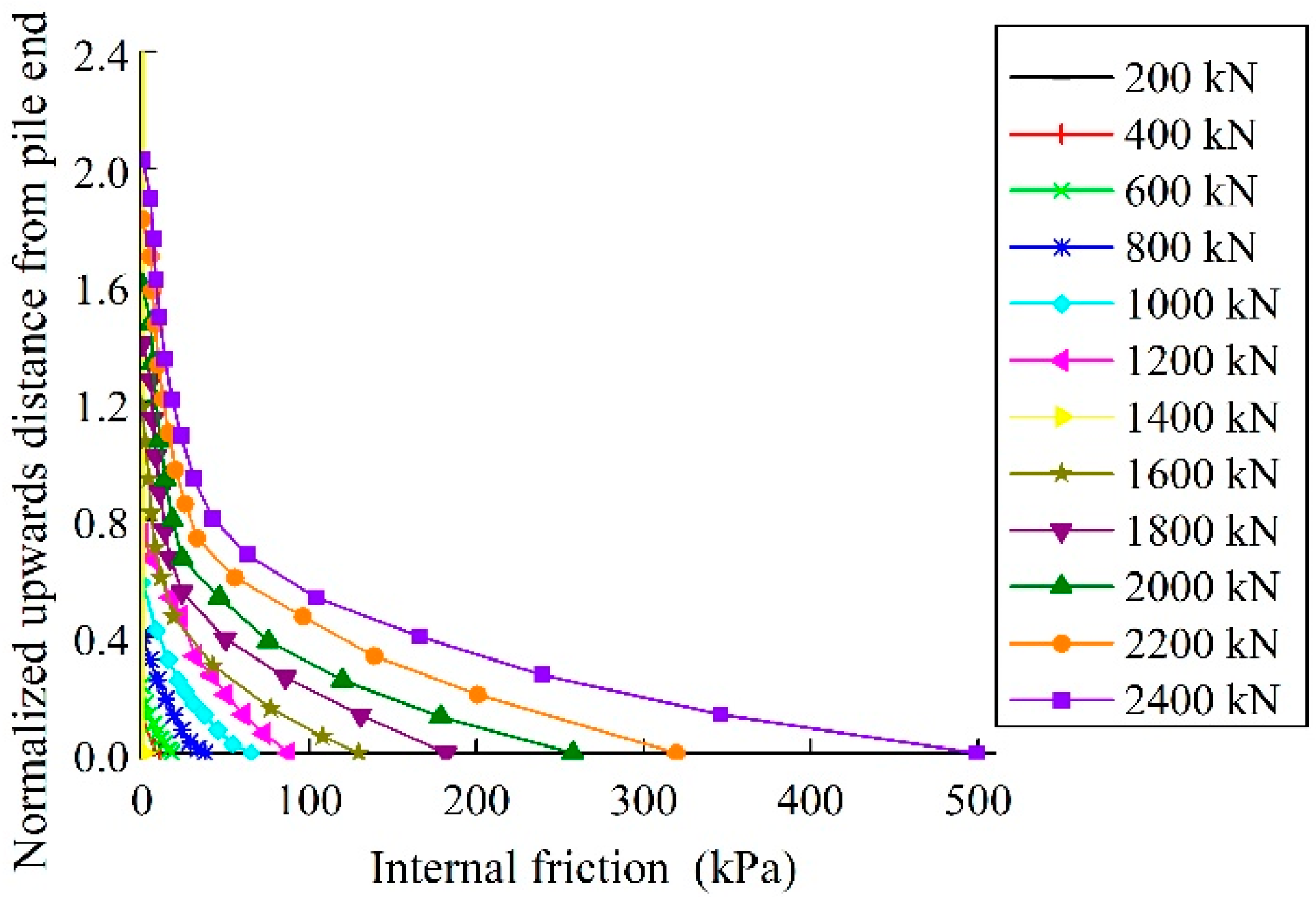

4. Calculation Example

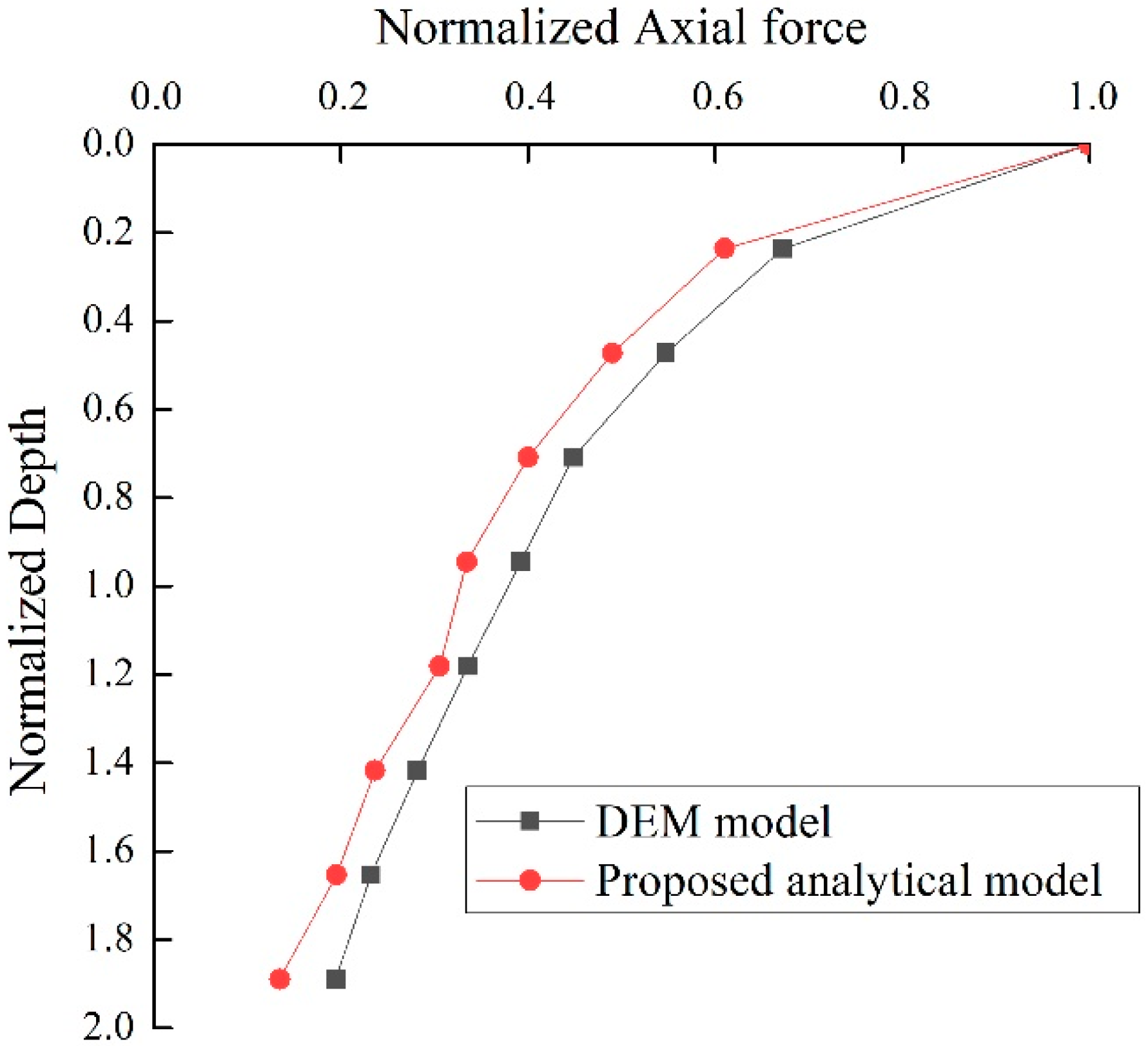

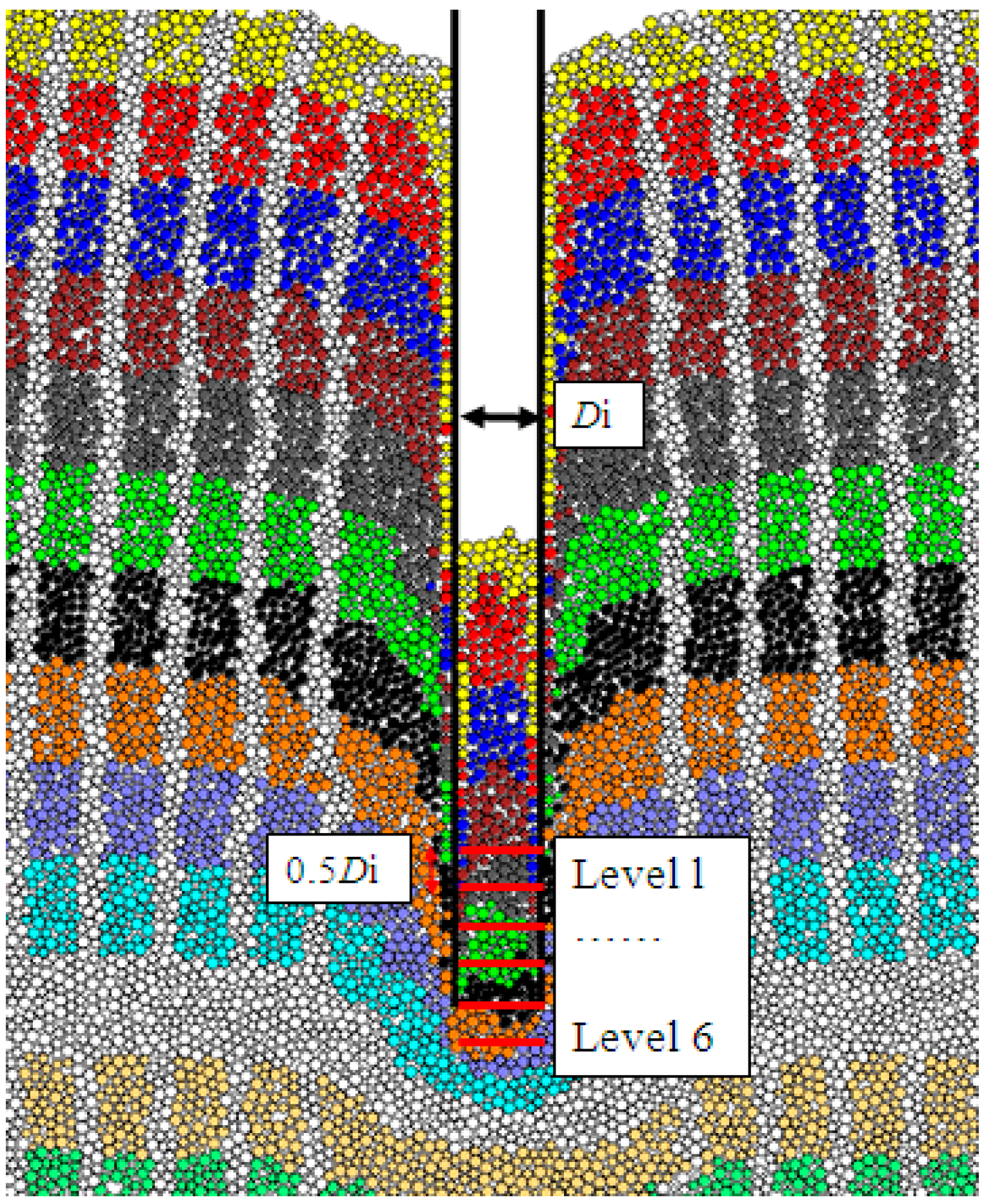

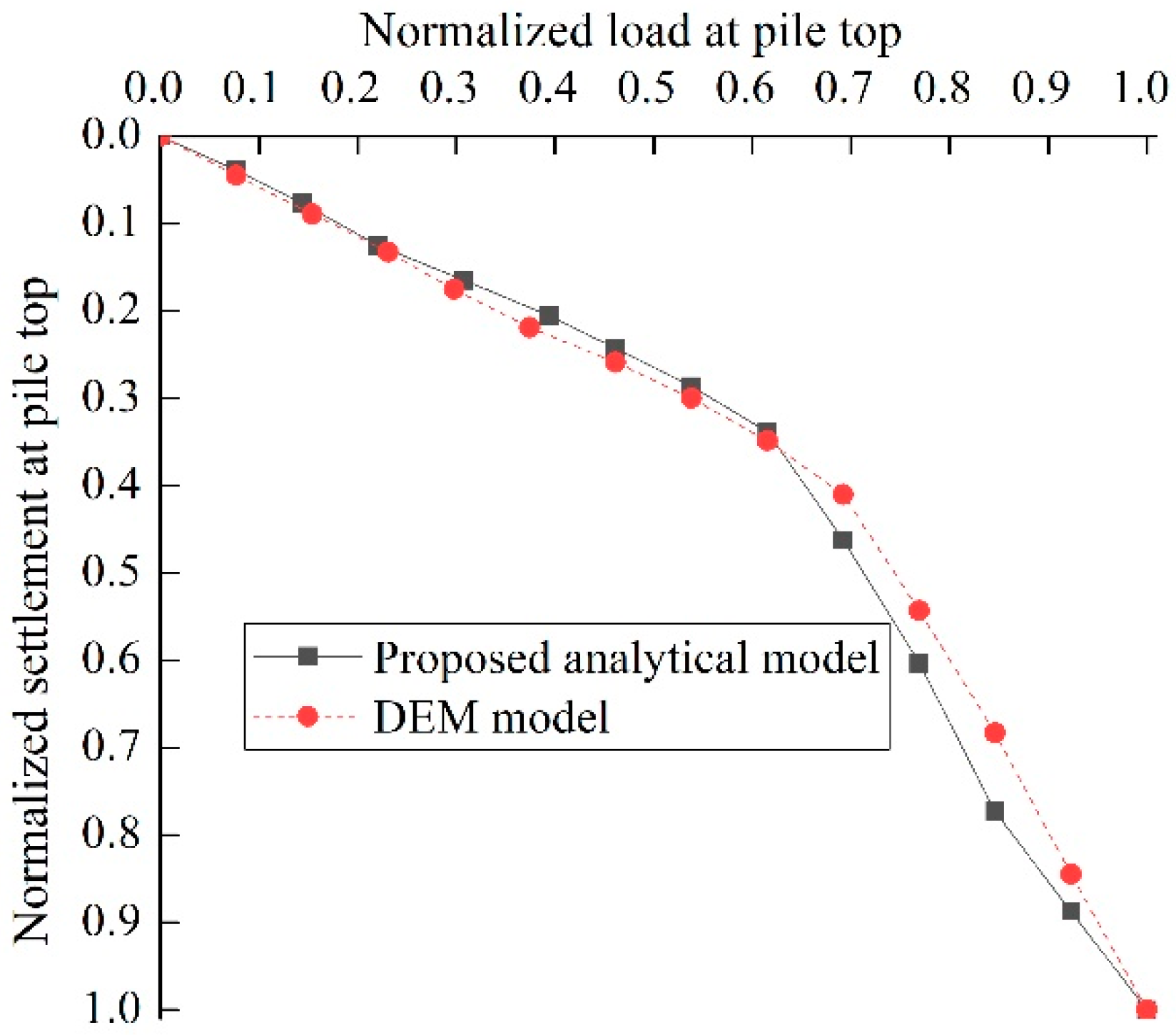

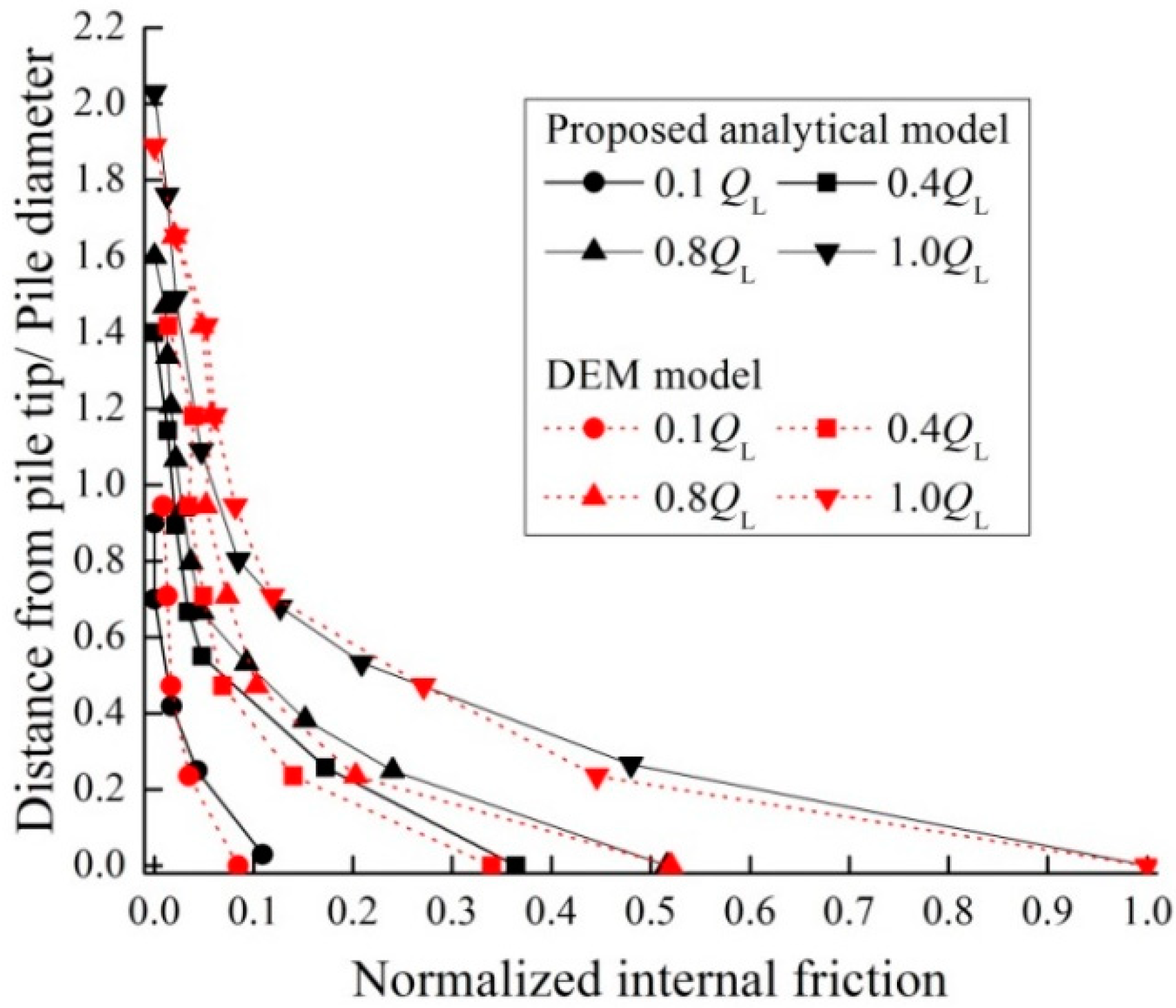

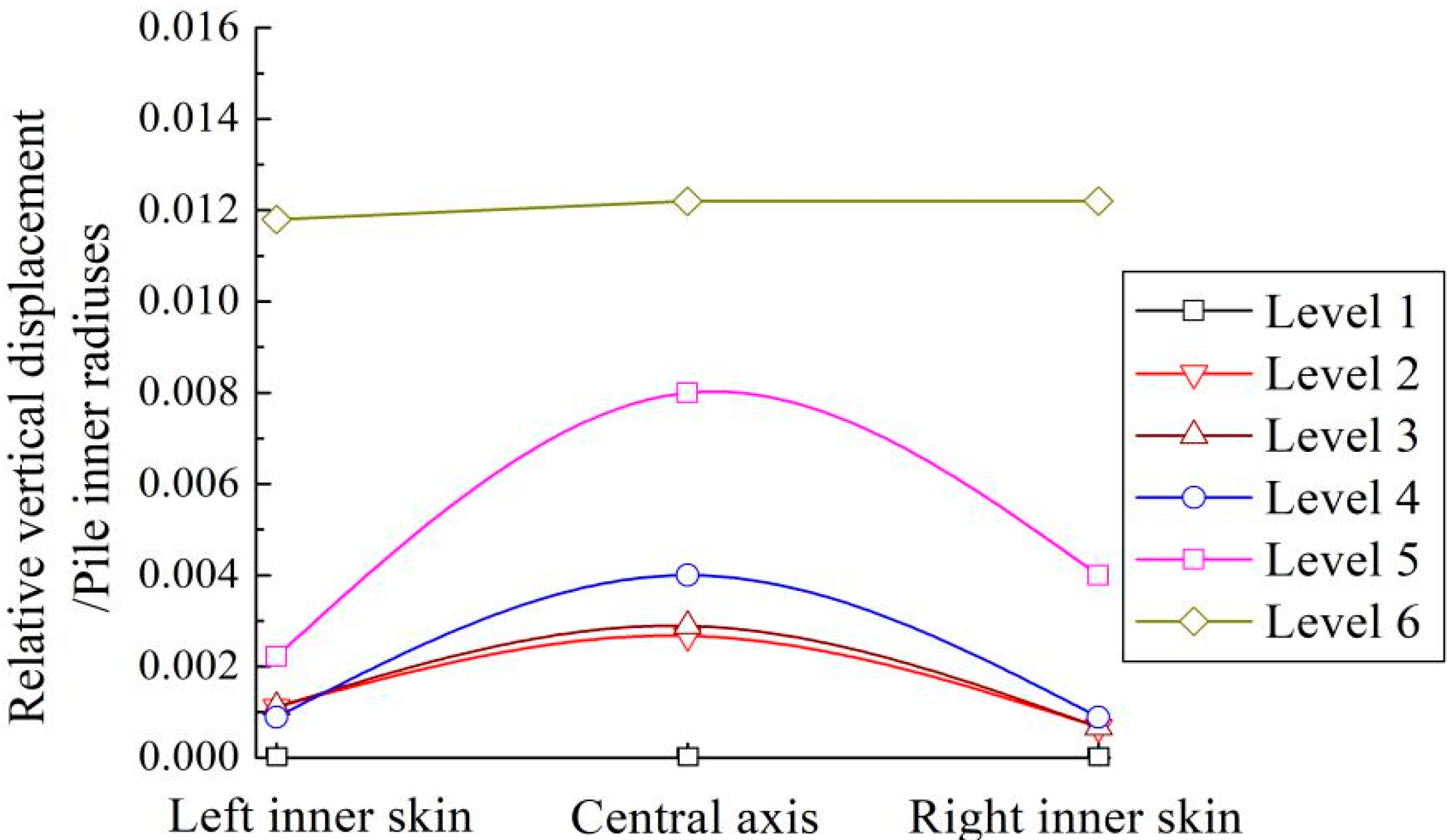

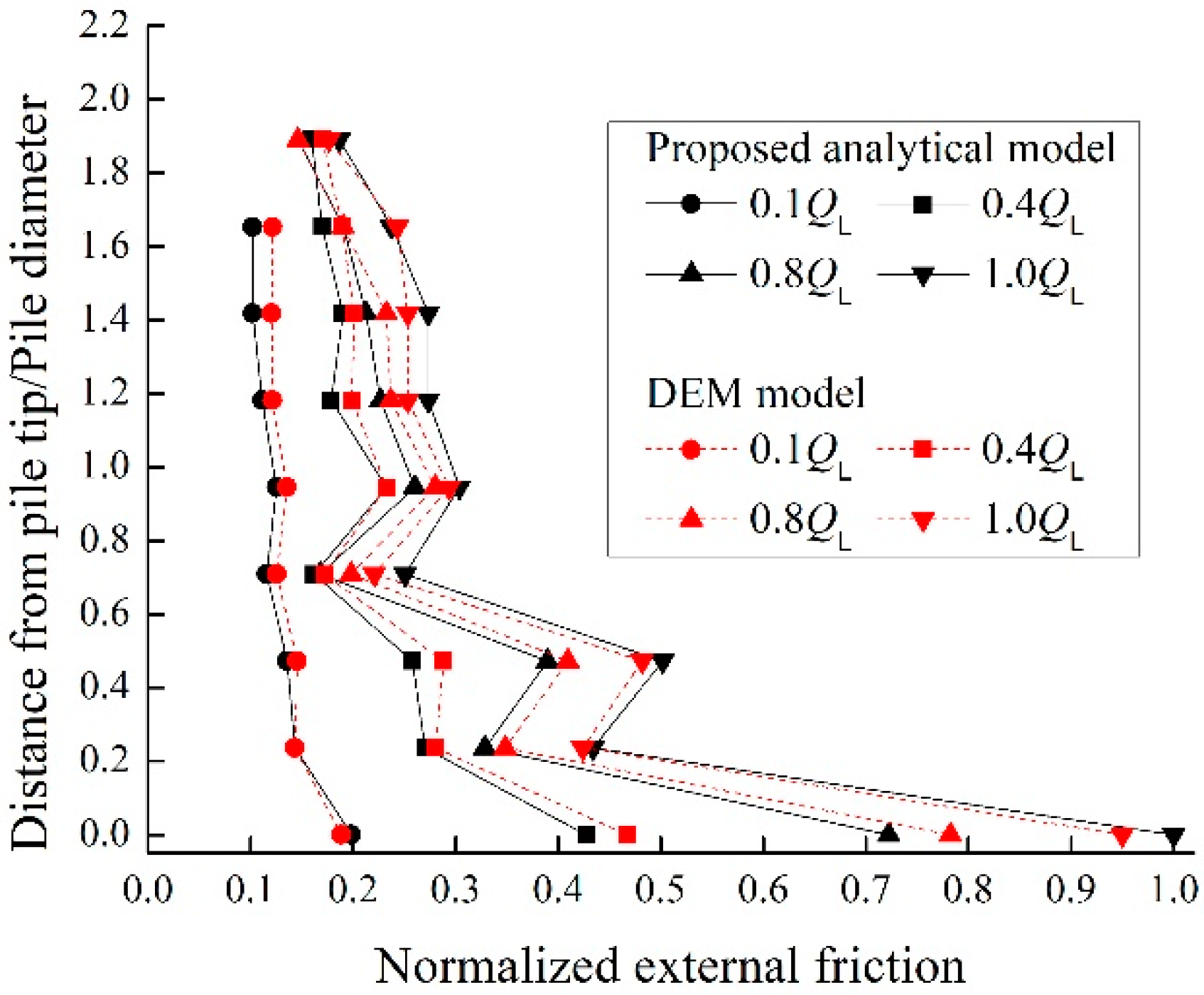

5. Discrete Element Method Model
6. Concluding Comments
Author Contributions
Funding
Conflicts of Interest
References
- Randolph, M.F.; Cassidy, M.; Gourvenec, S.M. Challenges of offshore geotechnical engineering. In Proceedings of the 16th International Conference on Soil Mechanics and Geotechnical Engineering, Osaka, Japan, 12–16 September 2005; Plenary Session D; Millpress Science Publishers: Rotterdam, The Nertherlands, 2005. [Google Scholar]
- Randolph, M.F.; Gaudin, C.; Gourvenec, S.M.; White, D.J.; Boylan, N.; Cassidy, M.J. Recent advances in offshore geotechnics for deep water oil and gas developments. Ocean Eng. 2011, 38, 818–834. [Google Scholar] [CrossRef]
- Guo, Z.; Jeng, D.S.; Zhao, H.Y.; Guo, W.; Wang, L.Z. Effect of seepage flow on sediment incipient motion around a free spanning pipeline. Coast. Eng. 2019, 143, 50–62. [Google Scholar] [CrossRef]
- Li, K.; Guo, Z.; Wang, L.Z.; Jiang, H.Y. Effect of seepage flow on shields number around a fixed and sagging pipeline. Ocean Eng. 2019, 172, 487–500. [Google Scholar] [CrossRef]
- Liu, J.W.; Duan, N.; Cui, L.; Zhu, N. DEM investigation of installation responses of jacked open-ended piles. Acta Geotech. 2019. [Google Scholar] [CrossRef]
- Randolph, M.F.; Leong, E.C.; Houlsby, G.T. One dimensional analysis of soil plugs in pipe piles. Geotechnique 1991, 41, 587–598. [Google Scholar] [CrossRef]
- Yu, F.; Yang, J. Base Capacity of Open-Ended Steel Pipe Piles in Sand. J. Geotech. Geoenviron. Eng. 2012, 138, 1116–1128. [Google Scholar] [CrossRef] [Green Version]
- Ko, J.; Jeong, S. Plugging effect of open-ended piles in sandy soil. Can. Geotech. J. 2015, 52, 535–547. [Google Scholar] [CrossRef]
- Byrne, B.W. Drive pipe piles in dense sand. In Australian Geomechanics; Paper No.9501; Geonechanics Group: Perth, Australia, 1995; pp. 72–80. [Google Scholar]
- Paik, K.; Salgado, R.; Lee, J.; Kim, B. Behavior of open and closed-ended piles driven into sands. J. Geotech. Geoenviron. Eng. 2003, 129, 296–306. [Google Scholar] [CrossRef]
- Jardine, R.J.; Chow, F.C.; Overy, R.; Standing, J. ICP Design Methods for Driven Piles in Sands and Clays; Thomas Telford: London, UK, 2005. [Google Scholar]
- Gavin, K.; Lehane, B. Base load-displacement response of piles in sand. Can. Geotech. J. 2007, 44, 1053–1063. [Google Scholar] [CrossRef]
- Liu, J.W.; Guo, Z.; Zhu, N.; Zhao, H.; Garg, A.; Xu, L.F.; Liu, T.; Fu, C.C. Dynamic response of offshore open-ended pile under lateral cyclic loadings. J. Mar. Sci. Eng. 2019, 7, 128. [Google Scholar] [CrossRef]
- Randolph, M.F. Science and empiricism in pile foundation design. Géotechnique 2003, 53, 847–875. [Google Scholar] [CrossRef]
- Murff, J.D.; Raines, R.D.; Randolph, M.F. Soil plug behaviour of piles in sand. In Proceedings of the 22nd Offshore Technology Conference, OTC 6421, Houston, TX, USA, 7–10 May 1990; pp. 25–32. [Google Scholar]
- Paikowsky, S.G.; Whitman, R.V.; Baligh, M.M. A new look at the phenomenon of offshore pile plugging. Mar. Geotechnol. 1990, 8, 213–230. [Google Scholar] [CrossRef]
- Randolph, M.F.; Wroth, C.P. Analysis of deformation of vertically loaded piles. J. Geotech. Eng. Div. 1978, 104, 1465–1488. [Google Scholar]
- Randolph, M.F. RATZ Program Manual: Load Transfer Analysis of Axially Loaded Piles; Dept. of Civil and Resource Engineering, University of Western Australia: Perth, Australia, 2003. [Google Scholar]
- O’Neill, M.; Raines, R. Load Transfer for Pipe Piles in Highly Pressured Dense Sand. J. Geotech. Eng. 1991, 117, 1208–1226. [Google Scholar] [CrossRef]
- Lehane, B.; Randolph, M. Evaluation of a Minimum Base Resistance for Driven Pipe Piles in Siliceous Sand. J. Geotech. Geoenviron. Eng. 2002, 128, 198–205. [Google Scholar] [CrossRef]
- Yu, F.; Yang, J. Improved evaluation of interface friction on steel pipe pile in sand. J. Perform. Constr. Facil. 2012, 26, 170–179. [Google Scholar] [CrossRef]
- White, D.J.; Sidhu, H.K.; Finlay, T.C.R.; Bolton, M.D.; Nagayama, T. Press-in piling: The influence of plugging on driveability. In Proceedings of the 8th International Conference of the Deep Foundations Institute, New York, NY, USA, 5–7 October 2000; pp. 299–310. [Google Scholar]
- Lehane, B.M.; Gavin, K. Base resistance of jacked pipe piles in sand. J. Geotech. Geoenviron. Eng. 2001, 127, 473–480. [Google Scholar] [CrossRef]
- Jeong, S.; Ko, J.; Won, J.; Lee, K. Bearing capacity analysis of open-ended piles considering the degree of soil plugging. Soils Found. 2015, 55, 1001–1014. [Google Scholar] [CrossRef] [Green Version]
- Zhang, Z.M. Pile Foundation Engineering; China Architecture & Building Press: Beijing, China, 2007. (In Chinese) [Google Scholar]
- Liu, J.W. Experimental and Theoretical Studies on the Construction Effects for Jacked Open-Ended Concrete Pipe Piles. Ph.D. Thesis, Zhejiang University, Hangzhou, China, 2012. (In Chinese). [Google Scholar]
- Paik, K.; Salgado, R. Determination of Bearing Capacity of Open-Ended Piles in Sand. J. Geotech. Geoenviron. Eng. 2003, 129, 46–57. [Google Scholar] [CrossRef]
- Yu, F.; Zhang, Z.M. A design framework for evaluating the vertical bearing capacity of open-ended concrete pipe pile from empirical correlations. China Civ. Eng. J. 2011, 44, 100–110. (In Chinese) [Google Scholar]
- Randolph, M.F. Modelling of the soil plug response during pile driving. In Proceedings of the 9th SE Asian Geotechnical Conference, Bangkok, Thailand, 7–11 December 1987; pp. 6.1–6.14. [Google Scholar]
- Liu, J.W.; Zhang, Z.Z.; Yu, F. Case history of installing instrumented jacked open-ended piles. J. Geotech. Geoenviron. Eng. 2012, 12, 810–820. [Google Scholar] [CrossRef]
- Kishida, H.; Isemoto, N. Behaviour of sand plugs in open-end steel pipe piles. In Proceedings of the 9th International Conference Soil Mechanics, Tokyo, Japan, 10–15 July 1977; pp. 601–604. [Google Scholar]
- Paik, K.H.; Lee, S.R. Behavior of soil plugs in open-ended model piles driven into sands. Mar. Georesour. Geotechnol. 1993, 11, 353–373. [Google Scholar] [CrossRef]
- De Nicola, A.; Randolph, M.F. The plugging behavior of driven and jacked piles in sand. Geotechnique 1997, 47, 841–856. [Google Scholar] [CrossRef]
- Duan, N.; Cheng, Y.P. Discrete Element Method Centrifuge Model of Monopile under Cyclic Lateral Loads. Int. J. Environ. Chem. Ecol. Geol. Geophys. Eng. 2016, 10, 200–205. [Google Scholar]
- Vallejo, L.; Lobo-Guerrero, S. DEM analysis of crushing around driven piles in granular materials. Géotechnique 2005, 55, 617–623. [Google Scholar]
- Kumara, J.J.; Kikuchi, Y.; Kurashina, T. Effective Length of the Soil Plug of Inner-Sleeved Open-Ended Piles in Sand. J. GeoEng. 2015, 10, 75–82. [Google Scholar]
Simulation Parameters | Value |
---|---|
Density of sand particles (kg/m3) | 2650 |
Density of particles for pile (kg/m3) | 500 |
Average particle size (mm) | 5.85 |
Pile outer diameters (mm) | 45 |
Pile inner diameters (mm) | 39.6 |
Model pile length (mm) | 500 |
Model container width (mm) | 1200 |
Model container depth (mm) | 600 |
Friction coefficient of the particles | 0.5 |
Friction coefficient of pile and walls | 0.5 |
Young’s modulus of particles (Pa) | 4 × 107 |
Contact normal stiffness of pile and particles (N/m) | 8 × 107 |
Particle stiffness ratio (ks/kn) | 0.25 |
Contact normal stiffness of walls (N/m) | 6 × 1012 |
Initial average porosity | 0.25 |
Final average porosity (final equilibrium) | 0.185 |
Bulk unit weight (kN/m3) | 2115.3 |
