Velocity Calibration of Doppler Current Profiler Transducers

Abstract

Doppler current profilers are used in oceanography to measure oceanic circulation but also in hydrology to calculate the flow of rivers. They allow the retrieval of water mass profiles in terms of velocity and direction. Direction is obtained via an electronic compass and tilt sensors, while velocity is obtained by measuring Doppler pulse shifts back-scattered by particles located in water cells allocated along the instrument’s measurement range. Current meters are usually tested in towing basins or hydrodynamic channels, but these facilities present limits in terms of the measurement range, particles concentration and time costs. This paper presents a novel method developed to test the trueness of these velocity measurements in the laboratory, along with the uncertainty of this test and the results obtained with current meters and stand-alone profilers. The method is based on the measurement of the frequency of pulses emitted by each transducer of the instrument independently, and on the simulation of received echoes by a variable frequency sinusoidal signal.

1. Introduction

Oceans control a big part of the Earth’s climate through ocean–atmosphere exchanges, phenomena such as El-Niño or great cycles and oceanic currents. Measuring current is essential to build current charts useful for navigation, 3D models of oceanic circulation or more recently, to improve the efficiency of submarine tidal turbines.

Some ten years ago, rotor current meters were replaced by Doppler effect acoustic current meters. As the marine environment is favorable to acoustic wave propagation, the arrival time of pulses reflected by particles led to the creation of current profilers. Water-column velocity profiles can be obtained placing profilers under the hull of oceanographic boats and directed towards the seabed, or placed in cages deposited on the seabed and directed towards the surface, on mooring cables or towed from a boat. Their range, which depends on their wavelength, extends from a few meters to several hundreds of meters, according to the particles concentrations.

Depending on the pulses return times, these profiles are artificially divided into measurement cells by the instrument’s software, which gives average velocity values per cell, in relation with the measured Doppler shifts.

For shipmounted instruments, several publications have been written to correct bias of alignment, sensitivity [1,2], scaling factor [3], and ship velocity measurement [4,5]. For instruments fitted on mooring cables, a method has been proposed to quantify the influence of mooring line motion on current measurements [6] and for towed profilers, a publication shows a method to correct compass bias induced by ship vicinity [7]. In the field of river hydrology, quality assurance tests [8], laboratory intercomparisons [9] or validation by bottom track in towing basins [10,11] have been proposed. In oceanography, Doppler profiler ranges generally extend from approximately ten to several hundred meters, making controls in towing basins impossible. Moreover, the number of standalone instruments used in hydrographic and oceanographic centers makes this technique difficult to implement. Thus, over the past years, calibrating or simply testing these long range instruments has been an untreated problem.

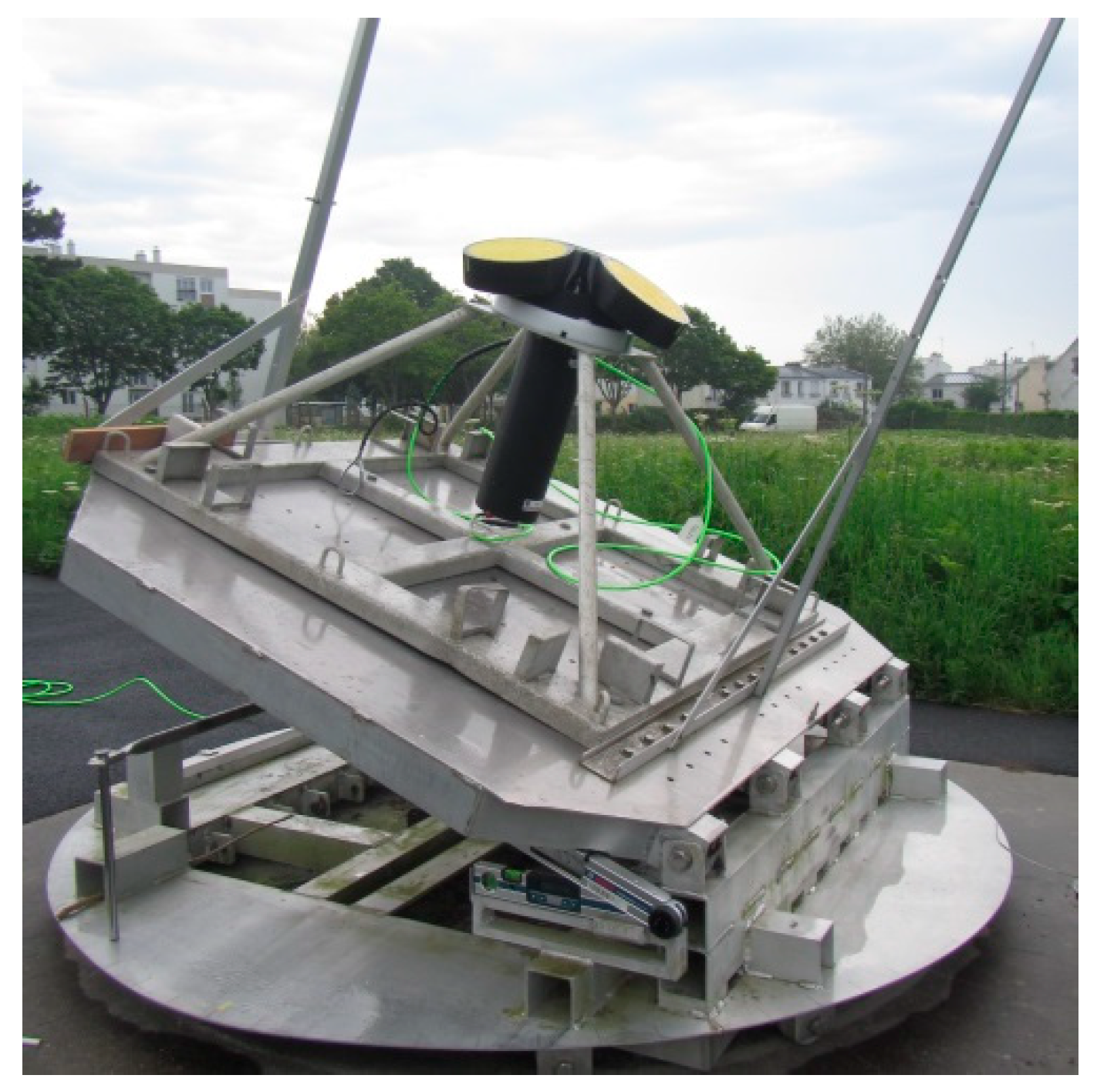

At Shom, a platform was built and brought into service in 2012, to allow the calibration, within their instrument usage configuration, of the electronic compasses and tilt sensors installed in current meters and current profilers [12,13,14]. These compasses are used to retrieve the directions of profilers relative to the magnetic north, their three transducers being used to retrieve the direction of currents in the instrument referential. Compasses can be perturbed by the other instruments or battery packs mounted in cages, leading to measurement errors that need to be determined and corrected. Figure 1 shows a signature profiler mounted in a mooring cage, on the calibration platform. It remained to find a method to determine the trueness of velocity measurements.

For rotor current meters, this calibration was performed in open tanks [15,16] or hydrodynamic channels [17], though generally to maximum velocities included in the range 1–3 m/s. For Doppler current meters, the low particle concentration in these facilities is a problem, and by taking into account the profiling range of profilers used in oceanography, this method cannot be applied. It was still possible to carry out intercomparisons at sea as carried out in rivers by Boldt and Oberg in 2015 [18], but these intercomparisons are expensive, difficult to organize, and allow only one part of the velocity range of instruments to be tested. For rivers again, Hening Huang proposed in 2018 [19] a theoretical and a semiempirical model calibrated on transect datasets, to estimate the uncertainty of streamflow measurements made by an acoustic Doppler current profiler (ADCP) mounted on a moving platform. This method could be applied to oceanography using vessel-mounted ADCPs, though it is not adapted to standalone Teledyne RD Instruments ADCPs or equivalent instruments of Nortek group called AQPs for ‘AQuadopp Profilers’.

The idea came to perfect a test using an acoustic transducer attached to the profiler transducers and linked to a frequency generator. This allows echoes received by the profiler to be simulated. The exploitation of the Doppler effect formula and of the speeds sensed by the instrument has allowed a test method of the device’s measurement channels to be perfected. A calibration bed remained to be developed. ‘Calibration’ should be taken here as the application of the first step of the definition given in reference [20], which is: “operation that, under specified conditions, in a first step, establishes a relation between the quantity values with measurement uncertainties provided by measurement standards and corresponding indications with associated measurement uncertainties and, in a second step, uses this information to establish a relation for obtaining a measurement result from an indication”. The test bed allows the establishment of a relation between measurement standard values whose measurement uncertainties are assessed, and values of the transducer under test with associated measurement uncertainties, to obtain a measurement result. At this time, instead of rigorously applying the second step of the definition, the calculated uncertainty allows the measured shifts to be qualified as negligible or not. When they are not negligible, this generally means that the instrument transducer has suffered a malfunction and must be repaired, preventing the use of the relationship between the reference values and the values of the transducer under test to correct the measured values.

This method opens the way for quick testing and metrological validation of current profiler transducers before their use at sea, which was previously impossible. This allows each transducer’s response to be retrieved and possibly corrected independently, though it does not take into account any bias related to transducer slope imperfections that could occur due to manufacturing defects. We consider this error to be constant and corrected by the manufacturer with a custom transformation matrix if necessary (see Section 2 for further explanations).

2. Operating Principles of Doppler Current Profilers

Current profilers compute velocities (V₁, V₂, and V₃) obtained by Doppler shift measurements in their beam axes (radial velocities). The transducers are tilted 20°, 25°, or 30° (angle β). It is thus possible to calculate velocities (V_x, V_y, and V_z) in their own referential [21]:

$$\left[\begin{array}{c}{V}_x\\ V_y\\ V_z\end{array}\right]=\left[\begin{array}{ccc}\frac{2}{3\sin \left(\beta \right)}& \frac{-1}{3\sin \left(\beta \right)}& \frac{-1}{3\sin \left(\beta \right)}\\ 0& \frac{-1}{\sqrt{2}\sin \left(\beta \right)}& \frac{1}{\sqrt{2}\sin \left(\beta \right)}\\ \frac{1}{3\cos \left(\beta \right)}& \frac{1}{3\cos \left(\beta \right)}& \frac{1}{3\cos \left(\beta \right)}\end{array}\right]\left[\begin{array}{c}{V}_1\\ V_2\\ V_3\end{array}\right]$$

(1)

They are equipped with ‘flux-gate’, ‘Hall effect’, or magneto-resistive compasses to retrieve the amplitude of current components (U, V, and W) in reference to magnetic north (angle $\Omega$), and considering the magnetic declination, in relation to true north (2). Moreover, their inclination is corrected due to a tilt sensor measuring roll and pitch angles $\psi$ and θ. According to reference [22], between 1 and 12 equations can be found to describe a rotation in the three dimensions. The equation used for the profilers corresponds to Equation (2), in which C = cos and S = sin [23]:

$$\left[\begin{array}{c}U\\ V\\ W\end{array}\right]=\left[\begin{array}{ccc}{C}_{\psi }{C}_{\Omega }& (-S_{\psi }{S}_{\theta }{C}_{\Omega }+C_{\theta }{S}_{\Omega })& (S_{\psi }{C}_{\theta }{C}_{\Omega }+S_{\theta }{S}_{\Omega })\\ -C_{\psi }{C}_{\Omega }& (S_{\psi }{S}_{\theta }{S}_{\Omega }+C_{\theta }{S}_{\Omega })& (-S_{\psi }{C}_{\theta }{S}_{\Omega }+S_{\theta }{C}_{\Omega })\\ -S_{\psi }& -C_{\psi }{S}_{\theta }& C_{\psi }{C}_{\theta }\end{array}\right]\left[\begin{array}{c}{V}_x\\ V_y\\ V_z\end{array}\right]$$

(2)

Speeds (V₁, V₂, and V₃) are obtained after the detection of echoes resulting from the reflection of pulses on the successive layers of particles. To improve measurement trueness, pulses are repeated at a frequency f_r. Figure 2 shows the pulse trains transmitted by a Nortek Group 2 MHz AQP.

The maximum measurable speed V_max depends on f_r and on the wavelength λ:

±V_max = f_r λ/4

(3)

Zedel and Hay (2010) explain that “measurements can be made at a prescribed range by considering the time elapsed since a sound pulse is transmitted” [24]. It means that f_r determines the maximum profiling range r_max, at which a target can be detected without ambiguity concerning its position:

r_max = c/(2 f_r)

(4)

c is the speed of sound. Relationships (3) and (4) lead to expressing the range–velocity ambiguity relationship [25] as follows:

V_max r_max = ±c λ/8

(5)

To overcome the limits imposed by Equation (5), various techniques have been developed, based on the processing of emitted and received signals.

Thus, conventional profilers are called ‘incoherent’ or ‘narrowband’ because the received echoes from two different pulses are not correlated. Echoes are measured continuously, allowing the size of measurement cells in the water column to be determined, considering the value of c and the duration t_p of pulses. The lowest uncertainty that can be obtained for the measurements of (V₁, V₂, V₃) is limited by the standard deviation of the Doppler noise ${\sigma }_{\delta }$, which is inversely proportional to t_p. This noise is generated by the random displacement of particles, the multiple echoes and the detection limits of the instrument electronics. To decrease the uncertainty, it is necessary to multiply the number of pulses n. The uncertainty on V_i’s, i ∈ {1, 2, 3}, can be reduced statistically:

$${\sigma }_V=\frac{{\sigma }_{\delta }}{\sqrt{n}}$$

(6)

Another solution is to increase the value of t_p, but this leads a reduction in spatial resolution. In order to overcome this ambiguity, ‘pulse-to-pulse coherent’ or ‘pulse coherent’ profilers were created. Their measurement principle relies on series of coherent pulses coded in phase. In order to extract the signal from the noise, the autocovariance function of these pulses is calculated [26]:

R(τ) = C(t) C*(t + τ)

(7)

C(t) is the signal received after the emission of two successive pulses and C*(t) is its complex conjugated expression. To improve the extraction, the autocovariance is assessed from the reception of M sequences of two pulses and of the average of M functions R(τ) [27]. Most often, the average Doppler frequency characterizing the Doppler shift $\delta$f_i (i ∈ {1, 2, 3}) is extracted from the phase ϕ ∈ [−π, +π] of this average autocovariance function. If f₀ is the emitted frequency, the measured radial velocity is obtained by the relationship:

V_i = ±δf_i c/(2 f₀)

(8)

According to the Teledyne RD Instrument technical note [28], if t_l is the time corresponding to pulses going there and back, we have 2π$\delta$f_i = ϕ/t_l. The expression of the velocity becomes:

V_i = ±ϕ c/(4 π f₀ t_l)

(9)

3. Perfecting of the Method

Beyond the complexity of the signal treatment performed by profilers, required in noisy environments that can be found according to particle loads of oceanic profiles, from a metrological point of view it is important to know and to master the possible drift in the frequency or phase of measurements. This drift is conditioned by the quality of the instrument’s oscillator and transducer hardware. Therefore, it is necessary to be able to compare the frequency f₀ emitted by the profiler and the frequencies f₀ ± $\delta$f_i resulting from Doppler shifts, to reference frequencies. In fact, the software developed by the manufacturers only gives access to the calculated velocities V_i or to referenced velocities (V_x, V_y, V_z) or (U, V, W).

In a technical note [29], the Teledyne RD Instruments manufacturer proposes fitting a hydrophone on the transducers of its current meters to verify and adjust their electronic gain. Thus, the idea arose to use this kind of hydrophone to simulate echo reception, and to link it to a Rigol DSG3060 frequency generator. Figure 3 shows a RDI hydrophone on two kinds of profilers. Transducer–hydrophone contact is made by silicone gel vacuum grease (Bluesil ^TM) of a relative density 1.0, in order to achieve airtightness. The test bed is located in a laboratory where the temperature is not controlled by air conditioning, but where the temperature is however stable on the short term during measurements. On the long term it can vary of ±1 °C around 21 °C.

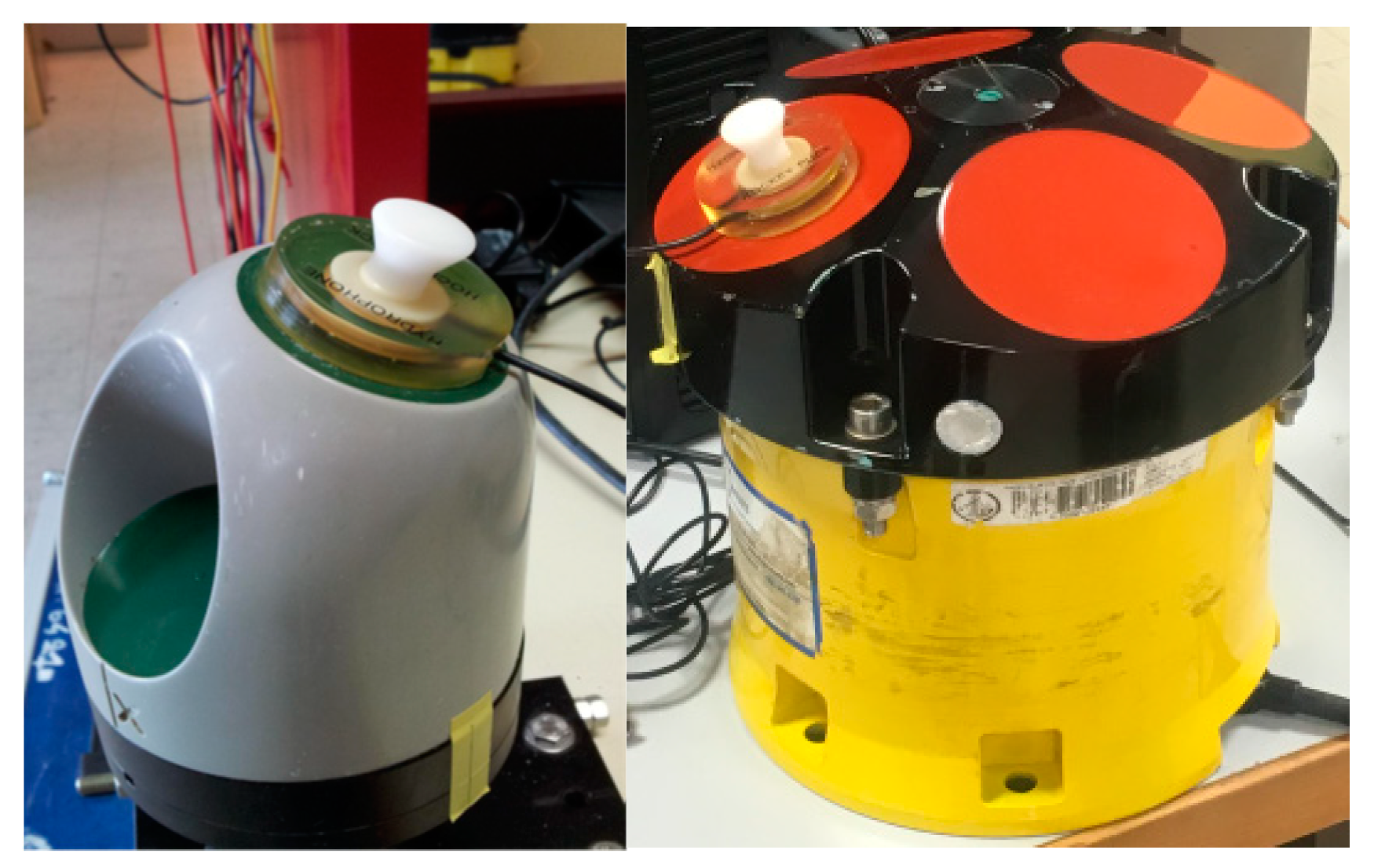

As current meters and profilers possess different active surfaces and emitting frequencies, according to the type of instrument, it was necessary to use three kinds of plane hydrophone. The first, called RDI, has an active diameter d of 27 mm. Its bandpass is between 400 and 600 kHz. For the second, called UB-tr7 from the company Ubertone, it is of 7 mm. Its bandpass is between 1 and 3 MHz. Due to the small transducer diameter of some Nortek profilers, a third hydrophone with a diameter of 3 cm was acquired: RESON TC3027 centered on 1 MHz.

Considering the frequency f₀ of the sinusoidal signal transmitted in the pulses emitted by the profiler, from relationship (8) it is possible to determine a frequency variation range corresponding to its variation range in velocity. It is also possible to determine an increment step $\delta$f_s, knowing the resolution in velocity $\delta$v of the instrument. The generator is therefore adjusted to transmit a variable sinusoidal frequency f₀ ± k$\delta$f_s, the value of k allowing to explore the velocity range.

When the transducer of the profiler is used as a receiver, it sees this signal as an echo. When used as a transmitter, the pulses reflect on the hydrophone but they cannot be detected as their time of arrival is within the blanking distance. The blanking distance corresponds to the time required by the profiler to stop pulse transmission and to switch the transducer to the receiver mode. When the hydrophone does not cover the entire surface of the transducer, one part of the sound wave propagates through air and can be reflected by any objects on its trajectory. The difference between the impedance of the piezo-electrical transducer (which is very high) and that of the air (which is very low), however, results in nearly 99% of pulse energy being reflected to the interface. The other part, along with pulses transmitted by the profiler’s other transducers, can increase the detection noise according to the wavelength of the instrument. All this equipment is remote controlled by a program developed using LabVIEW© software. It automates testing by decoding the messages from different profiler models, to determine and change their configuration, to extract speed values and to drive the frequency generator.

Using a frequency generator allows the adaptation of the power of the signal heard by the profiler. It can be adjusted to optimize the noise of the measured speeds, taking into account the saturation of the measurement channel. It is also possible to extract the amplitude of the signal (in count) received by each beam, from the messages sent by the instrument. By observing count changes over the long term, it could be possible to monitor changes in current meter sensitivity and then to prevent drift of its amplification hardware.

Relationship (8) includes the speed of sound c. When the instrument is used in situ, the user can directly set its value in the software, if measured by a sound velocity sensor, or he can use a relation of calculation based on temperature and pressure measurements made by the profiler (salinity must be determined by another instrument or another method). The issue arose of determining this value in the case of this measurement bed. The value of c was fixed to obtain the broadest possible range of velocities, by staying compatible with the speeds of sound in the ocean. The value 1525 m/s was chosen to obtain profiler responses in the range of ±6 m/s (except for the Nortek versions called DeepWater where f_r is different and leads phase wrapping). This value is programmed in the instrument and in the LabVIEW program to calculate a reference velocity V_ref. It is important that the device under test (DUT) and the LabVIEW program contains the same value of c to see the same speed variations for given frequency variations.

Calibration consists in calculating a speed deviation $\delta$v from the Doppler effect formula, such that:

$$\delta v=V_{ref}-V_i=\frac{c}{2}\left(\frac{\delta f_{ref}-\delta f_i}{f_0}\right)$$

(10)

with $\delta$f_ref = k$\delta$f_s. $\delta$f_i is defined by relationship (8), i being the index of the instrument’s transducer.

4. Speed Measurement and Calibration Uncertainties

Current meter oscillators can drift over time and with temperature variations. In order to use relationships (8) and (10), an initial problem arises with the determination of f₀. The manufacturer Nortek indicates in its documentation that a given number of parameters used in the calculations of velocities have fixed values in the instrument. Transducer frequency f₀ is one of such fixed values. It also indicates that the accuracy of measured velocities should be 1% of the measured value ±5 mm/s. This accuracy was probably deliberately underestimated by the manufacturer due to a lack of knowledge of sound velocity in the medium at the time of measurements, the influence of this one being close to 1% of the measured velocities. It is therefore, a maximum tolerance.

By the calculation of the derivative of V_i versus f₀ from relationship (8), we can see that the relative variations of f₀ are proportional to the relative variations of V_i. For example, an f₀ error of 0.1% would correspond to an error of 3 mm/s for a speed of 3 m/s. This also corresponds to 400 Hz for a profiler at 400 kHz and 2000 Hz for a 2 MHz profiler. According to the measurements made with the Shom profilers, the deviations in f₀ are generally inferior to 0.02%. The influence of the accurate knowledge of its value is therefore negligible for the calculation of V_i.

The combined uncertainty on speed deviations $\delta$v has been assessed following the method of the guide for uncertainty measurement (GUM) edited by the BIPM [30]. As the variables in relationship (10) are independent from each other, the combined standard uncertainty $u_{\delta v}^{}$ of the deviations in velocities obtained during the calibration, consist in the quadratic sum’s calculation of the partial derivative of each variable multiplied by their estimated uncertainty. The partial derivatives represent in fact, the sensitivity of each variable, and therefore the weight of each variable, to the variations of the output quantity $\delta$v. That gives the following relationship:

$$u_{\delta v}{}^2={\left(\frac{\partial \delta v}{\delta f_{ref}}\right)}^2{u}_{\delta fref}^2+{\left(\frac{\partial \delta v}{\delta f_i}\right)}^2{u}_{\delta fi}^2+{\left(\frac{\partial \delta v}{\delta f_0}\right)}^2{u}_{f0}^2$$

(11)

where we consider that c is a constant whose value is given for the calculation. This consideration is justified by the fact that for this test, c is a numerical value programmed in the DUT and the LabVIEW program. $u_{\delta fref}^{}$ is the uncertainty of the reference frequency, $u_{\delta fi}^{}$ the uncertainty of the Doppler measurement made by the instrument, and $u_{\delta f0}^{}$ the uncertainty of the emitted frequency. Relationship (11) gives:

$$u_{\delta v}{}^2={\left(\frac{c}{2f_0}\right)}^2\left[u_{\delta fref}^2+u_{\delta fi}^2\right]+{\left(\frac{\delta v}{f_0}\right)}^2{u}_{f0}^2$$

(12)

In relationship (12), $u_{\delta fi}^{}$ can be assessed by taking into account the maximum tolerance given by the manufacturer. From relationship (8) we can write:

$$u_{\delta fi}^{}=\frac{2u_{vi}{f}_0}{c}$$

(13)

u_vi is the uncertainty of the velocity given by the transducer i. Expression (12) becomes:

$$u_{\delta v}{}^2={\left(\frac{c}{2f_0}\right)}^2{u}_{\delta fref}^2+u_{vi}^2+{\left(\frac{\delta v}{f_0}\right)}^2{u}_{f0}^2$$

(14)

As explained in Section 5, it was necessary to measure f₀ accurately in order to eliminate any errors relating to the principle of the Doppler shift measurement test. Thus, u_f0 represents the standard uncertainty of its measurement with a frequency meter. u_f0 has been evaluated to be 0.5 Hz. As the numbers given by the manufacturer concerning measurement accuracy are considered as a maximum tolerance, u_vi was assessed by dividing them by the square root of 3, according to the rules of reference [30]. Despite this division, calculations show that this source of uncertainty largely dominates all the others.

5. Results Obtained

During the tests, profilers are programmed with an integration time of 1 s, a minimum blanking distance and only one measurement cell to reduce the test duration. As echo reception is not disrupted by the noise inherent to in situ conditions of use, profilers are used in the narrowband mode.

During the initial measurements, the central frequency transmitted by the generator was set to the frequency that the profilers were supposed to emit: 400 kHz, 600 kHz, 1 MHz, or 2 MHz according to their type. It appeared that the deviation curves we obtained systematically displayed slopes and offsets that varied according to the instrument.

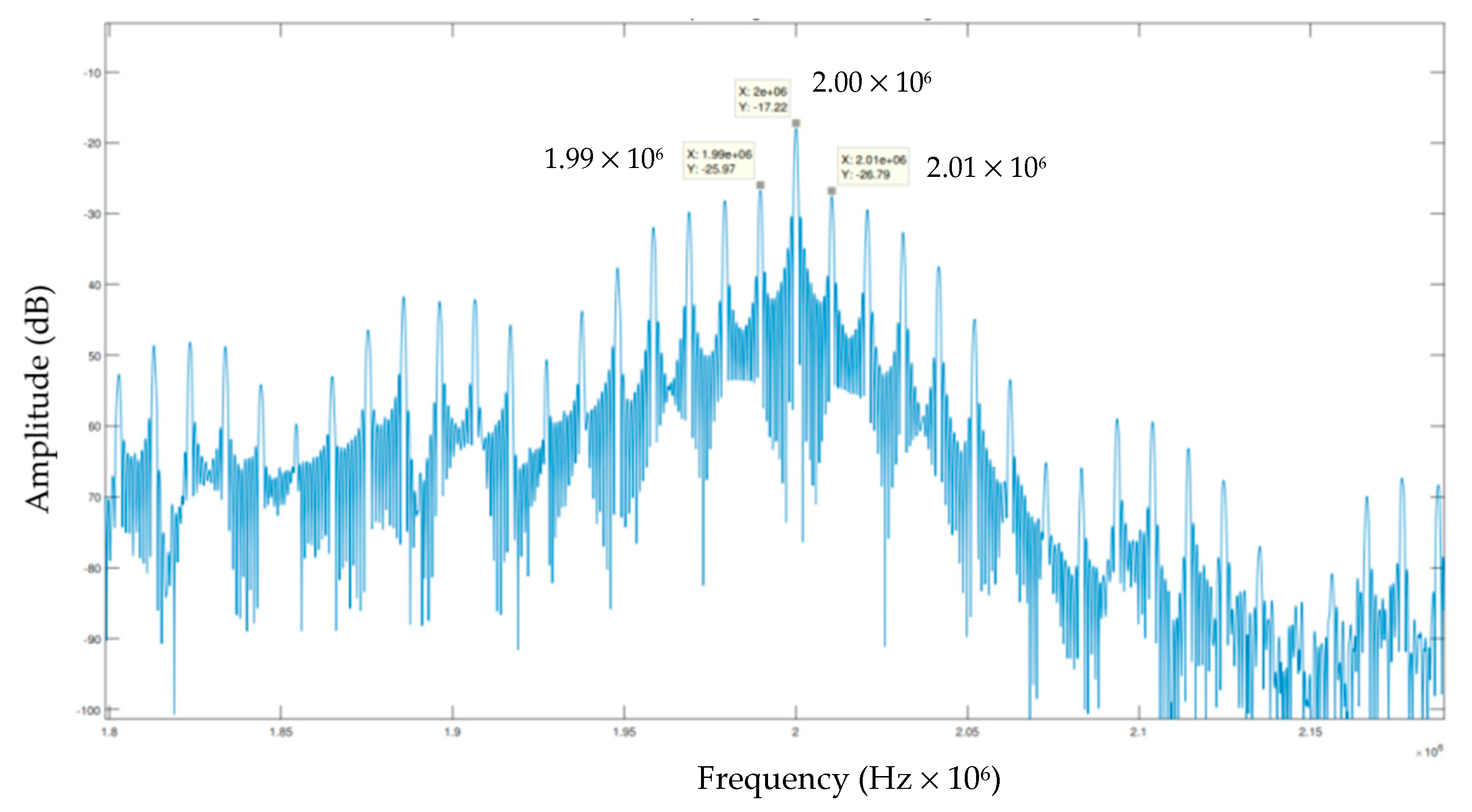

To dispel any doubts concerning the origin of these shifts, measurements were made by progressively varying the frequency f₀ transmitted by the generator in order to observe its influence on the offsets. As was noticeable, the hydrophone was used as a receiver and connected to a digital oscilloscope. A fast Fourier transform (FFT) of the digitized signal revealed frequency shifts of a few hertz to a few tenths of hertz depending on the instrument, and it allowed the accurate measurement of pulse frequencies emitted by the profilers. Figure 4 shows the result of the FFT performed on pulses transmitted by a Nortek Group 2 MHz AQD.

In fact, though the influence of the accurate knowledge of f₀ on the velocity calculation is negligible, during this test it is necessary to determine it accurately in order to assess the measurement trueness of the Doppler shifts made by the instrument.

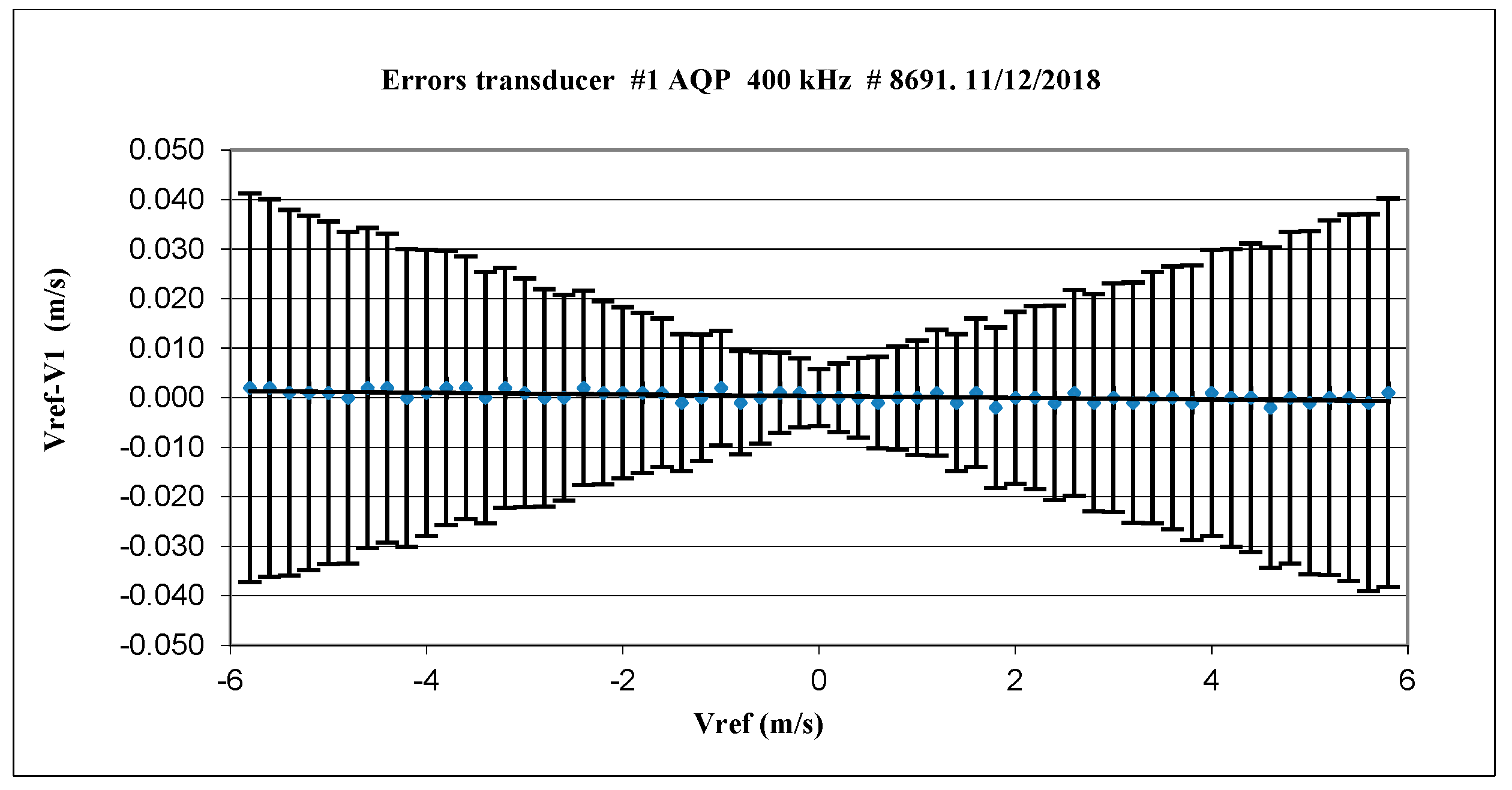

Figure 5 shows the result obtained on profiler # 8691 after adjustment of the frequency transmitted by the generator, on the frequency of the instrument under test. The very low values of measured errors (<0.002 m/s) show the accuracy that can be obtained with this test. Concerning Shom’s stock of current meters and profilers, most of those that work well, give answers of this type and of this amplitude. Error dashes represent the expanded uncertainty of the calibration obtained with relation (14) and expressed with a coverage factor of 2.

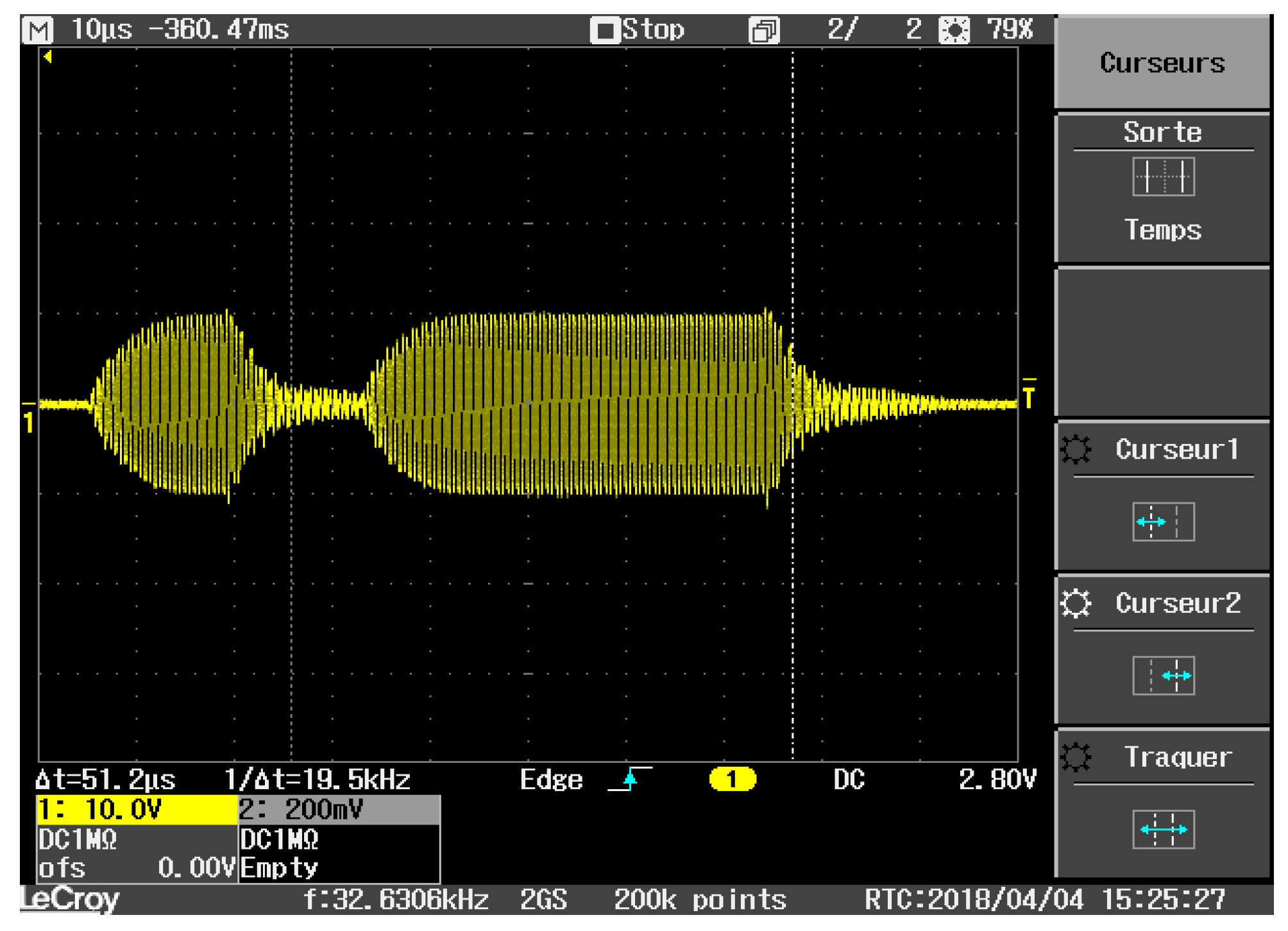

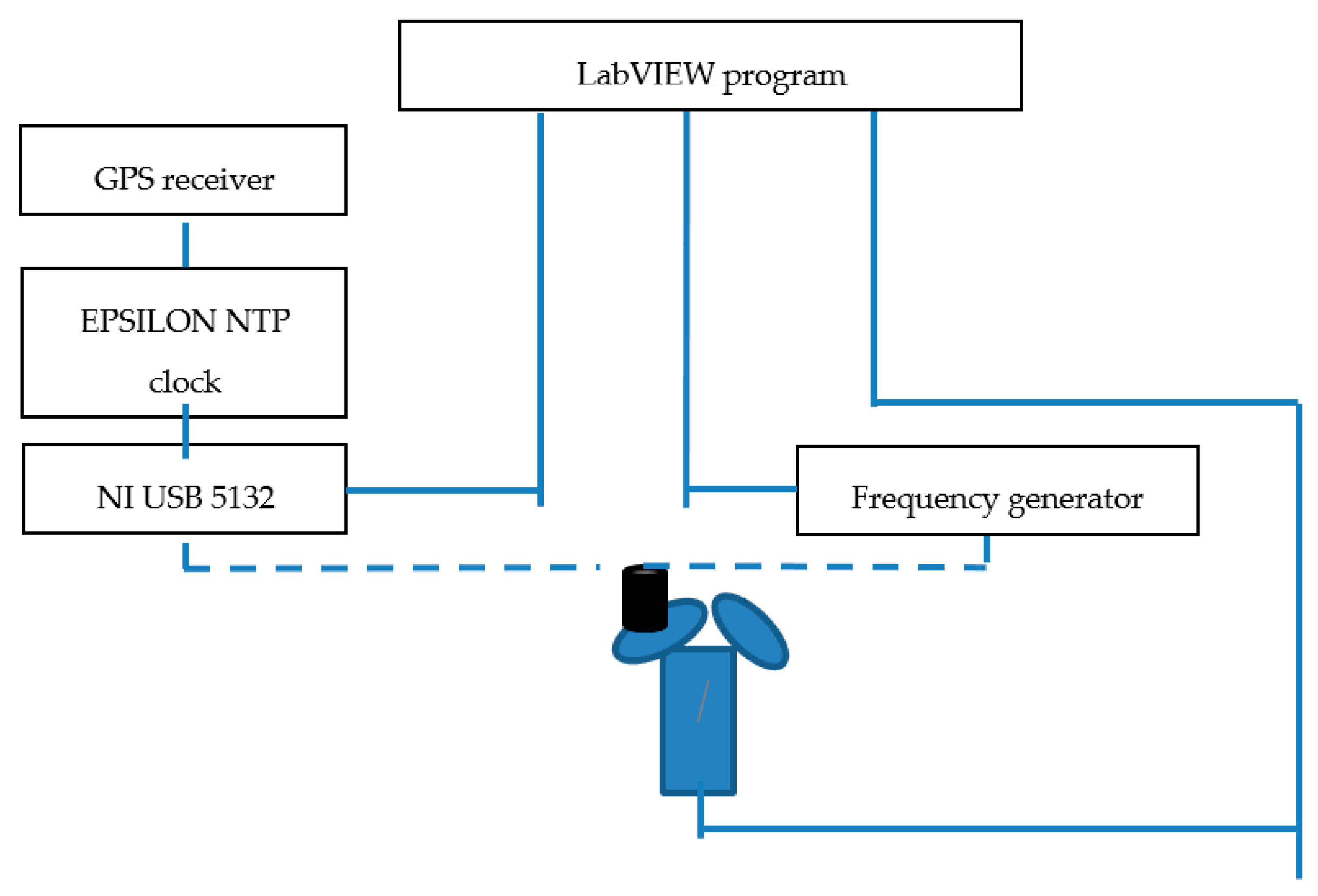

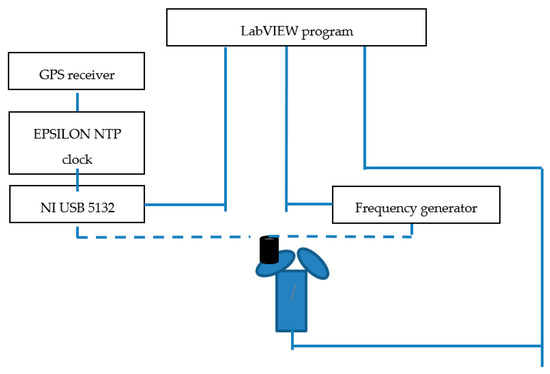

The test procedure was modified to take into account the frequency shifts of the profiler’s oscillators. A high-speed digitizer NI USB 5132 was acquired. In order to warrant its stability and accuracy in frequency, it was linked to an external Epsilon NTP (Network Time Protocol) clock by TEMEX Telecom, containing a voltage-controlled oscillator (OCXO at 10 MHz), synchronized to a GPS signal via an antenna. The resulting average accuracy is ±2 × 10⁻¹² at 10 MHz over 24 h. GPS time and frequencies are references directly linking the measurements to the system of units [31]. Figure 6 describes the relationships between the principal elements of the calibration bed.

About 123 instruments were tested between June 2018 and July 2020 and this test bed allowed faults to be detected on some of them.

Table 1. Table summarizing the main faults detected, the number of tests per type of instrument and the corresponding percentages. The faults detected are generally minor except for 2 instruments.

	nb Tested	0.01 < Noise < 0.05 m/s	Non-Linearity Default	Offset > 0.01 m/s	Slope # 1	Out-of-Order
AQD	65	5	2	3	1	0
AQP	44	4	0	2	0	2
AWAC	7	2	0	0	0	0
Workhorse	7	4	0	0	0	0
Total	123	15	2	5	1	2
%		12.2	1.6	4.1	0.8	1.6

gives statistics of some faults. The line ‘AQD’ includes current meters 200 m, 2000 m, 3000 m, and 6000 m. The line ‘AQP’ includes 400 kHz, 600 kHz, and 1 and 2 MHz. Tested AWACS (Acoustic Waves And Current profiler) are 600 kHz and 1 MHz. Workhorse are ADCPs 300 kHz. The detected defaults are generally minor and the instruments continued to be used except for two of them where at least one transducer was out-of-order (see the text below).

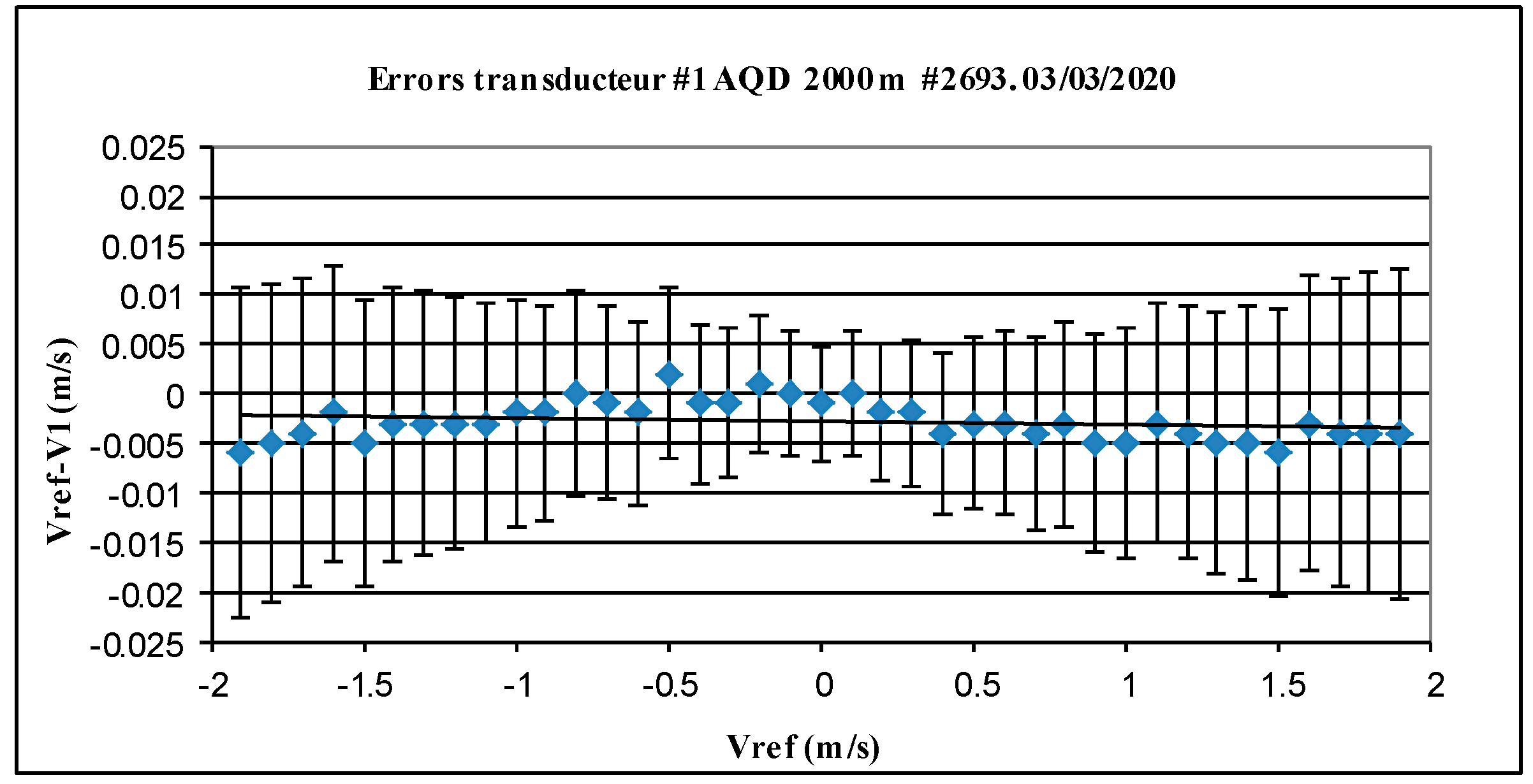

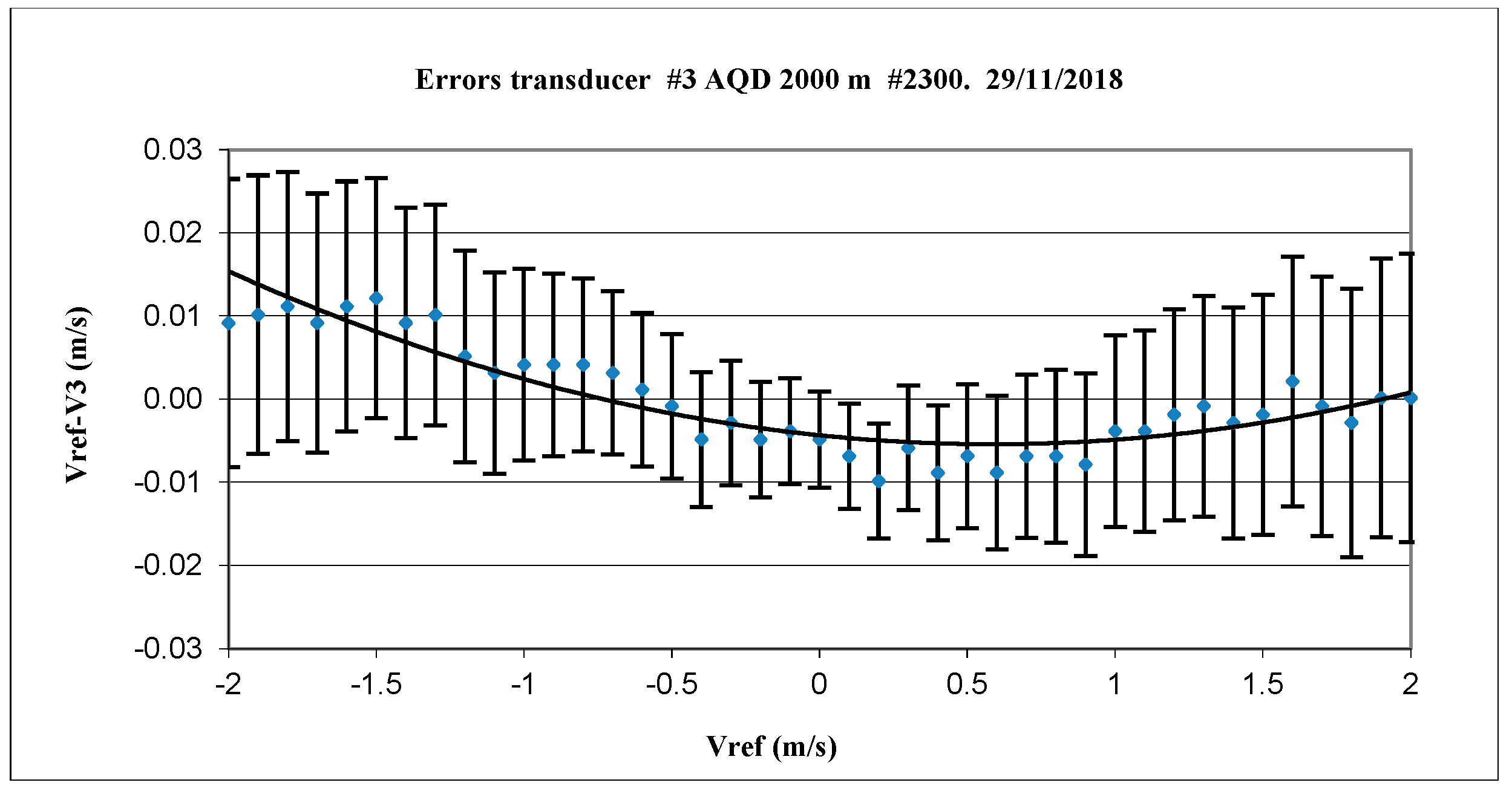

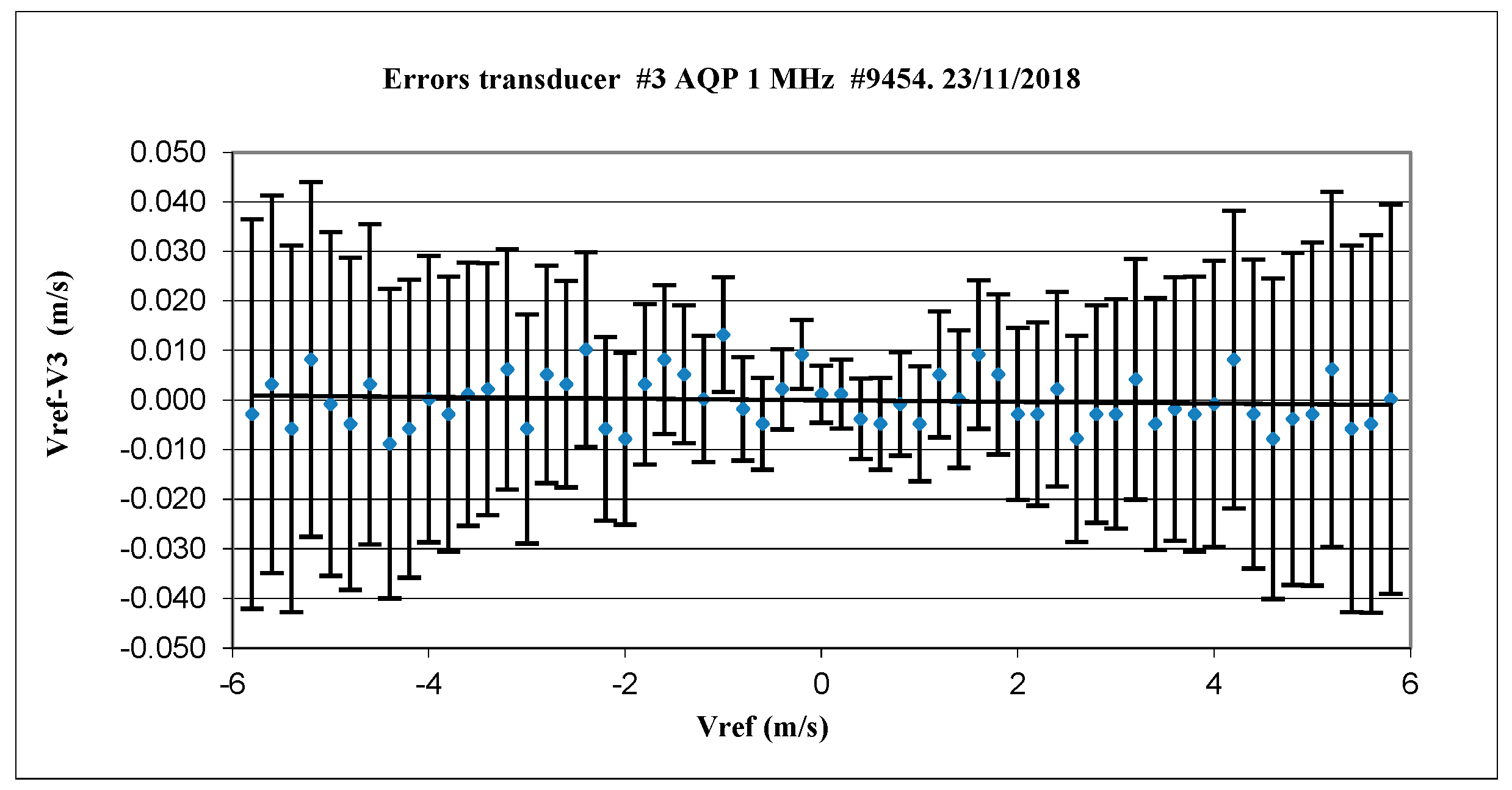

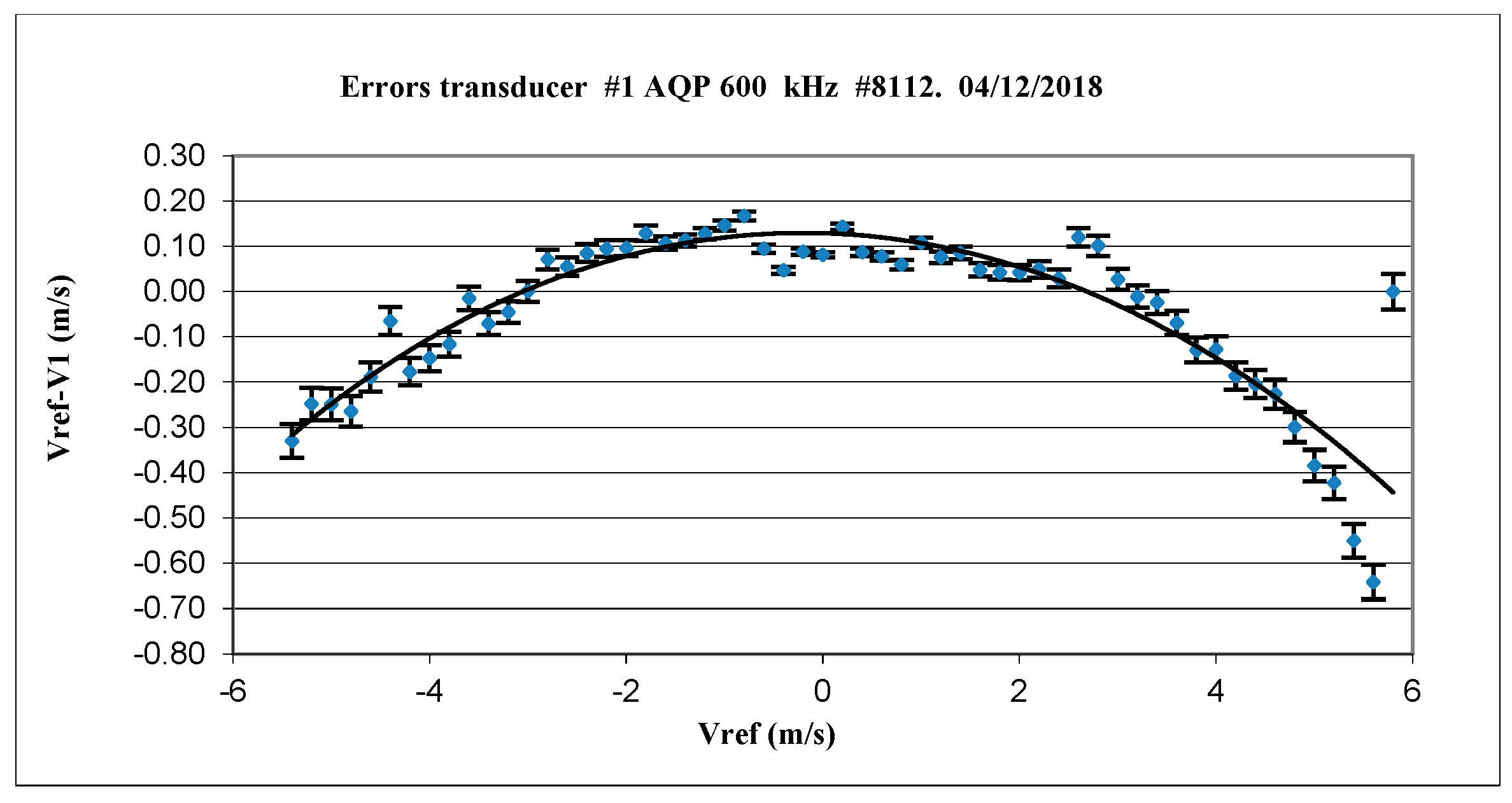

Figure 7 and Figure 8 give examples of noisy transducers found during tests. The origin of this noise is undetermined. Some other transducers present small offsets like in Figure 8, others present small non-linearities as in Figure 9. One was found out-of-order and another one with a response completely out of tolerances, as shown in Figure 10. Concerning this AQP, its transducer #2 was also out of order, though its transducer #3 was in good working order. This defect could probably have been detected by a towing tank test because of its impact on the calculation of V_x, V_y, and V_z, though the origin of this fault and the small faults in Figure 7, Figure 8 and Figure 9 could not have been detected with this accuracy, due to the global test aspect of this method.

6. Conclusions

Current profilers are currently used in large numbers by organizations making oceanographic measurements, but they have been the subject of too few metrological controls, particularly due to their measuring range and because of the complexity of their operating algorithms.

The method perfected, along with the software developed, allows the logging and calibration of most of current meters and profilers manufactured by Nortek AS and RD Instruments. Associated with the compass calibration platform, this test bed allows complete control of the sensors fitted to current meters and current profilers.

It also improved our knowledge of profilers, allowing us in particular to state that the velocity range given in the documentation depends on the speed of sound through the medium. It also allowed us to state that the measurements of the Doppler effect are generally highly reliable. The in situ measurement of uncertainty depends, first and foremost, on the determination of the speed of sound and on particle concentrations along the profiling range of beams. Sound velocity is generally poorly known in places where the profilers are used and over the whole trajectory of pulses. Particle concentrations are also poorly known over the sound range of the instruments, but the high sensitivity of their transducers, the accuracy of the Doppler shift measurements and the complexity of the signal computation made by their software provide sufficiently accurate current speed measurements if their transducers can be shown to function properly using a calibration bed.
