1. Introduction
The offshore oil and gas industry involves many risks of explosions for personnel and installations. Explosions can occur under certain conditions in the presence of a mixture of air and released hydrocarbon gases due to a number of different reasons, including blowouts, the use of inadequate equipment or its malfunction, negligence, lack of training, poor or incomplete maintenance, etc., while sources of ignition can include naked flames, electrical sparks, static electricity, hot surfaces, friction, ionizing radiation, ultrasound, hot gases, etc. (e.g., methane is capable to cause an explosion in concentration between 4.4% and 16.5% in its mixture with air, while the ignition temperature for methane should be ≥595 °C).
Protection against explosions on mobile offshore drilling units needs to be arranged through worldwide accepted regulations at the lowest possible cost, which will be accepted by most host countries, while on fixed platforms, it needs only to fulfill legislative requirements of the host country. Two main approaches for protection against explosions are the “International Electrotechnical Commission System for Certification to Standards Relating to Equipment for Use in Explosive Atmospheres” (IECEx) [
1] and the European “ATmosphere EXplosible” (ATEX) schemes (the ATEX approach can be treated as a regional European version of the IECEx approach, while certain differences can be noted) [
2,
3,
4].
Offshore oil and gas operations typically start with a relatively short one-off drilling phase performed by mobile offshore drilling units [
5], which is shortly after replaced with a long-lasting exploitation phase that can take several years and even decades and is performed from fixed production platforms. Legislative requirements for protection against explosions on fixed platforms and offshore drilling ships are very often different (also, the legislatures treats a certain type of ships as fixed platforms, e.g., floating production storage and offloading units are typical ships in terms of shape, navigation, and propulsion, but they are treated as fixed facilities in terms of legislative requirements for protection against explosions because, as a rule, they are settled for a long time or even permanently at one place; although anchored in a similar way as ships).
The EU/EEA and the USA require different levels of protection against explosions for oil and gas mobile offshore drilling units compared with their related requirements imposed for fixed offshore platforms and offshore (
Table 1). Both the ATEX and IECEx schemes provide a high level of protection against explosions but with some differences that are described in this note [
6,
7].
2. Main Certification Schemes for Protection against Explosions
The principles for the classification of equipment proofed for use in areas with a higher risk of explosions are similar in most countries, and they are based on requirements introduced by the International Electrotechnical Commission (IEC) [
8]. Despite this fact, many local modifications and variants exist.
ATEX protection is described in
Section 2.1 and IECEx in
Section 2.2. Although based on the almost same principles but with some modifications, as described in
Section 2.3, various certification schemes for protection against explosions are available and required for use in different countries.
Section 2.3.1 describes the situation in the USA,
Section 2.3.2 in Canada,
Section 2.3.3 in the Eurasian Union (Armenia, Belarus, Russia, Kazakhstan, and Kyrgyzstan),
Section 2.3.4 in China,
Section 2.3.5 in Brazil, and
Section 2.3.6 in Australia, together with New Zealand.
2.1. European “ATmosphere Explosible” (ATEX)
Two European ATEX directives are available for protection in explosive atmospheres (ATEX is a French acronym for “ATmosphere EXplosible”):
- (1)
1999/92/EC ATEX directive for the protection of the user (personnel and workers)—“Minimum requirements for improving the safety and health protection of workers potentially at risk from explosive atmospheres”;
- (2)
2014/34/EU ATEX directive for product safety—“Equipment and protective systems intended for use in potentially explosive atmospheres,” a new version of 94/9/EC.
Using the ATEX scheme, equipment shall be certified through one of the European notified bodies listed in the “New Approach Notified and Designated Organizations” (NANDO) database. The obligatory certification has been in force since 1 July 2003 through the 94/9/EC directive and since 20 April 2016 through the related recast 2014/34/EU of the previous directive. Both ATEX directives for product safety (2014/34/EU) and the protection of the user (personnel and workers) (1999/92/EC) are mandatory in the EU/EEA.
The new goal-oriented European approach [
2], which has been in force since 2000, allows the use of any available technical standard that can assure application of the obligatory directives, such as ATEX. Instead of referring to a certain list of harmonized standards (the European Standards Committee (CEN) and the European Committee for Electrotechnical Standardization (CENELEC) define the harmonized standards), the directives prescribe Essential Health and Safety Requirements (EHSRs) that shall be fulfilled. The use of harmonized technical standards gives only a presumption of conformity to the directives, while compliance only to the Essential Health and Safety Requirements (EHSRs) is considered full conformity (to achieve that, any appropriate available technical standard can be used).
The ATEX directive for product safety covers electrical equipment, nonelectrical equipment such as mechanical, hydraulic (pumps), and pneumatic equipment, including assemblies, protective systems, components (push button, relays, valves), controlling and regulating devices, etc. The ATEX directive for product safety deals with both electrical and nonelectrical equipment. Such equipment is divided into (i) Groups and (ii) Categories and can be placed in (iii) Zones, as shown in

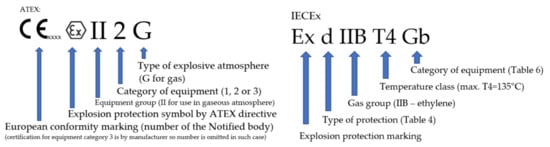

Table 2.:
For Categories 1 and 2, the procedure to affix the CE marking following appropriate type-examination procedures shall be issued by a notified body, while for Category 3, the manufacturer can ensure full conformity. The European auxiliary “Ex” mark, together with the European general mark for conformity “CE,” shall be affixed on the certified equipment.
Group II of equipment for use in offshore oil and gas installations is divided into Categories, which can be used or installed in hazardous Zones, as given in
Table 3.
Categories of equipment and Hazardous Zones [
15,
16,
17,
18,
19] can be determined by using any of the available technical standards. For electrical equipment, IEC 60079: Explosive atmospheres—CENELEC 60079 series can be used, and for nonelectrical equipment, EN 13463 series (EN ISO 80079) can be used. The types of protection are given in
Table 4.

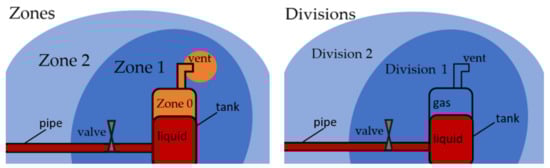

Zones are determined by the grade of release: (1) continuous grade, (2) periodically or occasionally, and (3) normally not to expect; by the degree of ventilation: (1) high, (2) medium, and (3) low; and by availability of ventilation: (1) good, (2) fair, and (3) poor. The potentially explosive atmosphere can be prevented from igniting if the surface temperature of the item of equipment is lower than the ignition temperature of the surrounding gas, while the temperature classes for Europe and the USA are maximal (T
1 = 450 °C, T
2= 300 °C, T
3 = 200 °C, T
4 = 135 °C, T
5 = 100 °C, and T
6 = 85 °C (subcategories exist in the USA)). The gas groups are I—methane, IIA—propane, IIB—ethylene, IIC—acetylene, and hydrogen, etc. (ignition energy is I—280 μJ, IIA—160 μJ, IIB—80 μJ, and IIC—20 μJ) [
20,
21].
Use of the 2014/34/EU directive for product safety is obligatory in the EU/EEA, both onshore and offshore, with the exception of mobile drilling units operated on the EU/EEA continental shelf. On the other hand, the 2013/30/EU directive for overall oil and gas offshore safety requires the use of all the best worldwide available technical standards [
22] and prescribes the use of the IMO MODU Code, “Code for the Construction and Equipment of Mobile Offshore Drilling Units” by the International Maritime Organization, which, in practice, requires the use of the IECEx scheme for protection on mobile drilling units.
2.2. “International Electrotechnical Commission System for Certification to Standards Relating to Equipment for Use in Explosive Atmospheres” (IECEx)
The “International Electrotechnical Commission System for Certification to Standards Relating to Equipment for Use in Explosive Atmospheres” (IECEx) scheme is not mandatory [
1], but it is widely used in the offshore oil and gas industry and especially on mobile offshore drilling units in the US and EU/EEA’s offshore jurisdictions.
The IECEx certification scheme is operated by International Electrotechnical Commission (IEC), and it is based on its technical standards [
23,
24,
25,
26]. Around 30 nations participate in the IECEx scheme for protection against explosions, and many are based on it, such as the already described European ATEX, as well as many others described in
Section 2.3. A nation without its own national scheme for protection against explosions can adopt the IECEx scheme to fill its legislative gaps using a pretailored model for regulation in the sector of equipment used in environments with an explosive atmosphere through the United Nations Economic Commission for Europe (UNECE) [
27].
The offshore oil and gas industry under the IECEx scheme uses the same classification of equipment as under the ATEX protective scheme: Groups, Categories of equipment, and Hazardous Zones (Technical Committee 31 of the IEC is responsible for equipment for explosive atmospheres). The IEC 60079 series of Technical Standards can be used, but in the offshore industry, the Recommended Practice by the American Petroleum Institute API505 “Classification of Locations for Electrical Installations at Petroleum Facilities Classified as Class I, Zone 0, Zone 1, and Zone 2” is more used (a similar approach is used in the US onshore industry through the NEC505, as described in
Section 2.3.1) [
16]. The requirements between these two approaches for Hazardous Zones are similar; the IEC 60079 is more analytical, while the RP API505 is more prescriptive [
6].
Certificates issued by the IECEx scheme are listed on its website; therefore, their validity can be verified in a very convenient way. Under the IECEx scheme, four types of certificates can be issued:
- (1)
Equipment—Only technical standards issued by Technical Committee 31 “Equipment for explosive atmospheres” of the International Electrotechnical Commission (IEC) can be used for the certification of equipment (only electrical equipment can be certified), while the certification through an IECEX Certification Body (ExCB) is required for all Categories of equipment (Categories 1, 2, and 3 in IECEx Ga, Gb, and Gc, respectively) (ATEX allows for the self-certification of equipment by the manufacturer in Category 3);
- (2)
Service Facilities—In addition to the certification of equipment, the IECEx scheme allows the certification of the repair and overhaul of equipment (nothing similar is available in the ATEX scheme);
- (3)
Persons—Certification for qualified persons who were properly trained and meet the prerequisites to implement safety requirement required by the IECEx scheme (nothing similar is available in the ATEX scheme);
- (4)
Conformity Mark—It is issued by approved IECEx Certification Bodies (ExCBs) for the equipment manufactured and tested using appropriate IEC technical standards.
2.3. Other Main Certification Schemes for Protection against Explosions
Possession of the IECEx or ATEX certifications cannot replace the obligatory certification imposed by most countries but can facilitate and support a procedure to apply for it. The IECEx Test Report is likely to be accepted as a base for national certification in the USA, Canada, Russia, Ukraine, Belarus, China, South Korea, India, Brazil, Argentina, Chile, South Africa, etc. Some countries, such as China, also accept the ATEX certificate as a base for its national certification. On the other hand, the ATEX Test Report can be used as a base for a national certificate in Hong Kong (special administrative region of China), Taiwan (de facto different legislation apply, but de jure part of China), Vietnam, Indonesia, etc. Finally, in some countries, such as in Japan, many domestic tests are required, and the IECEx or the ATEX Test Reports cannot facilitate the procedure.
2.3.1. USA
The Occupational Safety and Health Administration (OSHA) requires certification against explosions through one of its Nationally Recognized Testing Laboratories (NRTLs). In the National Electrical Code and National Fire Protection Association prescript NEC/NFPA 70 for hazardous areas, NEC500 is based on a two-division classification of hazardous locations, while NEC505 is based on a three-zone classification. The three-zone area classification system is compatible with the IEC 60079 series of technical standards for explosive atmospheres; such an approach is compatible with the IECEx scheme and can be used as a basis for obtaining certification for the protection of equipment installed/or used on mobile offshore drilling units on the US offshore continental shelf. Certified equipment for use in areas protected against explosions shall be marked with a label of a Nationally Recognized Testing Laboratory (NRTL). In the offshore sector in the USA, the Bureau of Safety and Environmental Enforcement (BSEE) has authority over fixed platforms and the United States Coast Guard (USCG) over mobile units (ruling published in the Federal Register (Vol. 80, No. 61) on 31 March, 2015, and came into force on 2 April 2018). The IECEx certificates are not directly accepted under the National Electrical Code (NEC) in the USA, but the IECEx Test Report can facilitate appropriate US certification (only electrical equipment can be certified against explosions).
2.3.2. Canada
Similar rules for protection against explosions as in the USA are in force in Canada. The Standards Council of Canada (SCC) requires certification through one of its recognized certification bodies, while product approval related to electrical safety is under the jurisdiction of Provincial Governments. Classification of hazardous areas is based on the three-zone classification, as prescribed by the Canadian Electrical Code (CEC) (two-division classification is also accepted) and is compatible with the IEC 60079 series of technical standards for explosive atmospheres. Certified equipment shall be marked with a label of a recognized Canadian certification body. The IECEx certificate can be used as a basis for obtaining Canadian certification.
2.3.3. Eurasian Union
The Eurasian Union (ex. Customs Union; Armenia, Belarus, Russian Federation, Kazakhstan, Kyrgyzstan) requires technical regulations GOST/CU-TR on the safety of equipment in explosion hazardous environments issued by the Euro-Asian Council for Standardization, Metrology, and Certification (EASC). Only electrical equipment can be certified (in practice, only equipment that satisfies at least the ATEX level of protection can be certified). The appropriate product conformity mark of the Eurasian Union shall be affixed on the certified equipment.
2.3.4. China
The Chinese State Administration for Market Regulation (SAMR) requires a China Compulsory Certificate (CCC) Ex certification for protection against explosions (ATEX and IECEx certificates are not accepted, but if they exist, they can significantly reduce the work and preparation effort for the CCC certification). The China Compulsory Certificate mark, commonly known as a CCC mark, shall be affixed on the certified equipment.
2.3.5. Brazil
The Brazilian Ministry of Development, Industry and Foreign Trade, requires a certification against explosions by the National Institute of Metrology, Standardization and Industrial Quality (INMETRO). Brazilian certification bodies accept IECEx tests as a base for the certificate [
28]. The INMETRO mark shall be affixed on the certified equipment.
2.3.6. Australia and New Zealand
In Australia and New Zealand, an ANZEx certification against explosions is required. To obtain it, an IECEx certificate is sufficient, and only certain national differences need to be tested additionally (the IECEx certification will be directly accepted for Group II equipment).
4. Conclusions
All European Directives are designed to protect the European single market in the first place, but in respect to protection against explosion on mobile offshore units for oil and gas drilling in the EU/EEA offshore continental shelf, some concerns exist if the European market is fully protected. Furthermore, mobile units in the EU/EEA offshore jurisdiction are excluded out of the scope of the ATEX Directive 2014/34/EU-ATEX by Article 1, Section 2(e): “This Directive shall not apply to: seagoing vessels and mobile offshore units together with equipment on board such vessels or units.” On the other hand, the US market is fully protected due to the fact that the US Coast Guard requires the use of domestic protection scheme on the US offshore continental shelf for foreign mobile drilling units, while foreign-flagged vessels that have never operated, but intend to operate under the US offshore jurisdiction, should be certified through the IECEx scheme against explosions by a domestic US-based Certified Body (ExCB). In all other cases, full compliance with US regulations is obligatory.
No main differences between the ATEX and the IECEx systems for protection against explosions are detected. A shortcoming for the ATEX scheme is due to the allowed self-certification for the equipment Category 3, which should be placed in Hazardous Zone 2, while for the IECEx in the fact that it does not cover nonelectrical equipment.
Mobile offshore drilling units [
35,
36,
37,
38] should be preferably certified through a US-based Certified Bodies (ExCB)) using the IECEx protective scheme against explosions because such units will be allowed to operate with minimized additional costs, both in US and EU/EEA’s offshore jurisdictions (and very possible worldwide). On the other hand, fixed offshore platforms should be certified strictly following the rules of host countries.
The following are used in this paper:
1999/92/EC ATEX European directive: Minimum requirements for improving the safety and health protection of workers potentially at risk from explosive atmospheres
2013/30/EU: European directive for safety of offshore oil and gas operations
2014/34/EU ATEX European directive (a new version of 94/9/EC): Equipment and protective systems intended for use in potentially explosive atmospheres
ANZEx: certification scheme against explosions in Australia and New Zealand
API: American Petroleum Industry
API500: “Classification of Locations for Electrical Installations at Petroleum Facilities Classified as Class I, Division 1, and Division 2;” API505a, b, and c merged in 1991 in a single API 500 document
API500A for electrical installations in petroleum refineries, finalized in 1955, initially without suffix A
API500B for electrical installations at drilling rigs and production facilities on land and on marine platforms, finalized in 1961
API500C for electrical installations at pipelines, finalized in 1966
API505: “Classification of Locations for Electrical Installations at Petroleum Facilities Classified as Class I, Zone 0, Zone 1, and Zone 2;” issued in 1997
ATEX: in French: ATmosphere Explosible
Brazilian Ministry of Development, Industry and Foreign Trade
BSEE: Bureau of Safety and Environmental Enforcement
Categories: Categories of equipment (1 or Ga—very high protection, 2 or Gb—moderate, 3 or Gc—lowest protection against explosions)
CCC Ex: Chinese mark for protection against explosions
CE: EU/EEA conformity mark
CEC: Canadian Electrical Code
CEN: European Standards Committee
CENELEC: European Committee for Electrotechnical Standardization
CENELEC IEC 60079 “Explosive atmospheres;” a series of technical standards
Coast Guard: deal with protections against explosion on mobile units in US waters; Federal Register (Vol. 80, No. 61) on 31 March 2015 and in force from 2 April 2018
EASC: Euro-Asian Council for Standardization, Metrology, and Certification
EEA: European Economic Area
EHSRs: Essential Health and Safety Requirements of a European directive
EN 13463 and EN ISO 80079 “Non-electrical equipment for explosive atmospheres”: Technical standards
EU: European Union
Eurasian Union (ex. Customs union): Armenia, Belarus, Russia, Kazakh-stan, Kyrgyzstan
Ex: EU/EEA conformity mark for equipment certified for use in potentially explosive atmospheres
ExCB: IECEX Certification Body
GOST/CU-TR: Eurasian Union Technical Standards
Group: Group of equipment (I—dust and II—gas)
Hazardous Areas: probability of explosions; based on Zones or Divisions
IEC: International Electrotechnical Commission
IECEx: International Electrotechnical Commission System for Certification to Standards Relating to Equipment for Use in Explosive Atmospheres
IMO MODU code: Code for the Construction and Equipment of Mobile Offshore Drilling Units by the International Maritime Organization
INMETRO: Brazilian National Institute of Metrology, Standardization, and Industrial Quality
ISO: International Technical Standards
NANDO database: New Approach Notified and Designated Organizations
NEC/NFPA 70: US National Electrical Code for hazardous areas
NEC500: related to the API500
NEC505: related to the API505
New Approach: goal-oriented European approach for the application of obligatory directives
NFPA: National Fire Protection Association
Notify Body: an ATEX certification body
NRTL: US Nationally Recognized Testing Laboratory
OSHA: US Occupational Safety and Health Administration
SAMR: Chinese State Administration for Market Regulation
UNECE: United Nations Economic Commission for Europe
