Underwater Noise Monitoring with Real-Time and Low-Cost Systems, (The CORMA Experience)

Abstract

Marine life can be severely affected by anthropogenic underwater noise. This latter increased proportionally to the rise of human activities such as maritime traffic, marine civil engineering works, oil- and gas-related activities or offshore wind farms; so much so that, currently, it can be considered a threat to the environment. Assessing underwater noise requires quite some investments both in personnel and instrumentation. If this is affordable by several governmental and scientific organizations, this cannot be extended straightforwardly to all research initiatives or to developing countries. In addition, time and geographic coverage of monitoring can also be significantly limited by the costs of multiple installations. We explore the possibility to use a solution based on off-the-shelf and low-cost technologies combined with a scalable infrastructure developed with open-source tools only. The perspective to avoid proprietary solutions allows great flexibility in extending the current paradigm toward real-time transmission, processing, and web-based data access. Our solution has been deployed at sea in November 2020 and is providing data continuously ever since. First results from the analysis of these data allowed us to highlight several interesting abiotic and anthropogenic temporal patterns.

1. Introduction

Marine species heavily rely on sound to relate with the environment [1]. Sound is critical to foraging, communication, predator avoidance, and general spatial orientation [2].

Following the Marine Strategy Framework Directive (MSFD) of the European Parliament and Council [3], sound that causes negative effects is defined as noise, and indeed, exposure to underwater acoustic noise affects marine life.

The effects of underwater noise on marine life spans a large range of phenomena [4] of which a subset rise to the level of deleterious ecological significance in terms of long-term population consequences [5]. The impact of underwater anthropogenic noise spans issues such as behavioral responses [6,7], masking [8,9,10], hearing loss [4], physical, and/or physiological effects up to death [11]. In addition, in order to monitor and forecast the impact that underwater noise has, it is very important to consider the overall ecology of affected habitats [12].

While there has been a prevalent focus to study the effects of noise on marine mammals [13,14,15] and some degree of protection, in this case, has been already implemented [16], increasing attention is being paid to fishes and invertebrates that have different hearing physiology and behavior [12]. For example, while a fish ear does not have a comparable frequency analyzer like the cochlea in mammals and birds [10], they can be more sensible to particle motion rather than sound pressure [12].

A large part of underwater noise can be associated with human activities, implying that their rapid increase can severely harm marine life.

Activities related to oil and gas extraction, such as geophysical surveys using airgun sources, deserve a lot of attention [17,18]. Offshore wind farms are rapidly expanding [19], and tidal turbines are also of concern [20]. To mitigate the impact of such activities, marine mammal observers (MMO) are employed to collect behavioral and species identification data. This is a costly procedure that has also an impact on human health [21].

The most ubiquitous and pervasive source of anthropogenic noise in the oceans, however, are commercial ships [22]. According to Frisk [23], the growth of the world fleet and gross tonnage since World War II shows an exponential expansion rate, while marine traffic has increased four-fold over the past 20 years [24]. It has been estimated that the growth in traffic mirrors a growth in ambient noise as high as 3 dB per decade [25].

Underwater radiated noise (URN) produced by ships is generated mostly by their propulsion system, which, while generally peaking in a range of frequencies below 200 Hz, also emits considerable energy at higher frequencies [26]. Noise is produced by propeller cavitation that generates bubbles that grow, vibrate, and collapse. Cavitation noise increases with vessel speed, size, and load [27]. The engine and generators onboard can also produce noise that is transmitted through the vessel hull even when the ship is docked or anchored in a bay.

The sound field observed at a certain distance from a specific source depends on the source characteristics and the medium in which it propagates. Moving away from the source, sound waves attenuate according to the conditions of the environment [14]. Ship-traffic-related URN can be modeled in order to reconstruct the sound field in a certain area [28]. This can be done starting from the radiated field of those sources whose characteristics, position, speed, etc., are known. Position and speed can be extracted from the automatic identification system (AIS) that is compulsory within the International Maritime Organization (IMO) International Convention for the Safety of Life at Sea (SOLAS) for vessels with 300 or more gross tonnage [29]. In addition to large commercial ships, there is a considerable variety of other types of boats that produce underwater noise such as, for example, recreational boats, ferries, fishing vessels, or dredges. Each of these classes of boats have different source characteristics and levels that can also vary quite considerably from boat to boat within the same class. Not many of them offer AIS, while some of them can decide to turn off their transceivers, meaning that they eventually cannot be included in the model. The reconstruction of a numeric model of the acoustic field in an area therefore largely depends on the availability of information on the sources and the environment. Where there are limitations on the availability of this information, the reconstructed model is biased.

The MSFD directive mandates that the European Member States implement strategies toward a good environmental status (GES) in the European seas. From the perspective of monitoring underwater ambient noise such as that from URN, it is necessary to assess the 11.2.1 indicator, which is described through the average values of sound pressure (re 1 μΡa RMS) over a year, in the two one-third octave bands centered on 63 and 125 Hz [30]. Passive acoustics monitoring (PAM) systems allow underwater acoustic data to be acquired and analyzed from this perspective [31].

1.1. Objectives

The main aim of this work is to explore the possibility of developing a real-time low-cost PAM system tailored to assess anthropogenic noise in marine environments. Current costs for commercial solutions range from $5000 to $30,000, while our target cost is approximately $500. The requirement to reduce costs at minimum has been adopted in order to achieve several ambitions: namely, (i) the possibility to deploy a large number of sensors in order to validate numeric models of the URN acoustic field over large areas; (ii) the possibility to set up PAM systems where large investments are not possible or in developing countries; (iii) the possibility to have an open system that can be improved and extended following an open-source approach, and (iv) the possibility to run the system with very low power consumption.

In order to understand the problems and limitations of the proposed system and to devise solutions to overcome them, we deployed a first prototype of the system on a buoy in the Gulf of Trieste. The system underwent several stress tests from extreme weather conditions to network and power interruptions.

A very important objective of this work was also to highlight whether the proposed system would be able to record and allow the identification in the recordings of possible abiotic and anthropogenic temporal patterns.

1.2. The Development Path

Several commercial solutions are already available that for sure provide high performance and reliability while solving most of the abovementioned tasks; however, they tend to both remain in a proprietary ecosystem and to be very expensive. This means that all the ambitions listed above can only hardly be met. In fact, aiming at having multiple recording platforms means increasing the costs high above the average available budgets, while it would be very difficult for a nonmajor investor to request specific tuning of the system to address emerging needs such as, for example, connectivity with devices from other manufacturers or open formats or links to specific repositories.

Following Parijs et al. [32], upon the possibility of having immediate or delayed availability of data, PAM systems can be divided in two main classes, namely real-time or archival. In addition, they can be built upon different deployment technologies such as, for example, free-drifting, moored, or towed ones. The combination of class and deployment technology define each system setup.

Archival free-drifting systems follow the paradigm proposed for example by [33]. Archival moored systems are structured similarly to those proposed by [31,34,35,36]. These are generally battery-powered devices that record and store acoustic data internally. Depending on data storage capacity of the device, recording bandwidth, and sampling regime, recordings can be obtained over extended periods of time; after which, they are retrieved, and the data analyzed.

A possible real-time monitoring implementation could be based on data acquisition surveys, or repeated surveys, at specific positions [33]. This approach is able to provide useful information immediately during the survey but has the important drawback that no information is made available outside the planned acquisitions.

Another approach of real-time monitoring is based on cabled seafloor technologies. Initially, these have been developed for military surveillance, but, currently, several large initiatives, such as the NEPTUNE Canada Ocean Observatory [37] or the European Seas Observatory NETwork (ESONET) such as the Antares [38] or the KM3NeT [39] facilities, moved the focus onto scientific themes, with emerging applications also in bioacoustics.

Cabled observatories can take advantage of several benefits, among which are the availability of direct power supply and the possibility to transfer data via a wired link that allows high bandwidth and throughput. Of course, such settings need large investments that can be supported by major governmental and research institutions only.

An alternative approach to cable communication is to have data sent over a wireless network [40]. Radio frequencies (RF) is widely used in terrestrial wireless communication due to its high transmission rate and accuracy, while water has very high energy absorption so that it can transmit over a short range only [41]. Acoustic communication can be used in water since it suffers from relatively low absorption over long-range links; however, it also has many limitations such as low speed, high latency, and low bandwidth. In addition, it is too much influenced by variations in salinity temperature and density of the medium [42].

Noncabled PAM systems need ways to provide for powering the electronics. Battery packs can be a solution but need either regular maintenance or substitution every few days, which is a substantial cost, either reducing the length of recording and transmission, which means sampling the designated period therefore reduces the amount of information made available. Solar power with buffer batteries reduces these costs drastically, while allowing one to extend the temporal coverage of data to continuous recordings; wind power can be interesting but at the risk of introducing noises in the recordings.

2. Materials and Methods

2.1. The Monitoring System

As mentioned above, the aim of this work was to develop a low-cost, real-time, noncabled PAM system that could cover the whole spectrum of activities related to underwater noise monitoring. To reduce costs at minimum, in setting up the acquisition system, we used off-the-shelf electronics only, and we developed all software using open-source tools only.

In developing the acquisition system, two possible strategies can be implemented and namely (i) local processing of time series where recording is made, in order to transmit data products only, or (ii) transmission of the full-time series. There are advantages and disadvantages in both cases:

If local processing is chosen, data products are files with rather small size, which means that it would be possible to use low bandwidth transmission technologies such as, for example, LORA-WAN. This has a bandwidth in the range between 0.3 kbit/s and 27 kbit/s, but very importantly, notwithstanding the fact that its signal can easily reach long distance ranges, its power consumption is very low.

On the other hand, a very important disadvantage of this solution is that the time series are lost, meaning that possible future extensions of the system such as, for example, real-time acoustic detection of marine species [32,38,40,43] would not be possible.

The solution based on the transmission of the full time series, of course, overcomes these limitations, so that we decided to focus on this second strategy. In this case, the time series are digitized remotely offshore, and there, they are temporarily cached and passed to the transmission system. Once received, they are stored and processed onshore in the lab.

In designing the system, starting from the very basic need to quantify MSFD indicators, we sought to extend as much as possible the range of the frequency spectrum of the recordings. This has to be carefully considered as large frequency spectrums can be problematic in transmission, since they require large bandwidth. In this perspective LORA technologies cannot be used any more while it is necessary to switch to other technologies such as 3G/4G GSM mobile technologies. These are the most common and reliable wireless data transfer technologies available worldwide, with a theoretical distance ranging up to 30 km from the base station. While 3G technologies have a 2000 kbps nominal bandwidth considering a single connection to the base station, 4G extends the bandwidth 10 times, although nowadays, the carriers are very busy with commercial traffic. An estimate of the available bandwidth to rely upon could be approximately 800 kbps, which translates into a realistic 5 Mb of data transfer per minute.

Considering the limitations imposed by the connectivity, we were then able to define the range of the audio frequency spectrum that the system would be able to acquire and transmit to a maximum of 20 kHz. This value is defined considering 41 KHz sampling rate and 16 bit A/D single channel conversion which produces approximately the abovementioned 5 Mb block of data every minute. The identification of this spectrum range confirms the possibility to use off-the-shelf electronics available for high-fidelity music listening. These devices focus on the human hearing spectrum range which tops at 20 kHz, are cheap and reliable, have low power consumption, and can be connected via USB to any small single-board computer for power supply and data transfer.

After an analysis of the market, we have chosen a set of hardware components that could correctly represent the issues that can be encountered within the perspective mentioned above, highlight their limitations, and allow us to propose possible ways to overcome them. This of course should not be considered an endorsement for any particular firm or model, since other hardware can be used with similar results, and in the future better solutions will for sure appear. The chosen hydrophone was an Aquarian Scientific AS-1 preamplified Hydrophone connected to a Shure X2u digital audio interface that also provides 48 V phantom power. The Shure interface is connected via USB interface to a Raspberry Pi 3 B+ board that is connected to a Teltonika RUT 955 modem transmission system.

The Raspberry Pi board has three main tasks: namely, (i) to convert the audio files recorded by the USB digital audio interface to 16 bit, 44 kHz, mono, WAV PCM files using soX [44], (ii) to send data via FTP to the storage system, and (iii) to monitor the system and the Raspberry performance (CPU usage, RAM available, and internal temperature) and the overall power consumption every 5 min. Every task is managed by an independent Bash script which starts at boot device and runs forever.

The length of recordings has been set to 10 min because, after some tests, this resulted in a good tradeoff to optimize caching, transmission, data processing, and event representation.

Data transmission is the primary source of power consumption, meaning that running the system on batteries only soon results in battery drain. An external power supply is preferable.

The whole acquisition system can be easily packed into a waterproof 30 × 30 × 20 cm box. Considering its small dimensions, it can be installed easily on any platform able to provide the necessary powering.

The total cost of the acquisition hardware is approximately around $500.

2.2. The Deployment Area

The Gulf of Trieste, with 18 m average depth, is the area (approximately 500 km²) encompassed by the shore line of the northeasternmost part of Italian peninsula and Slovenia bordered by the virtual line between Grado (IT) and Piran (SLO) (20 km length) [44,45] and isolated from the rest of the Adriatic by a sill, from Grado to Salvore peninsula [46] (Figure 1).

The area is influenced by the Isonzo River discharges which contribute to about 90% of the freshwater inputs [47]. The area is characterized by a sedimentation that started with the onset of the Holocene transgression and consists in marine sediments originating in the Friuli plain depositing on an erosive surface of the late Pleistocene [48,49].

The hydrodynamics of the Gulf is driven by winds (southeasterly Scirocco and northeasterly Bora), tides, and water masses exchanges with the Adriatic Sea [50].

The Gulf of Trieste hosts the WWF-Miramare Natural Marine Reserve (in green in Figure 1). Since 1979, this site has been declared a marine protected area and represents the only completely protected area, in the Italian part of the Gulf of Trieste, sheltered from all direct human activities and boat traffic.

The Marine Reserve of Miramare is very peculiar in comparison to other more remote Mediterranean marine protected areas, since the level of human presence around it is extremely high [9]. The main port of the city of Trieste is approximately 8 km far from Miramare and is a very active port, with a total throughput of approximately 50 million tons, cargo, ferry, and cruise traffic. In addition, the Miramare Marine Protected Area is located close to a touristic port that is very active during the summer period with a high recreational boat traffic. Such conditions are common to many other more distant touristic harbors on the Italian, Slovenian, and Croatian sides of the Gulf.

The area is densely populated by different fish species; some of them are known to be vocal, namely fish species belonging to Gobidae, Sciaenidae, and Pomacentridae families [9,51] and crustaceans such as snapping shrimps [1], while occasionally mammals are also reported to visit the area [52].

2.3. The Observatory Platform

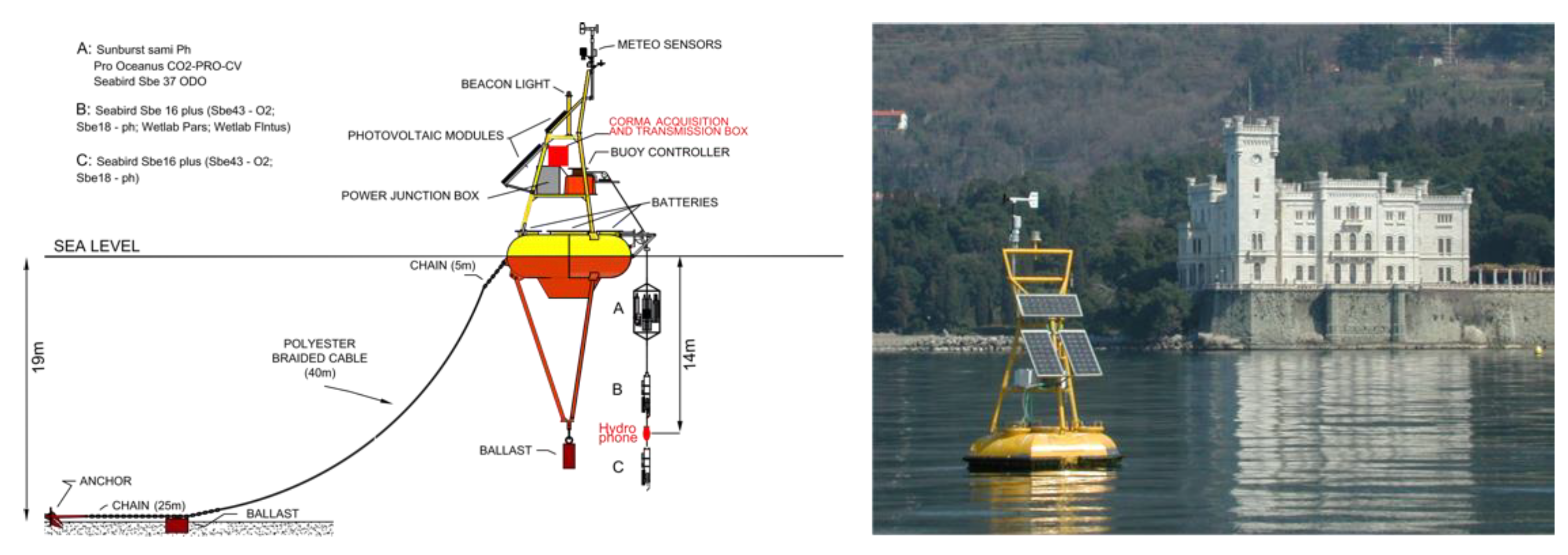

The developed system was installed on the OGS MAMBO-1 buoy located within the Miramare Marine Protected Area at the beginning of November 2020 and has continuously transmitted real-time data ever since (Figure 2).

The MAMBO-1 buoy is a multi-instrument platform for ambient meteo-marine monitoring in coastal areas, developed by OGS [53]. It is also used as a test site for the development and testing of new sensors, instruments, and technologies. The body of the buoy is made up of a floating hull in stainless steel AISI 316, an aluminum tripod 3 m high, and a stabilization system under the surface made up of three steel rods joined to a 150 kg ballast. The bottom is at about 19 m depth, while the hydrophone is deployed at 14 m depth. The mooring of the buoy is made on three points placed at 120°: each one realized by an anchor and a rope about 40 m long plus 20 m of chain. The buoy is equipped with six solar panels, mounted on support brackets and oriented to the south with an inclination of about 45. Each panel is connected to a charge controller and the latter to a battery pack consisting of two rechargeable lead accumulators (12 v—70 Ah) connected in parallel. With this solar charging configuration, the system has autonomy of 5 days in the worst case without sun, while it would fully recharge in two sunny days.

2.4. Data Processing and Web Based Visualization

The transmission technology adopted allows it to transfer recorded data directly into a NAS storage server from where it is submitted to data processing and dissemination.

Timing is based on GPS. This is acquired directly by the transmission modem that acts also as an NTP server for the acquisition board.

The current implementation is based on a Linux server, deployed on a virtual machine running PHP and Python scripts that periodically collect and process the raw audio files. Metadata is stored into a Postgres database, while different data products (such as spectrograms) are stored as JPG files on the storage system.

A web frontend, based on Apache and HTML + CSS + PHP + JavaScript, provides a friendly and interactive user interface with a complete view of the acoustic monitoring activity. A basic authentication layer (with username and password) protects all sensitive data from unauthorized web use.

The scripts are executed every five minutes, in order to ensure near real-time information. The total delay of the system from acquisition to visualization is less than 10 min after the end of every 10 min chunk of audio recording.

The dataflow starts with a search for new audio files (not yet processed) on the storage server. All new files are copied to the processing server and if the buoy system has had a temporary transmission blackout, all the missing files are readily downloaded, filling the gaps. Every new audio file (a 10 min WAV audio file, marked by the start time in UTC and a buoy ID) is then processed by Python scripts developed within the project and based on standard NumPy and SciPy libraries only. Third octave SPL values are stored into the database, together with all metadata; spectral analysis images are stored into the filesystem.

The raw WAV audio files are analyzed through different steps. The signal is sliced into 500 ms intervals, with an overlapping of 100 ms. At every time interval t_j a Hann window function is applied, in order to prevent spectral leakage, the FFT is calculated in order to produce a narrowband spectrum.

This is followed by the conversion into dB and the application of the spectrum correction (function of frequency f_i) to compensate for the filtering effects due to the difficulties in setting the gain and the possible frequency dependent effects (see Section 3.1) (Figure 3).

Then applying:

L_ij = 20 log10 |FFT_ij| − cal(f_i)

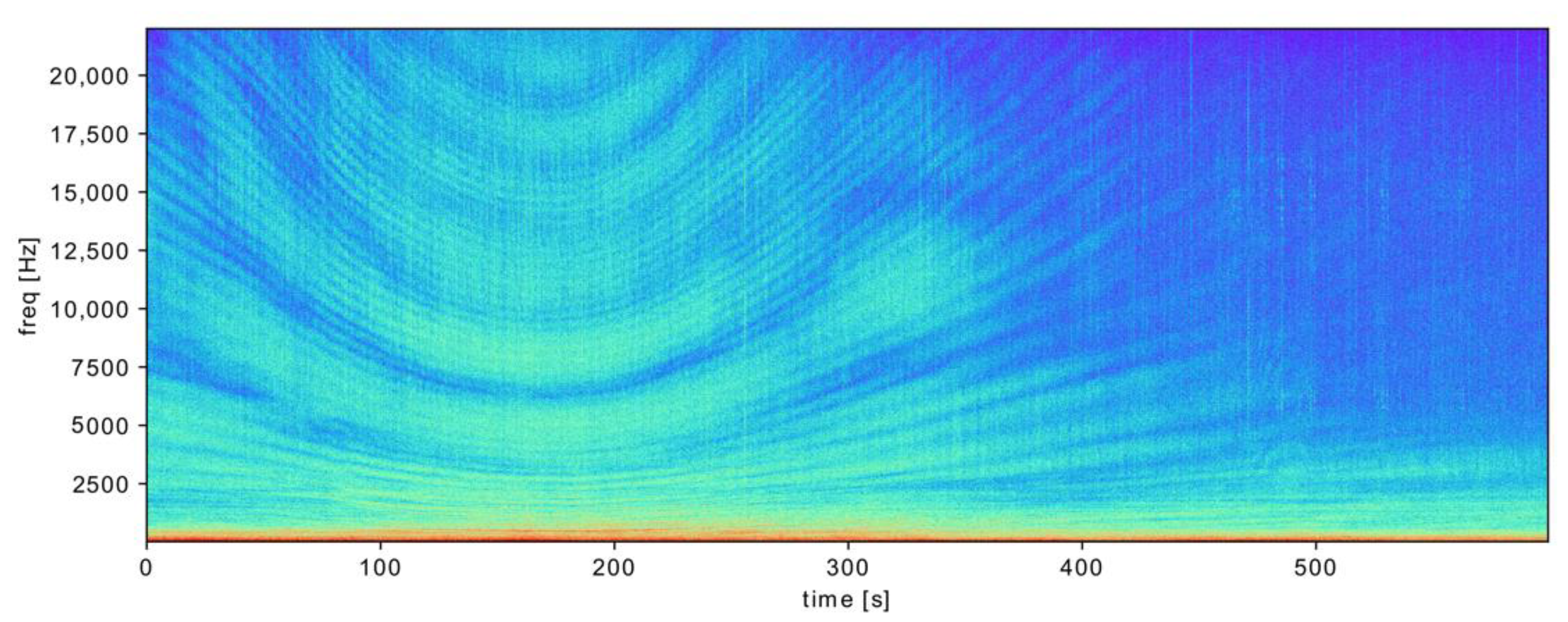

We obtain L_ij which is the sound pressure level (SPL) in dB, relative to 1 µPa, for the time interval t_j and the frequency f_i. The matrix L directly produces the spectrogram chart (Figure 4).

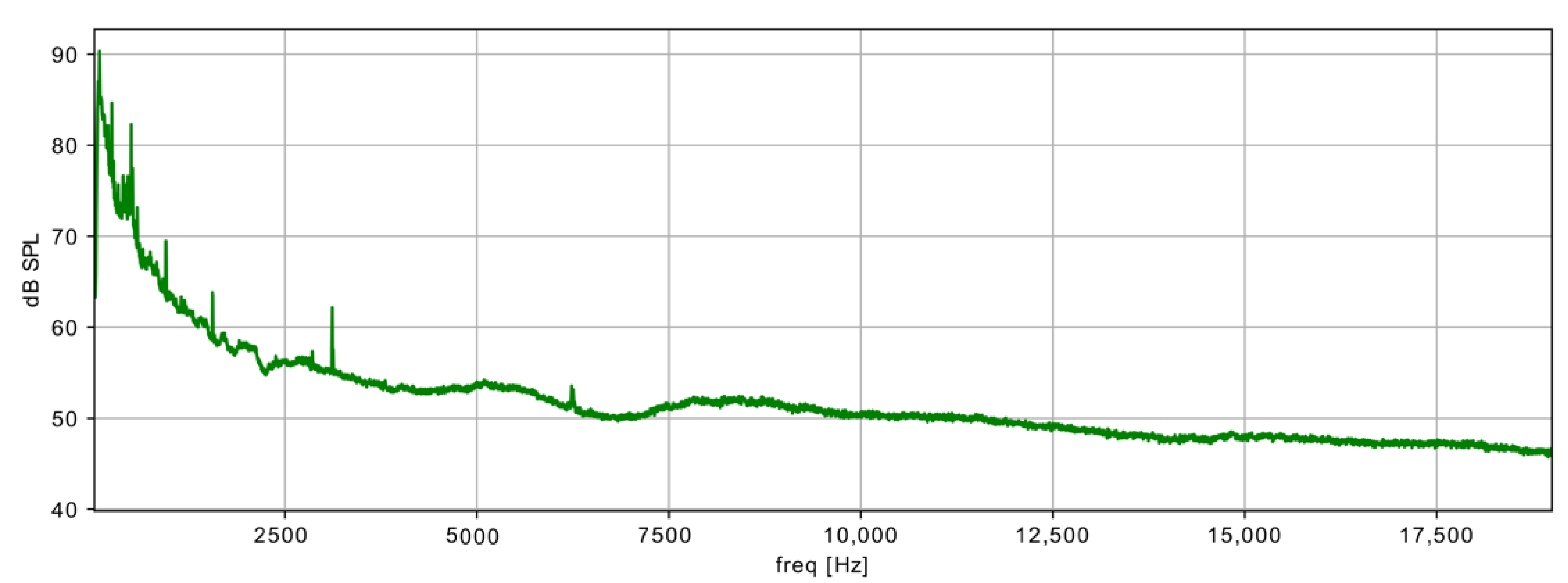

According to Welch’s method [54], the columns can be averaged, and the resulting vector is a single narrowband spectrum for the whole period

In order to aggregate several narrowband values to a wider band, we use the following relation:

$${\mathrm{R}}_{\mathrm{j}}=10·{\log }_{10}\left({\displaystyle \sum }_{\mathrm{i}}{10}^{\frac{{\mathrm{L}}_{\mathrm{ij}}}{10}}\right)$$

to obtain a graph of SPL versus time (Figure 5).

Combining the narrowband spectrum into ANSI third octave bands and averaging on the whole 10 min period, we obtain the one-third octave bands values (Figure 6).

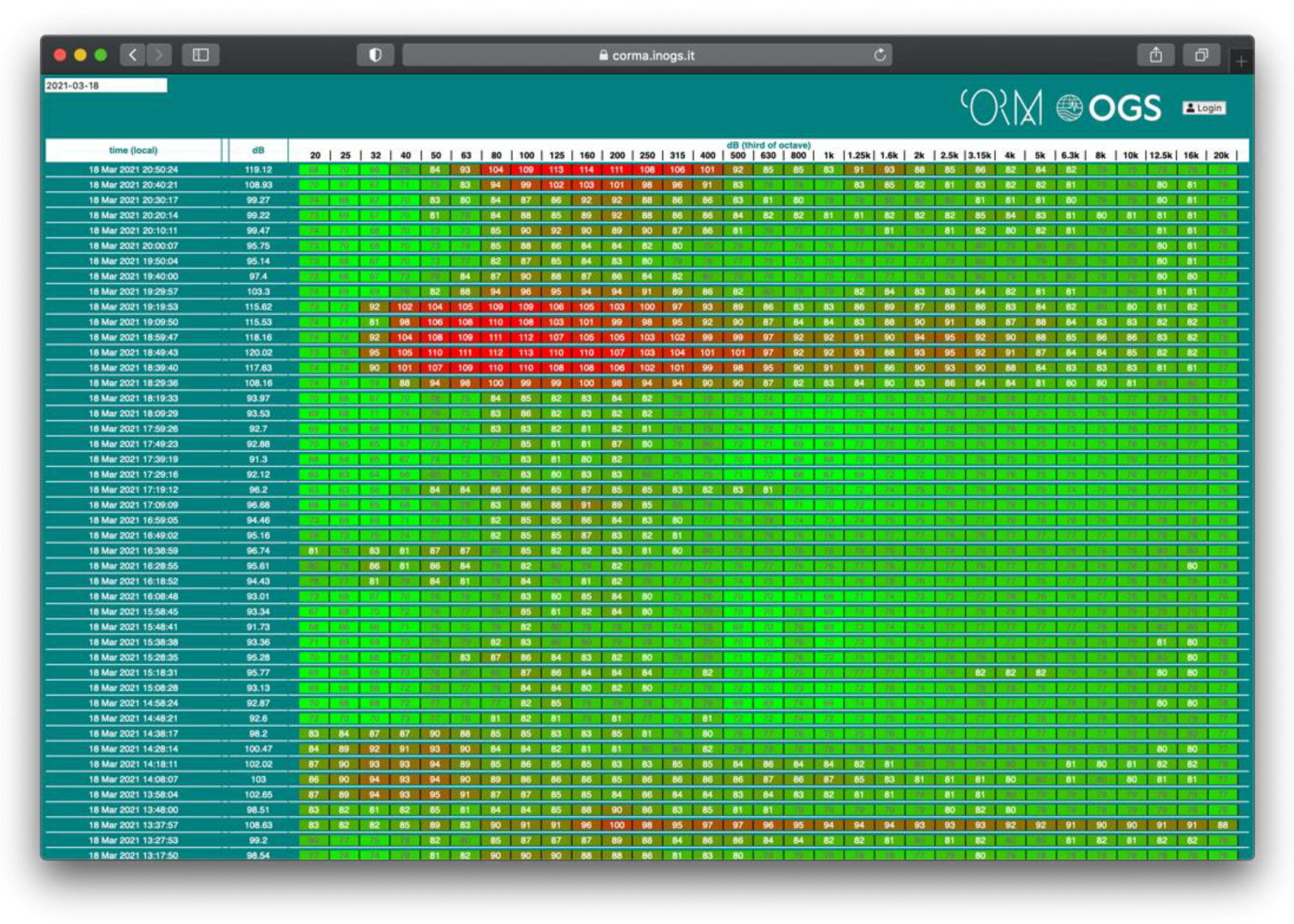

In order to provide a first glance of third octave levels, building on previous experiences [55,56], by means of chromatical and numerical information as a function of time of the day, we developed a web frontend (Figure 7) that can be accessed at [57].

The web user can display all the detailed graphs, download the raw audio files, and directly visualize and listen to the audio online after authorized registration and login.

3. Results

3.1. System Performance Results

Hydrophones calibration should follow IEC 60565:2020 [58] specifications. Several methods can be used such as a commercial pistonphone at 250 Hz, coupler reciprocity chamber [59], or more complex methods [60,61]. Besides proper calibration in the laboratory, the authors of [62] highlight the importance of the effects that are due to deployment suggesting that in situ corrections are to be considered as well. Contrary to most of proprietary marine acoustic recording solutions, where intermediate steps are hidden to users, they can directly read the actual SPL values in dB re 1 μPa; In the case of low-cost systems like the one we built, since it results from piping different parts, it is necessary to carefully verify the final results of measurements. This is particularly important in order to assess underwater noise in the perspective of the MSFD descriptors and to pave the way for further developments.

Following the path of the signal through the whole acquisition system we can consider several steps. The hydrophone transforms the relative pressure (P/1 µPa) into voltage (V), then a preamplifier applies some gain, then the input preamplifier of the sound card applies another gain, and finally the electric signal is sampled and transformed into a 16 bit number. Within the considered range 20 Hz–20 kHz, all these steps are either linear or, in the worst case, with a limited frequency distortion, but we assume the phase distortion to be negligible. The latter consideration relies on technical specifications of the components. Assuming the lack of phase distortion, the concatenation of the transfer functions would be without phase distortion too, producing a shift in dB depending only on frequency.

To understand this offset we used the difference between the calculated dB and the values provided by a high-quality calibrated system in order to evaluate the corrective constant.

The low-cost hydrophone used has been calibrated at 250 Hz by the producer with a +/− 2 dB accuracy and has a receiving sensitivity: −208 dBV re 1 μPa (40 μV/Pascal). Problems rise in the following steps of gain and digitization. To keep costs at minimum, as mentioned above, we used a standard digital music audio interface. These have limitations in accurately setting the gain. Musicians in fact only very seldom care about measuring the output of their instruments or microphones, while they are more interested in the fact that their instruments fit the dynamic ranges of the rest of the recording or amplification system. At the same time, standard music audio USB interfaces are tailored for human hearing which at best ranges from 20 Hz to 20 kHz. Very low frequencies can be problematic for them and anyway not heard, meaning that such audio interfaces often tend to apply a low-cut filter to avoid unwanted energy into recording.

The carefully calibrated proprietary system is a seamless set of a Brüel & Kjær Type 8104 D 500 hydrophone connected to a Brüel & Kjær input module LAN-XI 102.4 kHz Type 3052 with recording parameters set to exactly match those of the low-cost system.

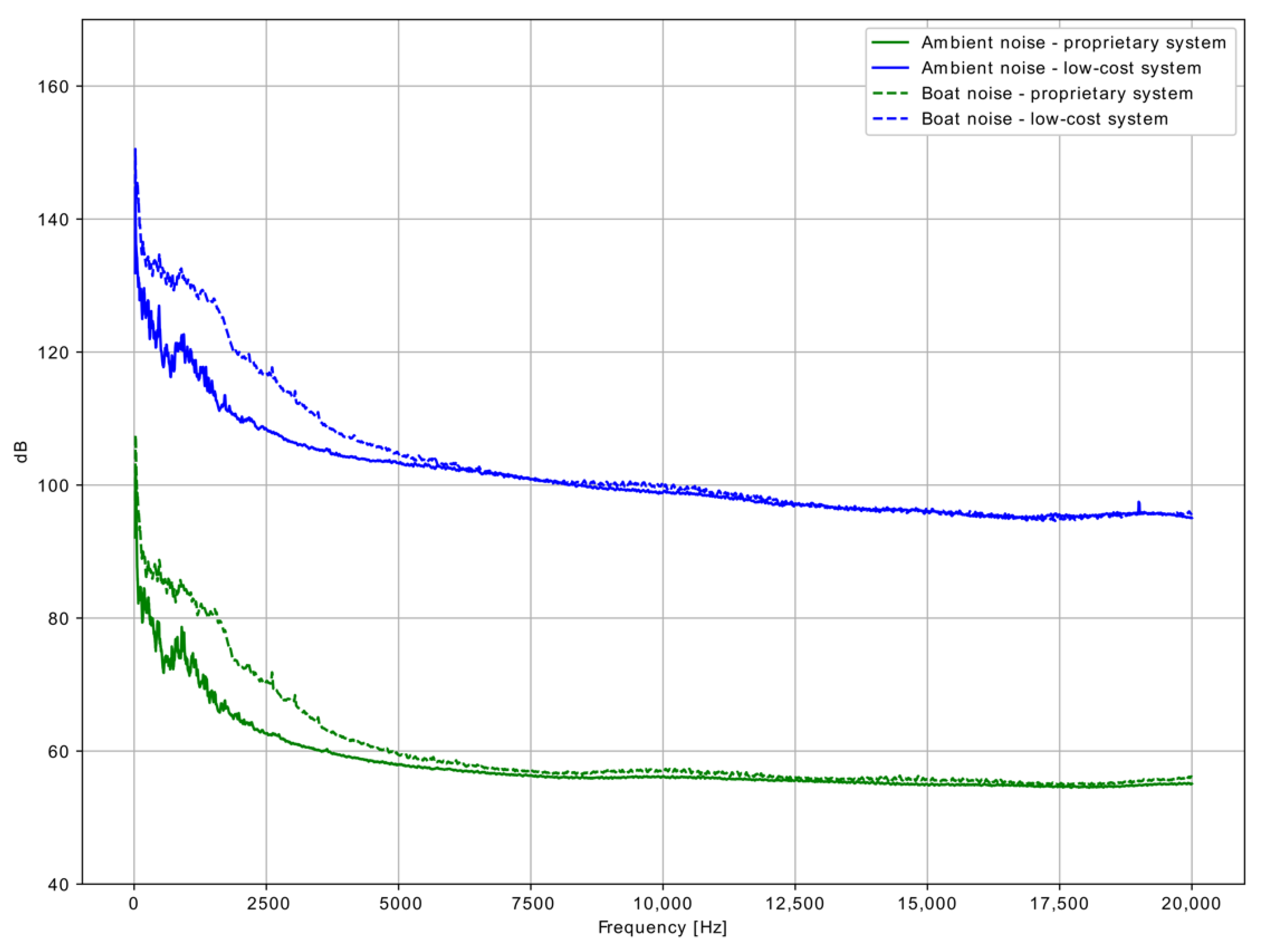

The two systems have been deployed side to side at the same location for simultaneous recordings of two kinds of signals, namely: (i) ambient sounds, meaning sounds that would be present in the absence of any specified activity (ISO 18405 ([63], p. 18405)) and (ii) a common source consisting of an engine from a nearby boat that was anchored in the bay and that we were able to control remotely. Results of the comparison can be seen in Figure 8 where the spectra recorded by the two systems are juxtaposed.

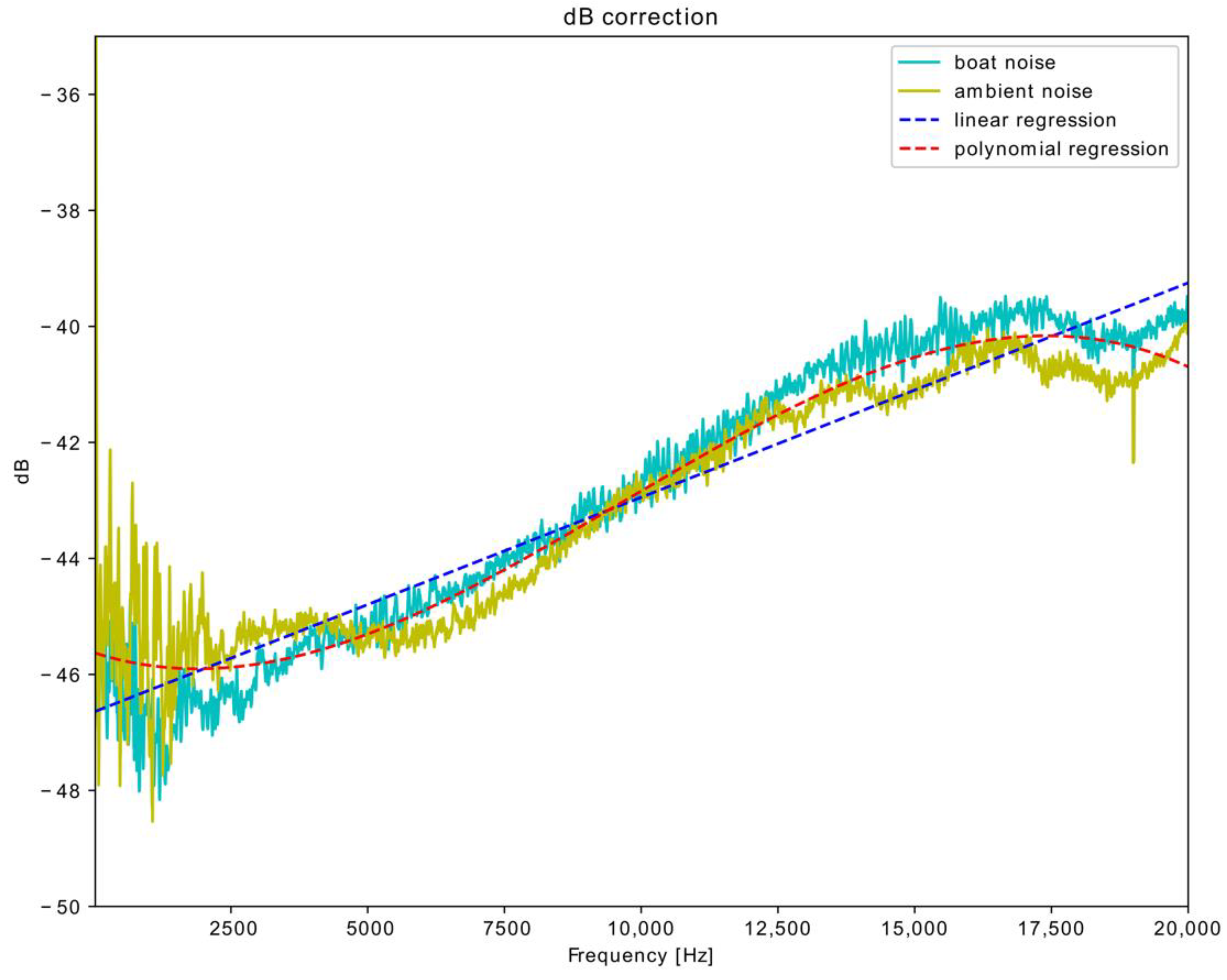

The differences between them are assumed to correspond to the filtering effects of the low-cost acquisition system (Figure 9). It can be noted that corrections are negative, meaning that the low-cost system tends to overestimate the SPL. This is likely due to the difficulties in setting the gain of the digitizer, meaning that an excessive gain has probably been applied. The filter can then be reversed and applied to the CORMA recordings in order to obtain approximately the SPL that could have been recorded using the proprietary system. In this case, a direct application of a reverse filter would probably be not reasonable. The filtering effect, as can be seen, is frequency dependent and not exactly the same in the case of ambient noise and that of the boat engine. To overcome this, we decided to apply a regression on the available spectra and study two scenarios, namely linear regression and polynomial regression. In the first case, the errors can be of the order of 6 dB, while in the latter case errors are less than +/− 2 dB, which is the nominal accuracy of the hydrophones as reported by the manufacturer.

Data correction is then performed, using the polynomial regression model only once. Data have been copied into the processing server onshore (see Section 2.4).

3.2. First Monitoring Results

The acquisition system was deployed on 20 November 2020. We concentrate our analysis on the three months period starting 21 November 2020 (Saturday) and ending 13 February 2021 (Saturday).

During this period, the transmission was continuous except for a small interval between 5 February 2021, and 6 February 2021, when we experienced network issues. This suggested us to add an SD card to the acquisition system where, in case of connectivity problems, data can be stored temporarily until the link is again made available. All data are then flushed with a delay but with no loss. Later tests, when we deliberately shut the connection down, confirmed that this strategy is successful.

During these three months period of wintertime, notwithstanding the weather was often cloudy and the daylight was reduced, we experienced no issue in power supply.

The SPL recorded in the period can be seen in Figure 10. Each graph shows an SPL graph as a function of date for a period of two weeks.

In the perspective of the MSFD and to compare our results with experiences from other authors, we analyzed separately the one-third octave bands of the spectrum of the recordings. Figure 11 compares the minimum, maximum, average, and the standard deviation values as a function of day for the cumulative, 63, 125, and 500 Hz central frequency bands of the recording in the designated range of dates.

4. Discussion

The main work on underwater noise in the area of the Gulf of Trieste is from Codarin and Piciulin [1]. They monitored the sea ambient noise through 15 min long recordings taken monthly on 12 predefined acoustic stations throughout a whole year. One of the recording stations (C121) was relatively close to the location of the Mambo buoy, where we installed the system, meaning that it would theoretically be possible to compare its values with those obtained from the low-cost system.

The wideband spectrum SPL levels of the low-cost system showed 105.19 dB average value with 7.19 standard deviation, which can be compared with the reference values of 128 dB and 5.8 standard deviation that can be found in [1] for the whole year dataset.

The 63 Hz band showed 89.34 dB average value with 9.35 standard deviation. The annual average values that can be found in [1] are 100.51 dB with a 6.4 standard deviation.

The 125 Hz band showed 92.08 dB average value with 8.03 standard deviation, while the annual average values in [1] are 103.8 dB with a 6.4 standard deviation.

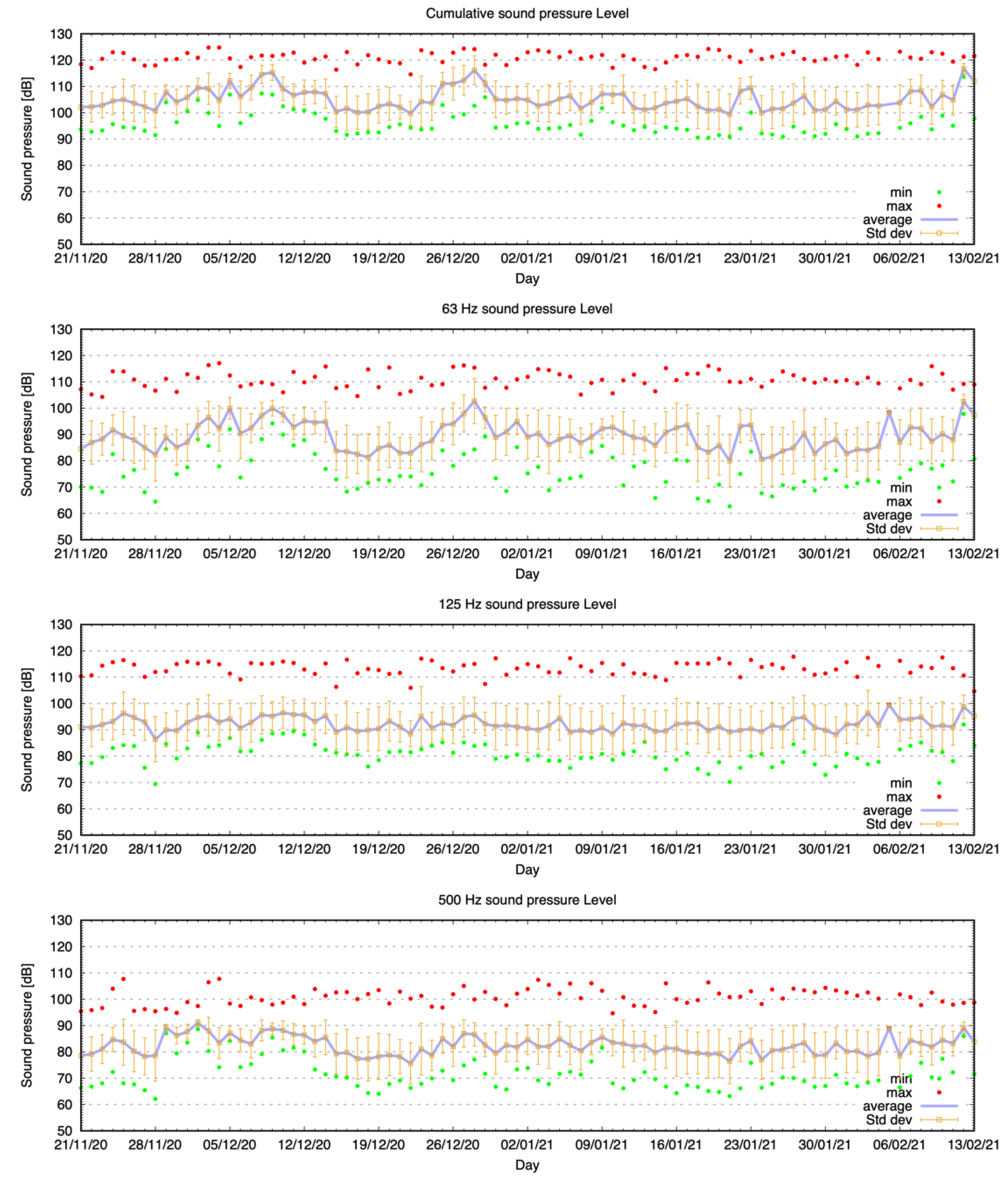

We have also plotted in Figure 11 the trend for the 500 Hz band which shows 82.34 dB average value with 7.5 standard deviation.

The differences between our results and those reported in [1] can be explained in light of the specific period we considered. In fact, our recordings took place during winter and for three months only. In the area of the C121 recording station and of the Mambo buoy, during the summer season, leisure boat traffic can be quite intense, while in the winter, this is at its minimum. In addition, our recordings were made during a period of COVID pandemics restrictions. According to [64], the reduction in maritime traffic due to such reasons could be estimated up to 20 dB of reduction in SPL levels.

In Figure 12, it is possible to see a candlestick graph that shows the range of SPL values together with first and third quartiles (lower and upper limits of the box) as a function of each day in the designated period of the recordings. It is rather evident that SPL daily values do not follow a symmetrical bell-shaped pattern. They are instead skewed toward lower values.

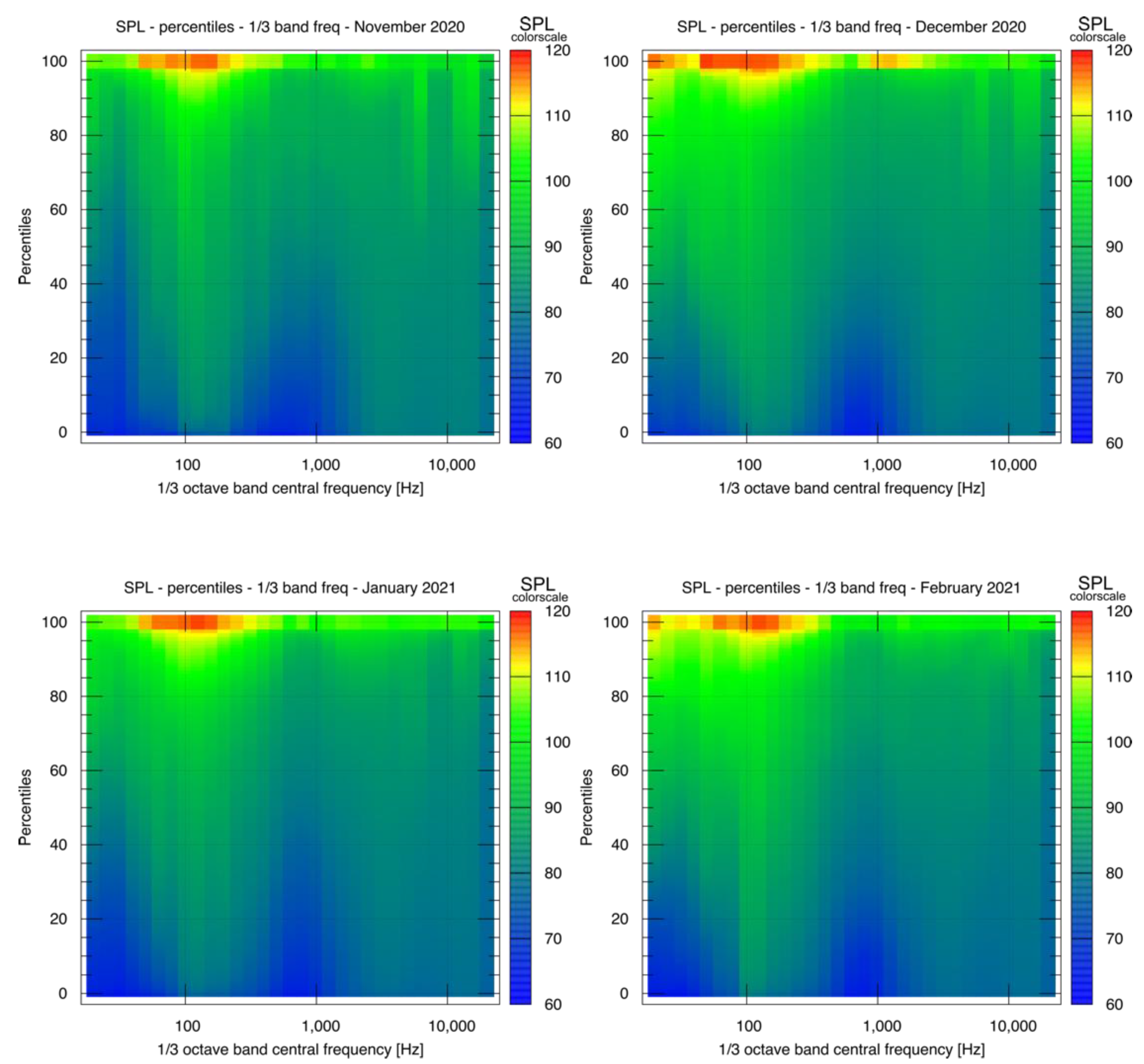

Figure 13 shows that high SPL levels (above 110 dB) are confined above the 95th percentiles, meaning that they can be interpreted as transients or short duration events.

To understand the causes of the behaviors shown in Figure 12 and Figure 13, we first tried to highlight any possible periodicity in the recordings applying an autocorrelation to the time series. The results can be seen in Figure 14. The graph shows on the abscissa the lag of the autocorrelation that is calculated as an index times 10 min of recording. In the detail, 6 (× 10 min) × 24 = 144 lag units correspond to a day, while 1008 lag units correspond to a week. The graphs show very good correlation with peaks corresponding to circadian trends and a rather evident weekly trend. Of course, it is not possible at this point to highlight longer or seasonal trends since the data under analysis only cover three months.

Given the fact that periodicities can be traced in the data, we tried further to highlight these trends in the time series.

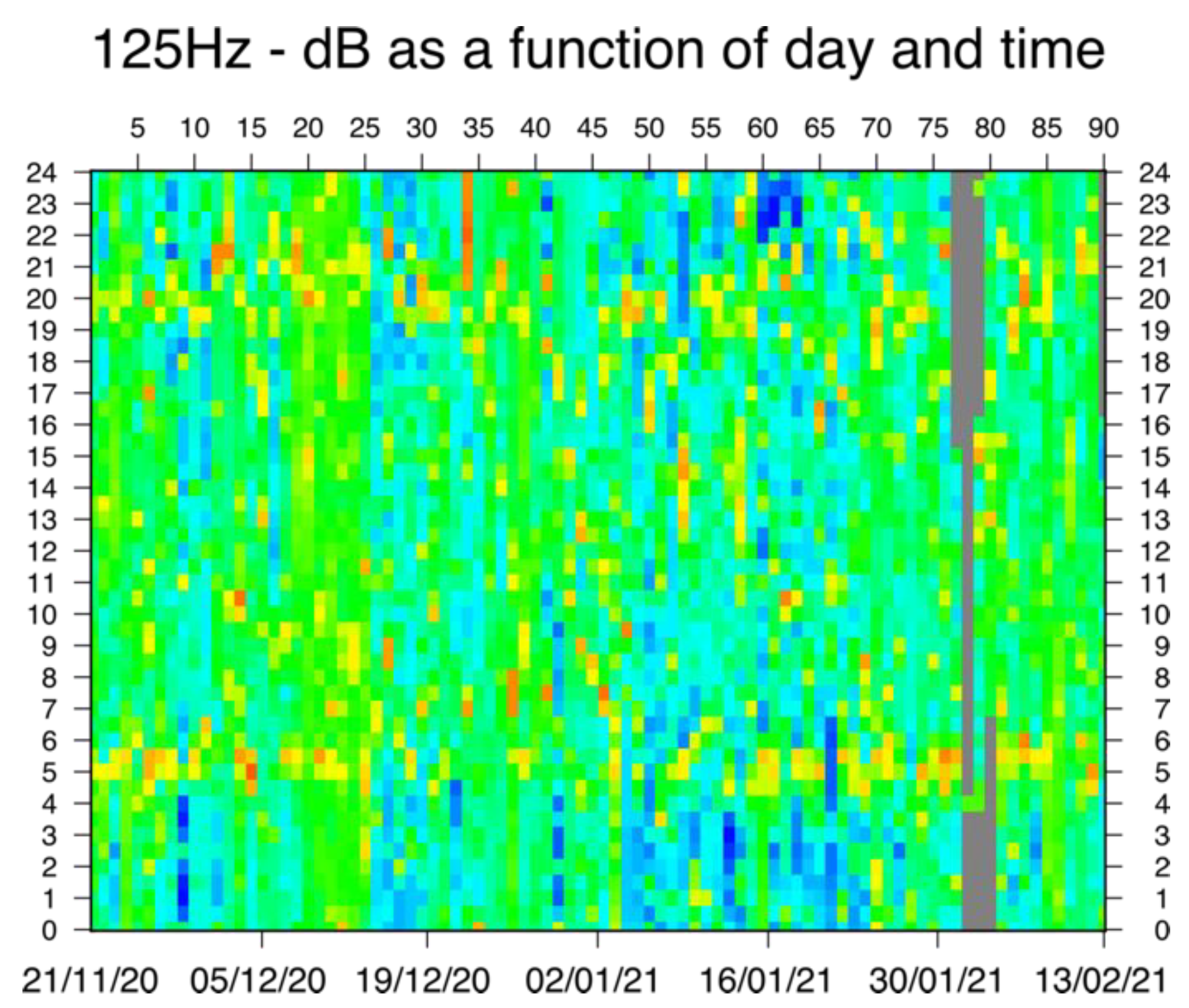

We plotted the heat maps [65] of the SPL at various one-third octave bands (Figure 15) and discovered that especially at 125 Hz throughout all recordings, in a rather restricted range of time between 5 a.m. and 6 a.m., there is a distinct boost in SPL levels. Higher SPL levels are also recorded in the evening, although this is less clearly delimited in time.

It is rather straightforward to link these signals to fishing boats.

To highlight other kinds of temporal patterns, we focused on abiotic sounds such as winds and waves. According to [66,67], the wind contribution should extend throughout all the spectrum recorded in this work, while surface waves cause mostly infrasonic noise at frequencies from 10 to 100 Hz.

It must be noted that the Gulf of Trieste is often swept in winter by a very strong Bora wind (NNE). The Bora wind is the strongest, most frequent, and persistent over the northeastern Adriatic [68] region, characterized by the formation of alternating jets and wakes associated with the coastal orography.

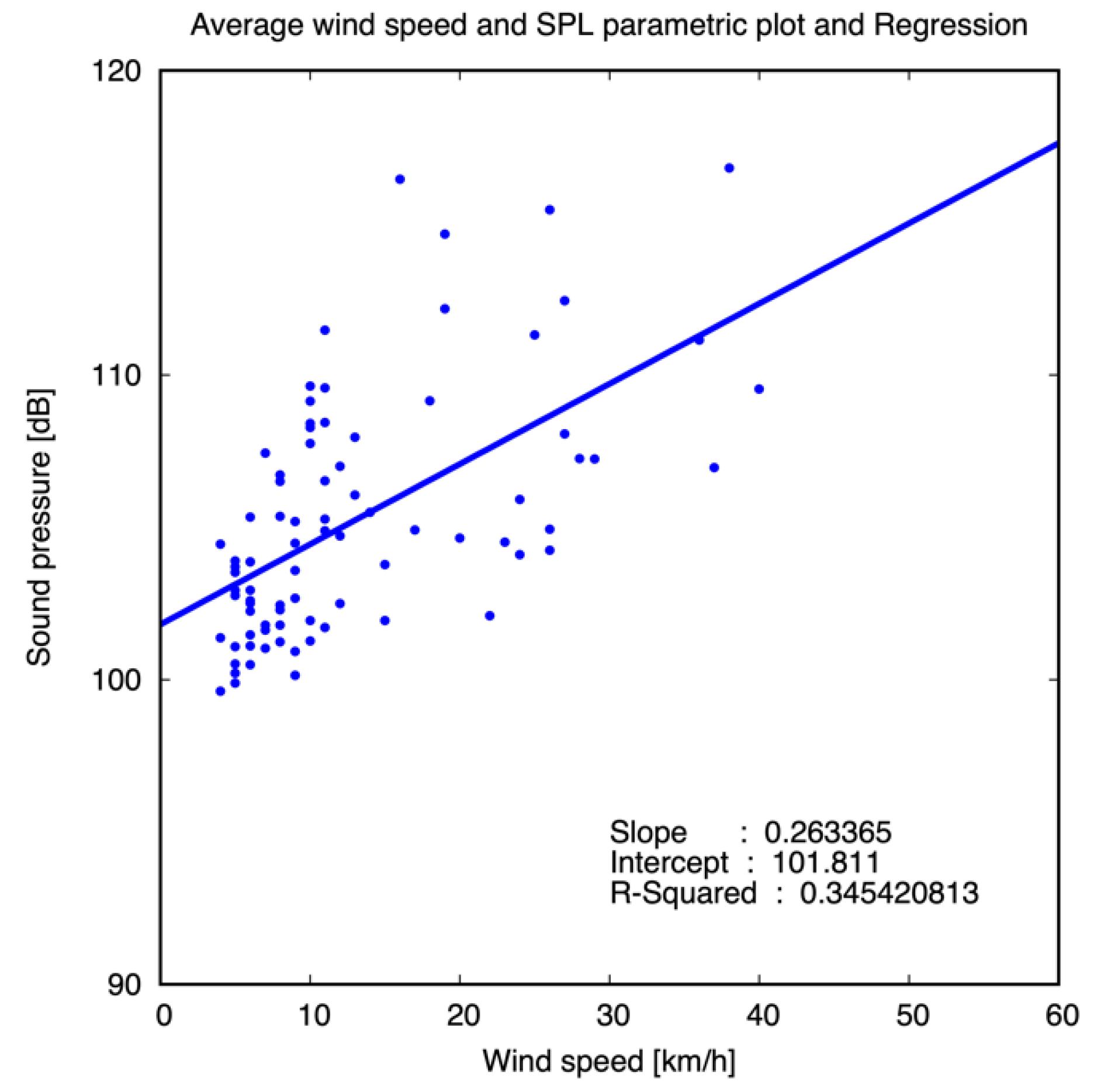

As a first test, we therefore compared the time series from wind speed and direction recorded daily in the port of Trieste with the SPL time series (Figure 16 and Figure 17).

Qualitative correlations can be found (in green in Figure 16), although not all windy periods correspond to distinct increases in SPL. A more quantitative result can be obtained from a parametric plot (SPL versus wind speed, Figure 17), where a linear regression of data points provides an R-squared factor of 0.34.

5. Conclusions

This work demonstrated that low-cost and real-time PAM systems can be useful in assessing underwater noise in the perspective drawn by the MSDF. We highlighted the intrinsic limitations of the system, how we overcame them, and the possibilities that the system can offer reporting on an installation of the system that took place on the OGS MAMBO-1 buoy in the Gulf of Trieste (Northern Adriatic Sea). We demonstrated that this approach can be extended to consider a wider range of frequencies useful for example in bioacoustic studies, and in this perspective, we were able to record and identify several abiotic and anthropogenic temporal patterns.

The need behind the development of a low-cost PAM system is rooted in multiple considerations. They can be used to validate numeric models of the URN acoustic field over large areas deploying multiple simultaneous installations but at the same time without exceeding in costs. They can be used also where large investments are in general not possible, such as for example in developing countries. Being a system based on off-the-shelf hardware and open-source software, it can be easily improved or extended, and in fact, the adoption of open-source software enabled us to develop a portal where time series from the system installed on the OGS MAMBO-1 buoy can be visualized, accessed, and heard. Other data products, such as for example spectrograms, can be visualized in real time, and new functionalities will be implemented in the future.
