Synthesis, Mass Spectroscopy Detection, and Density Functional Theory Investigations of the Gd Endohedral Complexes of C82 Fullerenols

by
Anastasia A. Shakirova
1,
Felix N. Tomilin
1,2,
Vladimir A. Pomogaev
3,4,
Natalia G. Vnukova
1,2,
Grigory N. Churilov
1,2,
Nadezhda S. Kudryasheva
1,5,
Olga N. Tchaikovskaya
3,
Sergey G. Ovchinnikov
1,2 and
Pavel V. Avramov
4,*
1
Department of Biophysics, School of Engineering Physics and Radio Electronics, School of Petroleum and Gas Engineering, Siberian Federal University, pr. Svobodny 79, 660041 Krasnoyarsk, Russia
2
Krasnoyarsk Scientific Center, Kirensky Institute of Physics, Siberian Branch, Russian Academy of Sciences, Akademgorodok 50, 660036 Krasnoyarsk, Russia
3
Department of Physics, National Research Tomsk State University, Lenina Ave. 36, 634050 Toms, Russia
4
Department of Chemistry and Green-Nano Materials Research Center, Kyungpook National University, 80 Daehak-ro, Buk-gu, Daegu 41566, Korea
5
Krasnoyarsk Scientific Center, Institute of Biophysics, Siberian Branch, Russian Academy of Sciences, Akademgorodok 50/50, 660036 Krasnoyarsk, Russia
*
Author to whom correspondence should be addressed.
Computation 2021, 9(5), 58; https://doi.org/10.3390/computation9050058
Submission received: 16 April 2021 / Revised: 10 May 2021 / Accepted: 12 May 2021 / Published: 17 May 2021
(This article belongs to the Section Computational Chemistry)
Browse Figures
Versions Notes

Abstract

:
Gd endohedral complexes of C82 fullerenols were synthesized and mass spectrometry analysis of their composition was carried out. It was established that the synthesis yields a series of fullerenols Gd@C82Ox(OH)y (x = 0, 3; y = 8, 16, 24, 36, 44). The atomic and electronic structure and properties of the synthesized fullerenols were investigated using the density functional theory calculations. It was shown that the presence of endohedral gadolinium increases the reactivity of fullerenols. It is proposed that the high-spin endohedral fullerenols are promising candidates for application in magnetic resonance imaging.

1. Introduction

Studies of the properties of fullerenes and fullerene derivatives made it possible to determine the areas of their applications [1,2,3,4,5,6,7,8,9,10,11,12,13,14], including biomedical ones. The main biomedical feature of fullerenes and most of their derivatives is the low toxicity and the ability to be removed from the body [4]. In particular, pristine fullerenes [15] demonstrated low toxicity without substantial health risks for prolonged exposure under good hygiene conditions. It was shown that C60 fullerenols demonstrate some toxicity due to the generation of reactive oxygen species caused by photoexcitation [16]. In particular, it was found that endohedral Gd@C82(OH)22 species exhibited very low toxicity in tumor-bearing mice [17]. It was shown that most of the pristine and functionalized fullerenes are not overtly toxic, unless photoexcited or used at very high concentrations that are unlikely to be encountered environmentally or during therapy. The geometry and electronic structure of fullerenes allow them to form compounds containing various pharmacophore groups, which can easily pass to the excited state under the action of different physical and chemical factors and enclose metal atoms into their carbon cage with the formation of so-called endohedral metallofullerenes. The endohedral metal complexes are characterized by chemical stability, paramagnetism, and large specific surface, which can be easily functionalized [18].
Various functional groups can be attached to a fullerene cage, which makes it possible to obtain water-soluble fullerene derivatives. Fullerenols, due to their hydrophilic properties and ability to bind free radicals, can be used in chemotherapy, treatment of neurodegenerative diseases, and radiology [4,8,9,18]. Theoretical Molecular Dynamics (MD) simulations [19] of [C60(OH)n, where n = 2–30] in aqueous solutions and survey of experimental data [20] demonstrate highly negative solvation free energies which directly indicate the thermodynamic feasibility of fullerenoles in water solutions.
In particular, hydroxylated fullerenes (fullerenols) exhibit pronounced antioxidant activity [3]. Fullerenols can react with most of the physiologically significant reactive oxygen species (ROS), including the OH•, O2•−, and H• radicals. Fullerenols can simultaneously contain the functional groups that can form radicals in aqueous solutions and anionic groups [4]. The calculation showed that the antioxidant activity with OH• depends on the distribution of hydroxyls over the C60 fullerene cage. The fullerenols, in which the hydroxyl distribution lowers the redox potential ε, have the high trapping activity.
A number of functional groups on the fullerene cage (carcass) are critical for the fullerenes biological activity. Eropkin and co-workers [21] studied the bioeffects of hydroxylated C60 fullerene derivatives C60(OH)12–14, C60(OH)18–24, C60(OH)30–38. The authors did not find bioactivity of C60(OH)12–14, while fullerenol C60(OH)18–24 demonstrated maximal antiviral and protective properties. Kovel et al. [22] revealed a lower toxicity and higher antioxidant activity of fullerenols with fewer oxygen groups (24–28), as compared to fullerenols with the higher number of oxygen groups (40–42). The difference was attributed to the fullerenols catalytic activity via reversible electron acceptance, radical trapping, and balance of ROSs. Involvement of an exohedral atom of Fe to the structure of C60O2–4(OH)20–24 increased its toxicity and decreased antioxidant activity [23]. The antioxidant effect of highly diluted fullerenol solutions on bacterial cells was attributed to hormesis phenomenon [24]. It was concerned with stimulation of adaptive response of cells under low-concentration exposures. Sequence analysis of 16S ribosomal RNA was carried out in this study; it did not reveal mutations in bacterial DNA. Additionally, it was shown [25] that the antioxidant ability of natural detoxifying agent, humis substances, was lower and time-dependent, in contrast to fullerenol C60O2–4(OH)20–24.
The Gd@C82 endohedral fullerene complex and its derivatives are widely used in biomedicine [1,2,3,4,5,6,7,8,9]. The water-soluble gadolinium-containing metallofullerene derivatives can be excellent candidates to be used as novel magnetic resonance imaging (MRI) contrast agents, since they are characterized by the high relaxing ability and encapsulation of lanthanide ions (Gd3+), which prevents their release into the bioenvironment [5]. The most widely used gadolinium-containing compounds are gadodiamide, gadopentetate dimeglumine, gadoterate meglumine, etc. [26,27]; however, there are fears that these substances may be toxic [27]. The metallofullerene derivatives trap toxic Gd3+ ions into an inert yet strong carbon cage preventing their release and exhibit the 10 to 40 times higher proton relaxation ability as compared with that of conventional contrast agents and, in some cases, the much longer retention of the glioma brain tumor in mouse models [28].
Gadolinium endohedral complex Gd@C82 increases the magnetic relaxivity of the contrast agent, which is a prerequisite for improved image contrast at lower gadolinium concentrations [29]. It was shown that Gd metallofullerenol in combination with chemotherapy improves the effectiveness of cancer therapy [30]. Gadolinium ions can inhibit calcium channels and exhibit neurological and cardiovascular toxicity [31]. To be used in clinical settings, the gadolinium ion must be placed in a chelating medium, which tightly binds the metal, but allows water to interact with unpaired gadolinium spins. The conventional approach implies the use of polyfunctional ligands, which strongly coordinate the Gd3+ ion, but allow at least one water molecule to directly bind to Gd3+ [5]. Due to the complexity of the synthesis of fullerenols with the gadolinium guest atom inside a carbon cage, the use of these compounds is still limited. Nevertheless, the Gd@C82Ox(OH)y fullerenol is a good candidate for biomedical applications, since it has good solubility in water. Gadolinium enclosed in a carbon cage becomes nontoxic due to the easy removal of fullerenols from the body. In addition, a fullerenol can act as a substance for struggling against the ROSs.
In this work, the density functional theory (DFT) calculations were used to study the equilibrium atomic geometry and electronic structure of Gd endohedral complexes of C82 fullerenols with different numbers of O and OH functional groups, which were synthesized in a high-temperature experiment and characterized by mass spectrometry. The reactivity of Gd@C82Ox(OH)y endohedral complexes was estimated using the calculations of chemical electrophilicity (ω) and absolute electronegativity (χ) indices. It was found that the gadolinium guest atom increases the reactivity of fullerenol endohedral complexes with different ROSs. The endohedral complexes are proposed to be used for various MRI biomedical applications.

2. Experimental Procedures

A mixture of the Gd2O3 powder and graphite in a weight ratio of 1:1 was processed in high-frequency arc plasma discharge by sputtering of graphite electrodes with 3-mm axial holes [32] with very low chemical yield. Fullerene mixture was extracted from carbon condensate by carbon disulfide in a Soxhlet apparatus. Using the technique described by Akiyama et al., a mixture of Gd@C82 and higher fullerenes was isolated from the resulting solution. The sample was dried and redissolved in toluene. The Gd@C82 fullerene was isolated from the solution by high-efficiency liquid chromatography on Agilent Technologies 1200 Series chromatograph with the only one Gd@C82 endohedral complex detected in the mass spectrum, which signal clearly stands out against broadband background noise (Figure S1).
According to the method proposed by Chiang and co-workers [12], the -O and -OH groups were attached to the isolated endohedral metallofullerene. Taking into account that the number of OH groups attached to the fullerene must be even [13,14], the composition of this product can be assumed as Gd@C82Ox(OH)y (x = 10–12, y = 30–32, x + y = 40–42) [27].

3. Computational Details

The atomic and electronic structures of C82 fullerene, Gd@C82 endohedral complex, and Gd@C82Ox(OH)y fullerenols and energy of solvation (Figure 1) were calculated using DFT meta-hybrid exchange correlation MN15 functional [33] and def(2)-SVP basis set [34] for carbon (C), oxygen (O), and hydrogen (H) atoms and def(2)-SVP_ECP basis set for the gadolinium atom [35] using Gaussian 09 code [36]. The MN15 functional has a broader accuracy than any DFT potentials to reproduce bond energies, atomization energies, ionization potentials, electron affinities, proton affinities, reaction barrier heights, non-covalent interactions, hydrocarbon thermochemistry, isomerization energies, electronic excitation energies, absolute atomic energies, and molecular structures. In particular, it provides very accurate results for multi-, single-configurational, and non-covalent systems with mean unsigned error (MUE) 4.75, 1.85, and 0.25 kcal/mol, respectively, which is several times smaller than MUEs of conventional DFT potentials. The def(2)-SVP basis set is a balanced basis set to provide split valence, triple zeta valence, and quadruple zeta valence quality for H to Rn, which allows one to properly describe atomization energies, dipole moments, and structure parameters using density functional theory. The electronic structure calculations were performed within the restricted open-shell and unrestricted electronic structure calculations taking into account solvation effects using Universal solvation model based on density (SMD) [37]. Some details of taking into account solvation effects are presented in the SI Section.
The Gd@C82 optimization was performed with spin S = 7/2, which corresponds to 4f7 configuration of Gd+3 ion [38] (Figure 1a,b). The symmetrically distributed OH groups over the Gd@C82 were employed to develop the atomistic models of different fullerenols and to calculate their atomic and electronic structures (Figure 1c). The fullerenols with three epoxy groups Gd@C82O3(OH)y (y = 8, 16, 24, 36, 44 (Figure 1d)) were developed by the uniform arrangement of hydroxyl and epoxy groups over fullerene carbon cage to reduce the number of possible intramolecular interactions and the atomic and electronic structures were studied as well. Some details of the development of structural models of Gd endohedral complexes of fullerenoles are presented in the SI Section.
To estimate the chemical reactivity of fullerenol gadolinium endohedral complexes, the absolute electronegativity index χ = (I−A)/2 (eV) [39], where I is the energy of the highest occupied molecular orbital (HOMO) and A is the energy of the lowest unoccupied molecular orbital (LUMO), and electrophilicity indexes ω = χ2/2η (η = −(I−A)/2 (in electron Volts, eV), which characterize the tendency of a molecule to attack the nucleophile, were calculated using the results of electronic structure calculations. The antioxidant properties of the fullerenols were estimated by calculating the electronic characteristics of oxygen molecules with different multiplicities (m) and charges (z), namely for O2− m = 2 and z = −1; for O20 m = 1 and z = 0; for O20 m = 3 and z = 0; for hydrogen peroxide molecules H2O2 m = 1 and z = 0; and for HOO• m = 2 and z = 0. The density of states for fullerene and its derivatives were calculated with a peak smearing of 0.3 eV.

4. Results and Discussion

4.1. The C82Ox(OH)y and Gd@C82Ox(OH)y Atomic Structures

The Gd guest atom in the Gd@C82 endohedral complex is coordinated to the center of the hexagon on the C2v axis of the C82 cage [38]. An isolated Gd atom has the electron configuration 4f75d16s2 and Gd3+ ion has a 4f7 configuration, which points out that Gd 5d- and Gd 6s-electrons are transferred to the carbon sphere, forming ionic bonds between Gd ion and C82 cage. The Gd 4f7 configuration is consistent with the Gd3+@C823− ion model [40]. The Gd@C82 ground spin state results from the intramolecular antiferromagnetic exchange between gadolinium ion with spin SGd = 7/2 and SC82 = 1/2 [38] with the total spin SGd@C82 = 6/2 of the complex.
The C82 fullerene of C2v symmetry consists of 12 pentagons and 32 hexagons (Figure 1a, Table 1). The formation of Gd@C82 leads to the elongation of some carbon–carbon bonds from 1.42–1.43 to 1.44–1.45 Å (∆l = 0.02 Å) (Table 1). In fullerenols, the C-C bond lengths are almost independent upon the number and positioning of the hydroxyl groups (8, 16, and 24) on the fullerene cage (l = 1.38–1.42 Å), as compared with pristine fullerene (Figure 2a, Table 1). However, an increase in the number of hydroxyl groups to 36 and 44 significantly changes the bond length, thus the global C82 π system is almost annihilated with conversion of aromatic C-C bonds to separate single and double bonds with increases of the length of the single bond from 1.41–1.42 to 1.51–1.53 Å (Δl = 0.10–0.12 Å), while the length of the double bond decreases from 1.38–1.41 to 1.33–1.35 Å (∆l = 0.06–0.08 Å). In addition to the bond length, the angles between the carbon atoms of the carbon hexagon to which the gadolinium ion is coordinated also change, decreasing by 1–3 degrees in comparison with C82Ox(OH)y.
The presence of gadolinium ion combined with epoxy and hydroxyl groups (8, 16 and 24) in the C82 fullerene slightly changes the bond angles between carbon atoms (Figure 2a, Table 1). A greater number of hydroxyl groups increases the angle ∠C1-2-3 by 2–4°, from 120° to 124°, ∠C1-2-4 increases by 3–4°, from 109° to 112–113°, and ∠C3-2-4 decreases by 3–4°, for x = 36 hydroxyl groups from 122–125° to 118–119°. For x = 44 hydroxyl groups, the angles increase by 3–4°, as compared with the fullerenols with 36 hydroxyl groups from 118–119° to 121–122°.
It can be seen (Figure 1 and Figure 2, Table 1) that C82Ox(OH)y and Gd@C82Ox(OH)y (x = 0, 3; y = 8, 16, 24, 36, 44) complexes can be assigned to two different groups, namely: (1) x = 0, 3 and y = 8, 16, 24 and (2) x = 0, 3; y = 36, 44. In the first group, the π-system is maintained even in the presence of gadolinium ion in the carbon cage, which can be seen for the fullerenols from the change in the angle of the hexagon with the gadolinium ion coordinated to the center (a change by 0–2 degrees relative to that in C82 and Gd@C82 Figure 2a, Table 1). However, as the number of hydroxyl groups increases, global C82 π-system is annihilated and uniform aromatic C-C bonds are replaced by the single and double bonds, which leads to a change in the geometry of the carbon cage (Figure 2b, Table 1).
The presence of 8, 16, and 24 hydroxyl groups on C82 carbon cage does not imply their significant mutual interaction (Figure 2a). When the number of hydroxyl groups increases to 36 and 44, they become close enough to each other and start interacting, forming a system of hydrogen bonds (Figure 2b). In particular, the distances between oxygen atoms of one hydroxyl group and hydrogen atoms of the other hydroxyl group ranges from 1.89 to 1.97 Å (Figure 2b).
The electronic structure calculations show that in C82Ox(OH)y complexes with 8, 16, and 24 OH groups, the energy of interaction with solvent increases from 213 to 402 kJ/mol (Table S1), whereas Gd@C82Ox(OH)y complex solvation is energetically favorable for 16 hydroxyl groups (793 kJ/mol, Table S1). An increase of the number of substituent hydroxyl groups in C82Ox(OH)y and Gd@C82Ox(OH)y (x = 0, 3; y = 36, 44) complexes leads to the formation of hydrogen bonds between oxygen and hydrogen atoms of the adjacent hydroxyl groups (the distance between hydroxyl groups decreased to 1.89–1.97 Å; Figure 2b). The energy of solvation was calculated for the complexes with larger numbers of C82O8(OH)y (y = 8, 16, 24, 36, 44) epoxy groups (Table S1). For the complexes with 8, 16, and 24 OH groups, the energy of interaction with the solvent increases from 165 to 298 kJ/mol (Table S1); for the complexes with 36 hydroxyl groups, it decreases to 258 kJ/mol; and for the complex with 44 hydroxyl groups, it increases to 288 kJ/mol (Table S1). The presence of gadolinium ion further increases the energy of solvation to 712–793 kJ/mol. All fullerenoles have good solubility in water whether or not they have endohedral guest atom inside the C82 carbon cage. Consequently, for the complexes with a large number of hydroxyl groups, the interaction with the solvent is weaker (Table S1). The carbon cage is strongly distorted in the case of 36 and 44 hydroxyl groups, which leads to the breakdown of the π-system for the entire molecule and decreasing the electron affinity for the fullerenol, which is, according to the Koopmans theorem, the negative of LUMO energy, (Table 1, Figure 2b).

4.2. The C82Ox(OH)y and Gd@C82Ox(OH)y Electronic Structures

In Figure 3, the HOMO and LUMO diagrams are presented for free-standing Gd atom, C82 fullerene (C2v symmetry) in gas phase, and Gd@C82, and Gd@C82O3(OH)24 complexes in solvent as well as O20 (m = 1, m = 3), O2− (m = 2), and HOO• in the solvent.
The coordination type of epoxy groups of C82O3(OH)24 fullerenols (Figures S2 and S3) slightly affects both HOMO and LUMO energies. In particular, the ∆E(HOMO-LUMO) value for C82O3(OH)24 is increased by 0.032 eV relative to that of C82(OH)24 (Figures S2 and S3), keeping spatial localization of the HOMO and LUMO orbitals almost intact. The 4f Gd electrons lie below HOMO by 1.88 eV in the energy region from −6.24 to −6.69 eV. The HOMO states are localized mainly on carbon atoms of the fullerenol (Figure 3b–d), and, so the total high spin moment of the complex is maintained. The HOMO and LUMO of the C82 fullerene are located at the top of the carbon cage (Figure 3b). In the Gd endohedral complex, the localization of α and β HOMOs is determined by endohedral gadolinium ion mostly at the top of the molecule in the vicinity of the carbon hexagon which coordinates Gd+3 (Figure 3c,d).
In this case, the spin-up and spin-down LUMOs are mostly localized at the carbon cage (Figure 3c). The hydroxy- and epoxy groups drive the localization of HOMOs and LUMOs states, i.e., the HOMO electron density is concentrated on carbon atoms near gadolinium and, vice versa, the LUMO electron density is localized at the opposite pole of the cage (Figure 3d).
Gadolinium ion slightly affects the energy shift of the occupied and unoccupied states. HOMO is shifted downwards by 0.26 eV from −6.05 to −6.31 (−6.32) eV, whereas the LUMO is shifted upward by 0.10 eV from −4.17 to −4.01 (−4.02) eV with an energy gap increasing by 0.42 eV from 1.88 to 2.30 eV relative to the value for the free-standing C82 fullerene (Figure 3c). The coordination of epoxy and hydroxyl groups led to a shift of α-HOMO upward by 1.95 eV from −6.31 to −4.36 eV and shift of α-LUMO upward by 2.47 eV from −4.01 to −1.54 eV (Figure 3d). β-HOMO shifted upward by 1.3 eV from −6.32 to −5.02 eV and β-LUMO also shifted upward by 1.46 eV from −4.02 to −2.56 eV (Figure 3d). The energy gap for the β-electron of Gd@C82O3(OH)24 is increased by 0.14 eV from 2.30 to 2.44 eV as compared with the pristine β-electron of Gd@C82.
Let us analyze the HOMO-LUMO behavior to elucidate the charge transfer mechanisms between fullerenoles and ROSes. The electronic structure of O2 and HOO− in different oxidation and spin states (O2− m = 2; O20 m = 1; O20 m = 3, Figure 3e,f) was previously studied by Dai et al. [41]. The O2− and O2 HOMO energies (O2-, m = 2; O20, m = 3) are in the energy region of −2.51 ÷ −5.28 eV with the energy region for LUMOs between 6.39 to 6.04 eV. Relative to the electronic structure of C82Ox(OH)y and Gd@C82Ox(OH)y (x = 0, 3; y = 8, 16, 24, 36, 44) fullerenols, the HOMO-LUMO energy gaps for O2 species are much greater than the UV threshold (3.5 eV) and they are equal to 8.90 and 11.32 eV, respectively (Figure 3e). One can speculate that an electronic excitation that is less demanding in energy is an excitation from a reactive oxygen species to fullerenol LUMO states with alpha and beta energies equal to −1.54 and −2.56 eV, respectively. For a neutral singlet oxygen molecule, the HOMO‒LUMO gap is 2.64 eV; therefore, the excited electrons may be transferred to the fullerenole’s LUMO state (Figure 3e). The energies of HOMO and LUMO states of the hydroxyperoxide radical HOO• are −5.55 eV and 2.07 eV, respectively, with the HOMO-LUMO gap equal to 7.62 eV (Figure 3f), which is also greater than the UV energy threshold. The α- and β-LUMO energies of fullerenol Gd@C82O3(OH)24 (−1.54 and −2.56 eV for α and β partners, Figure 3d) are also much lower than HOO• LUMO. The ROS molecules have large energy gaps and their unoccupied molecular orbitals are high in energy, which complicates the excitations of the electron from HOMOs to LUMOs. The boundary molecular orbitals of fullerenols are located between HOMOs and LUMOs of the ROSes; therefore, these molecules can easily interact with the chemical environment.
The electrophilicity ω and absolute electronegativity χ indices of Gd@C82Ox(OH)y and C82Ox(OH)y complexes are presented in Table 2. C82Ox(OH)y (x = 0, 3; y = 16, 24) exhibit no changes in the reactivity and their absolute electronegativity χ ranges from −4.5 to −4.9 eV. The guest gadolinium ion causes a change in reactivity in both α and β channels. In particular, the change in the properties of Gd@C82(OH)y (y = 16, 24) can be observed with absolute electronegativities χ from −3.8 and −3.1 eV for α electrons and from −5.1 to −3.5 eV—for β electrons. Variations of the coordinates of epoxy groups do not lead to strong differences in reactivity between α and β electrons. In particular, for 16 hydroxyl groups, the absolute electronegativities of α and β electrons are −3.2 eV, and for 24 hydroxyl groups, they are −2.9 and −3.8 eV, respectively.
The C82O3(OH)24 complex has an electrophilicity index of ω = 11.6 eV, which promotes chemical attacks of ROS nucleophiles. The guest gadolinium ion changes the ability to accept electrons in both α and β channels with ω = 5.76 eV for 16 hydroxyl groups and 3.1 and 5.86 eV for 24 hydroxyl groups for α and β electrons, respectively.

5. Conclusions

The C82Ox(OH)y and Gd@C82Ox(OH)y (x = 0, 3; y = 8, 16, 24, 36, 44) complexes perspective for biomedical applications were synthesized and characterized using mass-spectroscopy. Following mass-spectrometry experimental detection, a number of atomistic models of endohedral fullerenoles Gd@C82Ox(OH)y (x = 0, 3; y = 8, 16, 24, 36, 44) were developed and studied using ab initio DFT calculations. It was shown that the guest Gd atom promotes the chemical reactivity and electrophilic properties of fullerenol cages. For a relatively small number of hydroxyl groups, the C82 carbon cage of C82Ox(OH)y and Gd@C82Ox(OH)y (x = 0, 3; y = 24) complexes still maintain the π-electron system. The complexes display high electron affinity, which ensures advanced antioxidant properties. Increasing the number of hydroxyl groups (y > 24) in Gd@C82Ox(OH)y complexes leads to the formation of intramolecular hydrogen bonds between the hydroxyl groups, which prevents chemical interactions with water solvent with decreasing of reactivity and solubility of the complexes with consequent degradation of antioxidant properties. Based on combined experimental and theoretical investigation, the endohedral Gd@C82Ox(OH)y complexes with 24 hydroxyl groups are considered as the best candidate for biomedical applications.

Supplementary Materials

The following are available online at https://www.mdpi.com/article/10.3390/computation9050058/s1, Figure S1: Mass spectrum of the chromatographic fraction with Gd@C82 (positive mode); Description of Solavatation models; Table S1: Energy of solvation of Gd@C82O3(OH)y, C82O3(OH)y and C82O8(OH)y; Figure S2: Diagram of the boundary molecular orbitals of C82Ox(OH)24, Gd@C82Ox(OH)24 (x = 0, 3), O20 (χ = 1, χ = 3), O2− (χ = 2), and HOO• in the solvent (H2O). The HOMO and LUMO levels are shown in blue and red color, respectively. The number between the HOMO and LUMO is the energy gap (ΔEHOMO-LUMO, eV); Figure S3. Densities of states of Gd@C82Ox(OH)y. TDOS is total density of states, PDOS is partial density of states. Gd, C82 and Gd@C82 were calculated in gas phase, Gd@C82O3(OH)24 in water solvent. (a) Gd: TDOS is shown in red color and multiplied by 0.5, PDOS of α-ß-channels are shown in blue and green colors, respectively; (b) C82: TDOS is shown in blue color; (c) Gd@C82: TDOS is shown in red color and multiplied by 0.5, PDOS of α- ß-channels are shown in blue and green colors; (d) Gd@C82O3(OH)24: TDOS is shown in red color and multiplied by 0.5, PDOS of α- ß-channels are shown in blue and green colors. Dotted line shows HOMO-LUMO energy gap ΔE; Cartesian coordinates of all calculated complexes.

Author Contributions

Conceptualization, O.N.T., S.G.O. and P.V.A.; Synthesis of fullerenoles, N.G.V. and G.N.C.; Experimental study of biological activity, N.S.K.; Mass-spectroscopy characterization, A.A.S.; Quantum chemical calculations, F.N.T. and V.A.P. All authors have read and agreed to the published version of the manuscript.

Funding

The experimental results were funded by RFBR project No. 18-29-19003 MK. The quantum chemical study was funded by project 0721-2020-0033 of the Russian Ministry of Science and Education. The collaboration and coordination of Russian and Korean teams was supported by Collaborative NRF-RFBR grant (Korean ID: NRF-2019K2A9A1A06100125; Russian ID: Project No. 19-53-51005 NIFa RFFI-Korea) and NRF 2021R1A2C1010455 grant.

Institutional Review Board Statement

Not Applicable.

Informed Consent Statement

Not Applicable.

Data Availability Statement

All supporting data can be found in SI section available online.

Acknowledgments

The experimental results were funded by RFBR project No. 18-29-19003 MK. The quantum chemical study was funded by project 0721-2020-0033 of the Russian Ministry of Science and Education. The collaboration and coordination of Russian and Korean teams was supported by Collaborative NRF-RFBR grant (Korean ID: NRF-2019K2A9A1A06100125; Russian ID: Project No. 19-53-51005 NIFa RFFI-Korea) and NRF 2021R1A2C1010455 grant.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Popov, A.A.; Yang, S.; Dunsch, L. Endohedral Fullerenes. Chem. Rev. 2013, 113, 5989–6113. [Google Scholar] [CrossRef]
  2. Shinohara, H. Endohedral metallofullerenes. Rep. Prog. Phys. 2000, 63, 843–892. [Google Scholar] [CrossRef]
  3. Yang, S.; Wei, T.; Jin, F. When metal clusters meet carbon cages: Endohedral clusterfullerenes. Chem. Soc. Rev. 2017, 46, 5005–5058. [Google Scholar] [CrossRef] [PubMed]
  4. Wang, Z.; Gao, X.; Zhao, Y. Mechanisms of Antioxidant Activities of Fullerenols from First-Principles Calculation. J. Phys. Chem. 2018, 122, 8183–8190. [Google Scholar] [CrossRef]
  5. Zhang, J.; Ye, Y.; Chen, Y.; Pregot, C.; Li, T.; Balasubramaniam, S.; Hobart, D.B.; Zhang, Y.; Wi, S.; Davis, R.M.; et al. Gd3N@C84(OH)x: A New Egg-Shaped Metallofullerene Magnetic Resonance Imaging Contrast Agent. J. Am. Chem. Soc. 2014, 136, 2630–2636. [Google Scholar] [CrossRef]
  6. Da Ross, T. Twenty Years of Promises: Fullerene in Medicinal Chemistry. In Medicinal Chemistry and Pharmacological Potential of Fullerenes and Carbon Nanotubes; Cataldo, F., Da Ros, T., Eds.; Carbon Materials: Chemistry and Physics; Springer: Dordrecht, The Netherlands, 2008; Volume 1. [Google Scholar] [CrossRef]
  7. Kang, S.G.; Huynh, T.; Zhou, R. Non-destructive Inhibition of Metallofullerenol Gd@C82(OH)22 on WW domain: Implication on Signal Transduction Pathway. Sci. Rep. 2012, 2, 957. [Google Scholar] [CrossRef] [Green Version]
  8. Kang, S.G.; Zhou, G.; Yang, P.; Liu, Y.; Sun, B.; Huynh, T.; Meng, H.; Zhao, L.; Xing, G.; Chen, C.; et al. Molecular mechanism of pancreatic tumor metastasis inhibition by Gd@C82(OH)22 and its implication for de novo design of nanomedicine. Proc. Natl. Acad. Sci. USA 2012, 109, 15431–15436. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  9. Meng, J.; Liang, X.; Chen, X.; Zhao, Y. Biological characterizations of [Gd@C82(OH)22]n nanoparticles as fullerene derivatives for cancer therapy. Integr. Biol. 2013, 5, 43–47. [Google Scholar] [CrossRef] [Green Version]
  10. Churilov, G.N.; Kratschmer, W.; Osipova, I.V.; Glushenko, G.A.; Vnukova, N.G.; Kolonenko, A.L.; Dudnik, A.I. Sinthesis of fullerenes in a high-frequency arc plasma under elevated helium pressure. Carbon 2013, 62, 389–392. [Google Scholar] [CrossRef]
  11. Akiyama, K.; Hamano, T.; Nakanishi, Y.; Takeuchi, E.; Noda, S.; Wang, Z.; Kubuki, S.; Shinohara, H. Non-HPLC rapid separation of metallofullerenes and empty cages with TiCl4 Lewis acid. J. Am. Chem. Soc. 2012, 134, 9762–9767. [Google Scholar] [CrossRef] [PubMed]
  12. Chiang, L.Y.; Swirczewski, J.W.; Hsu, C.S.; Chowdhury, S.K.; Cameron, S.; Creegan, K. Multi-hydroxy additions onto C60 fullerene molecules. J. Chem. Soc. Chem. Commun. 1992, 114, 1791–1793. [Google Scholar] [CrossRef]
  13. Shilin, V.A.; Szhogina, A.A.; Suyasova, M.V.; Sedov, V.P.; Lebedev, V.T.; Kozlov, V.S. Fullerenes and fullerenols survival under irradiation. Nanosystems 2016, 7, 146–152. [Google Scholar] [CrossRef] [Green Version]
  14. Wang, B.C.; Wang, H.W.; Tso, H.C.; Chen, T.L.; Chou, Y.M. Theoretical studies of C70(OH)n (n = 14, 16, 18 and 20) fullerols. J. Mol. Struct. THEOCHEM 2002, 581, 177–186. [Google Scholar] [CrossRef]
  15. Aschberger, K.; Johnston, H.J.; Stone, V.; Aitken, R.J.; Tran, C.L.; Hankin, S.M.; Peters, S.A.K.; Christensen, F.M. Review of fullerene toxicity and exposure—Appraisal of a human health risk assessment, based on open literature. Regul. Toxicol. Pharmacol. 2010, 58, 455–473. [Google Scholar] [CrossRef] [PubMed]
  16. Trpkovic, A.; Todorovic-Markovic, B.; Trajkovic, V. Toxicity of pristine versus functionalized fullerenes: Mechanisms of cell damage and the role of oxidative stress. Arch. Toxicol. 2012, 86, 1809–1827. [Google Scholar] [CrossRef] [PubMed]
  17. Chen, C.; Xing, G.; Wang, J.; Zhao, Y.; Li, B.; Tang, J.; Jia, G.; Wang, T.; Sun, J.; Xing, L. Multihydroxylated [Gd@C82(OH)22]n Nanoparticles: Antineoplastic Activity of High Efficiency and Low Toxicity. Nano Lett. 2005, 5, 2050–2057. [Google Scholar] [CrossRef] [PubMed]
  18. Chen, Z.; Ma, L.; Liu, Y.; Chen, C. Applications of Functionalized Fullerenes in Tumor Theranostics. Theranostics 2012, 2, 238–250. [Google Scholar] [CrossRef] [Green Version]
  19. Keshri, S.; Tembe, B.L. Thermodynamics of hydration of fullerols [C60(OH)n] and hydrogen bond dynamics in their hydration shells. J. Chem. Phys. 2017, 146, 074501. [Google Scholar] [CrossRef]
  20. Djordjevic, A.; Srdjenovic, B.; Seke, M.; Petrovic, D.; Injac, R.; Mrdjanovic, J.J. Review of synthesis and antioxidant potential of fullerenol nanoparticles. J. Nanomater. 2015, 2015, 567073. [Google Scholar] [CrossRef] [Green Version]
  21. Eropkin, M.Y.; Melenevskaya, E.Y.; Nasonova, K.V.; Bryazzhikova, T.S.; Eropkina, E.M.; Danilenko, D.M.; Kiselev, O.I. Synthesis and biological activity of fullerenols with various contents of hydroxyl groups. Pharm. Chem. J. 2013, 47, 87–91. [Google Scholar] [CrossRef]
  22. Kovel, E.S.; Sachkova, A.S.; Vnukova, N.G.; Churilov, G.N.; Knyazeva, E.M.; Kudryasheva, N.S. Antioxidant activity and toxicity of fullerenols via bioluminescence signaling: Role of oxygen substituents. Int. J. Mol. Sci. 2019, 20, 2324. [Google Scholar] [CrossRef] [Green Version]
  23. Kudryasheva, N.S.; Kovel, E.S.; Sachkova, A.S.; Vorobeva, A.A.; Isakova, V.G.; Churilov, G.N. Bioluminescent enzymatic assay as a tool for studying antioxidant activity and toxicity of bioactive compounds. Photochem. Photobiol. 2017, 93, 536–540. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  24. Sachkova, A.S.; Kovel, E.S.; Churilov, G.N.; Guseynov, O.A.; Bondar, A.A.; Dubinina, I.A.; Kudryasheva, N.S. On mechanism of antioxidant effect of fullerenols. Biochem. Biophys. Rep. 2017, 9, 1–8. [Google Scholar] [CrossRef] [Green Version]
  25. Sachkova, A.S.; Kovel, E.S.; Churilov, G.N.; Stom, D.I.; Kudryasheva, N.S. Biological activity of carbonic nano-structures—comparison via enzymatic bioassay. J. Soils Sediments 2019, 19, 2689–2696. [Google Scholar] [CrossRef] [Green Version]
  26. Maravilla, K.R.; San-Juan, D.; Kim, S.J.; Elizondo-Riojas, G.; Fink, J.R.; Escobar, W.; Bag, A.; Roberts, D.R.; Hao, J.; Pitrou, C.; et al. Comparison of Gadoterate Meglumine and Gadobutrol in the MRI Diagnosis of Primary Brain Tumors: A Double-Blind Randomized Controlled Intraindividual Crossover Study (the REMIND study). Am. J. Neuroradiol. 2017, 38, 1681–1688. [Google Scholar] [CrossRef] [Green Version]
  27. Ersoy, H.; Rybicki, F.J. Biochemical Safety Profiles of Gadolinium-Based Extracellular Contrast Agents and Nephrogenic Systemic Fibrosis. J. Magn. Reson. Imaging. 2007, 26, 1190–1197. [Google Scholar] [CrossRef] [Green Version]
  28. Guan, M.; Ge, J.; Wu, J.; Zhang, G.; Chen, D.; Zhang, W.; Zhang, Y.; Zou, T.; Zhen, M.; Wang, C.; et al. Fullerene/photosensitizer nanovesicles as highly efficient and clearable phototheranostics with enhanced tumor accumulation for cancer therapy. Biomaterials 2016, 103, 75–85. [Google Scholar] [CrossRef] [Green Version]
  29. Rodriguez-Galvan, A.; Rivera, M.; Garcia-Lopez, P. Gadolinium-containing carbon nanomaterials for magnetic resonance imaging: Trends and challenges. J. Cell. Mol. Med. 2020, 24, 3779–3794. [Google Scholar] [CrossRef] [Green Version]
  30. Tang, J.; Zhang, R.; Guo, M. Gd-metallofullerenol drug delivery system mediated macrophage polarization enhaces the efficiency of chemotherapy. J. Control. Release 2020, 320, 293–303. [Google Scholar] [CrossRef] [PubMed]
  31. Clavaguéra, C.; Sansot, E.; Calvo, F.; Dognon, J.P. Gd(III) polyaminocarboxylate chelate: Realistic many-body molecular dynamics simulations for molecular imaging applications. J. Phys. Chem. 2006, 110, 12848–12851. [Google Scholar] [CrossRef] [Green Version]
  32. Dudnik, A.I.; Vnukova, N.G.; Drokin, N.A.; Bondarev, V.S.; Shestakov, N.P.; Tomashevich, Y.V.; Churilov, G.N. Electrophysical properties of hydroxylated endohedral metallofullerene with gadolinium. J. Phys. Chem. Solids. 2019, 135, 109094. [Google Scholar] [CrossRef]
  33. Yu, H.S.; He, X.; Li, S.L.; Truhlar, D.G. MN15: A Kohn–Sham global-hybrid exchange–correlation density functional with broad accuracy for multi-reference and single-reference systems and noncovalent interactions. Chem. Sci. 2016, 7, 5032–5051. [Google Scholar] [CrossRef] [Green Version]
  34. Weigend, F.; Ahlrichs, R. Balanced basis sets of split valence, triple zeta valence and quadruple zeta valence quality for H to Rn: Design and assessment of accuracy. Phys. Chem. 2005, 7, 3297. [Google Scholar] [CrossRef] [PubMed]
  35. Gulde, R.; Pollak, P.; Weigend, F. Error-Balanced Segmented Contracted Basis Sets of Double-ζ to Quadruple-ζ Valence Quality for the Lanthanides. J. Chem. Theory Comput. 2012, 8, 4062–4068. [Google Scholar] [CrossRef]
  36. Frisch, M.J. Gaussian 09, Revision A, 1st ed.; Gaussian, Inc.: Wallingford, CT, USA, 2009. [Google Scholar]
  37. Marenich, A.V.; Cramer, C.J.; Truhlar, D.G. Universal solvation model based on solute electron density and a continuum model of the solvent defined by the bulk dielectric constant and atomic surface tensions. J. Phys. Chem. 2009, 113, 6378–6396. [Google Scholar] [CrossRef] [PubMed]
  38. Dolg, M.; Stoll, H.; Preuss, H. Energy-adjusted ab initio pseudopotentials for the rare earth elements. J. Chem. Phys. 1989, 90, 1730–1734. [Google Scholar] [CrossRef]
  39. Pearson, R.G. Chemical Hardness: Applications from Molecules to Solids; Wiley: Weinheim, Germany, 1997. [Google Scholar]
  40. Nishibori, E.; Iwata, K.; Sakata, M.; Takata, M.; Tanaka, H.; Kato, H.; Shinohara, H. Anomalous endohedral structure of Gd@C82 metallofullerenes. Phys. Rev. 2004, 69, 113412. [Google Scholar] [CrossRef]
  41. Dai, X.; Gao, Y.; Xin, M.; Wang, Z.; Zhou, R. The ground state and electronic structure of Gd@C82: A systematic theoretical investigation of first principle density functional. J. Chem. Phys. 2014, 141, 244306. [Google Scholar] [CrossRef]
Computation 09 00058 g001 550

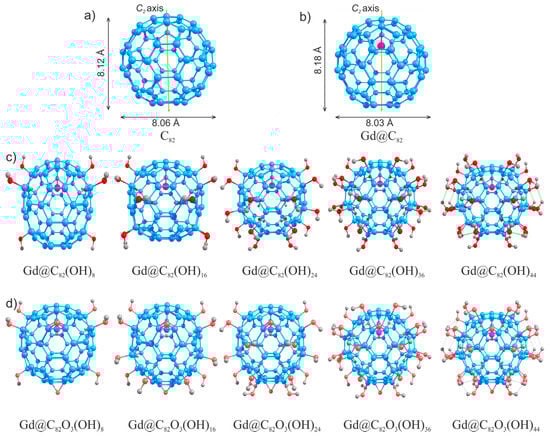

Figure 1. C82 fullerene related clusters oriented following C2v symmetry. (a) C82, (b) Gd@C82, (c) C82Ox(OH)y, and (d) Gd@C82Ox(OH)y (x = 0, 3; y = 8, 16, 24, 36, 44). Carbon, gadolinium, oxygen, and hydrogen atoms are shown in blue, fuchsia, red, and gray colors, respectively. The carbon cage lengths along the second-order axis for C82 and Gd@C82 are 8.12 and 8.18 Å with the widths 8.06 and 8.03 Å, respectively.
Figure 1. C82 fullerene related clusters oriented following C2v symmetry. (a) C82, (b) Gd@C82, (c) C82Ox(OH)y, and (d) Gd@C82Ox(OH)y (x = 0, 3; y = 8, 16, 24, 36, 44). Carbon, gadolinium, oxygen, and hydrogen atoms are shown in blue, fuchsia, red, and gray colors, respectively. The carbon cage lengths along the second-order axis for C82 and Gd@C82 are 8.12 and 8.18 Å with the widths 8.06 and 8.03 Å, respectively.
Computation 09 00058 g001
Computation 09 00058 g002 550

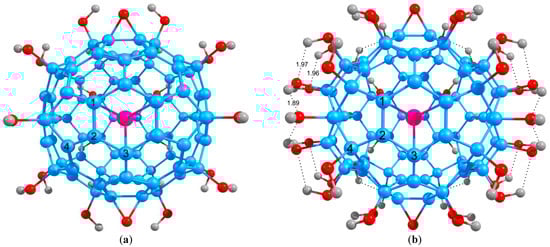

Figure 2. Atomic structure of Gd endohedral complexes of C82 fullerenols. (a) Gd@C82O3(OH)24 and (b) Gd@C82O3(OH)44. Carbon, gadolinium, oxygen, and hydrogen atoms are presented in blue, fuchsia, red, and gray colors, respectively. Carbon atoms 1 and 2 are bonded through single bond, and carbon atoms 2 and 3 are bonded through double bond. (a) The bond lengths l(C1-C2) and l(C2=C3) in Gd@C82O3(OH)24 are 1.41 and 1.38 Å, respectively. The bond angles ∠C1-2-3, ∠C1-2-4, and ∠C3-2-4 are 120°, 109°, and 122°, respectively. (b) The bond lengths l(C1-C2) and l(C2=C3) in Gd@C82O3(OH)44 are 1.52 and 1.33 Å, respectively. The bond angles ∠C1-2-3, ∠C1-2-4, and ∠C3-2-4 are 122°, 112°, and 121°, respectively. The dotted lines show the hydrogen bonds between hydrogen and oxygen atoms of different hydroxyl groups with bond lengths from 1.89 to 1.97 Å.
Figure 2. Atomic structure of Gd endohedral complexes of C82 fullerenols. (a) Gd@C82O3(OH)24 and (b) Gd@C82O3(OH)44. Carbon, gadolinium, oxygen, and hydrogen atoms are presented in blue, fuchsia, red, and gray colors, respectively. Carbon atoms 1 and 2 are bonded through single bond, and carbon atoms 2 and 3 are bonded through double bond. (a) The bond lengths l(C1-C2) and l(C2=C3) in Gd@C82O3(OH)24 are 1.41 and 1.38 Å, respectively. The bond angles ∠C1-2-3, ∠C1-2-4, and ∠C3-2-4 are 120°, 109°, and 122°, respectively. (b) The bond lengths l(C1-C2) and l(C2=C3) in Gd@C82O3(OH)44 are 1.52 and 1.33 Å, respectively. The bond angles ∠C1-2-3, ∠C1-2-4, and ∠C3-2-4 are 122°, 112°, and 121°, respectively. The dotted lines show the hydrogen bonds between hydrogen and oxygen atoms of different hydroxyl groups with bond lengths from 1.89 to 1.97 Å.
Computation 09 00058 g002
Computation 09 00058 g003 550

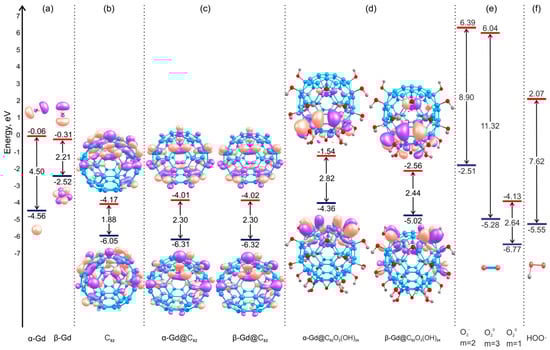

Figure 3. Diagram of the boundary molecular orbitals. (a) Gd, (b) C82, (c) Gd@C82, (d) Gd@C82O3(OH)24, (e) O20 (m = 1, m = 3), O2− (m = 2), and (f) HOO• in the solvent. The HOMO and LUMO levels are shown in blue and red colors, respectively. The number between the HOMO and LUMO is the energy gap (ΔEHOMO‒LUMO) in eV. The regions of the positive and negative wave functions on the molecules are shown in pink and purple colors.
Figure 3. Diagram of the boundary molecular orbitals. (a) Gd, (b) C82, (c) Gd@C82, (d) Gd@C82O3(OH)24, (e) O20 (m = 1, m = 3), O2− (m = 2), and (f) HOO• in the solvent. The HOMO and LUMO levels are shown in blue and red colors, respectively. The number between the HOMO and LUMO is the energy gap (ΔEHOMO‒LUMO) in eV. The regions of the positive and negative wave functions on the molecules are shown in pink and purple colors.
Computation 09 00058 g003
Table
Table 1. Structural parameters * of Gd@C82Ox(OH)y and C82Ox(OH)y complexes.
Table 1. Structural parameters * of Gd@C82Ox(OH)y and C82Ox(OH)y complexes.
Bond Lengths and Bond AnglesComplexes
C82(OH)y
C82(OH)8C82(OH)16C82(OH)24C82(OH)36C82(OH)44
l(C1-C2)1.421.411.421.531.53
l(C2=C3)1.411.411.411.351.33
∠C1–2–3121121121124123
∠C1–2–4109109109109112
∠C3–2–4122122121118122
Gd@C82(OH)y
Gd@C82(OH)8Gd@C82(OH)16Gd@C82(OH)24Gd@C82(OH)36Gd@C82(OH)44
l(C1-C2)1.421.411.411.521.51
l(C2=C3)1.411.411.401.351.33
∠C1-2-3119120120121122
∠C1-2-4108109109109113
∠C3-2-4125121121119122
C82Ox(OH)y
C82O3(OH)8C82O3(OH)16C82O3(OH)24C82O3(OH)36C82O3(OH)44
l(C1-C2)1.421.411.411.531.53
l(C2=C3)1.411.411.411.351.33
∠C1-2-3121121120124123
∠C1-2-4109109109109113
∠C3-2-4122122122119122
Gd@C82Ox(OH)y
Gd@C82O3(OH)8Gd@C82O3(OH)16Gd@C82O3(OH)24Gd@C82O3(OH)36Gd@C82O3(OH)44
l(C1-C2)1.421.421.411.531.52
l(C2=C3)1.411.411.381.331.33
∠C1-2-3120120120123122
∠C1-2-4109109109109112
∠C3-2-4123123122118121
C82: l(C1-C2) = 1.43, l(C2=C3) = 1.42, ∠C1-2-3 = 121, ∠C1-2-4 = 108, ∠C3-2-4 = 121;
Gd@C82: l(C1-C2) = 1.45, l(C2=C3) = 1.44, ∠C1-2-3 = 121, ∠C1-2-4 = 107, ∠C3-2-4 = 121
* Bond lengths (Å), bond angles (°).
Table
Table 2. Electrophilicity and absolute electronegativity indices of Gd@C82Ox(OH)y and C82Ox(OH)y complexes.
Table 2. Electrophilicity and absolute electronegativity indices of Gd@C82Ox(OH)y and C82Ox(OH)y complexes.
IndexesComplexes
C82Ox(OH)y
C82O3(OH)8C82O3(OH)16C82O3(OH)24
ω *7.35.211.6
χ **−4.8−4.5−4.8
Gd@C82Ox(OH)y
Gd@C82O3(OH)8Gd@C82O3(OH)16Gd@C82O3(OH)24
αβαβαβ
ω13.06.55.75.83.15.8
χ−4.3−4.6−3.2−3.2−2.9−3.8
* ω—electrophilicity in eV, ** χ—absolute electronegativity in eV. C82: χ = −5.1 eV, ω = 13.9 eV. Gd@C82: (α) χ = −5.6 eV, ω = 11.6 eV; (β) χ = −5.2 eV, ω = 11.7 eV.
