On the Analogy between Electrolytes and Ion-Generating Nanomaterials in Liquid Crystals

Abstract

Nanomaterials in liquid crystals are a hot topic of contemporary liquid crystal research. An understanding of the possible effects of nanodopants on the properties of liquid crystals is critical for the development of novel mesogenic materials with improved functionalities. This paper focuses on the electrical behavior of contaminated nanoparticles in liquid crystals. More specifically, an analogy between electrolytes and ion-generating nanomaterials in liquid crystals is established. The physical consequences of this analogy are analyzed. Under comparable conditions, the number of ions generated by nanomaterials in liquid crystals can be substantially greater than the number of ions generated by electrolytes of similar concentration.

1. Introduction

Ions in liquid crystals have been studied since the early 1960s because of their strong effects on the electrooptical response of mesogenic materials [1,2].

Early liquid-crystal display (LCD) technologies utilized the dynamic light scattering caused by electrohydrodynamic instabilities in nematic materials [3,4,5]. The presence of ions was essential for the effect [3,4,5]. As a result, ion-generating materials such as dissociating salts [6,7] were intentionally added to liquid crystals. The discovery of electrohydrodynamic instability in liquid crystals [3,4,5] enabled their early applications as light shutters [8,9], and simultaneously initiated very active research into the mechanisms of ion generation in liquid crystals [10,11,12,13,14]. The invention of modern thin-film transistor (TFT) LCD technologies placed an emphasis on the synthesis and electrical characterization of high-resistivity liquid crystals [15,16]. As the electric-field-induced orientational effect is at the heart of the TFT LCD operation, the presence of ions in liquid crystals is very undesirable. It can lead to many negative side effects, including image flickering, image sticking, and overall slow response [1,16]. Even though ions in liquid crystals became unwanted objects, research into the electrical properties of liquid crystals was very active because it enabled the selection of suitable mesogenic materials [17,18] and alignment layers [19,20,21,22]. It is worth mentioning that the effect of dynamic light scattering in liquid crystals was not totally abandoned. Recently, it found very promising applications in the development of dynamic shutters and smart windows [23,24,25,26,27,28].

An ongoing competition between LCD and alternative display technologies such as organic light-emitting diode displays [29] resulted in both (1) the improvement of existing LCD technologies and the development of advanced LCD technologies (liquid crystal on silicon (LCoS) displays for virtual and augmented reality [30]) and (2) a rapid growth of non-display applications of liquid crystals. The most well-known ones include photonic [31,32] and biophotonic applications [33], such as tunable lenses [34], filters for hyperspectral imaging [33], retarders [33], waveplates [35], and numerous LCoS devices [36,37,38].

Both display and non-display applications of liquid crystals rely on novel liquid-crystal materials with improved functionalities. Regardless of the type of liquid-crystal-based application, ions—typically present in liquid crystals in small quantities—can alter the performance of liquid crystal devices through the well-known screening effect [1,16]. Therefore, an understanding of possible sources of ion generation in liquid crystals is very important [39,40].

Recently, liquid crystals doped with nano-objects have emerged as novel tunable materials with advanced functionalities [41,42,43,44,45,46,47]. Electrical properties of liquid crystals doped with ferroelectric [48,49,50,51,52,53,54], magnetic [55,56,57], metal [58,59,60,61,62,63], semiconductor and dielectric [64,65,66,67,68,69], and carbon-based (fullerenes, carbon nanotubes, graphene, diamond) nanomaterials [70,71,72,73,74,75] were studied by many research teams (see also recent reviews [76,77] and references therein). The ion capturing effect is naturally expected for nanomaterials dispersed in liquid crystals. As a result, nanomaterials dispersed in liquid crystals can capture ions, thus providing a permanent purification of liquid crystals. At the same time, nanomaterials releasing ions in liquid crystals may seem like an unexpected possibility. Yet, many experiments have also confirmed the ion-generating properties of nanomaterials in liquid crystals [61,68,71,76,77]. The effect of ion generation by nanoparticles in liquid crystals can be very strong, as was reported recently by Urbanski and Lagerwall [61]. They found that the number of ions generated by functionalized gold nanoparticles dispersed in nematic liquid crystal 5CB can be comparable to and even greater than the number of ions generated in liquid crystals by 1:1 electrolytes [61]. The ionic contamination of ligands covering the surface of gold nanoparticles was considered a major reason for the observed effect [61]. The effects caused by the ionic contamination of nanomaterials were also modeled and applied to existing experimental data in a series of publications [78,79,80,81]. However, a comparison between the behavior of electrolytes and ion-generating nanoparticles in liquid crystals was not performed in papers [78,79,80,81]. Given the high promise of ion-generating nanomaterials for the development of liquid-crystal-based smart windows, it is important to consider and analyze the analogy between electrolytes and ion-generating nanomaterials in liquid crystals. The analysis of this analogy is the major objective of the present paper.

2. Model (Analogy between Ion-Generating Nanomaterials and Electrolytes in Liquid Crystals)

To focus on ion-generating processes only, let us assume that liquid crystals are free of ions prior to mixing them with contaminated nanoparticles. Consider contaminated nanoparticles of a spherical shape dispersed in a liquid crystal host. Once contaminated nanomaterials are dispersed in liquid crystals, some ions will be released from the surface, thus enriching the bulk concentration of mobile ions n (for simplicity, symmetrical positive and negative ions of the volume concentration $n^{+}=n^{-}=n$ are assumed). At the same time, some of the released ions can also be recaptured by nanoparticles. The following rate Equation (1) can describe the aforementioned processes of ion generation (the second term of the equation, $k_d{n}_{NP}{A}_{NP}{\sigma }_{NP}{\theta }_{NP}$) and ion capturing processes (the first term of the equation, $k_{a}n{n}_{NP}{A}_{NP}{\sigma }_{NP}\left(1-{\theta }_{NP}\right)$),

$$\frac{dn}{dt}=-k_{a}n{n}_{NP}{A}_{NP}{\sigma }_{NP}\left(1-{\theta }_{NP}\right)+k_d{n}_{NP}{A}_{NP}{\sigma }_{NP}{\theta }_{NP}$$

(1)

where $n_{NP}$ is the volume concentration of nanoparticles, $A_{NP}$ is their surface area, ${\sigma }_{NP}$ is the surface density of sites available for the ionic contaminants, ${\theta }_{NP}$ is the fractional surface coverage of contaminated nanoparticles, $k_a$ is a constant describing the ion capturing process (in the simplest case of a physical adsorption, this is an adsorption rate constant), and $k_d$ is the constant characterizing the ion generation process (in the simplest case of a physical adsorption, this is a desorption rate constant).

Equation (1) should be solved together with Equation (2) representing the conservation of the total number of ions:

$$n_{NP}{A}_{NP}{\sigma }_{NP}{\nu }_{NP}=n+n_{NP}{A}_{NP}{\sigma }_{NP}{\theta }_{NP}$$

(2)

where ${\nu }_{NP}$ is the dimensionless contamination factor of nanoparticles accounting for their ionic contamination [78]. By denoting $g=A_{NP}{\sigma }_{NP}{\nu }_{NP}$, substituting Equation (2) into Equation (1), and assuming $n_{NP}g\left(\frac{1}{{\nu }_{NP}}-1\right)\gg n$, one can get Equation (3):

$$\frac{dn}{dt}=-\left[k_d+k_a{n}_{NP}g\left(\frac{1}{{\nu }_{NP}}-1\right)\right]n+k_d{n}_{NP}g$$

(3)

By applying initial conditions ($n=0{\mathrm{m}}^{-3}$ $t=0\mathrm{s}$), its solution can be written as Equation (4):

$$n=\frac{k_d{n}_{NP}g}{k_d+k_a{n}_{NP}g\left(\frac{1}{{\nu }_{NP}}-1\right)}\left[1-e^{-\left(k_d+k_a{n}_{NP}g\left(\frac{1}{{\nu }_{NP}}-1\right)\right)t}\right]$$

(4)

In the case of 1:1 symmetrical electrolytes in liquid crystals, the ion generation/ion recombination processes obey the well-known Equations (5)–(6) [82,83]:

$$\frac{dn}{dt}=-k_R{n}^2+k_D\left(C_0-n\right)$$

(5)

$$C_0=C+n$$

(6)

where $n^{+}=n^{-}=n$ is the volume concentration of mobile ions, $C$ is the volume concentration of a non-dissociated salt and $C_0$ is its initial concentration, $k_R$ is the recombination rate constant, and $k_D$ is the dissociation rate constant.

Assuming $C_0\gg C$, Equations (5)–(6) can be rewritten as Equation (7):

$$\frac{dn}{dt}=-\left(k_R{C}_0+k_D\right)n+k_D{C}_0$$

(7)

Applying initial conditions ($n=0{\mathrm{m}}^{-3}$ if $t=0\mathrm{s}$), the solution of Equations (5)–(6) can be written as Equation (8):

$$n=\frac{k_D{C}_0}{k_D+k_R{C}_0}\left[1-e^{-\left(k_D+k_R{C}_0\right)t}\right]$$

(8)

A striking similarity between Equation (4) and Equation (8) reveals an analogy between ion-generating nanoparticles and electrolytes in liquid crystals. This analogy is summarized in

Table 1. Analogy between ion-generating nanomaterials and electrolytes in liquid crystals.

Ion-Generating Nanomaterials	Electrolytes
n	n
$k_d$	$k_D$
$n_{NP}g$ (where $g=A_{NP}{\sigma }_{NP}{\nu }_{NP}$)	$C_0$
$k_a\left(\frac{1}{{\nu }_{NP}}-1\right)$	$k_R$

.

According to Table 1, the desorption rate constant $k_d$ is analogous to the dissociation rate constant $k_D$; the total number of ions carried by ion-generating nanoparticles $n_{NP}g$ (where $g=A_{NP}{\sigma }_{NP}{\nu }_{NP}$) is equivalent to the initial concentration of electrolytes $C_0$; and the product $k_a\left(\frac{1}{{\nu }_{NP}}-1\right)$ is similar to the recombination rate constant $k_R$. As expected, fully contaminated nanomaterials (${\nu }_{NP}=1$) are the most efficient ion-generating objects because of the zero-recombination coefficient ($k_a\left(\frac{1}{{\nu }_{NP}}-1\right)=0$). At the same time, 100% pure nanomaterials (${\nu }_{NP}=0$) are characterized by an effectively infinite recombination coefficient ($k_a\left(\frac{1}{{\nu }_{NP}}-1\right)\stackrel{{\upsilon }_{NP}=0}{\to }\infty$). As a result, they cannot generate ions and act as ion-trapping objects.

3. Results and Discussion

In the case of electrolytes in liquid crystals, the molar concentration $c_{el}$ (mol/L) is typically used. The weight concentration ${\omega }_{NP}$ is a convenient measure of the amount of nanomaterials dispersed in liquid crystals. Equations (1)–(8) are written assuming the volume concentration n ($n_{NP}$ or C) (m^-3). In the limit of relatively low concentrations, the volume concentration of nanomaterials is related to their weight concentration via equation $n_{NP}\approx \raisebox{1ex}{${\omega }_{NP}$}\!\left/ \!\raisebox{-1ex}{$\left(\frac{{\rho }_{NP}}{{\rho }_{LC}}{V}_{NP}\right)$}\right.$, and the molar concentration (mol/L) of nanomaterials can be written as $c_{NP}={10}^{-3}\left(\raisebox{1ex}{$n_{NP}$}\!\left/ \!\raisebox{-1ex}{$N_A$}\right.\right)$, where ${\rho }_{NP}$ is the volumetric mass density of nanoparticles, ${\rho }_{LC}$ is the volumetric mass density of liquid crystals, $V_{NP}$ is the volume of a single nanoparticle, and $N_A$ is the Avogadro constant. In the case of a spherical nanoparticle, its volume is related to its radius as $V_{NP}=\frac{4}{3}\pi R_{NP}^3$.

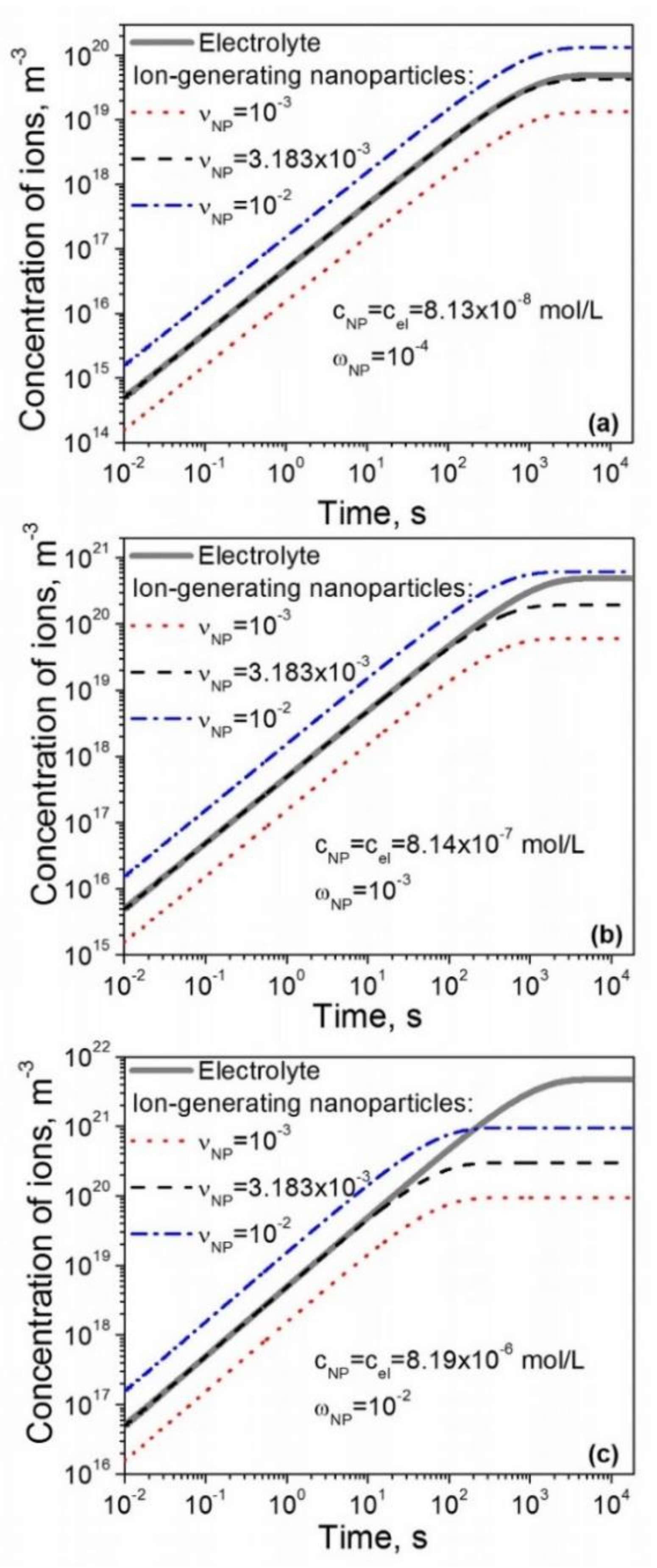

The ion-generating properties of electrolytes and contaminated nanomaterials in liquid crystals can be reasonably compared if they are characterized by the same molar concentration $c_{el}=c_{NP}$ and similar rate constants $k_d=k_D$ and $k_a=k_R$. The time dependence of the concentration of ions generated in liquid crystals by both contaminated nanomaterials and electrolytes of the same molar concentration is shown in Figure 1. The concentration of ions was computed for several concentrations of dopants normally used in experiments ($c_{NP}=c_{el}=8.13\times {10}^{-8}\mathrm{mol}/\mathrm{L}$ (Figure 1a), $c_{NP}=c_{el}=8.14\times {10}^{-7}\mathrm{mol}/\mathrm{L}$ (Figure 1b), and $c_{NP}=c_{el}=8.19\times {10}^{-6}\mathrm{mol}/\mathrm{L}$ (Figure 1c). To account for a reasonable level of ionic contamination of nanomaterials, the contamination factors were chosen to be ${\nu }_{NP}={10}^{-2}$ (dash-dotted curve), ${\nu }_{NP}={10}^{-3}$ (dotted curve), and ${\nu }_{NP}=3.183\times {10}^{-3}$ (dashed curve) (Figure 1).

In all cases shown in Figure 1, depending on the level of the ionic contamination ${\nu }_{NP}$, the number of generated ions by nanomaterials in liquid crystals could be smaller than (dotted curves), comparable to (dashed curves), or even greater than (dash-dotted curves) the number of ions generated by electrolytes (solid curves). The time dependences in Figure 1 are characterized by time constants. For the period of time longer than the time constant, the concentration of ions in liquid crystals reaches a steady-state value (Figure 1). In the case of liquid crystals doped with nanomaterials (Figure 1, dashed, dotted, and dash-dotted curves), this time constant ${\tau }_{NP}$ can be written as Equation (9):

$${\tau }_{NP}=\frac{1}{k_d+k_a{n}_{NP}g\left(\frac{1}{{\nu }_{NP}}-1\right)}$$

(9)

The time constant ${\tau }_{el}$ of liquid crystals doped with electrolytes (Figure 1, solid curve) is expressed by Equation (10):

$${\tau }_{el}=\frac{1}{k_D+k_R{C}_0}$$

(10)

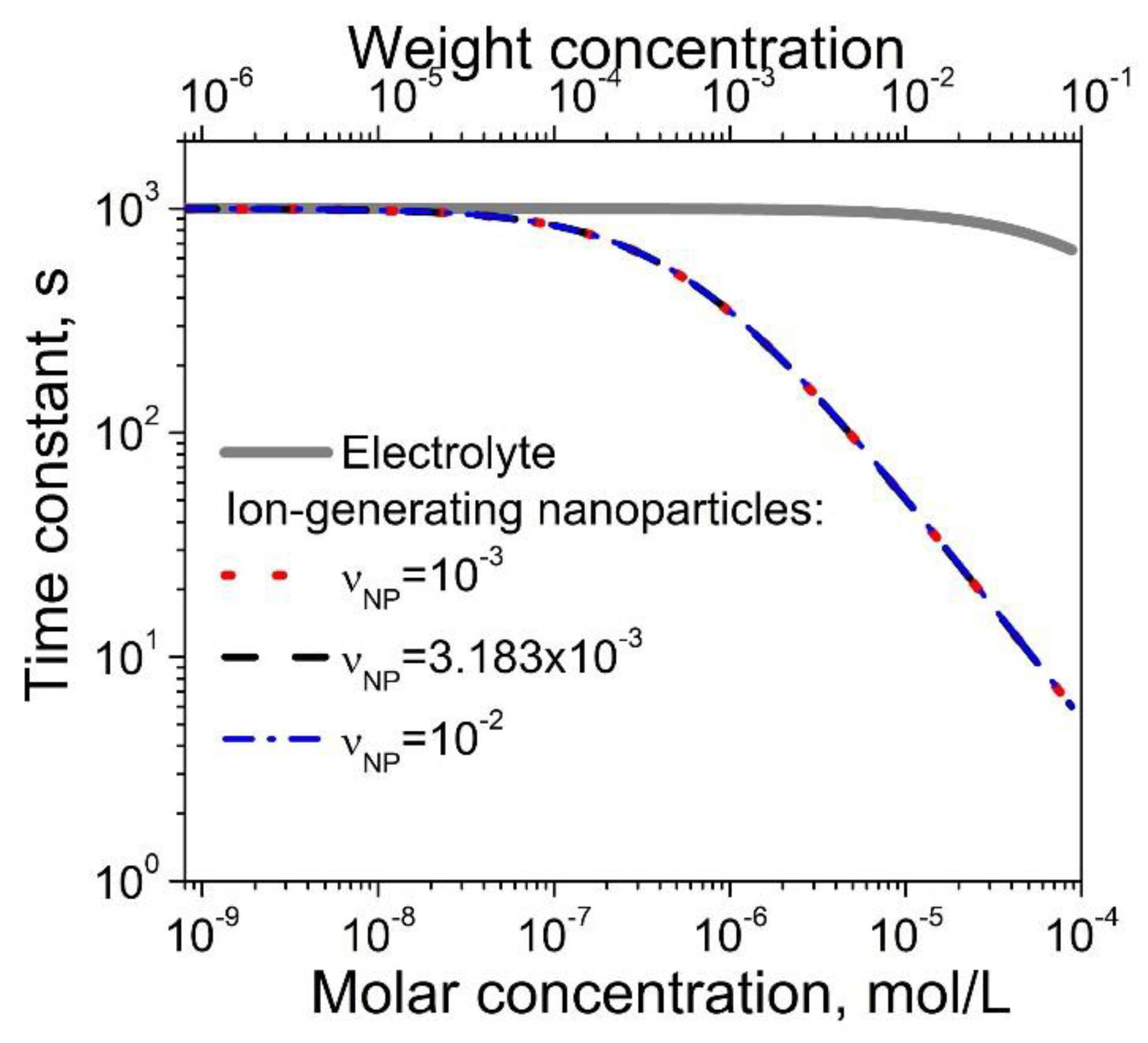

For given materials, the time constants ${\tau }_{NP}$ and ${\tau }_{el}$ can be controlled by changing the concentration of nanomaterials and electrolytes. Higher concentrations of ion-generating materials correspond to smaller values of time constants. Interestingly, under comparable conditions, the time constant ${\tau }_{NP}$ as a function of the molar concentration exhibits a more rapid decrease compared to the same dependence ${\tau }_{el}\left(c_{el}\right)$ for electrolytes in liquid crystals (see Figure 2, where electrolytes in liquid crystals are represented by a solid curve).

Figure 1 and Figure 2 indicate that both the transient and steady-state concentration of ions in liquid crystals can be controlled by changing the concentration of ion-generating nanomaterials or electrolytes. The use of nanomaterials offers one more level of control over the generated ions by changing the contamination factor ${\nu }_{NP}$ (Figure 1 and Figure 2).

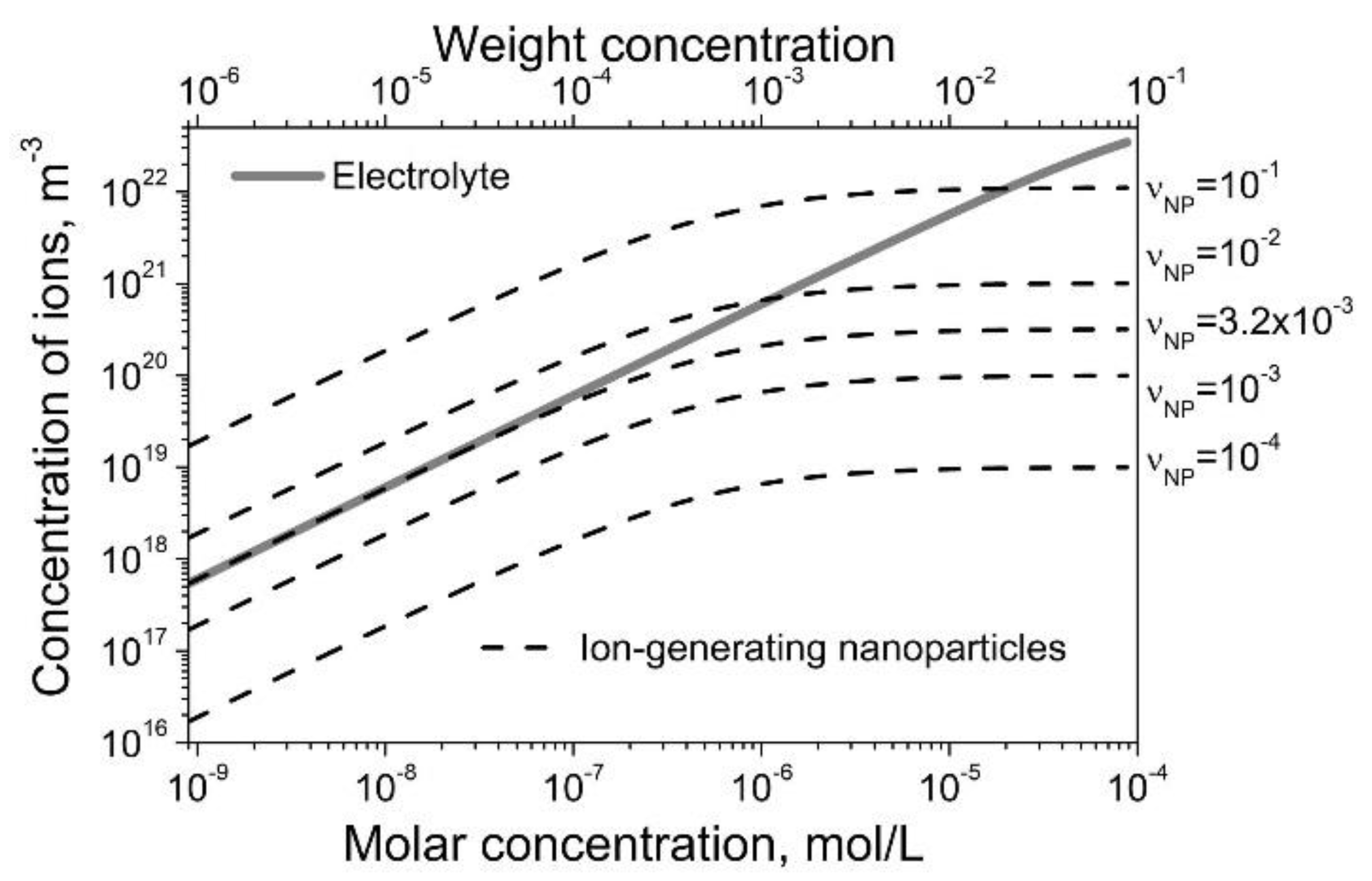

The comparison of electrolytes and ion-generating nanomaterials in the steady-state regime is shown in Figure 3. The concentration of generated ions in liquid crystals by contaminated nanomaterials can be controlled within a broad range. Interestingly, this concentration can even exceed the number of ions generated in liquid crystals by electrolytes, as shown by dashed curves in Figure 3 (for ${\nu }_{NP}\ge 3.2\times {10}^{-3}$).

4. Conclusions

The ionic contamination of nanomaterials can result in very unusual effects. Once dispersed in liquid crystals, contaminated nanomaterials can act as ion-generating objects. Ion-generating nanomaterials represent a new source of ion generation in liquid crystals. Given the important role of both ions and nanomaterials for the development of advanced liquid crystal technology, the possibility of ion-generating behavior of nanomaterials in liquid crystals should not be ignored.

In this paper, a simple analogy between electrolytes and ion-generating nanomaterials in liquid crystals was established (Equations (1)–(8) and Table 1). This analogy allowed for a quantitative prediction of the ion generation in liquid crystals by means of contaminated nanomaterials. In addition, it also revealed some advantages of using ion-generating nanomaterials for liquid crystal applications requiring the presence of ions. Under certain conditions, ion-generating nanomaterials can generate ions in liquid crystals more efficiently than typical electrolytes. More specifically, the steady-state concentration of ions generated in liquid crystals by nanomaterials can be reached faster (Figure 2), and it can be greater than the same quantity in the case of electrolytes in liquid crystals (Figure 3).

Some limitations of the presented analogy should also be mentioned. The analogy between ion-generating nanomaterials and electrolytes in liquid crystals relies on rate Equation (1). As was already discussed in previous publications [84,85,86], this rate equation is valid in the regime of relatively low concentrations. Typically, such low concentrations are common for thermotropic liquid crystals, thus justifying the established analogy. In the case of high concentrations, a more rigorous model utilizing the Poisson–Boltzmann equation should be considered [87,88,89,90].
