Article

Core–Shell Structured Phenolic Polymer@TiO2 Nanosphere with Enhanced Visible-Light Photocatalytic Efficiency

by
Xiankui Xu
,
Lei Zhang
,
Shihua Zhang
,
Yanpeng Wang
,
Baoying Liu
and
Yanrong Ren
*
Henan Engineering Laboratory of Flame-retardant and Functional Materials, Institute of Functional Polymer Composites, College of Chemistry and Chemical Engineering, Henan University, Kaifeng 475004, China
*
Author to whom correspondence should be addressed.
Nanomaterials 2020, 10(3), 467; https://doi.org/10.3390/nano10030467
Submission received: 6 February 2020 / Revised: 27 February 2020 / Accepted: 28 February 2020 / Published: 5 March 2020
(This article belongs to the Special Issue Nano-Hybrids: Synthesis, Characterization and Applications)
Browse Figures
Review Reports Versions Notes

Abstract

:
Core–shell structured TiO2 is a promising solution to promote the photocatalytic effectiveness in visible light. Compared to metal or semiconductor materials, polymers are rarely used as the core materials for fabricating core–shell TiO2 materials. A novel core–shell structured polymer@TiO2 was developed by using phenolic polymer (PP) colloid nanoparticles as the core material. The PP nanoparticles were synthesized by an enzyme-catalyzed polymerization in water. A subsequent sol–gel and hydrothermal reaction was utilized to cover the TiO2 shell on the surfaces of PP particles. The thickness of the TiO2 shell was controlled by the amount of TiO2 precursor. The covalent connection between PP and TiO2 was established after the hydrothermal reaction. The core–shell structure allowed the absorption spectra of PP@TiO2 to extend to the visible-light region. Under visible-light irradiation, the core–shell nanosphere displayed enhanced photocatalytic efficiency for rhodamine B degradation and good recycle stability. The interfacial C–O–Ti bonds and the π-conjugated structures in the PP@TiO2 nanosphere played a key role in the quick transfer of the excited electrons between PP and TiO2, which greatly improved the photocatalytic efficiency in visible light.

1. Introduction

Titanium dioxide (TiO2) is one of the most extensively investigated metal oxides due to its fascinating features, such as low cost, polymorphs, good chemical and thermal stability, and excellent electronic and optical properties [1,2,3]. These features render TiO2 highly promising in photocatalysts, dye-sensitized solar cells, energy storage, and biotechnology [4,5,6,7,8]. However, their performance is greatly limited by the wide energy band gap of approximately 3.2 eV, rapid electron–hole recombination, and relatively poor charge transport property [9,10,11]. To overcome these intrinsic drawbacks, various efforts were made to modify TiO2 materials. Doping with different elements, coupling with organic dyes, and composing with various materials were approaches extensively investigated to extend the active spectrum [12,13,14,15,16,17,18].
Recently, core–shell structured nanomaterials attracted considerable attention as they consist of different functional components integrated into one unit. These nanomaterials show improved physical and chemical properties, which are unavailable from the isolated components [19,20,21]. The active interfaces between individual components within a core–shell structure might give rise to outstanding synergistic functions and new properties. Thus, another promising solution for improving TiO2 photocatalyst efficiency under the visible spectrum was developed by assembling them into a core–shell structure. These structures are usually obtained by depositing TiO2 on a narrow-band-gap material to facilitate effective charge separation and improve the photostability. Many investigations focused on coupling TiO2 with metal or semiconductor core [22,23,24,25,26,27,28]. Despite the fact that polymers typically have low cost, easy preparation, and controllable size, research on core–shell structures of polymer and TiO2 remains quite limited. Polystyrene (PS) nanoparticles are frequently used as the core due to various synthesis methods, tunable size, and easy functionalization of surface. Imhof utilized colloidal PS spheres uniformed with poly(vinylpyrrolidone) (PVP) as the core and coated the spheres with a well-defined layer of amorphous TiO2 [29]. Liu et al. used acrylic acid as the comonomer to prepare a PS mini-emulsion, and they obtained core–shell PS and TiO2 microspheres via the strong interaction between TiO2 and carboxyl groups [30]. Wang and co-workers prepared a core–shell PS@TiO2 photocatalyst via vapor phase hydrolysis. They found that the core–shell catalyst had relatively better activity in the degradation of methylene blue (MB) than bare TiO2, and the PS core may have consumed some active radicals, which resulted in bad recycling [31]. Türk et al. prepared PS colloidal particles with TiO2 coating via a sol–gel process with in situ hydrolysis, and the core–shell particles revealed good photocatalytic activity for the oxidation of 4-methoxybenzyl alcohol with O2 in water [32]. Wu’s group prepared PS@TiO2 core–shell particles using a layer-by-layer self-assembly method. They revealed that the PS@TiO2 materials obtained via this method can be used to degrade rhodamine B (RB) in HCl solution, and the degradation rate of RB increased with the increase in TiO2 colloid shell layer [33].
Recently, the efficient enzymatic polymerization of phenol in aqueous solution was developed in the presence of templates, such as poly (ethylene oxide) (PEG) [34,35], cyclodextrin derivates [36,37], or surfactant [38,39]. The polymerization is fast and moderate without toxic formaldehyde. Generally, the structure of phenolic polymer (PP) prepared via enzymatic polymerization is composed of a mixture of phenylene and oxyphenylene. Thus, a great number of hydroxyl groups are presented on the surface of the polymer colloid particles, which grant high reactivity.
In this work, a PP@TiO2 core–shell nanosphere was prepared via the sol–gel method. PP was synthesized by a horseradish peroxidase-catalyzed phenol polymerization with PEG in water. The PP colloid particle was used as the core and support substrate of the photocatalyst. The thickness of the TiO2 shell was controlled by the amount of the precursor of TiO2. The chemical structure was investigated to understand the interaction between the core of PP and the shell of TiO2. The photocatalytic activity was determined by degradation of rhodamine B (RB) solution under visible- light irradiation.

2. Materials and Methods

2.1. Materials

Horseradish peroxidase (HRP) (RZ = 2.5, activity = 200 U/mg) was purchased from Shanghai Guoyuan Biotechnology Co., Ltd. (Shanghai, China) and used without further purification. Poly (ethylene oxide) (PEG) was obtained from Tianjin Guangfu Fine Chemical Research Institute (Tianjin, China). Tertrabutyl titanate (TBOT) was purchased from Tianjin Kemiou Chemical Reagent Co., Ltd. (Tianjin, China). Hydrogen peroxide (30%) was obtained from Luoyang Haohua Chemical Reagent Co., Ltd. (Luoyang, China). All other chemicals employed in this work were obtained from various commercial suppliers and were of the highest purity available.

2.2. Measurements

1H-NMR spectra were recorded on a Bruker DPX400 spectrometer (Bruker, Zurich, Switzerland). Fourier-transform infrared (FT-IR) spectra were obtained on an Avatar 360 spectroscope (Bruker, Ettlingen, Germany). Gel permeation chromatography (GPC) measurements were conducted with a water 410 GPC (Waters, Milford, PA, USA) equipped with Waters styragel column (HT4 + HT3) using THF as the eluent; the molecular weights were calibrated with polystyrene standards, and the flow rate was set at 1.0 mL/min at 35 °C. Dynamic light scattering (DLS) measurement was performed using Nanotrac Wave II (Microtrac, Montgomeryville, PA, USA), and the scattering angle was fixed at 180°. The surface morphology of samples was analyzed on a JSM-7610F (JEOL, Tokyo, Japan) scanning electron microscope (SEM), and the main elements were measured by energy-dispersive X-ray spectrometry (EDS) (JEOL, Tokyo, Japan). The samples on the silicon wafers were mounted rigidly to a copper specimen holder using a conductive adhesive. Transmission electron microscopy (TEM) studies were performed on a JEM-2100 electron microscope (JOEL, Tokyo, Japan) operating at an acceleration voltage of 100 kV. The nanoparticle solution was dropped on copper grids and dried at room temperature. X-ray diffraction (XRD) was recorded on a D8 Advance X-ray diffractometer (Bruker, Karlsruhe, Germany) with CuKα radiation. X-ray photoelectron spectroscopy (XPS) was performed using a Thermo EscaLab 250Xi photoelectron spectrometer (Thermo Fisher Scientific, West Sussex, UK). Electron paramagnetic resonance (EPR) spectra were recorded on a Bruker A300 spectrometer (Bruker, Karlsruhe, Germany) at ambient temperature. UV–Vis absorption spectra were recorded using a U4100 spectrophotometer (Hitachi, Shanghai, China).
  • Enzyme-catalyzed Polymerization of phenol
A typical run was as follows: phenol (0.47 g, 5.0 mmol) and PEG (0.22 g, 5.0 mmol of monomer unit) were dissolved in 45 mL of water. Then, the enzyme solution of HRP (2.0 mg in 5 mL of water) was added. To this solution, 3.4 mL of 5% hydrogen peroxide aqueous solution was added dropwise for 1 h. The mixture was stirred at room temperature in air for 30 min. A brown emulsion of phenolic polymer (PP) was obtained. For characterization, the as-prepared polymer was collected by centrifugation and washed with water repeatedly, followed by drying in vacuum.
  • Preparation of the PP@TiO2 core–shell nanosphere
The PP@TiO2 core–shell nanospheres were prepared via a sol–gel and hydrothermal reaction. Typically, 25 μL of TBOT was firstly dissolved in 5 mL of ethanol (solution A). Then, a 1 mL emulsion of PP was mixed with 10 mL of ethanol (solution B). Then, solution B was added to solution A and kept at 80 °C for 1 h with vigorous stirring. After centrifugation and drying, a yellow powdery product was obtained. Then, 100 mg of powder was mixed with 20 mL of deionized water and transferred to a 100 mL Teflon autoclave. The mixture was heated to 180 °C, maintained for 8 h. The reactor was cooled down to room temperature naturally. The resulting nanosphere was collected by centrifugation and washed with ethanol and water repeatedly.
  • Photocatalytic measurement
The visible-light photocatalytic activity of the PP@TiO2 core–shell nanosphere was evaluated by the degradation rate of rhodamine B (RB) with an initial concentration of 20 mg/L. In a typical photodegradation experiment, 40 mL of RB solution and the sample photocatalyst containing 20 mg of TiO2 were placed in a 50 mL breaker. Before irradiation, the suspension was magnetically stirred in the dark for 2 h to reach the adsorption–desorption equilibrium between dye and photocatalyst. The light source was a 300 W Xe lamp equipped with an ultraviolet cut-off filter (λ > 400). The average visible-light intensity measured by the radiometer was 20 mW/cm2. In this experiment, a 20 mg/L aqueous RB solution was mixed with 0.6 g/L photocatalyst powder. RB concentration was determined using UV–Vis absorption at defined time intervals. For the purpose of comparison, P25, PP, and pure TiO2 samples were also used to degrade RB.

3. Results

3.1. Characterizaion of PP

The enzyme-catalyzed polymerization of phenol in water is a typical precipitation polymerization. During polymerization, the powdery polymer precipitates from solution [34]. Serving as the core material, PP is expected to exhibit stability in water and controlled size. Thus, the polymerization was directly performed in water without solvents or buffer solution. We found that a homogeneous emulsion was formed by controlling the molecular weight of PEG. Different molecular weights of PEG, from 400 g/mol to 4000 g/mol, were used in the enzyme-catalyzed polymerization. The as-prepared emulsions were kept for several weeks, and the emulsion prepared with PEG 2000 showed the best stability. Thus, PEG 2000 was selected for the preparation of PP@TiO2 core–shell nanosphere. The morphology and particle size distribution of PP were analyzed by SEM and DLS. The SEM image is shown in Figure 1a. It was clear that PP particles presented a uniform spherical structure with a smooth surface and a diameter of about 180 nm. The optical photograph of the PP emulsion was a little brown and remained stable for several weeks (inset of Figure 1a). The size distribution curve (Figure 1b) from DLS analysis demonstrates that the PP presented as uniformly dispersed particles with size ranging from 120 nm to 250 nm, and the average size was 174 nm.
To investigate the chemical structure of PP, the polymer was separated from the emulsion by centrifugation. In the FT-IR spectrum (Figure 2a), a broad peak centered at 3400 cm−1 was ascribed to the vibration of the phenolic O–H bond. The peaks at 1597, 1488, 833, 754, and 692 cm−1 were characteristic of the various vibration modes of the C–H and C–C bonds of aromatic nuclei/rings. The peak at 1096 cm−1 corresponded to the symmetric vibration of the ether bond. The strong peak at 1209 cm−1 was due to the asymmetric stretching vibration of C–O–C and/or C–OH. The 1H-NMR spectrum (Figure 2b) of PP was measured in DMSO-d6. The single peak at 3.3 ppm was attributed to CH2CH2O, which means that some PEG still remained in the sample after washing with water. The broad peak at 6.6–7.4 ppm was attributed to aromatic units. The broad resonance signal at 9.2–9.6 ppm was the signal of hydroxyl groups. These results indicated that the structure of the polymer was composed of a mixture of phenylene and oxyphenylene (Ph/Ox) units. The ratio of Ph/Ox was determined by titration of the hydroxyl groups in the polymer, and it was found to be 24/76. The data of GPC showed that the number-average molecular weight was 1600 and the polymer dispersity index was 7.27.

3.2. Characterization of PP@TiO2 Core–Shell Nanosphere

The PP@TiO2 core–shell nanosphere was fabricated via the process shown in Scheme 1. After the preparation of a PP emulsion, the sol–gel process was utilized to form the PP@TiO2 core–shell nanosphere precursor. Then, the traditional hydrothermal treatment was selected to obtain crystalline TiO2 and prevent the core of PP from being damaged at high temperature. The reactive system simply included the core of PP and the shell of TiO2 without any additive or catalyst.
To investigate the effect of the shell thickness on the photocatalyst activity, PP@TiO2 core–shell nanospheres were prepared with different amounts of TBOT, i.e., 25 μL, 50 μL, 75 μL, and 100 μL. Figure 3 presents SEM images of the four nanospheres. After the hydrothermal reaction, a rough layer aggregated by the dense and uniform nanoparticles was formed on the surface of PP nanoparticles. The size of the nanoparticles increased as increasing the amount of TiO2 precursor. With 25 μL of TBOT, the size of the nanospheres was about 220 nm. When more TBOT was introduced into the nanosphere, the size rapidly increased. A nanosphere with a diameter of 340 nm was observed corresponding to 50 μL of TBOT. The size of the nanospheres reached up to 650 nm diameter when 100 μL of TBOT was used. The mapping pattern of PP@TiO2-50 is shown in Figure 3e. The element of C corresponded to PP, and the elements of O and Ti were due to TiO2. Therefore, it can be deduced that the nanospheres were successfully constructed from TiO2 and PP.
TEM was further used to observe the structure of the nanospheres, as shown in Figure 4. In the sample of PP@TiO2-25, a strong contrast between the dark edges and gray centers indicated the core–shell structure of the nanosphere. The PP nanoparticles were covered by an aggregation of TiO2 particles, and the thickness of the shell was about 30 nm. With the increase in TBOT amount, the thickness of the shell apparently increased and the size of the core of PP greatly reduced. The nanosphere prepared with 50 μL of TBOT showed a shell thickness of about 80 nm and a core diameter of about 150 nm. The shell thickness of the nanosphere prepared with 75 μL of TBOT was about 200 nm, and the core diameter was below 120 nm. With 100 μL of TBOT, the size of the core reduced to 50 nm with a shell of 280 nm. The results indicated that TBOT permeated into the core region when the amount of TBOT was high.
The X-ray diffraction (XRD) total pattern in Figure 5 was used to study the microstructure of the PP@TiO2 nanospheres. The typical X-ray diffraction spectrum of amorphous polymer is shown at 2θ = 20°. The XRD patterns of the PP@TiO2 nanospheres showed apparent diffraction peaks at the 2θ values of 24.9°, 37.5°, 47.5°, 54.1°, and 62.4° that were indexed to the (101), (004), (200), (105), (211), and (204) planes, matching well with the anatase TiO2 JCPDS card (no. 21-1272) [40]. A pure TiO2 sample was prepared via the same sol–gel and hydrothermal process as PP@TiO2. Comparing the diffraction peak of PP@TiO2-25 to pure TiO2, it was obvious that the peaks became narrow and the intensities increased. This indicates that PP can improve the crystallinity of TiO2, which is very beneficial for an improvement in the catalytic activity. However, the effect was gradually weakened when the TBOT amount increased. As the TBOT amount was increased to 100 μL, the pattern resembled that of pure TiO2.
More detailed information regarding the chemical structure of the PP@TiO2 nanospheres was obtained through characterization by FT-IR, XPS, and EPR. Figure 6a shows the FT-IR spectra of the pure TiO2 and PP@TiO2 samples before and after the hydrothermal reaction. For pure TiO2, the peaks at 3422 cm−1 and 1630 cm−1 corresponded to the stretching and bending vibration of OH bonds, which resulted from the physically absorbed water and surface hydroxyl groups. Compared with pure TiO2, the PP@TiO2 particle before hydrothermal reaction provided the characteristic peaks of PP and TiO2, which indicated that the nanospheres were composed of PP and TiO2. After the hydrothermal reaction, the peak at 1632 cm−1 strengthened due to the intramolecular hydrogen bonding between PP and TiO2, and a new band at 1210 cm−1 indicated the formation of new bonds. Some research reported the formation of covalent C–O–Ti bonds between polymers with hydroxyls and TiO2 [41,42]. Thus, the stronger peak suggested that PP had a covalent contact with TiO2. The result was confirmed by XPS. The high-resolution C 1s XPS spectrum and the fitting curves are shown in Figure 6b. The major peak with a binding energy of 284.5 eV was attributed to the C–C and C–H bonds of PP. The peak at 285.6 eV was ascribed to the C–O–Ti bond. The broad peak centered at 288.4 eV was attributed to the –C=O bond, while the peaks around 292.3 eV belonged to π–π* bonds. The Ti 2p peaks at 485.4 eV and 464.1 eV in Figure 6c were attributed to the Ti 2p1/2 and Ti 2p3/2 spin orbit splitting, while the peaks at 460.0 eV were ascribed to the C–O–Ti bond [9]. The O 1s spectrum in Figure 6d displays two peaks at 529.7 eV and 532.2 eV, which corresponded to the Ti–O–Ti and C–O–Ti bonds, respectively [43]. Figure 6e demonstrates two bonds located at the binding energies of the EPR spectrum of the PP@TiO2 core–shell nanosphere, which was measured to confirm the unpaired electrons in this core–shell structure which play an important role in photocatalysis. As shown in Figure 6c, the lines for the pure TiO2 and PP presented a negligible signal peak, while PP@TiO2 showed a very strong EPR signal centered on the magnetic field strength of 580 G. The result indicated the formation of π-conjugated structures on the interface of the TiO2 shell, which were attributed to the delocalized π–π* electrons formed in the PP core (the inset in Figure 6c).

3.3. Photocatalytic Efficiency

The optical absorption of PP@TiO2 nanospheres was characterized by UV–visible spectra, as shown in Figure 7a. PP had a broad absorbance from 400 nm to 800 nm. Meanwhile, pure TiO2 showed a narrow absorption edge located at 389 nm with a band gap of 3.19 eV, which is consistent with the intrinsic bandgap absorption of anatase TiO2. When PP was composed with TiO2, it was obvious that all the samples extended their absorbance edges to the visible-light region, and the TiO2 amount significantly affected the optical property of visible-light absorption. PP@TiO2-25 had the strongest and longest absorbance edge of 520 nm, corresponding to a band gap of 2.38 eV. The curve of PP@TiO2-25 was similar to that of PP from 400 nm to 800 nm. This indicated that the shell of PP@TiO2-25 had no apparent hindrance of the visible-light absorption of PP. However, the absorbance of visible light of PP@TiO2 nanospheres gradually decreased with increased amount of TiO2. The absorbance edge of PP@TiO2-100 reduced to 400 nm, and its band gap rebounded to 3.1 eV. This result demonstrated that the TiO2 shell blocked the visible-light absorption of the nanosphere when the thickness exceeded some threshold value. The obvious decrease in the bandgap of PP@TiO2 may be attributed to the chemical bonding between TiO2 and PP with the formation of C–O–Ti bonds. The narrow band gap and long absorbance edge were beneficial for improving the visible-light photocatalytic efficiency.
To evaluate the photocatalytic efficiency of the as-prepared core–shell nanospheres, the photocatalytic degradation of RB aqueous solution under visible-light irradiation (λ > 400 nm) was investigated. All samples were suspended in the treated RB solution and stirred for 120 min without light to achieve the adsorption–desorption equilibrium. The normalized concentration (C/C0) of RB is shown in Figure 7b. C0 denotes the initial RB concentration of 20 mg/L. As PP was used as the photocatalyst, the concentration of RB was unchanged, suggesting that PP had no visible-light photocatalytic activity. Pure TiO2 had the similar effect to the commercial TiO2 material P25. Their degradation rates reached 50% after 4 h of visible-light irradiation. Compared to pure TiO2 and P25, all samples of PP@TiO2 nanospheres showed apparent adsorption of RB in the dark. The concentration of RB with PP@TiO2-25 decreased the most in comparison with the others. According to those results of SEM and TEM analysis, PP@TiO2-25 had the toughest surface and largest PP core, which endowed it with high adsorption capacity. After stirring for 120 min in the dark, there was 36%, 71%, 75%, and 82% RB remaining in the PP@TiO2-25, PP@TiO2-50, PP@TiO2-75, and PP@TiO2-100 samples, respectively. In spite of the absorption occurring in the first 30 min, the dark reaction lasted 120 min in order to eliminate the effect of absorption on the photodegradation. Under visible- light irradiation, all PP@TiO2 nanospheres were photocatalytically active. The removal yield presented great dependence on the amount of TiO2. PP@TiO2-25 obtained the best yield of 95% after 4 h of irradiation. Upon increasing the amount of TiO2, the removal yield gradually reduced. The removal yield of PP@TiO2-100 decreased to 63%.
The removal of RB clearly included adsorption and photodegradation. Removing the effect of adsorption during the darkness aspect, the Langmuir–Hinshelwood model was used to investigate the photocatalytic efficiency of PP@TiO2 nanospheres. The RB removal on these materials followed the pseudo-first order kinetic model shown in Figure 7c. The photocatalytic reaction can be interpreted by ln(C/C0) = −kt where k is the apparent rate constant with respect to the irradiation time t, and C and C0 are the concentrations of RB at t and t = 0 (time of irradiation), respectively [44,45]. The photocatalytic rate constant k of PP, P25, pure TiO2, and the samples PP@TiO2-25, -50, -75, and -100 were 0.12, 2.26, 2.46, 3.35, 3.10, 2.63, and 2.62 × 10−3 min−1, respectively. It was found that all core–shell nanospheres had a higher rate constant k than pure TiO2, especially PP@TiO2-25, with a thin TiO2 shell of 30 nm, which obtained the highest photocatalytic efficiency. This result can be attributed to the formation of the effective interface between the PP core and TiO2 shell in favor of efficient charge carrier separation.
To estimate the stability of the as-prepared photocatalyst, a five-cycle recycling experiment of PP@TiO2-25 was performed under visible-light irradiation, as shown in Figure 7d. The removal efficiency of RB on PP@TiO2-25 was 95.5% in the first cycle, followed by 96.7%, 95.4%, 94.5%, and 97.8% for the last four cycles. Thus, the photocatalyst did not exhibit any loss in removal activity in five cycles. This indicated that the PP@TiO2 nanosphere exhibited good cycle stability under visible- light irradiation.
On the basis of the above discussion, the fabrication of core–shell structured PP@TiO2 nanospheres enhanced the photocatalytic efficiency of TiO2 under visible-light irradiation. The mechanism of the electron transfer process between PP and TiO2 in the core–shell nanosphere is illustrated in Scheme 2. As the PP polymer is composed of phenylene and oxyphenylene units, there are a great number of hydroxyl and aromatic nuclei/rings on the surface of PP particles. During the hydrothermal process, the hydroxyl groups on the surface of the PP react with the hydroxyl groups of TiO2 to form C–O–Ti bonds. For TiO2, under visible-light irradiation, most of the photo-excited electrons and holes tend to rapidly recombine, and only a small number of them participate in the photocatalytic reaction, which results in a relatively low photocatalytic activity. On the other hand, for the core–shell-structured PP@TiO2 nanospheres with a thin TiO2 shell, the surface of the PP nanoparticles is covered by TiO2, which leads to the formation of a Z-scheme photocatalytic system between TiO2 and PP [46,47]. Under visible-light irradiation, the photo-generated holes tend to keep on the valence band (VB) of TiO2, while the electrons transfer to the VB of PP from the conduction band (CB) of TiO2 through the interfacial pathway of C–O–Ti bonds. The electrons in the VB of PP are further excited to its CB. This results in an efficient space separation of the photo-induced charge carriers. Then, the electrons stored in the CB of PP are trapped by O2 near the surface of PP, forming reactive superoxide radical ions O2−, while the holes in the VB of TiO2 react with adsorbed water molecules near the surface of TiO2, forming hydroxyl radicals ·OH. The subsequent oxidative and reductive reactions lead to the degradation of RB.

4. Conclusions

A novel polymer@TiO2 nanosphere, PP@TiO2, was prepared via the sol–gel method. Firstly, a stable PP emulsion was prepared through the enzyme-catalyzed polymerization of phenol in water in the presence of PEG. After the sol–gel and hydrothermal process, the core of PP was connected with the shell of TiO2 via C–O–Ti covalent bonds. The removal of RB under visible-light radiation showed that the photocatalytic efficiency of PP@TiO2 nanospheres is much better than that of pure TiO2 and commercial P25. The removal rate of RB increased upon decreasing the amount of TiO2. For PP@TiO2-25, with the lowest amount of TiO2, the removal rate of RB reached 95% within 240 min. Furthermore, the novel core–shell TiO2 nanosphere was shown to have good recycling properties.

Author Contributions

Investigation, X.X. and S.Z.; data curation, L.Z., B.L., and Y.W.; writing—original draft, review, and editing, X.X. and Y.R. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the National Natural Science Foundation of China (Grant No.51803048) and (Grant No.51703051).

Conflicts of Interest

The authors declare no conflicts of interest.

References

  1. Ghicov, A.; Schmuki, P. Self-ordering electrochemistry: A review on growth and functionality of TiO2 nanotubes and other self-aligned MOx structures. Chem. Commun. 2009, 2791–2808. [Google Scholar] [CrossRef] [PubMed]
  2. Fujishima, A.; Honda, K. Electrochemical photolysis of water at a semiconductor electrode. Nature 1972, 238, 37–38. [Google Scholar] [CrossRef] [PubMed]
  3. Wchrauben, J.N.; Hayoun, R.; Valdez, C.N.; Braten, M.; Fridley, L.; May, J.M. Titanium and zinc oxide nanoparticles are proton-coupled electron transfer agents. Science 2012, 336, 1298–1301. [Google Scholar] [CrossRef] [PubMed]
  4. Fujishima, A.; Zhang, X.; Tryk, D.A. TiO2 photocatalysis and related surface phenomena. Surf. Sci. Rep. 2008, 63, 515–582. [Google Scholar] [CrossRef]
  5. Masood, M.T.; Qudsia, S.; Hadadian, M.; Weinberger, C.; Nyman, M.; Ahläng, C.; Dahlström, S.; Liu, M.; Vivo, P.; Österbacka, R.; et al. Investigation of well-defined pinholes in TiO2 electron selective layers used in planar heterojunction perovskite solar cells. Nanomaterials 2020, 10, 181. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  6. Fröschl, T.; Hörmann, U.; Kubiak, P.; Kučerová, G.; Pfanzelt, M.; Weiss, C.K.; Behm, R.J.; Hüsing, N.; Kaiser, U.; Landfester, K.; et al. High surface area crystalline titanium dioxide: Potential and limits in electrochemical energy storage and catalysis. Chem. Soc. Rev. 2012, 41, 5313–5360. [Google Scholar] [CrossRef]
  7. Augustyn, V.; White, E.R.; Ko, J.; Grüner, G.; Regan, B.C.; Dunn, B. Lithium-ion storage properties of titanium oxide nanosheets. Mater. Horiz. 2014, 1, 219–223. [Google Scholar] [CrossRef]
  8. Gonçalves, D.M.; Chiasson, S.; Girard, D. Activation of human neutrophils by titanium dioxide (TiO2) nanoparticles. Toxicol. Vitr. 2010, 336, 1298–1301. [Google Scholar] [CrossRef]
  9. Lei, P.; Wang, F.; Zhang, S.; Ding, Y.; Zhao, J.; Yang, M. Conjugation-grafted-TiO2 nanohybrid for high photocatalytic efficiency under visible light. ACS Appl. Mater. Interfaces 2014, 6, 2370–2376. [Google Scholar] [CrossRef]
  10. Zhang, X.; Lei, L. Preparation of photocatalytic Fe2O3-TiO2 coatings in one step by metal organic chemical vapor deposition. Appl. Surf. Sci. 2008, 254, 240–2412. [Google Scholar] [CrossRef]
  11. Park, J.H.; Kim, S.; Bard, A.J. Novel carbon-doped TiO2 nanotube arrays with high aspect ratios for efficient solar water splitting. Nano. Lett. 2006, 6, 24–28. [Google Scholar] [CrossRef] [PubMed]
  12. Matsumoto, Y.; Murakami, M.; Shono, T.; Hasegawa, T.; Fukumura, T.; Kawasaki, M.; Ahmet, P.; Chikyow, T.; Koshihara, S.; Koinuma, H. Room-temperature ferromagnetism in transparent transition metal-doped titanium dioxide. Science 2001, 219, 854–856. [Google Scholar] [CrossRef] [PubMed]
  13. Umebayashi, T.; Yamaki, T.; Itoh, H.; Asai, K. Band gap narrowing of titanium dioxide by sulfur doping. Appl. Phys. Lett. 2002, 81, 454–456. [Google Scholar] [CrossRef]
  14. Huang, C.C.; Parasuraman, P.S.; Tsai, H.C.; Jhu, J.J.; Imae, T. Synthesis and characterization of porphyrin-TiO2 core-shell nanoparticles are visible light photocatalyst. RSC Adv. 2014, 4, 6540–6544. [Google Scholar] [CrossRef]
  15. Marschall, R. Semiconductor composites: Strategies for enhancing charge carrier separation to improve photocatalytic activity. Adv. Funct. Mater. 2014, 24, 2421–2440. [Google Scholar] [CrossRef]
  16. Safardoust-Hojaghan, H.; Salavati-Niasari, M. Degradation of ethylene blue as a pollutant with N-doped grapheme quantum dot/titanium dioxide nanocomposte. J. Clean. Prod. 2017, 148, 31–36. [Google Scholar] [CrossRef] [Green Version]
  17. Tang, H.; Su, Y.; Zhang, B.; Lee, A.F.; Isaacs, M.A.; Wilson, K.; Li, L.; Ren, Y.; Huang, J.; Haruta, M.; et al. Classical strong metal-support interactions between gold nanoparticles and titanium dioxide. Sci. Adv. 2017, 3, e1700231. [Google Scholar] [CrossRef] [Green Version]
  18. Reddy, K.R.; Karthik, K.V.; Prasad, S.B.B.; Soni, S.K.; Jeong, H.M.; Raghu, A.V. Enhanced photocatalytic activity of nanostructured titanium dioxide/polyaniline hybrid photocatalysts. Polyhedron 2016, 120, 169–174. [Google Scholar] [CrossRef]
  19. Li, W.; Elzatahry, A.; Aldhayan, D.; Zhao, D. Core-shell structured titanium dioxide nanomaterials for solar energy utilization. Chem. Soc. Rev. 2018, 47, 8203–8237. [Google Scholar] [CrossRef]
  20. Ghosh, Chaudhuri, R.; Paria, S. Core/shell nanoparticles: Classes, properties, Synthesis mechanisms, characterization, and applications. Chem. Rev. 2012, 112, 2373–2433. [Google Scholar] [CrossRef]
  21. Gawande, M.B.; Goswami, A.; Asefa, T.; Guo, H.; Biradar, A.V.; Peng, D.L.; Zboril, R.; Varma, R.S. Core-shell nanoparticles: Synthesis and applications in catalysis electocatalysis. Chem. Soc. Rev. 2015, 44, 7540–7590. [Google Scholar] [CrossRef] [PubMed]
  22. Panagopoulos, I.K.; Maggos, T.; Arkas, M.; Tsetsekou, A. Development of SiO2@TiO2 core-shell nanospheres for catalytic applications. Appl. Surf. Sci. 2018, 441, 223–231. [Google Scholar]
  23. Dong, W.; Pan, F.; Xu, L.; Zheng, M.; Sow, C.H.; Wu, K.; Xu, G.Q.; Chen, W. Facile synthesis of CdS@TiO2 core-shell nanorods with controllable shell thickness and enhanced photocatalytic activity under visible light irradiation. Appl. Surf. Sci. 2015, 349, 279–286. [Google Scholar] [CrossRef]
  24. Yang, X.H.; Fu, H.T.; Wong, K.; Jiang, X.C.; Yu, A.B. Hybrid Ag@TiO2 core-shell nanostructures with highly enhanced photocatalytic performance. Nanotechnology 2013, 24, 415601. [Google Scholar] [CrossRef]
  25. Tanaka, A.; Fuku, K.; Nishi, T.; Hashimoto, K.; Kominami, H. Functionalization of Au/TiO2 plasmonic photocatalysts with Pd by formation of a core-shell structure for effective dechlorination of chlorobenzene under irradiation of visible light. J. Phys. Chem. C 2013, 117, 16983–16989. [Google Scholar] [CrossRef]
  26. Pan, J.; Hühne, S.M.; Shen, H.; Xiao, L.; Born, P.; Mader, W.; Mathur, S. SnO2-TiO2 core-shell nanowire structure: Investigations on solid state reactivity and photocatalytic behavior. J. Phys. Chem. C 2011, 115, 17265–17269. [Google Scholar] [CrossRef]
  27. Khashan, S.; Dagher, S.; Tit, N.; Alazzam, A.; Obaidat, I. Novel method for synthesis of Fe3O4@TiO2 core/shell nanoparticles. Surf. Coat. Technol. 2017, 322, 92–98. [Google Scholar] [CrossRef]
  28. Bai, Y.; Yan, D.; Yu, C.; Cao, L.; Wang, C.; Zhang, J.; Zhu, H.; Hu, Y.S.; Dai, S.; Lu, J.; et al. Core-shell Si@TiO2 nanosphere anode by atomic layer deposition for Li-ion batteries. J. Power Sources. 2016, 308, 75–82. [Google Scholar] [CrossRef] [Green Version]
  29. Imhof, A. Preparation and characterization of titania-coated polystryrene spheres and hollow titania shells. Langmuir 2001, 17, 359–3585. [Google Scholar] [CrossRef]
  30. Zhang, M.; Gao, G.; Li, C.Q.; Liu, F.Q. Titania-coated polystyrene hybrid microballs prepared with miniemulsion polymerization. Langmuir 2004, 20, 1420–1424. [Google Scholar] [CrossRef]
  31. Shi, F.; Li, Y.; Wang, H.; Zhang, Q. Formation of core/shell structured polystyrene/anatase TiO2 photocatalyst via vapor phase hydrolysis. Appl. Catal. B Environ. 2012, 123, 127–133. [Google Scholar] [CrossRef]
  32. Karabacak, R.B.; Erdem, M.; Yurdakal, S.; Cimen, Y.; Türk, H. Facile two-step preparation of polystyrene/anatase TiO2 core/shell colloidal particles and their potential use as an oxidation photocatalyst. Mater. Chem. Phys. 2014, 144, 498–504. [Google Scholar] [CrossRef]
  33. Zhang, X.; Wu, C.; Ren, Y.; Yang, W.; Che, H.; Mu, J. Preparation of PS@TiO2 composited particles and their visible light photocatalytic properties. Optoelectron. Adv. Mat. 2018, 12, 617–621. [Google Scholar]
  34. Kim, Y.J.; Uyama, H.; Kobayashi, S. Regioselective synthesis of poly (phenylene) as a complex with poly (ethylene glycol) by template polymerization of phenol in water. Macromolecules 2003, 36, 5058–5060. [Google Scholar] [CrossRef]
  35. Bruno, F.F.; Nagarajan, R.; Kumar, J.; Samuelson, L.A. Novel enzymatic polyethylene oxide-polyphenol system for ionic conductivity. J. Macromol. Sci. Part A Pure Appl. Chem. 2002, 39, 1061–1068. [Google Scholar] [CrossRef]
  36. Mita, N.; Tawaki, S.; Uyama, H.; Kobayashi, S. Enzymatic oxidative polymerization of phenol in an aqueous solution in the presence of a catalytic amount of cyclodextrin. Macromol. Biosci. 2002, 2, 127–130. [Google Scholar] [CrossRef]
  37. Reihmann, M.H.; Ritter, H. Oxidative oligomerization of cyclodextrin-complexed bifunctional phenols catalyzed by horseradish peroxidase in water. Macromol. Chem. Phys. 2000, 201, 798–804. [Google Scholar] [CrossRef]
  38. Zhang, L.; Zhang, Y.; Xue, Y.; Duan, H.; Cui, Y. Enzymatic synthesis of soluble phenol polymer in water using anionic surfactant as additive. Polym. Int. 2013, 62, 1277–1282. [Google Scholar] [CrossRef]
  39. Zhang, L.; Zhao, W.; Chen, H.; Cui, Y. Enzymatic synthesis of phenol polymer and its functionalization. J. Mol. Catal. B Enzym. 2013, 87, 30–36. [Google Scholar] [CrossRef]
  40. Reddy, P.A.K.; Vattikuti, S.V.P.; Baik, Y.-J.; Byon, C. Eco-friendly, hydrogen fluoride-free, morphology- oriented synthesis of TiO2 with exposed (001) facets. Ceram. Int. 2019, 45, 2178–2184. [Google Scholar]
  41. Lei, P.; Wang, F.; Gao, X.; Ding, Y.; Zhang, S.; Zhao, J.; Liu, S.; Yang, M. Immobilization of TiO2 nanoparticles in polymeric substrates by chemical bonding for multi-cycle photodegradation of organic pollutants. J. Hazard. Mater. 2012, 227–228, 185–194. [Google Scholar] [CrossRef]
  42. Ghanem, A.F.; Badawy, A.A.; Ismail, N.; Rayn Tian, Z.; Abdel Rehim, M.H.; Rabia, A. Photocatalytic activity of hyperbranched polyester/TiO2 nanocomposites. Appl. Catal. A Gen. 2014, 472, 191–197. [Google Scholar] [CrossRef]
  43. Reddy, P.A.K.; Manvitha, C.; Boddula, R.; Vattikuti, S.V.P.; Kumar, M.K.; Byon, C. Single-step hydrothermal synthesis of wrinkled grapheme wrapped TiO2 nanotubes for photocatalytic hydrogen production and supercapacitor applications. Mater. Res. Bull. 2018, 98, 314–321. [Google Scholar]
  44. Vattikuti, S.V.P.; Reddy, P.A.K.; Nagajyothi, P.C.; Shim, J.; Byon, C. Hydrothermally synthesized Na2Ti3O7 nanotuble-V2O5 heterostructures with improved visible photocatalytic degradation and hydrogen evolution—its photocorrosion suppression. J. Alloys Compd. 2018, 740, 574–586. [Google Scholar] [CrossRef]
  45. Mais, L.; Mascia, M.; Palmas, S.; Vacca, A. Photoelectrochemical oxidation of phenol with nanostructured TiO2-PANI electrodes under solar light irradiation. Sep. Purif. Technol. 2019, 208, 153–159. [Google Scholar] [CrossRef]
  46. Palmas, S.; Castresana, P.A.; Mais, L.; Vacca, A.; Mascia, M.; Ricci, P.C. TiO2-WO3 nanostructured systems for photoelectrochemical applications. RSC Adv. 2016, 6, 101671–101682. [Google Scholar] [CrossRef] [Green Version]
  47. Li, J.; Zhang, M.; Li, Q.; Yang, J. Enhanced visible light activity on direct contact Z-scheme g-C3N4-TiO2 photocatalyst. Appl. Surf. Sci. 2017, 391, 184–193. [Google Scholar] [CrossRef]
Nanomaterials 10 00467 g001 550

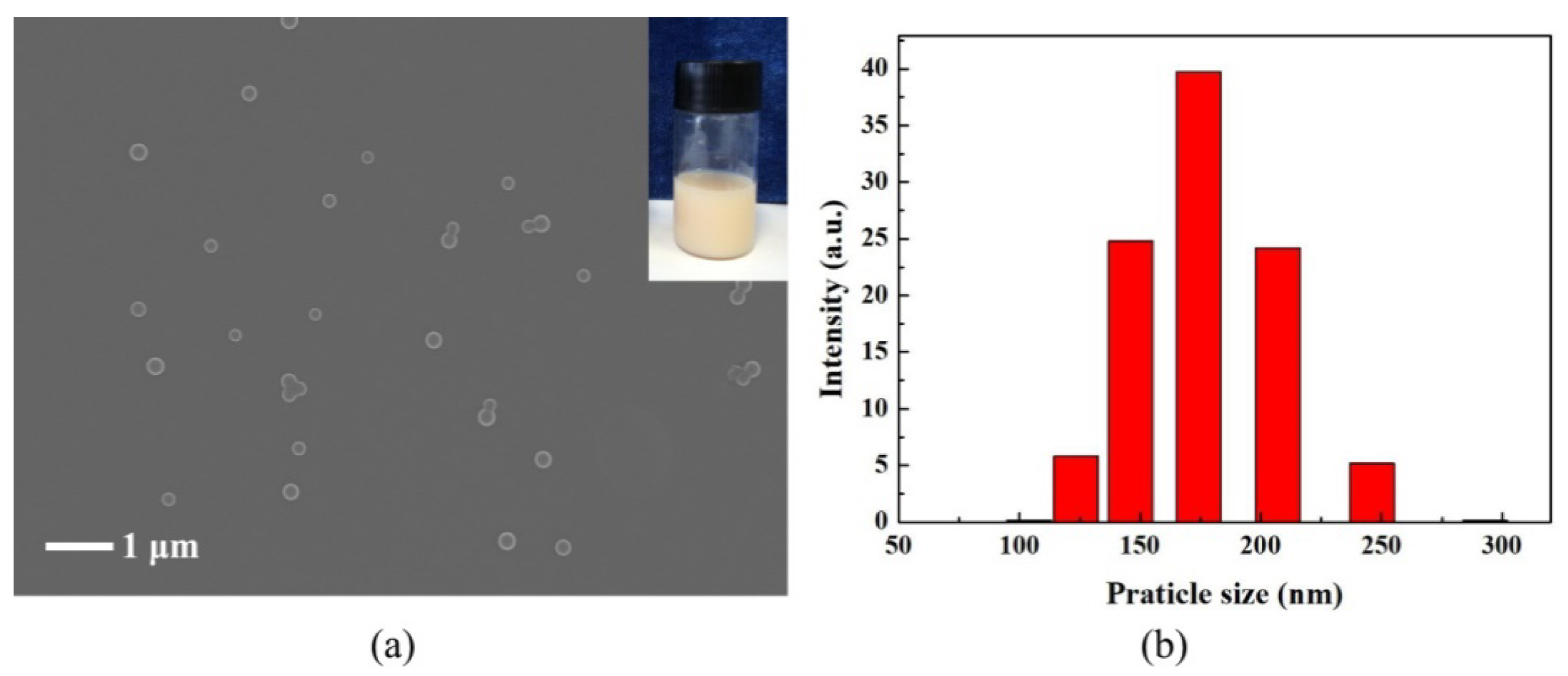

Figure 1. (a) SEM images and (b) size distribution curve of phenolic polymer (PP).
Figure 1. (a) SEM images and (b) size distribution curve of phenolic polymer (PP).
Nanomaterials 10 00467 g001
Nanomaterials 10 00467 g002 550

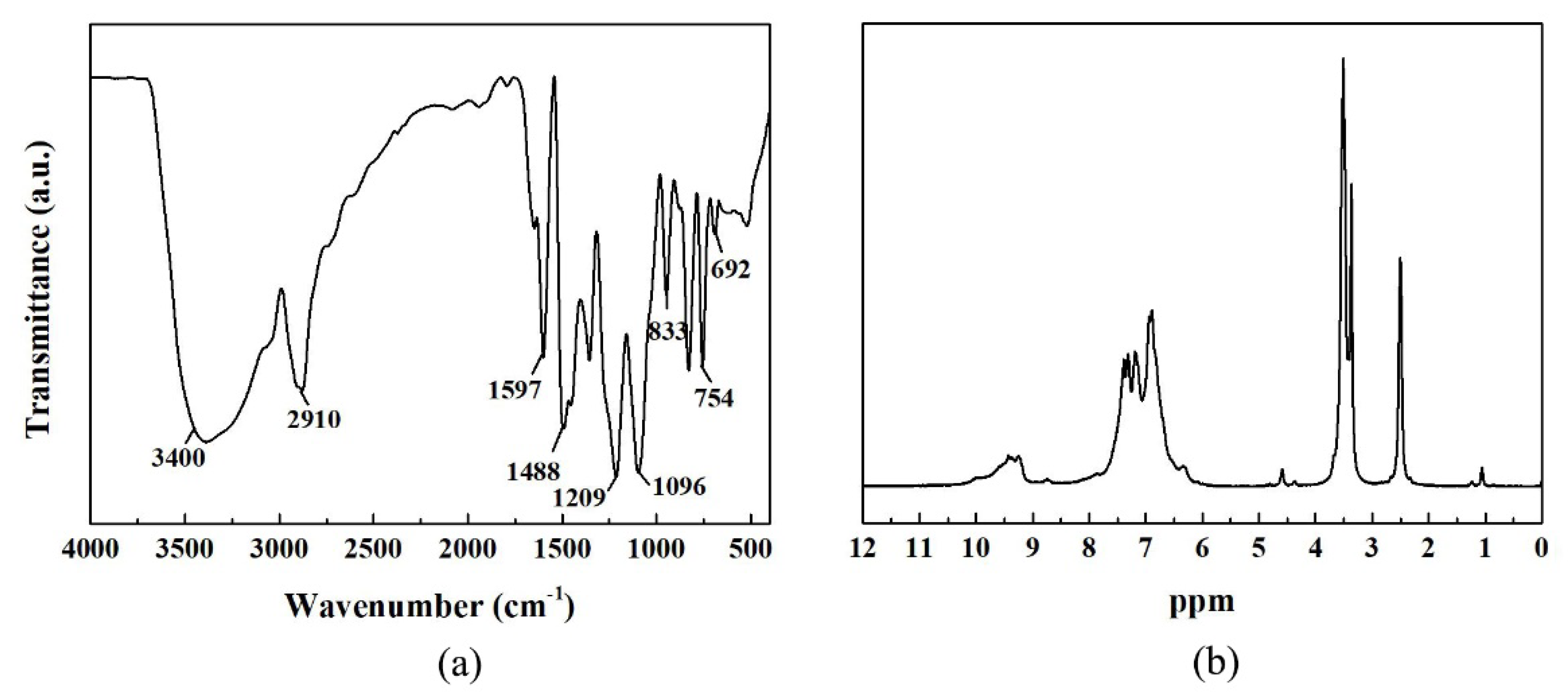

Figure 2. (a) FT-IR and (b) 1H-NMR spectra of PP.
Figure 2. (a) FT-IR and (b) 1H-NMR spectra of PP.
Nanomaterials 10 00467 g002
Nanomaterials 10 00467 sch001 550

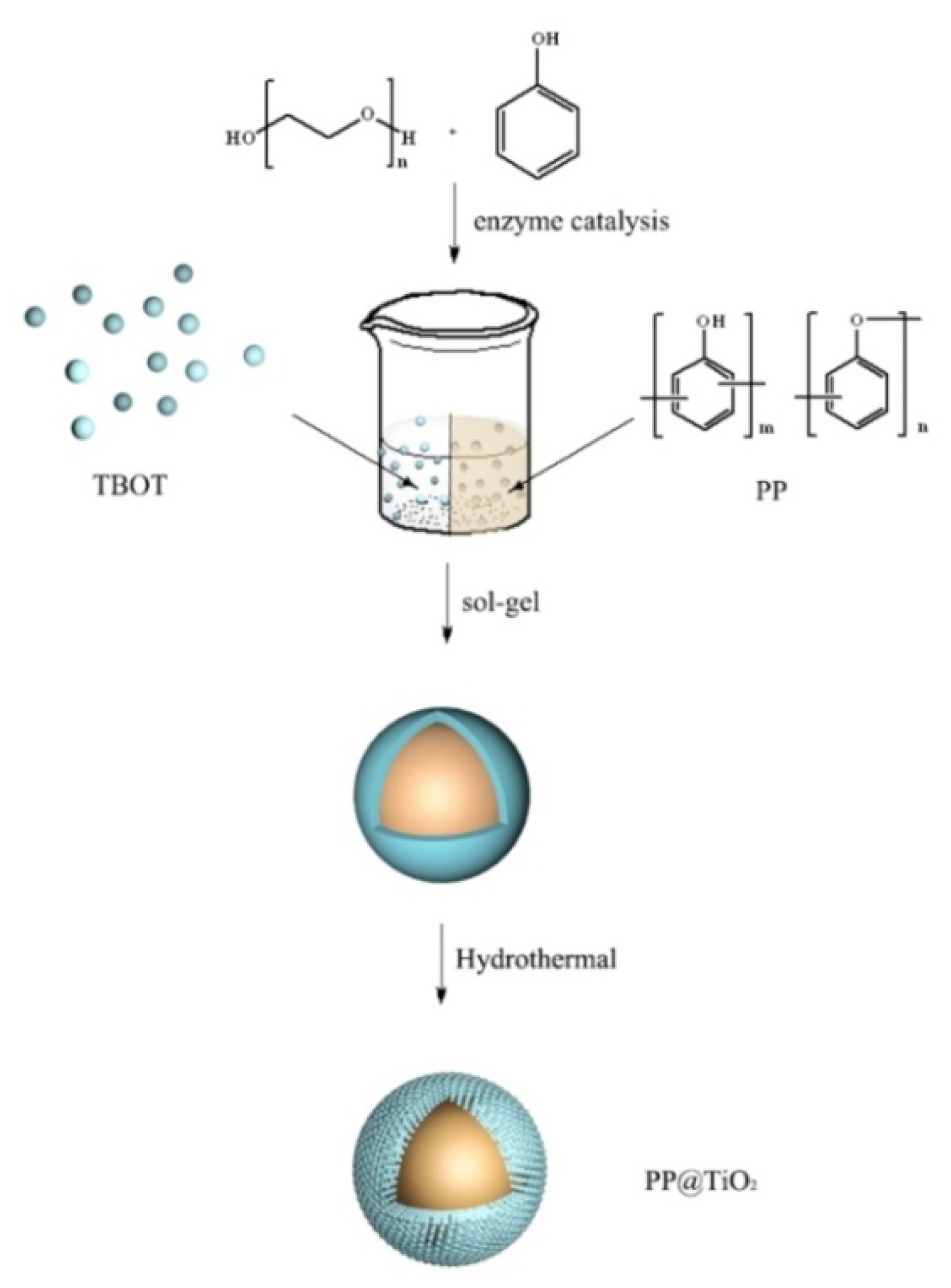

Scheme 1. Illustration for the fabrication of the PP@TiO2 core–shell nanosphere.
Scheme 1. Illustration for the fabrication of the PP@TiO2 core–shell nanosphere.
Nanomaterials 10 00467 sch001
Nanomaterials 10 00467 g003 550

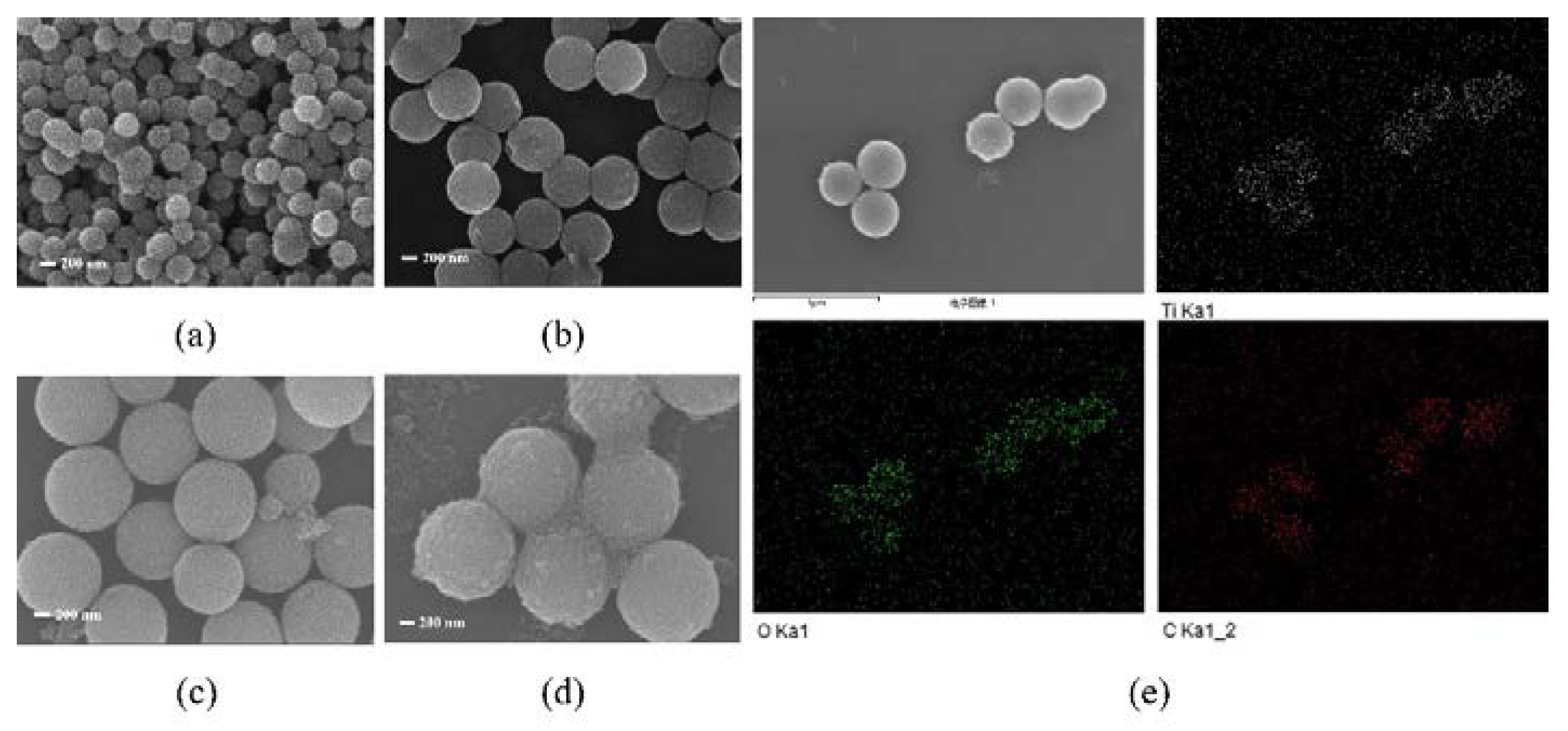

Figure 3. (a) PP@TiO2-25, (b) PP@TiO2-50, (c) PP@TiO2-75, and (d) PP@TiO2-100 SEM images; (e) the mapping pattern of PP@TiO2-50.
Figure 3. (a) PP@TiO2-25, (b) PP@TiO2-50, (c) PP@TiO2-75, and (d) PP@TiO2-100 SEM images; (e) the mapping pattern of PP@TiO2-50.
Nanomaterials 10 00467 g003
Nanomaterials 10 00467 g004 550

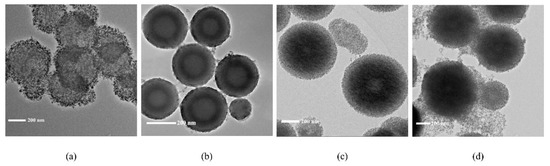

Figure 4. (a) PP@TiO2-25, (b) PP@TiO2-50, (c) PP@TiO2-75, and (d) PP@TiO2-100 TEM images.
Figure 4. (a) PP@TiO2-25, (b) PP@TiO2-50, (c) PP@TiO2-75, and (d) PP@TiO2-100 TEM images.
Nanomaterials 10 00467 g004
Nanomaterials 10 00467 g005 550

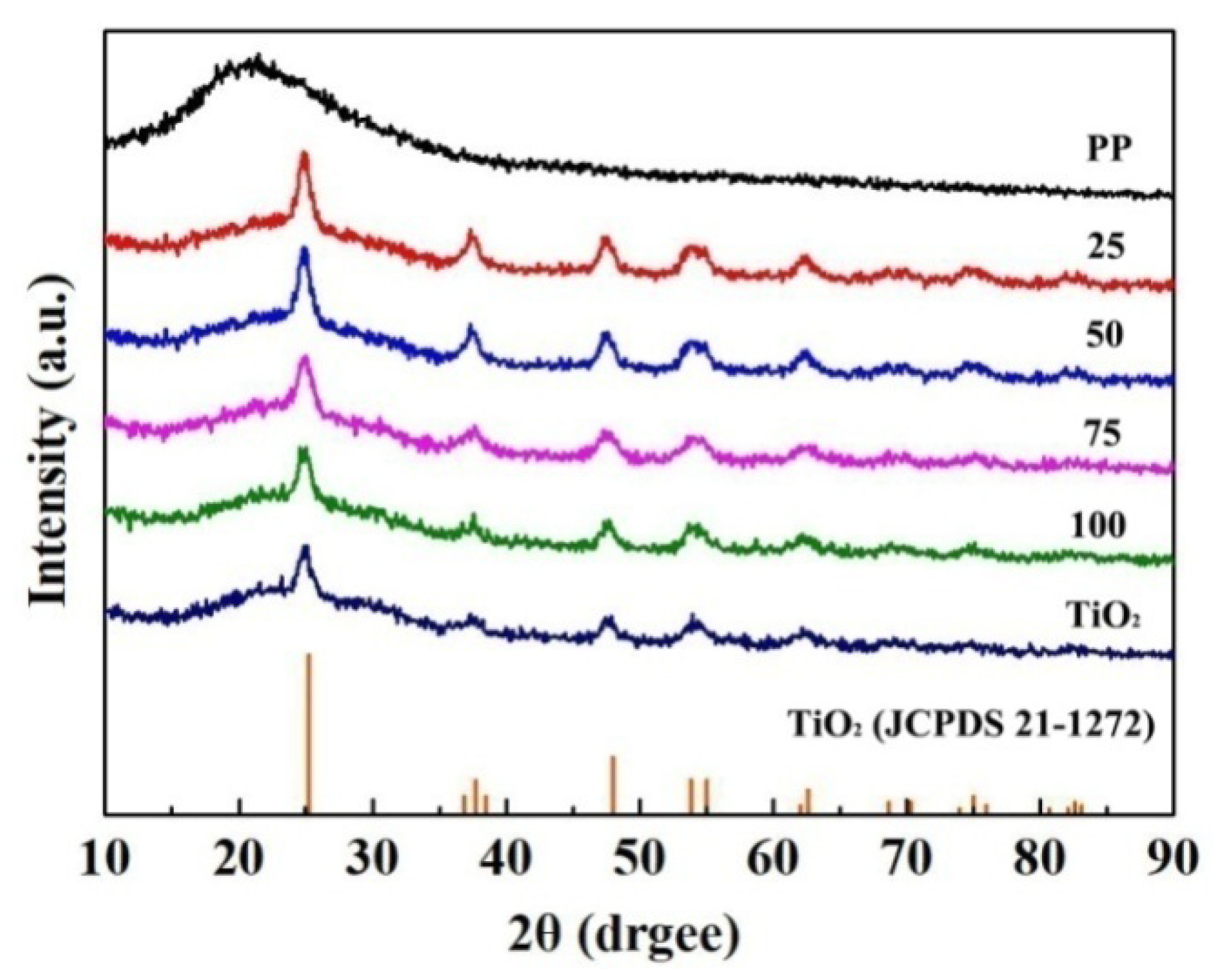

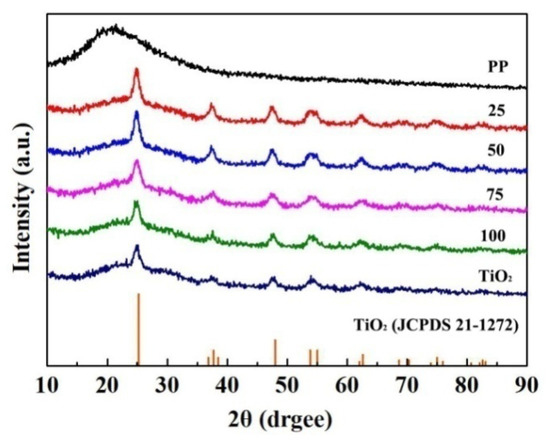

Figure 5. XRD spectra of PP, TiO2, and PP@TiO2 nanospheres.
Figure 5. XRD spectra of PP, TiO2, and PP@TiO2 nanospheres.
Nanomaterials 10 00467 g005
Nanomaterials 10 00467 g006 550

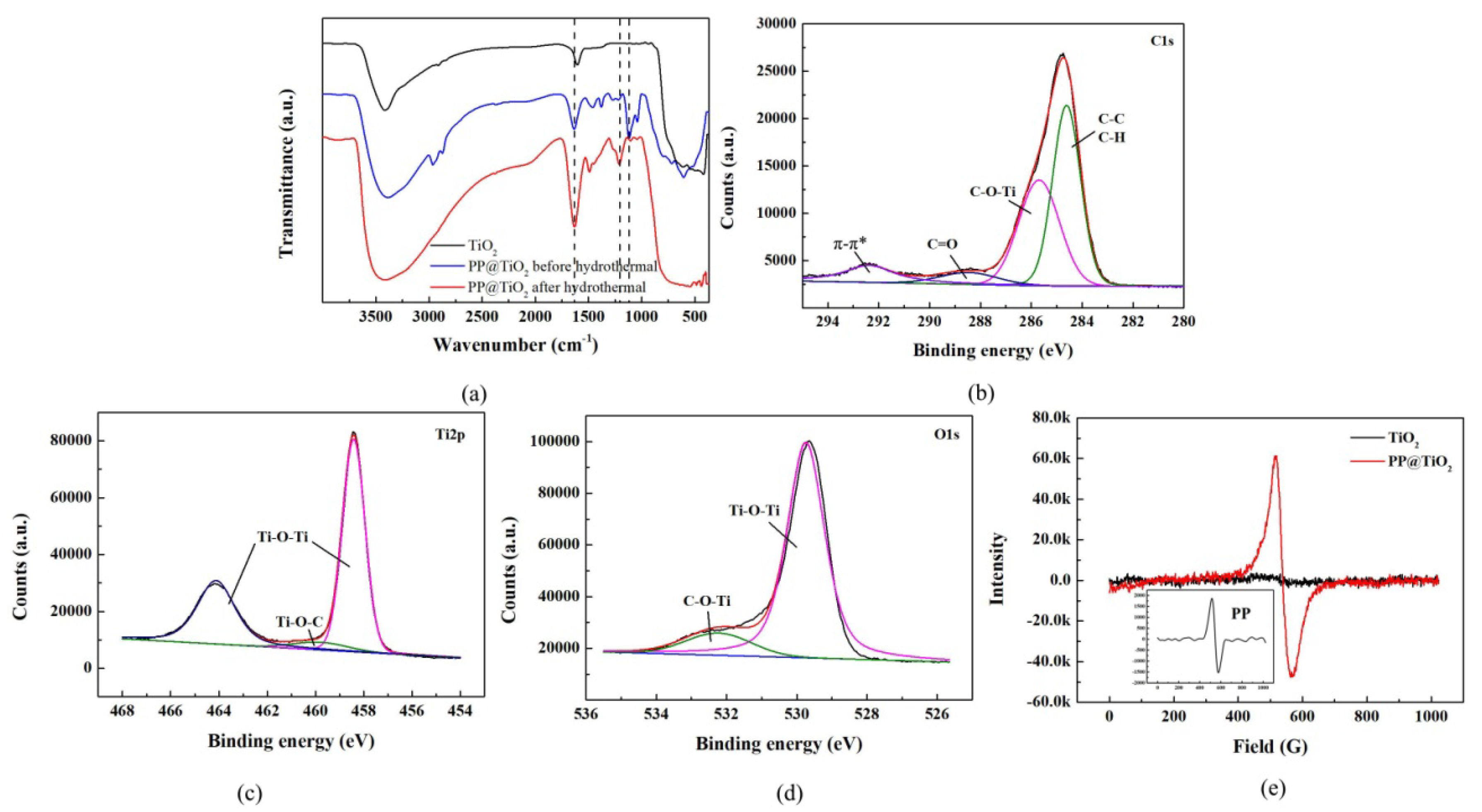

Figure 6. (a) Fourier-transform infrared (FT-IR) spectra of pure TiO2 and PP@TiO2; X-ray photoelectron spectroscopy (XPS) spectra of (b) C 1s, (c) Ti 2p, and (d) O 1s; (e) electron paramagnetic resonance (EPR) spectrum of PP@TiO2 nanosphere.
Figure 6. (a) Fourier-transform infrared (FT-IR) spectra of pure TiO2 and PP@TiO2; X-ray photoelectron spectroscopy (XPS) spectra of (b) C 1s, (c) Ti 2p, and (d) O 1s; (e) electron paramagnetic resonance (EPR) spectrum of PP@TiO2 nanosphere.
Nanomaterials 10 00467 g006
Nanomaterials 10 00467 g007 550

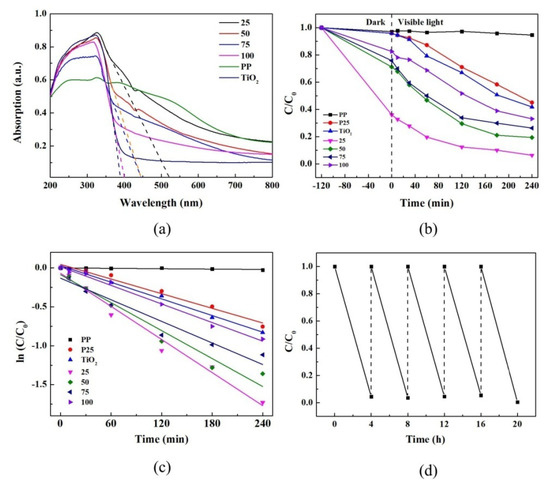

Figure 7. (a) UV–visible spectra; (b) the visible-light photocatalytic efficiency for rhodamine B; (c) plots of ln(C/C0) versus irradiation time of PP, TiO2, and PP@TiO2 nanospheres; (d) cyclic photocatalytic performance test of PP@TiO2-25 under visible-light irradiation.
Figure 7. (a) UV–visible spectra; (b) the visible-light photocatalytic efficiency for rhodamine B; (c) plots of ln(C/C0) versus irradiation time of PP, TiO2, and PP@TiO2 nanospheres; (d) cyclic photocatalytic performance test of PP@TiO2-25 under visible-light irradiation.
Nanomaterials 10 00467 g007
Nanomaterials 10 00467 sch002 550

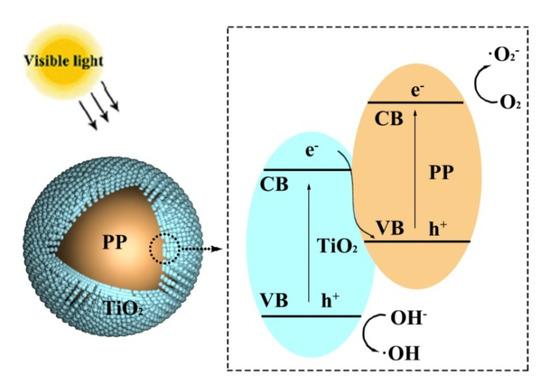

Scheme 2. Photocatalytic mechanism of core–shell PP@TiO2 nanosphere.
