Article

An Ultrasensitive Non-Enzymatic Sensor for Quantitation of Anti-Cancer Substance Chicoric Acid Based on Bimetallic Nanoalloy with Polyetherimide-Capped Reduced Graphene Oxide

by
Jun Jiao
,
Meixin Pan
,
Xinran Liu
,
Jian Liu
,
Binshuai Li
and
Qiang Chen
*
The Key Laboratory of Bioactive Materials Ministry of Education, College of Life Science, Nankai University, Weijin Road No. 94, Tianjin 300071, China
*
Author to whom correspondence should be addressed.
Nanomaterials 2020, 10(3), 499; https://doi.org/10.3390/nano10030499
Submission received: 26 February 2020 / Revised: 7 March 2020 / Accepted: 8 March 2020 / Published: 10 March 2020
(This article belongs to the Special Issue Bimetallic Nanoparticles)
Browse Figures
Versions Notes

Abstract

:
Exploiting effective therapies to fight tumor growth is an important part of modern cancer research. The anti-cancer activities of many plant-derived substances are well known, in part because the substances are often extensively distributed. Chicoric acid, a phenolic compound widely distributed in many plants, has drawn widespread attention in recent years because of its extraordinary anti-cancer activities. However, traditional methods for quantifying chicoric acid are inefficient and time-consuming. In this study, an ultrasensitive non-enzymatic sensor for the determination of chicoric acid was developed based on the use of an Au@Pt-polyetherimide-reduced graphene oxide (PEI-RGO) nanohybrid-modified glassy carbon electrode. Owing to the considerable conductivity of PEI-functionalized RGO and the efficient electrocatalytic activity of Au@Pt nanoalloys, the designed sensor exhibited a high capacity for chicoric acid measurement, with a low detection limit of 4.8 nM (signal-to-noise ratio of 3) and a broad linear range of four orders of magnitude. With the advantages provided by the synergistic effects of Au@Pt nanocomposites and PEI-RGO, the developed sensor also revealed exceptional electrochemical characteristics, including superior sensitivity, fast response, acceptable long-term stability, and favorable selectivity. This work provides a powerful new platform for the highly accurate measurement of chicoric acid quantities, facilitating further research into its potential as a cancer treatment.

Graphical Abstract

1. Introduction

The disease burden of cancer continues to be a global issue. It is expected to be the most significant barrier to increased life expectancies worldwide. As reported by the World Health Organization (WHO) in 2018, cancer is estimated to affect 29.5 million people and will cause an estimated 16.4 million deaths in 2040 [1]. Even though various strategies, such as surgery, radiotherapy, and chemotherapy, are used to treat cancer, the survival rate of patients with malignant tumors remains low [2,3]. Therefore, it is imperative to exploit effective therapies against cancer progression. In recent years, various compounds extracted from plants have shown potential as therapeutics for treating diverse types of cancer [4,5].
Dietary compounds and nutrients give effective aid to humans for preventing diseases or inhibiting developments of disorder in patients [6,7]. Several natural compounds, such as resveratrol and berberine, have also been applied as anti-cancer drugs, as they are less toxic and have fewer side effects than some chemicals in clinical practice. Additionally, they are found abundantly in nature and are cost-effective to process [8]. Chicoric acid was isolated and identified as a phenolic compound in 1958 [9]. It is a derivative of caffeic acid and is widely distributed in numerous plants and vegetables, especially in Echinacea (a genus belonging to the Asteraceae family) [10]. It has received attention for its antioxidant abilities and as an anti-HIV and anti-inflammatory compound [11,12,13]. More importantly, chicoric acid is effective in preventing tumors from further developing; therefore, it has the potential to be used as an anticancer drug in the near future. For instance, chicoric acid has been shown to activate autophagy by elevating endoplasmic reticulum (ER) stress, which considerably slows the progression of gastric cancer [14]. In addition, chicoric acid can repress the activity of telomerase, leading to apoptosis in colon cancer cells [15]. Owing to these vital anti-cancer activities, a variety of methods have been developed to accurately measure chicoric acid quantities. The quantitation of chicoric acid can be achieved through several techniques, including planar chromatography, UV/visible spectra, high-performance liquid chromatography (HPLC), and Nuclear Magnetic Resonance (NMR) spectroscopy [16,17,18,19]. Although such analytic approaches are precise and efficient, they still suffer from intrinsic shortcomings like the long time required for operation. They also depend on sophisticated instruments and expensive reagents, as well as specially trained personnel. Furthermore, the real-time study of the pharmacodynamics of chicoric acid in living cells or tissues presents difficulties when using these methods. Therefore, to expedite the exploration of chicoric acid in the prevention and treatment of cancer, rapid, low-cost, and ultrasensitive techniques to detect chicoric acid are required.
Electrochemical sensing has great potential as a powerful platform for the quantitation of chicoric acid as it offers high sensitivity, rapid response, and practicality. High-performance sensors have been used widely to detect the presence of phenolic compounds and have provided satisfactory results [20,21]. Akhtar et al. proposed an electrochemical sensor for the determination of phenolic compounds with low detection limits, and the sensor succeeded in practical detection of river water samples [22]. Additionally, sensors based on ternary nanocomposites have been used to detect caffeic acid rapidly and accurately [23]. Importantly, electrochemical sensors have high biocompatibility, which enables them to study the target substances in living cells [24,25,26]. In this regard, electrochemical sensors have the potential to facilitate research into pharmacodynamic effects of chicoric acid at the cellular level. The performance of a sensor depends not only on the recognition elements, but also on various nanomaterials. Bimetallic nanomaterials have attracted greater attention than their noble counterparts because of the outstanding catalytic and electronic properties in construction of the sensing surface [27,28,29]. After the introduction of bimetallic nanoalloys, the consumption of expensive noble metals decreased and catalytic performance improved significantly [30]. Pt and Au nanoalloys have the capacity to improve electron transfer when modifying biosensors, making them ideal for the detection of chicoric acid [31,32,33,34]. Reduced graphene oxide (RGO) can be an acceptable platform for electrochemical sensing because it can enhance electrical conductivity, provide sufficient binding sites, and improve stability under various conditions [35]. However, the tendency of RGO to be irreversibly stacked and its dispersibility cannot be ignored, given that these drawbacks cause a serious decrease in the catalytic activity sites of RGO [36]. Polyetherimide (PEI), as a polymer with an abundance of amino-groups, was introduced to solve the dispersion issue and further enhance the electrical transfer [37].
Herein, we explored a novel sensor for the determination of chicoric acid by modifying Au@Pt/PEI-RGO-layered nanohybrids on a glassy carbon electrode (GCE) (Scheme 1). To the best of our knowledge, this is the first report describing an electrochemical method for chicoric acid analysis. By combining the advantages of both bimetallic nanoalloys and PEI-capped RGO, our proposed sensor exhibited excellent responses to chicoric acid and obtained a detection limit as low as 4.8 nM, with a wide range spanning from 0.3 μM to 0.03 mM. This promising sensing platform for detecting chicoric acid, with high sensitivity and selectivity, paves the way for in-depth studies into the potential applicability of chicoric acid in the development of cancer therapy.

2. Materials and Methods

2.1. Reagents and Apparatus

Graphene oxide (GO) was acquired from Nanjing XFNANO Materials Tech Co. (Nanjing, China). Chicoric acid, gold chloride hydrate, platinic chloride hydrate, sodium borohydride (NaBH4), polyethyleneimine (PEI), ascorbic acid (AA), and hexadecyltrimethylammonium bromide (CTAB) were purchased from Sigma Aldrich Co. (St. Louis, MO, USA). Potassium chloride, ethanol, potassium ferricyanide, Na2HPO4, and citric acid were purchased from Tianjin Damao Chemical Reagent Factory (Tianjin, China). All the chemicals and reagents were of analytical reagent grade and used as received without further purification. Deionized water was used throughout the experiments unless otherwise indicated.
A conventional one-compartment cell using a 283 potentiostat–galvanostat electrochemical workstation (EG & G PARC using the M270 software) was used for the electrochemical experiments with highly pure nitrogen bubbled through the experimental solution for 20 min. A Pt wire (1 mm diameter) was used as the counter electrode, an Ag/AgCl electrode (saturated with KCl) was used as the reference electrode, and the Au@Pt-PEI-RGO-modified GC electrode was used as the working electrode (3 mm diameter); these comprised the conventional three-electrode system.
Transmission electron microscopy (TEM) and energy-dispersive X-ray spectroscopy (EDX) patterns were gathered on a Tecnai G2 F20 instrument (Philips Holland). X-ray diffraction (XRD) images were collected by a Rigaku D/max-rA with Cu Kα radiation (λ = 1.5418 Å) (Rigaku, Japan). A Raman spectrometer (model Renishaw in Via, Renishaw, England) was used to collect the Raman spectra.

2.2. Preparation of PEI-Functionalized RGO

GO (40 mg) was dispersed in 40 mL double distilled water by ultrasonication. After 2 h ultrasonication, polyethylene imine (PEI) was added to the reaction solution, followed by potassium hydroxide (KOH) until reaching pH 10.0, and then the solution was stirred for 2 h to achieve a homogeneous PEI-GO aqueous dispersion. The mixture reacted under magnetic stirring at 60 °C for 12 h and was centrifugated and dispersed in double distilled water to obtain PEI-RGO. According to the mass ratio of GO/NaBH4 = 1:11.4, 0.45 g NaBH4 was added into 10 mL PEI-RGO solution. After a 2 h reaction under magnetic stirring, the product was collected by centrifugation at 20,000 rpm for 30 min and washed three times with double distilled water. Finally, the product was resuspended to obtain 1 mg/mL PEI-RGO solution.

2.3. Preparation of Au@Pt-PEI-RGO

Hexadecyl trimethyl ammonium bromide (CTAB) solution (25 mL 0.1 M), 100 μL 1 M HAuCl4 solution, 100 μL 1 M H2PtCl6 solution, and 0.1 M ascorbic acid were mixed with the prepared PEI-RGO solution and reacted for 24 h with continuous stirring at room temperature. Finally, the products were obtained through centrifugation at 13,000 rpm and washed three times with double distilled water. The Au-PEI-RGO was prepared using a similar method.

2.4. Preparation of Modified Electrodes

The glassy carbon (GC) electrode was polished by 0.3 and 0.05 μm aluminum oxide powder and ultrasonically washed with double distilled water and absolute ethanol, respectively, followed by drying with a nitrogen stream. A 10 μL aliquot of the Au@Pt-PEI-RGO suspension was immobilized on the surface of the GC electrode by dip-coating and dried in air.

3. Results and Discussion

3.1. Characterization of Au@Pt-PEI-RGO Nanocomposites

Transmission electron microscopy (TEM) was used to identify the morphological properties of nanoparticles prepared as described. A typical wrinkled pattern was observed in the RGO sheets (Figure 1A). After functionalization of PEI, RGO exhibited less aggregation than its original counterparts (Figure 1B). Under different magnification (Figure 1C,D), it was obvious that the Au@Pt alloy nanoparticles were well distributed on the PEI-RGO sheets and a single Au@Pt nanoparticle was approximately 30 nm in diameter.
Elemental mapping, as a typical measurement, was used to display the structure and elemental distributions of the obtained nanocomposites. As shown in Figure 2A–F, it is clear that the C and O elements were equally distributed as a film, while Pt and Au were relatively concentrated, indicating that the nanoalloy was uniformly composed of Au and Pt and distributed throughout the surface of PEI-RGO. In addition, the occurrence of C, O, Au, and Pt elements in the energy-dispersive X-ray (EDX) spectrum (Figure 2G) further supports the formation of Au@Pt-PEI-RGO nanohybrids.
Figure 2H shows the X-ray diffraction (XRD) patterns of GO, PEI-RGO, Au-PEI-RGO, and Au@Pt-PEI-RGO. Compared with GO (curve a), with diffraction patterns at around 10° and 23.99°, RGO (curve b) displays a wide peak only at 23.99°, indicating that GO was reduced [38]. The patterns of Au-PEI-RGO (curve c) exhibit diffraction peaks of (111), (200), (220), and (311) at 38.2°, 44.3°, 64.7°, and 77.7°, respectively [39]. In contrast, for Au@Pt-PEI-RGO (curve d), a peak at 81.6° is associated with (311) facets of Pt nanoparticles, and other diffraction patterns are broader owing to the superposition of lattice planes, suggesting the formation of a bimetallic nanoalloy [40]. In addition, the Raman spectra in Figure S1 also reflect the structural changes that occurred during the formation of PEI-RGO. Compared with the Raman spectrum of GO, the increased D/G intensity ratio increased from 0.91 (GO) to 1.02 (PEI-RGO), suggesting a decline in the average size of the in-plane sp2 domains upon reduction of GO [41,42].

3.2. Electrochemical Behavior of Obtained Materials

The electrochemical performance of bare GCE, PEI-RGO/GCE, Au-PEI-RGO/GCE, and Au@Pt-PEI-RGO/GCE was assessed in cyclic voltammograms (CV) using ferro/ferricyanide as the redox probe. As shown in Figure 3A, compared with bare GCE (green), the electrode modified with PEI-RGO (light green) displayed a rising response to the redox probe, as the PEI-RGO accelerated the electron transport between ferrocyanide and electrode [43]. The introduction of bimetallic nanomaterials followed by PEI-RGO caused an elevated current response compared with Au-PEI-RGO-modified GCE (yellow), which can be ascribed to the synergistic effects between Au and Pt. To further discriminate the obtained materials, the active surface area was evaluated according to the Randles–Sevcik Equation [44]:
I p = 2.69 × 10 5 × A × D 1 / 2 × n 3 / 2 × v 1 / 2 × c
where Ip represents the redox peak current; A is the electroactive surface area (cm2); the diffusion coefficient (D) of the molecule in solution is (6.70 ± 0.02) × 10−6 cm2/s; n relates to the number of electrons participating in the redox reaction, which is equal to 1; v corresponds to the scan rate (V/s); and c is the concentration of the redox probe (mol/cm3). The calculated electroactive area of Au@Pt-PEI-RGO-modified GCE was 0.086 cm2, which was 1.84 times, 1.46 times, and 1.26 times higher than bare GCE, PEI-RGO/GCE, and Au-PEI-RGO/GCE, respectively. Furthermore, the peak potential separation ( Δ Ep) of bare GCE was found to be around 124 mV. Whereas, we observed that Au@Pt-PEO-RGO modified GCE had a lower peak potential separation ( Δ Ep) of 88 mV, indicating that the obtained nanocomposites facilitated a faster electron transfer towards the electrode in bulk solution. In addition, the ratio of peak current (Ipa/Ipc) of Au@Pt-PEI-RGO/GCE was calculated to be ~ 1.005, which means the oxidation/reduction process of the Fe2+/Fe3+ species takes place reversibly [45]. The above results demonstrate that Au@Pt-PEI-RGO nanocomposites can enhance the electroactive area of the electrode, which facilitates electron transfer between the working electrode and K3[Fe(CN)6]. The excellent performance may be attributed to not only the enlarged supporting area provided by PEI-functionalized RGO with plenty of binding sites, but also the outstanding electrical conductivity and the synergistic effects from the bimetallic nanoalloy. Therefore, Au@Pt-PEI-RGO was proven to be an excellent electron transfer mediator and is applicable for electrochemical analysis.

3.3. Electrochemical Response of Chicoric Acid at Au@Pt-PEI-RGO/GCE

Figure 3B presents the electrocatalytic performance of the electrodes modified with different materials in detecting chicoric acid in an Na2HPO4-citric acid solution (pH 3) containing 0.5 mM chicoric acid at a scan rate of 50 mV/s. Only a small current response occurred on the bare GCE, whereas the modified electrodes all attained a couple of well-defined redox peaks. Compared with PEI-RGO/GCE and Au-PEI-RGO/GCE, a stronger response was observed at around 0.4 V/0.52 V on the electrode with bimetallic nanoalloys and PEI-RGO sheets, indicating that Au@Pt-PEI-RGO nanohybrids possess the strongest electrocatalytic properties for the oxidation reaction of chicoric acid. In addition, the ratio of peak current (Ipa/Ipc) of Au@Pt-PEI-RGO/GCE was around −1.025, which refers to a reversible process on the electrode. The value of Ipa/Ipc is close to 1, suggesting that the electrode displays a significantly catalytic performance [46]. The improvement in response signals may be attributed to the high electrocatalytic activity of gold and platinum, the electrical conductivity and enlarged active surface area of PEI-RGO, and the synergistic effects after integration.

3.4. Performance of the Proposed Sensor

3.4.1. Optimization of the Experimental Variables

To obtain the best analytical performance from the proposed sensor, the effects of scan rate and solution pH on the redox of 0.5 mM chicoric acid were investigated. As shown in Figure 4A,B, the redox peak currents of chicoric acid are proportionate to the square root of the scan rate (v1/2) in the range of 10–100 mV/s, and the linear regression equations generated were Ipa = 6.9903v1/2 − 15.171 (R2 = 0.992) and Ipc = −7.5022v1/2 + 18.636 (R2 = 0.995). The above results indicate that the redox reaction of chicoric acid on the Au@Pt-PEI-RGO/GCE is predominantly a diffusion-controlled process [47,48]. In addition, the scanning rate was chosen as 50 mV/s to ensure the stability of subsequent electrocatalytic measurements.
The influence of pH value on the electrochemical performance of Au@Pt-PEI-RGO/GCE was tested by CV in an Na2HPO4-citric acid buffer containing 0.5 mM chicoric acid with pH values from 2 to 8. As seen in Figure 4C, the peak current and peak potential of the response curves were affected by the pH value. The redox peaks of chicoric acid at Au@Pt-PEI-RGO/GCE increased incrementally until reaching pH 3, whereas beyond pH 3, the current decreased with the consistent increase in pH (Figure 4D). Therefore, to accomplish the sensitive detection of chicoric acid, an Na2HPO4-citric acid buffer solution with pH 3 was selected as the optimal bulk electrolyte for further experiments.

3.4.2. Electrochemical Determination of Chicoric Acid

Differential pulse voltammetry (DPV) was performed to examine the relationship between the response currents and the concentration of chicoric acid at the Au@Pt-PEI-RGO-modified GCE under optimal conditions. Figure 5A illustrates the DPV profiles of different concentrations of chicoric acid from 0.3 μM to 0.06 mM, and Figure 5B presents a close-up of the low concentrations from 0.3 μM to 0.9 μM. As the concentration of chicoric acid increased, the oxidation peak current gradually rose. We fitted the calibration curve after five independent tests. From the calibrated current–concentration profile, the Au@Pt-PEI-RGO/GCE sensor showed two linear ranges of 0.3 μM to 0.007 mM and 0.007 mM to 0.3 mM with regression coefficient (R2) value of 0.992 and 0.994, respectively. The corresponding linear regressions can be represented by equations I1 = 4244.74C + 6.635 and I2 = 241.31C + 33.239. On the basis of three times the blank standard deviation and the slope of the calibration curve, the theoretical limit of detection was calculated as 0.0048 μM (S/N = 3), with a sensitivity of 49.357 μA μM−1·cm−2 [49].
Table 1 compares the analytical performance of our proposed sensor with that of other reported methods of chicoric acid determination. The Au@Pt-PEI-RGO nanocomposites-based sensor offers a wider linear range, simpler operation, and much lower detection limit than the other methods, providing a powerful tool for the development of chicoric acid-related cancer drugs. The above results reveal that the obtained Au@Pt-PEI-RGO nanohybrid is an attractive electrode modifier for the ultrasensitive determination of chicoric acid because of the enhanced electric conductivity provided by PEI-RGO, highly catalytic nature of Au@Pt nanoalloys, and their possible synergistic effects.

3.4.3. Interference Immunity, Repeatability, and Stability Studies

Anti-interference capacity, repeatability, and long-term stability are significant parameters for evaluating the accuracy of the proposed sensor. Figure 6 displays the selectivity assessed by DPV in the presence of a 25-fold excess of relevant interfering substances, including ascorbic acid, acetaminophen, and glucose. No significant shift in the oxidation peak potential and an imperceptible change in response signals were seen in the presence of interfering substances, suggesting that the designed sensor based on Au@Pt-PEI-RGO exhibits a distinct specificity for chicoric acid. To explore the repeatability, parallel DPVs were implemented for the detection of chicoric acid on five independent Au@Pt-PEI-RGO/GCE. As shown in Figure S2, the relative standard deviation (RSD) was calculated to be 2.54%, suggesting favorable repeatability. In addition, the stability of the Au@Pt-PEI-RGO-modified electrode was also evaluated. After 30 days of storage, the proposed sensor was stable and retained 95.56% of the initial current response of the as-prepared sensor, indicating adequate long-term stability. Thus, the Au@Pt-PEI-RGO nanocomposite enjoys a satisfactory capacity for selectivity, repeatability, and long-term stability, facilitating the construction of a highly sensitive chicoric acid sensor.

4. Conclusions

In conclusion, we designed an ultrasensitive non-enzymatic sensor for the determination of chicoric acid based on Au@Pt-PEI-RGO nanocomposites with a facile synthesis. Adopting PEI-functionalized RGO as a substrate compellingly enhanced electron transfer and increased the electroactive surface area. Additionally, Au@Pt nanoalloys exhibited an exceptional electrocatalytic capacity for the oxidation of chicoric acid, promoting the electrochemical performance of the as-prepared electrode. The obtained sensor demonstrated effective chicoric acid detection in the concentration range of 0.3 μM to 0.03 mM, with a sensitivity of 49.357 μA μM−1·cm−2. A detection limit as low as 4.8 nm was achieved, which is a marked improvement over its traditional counterparts. This work paves the way for the more precise detection and quantitation of chicoric acid and provides a powerful platform to enhance research into the use of chicoric acid in cancer therapy.

Supplementary Materials

The following are available online at https://www.mdpi.com/2079-4991/10/3/499/s1, Figure S1: The Raman spectra of GO and PEI-RGO. Figure S2: Column graph of PDV signals in Na2HPO4-citric acid buffer solution (pH 3) containing 0.01 mM of chicoric acid at five different electrodes prepared under the same conditions.

Author Contributions

Conceptualization, J.J.; Data curation, J.J. and M.P.; Formal analysis, J.J. and X.L.; Funding acquisition, Q.C.; Investigation, J.J. and M.P.; Methodology, J.J.; Project administration, Q.C.; Resources, X.L. and B.L.; Software, J.L. and B.L.; Validation, J.L. and Q.C.; Writing—original draft, J.J.; Writing—review & editing, Q.C. All authors have read and agreed to the published version of the manuscript.

Funding

This work was supported by the National Natural Science Foundation of China with Grant Nos. 81671779 and 81871451.

Acknowledgments

We are grateful to all laboratory members for their technical advice and helpful discussion.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. WHO. Global Health Observatory: Geneva: World Health Organization, 2018; World Health Organization: Geneva, Switzerland, 2018. [Google Scholar]
  2. Van Cutsem, E.; Kang, Y.; Chung, H.; Shen, L.; Sawaki, A.; Lordick, F.; Hill, J.; Lehle, M.; Feyereislova, A.; Bang, Y. Efficacy results from the ToGA trial: A phase III study of trastuzumab added to standard chemotherapy in first-line HER2-positive advanced gastric cancer. J. Clin. Oncol. 2009, 27, LBA4509. [Google Scholar] [CrossRef]
  3. Bray, F.; Ferlay, J.; Soerjomataram, I.; Siegel, R.L.; Torre, L.A.; Jemal, A. Global cancer statistics 2018: GLOBOCAN estimates of incidence and mortality worldwide for 36 cancers in 185 countries. CA A Cancer J. Clin. 2018, 68, 394–424. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  4. Mata, R.; Nakkala, J.R.; Sadras, S.R. Polyphenol stabilized colloidal gold nanoparticles from Abutilon indicum leaf extract induce apoptosis in HT-29 colon cancer cells. Colloids Surf. B Biointerfaces 2016, 143, 499–510. [Google Scholar] [CrossRef] [PubMed]
  5. Turan, I.; Demir, S.; Kilinc, K.; Burnaz, N.A.; Yaman, S.O.; Akbulut, K.; Mentese, A.; Aliyazicioglu, Y.; Deger, O. Antiproliferative and apoptotic effect of Morus nigra extract on human prostate cancer cells. Saudi Pharm. J. 2017, 25, 241–248. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  6. Croft, K.D.; Yamashita, Y.; O’Donoghue, H.; Shirasaya, D.; Ward, N.C.; Ashida, H. Screening plant derived dietary phenolic compounds for bioactivity related to cardiovascular disease. Fitoterapia 2018, 126, 22–28. [Google Scholar] [CrossRef] [PubMed]
  7. Farzaei, M.H.; Bahramsoltani, R.; Abdolghaffari, A.H.; Sodagari, H.R.; Esfahani, S.A.; Rezaei, N. A mechanistic review on plant-derived natural compounds as dietary supplements for prevention of inflammatory bowel disease. Expert Rev. Gastroenterol. Hepatol. 2016, 10, 745–758. [Google Scholar] [CrossRef] [PubMed]
  8. Huang, C.-Y.; Ju, D.-T.; Chang, C.-F.; Reddy, P.M.; Velmurugan, B.K. A review on the effects of current chemotherapy drugs and natural agents in treating non–small cell lung cancer. Biomedicine 2017, 7, 23. [Google Scholar] [CrossRef] [Green Version]
  9. Scarpati, M.; Oriente, G. Chicoric acid (dicaffeyltartic acid): Its isolation from chicory (Chicorium intybus) and synthesis. Tetrahedron 1958, 4, 43–48. [Google Scholar] [CrossRef]
  10. Barnes, J.; Anderson, L.A.; Gibbons, S.; Phillipson, J.D. Echinacea species (Echinacea angustifolia (DC.) Hell., Echinacea pallida (Nutt.) Nutt., Echinacea purpurea (L.) Moench): A review of their chemistry, pharmacology and clinical properties. J. Pharm. Pharmacol. 2005, 57, 929–954. [Google Scholar] [CrossRef] [Green Version]
  11. Pluymers, W.; Neamati, N.; Pannecouque, C.; Fikkert, V.; Marchand, C.; Burke, T.R.; Pommier, Y.; Schols, D.; De Clercq, E.; Debyser, Z. Viral entry as the primary target for the anti-HIV activity of chicoric acid and its tetra-acetyl esters. Mol. Pharmacol. 2000, 58, 641–648. [Google Scholar] [CrossRef]
  12. Park, C.M.; Jin, K.-S.; Lee, Y.-W.; Song, Y.S. Luteolin and chicoric acid synergistically inhibited inflammatory responses via inactivation of PI3K-Akt pathway and impairment of NF-κB translocation in LPS stimulated RAW 264.7 cells. Eur. J. Pharmacol. 2011, 660, 454–459. [Google Scholar] [CrossRef] [PubMed]
  13. Ma, J.; Li, M.; Kalavagunta, P.K.; Li, J.; He, Q.; Zhang, Y.; Ahmad, O.; Yin, H.; Wang, T.; Shang, J. Protective effects of cichoric acid on H2O2-induced oxidative injury in hepatocytes and larval zebrafish models. Biomed. Pharmacother. 2018, 104, 679–685. [Google Scholar] [CrossRef] [PubMed]
  14. Sun, X.; Zhang, X.; Zhai, H.; Zhang, D.; Ma, S. Chicoric acid (CA) induces autophagy in gastric cancer through promoting endoplasmic reticulum (ER) stress regulated by AMPK. Biomed. Pharmacother. 2019, 118, 109144. [Google Scholar] [CrossRef] [PubMed]
  15. Tsai, Y.-L.; Chiu, C.-C.; Chen, J.Y.-F.; Chan, K.-C.; Lin, S.-D. Cytotoxic effects of Echinacea purpurea flower extracts and cichoric acid on human colon cancer cells through induction of apoptosis. J. Ethnopharmacol. 2012, 143, 914–919. [Google Scholar] [CrossRef] [PubMed]
  16. Nicolle, C.; Carnat, A.; Fraisse, D.; Lamaison, J.L.; Rock, E.; Michel, H.; Amouroux, P.; Remesy, C. Characterisation and variation of antioxidant micronutrients in lettuce (Lactuca sativa folium). J. Sci. Food Agric. 2004, 84, 2061–2069. [Google Scholar] [CrossRef]
  17. Lee, J.; Scagel, C.F. Chicoric acid found in basil (Ocimum basilicum L.) leaves. Food Chem. 2009, 115, 650–656. [Google Scholar] [CrossRef]
  18. Baur, S.; Klaiber, R.G.; Koblo, A.; Carle, R. Effect of different washing procedures on phenolic metabolism of shredded, packaged iceberg lettuce during storage. J. Agric. Food Chem. 2004, 52, 7017–7025. [Google Scholar] [CrossRef]
  19. Juśkiewicz, J.; Zduńczyk, Z.; Żary-Sikorska, E.; Król, B.; Milala, J.; Jurgoński, A. Effect of the dietary polyphenolic fraction of chicory root, peel, seed and leaf extracts on caecal fermentation and blood parameters in rats fed diets containing prebiotic fructans. Br. J. Nutr. 2011, 105, 710–720. [Google Scholar] [CrossRef] [Green Version]
  20. Shi, Y.; Xu, H.; Gu, Z.; Wang, C.; Du, Y. Sensitive detection of caffeic acid with trifurcate PtCu nanocrystals modified glassy carbon electrode. Colloids Surf. A Physicochem. Eng. Asp. 2019, 567, 27–31. [Google Scholar] [CrossRef]
  21. Di Carlo, G.; Curulli, A.; Toro, R.G.; Bianchini, C.; De Caro, T.; Padeletti, G.; Zane, D.; Ingo, G.M. Green synthesis of gold–chitosan nanocomposites for caffeic acid sensing. Langmuir 2012, 28, 5471–5479. [Google Scholar] [CrossRef]
  22. Hayat, A.; Rhouati, A.; Mishra, R.K.; Alonso, G.A.; Nasir, M.; Istamboulie, G.; Marty, J.L. An electrochemical sensor based on TiO2/activated carbon nanocomposite modified screen printed electrode and its performance for phenolic compounds detection in water samples. Int. J. Environ. Anal. Chem. 2016, 96, 237–246. [Google Scholar] [CrossRef]
  23. Bharath, G.; Alhseinat, E.; Madhu, R.; Mugo, S.M.; Alwasel, S.; Harrath, A.H. Facile synthesis of Au@ α-Fe2O3@ RGO ternary nanocomposites for enhanced electrochemical sensing of caffeic acid toward biomedical applications. J. Alloy. Compd. 2018, 750, 819–827. [Google Scholar] [CrossRef]
  24. Dai, H.; Chen, D.; Cao, P.; Li, Y.; Wang, N.; Sun, S.; Chen, T.; Ma, H.; Lin, M. Molybdenum sulfide/nitrogen-doped carbon nanowire-based electrochemical sensor for hydrogen peroxide in living cells. Sens. Actuators B Chem. 2018, 276, 65–71. [Google Scholar] [CrossRef]
  25. McGhee, C.E.; Loh, K.Y.; Lu, Y. DNAzyme sensors for detection of metal ions in the environment and imaging them in living cells. Curr. Opin. Biotechnol. 2017, 45, 191–201. [Google Scholar] [CrossRef] [PubMed]
  26. Manibalan, K.; Mani, V.; Chang, P.-C.; Huang, C.-H.; Huang, S.-T.; Marchlewicz, K.; Neethirajan, S. Electrochemical latent redox ratiometric probes for real-time tracking and quantification of endogenous hydrogen sulfide production in living cells. Biosens. Bioelectron. 2017, 96, 233–238. [Google Scholar] [CrossRef]
  27. Webb, J.A.; Bardhan, R. Emerging advances in nanomedicine with engineered gold nanostructures. Nanoscale 2014, 6, 2502–2530. [Google Scholar] [CrossRef]
  28. Yu, G.; Wu, W.; Pan, X.; Zhao, Q.; Wei, X.; Lu, Q. High sensitive and selective sensing of hydrogen peroxide released from pheochromocytoma cells based on Pt-Au bimetallic nanoparticles electrodeposited on reduced graphene sheets. Sensors 2015, 15, 2709–2722. [Google Scholar] [CrossRef]
  29. Kovalenko, M.V.; Manna, L.; Cabot, A.; Hens, Z.; Talapin, D.V.; Kagan, C.R.; Klimov, V.I.; Rogach, A.L.; Reiss, P.; Milliron, D.J. Prospects of Nanoscience with Nanocrystals; ACS Publications: Washington, DC, USA, 2015. [Google Scholar]
  30. Jia, Y.; Jiang, Y.; Zhang, J.; Zhang, L.; Chen, Q.; Xie, Z.; Zheng, L. Unique excavated rhombic dodecahedral PtCu3 alloy nanocrystals constructed with ultrathin nanosheets of high-energy {110} facets. J. Am. Chem. Soc. 2014, 136, 3748–3751. [Google Scholar] [CrossRef]
  31. Huang, K.-J.; Liu, Y.-J.; Liu, Y.-M.; Wang, L.-L. Molybdenum disulfide nanoflower-chitosan-Au nanoparticles composites based electrochemical sensing platform for bisphenol A determination. J. Hazard. Mater. 2014, 276, 207–215. [Google Scholar] [CrossRef]
  32. Chen, A.; Holt-Hindle, P. Platinum-based nanostructured materials: Synthesis, properties, and applications. Chem. Rev. 2010, 110, 3767–3804. [Google Scholar] [CrossRef]
  33. Liu, W.; Hiekel, K.; Huebner, R.; Sun, H.; Ferancova, A.; Sillanpää, M. Pt and Au bimetallic and monometallic nanostructured amperometric sensors for direct detection of hydrogen peroxide: Influences of bimetallic effect and silica support. Sens. Actuators B Chem. 2018, 255, 1325–1334. [Google Scholar] [CrossRef]
  34. Zhang, T.; Xing, Y.; Song, Y.; Gu, Y.; Yan, X.; Lu, N.; Liu, H.; Xu, Z.; Xu, H.; Zhang, Z. AuPt/MOF-Graphene: A Synergistic Catalyst with Surprisingly High Peroxidase-Like Activity and Its Application for H2O2 Detection. Anal. Chem. 2019, 91, 10589–10595. [Google Scholar] [CrossRef] [PubMed]
  35. Roberts, A.; Tripathi, P.P.; Gandhi, S. Graphene nanosheets as an electric mediator for ultrafast sensing of urokinase plasminogen activator receptor-A biomarker of cancer. Biosens. Bioelectron. 2019, 141, 111398. [Google Scholar] [CrossRef] [PubMed]
  36. Liu, W.; Zhang, J.; Li, C.; Tang, L.; Zhang, Z.; Yang, M. A novel composite film derived from cysteic acid and PDDA-functionalized graphene: Enhanced sensing material for electrochemical determination of metronidazole. Talanta 2013, 104, 204–211. [Google Scholar] [CrossRef] [PubMed]
  37. Kundu, P.P.; Dutta, K. Progress and Recent Trends in Microbial Fuel Cells; Elsevier: Amsterdam, The Netherlands, 2018. [Google Scholar]
  38. Hu, C.; Zhai, X.; Liu, L.; Zhao, Y.; Jiang, L.; Qu, L. Spontaneous reduction and assembly of graphene oxide into three-dimensional graphene network on arbitrary conductive substrates. Sci. Rep. 2013, 3, 2065. [Google Scholar] [CrossRef] [Green Version]
  39. Dash, S.S.; Majumdar, R.; Sikder, A.K.; Bag, B.G.; Patra, B.K. Saraca indica bark extract mediated green synthesis of polyshaped gold nanoparticles and its application in catalytic reduction. Appl. Nanosci. 2014, 4, 485–490. [Google Scholar] [CrossRef] [Green Version]
  40. Srinivasan, R.; De Angelis, R.J.; Davis, B.H. Structural studies of Pt-Sn catalysts on high and low surface area alumina supports. Catal. Lett. 1990, 4, 303–308. [Google Scholar] [CrossRef]
  41. Ray, S.C.; Bhunia, S.K.; Saha, A.; Jana, N.R. Graphene oxide (GO)/reduced-GO and their composite with conducting polymer nanostructure thin films for non-volatile memory device. Microelectron. Eng. 2015, 146, 48–52. [Google Scholar] [CrossRef]
  42. Tuinstra, F.; Koenig, J.L. Raman spectrum of graphite. J. Chem. Phys. 1970, 53, 1126–1130. [Google Scholar] [CrossRef] [Green Version]
  43. Ren, G.; Liu, Y.; Wang, W.; Wang, M.; Zhou, Y.; Wu, S.; Shen, J. Facilitated Utilization of Active Sites with Core-Shell PdPt@ Pt/RGO Nanocluster Structures for Improved Electrocatalytic Ethylene Glycol Oxidation. ChemElectroChem 2018, 5, 2645–2652. [Google Scholar] [CrossRef]
  44. Sakthivel, R.; Kubendhiran, S.; Chen, S.M.; Ranganathan, P.; Rwei, S.P. Functionalized Carbon Black Nanospheres Hybrid with MoS2 Nanoclusters for the Effective Electrocatalytic Reduction of Chloramphenicol. Electroanalysis 2018, 30, 1828–1836. [Google Scholar] [CrossRef]
  45. Devi, P.; Sharma, C.; Kumar, P.; Kumar, M.; Bansod, B.K.; Nayak, M.K.; Singla, M.L. Selective electrochemical sensing for arsenite using rGO/Fe3O4 nanocomposites. J. Hazard. Mater. 2017, 322, 85–94. [Google Scholar] [CrossRef]
  46. Wu, M.; Sun, M.; Zhou, H.; Ma, J.Y.; Ma, T. Carbon Counter Electrodes in Dye-Sensitized and Perovskite Solar Cells. Adv. Funct. Mater. 2019, 30, 1906451. [Google Scholar] [CrossRef]
  47. Bard, A.J.; Faulkner, L.R.; Leddy, J.; Zoski, C.G. Electrochemical Methods: Fundamentals and Applications; Wiley: New York, NY, USA, 1980; Volume 2. [Google Scholar]
  48. Ali, M.A.; Kamil Reza, K.; Srivastava, S.; Agrawal, V.V.; John, R.; Malhotra, B.D. Lipid–lipid interactions in aminated reduced graphene oxide interface for biosensing application. Langmuir 2014, 30, 4192–4201. [Google Scholar] [CrossRef] [PubMed]
  49. Bukkitgar, S.D.; Shetti, N.P. Electrochemical behavior of an anticancer drug 5-fluorouracil at methylene blue modified carbon paste electrode. Mater. Sci. Eng. C 2016, 65, 262–268. [Google Scholar] [CrossRef] [PubMed]
  50. Mølgaard, P.; Johnsen, S.; Christensen, P.; Cornett, C. HPLC method validated for the simultaneous analysis of cichoric acid and alkamides in Echinacea purpurea plants and products. J. Agric. Food Chem. 2003, 51, 6922–6933. [Google Scholar] [CrossRef]
  51. Wang, Y.; Xie, G.; Liu, Q.; Duan, X.; Liu, Z.; Liu, X. Pharmacokinetics, tissue distribution, and plasma protein binding study of chicoric acid by HPLC-MS/MS. J. Chromatogr. B 2016, 1031, 139–145. [Google Scholar] [CrossRef]
  52. Manček, B.; Kreft, S. Determination of cichoric acid content in dried press juice of purple coneflower (Echinacea purpurea) with capillary electrophoresis. Talanta 2005, 66, 1094–1097. [Google Scholar] [CrossRef]
Nanomaterials 10 00499 sch001 550

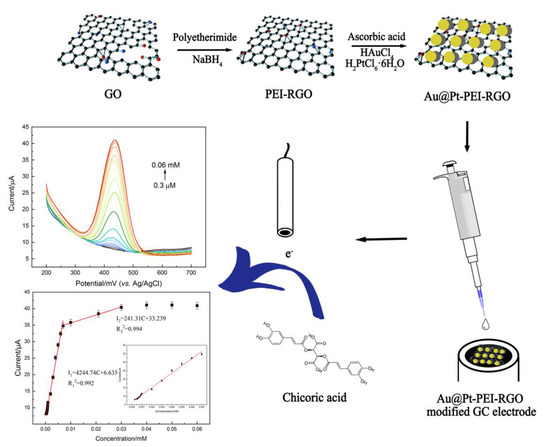

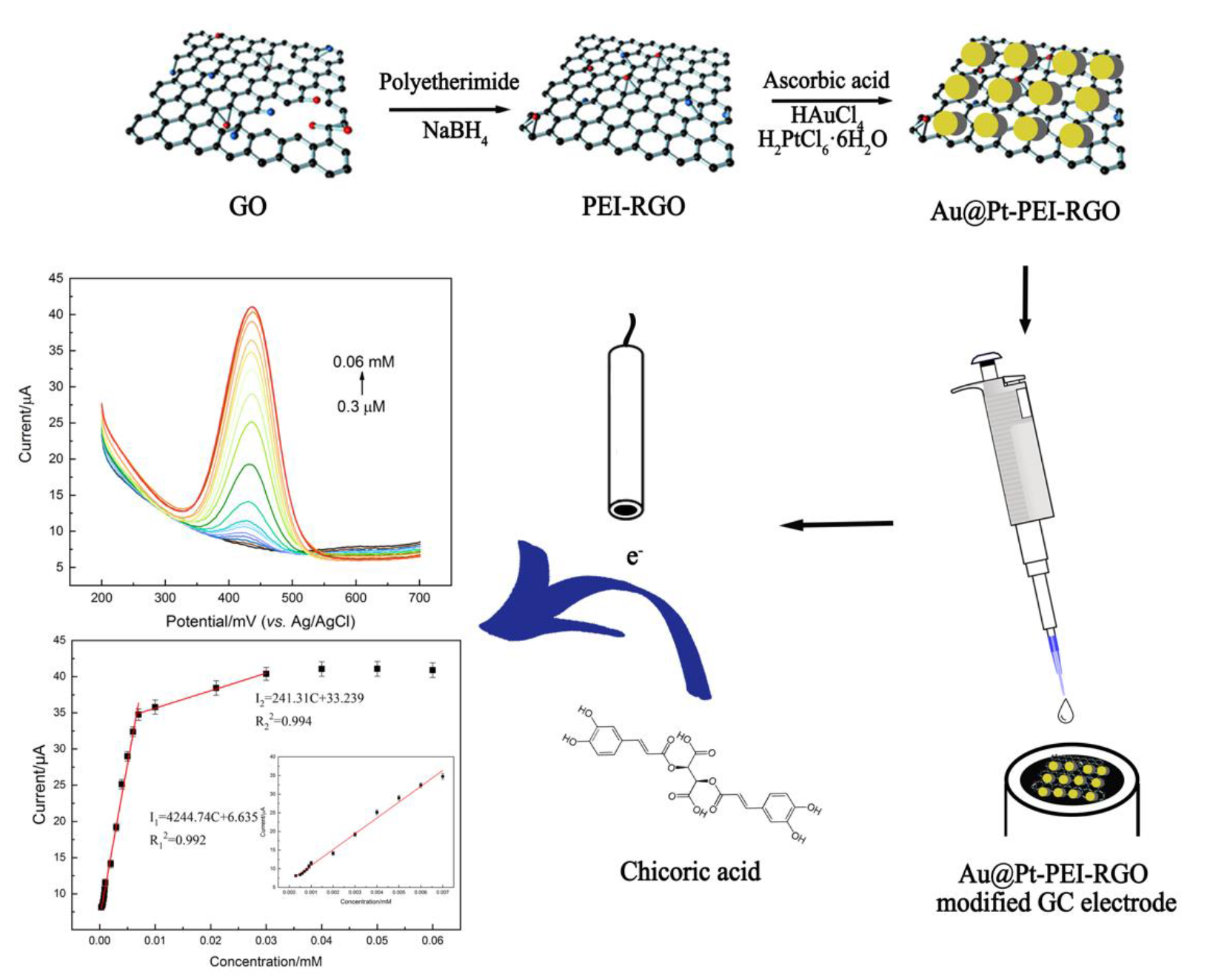

Scheme 1. Schematic illustration for the preparation of Au@Pt-polyetherimide (PEI)-reduced graphene oxide (RGO)-modified glassy carbon electrode (GCE) applied for the detection of chicoric acid.
Scheme 1. Schematic illustration for the preparation of Au@Pt-polyetherimide (PEI)-reduced graphene oxide (RGO)-modified glassy carbon electrode (GCE) applied for the detection of chicoric acid.
Nanomaterials 10 00499 sch001
Nanomaterials 10 00499 g001 550
Figure 1. Transmission electron microscopy (TEM) images of (A) RGO, (B) PEI-functionalized RGO, and (C,D) Au@Pt-PEI-RGO under different magnification.
Figure 1. Transmission electron microscopy (TEM) images of (A) RGO, (B) PEI-functionalized RGO, and (C,D) Au@Pt-PEI-RGO under different magnification.
Nanomaterials 10 00499 g001
Nanomaterials 10 00499 g002 550

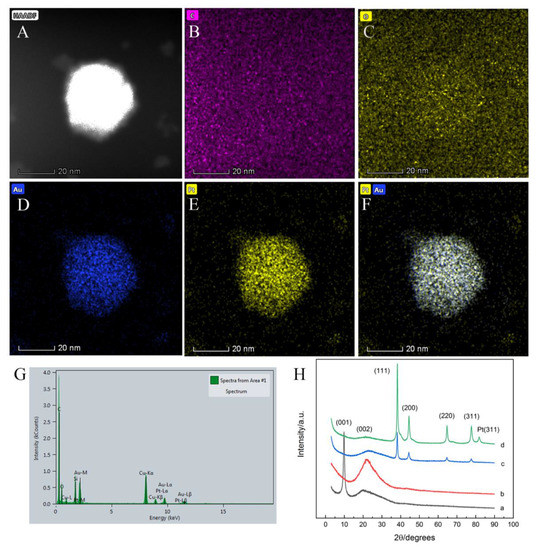

Figure 2. Images of (A) Au@Pt-PEI-RGO and elements of (B) C, (C) O, (D) Au, (E) Pt, and (F) Au@Pt; (G) energy-dispersive X-ray spectroscopy (EDX) spectrum of Au@Pt-PEI-RGO; (H) X-ray diffraction (XRD) patterns of (curve a) GO, (curve b) PEI-RGO, (curve c) Au-PEI-RGO, and (curve d) Au@Pt-PEI-RGO.
Figure 2. Images of (A) Au@Pt-PEI-RGO and elements of (B) C, (C) O, (D) Au, (E) Pt, and (F) Au@Pt; (G) energy-dispersive X-ray spectroscopy (EDX) spectrum of Au@Pt-PEI-RGO; (H) X-ray diffraction (XRD) patterns of (curve a) GO, (curve b) PEI-RGO, (curve c) Au-PEI-RGO, and (curve d) Au@Pt-PEI-RGO.
Nanomaterials 10 00499 g002
Nanomaterials 10 00499 g003 550

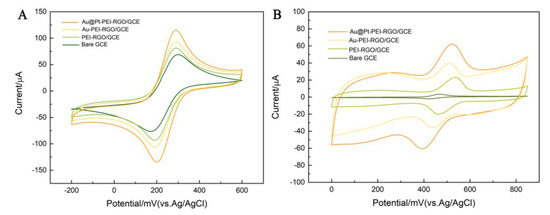

Figure 3. (A) Cyclic voltammograms (CVs) of bare GCE (green), PEI-RGO/GC electrode (light green), Au-PEI-RGO/GC electrode (yellow), and Au@Pt-PEI-RGO/GC electrode (orange) recorded in 0.1 M KCl solution containing 10 mM [Fe(CN)6]3−. Scan rate: 50 mV/s. (B) CVs of bare GCE (green), PEI-RGO/GC electrode (light green), Au-PEI-RGO/GC electrode (yellow), and Au@Pt-PEI-RGO/GC electrode (orange) in Na2HPO4-citric acid solution (pH 3) containing 0.5 mM chicoric acid.
Figure 3. (A) Cyclic voltammograms (CVs) of bare GCE (green), PEI-RGO/GC electrode (light green), Au-PEI-RGO/GC electrode (yellow), and Au@Pt-PEI-RGO/GC electrode (orange) recorded in 0.1 M KCl solution containing 10 mM [Fe(CN)6]3−. Scan rate: 50 mV/s. (B) CVs of bare GCE (green), PEI-RGO/GC electrode (light green), Au-PEI-RGO/GC electrode (yellow), and Au@Pt-PEI-RGO/GC electrode (orange) in Na2HPO4-citric acid solution (pH 3) containing 0.5 mM chicoric acid.
Nanomaterials 10 00499 g003
Nanomaterials 10 00499 g004 550

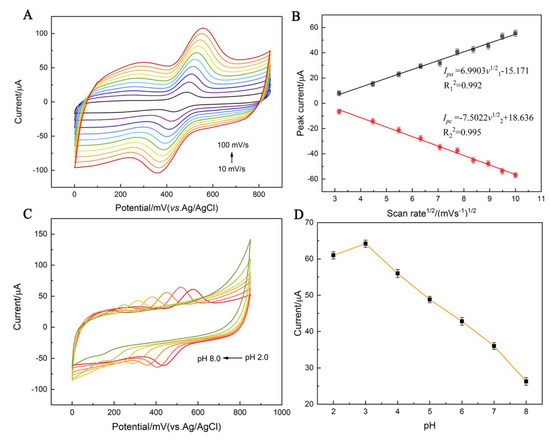

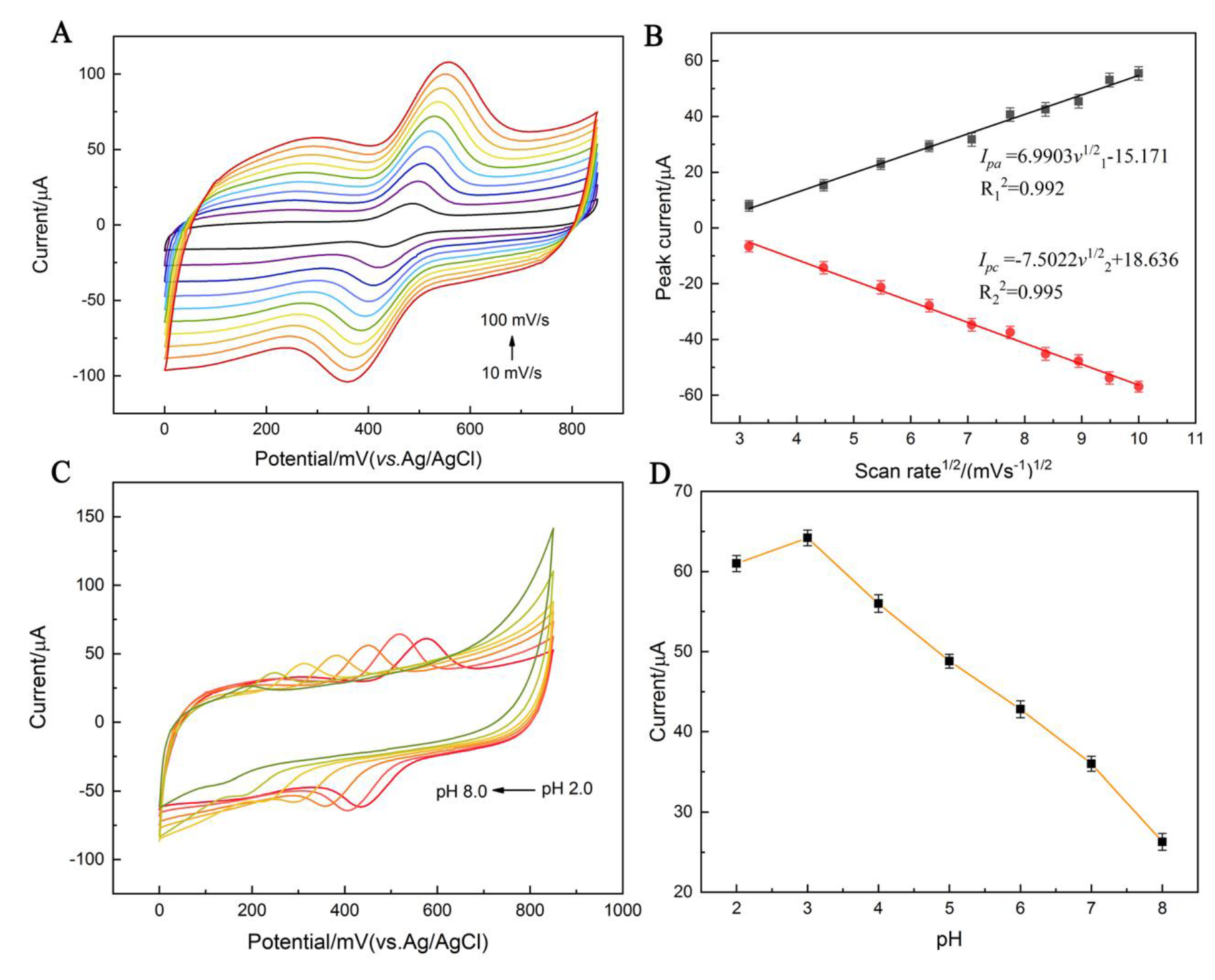

Figure 4. (A) CVs of the Au@Pt-PEI-RGO/GCE toward 0.5 mM chicoric acid in Na2HPO4-citric acid solution (pH 3) with different scanning rates (10, 20, 30, 40, 50, 60,70, 80, 90, and 100 mV s−1). (B) Linear relationship of the redox peak current (Ip) versus the square root of scan rate (v1/2). Error bars = ± standard deviation, n = 5. (C) CVs responses to 0.5 mM chicoric acid in different pH conditions of Na2HPO4-citric acid solution (pH 2, 3, 4, 5, 6, 7, and 8) with Au@Pt-PEI-RGO/GCE. (D) The linear relationship of the oxidation potential versus the pH. Error bars = ± standard deviation, n = 5.
Figure 4. (A) CVs of the Au@Pt-PEI-RGO/GCE toward 0.5 mM chicoric acid in Na2HPO4-citric acid solution (pH 3) with different scanning rates (10, 20, 30, 40, 50, 60,70, 80, 90, and 100 mV s−1). (B) Linear relationship of the redox peak current (Ip) versus the square root of scan rate (v1/2). Error bars = ± standard deviation, n = 5. (C) CVs responses to 0.5 mM chicoric acid in different pH conditions of Na2HPO4-citric acid solution (pH 2, 3, 4, 5, 6, 7, and 8) with Au@Pt-PEI-RGO/GCE. (D) The linear relationship of the oxidation potential versus the pH. Error bars = ± standard deviation, n = 5.
Nanomaterials 10 00499 g004
Nanomaterials 10 00499 g005 550

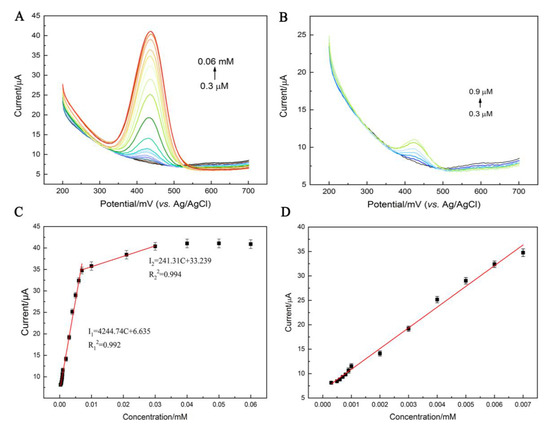

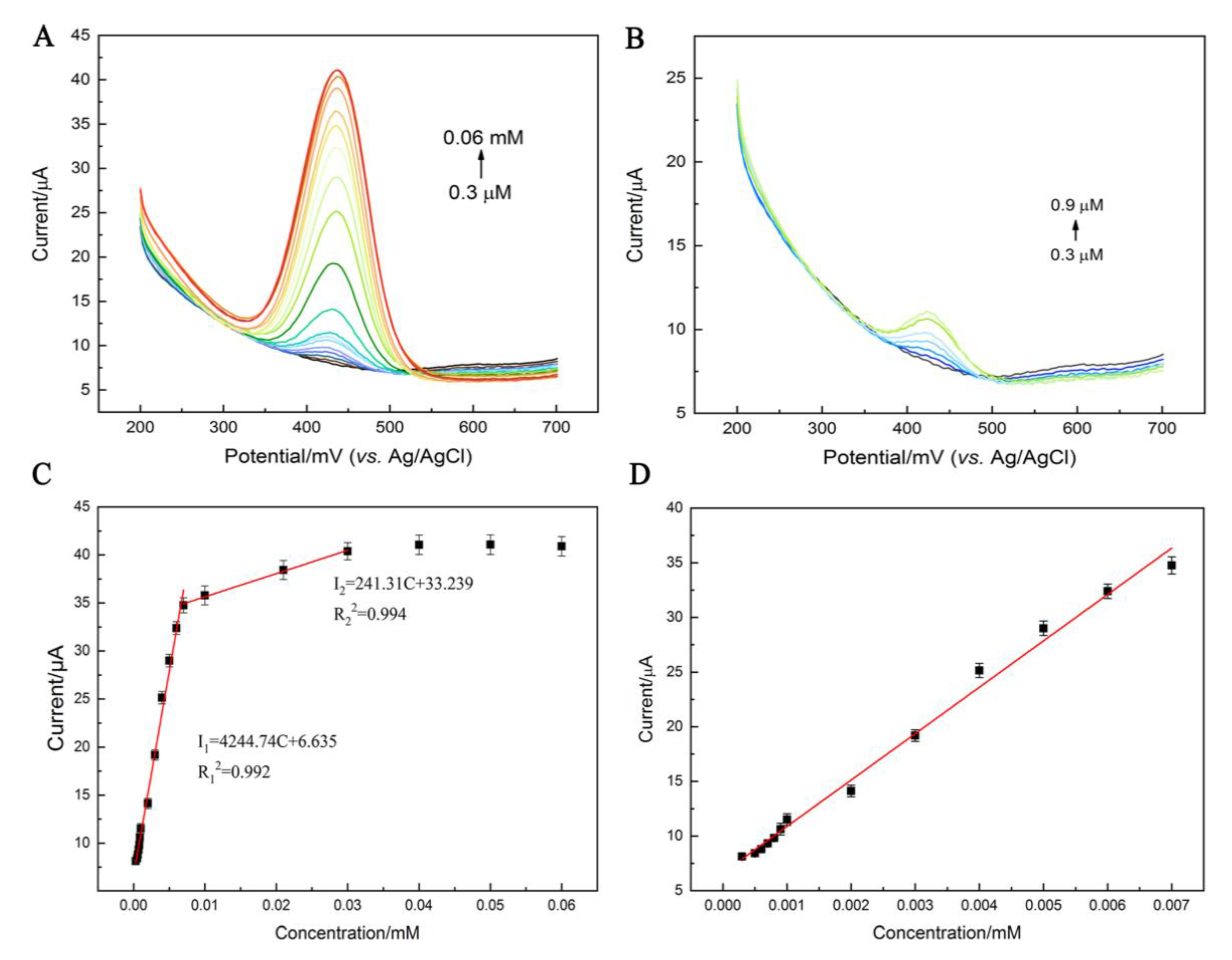

Figure 5. (A) Differential pulse voltammetry (DPV) of Au@Pt-PEI-RGO/GCE obtained in Na2HPO4-citric acid buffer solution (pH 3) containing various concentrations of chicoric acid. (B) A close-up of the low concentration of the chicoric acid region from 0.3 μM to 0.9 μM. (C,D) The corresponding calibration curve of response current versus the concentration of chicoric acid.
Figure 5. (A) Differential pulse voltammetry (DPV) of Au@Pt-PEI-RGO/GCE obtained in Na2HPO4-citric acid buffer solution (pH 3) containing various concentrations of chicoric acid. (B) A close-up of the low concentration of the chicoric acid region from 0.3 μM to 0.9 μM. (C,D) The corresponding calibration curve of response current versus the concentration of chicoric acid.
Nanomaterials 10 00499 g005
Nanomaterials 10 00499 g006 550

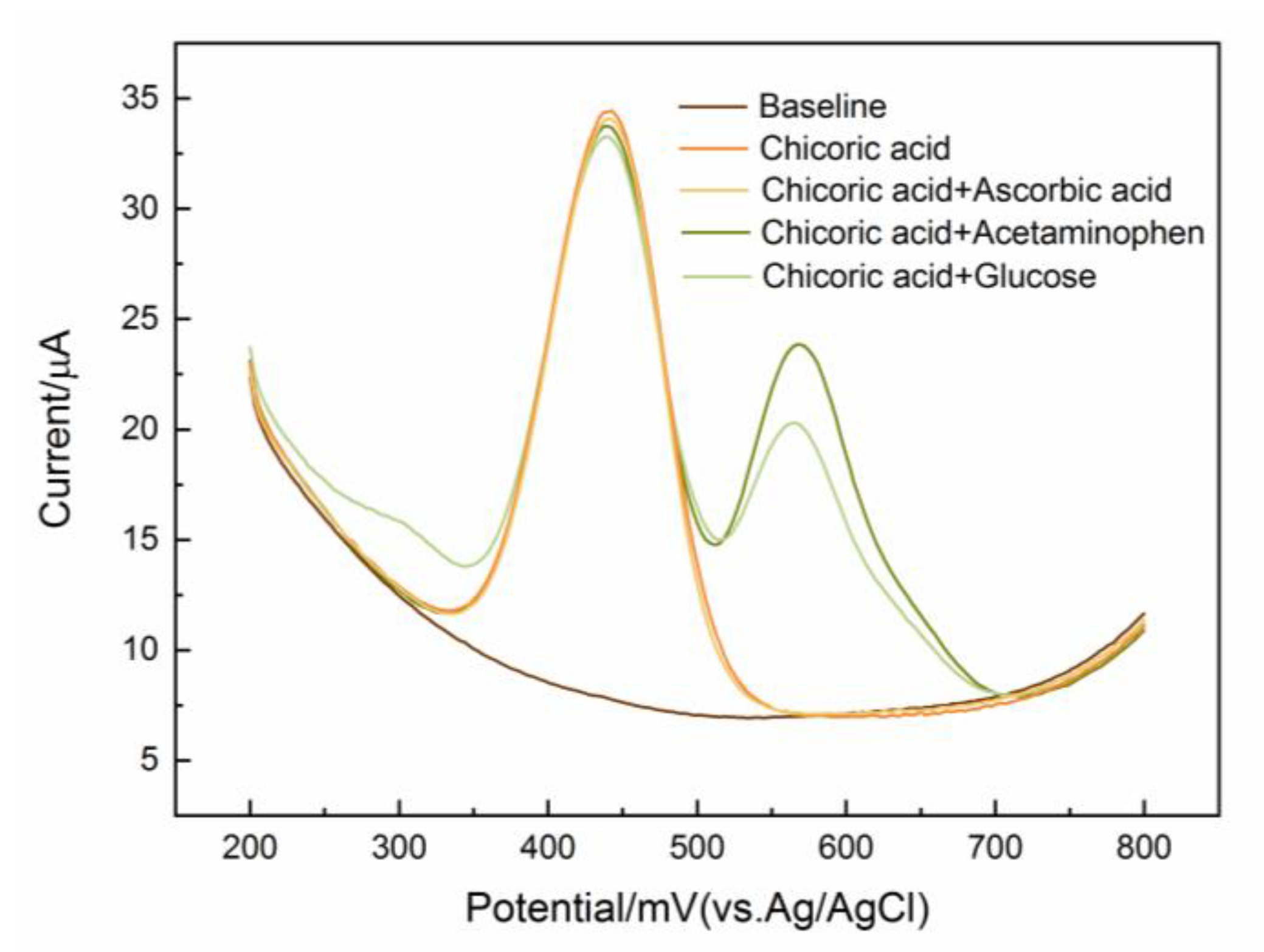

Figure 6. DPV responses of Au@Pt-PEI-RGO/GCE for 0.01 mM chicoric acid in the presence of an excess concentration of interfering substances.
