Communication

Grey Rutile TiO2 with Long-Term Photocatalytic Activity Synthesized Via Two-Step Calcination

by
Yan Liu
,
Ping Chen
,
Yaqi Fan
,
Yanfei Fan
,
Xifeng Shi
,
Guanwei Cui
* and
Bo Tang
*
College of Chemistry, Chemical Engineering and Materials Science, Collaborative Innovation Center of Functionalized Probes for Chemical Imaging in Universities of Shandong, Key Laboratory of Molecular and Nano Probes, Ministry of Education, Shandong Normal University, Jinan 250014, China
*
Authors to whom correspondence should be addressed.
Nanomaterials 2020, 10(5), 920; https://doi.org/10.3390/nano10050920
Submission received: 29 March 2020 / Revised: 2 May 2020 / Accepted: 5 May 2020 / Published: 9 May 2020
Browse Figures
Versions Notes

Abstract

:
Colored titanium oxides are usually unstable in the atmosphere. Herein, a gray rutile titanium dioxide is synthesized by two-step calcination successively in a high-temperature reduction atmosphere and in a lower-temperature air atmosphere. The as-synthesized gray rutile TiO2 exhibits higher photocatalytic activity than that of white rutile TiO2 and shows high chemical stability. This is attributed to interior oxygen vacancies, which can improve the separation and transmission efficiency of the photogenerated carriers. Most notably, a formed surface passivation layer will protect the interior oxygen vacancies and provide long-term photocatalytic activity.

1. Introduction

Among titanium oxides, TiO2 is well investigated in the photocatalysis research field because of its high chemical stability, low cost, and nontoxicity [1]. However, it can only absorb ultraviolet light, resulting in low photocatalytic efficiency. To expand its light absorbance range and enhance the separation efficiency of the photogenerated carriers, many efforts, such as doping with other elements, sensitizing with dyes, and coupling with metal or nonmetal nanoparticles or different semiconductor materials, have been made to solve the aforementioned problems [2,3,4,5,6,7]. Very recently, TiO2 nanotubes synthesized via the electrochemical anodization of titanium foil exhibited visible light response characteristics for the photodecomposition of formaldehyde [8].
It has been reported that when TiO2 is partially reduced by H2 or CO, or bombarded by high-energy particles (laser, electron, or Ar+), the obtained colored TiO2 powers show visible light photocatalytic activity. In 2010, a blue titanium dioxide with a mixture of anatase and rutile phase was synthesized via hydrolysis and the reduction of isopropyl titanium, showing a higher photocatalytic activity than that of commercial anatase TiO2. The higher photocatalytic activity was attributed to the presence of Ti3+ in the interior of the titanium dioxide crystal [9]. In 2011, Giamello et al. used an isotope labeling method to study the existence of Ti3+ in rutile titanium dioxide in detail [10]. In the same year, a black TiO2 with a strong absorption of visible light was synthesized via a high-temperature hydrogenation reduction of P25 TiO2 by Chen et al. The obtained higher photoactivity of the black TiO2 was attributed to the reduced band gap of titanium dioxide caused by the generation of the surface disordered structure [11]. Another kind of simple method to produce colored TiO2 is the addition of fluorine species during TiO2 preparation [12,13]. In 2014, Xu et al. synthesized stable blue TiO2 nanoparticles with a non-stoichiometric TiO2−x core and stoichiometric TiO2 shell structure for the photodecomposition of methylene blue (MB) dyes under visible light irradiation [12]. In addition to the black- or blue-color TiO2, Ye et al. found that TiO2 nanocrystal assemblies show a yellow color, caused by the interfacial Ti–Ti electronic bonding. Until now, many outstanding works on colored TiO2 have been reported [14,15,16,17,18,19,20,21,22,23,24,25,26,27,28]. They usually showed a broader light absorbance range and higher photocatalytic activity than that of white TiO2. However, the mechanisms for the higher photocatalytic activity still remain a controversy. Some studies have suggested that it is ascribed to a surface disorder; other reports suggest that it is caused by the “oxygen vacancy” states associated with the Ti3+ within the band gap of the TiO2 [16,29,30]. Most notably, the reported colored titanium oxides are usually unstable in the atmosphere because of a large number of oxygen vacancies and the presence of Ti3+ with poor stability [24]. It is still a challenge to synthesize a stable colored TiO2 photocatalyst.
In contrast to anatase TiO2, rutile TiO2 has attracted less attention in the photocatalytic research field because of its low photocatalytic activity [31,32]. Herein, gray rutile (GR) titanium dioxide particles (marked as TiO2-GR), which are composed of microcrystals with oxygen vacancies on the surface, are synthesized by two-step calcination successively performed in a high-temperature reduction atmosphere and in a lower-temperature air atmosphere. The as-synthesized gray rutile TiO2 exhibits a higher photocatalytic activity than that of white rutile (WR) TiO2 (marked as TiO2-WR). This is attributed to the presence of oxygen vacancies, which can improve the photogenerated carrier separation and transmission efficiency. Most notably, the formed surface passivation layer will protect the interior oxygen vacancies and provide long-term photocatalytic activity.

2. Materials and Methods

2.1. Materials

Hexanoic acid (HA), tetrabutyl titanate (TBOT), methylene blue (MB) dye, and glucose were purchased from Sinopharm Chemical Reagent Company. All chemicals were of AR grade. The ultrapure water used in the experiment was obtained from a Mill-Q (electric resistivity 18.2 MΩ·cm) water purification system.

2.2. Synthesis of TiO2-GR and TiO2-WR

First, uniform spherical anatase TiO2 particles (Figure 1a and Figure S1a) with a diameter of 200–300 nm were synthesized via a previous reported method [33]. In a typical process, hexanoic acid (0.46 g) dissolved in ethanol (230.0 mL), and TBOT (1.70 g, 10% ethanol solution) was mixed by stirring at room temperature. Then, 35.0 mL H2O was dropped into the mixture with vigorous stirring for 12 h at room temperature. The products were obtained after centrifugal separation and were then ready for use for the next two-step calcination procedure.
Second, the as-prepared TiO2 nanosphere was firstly calcinated in a tubular high-temperature furnace with continuous argon flow at 900 °C for 3 h. Then, it was further calcined at 500 °C in air atmosphere for 10 h, and gray rutile TiO2 particles with polyhedron morphology were obtained (TiO2-GR, Figure 1b and Figure S1b). A white rutile TiO2 used as a reference sample (TiO2-WR, Figure 1c and Figure S1c) was prepared by the calcination of the as-prepared TiO2 nanosphere at 900 °C for 3 h in an air atmosphere.
The as-prepared photocatalysts were stored in an air atmosphere at room temperature.

2.3. Photocurrent Measurements

The photocurrent measurements were carried out on an electrochemical analyzer (CHI660D Instruments, Shanghai Chenhua Instrument Co., Ltd., Shanghai, China) using a standard three-electrode system. The as-prepared samples, a commercial Pt gauze electrode (Gaoss Union Technology Co., Ltd., Wuhan, China, 2 cm × 2 cm, 60 mesh), and saturated calomel electrode were used as working electrodes, counter electrode, and reference electrode, respectively. The working electrode was prepared as follows: 0.05 g of the sample was ground with 0.10 g terpinol for 10 min to make uniform slurry. Then, the slurry was evenly dripped onto a 4.0 cm × 1.0 cm indium tin oxide-coated glass (ITO glass) electrode masked by an adhesive tape with thickness of 0.5 mm and smoothed by a doctor’s blade. Therefore, the formed film about had a thickness of 0.5 mm. Next, these electrodes were dried in an oven and were calcined at 350 °C for 30 min in an air atmosphere. The electrode was immersed in a 0.10 M NaClO4 aqueous solution to measure the transient photocurrent under a 300 W Xe arc lamp irradiation with an incident light power density of 130 mW/cm2 at 0.4 V vs. the saturated calomel electrode.

2.4. Photoactivity Measurements

The photocatalytic discoloration of MB dyes was performed on a reformative XPA-7 photocatalytic reaction instrument(Xujiang Electromechanical Plant, Nanjing, China). The incident light power was 162 mW/cm2, which was measured by a handheld Optical Power Meter (Newport 1916-R, Newport Corporation, California, CA, USA). The light exposure area of the quartz bottle was about 19.1 cm2. The discoloration effect was measured using the absorption spectroscopic technique. In the typical process, an aqueous solution of the MB dyes (10.0 mg/L and 30.0 mL) and 20.0 mg of the as-prepared photocatalysts were mixed in a 50 mL cylindrical quartz tube and left overnight in darkness to reach the adsorption equilibrium for the MB dyes. Then, the mixture was exposed to 1000 W Xe lamp irradiation with or without the light cutoff filters (λ > 420 nm), under ambient conditions and magnetic stirring. At given time intervals, the reaction solution was sampled and analyzed by a UV-visible spectrophotometer (UV 2250, Shimadzu, SHIMADZU (CHINA) Co., Ltd., Shanghai, China).

3. Results and Discussion

A spherical anatase TiO2 (Figure 1a and Figure S1a) in a white color was fabricated as the raw material for the gray TiO2-GR via the hydrolysis of TBOT in the presence of alkyl chain carboxylic acids [33]. It was determined that alkylchain carboxylic acids remained on the surface of the TiO2 nanospheres, which were used as a reductant for the subsequent high-temperature reduction of titanium dioxide [4]. Both the gray rutile TiO2 and the reference sample (TiO2-WR) exhibited polyhedron morphology (TiO2-GR, Figure 1b and Figure S1b).
After calcination at 900 °C in an Ar atmosphere, it can be seen from the High Resolution Transmission Electron Microscope (HRTEM) pattern that a surface layer composed of a large number of microcrystals surrounded by a disordered structure formed on the obtained gray TiO2 (Figure S2a). The disordered structure is believed to be mainly caused by the presence of oxygen vacancies, which are response for the black color of TiO2 [14,30]. Then, after further calcination at 500 °C in an air atmosphere, a dense layer with ordered lattice was formed by the refilling of oxygen atoms into the oxygen vacancies on the outmost layer of TiO2 particles (Figure S2b). The formed dense layer with the size of 2–5 nm is on the outermost layer of the TiO2-GR particle, which would act as a surface passivation layer to hinder the further diffusion and infiltration of oxygen molecules into the interior oxygen vacancies. As a result, the interior lattice disordered structure would be retained. The lattice width of the surface passivation layer is 0.21 nm, which is ascribed to the (210) crystal faces of the rutile TiO2 (JCPDS 21-1276; Figure S2b). However, no such surface layer structures were observed on the surface of the TiO2-WR particles (Figure S2c). The lattice widths are 0.32 nm and 0.25 nm, which belong to the (110) and (101) crystal faces of the rutile TiO2, respectively (JCPDS 21-1276; Figure 2a). The X-ray diffraction (XRD) peaks of the gray TiO2 centered at 2θ = 27.75°, 36.4°, 39.45°, 41.55°, 44.35°, 54.6°, 56.9°, 63.05°, 64.35°, 69.25°, 70.05°, and 82.6° are ascribed to the (110), (101), (200), (111), (210), (211), (220), (002), (310), (301), (112), and (321) crystal planes of the rutile TiO2, respectively (Figure 2b), which is consistent with the referenced white rutile TiO2. Both of the XRD peaks of TiO2-GR and TiO2-WR are similar to that of the standard rutile TiO2 (PDF# 87-0710). The Rietveld analysis (TOPAS V 6.0) of the XRD patterns shows that TiO2-GR has an average particle size of 48.5 nm. This result is different from that intuitively observed from the HRTEM patterns, which is attributed to the different detection areas between XRD and HRTEM. Herein, the HRTEM patterns are mainly afforded the surface layer crystal structure of TiO2 particles. Therefore, it can be inferred that the as-synthesized TiO2-GR nanoparticles are mainly composed of microcrystals with an average size of about 48.5 nm, while their surface layers are composed of smaller microcrystals. Additionally, the analysis results indicate that the broadening of the diffraction peak is mainly due to grain refinement, and there is no existing microstrain. However, compared with the cell parameters of the standard rutile TiO2 (PDF# 87-0710), both TiO2-GR and TiO2-WR show a lattice expansion, with average lattice distortions of 0.11% and 0.13%, respectively. It is proposed that this is mainly caused by the different treatments during the high-temperature calcination process. No peaks centered at 2θ = 25.9°, ascribed to carbon (JCPDS 26-1079), were observed in the XRD patterns of gray TiO2 [34].
The chemical state of the surface species of TiO2-GR and TiO2-WR was determined by X-ray photoelectron spectroscopy (XPS), which was further analyzed by an XPS peak-fitting program (version 4.0, Hong Kong, China). The C1s XPS peaks of TiO2-GR centered at 284.6 eV (FWHM = 4.55 eV) and 282.9 eV (FWHM = 1.96 eV), which is similar to that of TiO2-WR, were ascribed to the *C and (*CO)Ti species caused by the carbon contaminant (Figure 3a,b) [35,36]. It was reported that if a carbon atom was doped in the crystal lattice of TiO2, a bonding energy peak ascribed to C* or Ti*–C emerged at 281.6 eV or 454.90 eV, respectively [37,38]. However, no such carbon bonding energy peaks were observed for either TiO2-GR or TiO2-WR. This indicates that there were no carbon atoms doped in the crystal lattice of the prepared gray TiO2, which means that the gray color did not originate from the carbon residues. As shown in Figure 3c,d, the Ti2p XPS peaks of TiO2-GR were centered at 464.53 eV (FWHM = 2.84 eV) and 458.20 eV (FWHM = 3.82 eV), which are ascribed to Ti4+ 2p1/2 and Ti4+ 2P3/2 of TiO2, respectively [39], which is similar to that of TiO2-WR. Two reduced titanium ion XPS peaks centered at 462.43 eV (FWHM = 3.91 eV) and 455.92 eV (FWHM = 2.63 eV) were observed for TiO2-GR, which could be ascribed to the low valence state titanium of nonstoichiometric TiO2−x (0 < X < 2), mainly including Ti3+ 2p1/2 of Ti2O3 and Ti2+ 2p3/2 of TiO [40,41], which is consistent with the O 1s XPS peak results. However, the TiO2-WR showed no reduced titanium ion XPS peaks. The O 1s XPS peaks mainly consisted of three components (Figure 3e,f). The two peaks centered at 529.47 eV (FWHM = 3.30 eV) and 531.58 eV (FWHM = 4.48 eV) were ascribed to the lattice oxygen of the stoichiometric TiO2 [42] and nonstoichiometric TiO2−x (0 < X < 2) [43,44], respectively, and the latter may also include some hydroxyl oxygen species [45]. The small O 1s peak centered at 527.51 eV (FWHM = 2.21 eV) could be attributed to the attached ionic oxygen of CO or O2 [46].
It has been reported that the produced Ti3+ originated from the oxygen vacancies on the surface of the gray TiO2. The removed oxygen atoms left behind two excess electrons per oxygen vacancy, which could be harvested by the neighboring Ti atoms, and induce the formation of Ti3+ ions showing EPR signals [47]. Therefore, Electron Paramagnetic Resonance (EPR) is one powerful method for identifying the presence of oxygen vacancies in solid materials. A low-field signal with a g-value close to the free-electron value (g = 2.0023) is generally attributed to an unpaired electron trapped on an oxygen vacancy site [11]. Herein, as shown in Figure 4, an EPR signal with a g-value of 1.997 is attributed to the Ti3+ centers in the rutile phase environment. As a comparison, there were no EPR peaks at the same position observed from the TiO2-WR EPR signals. It is believed that the surface Ti3+ would tend to adsorb atmospheric O2, which would be reduced to O2−, and shows an EPR signal at g ≈ 2.02 [11]. The absence of such a peak in the TiO2-GR EPR signals indicates that after long calcination in an air atmosphere, the surface oxygen vacancies are refilled by oxygen atoms and the Ti3+ is mainly present under the formed surface passivation layer, which is proposed as a key factor for the observed excellent stability of TiO2-GR.
The photocatalytic activity of the as-prepared TiO2-GR was determined by the photocatalytic discoloration of the MB dyes. As shown in Figure 5a,b, the gray TiO2 showed a higher photoactivity than that of TiO2-WR under visible light or full-spectrum light irradiation. Herein, different from most of the previously reported colored TiO2 materials, the as-synthesized gray TiO2 showed a long-life photocatalytic activity (Figure 5c,d). The TiO2-GR samples retained their color and properties even after six months of storage, and did not exhibit any reduction in their photocatalytic activity after six photocatalysis cycles. This indicates that the gray TiO2 has an excellent chemical stability, which is ascribed to the special nanostructure caused by the two-step calcination treatment. As shown in Figure S2b, the formed surface passivation layer will protect the interior oxygen vacancies. As a result, the T3+ on the most superficial layer will disappear, which has been confirmed by the aforementioned EPR results. The thermal stability of TiO2-GR was further studied by Thermogravimetric Analyzer (TGA) in open air, as shown in Figure S3. The sample was thermally stable up to 650 °C in open air, with negligible weight variation. The slight weight gain and loss wave before 125 °C are ascribed to the adsorption and desorption of O2, CO2, or H2O on the surface of TiO2-GR in the air. A distinguishable weight loss from 380 °C is ascribed to the dissociation of the surface –OH. Above 650 °C, the obvious weight increase is ascribed to the refilled interior oxygen vacancies, indicating that the surface passivation layer would be destroyed at this temperature. This shows that the as-prepared TiO2-GR has high thermal stability.
A higher photocatalytic activity is attributed to the presence of oxygen vacancies that can create a higher light absorbance and improve the separation and transmission efficiency of photogenerated carriers, which is preliminarily confirmed by the UV-vis spectra, photocurrent, and photoluminescence spectra. The suggested photocatalysis mechanism is shown in Figure 6a. It is proposed that the photocatalysis of TiO2-GR may undergo two different photogenerated carrier transfer pathways when pumped by UV light and visible light separately. It can be seen, in both pathways, that the oxygen vacancies all play a vital role. Compared with TiO2-WR, the as-prepared TiO2-GR exhibits a broad spectral absorption in the visible light region (Figure 6b). This can be attributed to the transitions from the TiO2 valence band to the oxygen vacancy levels, or from the oxygen vacancies to the TiO2 conduction band pumped by visible light [30], which is responsible for the distinguishable higher photoactivity of TiO2-GR than that of TiO2-WR. These results are consistent with the photocurrent density results under visible light irradiation (Figure 6c). This indicates that, in this case, the visible light absorption of TiO2-GR does lead to charge carrier generation and contributes directly to the photocurrent. However, as shown in Figure 6c,d, the photocurrent density under a full-spectrum light condition is about 100 times that under a visible light condition, which indicates that the contribution of visible light to the improvement of the photocatalytic activity is very limited. This is consistent with previously reported results [48]. Therefore, it is proposed that the main factor for the higher photocatalytic activity of TiO2-GR is the photogenerated carrier transfer path pumped by UV light. [49] In this process, the Vo is still proposed to be a key factor for the improvement of the separation efficiency of the photogenerated carriers. First, the Vo can act as a trap site for the temporary storage of electrons, which can be further pumped to the conduction band to react with the substrates, resulting in suppressed recombination of photogenerated carriers. [50]. Herein, the suppressed recombination of photogenerated carriers is preliminarily confirmed by the photoluminescence spectra. If the recombination of carriers was suppressed, the photoluminescence of semiconductor materials would be quenched to some degree [51,52]. As shown in Figure 6e, compared with the reference TiO2-WR sample, the TiO2-GR samples show a much lower photoluminescence intensity. This indicates that the as-prepared gray TiO2-GR has a much higher photoinduced charge separation efficiency than that of the white TiO2-GR materials. In addition, because of the presence of free electrons bound loosely to the titanium atom in the oxygen vacancies [47], the surface electric conductivity of TiO2-GR will be improved, as a result of improving the carriers’ transmission efficiency [26], which is also helpful for improving the photocatalytic activity.

4. Conclusions

In summary, gray rutile titanium dioxide was synthesized via two-step calcination, performed successively in a high-temperature reduction atmosphere and in a lower-temperature air atmosphere. The results indicate that, compared with the white rutile titanium dioxide, the as-prepared gray titanium dioxide exhibits the typical characteristics of black- or blue-color TiO2, such as the presence of Ti ions in a low valence state, surface disorder structure, and oxygen vacancies, which are caused by the loss of oxygen atoms under reduction reaction conditions. According to previous reports [14], it is proposed that the presence of Ti3+ or a surface disorder structure is mainly induced by oxygen vacancies. The as-synthesized gray titanium dioxide exhibits a higher photocatalytic activity than does white rutile TiO2. This is attributed to the interior vacancies, which can create a higher light absorbance and improve the separation and transmission efficiency of photogenerated carriers. Most notably, it is proposed that the two-step calcination can produce a surface passivation layer on the surface of gray titanium dioxide particles, as a result of protecting the interior oxygen vacancies, which provides long-term photocatalytic activity. This study provides a considerable reference for the design and synthesis of other semiconductor photocatalysts rich in oxygen vacancies, with high activity and high stability.

Supplementary Materials

The following are available online at https://www.mdpi.com/2079-4991/10/5/920/s1: Figure S1: Morphology of spherical anatase TiO2 (a), TiO2-GR (b), and TiO2-WR (c). Figure S2: HRTEM of TiO2-only calcination at 900 °C in Ar atmosphere (a), TiO2-GR (b), and TiO2-WR (c). Figure S3: TGA curve in open air for the TiO2-GR sample.

Author Contributions

Conceptualization, G.C. and B.T.; methodology, G.C. and Y.L.; validation, Y.F. (Yanfei Fan), and X.S.; investigation, Y.L., P.C., and Y.F. (Yaqi Fan); writing (original draft preparation), Y.L.; writing (review and editing), G.C. and B.T.; supervision, B.T.; project administration, B.T.; funding acquisition, B.T. All of the authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the National Natural Science Foundation of China (21927811, 21575082, 21535004, 91753111, and 21976110) and the Key Research and Development Program of Shandong Province (2018YFJH0502), the development plan of science and technology for Shandong Province of China (2013GGX10706), and a project of the Shandong Province Higher Educational Science and Technology Program (J13LD06).

Conflicts of Interest

The authors declare no conflict of interest. The funders had no role in the design of the study; in the collection, analyses, or interpretation of data; in the writing of the manuscript; or in the decision to publish the results.

References

  1. Chen, X.; Mao, S.S. Titanium Dioxide Nanomaterials: Synthesis, Properties, Modifications, and Applications. Chem. Rev. 2007, 107, 2891–2959. [Google Scholar] [CrossRef] [PubMed]
  2. Kubacka, A.; Fernández-García, M.; Colón, G. Advanced Nanoarchitectures for Solar Photocatalytic Applications. Chem. Rev. 2012, 112, 1555–1614. [Google Scholar] [CrossRef] [PubMed]
  3. Xie, M.; Fu, X.; Jing, L.; Luan, P.; Feng, Y.; Fu, H. Long-Lived, Visible-Light-Excited Charge Carriers of TiO2/BiVO4 Nanocomposites and their Unexpected Photoactivity for Water Splitting. Adv. Energy Mater. 2014, 4, 1300995. [Google Scholar] [CrossRef]
  4. Cui, G.; Wang, W.; Ma, M.; Zhang, M.; Xia, X.; Han, F.; Shi, X.; Zhao, Y.; Dong, Y.; Tang, B. Rational design of carbon and TiO2 assembly materials: Covered or strewn, which is better for photocatalysis? Chem. Commun. 2013, 49, 6415. [Google Scholar] [CrossRef]
  5. Linh, V.T.N.; Xiao, X.; Jung, H.S.; Giannini, V.; Maier, S.A.; Kim, D.-H.; Lee, Y.-I.; Park, S.-G. Compact Integration of TiO2 Nanoparticles into the Cross-Points of 3D Vertically Stacked Ag Nanowires for Plasmon-Enhanced Photocatalysis. Nanomaterials 2019, 9, 468. [Google Scholar] [CrossRef] [Green Version]
  6. Zhang, Z.; Liu, H.; Wang, X.; Zhang, J.; Yu, M.; Ramakrishna, S.; Long, Y. One-Step Low Temperature Hydrothermal Synthesis of Flexible TiO2/PVDF@MoS2 Core-Shell Heterostructured Fibers for Visible-Light-Driven Photocatalysis and Self-Cleaning. Nanomaterials 2019, 9, 431. [Google Scholar] [CrossRef] [Green Version]
  7. Jiang, X.; Xu, W.; Yu, L. Photocatalytic Decomposition of Gaseous HCHO over Ag Modified TiO2 Nanosheets at Ambient Temperature. Nanomaterials 2019, 9, 338. [Google Scholar] [CrossRef] [Green Version]
  8. Sahrin, N.T.; Nawaz, R.; Kait, C.F.; Lee, S.L.; Wirzal, M.D.H. Visible Light Photodegradation of Formaldehyde over TiO2 Nanotubes Synthesized via Electrochemical Anodization of Titanium Foil. Nanomaterials 2020, 10, 128. [Google Scholar] [CrossRef] [Green Version]
  9. Zuo, F.; Wang, L.; Wu, T.; Zhang, Z.; Borchardt, D.; Feng, P. Self-Doped Ti3+ Enhanced Photocatalyst for Hydrogen Production under Visible Light. J. Am. Chem. Soc. 2010, 132, 11856–11857. [Google Scholar] [CrossRef]
  10. Livraghi, S.; Maurelli, S.; Paganini, M.C.; Chiesa, M.; Giamello, E. Probing the Local Environment of Ti3+ Ions in TiO2 (Rutile) by 17O HYSCORE. Angew. Chem. Int. Ed. 2011, 50, 8038–8040. [Google Scholar] [CrossRef]
  11. Chen, X.; Liu, L.; Yu, P.Y.; Mao, S.S. Increasing Solar Absorption for Photocatalysis with Black Hydrogenated Titanium Dioxide Nanocrystals. Science 2011, 331, 746–750. [Google Scholar] [CrossRef] [PubMed]
  12. Zhu, Q.; Peng, Y.; Lin, L.; Fan, C.-M.; Gao, G.-Q.; Wang, R.-X.; Xu, A.-W. Stable blue TiO2−x nanoparticles for efficient visible light photocatalysts. J. Mater. Chem. A 2014, 2, 4429–4437. [Google Scholar] [CrossRef]
  13. Bellardita, M.; Garlisi, C.; Ozer, L.Y.; Venezia, A.M.; Sá, J.; Mamedov, F.; Palmisano, L.; Palmisano, G. Highly stable defective TiO2−x with tuned exposed facets induced by fluorine: Impact of surface and bulk properties on selective UV/visible alcohol photo-oxidation. Appl. Surf. Sci. 2020, 510, 145419. [Google Scholar] [CrossRef]
  14. Naldoni, A.; Allieta, M.; Santangelo, S.; Marelli, M.; Fabbri, F.; Cappelli, S.; Bianchi, C.L.; Psaro, R.; Santo, V.D. The effect of nature and location of defects on bandgap narrowing in black TiO2 nanoparticles. J. Am. Chem. Soc. 2012, 134, 7600–7603. [Google Scholar] [CrossRef] [PubMed]
  15. Hamdy, M.S.; Amrollahi, R.; Mul, G. Surface Ti3+-Containing (blue) Titania: A Unique Photocatalyst with High Activity and Selectivity in Visible Light-Stimulated Selective Oxidation. ACS Catal. 2012, 2, 2641–2647. [Google Scholar] [CrossRef]
  16. Hu, Y.H. A Highly Efficient Photocatalyst-Hydrogenated Black TiO2 for the Photocatalytic Splitting of Water. Angew. Chem. Int. Ed. 2012, 51, 12410–12412. [Google Scholar] [CrossRef]
  17. Grabstanowicz, L.R.; Gao, S.; Li, T.; Rickard, R.M.; Rajh, T.; Liu, D.-J.; Xu, T. Facile Oxidative Conversion of TiH2 to High-Concentration Ti3+-Self-Doped Rutile TiO2 with Visible-Light Photoactivity. Inorg. Chem. 2013, 52, 3884–3890. [Google Scholar] [CrossRef]
  18. Zhou, W.; Li, W.; Wang, J.; Qu, Y.; Yang, Y.; Xie, Y.; Zhang, K.; Wang, L.; Fu, H.; Zhao, D. Ordered Mesoporous Black TiO2 as Highly Efficient Hydrogen Evolution Photocatalyst. J. Am. Chem. Soc. 2014, 136, 9280–9283. [Google Scholar] [CrossRef]
  19. Liu, N.; Schneider, C.; Freitag, D.; Hartmann, M.; Venkatesan, U.; Müller, J.; Spiecker, E.; Schmuki, P. Black TiO2 Nanotubes: Cocatalyst-Free Open-Circuit Hydrogen Generation. Nano Lett. 2014, 14, 3309–3313. [Google Scholar] [CrossRef]
  20. Zhao, Z.; Zhang, X.; Zhang, G.; Liu, Z.; Qu, D.; Miao, X.; Feng, P.; Sun, Z. Effect of defects on photocatalytic activity of rutile TiO2 nanorods. Nano Res. 2015, 8, 4061–4071. [Google Scholar] [CrossRef]
  21. Liu, N.; Haublein, V.; Zhou, X.; Venkatesan, U.; Hartmann, M.; Mackovic, M.; Nakajima, T.; Spiecker, E.; Osvet, A.; Frey, L.; et al. “Black” TiO2 Nanotubes Formed by High-Energy Proton Implantation Show Noble-Metal-co-Catalyst Free Photocatalytic H2-Evolution. Nano Lett. 2015, 15, 6815–6820. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  22. Chen, J.; Song, W.; Hou, H.; Zhang, Y.; Jing, M.; Jia, X.; Ji, X. Ti3+ Self-Doped Dark Rutile TiO2 Ultrafine Nanorods with Durable High-Rate Capability for Lithium-Ion Batteries. Adv. Funct. Mater. 2015, 25, 6793–6801. [Google Scholar] [CrossRef]
  23. Tian, M.; Mahjouri-Samani, M.; Eres, G.; Sachan, R.; Yoon, M.; Chisholm, M.F.; Wang, K.; Puretzky, A.A.; Rouleau, C.M.; Geohegan, D.B.; et al. Structure and Formation Mechanism of Black TiO2 Nanoparticles. ACS Nano 2015, 9, 10482–10488. [Google Scholar] [CrossRef] [PubMed]
  24. Chen, S.; Tao, J.; Tao, H.; Wang, C.; Shen, Y.; Jiang, J.; Zhu, L.; Zeng, X.; Wang, T. One-Step Solvothermal Synthesis of Black TiO2 Films for Enhanced Visible Absorption. J. Nanosci. Nanotechnol. 2016, 16, 3146–3149. [Google Scholar] [CrossRef] [PubMed]
  25. Chen, X.; Zhao, D.; Liu, K.; Wang, C.; Liu, L.; Li, B.; Zhang, Z.; Shen, D. Laser-Modified Black Titanium Oxide Nanospheres and Their Photocatalytic Activities under Visible Light. ACS Appl. Mater. Interfaces 2015, 7, 16070–16077. [Google Scholar] [CrossRef] [PubMed]
  26. Lv, X.; Chen, A.; Luo, Y.; Lu, P.; Dai, Y.; Enriquez, E.; Dowden, P.; Xu, H.; Kotula, P.G.; Azad, A.K.; et al. Conducting Interface in Oxide Homojunction: Understanding of Superior Properties in Black TiO2. Nano Lett. 2016, 16, 5751–5755. [Google Scholar] [CrossRef] [Green Version]
  27. Zhou, Y.; Chen, C.; Wang, N.; Li, Y.; Ding, H. Stable Ti3+ Self-Doped Anatase-Rutile Mixed TiO2 with Enhanced Visible Light Utilization and Durability. J. Phys. Chem. C 2016, 120, 6116–6124. [Google Scholar] [CrossRef]
  28. Chen, S.; Xiao, Y.; Wang, Y.; Hu, Z.; Zhao, H.; Xie, W. A Facile Approach to Prepare Black TiO2 with Oxygen Vacancy for Enhancing Photocatalytic Activity. Nanomaterials 2018, 8, 245. [Google Scholar] [CrossRef] [Green Version]
  29. Chen, X.; Liu, L.; Liu, Z.; Marcus, M.A.; Wang, W.; Oyler, N.A.; Grass, M.E.; Mao, B.; Glans, P.-A.; Yu, P.Y.; et al. Properties of Disorder-Engineered Black Titanium Dioxide Nanoparticles through Hydrogenation. Sci. Rep. 2013, 3, 1510. [Google Scholar] [CrossRef]
  30. Yu, P.; Zhang, J. Some interesting properties of black hydrogen-treated TiO2 nanowires and their potential application in solar energy conversion. Sci. China Chem. 2015, 58, 1810–1815. [Google Scholar] [CrossRef]
  31. Li, X.; Xiong, Y.; Li, Z.; Xie, Y. Large-Scale Fabrication of TiO2 Hierarchical Hollow Spheres. Inorg. Chem. 2006, 45, 3493–3495. [Google Scholar] [CrossRef] [PubMed]
  32. Andersson, M.; Osterlund, L.; Ljungstrom, S.; Palmqvist, A. Preparation of Nanosize Anatase and Rutile TiO2 by Hydrothermal Treatment of Microemulsions and Their Activity for Photocatalytic Wet Oxidation of Phenol. J. Phys. Chem. B 2002, 106, 10674–10679. [Google Scholar] [CrossRef]
  33. Liu, S.; Han, G.; Shu, M.; Han, L.; Che, S. Monodispersed inorganic/organic hybrid spherical colloids: Versatile synthesis and their gas-triggered reversibly switchable wettability. J. Mater. Chem. 2010, 20, 10001–10009. [Google Scholar] [CrossRef]
  34. Li, Y.; Zhu, S.; Liu, Q.; Gu, J.; Guo, Z.; Chen, Z.; Feng, C.; Zhang, D.; Moon, W.-J. Carbon-coated SnO2@C with hierarchically porous structures and graphite layers inside for a high-performance lithium-ion battery. J. Mater. Chem. 2012, 22, 2766–2773. [Google Scholar] [CrossRef]
  35. Xie, Y.; Sherwood, P.M.A. Ultrahigh Purity Graphite Electrode by Core Level and Valence Band XPS. Surf. Sci. Spectra 1992, 1, 367. [Google Scholar] [CrossRef]
  36. Ocal, C.; Ferrer, S. The strong metal–support interaction (SMSI) in Pt–TiO2 model catalysts. A new CO adsorption state on Pt–Ti atoms. J. Chem. Phys. 1986, 84, 6474. [Google Scholar] [CrossRef]
  37. Liu, G.; Han, C.; Pelaez, M.; Zhu, D.; Liao, S.; Likodimos, V.; Ioannidis, N.; Kontos, A.G.; Falaras, P.; Dunlop, P.S.M.; et al. Synthesis, characterization and photocatalytic evaluation of visible light activated C-doped TiO2 nanoparticles. Nanotechnology 2012, 23, 294003. [Google Scholar] [CrossRef]
  38. Galuska, A.A.; Uht, J.C.; Marquez, N. Reactive and nonreactive ion mixing of Ti films on carbon substrates. J. Vac. Sci. Technol. A 1988, 6, 110. [Google Scholar] [CrossRef]
  39. Dementjev, A.P.; Ivanova, O.P.; Vasilyev, L.A.; Naumkin, A.V.; Nemirovsky, D.M.; Shalaev, D.Y. Altered layer as sensitive initial chemical state indicator. J. Vac. Sci. Technol. A 1994, 12, 423. [Google Scholar] [CrossRef]
  40. Gonbeau, D.; Guimon, C.; Pfister-Guillouzo, G.; Levasseur, A.; Meunier, G.; Dormoy, R. XPS study of thin films of titanium oxysulfides. Surf. Sci. 1991, 254, 81–89. [Google Scholar] [CrossRef]
  41. Franzen, H.F.; Umana, M.X.; McCreary, J.R.; Thorn, R.J. XPS spectra of some transition metal and alkaline earth monochalcogenides. J. Solid State Chem. 1976, 18, 363–368. [Google Scholar] [CrossRef]
  42. Haukka, S.; Lakomaa, E.-L.; Jylha, O.; Vilhunen, J.; Hornytzkyj, S. Dispersion and distribution of titanium species bound to silica from titanium tetrachloride. Langmuir 1993, 9, 3497–3506. [Google Scholar] [CrossRef]
  43. Kuznetsov, M.V.; Zhuravlev, J.F.; Gubanov, V.A. XPS analysis of adsorption of oxygen molecules on the surface of Ti and TiNx films in vacuum. J. Electron. Spectrosc. Relat. Phenom. 1992, 58, 169–176. [Google Scholar] [CrossRef]
  44. Kuznetsov, M.V.; Zhuravlev, J.F.; Zhilyaev, V.A.; Gubanov, V.A. XPS study of the nitrides, oxides and oxynitrides of titanium. J. Electron. Spectrosc. Relat. Phenom. 1992, 58, 1–9. [Google Scholar] [CrossRef]
  45. Tan, B.J.; Klabunde, K.J.; Sherwood, P.M.A. X-ray photoelectron spectroscopy studies of solvated metal atom dispersed catalysts. Monometallic iron and bimetallic iron-cobalt particles on alumina. Chem. Mater. 1990, 2, 186–191. [Google Scholar] [CrossRef]
  46. Bukhtiyarov, V.I.; Boronin, A.I.; Prosvirin, I.P.; Savchenko, V.I.J. Stages in the Modification of a Silver Surface for Catalysis of the Partial Oxidation of Ethylene: II. Action of the Reaction Medium. J. Catal. 1994, 150, 268–273. [Google Scholar] [CrossRef]
  47. Deskins, N.A.; Rousseau, R.; Dupuis, M. Distribution of Ti3+ Surface Sites in Reduced TiO2. J. Phys. Chem. C 2011, 115, 7562–7572. [Google Scholar] [CrossRef]
  48. Wang, G.; Wang, H.; Ling, Y.; Tang, Y.; Yang, X.; Fitzmorris, R.C.; Wang, C.; Zhang, J.Z.; Li, Y. Hydrogen-treated TiO2 nanowire arrays for photoelectrochemical water splitting. Nano Lett. 2011, 11, 3026–3033. [Google Scholar] [CrossRef]
  49. Wheeler, D.A.; Ling, Y.C.; Dillon, R.J.; Fitzmorris, R.C.; Dudzik, C.G.; Zavodivker, L.; Rajh, T.; Dimitrijevic, N.M.; Millhauser, G.; Bardeen, C.; et al. Probing the nature of bandgap states in hydrogen-treated TiO2 nanowires. J. Phys. Chem. 2013, 117, 26821–26830. [Google Scholar] [CrossRef]
  50. Wheeler, D.A.; Wang, G.; Fitzmorris, R.C.; Adams, S.A.; Li, Y.; Zhang, J.Z. Ultrafast charge carrier dynamics and photoelectrochemical properties of hydrogen-treated TiO2 nanowire arrays. MRS Proc. 2012, 1387, e04–e07. [Google Scholar] [CrossRef]
  51. Li, H.; Liu, G.; Chen, S.; Liu, Q. Novel Fe doped mesoporous TiO2 microspheres: Ultrasonic–hydrothermal synthesis, characterization, and photocatalytic properties. Physica E 2010, 42, 1844–1849. [Google Scholar] [CrossRef]
  52. Acharya, K.P.; Khnayzer, R.S.; Connor, T.; Diederich, G.; Kirsanova, M.; Klinkova, A.; Roth, D.; Kinder, E.; Imboden, M.; Zamkov, M. The Role of Hole Localization in Sacrificial Hydrogen Production by Semiconductor–Metal Heterostructured Nanocrystals. Nano Lett. 2011, 11, 2919. [Google Scholar] [CrossRef] [PubMed] [Green Version]
Nanomaterials 10 00920 g001 550

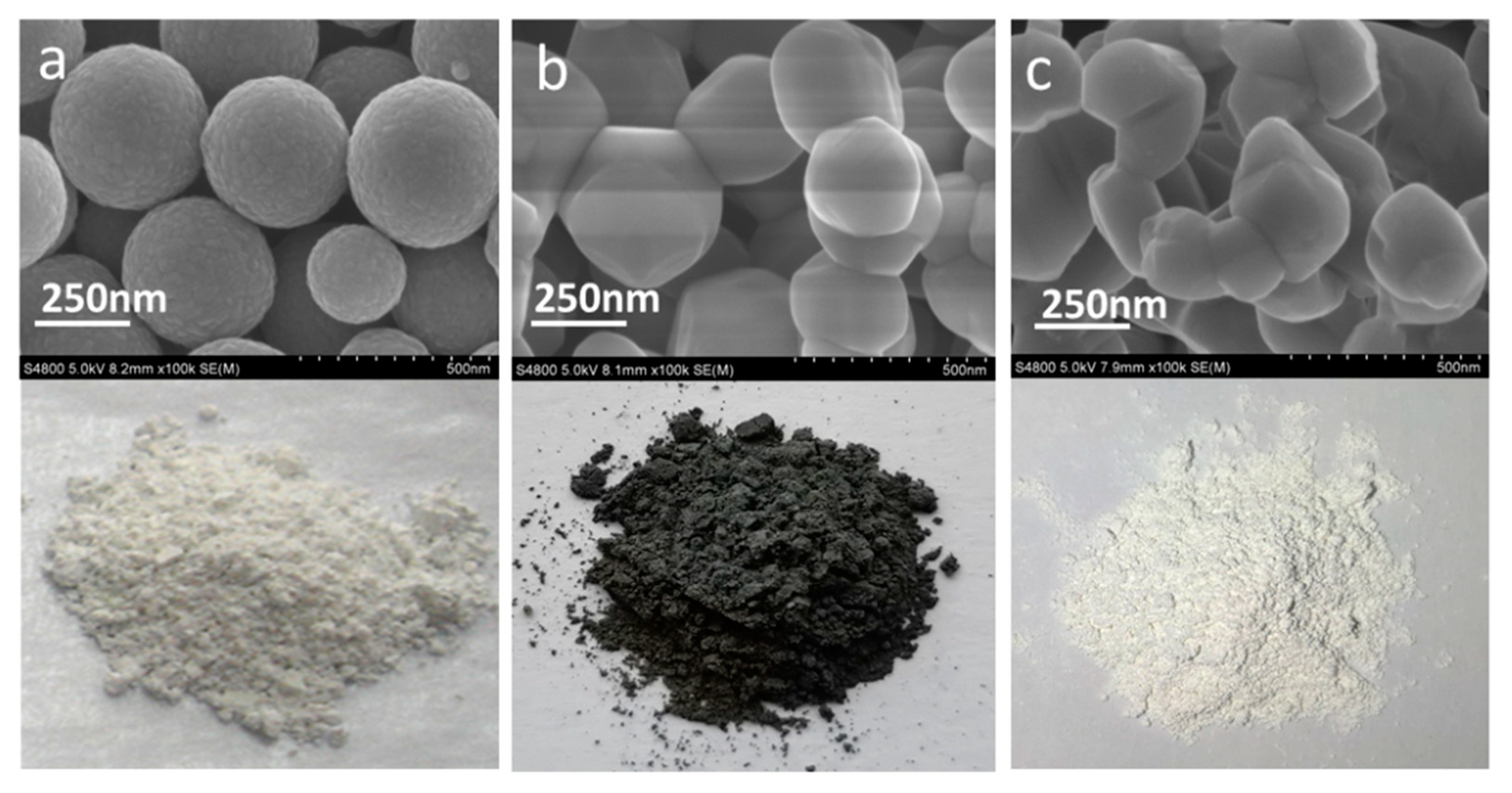

Figure 1. Morphology of spherical anatase TiO2 (a), TiO2-gray rutile (TiO2-GR) (b), and TiO2-white rutile (TiO2-WR) (c).
Figure 1. Morphology of spherical anatase TiO2 (a), TiO2-gray rutile (TiO2-GR) (b), and TiO2-white rutile (TiO2-WR) (c).
Nanomaterials 10 00920 g001
Nanomaterials 10 00920 g002 550

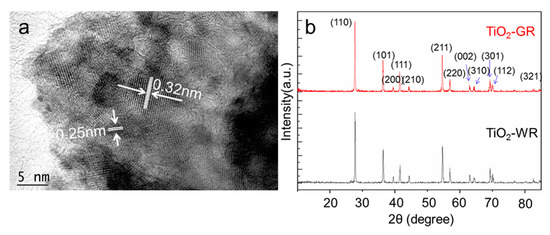

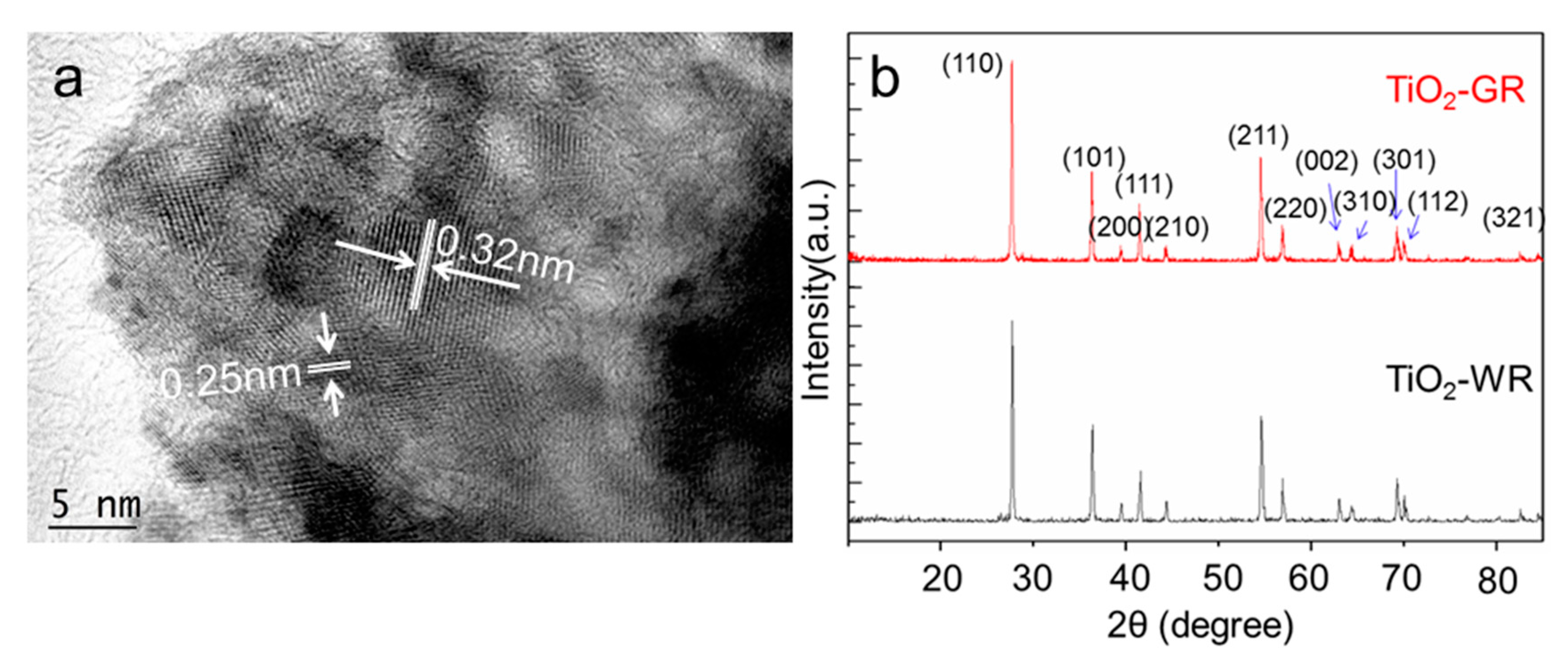

Figure 2. HRTEM (a) and XRD patterns (b) of gray rutile TiO2.
Figure 2. HRTEM (a) and XRD patterns (b) of gray rutile TiO2.
Nanomaterials 10 00920 g002
Nanomaterials 10 00920 g003 550

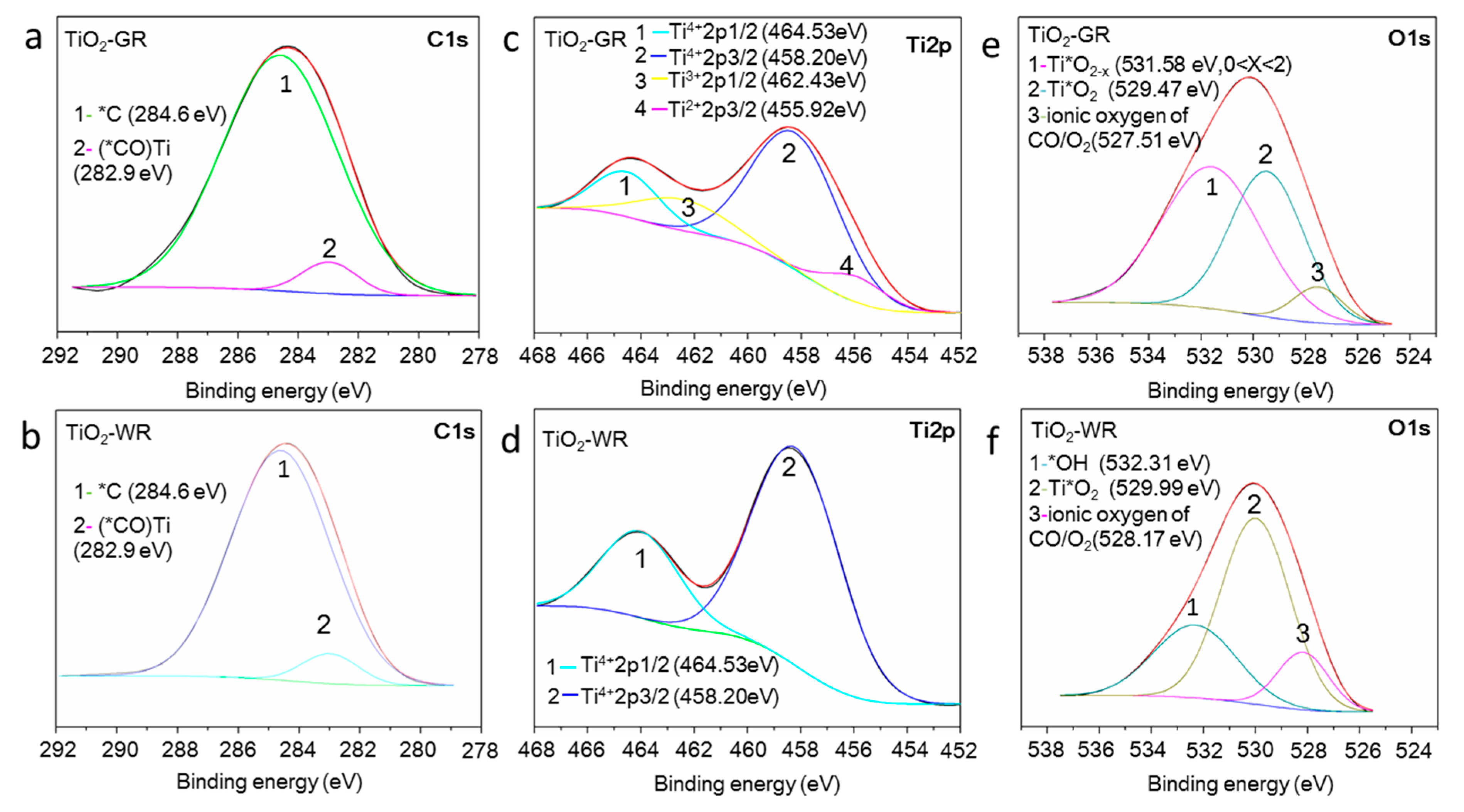

Figure 3. C 1s XPS spectra of TiO2-GR (a) and TiO2-WR (b); Ti 2p XPS spectra of TiO2-GR (c) and TiO2-WR (d); O 1s XPS spectra of TiO2-GR (e) and TiO2-WR (f).
Figure 3. C 1s XPS spectra of TiO2-GR (a) and TiO2-WR (b); Ti 2p XPS spectra of TiO2-GR (c) and TiO2-WR (d); O 1s XPS spectra of TiO2-GR (e) and TiO2-WR (f).
Nanomaterials 10 00920 g003
Nanomaterials 10 00920 g004 550

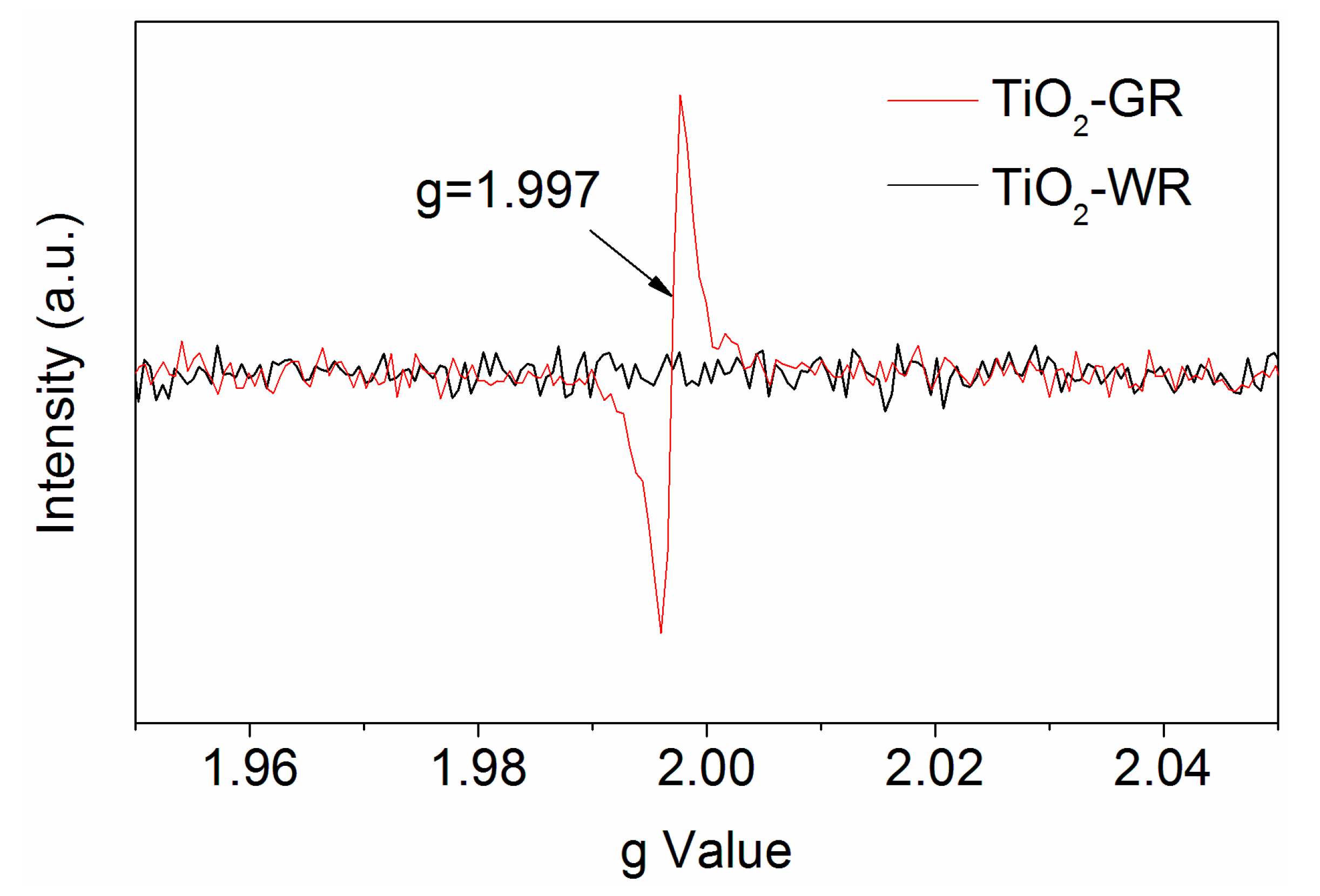

Figure 4. EPR spectroscopy of TiO2-GR (red line) and TiO2-WR (black line).
Figure 4. EPR spectroscopy of TiO2-GR (red line) and TiO2-WR (black line).
Nanomaterials 10 00920 g004
Nanomaterials 10 00920 g005 550

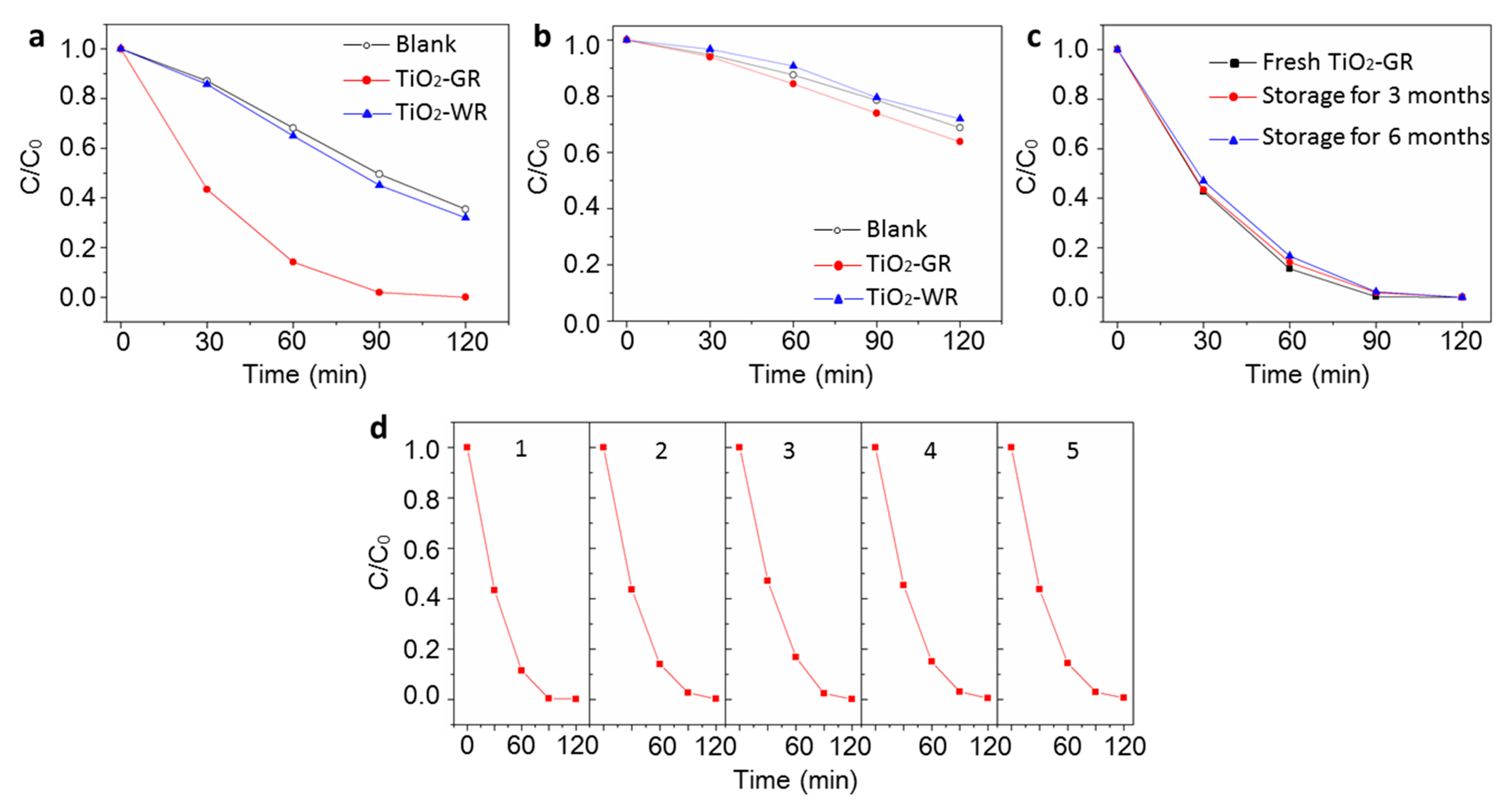

Figure 5. (a) Methylene blue (MB) dye photocatalytic discoloration plots of TiO2-GR and TiO2-WR samples under full-spectrum light irradiation; (b) MB dye photocatalytic discoloration plots of TiO2-GR and TiO2-WR samples under visible light irradiation; (c) photocatalytic activity tests of TiO2-GR samples stored for different times via the photocatalytic discoloration of MB dyes under full-spectrum light irradiation; (d) photocatalytic activity cycle tests of TiO2-GR samples under full-spectrum light irradiation. The aqueous solution of the MB dyes (10.0 mg/L, 30.0 mL) without photocatalysts was used as the control sample marked as a blank in Figure 5a,b. C/C0 is the ratio of the real-time concentration to the initial concentration of MB dyes.
