DNA Origami Nano-Sheets and Nano-Rods Alter the Orientational Order in a Lyotropic Chromonic Liquid Crystal

by
Bingru Zhang
1,
Kevin Martens
2,
Luisa Kneer
2,
Timon Funck
2,
Linh Nguyen
2,
Ricarda Berger
2,
Mihir Dass
2,
Susanne Kempter
2,
Jürgen Schmidtke
1,
Tim Liedl
2 and
Heinz-S. Kitzerow
1,*
1
Faculty of Science, Department of Chemistry, University of Paderborn, Warburger Straße 100, 33098 Paderborn, Germany
2
Faculty of Physics, Ludwig-Maximilians-University, Geschwister-Scholl-Platz 1, 80539 Munich, Germany
*
Author to whom correspondence should be addressed.
Nanomaterials 2020, 10(9), 1695; https://doi.org/10.3390/nano10091695
Submission received: 8 July 2020 / Revised: 21 August 2020 / Accepted: 24 August 2020 / Published: 28 August 2020
(This article belongs to the Section Nanofabrication and Nanomanufacturing)
Browse Figures
Versions Notes

Abstract

:
Rod-like and sheet-like nano-particles made of desoxyribonucleic acid (DNA) fabricated by the DNA origami method (base sequence-controlled self-organized folding of DNA) are dispersed in a lyotropic chromonic liquid crystal made of an aqueous solution of disodium cromoglycate. The respective liquid crystalline nanodispersions are doped with a dichroic fluorescent dye and their orientational order parameter is studied by means of polarized fluorescence spectroscopy. The presence of the nano-particles is found to slightly reduce the orientational order parameter of the nematic mesophase. Nano-rods with a large length/width ratio tend to preserve the orientational order, while more compact stiff nano-rods and especially nano-sheets reduce the order parameter to a larger extent. In spite of the difference between the sizes of the DNA nano-particles and the rod-like columnar aggregates forming the liquid crystal, a similarity between the shapes of the former and the latter seems to be better compatible with the orientational order of the liquid crystal.

Graphical Abstract

1. Introduction

Dispersing nano-particles (NPs) in a bulk matrix is a very promising strategy to develop new nanocomposites, i.e., tailored functional materials, which combine or even outperform the properties of their components. If the matrix consists of a liquid crystal (LC) [1,2,3], i.e., an ordered fluid, the positions [4,5,6] or the orientation [7,8,9,10] of the nano-particles may be controlled by the LC structure. Thermotropic and lyotropic LCs are formed by anisometric (for example, rod- or disk-shaped) organic molecules and molecular aggregates, respectively [1,2,3]. In the least ordered phase, the nematic (N) phase, these units are preferentially aligned parallel, while their centers of gravity are randomly distributed. The preferred orientation of neighboring molecules or aggregates can be described by a pseudo vector n, the director, which can smoothly vary with position, depending on anchoring conditions and external electric or magnetic fields. The degree of parallel ordering can be described by Zvetkov’s scalar orientational order parameter S: = ½ <3 cos2θ−1>, where θ is the angle between a molecule or molecular aggregate and the local director, while the brackets indicate ensemble averaging. The order parameter S is known to depend on temperature and on the aspect ratio of the units forming the LC. In a LC nanocomposite with low NP densities, rod-like or disk-like nano-particles may locally align parallel or perpendicular to the director n(r). At higher concentrations, neighboring particles may also interact with each other, mediated by the complex topology of the distorted director field in their vicinity. The latter effect may lead to the formation of chains or regular lattices of the particles. For completeness, it should be emphasized that these dispersions of nano-particles in a liquid crystalline solvent (as studied in the present work) are different from colloidal liquid crystals, which consist of large fractions of anisometric particles dispersed in an isotropic solvent [11].
The mesogenic behavior of DNA has been frequently studied in different kinds of systems [12,13,14,15,16,17]. Aqueous solutions of DNA can form a lyotropic chromonic liquid crystal (LCLC) [12,13,14], mixtures of DNA and appropriate surfactants can form a thermotropic liquid crystal [16], and nanoparticles of well-defined shape that are fabricated using the DNA origami method can form colloidal liquid crystals, when they are dispersed at high NP concentrations in an isotropic solvent [17,18]. In the present study, a fourth kind of systems is studied, namely a highly diluted dispersion of DNA nanoparticles with well-defined shape in a LCLC, i.e., in an anisotropic solvent. The influence of rod-like or disk-like nano-particles on the orientational order parameter of the LCLC is investigated in the low concentration limit, where interaction of the nano-particles can be neglected. The DNA origami technique [17,18,19,20,21,22,23,24,25,26,27,28,29,30,31,32,33,34,35,36,37,38,39,40] was used in order to synthesize nano-particles with extremely precise shape. In addition to the baseline investigation presented here, LC–NP-composites have potential for complex developments, because the highly precise tailored NPs obtained by the DNA origami technique may be ordered on a larger scale through LC–NP interaction, thereby bridging the gap between NP synthesis and NP assembly, and finally controlling macroscopic material properties. The folding of DNA to three-dimensional nanostructures [20] (DNA origami) is based on combining a single-stranded DNA derived from a natural bacteriophage—the “scaffold” (exhibiting some 7000–8000 nucleotides)—with many shorter single-stranded DNA oligomers—the “staples” (100 to 200 oligomers exhibiting 30 to 50 nucleotides each). Each staple will bind to a specific site of the scaffold and thereby control its folding into a well-defined final shape. This shape can be very complex. The precision of the NP structure is governed by the distance of neighboring nucleotides (≈0.34 nm), the diameter of the DNA double helix (≈2 nm) and the helix pitch (≈10.5 nucleotide spacings). This level of control facilitates fabrication with near-atomic precision [27,28]. Functionalization with chromophores, semiconducting, plasmonic or magnetic particles, and photo- or biosensitive molecular units, tensegrity designs, incorporation of molecular springs or single-stranded DNA handles, and other modifications have not only facilitated the fabrication of very precise static and dynamic nanostructures for microscopic fundamental research, but also made applications in photonics, materials science, biology and medicine feasible [29,30,31,32,33,34,35,36,37,38,39,40].
While previous studies of DNA origami nanostructures were mainly focused on either isotropic solutions or two-dimensional surface assemblies, we here dispersed DNA origami nanostructures uniformly in the bulk liquid crystal solvent:

2. Materials and Methods

Among the various kinds of LCs, we selected a water-based lyotropic chromonic liquid crystal (LCLC) [41,42,43,44,45,46,47,48,49,50,51,52] for this purpose. The LCLC molecules usually have a plank-like or disk-like polyaromatic central core and two or more ionic groups at the periphery. Disodium cromoglycate (DSCG, Figure 1a) is known as an antiasthmatic drug (“cromolyn”) and is one of the most extensively studied LCLCs. There are two common mesophases of DSCG, the nematic N phase (Figure 1b) and the columnar M phase. Both phases consist of columnar molecular stacks with different lengths [41]. So far, there is no experimental evidence on whether the long molecular axes within a single column align strictly parallel to each other (as drawn in Figure 1b) or are randomly distributed perpendicular to the columnar axis. In any case, the N phase is known to be optically uniaxial, which might be attributed to the free rotation of the columns along the columnar axis. The aggregation is based on self-organization by noncovalent interaction. In the nematic (N) phase, the correlation length of the monomer stacking along the DSCG aggregates axis is approximately 8 nm (≈23 molecules) [48]. Based on earlier experiences with dispersions of colloidal particles in DSCG solutions [53,54,55,56], a nematic solution of 10% (by weight) DSCG (Sigma-Aldrich Chemie GmbH, Steinheim, Germany) in water was doped with DNA nano-particles of different prolate and oblate shapes (Figure 1c–h). Their synthesis followed standard procedures of the DNA origami technique [20,21,22,23,24,25], i.e., a mixture of the DNA scaffold and the DNA staples in an alkaline buffer solution containing 10–18 mM magnesium chloride (MgCl2) was first heated to 65 °C and then very slowly cooled to room temperature. Details of the design and the protocol are given in Table 1, in the supplementary material (Figures S1–S6) and in Appendix A, respectively. While the Mg2+ cations of MgCl2 are known to compensate the repelling interaction of the negative charges of the phosphate groups in DNA very efficiently during the folding process, MgCl2 was found in earlier studies to cause precipitation of DSCG [54,55]. Thus, MgCl2 had to be replaced by NaCl (Stockmeier Chemie, Bielefeld, Germany) in a solvent exchanging step before mixing the DNA–nano-particle solution with the liquid crystal. Through the atomic force microscope (AFM) test, we confirmed that the shape of DNA origami after dialysis has not changed, and the compact structure has not been unhelixed. The length and width remained the same as before dialysis (Figure S7). The long-term stability of DNA origami nanostructures in NaCl solutions confirms earlier studies [57]. Stable and homogeneous nematic DSCG–NP dispersions were then obtained by mixing a DNA–NP dispersion in 500 mM NaCl solution with an aqueous solution containing 20 wt.% DSCG in a 1:1 ratio.
The scalar orientational order parameter S can be measured by studying the linear dichroism. If the transition dipole moments of fluorescent dye molecules show a preferential alignment, the fluorescence emission intensities parallel and perpendicular to this alignment direction are different. In the present work, the setup shown in Figure 2a was used to investigate this effect. For this purpose, the nanocomposites were doped with the dichroic fluorescent dye acridine orange (AO) (Sigma-Aldrich, Munich, Germany) (Figure 2b). The results presented in this paper indicate that AO interacts with DSCG (Figure 2c) so that measuring the order parameter of DSCG is possible by investigating the fluorescence dichroism of DSCG nanocomposites. In principle, AO can also intercalate with DNA [52]. However, the contribution of AO-dyed DNA NPs to the total fluorescence intensity can be neglected if only a small fraction of DNA NPs is present. The very interesting insights obtained from the comparison of DSCG nanocomposites containing DNA NPs of different shape will be explained in the following paragraphs.

3. Results

The nanocomposite containing DSCG and DNA nanostructures was aligned in a sandwich cell coated with polyimide (PI), antiparallel rubbed. If the cell is illuminated with white light and rotated between crossed polarizers, uniformly dark and bright states without interference colors appear, depending on the azimuthal angle of the cell (Figure 3a). The nematic phase shows uniaxial birefringence and the optical axis corresponds to the LC director. Thus, the uniform brightness (Figure 3a) indicates a uniformly planar alignment of the DSCG aggregates. In the dark state, the director is either parallel or perpendicular to the plane of polarization of the incident light. A uniformly bright state appears at an azimuthal angle of 45°. If the sample is aligned at an azimuthal angle of 45° and an additional λ-retardation plate with an azimuthal angle of 45° is inserted, interference colors appear (Figure 3b). These well-known interference colors, which depend on the size of the product Δn d of birefringence and layer thickness, can be compared to the Michel–Lévy color chart (Figure 3c). The lack of colors in the bright state that appears at an azimuthal angle of 45° without the λ-plate (Figure 3a) indicates that the retardation between the ordinary and the extraordinary beam is small, within first order, i.e., Δn d < λ. If the λ-plate is inserted (Figure 3b), the retardations of the sample and the λ-plate can either compensate each other, so that the total retardation remains within the first order, or add, so that the total retardation is shifted to the second order, as shown in Figure 3c. Since the birefringence of DSCG is known to be negative [44], it can be concluded from this experiment, that the director of DSCG aggregates (nDSCG) is horizontal in the samples displayed to the right in Figure 3b.
For an aqueous solution of 10 wt.% DSCG doped with AO, the fluorescence intensity contribution I⊥ with polarization perpendicular to the director of DSCG (nDSCG) is larger than the intensity contribution I|| polarized parallel to nDSCG (Figure 4a). This finding indicates that the transition dipole moments, i.e., the long axes of the AO molecules, are preferably aligned perpendicular to nDSCG. The scalar order parameter S can be calculated from the fluorescence intensities using the relation S = 2 (I⊥ − I||)/(2I⊥ + I||).
If a small concentration (8.9 nM) of 24-helix bundles (24HB) is dispersed in an aqueous solution of DSCG (10 wt.%) doped with AO (50 µM), the dichroic ratio is slightly reduced, indicating a lower DSCG order parameter (Figure 4b).
In order to explore the relation between orientational order and the shape of the DNA origami nanostructures, n-helix bundles (nHB, with n = 6, 14, 18, and 24) and m-layer sheets (mLS, with m = 1, 2) (Figure 1c–h) showing various length/width ratios L/D (Table 1) were studied. The final concentrations of DSCG, DNA nanoparticles and NaCl in the final mixture are recorded in Table A2 in Appendix A: Experimental Details. The alignment of the LCLC (10 wt.% DSCG) is found to be reduced by the presence of the nano-particles (Figure 4c). The extent of this reduction varies gradually with the shape of the nano-particles. The orientational order parameter S increases with increasing aspect ratio L/D (Figure 4c, Table 1). This finding indicates that rod-like DNA nano-particles with high aspect ratios are very well compatible with the parallel alignment of the rod-like columnar aggregates of DSCG molecules, which form the nematic phase of the liquid crystalline matrix. In contrast, sheet-like DNA NPs disturb the parallel alignment of the DSCG aggregates and thus reduce the order parameter of the N phase of DSCG.

4. Discussion

The principal result of the present study, the influence of the NPs on the orientational order of the surrounding nematic LC, can be explained as follows. The DSCG order parameter measured in the present work is a macroscopic average value. Since its local value in a microscopic volume is expected to be constant at constant temperature, the decrease in the average value caused by the presence of NPs can be attributed to deviations of the director from a uniform alignment. The distortion of the nematic director field n(r) is known to depend on the competing influences of the elastic properties of the LC and the anchoring of the director at the particle surface. The competing influences of elasticity and anchoring can be described by the extrapolation length ξ: = K/W, where K (unit [N]) is an effective mean value of the elastic coefficients and W (unit [J m−2]) is the anchoring energy per surface area. A small (large) value of ξ corresponds to a relatively strong (weak) anchoring, which may cause a large (small) distortion of the director field. Colloidal particles with a size much smaller than the extrapolation length do not affect the uniform director alignment, while larger particles are capable of deforming the director field, thereby creating topological defects and increasing the elastic free energy. For nematic DSCG solutions, ξ ≈ 2 µm can be expected [51], i.e., the DNA NPs used in this study are at the weak anchoring limit. In other systems, the alignment of rod-like particles has been investigated for both tangential [9] and perpendicular anchoring [10]. In both cases, the least distortion of the director field was found when the nano-rods aligned along the director [9,10]. In the present case of DNA nano-rods, the observed effects on the average order parameter (Table 1) can qualitatively be explained by the ratio of the diameter of the respective rods to the extrapolation length. Longer nano-rods disturb the director field to a lower extent, because their diameter is much smaller than the extrapolation length. The case of nano-sheets is more complicated. Firstly, the one-layer-sheet is known to be highly flexible and tends to twist [58,59], which may cause more complicated director distortions. Secondly, the alignment of disk-like particles is expected to depend on the surface anchoring. Alignment of the surface normal perpendicular to the director nDSCG is expected for tangential anchoring (as observed in Ref. [9]) and alignment of the surface normal along nDSCG is expected for perpendicular anchoring, respectively. For any case of anchoring, a larger influence of the nano-sheets on the director field is expected than for the nano-rods, because of the large lateral extension of the nano-sheets perpendicular to nDSCG. The experimental results described in this article confirm these expectations.

5. Conclusions

Complementary to previous studies on LCLCs made of DNA [12,13,14,15], to thermotropic LCs made of DNA [16] and to colloidal suspensions of DNA nanoparticles in an isotropic liquid [17,18], the experiments presented in this paper were focused on diluted suspensions of precisely tailored anisometric DNA nanoparticles in a lyotropic chromonic liquid crystal. The orientational order parameter of the latter is found to be only slightly reduced by the presence of the rod-like nanoparticles and more significantly reduced by sheet-like nanoparticles. These new findings guide the way toward a better understanding and further development of complex nanostructured materials with macroscopic orientational order.

Supplementary Materials

The following are available online at https://www.mdpi.com/2079-4991/10/9/1695/s1, Figure S1: Design of the 1-layer sheet (1LS). Top: Cross section. Below: Staple design, Figure S2: Design of the 2-layer sheet (2LS). Top: Cross section. Below: Staple design, Figure S3: Design of the 24-helix bundle (24HB). Top: Cross section. Below: Staple design, Figure S4: Design of the 18-helix bundle (18HB). Top: Cross section. Below: Staple design, Figure S5: Design of the 14-helix bundle (14HB). Top: Cross section. Below: Staple design, Figure S6: Cross section of the 6-helix bundle (6HB) design. The staple design of 6HB is given in Ref. 59, Figure S7: AFM images of (a) 1LS, (b) 2LS, (c) 24HB after dialysis from the folding buffer (1 × TE, 10–18 mM MgCl2) to an Mg2+-free buffer solution (1 × TE, 0,5 M NaCl). After dialysis, the shape of all origami did not change. The length and width remained the same as before dialysis.

Author Contributions

Investigation and analysis, B.Z.; optical setup for measuring the fluorescence dichroism, B.Z. and J.S.; DNA origami design and methodology, K.M., L.K., T.F., L.N., R.B., M.D., S.K. and T.L.; writing, B.Z.; supervision and project administration, T.L. and H.-S.K.; funding acquisition, B.Z., M.D. and T.L. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the President of Paderborn University (B.Z.), by the European Union’s Horizon 2020 research and innovation program under the Marie Skłodowska-Curie grant agreement No. 765703 (M.D.), and by the European Research Council under the European Union’s Horizon 2020 research and innovation program, grant agreement No. 818635, DNA Funs (T.L.).

Acknowledgments

The authors would like to thank Yang Xin and Adrian Keller for their help concerning the AFM experiments and Susanne Keuker-Baumann for her assistance in editing the manuscript.

Conflicts of Interest

The authors declare no conflict of interest. The funders had no role in the design of the study; in the collection, analyses, or interpretation of data; in the writing of the manuscript, or in the decision to publish the results.

Appendix A. Experimental Details

Appendix A.1. DNA Origami Synthesis

Sheet-like and rod-like DNA nanoparticles (n-layer sheets, nLS with n = 1 or 2, and n-helix bundles, nHB with n = 24, 18, 14 and 6) have been assembled from a single stranded DNA scaffold and 170 to 227 single stranded DNA oligomers (staples) (Table A1). The respective folding solution was composed of 5–15 nM scaffold and 50–150 nM staples in TE-/TE-buffer (“Rotistock”, Carl Roth, Karlsruhe, Germany) containing 10–18 mM magnesium chloride (MgCl2). Denaturation was carried out in a Thermocycler (Techne, 3Prime, Staffordshire, UK) by heating to 65 °C. Subsequently, the folding mixture was slowly (during 1.5 to more than 24 h) cooled to room temperature in order to allow the folding. Details of the folding process are given in Table A1. The DNA origami structures were tailored by computer aided design using the cadnano [24,60] and the CanDo software [25,26,61] and are presented in the Figures S1 to S6. The staple design of 6HB is given in Ref. [22].
Table
Table A1. Experimental details of the DNA nanoparticle synthesis via DNA origami (respective scaffold, number of staples, thermal treatment, buffer and salt concentration used for the folding procedure).
Table A1. Experimental details of the DNA nanoparticle synthesis via DNA origami (respective scaffold, number of staples, thermal treatment, buffer and salt concentration used for the folding procedure).
DesignNo. of Nucleotides of the ScaffoldNo. of StaplesCooling Duration of Folding (h)BufferConcentration of MgCl2 (mM)
1LS72491844.8TE16
2LS806422319.8TE16
24HB756021025.3TE14
18HB756019625.3TE18
14HB863422724.6TE18
6HB7249 11701.5TAE10
1 M13mp18 genome scaffold (from Tilibit Nanosystems GmbH, Garching, Germany).
The thickness of the DNA layer sheets and the diameter of helix bundles are calculated assuming a radius r = 1.0 nm for a single double-stranded DNA helix and a spacing of a = 2.6 nm between the centers of two interconnected helices (Figure A1).
Nanomaterials 10 01695 g0a1 550

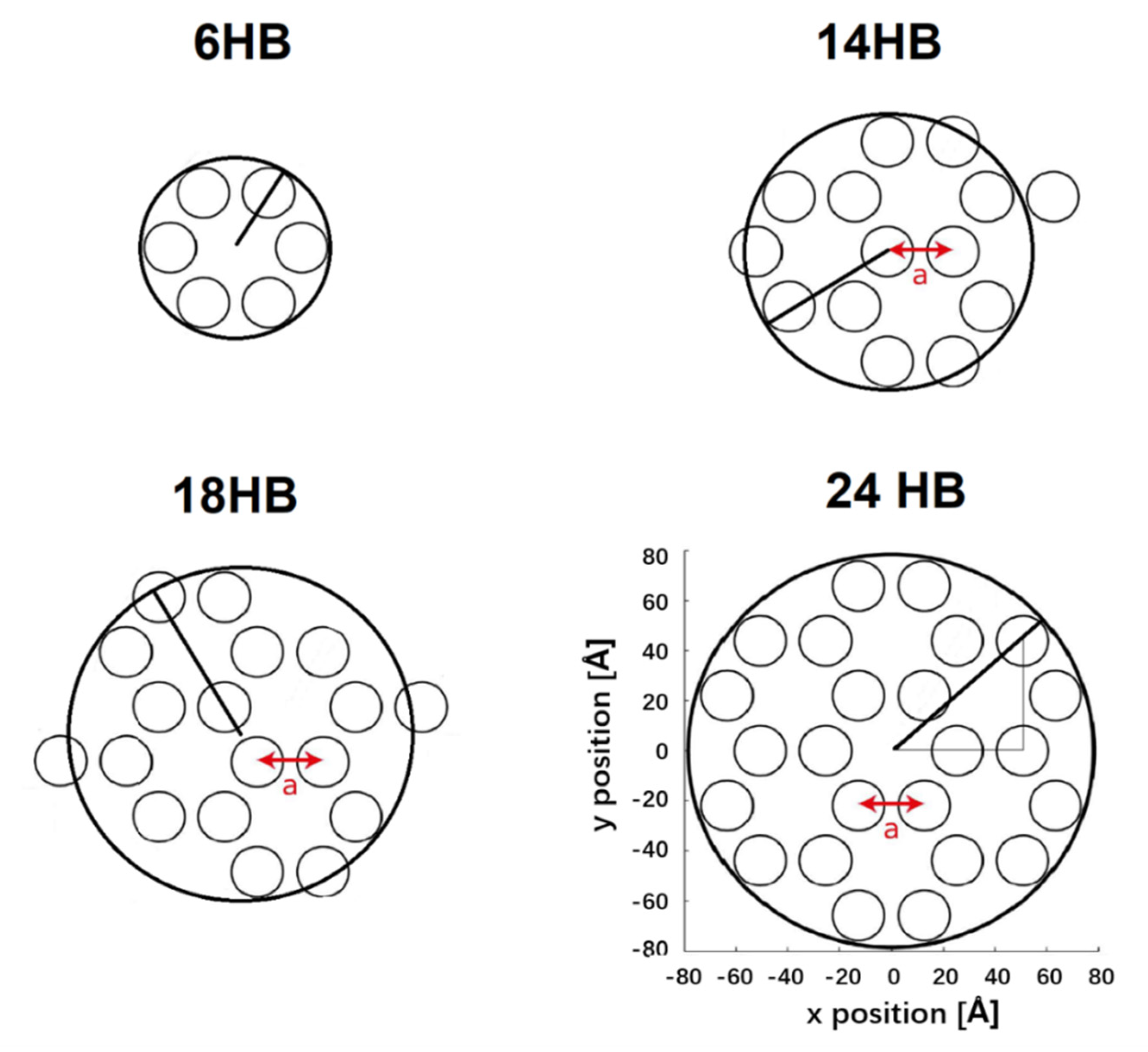

Figure A1. Cross section of DNA origami structure with 6HB, 14Hb, 18HB and 24HB; inter helical distance is a = 2.6 nm calculated with a DNA double strand radius of r = 1 nm and an inter-helical gap of 0.6 nm; Model of 6HB with a radius of R6HB = a + r, 14HB with a radius of R14HB = 3 a + r, 18HB with a radius of R18HB = ( 3 + 1/2) a + r, 24HB with a radius of R24HB = 7 a + r.
Figure A1. Cross section of DNA origami structure with 6HB, 14Hb, 18HB and 24HB; inter helical distance is a = 2.6 nm calculated with a DNA double strand radius of r = 1 nm and an inter-helical gap of 0.6 nm; Model of 6HB with a radius of R6HB = a + r, 14HB with a radius of R14HB = 3 a + r, 18HB with a radius of R18HB = ( 3 + 1/2) a + r, 24HB with a radius of R24HB = 7 a + r.
Nanomaterials 10 01695 g0a1
After assembly, 1LS, 2LS, 24HB, 18HB and 14HB origami nano-rods were purified by spin filtration (Amicon Ultra 0.5 mL, Ultracel 100 K, Merck, Darmstadt, Germany) and washing with 11 mM MgCl2-1× TE buffer to remove excess staple strands. 6HB was centrifugal filtered and washed with water.
The filtered DNA origami structures were immobilized on mica or TEM grids and analyzed by either transmission electron microscopy (TEM), model JEM-1011 (JEOL, Freising, Germany) or atomic force microscopy (AFM, Agilent 5500 und 5100 AFM, intermittent contact mode using silicon cantilevers (HQ:NSC18/Al BS from MikroMasch, Wetzlar, Germany).

Appendix A.2. Preparation of Liquid Crystal Nanocomposites

Disodium cromoglycate (DSCG) was purchased from Sigma-Aldrich and used as received. It was thoroughly mixed with milli-Q water by repeated heating, agitation, and exposure to ultrasound, until a homogeneous mixture containing 20 wt.% DSCG was obtained.
In earlier studies, it was found that MgCl2 can cause a precipitation of DSCG, even with a small concentration [54,55]. In order to avoid this precipitation of DSCG, folded DNA nanoparticles were transferred via dialysis from the folding buffer (1× TE, 10–18 mM MgCl2) to an Mg2+-free buffer solution (1× TE, 0.5 M NaCl). The concentration of the synthesized DNA nanoparticles was diluted to 20 nM, and this concentration was reconfirmed again using a microvolume spectrophotometer (Nanodrop 2000c) after dilution. After the salt exchange, the respective DNA origami sample was mixed with an aqueous solution of 20 wt.% DSCG in a 1:1 mixing ratio (by volume). The yields of the synthesized 1LS and 2LS are very low, therefore the concentration of these two DNA nanoparticles in the mixture is significantly lower than the others. In order to study the alignment of DNA origami nanoparticles, a dichroic intercalating fluorescent dye, acridine orange (AO), with a concentration of 50 µM was doped in the nanocomposite (Table A2).
Table
Table A2. Final concentration of the DNA nanoparticle, DSCG, acridine orange (AO), NaCl and buffer in the mixture.
Table A2. Final concentration of the DNA nanoparticle, DSCG, acridine orange (AO), NaCl and buffer in the mixture.
DNA NanoparticleFinal Concentration of DNA Nanoparticle [nM]Final Concentration of DSCG [wt.%]Final Concentration of AO [μM]Final Concentration of NaCl [M]Final Concentration of Buffer
1LS1.8110500.251×
2LS3.8810500.251×
24HB8.9010500.251×
18HB12.0010500.251×
14HB9.6310500.251×
6HB12.2810500.251×

Appendix A.3. Preparation of Nanocomposite Test Cells

Liquid crystal (LC) test cells were manufactured by two glass substrates coated with antiparallel rubbed polyimide (from the company E.H.C. Co., LTD., Tokyo, Japan). The EHC substrates were used without any cleaning and directly treated in O2-plasma (Harrick Plasma Cleaner/Sterilizer model PDC-32G, Ithaca, New York, NY, USA, 10 min excitation time) to completely remove any residues. Two substrates were assembled to a cell using 10 µm Mylar A spacer film. Before assembling the glasses, 20 µL nanocomposite solution was dropped in the middle of the lower substrate surface and then fixed with two-component epoxy glue and clamped with a plastic nylon spring clamp.

Appendix A.4. Characterization of the Aligned Sample

To characterize the alignment quality of nanocomposite filled cell, two crossed sheet polarizers were used. A spatially uniform brightness (Figure 3a) indicates uniform alignment of the DSCG director. Rotating the sample between crossed polarizers results in a periodic variation of the transmitted light intensity I, indicating planar alignment, where I = Imax sin2(2φ) is expected (φ being the azimuthal angle of the optical axis, i.e., the director). A first-order retardation λ-plate at φ = 45° was inserted to test the director orientation unambiguously (Figure 3b). For this purpose, the well-known interference colors of uniaxially birefringent samples were studied, which can be found in the well-known Michel–Levy chart (Figure 3c) in textbooks.

Appendix A.5. Alignment Study of the Dichroic Intercalating Fluorescent Dye

The alignment of acridine orange (AO) was investigated by measuring of their linear dichroism. For dichroic fluorescence measurements (Figure 2a), AO was excited with the linearly polarized beam of an argon-ion laser (wavelength 488 nm). To mimic unpolarized excitation, the cells were rotated by an azimuthal angle of 45° with respect to the polarization plane of the exciting beam. The emission contributions polarized parallel or perpendicular to the director of disodium cromoglycate (DSCG) were selected using a rotatable prism polarizer. These emission contributions were converted into circular polarized waves with opposite handedness by an achromatic quarter wavelength retarder and finally fed via fiber optics to a spectrometer (OceanOptics USB2000+UV-vis-ES, Ostfildern, Germany, spectral resolution 3 nm). The conversion from linear to circular polarization was performed, as the spectrometer had equal sensitivity for left- and right-handed circularly polarized light. All fluorescence experiments were carried out at room temperature (≈22 °C).

References

  1. De Gennes, P.G.; Prost, J. The Physics of Liquid Crystals; Oxford University Press: New York, NY, USA, 1993. [Google Scholar]
  2. Goodby, J.W.; Collings, P.J.; Kato, T.; Tschierske, C.; Gleeson, H.; Raynes, P. Handbook of Liquid Crystals; Wiley-VCH: Weinheim, Germany, 2014. [Google Scholar]
  3. Blinov, L.; Chigrinov, V.G. Electro-Optic Effects in Liquid Crystal Materials; Springer: New York, NY, USA, 1993. [Google Scholar]
  4. Smalyukh, I.I.; Lavrentovich, O.D.; Kuzmin, A.N.; Kachynski, A.V.; Prasad, P.N. Elasticity-mediated self-organization and colloidal interactions of solid spheres with tangential anchoring in a nematic liquid crystal. Phys. Rev. Lett. 2005, 95, 157801. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  5. Musevic, I.; Skarabot, M.; Tkalec, U.; Ravnik, M.; Žumer, S. Two-dimensional nematic colloidal crystals self-assembled by topological defects. Science 2006, 313, 954–958. [Google Scholar] [CrossRef] [PubMed]
  6. Musevic, I. Interactions, topology and photonic properties of liquid crystal colloids and dispersions. Eur. Phys. J. Spec. Top. 2019, 227, 2455–2485. [Google Scholar] [CrossRef]
  7. Van der Schoot, P.; Popa-Nita, V.; Kralj, S. Alignment of carbon nanotubes in nematic liquid crystals. J. Phys. Chem. B 2008, 112, 4512–4518. [Google Scholar] [CrossRef] [PubMed]
  8. Liu, Q.; Cui, Y.; Gardner, D.; Li, X.; He, S.; Smalyukh, I.I. Self-alignment of plasmonic gold nanorods in reconfigurable anisotropic fluids for tunable bulk metamaterial applications. Nano Lett. 2010, 10, 1347–1353. [Google Scholar] [CrossRef] [PubMed]
  9. Liu, Q.; Yuan, Y.; Smalyukh, I.I. Electrically and optically tunable plasmonic guest-host liquid crystals with long-range ordered nano-particles. Nano Lett. 2014, 14, 4071–4077. [Google Scholar] [CrossRef]
  10. Muhammed, R.M.; Ravi, K.P.; Surajit, D. Colloidal analogues of polymer chains, ribbons and 2D crystals employing orientations and interactions of nano-rods dispersed in a nematic liquid crystal. Nat. Sci. Rep. 2019, 9, 4652. [Google Scholar]
  11. Dierking, I.; Al-Zangana, S. Lyotropic liquid crystal phases from anisotropic nanomaterials. Nanomaterials 2017, 7, 305. [Google Scholar] [CrossRef]
  12. Nakata, M.; Zanchetta, G.; Chapman, B.D.; Jones, C.D.; Cross, J.O.; Pindak, R.; Bellini, T.; Clark, N.A. End-to-end stacking and liquid crystal condensation of 6-to 20-base pair DNA duplexes. Science 2007, 318, 1276–1279. [Google Scholar] [CrossRef]
  13. Zanchetta, G.; Giavazzi, F.; Nakata, M.; Buscaglia, M.; Cerbino, R.; Clark, N.A.; Bellini, T. Right-handed double-helix ultrashort DNA yields chiral nematic phases with both right- and left-handed director twist. Proc. Natl. Acad. Sci. USA 2010, 107, 17497–17502. [Google Scholar] [CrossRef] [Green Version]
  14. Bellini, T.; Zanchetta, G.; Fraccia, T.P.; Cerbino, R.; Tsai, E.; Smith, G.P.; Moran, M.J.; Walba, D.M.; Clark, N.A. Liquid crystal self-assembly of random-sequence DNA oligomers. Proc. Natl. Acad. Sci. USA 2012, 109, 1110–1115. [Google Scholar] [CrossRef] [Green Version]
  15. Fraccia, T.P.; Smith, G.P.; Zanchetta, G.; Paraboschi, E.; Yi, Y.; Walba, D.M.; Dieci, G.; Clark, N.A.; Bellini, T. Abiotic ligation of DNA oligomers templated by their liquid crystal ordering. Nat. Commun. 2015, 6, 6424. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  16. Liu, K.; Chen, D.; Marcozzi, A.; Zheng, L.; Su, J.; Pesce, D.; Zajaczkowski, W.; Kolbe, A.; Pisula, W.; Müllen, K.; et al. Thermotropic liquid crystals from biomacromolecules. Proc. Natl. Acad. Sci. USA 2014, 111, 18596–18600. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  17. Douglas, S.M.; Chou, J.J.; Shih, W.M. DNA-nanotube-induced alignment of membrane proteins for NMR structure determination. Proc. Natl. Acad. Sci. USA 2007, 104, 6644–6648. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  18. Siavashpouri, M.; Wachauf, C.H.; Zakhary, M.J.; Praetorius, F.; Dietz, H.; Dogic, Z. Molecular engineering of chiral colloidal liquid crystals using DNA origami. Nat. Mater. 2017, 16, 849–856. [Google Scholar] [CrossRef] [PubMed]
  19. Rothemund, P.W.K. Folding DNA to create nanoscale shapes and patterns. Nature 2006, 440, 297–302. [Google Scholar] [CrossRef] [Green Version]
  20. Douglas, S.M.; Dietz, H.; Liedl, T.; Högberg, B.; Graf, F.; Shih, W.M. Self-assembly of DNA into nanoscale three-dimensional shapes. Nature 2009, 459, 414–418. [Google Scholar] [CrossRef]
  21. Kuzuya, A.; Komiyama, M. DNA origami: Fold, stick, and beyond. Nanoscale 2010, 2, 310–322. [Google Scholar] [CrossRef]
  22. Bui, H.; Onodera, C.; Kidwell, C.; Tan, Y.; Graugnard, E.; Kuang, W.; Lee, J.; Knowlton, W.B.; Yurke, B.; Hughes, W.L. Programmable periodicity of quantum dot arrays with DNA origami nanotubes. Nano Lett. 2010, 10, 3367–3372. [Google Scholar] [CrossRef]
  23. Tørring, T.; Voigt, N.V.; Nangreave, J.; Yan, H.; Gothelf, K.V. DNA origami: A quantum leap for self-assembly of complex structures. Chem. Soc. Rev. 2011, 40, 5636–5646. [Google Scholar] [CrossRef]
  24. Douglas, S.M.; Marblestone, A.H.; Teerapittayanon, S.; Vazquez, A.; Church, G.M.; Shih, W.M. Rapid prototyping of 3D DNA-origami shapes with caDNAno. Nucleic Acids Res. 2009, 37, 5001–5006. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  25. Castro, C.E.; Kilchherr, F.; Kim, D.N.; Shiao, E.L.; Wauer, T.; Wortmann, P.; Bathe, M.; Dietz, H. A primer to scaffolded DNA origami. Nat. Methods 2011, 8, 221–229. [Google Scholar] [CrossRef] [PubMed]
  26. Kim, D.N.; Kilchherr, F.; Dietz, H.; Bathe, M. Quantitative prediction of 3D solution shape and flexibility of nucleic acid nanostructures. Nucleic Acids Res. 2012, 40, 2862–2868. [Google Scholar] [CrossRef]
  27. Fischer, S.; Hartl, C.; Frank, K.; Rädler, J.O.; Liedl, T.; Nickel, B. Shape and interhelical spacing of DNA origami nanostructures studied by small-angle X-ray scattering. Nano Lett. 2016, 16, 4282–4287. [Google Scholar] [CrossRef]
  28. Xia, K.; Shen, J.; Li, Q.; Fan, C.; Gu, H. Near-atomic fabrication with nucleic acids. ACS Nano 2020, 14, 1319–1337. [Google Scholar] [CrossRef]
  29. Fan, S.; Wang, D.; Kenaan, A.; Cheng, J.; Cui, D.; Song, J. Create nanoscale patterns with DNA origami. Small 2019, 15, 1805554. [Google Scholar] [CrossRef]
  30. Wang, P.; Meyer, T.A.; Pan, V.; Dutta, P.K.; Ke, Y. The beauty and utility of DNA origami. Chem 2017, 2, 359–382. [Google Scholar] [CrossRef] [Green Version]
  31. Hong, F.; Zhang, F.; Liu, Y.; Yan, H. DNA origami: Scaffolds for creating higher order structures. Chem. Rev. 2017, 117, 12584–12640. [Google Scholar] [CrossRef]
  32. Kuzyk, A.; Jungmann, R.; Acuna, G.P.; Liu, N. DNA origami route for nanophotonics. ACS Photonics 2018, 5, 1151–1163. [Google Scholar] [CrossRef] [Green Version]
  33. Liu, N.; Liedl, T. DNA-assembled advanced plasmonic architectures. Chem. Rev. 2018, 118, 3032–3053. [Google Scholar] [CrossRef]
  34. Balakrishnan, D.; Wilkens, G.D.; Heddle, J.G. Delivering DNA origami to cells. Nanomedicine 2019, 14, 911–925. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  35. Lu, X.; Liu, J.; Wu, X.; Ding, B. Multifunctional DNA origami nanoplatforms for drug delivery. Chem. Asian J. 2019, 14, 2193–2202. [Google Scholar] [CrossRef] [PubMed]
  36. Heuer-Jungemann, A.; Liedl, T. From DNA tiles to functional DNA materials. Trends Chem. 2019, 1, 799–814. [Google Scholar] [CrossRef]
  37. Bila, H.; Kurisinkal, E.E.; Bastings, M.M.C. Engineering a stable future for DNA-origami as a biomaterial. Biomater. Sci. 2019, 7, 532–541. [Google Scholar] [CrossRef]
  38. Ijäs, H.; Nummelin, S.; Shen, B.; Kostiainen, M.A.; Linko, V.L. Dynamic DNA origami devices: From strand-displacement reactions to external-stimuli responsive systems. Int. J. Mol. Sci. 2018, 19, 2114. [Google Scholar] [CrossRef] [Green Version]
  39. Endo, M.; Sugiyama, H. DNA origami nanomachines. Molecules 2018, 23, 1766. [Google Scholar] [CrossRef] [Green Version]
  40. Dong, J.; Zhou, C.; Wang, Q. Towards active self-assembly through DNA nanotechnology. Top. Curr. Chem. 2020, 378, 33. [Google Scholar] [CrossRef]
  41. Lydon, L. Chromonic review. J. Mater. Chem. 2010, 20, 10071–10099. [Google Scholar] [CrossRef]
  42. Lydon, L. Chromonic liquid crystalline phase. Liq. Cryst. 2011, 38, 11–12. [Google Scholar] [CrossRef]
  43. Horowitz, V.R.; Janowitz, L.A.; Modic, L.A.; Heiney, P.A.; Collings, P.J. Aggregation behavior and chromonic liquid crystal properties of an anionic monoazo dye. Phys. Rev. E 2005, 72, 041710. [Google Scholar] [CrossRef] [Green Version]
  44. Nastishin, Y.A.; Liu, H.; Schneider, T.; Nazarenko, V.; Vasyuta, R.; Shiyanovskii, S.V.; Lavrentovich, O.D. Optical characterization of the nematic lyotropic chromonic liquid crystals: Light absorption, birefringence, and scalar order parameter. Phys. Rev. E 2005, 72, 041711. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  45. Shiyanovskii, S.V.; Schneider, T.; Smalyukh, I.I.; Ishikawa, T.; Niehaus, G.D.; Doane, K.J.; Woolverton, C.J.; Lavrentovich, O.D. Real-time microbe detection based on director distortions around growing immune complexes in lyotropic chromonic liquid crystals. Phys. Rev. E 2005, 71, 020702. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  46. Tam-Chang, S.-W.; Huang, L. Chromonic liquid crystals: Properties and applications as functional materials. Chem. Commun. 2008, 17, 1957–1967. [Google Scholar] [CrossRef] [PubMed]
  47. Collings, P.J.; Dickinson, A.J.; Smith, E.C. Molecular aggregation and chromonic liquid crystals. Liq. Cryst. 2010, 37, 701–710. [Google Scholar] [CrossRef]
  48. Agra-Kooijman, D.M.; Singh, G.; Lorenz, A.; Collings, P.J.; Kitzerow, H.-S.; Kumar, S. Columnar molecular aggregation in the aqueous solutions of disodium cromoglycate. Phys. Rev. E 2014, 89, 062504. [Google Scholar] [CrossRef] [Green Version]
  49. Gao, M.; Kim, Y.-K.; Zhang, C.; Borshch, V.; Zhou, S.; Park, H.-S.; Jákli, A.; Lavrentovich, O.D.; Tamba, M.-G.; Kohlmeier, A.; et al. Direct observation of liquid crystals using cryo-TEM: Specimen preparation and low-dose imaging. Microsc. Res. Tech. 2014, 77, 754–772. [Google Scholar] [CrossRef] [Green Version]
  50. Zhou, S.; Nastishin, Y.A.; Omelchenko, M.M.; Tortora, L.; Nazarenko, V.G.; Boiko, O.P.; Ostapenko, T.; Hu, T.; Almasan, C.C.; Sprunt, S.N.; et al. Elasticity of lyotropic chromonic liquid crystals probed by director reorientation in a magnetic field. Phys. Rev. Lett. 2012, 109, 037801. [Google Scholar] [CrossRef] [Green Version]
  51. McGinn, C.K.; Laderman, L.I.; Zimmermann, N.; Kitzerow, H.-S.; Collings, P.J. Planar anchoring strength and pitch measurements in achiral and chiral chromonic liquid crystals using 90-degree twist cells. Phys. Rev. E 2013, 88, 062513. [Google Scholar] [CrossRef] [Green Version]
  52. Zhou, S.; Neupane, K.; Nastishin, Y.A.; Baldwin, A.R.; Shiyanovskii, S.V.; Lavrentovich, O.D.; Sprunt, S. Elasticity, viscosity, and orientational fluctuations of a lyotropic chromonic nematic liquid crystal disodium cromoglycate. Soft Matter 2014, 10, 6571–6581. [Google Scholar] [CrossRef]
  53. Zimmermann, N.; Jünnemann-Held, G.; Collings, P.J.; Kitzerow, H.-S. Self-organized assemblies of colloidal particles obtained from an aligned chromonic liquid crystal dispersion. Soft Matter 2015, 11, 1547–1553. [Google Scholar] [CrossRef] [Green Version]
  54. Zhang, B.; Kitzerow, H.-S. Influence of proton and salt concentration on the chromonic liquid crystal phase diagram of disodium cromoglycate solutions: Prospects and limitations of a host for DNA nanostructures. J. Phys. Chem. B 2016, 120, 3250–3256. [Google Scholar] [CrossRef]
  55. Martens, K.; Funck, T.; Kempter, S.; Roller, E.-M.; Liedl, T.; Blaschke, B.M.; Knecht, P.; Garrido, J.A.; Zhang, B.; Kitzerow, H.-S. Alignment and graphene-assisted decoration of lyotropic chromonic liquid crystals containing DNA origami nanostructures. Small 2016, 12, 1658–1666. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  56. Atorf, A.; Funck, T.; Hegmann, T.; Kempter, S.; Liedl, T.; Martens, H.; Mühlenbernd, H.; Zentgraf, T.; Zhang, B.; Kitzerow, H.; et al. Liquid crystals and precious metal: From nano-particle dispersions to functional plasmonic nanostructures. Liquid Cryst. 2017, 44, 1929–1947. [Google Scholar] [CrossRef]
  57. Martin, T.G.; Dietz, H. Magnesium-free self-assembly of multi-layer DNA objects. Nat. Commun. 2012, 3, 1103. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  58. Baker, M.A.B.; Tuckwell, A.J.; Berengut, J.F.; Bath, J.; Benn, F.; Duff, A.P.; Whitten, A.E.; Dunn, K.E.; Hynson, R.M.; Turberfield, A.J.; et al. Dimensions and global twist of single-layer DNA origami measured by small-angle X-ray scattering. ACS Nano 2018, 12, 5791–5799. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  59. Snodin, B.E.K.; Schreck, J.S.; Romano, F.; Louis, A.A.; Doye, J.P.K. Coarse-grained modelling of the structural properties of DNA origami. Nucleic Acids Res. 2019, 47, 1585–1597. [Google Scholar] [CrossRef] [Green Version]
  60. Cadnano. Available online: https://cadnano.org (accessed on 10 March 2020).
  61. CanDo. Available online: https://cando-dna-origami.org (accessed on 10 March 2020).
Nanomaterials 10 01695 g001 550
Figure 1. Compounds and nanostructures used in this study. (a) Chemical structure of the Disodium cromoglycate (DSCG) molecule. (b) Structure of the chromonic N phase [41], which consists of columnar molecular aggregates that are orientationally ordered. (c–e), (g,h) Atomic force microscope (AFM) images and (f) transmission electron microscopy (TEM) image of (c) 1LS (layer sheets), (d) 2LS, (e) 24HB (helix bundles), (f) 18HB, (g) 14HB and (h) 6HB, respectively.
Figure 1. Compounds and nanostructures used in this study. (a) Chemical structure of the Disodium cromoglycate (DSCG) molecule. (b) Structure of the chromonic N phase [41], which consists of columnar molecular aggregates that are orientationally ordered. (c–e), (g,h) Atomic force microscope (AFM) images and (f) transmission electron microscopy (TEM) image of (c) 1LS (layer sheets), (d) 2LS, (e) 24HB (helix bundles), (f) 18HB, (g) 14HB and (h) 6HB, respectively.
Nanomaterials 10 01695 g001
Nanomaterials 10 01695 g002 550

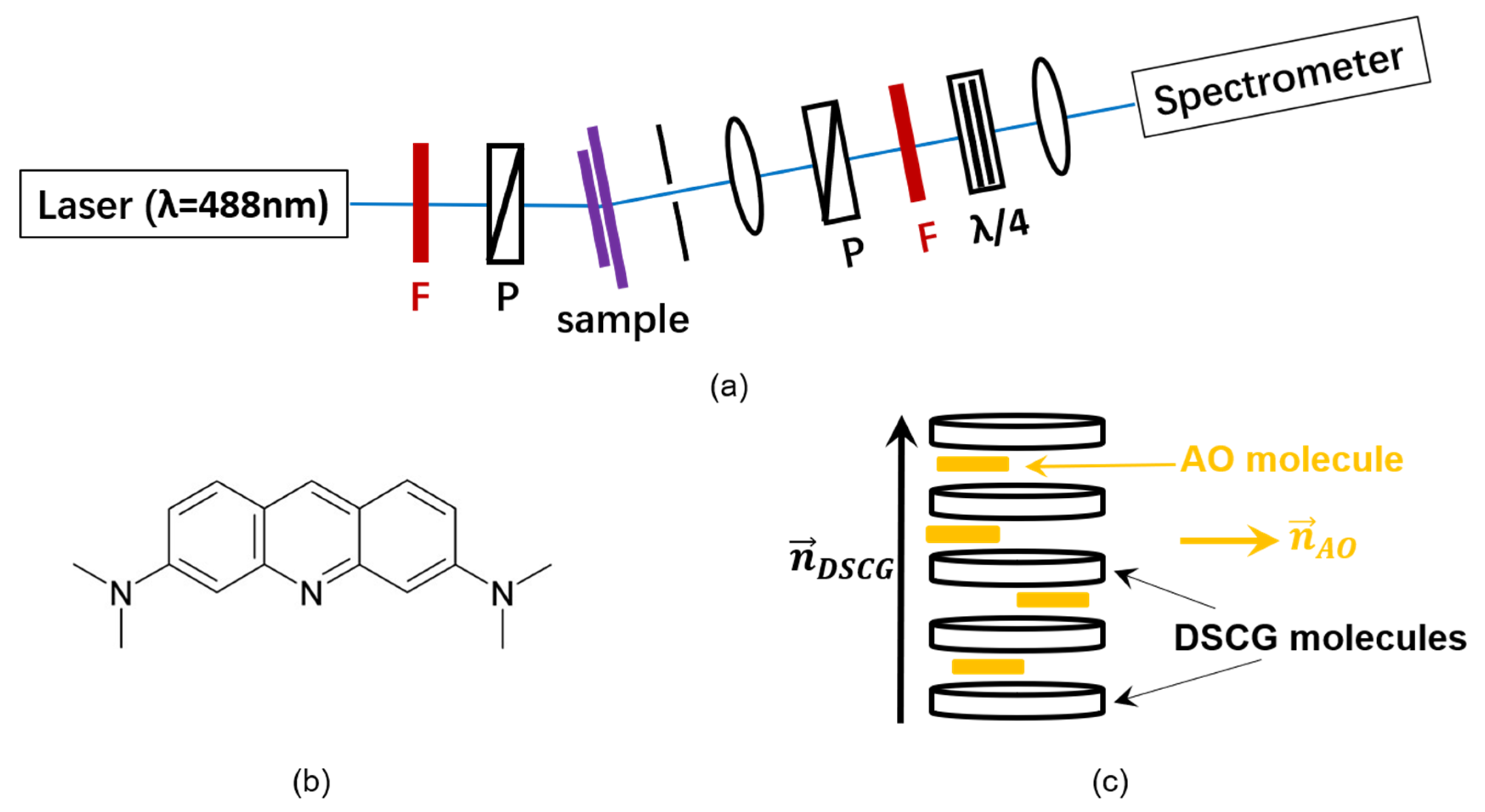

Figure 2. Principles of fluorescence dichroism. (a) Experimental setup. F: color filters; P: linear polarizers; λ/4: quarter wave plate. Rotating the polarizers yields the maximum and the minimum fluorescence intensity. (b) Chemical structure of an acridine orange (AO) molecule. (c) Interaction of the dye with columnar DSCG aggregates.
Figure 2. Principles of fluorescence dichroism. (a) Experimental setup. F: color filters; P: linear polarizers; λ/4: quarter wave plate. Rotating the polarizers yields the maximum and the minimum fluorescence intensity. (b) Chemical structure of an acridine orange (AO) molecule. (c) Interaction of the dye with columnar DSCG aggregates.
Nanomaterials 10 01695 g002
Nanomaterials 10 01695 g003 550

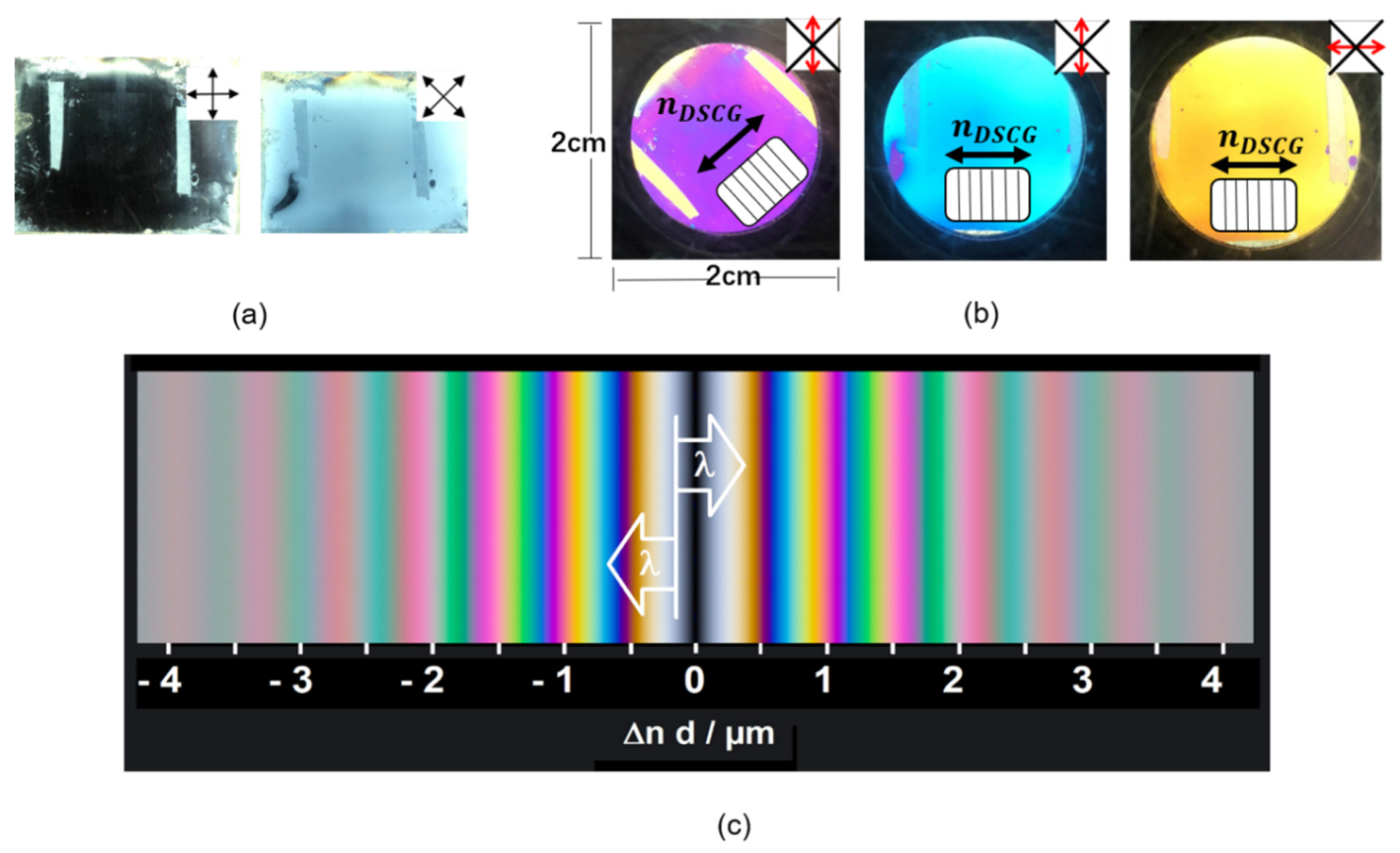

Figure 3. Experimental results indicating uniform alignment and orientational order in chromonic liquid crystal (LC) samples. (a,b) Polarized optical images of a nanocomposite containing DSCG and DNA nanostructures in an antiparallel rubbed polyimide (PI) cell, (a) between crossed polarizers (upper right corner: polarization planes) and (b) together with the a λ-retardation plate (slow axis marked red) between crossed polarizers (marked dark). (c) Michel–Levy chart of interference colors from birefringent samples.
Figure 3. Experimental results indicating uniform alignment and orientational order in chromonic liquid crystal (LC) samples. (a,b) Polarized optical images of a nanocomposite containing DSCG and DNA nanostructures in an antiparallel rubbed polyimide (PI) cell, (a) between crossed polarizers (upper right corner: polarization planes) and (b) together with the a λ-retardation plate (slow axis marked red) between crossed polarizers (marked dark). (c) Michel–Levy chart of interference colors from birefringent samples.
Nanomaterials 10 01695 g003
Nanomaterials 10 01695 g004 550

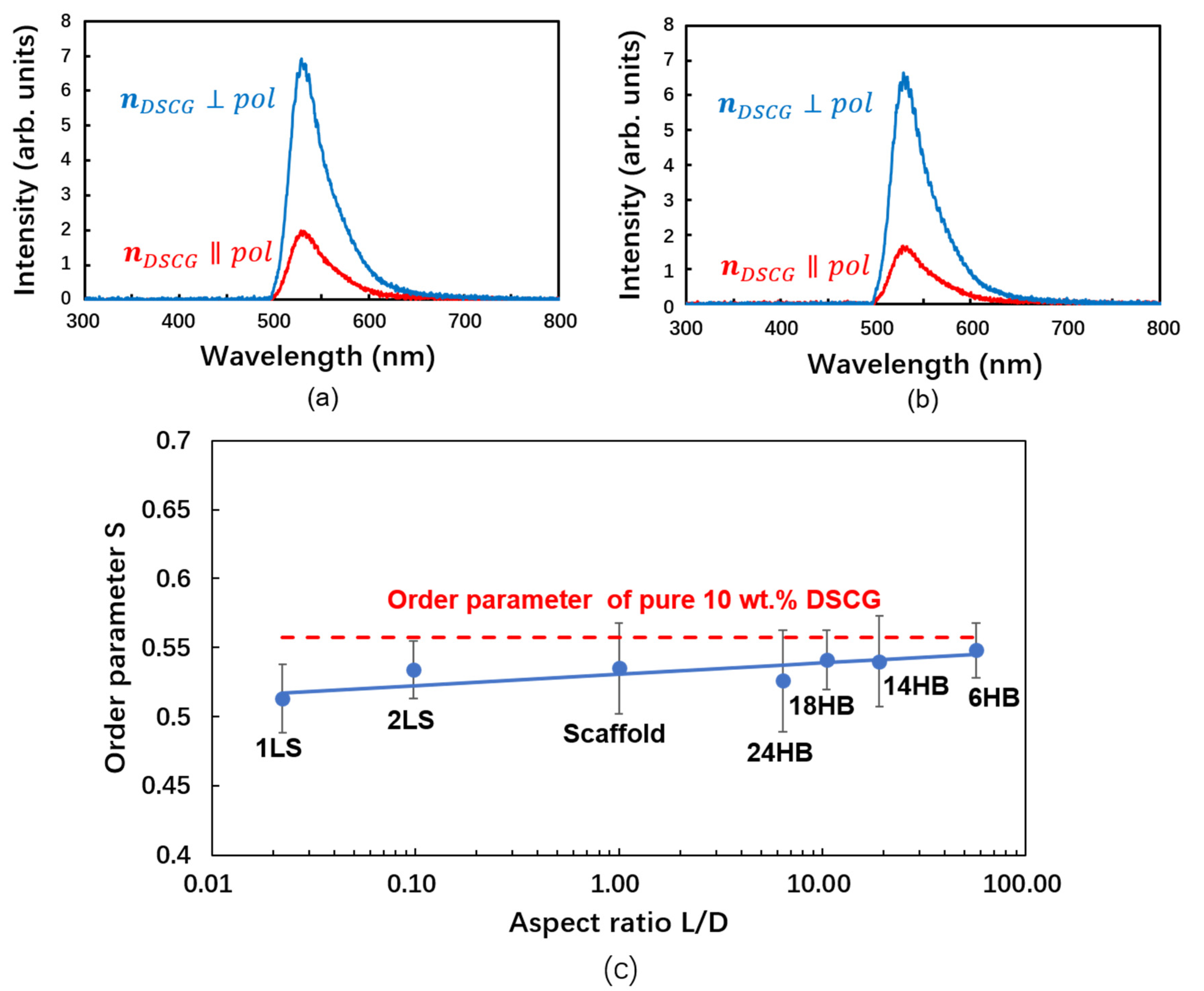

Figure 4. Fluorescence dichroism and order parameter of DSCG solution and respective DNA–NP nanocomposites. (a) Polarized fluorescence spectra of 50 µM AO in the presence of 10 wt.% DSCG without any DNA nano-rods. (b) Polarized fluorescence spectra of 50 µM AO in the presence of 10 wt.% DSCG and 8.9 nM 24-helix bundles (24HB). The striking similarity of the fluorescence intensities observed for DSCG samples (a) without DNA–NPs and (b) with DNA–NPs reveals that the presence of small amounts of DNA–NPs does not affect the fluorescence dichroism, which indicates the alignment of the DSCG aggregates. (c) Order parameter of DSCG versus aspect ratio of the DNA nanostructures that are added.
Figure 4. Fluorescence dichroism and order parameter of DSCG solution and respective DNA–NP nanocomposites. (a) Polarized fluorescence spectra of 50 µM AO in the presence of 10 wt.% DSCG without any DNA nano-rods. (b) Polarized fluorescence spectra of 50 µM AO in the presence of 10 wt.% DSCG and 8.9 nM 24-helix bundles (24HB). The striking similarity of the fluorescence intensities observed for DSCG samples (a) without DNA–NPs and (b) with DNA–NPs reveals that the presence of small amounts of DNA–NPs does not affect the fluorescence dichroism, which indicates the alignment of the DSCG aggregates. (c) Order parameter of DSCG versus aspect ratio of the DNA nanostructures that are added.
Nanomaterials 10 01695 g004
Table
Table 1. Order parameter of DSCG samples doped with DNA origami nanoparticles exhibiting different aspect ratios. AFM and TEM images of these DNA origami nanostructures are displayed in Figure 1c,d,e,g,h,f, respectively.
Table 1. Order parameter of DSCG samples doped with DNA origami nanoparticles exhibiting different aspect ratios. AFM and TEM images of these DNA origami nanostructures are displayed in Figure 1c,d,e,g,h,f, respectively.
DNA Origami DesignLth (nm)Lexp (nm)Dth (nm)Dexp (nm)Lth/DthS
1LS2.001.9989.9243.880.020.51
2LS4.603.2347.1434.700.100.53
24HB107.10105.0016.764.666.390.53
18HB142.80139.7813.604.4610.500.54
14HB209.68237.0011.004.0919.060.54
6HB410.78405.007.201.5857.050.55
