Graphite Felt Modified by Atomic Layer Deposition with TiO2 Nanocoating Exhibits Super-Hydrophilicity, Low Charge-Transform Resistance, and High Electrochemical Activity

by
Wen-Jen Lee
1,*,
Yu-Ting Wu
1,
Yi-Wei Liao
2 and
Yen-Ting Liu
2
1
Department of Applied Physics, National Pingtung University, Pingtung 90003, Taiwan
2
Department of Applied Chemistry, National Pingtung University, Pingtung 90003, Taiwan
*
Author to whom correspondence should be addressed.
Nanomaterials 2020, 10(9), 1710; https://doi.org/10.3390/nano10091710
Submission received: 6 August 2020 / Revised: 26 August 2020 / Accepted: 28 August 2020 / Published: 29 August 2020
Browse Figures
Versions Notes

Abstract

:
Graphite felt (GF) is a multi-functional material and is widely used as electrodes of electrochemical devices for energy and environmental applications. However, due to the inherent hydrophobicity of graphite felt, it must be hydrophilically pretreated to obtain good electrochemical activity. Metal oxides coating is one of the feasible methods to modify the surface of GF, and in order to ensure that the metal oxides have a better conductivity for obtaining higher electrochemical activity, a subsequent H2 heat-treatment process is usually adopted. In this study, atomic layer deposition (ALD) is used to deposit TiO2 nanocoating on graphite felt (GF) for surface modification without any H2 thermal post-treatment. The results show that the ALD-TiO2-modified GF (ALD-TiO2/GF) owns excellent hydrophilicity. Moreover, the ALD-TiO2/GF exhibits excellent electrochemical properties of low equivalent series resistance (Rs), low charge-transfer resistance (Rct), and high electrochemical activity. It demonstrates that ALD is an applicable technique for modifying the GF surface. In addition, it can be reasonably imagined that not only TiO2 film can effectively modify the GF surface, but also other metal oxides grown by ALD with nanoscale-thickness can also obtain the same benefits. We anticipate this work to be a starting point for modifying GF surface by using ALD with metal oxides nanocoating.

1. Introduction

Graphite felt (GF) has a three-dimensional (3D) porous structure with high specific surface area [1,2] and numerous outstanding properties such as excellent electrical conductivity, flexibility, corrosion resistance and electrochemical stability [3,4]. Therefore, it has been widely studied as electrodes for energy and environmental applications that include vanadium redox flow batteries (VRFBs) [5,6], super capacitors [7,8,9,10], microbial fuel cells (MFCs) [11,12], biofuel cells (BFCs) [13,14], electro-Fenton (EF) process [15,16,17] and so forth.
However, GF has a hydrophobic surface property in nature, resulting in its poor electrochemical activity in aqueous solution and a low performance of GF-based electrochemical devices [18]. In order to improve the electrochemical activity of GF, the hydrophobic surface of original GF should be modified to hydrophilic surface, moreover, the GF should be maintained native good electrical conductivity simultaneously.
Kozbial et al. reported [19] that the hydrophobicity of graphite surface is attributed to the adsorption of hydrophobic organic pollutants (i.e., hydrocarbons) in the atmospheric environment and the graphite surface can be hydrophilic if the adsorbed organic pollutants are removed. In addition, Le et al. indicated that attaching oxygen-containing functional groups to the surface of GF can effectively increase its hydrophilicity and electrochemical activity [18].
Several methods have been successfully applied to modify the GF surface at various conditions, including plasma treatment [20,21], chemical treatment [22,23,24,25,26,27], thermal treatment [28,29,30,31,32], nitrogenization treatment [33,34,35], carbon nanomaterials based modification [36,37,38,39], nanostructural metals [40,41,42,43] and metal oxides [44,45] decorating.
In general, an appropriate method for surface-modification of GF must include the following requirements. Firstly, the method should change the GF surface from hydrophobic to hydrophilic property to obtain a low interface resistance (low charge-transfer resistance, Rct) between the modified GF-based electrode and electrolyte for fast charge-transfer reactions. Secondly, the modified GF should maintain primitive excellent conductivity of original GF to receive a low equivalent series resistance (Rs). To improve the electrochemical activity of GF, all of the above characteristics should be satisfied simultaneously. Finally, the modified GF must maintain long-term stability of hydrophilicity and excellent chemical stability to sustain corrosive electrolyte of electrochemical devices such as vanadium redox flow batteries (VRFBs), aluminum-ion batteries and so forth.
The GF modified with metal oxides decorating or coating exhibits long-term stable hydrophilicity and chemical stability. However, the conductivity of metal oxides is generally varied with the impurity and defect concentration in the oxides. If the metal oxides have poor conductivity, the conductivity of GF will decrease and result in its poor electrochemical activity. Therefore, in order to enhance the electrochemical activity of GF modified with metal oxides, typically a post-annealing process in a reducing atmosphere (containing H2 gas) is necessary. Because the concentration of oxygen vacancies in the lattice of metal oxides will be increased during the H2 thermal treatment process to form defect-rich non-stoichiometric metal oxides, a lower resistance of metal oxides for obtaining higher electrochemical activity is found [46,47].
In this work, a nanocoating TiO2 film (about 10 nm) is grown on the GF surface by atomic layer deposition (ALD) for surface-modification of GF and without any H2 thermal treatment process. TiO2 is a native hydrophilic material with outstanding chemical stability. Thus, the hydrophobic surface of GF can be modified to hydrophilic by coating with TiO2 films, and the TiO2 surface-coating can withstand the corrosion of strong corrosive electrolyte when the TiO2-modified GF is applied to electrochemical devices. ALD is an advanced technique for growing highly conformal thin films on the surfaces of three-dimensional complex-structures and nanostructures with atomic-level thickness control and excellent coating uniformity [48,49,50]. Moreover, conformal TiO2 thin films with nanoscale-thickness have been successfully coated on carbon nanotube (CNT) fibers and graphite fibers by using ALD technique [51,52,53]. Therefore, a 10-nm-thick TiO2 film can be uniformly coated on the GF surface by ALD technology with accurate control of film thickness at the nanoscale. We make the TiO2 film with an ultra-thin thickness of 10 nm and a nanocrystalline structure, which not only confers hydrophilicity to GF but also ensures that the ALD-TiO2-modified GF (ALD-TiO2/GF) has a sufficiently low resistance for achieving excellent electrochemical activity (the reason and design concept will be explained later).
The results show that the ALD-TiO2/GF has a super-hydrophilic property and retains a good conductivity, the same as the original GF (see Supplementary Video and Materials, Figure S1). The electrochemical measurements of cyclic voltammetry (CV) and electrochemical impedance spectroscopy (EIS) show that the electrochemical activity of GF is significantly improved by an order of magnitude of two via ALD-TiO2 modification. Besides, both original GF and ALD-TiO2/GF have a similar low equivalent series resistance (Rs), which is about 5.85 and 3.62 Ω for original GF and ALD-TiO2/GF, respectively. However, ALD-TiO2/GF has a charge-transfer resistance (Rct) of about 0.28 Ω, which is 100 times lower than the original GF of about 24.88 Ω.
As the excellent electrochemical properties, it is expected that the ALD-TiO2/GF electrode has potential applications in vanadium redox flow batteries (VRFB), aluminum-ion batteries, and other electrochemical energy-storage devices. Additionally, this work demonstrates that ALD technology is an applicable method for surface modification of GF. It is believed that not only TiO2 films are effective in modifying GF surface but also other metal oxide films grown by ALD with nanoscale thickness can be applied for surface modification of GF.

2. Materials and Methods

2.1. Surface Modification of GF

For surface modification of GF, a low-pressure ALD system was used to coat a thin TiO2 film on the surface of GF (the thickness of GF is about 2 mm). The process includes 3 steps, as follows:
(1)
Removing the surface-adsorbed organic pollutants of GF: the original GF was introduced into the ALD reactor and then the GF was annealed at 500 °C for 2 h in the ALD reactor. The purpose of this step is to remove organic pollutants adsorbed on the surface of GF by thermal decomposition, to ensure that the GF has a clean and hydrophilic surface for ALD process.
(2)
Ultra-thin amorphous TiO2 film coated on the GF surface by ALD: a 10-nm-thick TiO2 film was coated on the GF surface by ALD with 100 ALD-cycles at 60 °C for which the details of the ALD process were described in our previous works [54,55,56]. Briefly, TiCl4 and H2O were used as the precursors, Ar was used as the purge gas, and the growth rate is about 0.1 nm per cycle. In this step, an ultra-thin amorphous TiO2 film is uniformly coated on all the surfaces of the GF to form ALD-TiO2/GF sample.
(3)
Nanocrystallization of TiO2 film: TiO2 grown at the low temperature of 60 °C has an amorphous structure. In order to improve the corrosion resistance and activity of TiO2, a post-annealing process was performed at 500 °C for 2h in the ALD reactor to transform the TiO2 surface coating from an amorphous into an anatase crystal structure.

Design Concept of This Study

The design concept of the above process is shown in Figure 1. The well-known Equation (1) shows the relationship between the resistance, resistivity, length, and area of a material.
R = ρ L A
where R is the resistance of the material, ρ is the resistivity of the material, L is the transmission length of charges transfer in the material, and A is the cross-sectional area of material perpendicular to the current direction. According to the Equation (1), it can be known that if we reduce ρ, shorten L or increase A, then the R will be reduced.
In this work, ρ is the resistivity of TiO2 film, L is the thickness of TiO2 film, and A is the surface area of graphite felt for TiO2 film deposition. Thus, reducing ρ and L of TiO2 film are the developing directions that can be striven in this work. In this study, in order to reduce the resistance (R) of the TiO2 coating on the GF surface, on the one hand, a nanoscale-thick (~10 nm) TiO2 film was grown on the GF to shorten L. On the other hand, a two-step process (firstly growing an amorphous film at low temperature, and then raising the temperature to crystallize the film) was used to obtain a nanocrystalline TiO2 film. It is noticed that my previous work [55] and other previous studies [51,52] have confirmed that nanocrystalline TiO2 films can be obtained by the two-step process. Since the nanocrystalline TiO2 film has a large amount of grain boundary defects, the resistivity (ρ) of the TiO2 film can be effectively reduced. As described above, the TiO2 film with an ultra-thin thickness of 10 nm and a nanocrystalline structure can succeed a low resistance.

2.2. Characterizations

Scanning electron microscopy (SEM) images and energy-dispersive X-ray spectroscopy (EDS) mapping analyses were carried out on a high-resolution scanning electron microscope (SU8000, Hitachi, Japan) provided with an energy-dispersive X-ray spectroscope (XFlash 5060FQ, Bruker, Germany). X-ray diffraction (XRD) patterns were performed on an X-ray diffractometer (D8 Advance Eco, Bruker, Germany). Raman spectra of the samples were examined by a micro Raman spectrometer (UniRAM II, Uninanotech, Korea).

2.3. Electrochemical Analysis

Figure 2 displays a schematic diagram of the electrochemical measurements. In order to enhance the difference between original GF and ALD-TiO2-modified GF (ALD-TiO2/GF), two pieces of original GFs or ALD-TiO2/GFs with a length of 3 cm and a width of 1cm were used as electrodes and a 3M KCl aqueous solution was used as electrolyte, to configure two-electrode cells for electrochemical analyses. The electrochemical measurements of cyclic voltammetry (CV) and electrochemical impedance spectroscopy (EIS) were examined in the two-electrode cells by using a potentiostat (Autolab PGSTAT204, Metrohm AG, Switzerland). In addition, an electrochemistry software (Nova, Metrohm AG, Switzerland) was used to analyze the data of electrochemical measurements.

3. Results and Discussion

The SEM images of original GF and ALD-TiO2-modified GF (ALD-TiO2/GF) are shown in the Figure 3. It is clearly showed that the GF is constructed from numerous carbon fibers with a diameter in the range of about 7–12 µm. Moreover, both original GF and ALD-TiO2/GF have almost the same micromorphology (compare Figure 3a with Figure 3c) because the surface-coating of TiO2 film is only 10 nm. However, the high-resolution images (Figure 3b,d) show that ALD-TiO2/GF has a smoother surface than original GF and the surface nanopores of original GF are filled by ALD-TiO2 coating. Figure 4 shows the elemental mapping images of selected-area EDS analysis for a carbon fiber of ALD-TiO2/GF. It reveals that Ti and O atoms are distributed homogeneously on the carbon fiber, demonstrating that the thin TiO2 film is coated uniformly on the GF by ALD.
Figure 5 shows the XRD patterns of original graphite felt (GF) and ALD-TiO2-modified graphite felt (ALD-TiO2/GF). Obviously, XRD peaks located at 2θ of 25.6, 43.6, 44.5 and 50.4° are observed in the XRD patterns that the XRD peaks of 25.6, 44.5 and 50.4° are corresponded to the (002), (101) and (102) planes of hexagonal Graphite-2H, and the XRD peaks of 25.6 and 43.6° can be indexed to the (003) and (101) planes of rhombohedral Graphite-3R, demonstrating that the crystal structure of GF is constructed from Graphite-2H with Graphite-3R. In addition, the XRD pattern of ALD-TiO2/GF is almost the same as original GF and no XRD peak of TiO2 crystal is detected because the thickness of TiO2 surface coating is very thin (only about 10 nm), which is difficult to detect by XRD. Therefore, the samples are further analyzed by Raman spectrometer and the results are shown in the Figure 6.
In the Figure 6, two strong Raman peaks located at wavenumber 1346 and 1580 cm−1 are detected in the both original GF and ALD-TiO2/GF. The Raman peaks of 1346 and 1580 cm−1 are indexed to the D-band (sp3 carbon networks) and G-band (sp2 carbon networks) of graphite, respectively [57,58]. In addition, a weak Raman peak located at around 142 cm−1 is also observed in the Raman spectrum of the ALD-TiO2/GF, which can be indexed to the Eg mode of anatase TiO2 [59,60,61,62], demonstrating that a thin anatase TiO2 layer is coated on the GF surface.
In order to evaluate the electrochemical properties of original GF and ALD-TiO2/GF, electrochemical measurements of cyclic voltammetry (CV) and electrochemical impedance spectroscopy (EIS) were performed. Figure 7a shows the CV curves of original GF and ALD-TiO2/GF selected from the 10th cycle. Besides, the specific capacitances (calculated from CV measurements) of these electrodes as a function of cycle index are shown in Figure 7b. As shown in Figure 7a, the CV curve of ALD-TiO2/GF exhibits quasi-rectangular shape and the area of CV curve of ALD-TiO2/GF is significantly larger than the original GF. As shown in Figure 7b, the specific capacitances are about 0.16 and 23.65 mF/g on average for original GF and ALD-TiO2/GF, respectively. It can be clearly seen that the electrochemical activity of GF is improved an order of magnitude of two. Besides, the ALD-TiO2/GF has also demonstrated long-term stability, which is verified by a CV-test of 1000 cycles. The experimental data of 1000 times CV cycling-test are shown in the Supplementary Materials (Figure S2).
The enhancement of electrochemical activity of GF by ALD-TiO2 surface modification can be reasonably attributed to the hydrophobic surface of GF which has been changed to super-hydrophilic, therefore, the equivalent series resistance (Rs) and charge-transfer resistance (Rct) of between ALD-TiO2/GF electrodes and electrolyte can be effectively reduced. In order to prove that the Rs and Rct of ALD-TiO2/GF electrodes are lower than original GF, the measurements of electrochemical impedance spectroscopy (EIS) were carried out. The EIS is a powerful tool, which has been widely used for analyzing the internal resistance of electrodes and the resistance between the electrode and electrolyte [63,64,65].
Figure 8 reveals the Nyquist plots of the original GF and ALD-TiO2/GF performed by EIS measurement. The Figure 8 exhibits a clear evidence that the equivalent series resistance (Rs) and charge-transfer resistance (Rct) of ALD-TiO2/GF electrodes are lower than the original GF. The Rs and Rct are about 5.85 and 24.88 Ω for the original GF (as Figure 8b) and are about 3.62 and 0.28 Ω for ALD-TiO2/GF (as Figure 8c). Besides, it is noticed that both the original GF and ALD-TiO2/GF have a similar Rs value. However, the Rct value of ALD-TiO2/GF is 100 times lower than that of the original GF, proving that the significant increase (100 times) in electrochemical activity is primarily due to the contribution of the decrease in the Rct value between the electrode and the electrolyte.

4. Conclusions

In conclusion, ALD technique with TiO2 nanocoating is successfully employed as a new method for surface modification of GF to obtain excellent hydrophilicity, low equivalent series resistance (Rs), low charge-transfer resistance (Rct), and high electrochemical activity. Especially, no any H2 thermal post-treatment is required. These excellent properties make ALD-TiO2/GF have the potential to be used in electrochemical energy storage devices. We are currently conducting research and process optimization on applying ALD-TiO2/GF to vanadium redox flow batteries (VRFBs). In addition, it can be reasonably anticipated that not only TiO2 but also other metal oxides with nanoscale-thickness grown by ALD can be possibly applied to effectively modify the GF surface.

Supplementary Materials

A supplementary video and Supplementary Materials are available online at https://www.mdpi.com/2079-4991/10/9/1710/s1, The video demonstrates a simple-test of conductivity and hydrophilicity of original GF and ALD-TiO2/GF. Figure S1: Simple-test for conductivity and hydrophilicity of original GF and ALD-TiO2/GF. Figure S2: 1000 times CV cycling-test of original GF and ALD-TiO2/GF.

Author Contributions

W.-J.L. conceived of the proposed idea, designed the experiments, verified the experimental data, and wrote the manuscript. Y.-T.W., Y.-W.L. and Y.-T.L. completed all the experimental works (including the supplementary video and materials) together and wrote part of the draft manuscript. Y.-T.W. is a master student Y.-W.L. and Y.-T.L. are undergraduate students, and W.-J.L. is their advising professor. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the Ministry of Science and Technology of Taiwan (No.: MOST 108-2622-E-153-001-CC3 and 108-2112-M-153-001).

Acknowledgments

The authors would like to thank Hui-Jung Shih (Instrument Center, NCKU) for assisting in HR-SEM and EDS analysis.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Shao, Y.; Cheng, Y.; Duan, W.; Wang, W.; Lin, Y.; Wang, Y.; Liu, J. Nanostructured electrocatalysts for PEM fuel cells and redox flow batteries: A selected review. ACS Catal. 2015, 5, 7288–7298. [Google Scholar] [CrossRef]
  2. Zhang, Z.; Xi, J.; Zhou, H.; Qiu, X. KOH etched graphite felt with improved wettability and activity for vanadium flow batteries. Electrochim. Acta 2016, 218, 15–23. [Google Scholar] [CrossRef]
  3. Wu, L.; Wang, J.; Shen, Y.; Liu, L.; Xi, J. Electrochemical evaluation methods of vanadium flow battery electrodes. Phys. Chem. Chem. Phys. 2017, 19, 14708–14717. [Google Scholar] [CrossRef] [PubMed]
  4. Castañeda, L.F.; Walsh, F.C.; Nava, J.L.; León, C.P.D. Graphite felt as a versatile electrode material: Properties, reaction environment, performance and applications. Electrochim. Acta 2017, 258, 1115–1139. [Google Scholar] [CrossRef]
  5. Kabtamu, D.M.; Chen, J.Y.; Chang, Y.C.; Wang, C.H. Water-activated graphite felt as a high-performance electrode for vanadium redox flow batteries. J. Power Sources 2017, 341, 270–279. [Google Scholar] [CrossRef]
  6. Jianga, F.; Heb, Z.; Guoa, D.; Zhoua, X. Carbon aerogel modified graphite felt as advanced electrodes for vanadium redox flow batteries. J. Power Sources 2019, 440, 227114. [Google Scholar] [CrossRef]
  7. Hea, M.; Zheng, Y.; Du, Q. Three-dimensional polypyrrole/MnO2 composite networks deposited on graphite felt as free-standing electrode for supercapacitors. Mater. Lett. 2013, 104, 48–52. [Google Scholar] [CrossRef]
  8. Díaz, P.; González, Z.; Santamaría, R.; Granda, M.; Menéndez, R.; Blanco, C. Enhanced energy density of carbon-based supercapacitors using cerium (III) sulphate as inorganic redox electrolyte. Electrochim. Acta 2015, 168, 277–284. [Google Scholar] [CrossRef] [Green Version]
  9. Park, C.; Hwang, J.; Hwang, Y.T.; Song, C.; Ahn, S.; Kim, H.S.; Ahn, H. Intense pulsed white light assisted fabrication of Co-CoOx core-shell nanoflakes on graphite felt for flexible hybrid supercapacitors. Electrochim. Acta 2017, 246, 757–765. [Google Scholar] [CrossRef]
  10. Shen, P.; Wang, Z.; Yang, C.; Zhao, L.; Liu, T.; Shen, M.; Li, J.; Qian, D. Enhanced electrochemical property of graphite felt@Co2(OH)2CO3 via Ni-P electrodeposition for flexible supercapacitors. Electrochim. Acta 2018, 283, 1568–1577. [Google Scholar] [CrossRef]
  11. Pu, K.B.; Lu, C.X.; Zhang, K.; Zhang, H.; Chen, Q.Y.; Wang, Y.H. In situ synthesis of polypyrrole on graphite felt as bio-anode to enhance the start-up performance of microbial fuel cells. Bioprocess Biosyst. Eng. 2020, 43, 429–437. [Google Scholar] [CrossRef] [PubMed]
  12. Liang, Y.; Zhai, H.; Liu, B.; Ji, M.; Li, J. Carbon nanomaterial-modified graphite felt as an anode enhanced the power production and polycyclic aromatic hydrocarbon removal in sediment microbial fuel cells. Sci. Total Environ. 2020, 713, 136483. [Google Scholar] [CrossRef] [PubMed]
  13. Palmore, G.T.R.; Bertschy, H.; Bergens, S.H.; Whitesides, G.M. A methanol/dioxygen biofuel cell that uses NAD+-dependent dehydrogenases as catalysts: Application of an electro-enzymatic method to regenerate nicotinamide adenine dinucleotide at low overpotentials. J. Electroanal. Chem. 1998, 443, 155–161. [Google Scholar] [CrossRef]
  14. Séamus, F.D.; Higson, P.J. Biofuel cells—Recent advances and applications. Biosens. Bioelectron. 2007, 22, 1224–1235. [Google Scholar]
  15. Liu, X.; Yang, D.; Zhou, Y.; Zhang, J.; Luo, L.; Meng, S.; Chen, S.; Tan, M.; Li, Z.; Tang, L. Electrocatalytic properties of N-doped graphite felt in electro-Fenton process and degradation mechanism of levofloxacin. Chemosphere 2017, 182, 306–315. [Google Scholar] [CrossRef]
  16. Liang, L.; Yu, F.; An, Y.; Liu, M.; Zhou, M. Preparation of transition metal composite graphite felt cathode for efficient heterogeneous electro-Fenton process. Environ. Sci. Pollut. Res. 2017, 24, 1122–1132. [Google Scholar] [CrossRef]
  17. Zhang, Y.; Zuo, S.; Zhou, M.; Liang, L.; Ren, G. Removal of tetracycline by coupling of flow-through electro-Fenton and in-situ regenerative active carbon felt adsorption. Chem. Eng. J. 2018, 335, 685–692. [Google Scholar] [CrossRef]
  18. Le, T.X.; Bechelany, M.; Cretin, M. Carbon felt based-electrodes for energy and environmental applications: A review. Carbon 2017, 122, 564–591. [Google Scholar]
  19. Kozbial, A.; Zhou, F.; Li, Z.; Liu, H.; Li, L. Are graphitic surfaces hydrophobic? Acc. Chem. Res. 2016, 49, 2765–2773. [Google Scholar] [CrossRef]
  20. Chen, J.Z.; Liao, W.Y.; Hsieh, W.Y.; Hsu, C.C.; Chen, Y.S. All-vanadium redox flow batteries with graphite felt electrodes treated by atmospheric pressure plasma jets. J. Power Sources 2015, 274, 894–898. [Google Scholar] [CrossRef]
  21. Dixon, D.; Babu, D.J.; Langner, J.; Bruns, M.; Pfaffmann, L.; Bhaskar, A. Effect of oxygen plasma treatment on the electrochemical performance of the rayon and polyacrylonitrile based carbon felt for the vanadium redox flow battery application. J. Power Sources 2016, 332, 240–248. [Google Scholar] [CrossRef]
  22. Sun, B.; Skyllas-Kazacos, M. Chemical modification of graphite electrode materials for vanadium redox flow battery application-part II. Acid treatments. Electrochim. Acta 1992, 37, 2459–2465. [Google Scholar] [CrossRef]
  23. Yue, L.; Li, W.; Sun, F.; Zhao, L.; Xing, L. Highly hydroxylated carbon fibres as electrode materials of all-vanadium redox flow battery. Carbon 2010, 48, 3079–3090. [Google Scholar] [CrossRef]
  24. Flox, C.; Rubio-García, J.; Skoumal, M.; Andreu, T.; Morante, J.R. Thermo-chemical treatments based on NH3/O2 for improved graphite-based fiber electrodes in vanadium redox flow batteries. Carbon 2013, 60, 280–288. [Google Scholar] [CrossRef]
  25. Ding, C.; Zhang, H.; Li, X.; Liu, T.; Xing, F. Vanadium flow battery for energy storage: Prospects and challenges. J. Phys. Chem. Lett. 2013, 4, 1281–1294. [Google Scholar] [CrossRef]
  26. Di Blasi, A.; Briguglio, N.; Di Blasi, O.; Antonucci, V. Charge-discharge performance of carbon fiber-based electrodes in single cell and short stack for vanadium redox flow battery. Appl. Energy 2014, 125, 114–122. [Google Scholar] [CrossRef]
  27. Hidalgo, D.; Tommasi, T.; Bocchini, S.; Chiolerio, A.; Chiodoni, A.; Mazzarino, I. Surface modification of commercial carbon felt used as anode for Microbial Fuel Cells. Energy 2016, 99, 193–201. [Google Scholar] [CrossRef]
  28. Sun, B.; Skyllas-Kazacos, M. Modification of graphite electrode materials for vanadium redox flow battery application-I. Thermal treatment. Electrochim. Acta 1992, 37, 1253–1260. [Google Scholar] [CrossRef]
  29. González, Z.; Botas, C.; Álvarez, P.; Roldán, S.; Blanco, C.; Santamaría, R.; Granda, M.; Menéndez, R. Thermally reduced graphite oxide as positive electrode in vanadium redox flow batteries. Carbon 2012, 50, 828–834. [Google Scholar] [CrossRef] [Green Version]
  30. Pezeshki, A.M.; Clement, J.T.; Veith, G.M.; Zawodzinski, T.A.; Mench, M.M. High performance electrodes in vanadium redox flow batteries through oxygen-enriched thermal activation. J. Power Sources 2015, 294, 333–338. [Google Scholar] [CrossRef] [Green Version]
  31. Le, T.X.H.; Charmette, C.; Bechelany, M.; Cretin, M. Facile preparation of porous carbon cathode to eliminate paracetamol in aqueous medium using electro-Fenton system. Electrochim. Acta 2016, 188, 378–384. [Google Scholar] [CrossRef]
  32. Liu, T.; Li, X.; Xu, C.; Zhang, H. Activated carbon fiber paper based electrodes with high electrocatalytic activity for vanadium flow batteries with improved power density. ACS Appl. Mater. Interfaces 2017, 9, 4626–4633. [Google Scholar] [CrossRef]
  33. Wang, P.; Lai, B.; Li, H.; Du, Z. Deposition of Fe on graphite felt by thermal decomposition of Fe(CO)5 for effective cathodic preparation of microbial fuel cells. Bioresour. Technol. 2013, 134, 30–35. [Google Scholar] [CrossRef] [PubMed]
  34. Chen, S.; Hu, W.; Hong, J.; Sandoe, S. Electrochemical disinfection of simulated ballast water on PbO2/graphite felt electrode. Mar. Pollut. Bull. 2016, 105, 319–323. [Google Scholar] [CrossRef] [PubMed]
  35. Zhang, C.; Liang, P.; Yang, X.; Jiang, Y.; Bian, Y.; Chen, C.; Zhanga, X.; Huanga, X. Binder-free graphene and manganese oxide coated carbon felt anode for high-performance microbial fuel cell. Biosens. Bioelectron. 2016, 81, 32–38. [Google Scholar] [CrossRef]
  36. Mauricio Rosolen, J.; Patrick Poá, C.H.; Tronto, S.; Marchesin, M.S.; Silva, S.R.P. Electron field emission of carbon nanotubes on carbon felt. Chem. Phys. Lett. 2006, 424, 151–155. [Google Scholar] [CrossRef]
  37. Rosolen, J.M.; Tronto, S.; Marchesin, M.S.; Almeida, E.C.; Ferreira, N.G.; Patrick Poa, C.H.; Ravi, S.; Silvad, P. Electron field emission from composite electrodes of carbon nanotubes-boron-doped diamond and carbon felts. Appl. Phys. Lett. 2006, 88, 083116. [Google Scholar] [CrossRef] [Green Version]
  38. Wang, S.; Zhao, X.; Cochell, T.; Manthiram, A. Nitrogen-doped carbon nanotube/graphite felts as advanced electrode materials for vanadium redox flow batteries. J. Phys. Chem. Lett. 2012, 3, 2164–2167. [Google Scholar] [CrossRef]
  39. Chang, Y.; Deng, L.; Meng, X.; Zhang, W.; Wang, C.; Wang, Y.; Zhao, S.; Lin, L.; Crittenden, J.C. Closed-loop electrochemical recycling of spent copper (II) from etchant wastewater using a carbon nanotube modified graphite felt anode. Environ. Sci. Technol. 2018, 52, 5940–5948. [Google Scholar] [CrossRef]
  40. Wang, W.H.; Wang, X.D. Investigation of Ir-modified carbon felt as the positive electrode of an all-vanadium redox flow battery. Electrochim. Acta 2007, 52, 6755–6762. [Google Scholar] [CrossRef]
  41. González, Z.; Sánchez, A.; Blanco, C.; Granda, M.; Menéndez, R.; Santamaría, R. Enhanced performance of a Bi-modified graphite felt as the positive electrode of a vanadium redox flow battery. Electrochem. Commun. 2011, 13, 1379–1382. [Google Scholar] [CrossRef] [Green Version]
  42. Solmaz, R.; Gündoğdu, A.; Döner, A.; Kardaş, G. The Ni-deposited carbon felt as substrate for preparation of Pt-modified electrocatalysts: Application for alkaline water electrolysis. Int. J. Hydrogen Energy 2012, 37, 8917–8922. [Google Scholar] [CrossRef]
  43. Wei, L.; Zhao, T.S.; Zeng, L.; Zhou, X.L.; Zeng, Y.K. Copper nanoparticle-deposited graphite felt electrodes for all vanadium redox flow batteries. Appl. Energy 2016, 180, 386–391. [Google Scholar] [CrossRef]
  44. Shen, Y.; Xu, H.; Xu, P.; Wu, X.; Dong, Y.; Lu, L. Electrochemical catalytic activity of tungsten trioxide-modified graphite felt toward VO2+/VO2+ redox reaction. Electrochim. Acta 2014, 132, 37–41. [Google Scholar] [CrossRef]
  45. Xiang, Y.; Daoud, W.A. Investigation of an advanced catalytic effect of cobalt oxide modification on graphite felt as the positive electrode of the vanadium redox flow battery. J. Power Sources 2019, 415, 175–183. [Google Scholar] [CrossRef]
  46. Vázquez-Galván, J.; Flox, C.; Fábega, C.; Ventosa, E.; Parra, A.; Andreu, T.; Morate, J.R. Hydrogen-treated rutile TiO2 shell in graphite-core structure as a negative electrode for high-performance vanadium redox flow batteries. ChemSusChem 2017, 10, 2089–2098. [Google Scholar] [CrossRef]
  47. Bayeh, A.W.; Kabtamu, D.M.; Chang, Y.C.; Chen, G.C.; Chen, H.Y.; Liu, T.R.; Wondimu, T.H.; Wang, K.C.; Wang, C.H. Hydrogen-treated defect-rich W18O49 nanowire-modified graphite felt as high-performance electrode for vanadium redox flow battery. ACS Appl. Energy Mater. 2019, 2, 2541–2551. [Google Scholar] [CrossRef]
  48. Leskelä, M.; Ritala, M. Atomic layer deposition (ALD): From precursors to thin film structures. Thin Solid Film. 2002, 409, 138–146. [Google Scholar] [CrossRef]
  49. Kim, H.; Lee, H.B.R.; Maeng, W.J. Applications of atomic layer deposition to nanofabrication and emerging nanodevices. Thin Solid Film. 2009, 517, 2563–2580. [Google Scholar] [CrossRef]
  50. George, S.M. Atomic layer deposition: An overview. Chem. Rev. 2010, 110, 111–131. [Google Scholar] [CrossRef]
  51. Moya, A.; Kemnade, N.; Osorio, M.R.; Cherevan, A.; Granados, D.; Eder, D.; Vilatela, J.J. Large area photoelectrodes based on hybrids of CNT fibres and ALD-grown TiO2. J. Mater. Chem. A 2017, 5, 24695–24706. [Google Scholar] [CrossRef] [Green Version]
  52. Li, M.; Zu, M.; Yu, J.; Cheng, H.; Li, Q.; Li, B. Controllable synthesis of core-sheath structured aligned carbon nanotube/titanium dioxide hybrid fibers by atomic layer deposition. Carbon 2017, 123, 151–157. [Google Scholar] [CrossRef]
  53. Geppert, T.N.; Bosund, M.; Putkonen, M.; Stühmeier, B.M.; Pasanen, A.T.; Heikkilä, P.; Gasteiger, H.A.; El-Sayed, H.A. HOR activity of Pt-TiO2-Y at unconventionally high potentials explained: The influence of SIMI on the electrochemical behavior of Pt. J. Electrochem. Soc. 2020, 167, 084517. [Google Scholar] [CrossRef]
  54. Lee, W.J.; Hon, M.H. Space-limited crystal growth mechanism of TiO2 films by atomic layer deposition. J. Phys. Chem. C 2010, 114, 6917–6921. [Google Scholar] [CrossRef]
  55. Lee, W.J.; Hon, M.H.; Chung, Y.W.; Lee, J.H. A three-dimensional nanostructure consisting of hollow TiO2 spheres fabricated by atomic layer deposition. Jpn. J. Appl. Phys. 2011, 50, 06GH06. [Google Scholar] [CrossRef]
  56. Lee, W.J.; Hon, M.H. An ultraviolet photo-detector based on TiO2/water solid-liquid heterojunction. Appl. Phys. Lett. 2011, 99, 251102. [Google Scholar] [CrossRef]
  57. Reich, S.; Thomsen, C. Raman spectroscopy of graphite. Phil. Trans. R. Soc. Lond. A 2004, 362, 2271–2288. [Google Scholar] [CrossRef]
  58. Ferrari, A.C. Raman spectroscopy of graphene and graphite: Disorder, electron-phonon coupling, doping and nonadiabatic effects. Solid State Commun. 2007, 143, 47–57. [Google Scholar] [CrossRef]
  59. Ohsaka, T.; Izumi, F.; Fujiki, Y. Raman spectrum of anatase, TiO2. J. Raman Spectrosc. 1978, 7, 321–324. [Google Scholar] [CrossRef]
  60. Tian, F.; Zhang, Y.; Zhang, J.; Pan, C. Raman spectroscopy: A new approach to measure the percentage of anatase TiO2 exposed (001) facets. J. Phys. Chem. C 2012, 116, 7515–7519. [Google Scholar] [CrossRef]
  61. Toro, R.G.; Diab, M.; de Caro, T.; Al-Shemy, M.; Adel, A.; Caschera, D. Study of the effect of titanium dioxide hydrosol on the photocatalytic and mechanical properties of paper sheets. Materials 2020, 13, 1326. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  62. Park, H.; Goto, T.; Cho, S.; Lee, S.W.; Kakihana, M.; Sekino, T. Effects of annealing temperature on the crystal structure, morphology, and optical properties of peroxo-titanate nanotubes prepared by peroxo-titanium complex ion. Nanomaterials 2020, 10, 1331. [Google Scholar] [CrossRef] [PubMed]
  63. Rani, J.R.; Thangavel, R.; Oh, S.I.; Woo, J.M.; Das, N.C.; Kim, S.Y.; Lee, Y.S.; Jang, J.H. High volumetric energy density hybrid supercapacitors based on reduced graphene oxide scrolls. ACS Appl. Mater. Interfaces 2017, 9, 22398–22407. [Google Scholar] [CrossRef] [PubMed]
  64. Massaglia, G.; Fiorello, I.; Sacco, A.; Margaria, V.; Pirri, C.F.; Quaglio, M. Biohybrid cathode in single chamber microbial fuel cell. Nanomaterials 2019, 9, 36. [Google Scholar] [CrossRef] [Green Version]
  65. Abe, Y.; Hori, N.; Kumagai, S. Electrochemical impedance spectroscopy on the performance degradation of LiFePO4/graphite lithium-ion battery due to charge-discharge cycling under different C-rates. Energies 2019, 12, 4507. [Google Scholar] [CrossRef] [Green Version]
Nanomaterials 10 01710 g001 550

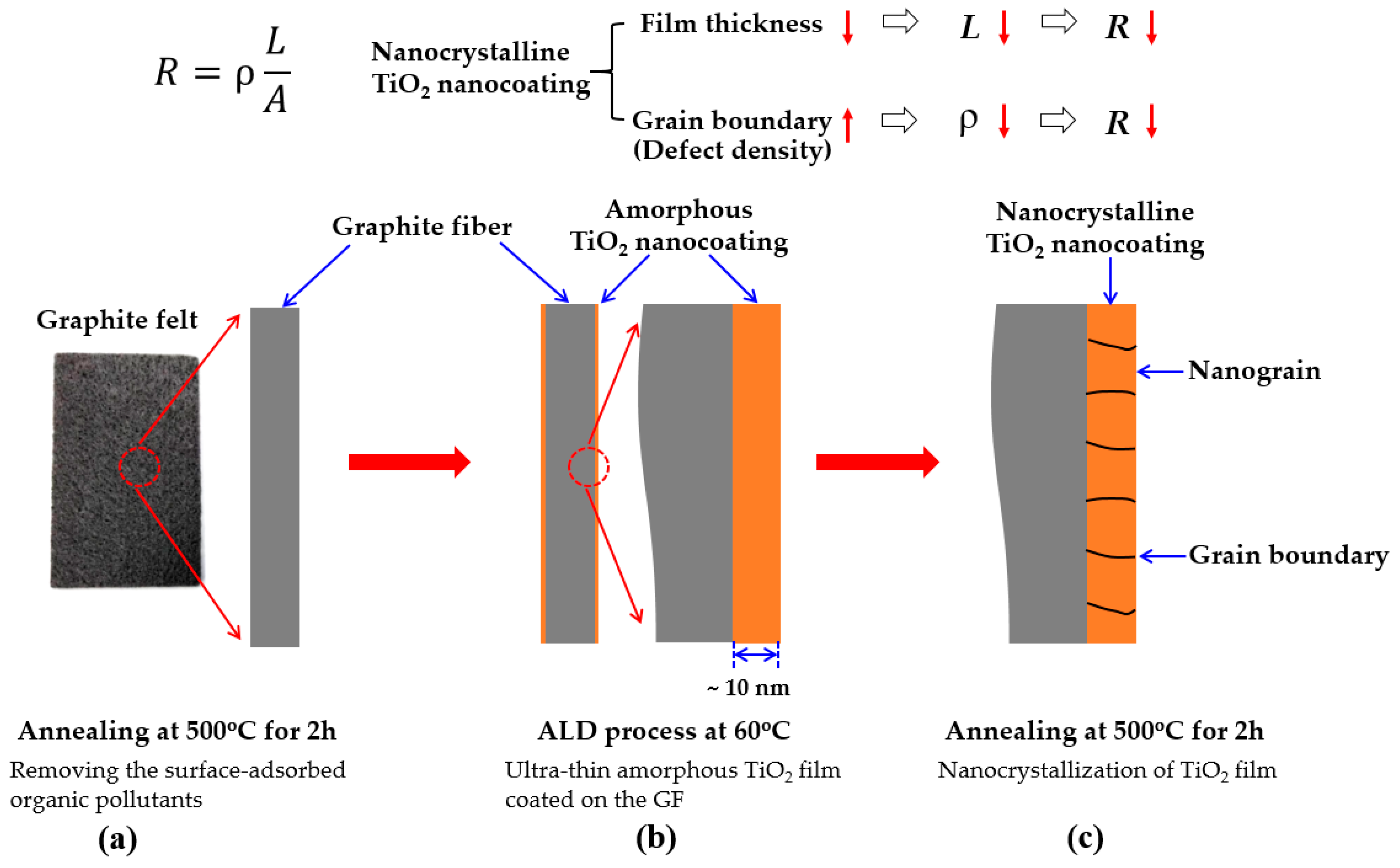

Figure 1. Schematic diagram of the design concept of this study. (a) Removing the surface-adsorbed organic pollutants of GF by thermal annealing process, (b) Ultra-thin amorphous TiO2 film coated on the GF surface by ALD, and (c) Nanocrystallization of TiO2 film by thermal annealing process.
Figure 1. Schematic diagram of the design concept of this study. (a) Removing the surface-adsorbed organic pollutants of GF by thermal annealing process, (b) Ultra-thin amorphous TiO2 film coated on the GF surface by ALD, and (c) Nanocrystallization of TiO2 film by thermal annealing process.
Nanomaterials 10 01710 g001
Nanomaterials 10 01710 g002 550

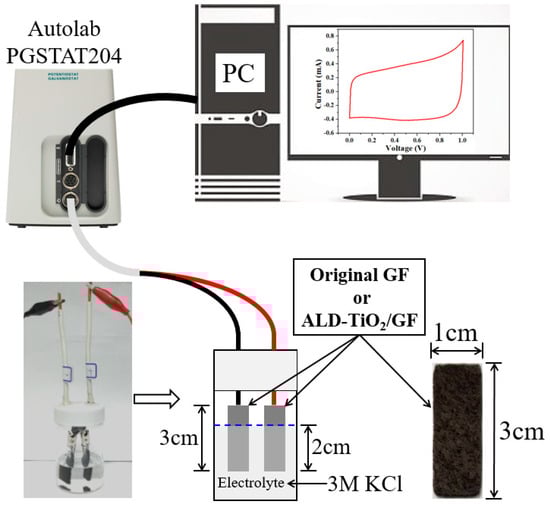

Figure 2. Schematic diagram of the electrochemical measurements.
Figure 2. Schematic diagram of the electrochemical measurements.
Nanomaterials 10 01710 g002
Nanomaterials 10 01710 g003 550

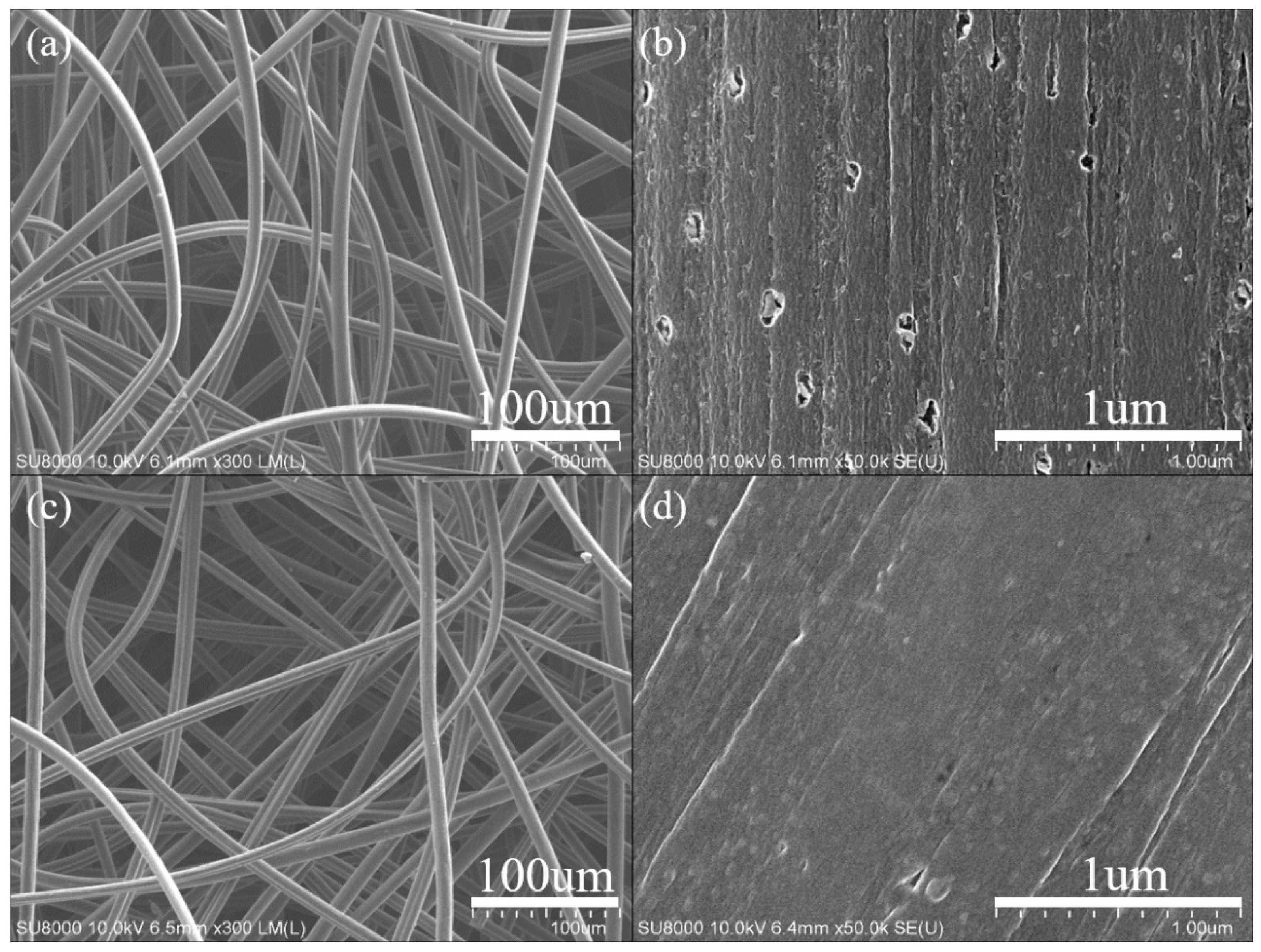

Figure 3. SEM images of original graphite felt (a,b) and atomic layer deposition (ALD)-TiO2-modified graphite felt (c,d).
Figure 3. SEM images of original graphite felt (a,b) and atomic layer deposition (ALD)-TiO2-modified graphite felt (c,d).
Nanomaterials 10 01710 g003
Nanomaterials 10 01710 g004 550

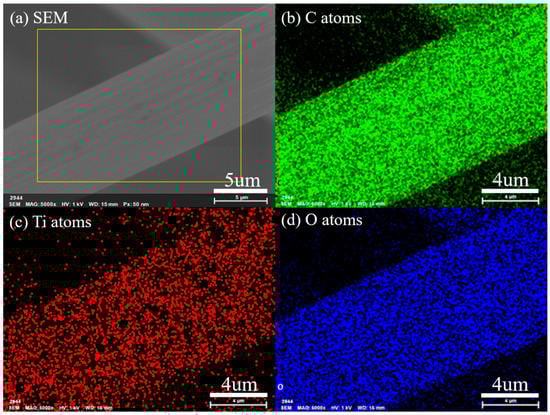

Figure 4. Energy-dispersive X-ray spectroscopy (EDS) mapping analysis of ALD-TiO2-modified graphite felt. (a) SEM image of the selected-area EDS, and the elemental distribution images of (b) C, (c) Ti and (d) O atoms.
Figure 4. Energy-dispersive X-ray spectroscopy (EDS) mapping analysis of ALD-TiO2-modified graphite felt. (a) SEM image of the selected-area EDS, and the elemental distribution images of (b) C, (c) Ti and (d) O atoms.
Nanomaterials 10 01710 g004
Nanomaterials 10 01710 g005 550

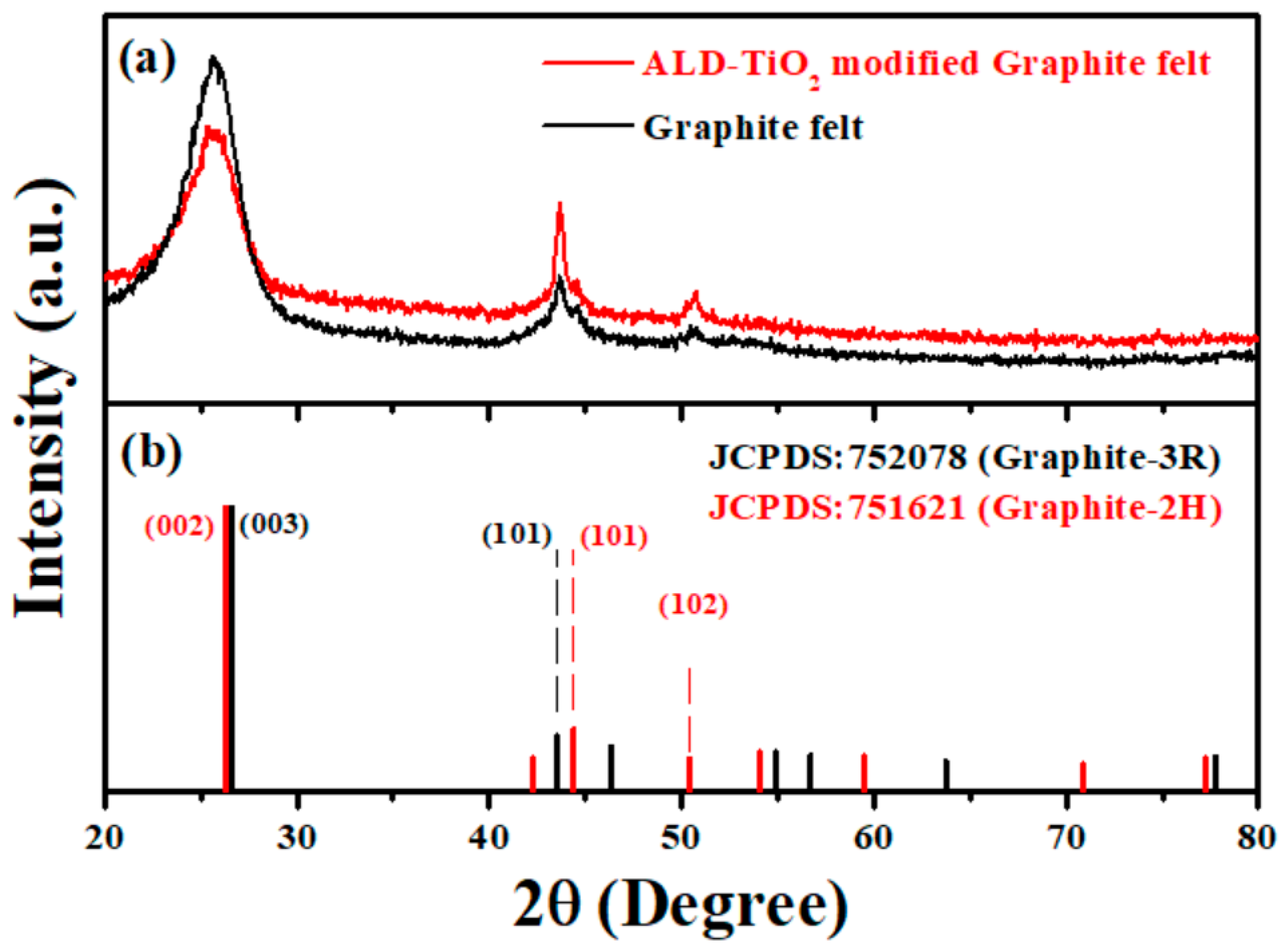

Figure 5. (a) XRD patterns of original graphite felt and ALD-TiO2 modified graphite felt, (b) JPCDS cards of Graphite-3R and Graphite-2H.
Figure 5. (a) XRD patterns of original graphite felt and ALD-TiO2 modified graphite felt, (b) JPCDS cards of Graphite-3R and Graphite-2H.
Nanomaterials 10 01710 g005
Nanomaterials 10 01710 g006 550

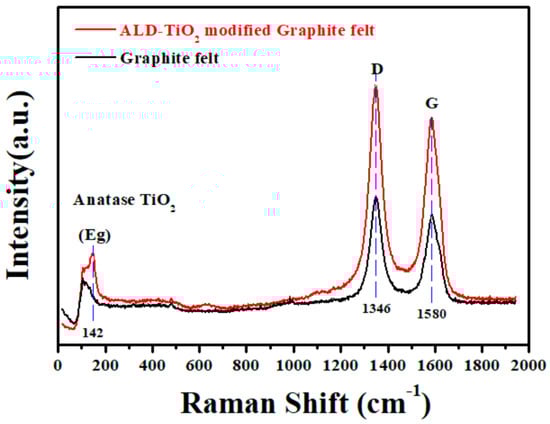

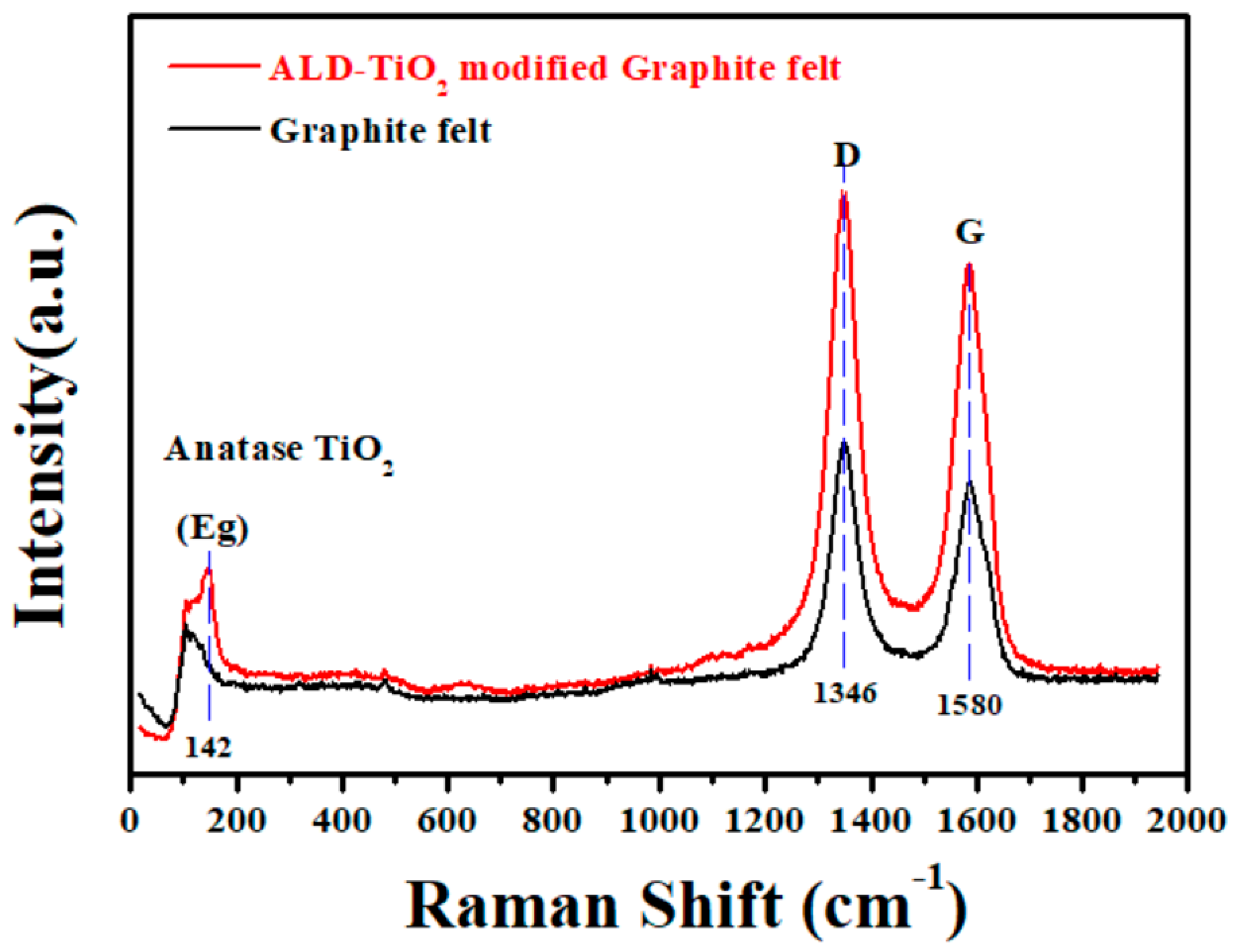

Figure 6. Raman spectra of original graphite felt and ALD-TiO2-modified graphite felt.
Figure 6. Raman spectra of original graphite felt and ALD-TiO2-modified graphite felt.
Nanomaterials 10 01710 g006
Nanomaterials 10 01710 g007 550

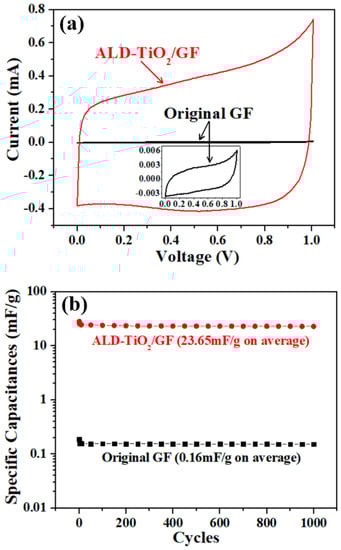

Figure 7. (a) Cyclic voltammetry (CV) curves of the original graphite felt (GF) and ALD-TiO2 modified GF (ALD-TiO2/GF), the scan rate is 1 V/s. (b) Specific capacitances of original GF and ALD-TiO2/GF obtained from 1000 times CV cycling-test.
Figure 7. (a) Cyclic voltammetry (CV) curves of the original graphite felt (GF) and ALD-TiO2 modified GF (ALD-TiO2/GF), the scan rate is 1 V/s. (b) Specific capacitances of original GF and ALD-TiO2/GF obtained from 1000 times CV cycling-test.
Nanomaterials 10 01710 g007
Nanomaterials 10 01710 g008 550

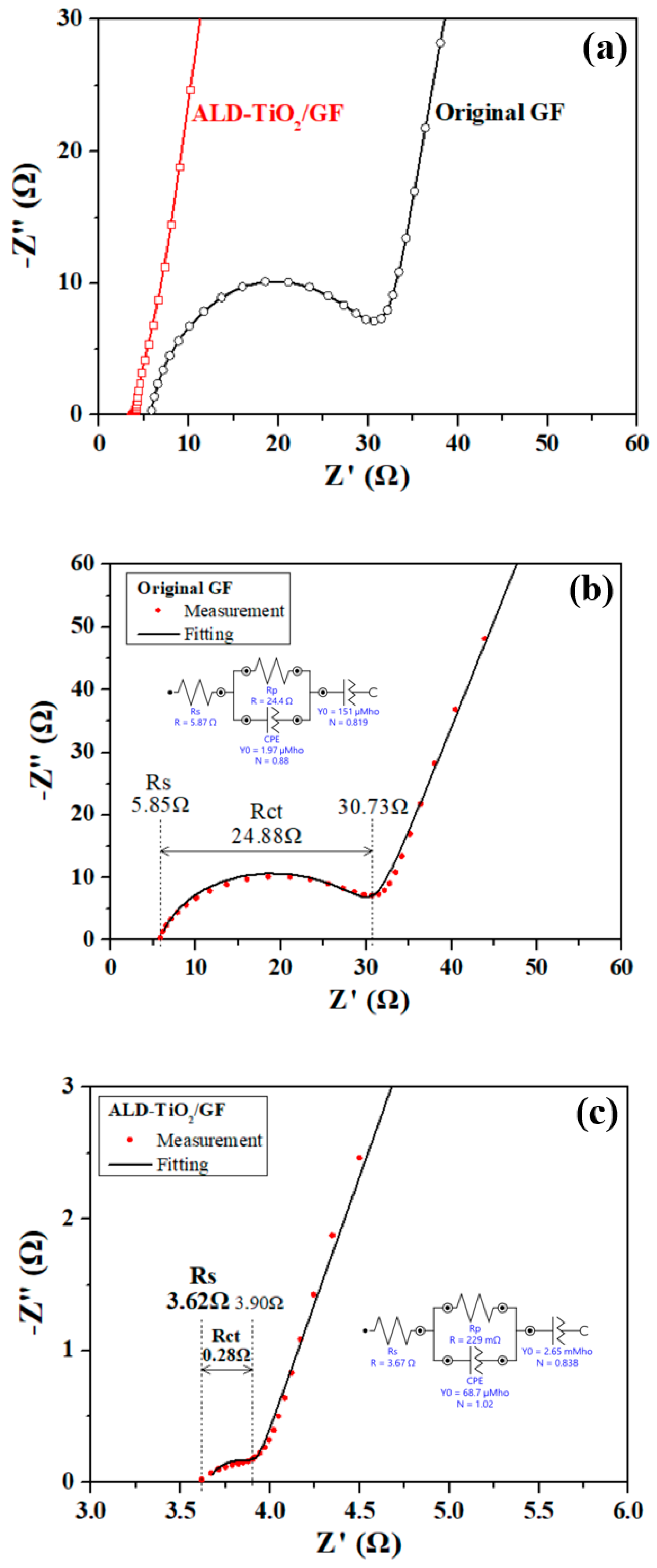

Figure 8. Nyquist plots of the original GF and ALD-TiO2/GF measured by electrochemical impedance spectroscopy (EIS) measurement. (a) Compared figure of the original GF and ALD-TiO2/GF, (b) and (c) show the experimental (red dots) and fitting (black line) data for the original GF and ALD-TiO2/GF, respectively.
