Nanomaterial-Enabled Sensors and Therapeutic Platforms for Reactive Organophosphates

Abstract

Unintended exposure to harmful reactive organophosphates (OP), which comprise a group of nerve agents and agricultural pesticides, continues to pose a serious threat to human health and ecosystems due to their toxicity and prolonged stability. This underscores an unmet need for developing technologies that will allow sensitive OP detection, rapid decontamination and effective treatment of OP intoxication. Here, this article aims to review the status and prospect of emerging nanotechnologies and multifunctional nanomaterials that have shown considerable potential in advancing detection methods and treatment modalities. It begins with a brief introduction to OP types and their biochemical basis of toxicity followed by nanomaterial applications in two topical areas of primary interest. One topic relates to nanomaterial-based sensors which are applicable for OP detection and quantitative analysis by electrochemical, fluorescent, luminescent and spectrophotometric methods. The other topic is directed on nanotherapeutic platforms developed as OP remedies, which comprise nanocarriers for antidote drug delivery and nanoscavengers for OP inactivation and decontamination. In summary, this article addresses OP-responsive nanomaterials, their design concepts and growing impact on advancing our capability in the development of OP sensors, decontaminants and therapies.

1. Introduction

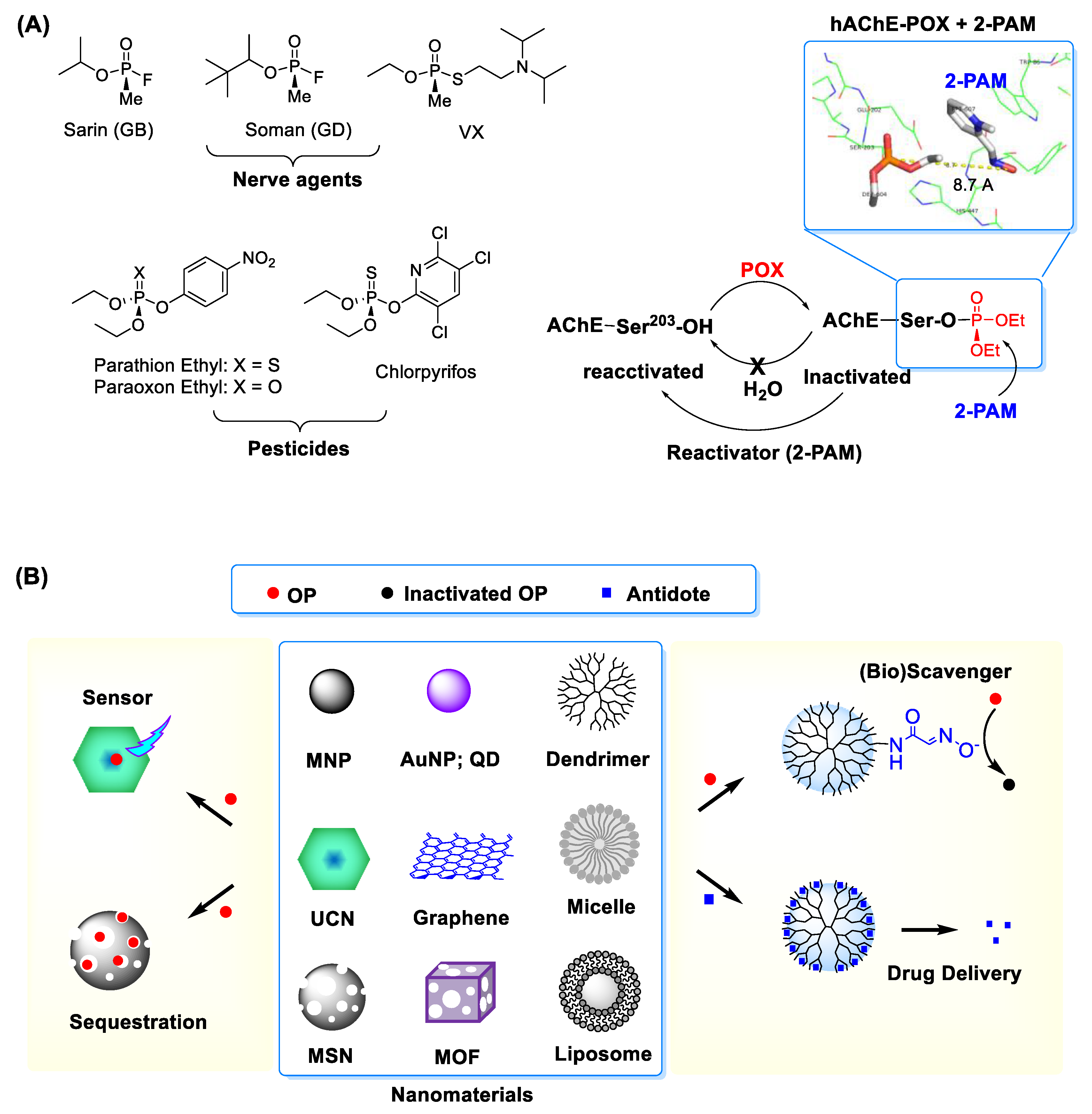

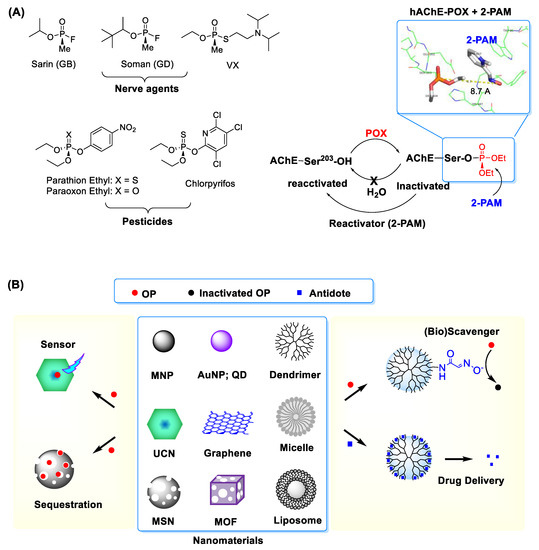

The term reactive organophosphates (OPs) refers collectively to a group of phosphorous-based toxic chemicals that cause life-threatening toxic symptoms in humans. These comprise OP nerve agents such as sarin, soman and VX, as well as OP-based pesticides like chlorpyrifos, paraoxon and malaoxon, among others (Figure 1) [1,2,3]. Despite their much lower toxicity, the OP pesticides are still formidable due to their wide distribution ranging from insect controls in the agricultural and horticultural sectors to pest treatments for domestic pets, farm animals and houses [4]. OP toxicity is commonly attributed to a phosphorous (thio)ester core that serves as its reactive functionality. It is highly susceptible to engaging in a covalent conjugation with a nucleophilic residue present in proteins and cellular enzymes in plasmas [1,5,6,7,8]. This OP reaction results in a covalent protein modification and thus loss of their original activity.

Human toxicity induced by OPs is attributed to the inactivation of acetylcholinesterase (AChE) as their primary target [1,5,6,7,8]. Human AChE is expressed widely from red blood cells, muscle tissues to nervous systems [9]. Its inactivation by OPs involves a covalent adduct formed within its catalytic pocket through O-phosphorylation at serine 203, one of catalytic residues (Figure 1) [10]. Such enzyme inactivation contributes to acetylcholine accumulation, which in turn leads to its excessive stimulatory activity at cholinergic receptors in nervous systems [10,11]. Their pathophysiological effects are linked to induction of rapid muscle paralysis and occurrence of various neurological symptoms, both constituting the toxicological basis of OPs [12,13,14]. Their toxic syndromes include respiratory problems, paralysis, convulsions, salivation, gastric cramps and emesis whereas their manifestations are determined by various factors such as OP types, receptors stimulated, organs affected, action sites and time of occurrence (acute, delayed) [15]. All these make effective treatment of OP intoxication and optimal timing of patient discharge highly challenging.

OP exposures remain a source of serious safety concerns given the history of accidental or terrorist incidents and increasingly indiscriminate use of OP pesticides that is responsible for environmental pollution and crop contamination [13]. In particular, persistent exposures to OP pesticides result in delayed or chronic toxicity in affected organisms [2,3]. This longer-term effect is closely related with their environmental disposition and fate which occurs via soil adsorption, distribution in groundwater and volatilization into air [2,5,6]. The key process that determines their fate involves OP degradation to harmless fragments through chemical hydrolysis, microbial degradation and photolytic breakdown under sunlight irradiation. Most OP pesticides show stability in water at neutral pH [2,5], but their hydrolytic breakdown occurs faster under non-neutral conditions or elevated temperatures [2,6,7,8]. The extent of OP biodegradation is largely dependent on microbial species and their mechanisms of biotransformation which involve O-dealkylation by glutathione S-transferase, oxidation of thioether to sulfoxide, desulfuration, hydrolysis, and reduction [9,10]. Light exposure is another factor that plays a crucial role in the degradation pathway of OP pesticides [11,12]. The extent of photolysis varies with OP types, light wavelength and intensity associated with solar radiation [12,13]. In summary of environmental exposure, OP intoxication can occur through various routes including oral consumption, skin contact [17] or inhalation of OP sprayed in the air [18]. These contribute to either acute, delayed or chronic toxicity upon exposure [19]. However, despite such concerns, current capability to address OP issues remains suboptimal due to paucity of advanced technologies that enable for sensitive OP detection or effective treatment.

Nanomaterials have made a growing impact on developing therapeutic agents [20,21,22,23,24,25,26,27] and sensors [28] in numerous areas. These are classified as a group of objects or structures in a nanometer size range which display functional properties distinct from bulk materials [29,30]. Such properties are characterized largely by their composition, size and shapes, which include nanospheres [31,32], nanotubes [33], planar nanosheets [34], nanodisks [34,35], nanocages [36] and nanorods [32] (Figure 1). They allow structural modifications and offer functional capabilities through magnetic control, light absorption, fluorescence, luminescence, cavity loading or pore gating. These properties make nanomaterials highly applicable for sensors [36], drug delivery platforms [20] or nanoscale reactors [37,38]. Therefore, nanomaterials applications offer a high potential to address existing OP-related serious problems.

This article aims to review the status and advances of such OP-responsive nanomaterials and enabling nanotechnologies. It is directed on two primary areas of application: (i) sensors, (ii) therapeutic development for OP exposure and intoxication. The first relates to nanosensor types and capabilities applicable for OP detection through instrumental analysis. The second describes nanomaterial applications in the development of antidote delivery platforms and nanomaterial-based OP scavenges which are designed through bioscavenger encapsulation or chemical functionalization. In summary, this article hopes to serve a concise yet updated review on OP-responsive nanomaterials, their design concepts and impactful applications.

2. Nanosensors for Reactive Organophosphate Detection

2.1. Electrochemistry

2.1.1. AChE-Immobilized Electrode

Electrochemical detection constitutes one of fundamental approaches in biosensor design for OP analysis [39]. This often relies on fabricating an OP-responsive electrode through its surface functionalization such as by immobilization with AChE [39,40,41,42]. This enzyme functionalization is therefore responsible for generating an OP-specific signal in amperometry or voltammetry when its immobilized enzyme loses its catalytic activity upon inactivation by OP [39,40,41]. This detection method is validated for its ability to detect individual OP pesticides or their mixture.

2.1.2. AChE-Immobilized Nanosensor

In an electrochemical nanosensor design, AChE is immobilized on the nanoparticle (NP) surface in lieu of the bulk electrode surface. This approach has been applied to magnetic nanoparticles (MNPs) such as iron oxide (Fe₃O₄) nanoparticle (IONP) [43] and nano Fe-Ni [44], each offering an important benefit of magnetic control. Thus, using AChE-immobilized MNPs allows temporal and spatial control of MNP localization in an working electrode or screen-printed electrode under an applied magnetic field [43] as reported by Rodrigues et al. In this study, they report unique benefits such as ability for nanosensor assembly on demand and convenience in electrode renewal (cleaning). These are otherwise not available simply by permanent AChE immobilization on the electrode surface. AChE immobilization in MNP-based nanosensors can be achieved by protein crosslinking through glutaraldehyde [43], Ni-histidine tag [45,46] or light responsive polymer [45]. Their sensitivity for OP detection is validated with pesticides such as chlorpyrifos and malathion with limit of detection (LOD) as low as sub nM (

Table 1. Nanomaterial-enabled sensors developed for OP analysis.

Detection	Concept	Design	OP Analyte (LOD)	Ref
Electrochemistry	AChE Inhibition	IONP@AChE	Chlorpyrifos oxon, malathion (0.3 nM)	[43,45,46]
		nano Fe-Ni@AChE	Phosmet (0.1 nM)	[44]
		AuNP-CaCO3@AChE	Malathion, chlorpyrifos (0.1 nM)	[47]
		nano Ag@Chitosan-AChE	POX (15 nM)	[48]
		MSN@AChE	Dimethoate (6.5 nM)	[49]
	Anti-OP Antibody	GNS@Anti-parathion Ab	Parathion (0.2 fM)	[50]
	OP Adsorption	rGO@Cu	Parathion, fenitrothion, malathion (3 nM)	[51]
		rGO@AuNP-polymer	Malathion (0.1 nM)	[52]
		GNS@AuNP	Parathion methyl (2 nM)	[53]
	OP Reaction	GO@AuNP-acetophenone oxime	Diethyl cyanophosphonate, dimethoate, fenitrothion	[54]
Fluorescence (Luminescence) Spectroscopy	AChE Inhibition	Cd-Te QD	Paraoxon, GB, VX (0.1–8.0 nM)	[55]
	OP Adsorption	CdTe QD	Chlorpyrifos (0.1 nM)	[56]
		ZnS-Mn QD	Diethyl phosphorothioate	[57]
		Hf-doped MOF	Methylphosphonate	[58]
		AuNP@Rhodamine	Ethoprophos (37 nM)	[59]
	OP Reaction	CdS QD + Eosin Y	Chlorpyrifos (29 nM)	[60]
		UCN@Oxime probe	Dimethoate (0.14 μM)	[61]
Colorimetry & Spectrophotometry	AChE Inhibition	AuNR + AChE	Dichlorvos (45 fM)	[62]
	OP Adsorption	AuNP, AgNP	Ethion, parathion	[63]
		AuNP@Rhodamine	Ethoprophos (37 nM)	[59]
		Nano Ag@PVP	Chlorpyrifos (14 nM)	[64]

AuNP = gold nanoparticle; GNS = graphene nanosheet; rGO = reduced graphene oxide; IONP = iron oxide nanoparticle; MNP = magnetic nanoparticle; MOF = metal-organic framework; MSN = mesoporous silica nanoparticle; PVP = polyvinylpyrrolidone; QD = quantum dot; UCN = upconversion nanoparticle.

).

Non-magnetic NPs are also employed in developing electrochemical nanosensors. These include gold nanoparticle (AuNP) [47], nano Ag [48] and mesoporous silica nanoparticle (MSN) [49], each functionalized by AChE immobilization or non-covalent encapsulation for OP specificity. These nanosensors offer sufficient sensitivity to detect a wide range of OP pesticides as listed in Table 1.

2.1.3. Antibody-Immobilized Nanosensor

Another approach for OP detection involves using an antibody raised against a specific OP species. This is described in a study reported by Mehta et al. [50] in which an anti-parathion antibody was immobilized on the surface of graphene nanosheet (GNS). As a two-dimensional nanostructure, GNS displays an excellent degree of conductance for electrons, which is hence highly suited for application in electrochemical biosensing. This GNS-based immunosensor showed high detection sensitivity for parathion or parathion-like pesticides with LOD as low as fM [50]. However, despite such sensitivity, using an immunosensor has certain drawbacks because its employed antibody is able to recognize only a specific subset of OPs and not applicable to a broader spectrum of OPs [50].

2.1.4. OP-Responsive Nanosensor

As introduced briefly above, GNS display unique features in its structure and property beneficial for electrochemical OP detection. These include high surface area-to-volume ratio, ultralow thickness and high electronic conductance [65]. Their combination confers GNS with sensitive ability to respond to OP adsorption or reaction that occurs on its surface. This is illustrated with a copper-graphene nanocomposite in Figure 2A that shows ability to detect sulfur-containing OP pesticides [51]. Such GNS-based OP detection is further validated using copper-coated reduced graphene oxide (rGO) [51], AuNP-coated rGO [52] and AuNP-coated GNS [53]. Besides, GNS nanosensors are designed by surface modification with an OP-specific probe molecule that engages in selective OP recognition and/or its reaction. Huixiang et al. [54] validated this concept using GO@AuNP functionalized with 4-aminoacetophenone oxime. Thus, an electrode fabricated with this graphene nanocomposite has led to OP detection with LOD at low nM (Table 1).

In summary, electrochemical nanosensors have shown promising capabilities for OP detection. These are designed with nanomaterials such as IONP [43,45,46], nano Fe-Ni [44], AuNP [47], nano Ag [48], MSN [49] or graphene-based NP [51,52,53,54], each functionalized with AChE [43,44,47,48,49], OP antibody [50] or OP-reactive moiety [54]. These nanosensors offer characteristic advantages including high loading capacity in electrodes, high sensitivity, and fast onset of action due to a narrow spacing between interacting electrodes. Their capabilities are attributable to a combination of their nanometer size, shape and other design features which are not available by conventional bulk electrodes [3,43].

2.2. Absorbance, Fluorescence and Luminescence Spectroscopy

In general, most OPs do not contain chromophores that are applicable for spectroscopic detection by UV–Vis absorbance or fluorescence. There are only few OPs which contain aromatic moieties for UV absorbance such as parathion, paraoxon (POX) and fenitrothion [66], each containing a 4-nitrophenyl group. However, their direct detection by spectrometry is not efficient because their molar absorptivity is practically too low for sensitive analysis. Instead, these are better detectable indirectly through a mechanism of fluorescence quenching in which each chromophore serves as a fluorescence quencher to a sensor molecule added separately such as coumarin [67]. This fluorescence quenching assay is validated with parathion, POX and fenitrothion, and it displays relatively low sensitivity in the range of 10⁻⁷–10⁻⁴ M [66].

2.2.1. Quantum Dot (QD) Nanosensors

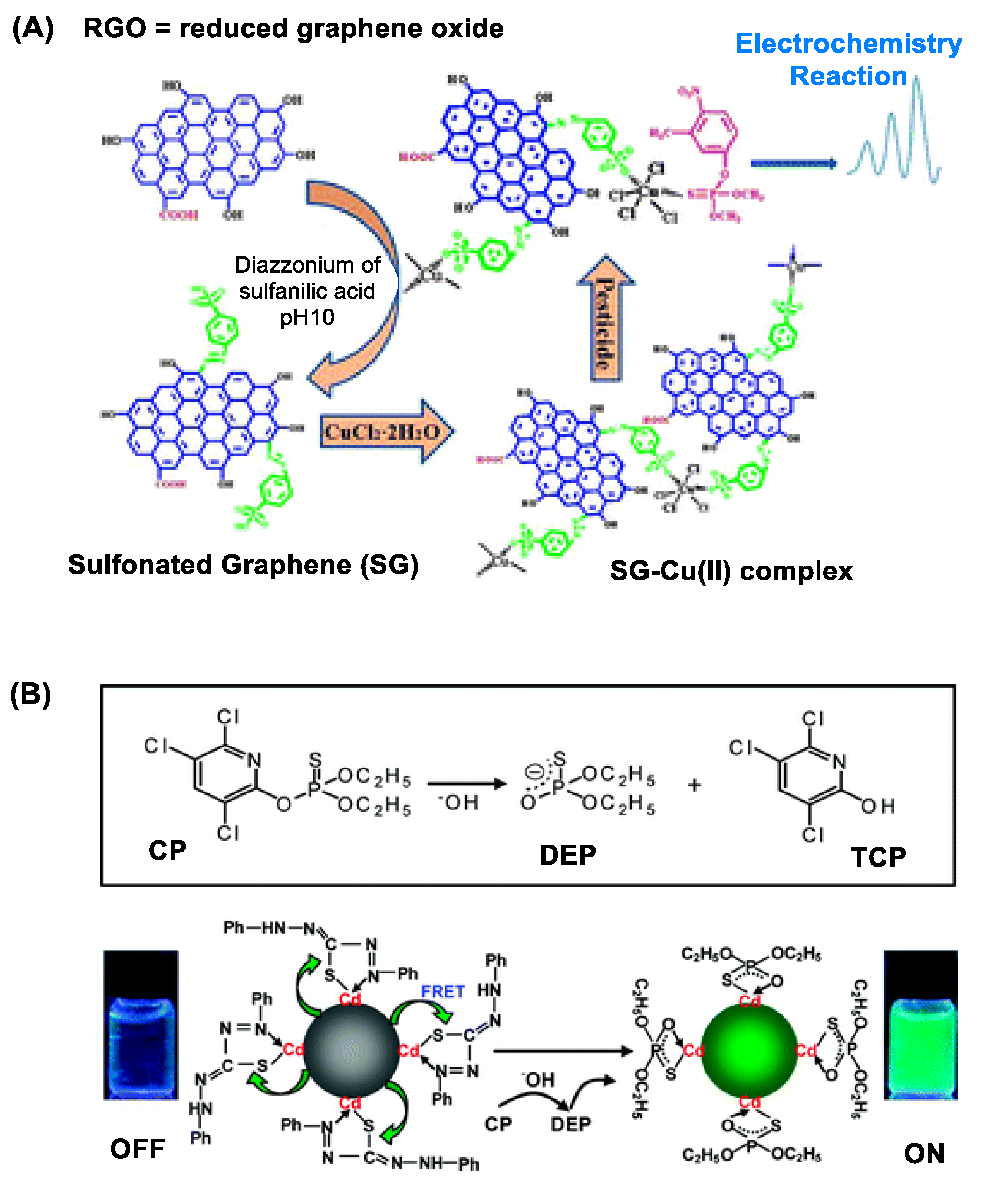

QDs are notable for their bright fluorescence in the visible and near infrared (NIR) range [56,68]. Their fluorescence is applicable for OP detection as illustrated with QD sensors made of CdTe [55,56], CdS [60] and Mn-doped ZnS [57]. Their detection principle varies with specific design features introduced in each sensor, but it involves measuring a change in QD fluorescence intensity that occurs in response to OP adsorption or a chemical reaction on the QD surface [55]. The change occurs via either fluorescence resonance energy transfer (FRET) [56,60] or photoelectron transfer (PET) [57] between the donor (QD) and the OP-responsive acceptor attached on the surface. Zhang et al. reported dithizone-coordinated CdTe QD designed for FRET quenching-based chlorpyrifos detection via dithizone hydrolysis as shown in Figure 2B [56].

2.2.2. Upconversion Nanocrystal (UCN) Nanosensors

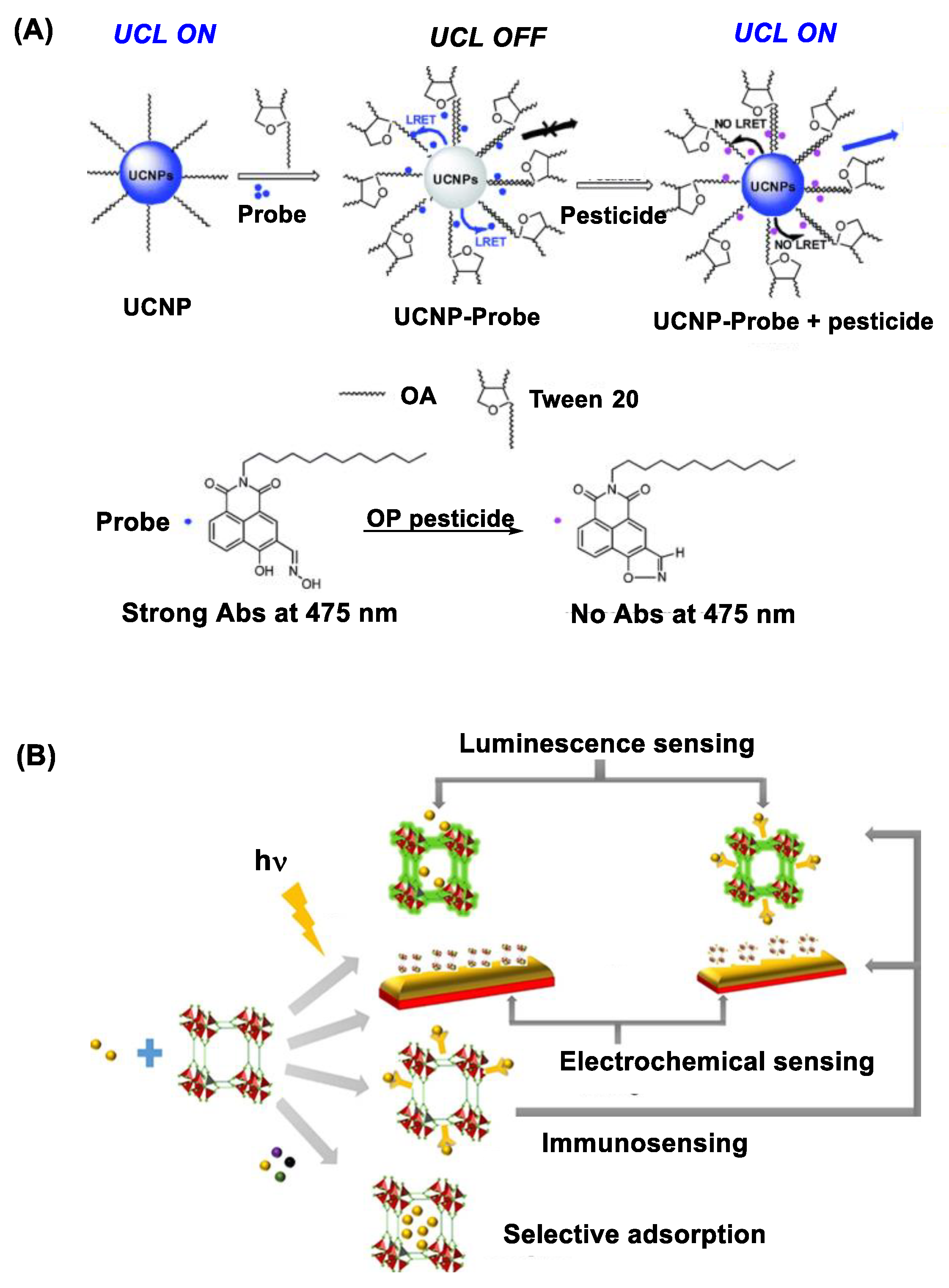

UCNs belong in an emerging class of photoactive nanomaterials that include NaYF₄ doped with lanthanide ions (Yb, Er, Tm) in their lattice structure [69,70]. Unlike QDs, UCNs are excited by irradiation at longer NIR wavelengths (980 or 808 nm) with ability to emit upconversion luminescence at shorter visible wavelengths such as 475 nm [71]. Their luminescence intensity is sensitive to surface functionalization, and it can be quenched via its luminescence resonance energy transfer (LRET) to an acceptor molecule localized at a close proximity. In a recent study, Wang et al. [61] describes such luminescence quenching using UCN functionalized with an OP-reactive oxime probe on the surface (Figure 3A). This quenched luminescence is applicable for OP detection because it is restored when the oxime probe reacts with OP which leads to LRET deactivation. This UCN-based nanosensor has shown a detection sensitivity for diethyl chlorophosphate or dimethoate at μM [61].

2.2.3. Metal-Organic Framework Nanosensors

OP can be detected by metal-organic frameworks (MOFs) that are active in UV photoluminescence. These include MOFs made of luminescent transition metal or lanthanide ions coordinated to organic ligands (imidazole) [73,74]. Their photoluminescence is highly responsive to microenvironmental changes in their lattice structure such as binding by guest molecules. Thus it is diminished to a significant extent upon OP binding or encapsulation (Figure 3B) [72]. This MOF-based luminescence assay enables to detect a broad spectrum of OP pesticides including chlorpyrifos, parathion and azinphos-methyl as described in a study by Singha et al. [75]. MOF sensors can be tunable in their design for improved guest specificity as reported with hafnium (Hf) ion-doped MOF [58,76]. In this study, Lian et al. describes its specific response to methanephosphonate, a hydrolytic byproduct from nerve agents, with high sensitivity. Other design factors in MOF sensors include those related to addressing potential drawbacks such as suboptimal aqueous stability, relatively slow onset of response and signal interference by other chemicals [72].

2.2.4. Plasmonic Nanomaterials

Noble metal nanomaterials that include nano gold (Au) or nano silver (Ag) display light absorbance via surface plasmon resonance (SPR) in the range of 350–500 nm (nano Ag) and 450–600 nm (nano Au) [32,77]. Their SPR absorbance is applicable for OP detection because it makes a blue shift upon chemisorption by sulfur analytes such as thiol-releasing OPs or thion (P=S)-based OPs (Table 1) [63]. Their detection sensitivity varies with metal compositions and shapes as evident with hexagon-shaped nano Ag which detects chlorpyrifos more effectively than other shapes [64].

Development of plasmonic nanosensors based on nano Au and nano Ag has certain limitations because they are not directly applicable for certain OPs that lack a sulfur moiety. Such lack of broader sensitivity is however addressed by surface functionalization with an OP-specific sensing element such as AChE [62], rhodamine B [59] or adenosine triphosphate [59]. Each of these sensors, which works in a different manner, has shown a broader sensitivity extended to oxon-based ethoprophos and dichlorvos [59,62] (Table 1).

In topic summary, several types of nanosensors are developed for OP analysis with improvement in detection time, sensitivity and specificity. Their capabilities are attributable to nanoscale structural and functional properties enabled by various types of nanomaterials that include MNPs [43,45,46], nano Au [47,59], nano Ag [48], MSN [49], graphene [50,51,52,53,54], QDs [55,56,57], luminescent UCN [61] and MOF [58]. These nanosensors are applicable for instrumental OP analysis by electrochemistry, SPR absorbance, fluorescence and luminescence.

3. Therapeutic Platforms for Reactive Organophosphate Treatment

3.1. Delivery Systems for Antidotes

Over several decades, we have seen continued and significant efforts to develop for therapeutic agents effective in the treatment of OP intoxication [12,78]. Despite such attention, current approved regimen still relies on administering one or more of relatively old antidotes [12,79]. These include oxime agents including pralidoxime chloride (2-PAM) that serves as an enzyme reactivator, atropine as a cholinergic receptor blocker and midazolam, an anticonvulsant for epileptic seizure relief [80]. Of these, 2-PAM serves a primary antidote due to its critical role in reactivating OP-inhibited AChE (Figure 1). However, 2-PAM has shortcomings such as inability to cross the blood-brain barrier needed for its central nervous system (CNS) bioavailability [81,82] and its short half-life (≤2 h) in plasma [83,84].

3.1.1. Oximes

It is well documented that nanomaterials serve as effective carriers in drug delivery [20,21]. They have shown promising potential in controlled antidote delivery as evident with systems based on MOF [85] and poly(amidoamine) (PAMAM) dendrimer [86,87], each applied in oxime delivery. These systems vary in structural features, modes of interaction applicable for drug encapsulation and loading capacity. The MOF system, which is characterized with its extensive array of internal pores, shows host-guest complexation for 2-PAM encapsulation through π-stacking and hydrogen bond interactions [85]. On the other hand, PAMAM dendrimer offers its well-defined architecture that contains hydrophobic cavities in its internal core and an array of repetitive peripheral branches, both applicable in guest complexation [88]. This unique architecture plays an essential role in 2-PAM complexation which occurs through electrostatic and hydrogen bond interactions at peripheral sites (Figure 4A) [86,87]. This type of oxime binding has been demonstrated with G5 PAMAM dendrimers, either unmodified [87] or peripherally modified with glutarate [86] as illustrated in Figure 4A. Use of such delivery systems based on MOF or dendrimer can serve an important route for extended duration of drug action because drug release from such complexes occurs more slowly than free drug [85,86,87].

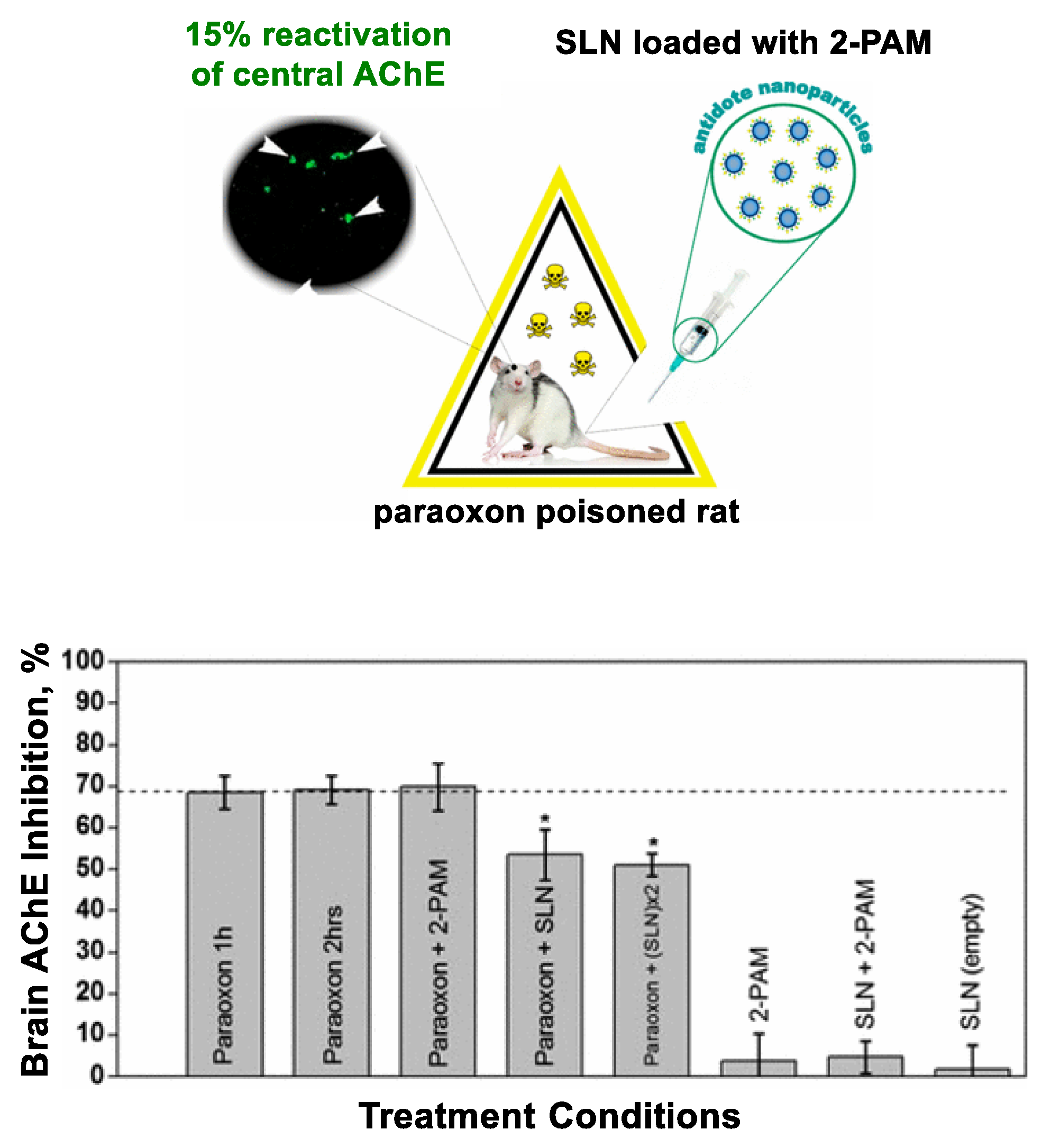

Nanocarriers are further validated in CNS drug delivery [84,90,91]. This illustrated with two systems based on either human serum albumin [90] or solid lipid nanoparticles (SLNs) [84,91], each investigated for oxime transport across the blood-brain barrier. The serum albumin nanoparticles [90] have shown oxime (obidoxime, HI-6) transport in a model CNS system to a greater extent than free oximes. SLNs have been studied otherwise for in vivo oxime delivery in rat brain as shown in Figure 5 [84,91]. In this approach, Pashirova et al. [91] designed 2-PAM-loaded SLN and demonstrated its greater efficacy in AChE reactivation (lower inhibition) in POX-poisoned rats than its free drug.

3.1.2. Atropine

The delivery strategy described above for oximes is similarly applied to atropine, another essential antidote used in the treatment of OP poisoning [12]. Like 2-PAM, atropine displays a short half-life (t_1/2 ≈ 1–2 h in human plasma) primarily due to rapid metabolism and excretion [92]. PAMAM dendrimer is validated as its delivery system. Driving forces for its complexation involve a combination of electrostatic association and hydrophobic van der Waals interaction as shown in Figure 4A [89]. Its dendrimer complex displays slower release than free atropine (Figure 4B), suggesting a potential contribution to its extended duration of action [22,93,94]. Another system studied for atropine delivery involves poly(methacrylate) polymer prepared via molecular imprinting for atropine recognition [95]. This polymer has shown its binding affinity for atropine and utility in controlled release in vitro.

3.2. Bioscavengers

Bioscavengers refer to a class of enzyme-based proteins that are able to recognize and inactivate OP molecules [38,96,97,98,99]. Therefore, they offer a therapeutic potential as therapeutic antidotes. They comprise a broad range of OP hydrolytic proteins that include butyrylcholinesterase (BChE) [100,101,102], carboxylesterase 1 (hCE1) [103] and paraoxonase (PON) [104,105] in human plasma and organophosphorus anhydrase [106]. Non-enzymatic proteins such as albumins can also participate in OP inactivation through stochastic reactions [107]. Like AChE, most of these enzymes belong in the class of stoichiometric (suicidal) scavengers which are inefficient due to their OP inactivation in a 1:1 molar ratio. Such low efficiency is addressed by catalytic bioscavengers [97,108,109,110] that include mutant AChE [111,112] and bacterial phosphotriesterase [109,112].

Despite their therapeutic potential, their commercial development faces challenges to overcome due to issues associated with enzyme instability, short plasma half-life and large doses required. Some of these undesired properties could be improved by conjugation strategies used in nanotechnology. These include enzyme PEGylation [38,108,113] or conjugation with an Fc protein [114], each known to prolong the duration of circulation in plasma. Another approach involves nanomaterial integration as illustrated with polymer integration (coating) with acetylcholinesterase-embedded cell membranes. This integrated system has retained AChE activity against dichlorvos in vitro and shown efficacy in protecting mice from dichlorvos [38]. Similarly, organophosphorus anhydrase (OPAA) encapsulated in a poly(carboxybetaine) polymer hydrogel has shown potent efficacy in protecting guinea pigs from repeated exposures to sarin [106].

3.3. Chemical Scavengers

In addition to antidote administration, performing a topical decontamination plays an essential role in effective OP treatment. It is because without such OP removal from the skin surface, the exposed surface serves as a depot for extended OP absorption which causes sustained toxicity [115]. Several types of decontaminants [96,116,117,118,119,120,121] have been developed for skin decontamination that include most notably reactive skin decontamination lotion (RSDL) [122,123]. Its active ingredient consists of Dekon 139, a potassium salt of diacetyl monooxime (DAM). It displays a strong chemical reactivity in OP inactivation through catalytic hydrolysis as depicted in Figure 6A [124]. However, Dekon 139 can induce adverse systemic effects such as skeletal muscle paralysis due to its rapid skin and wound absorption [125].

Recently, several types of molecular scaffolds are designed and tested as effective chemical decontaminants for OP pesticides and nerve agents [119,121,126,127,128]. These include α-nucleophile scaffolds prepared by conjugation with oxime [16,124], pyridinium aldoxime (PAM) [120,129,130] or hydroxamic acid (HA) [16,129,131]. Some of these have shown greater efficiency in topical decontamination of porcine skin exposed to POX ex vivo than Dekon 139 [16,124]. This is evident with faster decay curves of POX in the donor chamber by treatment with oxime/HA scaffolds as shown in Figure 6B [16].

Other scaffolds such as those prepared by PAM conjugation to a glucose [2] or β-cyclodextrin [132,133] unit have shown potent reactivity in OP (POX, cyclosarin) inactivation in vitro [132,133] or preventing POX-induced hypothermia in vivo [2]. Non-α-nucleophile scaffolds are similarly validated as OP-reactive constructs that include alkali metal alkoxides [126], lanthanide (La³⁺) ions [121], nitrogen-containing bases [127] and imidazolium-based ionic liquids [119].

3.4. Nanoscavengers

3.4.1. Lipid Nanoparticles

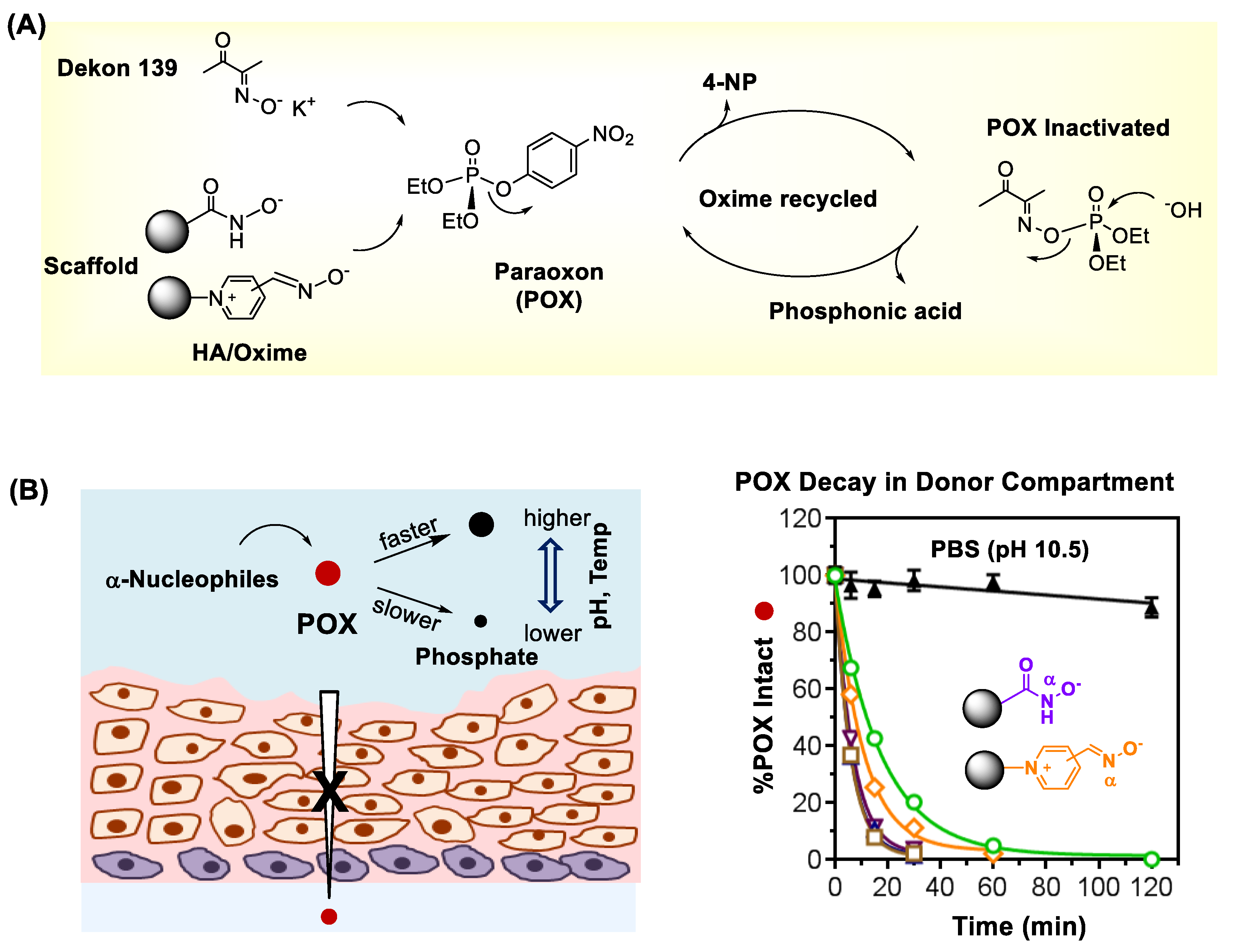

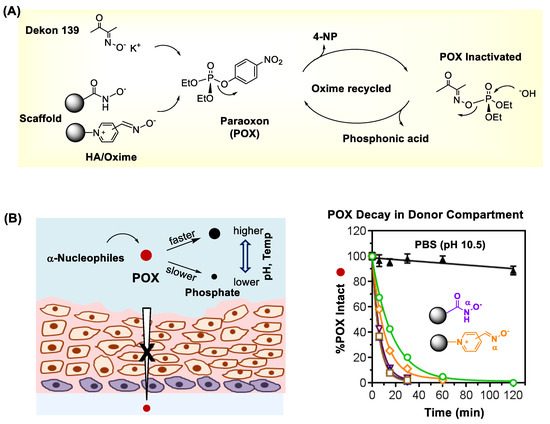

Micelles and liposomes have been frequently employed in the design of lipid-based nanoscavengers for OP hydrolysis [120,134,135,136]. Their typical design involves presentation of OP-reactive oxime or HA moieties on the external surface [137,138]. This is illustrated with PAM-functionalized micelles demonstrated for their catalytic role in the hydrolysis of POX, parathion and fenitrothion [135,136]. Similarly, oxime-incorporated liposomes are able to accelerate the hydrolysis of OP such as 4-nitrophenyl diphenyl phosphate by several orders of magnitude faster than free oximes [136]. Furthermore, unlike micelles, the liposomal interior serves a water-filled cargo space for (bio)scavenger loading. Thus, liposomes encapsulated with bioscavenger phosphotriesterase are demonstrated for effective POX decontamination on model surfaces as shown in Figure 7A [139].

3.4.2. Metal Ion Chelated Polymer

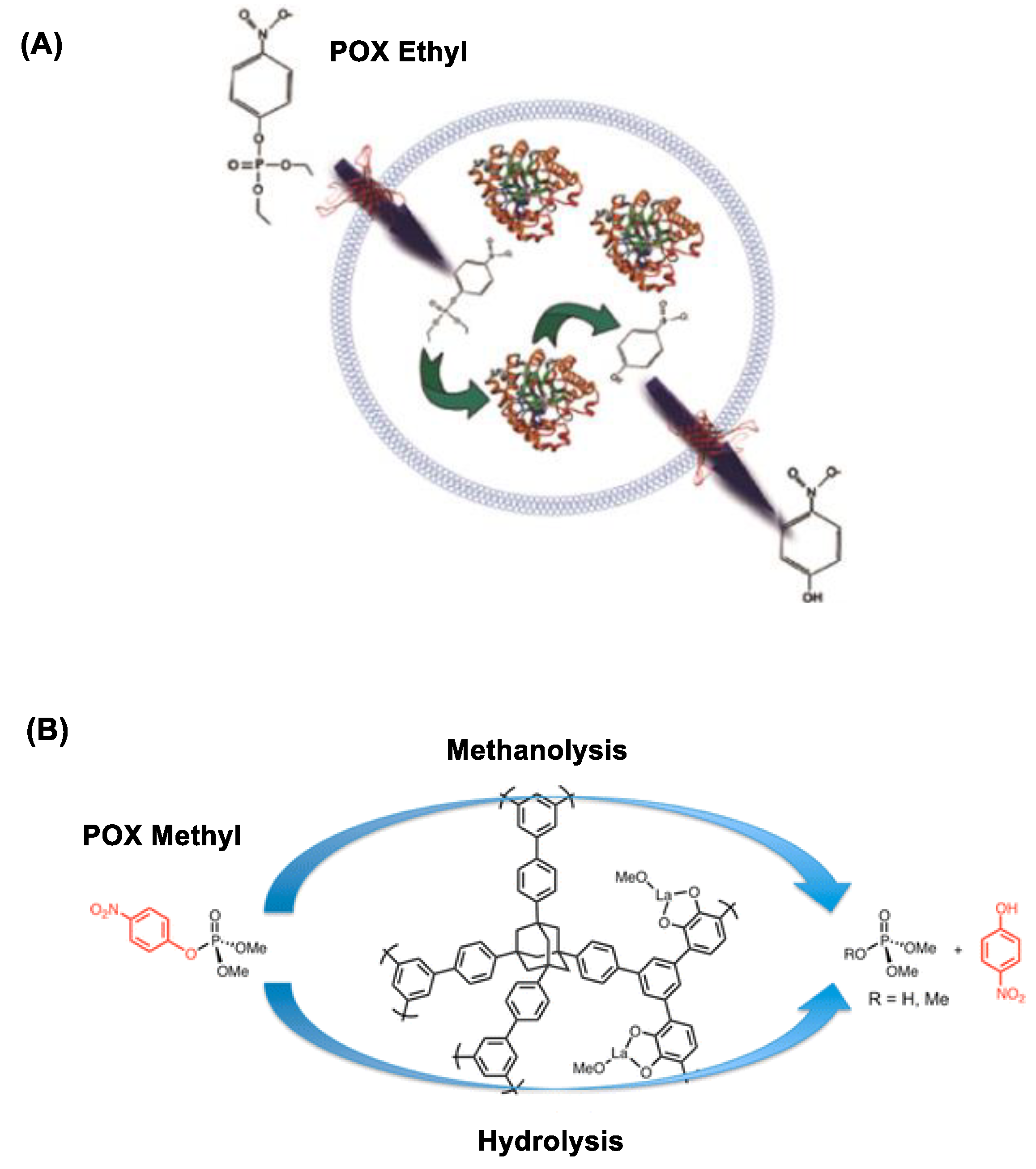

Polymer-based scavengers are designed by polymer modifications with OP-reactive metal chelates [140,141]. These include a copper (II)–vinylbipyridyl complex chelated to trimethylolpropane trimethacrylate demonstrated for its ability to accelerate the hydrolysis of 4-nitrophenyl phosphate and parathion-methyl compared to the free metal complex [141]. Lanthanide (La) chelates likewise play an effective role in catalytic OP hydrolysis [141]. This is shown with porous organic polymer functionalized with La-catecholate residues demonstrated for faster degradation of paraoxon methyl as illustrated in Figure 7B [140].

3.4.3. Mesoporous Silica Nanoparticle

MSNs consist of low nanometer-sized pores in their internal architecture [142]. Their porous spaces are highly useful for application in the physical adsorption and sequestration of smaller guest molecules [143]. Moreover, silanol groups that account for a major fraction of surface functionality can directly engage in degradation reactions of adsorbed OP molecules [144]. This is shown by MSN with a pore diameter of 2.4 nm. It is demonstrated for effective OP adsorption and detoxification against OP molecules as large as dichlorvos and dimethyl methylphosphonate [144].

3.4.4. Metal-Organic Framework

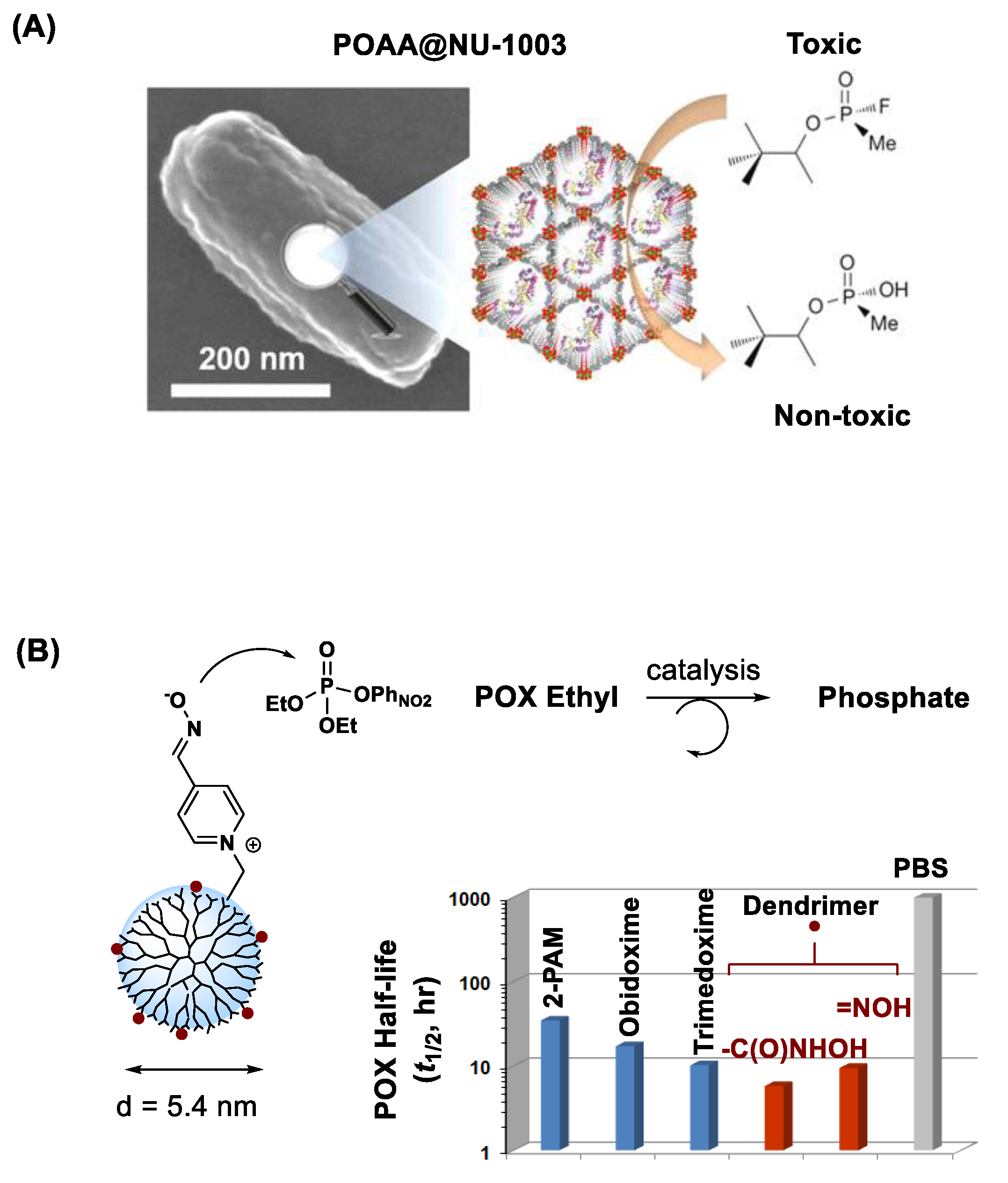

The internal architecture of MOFs offers an extensive array of nanopores [145] which are variable in diameter [145]. These pores allow to adsorb and sequester small molecule contaminants such as OP pesticides [73]. MOFs can be tunable in pore size as seen in zirconium-based MOF that offers a pore aperture large enough for immobilizing bioscavenger molecules such as OPAA as shown in Figure 8A [117]. In this study, Li et al. describes that this enzyme-immobilized MOF is highly reactive in OP hydrolysis, leading to much faster degradation of a nerve agent soman compared to the enzyme alone or the enzyme immobilized in MOF with smaller pores. Moreover, MOFs are tunable in the design of internal functionality as seen in amine-presented UiO-66-NH₂ [146,147]. Such amine-functionalized MOF has shown reactivity in degrading POX and nerve agents [148].

3.4.5. Metal Oxide Nanoparticle

Metal oxide-based nanomaterials contain a large array of chemically reactive sites on their exposed surface which are applicable for OP degradation. Of note is CeO₂ NP reported for its successful application in preventing POX decontamination in a porcine skin model [149]. Its efficacy is attributable to its oxide functionality as the sites which engage in POX degradation. In addition, CeO₂ NP has shown faster POX degradation under UV–Vis irradiation than an ambient light condition. Occurrence of such photocatalytic reactivity is broadly reported in other types of metal oxide NPs including TiO₂ and Ag-ZnO [150,151]. Their photocatalytic reactivity is linked to more effective degradation of parathion and chlorpyrifos that occurs under a (simulated) solar light condition.

3.4.6. PAMAM Dendrimers

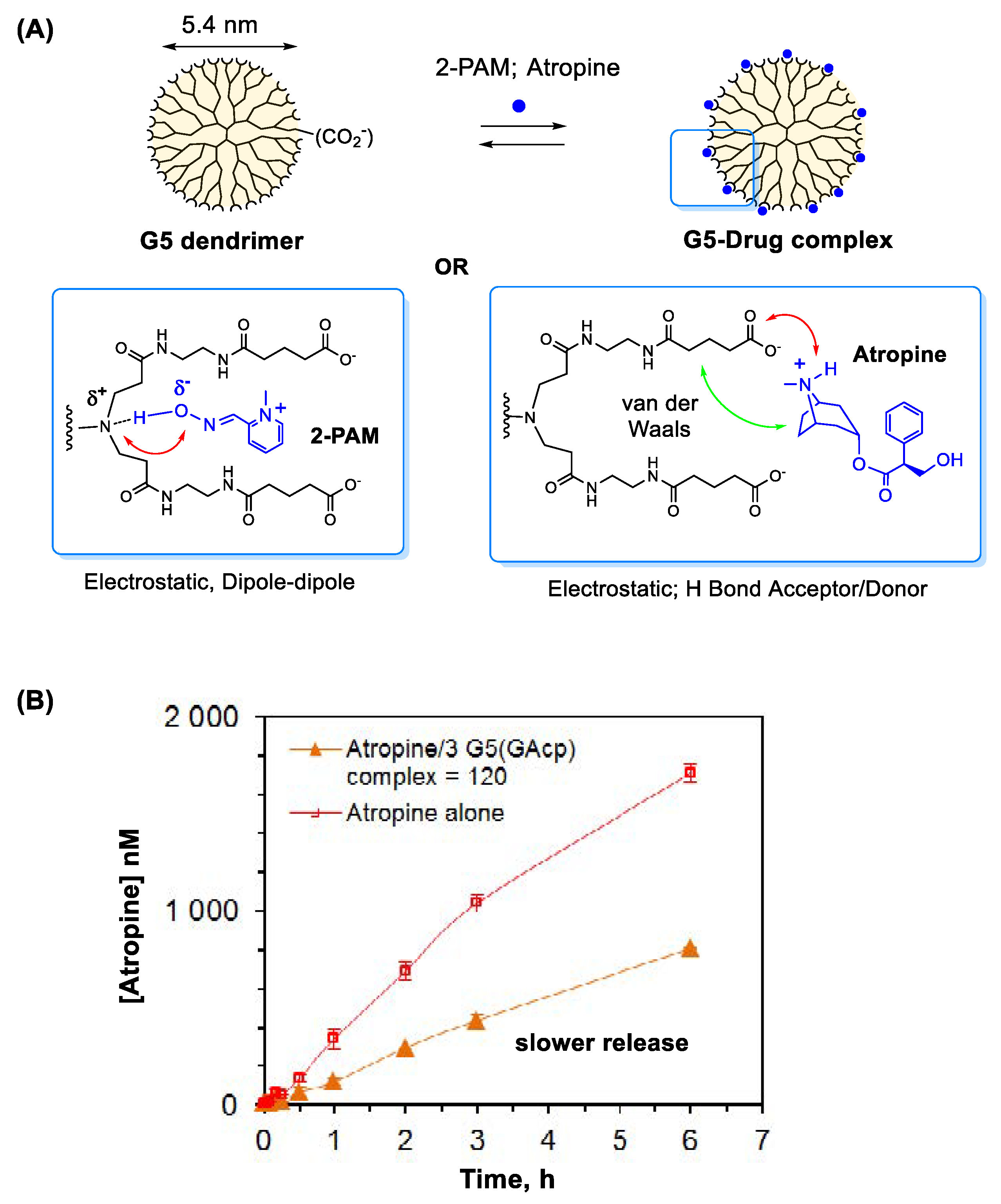

PAMAM dendrimers [88] have a strong potential as a nanoplatform for OP sequestration. They offer various structural and functional benefits through their dendritic architecture, hydrophobic cavities and chemical stability [152,153,154]. Their applications in OP sequestration is demonstrated with a fourth generation (G4) PAMAM dendrimer functionalized with (L)-asparagine [155]. This amino acid-functionalized dendrimer has shown ability for rapid desorption and sequestration of hydrophobic OPs such as methamidophos and azinophos methyl.

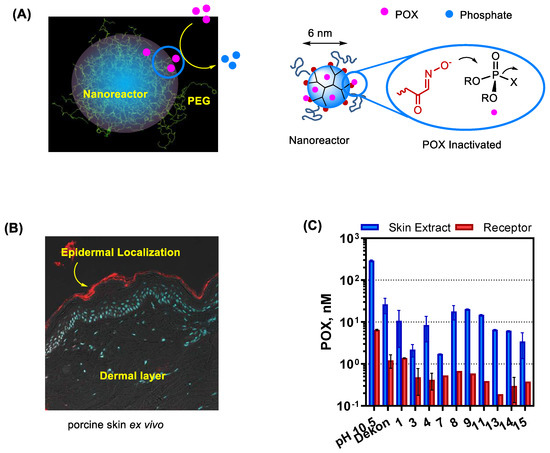

PAMAM dendrimers can also serve a promising nanoreactor platform. They allow structural modifications with OP-reactive moieties on its peripheral branches as illustrated in Figure 8B. In this work, Bharathi et al. describes PAM-conjugated G5 dendrimer and its ability to accelerate the rate of POX hydrolysis [130]. However, despite such effectiveness, their OP-reactive moieties may engage in undesired reactions with proteins and enzymes such as AChE. To address such non-selectivity issue, Wong et al. [37] advanced its design concept to a shielded oxime nanoreactor as depicted in a model (Figure 9A). Its primary design strategy involves reactor shielding through partial surface PEGylation. Thus, the PEG layer can limit reactor accessibility to only small OPs via steric interference. Such PEG-shielded nanoreactors have shown rapid POX hydrolysis and effective POX decontamination in skin models ex vivo while they show lack of undesired effects such as AChE inhibition and skin penetration (Figure 9).

In topic summary, nanomaterials offer a variety of structural and functional properties that enable to address current unmet needs associated with OP exposure and intoxication. They have shown practical utilities in a broad range of applications from antidote drug delivery [86,87,89], protective material design [148], environmental decontamination [139] to therapeutic skin decontamination [37,117,118,130,144,149] as summarized in

Table 2. Nanomaterial-based therapeutic platforms for applications in antidote drug delivery or reactive organophosphate (OP) inactivation.

Nanomaterial	Design Feature	Tested OP	Function	Ref
Lipid based (micelle, liposome)	Oxime, HA presented	Fenitrothion	Catalytic inactivation	[120,134,135,136]
	Phosphotriesterase encapsulated	POX	Catalytic inactivation	[139]
	2-PAM encapsulated	POX	Rat brain delivery	[84,91]
Polymer	Cu (II)-bipyridyl chelated	Parathion methyl	Catalytic inactivation	[141]
	La (catecholate) chelated	POX, Nerve agents	Catalytic inactivation	[140]
MSN	Unmodified	Dichlorvos	Adsorption; inactivation	[144]
MOF	UiO-66	OP	Adsorption	[73]
	UiO-66-NH2	POX, VX, Soman	Catalytic inactivation	[146,147,148]
	OPAA immobilized	Soman	Catalytic inactivation	[117]
Metal Oxide	CeO2	POX	Catalytic inactivation	[149]
	TiO2	Parathion	Photocatalytic inactivation	[150]
	Ag-ZnO	Chlorpyrifos	Photocatalytic inactivation	[151]
PAMAM dendrimer	Amino acid conjugated	Azhinophos methyl	Adsorption	[155]
	Oxime/HA conjugated	POX, Malathion	Catalytic inactivation	[37,130]
	2-PAM, atropine encapsulated	-	Extended drug release	[86,87,89]

MOF = metal-organic framework; MSN = mesoporous silica nanoparticle; OPAA = organophosphorus acid anhydrolase; PAMAM = poly(amidoamine); Paraoxon = POX.

and Table S1 (Supplementary Material).

4. Conclusions and Perspective

Over recent decades, nanomaterials have made a significant impact on advancing therapeutic and biomedical developments in a broad range of applications from therapeutics [20,21,22,23,24,25,26,27], imaging [156,157], diagnostics [158] to sensors [28]. This also applies in the field of OP exposure where urgent needs remain for its sensitive detection and efficacious treatment. This article has focused on this specific topic and discussed the status and prospect of nanomaterial applications that relate to OP detection, antidote drug delivery, and decontamination.

Nanosensors for OP analysis involve instrumental analysis via electrochemistry [43,44,45,46,47,48,49,50,51,52,53,54] or optical spectroscopy via absorption [59], fluorescence [55,56,57] or luminescence [58,61]. Compared to conventional sensors, these nanosensors have several advantages that include unique sensing mechanisms, greater loading capacity, higher sensitivity and faster onset of action. Some of these are attributable to intrinsic nanomaterial properties such as porosity [49], electric conductance [50,51,52,53,54], surface plasmon resonance (SPR) excitation [47,48,59], fluorescence [55,56,57] or luminescence [58,61] whereas others are due to a combination of chemical and biochemical functionalization made internally or externally with an aim to generate OP-specific signals in response to OP adsorption [51,52,53,56,57], reaction [54] or hydrolysis [47,48,49,55,60,61]. It is also of interest to note the role of magnetic control in MNP-based nanosensors, which offers convenience, on-off reversibility and high spatial precision in sensor assembly [43,44,45,46].

Nanomaterials serve as important platforms for OP treatment by engaging in either controlled drug delivery or OP sequestration (Table 2). Nanomaterials that contain internal cavities or pores are preferred as delivery platforms due to their loading capacity. This is evident with PAMAM dendrimer [86,87], human serum albumin [90], MOF [85] and SLN [84,91], each demonstrated for controlled drug release [86,87,89] or CNS delivery [84,91] of OP antidotes such as oxime drugs [84,85,86,87,90,91] or atropine [89]. Besides, they allow OP sequestration within their pores as demonstrated with MSN [144] and MOF [73].

Nanomaterials are readily functionalized to create mechanisms for OP inactivation by which they can serve as OP scavengers [159]. This is illustrated with those nanoscavengers made of liposome [120,134,139], polymer [140,141], MOF [117,148], metal oxide [149,150,151] and dendrimer [37,130,155]. Their scavenging capability relies on reactive functionalities either present in unmodified nanomaterials such as photocatalytic metal oxides [149,150,151] or built additionally such as oximes [120,134], metal chelates [140,141], amines [148] or amino acids [155]. Alternatively, specific functionalization is achieved through bioscavenger encapsulation such as phosphotriesterase [139] or OPAA [117] encapsulated in liposomes [139] or porous MOF [117]. Such nanoscavengers offer OP-targeted reactivity with lack of undesired percutaneous penetration due to their nm size, high polarity and charges [37,160]. Overall, such nanomaterial-enabled (bio)scavengers are validated as emerging therapeutic agents that could play an important role in topical OP decontamination.
