Article

3D Self-Supported Nitrogen-Doped Carbon Nanofiber Electrodes Incorporated Co/CoOx Nanoparticles: Application to Dyes Degradation by Electro-Fenton-Based Process

1
NanoStruc Research Group, Chemistry Department, Faculty of Science, Helwan University, Cairo 11795, Egypt
2
Institut Européen des Membranes (IEM), UMR 5635, Université Montpellier, École Nationale Supérieure de Chimie de Montpellier (ENSCM), Centre National de la Recherche Scientifique (CNRS), Place Eugène Bataillon, 34095 Montpellier, France
3
School of Chemical Sciences, Fraunhofer Project Centre, Dublin City University, D09 V209 Dublin, Ireland
4
Laboratoire d’Analyses Chimiques, Faculty of Sciences, LAC—Lebanese University, Jdeidet 90656, Lebanon
5
NanoBioMedical Centre, Adam Mickiewicz University, 3, Wszechnicy Piastowskiej Str., 61-614 Poznan, Poland
*
Authors to whom correspondence should be addressed.
Nanomaterials 2021, 11(10), 2686; https://doi.org/10.3390/nano11102686
Submission received: 25 August 2021 / Revised: 1 October 2021 / Accepted: 5 October 2021 / Published: 12 October 2021

Abstract

:
We developed free-standing nitrogen-doped carbon nanofiber (CNF) electrodes incorporating Co/CoOx nanoparticles (NPs) as a new cathode material for removing Acid Orange 7 (AO7; a dye for wool) from wastewater by the heterogeneous electro-Fenton reaction. We produced the free-standing N-doped CNF electrodes by electrospinning a polyacrylonitrile (PAN) and cobalt acetate solution followed by thermal carbonation of the cobalt acetate/PAN nanofibers under a nitrogen atmosphere. We then investigated electro-Fenton-based removal of AO7 from wastewater with the free-standing N-doped-CNFs-Co/CoOx electrodes, in the presence or not of Fe2+ ions as a co-catalyst. The electrochemical analysis showed the high stability of the prepared N-doped-CNF-Co/CoOx electrodes in electrochemical oxidation experiments with excellent degradation of AO7 (20 mM) at acidic to near neutral pH values (3 and 6). Electro-Fenton oxidation at 10 mA/cm2 direct current for 40 min using the N-doped-CNF-Co/CoOx electrodes loaded with 25 wt% of Co/CoOx NPs led to complete AO7 solution decolorization with total organic carbon (TOC) removal values of 92.4% at pH 3 and 93.3% at pH 6. The newly developed N-doped-CNF-Co/CoOx electrodes are an effective alternative technique for wastewater pre-treatment before the biological treatment.

1. Introduction

Water pollution continues to be one of the greatest challenges worldwide. To date, many different water pollutant types (i.e., inorganic, organic, and biological) have been described [1,2,3]. Organic pollutants, such as fertilizers, herbicides, pesticides, dyes, and drugs, are the source of many environmental problems [4]. Therefore, eco-friendly technology is crucially needed to transform organic pollutants present in the water into less toxic molecules or to completely degrade them into CO2 and H2O [5]. Traditional approaches, such as coagulation, adsorption, chemical oxidation, chemical reduction [6], photocatalytic oxidation [7], and enzymatic degradation [8], are widely exploited to eliminate organic pollutants from effluents. However, they display some limitations [9], such as the need for complementary treatments before their elimination at wastewater treatment plants. Some of these methods are not fully efficient and/or too expensive [10]. Fenton reaction has been largely investigated. Fenton reaction is characterized by a high efficiency, low cost, and relatively easy operation and maintenance for the degradation (oxidation) of many hazardous organic pollutants (e.g., dyes, drugs, herbicides, pesticides, fertilizers) [11,12]; its implementation is hampered by the need of storing and shipping concentrated H2O2(aq) and by the generation of Fe3+ sludge as a by-product of the electrochemical oxidation process [10].
Fe2+(aq) + H2O2(aq) + H+(aq) → Fe3+(aq) + ·OH(aq) + H2O
O2 (g) + 2H+(aq) + 2e → H2O2
Fe3+(aq) + e → Fe2+(aq)
Electrochemical approaches (e.g., electrocoagulation, electrosorption, and electrochemical oxidation or reduction) have attracted great attention for organic pollutants treatment [1]. These methods represent a versatile, efficient, cost-effective technology for many industrial wastewater systems. Organic pollutants in wastewater can be electrochemically degraded (oxidation) using: (i) direct electrochemical oxidation (DEO), in which electrons are directly transferred from the electrode surface without participation of other species or reagents; and (ii) indirect electrochemical oxidation (IEO), in which organic pollutants are oxidized using electroactive species (·OH radicals), generated in solution or at the electrode surface [3,13].
Electro-Fenton oxidation is an IEO process in which organic pollutants in wastewater are degraded by ·OH radicals generated by the Fenton reaction (Equation (1)) between electro-Fenton reagents (e.g., Fe2+ ions) and H2O2. Such H2O2 molecules are produced by electrochemical reduction in dissolved O2 (Equation (2)), supplied by the continuous bubbling of O2 gas at the cathode. Therefore, the electro-Fenton oxidation efficiency can be influenced by the cathode materials (e.g., composition, morphology, crystalline structure, specific surface area, pore size), electrolytes (e.g., electro-Fenton reagent, temperature, and pH), reaction time, and applied voltage influence [14]. At the cathode, the electro-Fenton reagent (Fe2+ ions) required for the electro-Fenton reaction (Equation (1)) is continuously produced through Fe3+ reduction (Equation (3)). H2O2 and Fe2+ then allow the production of ·OH that can oxidize (degrade) the organic pollutants in wastewater.
Graphite electrodes have been used for electro-Fenton oxidation of wastewater pollutants because of their availability, high electrochemical activity, and low cost [15,16,17]. However, O2 (gas) poor solubility in aqueous solutions (wastewater) limits the mass transfer reaction, causing a low oxidation efficiency. Therefore, many groups have tried to develop new cathode materials that include additional electrochemically active sites with transition metal (e.g., Fe-Cu [18], Pd-Pt [19], Pt-Au [19]), metal oxides (e.g., ZnO [20], Fe2O3 [21], TiO2 [22], CuO [23]), and hydroxide (Fe-Co-(OH)x) [11] nanoparticles (NPs) embedded in carbon matrixes. Metal/metal oxide NPs on the carbon electrode surface can be used as heterogeneous catalysts for the local generation of H2O2 during the electro-Fenton oxidation process. Graphite [24], graphenes [25], carbon nanotubes [26], carbon nanofibers [27], carbon sponges [28], and carbon felts [14] are among the electrode materials with good conductivity investigated for the electrochemical production of H2O2. On the other hand, Fe3+ sludge formation, due to the production of Fe3+, and the need for acidic pH (pH 2–4) for the electro-Fenton process can be solved by the mobilization of metal NPs (electrocatalyst) to overcome the narrow pH range required for the homogeneous electro-Fenton oxidation. Many groups have then investigated heterogeneous electro-Fenton-based oxidation at almost neutral pH without adding electro-Fenton reagents (Fe2+ ions) in the solution. The interest to develop such materials for the heterogeneous electro-Fenton process has been recently highlighted by the description of Co and/or Fe layered double hydroxyls modified carbon felts [11,12] and zeolite modified carbon felts [29,30]. As the electrochemical stability of these electrode materials was not optimal, we decided to test new electrode materials.
Carbon nanofibers (CNFs) are an attractive class of electrode material showing good adsorption, electrical conductivity, and catalysis [31,32]. CNFs exhibit great potentials in the fields of electrocatalysis [33], batteries [34], supercapacitors [35], fuel cells [35], biosensors [36,37,38,39], and biomedical applications [40]. CNF hydrophobic properties, fiber network structure, and large surface area to volume ratio explain their high adsorption/absorption capacity for organic pollutants [32]. Moreover, due to their excellent electrical conductivity and mechanical integrity, free-standing CNFs are attractive as stable free-standing electrodes for H2O2 electro-generation. However, the electrocatalytic performance of free-standing CNF electrodes is far from satisfactory and could be increased by modulating the fiber morphology and pore structure and by incorporating electrocatalyst NPs [41]. Recent studies have described the fabrication of CNF electrodes decorated by metal, metal oxide, and metal hydroxide NPs using solution electrospinning, followed by post-peroxidation in air and thermal carbonization under an inert atmosphere [42,43,44]. However, it is easier to synthesize in situ the electrocatalyst NPs within the CNFs. Moreover, this approach requires less chemicals and is more effective compared with the post-synthesis of electrocatalyst NPs using for instance wet chemistry techniques [45,46,47,48]. Furthermore, when using post-synthesis approaches, the weak interaction between electrocatalyst NPs and CNF matrix cannot prevent the electrocatalyst NPs growth/aggregation into larger particles, thus losing their size-dependent electrocatalytic activity.
Dyes are organic pollutants that are commonly used by many water-based industries for paper [49], pesticides [50], fertilizers [51], printing inks [52], textile finishing [53], and drug manufacturing. For instance, azo dyes represent more than 60–70% of all dye classes used in textile industries [54]. Azo dyes are harmful compounds that produce hazardous by-products through hydrolysis and oxidation reactions taking place in wastewater [55]. In this study, an efficient free-standing N-doped CNF electrode loaded with Co/CoOx NPs for AO7 removal is described. The N-doped-CNF-Co/CoOx electrodes have several advantages, including large surface area and low cost, low weight, easy handling, high chemical resistance, high thermal stability, and good conductivity. Moreover, they can combine adsorption and electrochemical indirect degradation of hazardous organic compounds either through the production of H2O2 from oxygen reduction (Equation (2)) or the electro-Fenton process in presence of a catalyst (Equation (1)). Innovation in the present work involves the in situ synthesis of the electrocatalyst Co/CoOx NPs into free-standing N-doped-CNF electrodes. The N-doped-CNF-Co/CoOx electrodes were fabricated using an attractive route that combines electrospinning of the PAN/cobalt acetate solution, thermal peroxidation under air, and thermal carbonation under nitrogen atmosphere. The structural and electrochemical characterization of the N-doped-CNF-Co/CoOx electrodes revealed that they were very stable at almost neutral pH and presented an excellent AO7 mineralization rate at different pH values (pH 3 and pH 6). The correlation between performance and electrode properties (composition, crystal structure, and morphology) was investigated. N-doping of CNFs was inspired by our work on N-doped graphitized carbon electrodes for the removal of bio-refractory compounds [56]. N-doping leads to the reduction in O2 adsorption/adsorption energy at the electrode surface and an improvement in the electrocatalytic properties of the surface toward oxygen reduction reaction [57,58,59].

2. Experimental

2.1. Materials

N-doped-CNF-Co/CoOx electrodes were fabricated using PAN (Mwt ~150,000, Sigma-Aldrich, St Quentin Fallavier, France), cobalt (II) acetate tetrahydrate (Co(OCOCH3)2·4H2O, 99.9%, Sigma-Aldrich), N,N-dimethylformamide (DMF, 98%, Sigma-Aldrich), and ethanol (C2H5OH, 99%, Sigma-Aldrich). The AO7 dye was used as a model organic pollutant for degradation experiments, without any additional purification step. The AO7 solution used in the experiments was prepared with sulfuric acid (H2SO4, 97%, Sigma-Aldrich), sodium hydroxide (NaOH, 98%, Sigma-Aldrich), iron (II) sulfate heptahydrate (Fe2SO4.7H2O, 98%, Sigma-Aldrich), and anhydrous sodium sulfate (Na2SO4, 98%, Sigma-Aldrich) (all analytical grade) and deionized water.

2.2. Fabrication of Composite Carbon Nanofiber Electrodes

To fabricate free-standing N-doped-CNF electrodes decorated with Co/CoOx NPs (CNF, CNF-Co3, CNF-Co10, and CNF-Co20), the cobalt (II) acetate/PAN solution was electrospun and then subject to peroxidation and thermal carbonation under a nitrogen atmosphere. Briefly, after addition of 2 g PAN to the cobalt (II) acetate solution, the mixture was mixed overnight until a homogeneous polymeric solution was formed. Four precursor solutions (samples labeled as: CNF, CNF-Co3, CNF-Co10, and CNF-Co20) with different cobalt acetate: PAN weight ratios (0%, 3%, 10%, and 20%) were prepared and transferred to 20 mL syringes. The solutions were then electrospun through hypodermic needles (21 G) on a drum collector covered with Al foil (tip-to-collector distance = 14 cm, applied voltage = 25 kV, and flow rate = 1 mL/min). The as-collected nanofibers were first stabilized (crosslinked) at 250 °C under air atmosphere for 2 h, followed by carbonization at 1000 °C for 1 h (heating/cooling rate = 2 °C·min−1 under N2 atmosphere) to obtain the N-doped-CNF-Co/CoOx electrodes.

2.3. Characterization of Electrode Material

The crystal structures and crystallinity of the N-doped-CNF and N-doped-CNF-Co/CoOx electrodes were investigated using X-ray powder diffraction (XRD, PANalytical Xpert-PRO diffractometer with an accelerator detector using Cu-radiation and Ni-filtered with a wavelength of 0.154 nm) [60]. The electrode morphology, microstructure, and size distribution were studied using scanning electron microscopy (SEM, Hitachi S4800, Japan) and high-resolution transmission electron microscopy (HR-TEM, JEOL ARM200F). Element composition mapping was determined by energy-dispersive X-ray (EDX) spectroscopy analysis using a Zeiss EVO HD15 microscope equipped with an Oxford X-MaxN EDX detector and the HRTEM-JEOL ARM200F working at 200 eV [61]. The N-doped-CNF-Co/CoOx electrode surface composition and binding energy were determined using X-ray photoelectron spectroscopy (XPS, Escalab 250, Thermo Fisher Scientific, Dardilly, France). The N-doped-CNF-Co/CoOx electrode cobalt content was assessed by atomic absorption spectroscopy (AAnalyst 400, PerkinElmer, Villebon sur Yvette, France). To obtain Raman spectra, a LabRam ARAMIS spectrometer (HORIBA Xplora, Montpellier, France) was used with a diode laser delivering an exciting line at 659 nm. The spectrometer (laser beam) was focused on a 50× objective and diffused light of 1800 lines·mm−1 grating with acquisition at a continuous mode of 7 s, snapshot time of 15 s, and with a number of the accumulation set to 4 times. The thermal stability and ash contents in the prepared electrodes were determined by thermal gravimetirical anaylsis (TGA, TA Instrument, Q5000 SA, Guyancourt Yvelines, France). The N-doped-CNF-Co/CoOx electrode magnetic behavior was characterized using a vibrating-sample magnetometer (VSM) (MPMS-XL SQUID VSM, Les Ulis, France) with a 7 T magnet and a magnetic field ranging from −50 to 50 kOe and a dc magnetization option. The specific surface areas were calculated using the Micrometric ASAP 2010 system and the Brunauer–Emmett–Teller (BET) method (outgassing conditions; 200 °C for 12 h). The pore size (diameter and volume) of the prepared electrodes was calculated with the Barrett, Joyner, and Halenda (BJH) method.

2.4. Electro-Oxidation of AO7

AO7 degradation and mineralization were tested using a two-electrode set-up in an open undivided cell (3 × 3 × 3 cm3) under continuous magnetic stirring and at constant current (10 mA·cm−2) supplied by a DC power supply. The cathodes were the free-standing N-doped-CNF and N-doped-CNF-Co/CoOx electrodes, and the anode was a Pt mesh. Before electrolysis initiation, the cathode and anode were immersed (pre-saturated) in the AO7 solution under O2 bubbling for 15 min to prevent the experimental error of total organic carbon (TOC) decrease due to the AO7 molecule sorption onto the N-doped-CNF-Co/CoOx electrodes. The AO7 solution was prepared from 0.1 mM AO7, 0.05 M Na2SO4 as a supporting electrolyte, and a temperature of 25 °C. The pH of the solution was adjusted by 0.1 M NaOH or 0.1 M H2SO4 solutions. The AO7 degradation (initial concentration of 0.1 mM) was compared in near neutral (pH 6, as raw pH) and acidic (pH 3 adjusted with H2SO4) aqueous solutions with 0.05 M Na2SO4 as supporting electrolyte and with/without Fe2+ as homogeneous electro-Fenton catalyst (0.2 mM from FeSO4·7H2O). AO7 concentration during electrolysis was determined with a U-3010 UV-vis spectrophotometer (Hitachi Co., Issy-les-Moulineaux, France) in samples (1.5 mL) collected from the reactor at different time points. After the measurement, samples were put back in the reactor to maintain the solution volume constant during the experiments. AO7 solution color change was determined by comparing the AO7 solution absorbance at 480 nm at baseline and after electrolysis. The AO7 solution TOC values at baseline and after electrolysis were measured with a TOC analyzer (Shimadzu, Noisiel, France).

3. Results and Discussion

The performance of electrospun CNFs with incorporated metal/metal oxide NPs for organic compounds removal by electro-Fenton oxidation has not been extensively studied [27]. Here, free-standing N-doped-CNF and N-doped-CNF-Co/CoOx electrodes were fabricated and their use for electrochemical degradation of AO7 in an aqueous solution was tested. The production of N-doped-CNFs and N-doped-CNF-Co/CoOx electrodes usually involves two steps: (i) thermal peroxidation (stabilization) of the as-prepared PAN or cobalt acetate/PAN nanofibers at 250 °C under air atmosphere; and (ii) thermal carbonization (pyrolysis) of the preoxidized nanofiber mat at 1000 °C under nitrogen atmosphere. Importantly, during the peroxidation step, PAN undergoes cyclization and partial dehydrogenation that make the polymer (PAN or cobalt acetate/PAN) fibers denser and more thermally stable during the subsequent thermal carbonization step. In this second step, the polymer (PAN or cobalt acetate/PAN) begins to pyrolyze with a considerable release of volatile by-products. As PAN is a polymer with nitrogen (N) atoms in its chain, it is used as N-source for CNF doping [62]. The diameter and morphology of the prepared CNF electrodes and their electrocatalytic activity were significantly influenced by the weight ratio of cobalt acetate to PAN. PAN thermal treatment under air (O2) led to the loss of two H atoms from adjacent C atoms in the main chain, and consequently, to the escape of H2O molecules and the formation of C=C double bonds. N atoms in the polymer (PAN) chain break their nitrile (-N=C-) bonds and form new bonds with other close C atoms, leading to a hexagonal cyclic structure. During the pyrolysis step (under N2 atmosphere), the cyclic structure opens, carbon chains are formed, and HCN escapes. The carbon chains form N-doped graphene nanosheets (graphitic structure with nitrogen defects), as previously described [62]. The roles of these N atoms in the electrocatalytic reactions have been discussed in the literature [63]. Recent studies on heat-treated Fe-based [64,65] and Co-based [66] N-containing catalysts showed that an increase in pyrrolic N and a decrease in pyridinic N can lead to enhanced ORR catalytic performance. The huge variation in the reported results is explained by differences in electrode fabrication methods, reaction precursors, electrochemical oxidation conditions, etc. [63,67]. In the next sections, the composition, crystal structure, and morphology of free-standing N-doped-CNF and N-doped-CNF-Co/CoOx electrode materials will be investigated using the XRD, TGA, SEM, HR-TEM, XPS, Raman spectroscopy, and VSM and BET methods. The electrochemical behavior of the electrodes, including the electrochemical activity towards AO7 degradation, will be disused in detail.

3.1. Material Composition and Morphology

PAN thermal pyrolysis led to the formation of randomly distributed N-doped-CNFs with a 3D-network structure (representative scanning electron microscopy (SEM) image in Figure 1a). The N-doped-CNF fiber diameter increased from 300 nm to 400 nm upon the increase in the cobalt acetate/PAN weight ratio from 3% to 20% (Figure 1b–d). The elemental composition (C, O, N, Co) and their distribution were further studied by EDX element mapping of CNF-Co10 (Figure 1e). The good matching of the C, O, N, and Co edges with the 3D nanofiber network morphology indicated that these elements were homogeneously dispersed in the entire structure. This feature might contribute to excellent electrochemical activity. SEM-EDX with the elemental mapping of CNF-Co10 (Figure 1e) confirmed that the tested materials were composed of 65% carbon, 5% nitrogen, 9% oxygen, and 21% cobalt. N-doping of CNFs can produce defects (catalytic active sites) in graphitic CNF structures and increase the electroactivity of the material, especially toward oxygen reduction. Previous research indicated that electrocatalytic activity is higher in N-doped than undoped CNFs, forming a stronger interaction with ions in the electrolytic solution [31]. However, CNF graphitization degree is not influenced by N absence or presence during thermal pyrolysis (carbonization) at different temperatures [41].
To further confirm the existence of Co/CoOx NPs and their distribution in the CNF matrix, the CNF-Co20 electrode was analyzed by HR-TEM and selected area electron diffraction (SAED) patterns were generated. The Co/CoOx NPs appeared as white particles that were homogeneously distributed on the CNF surface (TEM micrograph in Figure 2a). Moreover, high magnification TEM images (Figure 2b) showed that graphitic layers covered such Co/CoOx NPs (~15 nm). This coating may protect NPs from dissolution during electrolysis in acidic conditions. The ambiguous lattice fringes of CNF-Co20 and the clear diffraction rings (Figure 2c) confirmed the presence of Co/CoOx NPs and the formation of graphitic layers with a high crystalline structure on the CNF surface. Crystalline graphitic layers separated the Co/CoOx NPs (d-spacing = 0.33 ± 0.02 nm). The electrocatalyst Co/CoOx NPs showed a d-spacing of about 0.20 ± 0.02 nm that corresponded to the (1 1 1) plane of the face-cantered cubic (fcc) crystal structure of Co/CoOx nanocrystals [68]. The TEM-EDX and TEM images with the elemental mapping of CNF-Co20 are shown in Figure 2d,e, respectively.
The XRD patterns of the N-doped-CNF and N-doped-CNF-Co/CoOx materials are shown in Figure 3a. The Bragg reflection at 2θ = 25° corresponded to the (002) lattice planes of hexagonal graphite (JCPDS card no. 41-1487) with an inner-layer spacing d = 0.33 nm. This suggests that all as-obtained CNF samples possessed a low degree of graphitization [69]. However, compared with CNF-Co3, CNF-Co10, and CNF-Co20, the (002) peak intensity of CNFs was stronger and higher, suggesting a better crystallinity of the CNF matrix. CNF loaded with Co/CoOx NPs exhibited three clear peaks at around 44.3° and 54° that are attributed mainly to the (111) and (200) planes of fcc crystal structures of metallic Co (JCPDS 15-0806), respectively. This indicated that the Co/CoOx NPs were well distributed within the CNFs. The high-resolution scan of the (111) peak at 2θ of 44° showed two collapsed diffraction peaks only for CNF-Co10 and CNF-Co20, but not for CNF and CNF-Co3 (Figure 3b). These results confirmed the presence of a small amount of CoOx that can be detected by XRD. As cobalt acetate is a thermally unstable compound, the high cobalt acetate concentration used in the preparation of CNF-Co10 and CNF-Co20 led to (i) an increase in the amount of cobalt acetate in direct contact with air during the peroxidation step; (ii) an increase in the degradation and oxidation of cobalt acetate on the cobalt acetate/PAN surface to form CoOx clusters before pyrolysis of the cobalt acetate/PAN nanofibers under nitrogen atmosphere. Previous studies [63] reported that the existence of Co/CoOx heterojunctions significantly enhances the electrocatalytic performance of the electrodes. The generation of metallic Co nanocrystals as a domain rather than CoOx can be the result of the production of reducing by-products during thermal pyrolysis at lower pressure [70]. However, it is important to emphasize that the diffraction peaks of CNF-Co20 and CNF-Co10 appeared at smaller or larger 2-theta angles than that of CNF-Co3, respectively, indicating higher Co/CoOx NPs content. Particularly, the increase in peak intensity at 25° and 44.3° indicates that Co/CoOx NPs accelerate the formation of graphitic carbon.
The co-existence of CoOx and Co NPs and the influence of the cobalt acetate:PAN weight ratio on the degree of CNF graphitization were assessed by Raman spectroscopy (Figure 4a). For all tested electrodes, the typical D (disorder) peak at ~1342 cm−1 and the G (graphite) peak at ~1578cm−1 of the graphitic layers in CNFs [71] were observed. The D peak is not present in perfect graphite structures, because it belongs to the hybridized vibrational mode associated with the edges and graphitic defects. The G peak may be explained by the in-plane stretching vibration of all sp2-hybridized C-atom pairs in the graphitic structure of CNFs. The intensity ratio (R) of the D and G peaks (ID/IG) is often proportional to the CNF graphitization extent. The R-value decreases with higher CNF graphitization values [69]. Indeed, the R-value ranged from 1.2 (pure CNFs) to 1.1 (CNF-Co3), 0.9 (CNF-Co10), and 0.3 (CNF-Co20). This demonstrated that a graphite layer structure was progressively formed when the cobalt acetate/PAN weight ratio was increased from 3 to 20% [72]. Raman spectrometry also highlighted the presence of the three typical peaks for Co3O4 at 194.1, 471.8, and 667.4 cm−1. These peaks are associated with T2g, Eg, and A1g symmetries. Co3O4 presence is explained by cobalt acetate degradation and oxidation in contact with air during the peroxidation step [73].
The XPS spectra of the prepared electrodes were recorded to study the surface composition of the electrode graphite carbon nanostructures, their N-doping, and the formation of Co/CoOx NPs heterojunctions. The survey scan of the CNF-Co20 electrode showed the differences in the chemical states of carbon (C 1s, ~284.45 eV), oxygen (O 1 s, ~531.5 eV), nitrogen (N 1 s, ~400.8 eV), and cobalt (Co 2p at ~778.4 eV). Analysis of the XPS spectra indicated that the C 1 s peak (Figure 4c) was explained by the existence of four carbon species with specific binding energy: C 1 s sp2 (C=C), sp3 carbon (C-C/C-H, 285.23 eV), (C-O, 285.88 eV), (C=O, 286.81 eV), and (C-O=C, 288.21 eV) [74]. The O 1 s peak (Figure 4d) could be decomposed in three peaks at 531.5 eV (O2−, corresponding to the oxide of cobalt II and/or III), and 532.2 eV (-OH, assigned to Co–OH groups). The peak at 536 eV was due to chemisorbed oxygen, and the peak at 533.6 eV to chemisorbed water. HR-XPS spectra of the Co 2p1/2 and Co 2p3/2 peaks (Figure 4f) confirmed the presence of CoOx impurities. The CNF-Co20 electrode showed two satellites for the Co2p: Co 2p1/2 (770–790 eV) and Co 2p3/2 (centered at 778.4 eV) [75,76]. This indicated the formation of metallic Co NPs on the CNF surface with CoOx as minor impurities, which is consistent with the SEM-EDX (Figure 1), TEM-EDX (Figure 2), XRD (Figure 3), and Raman spectra (Figure 4a). The N 1 s peak (Figure 4f) displayed oxidized N and three other N species (pyrrolic, pyridinic, and graphitic) [75] that interacted with three C atoms at different locations on the graphene layer (402–410 eV).
TGA of the free-standing N-doped-CNF and N-doped-CNF-Co/CoOx electrodes was used to determine the effect of cobalt acetate incorporation on CNF thermal stability and ash (Co/CoOx) content (Figure 5 a,b). Analysis of the TGA curves of the CNF and CNF-Co/CoOx materials in the air atmosphere showed a weight loss of ~4 wt% in all samples from 60 °C to 250 °C due to evaporation of the physically and chemically bound water and solvent (Figure 5). The N-doped-CNF-Co/CoOx electrodes started to decompose at lower temperatures compared with the CNF electrode. This suggests that Co/CoOx NPs behave as a catalyst for PAN oxidative degradation. Complete decomposition of pure CNF occurred in two steps at 610 °C and 628 °C. Conversely, oxidative degradation of CNFs loaded with Co/CoOx NPs (CNF-Co3, CNF-Co10, CNF-Co20) occurred in one step at 460 °C, 523 °C, and 551 °C, respectively (Figure 5b). TGA analysis was used to determine the weight percentage of Co/CoOx NPs relative to the CNFs. The residue at 700 °C attributed the Co/CoOx NPs content in the composite CNFs. The TGA results showed that the Co/CoOx NPs content (residue) in the prepared samples were 8.9%, 25.1%, and 48.2% for CNF-Co3, CNF-Co10, and CNF-Co20, respectively.
Magnetic Co/CoOx NPs have received considerable attention, because they offer unique advantages compared with other materials in terms of enhanced electrocatalytic applications. Therefore, CNF magnetization through Co/CoOx NPs incorporation was studied by VSM [77]. The magnetic hysteresis loops of CNF-Co/CoOx measured at room temperature (Figure 5c) showed that the saturation magnetization of CNF-Co3, CNF-Co10, and CNF-Co20 reached 0.067, 0.165, and 0.252 emu/g, respectively. The magnetization of N-doped-CNF-Co/CoOx (emu/g) increased with the Co/CoOx content. Interestingly, the magnetic properties of Co/CoOx NPs are increased by allowing the easy separation of any eluted Co/CoOx NPs catalyst from the aqueous medium.
Many researchers have tried to increase the surface porosity and number of co-catalyst nanoparticles (catalytic sites) incorporated on/into the CNFs. To date, different systems of N-doped-CNFs incorporating metal/metal oxide NPs have been described [62]. Conversely, the effect of Co/CoOx and N-doping on the electro-Fenton activity of the electrodes has not been investigated yet. The electrocatalytic performance of the electrode material is influenced by the number of catalytic sites (Co/CoOx NPs), electrical conductivity (CNF diameter and graphitic structure), and CNF porous surface structure (BET surface area and pore diameter) [62].
The porous network structures (specific surface area and pore diameter) of electrodes significantly affect the electrochemical performance of the degradation of organic pollutants. It has been suggested that the pore interior dimensions (pore diameter) might restrict the possible orientations of a reactive molecule (organic pollutants). The BET surface area and pore size of free-standing N-doped-CNF and N-doped-CNF-Co/CoOx electrodes were measured using nitrogen adsorption–desorption isotherms. The BET surface area values were 7.1 m2/g, 115.3 m2/g, and 240.2 m2/g, and the mean pore diameter values were 13.9 nm, 3.8 nm, and 5.6 nm for the CNF, CNF-Co10, and CNF-Co20 electrodes, respectively. According to the IUPAC nomenclature, mesoporous nanomaterials are materials with mean pore diameters between 2 nm and 50 nm. The high electrocatalytic activity of such nano-porous structures is attributed to high Co/CoOx NPs dispersion among the graphitic mesoporous N-doped-CNF framework, which further accounts for the high electrocatalytic activity due to more “accessible” catalytic sites (Co/CoOx NPs) for the reactants (ions, free radicals, and organic pollutants).

3.2. Application of Materials to the Electrochemical Degradation of the AO7 Dye

To understand the cathode composition impact on the degradation of AO7, CNF cathodes without/with immobilized Co NPs (CNFs, CNF-Co3, CNF-Co10, and CNF-Co20) and without/with the addition of 0.20 mM Fe2+ in solution (as Fenton catalyst) were used. All prepared cathodes presented the same solid surface area. Table 1 summarizes the electrode physical properties, the effective Co mass content (determined by TGA), the remaining concentration of AO7 (in %), determined by UV-vis spectroscopy (480 nm) at pH 3 after 40 min of electrolysis, the AO7 decolorization rate constant, and the TOC removal percentage at pH = 3 and pH = 6.
A comparison of AO7 concentration over time (Figure 6a) clearly showed that the cathode material degradation performance was influenced by the Co NPs content. Indeed, the values of the apparent kinetic constants of AO7 degradation (based on a first-order kinetic) were 0.071 min−1, 0.080 min−1, and 0.089 min−1 for CNF-Co3, CNF-Co10, and CNF-Co20, respectively. Moreover, the apparent kinetic constant values were 0.068 min−1 and 0.090 min−1 when using the Co-free electrode without (CNF) and with Fe2+ in solution (CNFs-FeII). This confirms the performance of Co NPs as an electrocatalyst in heterogeneous electro-Fenton oxidation. For the CNF experimental condition without Fe2+ in solution, AO7 degradation might be due to its partial oxidation at the Pt anode and also to oxidation by H2O2 electrochemically produced at the CNF cathode from oxygen reduction. Altogether, these findings demonstrated the efficiency of cobalt NPs embedded in free-standing CNFs for the electrochemical activity of the materials. Moreover, a comparison of AO7 degradation after 40 min (Figure 6b) indicated that the optimal mass content of Co NPs in CNF (CNF-Co10) was about 25%. Moreover, it is well known that the optimal homogeneous electro-Fenton process occurs in solutions with a working pH value of 3. Indeed, the cathode oxidative capacity is weak if pH > 4 because of Fe (III) precipitation. Therefore, it is crucial to extend the electro-Fenton process to efficiently work at near-neutral pH values. Analysis of AO7 degradation at pH 6 after 10 cycles (40 min per cycle) using the CNF-Co10 electrode (with the optimal composition of N-doped-CNF-Co/CoOx) (Figure 6d) highlighted the electrode good stability and efficiency with a residual AO7 concentration of 12.4% after cycle 1, which is close to the value obtained at pH 3 (8.8%, see Figure 6b). This shows the efficiency of the as-prepared electrodes for the heterogeneous electro-Fenton process. The chemical stability and electrocataytic performance of the best CNF-Co10 electrode have been examined. Figure 6e shows the XRD patterns of the as prepared CNF-Co10 electrode and after 10 cycles of electrolysis (40 min/cycle); the XRD curves indicate that prepared electrodes are chemically stable over 10 cycles of electrolysis (40 min/cycle) of working time. Figure 6f shows the chronoamperometric response of CNFs electrodes remain stable over 12 h.
The results summarized in Table 1 suggest that CNFs-Co10 containing 25 wt% Co NPs is the best electrode for AO7 degradation by electro-Fenton oxidation. This reaction follows a pseudo-first-order reaction with the removal of 14–94% of AO7 in 1 h, in the function of the reaction conditions. After 40 min of electrolysis (10 mA/cm2 direct current), the CNFs-Co10 electrodes achieved complete AO7 decolorization with TOC removal of 92.4 ± 0.6 at pH 3 and 93.3 ± 0.5% at pH 6. The newly developed CNFs-Co10 electrodes are an effective alternative for wastewater pre-treatment before the biological treatment.
Then, the efficiency of the CNFs-Co10 electrodes was compared with that of cathodes described in some recent studies (Table 2). Le et al. [14] studied AO7 removal from wastewater by electron-Fenton oxidation with a graphene-based carbon felt cathode; AO7 (0.1 M) decolorization was observed in 5 min with AO7 mineralization (94%) after 8 h of electrolysis Le et al. [78] reported that the toxicity of 1 mM AO7 solution increases quickly during the first 5 min of electrolysis, when aromatic intermediates are formed, for instance, 1,4-benzoquinone and 1,2-naphthoquinone. Then, short-chain acids are formed, such as formic acid and acetic acid, before mineralization is completed at 270 min [78]. Lin et al. [79] evaluated the electrochemical oxidation (decolorization) of an AO7 aqueous solution using Fe3O4 activated peroxydisulfate (PDS). The aqueous AO7 solution was decolorized after 1 h of electrolysis with TOC removal of 20%. TOC removal increased to 30% after 90 min. The authors also reported that, during the first 30 min of the reaction, the main intermediate by-products were 1,4-benzoquinone and 1,2-naphthalenedione that are harmful because of the toxicity of quinones. However, after 30 to 90 min of reaction, these intermediates could be converted to less or non-toxic compounds [79]. Fernandes et al. [80] used a boron-doped diamond electrode (BDD) for the electrochemical oxidation of 1.7 M AO7 solution. They studied two different electrolytes (KCl and Na2SO4) that resulted in color removal with efficiencies higher than 90%. Özcan et al. [81] investigated a carbon felt cathode for AO7 degradation from an aqueous solution by electro-Fenton reaction with H2O2 and Fe2+ ions. They reported 92% of AO7 mineralization. They also found that the AO7 degradation rate decreased with Fe3+ concentrations higher than 0.1 mM. Daneshvar et al. [82] tested the electrochemical oxidation of AO7 in the presence of sulfate, chloride, and perchlorate electrolyte media at pH 3, with a mineralization rate of 75%. Zhang et al. [83] used IEO to eliminate AO7 from wastewater with a Ti/RuO2-Pt electrode, with a mineralization efficiency of 79.5% (from 28.5 to 5.9 mg/L) after 4 h of electrolysis. Han et al. [84] integrated electrochemical adsorption and regeneration for AO7 removal from wastewater using activated carbon fibers (ACFs). The experiment showed a regeneration efficiency higher than 70% after 10 cycles. Xia et al. [85] investigated the electrochemical oxidation of an AO7 aqueous solution (100 mg L−1) with a Fe-doped PbO2 electrode. AO7 solution decolorization and TOC were 87% and 45%, respectively, after 60 min of electrolysis (experimental conditions: 0.1 M Na2SO4, applied current density = 20 mA cm−2 and initial pH = 5). In the present work, AO7 removal from the water was tested using free-standing CNF electrodes, with/without Fe2+ ions as electro-Fenton reagent. Higher decolorization and demineralization rates were achieved in a shorter time and with lower current density. After 40 min of electrolysis at 10 mA/cm2 DC current and pH 3, the CNFs-Co10 electrode loaded with 25wt% of Co NPs achieved 92.5% TOC removal and complete decolorization. Moreover, the electrochemical analysis showed the high stability of the prepared electrodes in electrochemical oxidation experiments with very good AO7 solution degradation at different pH values (3 and 6).
Encapsulating Co NPs (electrocatalyst) inside CNFs to produce highly integrated electrode materials can solve the stability issue. Indeed, CNF’s excellent chemical stability could prevent Co/CoOx NPs from corrosion in harsh environments. Besides the high chemical stability, Co/CoOx NPs electrocatalytic activity could be further improved by the strong metal–carbon support interaction. The CNF porous nanostructures can provide fast mass transfer of the reactants and products from and to the Co/CoOx NPs (catalytic active sites). The application of CNF-Co/CoOx electrodes for wastewater treatment is of great interest due to their outstanding properties: (i) good cathodes for electro-Fenton oxidation; (ii) adaptability to different electro-Fenton systems (size and shape); the electrode area also can be adapted; (iii) confining Co/CoOx NPs inside CNF nanovoids or channels leads to better catalytic stability because CNF-Co/CoOx electrodes can be used for at least 10 cycles (40 min per cycle) without changes in their performance; and (iv) the electrode improved chemical stability greatly decreases the water treatment cost.
The degradation pathway of AO7 is widely discussed in the literature and was investigated by our group elsewhere [55]. In fact, the toxicity of the solution grows at the beginning of the electrolysis. This could be attributed to the appearance of intermediate poisonous aromatic compounds 1,2-naphthaquinone (NAPQ) and 1,4-benzoquinone (BZQ). This step is followed by a decrease in the toxicity due to the appearance of aliphatic short-chain carboxylic acids such as acetic acid and formic acid. In the end, the complete mineralization will lead to a non-toxic solution and the formation of inorganic ions, such as ammonium, nitrate, and sulphate.

4. Conclusions

Designing metal NPs embedded on/inside N-doped-CNFs is of great interest as electrode materials because they offer many applications for energy conversion and storage and environmental remediation. In this study, Co/CoOx NPs embedded in free-standing N-doped-CNF electrodes were developed for treating wastewater containing AO7 by electro-Fenton oxidation. The composite N-doped-CNF-Co/CoOx electrodes were produced by electrospinning a PAN/cobalt acetate solution, followed by thermal peroxidation in air atmosphere, and thermal carbonation in a nitrogen atmosphere. The composite N-doped-CNF-Co/CoOx nanofibers possess a hierarchical structure, with the main fiber diameter of 400 nm. The free-standing N-doped-CNF-Co/CoOx electrodes work as a multi-phasic electro-Fenton electrocatalyst for AO7 removal (0.1 mM initial concentration). UV-vis spectrophotometry analysis of AO7 degradation at the N-doped-CNF-Co/CoOx cathode in the presence or not of an electro-Fenton reagent (Fe2+ ion) demonstrated the cathode’s good performance. AO7 removal with different N-doped-CNF-Co/CoOx electrodes was evaluated to optimize Co/CoOx NP loading and ·OH radical production in electro-Fenton oxidation. The structural and electrochemical investigations showed the strong stability of CNF-Co10 electrodes (CNFs loaded with 25 wt% Co NPs) at almost neutral pH and their very good performance for AO7 degradation at different pH values (3 and 6). After 40 min of electrolysis at 10 mA/cm2 DC, the N-doped-CNF-Co10 electrodes showed TOC removal values of 92.4% at pH 3 and 93.3% at pH 6. The enhanced performance of N-doped-CNF-Co/CoOx electrodes without Fe2+ ions could be explained by (i) the surface-catalyzed reaction at the Co/CoOx NPs surface that can allow performing the reaction at different pH values (from 3 to 6), without iron sludge precipitation, (ii) the increased H2O2 production due to the better surface area of the N-doped-CNFs-Co/CoOx cathode, and (iii) the relatively good reusability of the N-doped-CNF-Co/CoOx electrodes, as indicated by a decolorization rate higher than 85% of an 0.1 mM AO7 solution after 10 cycles (400 min) of degradation. Embedding metal NPs (Fe, Co, Ni, Mn) into N-doped-CNF can be considered as an effective strategy to produce electrocatalysts for the removal of organic dyes. Shortly, the CNFs electrodes will be tested for the removal of other organic matters such as antibiotics drugs (e.g., tetracycline, amoxicillin), pesticides, and microplastics from effluents to enlarge their application fields.

Author Contributions

Conceptualization, A.B. and T.F.; methodology, A.B., T.F., S.S. and F.T.; Software A.B., S.S., F.T., E.C. and I.I.; Validation, A.B and T.F; Formal analysis, A.B., E.C. and I.I.; Investigation, A.B., T.F., S.S. and F.T.; Resources, A.B., E.C., I.I., M.C. and M.B.; Data curation, A.B., E.C. and I.I.; Writing original draft preparation, A.B. and T.F.; Writing—Review & Editing, A.B., E.C., I.I., A.R., M.C. and M.B.; Visualization, A.B., M.C. and M.B.; Supervision, A.B., M.C. and M.B.; Project Administration A.B., M.C. and M.B., Funding Acquisition, A.B. and M.B. All authors have read and agreed to the published version of the manuscript.

Funding

This research received no external funding.

Data Availability Statement

Not applicable.

Acknowledgments

We are grateful to the Egypt–France Joint Program (Imhotep, Project No. 43990SF, 2020-2022) for funding Ahmed Barhoum’s (Project PI, Egyptian Side) research work in France. Ahmed Barhoum (NanoStruc Research Group, Helwan University) would also like to thank the Irish Research Council (hereinafter referred to as ‘the Council’) for financing his research stay at the School of Chemical Sciences, Dublin City University under grant number (Project ID: GOIPD/2020/340). We thank Aurélien Renard and Martine Mallet at the SMI LCPME Spectroscopy and Microscopy Service Facility (Université de Lorraine-CNRS—http://www.lcpme.cnr-nancy.fr (accessed on 25 August 2021)). I.I. acknowledges the partial financial support from the National Science Centre (NCN) of Poland by the SONATA BIS grant 2020/38/E/ST5/00176.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Nidheesh, P.V.; Zhou, M.; Oturan, M.A. An overview on the removal of synthetic dyes from water by electrochemical advanced oxidation processes. Chemosphere 2018, 197, 210–227. [Google Scholar] [CrossRef]
  2. Radjenovic, J.; Sedlak, D.L. Challenges and opportunities for electrochemical processes as next-generation technologies for the treatment of contaminated water. Environ. Sci. Technol. 2015, 49, 11292–11302. [Google Scholar] [CrossRef]
  3. Martínez-Huitle, C.A.; Panizza, M. Electrochemical oxidation of organic pollutants for wastewater treatment. Curr. Opin. Electrochem. 2018, 11, 62–71. [Google Scholar] [CrossRef]
  4. Nnaji, C.O.; Jeevanandam, J.; Chan, Y.S.; Danquah, M.K.; Pan, S.; Barhoum, A. Engineered nanomaterials for wastewater treatment: Current and future trends. In Fundamentals of Nanoparticles; Elsevier: Amsterdam, The Netherlands, 2018; pp. 129–168. [Google Scholar]
  5. Wang, A.; Qu, J.; Ru, J.; Liu, H.; Ge, J. Mineralization of an azo dye Acid Red 14 by electro-Fenton’s reagent using an activated carbon fiber cathode. Dye Pigment. 2005, 65, 227–233. [Google Scholar] [CrossRef]
  6. Vellanki, B.P.; Batchelor, B.; Abdel-Wahab, A. Advanced reduction processes: A new class of treatment processes. Environ. Eng. Sci. 2013, 30, 264–271. [Google Scholar] [CrossRef] [Green Version]
  7. Nasr, M.; Eid, C.; Habchi, R.; Miele, P.; Bechelany, M. Recent progress on titanium dioxide nanomaterials for photocatalytic applications. ChemSusChem 2018, 11, 3023–3047. [Google Scholar] [CrossRef] [PubMed]
  8. Mani, P.; Fidal, V.T.; Bowman, K.; Breheny, M.; Chandra, T.S.; Keshavarz, T.; Kyazze, G. Degradation of azo dye (acid orange 7) in a microbial fuel cell: Comparison between anodic microbial-mediated reduction and cathodic laccase-mediated oxidation. Front. Energy Res. 2019, 7, 101. [Google Scholar] [CrossRef]
  9. Ali, G.; Barhoum, A.; Gupta, V.K.; Nada, A.; El-Maghrabi, H.H.; Kanthasamy, R.; Shaaban, E.R.; Algarni, H.; Chong, K.F. High surface area mesoporous silica for hydrogen sulfide effective removal. Curr. Nanosci. 2020, 16, 226–234. [Google Scholar] [CrossRef]
  10. Wang, C.-T.; Chou, W.-L.; Chung, M.-H.; Kuo, Y.-M. COD removal from real dyeing wastewater by electro-Fenton technology using an activated carbon fiber cathode. Desalination 2010, 253, 129–134. [Google Scholar] [CrossRef]
  11. Ganiyu, S.O.; Le, T.X.H.; Bechelany, M.; Esposito, G.; van Hullebusch, E.D.; Oturan, M.A.; Cretin, M. A hierarchical CoFe-layered double hydroxide modified carbon-felt cathode for heterogeneous electro-Fenton process. J. Mater. Chem. A 2017, 5, 3655–3666. [Google Scholar] [CrossRef]
  12. Ganiyu, S.O.; Le, T.X.H.; Bechelany, M.; Oturan, N.; Papirio, S.; Esposito, G.; van Hullebusch, E.D.; Cretin, M.; Oturan, M.A. Electrochemical mineralization of sulfamethoxazole over wide pH range using FeIIFeIII LDH modified carbon felt cathode: Degradation pathway, toxicity and reusability of the modified cathode. Chem. Eng. J. 2018, 350, 844–855. [Google Scholar] [CrossRef]
  13. Martínez-Huitle, C.A.; Rodrigo, M.A.; Sirés, I.; Scialdone, O. Single and coupled electrochemical processes and reactors for the abatement of organic water pollutants: A critical review. Chem. Rev. 2015, 115, 13362–13407. [Google Scholar] [CrossRef]
  14. Le, T.X.H.; Bechelany, M.; Lacour, S.; Oturan, N.; Oturan, M.A.; Cretin, M. High removal efficiency of dye pollutants by electron-Fenton process using a graphene based cathode. Carbon 2015, 94, 1003–1011. [Google Scholar] [CrossRef]
  15. Le, T.X.H.; Dumée, L.F.; Lacour, S.; Rivallin, M.; Yi, Z.; Kong, L.; Bechelany, M.; Cretin, M. Hybrid graphene-decorated metal hollow fibre membrane reactors for efficient electro-Fenton—Filtration co-processes. J. Membr. Sci. 2019, 587, 117182. [Google Scholar] [CrossRef]
  16. Le, T.X.H.; Bechelany, M.; Cretin, M. Carbon felt based-electrodes for energy and environmental applications: A review. Carbon 2017, 122, 564–591. [Google Scholar] [CrossRef]
  17. Le, T.X.H.; Charmette, C.; Bechelany, M.; Cretin, M. Facile preparation of porous carbon cathode to eliminate paracetamol in aqueous medium using electro-fenton system. Electrochim. Acta 2016, 188, 378–384. [Google Scholar] [CrossRef]
  18. Zhao, H.; Qian, L.; Guan, X.; Wu, D.; Zhao, G. Continuous bulk FeCuC aerogel with ultradispersed metal nanoparticles: An efficient 3D heterogeneous electro-fenton cathode over a wide range of pH 3–9. Environ. Sci. Technol. 2016, 50, 5225–5233. [Google Scholar] [CrossRef]
  19. Félix, R.; Beltrán-Gastélum, M.; Salazar-Gastélum, M.I.; Silva-Carrillo, C.; Reynoso-Soto, E.A.; Pérez-Sicairos, S.; Lin, S.W.; Paraguay-Delgado, F.; Alonso-Núñez, G. Pt–Pd bimetallic nanoparticles on MWCNTs: Catalyst for hydrogen peroxide electrosynthesis. J. Nanopart. Res. 2013, 15, 1–11. [Google Scholar] [CrossRef]
  20. Le, T.X.H.; Esmilaire, R.; Drobek, M.; Bechelany, M.; Vallicari, C.; Nguyen, D.L.; Julbe, A.; Tingry, S.; Cretin, M. Design of a novel fuel cell-Fenton system: A smart approach to zero energy depollution. J. Mater. Chem. A 2016, 4, 17686–17693. [Google Scholar] [CrossRef] [Green Version]
  21. Chen, W.; Yang, X.; Huang, J.; Zhu, Y.; Zhou, Y.; Yao, Y.; Li, C. Iron oxide containing graphene/carbon nanotube based carbon aerogel as an efficient E-Fenton cathode for the degradation of methyl blue. Electrochim. Acta 2016, 200, 75–83. [Google Scholar] [CrossRef]
  22. Khataee, A.; Marandizadeh, H.; Vahid, B.; Zarei, M.; Joo, S.W. Combination of photocatalytic and photoelectro-Fenton/citrate processes for dye degradation using immobilized N-doped TiO2 nanoparticles and a cathode with carbon nanotubes: Central composite design optimization. Chem. Eng. Process. Process. Intensif. 2013, 73, 103–110. [Google Scholar] [CrossRef]
  23. Barros, W.; Steter, J.R.; Lanza, M.; Tavares, A.C. Catalytic activity of Fe3-xCuxO4 (0 ≤ x ≤ 0.25) nanoparticles for the degradation of Amaranth food dye by heterogeneous electro-Fenton process. Appl. Catal. B Environ. 2016, 180, 434–441. [Google Scholar] [CrossRef]
  24. Xiaochao, G.; Xuebin, L.; Jin, T.; Xiaoyun, L.; Bin, Z.; Xujing, Z.; Jin, X. Degradation of folic acid wastewater by electro-Fenton with three-dimensional electrode and its kinetic study. R. Soc. Open Sci. 2018, 5, 170926. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  25. Jiang, W.-L.; Xia, X.; Han, J.-L.; Ding, Y.-C.; Haider, M.R.; Wang, A.-J. Graphene modified electro-fenton catalytic membrane for in situ degradation of antibiotic florfenicol. Environ. Sci. Technol. 2018, 52, 9972–9982. [Google Scholar] [CrossRef]
  26. Wang, Y.-T.; Tu, C.-H.; Lin, Y.-S. Application of graphene and carbon nanotubes on carbon felt electrodes for the electro-fenton system. Materials 2019, 12, 1698. [Google Scholar] [CrossRef] [Green Version]
  27. Haider, M.R.; Jiang, W.-L.; Han, J.-L.; Sharif, H.M.A.; Ding, Y.-C.; Cheng, H.-Y.; Wang, A.-J. In-situ electrode fabrication from polyaniline derived N-doped carbon nanofibers for metal-free electro-Fenton degradation of organic contaminants. Appl. Catal. B Environ. 2019, 256, 117774. [Google Scholar] [CrossRef]
  28. Özcan, A.; Şahin, Y.; Koparal, A.S.; Oturan, M.A. Carbon sponge as a new cathode material for the electro-Fenton process: Comparison with carbon felt cathode and application to degradation of synthetic dye basic blue 3 in aqueous medium. J. Electroanal. Chem. 2008, 616, 71–78. [Google Scholar] [CrossRef]
  29. Le, T.X.H.; Drobek, M.; Bechelany, M.; Motuzas, J.; Julbe, A.; Cretin, M. Application of Fe-MFI zeolite catalyst in heterogeneous electro-Fenton process for water pollutants abatement. Microporous Mesoporous Mater. 2018, 278, 64–69. [Google Scholar] [CrossRef]
  30. Le, T.X.H.; Cowan, M.G.; Drobek, M.; Bechelany, M.; Julbe, A.; Cretin, M. Le Fe-nanoporous carbon derived from MIL-53 (Fe): A heterogeneous catalyst for mineralization of organic pollutants. Nanomaterials 2019, 9, 641. [Google Scholar] [CrossRef] [Green Version]
  31. Barhoum, A.; Pal, K.; Rahier, H.; Uludag, H.; Kim, I.S.; Bechelany, M. Nanofibers as new-generation materials: From spinning and nano-spinning fabrication techniques to emerging applications. Appl. Mater. Today 2019, 17, 1–35. [Google Scholar] [CrossRef]
  32. Barhoum, A.; Shalan, A.E.; El-Hout, S.I.; Ali, G.A.M.; Abdelbasir, S.M.; Serea, E.S.A.; Ibrahim, A.H.; Pal, K. A broad family of carbon nanomaterials: Classification, properties, synthesis, and emerging applications. In Handbook of Nanofibers; Springer Nature: Cham, Switzerland, 2019; pp. 1–40. [Google Scholar]
  33. Barhoum, A.; Rasouli, R.; Yousefzadeh, M.; Rahier, H.; Bechelany, M. Nanofiber technology: History and developments. In Handbook of Nanofibers; Springer International Publishing: Cham, Switzerland, 2018; pp. 1–42. [Google Scholar]
  34. Gopalakrishnan, R.; Li, Y.; Smekens, J.; Barhoum, A.; Van Assche, G.; Omar, N.; Van Mierlo, J. Electrochemical impedance spectroscopy characterization and parameterization of lithium nickel manganese cobalt oxide pouch cells: Dependency analysis of temperature and state of charge. Ionics 2019, 25, 111–123. [Google Scholar] [CrossRef]
  35. Haichao, L.; Haoyi, L.; Bubakir, M.M.; Weimin, Y.; Barhoum, A. Engineering nanofibers as electrode and membrane materials for batteries, supercapacitors, and fuel cells. In Handbook of Nanofibers; Springer International Publishing: Cham, Switzerland, 2019; pp. 1105–1130. [Google Scholar] [CrossRef]
  36. Le, T.X.H.; Bechelany, M.; Engel, A.B.; Cretin, M.; Tingry, S. Gold particles growth on carbon felt for efficient micropower generation in a hybrid biofuel cell. Electrochimica Acta 2016, 219, 121–129. [Google Scholar] [CrossRef]
  37. Abdel-Haleem, F.M.; Saad, M.; Barhoum, A.; Bechelany, M.; Rizk, M.S. PVC membrane, coated-wire, and carbon-paste ion-selective electrodes for potentiometric determination of galantamine hydrobromide in physiological fluids. Mater. Sci. Eng. C 2018, 89, 140–148. [Google Scholar] [CrossRef] [PubMed]
  38. Abdel-Haleem, F.M.; Salah, A.; Rizk, M.S.; Moustafa, H.; Bechelany, M.; Barhoum, A. Carbon-based Nanosensors for Salicylate Determination in Pharmaceutical Preparations. Electroanalysis 2019, 31, 778–789. [Google Scholar] [CrossRef]
  39. Abdel-Haleem, F.M.; Gamal, E.; Rizk, M.S.; El Nashar, R.M.; Anis, B.; Elnabawy, H.M.; Khalil, A.S.; Barhoum, A. t-Butyl calixarene/Fe2O3@MWCNTs composite-based potentiometric sensor for determination of ivabradine hydrochloride in pharmaceutical formulations. Mater. Sci. Eng. C 2020, 116, 111110. [Google Scholar] [CrossRef]
  40. Rasouli, R.; Barhoum, A.; Bechelany, M.; Dufresne, A. Nanofibers for biomedical and healthcare applications. Macromol. Biosci. 2018, 19, e1800256. [Google Scholar] [CrossRef]
  41. Barhoum, A.; El-Maghrabi, H.H.; Iatsunskyi, I.; Coy, E.; Renard, A.; Salameh, C.; Weber, M.; Sayegh, S.; Nada, A.; Roualdes, S.; et al. Atomic layer deposition of Pd nanoparticles on self-supported carbon-Ni/NiO-Pd nanofiber electrodes for electrochemical hydrogen and oxygen evolution reactions. J. Colloid Interface Sci. 2020, 569, 286–297. [Google Scholar] [CrossRef]
  42. Chen, X.; Cheng, L.; Li, H.; Barhoum, A.; Zhang, Y.; He, X.; Yang, W.; Bubakir, M.M.; Chen, H. Magnetic nanofibers: Unique properties, fabrication techniques, and emerging applications. ChemistrySelect 2018, 3, 9127–9143. [Google Scholar] [CrossRef]
  43. Barhoum, A.; Samyn, P.; Öhlund, T.; Dufresne, A. Review of recent research on flexible multifunctional nanopapers. Nanoscale 2017, 9, 15181–15205. [Google Scholar] [CrossRef]
  44. Turky, A.O.; Barhoum, A.; Rashad, M.; Bechelany, M. Enhanced the structure and optical properties for ZnO/PVP nanofibers fabricated via electrospinning technique. J. Mater. Sci. Mater. Electron. 2017, 28, 17526–17532. [Google Scholar] [CrossRef]
  45. Prasad, S.; Kumar, V.; Kirubanandam, S.; Barhoum, A. Engineered nanomaterials: Nanofabrication and surface functionalization. In Emerging Applications of Nanoparticles and Architectural Nanostructures: Current Prospects and Future Trends; Elsevier Inc.: Amsterdam, The Netherlands, 2018; pp. 305–340. [Google Scholar]
  46. Karatutlu, A.; Barhoum, A.; Sapelkin, A. Theories of nanoparticle and nanostructure formation in liquid phase. In Emerging Applications of Nanoparticles and Architectural Nanostructures: Current Prospects and Future Trends; Elsevier Inc.: Amsterdam, The Netherlands, 2018; pp. 597–619. [Google Scholar]
  47. Mantzaris, N.V. Liquid-phase synthesis of nanoparticles: Particle size distribution dynamics and control. Chem. Eng. Sci. 2005, 60, 4749–4770. [Google Scholar] [CrossRef]
  48. Karatutlu, A.; Barhoum, A.; Sapelkin, A. Liquid-phase synthesis of nanoparticles and nanostructured materials. In Emerging Applications of Nanoparticles and Architectural Nanostructures: Current Prospects and Future Trends; Elsevier Inc.: Amsterdam, The Netherlands, 2018; pp. 1–28. [Google Scholar]
  49. Samyn, P.; Barhoum, A. Engineered nanomaterials for papermaking industry. In Fundamentals of Nanoparticles; Elsevier: Amsterdam, The Netherlands, 2018; pp. 245–277. [Google Scholar]
  50. Ngom, B.; Guo, Y.; Wang, X.; Bi, D. Development and application of lateral flow test strip technology for detection of infectious agents and chemical contaminants: A review. Anal. Bioanal. Chem. 2010, 397, 1113–1135. [Google Scholar] [CrossRef] [PubMed]
  51. Zhang, G.; Ruan, J.; Du, T. Recent advances on photocatalytic and electrochemical oxidation for ammonia treatment from water/wastewater. ACS EST Eng. 2020, 1, 310–325. [Google Scholar] [CrossRef]
  52. Papadopoulos, K.P.; Argyriou, R.; Economou, C.N.; Charalampous, N.; Dailianis, S.; Tatoulis, T.I.; Tekerlekopoulou, A.; Vayenas, D.V. Treatment of printing ink wastewater using electrocoagulation. J. Environ. Manag. 2019, 237, 442–448. [Google Scholar] [CrossRef]
  53. Rehan, M.; Barhoum, A.; Khattab, T.A.; Gätjen, L.; Wilken, R. Colored, photocatalytic, antimicrobial and UV-protected viscose fibers decorated with Ag/Ag2CO3 and Ag/Ag3PO4 nanoparticles. Cellulose 2019, 26, 5437–5453. [Google Scholar] [CrossRef]
  54. Wakelyn, P.J. Health and safety issues in cotton production and processing. In Cotton: Science and Technology; Elsevier Inc.: Amsterdam, The Netherlands, 2006; pp. 460–483. [Google Scholar]
  55. Said, M.M.; Rehan, M.; El-Sheikh, S.M.; Zahran, M.K.; Abdel-Aziz, M.S.; Bechelany, M.; Barhoum, A. Multifunctional hydroxyapatite/silver nanoparticles/cotton gauze for antimicrobial and biomedical applications. Nanomaterials 2021, 11, 429. [Google Scholar] [CrossRef]
  56. Le, T.X.H.; Esmilaire, R.; Drobek, M.; Bechelany, M.; Vallicari, C.; Cerneaux, S.; Julbe, A.; Cretin, M. Nitrogen-doped graphitized carbon electrodes for biorefractory pollutant removal. J. Phys. Chem. C 2017, 121, 15188–15197. [Google Scholar] [CrossRef]
  57. Wang, T.; Wu, J.; Liu, Y.; Cui, X.; Ding, P.; Deng, J.; Zha, C.; Coy, E.; Li, Y. Scalable preparation and stabilization of atomic-thick CoNi layered double hydroxide nanosheets for bifunctional oxygen electrocatalysis and rechargeable zinc-air batteries. Energy Storage Mater. 2019, 16, 24–30. [Google Scholar] [CrossRef]
  58. Yuan, W.; Li, J.; Xie, A.; Chen, P.; Li, S.; Shen, Y. Practical, cost-effective and large-scale production of nitrogen-doped porous carbon particles and their use as metal-free electrocatalysts for oxygen reduction. Electrochim. Acta 2015, 165, 29–35. [Google Scholar] [CrossRef]
  59. Zhong, H.; Deng, C.; Qiu, Y.; Yao, L.; Zhang, H. Nitrogen-doped hierarchically porous carbon as efficient oxygen reduction electrocatalysts in acid electrolyte. J. Mater. Chem. A 2014, 2, 17047–17057. [Google Scholar] [CrossRef]
  60. Barhoum, A.; García-Betancourt, M.L.; Rahier, H.; Van Assche, G. Physicochemical characterization of nanomaterials: Polymorph, composition, wettability, and thermal stability. In Emerging Applications of Nanoparticles and Architectural Nanostructures: Current Prospects and Future Trends; Elsevier Inc.: Amsterdam, The Netherlands, 2018; pp. 255–278. [Google Scholar]
  61. Barhoum, A.; García-Betancourt, M.L. Physicochemical characterization of nanomaterials: Size, morphology, optical, magnetic, and electrical properties. In Emerging Applications of Nanoparticles and Architectural Nanostructures: Current Prospects and Future Trends; Elsevier Inc.: Amsterdam, The Netherlands, 2018; pp. 279–304. [Google Scholar]
  62. Yang, D.-S.; Chaudhari, S.; Rajesh, K.P.; Yu, J.-S. Preparation of nitrogen-doped porous carbon nanofibers and the effect of porosity, electrical conductivity, and nitrogen content on their oxygen reduction performance. ChemCatChem 2014, 6, 1236–1244. [Google Scholar] [CrossRef]
  63. Yuan, X.; Hu, X.-X.; Ding, X.-L.; Kong, H.-C.; Sha, H.-D.; Lin, H.; Wen, W.; Shen, G.; Guo, Z.; Ma, Z.-F.; et al. Effects of cobalt precursor on pyrolyzed carbon-supported cobalt-polypyrrole as electrocatalyst toward oxygen reduction reaction. Nanoscale Res. Lett. 2013, 8, 478. [Google Scholar] [CrossRef] [Green Version]
  64. Zhang, H.-J.; Yuan, X.; Wen, W.; Zhang, D.-Y.; Sun, L.; Jiang, Q.-Z.; Ma, Z.-F. Electrochemical performance of a novel CoTETA/C catalyst for the oxygen reduction reaction. Electrochem. Commun. 2009, 11, 206–208. [Google Scholar] [CrossRef]
  65. Faubert, G.; Côté, R.; Guay, D.; Dodelet, J.; Dénès, G.; Poleunis, C.; Bertrand, P. Activation and characterization of Fe-based catalysts for the reduction of oxygen in polymer electrolyte fuel cells. Electrochim. Acta 1998, 43, 1969–1984. [Google Scholar] [CrossRef]
  66. Yang, R.; Dahn, J.R.; Bonakdarpour, A.; Easton, E.B. Co-C-N oxygen reduction catalysts prepared by combinatorial magnetron sputter deposition. ECS Trans. 2006, 3, 221–230. [Google Scholar] [CrossRef]
  67. Niwa, H.; Kobayashi, M.; Horiba, K.; Harada, Y.; Oshima, M.; Terakura, K.; Ikeda, T.; Koshigoe, Y.; Ozaki, J.-I.; Miyata, S.; et al. X-ray photoemission spectroscopy analysis of N-containing carbon-based cathode catalysts for polymer electrolyte fuel cells. J. Power Sources 2011, 196, 1006–1011. [Google Scholar] [CrossRef]
  68. Hayes, W.I.; Joseph, P.; Mughal, M.Z.; Papakonstantinou, P. Production of reduced graphene oxide via hydrothermal reduction in an aqueous sulphuric acid suspension and its electrochemical behaviour. J. Solid State Electrochem. 2014, 19, 361–380. [Google Scholar] [CrossRef]
  69. Zhu, S.; Sun, J.; Wu, T.; Su, X.; Su, H.; Qu, S.; Xie, Y.; Chen, M.; Diao, G. Graphitized porous carbon nanofibers prepared by electrospinning as anode materials for lithium ion batteries. RSC Adv. 2016, 6, 83185–83195. [Google Scholar] [CrossRef]
  70. Ji, L.; Lin, Z.; Alcoutlabi, M.; Toprakci, O.; Yao, Y.; Xu, G.; Li, S.; Zhang, X. Electrospun carbon nanofibers decorated with various amounts of electrochemically-inert nickel nanoparticles for use as high-performance energy storage materials. RSC Adv. 2012, 2, 192–198. [Google Scholar] [CrossRef] [Green Version]
  71. George, G.; Anandhan, S. Synthesis and characterisation of nickel oxide nanofibre webs with alcohol sensing characteristics. RSC Adv. 2014, 4, 62009–62020. [Google Scholar] [CrossRef]
  72. Bao, G.; Bai, J.; Li, C. Synergistic effect of the Pd–Ni bimetal/carbon nanofiber composite catalyst in Suzuki coupling reaction. Org. Chem. Front. 2019, 6, 352–361. [Google Scholar] [CrossRef]
  73. Guo, S.-X.; Liu, Y.; Bond, A.M.; Zhang, J.; Karthik, P.E.; Maheshwaran, I.; Kumar, S.S.; Phani, K.L.N. Facile electrochemical co-deposition of a graphene–cobalt nanocomposite for highly efficient water oxidation in alkaline media: Direct detection of underlying electron transfer reactions under catalytic turnover conditions. Phys. Chem. Chem. Phys. 2014, 16, 19035–19045. [Google Scholar] [CrossRef] [PubMed]
  74. Di Blasi, A.; Busacca, C.; Di Blasi, O.; Briguglio, N.; Antonucci, V. Synthesis and Characterization of Electrospun Nickel-Carbon Nanofibers as Electrodes for Vanadium Redox Flow Battery. J. Electrochem. Soc. 2018, 165, A1478–A1485. [Google Scholar] [CrossRef]
  75. Luo, Q.-X.; Guo, L.-P.; Yao, S.-Y.; Bao, J.; Liu, Z.-T.; Liu, Z.-W. Cobalt nanoparticles confined in carbon matrix for probing the size dependence in Fischer-Tropsch synthesis. J. Catal. 2019, 369, 143–156. [Google Scholar] [CrossRef]
  76. Kim, M.; Nam, D.-H.; Park, H.-Y.; Kwon, C.; Eom, K.; Yoo, S.; Jang, J.; Kim, H.-J.; Cho, E.; Kwon, H. Cobalt-carbon nanofibers as an efficient support-free catalyst for oxygen reduction reaction with a systematic study of active site formation. J. Mater. Chem. A 2015, 3, 14284–14290. [Google Scholar] [CrossRef]
  77. Abdel-Haleem, F.M.; Mahmoud, S.; Abdel-Ghani, N.E.T.; El Nashar, R.M.; Bechelany, M.; Barhoum, A. Polyvinyl chloride modified carbon paste electrodes for sensitive determination of levofloxacin drug in serum, urine, and pharmaceutical formulations. Sensors 2021, 21, 3150. [Google Scholar] [CrossRef]
  78. Le, T.X.H.; Van Nguyen, T.; Yacouba, Z.A.; Zoungrana, L.; Avril, F.; Petit, E.; Mendret, J.; Bonniol, V.; Bechelany, M.; Lacour, S.; et al. Toxicity removal assessments related to degradation pathways of azo dyes: Toward an optimization of Electro-Fenton treatment. Chemosphere 2016, 161, 308–318. [Google Scholar] [CrossRef]
  79. Lin, H.; Zhang, H.; Hou, L. Degradation of C. I. Acid Orange 7 in aqueous solution by a novel electro/Fe3O4/PDS process. J. Hazard. Mater. 2014, 276, 182–191. [Google Scholar] [CrossRef]
  80. Fernandes, A.; Morao, A.; Magrinho, M.; Lopes, A.; Gonçalves, I. Electrochemical degradation of C. I. Acid Orange 7. Dye. Pigment. 2004, 61, 287–296. [Google Scholar] [CrossRef]
  81. Özcan, A.; Oturan, M.A.; Oturan, N.; Sahin, Y. Removal of Acid Orange 7 from water by electrochemically generated Fenton’s reagent. J. Hazard. Mater. 2009, 163, 1213–1220. [Google Scholar] [CrossRef]
  82. Daneshvar, N.; Aber, S.; Vatanpour, V.; Rasoulifard, M.H. Electro-Fenton treatment of dye solution containing Orange II: Influence of operational parameters. J. Electroanal. Chem. 2008, 615, 165–174. [Google Scholar] [CrossRef]
  83. Zhang, F.; Feng, C.; Li, W.; Cui, J. Indirect electrochemical oxidation of dye wastewater containing Acid Orange 7 using Ti/RuO 2-Pt Electrode. Int. J. Electrochem. Sci. 2014, 9, 943–954. [Google Scholar]
  84. Han, Y.; Quan, X.; Ruan, X.; Zhang, W. Integrated electrochemically enhanced adsorption with electrochemical regeneration for removal of acid orange 7 using activated carbon fibers. Sep. Purif. Technol. 2008, 59, 43–49. [Google Scholar] [CrossRef]
  85. Xia, Y.; Wang, G.; Guo, L.; Dai, Q.; Ma, X. Electrochemical oxidation of Acid Orange 7 azo dye using a PbO2 electrode: Parameter optimization, reaction mechanism and toxicity evaluation. Chemosphere 2020, 241, 125010. [Google Scholar] [CrossRef]

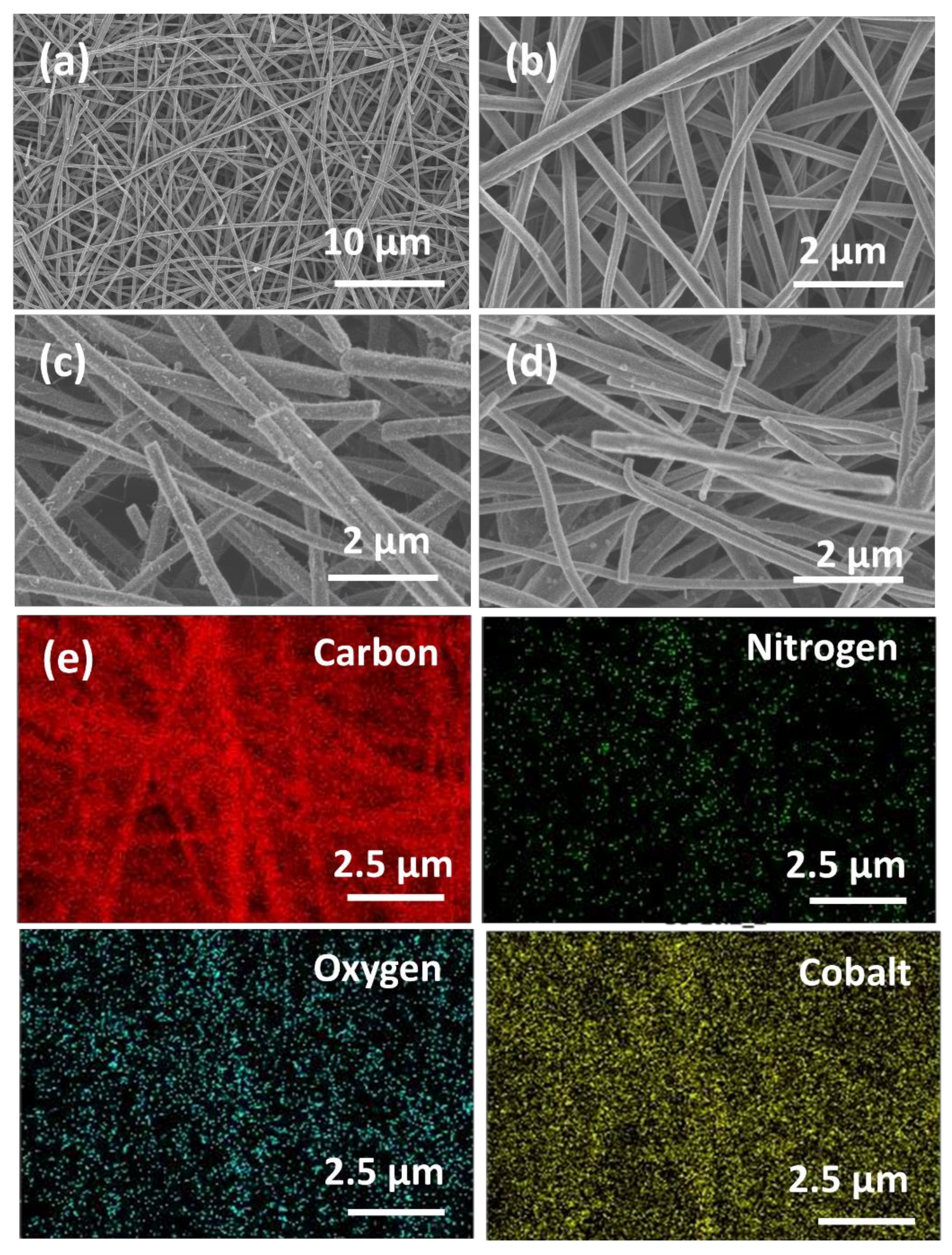

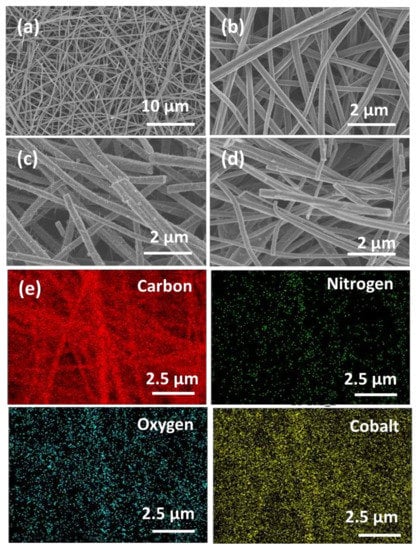

Figure 1. Field emission scanning electron microscopy images (FESEM) of the indicated CNF electrodes: (a) CNF; (b) CNF-Co3; (c) CNF-Co10; (d) CNF-Co20; and (e) SEM-EDX elemental mapping of carbon, nitrogen, oxygen, and cobalt in CNF-Co10.
Figure 1. Field emission scanning electron microscopy images (FESEM) of the indicated CNF electrodes: (a) CNF; (b) CNF-Co3; (c) CNF-Co10; (d) CNF-Co20; and (e) SEM-EDX elemental mapping of carbon, nitrogen, oxygen, and cobalt in CNF-Co10.
Nanomaterials 11 02686 g001

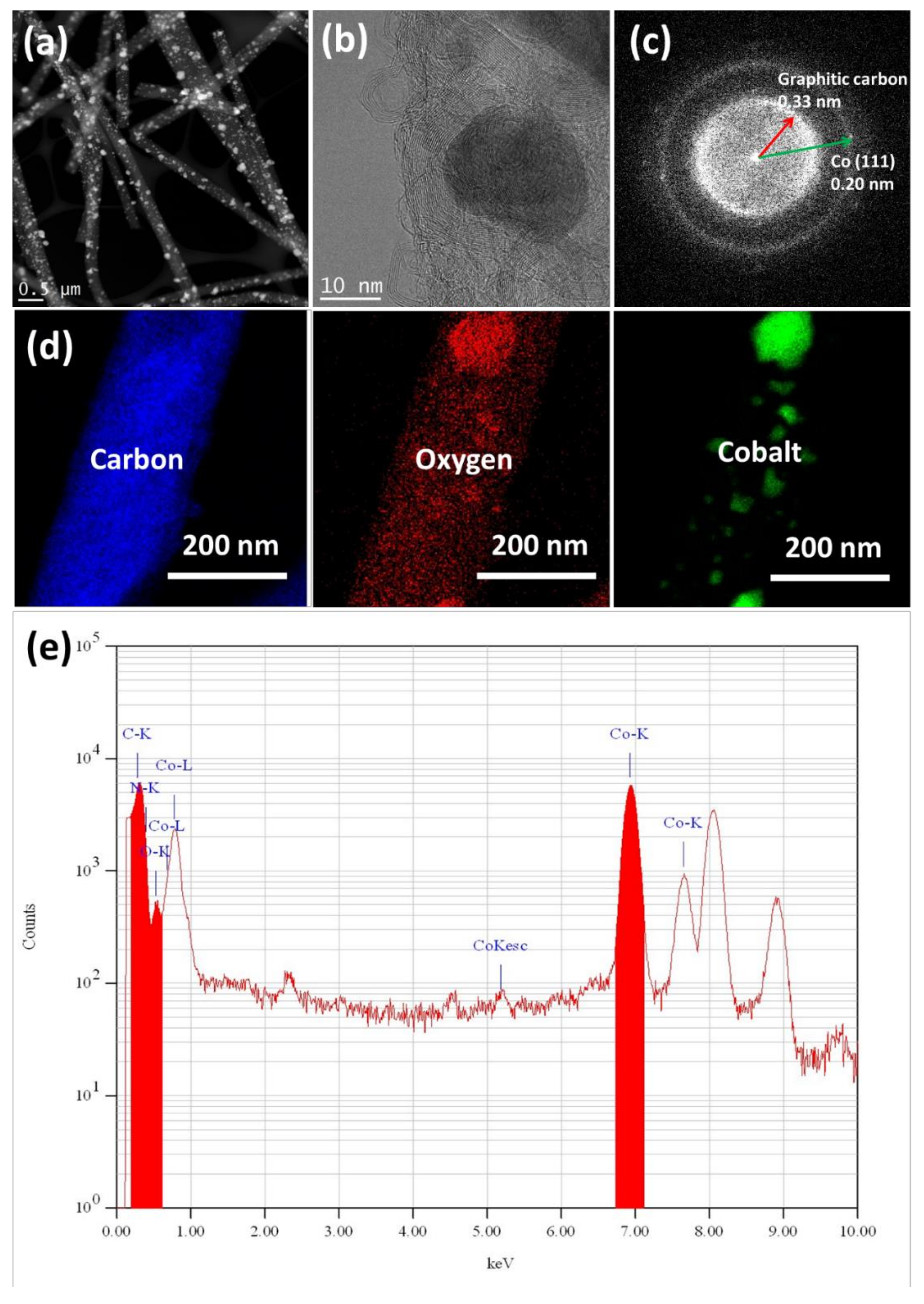

Figure 2. HR-TEM analysis of the CNF-Co20 electrode: (a) low magnification and (b) high magnification TEM micrographs; (c) SAED patterns; (d) TEM with elemental mapping; and (e) TEM-EDX spectra.
Figure 2. HR-TEM analysis of the CNF-Co20 electrode: (a) low magnification and (b) high magnification TEM micrographs; (c) SAED patterns; (d) TEM with elemental mapping; and (e) TEM-EDX spectra.
Nanomaterials 11 02686 g002

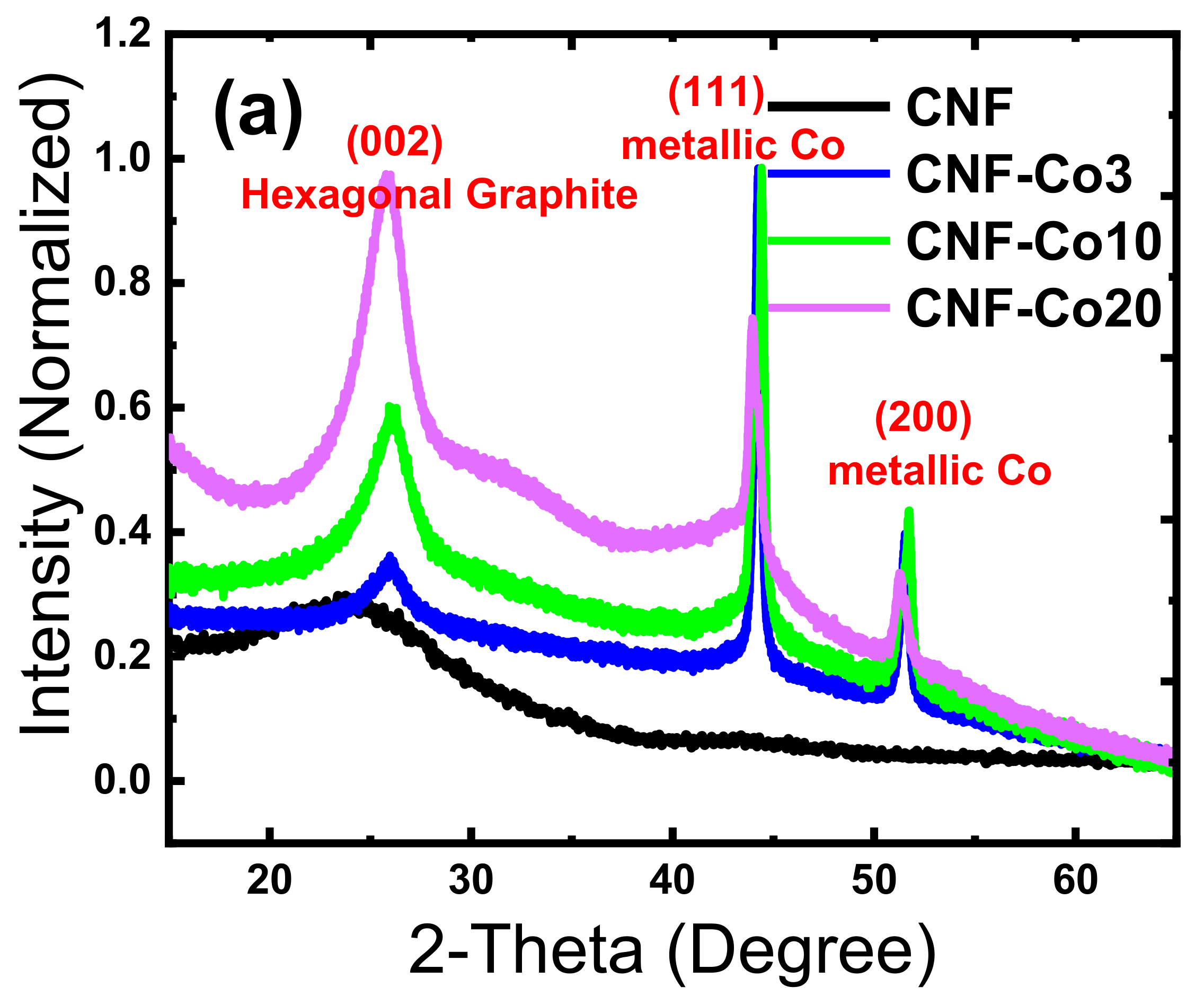

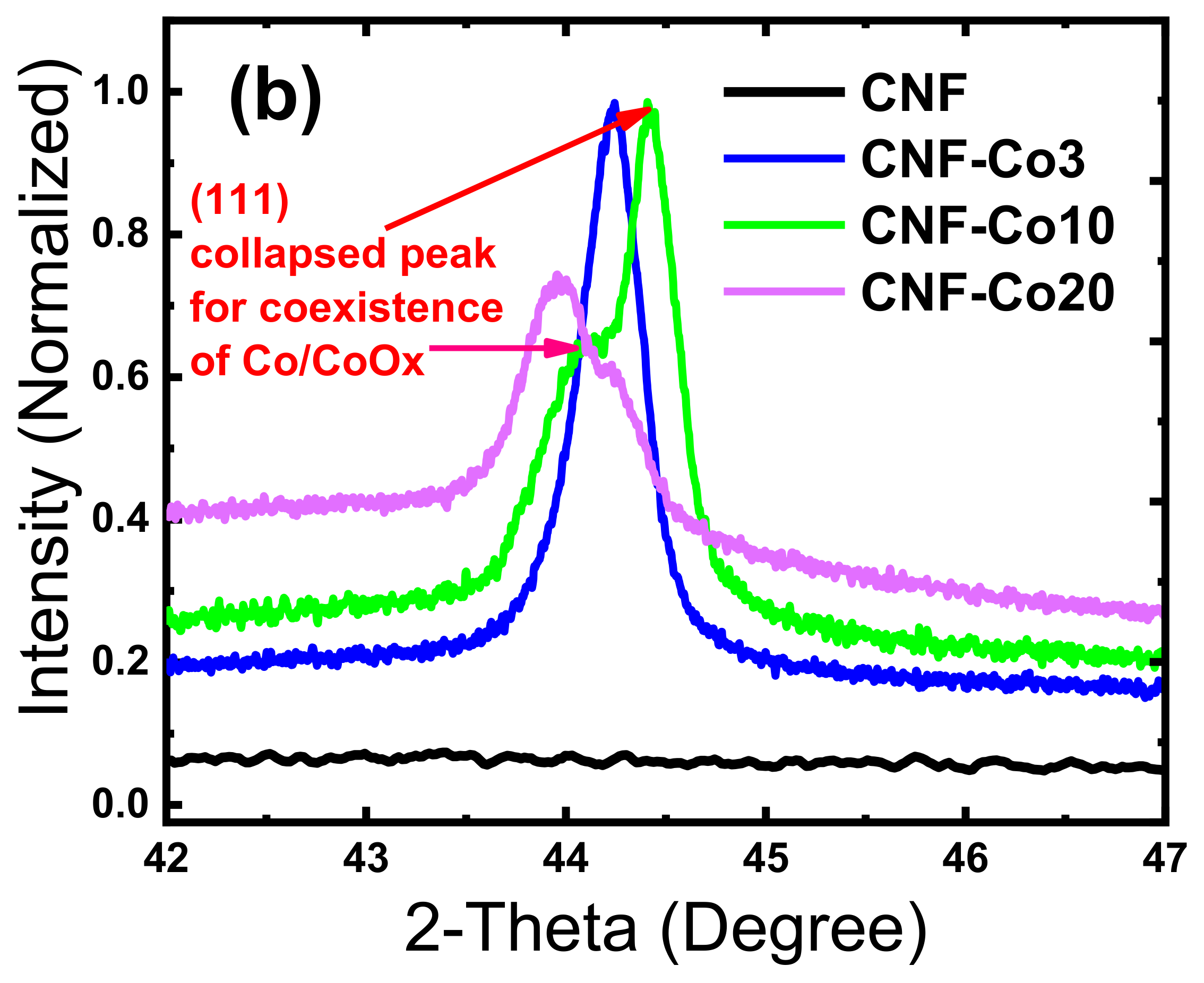

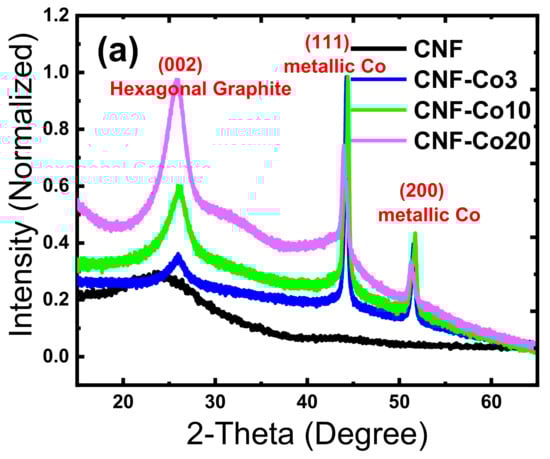

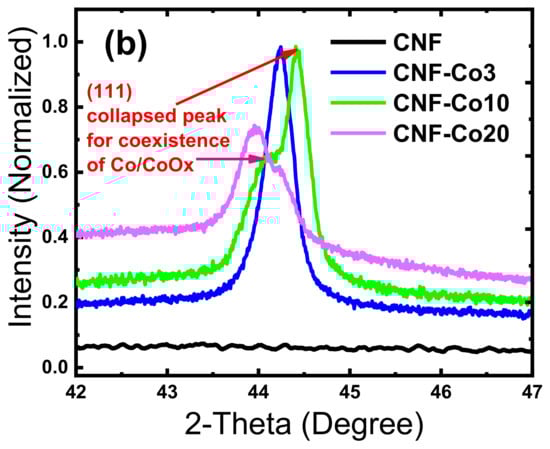

Figure 3. XRD profiles of the prepared free-standing electrodes: (a) survey XRD scan; (b) high-resolution scan of 111 peak(s) around 44°.
Figure 3. XRD profiles of the prepared free-standing electrodes: (a) survey XRD scan; (b) high-resolution scan of 111 peak(s) around 44°.
Nanomaterials 11 02686 g003aNanomaterials 11 02686 g003b

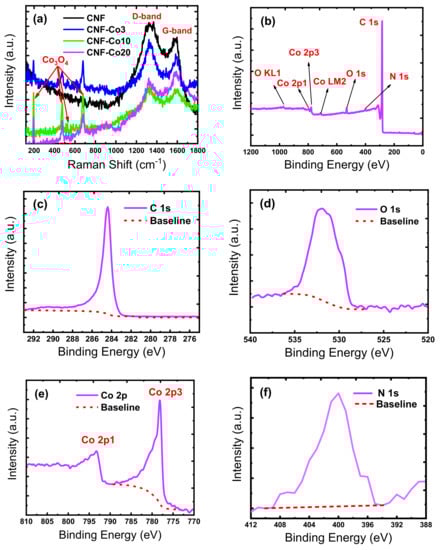

Figure 4. (a) Raman spectroscopy and XPS spectra of the prepared CNF-Co10 electrodes: (b) survey scan; (c) C 1 s; (d) O 1 s; (e) Co 2p; (f) N1s.
Figure 4. (a) Raman spectroscopy and XPS spectra of the prepared CNF-Co10 electrodes: (b) survey scan; (c) C 1 s; (d) O 1 s; (e) Co 2p; (f) N1s.
Nanomaterials 11 02686 g004

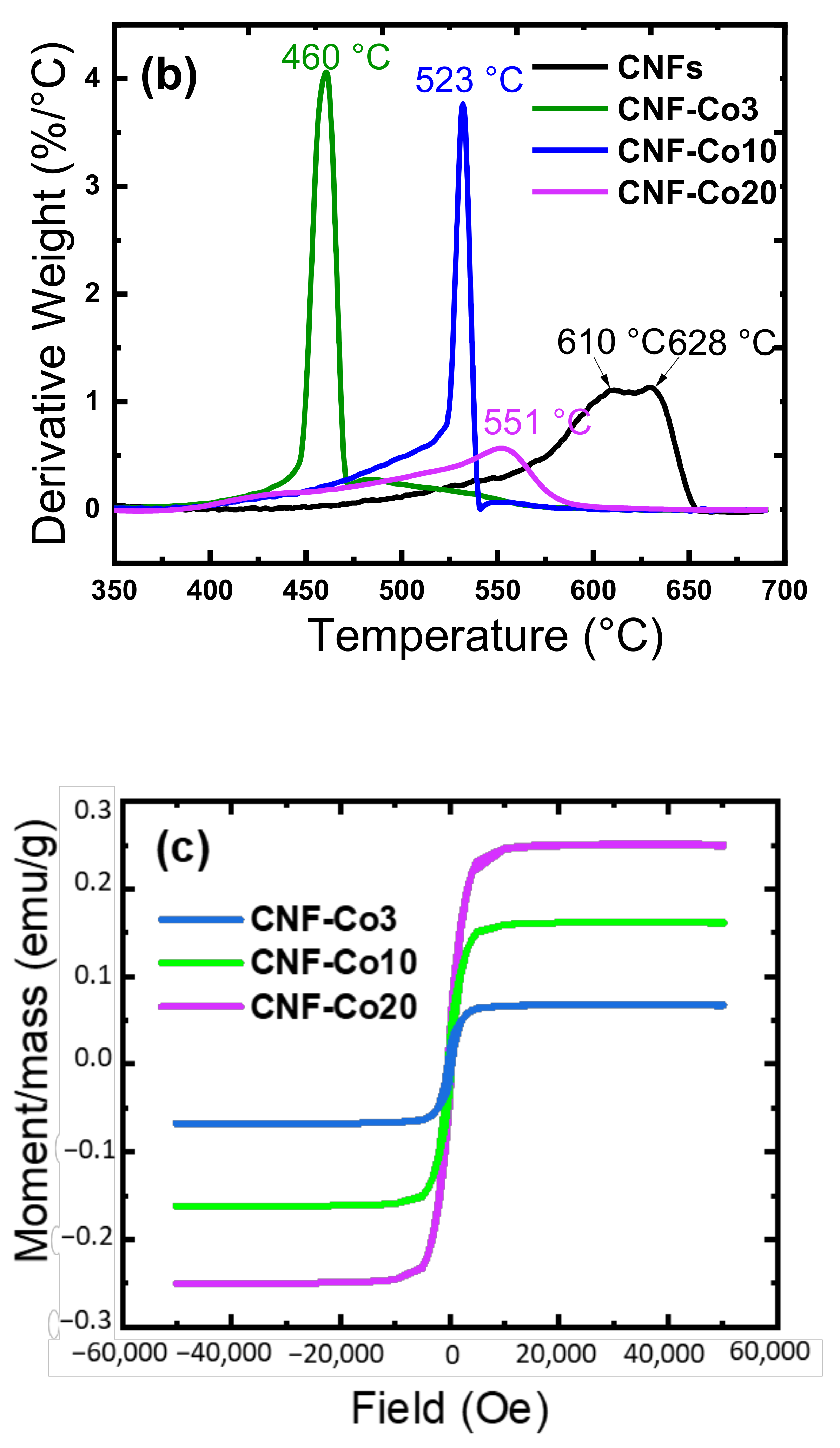

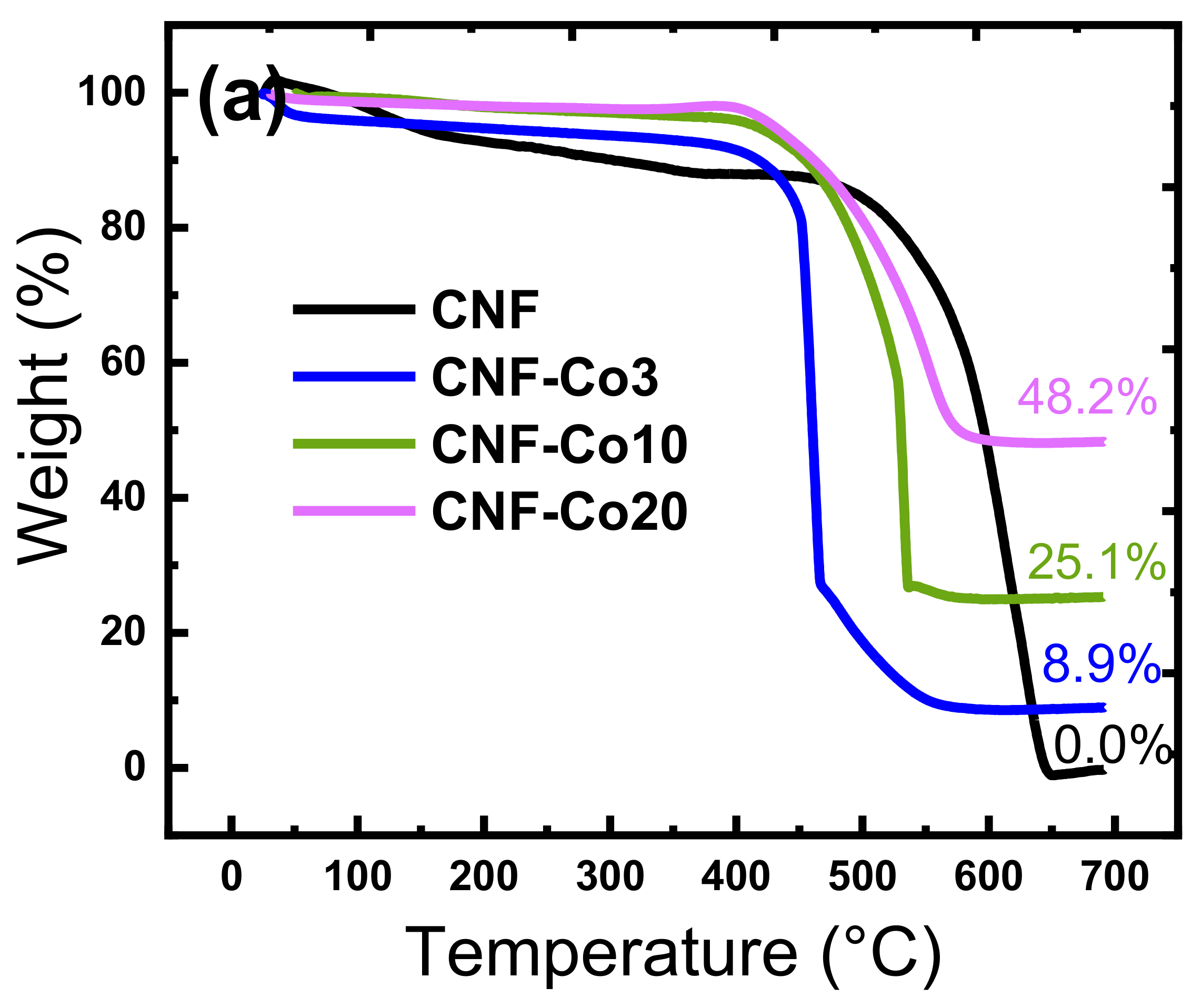

Figure 5. Features of the indicated electrodes: (a) TGA curves; (b) derivative TG curves; (c) VSM hysteresis curves for magnetism.
Figure 5. Features of the indicated electrodes: (a) TGA curves; (b) derivative TG curves; (c) VSM hysteresis curves for magnetism.
Nanomaterials 11 02686 g005aNanomaterials 11 02686 g005b

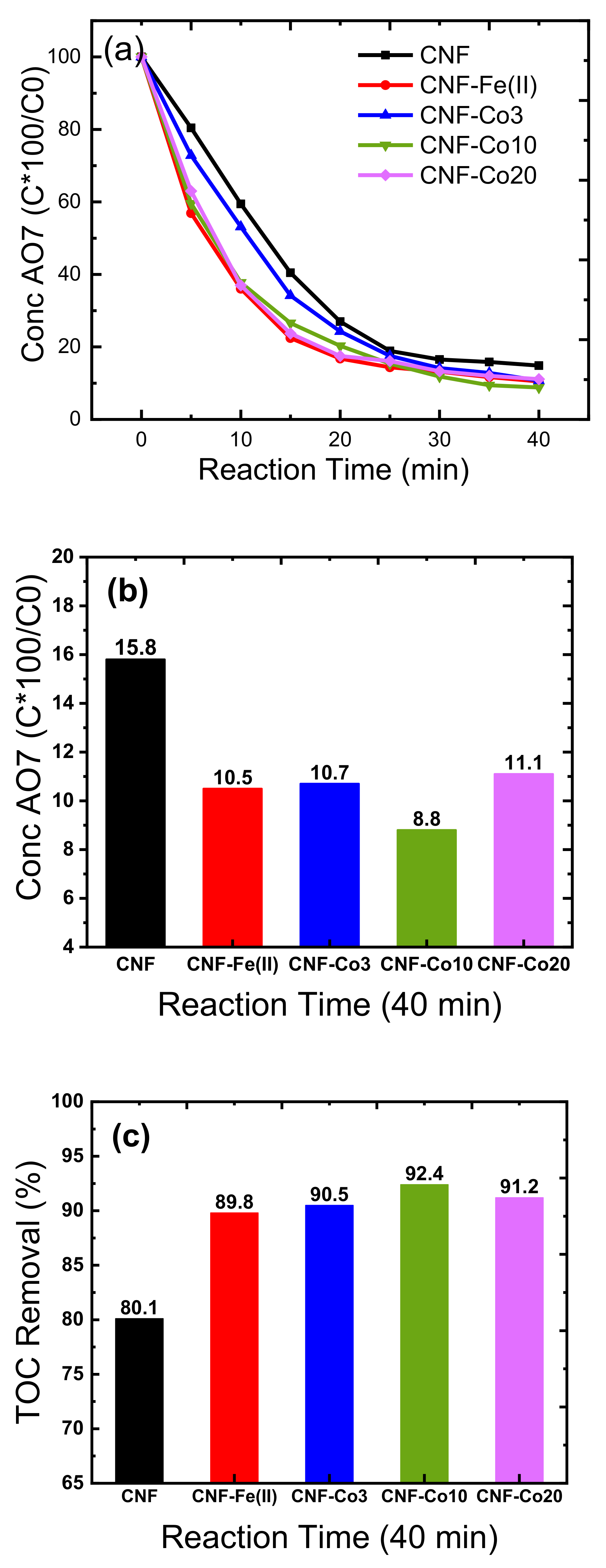

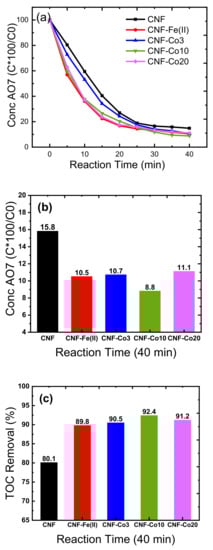

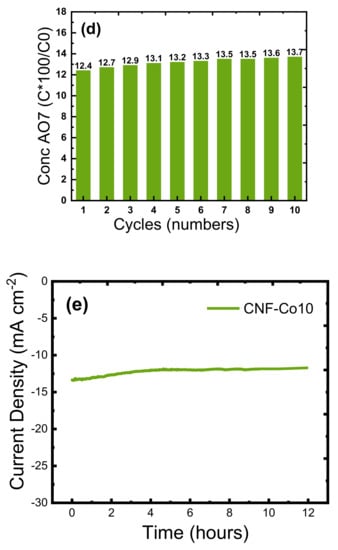

Figure 6. Influence of the cathode material on AO7 degradation (a) at different time points during the reaction and (b) after 40 min of electrolysis. (c) TOC removal (%) after 40 min of electrolysis. Conditions: applied current = 10 mA/cm2, electrolyte = 50 mM Na2SO4, initial concentration (C0) of AO7 = 0.1 mM, pH value = 3, reaction temperature = 25 °C. CNFs-Fe(II) is a pure CNF tested in the presence of 0.20 mM Fe2+ as electro-Fenton reagent. (d) Performance of the prepared CNF-Co10 electrode: after 10 cycles of electrolysis (40 min/cycle). Conditions: applied current = 10 mA/cm2, electrolyte = 50 mM Na2SO4, initial concentration (C0) of AO7 = 0.1 mM, pH = 6, reaction temperature = 25 °C; (e) XRD patterns of the CNF-Co10 electrode after 10 cycles of electrolysis (40 min/cycle); (f) the chronoamperometric response (j-t) test of the CNF-Co10 electrode in 0.5 M H2SO4 over 12 h.
Figure 6. Influence of the cathode material on AO7 degradation (a) at different time points during the reaction and (b) after 40 min of electrolysis. (c) TOC removal (%) after 40 min of electrolysis. Conditions: applied current = 10 mA/cm2, electrolyte = 50 mM Na2SO4, initial concentration (C0) of AO7 = 0.1 mM, pH value = 3, reaction temperature = 25 °C. CNFs-Fe(II) is a pure CNF tested in the presence of 0.20 mM Fe2+ as electro-Fenton reagent. (d) Performance of the prepared CNF-Co10 electrode: after 10 cycles of electrolysis (40 min/cycle). Conditions: applied current = 10 mA/cm2, electrolyte = 50 mM Na2SO4, initial concentration (C0) of AO7 = 0.1 mM, pH = 6, reaction temperature = 25 °C; (e) XRD patterns of the CNF-Co10 electrode after 10 cycles of electrolysis (40 min/cycle); (f) the chronoamperometric response (j-t) test of the CNF-Co10 electrode in 0.5 M H2SO4 over 12 h.
Nanomaterials 11 02686 g006aNanomaterials 11 02686 g006bNanomaterials 11 02686 g006c
Table 1. Characteristics of the tested cathode materials and their corresponding AO7 decolorization rate and TOC removal percentage at different pH.
Table 1. Characteristics of the tested cathode materials and their corresponding AO7 decolorization rate and TOC removal percentage at different pH.
ElectrodesCo
Crystallite Size a
R = (ID/IG) bBET Surface AreaAverage Pore DiameterCo Content cAO7
Residue d
Rate
Constant e
TOC Removal
at pH 3 f
TOC Removal
at pH 6 g
nm--cm2/gnmwt/wt%%min−1%%
CNF--1.137.113.9No15.8 ± 0.30.06880.1 ± 0.681.2 ± 0.5
CNF-Fe(II) h--1.137.113.9No10.5 ± 0.20.09089.8 ± 0.4--
CNF-Co337.0 ± 0.61.150.58.68.9 ± 0.510.7 ± 0.30.07190.5 ± 0.390.5 ± 0.5
CNF-Co1035.0 ± 0.41.01115.33.825.1 ± 0.48.8 ± 0.30.08092.4 ± 0.693.3 ± 0.5
CNF-Co2032.1 ± 0.30.92240.25.648.2 ± 0.711.1 ± 0.20.08991.2 ± 0.691.0 ± 0.7
a Crystallite size calculated from FWHM using the Scherrer equation of each diffraction profile (Figure 3). b R ratio calculated from the D and G peak relative intensities on Raman spectra (Figure 4a). c Co/CoOx content (ash) in the prepared electrodes determined by TGA (Figure 5). d AO7 residue is the remaining AO7 concentration (in %) at pH 3 after 40 min measured by UV-vis spectroscopy at 480 nm. e Rate constant (K) calculated using a first-order reaction at 0–10 min (Figure 6a). f TOC removal at pH 3 and at 40 min of reaction time (Figure 6b). g TOC removal at pH 6 and 180 min of reaction time. h CNF-Fe(II) is a CNF tested with 0.1 mM AO7 and 0.20 mM Fe2+ as electro-Fenton reagent.
Table 2. Comparison of the efficiency of the self-supported CNF-Co10 electrodes and of some cathodes described in the literature for AO7 mineralization.
Table 2. Comparison of the efficiency of the self-supported CNF-Co10 electrodes and of some cathodes described in the literature for AO7 mineralization.
CathodeElectrolyteInitial AO7
Conc.
Current
Density
TimeTOC
Removal
pHRef.
mMmA·cm−2min%----
rGO/carbon feltFe (II) + Na2SO40.130120733[14]
Carbon feltFe (II) + Na2SO40.18.3120903[78]
Stainless steelFe3O4 + peroxydisulfate (PDS)0.07 8.490303[79]
Boron-doped diamond electrodeKCl + Na2SO41.710600903.5[80]
CNFs-Co10Na2SO40.1104092.53This work
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Barhoum, A.; Favre, T.; Sayegh, S.; Tanos, F.; Coy, E.; Iatsunskyi, I.; Razzouk, A.; Cretin, M.; Bechelany, M. 3D Self-Supported Nitrogen-Doped Carbon Nanofiber Electrodes Incorporated Co/CoOx Nanoparticles: Application to Dyes Degradation by Electro-Fenton-Based Process. Nanomaterials 2021, 11, 2686. https://doi.org/10.3390/nano11102686

AMA Style

Barhoum A, Favre T, Sayegh S, Tanos F, Coy E, Iatsunskyi I, Razzouk A, Cretin M, Bechelany M. 3D Self-Supported Nitrogen-Doped Carbon Nanofiber Electrodes Incorporated Co/CoOx Nanoparticles: Application to Dyes Degradation by Electro-Fenton-Based Process. Nanomaterials. 2021; 11(10):2686. https://doi.org/10.3390/nano11102686

Chicago/Turabian Style

Barhoum, Ahmed, Therese Favre, Syreina Sayegh, Fida Tanos, Emerson Coy, Igor Iatsunskyi, Antonio Razzouk, Marc Cretin, and Mikhael Bechelany. 2021. "3D Self-Supported Nitrogen-Doped Carbon Nanofiber Electrodes Incorporated Co/CoOx Nanoparticles: Application to Dyes Degradation by Electro-Fenton-Based Process" Nanomaterials 11, no. 10: 2686. https://doi.org/10.3390/nano11102686

APA Style

Barhoum, A., Favre, T., Sayegh, S., Tanos, F., Coy, E., Iatsunskyi, I., Razzouk, A., Cretin, M., & Bechelany, M. (2021). 3D Self-Supported Nitrogen-Doped Carbon Nanofiber Electrodes Incorporated Co/CoOx Nanoparticles: Application to Dyes Degradation by Electro-Fenton-Based Process. Nanomaterials, 11(10), 2686. https://doi.org/10.3390/nano11102686

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
