Communication

Surface Structure Engineering of Nanosheet-Assembled NiFe2O4 Fluffy Flowers for Gas Sensing

by
Xiaofeng Wang
1,
Xu Li
1,
Guozheng Zhang
1,
Zihao Wang
2,
Xue-Zhi Song
2,* and
Zhenquan Tan
2,*
1
Key Laboratory of Materials Modification by Laser Ion and Electron Beams, Dalian University of Technology, Ministry of Education, Dalian 116024, China
2
State Key Laboratory of Fine Chemicals, Panjin Campus, School of Chemical Engineering, Dalian University of Technology, Panjin 124221, China
*
Authors to whom correspondence should be addressed.
Nanomaterials 2021, 11(2), 297; https://doi.org/10.3390/nano11020297
Submission received: 21 December 2020 / Revised: 19 January 2021 / Accepted: 21 January 2021 / Published: 24 January 2021
(This article belongs to the Special Issue Nanostructured Materials for Gas Sensor Applications)
Browse Figures
Versions Notes

Abstract

:
In this work, we present a strategy to improve the gas-sensing performance of NiFe2O4 via a controllable annealing Ni/Fe precursor to fluffy NiFe2O4 nanosheet flowers. X-ray diffraction (XRD), a scanning electron microscope (SEM), nitrogen adsorption–desorption measurements and X-ray photoelectron spectroscopy (XPS) were used to characterize the crystal structure, morphology, specific surface area and surface structure. The gas-sensing performance was tested and the results demonstrate that the response was strongly influenced by the specific surface area and surface structure. The resultant NiFe2O4 nanosheet flowers with a heating rate of 8 °C min−1, which have a fluffier morphology and more oxygen vacancies in the surface, exhibited enhanced response and shortened response time toward ethanol. The easy approach facilitates the mass production of gas sensors based on bimetallic ferrites with high sensing performance via controlling the morphology and surface structure.

1. Introduction

Resistive gas sensors based on metal oxides, most of which are semiconductors (containing n-type and p-type semiconductors), have been widely used in a range of commercial gas detection systems [1]. Bimetallic semiconductor materials have stood out for gas sensing due to their low cost, easy manufacture, versatility, high stability, eco-friendliness and large range of detectable gases [2,3,4,5,6,7]. More interestingly, NiFe2O4 having an inverse spinel ferrite structure is characterized to be an n-type or p-type semiconductor which can be altered by controlling the stoichiometric and cation distribution [8,9,10,11]. Therefore, many efforts have been made to apply NiFe2O4 with various microstructures to the energy storage [12], catalysis [13] and effective detection of hazardous gases [14]. However, the gas-sensing properties of the NiFe2O4-based sensor are expected to be further enhanced. Regulating the surface active sites and microstructures of NiFe2O4 is considered to be an effective method as the gas-sensing process involves the surface reaction.
For one thing, it is widely acknowledged that a large specific surface area can increase the number of active atoms which are able to participate in the gas-sensing process [15,16]. Designing a microstructure of NiFe2O4 with less agglomeration, large specific surface area and good surface permeability is a promising approach to enhance the gas-sensing performance [17,18]. Using a carbon sphere as a template, Zhou et al. prepared NiFe2O4 nanospheres with a core-in-shell structure as a gas-sensing material [19]. The homologous sensor exhibited rapid response and recovery to 100 ppm acetone with a response value of 10.6. Zhang et al. successfully synthesized NiFe2O4 nano-octahedrons via pyrolysis of Ni/Fe-bimetallic metal–organic frameworks (MOFs), and the as-fabricated sensor exhibited immense potential in monitoring toluene gas [20]. Our group has also conducted several research works on nanostructured bimetallic ferrites including hollow NiFe2O4 materials, which were synthesized through annealing treatment of MOFs and exhibited good gas-sensing performances including high response, good selectivity and low working temperature [21,22]. However, the synthetic strategies of these porous or hollow structured materials are usually carried out by template-directed preparation, a tedious method with material waste and low yield [23,24]. Thus, it is of great significance to develop a facile and scalable route for the synthesis of materials with a large specific surface area.
Additionally, defects in semiconductor materials can adjust the conductivity and surface activity of materials, which are critical factors in influencing the gas-sensing response depending on the variation of resistance [25]. According to some literature studies, the ubiquitous oxygen vacancy in the materials can improve gas-sensing characteristics [26,27].
As a proof of concept, we herein propose an easy approach to generate NiFe2O4 fluffy nanosheet-assembled flowers (NSFs) with an enlarged specific surface area and increased concentration of oxygen vacancies arising from the heating rate control. The synergistic effect of larger specific surface area, fluffy feature and more oxygen vacancies led to better gas-sensing performances toward ethanol gas including higher sensitivity and faster response. This facile approach offers guidance on designing superior gas sensors based on semiconducting metal oxides via morphology and defect engineering. The gas-sensing results are helpful in understanding the gas-sensing mechanism.

2. Materials and Methods

2.1. Preparation of NiFe2O4 NSFs

NiFe2O4 NSFs were synthesized by a facile one-step hydrothermal process and subsequent annealing treatment. Briefly, a homogenous solution of Ni(NO3)2·6H2O (1 mmol), Fe(NO3)3·9H2O (0.67 mmol), NH4F (2.67 mmol), CO(NH2)2 (4 mmol) and 30 mL deionized water was heated in a Teflon-lined autoclave for 6 h at 100 °C. After being washed with deionized water and ethanol for three times and dried, the yellow sediment was annealed at 500 °C for 3 h to obtain NiFe2O4 NSFs with a heating rate of 2, 5 and 8 °C min−1, respectively, denoted as NFO-2, NFO-5 and NFO-8 NSFs.

2.2. Materials Characterization

The crystal structure, morphology and surface property of NiFe2O4 were characterized with XRD, SEM, transmission electron microscopy (TEM), nitrogen adsorption–desorption measurement and XPS. The information of the testing equipment and testing condition can be found in the Supplementary Information.

2.3. Fabrication and Measurement of Gas Sensor

The gas sensor was fabricated and measured following our previous works [3,7]. The as-synthesized NiFe2O4 NSFs were coated on the outside surface of an alumina ceramic tube with a pair of Au electrodes at each end and a heating coil inside. The gas-sensing measurement was performed on a CGS-8 System (Beijing Elite Technology Co., Ltd., Beijing, China). A schematic diagram of the sensing setup and sensing device is shown in Figure S1. The response of a sensor is generally defined as Rg/Ra, where Rg and Ra represent the sensor resistance in the target gas and air, respectively.

3. Results

3.1. Structures Characterization

Based on the XRD patterns of the synthesized NiFe2O4 NSFs with a heating rate of 2, 5 and 8 °C min−1, respectively, denoted as NFO-2, NFO-5 and NFO-8 NSFs (shown in Figure 1a), it was found that all three as-prepared samples matched well with the monoclinic NiFe2O4 phase, indexed to JCPDS: 10-0325. Nitrogen adsorption–desorption isotherms and Brunner–Emmet–Teller (BET) surface area values of the synthesized NiFe2O4 NSFs are presented in Figure 1b. A higher heating rate of 8 °C min−1 endows the NiFe2O4 with increased BET surface area (87.0 m2 g−1) compared with the samples acquired under 2 °C min−1 and 5 °C min−1 (BET surface areas: 46.7 m2 g−1 and 66.2 m2 g−1). The larger specific surface area of NFO-8 NSFs can provide more active sites to adsorb oxygen species and react with target gas molecules, which can facilitate the gas-sensing performances.
To explore the morphologies of the NiFe2O4 NSFs prepared at different heating rates, the SEM images and particle size distribution are gathered in Figure 1c–k. The NiFe2O4 nanosheets self-assembled together, forming nanosheet flowers. The sizes of the flowers formed under the heating rate of 2, 5 and 8 °C min−1 were ca. 1.42, 2.98 and 4.14 μm, respectively. As the three NiFe2O4 samples came from the same precursor, the NFO-8 NSFs clearly possessed the largest size of the flower, then a large specific surface area was formed, which was in accordance with the results of BET. The nanosheets of NFO-8 NSFs were ultrathin and the flowers were fluffier. The corresponding TEM image in Figure S2a also reveals the ultrathin NiFe2O4 nanosheets in the NFO-8 NSFs. Moreover, the representative HRTEM image in Figure S2b shows a set of lattice fringes with the interplanar distance of 0.25 nm which resulted from the (311) facets of spinel NiFe2O4.
To characterize the surface defects of NiFe2O4 NSFs, the XPS measurements were conducted which could provide some information of the elemental valence state and the surface characteristics. The well-resolved Ni 2p spectra in Figure 2a–c exhibit two main peaks at ca. 854.15 and 855.75 eV for Ni2+ and Ni3+. The two pairs of coupled peaks in Figure 2d–f with binding energies at ca. 710.05 and 712.60 eV correspond to the binding energy of the Fe3+ and Fe4+ [28]. The ratios of Ni3+/Ni2+ in NFO-2, NFO-5 and NFO-8 NSFs are 2.22, 2.80 and 2.56 and the ratios of Fe4+/Fe3+ are 0.54, 0.85 and 0.75, respectively. The amounts of Ni3+ and Fe4+ in NFO-5 and NFO-8 NSFs were much more than those in NFO-2 NSFs, which means more defects in the materials of the NFO-5 and NFO-8 NSFs. The relative contents of oxygen defects can be analyzed and calculated from the O 1s peak in Figure 2g–i. From low to high banding energy, the resolved peaks at ca. 529.5, 531.2 and 531.9 eV are usually associated with the metal–oxygen bonding (OL), oxygen vacancy-related defects (OV) and absorbed oxygen (Oabs), respectively [29,30,31]. The relative contents of OL, OV and Oabs calculated from the O 1s peak fitting of NFO-2, NFO-5 and NFO-8 NSFs are summarized in Table S1. Obviously, the NFO-5 and NFO-8 NSFs possess higher contents of OV and Oabs than NFO-2 NSFs, which play critical roles in the resistance and response of NiFe2O4 sensors.

3.2. Ethanol Sensing Performance

The sensing performance of the NiFe2O4 NSFs was evaluated by separately detecting different volatile organic compounds (VOCs) including ethanol (C2H5OH), acetone (C3H6O), n-propanol (C3H7OH), methanol (CH3OH) and formaldehyde (HCHO). Firstly, we determined the optimal operating temperature of all the three sensors by monitoring the real-time electrical resistances in air and under 100 ppm ethanol at the temperature range of 120–180 °C (shown in Figure 3a). For each sample, the highest response toward 100 ppm ethanol appeared at 120 °C, and the response decreases as the operating temperature elevates. It is worth mentioning that the test at the temperature lower than 120 °C is meaningless as the electrical resistances in air of all the three sensors fail to achieve steady values. Therefore, 120 °C was selected as the operating temperature in subsequent tests. The changes in gas-sensing responses of NFO-2, NFO-5 and NFO-8 NSFs over gas concentration were investigated during 5 to 100 ppm ethanol gas (Figure 3b). At the concentrations of 50 and 100 ppm, the NFO-8 NSFs-based sensor showed the highest response values compared with the NFO-2 and NFO-5 NSFs-based sensors. Meanwhile, at the concentration range of 5–20 ppm, the NFO-8 NSFs- and NFO-5 NSFs-based sensors showed approximately equal responses, which are much higher than that of the NFO-2 NSFs-based sensor. The improvement in the sensing response of the NFO-8 NSFs-based sensor toward ethanol gas is mainly attributed to the combined effect of the fluffy structure and surface composition. The fluffy structure with a higher specific surface area can expose more active sites for sensing reaction and facilitate the diffusion of ethanol molecules. Moreover, the oxygen vacancies in the material surface act as electron donors providing unpaired electrons and an active site which can improve the gas-sensing performances [32]. Although the calculated contents of oxygen vacancies of NFO-5 NSFs and NFO-8 NSFs are similar, the specific surface area of NFO-5 NSFs is much lower than that of NFO-8 NSFs. Thus, the larger specific surface area and fluffy features of NFO-8 NSFs with oxygen vacancies undoubtedly provide more active sites for the adsorption of target gas molecules and oxygen species.
To more deeply understand the properties related to the gas-sensing performance of the three sensors, the dynamic sensing transients of resistances were tested. As shown in Figure 3c, the resistances clearly increase in ethanol gas and decrease in air, indicating the p-type semiconductor conductivity, which is due to the hole hopping between Ni3+ and Ni2+ [33]. In addition, it can be noted that the resistance of samples in air with a relatively higher heating rate (5 and 8 °C min−1) was much larger than that of 2 °C min−1. This can be ascribed to their fluffier structure and the decreasing carrier concentration. As the structure becomes fluffier, fewer electric channels can be produced in the materials of NFO-5 and NFO-8 NSFs. In addition, free electrons produced by oxygen vacancies compensate part of the hole carrier and increase the resistance in the air of p-type NFO-5 and NFO-8 NSFs [34,35].
The response time (τres) of the sensors was calculated from Figure S3 to be 141, 120 and 104 s for NFO-2, NFO-5 and NFO-8 NSFs, respectively. The recovery time (τrec) was 113, 105 and 77 s for NFO-2, NFO-5 and NFO-8 NSFs, respectively. The response and recovery were not very quick which may be due to the relatively low working temperature of 120 °C [32]. Even so, the response/recovery process of the sensors based on NFO-8 NSFs is faster compared to the other two samples, which might benefit from the easy diffusion of gas molecules due to the fluffy structure with a high specific surface area. The responses of the NFO-8 NSFs-based sensor to 100 ppm ethanol, acetone, n-propanol, methanol and formaldehyde were 23.2, 17.1, 13.9, 11.1 and 3.9 at 120 °C, respectively (summarized in Figure 3f). The results indicate a selectivity toward ethanol gas. The different lowest unoccupied molecule orbit (LUMO) energy for various target gas molecules leads to different responses. Moreover, the selectivity toward ethanol gas could be ascribed to the strong interaction between the ethanol molecules and the surface of NFO-8 NSFs at 120 °C [36]. Our material can be used as part of a sensor array to provide a response pattern.
The stability of gas sensors is a crucial factor for practical application. The as-fabricated sensors exhibited satisfactory cyclic stability and repeatability as the response values were roughly constant for eight successive cycles alternatively exposed to air and 100 ppm ethanol gas (Figure 3d). Furthermore, the sensor based on NFO-8 NSFs also showed a satisfactory long-term stability with a slight variation in response towards 100 ppm ethanol gas during the 10 days (Figure 3e).

3.3. Gas-Sensing Mechanism

For resistance-type gas-sensing material, the wildly accepted reason for the resistance change during the testing process is the electron gain and loss model. At an air atmosphere, oxygen molecules are pre-adsorbed on the surface of gas-sensing materials, forming active oxygen species by capturing free electrons [37,38,39,40,41,42]. Simultaneously, the concentration of the hole carrier in the p-type semiconductor increases, resulting in a resistance decrease. When ethanol gas is introduced, the ethanol molecules will react with the pre-absorbed oxygen species or directly adsorb on the surface [25]. The reaction with the pre-absorbed oxygen species will release the captured electrons back to the gas-sensing materials, increasing the resistance. Further, the direct adsorption will be accompanied by a charge transfer from the ethanol molecules to the surface, increasing the resistance of p-type semiconductor materials [43,44,45].
In this work, the improvement in the ethanol-sensing performance of NFO-8 NSFs is mainly attributed to the synergy effect of the fluffy structure and surface composition. On one hand, the high specific surface area and fluffy structure of NFO-8 NSFs expose more active sites for the sensing reaction and facilitate the diffusion of ethanol molecules, accelerating the process of gas adsorption–desorption. On the other hand, the oxygen vacancies in the material surface can lower the adsorption energy, modify the electronic state of metal cations and provide active sites for the gas-sensing process. [32,46,47,48] Thus, the larger surface area and fluffy structure of NFO-8 NSFs with oxygen vacancies undoubtedly enhance the reaction between the target gas and the surface.

4. Conclusions

In summary, fluffy NiFe2O4 nanosheet flowers labeled as NFO-2, NFO-5 and NFO-8 NSFs have been successfully prepared by a facile one-step hydrothermal approach after annealing at 500 °C for 3 h with a heating rate of 2, 5 and 8 °C min−1, respectively. Compared with the NFO-2 NSFs- and NFO-5 NSFs-based sensors, the p-type semiconducting NFO-8 NSFs-based sensor can present enhanced ethanol-sensing behavior at a low working temperature (120 °C), which exhibits a response of 23.2 to 100 ppm ethanol, benefiting from the fluffy structure, high specific surface area and surface oxygen vacancies. This facile and effective approach opens up a perspective for mass production, miniaturization and commercialization of the relevant sensors.

Supplementary Materials

The following are available online at https://www.mdpi.com/2079-4991/11/2/297/s1, Figure S1: Schematic diagram of the sensing setup and sensing device, Figure S2: TEM characterization of NFO-8 NSFs; (b) HRTEM image of NFO-8 NSFs, Figure S3: Response time and recovery time of the sensor towards 100 ppm ethanol at 120 °C, Table S1: The contents of O in different forms summarized from O 1s XPS results of the NiFe2O4 NSFs.

Author Contributions

Conceptualization, X.W., X.-Z.S. and Z.T.; methodology, X.W. and X.-Z.S.; investigation, X.W.; data curation, X.W., X.L. and Z.W.; writing—original draft preparation, X.W.; writing—review and editing, X.W., X.-Z.S. and Z.T.; visualization, X.W., X.L. and G.Z.; funding acquisition, X.W., X.-Z.S. and Z.T. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by National Natural Science Foundation of China (Grant No. 51602035, 21601027 and 21571028), Joint Research Fund Liaoning-Shenyang National Laboratory for Materials Science (2018010070-301), the Fundamental Research Funds for the Central Universities (Grant No. DUT19JC41, DUT17RC(4)25 and DUT18LK28) and the Open Funds of the State Key Laboratory of Rare Earth Resource Utilization (RERU2018020).

Acknowledgments

The authors acknowledge the facilities and the scientific and technical assistance of the Instrumental Analysis & Research Center, Dalian University.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Miller, D.R.; Akbar, S.A.; Morris, P.A. Nanoscale metal oxide-based heterojunctions for gas sensing: A review. Sens. Actuators B Chem. 2014, 204, 250–272. [Google Scholar] [CrossRef]
  2. Zhou, X.; Li, X.; Sun, H.; Sun, P.; Liang, X.; Liu, F.; Hu, X.; Lu, G. Nanosheet-Assembled ZnFe2O4 Hollow Microspheres for High-Sensitive Acetone Sensor. ACS Appl. Mater. Interfaces 2015, 7, 15414–15421. [Google Scholar] [CrossRef] [PubMed]
  3. Wang, X.-F.; Ma, W.; Jiang, F.; Cao, E.-S.; Sun, K.-M.; Cheng, L.; Songa, X.-Z. Prussian Blue analogue derived porous NiFe2O4 nanocubes for low-concentration acetone sensing at low working temperature. Chem. Eng. J. 2018, 338, 504–512. [Google Scholar] [CrossRef]
  4. Xu, Y.Y.; Sun, D.D.; Hao, H.Y.; Gao, D.Z.; Sun, Y.Q. Non-stoichiometric Co(II), Ni(II), Zn(II)-ferrite nanospheres: Size con-trollable synthesis, excellent gas-sensing and magnetic properties. RSC Adv. 2016, 6, 98994–99002. [Google Scholar] [CrossRef]
  5. Cao, E.S.; Wu, A.T.; Wang, H.H.; Zhang, Y.J.; Hao, W.T.; Sun, L. Enhanced ethanol sensing performance of Au and Cl co-modified LaFeO3 nanoparticles. ACS Appl. Nano Mater. 2019, 2, 1541–1551. [Google Scholar] [CrossRef]
  6. Wang, X.F.; Ma, W.; Sun, K.M.; Hu, J.F.; Qin, H.W. Nanocrystalline Gd1–xCaxFeO3 sensors for detection of methanol gas. J. Rare Earths 2017, 35, 690–696. [Google Scholar]
  7. Wang, X.F.; Sun, K.M.; Li, S.J.; Song, X.Z.; Cheng, L.; Ma, W. Porous javelin-like NiFe2O4 nanorods as n-propanol sensor with ultrahigh-performance. ChemistrySelect 2018, 3, 12871–12877. [Google Scholar] [CrossRef]
  8. Hastings, J.M.; Corliss, L.M. Neutron Diffraction Study of Manganese Ferrite. Phys. Rev. 1956, 104, 328–331. [Google Scholar] [CrossRef]
  9. Mathew, D.S.; Juang, R.-S. An overview of the structure and magnetism of spinel ferrite nanoparticles and their synthesis in microemulsions. Chem. Eng. J. 2007, 129, 51–65. [Google Scholar] [CrossRef]
  10. Baruwati, B.; Rana, R.K.; Sunkara, M.V. Further insights in the conductivity behavior of nanocrystalline NiFe2O4. J. Appl. Phys. 2007, 101, 014302. [Google Scholar] [CrossRef]
  11. Baruwati, B.; Reddy, K.M.; Sunkara, M.V.; Singh, R.K.; Parkash, O. Tailored conductivity behavior in nanocrystalline nickel ferrite. Appl. Phys. Lett. 2004, 85, 2833. [Google Scholar] [CrossRef]
  12. Xu, H.; Wang, X.; Liu, H.; Wang, J.; Dong, X.; Liu, G.; Yu, W.; Yang, Y.; Zhang, H. Facile synthesis of Fe3O4/NiFe2O4 nanosheets with en-hanced Lithium-ion storage by one-step chemical dealloying. J. Mater. Sci. 2018, 53, 15631–15642. [Google Scholar] [CrossRef]
  13. Kiani, F.; Naeimi, H. Ultrasonic accelerated coupling reaction using magnetically recyclable bis (propyl molononitril) Ni com-plex nanocatalyst: A novel, green and efficient synthesis of biphenyl derivatives. Ultrason. Sonochem. 2018, 48, 267–274. [Google Scholar] [CrossRef] [PubMed]
  14. Zhang, S.; Jiang, W.; Li, Y.; Yang, X.; Sun, P.; Liu, F.; Yan, X.; Gao, Y.; Liang, X.; Ma, J.; et al. Highly-sensitivity acetone sensors based on spinel-type oxide (NiFe2O4) through optimization of porous structure. Sens. Actuators B Chem. 2019, 291, 266–274. [Google Scholar] [CrossRef]
  15. Sainato, M.; Strambini, L.M.; Rella, S.; Mazzotta, E.; Barillaro, G. Sub-parts per million NO2 chemi-transistor sensors based on composite porous Silicon/Gold nanostructures prepared by metal-assisted ttching. ACS Appl. Mater. Interfaces 2015, 7, 7136–7145. [Google Scholar] [CrossRef]
  16. Barillaro, G.; Lazzerini, G.M.; Strambini, L.M. Modeling of porous silicon junction field effect transistor gas sensors: Insight into NO2 interaction. Appl. Phys. Lett. 2010, 96, 162105. [Google Scholar] [CrossRef] [Green Version]
  17. Ding, S.; Lou, X.W.D. SnO2 nanosheet hollow spheres with improved lithium storage capabilities. Nanoscale 2011, 3, 3586–3588. [Google Scholar] [CrossRef]
  18. Sun, P.; Zhou, X.; Wang, C.; Shimanoe, K.; Lu, G.; Yamazoe, N. Hollow SnO2/α-Fe2O3 spheres with a double-shell structure for gas sensors. J. Mater. Chem. A 2014, 2, 1302–1308. [Google Scholar] [CrossRef]
  19. Zhou, T.T.; Zhang, T.; Zeng, Y.; Zhang, R.; Lou, Z.; Deng, J.N.; Wang, L. Structure-driven efficient NiFe2O4 materials for ul-tra-fast response electronic sensing platform. Sens. Actuators B Chem. 2018, 255, 1436–1444. [Google Scholar] [CrossRef]
  20. Zhang, Y.; Jia, C.; Wang, Q.; Kong, Q.; Chen, G.; Guan, H.; Dong, C. MOFs-derived porous NiFe2O4 nano-octahedrons with hol-low interiors for an excellent toluene gas sensor. Nanomaterials 2019, 9, 1059. [Google Scholar] [CrossRef] [Green Version]
  21. Songa, X.-Z.; Meng, Y.-L.; Chen, X.; Sun, K.-M.; Wangb, X.-F. Hollow NiFe2O4 hexagonal biyramids for high-performance n-propanol sensing at low temperature. New J. Chem. 2018, 42, 14071–14074. [Google Scholar] [CrossRef]
  22. Songa, X.-Z.; Sun, F.-F.; Dai, S.-T.; Lin, X.; Sun, K.-M.; Wangb, X.-F. Hollow NiFe2O4 microspindles derived from Ni/Fe bimetallic MOFs for highly sensitive acetone sensing at low operating temperatures. Inorg. Chem. Front. 2018, 5, 1107–1114. [Google Scholar] [CrossRef]
  23. Guo, H.; Li, T.; Chen, W.; Liu, L.; Yang, X.; Wang, Y.; Guo, Y. General design of hollow porous CoFe2O4 nanocubes from met-al-organic frameworks with extraordinary lithium storage. Nanoscale 2014, 6, 15168–15174. [Google Scholar] [CrossRef] [PubMed]
  24. Wang, Z.; Zhou, L.; Ha, J.S. Metal Oxide Hollow Nanostructures for Lithium-ion Batteries. Adv. Mater. 2012, 24, 1903–1911. [Google Scholar] [CrossRef] [PubMed]
  25. Al-Hashem, M.; Akbar, S.A.; Morris, P. Role of Oxygen Vacancies in Nanostructured Metal-Oxide Gas Sensors: A Review. Sens. Actuators B Chem. 2019, 301, 126845. [Google Scholar] [CrossRef]
  26. Epifani, M.; Prades, J.D.; Comini, E.; Pellicer, E.; Avella, M.; Siciliano, P.; Faglia, G.; Cirera, A.; Scotti, R.; Morazzoni, F.; et al. The Role of Surface Oxygen Vacancies in the NO2 Sensing Properties of SnO2 Nanocrystals. J. Phys. Chem. C 2008, 112, 19540–19546. [Google Scholar] [CrossRef]
  27. Jang, J.S.; Koo, W.T.; Kim, D.H.; Kim, I.D. In situ coupling of multidimensional MOFs for heterogeneous metal-oxide archi-tectures: Toward sensitive chemiresistors. ACS Central Sci. 2018, 4, 929–937. [Google Scholar] [CrossRef] [Green Version]
  28. Cao, K.; Cao, E.; Zhang, Y.; Hao, W.; Sun, L.; Peng, H. The influence of nonstoichiometry on electrical transport and ethanol sensing characteristics for nanocrystalline LaFeO3-sensors. Sens. Actuators B Chem. 2016, 230, 592–599. [Google Scholar] [CrossRef]
  29. Wang, Z.; Huang, S.; Men, G.; Han, D.; Gu, F. Sensitization of Pd loading for remarkably enhanced hydrogen sensing performance of 3DOM WO3. Sens. Actuators B Chem. 2018, 262, 577–587. [Google Scholar] [CrossRef]
  30. Xiong, Y.; Xu, W.; Zhu, Z.; Xue, Q.; Lu, W.; Ding, D.; Zhu, L. ZIF-derived porous ZnO-Co3O4 hollow polyhedrons heterostructure with highly enhanced ethanol detection performance. Sens. Actuators B Chem. 2017, 253, 523–532. [Google Scholar] [CrossRef]
  31. Zheng, J.H.; Zhang, L. Rational design and fabrication of multifunctional catalyzer Co2SnO4-SnO2/GC for catalysis applica-tions: Photocatalytic degradation/catalytic reduction of organic pollutants. Appl. Catal. B Environ. 2018, 231, 34–42. [Google Scholar] [CrossRef]
  32. Yuan, H.; Aljneibi, S.A.A.A.; Yuan, J.; Wang, Y.; Liu, H.; Fang, J.; Tang, C.; Yan, X.; Cai, H.; Gu, Y.; et al. ZnO Nanosheets Abundant in Oxygen Vacancies Derived from Metal-Organic Frameworks for ppb-Level Gas Sensing. Adv. Mater. 2019, 31, e1807161. [Google Scholar] [CrossRef] [PubMed]
  33. Solís, C.; Somacescu, S.; Palafox, E.; Balaguer, M.; Serra, J.M. Particular Transport Properties of NiFe2O4 Thin Films at High Temperatures. J. Phys. Chem. C 2014, 118, 24266–24273. [Google Scholar] [CrossRef]
  34. Zhao, S.; Shen, Y.; Yan, X.; Zhou, P.; Yin, Y.; Lu, R.; Han, C.; Cui, B.; Wei, D. Complex-surfactant-assisted hydrothermal synthesis of one-dimensional ZnO nanorods for high-performance ethanol gas sensor. Sens. Actuators B Chem. 2019, 286, 501–511. [Google Scholar] [CrossRef]
  35. Tong, B.; Deng, Z.H.; Xu, B.; Meng, G.; Shao, J.; Liu, H.; Dai, T.; Shan, X.; Dong, W.; Wang, S.; et al. Oxygen Vacancy Defects Boosted High Performance p-Type Delafossite CuCrO2 Gas Sensors. ACS Appl. Mater. Interfaces 2018, 10, 34727–34734. [Google Scholar] [CrossRef]
  36. Tan, J.; Dun, M.; Li, L.; Zhao, J.; Li, X.; Hu, Y.; Huang, G.; Tan, W.; Huang, X. Self-template derived CuO nanowires assembled microspheres and its gas sensing properties. Sens. Actuators B Chem. 2017, 252, 1–8. [Google Scholar] [CrossRef]
  37. Liu, X.; Hu, J.; Cheng, B.; Qin, H.; Zhao, M.; Yang, C.-L. First-principles study of O2 adsorption on the LaFeO3 (010) surface. Sens. Actuators B Chem. 2009, 139, 520–526. [Google Scholar] [CrossRef]
  38. Liu, Y.L.; Wang, H.; Yang, Y.; Liu, Z.M.; Yang, H.F.; Shen, G.L.; Yu, R.Q. Hydrogen sulfide sensing properties of NiFe2O4 na-nopowder doped with noble metals. Sens. Actuators B Chem. 2004, 102, 148–154. [Google Scholar] [CrossRef]
  39. Satyanarayana, L.; Reddy, K.; Sunkara, M.V. Nanosized spinel NiFe2O4: A novel material for the detection of liquefied petroleum gas in air. Mater. Chem. Phys. 2003, 82, 21–26. [Google Scholar] [CrossRef]
  40. Wang, X.F.; Qin, H.W.; Chen, Y.P.; Hu, J.F. Sensing mechanism of SnO2 (110) surface to CO: Density Functional Theory cal-culations. J. Phys. Chem. C 2014, 118, 28548–28561. [Google Scholar] [CrossRef]
  41. Wang, X.-F.; Ma, W.; Songa, X.-Z.; Hu, J.-F. A theoretical insight into CO2 sensing performance on the orthorhombic LaMnO3 (0 1 0) surface. Chem. Phys. Lett. 2017, 687, 138–142. [Google Scholar] [CrossRef]
  42. Zhang, L.; Jiao, W. The effect of microstructure on the gas properties of NiFe2O4 sensors: Nanotube and nanoparticle. Sens. Actuators B Chem. 2015, 216, 293–297. [Google Scholar] [CrossRef]
  43. Chen, Y.; Qin, H.; Cao, Y.; Zhang, H.; Hu, J. Acetone Sensing Properties and Mechanism of SnO2 Thick-Films. Sensors 2018, 18, 3425. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  44. Abokifa, A.A.; Haddad, K.; Fortner, J.; Lo, C.S.; Biswas, P. Sensing mechanism of ethanol and acetone at room temperature by SnO2 nano-columns synthesized by aerosol routes: Theoretical calculations compared to experimental results. J. Mater. Chem. A 2018, 6, 2053–2066. [Google Scholar] [CrossRef]
  45. Wang, X.; Qin, H.; Sun, L.; Hu, J. CO2 sensing properties and mechanism of nanocrystalline LaFeO3 sensor. Sens. Actuators B Chem. 2013, 188, 965–971. [Google Scholar] [CrossRef]
  46. Wu, Q.; Krol, R. Selective photoreduction of nitric oxide to nitrogen by nanostructured TiO2 photocatalysts: Role of oxygen vacancies and iron dopant. J. Am. Chem. Soc. 2012, 134, 9369–9375. [Google Scholar] [CrossRef] [PubMed]
  47. Pan, X.; Yang, M.-Q.; Fu, X.; Zhang, N.; Xu, Y.-J. Defective TiO2 with oxygen vacancies: Synthesis, properties and photocatalytic applications. Nanoscale 2013, 5, 3601–3614. [Google Scholar] [CrossRef] [PubMed]
  48. Cao, Y.; Yu, M.; Qi, S.; Ren, Z.; Yan, S.S.; Hu, S.; Xu, M. Nitric Oxide Reaction Pathways on Rutile TiO2(110): The Influence of Surface Defects and Reconstructions. J. Phys. Chem. C 2018, 122, 23441–23450. [Google Scholar] [CrossRef]
Nanomaterials 11 00297 g001 550

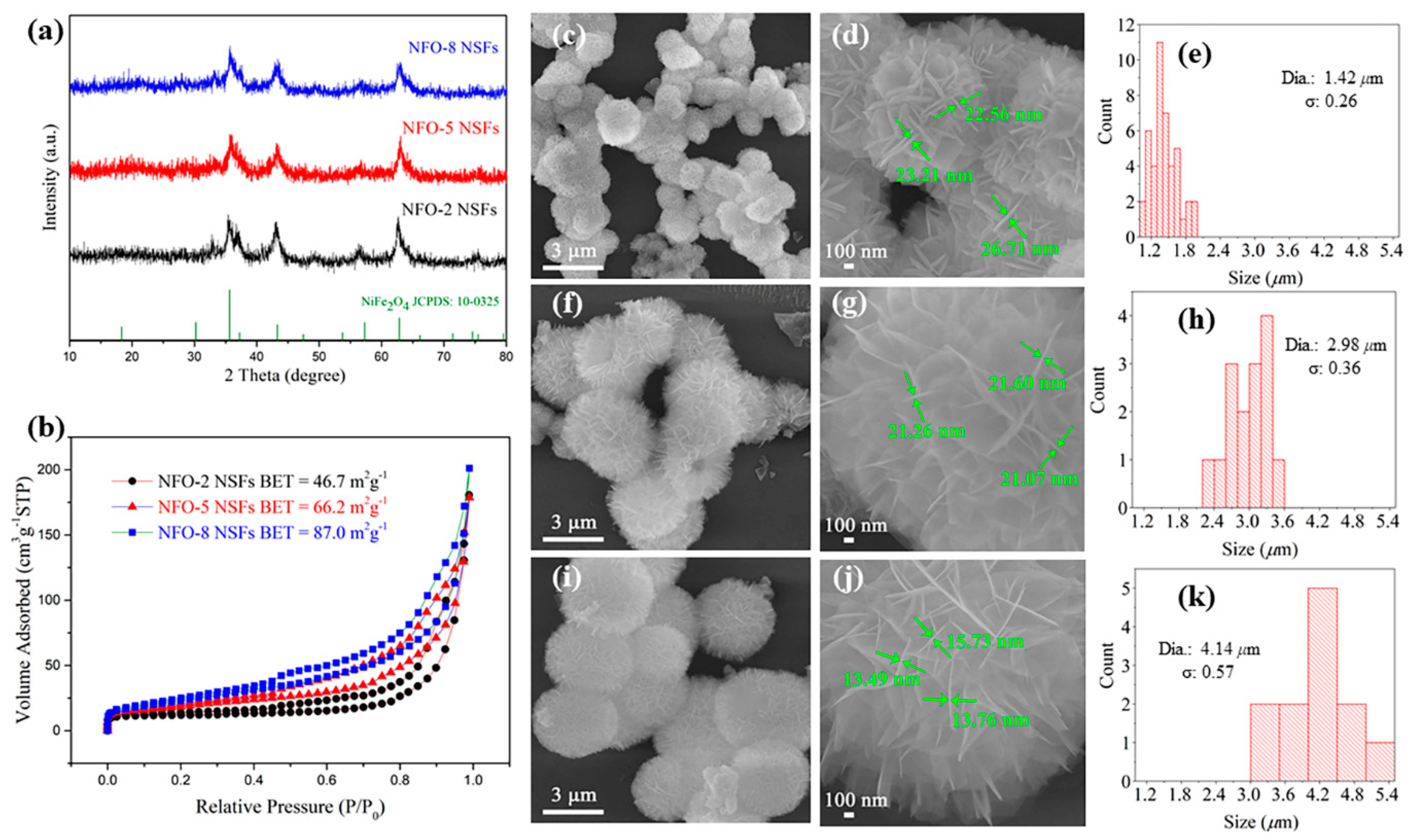

Figure 1. The XRD patterns (a) and nitrogen adsorption–desorption isotherms and Brunner–Emmet–Teller (BET) surface area values (b) of NFO-2, NFO-5 and NFO-8 nanosheet-assembled flowers (NSFs); SEM images and flower size distribution of NFO-2 NSFs (c–e), NFO-5 NSFs (f–h) and NFO-8 NSFs (i–k).
Figure 1. The XRD patterns (a) and nitrogen adsorption–desorption isotherms and Brunner–Emmet–Teller (BET) surface area values (b) of NFO-2, NFO-5 and NFO-8 nanosheet-assembled flowers (NSFs); SEM images and flower size distribution of NFO-2 NSFs (c–e), NFO-5 NSFs (f–h) and NFO-8 NSFs (i–k).
Nanomaterials 11 00297 g001
Nanomaterials 11 00297 g002 550

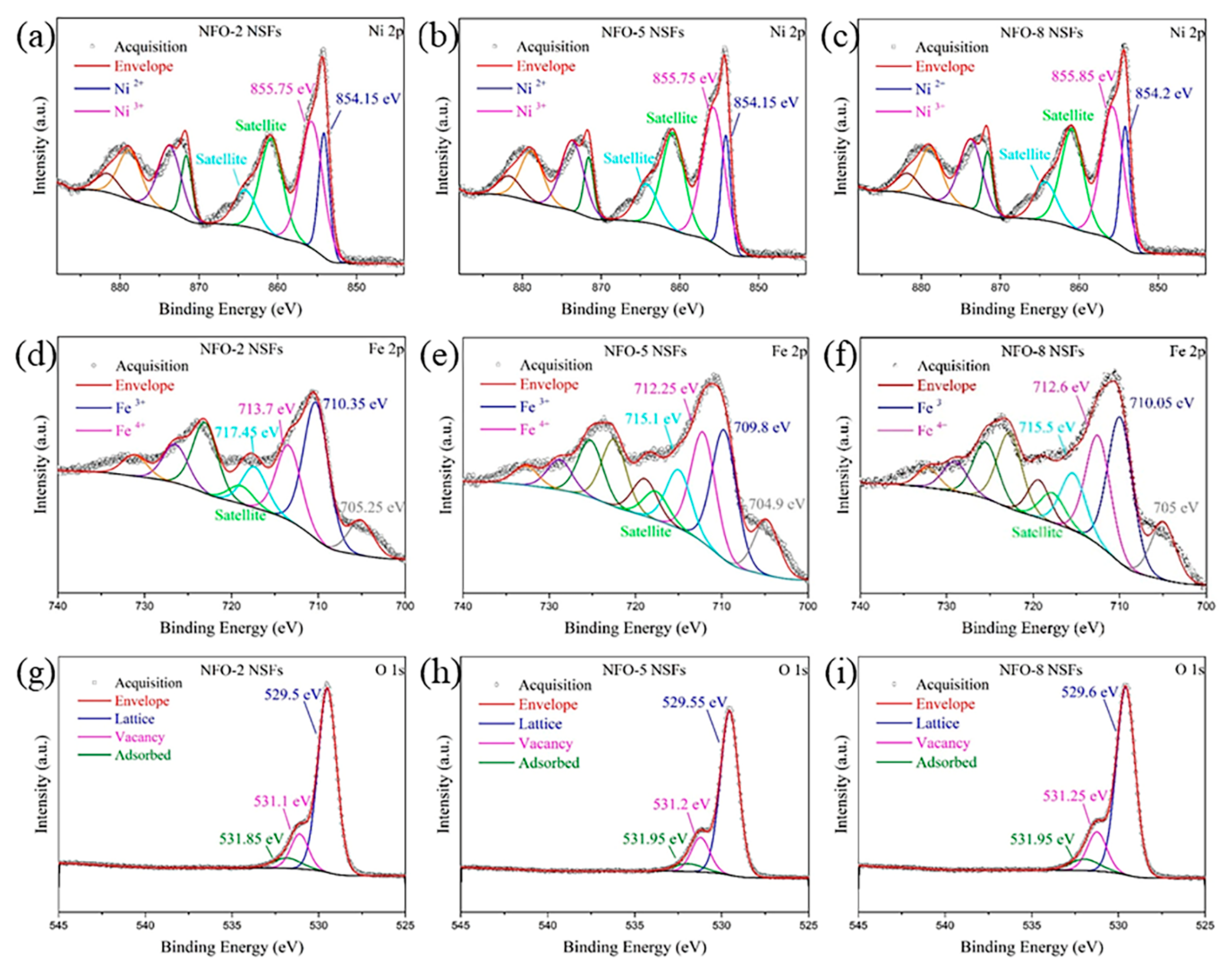

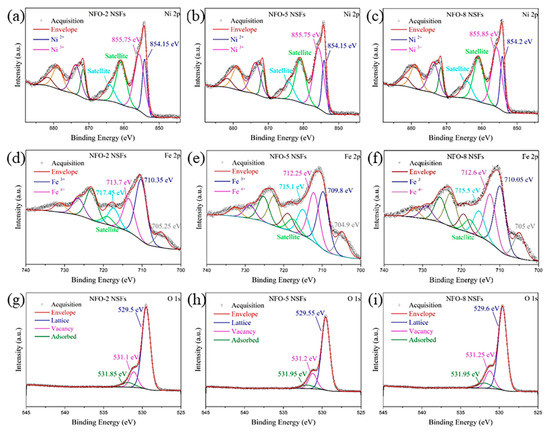

Figure 2. XPS Ni 2p spectra of (a) NFO-2, (b) NFO-5 and (c) NFO-8 NSFs; XPS Fe 2p spectra of (d) NFO-2, (e) NFO-5 and (f) NFO-8 NSFs; XPS O 1s spectra of (g) NFO-2, (h) NFO-5 and (i) NFO-8 NSFs.
Figure 2. XPS Ni 2p spectra of (a) NFO-2, (b) NFO-5 and (c) NFO-8 NSFs; XPS Fe 2p spectra of (d) NFO-2, (e) NFO-5 and (f) NFO-8 NSFs; XPS O 1s spectra of (g) NFO-2, (h) NFO-5 and (i) NFO-8 NSFs.
Nanomaterials 11 00297 g002
Nanomaterials 11 00297 g003 550

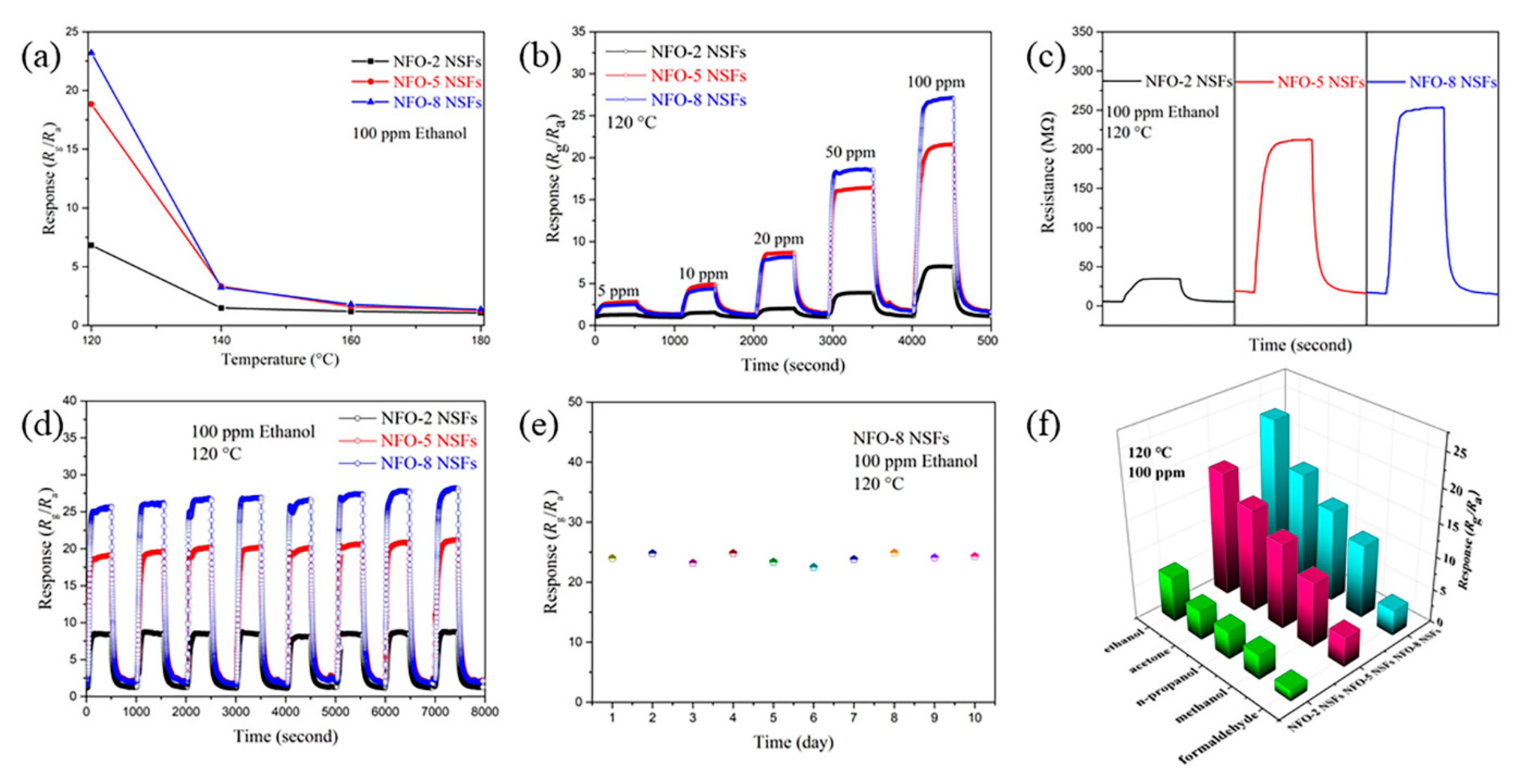

Figure 3. (a) Gas-sensing response versus operating temperature of the sensors upon exposure to 100 ppm ethanol; (b) the response versus time of the sensors upon exposure to ethanol ranging from 5 to 100 ppm; (c) the resistance transient of the sensors; (d) the reproducibility testing of the sensors; (e) the long-term stability of the NFO-8 NSFs-based sensor measured for 10 days. (f) Comparison of the responses of the sensors for various gases.
