Gold Inks for Inkjet Printing on Photo Paper: Complementary Characterisation
Abstract
:1. Introduction
2. Materials and Methods
2.1. Materials
2.2. Methods

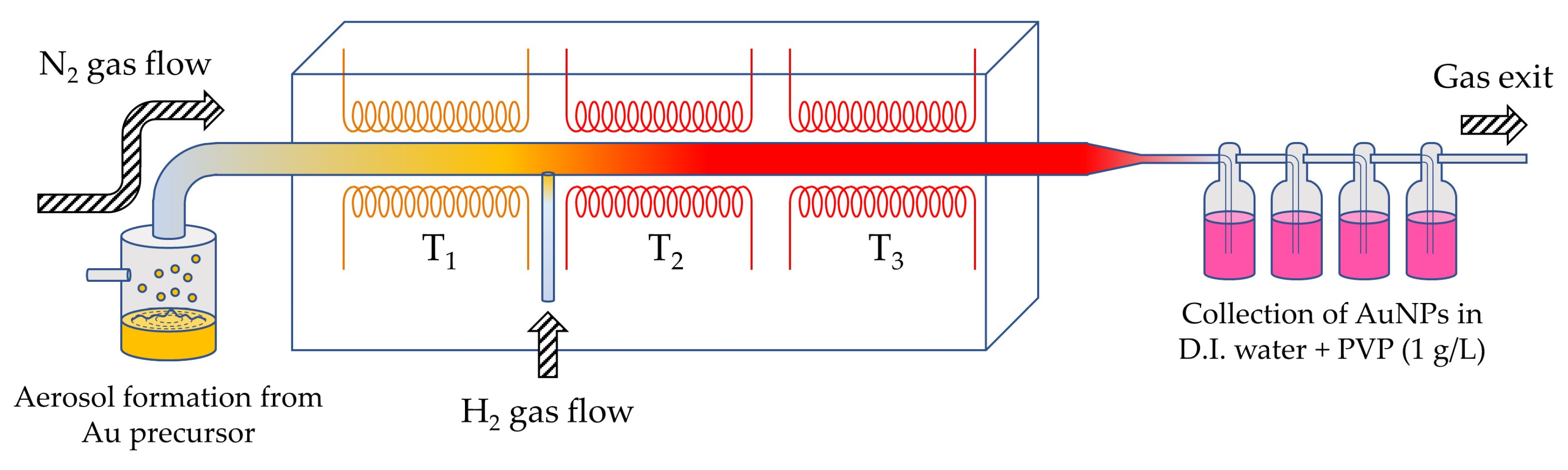

2.2.1. Preparation of AuNPs
2.2.2. Preparation of Gold Inks
2.2.3. Inkjet Printing
2.3. Characterisation
2.3.1. Inductively Coupled Plasma-Mass Spectrometry (ICP-MS)
2.3.2. Dynamic and Electrophoretic Light Scattering (DLS)
2.3.3. UV–VIS Spectrophotometry
2.3.4. Scanning Electron Microscopy
2.3.5. Optical Goniometry
2.3.6. Statistics
3. Results and Discussion
3.1. ICP-MS
3.2. AuNPs’ Size and ζ-Potential of Gold Inks
3.3. UV–VIS
3.4. SEM Analysis of AuNPs
3.5. Contact Angle and Surface Energy Measurements of Gold Inks

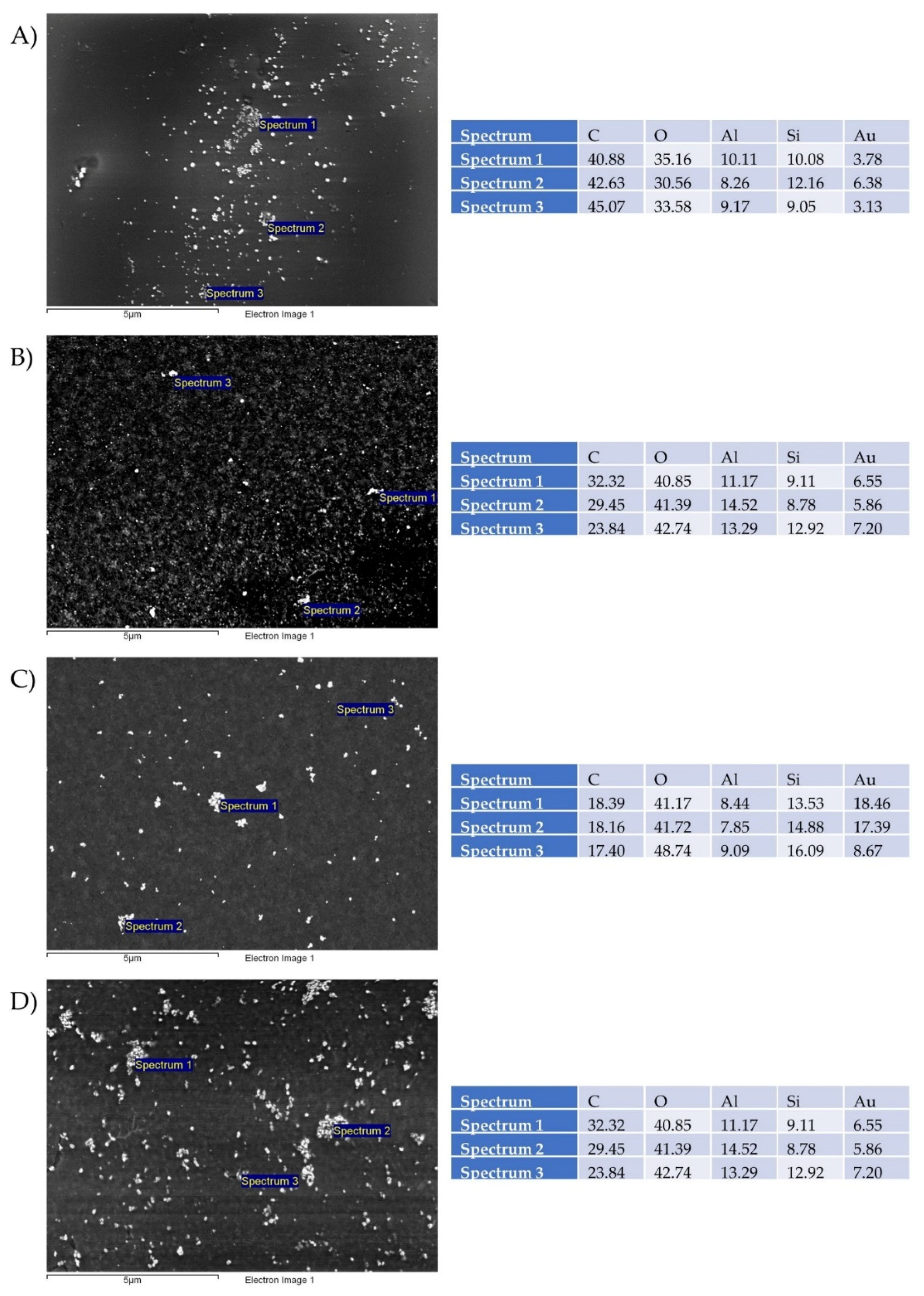

3.6. SEM Analysis of Printing Pattern
4. Conclusions
- The USP synthesis, in combination with the rotavapor, allowed successful preparation of gold inks with AuNPs reaching Au concentrations more than 300 ppm.

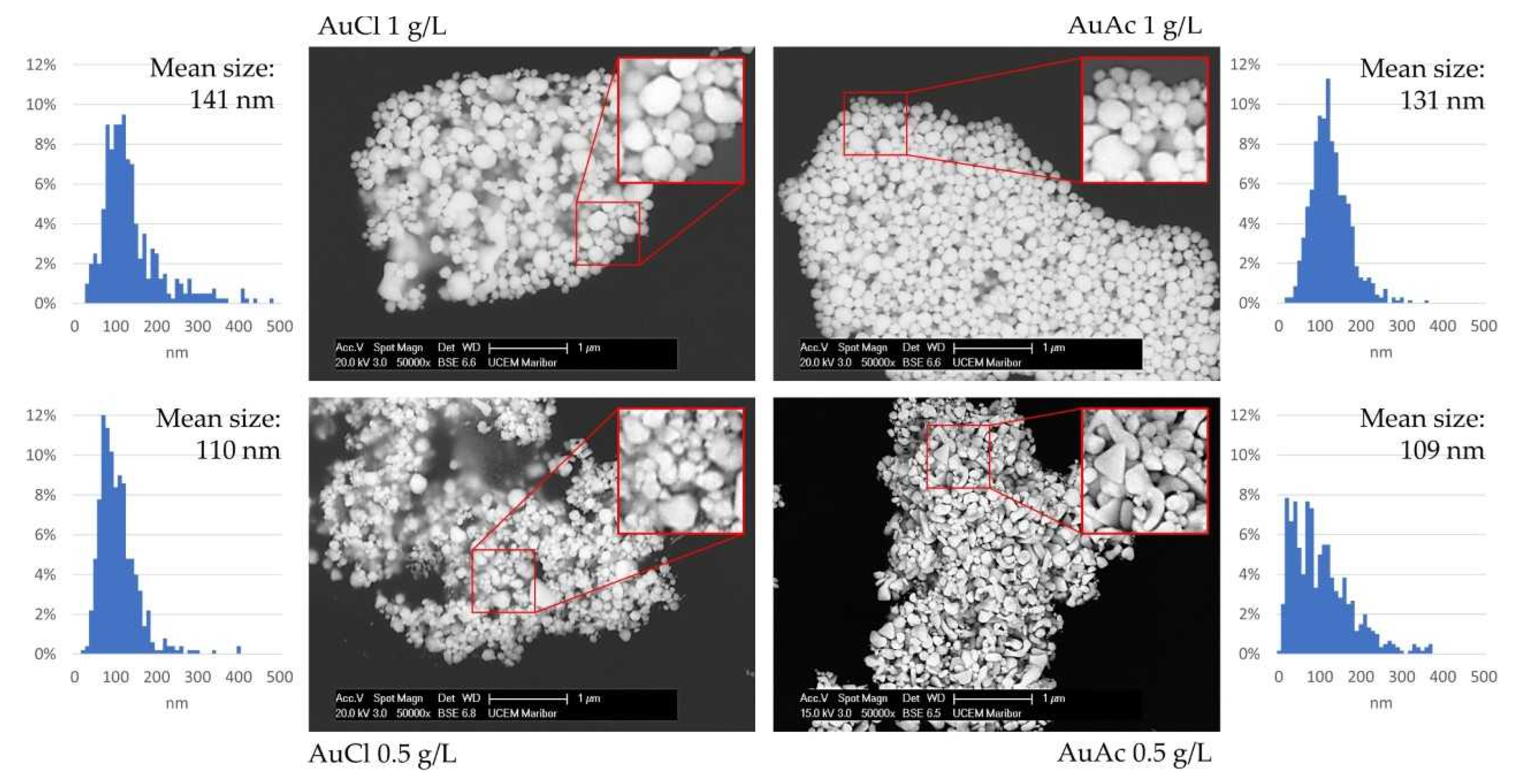

- SEM observation revealed that AuNPs in the as prepared inks had mostly spherical shape, with the presence of some irregularly shaped AuNPs.

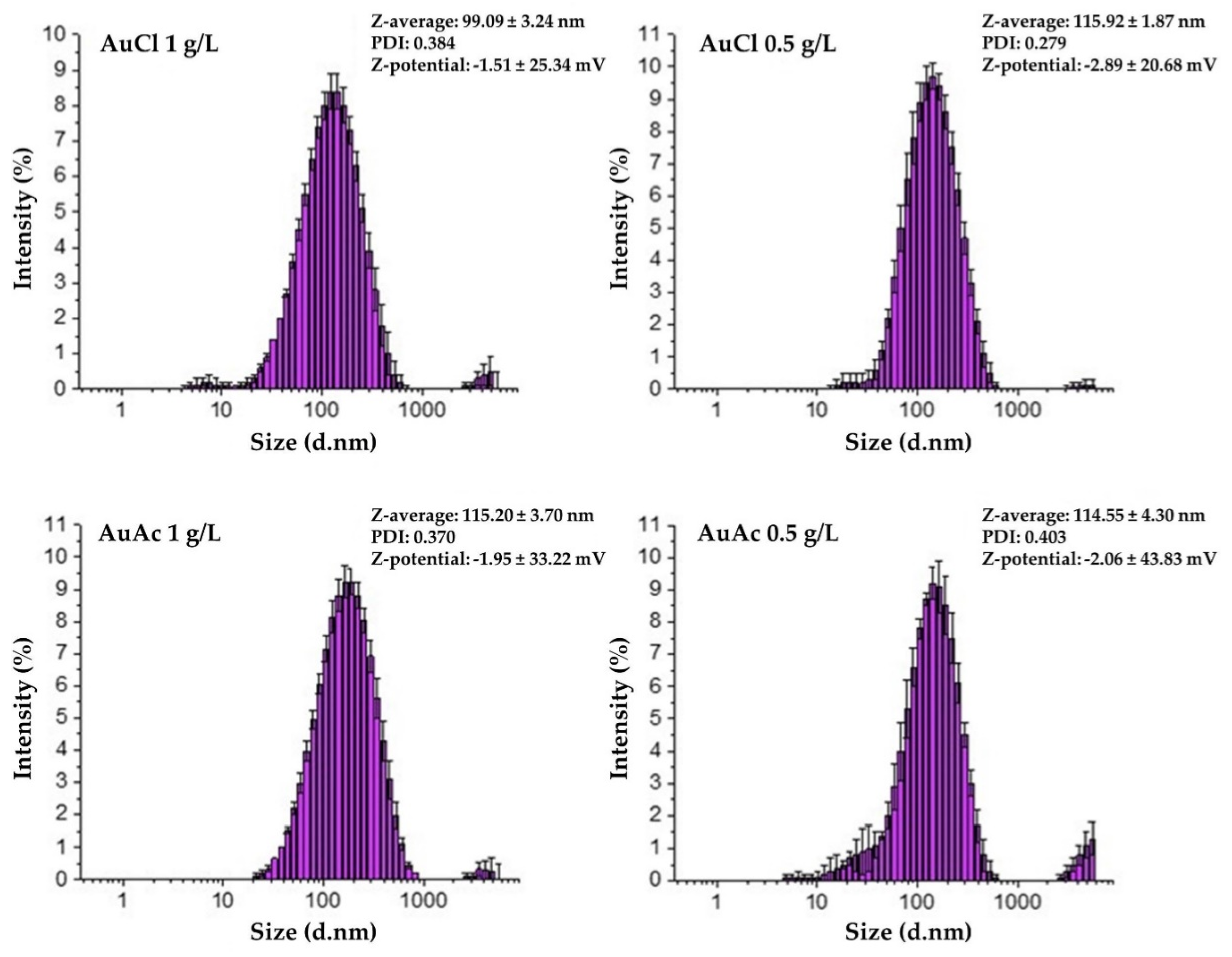

- AuNPs in the prepared inks exhibited Z-average hydrodynamic diameters, ranging from 99 to 115 nm.
- Due to the fact that some AuNPs were over 1 µm in size, consequently, the filtration of as prepared gold inks was mandatory to avoid problems with the inkjet printing, as AuNPs agglomerated, which can cause nozzle blockage.

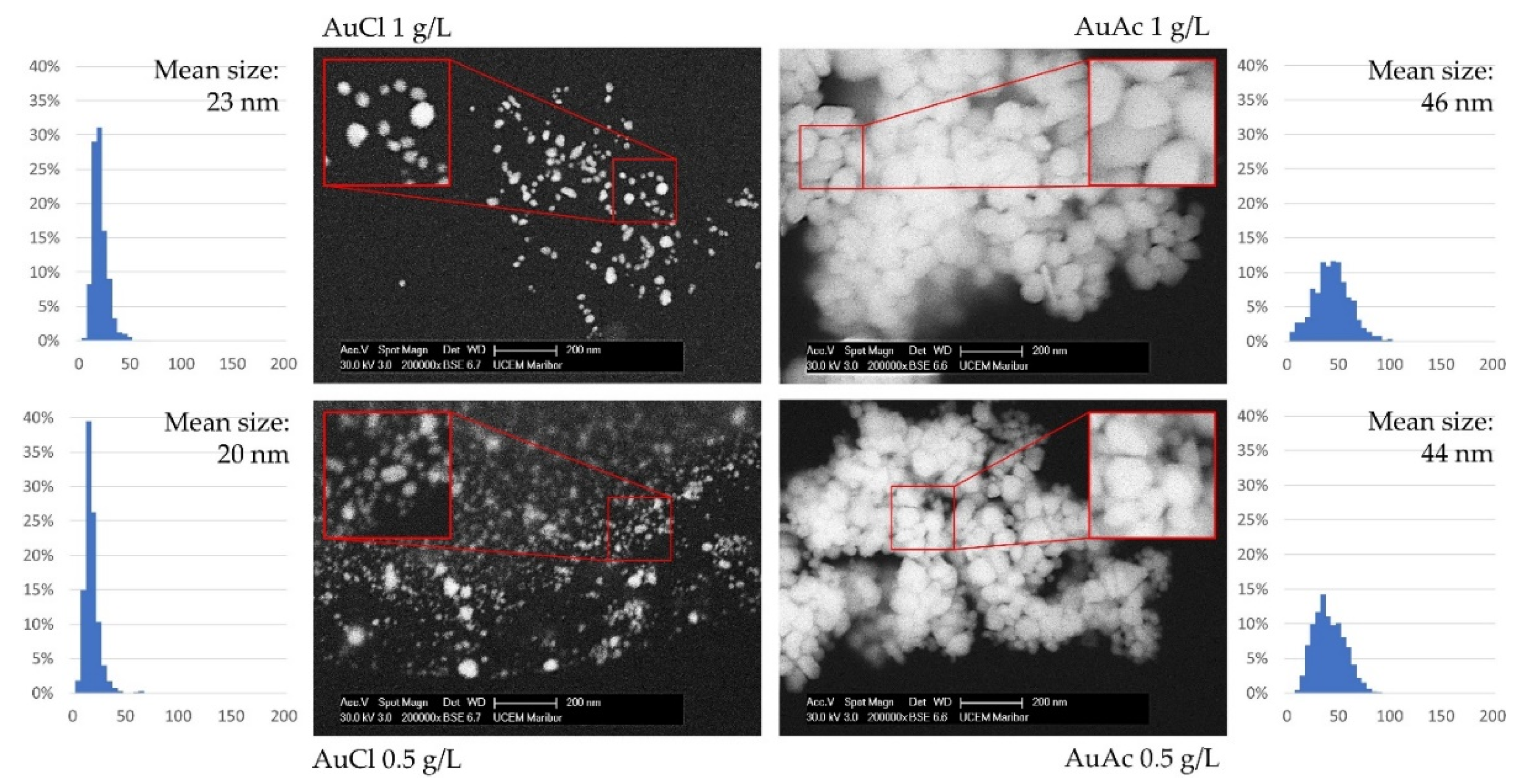

- After filtration, the AuNPs in gold inks had an average size between 20 and 46 nm, suitable for inkjet printing. The AuNPs size was directly dependent on the Au concentration in the precursor (lower AuNPs’ size–lower Au concentration).

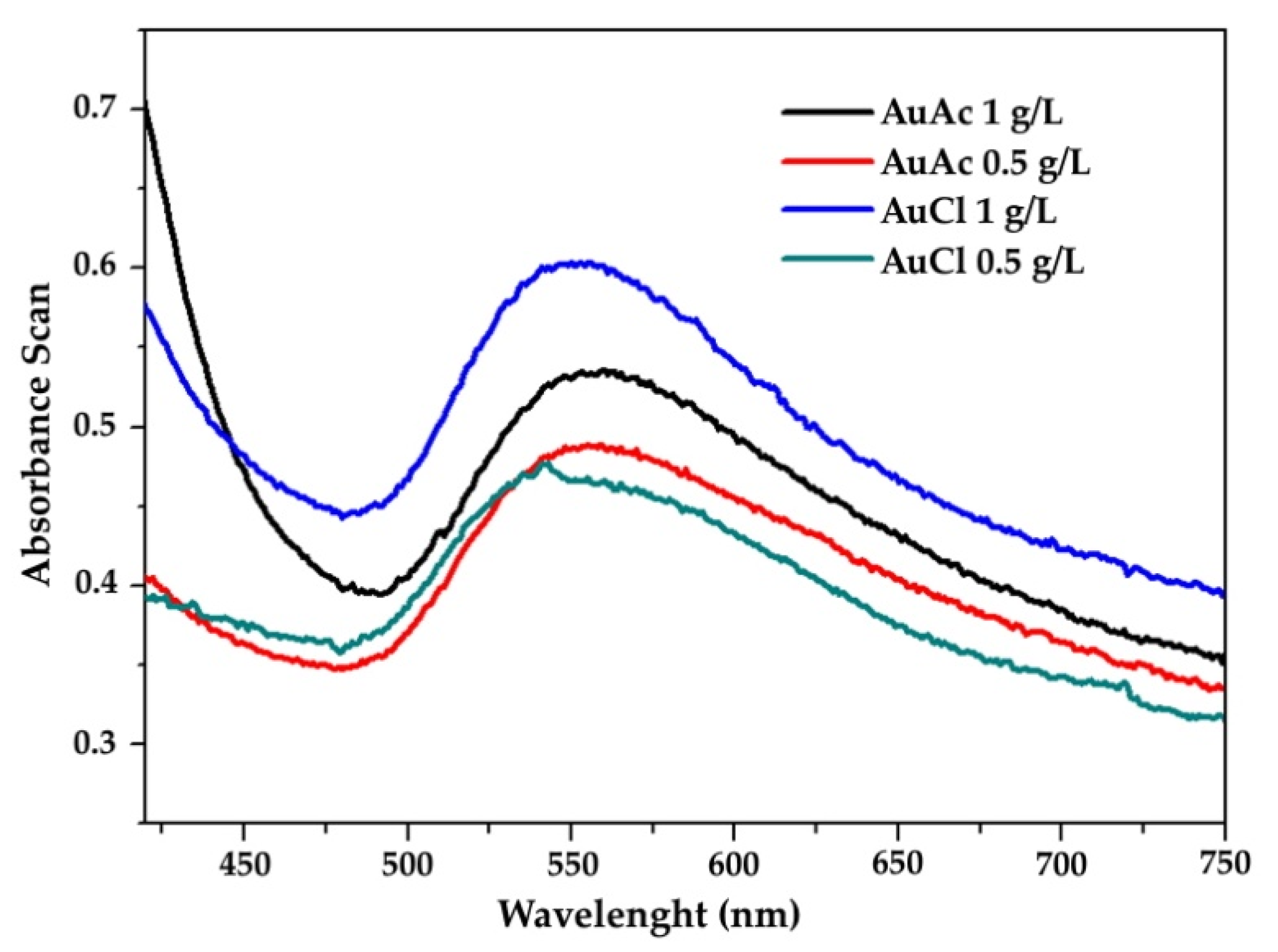

- The measured UV–VIS spectra of as prepared gold inks were within the range of 510–560 nm.
- The contact angle and surface energy results showed that the printed patterns could be controlled by varying the concentration of AuNPs in the inks.
- The filtered gold inks were printed on photo paper with selected parameters, and it confirmed relative homogeneous distribution of AuNPs on their surfaces. Additional EDS measurements showed the presence of Au.
