Trivalent Cations Detection of Magnetic-Sensitive Microcapsules by Controlled-Release Fluorescence Off-On Sensor

by
Bo-Wei Du
1,
Ching-Chang Lin
2 and
Fu-Hsiang Ko
1,*
1
Department of Materials Science and Engineering, National Yang Ming Chiao Tung University, Hsinchu 30010, Taiwan
2
Research Center for Advanced Science and Technology (RCAST), The University of Tokyo, Tokyo 153-8904, Japan
*
Author to whom correspondence should be addressed.
Nanomaterials 2021, 11(7), 1801; https://doi.org/10.3390/nano11071801
Submission received: 21 June 2021 / Revised: 8 July 2021 / Accepted: 9 July 2021 / Published: 10 July 2021
(This article belongs to the Special Issue Carbon-Based Nanomaterials and Sensor)
Browse Figures
Versions Notes

Abstract

:
A pyrene-based derivative, 2-((pyrene-1-ylmethylene)amino)ethanol (PE) nanoparticle, was encapsulated via water-in-oil-in-water (W/O/W) double emulsion with the solvent evaporation method by one-pot reaction and utilized as a fluorescence turn-on sensor for detecting Fe3+, Cr3+, and Al3+ ions. Magnetic nanoparticles (MNPs) embedded in polycaprolactone (PCL) were used as the magnetic-sensitive polyelectrolyte microcapsule-triggered elements in the construction of the polymer matrix. The microcapsules were characterized by ultraviolet–visible (UV–Vis) and photoluminescence (PL) titrations, quantum yield (Φf) calculations, 1H nuclear magnetic resonance (NMR), scanning electron microscopy (SEM), and superconducting quantum interference device magnetometry (SQUID) studies. This novel responsive release of the microcapsule fluorescence of the turn-on sensor for detecting trivalent cations was due to the compound PE and the MNPs being incorporated well within the whole system, and an effective thermal and kinetic energy transfer between the core and shell structure efficiently occurred in the externally oscillating magnetic field. The magnetic-sensitive fluorescence turn-on microcapsules show potential for effective metal ion sensing in environmental monitoring and even biomedical applications. Under the optimal controlled-release probe fluorescence conditions with high-frequency magnetic field treatment, the limit of detection (LOD) reached 1.574–2.860 μM and recoveries ranged from 94.7–99.4% for those metals in tap water.

1. Introduction

Aggregation-induced emission enhancement (AIEE) probes have received significant attention in various chemical, biological and environmental applications [1,2,3,4,5]. These fluorescent probes are mainly crystalline, and their crystal structures are easily damaged by external forces, readily autoxidized, and exhibit increased background fluorescence upon sustained exposure to visible light [6,7]. Microcapsules, as effective drug-delivery system, have been widely used to incorporate various contents, such as bioactive ingredients [8,9], nanomaterials [10,11], color compounds [12,13], charged ions [14], and nanoparticles [15,16,17]. By modifying the microencapsulation method and the polymeric/monomeric material used [18], appropriate microencapsulated products for specific purposes can be achieved. Microencapsulation technology is widely used in the pharmaceutical industry [19], cosmetics [20], the agricultural industry [21], food technology [22], and the textiles industry [23]. The Schiff-based microcapsule reported by Zhipeng et al. [24], was used to mimic the cellular protrusion of filopodia. The encapsulated systems can also be applied to encapsulate fluorescent probe molecules [25]. Postiglione et al. used this system to prevent unwanted fluorescence emission from intact microcapsules when encapsulated fluorescent liquid was released from the core of ruptured microcapsules [26]. However, there are few studies on encapsulated selective fluorescent sensors or metal ion sensing; and for more general applicability, the methods of microencapsulation and other types of matrices still need to be discussed, which is the objective of this paper.
Many mechanisms can be applied to trigger the release of encapsulated core materials by chemical or physical methods, including pH [27], certain chemicals [28], light [29], ultrasonication [30], stress [31], temperature [32], and magnetic fields [33]. Among these methods, magnetic fields provide attractive characteristics, since they can effectively activate MNPs in a controllable manner through non-contact stimulation [34,35], and achieve high sensitivity and rapid-response release [36] compared with other methods. Superparamagnetic nanoparticles can effectively avoid aggregation and are evenly distributed because there is no magnetic hysteresis between them [37]; meanwhile, the thermomagnetic effect provides heating compared with the non-magnetic materials [38]. In previous studies, a high-frequency magnetic field (HFMF) was developed as a trigger to release the functional core materials from magnetic-based microcapsules [39,40,41,42]. To date, only a few attempts have been reported on the release mechanism when using heat to realize drug release by employing HFMF, which affects the thermodynamics of the microcapsule molecular chains.
Among various metal ions, Fe3+/Cr3+/Al3+ ions are known to be of crucial importance because of their significant pollution and their undesirable biological and environmental effects. Al3+ is a key factor involved in the impairment of neurotransmission leading to brain toxicity [43,44], and its concentration has a substantial impact on breast cancer [35], and metabolic disorders [45]. On the other hand, Fe3+ may cause damage to nucleic acids and proteins in living cells by enhancing the output of reactive oxygen species (ROS) [46]. Moreover, the industrial wastewater and gas are the main sources of chromium pollution; interestingly, Fe3+ has been reported to act in rocks and soils as a natural oxidizing agent for the redox transformation of Cr3+ into Cr6+ [47]. Cr3+ has been considered one of the top 16th toxic pollutants because of its carcinogenic and teratogenic effects on humans [48]. Compared with most of the sensing methods, fluorescent “off-on” sensors have the advantages of quick response time, low cost, high selectivity, and sensitivity for trivalent metal cations and are widely used in many applications.
Although there are some pyrene-based derivative probes for the detection of various metal ions, as far as we know, the fluorescent probe PE (2-((pyrene-1-ylmethylene)amino)ethanol) and other pyrene-based derivative probes are unstable cations sensors, and they should be kept without a humid environment and visible light. Therefore, encapsulation is a possible pathway to overcome such problems. Herein, we present a novel magnetic-inductive microcapsule is designed through the use of HFMF to trigger the release of a pyrene Schiff base fluorescence probe PE from the microcapsule. The newly synthesized magnetic-sensitive microcapsules dispersed in CH3CN/H2O (9/1 v/v) underwent hysteresis heating through direct exposure to an oscillating magnetic field, which resulted in the controlled rupture of the shell material. In our previous work [49], this simple and effective fluorescent probe for the detection of trivalent cations was synthesized and fully investigated. The “off-on” fluorescent sensor selectivity towards M3+ (M = Fe/Cr/Al) ions was embedded into the microcapsules to achieve a controllable release behavior in response to HFMF (Figure 1) due to its photoinduced electron transfer (PET) and excimer formation in the presence of M3+ ions.

2. Materials and Methods

2.1. Materials

2-Aminoethanol, polycaprolactone (PCL, Mw = 80,000), hydrogen chloride, methanol, and ethanol were obtained from Sigma-Aldrich. Poly (vinyl alcohol) (PVA, Mw = 31,000–50,000), pyrene-1-carboxaldehyde, iron chloride hexahydrate, and iron chloride tetrahydrate were obtained from Alfa Aesar. Dichloromethane (DCM), acetonitrile and sodium hydroxide were purchased from J.T Baker, ECHO, and Showa, respectively. PCL was used as the microcapsule matrix material because of its good biodegradability and biocompatibility and because it can be decomposed into CO2 and H2O and then metabolized or absorbed by the organisms. The tap water was collected in our laboratory and was tested without further pretreatment.

2.2. Preparation of Magnetic Nanoparticles (MNPs)—Fe3O4

Fe3O4, as the magnetic nanoparticles, mentioned of MNPs throughout this article, were synthesized in deionized water. In short, a mixture of FeCl2·4H2O (0.8 g) and FeCl3·6H2O (1.04 g) in a 1:2 molar ratio was dissolved in 10 mL deionized water. Then, aqueous HCl (10.34 mL of 3.29% HCl) was added and stirred for 30 min. The solution was added dropwise to 3.0 M NaOH (50 mL) under vigorous stirring, and the black precipitates were isolated by a strong magnet and washed three times with deionized water. The MNPs were separated by centrifugation and then dried in a vacuum oven for 10 h at 30 °C.

2.3. Preparation of Compound PE (2-((Pyrene-1-Ylmethylene)Amino)Ethanol)

The fluorescence probe PE was fabricated through one-pot reaction. 1-equiv. of 2-aminoethanol dissolved in 50 mL of methanol was mixed with 1-equiv. of pyrene-1- carboxaldehyde under constant stirring under nitrogen and then refluxed for 12 h at 70 °C. Then, the solvent was removed through evaporation to result in the final product as a dark yellow solid.

2.4. Preparation of Magnetic-Sensitive PE Microcapsules

The most representative method of encapsulation is shown below, 200 mg of PE was added to 15 mL of 1.0 wt% aqueous PVA solution, resulting in the first water phase [50]. This solution was added to a mixture containing 1.50 g of PCL and 100 mg MNPs in 30 mL of DCM. Then, the mixture was stirred at 2500 rpm for 15 min, resulting in the first W/O emulsion. The mixture was added quickly into 150 mL of 1.0 wt% PVA solution under 200 rpm stirring at 40 °C for 10 min to form the W/O/W emulsion system. The products were separated by centrifugation at 2000 rpm for 5 min. Then, the products were washed with deionized water three times, and a strong magnet was used to remove the excess MNPs. The final product was dried in a vacuum oven for 10 h at 30 °C and obtained as a faint yellow powder.

2.5. Characterization of PE/MNPs Microcapsules

The morphology of Fe3O4 nanoparticles and PE/MNPs microcapsules were determined via scanning electron microscope (SEM, HITACHI, SU8010, Tokyo, Japan). The fluorescent samples were viewed by an OLYMPUS BX51 (Tokyo, Japan) fluorescent microscope using WU filter (excitation wavelength at 330–385 nm, emission wavelength at 430 nm) with OLYMPUS Mercury Lamp House 100 W light source under 40× magnification. Energy-dispersive X-ray spectroscopy (EDS, HORIBA, EMAX-ENERGY, Kyoto, Japan) was used to analyze the Fe3O4 nanoparticles distribution under SEM. X-ray diffraction signals of nanoparticles and functionalized microcapsules were achieved by X-ray diffraction (XRD, Bruker, D2 PHASER, Billerica, MA, USA). Dynamic light scattering (DLS, BECKMAN COULTER, Delsa Nano C, Brea, CA, USA) was used for estimating the size distribution and zeta potential of Fe3O4 nanoparticles. The size distribution was calculated by ImageJ (National Institutes of Health (NIH), Bethesda, MD, USA). The superconducting quantum interface device vibrating sample magnetometer (SQUID, MPMS-3, Quantum Design, San Diego, CA, USA) was used to obtaining the magnetic properties of Fe3O4 nanoparticles and PE/MNPs microcapsules.

2.6. PE Molecule Loading and Release

In this investigation, PE molecule release behavior was externally stimulated by an HFMF of 16.5 kW. The HFMF system included a cooling system, an HFMF generator, and eight loops of copper coil, and the strength of the magnetic field (H) was 2.5 kA/m. PE was loaded into the microcapsules by the double emulsion method with solvent evaporation and diffused into the solution of interest to detect the trivalent cations. To measure the concentration of the released PE molecule, 10 mL of CH3CN containing 2 mg PE/MNPs microcapsules was placed in a centrifuge tube in the center of the coil to apply the HFMF, where the temperature was measured by an ethanol thermometer.

3. Results and Discussion

3.1. Synthesis and Characterization of PE/MNPs Microcapsules

In this study, microencapsulation was adopted by the solvent evaporation method using W/O/W double emulsion. The compound PE was dissolved in CH3CN, resulting in the first water phase, and the PCL was dissolved in DCM, resulting in the oil phase. DCM was evaporated during this procedure due to its high volatility and low boiling point. The optical microscope image of the PE/MNPs microcapsules (Figure 2a) shows that those microcapsules were distributed homogeneously and had a uniform shape with an average size of 25 ± 5 µm. A strong blue-colored emulsion of the PE/MNPs microcapsules was observed under a fluorescence microscope, which also proved that the PE/MNPs microcapsules had properties similar to property as compound PE (Figure 2b). Interestingly, the surface of the PE/MNPs microcapsules was rougher than the surface of the hollow microcapsules (Figure 2c,d), which could be related to the presence of the MNPs with a swollen structure and provide the rough surface. The microcapsules size distribution which was calculated from Figure 2c by ImageJ, the mean diameter of the microcapsules was 20.96 μm (Figure 2f). The core material was further evaluated by 1H nuclear magnetic resonance (NMR) titrations for confirmation of the binding sites confirmation (Figure 3). The 1H NMR spectra of both PE (Figure S1) and PE/MNPs microcapsules showed similar binding site positions because of PE. For clearly understanding of the peak positions of the PE compound, a–g were represented for the peaks in chemical structure, respectively. The inset on the top of this figure shows the 1H peaks of PE from d–g. As can be seen in this figure, the a and b peaks are not similar to the a, b peaks in the pure PE compound, due to the influence of the C–H bond. Furthermore, the centrifugation speed is one of the main factors when forming fine microcapsules. Increasing the centrifuging speed from 2000 to 4000 rpm/min resulted in a change from smooth and uniform microcapsules to porous microcapsules. The porous structure of the microcapsule shells occurred because after the microcapsules were solidified, the higher centrifugation speed caused a dispersion of the MNPs to the surface layer of the microcapsules, and some heavier nanoparticles were pushed through the shell structure (Figure 2e). Using this method to obtain the porous microcapsules is different from the traditional methods, and few studies have been reported on this topic.
In addition, the amount of PE in the microcapsules was also assessed using TGA analysis at a heating rate of 10 °C/min (Figure 4a,b). The weight reduction of these samples between 308 to 480 °C was caused by the degradation of the core and shell materials (Figure 4a), and masses of 1 g, 2 g and 4 g PE sol (5 × 10−3 M in CH3CN) as the water phase were encapsulated in the cores of the microcapsules (the hollow microcapsules acted as the control group). Figure 4b shows that some residual remained in the core at 550 °C because of the different masses of PE initially encapsulated in the core of the microcapsules, and the residual mass corresponded to the quantity of the encapsulated PE. Capsules containing different amounts of PE showed similar thermal degradation behavior from 412 to 475 °C, and the 4 g (PE solution)-loaded microcapsules showed the largest residual mass contrast compared with the 1 g (PE solution)-loaded microcapsule.

3.2. Magnetic Properties of the Microcapsules

The magnetic properties of the PE/MNPs microcapsules were investigated by a SQUID at 25 °C with the magnetic field sweeping from −10,000 to +10,000 G. To verify the MNPs-loaded microcapsules, we used less amount of MNPs (30 mg) encapsulated in PE/MNPs microcapsules, the magnetizations of the MNPs and the PE/MNPs microcapsules after application of the magnetic field, as shown in Figure 5a. The inset on the top left corner showed similar tendencies; however, the PE/MNPs microcapsules showed a lower saturation magnetization (Ms), 0.043 emu/g, than the MNPs, 32.8 emu/g. This decreased magnetic strength of the microcapsules can be attributed to the amount of MNPs being much larger than the amount of MNPs encapsulated in the PE/MNPs microcapsules. Although the MNPs were well-dispersed in the oil phase during the second emulsion process, some large aggregated nanoparticles still precipitated to the bottom of the vessel because of their attractive interaction. In addition, the hysteresis curve shows the superparamagnetic properties of the MNPs and the PE/MNP microcapsules.
The SEM images confirmed that the MNPs exhibited the morphology of nanoparticles with an average particle size of 85.7 nm was measured through DLS and that they were well-dispersed instead of being aggregated (Figure 5b and Figure S2a). Its dispersion properties had also been studied using DLS such as zeta potential (ζ), mobility in very low concentration (1 µM in H2O; pH 7.0) (Figure S2b). The average ζ of MNPs (−33.52 mV), provides an illustration of the MNPs possessing high electron-negative value to remain stable in solvent (|ζ| > 30 mV) [51]. The X-ray diffraction pattern of MNPs was measured in Figure S3, and the EDS and elemental quantitative data were confirmed the presence of iron nanoparticles (Figure S4). In addition, the selected area diffraction pattern of the PE/MNPs microcapsules showed five planes, which are [220], [311], [400], [511], and [440], confirming the existence of iron oxide nanoparticles [52]. This also suggests that the iron oxide nanoparticles were successfully encapsulated by microcapsules (Figure S5).

3.3. PE Release Behaviors with High-Frequency Magnetic Field (HFMF) Treatment

While the PE/MNPs microcapsules under HFMF exposure, a significant increase in the temperature of inductive heating is illustrated in Figure 6a. The results show that 5 mg and 10 mg microcapsules had a similar rising trend to 3 mg pure MNPs, the bulk solution temperature increased to 58 ± 2 °C and 57 °C from the room temperature due to the hyperthermia effect within 20 min. Meanwhile, the 35 mg microcapsules exhibited lower temperature (45 °C) after the same time stimulus because more liquid needed more power to apply. The cumulative PE molecule release of PE-loaded magnetic microcapsules at room temperature and under HFMF exposure was investigated by ultraviolet–visible (UV–Vis) spectroscopy (Figure 6b,c). The cumulative arrived to 2.056 a.u. after 20 min of HFMF exposure; on the other hand, cumulative release of PE from PE/MNPs microcapsules at room temperature without any treatment from outside was only 0.714 a.u. The amount of PE was release from the microcapsules with HFMF treatment was almost three times higher than the control group. The PE molecule release behavior was also observed for the characteristic peaks of PE in UV–Vis spectrum such as 358 nm. In the absence of the magnetic field (MF), the PE only released 31.39% at most, however, the PE molecule release percentage increased sharply from 20.91% to 89.39% after 20 min stimulus (Figure 6d). It seems that in the first 5 min of stimulus, the PE had the biggest release rate (from 20.91% to 71.13%), then the release rate growth slows down, proved that the shell structure of microcapsules dissociated to a great extent. According to Figure 6a, the PE could release 71.13% under the environmental temperature around 45 °C, however, it is believed that the temperature around the MNPs is much higher than the surrounding temperature. This result strongly illustrates that the content of the core material (PE) released from the PE/MNPs microcapsules after HFMF stimulus as large as about three times compared to that without the magnetic field applied.
To further elucidate the release behavior of the PE/MNPs microcapsules under the HFMF stimulus, a quantitative estimation of the amount of PE in CH3CN was obtained by a UV-Vis standard calibration curve. To measure the concentration of PE molecule release, 1.5 mL of CH3CN with 4 mg dispersed PE/MNPs microcapsules was stimulated by an oscillating magnetic field at 25 °C. In the UV–Vis spectra, in response to the magnetic field, a redshift was observed in the peak of the non-encapsulated pure PE, and the peaks of the PE/MNPs microcapsules at 342/358 nm also redshifted to 361/372 nm. The two absorbance peaks at 342 nm and 358 nm in the different concentration ranges (1–10 µM) and (10–100 µM) (Figure 7a–c) could be linearly fitted (R2 = 0.97240/0.97657 and 0.95125/0.98719) to obtain the calibration curve. These results indicate the possibility of quantitative PE detection within the good linear range (Figure 7b–d). By increasing the incubation time of PE (100 µM in CH3CN; pH 7.0) with Fe3+ ions (1 mM in CH3CN), it was clearly observed that the PL peak at 504 nm, in the beginning, was gradually decreased, and a new peak appeared at 439 nm, which increased in intensity after 20 min of incubation (Figure 7e). This phenomenon might be related to the fluorescence decay of PE-M3+ complexes; the fluorescent intensity reached its maximum value in the beginning and decreased with increasing time.

3.4. Sensor Titrations of M3+ (M = Fe/Cr/Al) under HFMF Stimulus

Because of the AIEE of the PE probe, the sensing ability of PE/MNPs microcapsules was evaluated in CH3CN/H2O (9:1 v/v), and to avoid confusion between the AIEE and sensor selectivity, all metal ions (K+, Ba2+, Cu2+, Co2+, Al3+, Cr3+, Fe3+) concentrations were 50 µM in deionized water, as described below. Therefore, for the sensor titrations, 2 mg of PE/MNPs microcapsules in CH3CN (10 mL) was investigated with 50 µM of metal ions in deionized water. In addition, the concentration of PE in 2 mg PE (10 mM)/MNPs microcapsules is equivalent to the 50 µM pure PE compound was noticed, thus all results were established based on the weight of PE/MNPs microcapsules taken as 2 mg, as explained above. Upon the application of a magnetic field for 20 min, the PE molecule released from the microcapsules was demonstrated in Figure 8a,b, the released PE/MNPs microcapsules displayed impressive selectivity to Al3+, Cr3+, and Fe3+ (M3+) metal ions, to cope with these metal ions solutions and exhibited absorbance peaks (UV–Vis) and turn-on emission peaks (PL) at 435 nm and 502 nm, respectively, which showed red-shifted from their original position (PE/MNPs microcapsules; λabs = 355 nm and λem = 417 nm; Φf = 0.0094). Furthermore, according to the volume of Al3+ solution increased, the turn-on emission was enhanced (from 10 to 100 µL), then blue shift has taken place at its emission peak due to the influence of the solvent polarity, meanwhile, the intensity was gradually decreased (Figure 8c). By increasing the concentration of Al3+ (0–20 µM with an equal span of 2 µM in H2O) the sensitivity of PE/MNPs microcapsules (50 µM in CH3CN) towards Al3+ ions was distinctly observed in the UV–Vis spectrum as shown in Figure 8d. This fluorescence spectrum of released PE/MNPs microcapsules (λem = 417 nm) showed red shift turn-on responses at 495 nm for PE/MNPs microcapsules with Al3+ and inset showed the fluorescence intensity changes as a function of Al3+ concentration; similarly, Fe3+ and Cr3+ are also showed strong function with released PE/MNPs microcapsules as the increment of their concentration. To prove the selectivity of PE/MNPs microcapsules towards M3+ ions, the detection limit (LOD) [53] calculations were performed after application of HFMF for 20 min using standard deviation and linear fittings. By observing the function of M3+ ions concentration and the relative fluorescence intensity (I/I0), the detection limits of PE/MNPs microcapsules with M3+ complexes were estimated as 2.8602 × 10−6 M (PE/MNPs microcapsules-Al3+), 1.5744 × 10−6 M (PE/MNPs microcapsules-Cr3+) and 1.8988 × 10−6 M (PE/MNPs microcapsules-Fe3+), respectively (Figure 9).

3.5. Comparison of Other Probes

Although there are some pyrene-based derivative probes for the detection of various metal ions, as far as we know, the fluorescent probe PE and other pyrene-based derivative probes are unstable cation sensors. Hence, they should be kept without a humid environment and visible light. In that sense, the microcapsule system perfectly meets these conditions for better preservation. Furthermore, under the fluorescent probe delivery system, we can easily release a large dose of fluorescent sensors under certain circumstances in a very short time, the most important is our pyrene-based magnetic-sensitive microcapsules showed high selectivity and good LOD compared with other pyrene-based derivative sensors in Table 1.
To confirm the feasibility of our system in environmental monitoring and other application fields, Fe3+/Cr3+/Al3+ activity was investigated in three real tap water samples containing Fe3+, Cr3+ and Al3+ ions, respectively. Our sensor displayed excellent precision and reproducibility, as explained by the coefficients of variation (Fe3+ ≤ 2.79%, Cr3+ ≤ 2.79%, Al3+ ≤ 3.76%) and recoveries were in the range of 96.5–98.7% for Fe3+, 96.7–99.4% for Cr3+ and 94.7–98.9% for Al3+ (Table 2). These results also indicate that the system we proposed in this study is very compatible with the practical measurement of Fe3+/Cr3+/Al3+ ions activity in future environmental monitoring and even biomedical applications.

4. Conclusions

Conventional pyrene-based derivative sensors for metal ions detection face the problems of a humid environment and visible light interference. This study proposes an alternating approach that pyrene-based derivative (PE) nanoparticle was encapsulated via a double emulsion system with a solvent evaporation method in a one-pot reaction. Similar to the neat PE compound, the core material PE showed excellent AIEE nature and displayed selective turn-on fluorescence for trivalent cations (Fe3+/Cr3+/Al3+) detection. The MNPs effectively triggered the rupture of the shell structure through an external oscillating magnetic field, and the microcapsules were heated by the interaction of the MNPs with the magnetic field. The centrifugation speed during the synthesis process crucially affected the morphology of the microcapsules. These results were supported by UV–Vis/PL, quantum yield (Φf) calculations, SEM, SQUID, and 1H NMR titrations. Hence, a possible sensing mechanism of the photoinduced electron transfer (PET) and excimer formation was successfully discussed. Due to the low melting point of PCL, the PE/MNP microcapsules released the core material percentage up to 89.39% under 20 min the influence of HFMF because the temperature around the microcapsules reached up to 60 °C. The results showed that PE encapsulated in microcapsules was highly stable and selective towards Fe3+/Cr3+/Al3+ in the presence of various metal ion solutions. The PE-M3+ sensor complex did not have an obvious impact on the specific performance and the LOD. The standard deviation and linear fittings for the LOD were calculated as 10−6 M limit for Fe3+, Al3+, and Cr3+ ions. This sensing platform can potentially also be used for trivalent cations’ detection in tap water.

Supplementary Materials

The following are available online at https://www.mdpi.com/article/10.3390/nano11071801/s1. Figure S1.1H NMR of PE, Figure S2. Zeta potential measure of magnetic nanoparticles (MNPs), Figure S3. The X-ray diffraction pattern of MNPs. Figure S4. The energy-dispersive X-ray (EDS) spectrum and elemental quantitative data of PE/MNPs microcapsules. Figure S5. Characterization analysis of PE/MNPs microcapsules and hollow microcapsules.

Author Contributions

Conceptualization, methodology, investigation, data Curation, formal Analysis, writing—original draft, B.-W.D.; resources, formal analysis, validation, C.-C.L.; supervision, project administration, writing—review & editing, F.-H.K. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by Ministry of Science and Technology of Taiwan under grant number “MOST-109-2113-M–009-013 and MOST-110-2113-M-A49-020”.

Data Availability Statement

Data sharing not applicable.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Hong, Y.; Lam, J.W.Y.; Tang, B.Z. Aggregation-Induced Emission. Chem. Soc. Rev. 2011, 40, 5361–5388. [Google Scholar] [CrossRef] [Green Version]
  2. Liu, X.; Li, A.; Xu, W.; Ma, Z.; Jia, X. An ESIPT-Based Fluorescent Switch with AIEE, Solvatochromism, Mechanochromism and Photochromism. Mater. Chem. Front. 2019, 3, 620–625. [Google Scholar] [CrossRef]
  3. Shyamal, M.; Mazumdar, P.; Maity, S.; Samanta, S.; Sahoo, G.P.; Misra, A. Highly Selective Turn-On Fluorogenic Chemosensor for Robust Quantification of Zn(II) Based on Aggregation Induced Emission Enhancement Feature. ACS Sens. 2016, 1, 739–747. [Google Scholar] [CrossRef]
  4. Ichiura, H.; Morikawa, M.; Fujiwara, K. Preparation of Microcapsules That Produce Color in Response to Humidity for Use in Intelligent Functional Paper. J. Mater. Sci. 2005, 40, 1987–1991. [Google Scholar] [CrossRef]
  5. Chang, C.; Wang, F.; Qiang, J.; Zhang, Z.; Chen, Y.; Zhang, W.; Wang, Y.; Chen, X. Benzothiazole-Based Fluorescent Sensor for Hypochlorite Detection and Its Application for Biological Imaging. Sens. Actuators B Chem. 2017, 243, 22–28. [Google Scholar] [CrossRef]
  6. Shchukin, D.G.; Patel, A.A.; Sukhorukov, G.B.; Lvov, Y.M. Nanoassembly of Biodegradable Microcapsules for DNA Encasing. J. Am. Chem. Soc. 2004, 126, 3374–3375. [Google Scholar] [CrossRef] [PubMed]
  7. Su, J.F.; Wang, L.X.; Ren, L. Preparation and Characterization of Double-MF Shell MicroPCMs Used in Building Materials. J. Appl. Polym. Sci. 2005, 97, 1755–1762. [Google Scholar] [CrossRef]
  8. Guarnido, I.L.; Routh, A.F.; Mantle, M.D.; Serrano, M.F.; Marr, P.C. Ionic Liquid Microcapsules: Formation and Application of Polystyrene Microcapsules with Ionic Liquid Cores. ACS Sustain. Chem. Eng. 2019, 7, 1870–1874. [Google Scholar] [CrossRef] [Green Version]
  9. Wang, H.; Zhao, Z.; Liu, Y.; Shao, C.; Bian, F.; Zhao, Y. Biomimetic Enzyme Cascade Reaction System in Microfluidic Electrospray Microcapsules. Sci. Adv. 2018, 4, eaat2816. [Google Scholar] [CrossRef] [Green Version]
  10. Zhang, Y.; Huang, L.; Li, Z.; Ma, G.; Zhou, Y.; Han, G. Illuminating Cell Signaling with Near-Infrared Light-Responsive Nanomaterials. ACS Nano. 2016, 10, 3881–3885. [Google Scholar] [CrossRef] [PubMed]
  11. Mitragotri, S.; Anderson, D.G.; Chen, X.; Chow, E.K.; Ho, D.; Kabanov, A.V.; Karp, J.M.; Kataoka, K.; Mirkin, C.A.; Petrosko, S.H.; et al. Accelerating the Translation of Nanomaterials in Biomedicine. ACS Nano. 2015, 9, 6644–6654. [Google Scholar] [CrossRef] [Green Version]
  12. Feng, J.; Xiong, L.; Wang, S.; Li, S.; Li, Y.; Yang, G. Fluorescent Temperature Sensing Using Triarylboron Compounds and Microcapsules for Detection of a Wide Temperature Range on the Micro- and Macroscale. Adv. Funct. Mater. 2013, 23, 340–345. [Google Scholar] [CrossRef]
  13. Ravanfar, R.; Celli, G.B.; Abbaspourrad, A. Controlling the Release from Enzyme-Responsive Microcapsules with a Smart Natural Shell. ACS Appl. Mater. Interfaces 2018, 10, 6046–6053. [Google Scholar] [CrossRef]
  14. de Medeiros, J.A.S.; Blick, A.P.; Galindo, M.V.; Alvim, I.D.; Yamashita, F.; Ueno, C.T.; Shirai, M.A.; Grosso, C.R.F.; Corradini, E.; Sakanaka, L.S. Incorporation of Oregano Essential Oil Microcapsules in Starch-Poly (Butylene Adipate Co-Terephthalate) (PBAT) Films. Macromol. Symp. 2019, 383, 1–7. [Google Scholar] [CrossRef] [Green Version]
  15. Zizi, N.; Ben Abdelkader, M.; Chevalier, Y.; Majdoub, M. New β-Cyclodextrin-Based Microcapsules for Textiles Uses. Fibers. Polym. 2019, 20, 683–689. [Google Scholar]
  16. Jin, Y.; Wang, J.; Ke, H.; Wang, S.; Dai, Z. Graphene Oxide Modified PLA Microcapsules Containing Gold Nanoparticles for Ultrasonic/CT Bimodal Imaging Guided Photothermal Tumor Therapy. Biomaterials 2013, 34, 4794–4802. [Google Scholar] [CrossRef] [PubMed]
  17. Han, Y.; Zhou, J.; Hu, Y.; Lin, Z.; Ma, Y.; Richardson, J.J.; Caruso, F. Polyphenol-Based Nanoparticles for Intracellular Protein Delivery via Competing Supramolecular Interactions. ACS Nano 2020, 14, 12972–12981. [Google Scholar] [CrossRef]
  18. Wang, Z.; Möhwald, H.; Gao, C. Nanotubes Protruding from Poly(Allylamine Hydrochloride)-Graft-Pyrene Microcapsules. ACS Nano 2011, 5, 3930–3936. [Google Scholar] [CrossRef] [PubMed]
  19. Postiglione, G.; Colombo, A.; Dragonetti, C.; Levi, M.; Turri, S.; Griffini, G. Fluorescent Probes Based on Chemically-Stable Core/Shell Microcapsules for Visual Microcrack Detection. Sens. Actuators B Chem. 2017, 248, 35–42. [Google Scholar] [CrossRef]
  20. Li, W.; Matthews, C.C.; Yang, K.; Odarczenko, M.T.; White, S.R.; Sottos, N.R. Autonomous Indication of Mechanical Damage in Polymeric Coatings. Adv. Mater. 2016, 28, 2189–2194. [Google Scholar] [CrossRef] [PubMed]
  21. Bekhit, M.; Sánchez-González, L.; Ben Messaoud, G.; Desobry, S. Design of Microcapsules Containing Lactococcus Lactis Subsp. Lactis in Alginate Shell and Xanthan Gum with Nutrients Core. LWT-Food Sci. Technol. 2016, 68, 446–453. [Google Scholar] [CrossRef]
  22. Hong, K.; Park, S. Melamine Resin Microcapsules Containing Fragrant Oil: Synthesis and Characterization. Mater. Chem. Phys. 1999, 58, 128–131. [Google Scholar] [CrossRef]
  23. Akamatsu, K.; Yamaguchi, T. Novel Preparation Method for Obtaining PH-Responsive Core-Shell Microcapsule Reactors. Ind. Eng. Chem. Res. 2007, 46, 124–130. [Google Scholar] [CrossRef]
  24. Li, M.; Rouaud, O.; Poncelet, D. Microencapsulation by Solvent Evaporation: State of the Art for Process Engineering Approaches. Int. J. Pharm. 2008, 363, 26–39. [Google Scholar] [CrossRef]
  25. Pelaz, B.; Alexiou, C.; Alvarez-Puebla, R.A.; Alves, F.; Andrews, A.M.; Ashraf, S.; Balogh, L.P.; Ballerini, L.; Bestetti, A.; Brendel, C. Diverse Applications of Nanomedicine. ACS Nano 2017, 11, 2313–2381. [Google Scholar] [CrossRef] [Green Version]
  26. Wang, Y.; Xie, Y.; Li, J.; Peng, Z.H.; Sheinin, Y.; Zhou, J.; Oupický, D. Tumor-Penetrating Nanoparticles for Enhanced Anticancer Activity of Combined Photodynamic and Hypoxia-Activated Therapy. ACS Nano 2017, 11, 2227–2238. [Google Scholar] [CrossRef]
  27. Pavlov, A.M.; Saez, V.; Cobley, A.; Graves, J.; Sukhorukov, G.B.; Mason, T.J. Controlled Protein Release from Microcapsules with Composite Shells Using High Frequency Ultrasound-Potential for in Vivo Medical Use. Soft Matter 2011, 7, 4341–4347. [Google Scholar] [CrossRef]
  28. Datta, S.S.; Abbaspourrad, A.; Amstad, E.; Fan, J.; Kim, S.H.; Romanowsky, M.; Shum, H.C.; Sun, B.; Utada, A.S.; Windbergs, M.; et al. 25th Anniversary Article: Double Emulsion Templated Solid Microcapsules: Mechanics and Controlled Release. Adv. Mater. 2014, 26, 2205–2218. [Google Scholar] [CrossRef] [PubMed]
  29. Tang, S.; Fu, C.; Tan, L.; Liu, T.; Mao, J.; Ren, X.; Su, H.; Long, D.; Chai, Q.; Huang, Z.; et al. Imaging-Guided Synergetic Therapy of Orthotopic Transplantation Tumor by Superselectively Arterial Administration of Microwave-Induced Microcapsules. Biomaterials 2017, 133, 144–153. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  30. Kuo, C.Y.; Liu, T.Y.; Hardiansyah, A.; Lee, C.F.; Wang, M.S.; Chiu, W.Y. Self-Assembly Behaviors of Thermal- and PH- Sensitive Magnetic Nanocarriers for Stimuli-Triggered Release. Nanoscale Res. Lett. 2014, 9, 1–11. [Google Scholar] [CrossRef] [Green Version]
  31. Liu, T.; Hu, S.; Liu, K.; Shaiu, R.; Liu, D.; Chen, S. Instantaneous Drug Delivery of Magnetic/thermally Sensitive Nanospheres by a High-Frequency Magnetic Field Instantaneous Drug Delivery of Magnetic/thermally Sensitive Nanospheres by a High-Frequency Magnetic Field. Drug Deliv. 2008, 13306–13311. [Google Scholar]
  32. Cui, X.; Guan, X.; Zhong, S.; Chen, J.; Zhu, H.; Li, Z.; Xu, F.; Chen, P.; Wang, H. Multi-Stimuli Responsive Smart Chitosan-Based Microcapsules for Targeted Drug Delivery and Triggered Drug Release. Ultrason. Sonochem. 2017, 38, 145–153. [Google Scholar] [CrossRef] [PubMed]
  33. Hardiansyah, A.; Yang, M.C.; Liu, T.Y.; Kuo, C.Y.; Huang, L.Y.; Chan, T.Y. Hydrophobic Drug-Loaded PEGylated Magnetic Liposomes for Drug-Controlled Release. Nanoscale Res. Lett. 2017, 12, 1–11. [Google Scholar] [CrossRef] [PubMed]
  34. Mura, S.; Nicolas, J.; Couvreur, P. Stimuli-Responsive Nanocarriers for Drug Delivery. Nat. Mater. 2013, 12, 991–1003. [Google Scholar] [CrossRef]
  35. Ao, L.; Wu, C.; Liu, K.; Wang, W.; Fang, L.; Huang, L.; Su, W. Polydopamine-Derivated Hierarchical Nanoplatforms for Efficient Dual-Modal Imaging-Guided Combination in Vivo Cancer Therapy. ACS Appl. Mater. Interfaces 2018, 10, 12544–12552. [Google Scholar] [CrossRef]
  36. Liu, T.Y.; Hu, S.H.; Liu, K.H.; Liu, D.M.; Chen, S.Y. Study on Controlled Drug Permeation of Magnetic-Sensitive Ferrogels: Effect of Fe3O4 and PVA. J. Control. Release 2008, 126, 228–236. [Google Scholar] [CrossRef] [PubMed]
  37. Hu, M.; Butt, H.J.; Landfester, K.; Bannwarth, M.B.; Wooh, S.; Thérien-Aubin, H. Shaping the Assembly of Superparamagnetic Nanoparticles. ACS Nano 2019, 13, 3015–3022. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  38. Chen, J.Y.; Zhu, J.; Zhang, D.; Lattery, D.M.; Li, M.; Wang, J.P.; Wang, X. Time-Resolved Magneto-Optical Kerr Effect of Magnetic Thin Films for Ultrafast Thermal Characterization. J. Phys. Chem. Lett. 2016, 7, 2328–2332. [Google Scholar] [CrossRef] [PubMed]
  39. Hu, S.H.; Liu, T.Y.; Liu, D.M.; Chen, S.Y. Controlled Pulsatile Drug Release from a Ferrogel by a High-Frequency Magnetic Field. Macromolecules 2007, 40, 6786–6788. [Google Scholar] [CrossRef] [Green Version]
  40. Niether, C.; Faure, S.; Bordet, A.; Deseure, J.; Chatenet, M.; Carrey, J.; Chaudret, B.; Rouet, A. Improved Water Electrolysis Using Magnetic Heating of FeC-Ni Core-Shell Nanoparticles. Nat. Energy 2018, 3, 476–483. [Google Scholar] [CrossRef]
  41. Saber-Samandari, S.; Saber-Samandari, S.; Joneidi-Yekta, H.; Mohseni, M. Adsorption of Anionic and Cationic Dyes from Aqueous Solution Using Gelatin-Based Magnetic Nanocomposite Beads Comprising Carboxylic Acid Functionalized Carbon Nanotube. Chem. Eng. J. 2017, 308, 1133–1144. [Google Scholar] [CrossRef]
  42. Salimi, S.; Babra, T.S.; Dines, G.S.; Baskerville, S.W.; Hayes, W.; Greenland, B.W. Composite Polyurethane Adhesives That Debond-on-Demand by Hysteresis Heating in an Oscillating Magnetic Field. Eur. Polym. J. 2019, 121, 109264. [Google Scholar] [CrossRef]
  43. Verstraeten, S.V.; Aimo, L.; Oteiza, P.I. Aluminium and Lead: Molecular Mechanisms of Brain Toxicity. Arch. Toxicol. 2008, 82, 789–802. [Google Scholar] [CrossRef] [PubMed]
  44. Darbre, P.D. Aluminium, Antiperspirants and Breast Cancer. J. Inorg. Biochem. 2005, 99, 1912–1919. [Google Scholar] [CrossRef]
  45. Yan, L.; Li, X.; Li, J. A Novel Turn-on Fluorescent Probe Based on Coumarin Schiff’s Base for Multichannel Monitoring of Al3+, Hg2+ and ClO− in Different Solutions and Its Applications. ChemistrySelect 2018, 3, 10157–10163. [Google Scholar] [CrossRef]
  46. Chen, Z.; Sun, Y.; Zhang, L.; Sun, D.; Liu, F.; Meng, Q.; Wang, R.; Sun, D. A Tubular Europium-Organic Framework Exhibiting Selective Sensing of Fe3+ and Al3+ over Mixed Metal Ions. Chem. Commun. 2013, 49, 11557–11559. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  47. Apollaro, C.; Fuoco, I.; Brozzo, G.; De Rosa, R. Release and Fate of Cr(VI) in the Ophiolitic Aquifers of Italy: The Role of Fe(III) as a Potential Oxidant of Cr(III) Supported by Reaction Path Modelling. Sci. Total Environ. 2019, 660, 1459–1471. [Google Scholar] [CrossRef] [PubMed]
  48. Wang, S.S.; Ye, S.L.; Han, Y.H.; Shi, X.X.; Chen, D.L.; Li, M. Biosorption and Bioaccumulation of Chromate from Aqueous Solution by a Newly Isolated: Bacillus Mycoides Strain 200AsB1. RSC Adv. 2016, 6, 101153–101161. [Google Scholar] [CrossRef]
  49. Simon, T.; Shellaiah, M.; Srinivasadesikan, V.; Lin, C.C.; Ko, F.H.; Sun, K.W.; Lin, M.C. A Simple Pyrene Based AIEE Active Schiff Base Probe for Selective Naked Eye and Fluoresence Off-On Detection of Trivalent Cations with Live Cell Application. Sens. Actuators B Chem. 2016, 231, 18–29. [Google Scholar] [CrossRef]
  50. Shin, M.J.; Shin, Y.J.; Hwang, S.W.; Shin, J.S. Microencapsulation of Imidazole Curing Agent by Solvent Evaporation Method Using W/O/W Emulsion. J. Appl. Polym. Sci. 2013, 129, 1036–1044. [Google Scholar] [CrossRef] [Green Version]
  51. Chen, L.; Xu, C.; Liu, J.; Fang, X.; Zhang, Z. Optical Absorption Property and Photo-Thermal Conversion Performance of Graphene Oxide/Water Nanofluids with Excellent Dispersion Stability. Sol. Energy 2017, 148, 17–24. [Google Scholar] [CrossRef]
  52. Guo, X.M.; Guo, B.; Zhang, Q.; Sun, X. Absorption of 10-Hydroxycamptothecin on Fe3O4 Magnetite Nanoparticles with Layer-by-Layer Self-Assembly and Drug Release Response. Dalt. Trans. 2011, 40, 3039–3046. [Google Scholar] [CrossRef] [PubMed]
  53. Li, J.; Wu, Y.; Song, F.; Wei, G.; Cheng, Y.; Zhu, C. A Highly Selective and Sensitive Polymer-Based Off-On Fluorescent Sensor for Hg2+ Detection Incorporating Salen and Perylenyl Moieties. J. Mater. Chem. 2012, 22, 478–482. [Google Scholar] [CrossRef]
  54. Zhang, W.; Luo, Y.; Zhou, Y.; Liu, M.; Xu, W.; Bian, B.; Tao, Z.; Xiao, X. A Highly Selective Fluorescent Chemosensor Probe for Detection of Fe3+ and Ag+ Based on Supramolecular Assembly of Cucurbit Uril with a Pyrene Derivative. Dye. Pigment. 2020, 176, 108235. [Google Scholar] [CrossRef]
  55. Zhang, L.; Huang, X.; Cao, Y.; Xin, Y.; Ding, L. Fluorescent Binary Ensemble Based on Pyrene Derivative and Sodium Dodecyl Sulfate Assemblies as a Chemical Tongue for Discriminating Metal Ions and Brand Water. ACS Sens. 2017, 2, 1821–1830. [Google Scholar] [CrossRef] [PubMed]
  56. Villa, M.; Roy, M.; Bergamini, G.; Ceroni, P.; Gingras, M. Highly Emissive Water-Soluble Polysulfurated Pyrene-Based Chromophores as Dual Mode Sensors of Metal Ions. Chempluschem 2020, 85, 1481–1486. [Google Scholar] [CrossRef]
  57. Wang, J.; Jiang, H.; Liu, H.B.; Liang, L.; Tao, J. Pyrene–Imidazole Conjugate as a Fluorescent Sensor for the Sequential Detection of Iron(III) and Histidine in Aqueous Solution. Spectrochim. Acta-Part A Mol. Biomol. Spectrosc. 2020, 228, 117725. [Google Scholar] [CrossRef] [PubMed]
  58. Wu, Y.; Wen, X.; Fan, Z. An AIE Active Pyrene Based Fluorescent Probe for Selective Sensing Hg2+ and Imaging in Live Cells. Spectrochim. Acta Part A Mol. Biomol. Spectrosc. 2019, 223, 117315. [Google Scholar] [CrossRef] [PubMed]
  59. Chakraborty, N.; Chakraborty, A.; Das, S. A Pyrene Based Fluorescent Turn on Chemosensor for Detection of Cu2+ Ions with Antioxidant Nature. J. Lumin. 2018, 199, 302–309. [Google Scholar] [CrossRef]
  60. Ruan, Z.; Shan, Y.; Gong, Y.; Wang, C.; Ye, F.; Qiu, Y.; Liang, Z.; Li, Z. Novel AIE-Active Ratiometric Fluorescent Probes for Mercury(II) Based on the Hg2+-Promoted Deprotection of Thioketal, and Good Mechanochromic Properties. J. Mater. Chem. C 2018, 6, 773–780. [Google Scholar] [CrossRef]
  61. Phapale, D.; Gaikwad, A.; Das, D. Selective Recognition of Cu (II) and Fe (III) Using a Pyrene Based Chemosensor. Spectrochim. Acta Part A Mol. Biomol. Spectrosc. 2017, 178, 160–165. [Google Scholar] [CrossRef] [PubMed]
  62. Padghan, S.D.; Puyad, A.L.; Bhosale, R.S.; Bhosale, S.V.; Bhosale, S.V. A Pyrene Based Fluorescent Turn-on Chemosensor: Aggregation-Induced Emission Enhancement and Application towards Fe3+ and Fe2+ Recognition. Photochem. Photobiol. Sci. 2017, 16, 1591–1595. [Google Scholar] [CrossRef] [PubMed]
Nanomaterials 11 01801 g001 550

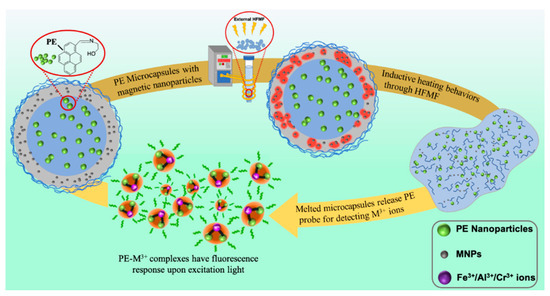

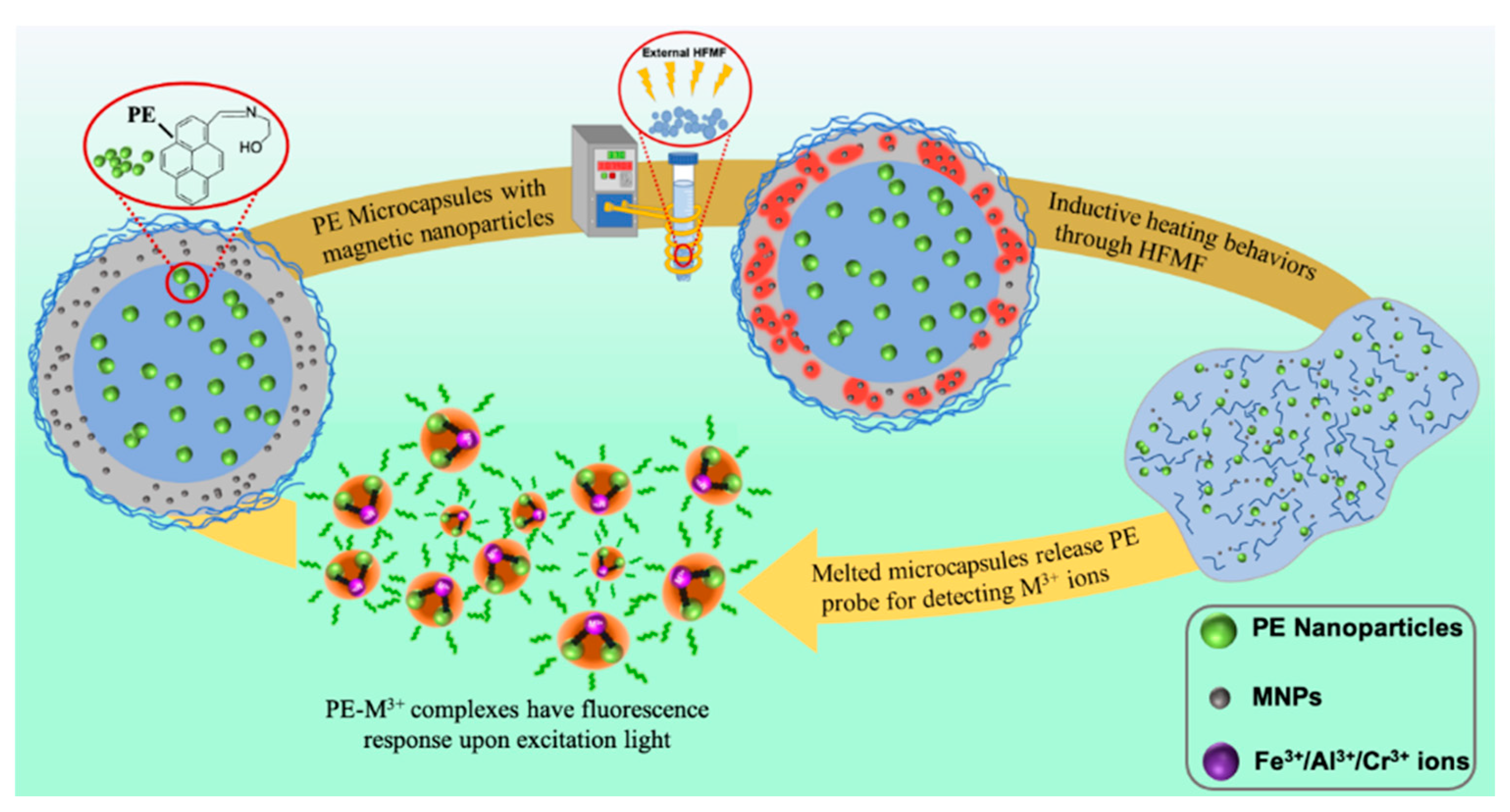

Figure 1. Mechanism of action of magnetic-sensitive microcapsules for sensing trivalent cations.
Figure 1. Mechanism of action of magnetic-sensitive microcapsules for sensing trivalent cations.
Nanomaterials 11 01801 g001
Nanomaterials 11 01801 g002 550
Figure 2. (a) Optical microscope image of 2-((pyrene-1-ylmethylene)amino)ethanol/magnetic nanoparticles (PE/MNPs) microcapsules; fluorescence image of (b) a cluster of PE/MNPs microcapsules; scanning electron microscopy (SEM) images of (c) hollow microcapsules and a single hollow microcapsule (inset); (d) a cluster of PE/MNPs microcapsules and a single PE/MNPs microcapsule (inset); (e) porous microcapsules under high centrifuging speed. (f) particle size distribution histogram of PE/MNPs microcapsules in (c).
Figure 2. (a) Optical microscope image of 2-((pyrene-1-ylmethylene)amino)ethanol/magnetic nanoparticles (PE/MNPs) microcapsules; fluorescence image of (b) a cluster of PE/MNPs microcapsules; scanning electron microscopy (SEM) images of (c) hollow microcapsules and a single hollow microcapsule (inset); (d) a cluster of PE/MNPs microcapsules and a single PE/MNPs microcapsule (inset); (e) porous microcapsules under high centrifuging speed. (f) particle size distribution histogram of PE/MNPs microcapsules in (c).
Nanomaterials 11 01801 g002
Nanomaterials 11 01801 g003 550

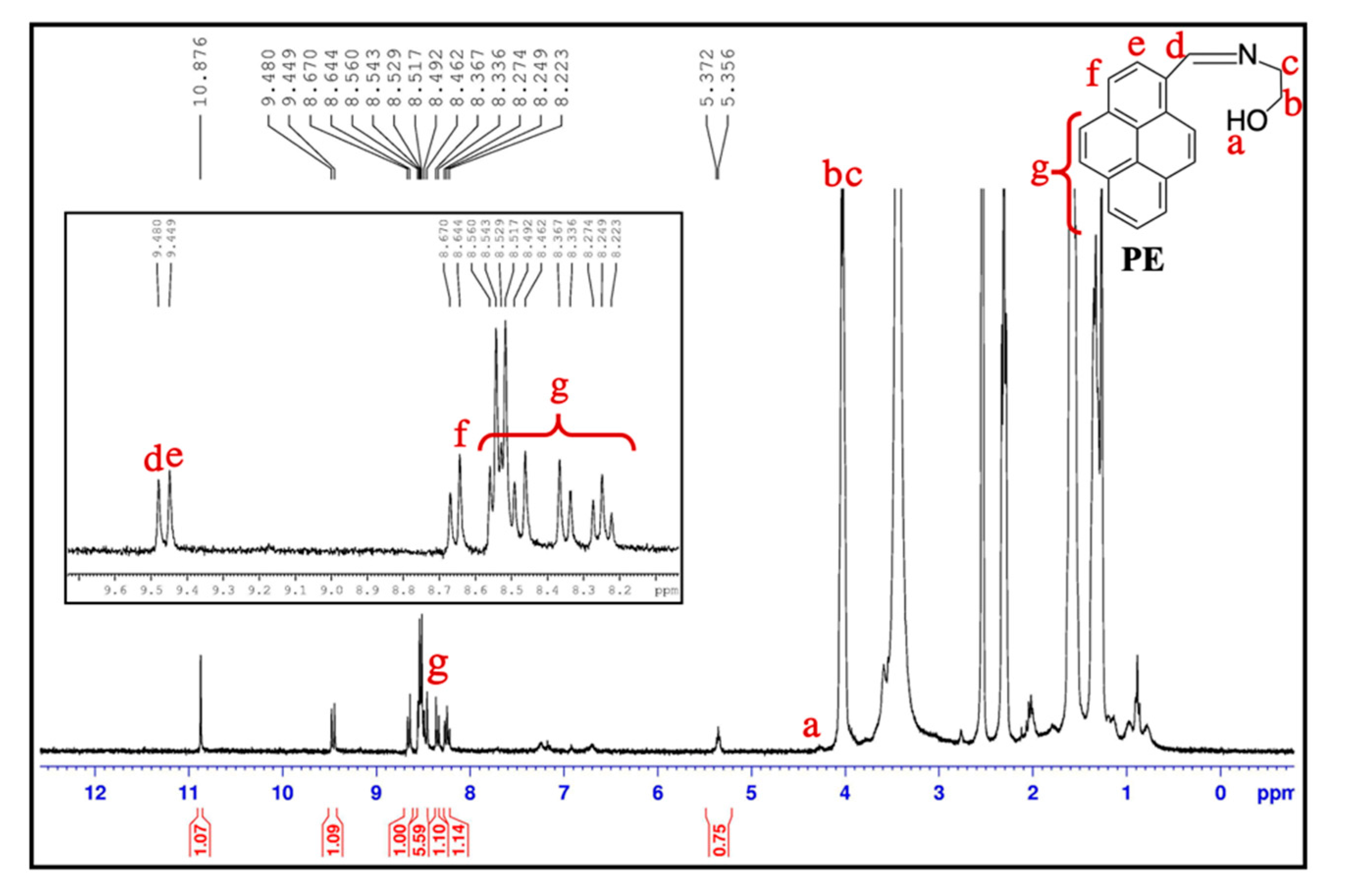

Figure 3. 1H nuclear magnetic resonance (NMR) spectra of PE/MNPs microcapsules in DMSO.
Figure 3. 1H nuclear magnetic resonance (NMR) spectra of PE/MNPs microcapsules in DMSO.
Nanomaterials 11 01801 g003
Nanomaterials 11 01801 g004 550

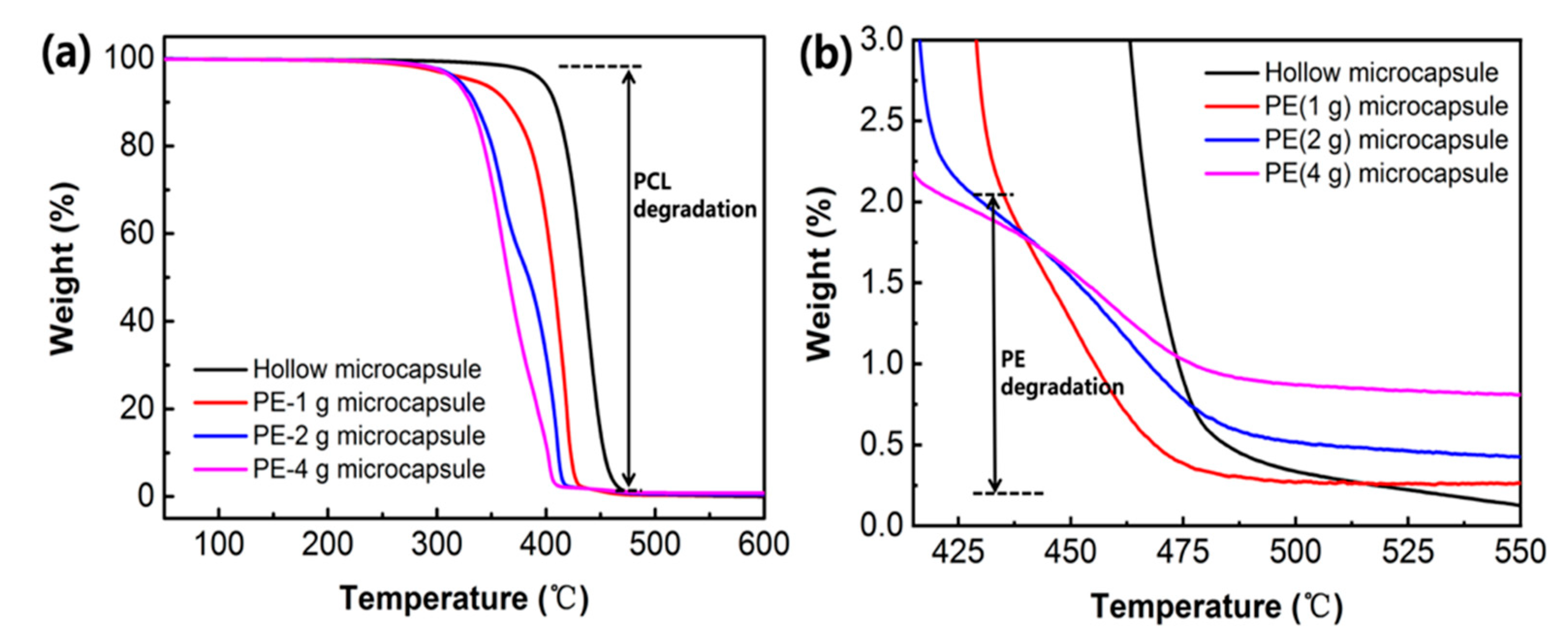

Figure 4. TGA curve of (a) the microcapsules with different amounts of core material and (b) the heating temperature from 412.5 to 550 °C of these microcapsules at 10 °C/min under an N2 flow.
Figure 4. TGA curve of (a) the microcapsules with different amounts of core material and (b) the heating temperature from 412.5 to 550 °C of these microcapsules at 10 °C/min under an N2 flow.
Nanomaterials 11 01801 g004
Nanomaterials 11 01801 g005 550

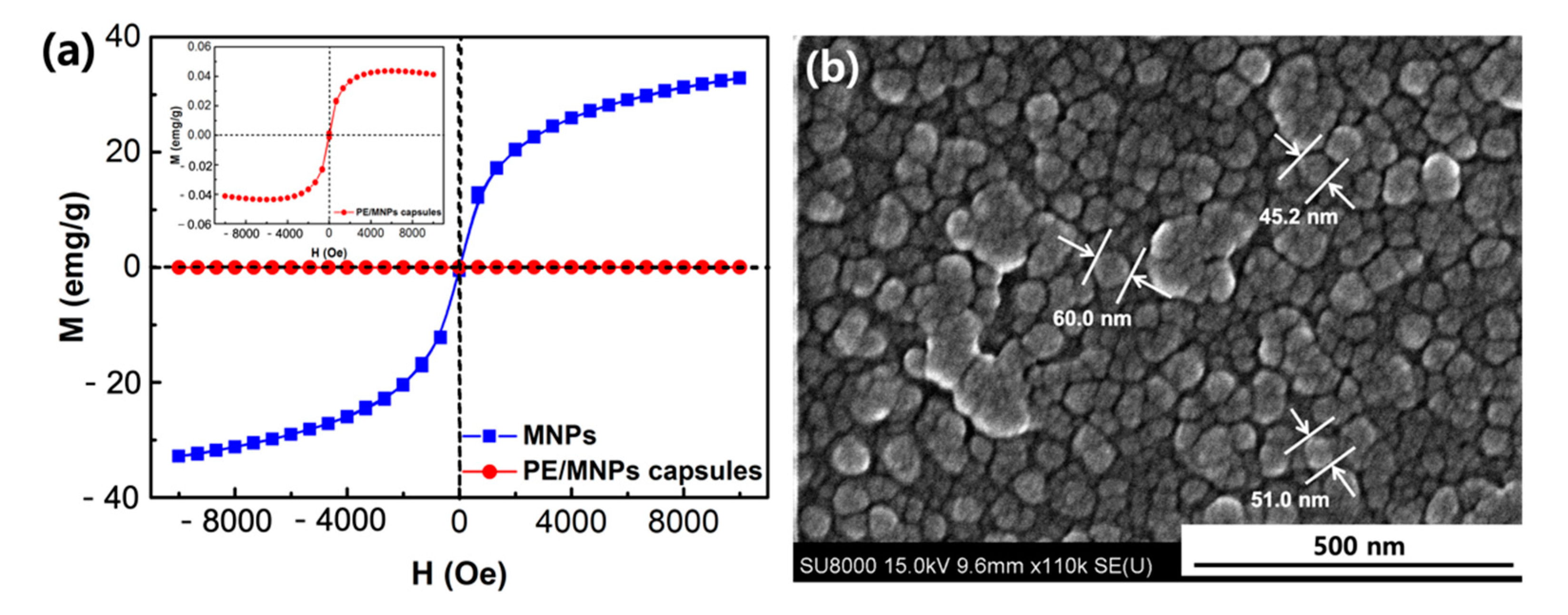

Figure 5. (a) Hysteresis curve of MNPs and PE/MNPs microcapsules. (b) SEM image of MNPs.
Figure 5. (a) Hysteresis curve of MNPs and PE/MNPs microcapsules. (b) SEM image of MNPs.
Nanomaterials 11 01801 g005
Nanomaterials 11 01801 g006 550

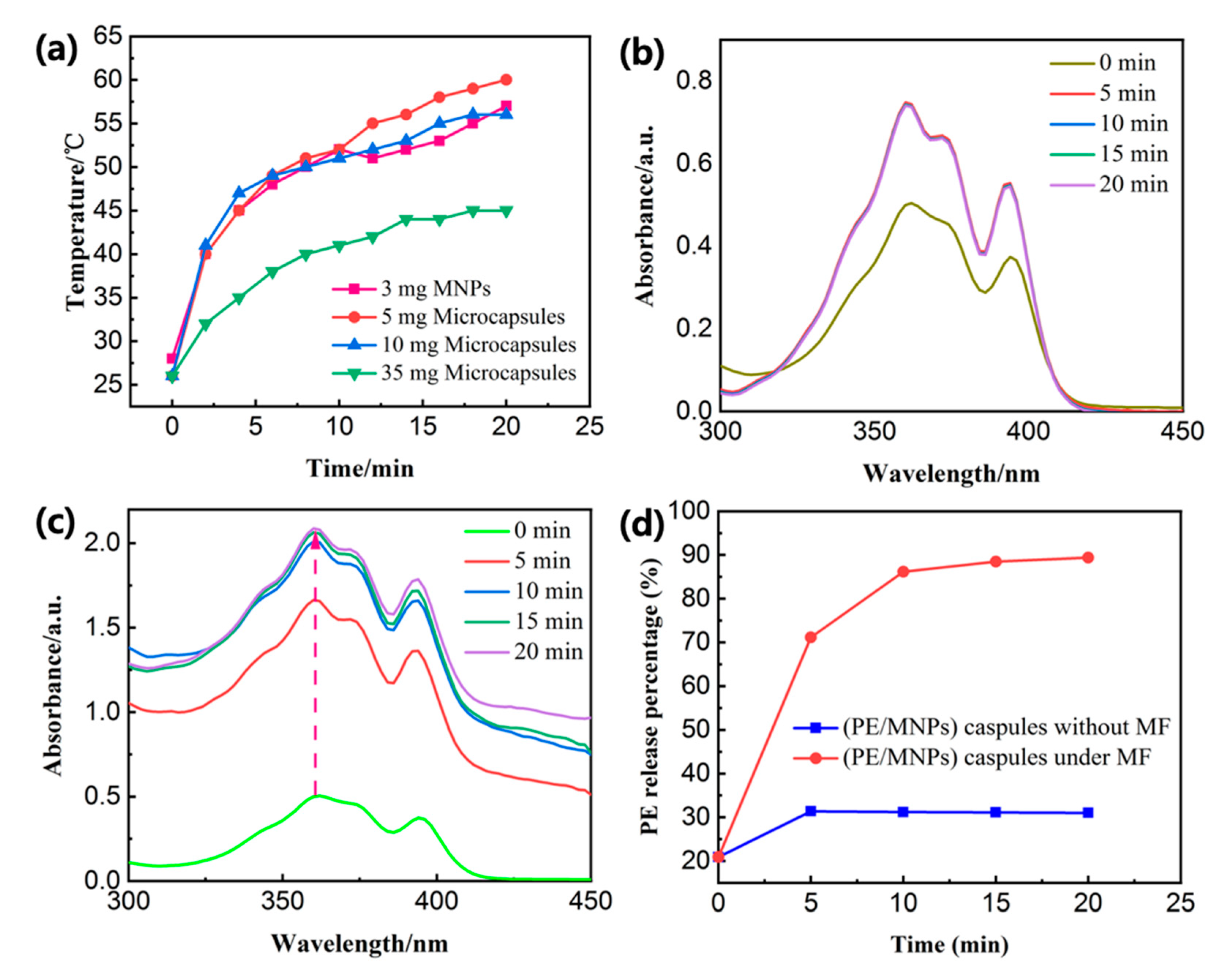

Figure 6. (a) Inductive heating ability of the different weights of the PE-loaded magnetic nanoparticles microcapsules (PE/MNPs microcapsules) under high-frequency magnetic field (HFMF) exposure (16.5 kW). (b) PE molecule release of PE/MNPs microcapsules (5 mg) in 1.5 mL CH3CN without HFMF at room temperature monitored by ultraviolet–visible (UV–Vis) spectroscopy. (c) PE molecule release profile of PE/MNPs microcapsules in 1.5 mL CH3CN under 20 min HFMF exposure (16.5 kW). (d) PE molecule release behaviors of PE/MNPs microcapsules under HFMF and room temperature for 20 min.
Figure 6. (a) Inductive heating ability of the different weights of the PE-loaded magnetic nanoparticles microcapsules (PE/MNPs microcapsules) under high-frequency magnetic field (HFMF) exposure (16.5 kW). (b) PE molecule release of PE/MNPs microcapsules (5 mg) in 1.5 mL CH3CN without HFMF at room temperature monitored by ultraviolet–visible (UV–Vis) spectroscopy. (c) PE molecule release profile of PE/MNPs microcapsules in 1.5 mL CH3CN under 20 min HFMF exposure (16.5 kW). (d) PE molecule release behaviors of PE/MNPs microcapsules under HFMF and room temperature for 20 min.
Nanomaterials 11 01801 g006
Nanomaterials 11 01801 g007 550

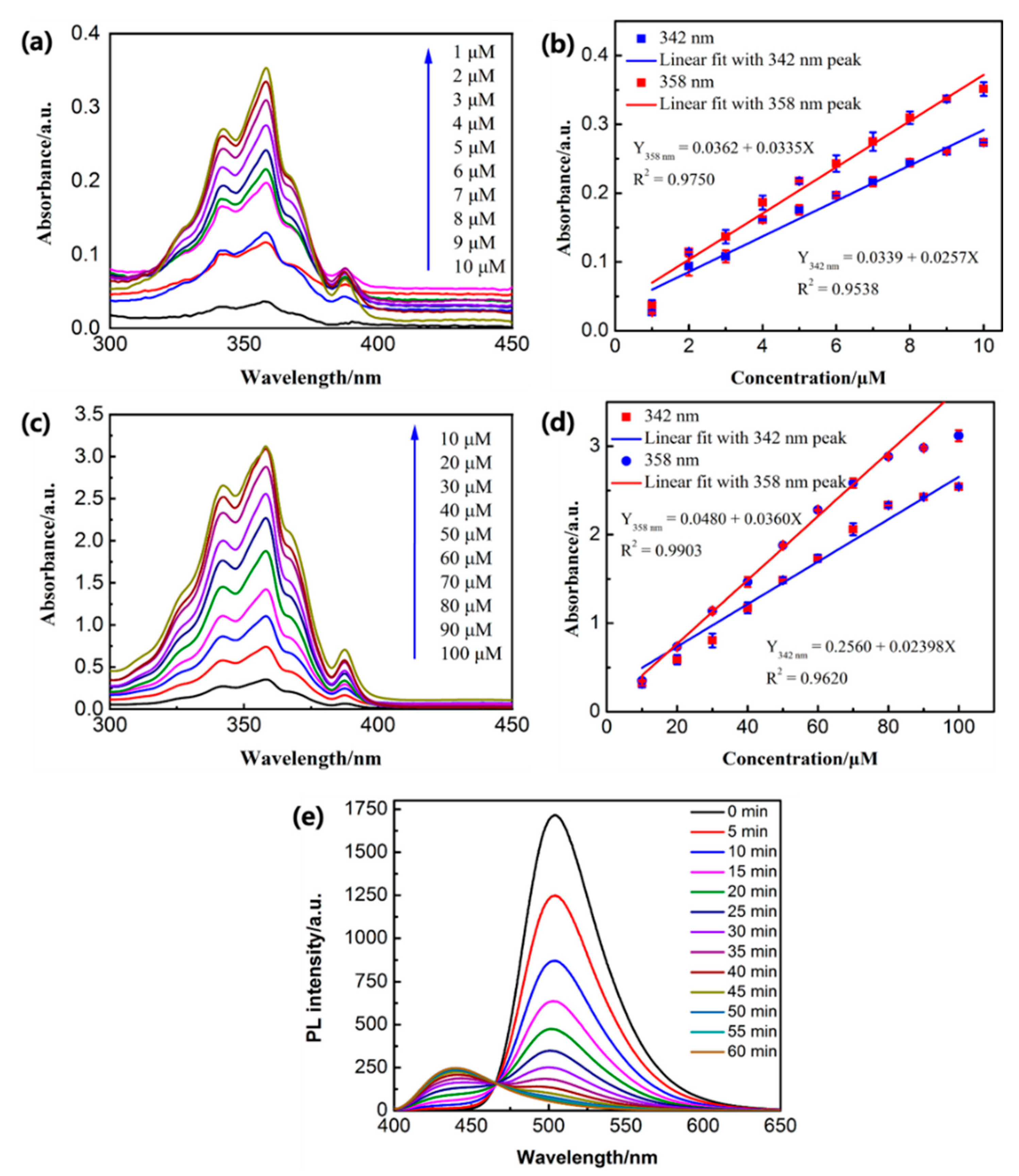

Figure 7. (a,c) UV–Vis absorption spectral changes of PE with different ranges of concentration (from 1–10 µM) and (from 10–100 µM). (b,d) linear regression corresponding to the different range of concentration showing the absorbance peaks at 342 nm and 358 nm. (e) PL titrations of PE (100 µM) in CH3CN with Fe3+ were exposed in air within 60 min.
Figure 7. (a,c) UV–Vis absorption spectral changes of PE with different ranges of concentration (from 1–10 µM) and (from 10–100 µM). (b,d) linear regression corresponding to the different range of concentration showing the absorbance peaks at 342 nm and 358 nm. (e) PL titrations of PE (100 µM) in CH3CN with Fe3+ were exposed in air within 60 min.
Nanomaterials 11 01801 g007
Nanomaterials 11 01801 g008 550

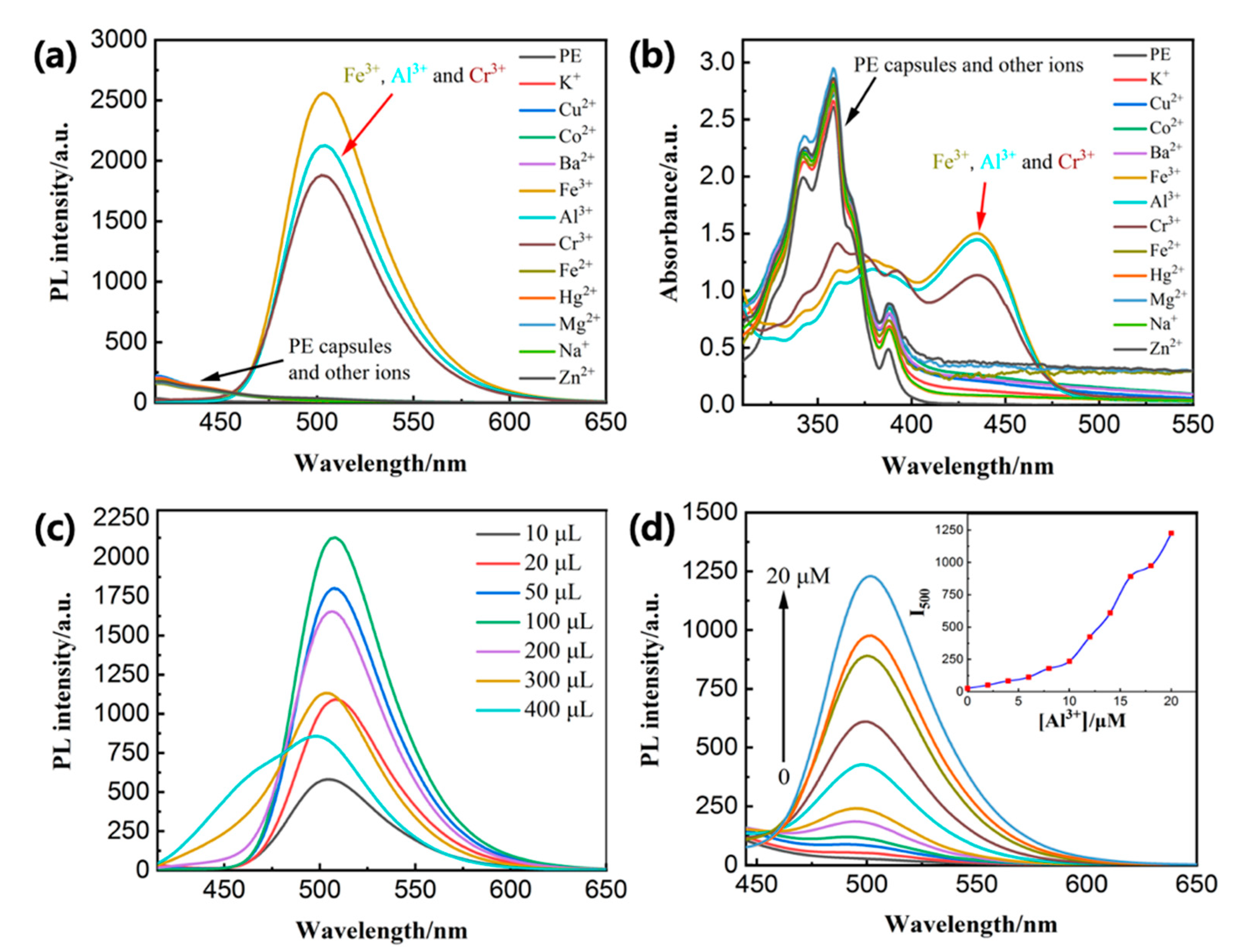

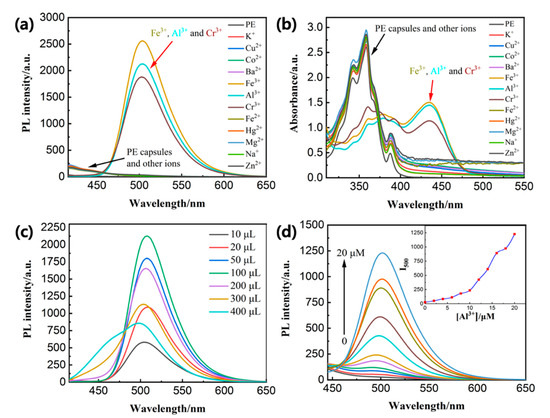

Figure 8. (a,b) Fluorescence responses (λex = 395 nm) and UV–Vis responses of the released PE/MNP microcapsules (2 mg in 10 mL CH3CN) towards 50 µM of various metal ions in H2O. (c) PL spectra of released PE/MNPs microcapsules (2 mg in 10 mL CH3CN) as a function of the increasing volume of 50 µM Al3+ in water (λex= 395 nm) from 10 to 400 µL. (d) PL (λex = 395 nm) titrations of released PE/MNP microcapsules (2 mg in 10 mL CH3CN) with Al3+ in water with an equal span of 2 µm; PL inset: intensity changes at 500 nm towards Al3+ concentration.
Figure 8. (a,b) Fluorescence responses (λex = 395 nm) and UV–Vis responses of the released PE/MNP microcapsules (2 mg in 10 mL CH3CN) towards 50 µM of various metal ions in H2O. (c) PL spectra of released PE/MNPs microcapsules (2 mg in 10 mL CH3CN) as a function of the increasing volume of 50 µM Al3+ in water (λex= 395 nm) from 10 to 400 µL. (d) PL (λex = 395 nm) titrations of released PE/MNP microcapsules (2 mg in 10 mL CH3CN) with Al3+ in water with an equal span of 2 µm; PL inset: intensity changes at 500 nm towards Al3+ concentration.
Nanomaterials 11 01801 g008
Nanomaterials 11 01801 g009 550

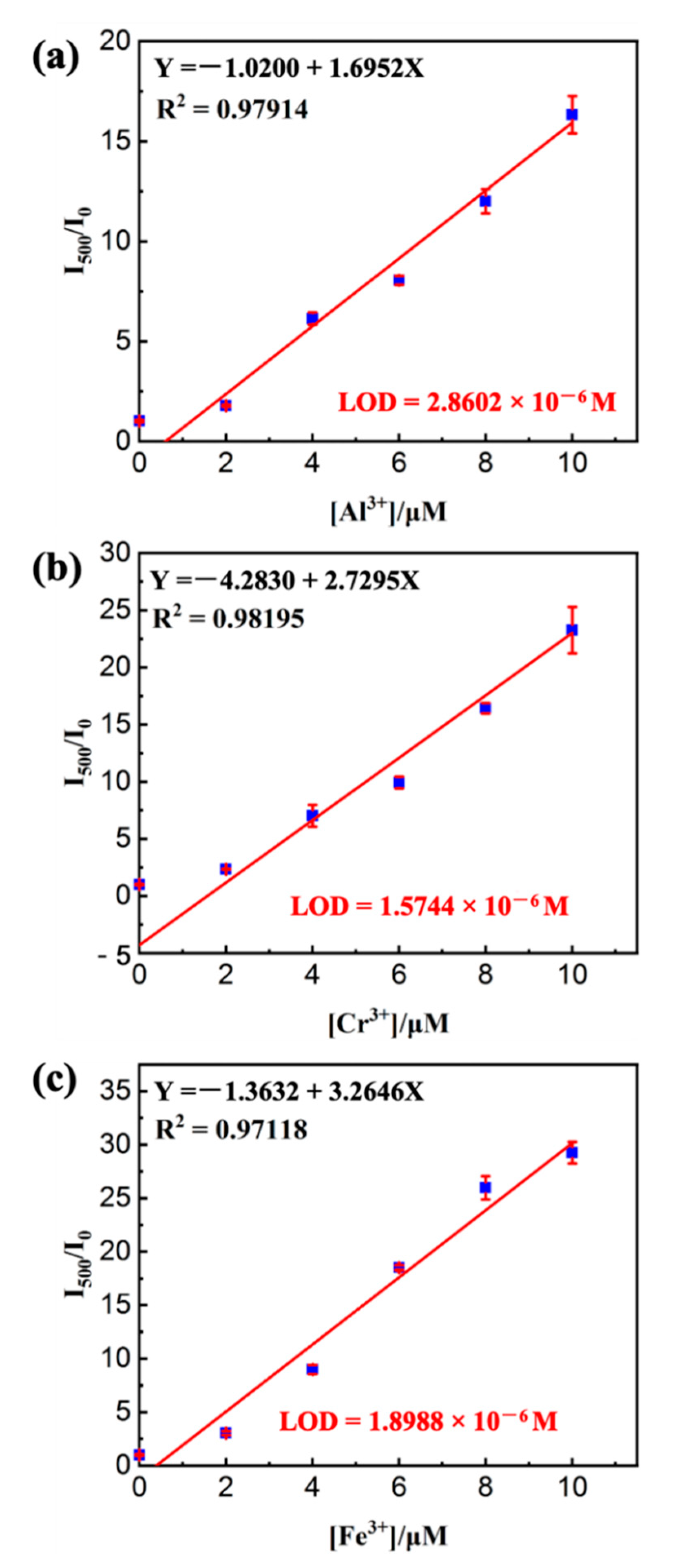

Figure 9. Standard deviation and linear fitting calculations for detection limits of (a) PE/MNPs microcapsules—Al3+ (b) PE/MNPs microcapsules—Cr3+ and (c) PE/MNPs microcapsules—Fe3+ based on PL intensity changes at 500 nm.
Figure 9. Standard deviation and linear fitting calculations for detection limits of (a) PE/MNPs microcapsules—Al3+ (b) PE/MNPs microcapsules—Cr3+ and (c) PE/MNPs microcapsules—Fe3+ based on PL intensity changes at 500 nm.
Nanomaterials 11 01801 g009
Table
Table 1. Comparison of previous reported pyrene-based derivative sensors for metal ions detection.
Table 1. Comparison of previous reported pyrene-based derivative sensors for metal ions detection.
ProbeMetal IonsSource of
Sample		LOD (μM)Ref.
Aminopropyl−1-pyrenebutanamide cucurbit [10] urilFe3+Deionized
water		550[54]
Bis(2-picolyl)amine-modified pyrene derivative with sodium dodecyl sulfateFe3+, Al3+, Mg2+, Pb2+, Ca2+ and Ba2+Mineral Water Samples 50[55]
3,3′,3′′,3′′′-(pyrene-1,3,6,8-tetrayltetrakis(sulfanediyl))tetrabenzoic acidPb2+-0.2[56]
1-(3,5-dihydropyren-1-yl)-2-((1-methyl-1,6-dihydropyrimidin-2-yl)thio)ethan-1-oneFe3+Deionized
water		3.06[57]
(E)-1-(pyren-1-yl)-N-tritylmethanimineHg2+Deionized
water		0.4[58]
1,5-dimethyl-2-phenyl-4-((pyren-1-ylmethylene)amino)-1H-pyrazol-3(2H)-oneCu2+-2.5[59]
1,2-bis(2-(4-(1,2,2-triphenylvinyl)phenyl)-1,3-dithiolan-2-yl)benzeneHg2+Distilled
water		10[60]
1-(pyren-1-yl)-N,N-bis-(pyridine-2-ylmethyl)methanamineCu2+, Fe3+Distilled
water		4.9[61]
6-methoxy-N-(pyren-1-ylmethylene)benzo[d]thiazol-2-amineFe3+, Fe2+Distilled
water		2.61[62]
2-((pyren-1-ylmethylene)amino)ethanolFe3+, Al3+ and Cr3+Distilled
water		0.106–0.117[49]
2-((pyren-1-ylmethylene)amino)ethanol magnetic-sensitive microcapsulesFe3+, Al3+ and Cr3+Tap water1.574–2.860This work
Table
Table 2. Determination of Fe3+/Cr3+/Al3+ ions in sample.
Table 2. Determination of Fe3+/Cr3+/Al3+ ions in sample.
SampleAdded Fe3+/Cr3+/Al3+ Concentration (μM)Detected Concentration a (μM)Recovery b (%)
Fe3+Cr3+Al3+Fe3+Cr3+Al3+
154.874 ± 0.1364.933 ± 0.2324.894 ± 0.18497.498.797.9
22019.739 ± 0.33719.349 ± 0.74818.972 ± 0.61298.796.794.7
35048.241 ± 0.61949.721 ± 1.28149.434 ± 0.94196.599.498.9
a Mean value and standard deviation of three measurements. b Detected value/spike conc.
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Du, B.-W.; Lin, C.-C.; Ko, F.-H. Trivalent Cations Detection of Magnetic-Sensitive Microcapsules by Controlled-Release Fluorescence Off-On Sensor. Nanomaterials 2021, 11, 1801. https://doi.org/10.3390/nano11071801

AMA Style

Du B-W, Lin C-C, Ko F-H. Trivalent Cations Detection of Magnetic-Sensitive Microcapsules by Controlled-Release Fluorescence Off-On Sensor. Nanomaterials. 2021; 11(7):1801. https://doi.org/10.3390/nano11071801

Chicago/Turabian Style

Du, Bo-Wei, Ching-Chang Lin, and Fu-Hsiang Ko. 2021. "Trivalent Cations Detection of Magnetic-Sensitive Microcapsules by Controlled-Release Fluorescence Off-On Sensor" Nanomaterials 11, no. 7: 1801. https://doi.org/10.3390/nano11071801

APA Style

Du, B. -W., Lin, C. -C., & Ko, F. -H. (2021). Trivalent Cations Detection of Magnetic-Sensitive Microcapsules by Controlled-Release Fluorescence Off-On Sensor. Nanomaterials, 11(7), 1801. https://doi.org/10.3390/nano11071801

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
