Nanoporous Co and N-Codoped Carbon Composite Derived from ZIF-67 for High-Performance Lithium-Sulfur Batteries

by
Songqiao Niu
,
Chenchen Hu
,
Yanyu Liu
,
Yan Zhao
* and
Fuxing Yin
*
School of Materials Science and Engineering, Hebei University of Technology, Tianjin 300130, China
*
Authors to whom correspondence should be addressed.
Nanomaterials 2021, 11(8), 1910; https://doi.org/10.3390/nano11081910
Submission received: 20 June 2021 / Revised: 13 July 2021 / Accepted: 14 July 2021 / Published: 25 July 2021
(This article belongs to the Section Energy and Catalysis)
Browse Figures
Versions Notes

Abstract

:
Lithium-sulfur (Li-S) batteries have nice prospects because of their excellent energy density and theoretical specific capacity. However, the dissolution of lithium polysulfides and shuttle effects lead to a low coulombic efficiency and cycle performance of Li-S batteries. Therefore, designing electrode materials that can suppress the shuttle effect and adsorb polysulfides is of great significance. In this work, a Co and N-codoped carbon composite via heating a type of Co-etched zeolitic imidazolate framework-67 (ZIF-67), nanocube precursor, in inert gas is reported as a cathode sulfur carrier material for Li-S batteries. The experimental results show that high-temperature carbonization results in mesoporous structures inside the material which not only provide ion channels for the reaction but also improve the adsorption capacity of polysulfides. Furthermore, the exposed metal Co sites and N atoms can also inhibit the shuttle effect. When the annealing temperature is 600 °C, the sulfur composite exhibits a good cycling stability and rate performance. The cathode showed an improved initial specific capability of 1042 and still maintained 477 mAh g−1 at the rate of 1 C (1 C = 1672 mA g−1). Furthermore, at 5 C, a stable specific discharge capacity of 608 mAh g−1 was obtained.

1. Introduction

With the rapid development of electric vehicles and portable electronic equipment, the demand for batteries’ storage and discharge capacity becomes higher. However, lithium-ion batteries, which are currently extremely widely used, can achieve limited improvement in capacity and energy density [1]. In contrast, lithium-sulfur (Li-S) batteries have a much higher theoretical specific capacity (1672 mAh g−1) and energy density (2600 Wh kg−1) [2,3,4]. Additionally, sulfur is environmentally benign and abundant on the Earth [5,6], making Li-S batteries a potential commercial battery system [7,8,9]. However, such batteries still face various challenges that need to be addressed [10,11]. First, sulfur and lithium sulfide are insulating materials, resulting in poor conductivity which affects the rate performance. Second, the significant difference in the densities of sulfur and lithium sulfide causes large volume changes during cycling, which damages the electrode materials. In addition, the formed discharge intermediate, namely, lithium polysulfide (LiPS), can be dissolved in the electrolyte, which will increase the viscosity of the electrolyte and reduce its conductivity, on the one hand; on the other hand, the LiPS will flow to the anode, which is called the shuttle effect, leading to the formation of lithium sulfide on the anode, reducing the utilization of sulfur. The above phenomena can adversely affect the battery performance, resulting in poor stability and a reduced cycle life [12,13,14,15,16,17].
To address the aforementioned problems, porous carbon-based nanomaterials have been considered as promising candidates as sulfur hosts because of their matrix, large number of pores and large specific surface area, exhibiting good conductivity, sufficient ion transport channels [18] and the adsorption of LiPS to restrict the shuttle effect [19].
An upcoming category of materials, which can be used to obtain porous carbon structures, is the metal–organic framework materials (MOFs) [20]. MOFs are materials consisting of uniform networks formed by the combination of metal ions or ion clusters with organic ligands. One type of zeolitic imidazolate framework, ZIF-67, is a Co-based MOF material that forms an inorganic porous structure with Co-N-C bridges on annealing in a protective atmosphere. The annealed material is essentially a carbon framework doped with N atoms, which can improve the conductivity, surface polarity and adsorption of LiPS, and Co nanoparticles, which can inhibit the shuttle effect by adsorbing LiPS and promoting its decomposition to short-chain Li2S/Li2S2 [21,22]. Based on the different functionalities of the MOF material, ZIF-67 is advantageous as a sulfur-loading electrode of Li-S batteries.
In this work, ZIF-67 was carbonized at high temperature, and the composition and structural differences in the material before and after heat treatment were analyzed. The two materials were used as sulfur-loading electrodes to prepare Li-S batteries, and their performance was studied. The experimental results show that the material changes from a microporous structure to a mesoporous structure after heat treatment, which enhances the storage and adsorption capacity of the material. Secondly, the bare metal sites of the material can catalyze the electrochemical reaction to reduce the loss of battery capacity. In addition, the framework structure of the material changes from organic to graphite, which improves the conductivity of the material, reduces the internal resistance of the batteries and improves the performance of the batteries significantly.

2. Experimental Section

2.1. Synthesis of ZIF-67 Nanocubes

First, 20 mg of hexadecyl trimethyl ammonium bromide (CTAB) and 730 mg of Co(NO3)2·6H2O were dissolved in 30 mL deionized water to obtain solution A, and 11.3 g of 2-methylimidazole was dissolved in 150 mL deionized water to obtain solution B. Secondly, the above two solutions were mixed and then stirred for 1 h. A uniform, purple-colored mixture was obtained, which was centrifuged to obtain the precipitate and then washed with deionized water twice, and ethanol twice. Finally, the substance was dried for 12–16 h to acquire ZIF-67 nanocubes.

2.2. Preparation of Co-NC600

In order to maintain the nanocube shape after heat treatment, the ZIF-67 powder was annealed in a tubular furnace at 300 °C at a heating rate of 5 °C min−1, kept for 2 h under Ar flow, then heated at 600 °C for 2 h with the same heating rate and, finally, cooled naturally. The as-obtained black powder was named Co-NC600.

2.3. Preparation of S/ZIF-67 and S/Co-NC600

ZIF-67 and Co-NC600 were subjected to the same treatment, described as follows, to prepare the sulfur-hosting matrix materials for the cathode, namely, S/ZIF-67 and S/Co-NC600, respectively. The powder was mixed with sublimated sulfur powder according to a mass ratio of 1:3 and ground for 30 min. Then, a small amount of CS2 solution was added to allow the sulfur to be fully dissolved, and the mixture was ground until CS2 completely evaporated. The obtained powder was poured into a poly tetra fluoroethylene (PTFE) hydrothermal reactor filled with argon and then sealed. Finally, the reactor was put in a constant temperature drying oven, at 155 °C for 12 h, to yield the required matrix material incorporated with sulfur.

2.4. Material Characterization

X-ray diffraction (XRD) patterns were obtained by (Bruker D8 Karlsruhe, Germany) diffractometer equipped with a Cu-Ka radiation source. The structural details of the microstructure were obtained by a field-emission scanning electron microscope (FE-SEM, Hitachi S-4800, Tokyo, Japan) combined with energy-dispersive spectroscopy (EDS) and a high-resolution transmission electron microscope (HRTEM, JEM-2100F, JEOL, Tokyo, Japan). The N2 adsorption/desorption analysis was conducted using Micromeritics ASAP 2020 (Norcross, GA, USA), in order to measure the porosity and specific surface area at 77 K. The elements and valence states of the products were analyzed by X-ray photoelectron spectroscopy (XPS, Thermo Fisher Scientific, ESCALAB 250Xi, Waltham, MA, USA). Thermogravimetric analysis (TGA, PerkinElmer, Series 7, Waltham, MA, USA) was carried out to reveal the weight content of sulfur in S/Co-NC600 at a heating rate of 10 °C min−1 in Ar flow.

2.5. Electrochemical Measurements

CR2032 coin-type cells were used to implement the electrochemical studies, where S/ZIF-67 and S/Co-NC600 were used as cathodes, and lithium foils were used as anodes. The electrolyte employed was 1 M lithium bis (trifluoromethane sulfonyl) imide (LiTFSI) in a mixed solvent which consisted of 1,2-dimethoxyethane (DME) and 1,3-dioxolane (DOL), with a volume ratio of 1:1, containing 1 wt% LiNO3. A Celgard 2325 polypropylene membrane was used as the separator.
Electrode slurries of S/ZIF-67 and S/Co-NC600 were produced by mixing S/ZIF-67 or S/Co-NC600, polyvinylidene fluoride (PVDF) binder and conductive carbon black (80%:10%:10%) in N-methyl pyrrolidinone (NMP) solvent. After stirring for 30 min, the slurry was evenly daubed onto Al foil and dried at 60 °C for 12 h. The charge/discharge performance and cycle life of the cells were evaluated on a Neware battery tester between 1.7 and 2.8 V. The cyclic voltammetry (CV) and electrochemical impedance spectroscopy (EIS) measurements were performed using an electrochemical workstation (Princeton Applied Research, Versa STAT4, Princeton, NJ, USA).

3. Results and Discussion

Scanning electron microscopy (SEM) images of ZIF-67 and Co-NC600 are shown in Figure 1a,b, respectively. It can be found that the surface of ZIF-67 in Figure 1a is smooth, and there is also a uniform particle size of about 300 nm. The nanocube morphology is different from the conventional dodecahedron because of the addition of CTAB, which changes the growth rate of different surfaces through adsorption on hydrophobic surfaces [23]. In contrast to the ZIF-67 nanocubes, the morphology of Co-NC600 changes slightly, as shown in Figure 1b. The cracking and crosslinking of organic ligands occur due to the heat treatment, which causes a certain degree of depression on the surface of Co-NC600 [24]. Figure 1c shows the TEM image of Co-NC600, which reveals a large number of large-sized pores compared with ZIF-67 shown in Figure S1, possibly due to the splitting of organic ligands. The HRTEM image is shown in Figure 1d, where two types of lattice fringes can be found in the red square and the blue square. The fast Fourier transformation (FFT) patterns of the squares are shown in Figure S2, in which there are many pairs of centrosymmetric light points, proving the existence of the crystal planes. Figure 1e shows that the applied masked points circled in Figure S1 and Figure 1f,g are the inverse FFT lattice images and the lattice spacing contours of Figure 1e. By such figures, it can be measured that two types of layer spacing of 0.340 nm in the red square and 0.177 nm in the blue square of Figure 1d correspond to the (002) crystal face of carbon and the (200) crystal plane of cobalt metal, respectively. It can be found in Figure 1d that Co nanoparticles are inset in the graphitic carbon framework. The high-magnification elemental maps of Co-NC600 are shown in Figure 1h. It can be seen that Co, C and N are evenly distributed onto the nanocubes. Thus, the organic ligands were annealed to form N-doped graphitic carbon frameworks in which the Co nanoparticles were uniformly embedded. The SEM image of S/Co-NC600 and the corresponding elemental mappings in Figure S3 clearly reveal the homogeneous distribution of C, Co and S elements, and that sulfur is well confined in the Co-NC600 nanocubes.
The XRD patterns of ZIF-67 and Co-NC600 are shown in Figure 2a. In the pattern of ZIF-67, the sharp peak at 7.2° indicates that the prepared ZIF-67 nanocubes have good crystallinity [25]. In the pattern of Co-NC600, there are three distinct peaks at 44.2°, 51.5° and 75.8°, which correspond to the characteristic peaks of the (1 1 1), (2 0 0) and (2 2 0) crystal planes of the metal Co, suggesting that when annealed at 600 °C, the metallic Co particles are exposed. XPS was used to analyze the chemical composition of Co-NC600, whose N, C and Co element XPS spectra are shown in Figure 2b–d. As it is shown in the C 1s spectrum of Figure 2b, it can be found that there are four types of carbon bonds, which correspond to C–C at 284.5 eV, C–N at 285.1 eV, C–O at 286.0 eV and C=O at 288.2 eV. From the high-resolution N 1s spectrum, it can be seen that there are three types of N peaks, i.e., pyridinic N at 398.5 eV, pyrrolic N at 399.2 eV and graphitic N at 400.7 eV [24,26,27]. The vacancy and defect sites due to N doping tend to promote the adsorption of LiPS on the porous material and enhance the reaction kinetics. In addition, the Co 2p spectra of Co-NC600 have four peaks, which, at 779.2 eV and 795.1 eV, correspond to the main peaks of Co 2p3/2 and Co 2p1/2, respectively, and the other peaks at 784.8 eV and 801.2 eV are the satellite peaks of the above two peaks, respectively. The analysis shows that both main peaks consist of Co (778.6 eV of 2p3/2 and 794.4 eV of 2p1/2) and Co2+ (780.5 eV for 2p3/2 and 796.1 eV for 2p1/2) peaks. The existence of the Co2+ signal is mainly due to the nano-sized Co exposed on the surface of the materials that is partially oxidized by air. The presence of nano-sized transition metals can also enhance the adsorption and catalytic capabilities of the materials.
The as-prepared S/Co-NC600 powders were analyzed by TGA, as shown in Figure 3a. When the temperature increases from 150 to 330 °C, the reference sulfur powder sublimates and almost completely disappears, while the mass of S/Co-NC600 reduces to only 29.8%. XPS tests of S/Co-NC600 after annealing were performed to prove that sulfur does not remain in the material during the TGA process, as shown in Figure S4. The above results suggest that the mass proportion of sulfur in the prepared S/Co-NC600 is 70.2%, which reveals that Co-NC600 has a good sulfur loading capacity. Compared with S/Co-NC600, the mass of S/ZIF-67 decreases to 35.1% in the same temperature range, indicating that the mass proportion of sulfur in S/ZIF-67 is 64.9%. It is not difficult to see that Co-NC600 has a better sulfur content than ZIF-67.
Figure 3b shows the N2 adsorption/desorption isotherms of ZIF-67 and Co-NC600. The ZIF-67 nanocubes have a high Brunauer-Emmett-Teller (BET) surface area of 1672 m2 g−1, while, in comparison, the surface area of Co-NC600 is 266 m2 g−1. After annealing ZIF-67, the BET surface area was significantly reduced, mainly due to the gradual disappearance of the microporous structure in the nanocubes and the formation of a more mesoporous structure, which can be confirmed in Figure 3c. The average pore diameter of Co-NC600 was observed to be 7.67 nm, which was much larger than that of ZIF-67 (1.62 nm).
The ability to capture polysulfides was visualized by a static adsorption test. A typical type of LiPS was used in the test, namely, Li2S6. Figure 3d shows a pristine Li2S6 solution, along with the adsorption results of the Li2S6 solution with ZIF-67 and Co-NC600. After the mixtures were left for 12 h to allow adsorption, the color of the mixture containing Co-NC600 was the lightest, the mixture containing ZIF-67 was lighter than before and the reference showed no color change. The results show that Co-NC600 was more effective at adsorbing Li2S6 than ZIF-67. UV–Vis spectra further confirmed such a conclusion. As it is shown in Figure 3d, the solution containing Co-NC600 shows the lowest Li2S6-related absorbance peak. This indicates that the amount of Li2S6 in the supernatant of the Co-NC600 addition was the lowest, which proves that Co-NC600 had better LiPS adsorption. Co-NC600 is better than ZIF-67 in adsorbing LiPS, firstly because the larger pore structure makes the material more capable of catching LiPS, and secondly because the exposed metal Co nanoparticles in the material interact strongly with LiPS, which anchors LiPS.
Figure 3e shows the XPS spectra of Co-NC600 before and after Li2S6 adsorption. The appearance of the S 2p peak proves the existence of adsorbed polysulfides. Figure 3f shows the detailed S 2p spectrum in the XPS spectra of Co-NC600 after Li2S6 adsorption, where the two pairs of peaks at 161.2 and 163.0 eV are attributed to the terminal sulfur (ST) and bridging sulfur (SB), respectively. The peaks appearing at 169.4 and 168.2 eV illustrate the formation of sulfate and thiosulfate, indicating that the metal Co can react with LiPS chemically, and Co-NC600 has the ability of chemisorption of LiPS.
The electrochemical properties of S/Co-NC600 cathodes were tested, which can be seen in Figure 4. The cyclic voltammogram (CV) curves of the S/Co-NC600 electrodes are shown in Figure 4a. The scanning speed was set to 1 mV s−1 for three cycles at the range from 1.7 to 2.8 V. The CV shows two related reduction peaks near 2.3 and 2.0 V during discharge, which correspond to the reduction of sulfur to long-chain polysulfide (Li2Sx, 4 ≤ x ≤ 8) and the further reduction of polysulfide to Li2S2/Li2S. In the anodic sweep, the oxidation peaks at 2.4 V correspond to the oxidation of Li2S/Li2S2 to Li2S8. It is obvious that the three cycle curves almost coincide, which shows that the electrodes have a good electrochemical performance and cycle stability.
Figure 4b,c show the constant current charge/discharge curves of the S/ZIF-67 and S/Co-NC600 electrodes at a rate of 0.2 C (1 C=1672 mA g−1), respectively. The initial specific discharge and charge capacities of the S/ZIF-67 electrode are 968 and 1033 mAh g−1, and after 100 cycles, the specific capacities decrease to 478 and 492 mAh g−1, respectively. In contrast, the S/Co-NC600 electrode has a higher specific capacity, with initial specific discharge and charge capacities of 1237 and 1228 mAh g−1, which decrease to 782 and 796 mAh g−1 after 100 cycles. The S/Co-NC600 electrode demonstrates a higher specific capacity than the S/ZIF-67 electrode. Similar to other reports of sulfur-based cathodes, the curves have two platforms corresponding to two reduction reactions in all discharge processes of the S/Co-NC600 electrode. During the cycle test, the good overlap of the discharge plateau also shows that the electrode has good stability and reversibility.
The cycling performances of the two types of electrodes were tested at 0.2 C by constant current charge/discharge measurements. In Figure 4d, after 100 cycles, the capacity retention rate is 63%. Such results are better than those of the S/ZIF-67 electrode under the same experimental conditions (the capacity retention rate is 49%), thus demonstrating that S/Co-NC600 has a higher sulfur utilization rate. This is because the metal Co can hold LiPS to inhibit the shuttle effect and reduce the loss of sulfur.
Figure 4e shows the rate capability test of the two electrodes. When the current density increases from 0.2 to 5.0 C, the specific discharge capacity of S/Co-NC600 changes from 1216 to 608 mAh g−1. On the other hand, the specific discharge capacity of the S/ZIF-67 electrode changes from 960 to 441 mAh g−1. Thus, the S/Co-NC600 electrode showed a better electrochemical performance than the S/ZIF-67 electrode. Moreover, when the current rate is restored to 0.2 C, the specific discharge capacity of the S/Co-NC600 electrode can still reach 1033 mAh g−1, indicating that the electrode demonstrated a good recovery. Such properties can be attributed to the structural properties and material composition of Co-NC600. Annealing treatment at high temperatures results in a higher mesopore content, which renders the porous matrix better at sulfur storage and facilitates ion conduction. The exposed metal active sites can also adsorb LiPS to significantly suppress the shuttle effect, which enhances the performance of the batteries.
Figure 4f shows the EIS spectra of the two types of batteries, and the inset is the equivalent circuit, in which Rct, Zw, constant phase angle element (CPE) and R0 stand for the charge transfer resistance, ionic transport resistance, constant phase angle element and other resistance, respectively. The semicircles at the high frequency in the EIS spectra represent Rct, while the approximate straight lines at the low frequency correspond to Zw [28]. Compared with the EIS spectra of the S/ZIF-67 electrode, the S/Co-NC600 electrode has a smaller radius semicircle, which means the Rct of the S/Co-NC600 electrode is smaller. The electrode resistance data obtained from the equivalent circuit in Table S1 can also prove such a conclusion. This implies that the charge transfer at the S/Co-NC600 electrode/polysulfide interface is faster, indicating that Co-NC600 efficiently converts LiPS. In addition, the S/Co-NC600 electrode also has a smaller Zw, which indicates that the suitable enlarged pore structure can make ion transmission more convenient.
For Li-S battery applications, long-term cycle stability and good capacity retention are critical requirements. The batteries composed of the S/ZIF-67 and S/Co-NC600 electrodes were charged and discharged for 1000 cycles at the rate of 1.0 C. As it is shown in Figure 4g, S/Co-NC600 exhibits an initial specific discharge capacity of 1042 mAh g−1 and maintains this at 477 mAh g−1 after 1000 cycles. The capacity retention rate is 46%, and the average capacity decay rate per cycle is 0.06%. Compared with the S/Co-NC600 electrode, the S/ZIF-67 electrode has a specific discharge capacity of 827 mAh g−1 at the first cycle, and after 1000 cycles, the specific discharge capacity is 237 mAh g−1, whose capacity retention rate is 29%. Compared with S/ZIF-67, S/Co-NC600 had a higher specific capacity and better cycling stability.
Co-NC600 has a better electrochemical performance, which benefits from its unique structure. First, Co-NC600 contains more mesopores which are conducive to the adsorption of LiPS, the loading of sulfur and the transport of ions and electrolytes. Secondly, the exposed Co nanoparticles on the carbon frameworks play a very important role in the adsorption of LiPS, which suppresses the shuttle effect. The metal nanoparticles can also greatly enhance the redox reaction kinetics of polysulfides through electrocatalysis. In addition, the doped N atoms induce more active defect sites, which are conducive to a better fixation of polysulfide, thereby effectively suppressing the polysulfide shuttle effect.
Considering the critical importance of sulfur loading of the cathode in practical applications, the cycle performance of the S/Co-NC600 electrode, at a higher sulfur loading, was measured. A coin cell with a sulfur load of 3.68 mg cm−2 was assembled and measured for 100 cycles, at the current rate of 1 C. It can be seen in Figure 4h that the initial specific discharge capacity of the battery is 838 mAh g−1, which then decreases to 592 mAh g−1 after 100 cycles, and the capacity retention rate is 71%. Inevitably, batteries with a higher sulfur load usually suffer from more severe shuttle effects and higher electrochemical polarization, which will lead to a lower sulfur utilization, faster capacity decay and worse cycling stability. Capacity decay was observed in the first three cycles, which may be related to the low sulfur utilization and an increase in the sulfur density. After three cycles, the S/Co-NC600 electrode exhibited high coulombic efficiency, indicating a highly stable performance. The results further reveal that the porous structure and the presence of N atoms and Co nanoparticles were highly conducive to the adsorption and catalysis of polysulfides.
The electrochemical properties of S/Co-NC600 were compared with those of S/ZIF-derived materials reported in the literature, whose results are summarized in Table 1. The proper structured S/Co-NC600 electrode consisting of porous carbon frameworks and plenty of metal nanoparticles shows an excellent initial capacity. Of note, some reported ZIF materials can form regular structures on a larger scale by compounding with conductive carbon materials (CNT, rGO, etc.), which further enhances the ability of sulfur carrying and LiPS adsorption and ultimately improves the performance of Li-S batteries. This provides a new idea for improving the specific capacity and stability of S/Co-NC600 electrodes.
To compare the electrocatalytic activities of Co-NC600 and ZIF-67, the diffusion rates of lithium ions in Li-S batteries with S/Co-NC600 and S/ZIF-67 electrodes were measured by CV tests at various scanning rates from 0.1 to 1 mV s−1, as shown in Figure 5. By observing and analyzing the results of Figure 5a,b, it can be found that the peak potential of the S/Co-NC600 electrode changes little with the increase in the scanning rate, and the peak potential of the S/ZIF-67 electrode changes more obviously, which shows that the cells with the S/Co-NC600 electrode have a more stable electrochemical performance. The comparison of the diffusion coefficients of lithium ions is based on the classical Randles–Sevick equation:
Ip = 2.69 × 105 n3/2 A DLi1/2 v1/2 CLi (at room temperature)
where Ip is the peak current, n is the number of charges involved in the reaction, DLi represents the diffusion coefficient of Li in the electrode, v is the scanning rate and CLi represents the concentration of Li+ in the electrolyte. According to the formula, there is a linear relationship between Ip and v1/2, and between Ip/v1/2 and DLi1/2. When the other parameters are the same, the larger the Ip/v1/2 value, the larger the DLi value, and the stronger the diffusion ability of lithium ions. The linear relationship between IP and v1/2 in Figure 5a,b was analyzed, as shown in Figure 5c,d. It can be found that the values of Ip/v1/2 of the S/Co-NC600 electrode (KA = 0.963, KB = 0.398 and KC = 0.236) are obviously larger than those of S/ZIF-67 (KA = 0.635, KB = 0.390 and KC = 0.196). This result shows that the lithium ions in the batteries with S/Co-NC600 electrodes have a better diffusion ability.
The Warburg coefficient in the EIS test can be used to further calculate the lithium ion diffusion coefficient in the battery, as the following equation [36]:
DLi = 1/2 (RT/An2F2Cσw)2
where R is the universal gas constant (8.314 J mol−1 K−1), T is the room temperature (298.15 K), A is the area of the electrode surface, n is the number of electron(s) per molecule oxidized F is Faraday’s constant (96,500 C mol−1), C is the concentration of lithium ions and σw is the Warburg coefficient. σw can be measured by the slope of Z’ (the real part of impedance) and ω (the angular frequency, 2πf)−1/2 in the low-frequency region, as shown in Figure S5. Table 2 shows the value of σw and DLi in the S/ZIF-67 and S/Co-NC600 batteries. Compared with ZIF-67, Co-NC600 has a better ability to promote the diffusion of lithium ions, which can promote the redox process of lithium polysulfide to inhibit the shuttle effects. This is due to the exposed metal Co nanoparticles on the Co-NC600 surface, providing catalytic reaction sites.

4. Conclusions

Using ZIF-67 as a template, a Co and N-codoped graphitic carbon material (Co-NC600) was prepared by an annealing process, and both materials were used as cathode materials in Li-S batteries. The microscopic morphology, phase composition and pore structure of the material were analyzed by various measurement methods. Through various analyses, it was found that, compared with ZIF-67, Co-NC600 has conductive carbon frameworks, a larger pore structure and exposed metal nanoparticles. Carbon frameworks can improve the electrical conductivity of the material; an appropriately sized pore structure can improve the abilities of loading sulfur and adsorbing lithium polysulfides; and exposed metal nanoparticles can allow the material to carry on the chemical adsorption of the lithium polysulfides to impede the shuttle effect. Subsequently, the electrochemical performance of different electrodes was systematically studied. This work shows that the performance of the S/Co-NC600 composite electrode is significantly better. The specific discharge capacity in the first cycle at a current rate of 1 C was 1042 mAh g−1 and remained at 477 mAh g−1 after 1000 cycles. Even at a high current density, at 5.0 C, a stable specific discharge capacity of 608 mAh g−1 can be attained.

Supplementary Materials

The following are available online at https://www.mdpi.com/article/10.3390/nano11081910/s1, Figure S1. TEM image of ZIF-67 nanocubes; Figure S2. FFT patterns of (a) red square and (b) blue square in the HRTEM image of Co-NC600; Figure S3. Elemental mapping of S/Co-NC600; Figure S4. XPS spectra of S/Co-NC600 after annealing at 350 °C under Ar flow; Figure S5. The liner fit between Z’ and ω−1/2 in the batteries with S/ZIF-67 and S/Co-NC600 electrodes; Table S1. Electrode resistance data of S/ZIF-67 and S/Co-NC600 cathodes obtained from the equivalent circuit.

Author Contributions

Formal analysis, S.N. and C.H.; investigation, S.N. and Y.L.; writing—original draft, S.N.; writing—review and editing, F.Y. and Y.Z.; supervision, F.Y.; project administration, Y.Z. All authors have read and agreed to the published version of the manuscript.

Funding

This work was supported by the Natural Science Foundation of Hebei Province of China (Grant No. B2019202277).

Data Availability Statement

No new data were created or analyzed in this study. Data sharing is not applicable to this article.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Wu, H.; Li, Y.; Ren, J.; Rao, D.; Zheng, Q.; Zhou, L.; Lin, D. CNT-assembled dodecahedra core@nickel hydroxide nanosheet shell enabled sulfur cathode for high-performance lithium-sulfur batteries. Nano Energy 2019, 55, 82–92. [Google Scholar] [CrossRef]
  2. Bruce, P.G.; Freunberger, S.A.; Hardwick, L.J.; Tarascon, J.M. Li-O2 and Li-S batteries with high energy storage. Nat. Mater. 2011, 11, 19–29. [Google Scholar] [CrossRef] [PubMed]
  3. Han, K.S.; Chen, J.; Cao, R.; Rajput, N.N.; Murugesan, V.; Shi, L.; Pan, H.; Zhang, J.G.; Liu, J.; Persson, K.A.; et al. Effects of Anion Mobility on Electrochemical Behaviors of Lithium-Sulfur Batteries. Chem. Mater. 2017, 29, 9023–9029. [Google Scholar] [CrossRef]
  4. Li, Z.; Wu, H.B.; Lou, X.W.D. Rational designs and engineering of hollow micro-/nanostructures as sulfur hosts for advanced lithium-sulfur batteries. Energy Environ. Sci. 2016, 9, 3061–3070. [Google Scholar] [CrossRef] [Green Version]
  5. Nazar, L.F.; Cuisinier, M.; Pang, Q. Lithium-sulfur batteries. MRS Bull. 2014, 39, 436–442. [Google Scholar] [CrossRef] [Green Version]
  6. Xu, J.; Zhang, W.X.; Chen, Y.; Fan, H.B.; Su, D.W.; Wang, G.X. MOF-derived porous N-Co3O4@N-C nanododecahedra wrapped with reduced graphene oxide as a high capacity cathode for lithium-sulfur batteries. J. Mater. Chem. A 2018, 6, 2797–2807. [Google Scholar] [CrossRef]
  7. Pope, M.A.; Aksay, I.A. Structural Design of Cathodes for Li-S Batteries. Adv. Energy Mater. 2015, 5, 1500124. [Google Scholar] [CrossRef]
  8. Jin, Z.Q.; Xie, K.; Hong, X.B. Review of Electrolyte for Lithium Sulfur Battery. Acta Chim. Sin. 2014, 72, 11. [Google Scholar] [CrossRef] [Green Version]
  9. Li, Z.; Yuan, L.X.; Yi, Z.Q.; Sun, Y.M.; Liu, Y.; Jiang, Y.; Shen, Y.; Xin, Y.; Zhang, Z.L.; Huang, Y.H. Insight into the Electrode Mechanism in Lithium-Sulfur Batteries with Ordered Microporous Carbon Confined Sulfur as the Cathode. Adv. Energy Mater. 2014, 4, 1301473. [Google Scholar] [CrossRef]
  10. Li, F.Q.; Zhu, Z.H. Development of lithium/sulfur battery and its facing challenge. Chin. J. Power Sour. 2016, 5, 1142–1144. [Google Scholar]
  11. Fotouhi, A.; Auger, D.J.; Propp, K.; Longo, S.; Wild, M. A review on electric vehicle battery modelling: From Lithium-ion toward Lithium-Sulphur. Renew. Sustain. Energy Rev. 2016, 56, 1008–1021. [Google Scholar] [CrossRef] [Green Version]
  12. Huang, J.Q.; Zhang, Q.; Wei, F. Multi-functional separator/interlayer system for high-stable lithium-sulfur batteries: Progress and Prospects. Energy Storage Mater. 2015, 1, 127. [Google Scholar] [CrossRef]
  13. Pan, H.L.; Han, K.S.; Vijayakumar, M.; Xiao, J.; Cao, R.G.; Chen, J.Z.; Zhang, J.G.; Mueller, K.T.; Shao, Y.Y.; Liu, J. Ammonium Additives to Dissolve Lithium Sulfide through Hydrogen Binding for High-Energy Lithium-Sulfur Batteries. ACS Appl. Mater. Interfaces 2017, 9, 4290–4295. [Google Scholar] [CrossRef] [PubMed]
  14. Zhang, X.Q.; Cheng, X.B.; Zhang, Q. Nanostructured energy materials for electrochemical energy conversion and storage: A review. J. Energy Chem. 2016, 25, 967–984. [Google Scholar] [CrossRef]
  15. Liu, D.; Zhang, C.; Zhou, G.; Lv, W.; Ling, G.; Zhi, L.; Yang, Q.H. Catalytic Effects in Lithium-Sulfur Batteries: Promoted Sulfur Transformation and Reduced Shuttle Effect. Adv. Sci. 2017, 5, 1700270. [Google Scholar] [CrossRef]
  16. Bhattacharya, P.; Nandasiri, M.I.; Lv, D.P.; Schwarz, A.M.; Darsell, J.T.; Henderson, W.A.; Tomalia, D.A.; Liu, J.; Zhang, J.G.; Xiao, J. Polyamidoamine dendrimer-based binders for high-loading lithium-sulfur battery cathodes. Nano Energy 2016, 19, 176–186. [Google Scholar] [CrossRef] [Green Version]
  17. Huang, C.; Xiao, J.; Shao, Y.Y.; Zheng, J.M.; Bennett, W.D.; Lu, D.P.; Saraf, L.V.; Engelhard, M.; Ji, L.W.; Zhang, J.G.; et al. Manipulating surface reactions in lithium-sulphur batteries using hybrid anode structures. Nat. Commun. 2014, 5, 1–8. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  18. Xu, Y.H.; Wen, Y.; Zhu, Y.J.; Gaskell, K.; Cychosz, K.A.; Eichhorn, B.; Xu, K.; Wang, C.S. Confined Sulfur in Microporous Carbon Renders Superior Cycling Stability in Li/S Batteries. Adv. Funct. Mater. 2015, 25, 4312–4320. [Google Scholar] [CrossRef]
  19. Chong, W.G.; Huang, J.Q.; Xu, Z.L.; Qin, X.Y.; Wang, X.Y.; Kim, J.K. Lithium-Sulfur Battery Cable Made from Ultralight, Flexible Graphene/Carbon Nanotube/Sulfur Composite Fibers. Adv. Funct. Mater. 2017, 27, 1604815. [Google Scholar] [CrossRef]
  20. Xia, W.; Mahmood, A.; Zou, R.Q.; Xu, Q. Metal-organic frameworks and their derived nanostructures for electrochemical energy storage and conversion. Energy Environ. Sci. 2015, 8, 1837–1866. [Google Scholar] [CrossRef]
  21. Xia, Y.; Fang, R.Y.; Xiao, Z.; Huang, H.; Gan, Y.P.; Yan, R.J.; Lu, X.H.; Liang, C.; Zhang, J.; Tao, X.Y.; et al. Confining Sulfur in N-Doped Porous Carbon Microspheres Derived from Microalgaes for Advanced Lithium-Sulfur Batteries. ACS Appl. Mater. Interfaces 2017, 9, 23782–23791. [Google Scholar] [CrossRef]
  22. Li, Y.J.; Fang, J.M.; Zhang, J.H.; Yang, J.F.; Yuan, R.M.; Chang, J.K.; Zheng, M.S.; Dong, Q.F. A Honeycomb-like Co@N-C Composite for Ultrahigh Sulfur Loading Li-S Batteries. ACS Nano 2017, 11, 11417–11424. [Google Scholar] [CrossRef] [PubMed]
  23. Hu, H.; Guan, B.Y.; Lou, X.W. Construction of Complex CoS Hollow Structures with Enhanced Electrochemical Properties for Hybrid Supercapacitors. Chem 2016, 1, 102–113. [Google Scholar] [CrossRef] [Green Version]
  24. Park, S.K.; Kim, J.K.; Kim, J.H.; Kang, Y.C. Metal organic framework-templated hollow Co3O4 nanosphere aggregate/N-doped graphitic carbon composite powders showing excellent lithium-ion storage performances. Mater. Charact. 2017, 132, 320–329. [Google Scholar] [CrossRef]
  25. Zhang, H.; Zhao, W.Q.; Zou, M.C.; Wang, Y.S.; Chen, Y.J.; Xu, L.; Wu, H.S.; Cao, A.Y. 3D, Mutually Embedded MOF@Carbon Nanotube Hybrid Networks for High-Performance Lithium-Sulfur Batteries. Adv. Energy Mater. 2018, 8, 1800013. [Google Scholar] [CrossRef]
  26. Xu, Y.Z.; Wei, J.C.; Tan, L.C.; Yu, J.; Chen, Y.W. A Facile approach to NiCoO2 intimately standing on nitrogen doped graphene sheets by one-step hydrothermal synthesis for supercapacitors. J. Mater. Chem. A 2015, 3, 7121–7131. [Google Scholar] [CrossRef]
  27. Lin, Z.Y.; Waller, G.H.; Liu, Y.; Liu, M.L.; Wong, C.P. 3D Nitrogen-doped graphene prepared by pyrolysis of graphene oxide with polypyrrole for electrocatalysis of oxygen reduction reaction. Nano Energy 2013, 2, 241–248. [Google Scholar] [CrossRef]
  28. Ge, X.L.; Li, C.X.; Li, Z.Q.; Yin, L.W. Tannic acid tuned metal-organic framework as a high-efficiency chemical anchor of polysulfide for lithium-sulfur batteries. Electrochim. Acta 2018, 281, 700–709. [Google Scholar] [CrossRef]
  29. Kang, X.; Di Bernardo, I.; Yang, H.L.; Torres, J.F.; Zhang, L. Metal-organic framework microdomains in 3D conductive host as polysulfide inhibitor for fast, long-cycle Li-S batteries. Appl. Surf. Sci. 2021, 535, 147680. [Google Scholar] [CrossRef]
  30. Zhang, H.; Zou, M.C.; Zhao, W.Q.; Wang, Y.S.; Chen, Y.J.; Wu, Y.Z.; Dai, L.X.; Cao, A.Y. Highly Dispersed Catalytic Co3S4 among a Hierarchical Carbon Nanostructure for High-Rate and Long-Life Lithium-Sulfur Batteries. Acs Nano 2019, 13, 3982–3991. [Google Scholar] [CrossRef]
  31. Cui, G.L. Li, G.R.; Luo, D.; Zhang, Y.G.; Zhao, Y.; Wang, D.R.; Wang, J.Y.; Zhang, Z.; Wang, X.; Chen, Z.W.; Three-dimensionally ordered macro-microporous metal organic frameworks with strong sulfur immobilization and catalyzation for high-performance lithium-sulfur batteries. Nano Energy 2020, 72, 104685. [Google Scholar]
  32. Wang, J.H.; Gao, L.; Zhao, J.J.; Zheng, J.D.; Wang, J.; Huang, J.R. A facile in-situ synthesis of ZIF-8 nanoparticles anchored on reduced graphene oxide as a sulfur host for Li-S batteries. Mater. Res. Bull. 2021, 133, 111061. [Google Scholar] [CrossRef]
  33. Geng, P.B.; Cao, S.; Guo, X.T.; Ding, J.W.; Zhang, S.T.; Zheng, M.B.; Pang, H. Polypyrrole coated hollow metal-organic framework composites for lithium-sulfur batteries. J. Mater. Chem. A 2019, 7, 19465–19470. [Google Scholar] [CrossRef]
  34. Zhang, N.; Yang, Y.; Feng, X.R.; Yu, S.H.; Seok, J.; Muller, D.A.; Abruna, H.D. Sulfur encapsulation by MOF-derived CoS2 embedded in carbon hosts for high-performance Li-S batteries. J. Mater. Chem. A 2019, 7, 21128–21139. [Google Scholar] [CrossRef]
  35. Wu, Z.L.; Wang, L.; Chen, S.X.; Zhu, X.M.; Deng, Q.; Wang, J.; Zeng, Z.L.; Deng, S.G. Facile and low-temperature strategy to prepare hollow ZIF-8/CNT polyhedrons as high-performance lithium-sulfur cathodes. Chem. Eng. J. 2021, 404, 126579. [Google Scholar] [CrossRef]
  36. Cao, Q.; Zhang, H.P.; Wang, G.J.; Xia, Q.; Wu, Y.P.; Wu, H.Q. A novel carbon-coated LiCoO2 as cathode material for lithium ion battery. Electrochem. Commun. 2007, 9, 1228–1232. [Google Scholar] [CrossRef]
Nanomaterials 11 01910 g001 550
Figure 1. SEM images of (a) ZIF-67 and (b) Co-NC600; (c) TEM image and (d) HRTEM image of Co-NC600; (e) applied masked points of FFT patterns; (f) inverse FFT lattice images of (e); (g) the lattice spacing contour of Co-NC600; (h) elemental mapping of Co-NC600.
Figure 1. SEM images of (a) ZIF-67 and (b) Co-NC600; (c) TEM image and (d) HRTEM image of Co-NC600; (e) applied masked points of FFT patterns; (f) inverse FFT lattice images of (e); (g) the lattice spacing contour of Co-NC600; (h) elemental mapping of Co-NC600.
Nanomaterials 11 01910 g001
Nanomaterials 11 01910 g002 550

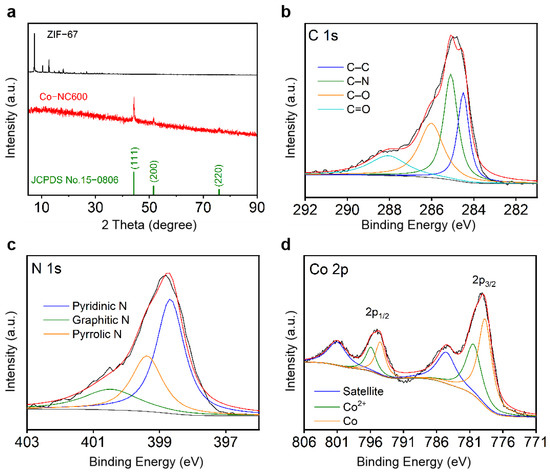

Figure 2. (a) XRD pattern of ZIF-67 and Co-NC600; XPS spectra of (b) C 1s, (c) N 1s and (d) Co 2p for Co-NC600.
Figure 2. (a) XRD pattern of ZIF-67 and Co-NC600; XPS spectra of (b) C 1s, (c) N 1s and (d) Co 2p for Co-NC600.
Nanomaterials 11 01910 g002
Nanomaterials 11 01910 g003 550

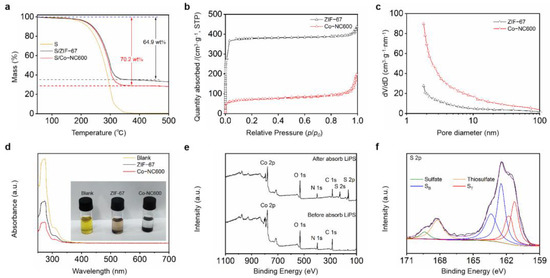

Figure 3. (a) TGA curves of S powder and S/Co-NC600; (b) N2 adsorption/desorption isotherms; (c) pore size distributions of ZIF-67 and Co-NC600; (d) UV–Vis spectra of Li2S6 (pristine, with ZIF-67 and Co-NC600), where inset shows the corresponding photograph after 12 h, ZIF-67 and Co-NC600; (e) XPS spectra of Co-NC600 before and after Li2S6 adsorption and (f) S 2p spectra of Co-NC600 after Li2S6 adsorption.
Figure 3. (a) TGA curves of S powder and S/Co-NC600; (b) N2 adsorption/desorption isotherms; (c) pore size distributions of ZIF-67 and Co-NC600; (d) UV–Vis spectra of Li2S6 (pristine, with ZIF-67 and Co-NC600), where inset shows the corresponding photograph after 12 h, ZIF-67 and Co-NC600; (e) XPS spectra of Co-NC600 before and after Li2S6 adsorption and (f) S 2p spectra of Co-NC600 after Li2S6 adsorption.
Nanomaterials 11 01910 g003
Nanomaterials 11 01910 g004 550

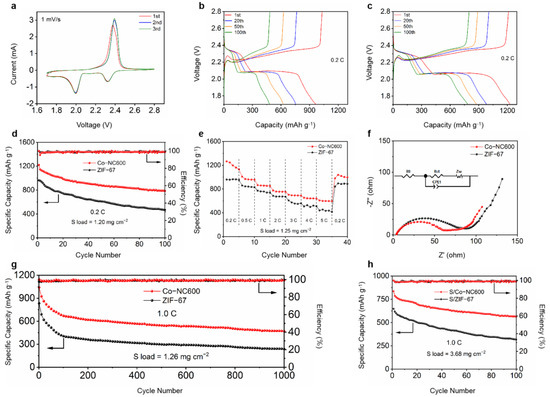

Figure 4. (a) CV curves of the cells with the S/Co-NC600 electrode; charge/discharge profiles of (b) S/ZIF-67 and (c) Co-NC600 electrodes; (d) cycling performances of S/ZIF-67 and S/Co-NC600 electrodes; (e) rate performances of S/ZIF-67 and S/Co-NC600 electrodes; (f) EIS spectra of cells with the cathodes of S/ZIF-67 and S/Co-NC600, where the inset is the equivalent circuit used to fit the impedance spectrum; (g) long-term cycling performances of S/ZIF-67 and S/Co-NC600; and (h) cycling performances of high-sulfur loading electrodes. The meaning of arrow in d, g and h is to show what the ordinate of the corresponding curve means. The left arrow represents the specific capacity and the right arrow represent efficiency of the curves.
Figure 4. (a) CV curves of the cells with the S/Co-NC600 electrode; charge/discharge profiles of (b) S/ZIF-67 and (c) Co-NC600 electrodes; (d) cycling performances of S/ZIF-67 and S/Co-NC600 electrodes; (e) rate performances of S/ZIF-67 and S/Co-NC600 electrodes; (f) EIS spectra of cells with the cathodes of S/ZIF-67 and S/Co-NC600, where the inset is the equivalent circuit used to fit the impedance spectrum; (g) long-term cycling performances of S/ZIF-67 and S/Co-NC600; and (h) cycling performances of high-sulfur loading electrodes. The meaning of arrow in d, g and h is to show what the ordinate of the corresponding curve means. The left arrow represents the specific capacity and the right arrow represent efficiency of the curves.
Nanomaterials 11 01910 g004
Nanomaterials 11 01910 g005 550

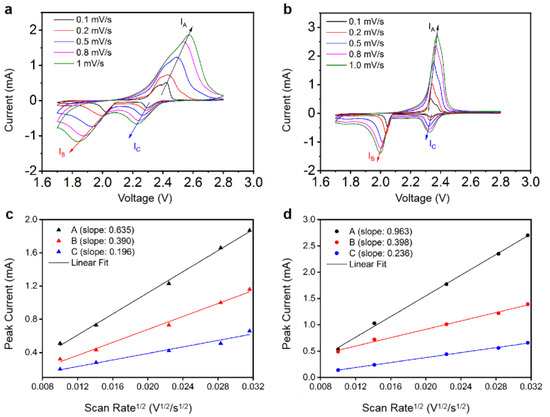

Figure 5. CV curves and corresponding linear fits of the peak currents of Li-S cells with (a,c) S/ZIF-67 cathode and (b,d) S/Co-NC600 cathode.
Figure 5. CV curves and corresponding linear fits of the peak currents of Li-S cells with (a,c) S/ZIF-67 cathode and (b,d) S/Co-NC600 cathode.
Nanomaterials 11 01910 g005
Table
Table 1. The performance of various ZIF-derived materials as sulfur-carrying materials reported in the literature.
Table 1. The performance of various ZIF-derived materials as sulfur-carrying materials reported in the literature.
Sulfur-Carrier MaterialsCurrent RateInitial Discharge Capacity (mAh g−1)Cycle NumberAverage Capacity Decay Rate (%)Reference
Co-NC6001 C104210000.06In this work
ZIF-8@3DC1 C/3 C1098200/8000.04 (3 C)[29]
CNTs/Co3S4@NC5 C85010000.0137[30]
3DOM ZIF-82 C8025000.028[31]
ZIF-8@rGO1 C678300-[32]
ZIF-67-PPy0.1 C1093200-[33]
Z-CoS21 C~92010000.04[34]
HZIF/CNT0.5 C9865000.073[35]
Table
Table 2. The value of the lithium ion diffusion coefficient and Warburg coefficient in the two types of batteries.
Table 2. The value of the lithium ion diffusion coefficient and Warburg coefficient in the two types of batteries.
Sulfur-Carrier MaterialsZIF-67Co-NC600
σw (Ω s−1/2)41.15.6
DLi (cm2 s−1)1.8 × 10−151.9 × 10−13
