Review

Progress in Preparation of ZrB2 Nanopowders Based on Traditional Solid-State Synthesis

by
Liuyang Bai
1,*,
Yuge Ouyang
2 and
Fangli Yuan
3
1
College of Energy Engineering, Huanghuai University, Zhumadian 463800, China
2
College of Chemistry and Materials Engineering, Beijing Technology and Business University, Beijing 100048, China
3
State Key Laboratory of Multiphase Complex Systems, Institute of Process Engineering, Chinese Academy of Sciences, Beijing 100190, China
*
Author to whom correspondence should be addressed.
Nanomaterials 2021, 11(9), 2345; https://doi.org/10.3390/nano11092345
Submission received: 14 August 2021 / Revised: 5 September 2021 / Accepted: 6 September 2021 / Published: 9 September 2021
(This article belongs to the Special Issue Inorganic Nanoparticles: Synthesis, Characterization and Nanoscopic Properties)
Browse Figures
Versions Notes

Abstract

:
ZrB2 is of particular interest among ultra-high temperature ceramics because it exhibits excellent thermal resistance at high temperature, as well as chemical stability, high hardness, low cost, and good electrical and thermal conductivity, which meet the requirements of high-temperature components of hyper-sonic aircraft in extreme environments. As raw materials and basic units of ultra-high temperature ceramics and their composites, ZrB2 powders provide an important way for researchers to improve material properties and explore new properties by way of synthesis design and innovation. In recent years, the development of ZrB2 powders’ synthesis method has broken through the classification of traditional solid-phase method, liquid-phase method, and gas-phase method, and there is a trend of integration of them. The present review covers the most important methods used in ZrB2 nanopowder synthesis, focusing on the solid-phase synthesis and its improved process, including modified self-propagating high-temperature synthesis, solution-derived precursor method, and plasma-enhanced exothermic reaction. Specific examples and strategies in synthesis of ZrB2 nano powders are introduced, followed by challenges and the perspectives on future directions. The integration of various synthesis methods, the combination of different material components, and the connection between synthesis and its subsequent application process is the trend of development in the future.

1. Introduction

Ultra-high temperature ceramics (UHTCs) mainly include refractory borides, carbides, and nitrides of some transition metals, such as ZrB2, HfB2, ZrC, and TaC, the melting points of which are usually above 3000 °C [1,2,3,4,5,6,7]. UHTCs and their composites have attracted great attention in the past two decades as potential heat-resistance candidates used in hyper-sonic aircraft and high-performance aircrafts [8,9,10,11,12,13,14,15]. Among these UHTCs, borides are considered superior due to their combination of excellent properties, including thermal shock resistance, creep resistance, and thermal conductivity [16,17,18,19]. Among all the borides, ZrB2 and HfB2 exhibit best oxidation resistance at high temperatures, as well as good electrical and thermal conductivity, chemical stability, and high hardness [20,21,22,23,24]. ZrB2 and HfB2 can realize long-time non-ablation in an oxidizing environment above 2000 °C. Furthermore, between these two diborides, ZrB2 has a relatively lower density and lower cost than HfB2, so it is preferred over HfB2 and mostly studied as industrially appealing ultra-high temperature ceramic powders [25].
ZrB2 powders not only act as the basic unit of UHTCs and their composites, but also provide an important way for researchers to improve material properties and explore new properties by way of synthesis design and innovation. To reach the extreme state of UHTCs, it is often necessary to change the original properties of materials, and the most effective methods to change the properties include particle refinement and recombination in the ultra-fine state [26]. Therefore, powder technology, especially powder synthesis technology, plays an important role in the field of UHTCs. As a matter of fact, in addition to powder synthesis, particle size and gradation control, modification, and assembly are also involved in the preparation of UHTCs and composites. Guo J. K. has pointed out that understanding physical and chemical problems in powder preparation, thermodynamics, and kinetics in the sintering process and the relationship between material microstructure and their properties is the basic guarantee for obtaining material reliability and stability [27,28].
Powders with high purity, ultra-fine, and uniform particle size are the basic raw materials for the preparation of advanced performance UHTCs and their composites [29,30]. It has been demonstrated that when the particle size decreases into the nanoscale, the ZrB2 powders exhibit an excellent sintering ability and facilitate the formation of nano-grained materials and C–C composites with improved mechanical properties. Therefore, different methods have been established for the synthesis of ZrB2 nanopowders [31,32,33,34,35,36,37]. Amongst them, solid-state synthesis, including the borothermic reduction method, carbothermic reduction method, and metallothermic reduction method, is mostly used because the process is simple and the raw materials are cheap and easily available. However, the solid-phase reaction between raw material components is difficult to complete. One cannot obtain high-purity uniform nanopowders directly and crushing is always necessary after high-temperature synthesis, which consumes a lot of extra energy and may adversely affect purity [38]. During the solid-state synthesis, especially when SHS is involved, the formation of coarse particles is unavoidable as a result of high temperature sintering [39].
In recent years, the development of ceramic powder synthesis methods has broken through the traditional classification of a solid-phase method, a liquid-phase method, and a gas-phase method, and there is a trend of integration of various methods, such as semichemical methods in which the precursors for solid-state synthesis are prepared using aqueous solution instead of solid raw materials to improve reaction activity, and the low-temperature combustion synthesis method combining the spray pyrolysis method of both liquid- and gas-phase methods [40,41,42,43,44].
There are many similar studies on the synthesis of ZrB2 nanopowders and significant progress has been made almost every year. The present review covers the most important methods used in ZrB2 nanopowder synthesis, focusing on the solid-phase synthesis and its improved process. Specific examples and strategies in the synthesis of ZrB2 nanopowders are introduced, followed by the challenges in ZrB2 nanopowder synthesis and the perspectives on future directions.

2. Solid-State Synthesis

Solid-state synthesis plays a unique important role in the preparation of ZrB2 powders. Generally, ceramic synthesis can be divided into gas-phase, liquid-phase, and solid-phase methods according to the state of reactants. However, boron-containing gases mainly include toxic boron trichloride and spontaneously combustible borane, the safety of which when used in large quantities is difficult to guarantee. Therefore, the solid-phase process has almost become the inevitable choice of ZrB2 powders.
Solid-state synthesis mainly includes direct reaction between elemental boron and zirconium powders, carbothermal reduction reaction, and magnesiothermic reduction reaction. In a direct reaction method, ZrB2 powders are obtained by completing the following reaction [45,46,47]:
Zr + 2B → ZrB2

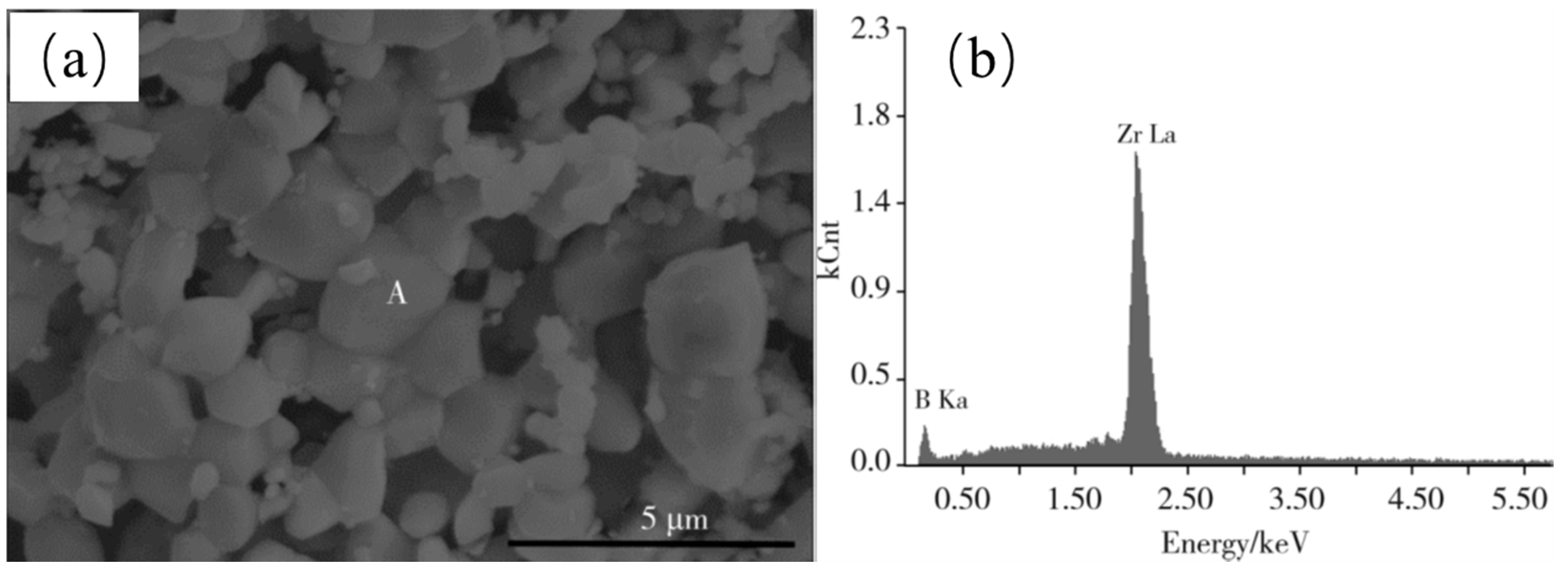

The advantage of this method is that the purity of the powders is relatively high. However, the raw materials are expensive and the metallic zirconium is difficult to preserve and transport. The products are of large particle size and low sintering activity, which is not conducive to post-processing and final application. Therefore, the direct reaction method is difficult to realize in industrial production and also rarely appears in the latest literature [48,49].
In the carbothermal reduction reaction and magnesiothermic reduction reaction, zirconia (ZrO2) is applied as one of the raw materials to provide Zr for the synthesis of ZrB2, and carbon or magnesium are introduced into the reaction system to reduce ZrO2 to Zr. The reduction reactions are as follows:
ZrO2 + 2C → Zr + 2CO(g)
ZrO2 + 2Mg → Zr + 2MgO
These two reactions are exothermic, and the heat of the reactions promotes the continuous progress of the reaction in turn, which is the reason they are named carbothermal and magnesiothermic reduction reactions. When the heat of a reaction is sufficient, it will successively trigger the adjacent raw material layer to react and subsequently release more heat, so that the reaction automatically propagates in the form of a combustion wave until completion without any other energy supply from outside after initiation. This process is called self-propagation high-temperature synthesis (SHS) [50,51,52]. Adiabatic temperature (Tad) is a temperature that the exothermic reaction system can reach in an insulated environment, which is an important parameter to predict a SHS process. Varma A. proposed a thermodynamic criterion for judging the maintenance of a SHS process according to the value of Tad: if Tad > 1800 K, the SHS can continue; if Tad ˂ 1500 K, the heat released by the reaction is not enough to make the combustion reaction continue; if 1500 K ˂ Tad ˂ 1800 K, the system must be provided with additional energy from the outside to continue [53,54].
The common carbothermal reduction systems for synthesizing ZrB2 powders include ZrO2-B4C-C, ZrO2-B2O3-C, and ZrC-B2O3-C as below:
2ZrO2 + B4C + 3C → 2ZrB2 + 4CO(g)
ZrO2 + B2O3 + 5C → ZrB2 + 5CO(g)
ZrC + B2O3 + 2C → ZrB2 + 3CO(g)
The magnesiothermic reduction system of Mg-ZrO2-B2O3 is usually chosen for synthesizing ZrB2 powders as below:
ZrO2 + B2O3 + 5Mg → ZrB2 + 5MgO
The calculated Tad of Equation (7) is 3085 K, which is much higher than 1800 K, so the reaction system of Mg-ZrO2-B2O3 is a typical SHS system, which is the most-used technique for ZrB2 powders both in laboratory and industry [55,56,57].

3. Modified Self-Propagating High-Temperature Synthesis

In a general SHS process for the production of ZrB2 powders, there are mainly four steps. The first is to prepare green reactive mixture; the second to press the green mixture; the third is to sinter using the SHS process; and fourth is to post-treat the SHS products. There are two ways to initiate the SHS reaction. One way is to heat reactants in a small area and initiate the reaction from one point, and the exothermic combustion would consequently heat the surrounding reactants and self-sustained propagation throughout the whole area. The other way is that the entire body of the green reactive mixture is pre-heated uniformly in a high temperature environment until the reaction is initiated overall [52,58].
Though the reaction is initiated from a small area and self-propagated throughout the whole body in a classical SHS method, cold pressing of the green mixture into dense compacts is usually necessary to facilitate heat and mass transfer between reactants. However, pressed green compacts would lead to serious sintering and agglomeration of the products, which exist in the form of porous sintered blocks. Further milling of the sintered products and sieving of the powders to desired grades is needed.
In order to solve the problem mentioned above, different additives were introduced into the SHS system in order to adjust the combustion temperature and isolate ZrB2 particles from each other to get well-dispersed nanoparticles. Zhang W. studied the Mg-ZrO2-B2O3-MgCl2 and Mg-ZrO2-B2O3-NaB4O7 system and Zhang T. studied the Mg-ZrO2-B2O3-MgO system for the preparation of ZrB2 powders by SHS [59,60,61].Figure 1 shows FESEM images of the ZrB2 powders synthesized without any diluents and the EDS image of point A. Figure 2 shows XRD patterns of ZrB2 powders prepared with different content of NaB4O7.

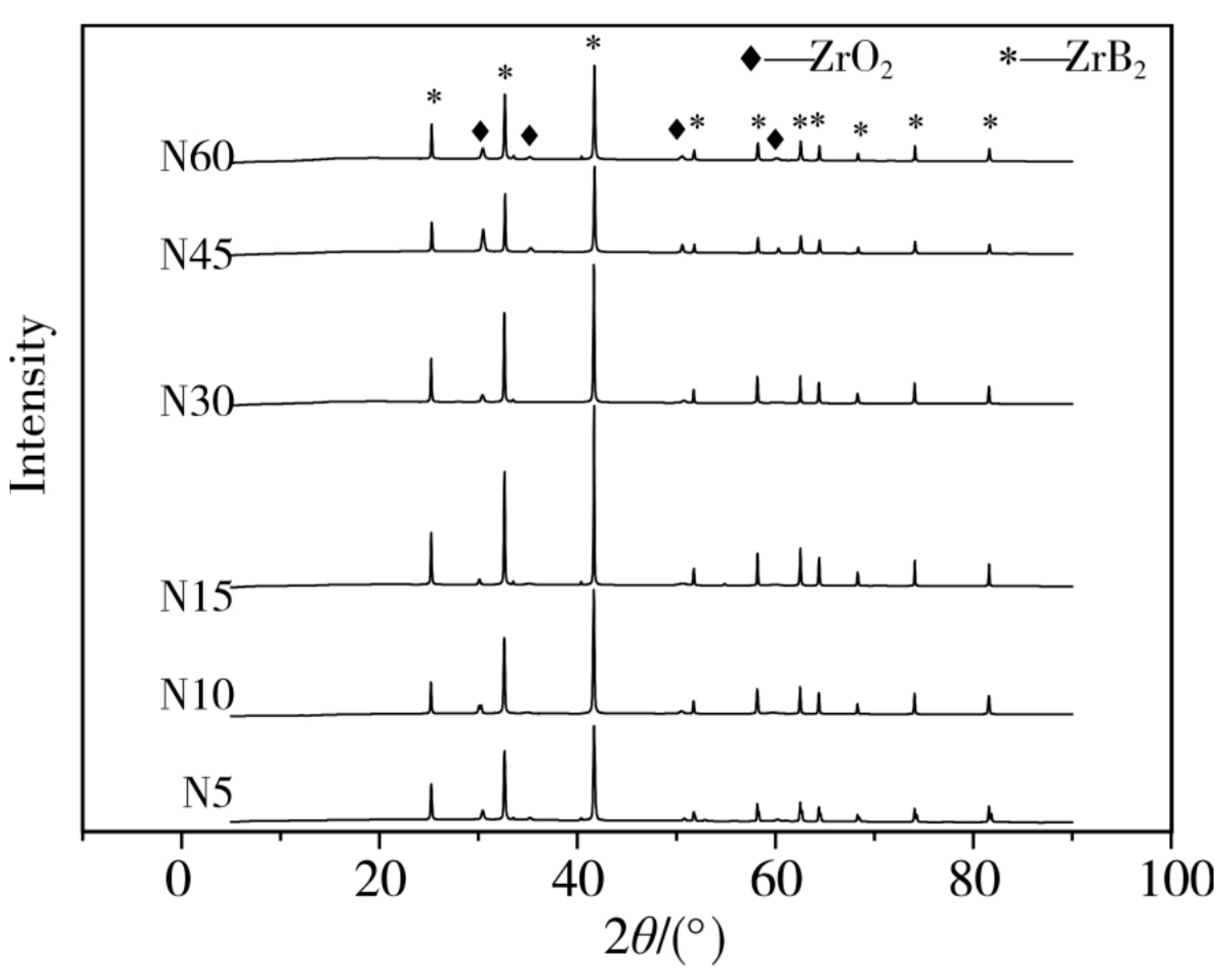

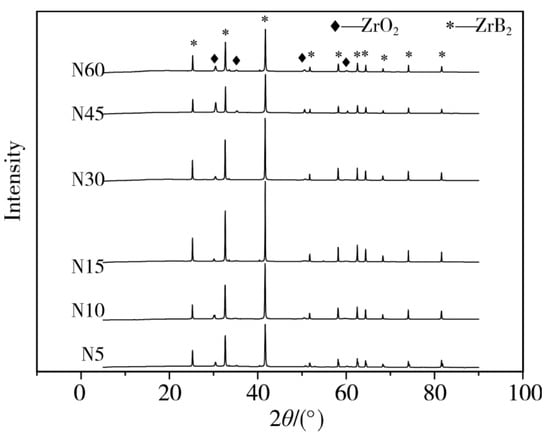

Results showed that an optimum amount of MgCl2 and NaB4O7 could decrease the grain size of ZrB2 powders effectively, while there was also a significant improvement in ZrB2 purity. Particle size of ZrB2 powders decreased with the increase of MgO content and reached the lowest value of 0.41 μm when the content of MgO was 30%, and the specific surface area was the biggest at 20.02 m2/g. The purity of ZrB2 powders could be raised by increasing Mg and B2O3 content in the raw materials. When stoichiometric amounts of Mg, ZrO2, and B2O3 were mixed as reactants in which Mg is 30% excessive and B2O3 is 5% excessive, the purity of ZrB2 powders was the highest at 96.31% with the Zr content of 77.88%, the B content of 18.43%, and the O content of 1.28%.
Khanra A. K. synthesized ultrafine ZrB2 powders by SHS from a mixture of H3BO3, ZrO2, and Mg. The experiments were carried out within a tubular furnace and Ar flow was provided continuously into the reaction system. The crystallite sizes of ZrB2 powders calculated using Scherrer formula based on XRD characterization results are given in Table 1. The addition of NaCl to the green mixture as inert diluent decreased the combustion temperature and helped yield ultrafine ZrB2 powders [62]. NaCl melted and vaporized partially in the synthesis process and became coated on ZrB2 particles, inhibiting the nanograin from growing into big particles. NaCl addition also decreased the adiabatic temperature, which might also contribute to the reduction of the grain size.
The other approach for ZrB2 powder production is to use a non-pressed green mixture to avoid sintering and agglomeration at high temperature. Heat and mass transfer become difficult due to the porosity of non-compacted samples, and the reaction has difficulty in automatically propagating without any energy supply from outside after initiation. Therefore, the entire body of the sample needs to be placed in a high temperature environment and heated uniformly. Since the melting point of B2O3 is only 450 °C, the green mixture will become inhomogeneous due to B2O3 loss during the pre-heating process. The heating temperature of the furnace needs to be higher than the reaction temperature when ΔG < 0. Some researchers used B instead of B2O3 as a raw material to overcome B loss. Moreover, the fast heating technique provided another strategy to eliminate segregation and loss of low melting/boiling point raw materials. Field-assisted heating technologies represent an excellent experimental base for researchers engaged in the discovery of new materials, which opens up wide opportunities for modeling the processes of materials consolidation and synthesis while taking into account numerous physical phenomena [63].
We synthesized well-dispersed submicro ZrB2 powders using a Mg-ZrO2-B reaction system, in which Mg, ZrO2, and B were intimately mixed by ball milling to get the green mixture and packed directly in a graphite crucible without being pressed into a high-density compact material. A fast heating and high temperature furnace were designed to guarantee the heat and mass transfer between naturally packed raw materials and decrease Mg loss at the pre-heating and initial stages of the reaction. In this work, the low packing density of the green mixture and high heating temperature of the designed induction heating furnace were crucial for the formation of well-dispersed submicro powders [64]. The heating program had great effects on the purity and particle size of the synthesized ZrB2 powders.

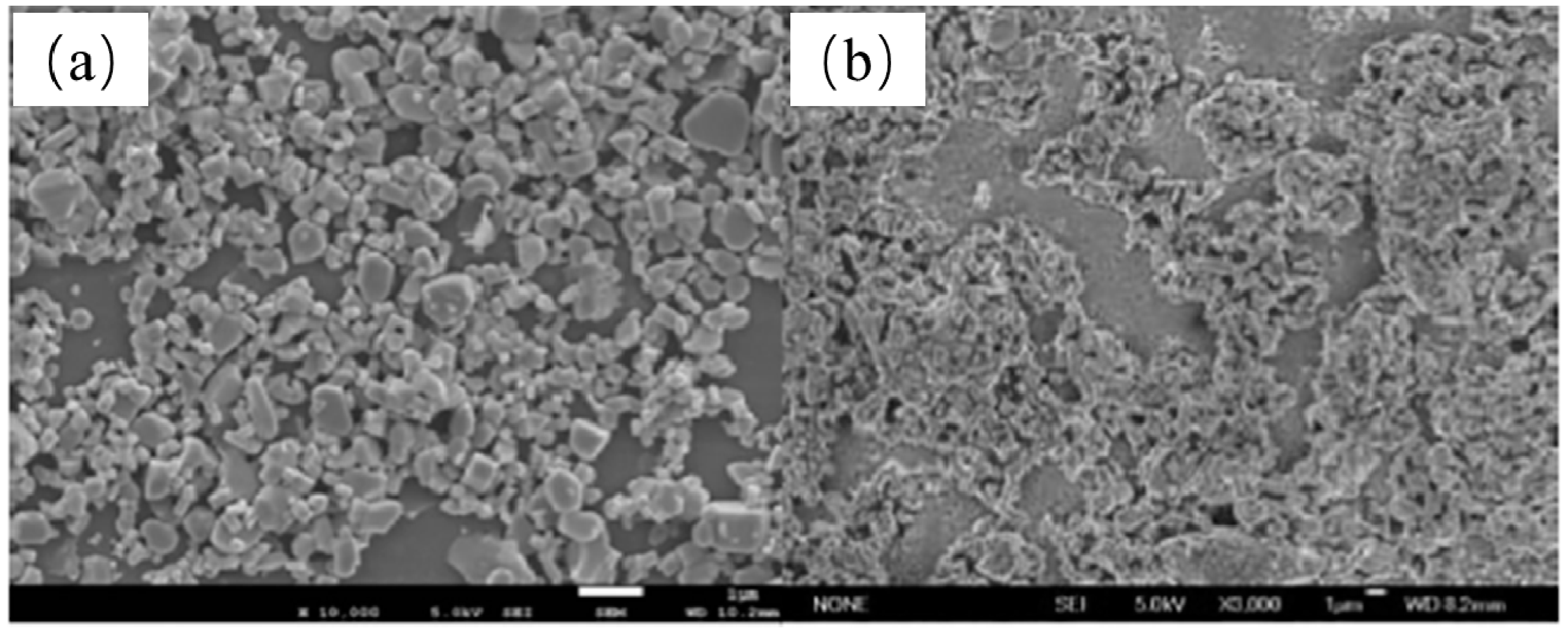

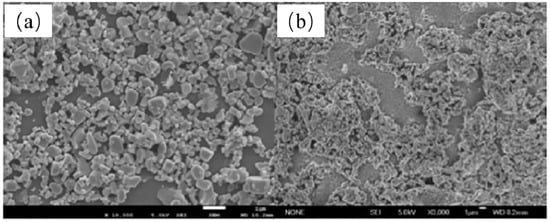

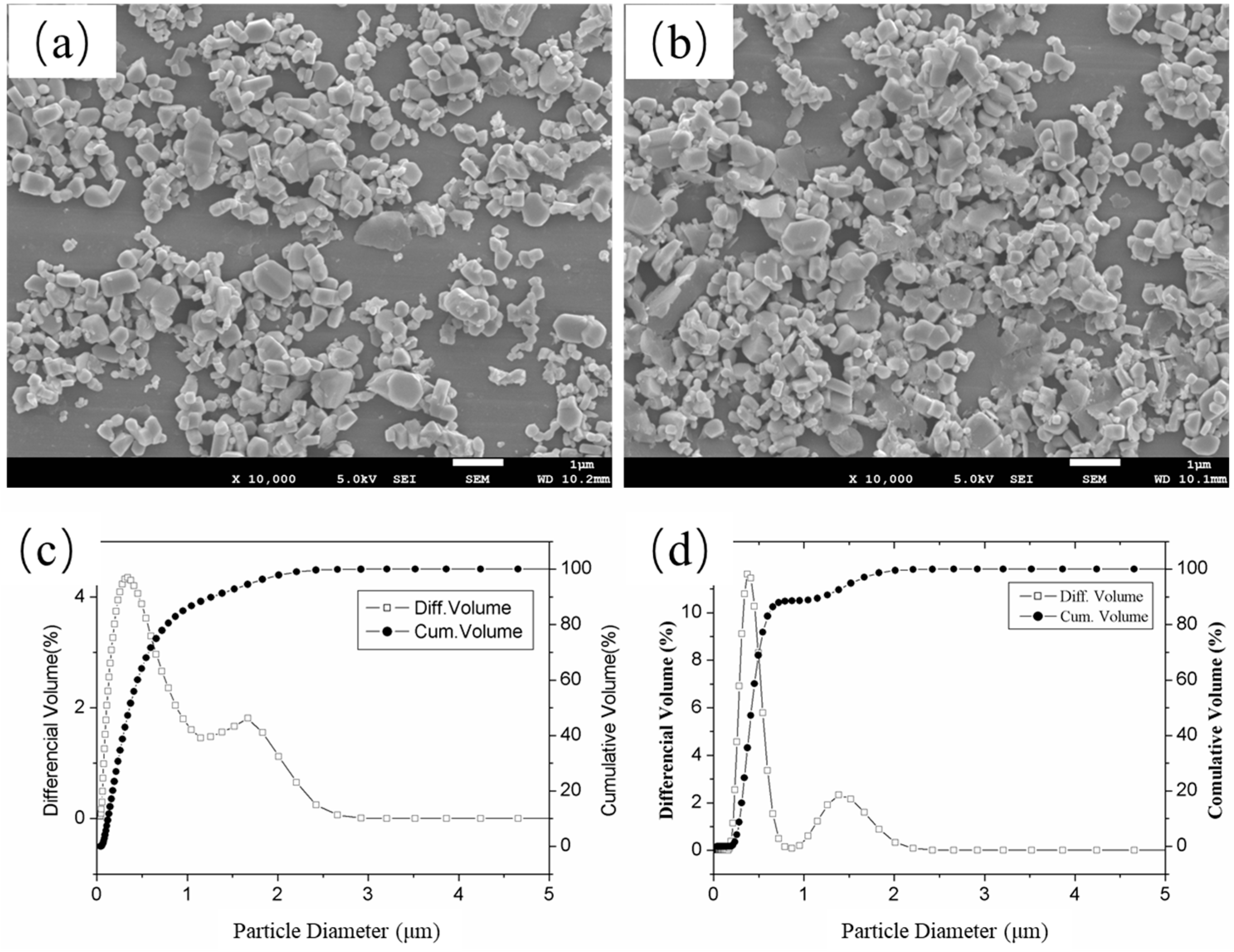

It can be seen from Figure 3 that well-dispersed ZrB2 powders were obtained when the green mixture was naturally packed in the crucible, while aggregates appeared in a large area when the packing density increased from 0.66 g/cm3 (a, naturally packed) to 1.32 g/cm3 (b, twice that of the naturally packed). When the compact density of the green mixture is low, specific heat of the samples also become slow because pores between raw materials block heat transfer and mass transfer in the solid-state reaction. We designed a fast-heating furnace of 1600 °C to provide enough energy to make up for the problem of insufficient reaction caused by insufficient heat transfer. It can be seen that the high compact density of the green mixture is an unnecessary condition when the high temperature furnace is applied.
We further developed the method for the synthesis of ZrB2 powders with low oxygen content by a two-step reduction route. ZrB2 powders were synthesized in the first step using Mg-ZrO2-B reaction system as before. Then, in the second step, ZrB2 powders obtained from the first step were mixed with Mg at a mass ratio of ZrB2 to Mg being 10:1 and subjected to heating in the designed furnace again [65]. Figure 4 shows the FESEM images and corresponding particle size distribution of the samples obtained following the first step (a and c) and the second step (b and d). It can be seen that oxygen content decreased after another second synthesis step, while minor change could be observed in the particle size and dispersion of ZrB2 powders.

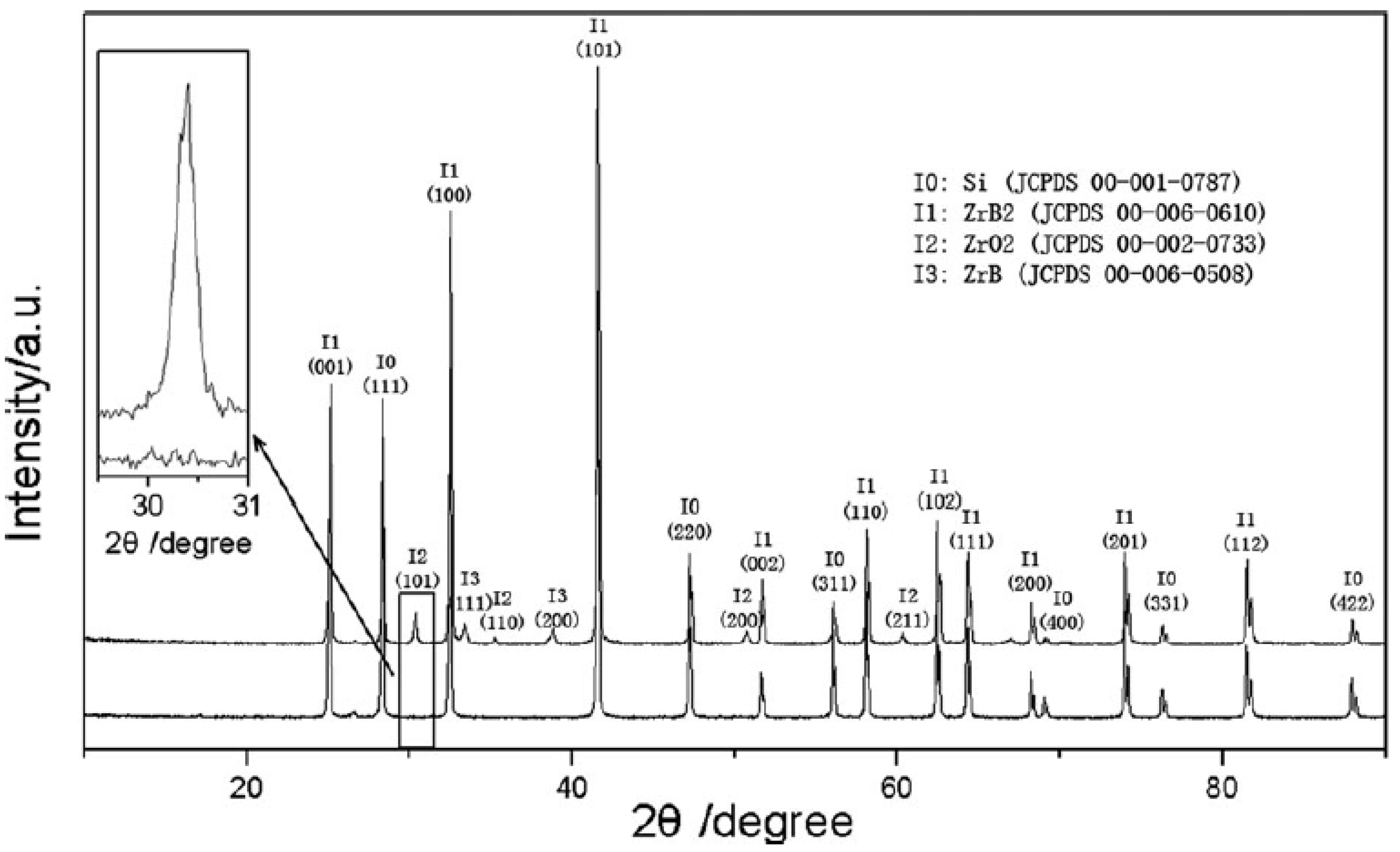

A new method for oxygen content calculated based on XRD results for ZrB2 characterization was proposed in this work. Figure 5 shows XRD patterns of samples mixed with the guide Si plate. It was discovered that the lattice constants determined according to XRD patterns were higher than their theoretical values calculated based on the First Principles. The O atom existing as interstitial impurity in the ZrB2 crystal lattice might contribute to the lattice constant changes.

4. Solution-Derived Carbothermal Synthesis

In a typical carbothermal synthesis of ZrB2 powders, carbon is used as a reducing agent and the reaction is as Equation (5). Raw materials are cheap and the technological process is simple, which makes it easy for industrial amplification. However, it was calculated that the reaction temperature is 1509 °C at atmospheric pressure according to the criterion that ΔG < 0. In contrast, ΔG for the magnesiothermic synthesis Equation (7) is always below zero from room temperature to 1400 K. It can be seen that carbothermal synthesis can only be achieved when the temperature is high enough. As the results of experiments, when the synthesis temperature was 1400 °C, the diffraction peaks of ZrB2 in the XRD patterns started to become obvious, but there were still strong diffraction peaks of raw materials ZrO2. When the reaction temperature increased to 1550 °C (>1509 °C), the diffraction peaks of raw materials disappeared, but the diffraction peaks of ZrC showed up instead [55].
The direct carbothermal method for synthesizing ZrB2 powders still has disadvantages, such as high temperature of reaction, low purity, and sintering activity of the products. Therefore, how to lower the reaction temperature is a critical task for the successful synthesis of ZrB2 powders by carbothermal reduction.
Synthesis in vacuum is a commonly used improved process. The change of Gibbs’s free energy can be used to determine whether the reaction can happen from thermodynamics. When ∆G < 0, the reaction is spontaneous; when ∆G > 0, the reaction is not spontaneous. The value of Gibbs free energy change in a non-standard state can be calculated based on that of the standard state according to Equation (8):
∆G = ∆G0 + RTlnKp
When the synthesis of ZrB2 powders is carried out under vacuum, the air pressure in the furnace is supposed to remain below 11 Pa; it can be considered that the partial pressure in the furnace is 11 pa. If one chooses 11 Pa as the partial pressure of CO in the furnace, the minimum reaction temperature (∆G = 0) of Equation (5) is 938 °C, which is much lower than 1509 °C under the standard state [55].

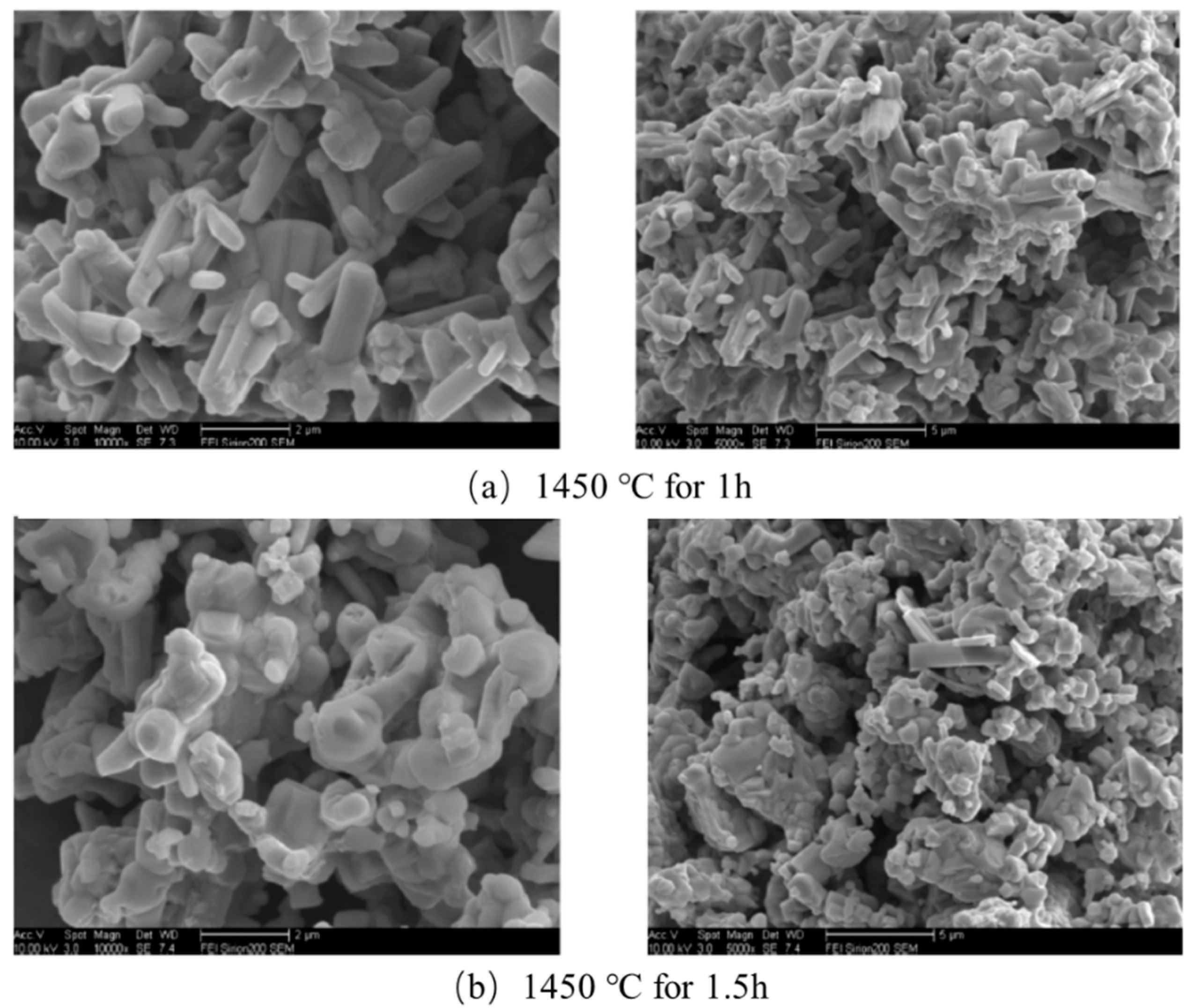

Lv G. prepared ZrB2 powders by a carbon reduction method with zirconia, activated carbon, boron carbide, and boron oxide as main raw materials under vacuum, and obtained ZrB2 powders of high purity, small particle size, and low cost [66]. Figure 6 shows the FESEM images of ZrB2 powders synthesized at 1450 °C for different holding times.

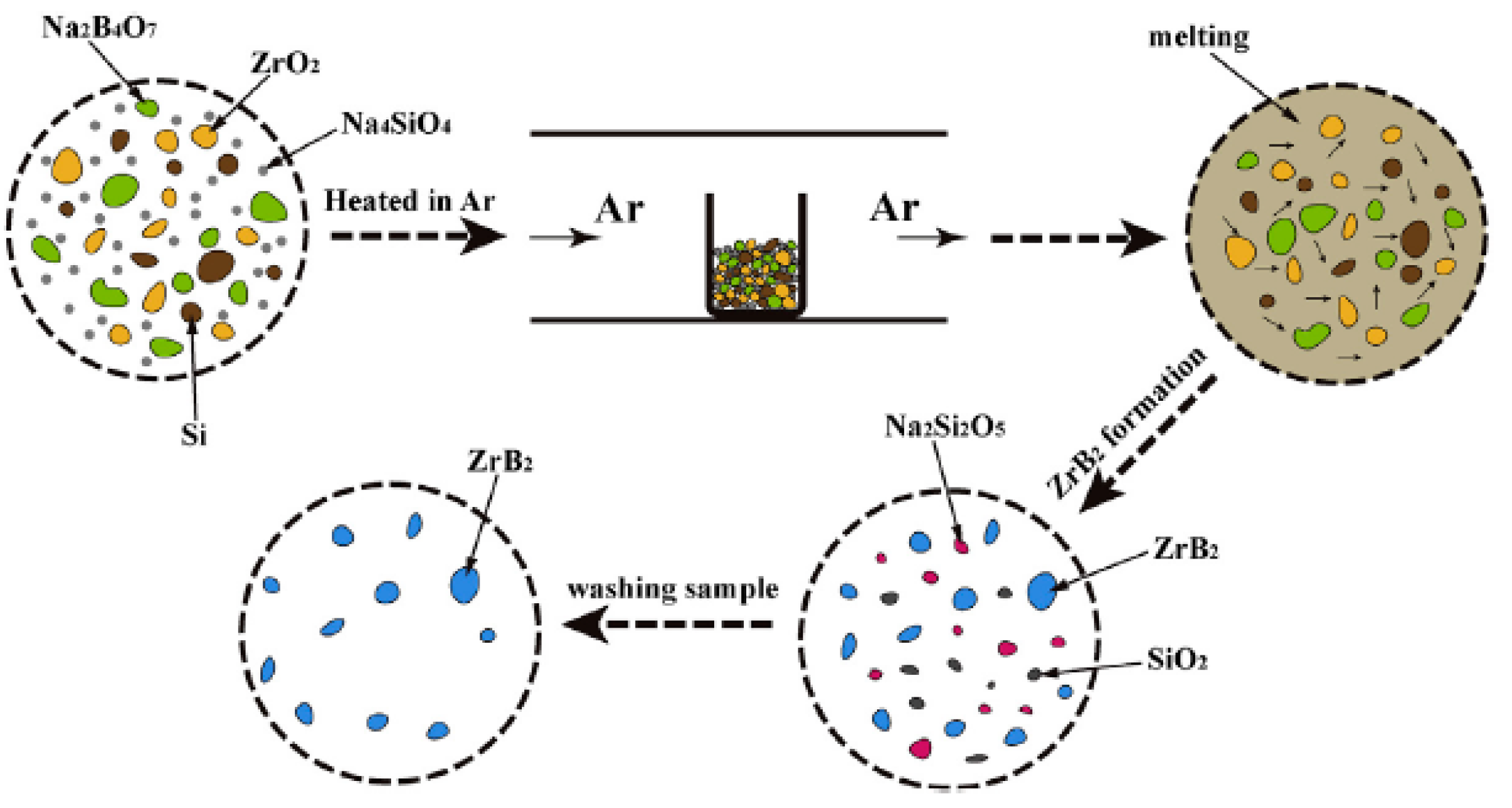

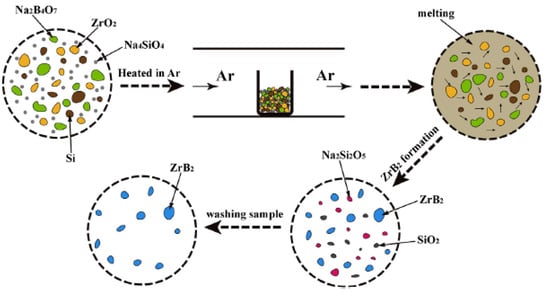

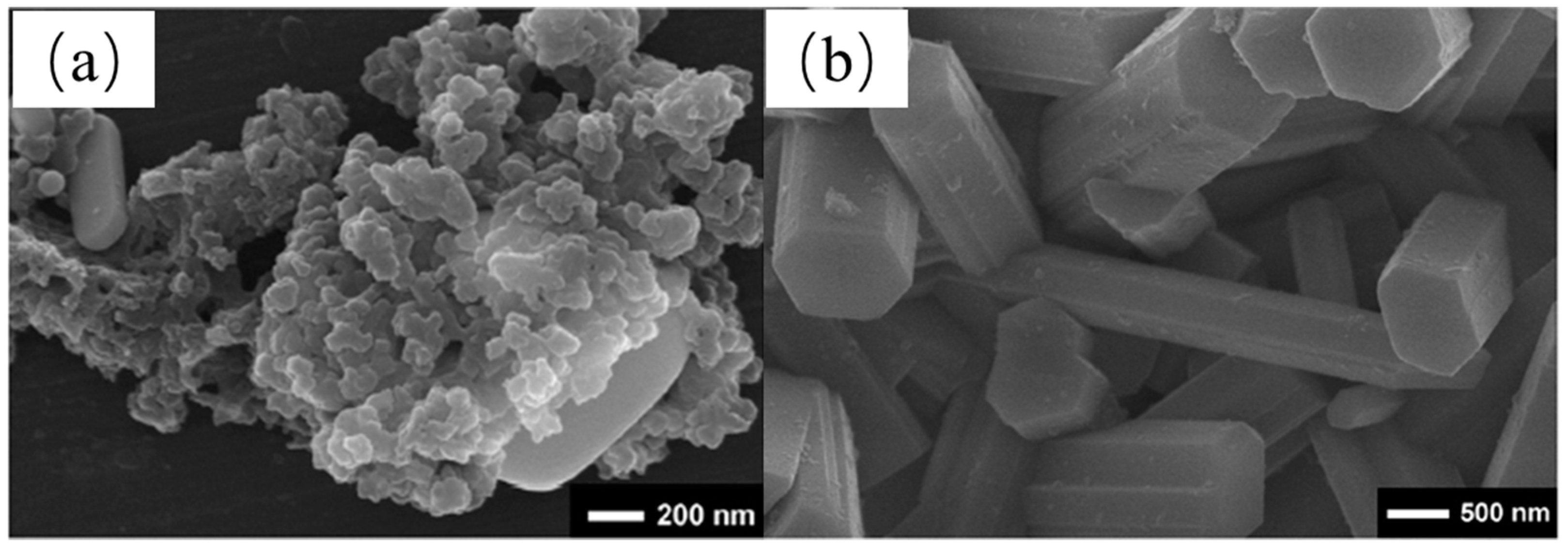

Li M. reported a molten-salt method for the synthesis of ZrB2 powders [67]. Scheme 1 shows a schematic diagram for the preparation of ZrB2 powders. The participation of Na4SiO4 and Na2B4O7 provided a liquid surrounding that could dissolve reactant species and promoted rapid diffusion between them. Molten salt helped shorten the average diffusion distance and lower the reaction temperature.
Solution combustion synthesis (SCS) is a new approach for the production of ZrB2 powders. Initial reactants are solved in a homogeneous solution and form uniform precursors at the molecular scale. In a SCS process, a huge amount of gas would be generated and make the solid product expanded and porous, which is critical for SCS to synthesize nano-ZrB2 powders [68,69].
Yan Y. synthesized ultra-fine ZrB2 powders using an inorganic–organic hybrid as a precursor with zirconium oxychloride as the source Zr, boric acid as the source of B, and phenolic resin as the source of C [70]. The carbothermal reaction temperature was at a relatively low level (1500 °C), and the average crystallite size of the obtained ZrB2 powders was small (200 nm). Scheme 2 shows the synthesis flowchart for precursors and Figure 7 shows the FESEM and TEM images of the synthesized ZrB2 powders.

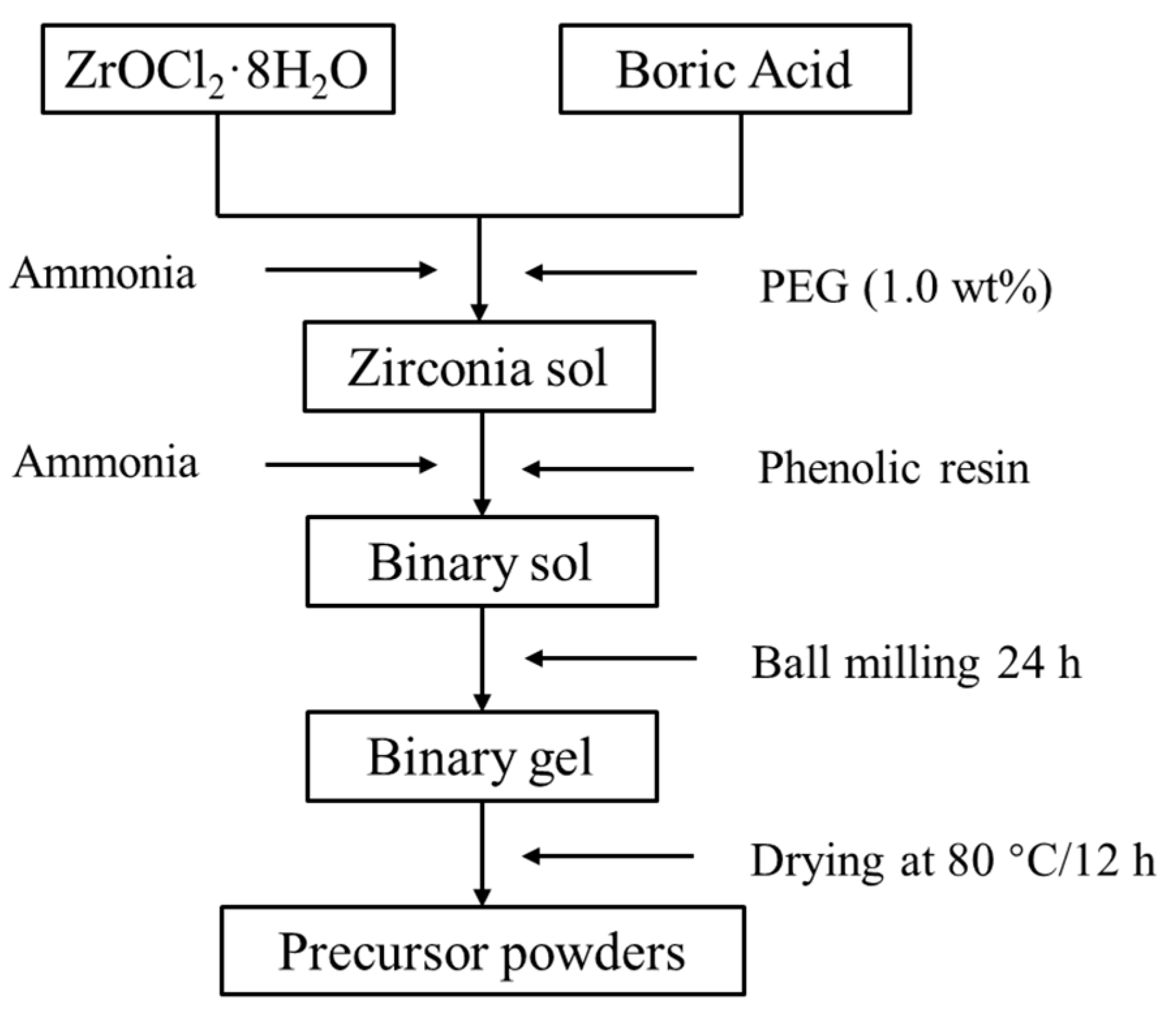

Though ZrB2 powders can be synthesized from the precursors prepared by the sol-gel method, the precursors are usually of low effective concentration, poor stability, easy to settle and precipitate, and difficult to store. Therefore, the development of ultra-high temperature ceramics has extended from the sol-gel to the polymer precursor method [71,72,73]. One strategy is to synthesize the polymer with M–O as the main chain by chemical reaction, and then prepare the ultra-high temperature ceramic precursor with the compound containing C (phenolic acid) and B (boric acid). The other strategy is to synthesize a metal organic polymer with Zr–B chemical bonds in the molecules, which can be directly converted into ZrB2 ceramics by cracking.
Li R. used a sol-gel method to synthesize ZrB2 powders using Zr(OC3H7)4 (zirconium n-propoxide) as the source of Zr, H3BO3 (boric acid) as the source of B, C12H22O11 (sucrose) as the source of C, and acetylacetone as chemical modifier [74,75]. C12H22O11 could decompose completely to carbon, which might be accounted precisely according to stoichiometric ratio for the carbothermal reduction reaction. The process of precursor formation is as below:
Zr(OC3H7)4 + acac → Zr(acac)2 + C3H7OH
≡Zr-OC3H7 + H2O → ≡Zr–OH + C3H7OH
≡Zr-aca c+ H2O →≡ Zr–OH + aca
≡Zr-OC3H7 + HO-Zr ≡ →≡ Zr–O–Zr ≡+ C3H7OH
≡Zr-OH+HO-Zr ≡ → ≡ Zr–O–Zr ≡+ H2O
Metal alkoxides can react with water spontaneously and form precipitation after continuous hydrolysis and condensation. In the literature, acetylacetone (acac) chelates with Zr (OC3H7)4 to form zirconium acetylacetonate, so that Zr(OC3H7)4 was modified to prevent its rapid hydrolysis. Yellow ZrO2 sol can be formed after the above series of reactions, and wet gel can be formed after mixing with H3BO3, C12H22O11, and AcOH. Finally, precursor can be obtained by the drying and grinding of the wet gel, and a single phase ZrB2 powder with the average grain size of 50 nm can be obtained after being calcined at 1550 °C.
Another process of precursor formation is the modification of Zr(OC3H7)4 with complexing agent AcOH to prevent its rapid hydrolysis [75,76,77]. The reactions are as below:
Zr(OC3H7)4 + 2AcOH → Zr(OAc)2(OC3H7)2 + 2C3H7OH
C3H7O − Zr(OAc)2 − OC3H7 + HO−C6H10O4−(OH)7 → C3H7O − Zr(OAc)2-O-C6H10O4-(OH)7 + C3H7OH
AcOH + C3H7OH → C3H7OAc + H2O
Reaction (14) takes place when Zr(OC3H7)4 is added into AcOH, which leads to the formation of zirconium propoxide diacetate Zr(OAc)2(OC3H7)2 followed by a transesterification of alkoxy groups in Zr(OAc)2(OC3H7)2 with the saccharose OH groups according to Equation (15). The unreacted AcOH reacts with the solvent C2H5OH (which is also the product in reaction (14) and (15)) according to Equation (16). The product water reacts with Zr(OAc)2(OC3H7)2 spontaneously as Equation (17). Equation (18) occurs to generate oxo ligands by non-hydrolytic condensation and the elimination of an ester.
Zr(OAc)2(OC3H7)2 + 2H2O → Zr(OAc)2(OH)2 + 2C3H7OH
Zr(OAc)2(OH)2 → (C3H7O)Zr-O-Zr(OAc) + C3H7OAc
After formation of molecules that have hydroxy groups, subsequent condensation reactions take place resulting in the viscosity increase of the solution because of the formation of Zr-O-Zr and Zr-O-X-O-Zr bridges. When all the reactions are completed, a yellow colloid is obtained. The precursor powders are obtained by drying and grinding.
Li R. also used zirconium n-propoxide, acetic acid, boric acid, and xylitol as starting materials to synthesize ZrB2 nanoparticles by sol-gel method and subsequent carbothermal reduction reaction [78]. Xylitol played the roles as both the carbon source for the carbothermal reduction reaction and the chelating agent of boron in this synthesis system. The polyhydroxy reaction between xylitol and boric acid contributed to the formation of coordination compound.
The gel aging time and calcination had great effects on the product morphology. When ZrB2 nanoparticles were obtained from nascent state gel calcined at 1450 °C with n(xylitol)/n(zirconium n-propoxide) of 1.4, the particles were quasi spherical in shape with an average diameter of about 50 nm, and there was an agglomeration to some extent. When ZrB2 nanoparticles calcined at 1550 °C for 2 h using the aged gel with molar ratios of B/Zr = 3.5 and C/Zr = 7, the particles are uniform and exhibit a long column shape with a length of 4–7 μm and the diameter is about 1 μm. Figure 8a,b displays the FESEM images of precursor derived from the nascent state gel calcined at 1300 °C and 1550 °C for 2 h, respectively. We can see that hexagonal-prism-like particles emerged calcined at 1550 °C instead of aggregates obtained at low 1300 °C [79].

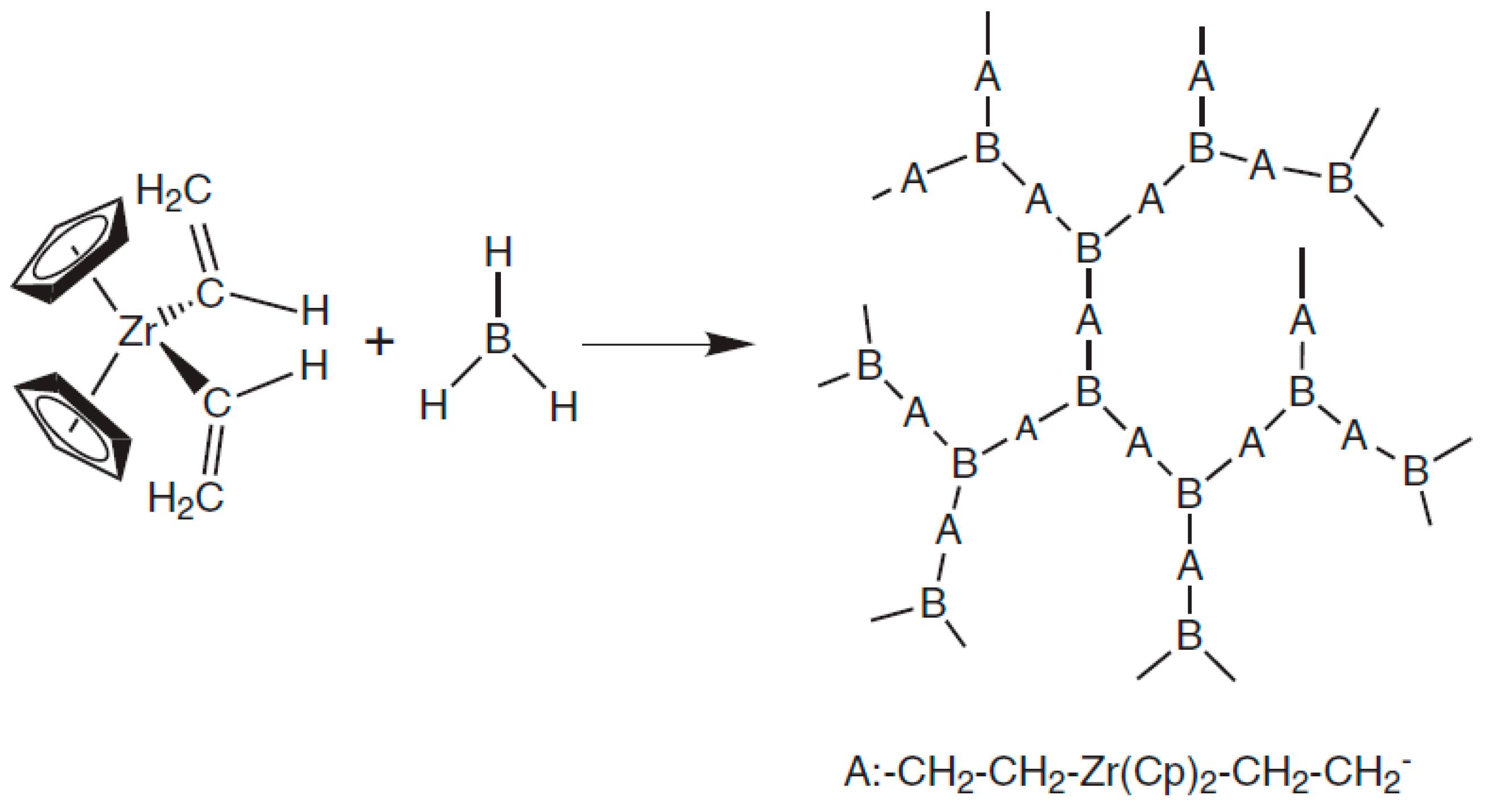

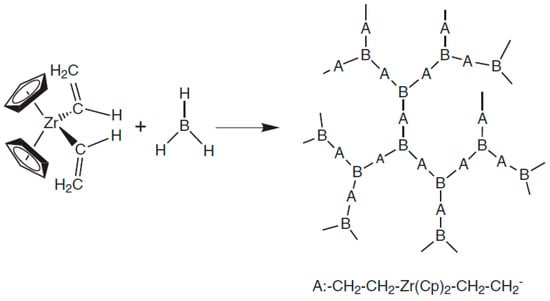

Wang H. reported a polymer precursor-derived method for the synthesis of ZrC/ZrB2 composite powders [80]. The precursor polymer called PZCB that was prepared using Cp2Zr(CHCH2)2 and borane, providing elements B and Zr for subsequent carbothermal synthesis. The formation of precursor polymer is shown in Scheme 3.

5. Plasma-Enhanced Exothermic Reaction

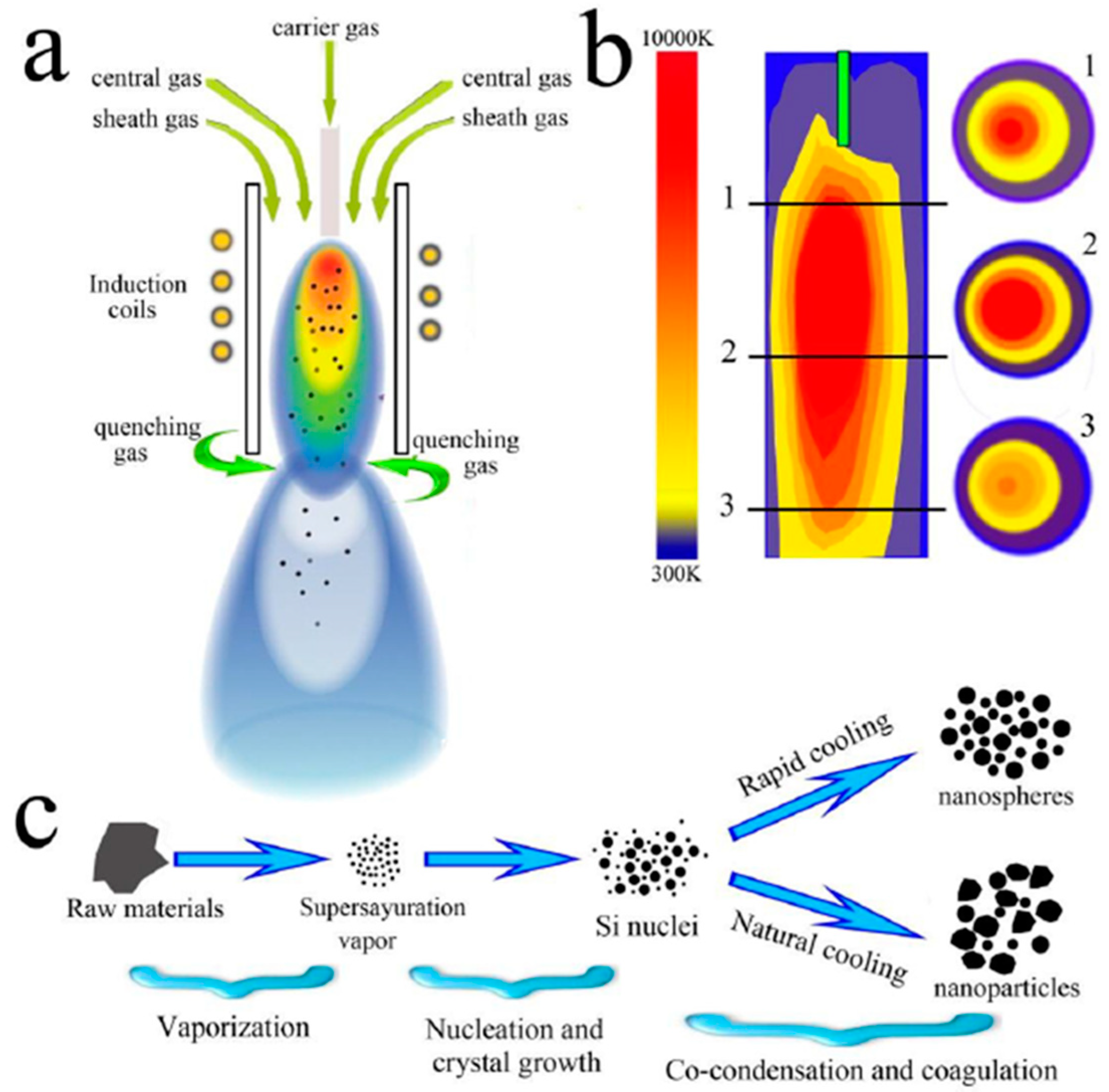

Thermal plasma synthesis is the most efficient technique for producing metal and ceramic nanopowders in continuous and scalable way [81,82,83,84,85,86,87]. In addition to the characteristics of high temperature, high energy density, and the fast cooling rate of a thermal plasma, radio frequency (RF) induction plasma has no electrode pollution and provides a controllable atmosphere [88,89]. Figure 9 shows the layout of the RF thermal plasma processing system and Figure 10 shows pictures of Ar-plasma and H-plasma jets [90].
Generally, plasma synthesis includes physical vapor deposition (PVD) and chemical vapor deposition (CVD). In a PVD process, coarse particles are injected into the plasma flame and gasified at high temperature and nanopowders are deposited after being rapidly cooled under large temperature gradient. Scheme 4 shows the diagram of the formation process of nanopowder in plasma. In a CVD process, more than two reactants are added into the plasma flame together, which are usually gasified at high temperature and react with each other. Ultrafine metal/oxide powders and various nanostructures can be obtained via this instantaneous enhanced reduction/oxidation reaction of active hydrogen or active oxygen provided by thermal plasma.
Great progress has also been made for the high temperature ceramic powders such as carbides and nitrides that require high synthesis temperature beyond conventional heating methods in recent years [91,92,93,94]. Generally, gases react directly in the plasma arc or low boiling point raw materials are added into the plasma arc to obtain ultra-fine powder through gasification reaction deposition. Almost all of these kinds of processes are characterized by using gases such as chloride and nitrogen/hydrocarbons or using solid organisms with low boiling point and easy decomposition as raw materials. A multiphase complex system in which more than one high boiling point raw materials participates in the reaction are generally considered not suitable for thermal plasma synthesis. Although the temperature and energy density in the thermal plasma arc area are very high, the gas flow rate in the reactor is very large so the residence time of raw materials in the plasma arc is limited, and the high boiling point raw materials do not easily realize volatilization and continuous gas phase reaction in a short time, which greatly limits its application fields.
Table 2 shows a comparison list between the characteristics of a plasma process and the properties of ZrB2 powders. They match perfectly with each other, which guides us to explore a most suitable way to prepare high-purity ZrB2 nano powders using plasma technique.
SHS is widely used in the synthesis of ultra-high temperature ceramic powders. Typically, a reaction is initiated from a small area and self-propagating throughout the whole body. In the section “Modified self-propagating high-temperature synthesis”, it was concluded that ZrB2 powders could also be produced using a non-pressed green mixture when the reaction system was placed in a high temperature environment and heated uniformly. Therefore, we further adjusted the traditional solid-phase self-propagating system. The green mixture was converted into fluidization by carrier gas and transported into the plasma flame with extremely high temperature. In order to adapt to the characteristics of rapid synthesis in plasma, ZrCl4, which has a low boiling point, was used as raw material instead of ZrO2 which has a high boiling point. The plasma synthesis process has been successfully applied to multiphase complex reaction systems with exothermic characteristics.

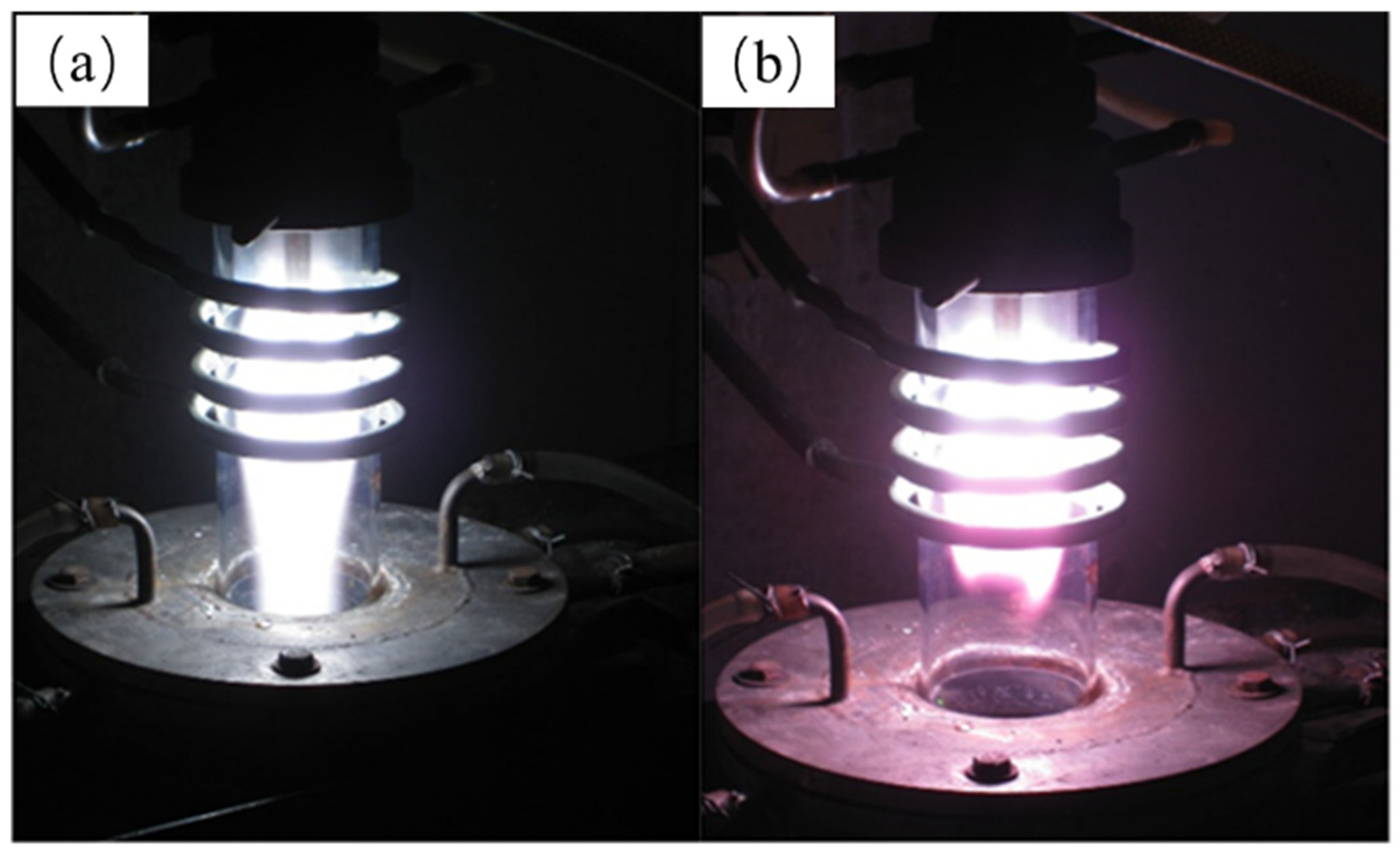

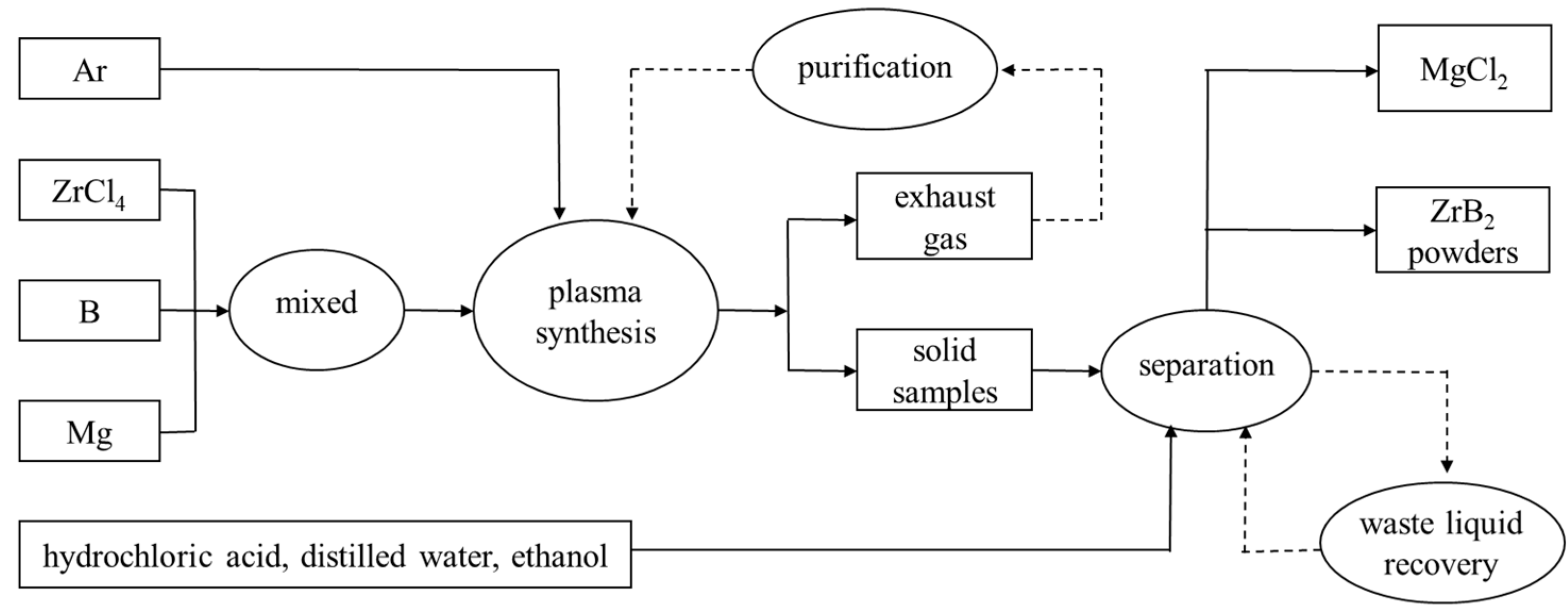

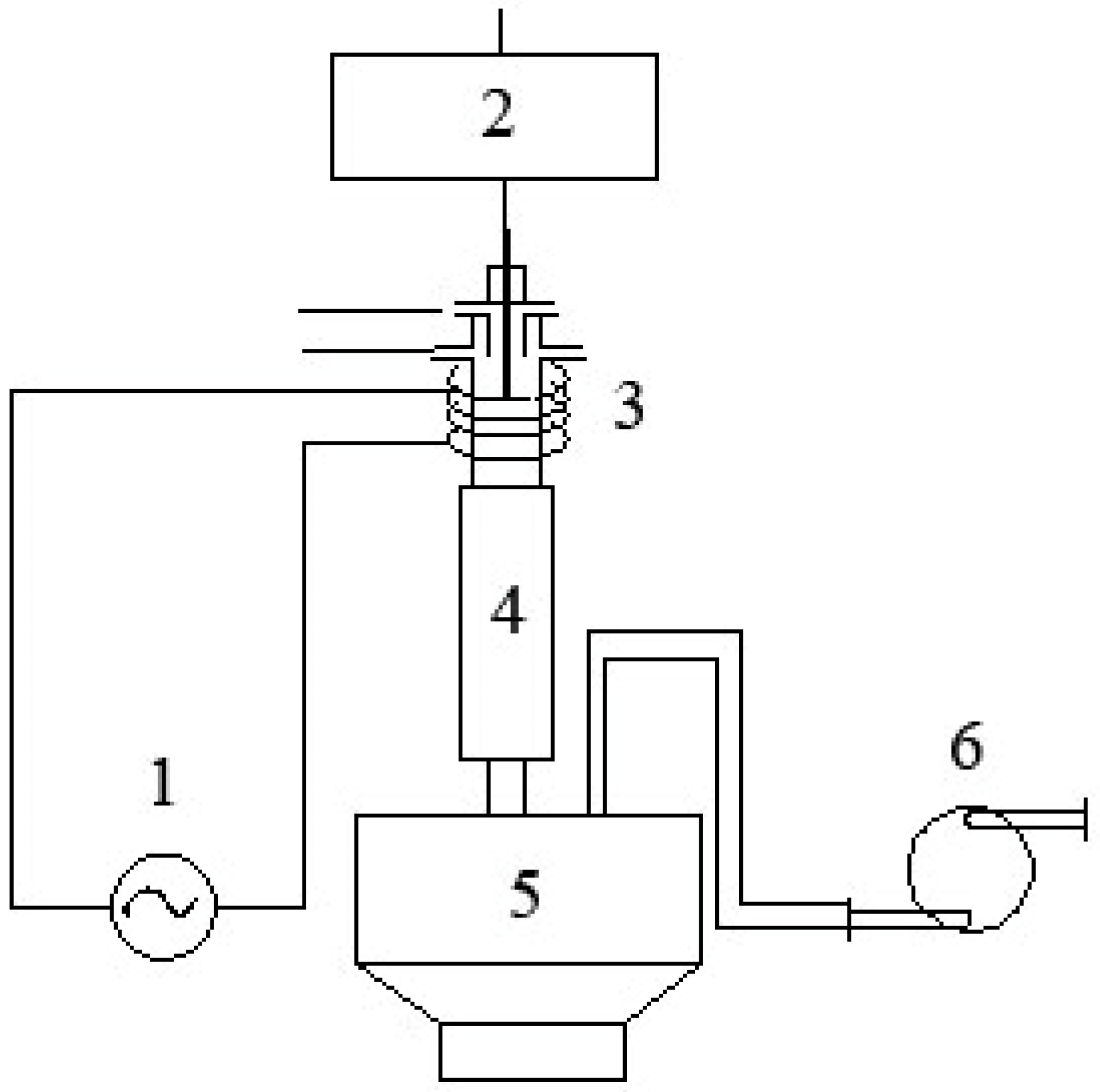

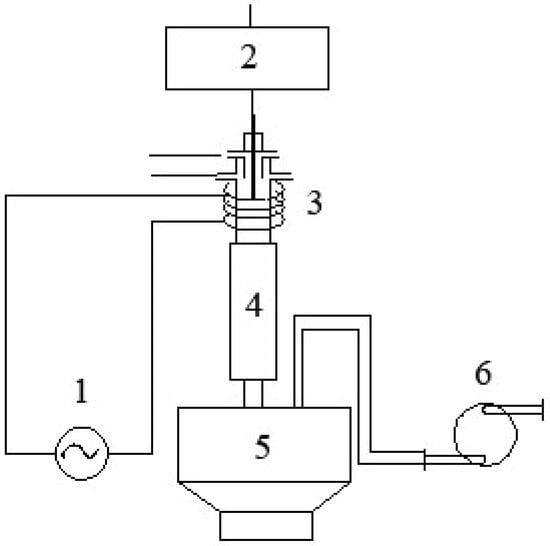

We synthesized ZrB2 nano powders successfully in an RF thermal plasma under atmospheric pressure, in which ZrCl4, B, and Mg as raw materials were mixed as the green mixture. The metallothermic reaction was ignited by the high temperature flame when the green mixture was carried by H2 into thermal plasma, and then propagated with the exothermic reaction enthalpies and the external energy supplied by plasma flame. Scheme 5 shows the process flow chart for plasma synthesis of ZrB2 nano powders. Figure 11 shows the TEM image and particle size distribution of the product [95,96].

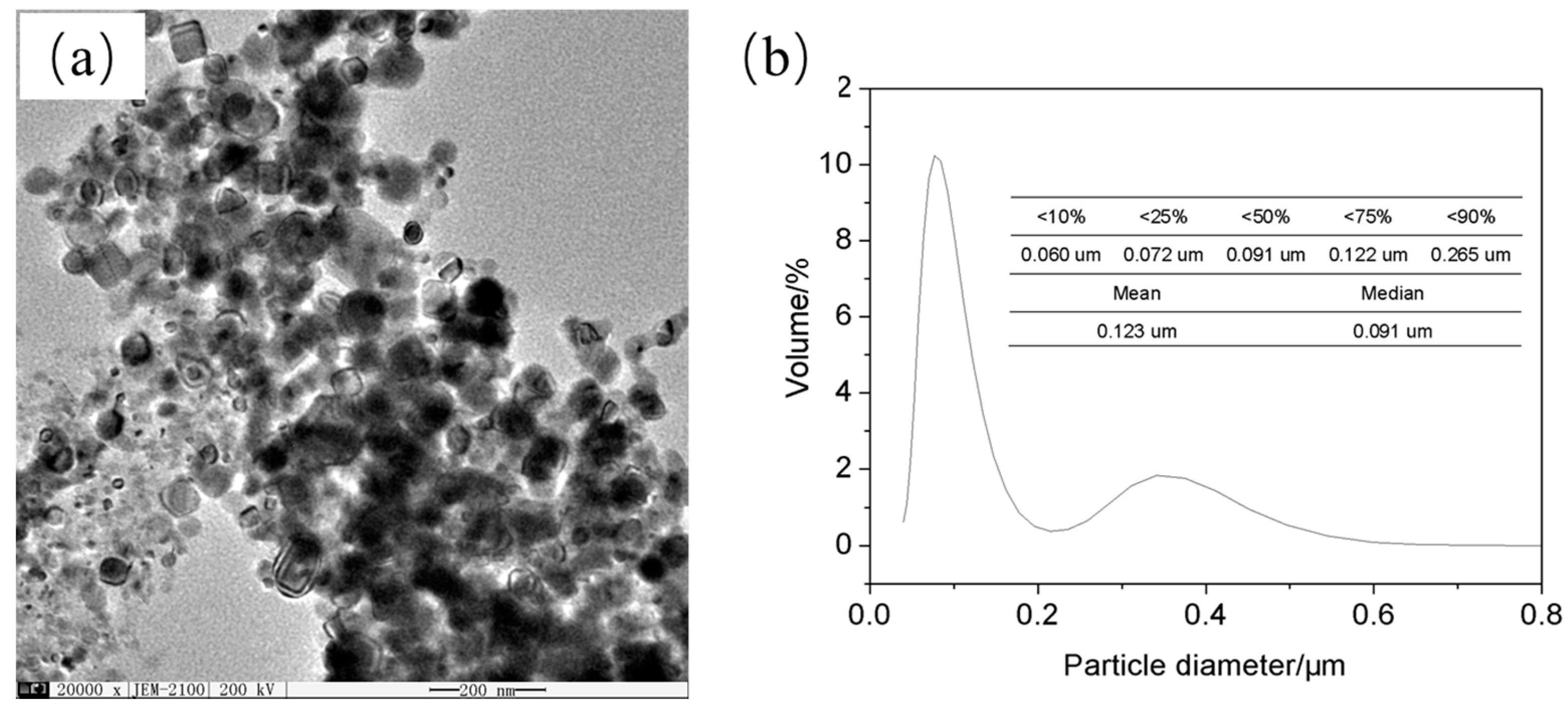

It can be seen that the particle size of the synthesized ZrB2 powders is about 100 nm and the surface area of the nanopowders is 30.75 m2/g. It was a continuous production process and the production rate in our laboratory was about 300 g/h. This plasma-enhanced exothermic reaction was further used for the synthesis of ultrafine ZrB2-ZrC composite powders using ZrCl4, B, Mg, and CH4 as raw materials. Detailed information was reported in the literature [97].

6. Perspective Conclusions

In recent years, scientists and technological workers have carried out a lot of in-depth research around three key problems, including the preparation technology of high-purity, ultra-fine, and homogeneous ceramic powders, the molding process of low-cost complex shape ceramic parts, and advanced sintering theory and sintering technology, and have made great breakthroughs in development and application. High-purity, ultra-fine, and homogeneous powders are the basis for the preparation of UHTCs and their composites. Traditional synthesis methods have encountered various difficulties in meeting the needs of rapid development. Therefore, new synthesis methods have broken through the traditional classification of the solid-phase method, the liquid-phase method, and the gas-phase method, and there is a trend of integration of them. The present review covers most important methods used in ZrB2 nanopowder synthesis, focusing on the solid-phase synthesis and its improved process, including modified self-propagating high-temperature synthesis, the solution-derived precursor method, and plasma-enhanced exothermic reactions.
In the future, ultra-high temperature ceramics will still develop towards exploring extreme parameters, for which it is often necessary to change the original properties of basic materials, and the most effective methods to change the properties include particle refinement and recombination in the ultra-fine state. Furthermore, physical and chemical problems in powder preparation have a strong correlation with scientific problems in the molding process and thermodynamics and kinetics in the firing process, and solution of these basic problems is the basic guarantee for obtaining material reliability and stability. Therefore, the integration of various synthesis methods, the combination of different material components, and the connection between synthesis and its subsequent application process are the trends of development in the future.

Author Contributions

Conceptualization, L.B. and F.Y.; methodology, L.B. and Y.O.; investigation, L.B. and Y.O.; writing—original draft preparation, L.B. and Y.O.; writing—review and editing, L.B. and F.Y.; visualization, L.B. and Y.O.; supervision, F.Y.; project administration, L.B.; funding acquisition, L.B. and F.Y. All authors have read and agreed to the published version of the manuscript.

Funding

This research was sponsored by the National Natural Science Foundation of China (No. 11875284), Program for Science and Technology Innovation Talents in Universities of Henan Province (No. 21HASTIT020), and Henan Science and Technology Development Program (No. 212102311155).

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Nayebi, B.; Parvin, N.; Mohandesi, J.A.; Asl, M.S. Densification and toughening mechanisms in spark plasma sintered ZrB2-based composites with zirconium and graphite additives. Ceram. Int. 2020, 46, 13685–13694. [Google Scholar] [CrossRef]
  2. Medve, D.; Balko, J.; Sedlák, R.; Kovalčíková, A.; Shepa, I.; Naughton-Duszová, A. Wear resistance of ZrB2 based ceramic composites. Int. J. Refract. Met. Hard Mater. 2019, 81, 214–224. [Google Scholar] [CrossRef]
  3. Monteverde, F.; Grohsmeyer, R.J.; Stanfield, A.D.; Hilmas, G.E.; Fahrenholtz, W.G. Densification behavior of ZrB2-MoSi2 ceramics: The formation and evolution of coreshell solid solution structures. J. Alloys Compd. 2019, 779, 950–961. [Google Scholar] [CrossRef]
  4. Nekahi, S.; Vaferi, K.; Vajdi, M.; Moghanlou, F.S.; Asl, M.S.; Shokouhimehr, M. A numerical approach to the heat transfer and thermal stress in a gas turbine stator blade made of HfB2. Ceram. Int. 2019, 45, 24060–24069. [Google Scholar] [CrossRef]
  5. Shi, A.H.; Yang, X.; Fang, C.Q.; Chen, L.; Weng, Y.Q.; Liu, H.Z.; Huang, Q.Z. Effect of CNTs addition on microstructure, ablation property and mechanism of ZrC-SiC coating for C/C-ZrC-SiC composites. Vacuum 2020, 172, 109099. [Google Scholar] [CrossRef]
  6. Zavjalov, A.P.; Nikiforov, P.A.; Kosyanov, D.Y.; Zakharenko, A.M.; Trukhin, V.O.; Talskikh, K.Y.; Shichalin, O.O.; Papynov, E.K. Phase Formation and Densification Peculiarities of Hf–C–N Solid Solution Ceramics during Reactive Spark Plasma Sintering. Adv. Eng. Mater. 2020, 22. [Google Scholar] [CrossRef]
  7. Shapkin, N.P.; Papynov, E.K.; Shichalin, O.O.; Buravlev, I.Y.; Simonenko, E.P.; Zavjalov, A.P.; Belov, A.A.; Portnyagin, A.S.; Gerasimenko, A.V.; Drankov, A.N. Spark Plasma Sintering-Reactive Synthesis of SiC and SiC–HfB2 Ceramics Based on Natural Renewable Raw Materials. Russ. J. Inorg. Chem. 2021, 66, 629–637. [Google Scholar] [CrossRef]
  8. Hu, P.; Zhang, X.-H.; Han, J.-C.; Luo, X.-G.; Du, S.-Y. Effect of Various Additives on the Oxidation Behavior of ZrB2-Based Ultra-High-Temperature Ceramics at 1800 °C. J. Am. Ceram. Soc. 2010, 93, 345–349. [Google Scholar] [CrossRef]
  9. Orooji, Y.; Alizadeh, A.; Ghasali, E.; Derakhshandeh, M.R.; Alizadeh, M.M. Co-reinforcing of mullite-TiN-CNT composites with ZrB2 and TiB2 compounds. Ceram. Int. 2019, 45, 20844–20854. [Google Scholar] [CrossRef]
  10. Asl, M.S.; Ahmadi, Z.; Namini, A.S.; Babapoor, A.; Motallebzadeh, A. Spark plasma sintering of TiC-SiCw ceramics. Ceram. Int. 2019, 45, 19808–19821. [Google Scholar]
  11. Nekahi, S.; Vajdi, M.; Moghanlou, F.S.; Vaferi, K.; Motallebzadeh, A.; Ozen, M. TiB2-SiC-based ceramics as alternative efficient micro heat exchangers. Ceram. Int. 2019, 45, 19060–19067. [Google Scholar] [CrossRef]
  12. Asl, M.S.; Delbari, S.A.; Shayesteh, F.; Ahmadi, Z.; Motallebzadeh, A. Reactive spark plasma sintering of TiB2-SiC-TiN novel composite. Int. J. Refract. Met. Hard Mater. 2019, 81, 119–126. [Google Scholar]
  13. Delbari, S.A.; Nayebi, B.; Ghasali, E.; Shokouhimehr, M.; Asl, M.S. Spark plasma sintering of TiN ceramics codoped with SiC and CNT. Ceram. Int. 2018, 45, 3207–3216. [Google Scholar] [CrossRef]
  14. Mahaseni, Z.H.; Germi, M.D.; Ahmadi, Z.; Asl, M.S. Microstructural investigation of spark plasma sintered TiB2 ceramics with Si3N4 addition. Ceram. Int. 2018, 44, 13367–13372. [Google Scholar] [CrossRef]
  15. Zhang, X.H.; Hu, P.; Han, J.C.; Du, S.Y. Study on Thermal Shock Resistance and Oxidation Resistance of Ultra-High Temperature Ceramics. Mater. China 2011, 30, 27–31. [Google Scholar]
  16. Zhang, X.; Hu, P.; DU, S.; Han, J.; Meng, S. Research progress on ultra-high temperature ceramic composites. Chin. Sci. Bull. 2015, 60, 257–266. [Google Scholar] [CrossRef] [Green Version]
  17. Das, J.; Kesava, B.; Reddy, J.J.; Srinivas, V.; Kumari, S.; Prasad, V.B. Microstructure, mechanical properties and oxidation behavior of short carbon fiber reinforced ZrB2-20v/oSiC-2v/oB4C composite. Mater. Sci. Eng. A 2018, 719, 206–226. [Google Scholar] [CrossRef]
  18. Simonenko, E.P.; Gordeev, A.N.; Vasilevskii, S.A.; Kolesnikov, A.F.; Papynov, E.K.; Shichalin, O.O.; Avramenko, V.A.; Sevastyanov, V.G.; Kuznetsov, N.T. Behavior of HfB2-SiC (10, 15, and 20 vol %) ceramic materials in high-enthalpy air flows. Russ. J. Inorg. Chem. 2016, 61, 1203–1218. [Google Scholar] [CrossRef]
  19. Sevastyanov, V.G.; Simonenko, N.; Gordeev, A.; Kolesnikov, A.F.; Papynov, E.; Shichalin, O.; Avramenko, V.A.; Kuznetsov, N. Behavior of a sample of the ceramic material HfB2–SiC (45 vol %) in the flow of dissociated air and the analysis of the emission spectrum of the boundary layer above its surface. Russ. J. Inorg. Chem. 2015, 60, 1360–1373. [Google Scholar] [CrossRef]
  20. Sevastyanov, V.G.; Simonenko, E.P.; Gordeev, A.N.; Simonenko, N.P.; Kolesnikov, A.F.; Papynov, E.K.; Shichalin, O.O.; Av-ramenko, V.A.; Kuznetsov, N.T. HfB2@SiC (45 vol%) Ceramic Material: Manufacture and Behavior under Long@Term Ex-posure to Dissociated Air Jet Flow. Russ. J. Inorg. Chem. 2014, 59, 1298–1311. [Google Scholar] [CrossRef]
  21. Vajdi, M.; Moghanlou, F.S.; Niari, E.R.; Asl, M.S.; Shokouhimehr, M. Heat transfer and pressure drop in a ZrB2 microchannel heat sink: A numerical approach. Ceram. Int. 2019, 46, 1730–1735. [Google Scholar] [CrossRef]
  22. Sakkaki, M.; Moghanlou, F.S.; Vajdi, M.; Pishgar, F.; Shokouhimehr, M.; Asl, M.S. The effect of thermal contact resistance on the temperature distribution in a WC made cutting tool. Ceram. Int. 2019, 45, 22196–22202. [Google Scholar] [CrossRef]
  23. Vajdi, M.; Moghanlou, F.S.; Ahmadi, Z.; Motallebzadeh, A.; Asl, M.S. Thermal diffusivity and microstructure of spark plasma sintered TiB2SiC Ti composite. Ceram. Int. 2019, 45, 8333–8344. [Google Scholar] [CrossRef]
  24. Balak, Z. Shrinkage, hardness and fracture toughness of ternary ZrB2-SiC-HfB2 composite with different amount of HfB2. Mater. Chem. Phys. 2019, 235, 121706. [Google Scholar] [CrossRef]
  25. Wang, Z.; Wang, S.; Zhang, X.H.; Hu, P.; Han, W.B.; Hong, C.Q. Effect of graphite flake on microstructure as well as mechanical properties and thermal shock resistance of ZrB2–SiC matrix ultrahigh temperature ceramics. J. Alloys Compd. 2009, 484, 390–394. [Google Scholar] [CrossRef]
  26. Lu, S.C. Handbook of Powder Technology; Chemical Industry Press: Beijing, China, 2004. [Google Scholar]
  27. Guo, J.K. Research on advanced structural ceramics. J. Inorg. Mater. 1999, 14, 193–202. [Google Scholar]
  28. Guo, J.K. Research and Prospect of advanced ceramics in China. Chin. J. Mater. Res. 1997, 11, 594–600. [Google Scholar]
  29. Huang, Y.; Zhang, L.M.; Wang, C.A.; Yang, J.L.; Xie, Z.P. Review on research progress of advanced structural ceramics. J. Chin. Ceram. Soc. 2005, 5, 91–100. [Google Scholar]
  30. Simonenko, E.P.; Simonenko, N.P.; Gordeev, A.N.; Kolesnikov, A.F.; Sevastyanov, V.G.; Kuznetsov, N.T. Behavior of HfB2–30 vol% SiC UHTC obtained by sol–gel approach in the supersonic airflow. J. Sol-Gel Sci. Technol. 2019, 92, 386–397. [Google Scholar] [CrossRef]
  31. Khanra, A.; Pathak, L.; Godkhindi, M. Double SHS of ZrB2 powder. J. Mater. Process. Technol. 2008, 202, 386–390. [Google Scholar] [CrossRef]
  32. Krishnarao, R.; Alam, Z.; Das, D.K.; Prasad, V.B. Synthesis of ZrB2–SiC composite powder in air furnace. Ceram. Int. 2014, 40, 15647–15653. [Google Scholar] [CrossRef]
  33. Setoudeh, N.; Welham, N. Formation of zirconium diboride (ZrB2) by room temperature mechanochemical reaction between ZrO2, B2O3 and Mg. J. Alloys Compd. 2006, 420, 225–228. [Google Scholar] [CrossRef]
  34. Mossino, P. Some aspects in self-propagating high-temperature synthesis. Ceram. Int. 2004, 30, 311–332. [Google Scholar] [CrossRef]
  35. Sonber, J.K.; Murthy, T.S.R.C.; Subramanian, C.; Kumar, S.; Fotedar, R.K.; Suri, A.K. Investigations on synthesis of ZrB2 and composites with HfB2, and TiSi2. Int. J. Refract. Met. Hard Mater. 2011, 29, 21–30. [Google Scholar] [CrossRef]
  36. Fahrenholtz, W.; Hilmas, G.; Talmy, I.G.; Zaykoski, J.A. Refractory Diborides of Zirconium and Hafnium. J. Am. Ceram. Soc. 2007, 90, 1347–1364. [Google Scholar] [CrossRef]
  37. Mishra, S.; Das, S.; Pathak, L. Defect structures in zirconium diboride powder prepared by self-propagating high-temperature synthesis. Mater. Sci. Eng. A 2004, 364, 249–255. [Google Scholar] [CrossRef]
  38. Sacks, M.D.; Wang, C.-A.; Yang, Z.; Jain, A. Carbothermal reduction synthesis of nanocrystalline zirconium carbide and hafnium carbide powders using solution-derived precursors. J. Mater. Sci. 2004, 39, 6057–6066. [Google Scholar] [CrossRef]
  39. Nishiyama, K.; Nakamur, T.; Utsumi, S.; Sakai, H.; Abe, M. Preparation of ultrafine boride powders by metallothermic reduction method. J. Phys. Conf. Ser. 2009, 176, 012043. [Google Scholar] [CrossRef]
  40. Cui, B.; Yang, Z.P.; Hou, Y.D. Reaction mechanism of 0.80Pb(Mg1/3Nb2/3)O3-0.20PbTiO3 ceramics prepared by semichemical method. J. Inorg. Mater. 2002, 17, 737–744. [Google Scholar]
  41. Aruna, S.T.; Rajam, K.S. Mixture of fuels approach for the solution combustion synthesis of Al2O3-ZrO2 nanoeomposite. Mater. Res. Bull. 2004, 39, 157–167. [Google Scholar] [CrossRef] [Green Version]
  42. Deshpande, K.; Mukasyan, A.; Varma, A. Aqueous Combustion Synthesis of Strontium-Doped Lanthanum Chromite Ceramics. J. Am. Ceram. Soc. 2003, 86, 1149–1154. [Google Scholar] [CrossRef]
  43. Kozhukharov, V.; Brashkova, N.; Machkova, M.; Carda, J.; Ivanova, M. Ultrasonic Spray Pyrolysis for Powder Synthesis. Solid State Phenom. 2003, 90, 553–558. [Google Scholar] [CrossRef]
  44. Nimmo, W.; Hind, D.; Ali, N.J.; Hampartsoumian, E.; Milne, S.J. The production of ultrafine zirconium oxide powders by spray pyrolysis. J. Mater. Sci. 2002, 37, 3381–3387. [Google Scholar] [CrossRef]
  45. Radev, D.D.; Klissurski, D. Mechanochemieal synthesis and SHS of diborides of titanium and zirconium. J. Mater. Synth. Proc. 2001, 9, 131–136. [Google Scholar] [CrossRef]
  46. Camurlu, H.E.; Filippo, M. Preparation of nano-size ZrB2 powder by self-propagating high-temperature synthesis. J. Eur. Ceram. Soc. 2009, 29, 1501. [Google Scholar] [CrossRef]
  47. Fan, Z.; Wang, H.; Fu, Z.Y. Composition of ZrB2 ceramic powder via Zr-B system by self-propagating high-temperaturesy nthesis. J. Chin. Ceram. Soc. 2004, 32, 1016. [Google Scholar]
  48. Makarenko, G.N.; Krushinskaya, L.A.; Timofeeva, I.I.; Matsera, V.E.; Vasil’Kovskaya, M.A.; Uvarova, I.V. Formation of Diborides of Groups IV–VI Transition Metals During Mechanochemical Synthesis. Powder Met. Met. Ceram. 2015, 53, 514–521. [Google Scholar] [CrossRef]
  49. Radev, D.D. Properties of titanium and zirconium diborides obtained by conventional and nonconventional synthesis methods. Metall 1996, 9, 561–564. [Google Scholar]
  50. Jin, Y.X.; Zhang, E.L. Self Propagating Synthesis Technology and In Situ Composites; Harbin Institute of Technology Press: Harbin, China, 2002. [Google Scholar]
  51. Merzhanov, A.G. SHS on the pathway to industrialization. Int. J. SHS 2001, 10, 237–257. [Google Scholar]
  52. Levashov, E.A.; Mukasyan, A.S.; Rogachev, A.S.; Shtansky, D. Self-propagating high-temperature synthesis of advanced materials and coatings. Int. Mater. Rev. 2016, 62, 203–239. [Google Scholar] [CrossRef]
  53. Varma, A.; Rogachev, A.S.; Mukasyan, A.S.; Hwang, S. Combustion Synthesis of Advanced Materials: Principles and Applications. Korean J. Chem. Eng. 1998, 24, 79–226. [Google Scholar]
  54. Varma, A.; Lebrat, J.-P. Combustion synthesis of advanced materials. Chem. Eng. Sci. 1992, 47, 2179–2194. [Google Scholar] [CrossRef]
  55. Guo, W.M. Preparation and Properties of ZrB2 Based Ultra-High Temperature Ceramics; Fudan University: Shanghai, China, 2013. [Google Scholar]
  56. Zhang, P.L. Synthesis of TiB2 and ZrB2 Ceramics by Magnesium Thermite Reaction Self-Propagating High Temperature Synthesis and Its Macrokinetics; Lanzhou University of Technology: Lanzhou, China, 2008. [Google Scholar]
  57. Ye, D.L.; Hu, J.H. Practical Handbook of Inorganic Thermodynamic Data; Metallurgical Industry Press: Beijing, China, 2002. [Google Scholar]
  58. Campos, K.S.; Silva, G.F.B.L.; Nunes, E.H.M.; Vasconcelos, W.; Silva, G.F.B.L. Preparation of Zirconium, Titanium, and Magnesium Diborides by Metallothermic Reduction. Refract. Ind. Ceram. 2014, 54, 407–412. [Google Scholar] [CrossRef]
  59. Zhang, W. Effect of Raw Materials on Self-Propagating High Temperature Synthesis of ZrB2 Powder; Xi’an University of Architecture and Technology: Xi’an, China, 2017. [Google Scholar]
  60. Zhang, W.; Xiao, G.Q.; Ding, D.H. Effect of borax on self-propagating high temperature synthesis of ZrB2 powder. Chin. Mater. Rev. B 2017, 31, 125–128. [Google Scholar]
  61. Zhang, T.M. Preparation of High Purity Zirconium Diboride Powder by Self-Propagating Magnesium Thermal Reduction; Harbin Institute of Technology Press: Harbin, China, 2006. [Google Scholar]
  62. Khanra, A.K.; Pathak, L.C.; Mishra, S.K.; Godkhindi, M.M. Self-propagating-high-temperature synthesis (SHS) of ultrafine ZrB2 powder. J. Mater. Sci. Lett. 2003, 22, 1189–1191. [Google Scholar] [CrossRef]
  63. Olevsky, E.A.; Dudina, D.V. Field-Assisted Sintering Science and Applications; Springer: Berlin/Heidelberg, Germany, 2018. [Google Scholar]
  64. Bai, L.; Wang, Y.; Chen, H.; Yuan, F. Large-scale production of well-dispersed submicro ZrB2and ZrC powders. Cryst. Res. Technol. 2016, 51, 428–432. [Google Scholar] [CrossRef]
  65. Bai, L.Y.; Ni, S.L.; Jin, H.C.; He, J.P.; Ouyang, Y.G.; Yuan, F.L. ZrB2 powders with low oxygen content: Synthesis and characterization. Int. J. Appl. Ceram. Technol. 2018, 15, 508–513. [Google Scholar] [CrossRef]
  66. Lv, G.B. Preparation of zirconium boride powder by carbon reduction. Chin. J. Ceram. 2019, 2, 25–30. [Google Scholar]
  67. Li, M.; Ke, C.; Zhang, J. Synthesis of ZrB2 powders by molten-salt participating silicothermic reduction. J. Alloys Compd. 2020, 834, 155062. [Google Scholar] [CrossRef]
  68. Mukasyan, A.; Rogachev, A.S.; Aruna, S.T. Combustion synthesis in nanostructured reactive systems. Adv. Powder Technol. 2015, 26, 954–976. [Google Scholar] [CrossRef] [Green Version]
  69. Patil, K.C.; Hedge, M.S.; Rattan, T. Chemistry of Nano-Crystalline Oxide Materials: Combustion Synthesis, Properties and Applications; World Scientific: New Jersey, CA, USA, 2008. [Google Scholar]
  70. Yan, Y.J.; Huang, Z.G.; Dong, S.M.; Jiang, D.L. New route to synthesize ultra-fine zirconium diboride powders using inorganic-organic hybrid precursors. J. Am. Ceram. Soc. 2006, 89, 3585–3588. [Google Scholar] [CrossRef]
  71. Qiu, W.F.; Ye, L.; Han, W.J.; Zhao, T. Progress in synthesis of ultra-high temperature ceramic precursors. Mater. China 2015, 34, 751–761. [Google Scholar]
  72. Xu, C.H. Synthesis and Related Research of New Ceramic Precursors; University of Chinese Academy of Sciences: Beijing, China, 2001. [Google Scholar]
  73. Tsirlina, A.M.; Shcherbakova, G.I. Nano-Structured metal-containing polymer precursors for high temperature non-oxide ceramics and ceramic fibers-synthesis, pyrolysis and properties. J. Eur. Ceram. Soc. 2002, 22, 2577–2585. [Google Scholar] [CrossRef]
  74. Zhang, Y.; Li, R.X.; Jiang, Y.B.; Zhao, B.; Li, J.P.; Feng, Z.H. Synthesis of nano ZrB2 powder by wet chemical method. Chin. J. Inorg. Chem. 2011, 27, 1788–1792. [Google Scholar]
  75. Dollé, M.; Gosset, D.; Bogicevic, C.; Karolak, F.; Simeone, D.; Baldinozzi, G. Synthesis of nanosized zirconium carbide by a sol–gel route. J. Eur. Ceram. Soc. 2007, 27, 2061–2067. [Google Scholar] [CrossRef]
  76. Li, R.X.; Zhang, Y.; Zhao, B.; Jiang, Y.B.; Li, J.P.; Feng, Z.H. Synthesis of nano ZrB2 powders by carbothermal reduction and sol-gel method. Mater. China 2012, 31, 59–63. [Google Scholar]
  77. Yang, B.Y.; Li, J.P.; Wang, T.Y.; Li, R.X.; Feng, Z.H.; Cai, H.N. Effect of gel aging on the preparation of ZrB2 powder. Chin. J. Inorg. Mater. 2014, 29, 717–721. [Google Scholar]
  78. Zhao, Y.; Li, J.P.; Wang, T.Y.; Ki, R.X.; Feng, Z.H.; Cai, H.N. Synthesis of nano ZrB2 powder using xylitol. J. Inorg. Mater. 2016, 31, 597–601. [Google Scholar]
  79. Yang, B.Y.; Li, J.P.; Zhao, B.; Hu, Y.Z.; Wang, T.Y.; Sun, D.F.; Li, R.X.; Yin, S.; Feng, Z.H.; Tang, Q.; et al. Synthesis of hexagonal-prism-like ZrB2 by a sol–gel route. Powder Technol. 2014, 256, 522–528. [Google Scholar] [CrossRef]
  80. Wang, H.; Chen, X.; Gao, B.; Wang, J.; Wang, Y.; Chen, S.; Gou, Y. Synthesis and characterization of a novel precursor-derived ZrC/ZrB2ultra-high-temperature ceramic composite. Appl. Organomet. Chem. 2012, 27, 79–84. [Google Scholar] [CrossRef]
  81. Yuan, F.L.; Jin, H.C.; Hou, G.L.; Bai, L.Y.; Ding, F.; Li, B.Q.; Chen, Y.F. Progress on preparation of special powders using HF thermal plasma. Chin. J. Process Eng. 2018, 18, 1139–1145. [Google Scholar]
  82. He, J.; Bai, L.; Jin, H.; Jia, Z.; Hou, G.; Yuan, F. Simulation and experimental observation of silicon particles’ vaporization in RF thermal plasma reactor for preparing Si nano-powder. Powder Technol. 2017, 313, 27–35. [Google Scholar] [CrossRef]
  83. Hou, G.; Cheng, B.; Yao, M.-S.; Cao, Y.; Ding, F.; Hu, P.; Ma, R.; Yuan, F. Well dispersed silicon nanospheres synthesized by RF thermal plasma treatment and their high thermal conductivity and dielectric constant in polymer nanocomposites. RSC Adv. 2015, 5, 9432–9440. [Google Scholar] [CrossRef]
  84. Hu, P.; Yuan, F.L.; Bai, L.Y. Plasma synthesis of large quantities of zinc oxide nanorods. J. Phys. Chem. C 2007, 111, 194–200. [Google Scholar]
  85. Zhang, H.; Yao, M.-S.; Bai, L.; Xiang, W.; Jin, H.; Li, J.; Yuan, F. Synthesis of uniform octahedral tungsten trioxide by RF induction thermal plasma and its application in gas sensing. CrystEngComm 2013, 15, 1432–1438. [Google Scholar] [CrossRef]
  86. Ouyang, Y.; Ding, F.; Bai, L.; Li, X.; Hou, G.; Fan, J.; Yuan, F. Design of network Al2O3 spheres for significantly enhanced thermal conductivity of polymer composites. Compos. Part A Appl. Sci. Manuf. 2019, 128, 105673. [Google Scholar] [CrossRef]
  87. Ouyang, Y.; Li, X.; Ding, F.; Bai, L.; Yuan, F. Simultaneously enhance thermal conductive property and mechanical properties of silicon rubber composites by introducing ultrafine Al2O3 nanospheres prepared via thermal plasma. Compos. Sci. Technol. 2020, 190, 108019. [Google Scholar] [CrossRef]
  88. He, J.; Bai, L.; Jin, H.; Yuan, F. Optimization of tungsten particles spheroidization with different size in thermal plasma reactor based on numerical simulation. Powder Technol. 2016, 302, 288–297. [Google Scholar] [CrossRef]
  89. Bai, L.; He, J.; Ouyang, Y.; Liu, W.; Liu, H.; Yao, H.; Li, Z.; Song, J.; Wang, Y.; Yuan, F. Modeling and Selection of RF Thermal Plasma Hot-Wall Torch for Large-Scale Production of Nanopowders. Materials 2019, 12, 2141. [Google Scholar] [CrossRef] [Green Version]
  90. Zhang, H.B. Preparation of Nano Microsphere Tungsten Powder by High Frequency Thermal Plasma; University of Chinese Academy of Sciences: Beijing, China, 2012. [Google Scholar]
  91. Bai, L.; Zhang, H.; Jin, H.; Yuan, F.; Huang, S.; Li, J. Radio-Frequency Atmospheric-Pressure Plasma Synthesis of Ultrafine ZrC Powders. Int. J. Appl. Ceram. Technol. 2012, 10, E274–E281. [Google Scholar] [CrossRef]
  92. Van Laar, J.; Slabber, J.; Meyer, J.; van der Walt, I.; Puts, G.; Crouse, P. Microwave-plasma synthesis of nano-sized silicon carbide at atmospheric pressure. Ceram. Int. 2014, 41, 4326–4333. [Google Scholar] [CrossRef] [Green Version]
  93. Ko, S.-M.; Koo, S.-M.; Cho, W.-S.; Hwnag, K.-T.; Kim, J.-H. Synthesis of SiC nano-powder from organic precursors using RF inductively coupled thermal plasma. Ceram. Int. 2012, 38, 1959–1963. [Google Scholar] [CrossRef]
  94. Szépvölgyi, J.; Mohai, I.; GálI, L. Synthesis of nanosized ceramic powders in a radio frequency thermal plasma reactor. J. Eur. Ceram. Soc. 2008, 28, 895–899. [Google Scholar] [CrossRef]
  95. Bai, L.Y. Synthesis of ultrafine ZrB2 and ZrC powders by high frequency thermal plasma. Aerosp. Mater. Technol. 2012, 2, 88–90. [Google Scholar]
  96. Bai, L.; Jin, H.; Lu, C.; Yuan, F.; Huang, S.; Li, J. RF thermal plasma-assisted metallothermic synthesis of ultrafine ZrB2 powders. Ceram. Int. 2015, 41, 7312–7317. [Google Scholar] [CrossRef]
  97. Bai, L.; Yuan, F.; Fang, Z.; Wang, Q.; Ouyang, Y.; Jin, H.; He, J.; Liu, W.; Wang, Y. RF Thermal Plasma Synthesis of Ultrafine ZrB2-ZrC Composite Powders. Nanomaterials 2020, 10, 2497. [Google Scholar] [CrossRef] [PubMed]
Nanomaterials 11 02345 g001 550
Figure 1. FESEM image of ZrB2 powders (a) and EDS of point A (b) [60].
Figure 1. FESEM image of ZrB2 powders (a) and EDS of point A (b) [60].
Nanomaterials 11 02345 g001
Nanomaterials 11 02345 g002 550
Figure 2. XRD patterns of ZrB2 powders prepared with different content of NaB4O7 [60].
Figure 2. XRD patterns of ZrB2 powders prepared with different content of NaB4O7 [60].
Nanomaterials 11 02345 g002
Nanomaterials 11 02345 g003 550
Figure 3. SEM picture of the sample obtained using green mixture with packing density of 0.66 g/cm3 (a) and 1.32 g/cm3 (b) [64].
Figure 3. SEM picture of the sample obtained using green mixture with packing density of 0.66 g/cm3 (a) and 1.32 g/cm3 (b) [64].
Nanomaterials 11 02345 g003
Nanomaterials 11 02345 g004 550
Figure 4. SEM images and particle size distribution of samples obtained following the primary synthesis step (a,c) and the second synthesis step (b,d) [65].
Figure 4. SEM images and particle size distribution of samples obtained following the primary synthesis step (a,c) and the second synthesis step (b,d) [65].
Nanomaterials 11 02345 g004
Nanomaterials 11 02345 g005 550
Figure 5. XRD patterns of samples mixed with the guide Si plate [65].
Figure 5. XRD patterns of samples mixed with the guide Si plate [65].
Nanomaterials 11 02345 g005
Nanomaterials 11 02345 g006 550
Figure 6. FESEM images of ZrB2 powders synthesized at 1450 °C for different holding times ((a) 1 h; (b) 1.5 h) [66].
Figure 6. FESEM images of ZrB2 powders synthesized at 1450 °C for different holding times ((a) 1 h; (b) 1.5 h) [66].
Nanomaterials 11 02345 g006
Nanomaterials 11 02345 sch001 550
Scheme 1. Schematic diagram for the preparation of ZrB2 [68].
Scheme 1. Schematic diagram for the preparation of ZrB2 [68].
Nanomaterials 11 02345 sch001
Nanomaterials 11 02345 sch002 550
Scheme 2. Synthesis flowchart for precursors [70].
Scheme 2. Synthesis flowchart for precursors [70].
Nanomaterials 11 02345 sch002
Nanomaterials 11 02345 g007 550

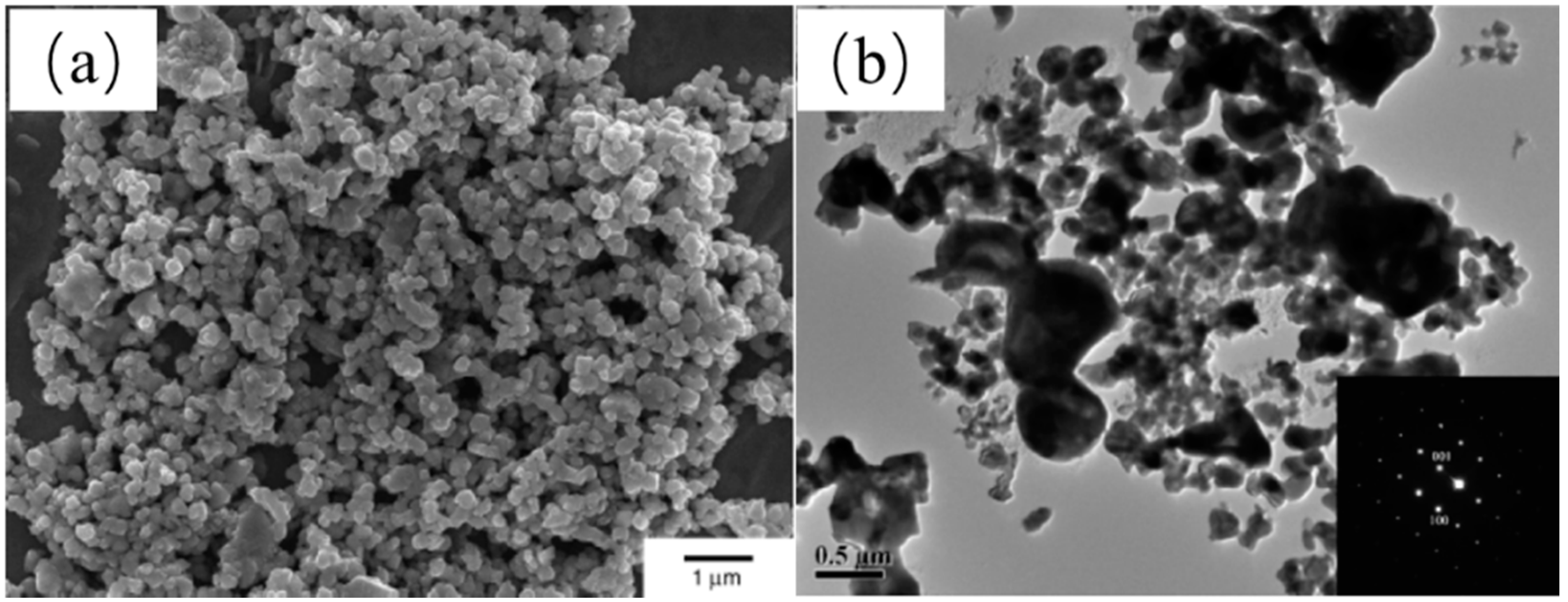

Figure 7. FESEM (a) and TEM (b) images of the synthesized ZrB2 powders [70].
Figure 7. FESEM (a) and TEM (b) images of the synthesized ZrB2 powders [70].
Nanomaterials 11 02345 g007
Nanomaterials 11 02345 g008 550
Figure 8. FESEM images of precursor derived from the nascent state gel calcined at (a) 1300 °C and (b) 1550 °C for 2 h, respectively. [79].
Figure 8. FESEM images of precursor derived from the nascent state gel calcined at (a) 1300 °C and (b) 1550 °C for 2 h, respectively. [79].
Nanomaterials 11 02345 g008
Nanomaterials 11 02345 sch003 550
Scheme 3. Synthesis of precursor PZCB [80].
Scheme 3. Synthesis of precursor PZCB [80].
Nanomaterials 11 02345 sch003
Nanomaterials 11 02345 g009 550
Figure 9. Layout of the RF thermal plasma processing system: (1) plasma power supply system, (2) entrained-flow powder feeder, (3) plasma torch, (4) cylindrical reactor and cooling chamber, (5) powder collector, (6) vacuum pump and exhaust system [90].
Figure 9. Layout of the RF thermal plasma processing system: (1) plasma power supply system, (2) entrained-flow powder feeder, (3) plasma torch, (4) cylindrical reactor and cooling chamber, (5) powder collector, (6) vacuum pump and exhaust system [90].
Nanomaterials 11 02345 g009
Nanomaterials 11 02345 g010 550
Figure 10. RF plasma jet ((a) Ar-plasma; (b) H-plasma) [90].
Figure 10. RF plasma jet ((a) Ar-plasma; (b) H-plasma) [90].
Nanomaterials 11 02345 g010
Nanomaterials 11 02345 sch004 550
Scheme 4. (a) sketch of the RF plasma reactor, (b) temperature thermofluid field in plasma arc and (c) schematic diagram of formation process of nanopowder in plasma [83].
Scheme 4. (a) sketch of the RF plasma reactor, (b) temperature thermofluid field in plasma arc and (c) schematic diagram of formation process of nanopowder in plasma [83].
Nanomaterials 11 02345 sch004
Nanomaterials 11 02345 sch005 550
Scheme 5. Process flow chart for plasma synthesis of ultrafine ZrB2 powders [96].
Scheme 5. Process flow chart for plasma synthesis of ultrafine ZrB2 powders [96].
Nanomaterials 11 02345 sch005
Nanomaterials 11 02345 g011 550
Figure 11. TEM image (a) and particle size distribution (b) of the product [96].
Figure 11. TEM image (a) and particle size distribution (b) of the product [96].
Nanomaterials 11 02345 g011
Table
Table 1. Crystallite size of different synthesized powder samples [62].
Table 1. Crystallite size of different synthesized powder samples [62].
NaCl (wt.%)Crystal Size (nm)
025
520
1018
1516
2013
Table
Table 2. Comparison list between the characteristics of plasma process and the properties of ZrB2 powders.
Table 2. Comparison list between the characteristics of plasma process and the properties of ZrB2 powders.
Characteristics of Plasma ProcessProperties of ZrB2 Powders
High temperatureHigh temperature
Rapid coolingNano size
No electrode pollutionHigh purity
Controllable atmosphereNon-oxide
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Bai, L.; Ouyang, Y.; Yuan, F. Progress in Preparation of ZrB2 Nanopowders Based on Traditional Solid-State Synthesis. Nanomaterials 2021, 11, 2345. https://doi.org/10.3390/nano11092345

AMA Style

Bai L, Ouyang Y, Yuan F. Progress in Preparation of ZrB2 Nanopowders Based on Traditional Solid-State Synthesis. Nanomaterials. 2021; 11(9):2345. https://doi.org/10.3390/nano11092345

Chicago/Turabian Style

Bai, Liuyang, Yuge Ouyang, and Fangli Yuan. 2021. "Progress in Preparation of ZrB2 Nanopowders Based on Traditional Solid-State Synthesis" Nanomaterials 11, no. 9: 2345. https://doi.org/10.3390/nano11092345

APA Style

Bai, L., Ouyang, Y., & Yuan, F. (2021). Progress in Preparation of ZrB2 Nanopowders Based on Traditional Solid-State Synthesis. Nanomaterials, 11(9), 2345. https://doi.org/10.3390/nano11092345

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
